Table studip20.plugins Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pluginid int unsigned 10  √
plugins_activated.pluginid Implied Constraint R
plugins_default_activations.pluginid Implied Constraint R
roles_plugins.pluginid Implied Constraint R
pluginclassname varchar 255
pluginpath varchar 255
pluginname varchar 45
plugintype text 65535
enabled enum 4 no
navigationpos int unsigned 10 0
dependentonid int unsigned 10  √  null

Table contained 0 rows at Mon Aug 25 21:10 CEST 2014

Indexes:
Column(s) Type Sort Constraint Name
pluginid Primary key Asc PRIMARY

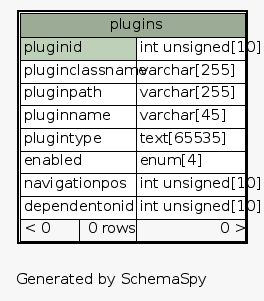

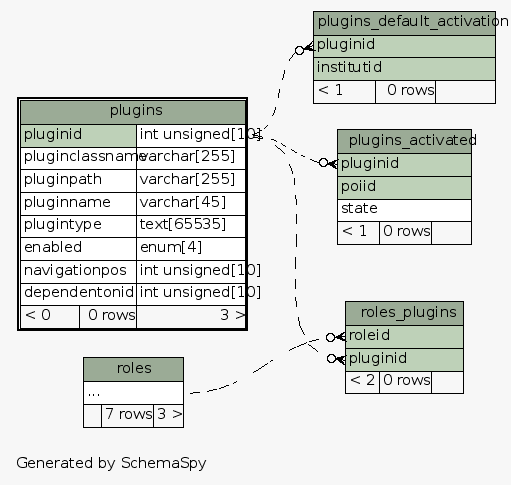

Close relationships:
