Table studip20.resources_objects Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
resource_id varchar 32
ex_termine.resource_id Implied Constraint R
resources_assign.resource_id Implied Constraint R
resources_objects_properties.resource_id Implied Constraint R
resources_requests.resource_id Implied Constraint R
resources_temporary_events.resource_id Implied Constraint R
resources_user_resources.resource_id Implied Constraint R
root_id varchar 32
parent_id varchar 32
category_id varchar 32
resources_categories.category_id Implied Constraint R
owner_id varchar 32
institut_id varchar 32
Institute.Institut_id Implied Constraint R
level int 10  √  null
name varchar 255
description text 65535
lockable tinyint 3  √  null
multiple_assign tinyint 3  √  null
mkdate int 10 0
chdate int 10 0

Table contained 12 rows at Mon Aug 25 21:10 CEST 2014

Indexes:
Column(s) Type Sort Constraint Name
resource_id Primary key Asc PRIMARY
category_id Performance Asc category_id
institut_id Performance Asc institut_id
owner_id Performance Asc owner_id
parent_id Performance Asc parent_id
root_id Performance Asc root_id

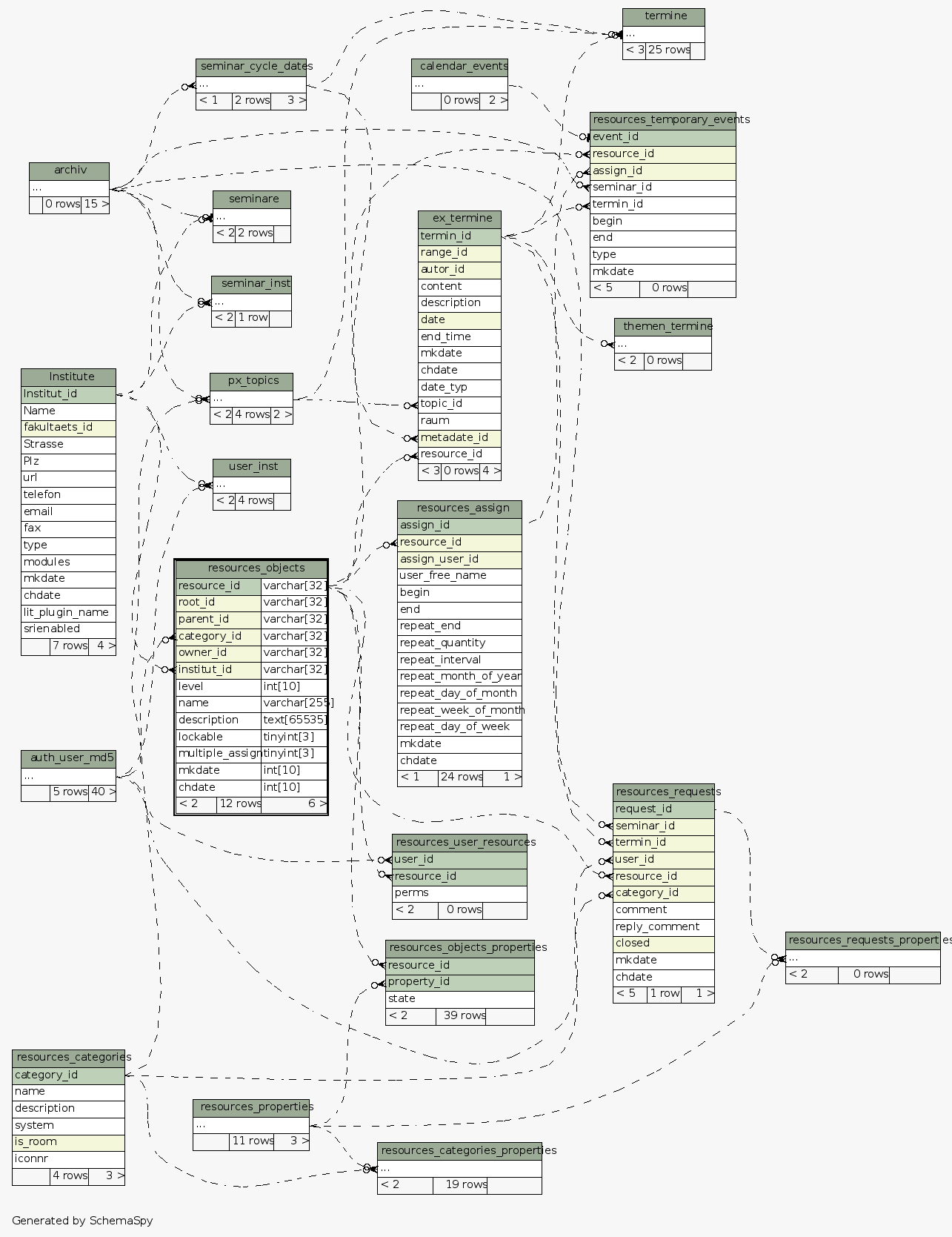

Close relationships:
