Table studip30.Institute Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
Institut_id varchar 32
resources_objects.institut_id Implied Constraint R
seminar_inst.institut_id Implied Constraint R
seminare.Institut_id Implied Constraint R
user_inst.Institut_id Implied Constraint R
Name varchar 255
fakultaets_id varchar 32
Strasse varchar 255
Plz varchar 255
url varchar 255 http://www.studip.de
opengraphdata.url Implied Constraint R
telefon varchar 32
email varchar 255
fax varchar 32
type tinyint unsigned 3 0
modules int unsigned 10  √  null
mkdate int 10 0
chdate int 10 0
lit_plugin_name varchar 255  √  null
srienabled tinyint 3 0
lock_rule varchar 32

Table contained 7 rows at Do Aug 02 15:05 GMT+01:00 2018

Indexes:
Column(s) Type Sort Constraint Name
Institut_id Primary key Asc PRIMARY
fakultaets_id Performance Asc fakultaets_id

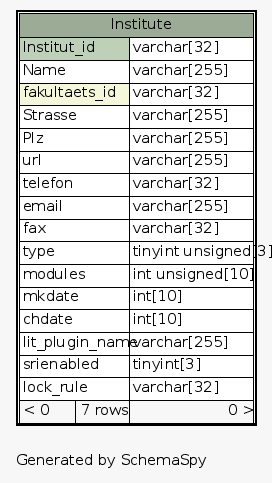

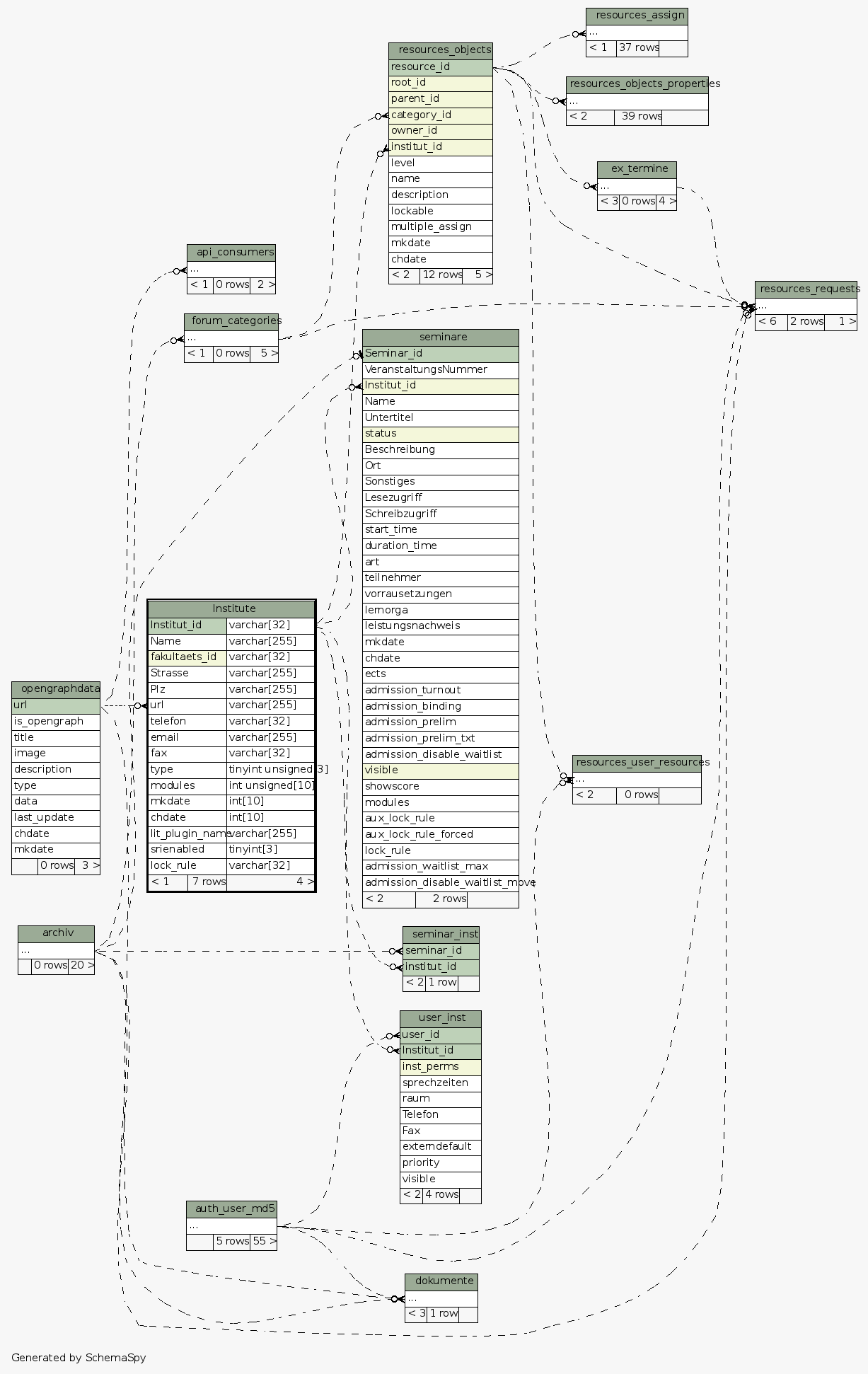

Close relationships:
