Table studip30.scm Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
scm_id varchar 32
range_id varchar 32
user_id varchar 32
auth_user_md5.user_id Implied Constraint R
tab_name varchar 20 Info
content text 65535  √  null
mkdate int 10 0
chdate int 10 0
position int unsigned 10 0

Table contained 1 rows at Do Aug 02 15:05 GMT+01:00 2018

Indexes:
Column(s) Type Sort Constraint Name
scm_id Primary key Asc PRIMARY
chdate Performance Asc chdate
range_id Performance Asc range_id

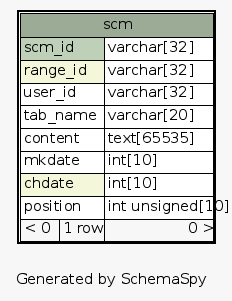

Close relationships:
