Table studip30.webservice_access_rules Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
api_key varchar 100
method varchar 100
ip_range varchar 200
type enum 6 allow
id int 10  √
admissionrules.id Implied Constraint R
schedule.id Implied Constraint R
sem_classes.id Implied Constraint R
sem_types.id Implied Constraint R

Table contained 0 rows at Do Aug 02 15:05 GMT+01:00 2018

Indexes:
Column(s) Type Sort Constraint Name
id Primary key Asc PRIMARY

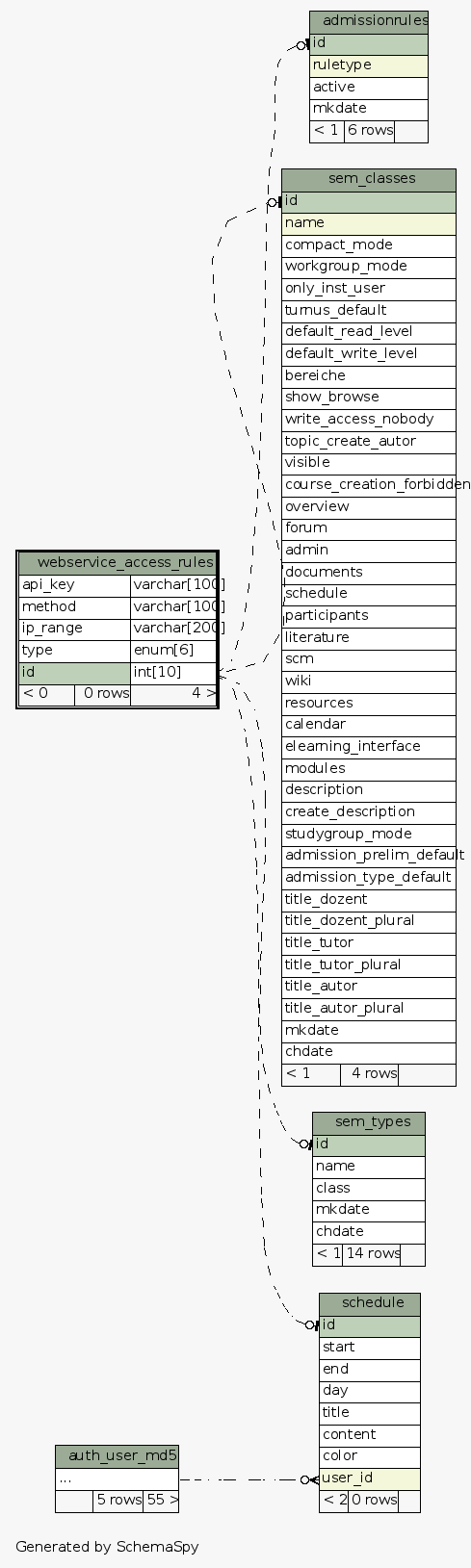

Close relationships:
