ilSCORM13Package Class Reference
+ Collaboration diagram for ilSCORM13Package:

Public Member Functions

 __construct ($packageId=null)
 load ($packageId)
 rollback ()
 exportZIP ()
 exportXML ()
 Export as internal XML.
 removeCMIData ()
 il_import ($packageFolder, $packageId, $ilias, $validate)
 Imports an extracted SCORM 2004 module from ilias-data dir into database.
 jsonNode ($node, &$sink)
 Helper for UploadAndImport Recursively copies values from XML into PHP array for export as json Elements are translated into sub array, attributes into literals.
 dbImport ($node, &$lft=1, $depth=1, $parent=0)
 dbAddNew ()
 add new sahs and package record
 dbRemoveAll ()
 transform ($inputdoc, $xslfile, $outputpath=null)
 validate ($doc, $schema)

Data Fields

const DB_ENCODE_XSL = './Modules/Scorm2004/templates/xsl/op/op-scorm13.xsl'
const CONVERT_XSL = './Modules/Scorm2004/templates/xsl/op/scorm12To2004.xsl'
const DB_DECODE_XSL = './Modules/Scorm2004/templates/xsl/op/op-scorm13-revert.xsl'
const VALIDATE_XSD = './Modules/Scorm2004/templates/xsd/op/op-scorm13.xsd'
const WRAPPER_HTML = './Modules/Scorm2004/scripts/converter/GenericRunTimeWrapper1.0_aadlc/GenericRunTimeWrapper.htm'
const WRAPPER_JS = './Modules/Scorm2004/scripts/converter/GenericRunTimeWrapper1.0_aadlc/SCOPlayerWrapper.js'
 $imsmanifest
 $manifest
 $diagnostic
 $status
 $packageId
 $packageName
 $packageHash
 $userId

Private Member Functions

 setProgress ($progress, $msg= '')

Private Attributes

 $packageFile
 $packageFolder
 $packagesFolder
 $packageData
 $idmap = array()
 $progress = 0.0

Static Private Attributes

static $elements

Detailed Description

Constructor & Destructor Documentation

ilSCORM13Package::__construct (   $packageId = null)

Definition at line 88 of file ilSCORM13Package.php.

References $GLOBALS, $packageId, and load().

{
$this->packagesFolder = IL_OP_PACKAGES_FOLDER;
$this->load($packageId);
$this->userId = $GLOBALS['USER']['usr_id'];
}

+ Here is the call graph for this function:

Member Function Documentation

ilSCORM13Package::dbAddNew ( )

add new sahs and package record

Definition at line 437 of file ilSCORM13Package.php.

{
global $ilDB;
//$this->packageId = 100;
//return true;
//ilSCORM13DB::getRecord('sahs_lm', array());
// $this->packageId = ilSCORM13DB::getRecord('sahs_lm', array());
/* ilSCORM13DB::setRecord('cp_package', array(
'obj_id' => $this->packageId,
'xmldata' => $x->asXML(),
'jsdata' => json_encode($j),
), 'obj_id');
*/
$ilDB->query("INSERT INTO cp_package ".
"(obj_id, xmldata, jsdata) VALUES ".
"(".
$ilDB->quote($this->packageId).",".
$ilDB->quote($x->asXML()).",".
$ilDB->quote(json_encode($j)).")");
return true;
}
ilSCORM13Package::dbImport (   $node,
$lft = 1,
  $depth = 1,
  $parent = 0
)

Definition at line 332 of file ilSCORM13Package.php.

Referenced by il_import().

{
global $ilDB;
switch ($node->nodeType)
{
case XML_DOCUMENT_NODE:
// insert into cp_package
/*ilSCORM13DB::setRecord('cp_package', array(
'obj_id' => $this->packageId,
'identifier' => $this->packageName,
'persistPreviousAttempts' => 0,
'settings' => '',
));*/
$ilDB->query("INSERT INTO cp_package ".
"(obj_id, identifier, persistPreviousAttempts, settings) VALUES ".
"(".$ilDB->quote($this->packageId).",".
$ilDB->quote($this->packageName).",".
$ilDB->quote(0).",".
$ilDB->quote("").
")");
// run sub nodes
$this->dbImport($node->documentElement); // RECURSION
break;
case XML_ELEMENT_NODE:
if ($node->nodeName==='manifest')
{
if ($node->getAttribute('uri')=="")
{
// default URI is md5 hash of zip file, i.e. packageHash
$node->setAttribute('uri', 'md5:' . $this->packageHash);
}
}
// insert into cp_node
/*$cp_node_id = ilSCORM13DB::setRecord('cp_node', array(
'slm_id' => $this->packageId,
'nodeName' => $node->nodeName,
), 'cp_node_id');*/
$ilDB->query("INSERT INTO cp_node ".
"(slm_id, nodeName) VALUES ".
"(".$ilDB->quote($this->packageId).",".
$ilDB->quote($node->nodeName).
")");
$cp_node_id = $ilDB->getLastInsertId();
// insert into cp_tree
/*
ilSCORM13DB::setRecord('cp_tree', array(
'child' => $cp_node_id,
'depth' => $depth,
'lft' => $lft++,
'obj_id' => $this->packageId,
'parent' => $parent,
'rgt' => 0,
));*/
$ilDB->query("INSERT INTO cp_tree ".
"(child, depth, lft, obj_id, parent, rgt) VALUES ".
"(".
$ilDB->quote($cp_node_id).",".
$ilDB->quote($depth).",".
$ilDB->quote($lft++).",".
$ilDB->quote($this->packageId).",".
$ilDB->quote($parent).",".
$ilDB->quote(0).
")");
// insert into cp_*
//$a = array('cp_node_id' => $cp_node_id);
$names = array('cp_node_id');
$values = array($ilDB->quote($cp_node_id));
foreach ($node->attributes as $attr)
{
//$a[$attr->name] = $attr->value;
$names[] = "`".$attr->name."`";
$values[] = $ilDB->quote($attr->value);
}
//ilSCORM13DB::setRecord('cp_' . $node->nodeName, $a);
$ilDB->query("INSERT INTO cp_".strtolower($node->nodeName).
" (".implode($names, ",").") VALUES ".
"(".implode($values, ",").
")");
$node->setAttribute('foreignId', $cp_node_id);
$this->idmap[$node->getAttribute('id')] = $cp_node_id;
// run sub nodes
foreach($node->childNodes as $child)
{
$this->dbImport($child, $lft, $depth+1, $cp_node_id); // RECURSION
}
// update cp_tree (rgt value for pre order walk in sql tree)
$ilDB->query('UPDATE cp_tree SET rgt='.$ilDB->quote($lft++).
' WHERE child = '.$ilDB->quote($cp_node_id));
//ilSCORM13DB::exec($q);
break;
}
}

+ Here is the caller graph for this function:

ilSCORM13Package::dbRemoveAll ( )

Definition at line 464 of file ilSCORM13Package.php.

References $t.

Referenced by rollback().

{
global $ilDB;
// remove CP element entries
foreach (self::$elements['cp'] as $t)
{
$t = 'cp_' . $t;
$ilDB->query("DELETE FROM $t WHERE $t.cp_node_id IN (SELECT cp_node.cp_node_id FROM cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
}
// remove CMI entries
$ilDB->query("DELETE FROM cmi_correct_response WHERE cmi_correct_response.cmi_interaction_id IN (SELECT cmi_interaction.cmi_interaction_id FROM cmi_interaction, cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cmi_objective WHERE cmi_objective.cmi_interaction_id IN (SELECT cmi_interaction.cmi_interaction_id FROM cmi_interaction, cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cmi_objective WHERE cmi_objective.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cmi_interaction WHERE cmi_interaction.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cmi_comment WHERE cmi_comment.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cmi_node WHERE cmi_node.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
// remove CP structure entries in tree and node
$ilDB->query("DELETE FROM cp_tree WHERE cp_tree.obj_id=".
$ilDB->quote($this->packageId));
$ilDB->query("DELETE FROM cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId));
// remove general package entry
$ilDB->query("DELETE FROM cp_package WHERE cp_package.obj_id=".
$ilDB->quote($this->packageId));
}

+ Here is the caller graph for this function:

ilSCORM13Package::exportXML ( )

Export as internal XML.

Definition at line 138 of file ilSCORM13Package.php.

References DB_FETCHMODE_ASSOC.

{
global $ilDB;
header('content-type: text/xml');
header('content-disposition: attachment; filename="manifest.xml"');
//$row = ilSCORM13DB::getRecord("cp_package", "obj_id",$this->packageId);
$set = $ilDB->query("SELECT * FROM cp_package WHERE obj_id = ".$ilDB->quote($this->$packageId));
$row = $set->fetchRow(DB_FETCHMODE_ASSOC);
print($row["xmldata"]);
}
ilSCORM13Package::exportZIP ( )

Definition at line 128 of file ilSCORM13Package.php.

{
header('content-type: application/zip');
header('content-disposition: attachment; filename="' . basename($this->packageFile) . '"');
readfile($this->packageFile);
}

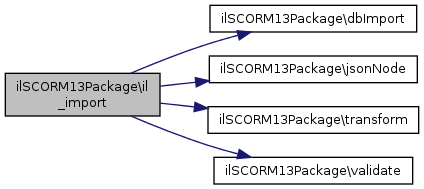

ilSCORM13Package::il_import (   $packageFolder,
  $packageId,
  $ilias,
  $validate
)

Imports an extracted SCORM 2004 module from ilias-data dir into database.

public

Returns
string title of package

Definition at line 179 of file ilSCORM13Package.php.

References $ilLog, $packageFolder, $packageId, dbImport(), jsonNode(), transform(), and validate().

{
global $ilDB, $ilLog;
//$ilLog->write("SCORM: il_import");
$this->packageFolder=$packageFolder;
$this->packageId=$packageId;
$this->imsmanifestFile = $this->packageFolder . '/' . 'imsmanifest.xml';
//step 1 - parse Manifest-File and validate
$this->imsmanifest = new DOMDocument;
$this->imsmanifest->async = false;
if (!@$this->imsmanifest->load($this->imsmanifestFile))
{
$this->diagnostic[] = 'XML not wellformed';
return false;
}
// $ilLog->write("SCORM: parse");
//step 2 tranform
$this->manifest = $this->transform($this->imsmanifest, self::DB_ENCODE_XSL);
if (!$this->manifest)
{
$this->diagnostic[] = 'Cannot transform into normalized manifest';
return false;
}
// $ilLog->write("SCORM: normalize");
//step 3 validation -just for normalized XML
if ($validate=="y") {
if (!$this->validate($this->manifest, self::VALIDATE_XSD))
{
$ilias->raiseError("<b>The uploaded SCORM 1.2 / SCORM 2004 is not valid. You can try to import the package without the validation option checked on your own risk. </b><br><br>Validation Error(s):</b><br> Normalized XML is not conform to ". self::VALIDATE_XSD,
$ilias->error_obj->WARNING);
//
//$this->diagnostic[] = 'normalized XML is not conform to ' . self::VALIDATE_XSD;
// return false;
}
}
// $ilLog->write("SCORM: validate");
// ilSCORM13DB::begin();
$this->dbImport($this->manifest);
// $ilLog->write("SCORM: import new");
// ilSCORM13DB::commit();
//step 5
$x = simplexml_load_string($this->manifest->saveXML());
// add database values from package and sahs_lm records as defaults
$x['persistPreviousAttempts'] = $this->packageData['persistPreviousAttempts'];
$x['online'] = $this->packageData['online'];
$x['defaultLessonMode'] = $this->packageData['default_lesson_mode'];
$x['credit'] = $this->packageData['credit'];
$x['autoReview'] = $this->packageData['auto_review'];
$j = array();
// first read resources into flat array to resolve item/identifierref later
$r = array();
foreach ($x->resource as $xe)
{
$r[strval($xe['id'])] = $xe;
unset($xe);
}
// iterate through items and set href and scoType as activity attributes
foreach ($x->xpath('//*[local-name()="item"]') as $xe)
{
// get reference to resource and set href accordingly
if ($b = $r[strval($xe['resourceId'])])
{
$xe['href'] = strval($b['base']) . strval($b['href']);
unset($xe['resourceId']);
if (strval($b['scormType'])=='sco') $xe['sco'] = true;
}
}
// iterate recursivly through activities and build up simple php object
// with items and associated sequencings
// top node is the default organization which is handled as an item
self::jsonNode($x->organization, $j['item']);
foreach($x->sequencing as $s)
{
self::jsonNode($s, $j['sequencing'][]);
}
// combined manifest+resources xml:base is set as organization base
$j['item']['base'] = strval($x['base']);
// package folder is base to whole playing process
$j['base'] = $packageFolder . '/';
$j['foreignId'] = floatval($x['foreignId']); // manifest cp_node_id for associating global (package wide) objectives
$j['id'] = strval($x['id']); // manifest id for associating global (package wide) objectives
//last step - build ADL Activity tree
$act = new SeqTreeBuilder();
$adl_tree = $act->buildNodeSeqTree($this->imsmanifestFile);
/*$ilDB->query("INSERT INTO cp_package ".
"(obj_id, xmldata, jsdata, activitytree) VALUES ".
"(".$ilDB->quote($this->packageId).",".
$ilDB->quote($x->asXML()).",".
$ilDB->quote(json_encode($j)).",".
$ilDB->quote(json_encode($adl_tree)).")";*/
$ilDB->query("UPDATE cp_package SET ".
" xmldata = ".$ilDB->quote($x->asXML()).",".
" jsdata = ".$ilDB->quote(json_encode($j)).",".
" activitytree = ".$ilDB->quote(json_encode($adl_tree['tree'])).",".
" global_to_system = ".$ilDB->quote($adl_tree['global']).
" WHERE obj_id = ".$ilDB->quote($this->packageId));
/*ilSCORM13DB::setRecord(
'cp_package', array(
'obj_id' => $this->packageId,
'xmldata' => $x->asXML(),
'jsdata' => json_encode($j),
'activitytree' => json_encode($adl_tree)
), 'obj_id');*/
// $ilLog->write("SCORM: import update");
return $j['item']['title'];
}

+ Here is the call graph for this function:

ilSCORM13Package::jsonNode (   $node,
$sink
)

Helper for UploadAndImport Recursively copies values from XML into PHP array for export as json Elements are translated into sub array, attributes into literals.

Parameters
xmlelement to process
referenceto array object where to copy values
Returns
void

Definition at line 315 of file ilSCORM13Package.php.

Referenced by il_import().

{
foreach ($node->attributes() as $k => $v)
{
// cast to boolean and number if possible
$v = strval($v);
if ($v==="true") $v = true;
else if ($v==="false") $v = false;
else if (is_numeric($v)) $v = (float) $v;
$sink[$k] = $v;
}
foreach ($node->children() as $name => $child)
{
self::jsonNode($child, $sink[$name][]); // RECURSION
}
}

+ Here is the caller graph for this function:

ilSCORM13Package::load (   $packageId)

Definition at line 95 of file ilSCORM13Package.php.

References $packageId, and DB_FETCHMODE_ASSOC.

Referenced by __construct().

{
global $ilDB;
if (!is_numeric($packageId))
{
return false;
}
$set = $ilDB->query("SELECT * FROM sahs_lm WHERE id = ".$ilDB->quote($packageId));
$lm_data = $set->fetchRow(DB_FETCHMODE_ASSOC);
$set = $ilDB->query("SELECT * FROM cp_package WHERE obj_id = ".$ilDB->quote($packageId));
$pg_data = $set->fetchRow(DB_FETCHMODE_ASSOC);
$this->packageData = array_merge($lm_data, $pg_data);
$this->packageId = $packageId;
$this->packageFolder = $this->packagesFolder . '/' . $packageId;
$this->packageFile = $this->packageFolder . '.zip';
$this->imsmanifestFile = $this->packageFolder . '/' . 'imsmanifest.xml';
return true;
}

+ Here is the caller graph for this function:

ilSCORM13Package::removeCMIData ( )

Definition at line 152 of file ilSCORM13Package.php.

References DB_FETCHMODE_ASSOC.

{
global $ilDB;
$ilDB->query("DELETE FROM cmi_correct_response WHERE cmi_correct_response.cmi_interaction_id IN (SELECT cmi_interaction.cmi_interaction_id FROM cmi_interaction, cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$ilDB->query("DELETE FROM cmi_objective WHERE cmi_objective.cmi_interaction_id IN (SELECT cmi_interaction.cmi_interaction_id FROM cmi_interaction, cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$ilDB->query("DELETE FROM cmi_objective WHERE cmi_objective.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$ilDB->query("DELETE FROM cmi_interaction WHERE cmi_interaction.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$ilDB->query("DELETE FROM cmi_comment WHERE cmi_comment.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$ilDB->query("DELETE FROM cmi_node WHERE cmi_node.cmi_node_id IN (SELECT cmi_node.cmi_node_id FROM cmi_node, cp_node WHERE cp_node.slm_id=".
$ilDB->quote($this->packageId).")");
$set = $ilDB->query("SELECT * FROM cp_package WHERE obj_id = ".$ilDB->quote($this->$packageId));
$row = $set->fetchRow(DB_FETCHMODE_ASSOC);
return $row["xmldata"];
}
ilSCORM13Package::rollback ( )

Definition at line 117 of file ilSCORM13Package.php.

References dbRemoveAll(), and setProgress().

{
$this->setProgress(0, 'Rolling back...');
$this->dbRemoveAll();
if (is_dir($this->packageFolder))
dir_delete($this->packageFolder);
if (is_file($this->packageFile))
@unlink($this->packageFile);
$this->setProgress(0, 'Roll back finished: Ok. ');
}

+ Here is the call graph for this function:

ilSCORM13Package::setProgress (   $progress,
  $msg = ''
)
private

Definition at line 301 of file ilSCORM13Package.php.

References $progress.

Referenced by rollback().

{
$this->progress = $progress;
$this->diagnostic[] = $msg;
}

+ Here is the caller graph for this function:

ilSCORM13Package::transform (   $inputdoc,
  $xslfile,
  $outputpath = null
)

Definition at line 498 of file ilSCORM13Package.php.

Referenced by il_import().

{
$xsl = new DOMDocument;
$xsl->async = false;
if (!@$xsl->load($xslfile))
{
die('ERROR: load StyleSheet ' . $xslfile);
}
$prc = new XSLTProcessor;
$r = @$prc->importStyleSheet($xsl);
if (false===@$prc->importStyleSheet($xsl))
{
die('ERROR: importStyleSheet ' . $xslfile);
}
if ($outputpath)
{
file_put_contents($outputpath, $prc->transformToXML($inputdoc));
}
else
{
return $prc->transformToDoc($inputdoc);
}
}

+ Here is the caller graph for this function:

ilSCORM13Package::validate (   $doc,
  $schema
)

Definition at line 522 of file ilSCORM13Package.php.

Referenced by il_import().

{
libxml_use_internal_errors(true);
$return = @$doc->schemaValidate($schema);
if (!$return)
{
$levels = array(
LIBXML_ERR_ERROR => 'Error',
LIBXML_ERR_FATAL => 'Fatal Error'
);
foreach (libxml_get_errors() as $error)
{
$level = $levels[$error->level];
if (isset($level))
{
$message = trim($error->message);
//$file = $error->file ? 'in <b>' . $error->file . '</b>' : '';
// $error->code:
$this->diagnostic[] = "XSLT $level (Line $error->line) $message";
}
}
libxml_clear_errors();
}
libxml_use_internal_errors(false);
return $return;
}

+ Here is the caller graph for this function:

Field Documentation

ilSCORM13Package::$diagnostic

Definition at line 53 of file ilSCORM13Package.php.

ilSCORM13Package::$elements
staticprivate
Initial value:
array(
'cp' => array(
'manifest',
'organization',
'item',
'hideLMSUI',
'resource',
'file',
'dependency',
'sequencing',
'rule',
'auxilaryResource',
'condition',
'mapinfo',
'objective',
),
'cmi' => array(
'comment',
'correct_response',
'interaction',
'node',
'objective',
),
)

Definition at line 63 of file ilSCORM13Package.php.

ilSCORM13Package::$idmap = array()
private

Definition at line 60 of file ilSCORM13Package.php.

ilSCORM13Package::$imsmanifest

Definition at line 51 of file ilSCORM13Package.php.

ilSCORM13Package::$manifest

Definition at line 52 of file ilSCORM13Package.php.

ilSCORM13Package::$packageData
private

Definition at line 49 of file ilSCORM13Package.php.

ilSCORM13Package::$packageFile
private

Definition at line 46 of file ilSCORM13Package.php.

ilSCORM13Package::$packageFolder
private

Definition at line 47 of file ilSCORM13Package.php.

Referenced by il_import().

ilSCORM13Package::$packageHash

Definition at line 57 of file ilSCORM13Package.php.

ilSCORM13Package::$packageId

Definition at line 55 of file ilSCORM13Package.php.

Referenced by __construct(), il_import(), and load().

ilSCORM13Package::$packageName

Definition at line 56 of file ilSCORM13Package.php.

ilSCORM13Package::$packagesFolder
private

Definition at line 48 of file ilSCORM13Package.php.

ilSCORM13Package::$progress = 0.0
private

Definition at line 61 of file ilSCORM13Package.php.

Referenced by setProgress().

ilSCORM13Package::$status

Definition at line 54 of file ilSCORM13Package.php.

ilSCORM13Package::$userId

Definition at line 58 of file ilSCORM13Package.php.

const ilSCORM13Package::CONVERT_XSL = './Modules/Scorm2004/templates/xsl/op/scorm12To2004.xsl'

Definition at line 38 of file ilSCORM13Package.php.

const ilSCORM13Package::DB_DECODE_XSL = './Modules/Scorm2004/templates/xsl/op/op-scorm13-revert.xsl'

Definition at line 39 of file ilSCORM13Package.php.

const ilSCORM13Package::DB_ENCODE_XSL = './Modules/Scorm2004/templates/xsl/op/op-scorm13.xsl'

Definition at line 37 of file ilSCORM13Package.php.

const ilSCORM13Package::VALIDATE_XSD = './Modules/Scorm2004/templates/xsd/op/op-scorm13.xsd'

Definition at line 40 of file ilSCORM13Package.php.

const ilSCORM13Package::WRAPPER_HTML = './Modules/Scorm2004/scripts/converter/GenericRunTimeWrapper1.0_aadlc/GenericRunTimeWrapper.htm'

Definition at line 42 of file ilSCORM13Package.php.

const ilSCORM13Package::WRAPPER_JS = './Modules/Scorm2004/scripts/converter/GenericRunTimeWrapper1.0_aadlc/SCOPlayerWrapper.js'

Definition at line 43 of file ilSCORM13Package.php.


The documentation for this class was generated from the following file:
