Public Member Functions | Data Fields

ASS_OrderingQuestion Class Reference

Class for ordering questions. More...

Inheritance diagram for ASS_OrderingQuestion:

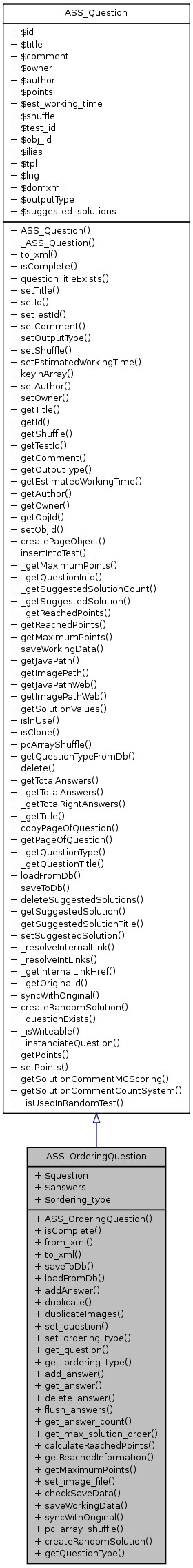

Collaboration diagram for ASS_OrderingQuestion:

Public Member Functions

 ASS_OrderingQuestion ($title="", $comment="", $author="", $owner=-1, $question="", $ordering_type=OQ_TERMS)
 ASS_OrderingQuestion constructor.
 isComplete ()
 Returns true, if a ordering question is complete for use.
 from_xml ($xml_text)
 Imports a question from XML.
 to_xml ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false)
 Returns a QTI xml representation of the question.
 saveToDb ($original_id="")
 Saves a ASS_OrderingQuestion object to a database.
 loadFromDb ($question_id)
 Loads a ASS_OrderingQuestion object from a database.
 addAnswer ($answertext, $points, $answerorder, $solutionorder)
 Adds an answer to the question.
 duplicate ($for_test=true, $title="", $author="", $owner="")
 Duplicates an ASS_OrderingQuestion.
 duplicateImages ($question_id)
 set_question ($question="")
 Sets the ordering question text.
 set_ordering_type ($ordering_type=OQ_TERMS)
 Sets the ordering question type.
 get_question ()
 Returns the question text.
 get_ordering_type ()
 Returns the ordering question type.
 add_answer ($answertext="", $points=0.0, $order=0, $solution_order=0)
 Adds an answer for an ordering question.
 get_answer ($index=0)
 Returns an ordering answer.
 delete_answer ($index=0)
 Deletes an answer.
 flush_answers ()
 Deletes all answers.
 get_answer_count ()
 Returns the number of answers.
 get_max_solution_order ()
 Returns the maximum solution order.
 calculateReachedPoints ($user_id, $test_id)
 Returns the points, a learner has reached answering the question.
 getReachedInformation ($user_id, $test_id)
 Returns the evaluation data, a learner has entered to answer the question.
 getMaximumPoints ()
 Returns the maximum points, a learner can reach answering the question.
 set_image_file ($image_filename, $image_tempfilename="")
 Sets the image file.
 checkSaveData ()
 Checks the data to be saved for consistency.
 saveWorkingData ($test_id, $limit_to=LIMIT_NO_LIMIT)
 Saves the learners input of the question to the database.
 syncWithOriginal ()
 pc_array_shuffle ($array)
 createRandomSolution ($test_id, $user_id)
 getQuestionType ()
 Returns the question type of the question.

Data Fields

 $question
 $answers
 $ordering_type

Detailed Description

Class for ordering questions.

ASS_OrderingQuestion is a class for ordering questions.

Author:
Helmut Schottmüller <hschottm@tzi.de>
Version:
Id:
class.assOrderingQuestion.php 9260 2005-11-30 20:59:15Z hschottm

class.assOrderingQuestion.php Assessment

Definition at line 42 of file class.assOrderingQuestion.php.


Member Function Documentation

ASS_OrderingQuestion::add_answer ( answertext = "",
points = 0.0,
order = 0,
solution_order = 0
)

Adds an answer for an ordering question.

Adds an answer for an ordering choice question. The students have to fill in an order for the answer. The answer is an ASS_AnswerOrdering object that will be created and assigned to the array $this->answers.

Parameters:
string $answertext The answer text
double $points The points for selecting the answer (even negative points can be used)
integer $order A possible display order of the answer
integer $solution_order An unique integer value representing the correct order of that answer in the solution of a question public
See also:
$answers
ASS_AnswerOrdering

Definition at line 938 of file class.assOrderingQuestion.php.

References ASS_Question::$points.

Referenced by from_xml().

        {
                $found = -1;
                foreach ($this->answers as $key => $value)
                {
                        if ($value->get_order() == $order)
                        {
                                $found = $order;
                        }
                }
                if ($found >= 0)
                {
                        // Antwort einfügen
                        $answer = new ASS_AnswerOrdering($answertext, $points, $found, $solution_order);
                        array_push($this->answers, $answer);
                        for ($i = $found + 1; $i < count($this->answers); $i++)
                        {
                                $this->answers[$i] = $this->answers[$i-1];
                        }
                        $this->answers[$found] = $answer;
                }
                else
                {
                        // Anwort anhängen
                        $answer = new ASS_AnswerOrdering($answertext, $points,
                                count($this->answers), $solution_order);
                        array_push($this->answers, $answer);
                }
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::addAnswer ( answertext,
points,
answerorder,
solutionorder
)

Adds an answer to the question.

Adds an answer to the question

public

Definition at line 792 of file class.assOrderingQuestion.php.

References ASS_Question::$points.

        {
                array_push($this->answers, new ASS_AnswerOrdering($answertext, $points, $answerorder, $solutionorder));
        }

ASS_OrderingQuestion::ASS_OrderingQuestion ( title = "",
comment = "",
author = "",
owner = -1,
question = "",
ordering_type = OQ_TERMS
)

ASS_OrderingQuestion constructor.

The constructor takes possible arguments an creates an instance of the ASS_OrderingQuestion object.

Parameters:
string $title A title string to describe the question
string $comment A comment string to describe the question
string $author A string containing the name of the questions author
integer $owner A numerical ID to identify the owner/creator
string $question The question string of the ordering test public

Definition at line 84 of file class.assOrderingQuestion.php.

References ASS_Question::$author, ASS_Question::$comment, $ordering_type, ASS_Question::$owner, $question, ASS_Question::$title, and ASS_Question::ASS_Question().

        {
                $this->ASS_Question($title, $comment, $author, $owner);
                $this->answers = array();
                $this->question = $question;
                $this->ordering_type = $ordering_type;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::calculateReachedPoints ( user_id,
test_id
)

Returns the points, a learner has reached answering the question.

Returns the points, a learner has reached answering the question The points are calculated from the given answers including checks for all special scoring options in the test container.

Parameters:
integer $user_id The database ID of the learner
integer $test_id The database Id of the test containing the question public

Definition at line 1093 of file class.assOrderingQuestion.php.

References $data, ASS_Question::$points, $query, $result, $row, ASS_Question::$test_id, $user_id, ASS_Question::getId(), and getMaximumPoints().

        {
                global $ilDB;

                $found_value1 = array();
                $found_value2 = array();
                $query = sprintf("SELECT * FROM tst_solutions WHERE user_fi = %s AND test_fi = %s AND question_fi = %s",
                        $ilDB->quote($user_id),
                        $ilDB->quote($test_id),
                        $ilDB->quote($this->getId())
                );
                $result = $ilDB->query($query);
                $user_order = array();
                while ($data = $result->fetchRow(DB_FETCHMODE_OBJECT))
                {
                        if ((strcmp($data->value1, "") != 0) && (strcmp($data->value2, "") != 0))
                        {
                                $user_order[$data->value2] = $data->value1;
                        }
                }
                ksort($user_order);
                $user_order = array_values($user_order);
                $answer_order = array();
                foreach ($this->answers as $key => $answer)
                {
                        $answer_order[$answer->get_solution_order()] = $key;
                }
                ksort($answer_order);
                $answer_order = array_values($answer_order);
                $points = 0;
                foreach ($answer_order as $index => $answer_id)
                {
                        if (strcmp($user_order[$index], "") != 0)
                        {
                                if ($answer_id == $user_order[$index])
                                {
                                        $points += $this->answers[$answer_id]->get_points();
                                }
                        }
                }

                // check for special scoring options in test
                $query = sprintf("SELECT * FROM tst_tests WHERE test_id = %s",
                        $ilDB->quote($test_id)
                );
                $result = $ilDB->query($query);
                if ($result->numRows() == 1)
                {
                        $row = $result->fetchRow(DB_FETCHMODE_ASSOC);
                        if ($row["count_system"] == 1)
                        {
                                if ($points != $this->getMaximumPoints())
                                {
                                        $points = 0;
                                }
                        }
                }
                else
                {
                        $points = 0;
                }
                return $points;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::checkSaveData (  )

Checks the data to be saved for consistency.

Checks the data to be saved for consistency

Returns:
boolean True, if the check was ok, False otherwise public
See also:
$answers

Definition at line 1260 of file class.assOrderingQuestion.php.

References $_POST, $result, and sendInfo().

Referenced by saveWorkingData().

        {
                $result = true;
                $order_values = array();
                foreach ($_POST as $key => $value)
                {
                        if (preg_match("/^order_(\d+)/", $key, $matches))
                        {
                                if (strcmp($value, "") != 0)
                                {
                                        array_push($order_values, $value);
                                }
                        }
                }
                $check_order = array_flip($order_values);
                if (count($check_order) != count($order_values))
                {
                        // duplicate order values!!!
                        $result = false;
                        sendInfo($this->lng->txt("duplicate_order_values_entered"));
                }
                return $result;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

ASS_OrderingQuestion::createRandomSolution ( test_id,
user_id
)

Reimplemented from ASS_Question.

Definition at line 1405 of file class.assOrderingQuestion.php.

References $ilUser, $query, $result, ASS_Question::$test_id, $user_id, ASS_Question::getId(), and pc_array_shuffle().

        {
                global $ilDB;
                global $ilUser;

                $db =& $ilDB->db;

                $query = sprintf("DELETE FROM tst_solutions WHERE user_fi = %s AND test_fi = %s AND question_fi = %s",
                        $db->quote($user_id),
                        $db->quote($test_id),
                        $db->quote($this->getId())
                );
                $result = $db->query($query);

                $orders = range(1, count($this->answers));
                $orders = $this->pc_array_shuffle($orders);
                foreach ($this->answers as $key => $value)
                {
                        $query = sprintf("INSERT INTO tst_solutions (solution_id, user_fi, test_fi, question_fi, value1, value2, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, NULL)",
                                $db->quote($user_id),
                                $db->quote($test_id),
                                $db->quote($this->getId()),
                                $db->quote($key),
                                $db->quote(array_pop($orders))
                        );
                        $result = $db->query($query);
                }
        }

Here is the call graph for this function:

ASS_OrderingQuestion::delete_answer ( index = 0  )

Deletes an answer.

Deletes an answer with a given index. The index of the first answer is 0, the index of the second answer is 1 and so on.

Parameters:
integer $index A nonnegative index of the n-th answer public
See also:
$answers

Definition at line 1002 of file class.assOrderingQuestion.php.

        {
                if ($index < 0)
                {
                        return;
                }
                if (count($this->answers) < 1)
                {
                        return;
                }
                if ($index >= count($this->answers))
                {
                        return;
                }
                unset($this->answers[$index]);
                $this->answers = array_values($this->answers);
                for ($i = 0; $i < count($this->answers); $i++)
                {
                        if ($this->answers[$i]->get_order() > $index)
                        {
                                $this->answers[$i]->set_order($i);
                        }
                }
        }

ASS_OrderingQuestion::duplicate ( for_test = true,
title = "",
author = "",
owner = ""
)

Duplicates an ASS_OrderingQuestion.

Duplicates an ASS_OrderingQuestion

public

Definition at line 804 of file class.assOrderingQuestion.php.

References ASS_Question::$author, ASS_Question::$owner, ASS_Question::$title, and ASS_Question::_getOriginalId().

        {
                if ($this->id <= 0)
                {
                        // The question has not been saved. It cannot be duplicated
                        return;
                }
                // duplicate the question in database
                $clone = $this;
                include_once ("./assessment/classes/class.assQuestion.php");
                $original_id = ASS_Question::_getOriginalId($this->id);
                $clone->id = -1;
                if ($title)
                {
                        $clone->setTitle($title);
                }
                if ($author)
                {
                        $clone->setAuthor($author);
                }
                if ($owner)
                {
                        $clone->setOwner($owner);
                }
                if ($for_test)
                {
                        $clone->saveToDb($original_id);
                }
                else
                {
                        $clone->saveToDb();
                }

                // copy question page content
                $clone->copyPageOfQuestion($original_id);

                // duplicate the image
                $clone->duplicateImages($original_id);
                return $clone->id;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::duplicateImages ( question_id  )

Definition at line 845 of file class.assOrderingQuestion.php.

References get_ordering_type(), ASS_Question::getImagePath(), and ilUtil::makeDirParents().

        {
                if ($this->get_ordering_type() == OQ_PICTURES)
                {
                        $imagepath = $this->getImagePath();
                        $imagepath_original = str_replace("/$this->id/images", "/$question_id/images", $imagepath);
                        if (!file_exists($imagepath)) {
                                ilUtil::makeDirParents($imagepath);
                        }
                        foreach ($this->answers as $answer)
                        {
                                $filename = $answer->get_answertext();
                                if (!copy($imagepath_original . $filename, $imagepath . $filename)) {
                                        print "image could not be duplicated!!!! ";
                                }
                                if (!copy($imagepath_original . $filename . ".thumb.jpg", $imagepath . $filename . ".thumb.jpg")) {
                                        print "image thumbnail could not be duplicated!!!! ";
                                }
                        }
                }
        }

Here is the call graph for this function:

ASS_OrderingQuestion::flush_answers (  )

Deletes all answers.

Deletes all answers

public

See also:
$answers

Definition at line 1035 of file class.assOrderingQuestion.php.

        {
                $this->answers = array();
        }

ASS_OrderingQuestion::from_xml ( xml_text  )

Imports a question from XML.

Sets the attributes of the question from the XML text passed as argument

Returns:
boolean True, if the import succeeds, false otherwise public

Definition at line 128 of file class.assOrderingQuestion.php.

References ASS_Question::$comment, $idx, $ilErr, $image, $result, ASS_Question::$shuffle, ilQTIUtils::_getRespcondition(), add_answer(), ilUtil::convertImage(), domxml_open_mem(), get_ordering_type(), ASS_Question::getId(), ASS_Question::getImagePath(), ilUtil::makeDirParents(), saveToDb(), set_ordering_type(), set_question(), ASS_Question::setAuthor(), ASS_Question::setComment(), ASS_Question::setEstimatedWorkingTime(), ASS_Question::setShuffle(), ASS_Question::setSuggestedSolution(), and ASS_Question::setTitle().

        {
                $result = false;
                if (!empty($this->domxml))
                {
                        $this->domxml->free();
                }
                $xml_text = preg_replace("/>\s*?</", "><", $xml_text);
                $this->domxml = domxml_open_mem($xml_text);
                if (!empty($this->domxml))
                {
                        $root = $this->domxml->document_element();
                        $item = $root->first_child();
                        $this->setTitle($item->get_attribute("title"));
                        $this->gaps = array();
                        $itemnodes = $item->child_nodes();
                        $materials = array();
                        $images = array();
                        $shuffle = "";
                        foreach ($itemnodes as $index => $node)
                        {
                                switch ($node->node_name())
                                {
                                        case "qticomment":
                                                $comment = $node->get_content();
                                                if (strpos($comment, "ILIAS Version=") !== false)
                                                {
                                                }
                                                elseif (strpos($comment, "Questiontype=") !== false)
                                                {
                                                }
                                                elseif (strpos($comment, "Author=") !== false)
                                                {
                                                        $comment = str_replace("Author=", "", $comment);
                                                        $this->setAuthor($comment);
                                                }
                                                else
                                                {
                                                        $this->setComment($comment);
                                                }
                                                break;
                                        case "itemmetadata":
                                                $md_array = array();
                                                $metanodes = $node->child_nodes();
                                                foreach ($metanodes as $metanode)
                                                {
                                                        switch ($metanode->node_name())
                                                        {
                                                                case "qtimetadata":
                                                                        $metafields = $metanode->child_nodes();
                                                                        foreach ($metafields as $metafield)
                                                                        {
                                                                                switch ($metafield->node_name())
                                                                                {
                                                                                        case "qtimetadatafield":
                                                                                                $metafieldlist = $metafield->child_nodes();
                                                                                                $md = array("label" => "", "entry" => "");
                                                                                                foreach ($metafieldlist as $attr)
                                                                                                {
                                                                                                        switch ($attr->node_name())
                                                                                                        {
                                                                                                                case "fieldlabel":
                                                                                                                        $md["label"] = $attr->get_content();
                                                                                                                        break;
                                                                                                                case "fieldentry":
                                                                                                                        $md["entry"] = $attr->get_content();
                                                                                                                        break;
                                                                                                        }
                                                                                                }
                                                                                                array_push($md_array, $md);
                                                                                                break;
                                                                                }
                                                                        }
                                                                        break;
                                                        }
                                                }
                                                foreach ($md_array as $md)
                                                {
                                                        switch ($md["label"])
                                                        {
                                                                case "ILIAS_VERSION":
                                                                        break;
                                                                case "QUESTIONTYPE":
                                                                        break;
                                                                case "AUTHOR":
                                                                        $this->setAuthor($md["entry"]);
                                                                        break;
                                                        }
                                                }
                                                break;
                                        case "duration":
                                                $iso8601period = $node->get_content();
                                                if (preg_match("/P(\d+)Y(\d+)M(\d+)DT(\d+)H(\d+)M(\d+)S/", $iso8601period, $matches))
                                                {
                                                        $this->setEstimatedWorkingTime($matches[4], $matches[5], $matches[6]);
                                                }
                                                break;
                                        case "presentation":
                                                $flow = $node->first_child();
                                                $flownodes = $flow->child_nodes();
                                                foreach ($flownodes as $idx => $flownode)
                                                {
                                                        if (strcmp($flownode->node_name(), "material") == 0)
                                                        {
                                                                $mattext = $flownode->first_child();
                                                                $this->set_question($mattext->get_content());
                                                        }
                                                        elseif (strcmp($flownode->node_name(), "response_lid") == 0)
                                                        {
                                                                $ident = $flownode->get_attribute("ident");
                                                                if (strcmp($ident, "OQT") == 0)
                                                                {
                                                                        $this->set_ordering_type(OQ_TERMS);
                                                                }
                                                                elseif (strcmp($ident, "OQP") == 0)
                                                                {
                                                                        $this->set_ordering_type(OQ_PICTURES);
                                                                }
                                                                $subnodes = $flownode->child_nodes();
                                                                foreach ($subnodes as $node_type)
                                                                {
                                                                        switch ($node_type->node_name())
                                                                        {
                                                                                case "material":
                                                                                        $matlabel = $node_type->get_attribute("label");
                                                                                        if (strcmp($matlabel, "suggested_solution") == 0)
                                                                                        {
                                                                                                $mattype = $node_type->first_child();
                                                                                                if (strcmp($mattype->node_name(), "mattext") == 0)
                                                                                                {
                                                                                                        $suggested_solution = $mattype->get_content();
                                                                                                        if ($suggested_solution)
                                                                                                        {
                                                                                                                if ($this->getId() < 1)
                                                                                                                {
                                                                                                                        $this->saveToDb();
                                                                                                                }
                                                                                                                $this->setSuggestedSolution($suggested_solution, 0, true);
                                                                                                        }
                                                                                                }
                                                                                        }
                                                                                        break;
                                                                                case "render_choice":
                                                                                        $render_choice = $node_type;
                                                                                        $shuffle = $render_choice->get_attribute("shuffle");
                                                                                        $shuf = 0;
                                                                                        if (strcmp(strtolower($shuffle), "yes") == 0)
                                                                                        {
                                                                                                $shuf = 1;
                                                                                        }
                                                                                        $this->setShuffle($shuf);
                                                                                        $labels = $render_choice->child_nodes();
                                                                                        foreach ($labels as $lidx => $response_label)
                                                                                        {
                                                                                                $material = $response_label->first_child();
                                                                                                if ($this->get_ordering_type() == OQ_PICTURES)
                                                                                                {
                                                                                                        $matimage = $material->first_child();
                                                                                                        $filename = $matimage->get_attribute("label");
                                                                                                        $image = base64_decode($matimage->get_content());
                                                                                                        $images["$filename"] = $image;
                                                                                                        $materials[$response_label->get_attribute("ident")] = $filename;
                                                                                                }
                                                                                                else
                                                                                                {
                                                                                                        $mattext = $material->first_child();
                                                                                                        $materials[$response_label->get_attribute("ident")] = $mattext->get_content();
                                                                                                }
                                                                                        }
                                                                        }
                                                                }
                                                        }
                                                }
                                                break;
                                        case "resprocessing":
                                                $resproc_nodes = $node->child_nodes();
                                                foreach ($resproc_nodes as $index => $respcondition)
                                                {
                                                        if (strcmp($respcondition->node_name(), "respcondition") == 0)
                                                        {
                                                                $respcondition_array =& ilQTIUtils::_getRespcondition($respcondition);
                                                                $this->add_answer($materials[$respcondition_array["conditionvar"]["value"]], $respcondition_array["setvar"]["points"], count($this->answers), $respcondition_array["conditionvar"]["index"]);
                                                        }
                                                }
                                                break;
                                }
                        }
                        if (count($images))
                        {
                                $this->saveToDb();
                                foreach ($images as $filename => $image)
                                {
                                        if ($filename)
                                        {
                                                $imagepath = $this->getImagePath();
                                                if (!file_exists($imagepath))
                                                {
                                                        ilUtil::makeDirParents($imagepath);
                                                }
                                                $imagepath .=  $filename;
                                                $fh = fopen($imagepath, "wb");
                                                if ($fh == false)
                                                {
                                                        global $ilErr;
                                                        $ilErr->raiseError($this->lng->txt("error_save_image_file") . ": $php_errormsg", $ilErr->MESSAGE);
                                                        return;
                                                }
                                                $imagefile = fwrite($fh, $image);
                                                fclose($fh);
                                                // create thumbnail file
                                                $thumbpath = $imagepath . "." . "thumb.jpg";
                                                ilUtil::convertImage($imagepath, $thumbpath, "JPEG", 100);
                                        }
                                }
                        }
                        $result = true;
                }
                return $result;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::get_answer ( index = 0  )

Returns an ordering answer.

Returns an ordering answer with a given index. The index of the first answer is 0, the index of the second answer is 1 and so on.

Parameters:
integer $index A nonnegative index of the n-th answer
Returns:
object ASS_AnswerOrdering-Object public
See also:
$answers

Definition at line 984 of file class.assOrderingQuestion.php.

        {
                if ($index < 0) return NULL;
                if (count($this->answers) < 1) return NULL;
                if ($index >= count($this->answers)) return NULL;
                return $this->answers[$index];
        }

ASS_OrderingQuestion::get_answer_count (  )

Returns the number of answers.

Returns the number of answers

Returns:
integer The number of answers of the ordering question public
See also:
$answers

Definition at line 1049 of file class.assOrderingQuestion.php.

        {
                return count($this->answers);
        }

ASS_OrderingQuestion::get_max_solution_order (  )

Returns the maximum solution order.

Returns the maximum solution order of all ordering answers

Returns:
integer The maximum solution order of all ordering answers public

Definition at line 1062 of file class.assOrderingQuestion.php.

        {
                if (count($this->answers) == 0)
                {
                        $max = 0;
                }
                else
                {
                        $max = $this->answers[0]->get_solution_order();
                }
                foreach ($this->answers as $key => $value)
                {
                        if ($value->get_solution_order() > $max)
                        {
                                $max = $value->get_solution_order();
                        }
                }
                return $max;
        }

ASS_OrderingQuestion::get_ordering_type (  )

Returns the ordering question type.

Returns the ordering question type

Returns:
integer The ordering question type public
See also:
$ordering_type

Definition at line 918 of file class.assOrderingQuestion.php.

Referenced by duplicateImages(), from_xml(), and to_xml().

        {
                return $this->ordering_type;
        }

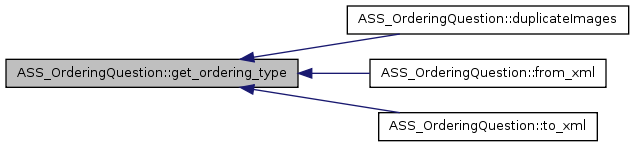

Here is the caller graph for this function:

ASS_OrderingQuestion::get_question (  )

Returns the question text.

Returns the question text

Returns:
string The question text string public
See also:
$question

Definition at line 904 of file class.assOrderingQuestion.php.

Referenced by to_xml().

        {
                return $this->question;
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::getMaximumPoints (  )

Returns the maximum points, a learner can reach answering the question.

Returns the maximum points, a learner can reach answering the question

public

See also:
$points

Reimplemented from ASS_Question.

Definition at line 1196 of file class.assOrderingQuestion.php.

References ASS_Question::$points.

Referenced by calculateReachedPoints(), saveToDb(), and syncWithOriginal().

        {
                $points = 0;
                foreach ($this->answers as $key => $value)
                {
                        $points += $value->get_points();
                }
                return $points;
        }

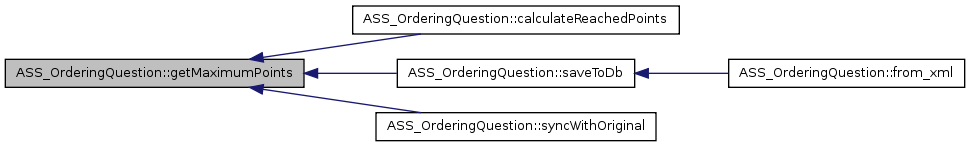

Here is the caller graph for this function:

ASS_OrderingQuestion::getQuestionType (  )

Returns the question type of the question.

Returns the question type of the question

Returns:
integer The question type of the question public

Definition at line 1442 of file class.assOrderingQuestion.php.

Referenced by saveToDb().

        {
                return 5;
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::getReachedInformation ( user_id,
test_id
)

Returns the evaluation data, a learner has entered to answer the question.

Returns the evaluation data, a learner has entered to answer the question

Parameters:
integer $user_id The database ID of the learner
integer $test_id The database Id of the test containing the question public

Definition at line 1166 of file class.assOrderingQuestion.php.

References $data, $query, $result, ASS_Question::$test_id, $user_id, and ASS_Question::getId().

        {
                $found_value1 = array();
                $found_value2 = array();
                $query = sprintf("SELECT * FROM tst_solutions WHERE user_fi = %s AND test_fi = %s AND question_fi = %s",
                        $this->ilias->db->quote($user_id),
                        $this->ilias->db->quote($test_id),
                        $this->ilias->db->quote($this->getId())
                );
                $result = $this->ilias->db->query($query);
                $user_result = array();
                while ($data = $result->fetchRow(DB_FETCHMODE_OBJECT))
                {
                        $solution = array(
                                "answer_id" => $data->value1,
                                "order" => $data->value2
                        );
                        $user_result[$data->value1] = $solution;
                }
                return $user_result;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::isComplete (  )

Returns true, if a ordering question is complete for use.

Returns true, if a ordering question is complete for use

Returns:
boolean True, if the ordering question is complete for use, otherwise false public

Reimplemented from ASS_Question.

Definition at line 107 of file class.assOrderingQuestion.php.

Referenced by saveToDb(), and syncWithOriginal().

        {
                if (($this->title) and ($this->author) and ($this->question) and (count($this->answers)))
                {
                        return true;
                }
                        else
                {
                        return false;
                }
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::loadFromDb ( question_id  )

Loads a ASS_OrderingQuestion object from a database.

Loads a ASS_OrderingQuestion object from a database (experimental)

Parameters:
object $db A pear DB object
integer $question_id A unique key which defines the multiple choice test in the database public

Reimplemented from ASS_Question.

Definition at line 742 of file class.assOrderingQuestion.php.

References $data, ASS_Question::$ilias, $query, $result, and ASS_Question::setEstimatedWorkingTime().

        {
                global $ilias;
                $db =& $ilias->db;

                $query = sprintf("SELECT * FROM qpl_questions WHERE question_id = %s",
                        $db->quote($question_id)
                );
                $result = $db->query($query);
                if (strcmp(strtolower(get_class($result)), db_result) == 0)
                {
                        if ($result->numRows() == 1)
                        {
                                $data = $result->fetchRow(DB_FETCHMODE_OBJECT);
                                $this->id = $question_id;
                                $this->title = $data->title;
                                $this->obj_id = $data->obj_fi;
                                $this->comment = $data->comment;
                                $this->original_id = $data->original_id;
                                $this->author = $data->author;
                                $this->owner = $data->owner;
                                $this->question = $data->question_text;
                                $this->solution_hint = $data->solution_hint;
                                $this->ordering_type = $data->ordering_type;
                                $this->points = $data->points;
                                $this->setEstimatedWorkingTime(substr($data->working_time, 0, 2), substr($data->working_time, 3, 2), substr($data->working_time, 6, 2));
                        }

                        $query = sprintf("SELECT * FROM qpl_answers WHERE question_fi = %s ORDER BY aorder ASC",
                                $db->quote($question_id)
                        );
                        $result = $db->query($query);
                        if (strcmp(strtolower(get_class($result)), db_result) == 0)
                        {
                                while ($data = $result->fetchRow(DB_FETCHMODE_OBJECT))
                                {
                                        array_push($this->answers, new ASS_AnswerOrdering($data->answertext, $data->points, $data->aorder, $data->solution_order));
                                }
                        }
                }
                parent::loadFromDb($question_id);
        }

Here is the call graph for this function:

ASS_OrderingQuestion::pc_array_shuffle ( array  )

Definition at line 1388 of file class.assOrderingQuestion.php.

Referenced by createRandomSolution().

                                          {
                mt_srand((double)microtime()*1000000);
                $i = count($array);
                while(--$i)
                {
                        $j = mt_rand(0, $i);
                        if ($i != $j)
                        {
                                // swap elements
                                $tmp = $array[$j];
                                $array[$j] = $array[$i];
                                $array[$i] = $tmp;
                        }
                }
                return $array;
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::saveToDb ( original_id = ""  )

Saves a ASS_OrderingQuestion object to a database.

Saves a ASS_OrderingQuestion object to a database (experimental)

Parameters:
object $db A pear DB object public

Reimplemented from ASS_Question.

Definition at line 631 of file class.assOrderingQuestion.php.

References ASS_Question::$ilias, $query, $result, ASS_Question::createPageObject(), ASS_Question::getEstimatedWorkingTime(), getMaximumPoints(), getQuestionType(), ASS_Question::getTestId(), ASS_Question::insertIntoTest(), and isComplete().

Referenced by from_xml().

        {
                global $ilias;

                $db =& $ilias->db;
                $complete = 0;
                if ($this->isComplete())
                {
                        $complete = 1;
                }

                $estw_time = $this->getEstimatedWorkingTime();
                $estw_time = sprintf("%02d:%02d:%02d", $estw_time['h'], $estw_time['m'], $estw_time['s']);

                if ($original_id)
                {
                        $original_id = $db->quote($original_id);
                }
                else
                {
                        $original_id = "NULL";
                }

                if ($this->id == -1)
                {
                        // Neuen Datensatz schreiben
                        $now = getdate();
                        $question_type = $this->getQuestionType();
                        $created = sprintf("%04d%02d%02d%02d%02d%02d", $now['year'], $now['mon'], $now['mday'], $now['hours'], $now['minutes'], $now['seconds']);
                        $query = sprintf("INSERT INTO qpl_questions (question_id, question_type_fi, obj_fi, title, comment, author, owner, question_text, working_time, ordering_type, points, complete, created, original_id, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, NULL)",
                                $db->quote($question_type . ""),
                                $db->quote($this->obj_id . ""),
                                $db->quote($this->title . ""),
                                $db->quote($this->comment . ""),
                                $db->quote($this->author . ""),
                                $db->quote($this->owner . ""),
                                $db->quote($this->question . ""),
                                $db->quote($estw_time . ""),
                                $db->quote($this->ordering_type . ""),
                                $db->quote($this->getMaximumPoints() . ""),
                                $db->quote($complete . ""),
                                $db->quote($created . ""),
                                $original_id
                        );
                        $result = $db->query($query);
                        if ($result == DB_OK)
                        {
                                $this->id = $this->ilias->db->getLastInsertId();

                                // create page object of question
                                $this->createPageObject();

                                // Falls die Frage in einen Test eingef�gt werden soll, auch diese Verbindung erstellen
                                if ($this->getTestId() > 0)
                                {
                                        $this->insertIntoTest($this->getTestId());
                                }
                        }
                }
                else
                {
                        // Vorhandenen Datensatz aktualisieren
                        $query = sprintf("UPDATE qpl_questions SET obj_fi = %s, title = %s, comment = %s, author = %s, question_text = %s, working_time = %s, ordering_type = %s, points = %s, complete = %s WHERE question_id = %s",
                                $db->quote($this->obj_id. ""),
                                $db->quote($this->title . ""),
                                $db->quote($this->comment . ""),
                                $db->quote($this->author . ""),
                                $db->quote($this->question . ""),
                                $db->quote($estw_time . ""),
                                $db->quote($this->ordering_type . ""),
                                $db->quote($this->getMaximumPoints() . ""),
                                $db->quote($complete . ""),
                                $db->quote($this->id . "")
                        );
                        $result = $db->query($query);
                }
                if ($result == DB_OK)
                {
                        // Antworten schreiben
                        // alte Antworten löschen
                        $query = sprintf("DELETE FROM qpl_answers WHERE question_fi = %s",
                                $db->quote($this->id)
                        );
                        $result = $db->query($query);

                        // Anworten wegschreiben
                        foreach ($this->answers as $key => $value)
                        {
                                $answer_obj = $this->answers[$key];
                                $query = sprintf("INSERT INTO qpl_answers (answer_id, question_fi, answertext, points, aorder, solution_order, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, NULL)",
                                        $db->quote($this->id),
                                        $db->quote($answer_obj->get_answertext() . ""),
                                        $db->quote($answer_obj->get_points() . ""),
                                        $db->quote($answer_obj->get_order() . ""),
                                        $db->quote($answer_obj->get_solution_order() . "")
                                );
                                $answer_result = $db->query($query);
                        }
                }
                parent::saveToDb($original_id);
        }

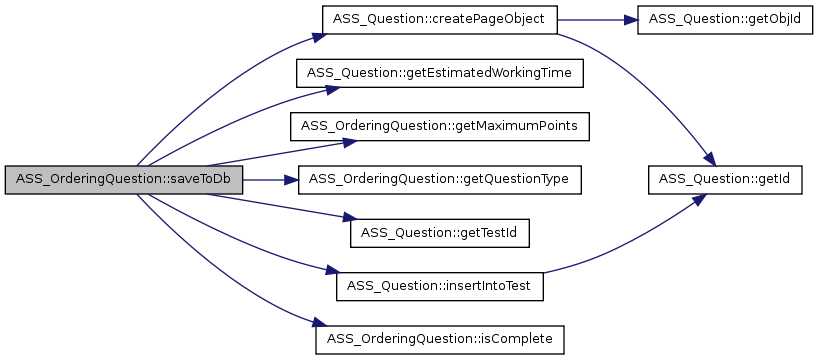

Here is the call graph for this function:

Here is the caller graph for this function:

ASS_OrderingQuestion::saveWorkingData ( test_id,
limit_to = LIMIT_NO_LIMIT
)

Saves the learners input of the question to the database.

Saves the learners input of the question to the database

Parameters:
integer $test_id The database id of the test containing this question
Returns:
boolean Indicates the save status (true if saved successful, false otherwise) public
See also:
$answers

Reimplemented from ASS_Question.

Definition at line 1294 of file class.assOrderingQuestion.php.

References $_POST, $ilUser, $query, $result, ASS_Question::$test_id, checkSaveData(), and ASS_Question::getId().

        {
                global $ilDB;
                global $ilUser;

                $saveWorkingDataResult = $this->checkSaveData();
                if ($saveWorkingDataResult)
                {
                        $db =& $ilDB->db;

                        $query = sprintf("DELETE FROM tst_solutions WHERE user_fi = %s AND test_fi = %s AND question_fi = %s",
                                $db->quote($ilUser->id),
                                $db->quote($test_id),
                                $db->quote($this->getId())
                        );
                        $result = $db->query($query);

                        foreach ($_POST as $key => $value)
                        {
                                if (preg_match("/^order_(\d+)/", $key, $matches))
                                {
                                        if (!(preg_match("/initial_value_\d+/", $value)))
                                        {
                                                $query = sprintf("INSERT INTO tst_solutions (solution_id, user_fi, test_fi, question_fi, value1, value2, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, NULL)",
                                                        $db->quote($ilUser->id),
                                                        $db->quote($test_id),
                                                        $db->quote($this->getId()),
                                                        $db->quote($matches[1]),
                                                        $db->quote($value)
                                                );
                                                $result = $db->query($query);
                                        }
                                }
                        }
                }
    parent::saveWorkingData($test_id);
                return $saveWorkingDataResult;
        }

Here is the call graph for this function:

ASS_OrderingQuestion::set_image_file ( image_filename,
image_tempfilename = ""
)

Sets the image file.

Sets the image file and uploads the image to the object's image directory.

Parameters:
string $image_filename Name of the original image file
string $image_tempfilename Name of the temporary uploaded image file
Returns:
integer An errorcode if the image upload fails, 0 otherwise public

Definition at line 1216 of file class.assOrderingQuestion.php.

References $result, ilUtil::convertImage(), ASS_Question::getImagePath(), ilObjMediaObject::getMimeType(), ilUtil::makeDirParents(), and ilUtil::moveUploadedFile().

        {
                $result = 0;
                if (!empty($image_tempfilename))
                {
                        $image_filename = str_replace(" ", "_", $image_filename);
                        $imagepath = $this->getImagePath();
                        if (!file_exists($imagepath))
                        {
                                ilUtil::makeDirParents($imagepath);
                        }
                        if (!ilUtil::moveUploadedFile($image_tempfilename,$image_filename, $imagepath.$image_filename))
                        {
                                $result = 2;
                        }
                        else
                        {
                                require_once "./content/classes/Media/class.ilObjMediaObject.php";
                                $mimetype = ilObjMediaObject::getMimeType($imagepath . $image_filename);
                                if (!preg_match("/^image/", $mimetype))
                                {
                                        unlink($imagepath . $image_filename);
                                        $result = 1;
                                }
                                else
                                {
                                        // create thumbnail file
                                        $thumbpath = $imagepath . $image_filename . "." . "thumb.jpg";
                                        ilUtil::convertImage($imagepath.$image_filename, $thumbpath, strtoupper($extension), 100);
                                }
                        }
                }
                return $result;
        }

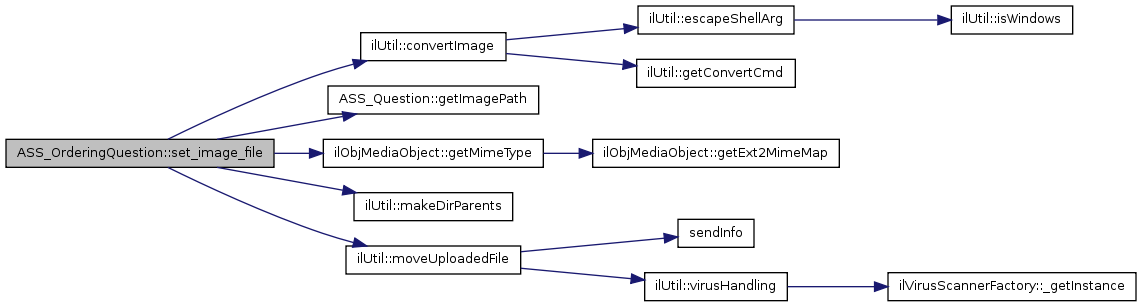

Here is the call graph for this function:

ASS_OrderingQuestion::set_ordering_type ( ordering_type = OQ_TERMS  )

Sets the ordering question type.

Sets the ordering question type

Parameters:
integer $ordering_type The question ordering type public
See also:
$ordering_type

Definition at line 890 of file class.assOrderingQuestion.php.

References $ordering_type.

Referenced by from_xml().

        {
                $this->ordering_type = $ordering_type;
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::set_question ( question = ""  )

Sets the ordering question text.

Sets the ordering question text

Parameters:
string $question The question text public
See also:
$question

Definition at line 876 of file class.assOrderingQuestion.php.

References $question.

Referenced by from_xml().

        {
                $this->question = $question;
        }

Here is the caller graph for this function:

ASS_OrderingQuestion::syncWithOriginal (  )

Reimplemented from ASS_Question.

Definition at line 1333 of file class.assOrderingQuestion.php.

References ASS_Question::$ilias, $query, $result, ASS_Question::getEstimatedWorkingTime(), getMaximumPoints(), and isComplete().

        {
                global $ilias;
                if ($this->original_id)
                {
                        $complete = 0;
                        if ($this->isComplete())
                        {
                                $complete = 1;
                        }
                        $db = & $ilias->db;

                        $estw_time = $this->getEstimatedWorkingTime();
                        $estw_time = sprintf("%02d:%02d:%02d", $estw_time['h'], $estw_time['m'], $estw_time['s']);

                        $query = sprintf("UPDATE qpl_questions SET obj_fi = %s, title = %s, comment = %s, author = %s, question_text = %s, working_time = %s, ordering_type = %s, points = %s, complete = %s WHERE question_id = %s",
                                $db->quote($this->obj_id. ""),
                                $db->quote($this->title . ""),
                                $db->quote($this->comment . ""),
                                $db->quote($this->author . ""),
                                $db->quote($this->question . ""),
                                $db->quote($estw_time . ""),
                                $db->quote($this->ordering_type . ""),
                                $db->quote($this->getMaximumPoints() . ""),
                                $db->quote($complete . ""),
                                $db->quote($this->original_id . "")
                        );
                        $result = $db->query($query);

                        if ($result == DB_OK)
                        {
                                // write ansers
                                // delete old answers
                                $query = sprintf("DELETE FROM qpl_answers WHERE question_fi = %s",
                                        $db->quote($this->original_id)
                                );
                                $result = $db->query($query);

                                foreach ($this->answers as $key => $value)
                                {
                                        $answer_obj = $this->answers[$key];
                                        $query = sprintf("INSERT INTO qpl_answers (answer_id, question_fi, answertext, points, aorder, solution_order, TIMESTAMP) VALUES (NULL, %s, %s, %s, %s, %s, NULL)",
                                                $db->quote($this->original_id . ""),
                                                $db->quote($answer_obj->get_answertext() . ""),
                                                $db->quote($answer_obj->get_points() . ""),
                                                $db->quote($answer_obj->get_order() . ""),
                                                $db->quote($answer_obj->get_solution_order() . "")
                                        );
                                        $answer_result = $db->query($query);
                                }
                        }
                        parent::syncWithOriginal();
                }
        }

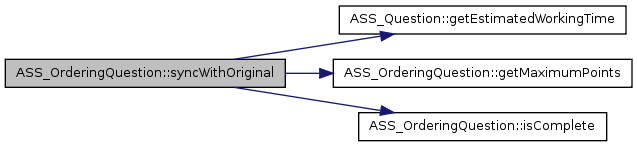

Here is the call graph for this function:

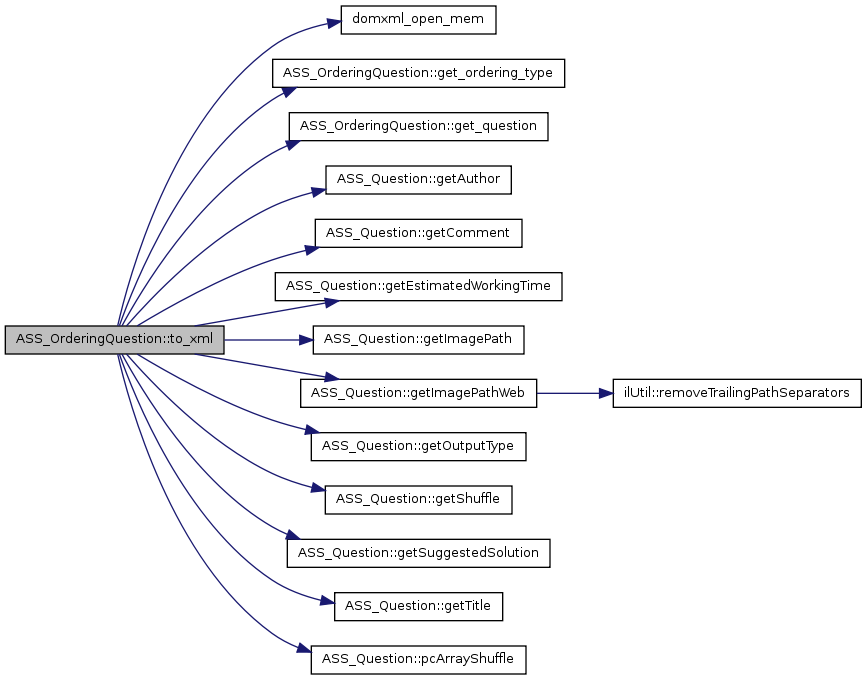

ASS_OrderingQuestion::to_xml ( a_include_header = true,
a_include_binary = true,
a_shuffle = false,
test_output = false
)

Returns a QTI xml representation of the question.

Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation

Returns:
string The QTI xml representation of the question public

Definition at line 357 of file class.assOrderingQuestion.php.

References $pos, $xml, domxml_open_mem(), get_ordering_type(), get_question(), ASS_Question::getAuthor(), ASS_Question::getComment(), ASS_Question::getEstimatedWorkingTime(), ASS_Question::getImagePath(), ASS_Question::getImagePathWeb(), ASS_Question::getOutputType(), ASS_Question::getShuffle(), ASS_Question::getSuggestedSolution(), ASS_Question::getTitle(), and ASS_Question::pcArrayShuffle().

        {
                if (!empty($this->domxml))
                {
                        $this->domxml->free();
                }
                $xml_header = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n<questestinterop></questestinterop>\n";
                $this->domxml = domxml_open_mem($xml_header);
                $root = $this->domxml->document_element();
                // qti ident
                $qtiIdent = $this->domxml->create_element("item");
                $qtiIdent->set_attribute("ident", "il_".IL_INST_ID."_qst_".$this->getId());
                $qtiIdent->set_attribute("title", $this->getTitle());
                $root->append_child($qtiIdent);
                // add question description
                $qtiComment = $this->domxml->create_element("qticomment");
                $qtiCommentText = $this->domxml->create_text_node($this->getComment());
                $qtiComment->append_child($qtiCommentText);
                $qtiIdent->append_child($qtiComment);
                // add estimated working time
                $qtiDuration = $this->domxml->create_element("duration");
                $workingtime = $this->getEstimatedWorkingTime();
                $qtiDurationText = $this->domxml->create_text_node(sprintf("P0Y0M0DT%dH%dM%dS", $workingtime["h"], $workingtime["m"], $workingtime["s"]));
                $qtiDuration->append_child($qtiDurationText);
                $qtiIdent->append_child($qtiDuration);
                // add ILIAS specific metadata
                $qtiItemmetadata = $this->domxml->create_element("itemmetadata");
                $qtiMetadata = $this->domxml->create_element("qtimetadata");

                $qtiMetadatafield = $this->domxml->create_element("qtimetadatafield");
                $qtiFieldlabel = $this->domxml->create_element("fieldlabel");
                $qtiFieldlabelText = $this->domxml->create_text_node("ILIAS_VERSION");
                $qtiFieldlabel->append_child($qtiFieldlabelText);
                $qtiFieldentry = $this->domxml->create_element("fieldentry");
                $qtiFieldentryText = $this->domxml->create_text_node($this->ilias->getSetting("ilias_version"));
                $qtiFieldentry->append_child($qtiFieldentryText);
                $qtiMetadatafield->append_child($qtiFieldlabel);
                $qtiMetadatafield->append_child($qtiFieldentry);
                $qtiMetadata->append_child($qtiMetadatafield);

                $qtiMetadatafield = $this->domxml->create_element("qtimetadatafield");
                $qtiFieldlabel = $this->domxml->create_element("fieldlabel");
                $qtiFieldlabelText = $this->domxml->create_text_node("QUESTIONTYPE");
                $qtiFieldlabel->append_child($qtiFieldlabelText);
                $qtiFieldentry = $this->domxml->create_element("fieldentry");
                $qtiFieldentryText = $this->domxml->create_text_node(ORDERING_QUESTION_IDENTIFIER);
                $qtiFieldentry->append_child($qtiFieldentryText);
                $qtiMetadatafield->append_child($qtiFieldlabel);
                $qtiMetadatafield->append_child($qtiFieldentry);
                $qtiMetadata->append_child($qtiMetadatafield);

                $qtiMetadatafield = $this->domxml->create_element("qtimetadatafield");
                $qtiFieldlabel = $this->domxml->create_element("fieldlabel");
                $qtiFieldlabelText = $this->domxml->create_text_node("AUTHOR");
                $qtiFieldlabel->append_child($qtiFieldlabelText);
                $qtiFieldentry = $this->domxml->create_element("fieldentry");
                $qtiFieldentryText = $this->domxml->create_text_node($this->getAuthor());
                $qtiFieldentry->append_child($qtiFieldentryText);
                $qtiMetadatafield->append_child($qtiFieldlabel);
                $qtiMetadatafield->append_child($qtiFieldentry);
                $qtiMetadata->append_child($qtiMetadatafield);

                $qtiItemmetadata->append_child($qtiMetadata);
                $qtiIdent->append_child($qtiItemmetadata);

                // PART I: qti presentation
                $qtiPresentation = $this->domxml->create_element("presentation");
                $qtiPresentation->set_attribute("label", $this->getTitle());
                // add flow to presentation
                $qtiFlow = $this->domxml->create_element("flow");
                // add material with question text to presentation
                $qtiMaterial = $this->domxml->create_element("material");
                $qtiMatText = $this->domxml->create_element("mattext");
                $qtiMatTextText = $this->domxml->create_text_node($this->get_question());
                $qtiMatText->append_child($qtiMatTextText);
                $qtiMaterial->append_child($qtiMatText);
                $qtiFlow->append_child($qtiMaterial);
                // add answers to presentation
                $qtiResponseLid = $this->domxml->create_element("response_lid");
                if ($this->get_ordering_type() == OQ_PICTURES)
                {
                        $qtiResponseLid->set_attribute("ident", "OQP");
                        $qtiResponseLid->set_attribute("rcardinality", "Ordered");
                        if ($this->getOutputType() == OUTPUT_JAVASCRIPT)
                        {
                                $qtiResponseLid->set_attribute("output", "javascript");
                        }
                }
                        else
                {
                        $qtiResponseLid->set_attribute("ident", "OQT");
                        $qtiResponseLid->set_attribute("rcardinality", "Ordered");
                        if ($this->getOutputType() == OUTPUT_JAVASCRIPT)
                        {
                                $qtiResponseLid->set_attribute("output", "javascript");
                        }
                }
                $solution = $this->getSuggestedSolution(0);
                if (count($solution))
                {
                        if (preg_match("/il_(\d*?)_(\w+)_(\d+)/", $solution["internal_link"], $matches))
                        {
                                $qtiMaterial = $this->domxml->create_element("material");
                                $qtiMaterial->set_attribute("label", "suggested_solution");
                                $qtiMatText = $this->domxml->create_element("mattext");
                                $intlink = "il_" . IL_INST_ID . "_" . $matches[2] . "_" . $matches[3];
                                if (strcmp($matches[1], "") != 0)
                                {
                                        $intlink = $solution["internal_link"];
                                }
                                $qtiMatTextText = $this->domxml->create_text_node($intlink);
                                $qtiMatText->append_child($qtiMatTextText);
                                $qtiMaterial->append_child($qtiMatText);
                                $qtiResponseLid->append_child($qtiMaterial);
                        }
                }
                $qtiRenderChoice = $this->domxml->create_element("render_choice");
                // shuffle output
                if ($this->getShuffle())
                {
                        $qtiRenderChoice->set_attribute("shuffle", "Yes");
                }
                else
                {
                        $qtiRenderChoice->set_attribute("shuffle", "No");
                }

                // shuffle
                $akeys = array_keys($this->answers);
                if ($this->getshuffle() && $a_shuffle)
                {
                        $akeys = $this->pcArrayShuffle($akeys);
                }

                // add answers
                foreach ($akeys as $index)
                {
                        $answer = $this->answers[$index];

                        $qtiResponseLabel = $this->domxml->create_element("response_label");
                        $qtiResponseLabel->set_attribute("ident", $index);
                        $qtiMaterial = $this->domxml->create_element("material");
                        if ($this->get_ordering_type() == OQ_PICTURES)
                        {
                                $qtiMatImage = $this->domxml->create_element("matimage");
                                $imagetype = "image/jpeg";
                                if (preg_match("/.*\.(png|gif)$/", $answer->get_answertext(), $matches))
                                {
                                        $imagetype = "image/".$matches[1];
                                }
                                $qtiMatImage->set_attribute("imagtype", $imagetype);
                                $qtiMatImage->set_attribute("label", $answer->get_answertext());
                                if ($test_output)
                                {
                                        $qtiMatImage->set_attribute("uri", $this->getImagePathWeb() . $answer->get_answertext());
                                }
                                else
                                {
                                        $qtiMatImage->set_attribute("embedded", "base64");
                                        $imagepath = $this->getImagePath() . $answer->get_answertext();
                                        $fh = fopen($imagepath, "rb");
                                        if ($fh == false)
                                        {
                                                //global $ilErr;
                                                //$ilErr->raiseError($this->lng->txt("error_open_image_file"), $ilErr->MESSAGE);
                                                //return;
                                        }
                                        else
                                        {
                                                $imagefile = fread($fh, filesize($imagepath));
                                                fclose($fh);
                                                $base64 = base64_encode($imagefile);
                                                $qtiBase64Data = $this->domxml->create_text_node($base64);
                                                $qtiMatImage->append_child($qtiBase64Data);
                                        }
                                }
                                $qtiMaterial->append_child($qtiMatImage);
                        }
                        else
                        {
                                $qtiMatText = $this->domxml->create_element("mattext");
                                $qtiMatTextText = $this->domxml->create_text_node($answer->get_answertext());
                                $qtiMatText->append_child($qtiMatTextText);
                                $qtiMaterial->append_child($qtiMatText);
                        }
                        $qtiResponseLabel->append_child($qtiMaterial);
                        $qtiRenderChoice->append_child($qtiResponseLabel);
                }
                $qtiResponseLid->append_child($qtiRenderChoice);
                $qtiFlow->append_child($qtiResponseLid);
                $qtiPresentation->append_child($qtiFlow);
                $qtiIdent->append_child($qtiPresentation);

                // PART II: qti resprocessing
                $qtiResprocessing = $this->domxml->create_element("resprocessing");
                $qtiOutcomes = $this->domxml->create_element("outcomes");
                $qtiDecvar = $this->domxml->create_element("decvar");
                $qtiOutcomes->append_child($qtiDecvar);
                $qtiResprocessing->append_child($qtiOutcomes);
                // add response conditions
                foreach ($this->answers as $index => $answer)
                {
                        $qtiRespcondition = $this->domxml->create_element("respcondition");
                        $qtiRespcondition->set_attribute("continue", "Yes");
                        // qti conditionvar
                        $qtiConditionvar = $this->domxml->create_element("conditionvar");
                        $qtiVarequal = $this->domxml->create_element("varequal");
                        if ($this->get_ordering_type() == OQ_PICTURES)
                        {
                                $qtiVarequal->set_attribute("respident", "OQP");
                        }
                                else
                        {
                                $qtiVarequal->set_attribute("respident", "OQT");
                        }
                        $qtiVarequal->set_attribute("index", $answer->get_solution_order());
                        $qtiVarequalText = $this->domxml->create_text_node($index);
                        $qtiVarequal->append_child($qtiVarequalText);
                        $qtiConditionvar->append_child($qtiVarequal);
                        // qti setvar
                        $qtiSetvar = $this->domxml->create_element("setvar");
                        $qtiSetvar->set_attribute("action", "Add");
                        $qtiSetvarText = $this->domxml->create_text_node($answer->get_points());
                        $qtiSetvar->append_child($qtiSetvarText);
                        // qti displayfeedback
                        $qtiDisplayfeedback = $this->domxml->create_element("displayfeedback");
                        $qtiDisplayfeedback->set_attribute("feedbacktype", "Response");
                        $qtiDisplayfeedback->set_attribute("linkrefid", "link_$index");
                        $qtiRespcondition->append_child($qtiConditionvar);
                        $qtiRespcondition->append_child($qtiSetvar);
                        $qtiRespcondition->append_child($qtiDisplayfeedback);
                        $qtiResprocessing->append_child($qtiRespcondition);
                }
                $qtiIdent->append_child($qtiResprocessing);

                // PART III: qti itemfeedback
                foreach ($this->answers as $index => $answer)
                {
                        $qtiItemfeedback = $this->domxml->create_element("itemfeedback");
                        $qtiItemfeedback->set_attribute("ident", "link_$index");
                        $qtiItemfeedback->set_attribute("view", "All");
                        // qti flow_mat
                        $qtiFlowmat = $this->domxml->create_element("flow_mat");
                        $qtiMaterial = $this->domxml->create_element("material");
                        $qtiMattext = $this->domxml->create_element("mattext");
                        // Insert response text for right/wrong answers here!!!
                        $qtiMattextText = $this->domxml->create_text_node("");
                        $qtiMattext->append_child($qtiMattextText);
                        $qtiMaterial->append_child($qtiMattext);
                        $qtiFlowmat->append_child($qtiMaterial);
                        $qtiItemfeedback->append_child($qtiFlowmat);
                        $qtiIdent->append_child($qtiItemfeedback);
                }

                $xml = $this->domxml->dump_mem(true);
                if (!$a_include_header)
                {
                        $pos = strpos($xml, "?>");
                        $xml = substr($xml, $pos + 2);
                }
//echo htmlentities($xml);
                return $xml;

        }

Here is the call graph for this function:


Field Documentation

ASS_OrderingQuestion::$answers

Definition at line 60 of file class.assOrderingQuestion.php.

ASS_OrderingQuestion::$ordering_type

Definition at line 70 of file class.assOrderingQuestion.php.

Referenced by ASS_OrderingQuestion(), and set_ordering_type().

ASS_OrderingQuestion::$question

Definition at line 51 of file class.assOrderingQuestion.php.

Referenced by ASS_OrderingQuestion(), and set_question().


The documentation for this class was generated from the following file:
