Class for importing XML documents into a relational database. More...
Public Member Functions | |
| XML2SQL ($a_dbconnection, $a_xmltree, $a_version="1.0", $a_encoding="UTF-8", $a_charset="UTF-8") | |
| constructor init db-handler | |
| insertDocument () | |
| insertXMLObject () | |
| insertNode ($a_node) | |
| updateNode ($a_node) | |
| insertNodeData ($a_node) | |
| insertElement ($a_node) | |
| insertElement private | |
| insertText ($a_node) | |
| insertText private | |
| insertComment ($a_node) | |
| insertComment private | |
| insertAttributes ($a_node) | |
| insertAttributes private | |
| getEntryId ($a_table, $a_column, $a_return_value, $a_value) | |
| getEntryId checks if a single value exists in database private | |
| getLastInsertId () | |
| getLastInsertId private | |
| prepareData ($a_data) | |
| prepare db insertion with addslashes() private | |
| insertStructureIntoTree ($a_nodes, $a_id) | |
Data Fields | |
| $obj_id | |
| $mapping | |
| $version | |
| $encoding | |
| $charset | |
| $db | |
| $xmltree | |
| The DOM XML representation. | |
Detailed Description
Class for importing XML documents into a relational database.
- Version:
- Id:
- class.XML2SQL.php 4949 2004-09-14 19:13:58Z hschottm
Definition at line 32 of file class.XML2SQL.php.
Member Function Documentation
| XML2SQL::getEntryId | ( | $ | a_table, | |
| $ | a_column, | |||
| $ | a_return_value, | |||
| $ | a_value | |||
| ) |
getEntryId checks if a single value exists in database private
- Parameters:
-
string db table name string table column string value you seek
- Returns:
- boolean true when value exists
Definition at line 305 of file class.XML2SQL.php.
References $q, $res, and $row.
Referenced by insertAttributes(), and insertElement().
{
$q = "SELECT DISTINCT ".$a_return_value." FROM ".$a_table." ".
"WHERE ".$a_column."='".$a_value."'";
$res = $this->db->query($q, DB_FETCHMODE_ASSOC);
if ($res->numRows() == 0)
{
return false;
}
$row = $res->fetchRow();
return $row[0];
}
Here is the caller graph for this function:
| XML2SQL::getLastInsertId | ( | ) |
getLastInsertId private
- Returns:
- integer
Definition at line 324 of file class.XML2SQL.php.
References $q, $res, and $row.
Referenced by insertAttributes(), insertElement(), insertNode(), and insertXMLObject().
{
$q = "SELECT LAST_INSERT_ID()";
$res = $this->db->query($q);
$row = $res->fetchRow();
return $row[0];
}

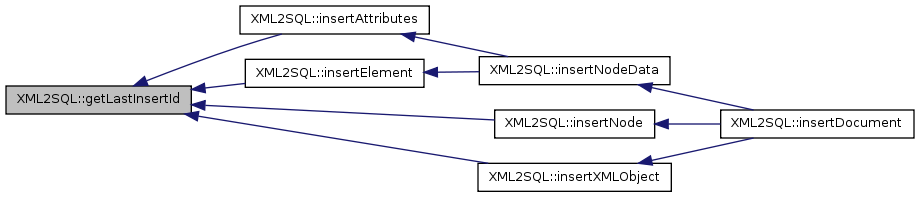

Here is the caller graph for this function:
| XML2SQL::insertAttributes | ( | $ | a_node | ) |
insertAttributes private
- Parameters:
-
array node data
- Returns:
- boolean
Definition at line 253 of file class.XML2SQL.php.
References $q, getEntryId(), and getLastInsertId().
Referenced by insertNodeData().
{
if (is_array($a_node["attr_list"]))
{
foreach ($a_node["attr_list"] as $attr => $value)
{
$attribute_id = $this->getEntryId("xml_attribute_name","attribute","attribute_id",$attr);
// insert attribute first if it does not exist
if ($attribute_id == false)
{
$q = "INSERT INTO xml_attribute_name (attribute) ".
"VALUES ('".$attr."')";
$this->db->query($q);
$attribute_id = $this->getLastInsertId();
}
//$value_id = $this->getEntryId("xml_attribute_value","value","value_id",$value);
// insert attribute value first if it does not exist
//if ($value_id == false)
//{
$q = "INSERT INTO xml_attribute_value (value) ".
"VALUES ('".$value."')";
$this->db->query($q);
$value_id = $this->getLastInsertId();
//}
// create reference entry
$q = "INSERT INTO xml_attribute_idx (node_id,attribute_id,value_id) ".
"VALUES ".
"('".$a_node["node"]."','".$attribute_id."','".$value_id."')";
$this->db->query($q);
}
return true;
}
return false;
}
Here is the call graph for this function:
Here is the caller graph for this function:
| XML2SQL::insertComment | ( | $ | a_node | ) |
insertComment private
- Parameters:
-
array node data
Definition at line 238 of file class.XML2SQL.php.
References $q.
Referenced by insertNodeData().
{
$q = "INSERT INTO xml_comment ".
"(node_id,comment) ".
"VALUES ".
"('".$a_node["node"]."','".$a_node["content"]."')";
$this->db->query($q);
}
Here is the caller graph for this function:
| XML2SQL::insertDocument | ( | ) |
Definition at line 83 of file class.XML2SQL.php.
References $id, exit, insertNode(), insertNodeData(), insertXMLObject(), and updateNode().
{
$this->obj_id = $this->insertXMLObject();
if (!$this->obj_id)
{
print "There was an error writing the xml file to the database!";
exit();
}
// insert basic structure of document
foreach ($this->xmltree as $id => $node) {
$node_id = $this->insertNode($node);
$this->mapping[$id] = $node_id;
}
// re-map node_ids
foreach ($this->xmltree as $id => $node) {
$this->xmltree[$id]["parent"] = $this->mapping[$node["parent"]];
$this->xmltree[$id]["prev"] = $this->mapping[$node["prev"]];
$this->xmltree[$id]["next"] = $this->mapping[$node["next"]];
$this->xmltree[$id]["first"] = $this->mapping[$node["first"]];
$this->xmltree[$id]["node"] = $this->mapping[$id];
}
foreach ($this->xmltree as $id => $node) {
$this->updateNode($node);
$this->insertNodeData($node);
}
return $this->xmltree;
}
Here is the call graph for this function:
| XML2SQL::insertElement | ( | $ | a_node | ) |
insertElement private
- Parameters:
-
array node data
Definition at line 196 of file class.XML2SQL.php.
References $q, getEntryId(), and getLastInsertId().
Referenced by insertNodeData().
{
$element_id = $this->getEntryId("xml_element_name","element","element_id",$a_node["name"]);
// insert element first if it does not exist
if ($element_id == false)
{
$q = "INSERT INTO xml_element_name (element) ".
"VALUES ('".$a_node["name"]."')";
$this->db->query($q);
$element_id = $this->getLastInsertId();
}
// create reference entry
$q = "INSERT INTO xml_element_idx (node_id,element_id) ".
"VALUES ('".$a_node["node"]."','".$element_id."')";
$this->db->query($q);
}
Here is the call graph for this function:
Here is the caller graph for this function:
| XML2SQL::insertNode | ( | $ | a_node | ) |
Definition at line 123 of file class.XML2SQL.php.
References $q, and getLastInsertId().
Referenced by insertDocument().
{
$q = "INSERT INTO xml_tree ".
"(xml_id,lft,rgt,node_type_id,depth,struct) ".
"VALUES ".
"('".$this->obj_id."','".$a_node["left"].
"','".$a_node["right"]."','".$a_node["type"].
"','".$a_node["depth"]."','".$a_node["struct"]."') ";
$this->db->query($q);
return $this->getLastInsertId();
}
Here is the call graph for this function:
Here is the caller graph for this function:
| XML2SQL::insertNodeData | ( | $ | a_node | ) |
Definition at line 148 of file class.XML2SQL.php.
References insertAttributes(), insertComment(), insertElement(), insertText(), and prepareData().
Referenced by insertDocument().
{
//echo "<PRE>";echo var_dump($a_node);echo "</PRE>";
$a_node = $this->prepareData($a_node);
//echo "<PRE>";echo var_dump($a_node);echo "</PRE>";
switch ($a_node["type"]) {
case 1:
$this->insertElement($a_node);
$this->insertAttributes($a_node);
break;
case 3:
$this->insertText($a_node);
break;
case 4:
// $this->insertCData($a_node);
break;
case 5:
// $this->insertEntityRef($a_node);
break;
case 6:
// $this->insertEntity($a_node);
break;
case 7:
// $this->insertPI($a_node);
break;
case 8:
$this->insertComment($a_node);
break;
default:
// nix
break;
} // switch
}

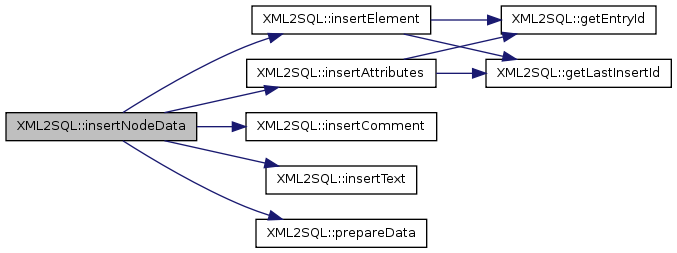

Here is the call graph for this function:
Here is the caller graph for this function:
| XML2SQL::insertStructureIntoTree | ( | $ | a_nodes, | |
| $ | a_id | |||
| ) |
Definition at line 353 of file class.XML2SQL.php.
{
// init tree
$lm_tree = new Tree($a_id,$a_id);
//prepare array and kick all nodes with no children
foreach ($a_nodes as $key => $nodes)
{
if (!is_array($nodes[key($nodes)]))
{
array_splice($a_nodes,$key);
break;
}
}
// insert first_node
$parent_id = $a_id;
$lm_tree->insertNode(key($a_nodes[0]),$parent_id,0);
// traverse array to build tree structure by inserting nodes to db-table tree
foreach ($a_nodes as $key => $nodes)
{
$parent_parent_id = $parent_id;
$parent_id = key($nodes);
foreach (array_reverse($nodes[$parent_id]) as $child_id)
{
$lm_tree->insertNode($child_id,$parent_id,$parent_parent_id);
}
}
}
| XML2SQL::insertText | ( | $ | a_node | ) |
insertText private
- Parameters:
-
array node data
Definition at line 221 of file class.XML2SQL.php.
References $q.
Referenced by insertNodeData().
{
// klappt nicht, weil die spaces maskiert sind :-(
$content = $a_node["content"];
$q = "INSERT INTO xml_text ".
"(node_id,textnode) ".
"VALUES ".
"('".$a_node["node"]."','".$content."')";
$this->db->query($q);
}
Here is the caller graph for this function:
| XML2SQL::insertXMLObject | ( | ) |
Definition at line 113 of file class.XML2SQL.php.
References $q, $result, and getLastInsertId().
Referenced by insertDocument().
{
$q = sprintf("INSERT INTO xml_object (ID, version, encoding, charset, TIMESTAMP) VALUES (NULL, %s, %s, %s, NULL)",
$this->db->quote($this->version),
$this->db->quote($this->encoding),
$this->db->quote($this->charset)
);
$result = $this->db->query($q);
return $this->getLastInsertId();
}
Here is the call graph for this function:
Here is the caller graph for this function:
| XML2SQL::prepareData | ( | $ | a_data | ) |
prepare db insertion with addslashes() private
- Parameters:
-
array
- Returns:
- arrayr
Definition at line 338 of file class.XML2SQL.php.
References $data.
Referenced by insertNodeData().
{
foreach ($a_data as $key => $value)
{
if (is_string($value))
$data[$key] = addslashes($value);
else
$data[$key] = $value;
}
return $data;
}
Here is the caller graph for this function:
| XML2SQL::updateNode | ( | $ | a_node | ) |
Definition at line 136 of file class.XML2SQL.php.
References $q.
Referenced by insertDocument().
{
$q = "UPDATE xml_tree SET ".
"parent_node_id = '".$a_node["parent"]."',".
"prev_sibling_node_id = '".$a_node["prev"]."',".
"next_sibling_node_id = '".$a_node["next"]."',".
"first_child_node_id = '".$a_node["first"]."' ".
"WHERE node_id = '".$a_node["node"]."' ".
"AND xml_id = '".$this->obj_id."'";
$this->db->query($q);
}
Here is the caller graph for this function:
| XML2SQL::XML2SQL | ( | $ | a_dbconnection, | |
| $ | a_xmltree, | |||
| $ | a_version = "1.0", |
|||
| $ | a_encoding = "UTF-8", |
|||
| $ | a_charset = "UTF-8" | |||
| ) |
constructor init db-handler
public
Definition at line 74 of file class.XML2SQL.php.
{
$this->xmltree = $a_xmltree;
$this->db = $a_dbconnection;
$this->version = $a_version;
$this->encoding = $a_encoding;
$this->charset = $a_charset;
}
Field Documentation
| XML2SQL::$charset |
Definition at line 51 of file class.XML2SQL.php.
| XML2SQL::$db |
Definition at line 58 of file class.XML2SQL.php.
| XML2SQL::$encoding |
Definition at line 50 of file class.XML2SQL.php.
| XML2SQL::$mapping |
Definition at line 48 of file class.XML2SQL.php.
| XML2SQL::$obj_id |
Definition at line 40 of file class.XML2SQL.php.
| XML2SQL::$version |
Definition at line 49 of file class.XML2SQL.php.
| object XML2SQL::$xmltree |
The documentation for this class was generated from the following file:
- assessment/classes/class.XML2SQL.php
