Inheritance diagram for ilBMFDISCO_Server:

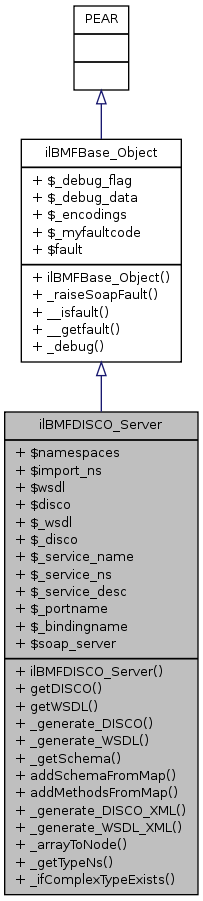

Collaboration diagram for ilBMFDISCO_Server:

Public Member Functions
	ilBMFDISCO_Server ($soap_server, $service_name, $service_desc= '', $import_ns=null)
	getDISCO ()
	getWSDL ()
	_generate_DISCO ()
	_generate_WSDL ()
&	_getSchema ($namespace)
	addSchemaFromMap (&$map)
	addMethodsFromMap (&$map, $namespace, $classname=null)
	_generate_DISCO_XML ($disco_array)
	_generate_WSDL_XML ($wsdl_array)
	_arrayToNode ($node_name= '', $array)
	_getTypeNs ($type)
	_ifComplexTypeExists ($typesArray, $type_name)
Data Fields
	$namespaces = array(SCHEMA_WSDL => 'wsdl', SCHEMA_SOAP => 'soap')
	$import_ns = array()
	$wsdl = ''
	$disco = ''
	$_wsdl = array()
	$_disco = array()
	$_service_name = ''
	$_service_ns = ''
	$_service_desc = ''
	$_portname = ''
	$_bindingname = ''
	$soap_server = NULL

Detailed Description

Definition at line 23 of file class.ilBMFDisco.php.

Member Function Documentation

ilBMFDISCO_Server::_arrayToNode	(	$	node_name = `''`,
		$	array
	)

Definition at line 292 of file class.ilBMFDisco.php.

Referenced by _generate_DISCO_XML(), and _generate_WSDL_XML().

                                                   {
        $return = '';
        if (is_array($array)) {
            # we have a node if there's key 'attr'
            if (array_key_exists('attr',$array)) {
                $return .= "<$node_name";
                if (is_array($array['attr'])) {
                    foreach ($array['attr'] as $attr_name => $attr_value) {
                        $return .= " $attr_name=\"$attr_value\"";
                    }
                }

                # unset 'attr' and proceed other childs...
                unset($array['attr']);

                if (count($array) > 0) {
                    $i = 0;
                    foreach ($array as $child_node_name => $child_node_value) {
                        $return .= $i == 0 ? ">\n" : '';
                        $return .= $this->_arrayToNode($child_node_name,$child_node_value);
                        $i++;
                    }
                    $return .= "</$node_name>\n";
                } else {
                    $return .= " />\n";
                }
            } else {
                # we have no 'attr' key in array - so it's list of nodes with the same name ...
                foreach ($array as $child_node_name => $child_node_value) {
                    $return .= $this->_arrayToNode($node_name,$child_node_value);
                }
            }
        } else {
            # $array is not an array
            if ($array !='') {
                # and its not empty
                $return .= "<$node_name>$array</$node_name>\n";
            } else {
                # and its empty...
                $return .= "<$node_name />\n";
            }
        }
        return $return;
    }

Here is the caller graph for this function:

ilBMFDISCO_Server::_generate_DISCO ( )

Definition at line 66 of file class.ilBMFDisco.php.

References _generate_DISCO_XML().

Referenced by getDISCO().

    {
        # DISCO
        $this->_disco['disco:discovery']['attr']['xmlns:disco'] = SCHEMA_DISCO;
        $this->_disco['disco:discovery']['attr']['xmlns:scl'] = SCHEMA_DISCO_SCL;
        $this->_disco['disco:discovery']['scl:contractRef']['attr']['ref'] =
                                    (array_key_exists('HTTPS',$_SERVER) && $_SERVER['HTTPS']=='on')
                                    ? 'https://' . $this->host . $_SERVER['PHP_SELF'] . '?wsdl'
                                    : 'http://'  . $this->host . $_SERVER['PHP_SELF'] . '?wsdl';

        # generate disco xml
        $this->_generate_DISCO_XML($this->_disco);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFDISCO_Server::_generate_DISCO_XML ( $ disco_array )

Definition at line 276 of file class.ilBMFDisco.php.

References $disco, $key, and _arrayToNode().

Referenced by _generate_DISCO().

                                               {
        $disco = '<?xml version="1.0"?>';
        foreach ($disco_array as $key => $val) {
            $disco .= $this->_arrayToNode($key,$val);
        }
        $this->disco = $disco;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFDISCO_Server::_generate_WSDL ( )

Definition at line 80 of file class.ilBMFDisco.php.

References _generate_WSDL_XML(), addMethodsFromMap(), and addSchemaFromMap().

Referenced by getWSDL().

    {
        # WSDL
        if (is_array($this->soap_server->_namespaces)) {
            # need to get: typens, xsd & SOAP-ENC
            $flipped = array_flip($this->soap_server->_namespaces);
            $this->namespaces[$this->_service_ns] = 'tns';
            $this->namespaces[$flipped['xsd']] = 'xsd';
            $this->namespaces[$flipped['SOAP-ENC']] = 'SOAP-ENC';
        }

        # DEFINITIONS
        $this->_wsdl['definitions']['attr']['name'] = $this->_service_name;
        $this->_wsdl['definitions']['attr']['targetNamespace'] = $this->_service_ns;
        foreach ($this->namespaces as $ns => $prefix) {
            $this->_wsdl['definitions']['attr']['xmlns:' . $prefix] = $ns;
        }
        $this->_wsdl['definitions']['attr']['xmlns'] = SCHEMA_WSDL;

        # import namespaces
        # seems to not work yet: wsdl.exe fom .NET cant handle imported complete wsdl-definitions
        #
        if (count($this->import_ns)>0) {
            $i = 0;
            foreach ($this->import_ns as $_ns => $_location) {
                $this->_wsdl['definitions']['import'][$i]['attr']['location'] = $_location;
                $this->_wsdl['definitions']['import'][$i]['attr']['namespace'] = $_ns;
                $i++;
            }
        }
        $this->_wsdl['definitions']['types']['attr']['xmlns']='http://schemas.xmlsoap.org/wsdl/';
        $this->_wsdl['definitions']['types']['schema']=array();
        # PORTTYPE-NAME
        $this->_portname = $this->_service_name . 'Port';
        $this->_wsdl['definitions']['portType']['attr']['name'] = $this->_portname;

        # BINDING-NAME
        $this->_bindingname = $this->_service_name . 'Binding';
        $this->_wsdl['definitions']['binding']['attr']['name'] = $this->_bindingname;
        $this->_wsdl['definitions']['binding']['attr']['type'] = 'tns:' . $this->_portname;
        $this->_wsdl['definitions']['binding']['soap:binding']['attr']['style'] = 'rpc';
        $this->_wsdl['definitions']['binding']['soap:binding']['attr']['transport'] = SCHEMA_SOAP_HTTP;

        # SERVICE
        $this->_wsdl['definitions']['service']['attr']['name'] = $this->_service_name . 'Service';
        $this->_wsdl['definitions']['service']['documentation']['attr'] = '';
        $this->_wsdl['definitions']['service']['documentation'] = htmlentities($this->_service_desc);
        $this->_wsdl['definitions']['service']['port']['attr']['name'] = $this->_portname;
        $this->_wsdl['definitions']['service']['port']['attr']['binding'] = 'tns:' . $this->_bindingname;
        $this->_wsdl['definitions']['service']['port']['soap:address']['attr']['location'] =
                                    (array_key_exists('HTTPS',$_SERVER) && $_SERVER['HTTPS']=='on')
                                    ? 'https://' . $this->host . $_SERVER['PHP_SELF']
                                    : 'http://'  . $this->host . $_SERVER['PHP_SELF'];

        #
        $dispatch_keys = array_keys($this->soap_server->dispatch_objects);
        $dc = count($dispatch_keys);
        for ($di=0; $di < $dc; $di++) {
            $namespace = $dispatch_keys[$di];
            $namespace_objects =& $this->soap_server->dispatch_objects[$namespace];
            $oc = count($namespace_objects);
            for ($oi = 0; $oi < $oc; $oi++) {
                $object = $namespace_objects[$oi];
                # types definitions
                $this->addSchemaFromMap($object->__typedef);
                # MESSAGES
                $this->addMethodsFromMap($object->__dispatch_map,$namespace,get_class($object));
            }
        }
        if (isset($server->dispatch_map))
            $this->addMethodsFromMap($server->dispatch_map,$namespace);


        # generate wsdl
        $this->_generate_WSDL_XML($this->_wsdl);
    }

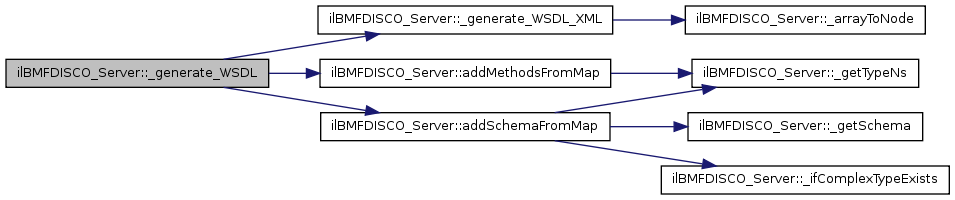

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFDISCO_Server::_generate_WSDL_XML ( $ wsdl_array )

Definition at line 284 of file class.ilBMFDisco.php.

References $key, $wsdl, and _arrayToNode().

Referenced by _generate_WSDL().

                                             {
        $wsdl = '<?xml version="1.0"?>';
        foreach ($wsdl_array as $key => $val) {
            $wsdl .= $this->_arrayToNode($key,$val);
        }
        $this->wsdl = $wsdl;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

& ilBMFDISCO_Server::_getSchema ( $ namespace )

Definition at line 157 of file class.ilBMFDisco.php.

Referenced by addSchemaFromMap().

                                     {
        # SCHEMA
        $c = count($this->_wsdl['definitions']['types']['schema']);
        for($i = 0; $i < $c; $i++) {
            if ($this->_wsdl['definitions']['types']['schema'][$i]['attr']['targetNamespace'] == $namespace)
                return $this->_wsdl['definitions']['types']['schema'][$i];
        }
        # don't have this namespace
        $schema = array();
        $schema['attr'] = array();
        $schema['complexType'] = array();
        $schema['attr']['xmlns'] = array_search('xsd',$this->namespaces);
        $schema['attr']['targetNamespace'] = $namespace;
        $this->_wsdl['definitions']['types']['schema'][] =& $schema;
        return $schema;
    }

Here is the caller graph for this function:

ilBMFDISCO_Server::_getTypeNs ( $ type )

Definition at line 337 of file class.ilBMFDisco.php.

References $type.

Referenced by addMethodsFromMap(), and addSchemaFromMap().

                               {
        preg_match_all("'\{(.*)\}'sm",$type,$m);
        if (isset($m[1][0]) && $m[1][0] != '') {
            if (!array_key_exists($m[1][0],$this->namespaces)) {
                $ns_pref = 'ns' . count($this->namespaces);
                $this->namespaces[$m[1][0]] = $ns_pref;
                $this->_wsdl['definitions']['attr']['xmlns:' . $ns_pref] = $m[1][0];
            }
            $typens = $this->namespaces[$m[1][0]];
            $type = ereg_replace($m[0][0],'',$type);
        } else {
            $typens = 'xsd';
        }
        return array($typens,$type);
    }

Here is the caller graph for this function:

ilBMFDISCO_Server::_ifComplexTypeExists	(	$	typesArray,
		$	type_name
	)

Definition at line 353 of file class.ilBMFDisco.php.

Referenced by addSchemaFromMap().

                                                           {
        if (is_array($typesArray)) {
            foreach ($typesArray as $index => $type_data) {
                if ($typesArray[$index]['attr']['name'] == $type_name) {
                    return true;
                }
            }
        }
        return false;
    }

Here is the caller graph for this function:

ilBMFDISCO_Server::addMethodsFromMap	(	&$	map,
		$	namespace,
		$	classname = `null`
	)

Definition at line 207 of file class.ilBMFDisco.php.

References $type, and _getTypeNs().

Referenced by _generate_WSDL().

    {
        if (!$map) {
            return;
        }

        foreach ($map as $method_name => $method_types) {
            if (array_key_exists('namespace',$method_types)) {
                $method_namespace = $method_types['namespace'];
            } else {
                $method_namespace = $namespace;
            }
            # INPUT
            if (isset($method_types['in']) && is_array($method_types['in'])) {
                $input_message =& $this->_wsdl['definitions']['message'][];
                $input_message['attr']['name'] = $method_name . 'Request';
                foreach ($method_types['in'] as $name => $type) {
                    list($typens,$type) = $this->_getTypeNs($type);
                    $part =& $input_message['part'][];
                    $part['attr']['name'] = $name;
                    $part['attr']['type'] = $typens . ':' . $type;
                }
            }

            # OUTPUT
            if (isset($method_types['out']) && is_array($method_types['out'])) {
                $output_message =& $this->_wsdl['definitions']['message'][];
                $output_message['attr']['name'] = $method_name . 'Response';
                foreach ($method_types['out'] as $name => $type) {
                    list($typens,$type) = $this->_getTypeNs($type);
                    $part =& $output_message['part'][];
                    $part['attr']['name'] = $name;
                    $part['attr']['type'] = $typens . ':' . $type;
                }
            }

            # PORTTYPES
            $operation =& $this->_wsdl['definitions']['portType']['operation'][];

            $operation['attr']['name'] = $method_name;

            # INPUT
            $operation['input']['attr']['message'] = 'tns:'
                            . $input_message['attr']['name'];

            # OUTPUT
            $operation['output']['attr']['message'] = 'tns:'
                            . $output_message['attr']['name'];

            # BINDING
            $binding =& $this->_wsdl['definitions']['binding']['operation'][];
            $binding['attr']['name'] = $method_name;
            $action = $method_namespace . '#' . ($classname?$classname . '#':'') . $method_name;
            $binding['soap:operation']['attr']['soapAction'] = $action;

            # INPUT
            $binding['input']['attr'] = '';
            $binding['input']['soap:body']['attr']['use'] = 'encoded';
            $binding['input']['soap:body']['attr']['namespace'] = $method_namespace;
            $binding['input']['soap:body']['attr']['encodingStyle'] = SOAP_SCHEMA_ENCODING;

            # OUTPUT
            $binding['output']['attr'] = '';
            $binding['output']['soap:body']['attr']['use'] = 'encoded';
            $binding['output']['soap:body']['attr']['namespace'] = $method_namespace;
            $binding['output']['soap:body']['attr']['encodingStyle'] = SOAP_SCHEMA_ENCODING;
        }
    }

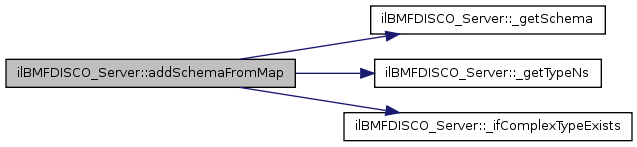

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFDISCO_Server::addSchemaFromMap ( &$ map )

Definition at line 174 of file class.ilBMFDisco.php.

References $type, _getSchema(), _getTypeNs(), and _ifComplexTypeExists().

Referenced by _generate_WSDL().

                                     {
        if (!$map) return;
        foreach ($map as $_type_name => $_type_def) {
            list($typens,$type) = $this->_getTypeNs($_type_name);
            if ($typens == 'xsd') {
                // cannot add to xsd, lets use method_namespace
                $typens = 'tns';
            }
            $schema =& $this->_getSchema(array_search($typens,$this->namespaces));
            if (!$this->_ifComplexTypeExists($schema['complexType'], $type)) {
                $ctype =& $schema['complexType'][];
                $ctype['attr']['name'] = $type;
                foreach ($_type_def as $_varname => $_vartype) {
                    if (!is_int($_varname)) {
                        list($_vartypens,$_vartype) = $this->_getTypeNs($_vartype);
                        $ctype['all']['attr'] = '';
                        $el =& $ctype['all']['element'][];
                        $el['attr']['name'] = $_varname;
                        $el['attr']['type'] = $_vartypens . ':' . $_vartype;
                    } else {
                        $ctype['complexContent']['attr'] = '';
                        $ctype['complexContent']['restriction']['attr']['base'] = 'SOAP-ENC:Array';
                        foreach ($_vartype as $array_var => $array_type) {
                            list($_vartypens,$_vartype) = $this->_getTypeNs($array_type);
                            $ctype['complexContent']['restriction']['attribute']['attr']['ref'] = 'SOAP-ENC:arrayType';
                            $ctype['complexContent']['restriction']['attribute']['attr']['wsdl:arrayType'] = $_vartypens . ':' . $_vartype . '[]';
                        }
                    }
                }
            }
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFDISCO_Server::getDISCO ( )

Definition at line 54 of file class.ilBMFDisco.php.

References _generate_DISCO().

    {
        $this->_generate_DISCO();
        return $this->disco;
    }

Here is the call graph for this function:

ilBMFDISCO_Server::getWSDL ( )

Definition at line 60 of file class.ilBMFDisco.php.

References _generate_WSDL().

    {
        $this->_generate_WSDL();
        return $this->wsdl;
    }

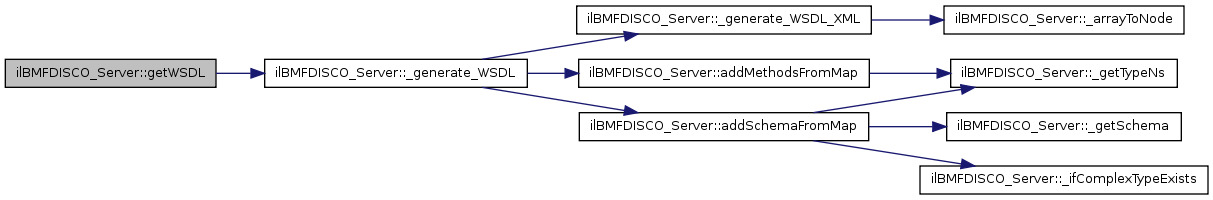

Here is the call graph for this function:

ilBMFDISCO_Server::ilBMFDISCO_Server	(	$	soap_server,
		$	service_name,
		$	service_desc = `''`,
		$	import_ns = `null`
	)

Definition at line 39 of file class.ilBMFDisco.php.

References $import_ns, $soap_server, and ilBMFBase_Object::ilBMFBase_Object().

    {
        parent::ilBMFBase_Object('Server');

        if ( !is_object($soap_server)
            || !get_class($soap_server) == 'ilbmfserver') return;

        $this->_service_name = $service_name;
        $this->_service_ns = "urn:$service_name";
        $this->_service_desc = $service_desc;
        $this->import_ns = isset($import_ns) ? $import_ns : $this->import_ns;
        $this->soap_server = $soap_server;
        $this->host = isset($_SERVER['HTTP_HOST'])?$_SERVER['HTTP_HOST']:'localhost';
    }
