Inheritance diagram for ilBMFTransport_TCP:

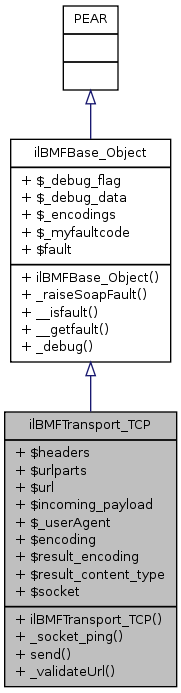

Collaboration diagram for ilBMFTransport_TCP:

Public Member Functions
	ilBMFTransport_TCP ($URL, $encoding=SOAP_DEFAULT_ENCODING)
	ilBMFTransport_TCP Constructor
	_socket_ping ()
&	send (&$msg, $options=NULL)
	send and receive soap data
	_validateUrl ()
	validate url data passed to constructor
Data Fields
	$headers = array()
	$urlparts = NULL
	$url = ''
	$incoming_payload = ''
	$_userAgent = SOAP_LIBRARY_NAME
	$encoding = SOAP_DEFAULT_ENCODING
	$result_encoding = 'UTF-8'
	$result_content_type
	$socket = ''

Detailed Description

Definition at line 37 of file class.ilBMFTransport_TCP.php.

Member Function Documentation

ilBMFTransport_TCP::_socket_ping ( )

Definition at line 67 of file class.ilBMFTransport_TCP.php.

References $result.

Referenced by send().

                             {
        // XXX how do we restart after socket_shutdown?
        //if (!$this->socket) {
            # create socket resource
            $this->socket = @socket_create(AF_INET, SOCK_STREAM, SOL_TCP);
            if ($this->socket < 0) return 0;

            # connect
            $result = socket_connect($this->socket, $this->urlparts['host'], $this->urlparts['port']);
            if ($result < 0) return 0;
        //}
        return 1;
    }

Here is the caller graph for this function:

ilBMFTransport_TCP::_validateUrl ( )

validate url data passed to constructor

Returns:: boolean private

Definition at line 133 of file class.ilBMFTransport_TCP.php.

References ilBMFBase_Object::_raiseSoapFault().

Referenced by send().

    {
        if ( ! is_array($this->urlparts) ) {
            $this->_raiseSoapFault("Unable to parse URL $url");
            return FALSE;
        }
        if (!isset($this->urlparts['host'])) {
            $this->_raiseSoapFault("No host in URL $url");
            return FALSE;
        }
        if (!isset($this->urlparts['path']) || !$this->urlparts['path'])
            $this->urlparts['path'] = '/';
        return TRUE;
    }

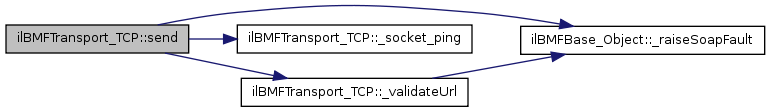

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFTransport_TCP::ilBMFTransport_TCP	(	$	URL,
		$	encoding = `SOAP_DEFAULT_ENCODING`
	)

ilBMFTransport_TCP Constructor

Parameters:

string

$URL http url to soap endpoint

public

Definition at line 59 of file class.ilBMFTransport_TCP.php.

References $encoding, and ilBMFBase_Object::ilBMFBase_Object().

    {
        parent::ilBMFBase_Object('TCP');
        $this->urlparts = @parse_url($URL);
        $this->url = $URL;
        $this->encoding = $encoding;
    }

Here is the call graph for this function:

& ilBMFTransport_TCP::send	(	&$	msg,
		$	options = `NULL`
	)

send and receive soap data

Parameters:

	string	&$msg outgoing post data
	string	$action SOAP Action header data

Returns:: string|fault response public

Definition at line 90 of file class.ilBMFTransport_TCP.php.

References ilBMFBase_Object::_raiseSoapFault(), _socket_ping(), and _validateUrl().

    {
        $this->incoming_payload = '';
        $this->outgoing_payload = &$msg;
        if (!$this->_validateUrl()) return $this->fault;

        # check for TCP scheme
        if (strcasecmp($this->urlparts['scheme'], 'TCP') == 0) {
            # check connection
            if (!$this->_socket_ping())
                return $this->_raiseSoapFault('error on '.$this->url.' reason '.socket_strerror(socket_last_error($this->socket)));

            # write to the socket
            if (!@socket_write($this->socket, $this->outgoing_payload, strlen($this->outgoing_payload))) {
                return $this->_raiseSoapFault('Error sending data to '.$this->url.' reason '.socket_strerror(socket_last_error($this->socket)));
            }

            # shutdown writing
            if(!socket_shutdown($this->socket, 1))
                return $this->_raiseSoapFault("can't change socket mode to read.");

            # read everything we can.
            while($buf = @socket_read($this->socket, 1024, PHP_BINARY_READ)) {
                $this->incoming_payload .= $buf;
            }

            # return payload or die
            if ($this->incoming_payload)
                return $this->incoming_payload;

            return $this->_raiseSoapFault("Error reveiving data from ".$this->url);
        }
        return $this->_raiseSoapFault('Invalid url scheme '.$this->url);
    }
