Parses the types and methods used in web service objects into the internal data structures used by ilBMFWSDL. More...

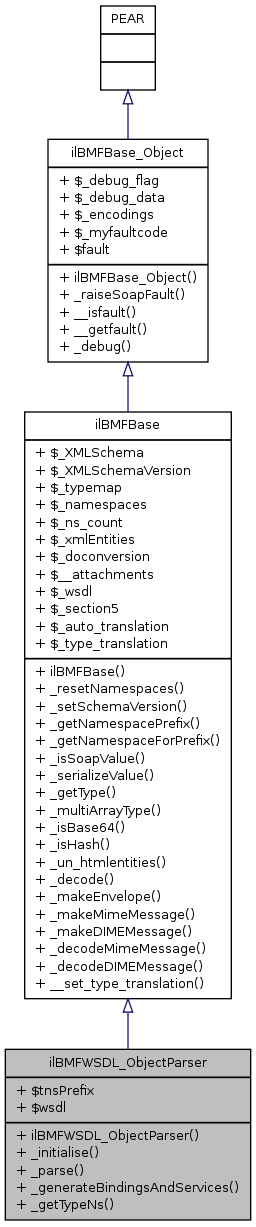

Inheritance diagram for ilBMFWSDL_ObjectParser:
Collaboration diagram for ilBMFWSDL_ObjectParser:
Public Member Functions | |
| ilBMFWSDL_ObjectParser (&$objects, &$wsdl, $targetNamespace, $service_name, $service_desc= '') | |
| Constructor. | |
| _initialise ($service_name) | |
| Initialise the ilBMFWSDL tree (destructive). | |
| _parse (&$object, $schemaNamespace, $service_name) | |
| Parser - takes a single object to add to tree (non-destructive). | |
| _generateBindingsAndServices ($schemaNamespace, $service_name, $service_desc= '') | |
| Take all the abstract WSDL data and build concrete bindings and services (destructive). | |
| _getTypeNs ($type) | |
Data Fields | |
| $tnsPrefix = 'tns' | |
| $wsdl = null | |
Detailed Description
Parses the types and methods used in web service objects into the internal data structures used by ilBMFWSDL.
Assumes the ilBMFWSDL class is unpopulated to start with.
Definition at line 1602 of file class.ilBMFWSDL.php.
Member Function Documentation
| ilBMFWSDL_ObjectParser::_generateBindingsAndServices | ( | $ | schemaNamespace, | |
| $ | service_name, | |||
| $ | service_desc = '' | |||
| ) |
Take all the abstract WSDL data and build concrete bindings and services (destructive).
XXX Current implementation discards $service_desc.
- Parameters:
-
$schemaNamespace Namespace for types etc. $service_name Name of the WSDL <service> $service_desc Optional description of the WSDL <service> private
Definition at line 1841 of file class.ilBMFWSDL.php.
Referenced by ilBMFWSDL_ObjectParser().
{
// Populate tree with bindings information
// XXX Current implementation only supports one binding that
// matches the single portType and all of its operations.
// XXX Is this the correct use of $schemaNamespace here?
// *** <wsdl:binding> ***
$this->wsdl->bindings[$service_name . 'Binding'] = array(
'type' => $service_name . 'Port',
'namespace' => $this->tnsPrefix,
'style' => 'rpc',
'transport' => SCHEMA_SOAP_HTTP,
'operations' => array());
$thisBinding =& $this->wsdl->bindings[$service_name . 'Binding'];
foreach ($this->wsdl->portTypes[$service_name . 'Port'] as $operationName => $operationData)
{
$thisBinding['operations'][$operationName] = array(
'soapAction' => $schemaNamespace . '#' . $operationName,
'style' => $thisBinding['style']);
foreach (array('input', 'output') as $messageType)
if (isset($operationData[$messageType]))
$thisBinding['operations'][$operationName][$messageType] = array(
'use' => 'encoded',
'namespace' => $schemaNamespace,
'encodingStyle' => SOAP_SCHEMA_ENCODING);
}
// Populate tree with service information
// XXX Current implementation supports one service which groups
// all of the ports together, one port per binding
// XXX What about https?
// *** <wsdl:service> ***
$this->wsdl->services[$service_name . 'Service'] = array('ports' => array());
$thisService =& $this->wsdl->services[$service_name . 'Service']['ports'];
foreach ($this->wsdl->bindings as $bindingName => $bindingData)
{
$thisService[$bindingData['type']] = array(
'name' => $bindingData['type'],
'binding' => $bindingName,
'namespace' => $this->tnsPrefix,
'address' => array('location' =>
'http://' . $_SERVER['SERVER_NAME'] . $_SERVER['PHP_SELF'] .
(isset($_SERVER['QUERY_STRING']) ? '?' . $_SERVER['QUERY_STRING'] : '')),
'type' => 'soap');
}
// Set service
$this->wsdl->set_service($service_name . 'Service');
$this->wsdl->uri = $this->wsdl->namespaces[$this->tnsPrefix];
// Create WSDL definition
// *** <wsdl:definitions> ***
$this->wsdl->definition = array(
'name' => $service_name,
'targetNamespace' => $this->wsdl->namespaces[$this->tnsPrefix],
'xmlns' => SCHEMA_WSDL);
foreach ($this->wsdl->namespaces as $nsPrefix => $namespace)
$this->wsdl->definition['xmlns:' . $nsPrefix] = $namespace;
}
Here is the caller graph for this function:
| ilBMFWSDL_ObjectParser::_getTypeNs | ( | $ | type | ) |
Definition at line 1915 of file class.ilBMFWSDL.php.
References $type.
Referenced by _parse().
{
preg_match_all("'\{(.*)\}'sm",$type,$m);
if (isset($m[1][0]) && $m[1][0] != '') {
if (!array_key_exists($m[1][0],$this->wsdl->ns)) {
$ns_pref = 'ns' . count($this->wsdl->namespaces);
$this->wsdl->ns[$m[1][0]] = $ns_pref;
$this->wsdl->namespaces[$ns_pref] = $m[1][0];
}
$typens = $this->wsdl->ns[$m[1][0]];
$type = ereg_replace($m[0][0],'',$type);
} else {
$typens = 'xsd';
}
return array($typens,$type);
}
Here is the caller graph for this function:
| ilBMFWSDL_ObjectParser::_initialise | ( | $ | service_name | ) |
Initialise the ilBMFWSDL tree (destructive).
If the object has already been initialised, the only effect will be to change the tns namespace to the new service name
- Parameters:
-
$service_name Name of the WSDL <service> private
Definition at line 1650 of file class.ilBMFWSDL.php.
Referenced by ilBMFWSDL_ObjectParser().
{
// Set up the basic namespaces that all WSDL definitions use
$this->wsdl->namespaces['wsdl'] = SCHEMA_WSDL; // WSDL language
$this->wsdl->namespaces['soap'] = SCHEMA_SOAP; // WSDL SOAP bindings
$this->wsdl->namespaces[$this->tnsPrefix] = 'urn:' . $service_name; // Target namespace
$this->wsdl->namespaces['xsd'] = array_search('xsd', $this->_namespaces); // XML Schema
$this->wsdl->namespaces['SOAP-ENC'] = array_search('SOAP-ENC', $this->_namespaces); // SOAP types
// XXX Refactor $namespace/$ns for Shane :-)
unset($this->wsdl->ns['urn:' . $service_name]);
$this->wsdl->ns += array_flip($this->wsdl->namespaces);
// Imports are not implemented in WSDL generation from classes
// *** <wsdl:import> ***
}
Here is the caller graph for this function:
| ilBMFWSDL_ObjectParser::_parse | ( | &$ | object, | |
| $ | schemaNamespace, | |||
| $ | service_name | |||
| ) |
Parser - takes a single object to add to tree (non-destructive).
- Parameters:
-
$object Reference to the object to parse $service_name Name of the WSDL <service> private
Definition at line 1673 of file class.ilBMFWSDL.php.
References _getTypeNs(), and ilBMFBase_Object::_raiseSoapFault().
Referenced by ilBMFWSDL_ObjectParser().
{
// Create namespace prefix for the schema
// XXX not very elegant :-(
list ($schPrefix, $foo) = $this->_getTypeNs('{'.$schemaNamespace.'}');
unset($foo);
// Parse all the types defined by the object in whatever
// schema language we are using (currently __typedef arrays)
// *** <wsdl:types> ***
foreach ($object->__typedef as $typeName => $typeValue)
{
// Get/create namespace definition
list($nsPrefix, $typeName) = $this->_getTypeNs($typeName);
// Create type definition
$this->wsdl->complexTypes[$schPrefix][$typeName] = array("name" => $typeName);
$thisType =& $this->wsdl->complexTypes[$schPrefix][$typeName];
// According to Dmitri's documentation, __typedef comes in two
// flavors:
// Array = array(array("item" => "value"))
// Struct = array("item1" => "value1", "item2" => "value2", ...)
if (is_array($typeValue))
{
reset($typeValue);
if (is_array(current($typeValue)) && count($typeValue) == 1
&& count(current($typeValue)) == 1)
{
// It's an array
$thisType['type'] = 'Array';
reset(current($typeValue));
list($nsPrefix, $typeName) = $this->_getTypeNs(current(current($typeValue)));
$thisType['namespace'] = $nsPrefix;
$thisType['arrayType'] = $typeName . '[]';
}
else if (!is_array(current($typeValue)))
{
// It's a struct
$thisType['type'] = 'Struct';
$thisType['order'] = 'all';
$thisType['namespace'] = $nsPrefix;
$thisType['elements'] = array();
foreach ($typeValue as $elementName => $elementType)
{
list($nsPrefix, $typeName) = $this->_getTypeNs($elementType);
$thisType['elements'][$elementName]['name'] = $elementName;
$thisType['elements'][$elementName]['type'] = $typeName;
$thisType['elements'][$elementName]['namespace'] = $nsPrefix;
}
}
else
{
// It's erroneous
return $this->_raiseSoapFault("The type definition for $nsPrefix:$typeName is invalid.", 'urn:' . get_class($object));
}
} else {
// It's erroneous
return $this->_raiseSoapFault("The type definition for $nsPrefix:$typeName is invalid.", 'urn:' . get_class($object));
}
}
// Create an empty element array with the target namespace prefix,
// to match the results of WSDL parsing
$this->wsdl->elements[$schPrefix] = array();
// Populate tree with message information
// *** <wsdl:message> ***
foreach ($object->__dispatch_map as $operationName => $messages)
{
foreach ($messages as $messageType => $messageParts)
{
unset($thisMessage);
switch ($messageType) {
case 'in':
$this->wsdl->messages[$operationName . 'Request'] = array();
$thisMessage =& $this->wsdl->messages[$operationName . 'Request'];
break;
case 'out':
$this->wsdl->messages[$operationName . 'Response'] = array();
$thisMessage =& $this->wsdl->messages[$operationName . 'Response'];
break;
case 'alias':
// Do nothing
break;
default:
// Error condition
break;
}
if (isset($thisMessage))
{
foreach ($messageParts as $partName => $partType)
{
list ($nsPrefix, $typeName) = $this->_getTypeNs($partType);
$thisMessage[$partName] = array(
'name' => $partName,
'type' => $typeName,
'namespace' => $nsPrefix
);
}
}
}
}
// Populate tree with portType information
// XXX Current implementation only supports one portType that
// encompasses all of the operations available.
// *** <wsdl:portType> ***
if (!isset($this->wsdl->portTypes[$service_name . 'Port']))
$this->wsdl->portTypes[$service_name . 'Port'] = array();
$thisPortType =& $this->wsdl->portTypes[$service_name . 'Port'];
foreach ($object->__dispatch_map as $operationName => $messages)
{
$thisPortType[$operationName] = array('name' => $operationName);
foreach ($messages as $messageType => $messageParts)
{
switch ($messageType) {
case 'in':
$thisPortType[$operationName]['input'] = array(
'message' => $operationName . 'Request',
'namespace' => $this->tnsPrefix);
break;
case 'out':
$thisPortType[$operationName]['output'] = array(
'message' => $operationName . 'Response',
'namespace' => $this->tnsPrefix);
break;
default:
break;
}
}
}
return true;
}
Here is the call graph for this function:
Here is the caller graph for this function:
| ilBMFWSDL_ObjectParser::ilBMFWSDL_ObjectParser | ( | &$ | objects, | |
| &$ | wsdl, | |||
| $ | targetNamespace, | |||
| $ | service_name, | |||
| $ | service_desc = '' | |||
| ) |
Constructor.
- Parameters:
-
$objects Reference to the object or array of objects to parse $wsdl Reference to the ilBMFWSDL object to populate $targetNamespace The target namespace of schema types etc. $service_name Name of the WSDL <service> $service_desc Optional description of the WSDL <service>
Definition at line 1618 of file class.ilBMFWSDL.php.
References $wsdl, _generateBindingsAndServices(), _initialise(), _parse(), ilBMFBase_Object::_raiseSoapFault(), and ilBMFBase::ilBMFBase().
{
parent::ilBMFBase('WSDLOBJECTPARSER');
$this->wsdl = &$wsdl;
// Set up the ilBMFWSDL object
$this->_initialise($service_name);
// Parse each web service object
$wsdl_ref = (is_array($objects)? $objects : array(&$objects));
foreach ($wsdl_ref as $ref_item) {
if (!is_object($ref_item))
return $this->_raiseSoapFault('Invalid web service object passed to object parser', 'urn:' . get_class($object));
if ($this->_parse($ref_item, $targetNamespace, $service_name) != true)
break;
}
// Build bindings from abstract data
if ($this->fault == NULL)
$this->_generateBindingsAndServices($targetNamespace, $service_name, $service_desc);
}

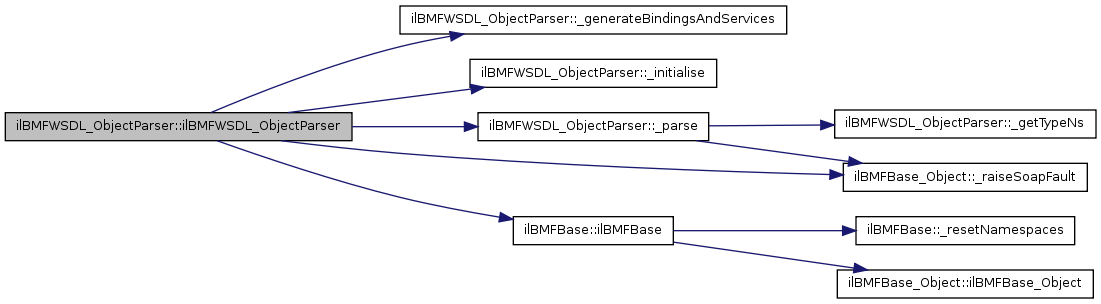

Here is the call graph for this function:
Field Documentation
| ilBMFWSDL_ObjectParser::$tnsPrefix = 'tns' |
Definition at line 1605 of file class.ilBMFWSDL.php.
| ilBMFWSDL_ObjectParser::$wsdl = null |
Definition at line 1608 of file class.ilBMFWSDL.php.
Referenced by ilBMFWSDL_ObjectParser().
The documentation for this class was generated from the following file:
- payment/bmf/lib/SOAP/class.ilBMFWSDL.php
