PHPExcel_Shared_OLERead Class Reference

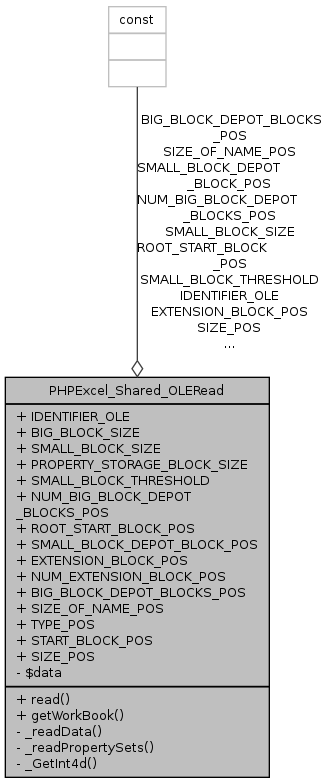

Collaboration diagram for PHPExcel_Shared_OLERead:

Public Member Functions
	read ($sFileName)
	Read the file.
	getWorkBook ()
	Extract binary stream data, workbook stream + sheet streams.

Data Fields
const	IDENTIFIER_OLE = IDENTIFIER_OLE
const	BIG_BLOCK_SIZE = 0x200
const	SMALL_BLOCK_SIZE = 0x40
const	PROPERTY_STORAGE_BLOCK_SIZE = 0x80
const	SMALL_BLOCK_THRESHOLD = 0x1000
const	NUM_BIG_BLOCK_DEPOT_BLOCKS_POS = 0x2c
const	ROOT_START_BLOCK_POS = 0x30
const	SMALL_BLOCK_DEPOT_BLOCK_POS = 0x3c
const	EXTENSION_BLOCK_POS = 0x44
const	NUM_EXTENSION_BLOCK_POS = 0x48
const	BIG_BLOCK_DEPOT_BLOCKS_POS = 0x4c
const	SIZE_OF_NAME_POS = 0x40
const	TYPE_POS = 0x42
const	START_BLOCK_POS = 0x74
const	SIZE_POS = 0x78

Private Member Functions
	_readData ($bl)
	Read a standard stream (by joining sectors using information from SAT)
	_readPropertySets ()
	Read entries in the directory stream.
	_GetInt4d ($data, $pos)
	Read 4 bytes of data at specified position.

Private Attributes
	$data = ''

Detailed Description

Definition at line 30 of file OLERead.php.

Member Function Documentation

PHPExcel_Shared_OLERead::_GetInt4d (   $data,   $pos  )

private

Read 4 bytes of data at specified position.

Parameters

string	$data
int	$pos

Returns

int

Definition at line 295 of file OLERead.php.

References $data.

Referenced by _readPropertySets(), and read().

        {
                // Hacked by Andreas Rehm 2006 to ensure correct result of the <<24 block on 32 and 64bit systems
                $_or_24 = ord($data[$pos+3]);
                if ($_or_24>=128) $_ord_24 = -abs((256-$_or_24) << 24);
                else $_ord_24 = ($_or_24&127) << 24;

                return ord($data[$pos]) | (ord($data[$pos+1]) << 8) | (ord($data[$pos+2]) << 16) | $_ord_24;
        }

Here is the caller graph for this function:

PHPExcel_Shared_OLERead::_readData (   $bl )

private

Read a standard stream (by joining sectors using information from SAT)

Parameters

int

$bl

Sector ID where the stream starts

Returns

string Data for standard stream

Definition at line 222 of file OLERead.php.

References $data.

Referenced by getWorkBook(), and read().

        {
                $block = $bl;
                $pos = 0;
                $data = '';

                while ($block != -2)  {
                        $pos = ($block + 1) * self::BIG_BLOCK_SIZE;
                        $data = $data . substr($this->data, $pos, self::BIG_BLOCK_SIZE);
                        $block = $this->bigBlockChain[$block];
                }
                return $data;
         }

Here is the caller graph for this function:

PHPExcel_Shared_OLERead::_readPropertySets ( )

private

Read entries in the directory stream.

Definition at line 239 of file OLERead.php.

References $d, $name, $size, $type, _GetInt4d(), and PROPERTY_STORAGE_BLOCK_SIZE.

Referenced by read().

        {
                $offset = 0;

                // loop through entires, each entry is 128 bytes
                while ($offset < strlen($this->entry)) {
                        // entry data (128 bytes)
                        $d = substr($this->entry, $offset, self::PROPERTY_STORAGE_BLOCK_SIZE);

                        // size in bytes of name
                        $nameSize = ord($d[self::SIZE_OF_NAME_POS]) | (ord($d[self::SIZE_OF_NAME_POS+1]) << 8);

                        // type of entry
                        $type = ord($d[self::TYPE_POS]);

                        // sectorID of first sector or short sector, if this entry refers to a stream (the case with workbook)
                        // sectorID of first sector of the short-stream container stream, if this entry is root entry
                        $startBlock = $this->_GetInt4d($d, self::START_BLOCK_POS);

                        $size = $this->_GetInt4d($d, self::SIZE_POS);

                        $name = '';
                        for ($i = 0; $i < $nameSize ; ++$i) {
                                $name .= $d[$i];
                        }

                        $name = str_replace("\x00", "", $name);

                        $this->props[] = array (
                                'name' => $name,
                                'type' => $type,
                                'startBlock' => $startBlock,
                                'size' => $size);

                        // Workbook directory entry (BIFF5 uses Book, BIFF8 uses Workbook)
                        if (($name == 'Workbook') || ($name == 'Book') || ($name == 'WORKBOOK')) {
                                $this->wrkbook = count($this->props) - 1;
                        }

                        // Root entry
                        if ($name == 'Root Entry' || $name == 'ROOT ENTRY' || $name == 'R') {
                                $this->rootentry = count($this->props) - 1;
                        }

                        $offset += self::PROPERTY_STORAGE_BLOCK_SIZE;
                }

        }

Here is the call graph for this function:

Here is the caller graph for this function:

PHPExcel_Shared_OLERead::getWorkBook

(

)

Extract binary stream data, workbook stream + sheet streams.

Returns

string

Definition at line 173 of file OLERead.php.

References _readData(), BIG_BLOCK_SIZE, and SMALL_BLOCK_SIZE.

        {
                if ($this->props[$this->wrkbook]['size'] < self::SMALL_BLOCK_THRESHOLD){
                        $rootdata = $this->_readData($this->props[$this->rootentry]['startBlock']);

                        $streamData = '';
                        $block = $this->props[$this->wrkbook]['startBlock'];

                        $pos = 0;
                        while ($block != -2) {
                                $pos = $block * self::SMALL_BLOCK_SIZE;
                                $streamData .= substr($rootdata, $pos, self::SMALL_BLOCK_SIZE);

                                $block = $this->smallBlockChain[$block];
                        }

                        return $streamData;


                } else {
                        $numBlocks = $this->props[$this->wrkbook]['size'] / self::BIG_BLOCK_SIZE;
                        if ($this->props[$this->wrkbook]['size'] % self::BIG_BLOCK_SIZE != 0) {
                                ++$numBlocks;
                        }

                        if ($numBlocks == 0) return '';


                        $streamData = '';
                        $block = $this->props[$this->wrkbook]['startBlock'];

                        $pos = 0;

                        while ($block != -2) {
                                $pos = ($block + 1) * self::BIG_BLOCK_SIZE;
                                $streamData .= substr($this->data, $pos, self::BIG_BLOCK_SIZE);
                                $block = $this->bigBlockChain[$block];
                        }

                        return $streamData;
                }
        }

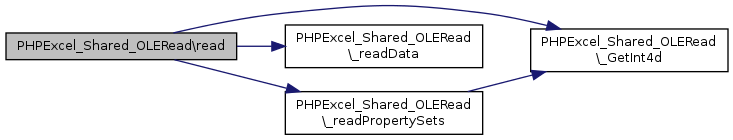

Here is the call graph for this function:

PHPExcel_Shared_OLERead::read

(

$sFileName

)

Read the file.

Parameters

$sFileName

string Filename

Exceptions

Exception

Definition at line 68 of file OLERead.php.

References _GetInt4d(), _readData(), _readPropertySets(), BIG_BLOCK_DEPOT_BLOCKS_POS, and IDENTIFIER_OLE.

        {
                // Check if file exists and is readable
                if(!is_readable($sFileName)) {
                        throw new Exception("Could not open " . $sFileName . " for reading! File does not exist, or it is not readable.");
                }

                // Get the file data
                $this->data = file_get_contents($sFileName);

                // Check OLE identifier
                if (substr($this->data, 0, 8) != self::IDENTIFIER_OLE) {
                        throw new Exception('The filename ' . $sFileName . ' is not recognised as an OLE file');
                }

                // Total number of sectors used for the SAT
                $this->numBigBlockDepotBlocks = $this->_GetInt4d($this->data, self::NUM_BIG_BLOCK_DEPOT_BLOCKS_POS);

                // SecID of the first sector of the directory stream
                $this->rootStartBlock = $this->_GetInt4d($this->data, self::ROOT_START_BLOCK_POS);

                // SecID of the first sector of the SSAT (or -2 if not extant)
                $this->sbdStartBlock = $this->_GetInt4d($this->data, self::SMALL_BLOCK_DEPOT_BLOCK_POS);

                // SecID of the first sector of the MSAT (or -2 if no additional sectors are used)
                $this->extensionBlock = $this->_GetInt4d($this->data, self::EXTENSION_BLOCK_POS);

                // Total number of sectors used by MSAT
                $this->numExtensionBlocks = $this->_GetInt4d($this->data, self::NUM_EXTENSION_BLOCK_POS);

                $bigBlockDepotBlocks = array();
                $pos = self::BIG_BLOCK_DEPOT_BLOCKS_POS;

                $bbdBlocks = $this->numBigBlockDepotBlocks;

                if ($this->numExtensionBlocks != 0) {
                        $bbdBlocks = (self::BIG_BLOCK_SIZE - self::BIG_BLOCK_DEPOT_BLOCKS_POS)/4;
                }

                for ($i = 0; $i < $bbdBlocks; ++$i) {
                          $bigBlockDepotBlocks[$i] = $this->_GetInt4d($this->data, $pos);
                          $pos += 4;
                }

                for ($j = 0; $j < $this->numExtensionBlocks; ++$j) {
                        $pos = ($this->extensionBlock + 1) * self::BIG_BLOCK_SIZE;
                        $blocksToRead = min($this->numBigBlockDepotBlocks - $bbdBlocks, self::BIG_BLOCK_SIZE / 4 - 1);

                        for ($i = $bbdBlocks; $i < $bbdBlocks + $blocksToRead; ++$i) {
                                $bigBlockDepotBlocks[$i] = $this->_GetInt4d($this->data, $pos);
                                $pos += 4;
                        }

                        $bbdBlocks += $blocksToRead;
                        if ($bbdBlocks < $this->numBigBlockDepotBlocks) {
                                $this->extensionBlock = $this->_GetInt4d($this->data, $pos);
                        }
                }

                $pos = 0;
                $index = 0;
                $this->bigBlockChain = array();

                for ($i = 0; $i < $this->numBigBlockDepotBlocks; ++$i) {
                        $pos = ($bigBlockDepotBlocks[$i] + 1) * self::BIG_BLOCK_SIZE;

                        for ($j = 0 ; $j < self::BIG_BLOCK_SIZE / 4; ++$j) {
                                $this->bigBlockChain[$index] = $this->_GetInt4d($this->data, $pos);
                                $pos += 4 ;
                                ++$index;
                        }
                }

                $pos = 0;
                $index = 0;
                $sbdBlock = $this->sbdStartBlock;
                $this->smallBlockChain = array();

                while ($sbdBlock != -2) {
                        $pos = ($sbdBlock + 1) * self::BIG_BLOCK_SIZE;

                        for ($j = 0; $j < self::BIG_BLOCK_SIZE / 4; ++$j) {
                                $this->smallBlockChain[$index] = $this->_GetInt4d($this->data, $pos);
                                $pos += 4;
                                ++$index;
                        }

                        $sbdBlock = $this->bigBlockChain[$sbdBlock];
                }

                $block = $this->rootStartBlock;
                $pos = 0;

                // read the directory stream
                $this->entry = $this->_readData($block);

                $this->_readPropertySets();

        }

Here is the call graph for this function:

Field Documentation

PHPExcel_Shared_OLERead::$data = ''

private

Definition at line 31 of file OLERead.php.

Referenced by _GetInt4d(), and _readData().

const PHPExcel_Shared_OLERead::BIG_BLOCK_DEPOT_BLOCKS_POS = 0x4c

Definition at line 54 of file OLERead.php.

Referenced by read().

const PHPExcel_Shared_OLERead::BIG_BLOCK_SIZE = 0x200

Definition at line 37 of file OLERead.php.

Referenced by getWorkBook().

const PHPExcel_Shared_OLERead::EXTENSION_BLOCK_POS = 0x44

Definition at line 52 of file OLERead.php.

const PHPExcel_Shared_OLERead::IDENTIFIER_OLE = IDENTIFIER_OLE

Definition at line 34 of file OLERead.php.

const PHPExcel_Shared_OLERead::NUM_BIG_BLOCK_DEPOT_BLOCKS_POS = 0x2c

Definition at line 49 of file OLERead.php.

const PHPExcel_Shared_OLERead::NUM_EXTENSION_BLOCK_POS = 0x48

Definition at line 53 of file OLERead.php.

const PHPExcel_Shared_OLERead::PROPERTY_STORAGE_BLOCK_SIZE = 0x80

Definition at line 43 of file OLERead.php.

Referenced by _readPropertySets().

const PHPExcel_Shared_OLERead::ROOT_START_BLOCK_POS = 0x30

Definition at line 50 of file OLERead.php.

const PHPExcel_Shared_OLERead::SIZE_OF_NAME_POS = 0x40

Definition at line 57 of file OLERead.php.

const PHPExcel_Shared_OLERead::SIZE_POS = 0x78

Definition at line 60 of file OLERead.php.

const PHPExcel_Shared_OLERead::SMALL_BLOCK_DEPOT_BLOCK_POS = 0x3c

Definition at line 51 of file OLERead.php.

const PHPExcel_Shared_OLERead::SMALL_BLOCK_SIZE = 0x40

Definition at line 40 of file OLERead.php.

Referenced by getWorkBook().

const PHPExcel_Shared_OLERead::SMALL_BLOCK_THRESHOLD = 0x1000

Definition at line 46 of file OLERead.php.

const PHPExcel_Shared_OLERead::START_BLOCK_POS = 0x74

Definition at line 59 of file OLERead.php.

const PHPExcel_Shared_OLERead::TYPE_POS = 0x42

Definition at line 58 of file OLERead.php.

---

The documentation for this class was generated from the following file:

• Services/Excel/classes/PHPExcel/Shared/OLERead.php
