PHPExcel_Shared_Drawing Class Reference

Collaboration diagram for PHPExcel_Shared_Drawing:

Static Public Member Functions
static	pixelsToEMU ($pValue=0)
	Convert pixels to EMU.
static	EMUToPixels ($pValue=0)
	Convert EMU to pixels.
static	pixelsToCellDimension ($pValue=0, $pFontSize=11)
	Convert pixels to cell dimension.
static	cellDimensionToPixels ($pValue=0, $pFontSize=11)
	Convert cell width to pixels.
static	pixelsToPoints ($pValue=0)
	Convert pixels to points.
static	pointsToPixels ($pValue=0)
	Convert points to pixels.
static	degreesToAngle ($pValue=0)
	Convert degrees to angle.
static	angleToDegrees ($pValue=0)
	Convert angle to degrees.

Detailed Description

Definition at line 36 of file Drawing.php.

Member Function Documentation

static PHPExcel_Shared_Drawing::angleToDegrees (   $pValue = 0 )

static

Convert angle to degrees.

Parameters

int

$pValue

Angle

Returns

int Degrees

Definition at line 130 of file Drawing.php.

Referenced by PHPExcel_Reader_Excel2007\load().

                                                           {
                if ($pValue != 0) {
                        return round($pValue / 60000);
                } else {
                        return 0;
                }
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::cellDimensionToPixels (   $pValue = 0,   $pFontSize = 11  )

static

Convert cell width to pixels.

Parameters

int	$pValue	Value in cell dimension
int	$pFontSize	Default font size of workbook

Returns

int Value in pixels

Definition at line 82 of file Drawing.php.

Referenced by PHPExcel_Writer_HTML\buildCSS(), and PHPExcel_Shared_Excel5\sizeCol().

                                                                                   {
                if ($pValue != 0) {
                        return $pValue * 7 * $pFontSize / 11;
                } else {
                        return 0;
                }
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::degreesToAngle (   $pValue = 0 )

static

Convert degrees to angle.

Parameters

int

$pValue

Degrees

Returns

int Angle

Definition at line 120 of file Drawing.php.

Referenced by PHPExcel_Writer_Excel2007_Drawing\_writeDrawing().

                                                           {
                return (int)round($pValue * 60000);
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::EMUToPixels (   $pValue = 0 )

static

Convert EMU to pixels.

Parameters

int

$pValue

Value in EMU

Returns

int Value in pixels

Definition at line 54 of file Drawing.php.

Referenced by PHPExcel_Reader_Excel2007\load().

                                                        {
                if ($pValue != 0) {
                        return round($pValue / 9525);
                } else {
                        return 0;
                }
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::pixelsToCellDimension (   $pValue = 0,   $pFontSize = 11  )

static

Convert pixels to cell dimension.

Exact algorithm not known. By inspection of a real Excel file using Calibri 11, one finds 1000px ~ 142.85546875 This gives a conversion factor of 7. Also, we assume that pixels and font size are proportional.

Parameters

int	$pValue	Value in pixels
int	$pFontSize	Default font size of workbook

Returns

int Value in cell dimension

Definition at line 71 of file Drawing.php.

                                                                                   {
                return $pValue * $pFontSize / 11 / 7;
        }

static PHPExcel_Shared_Drawing::pixelsToEMU (   $pValue = 0 )

static

Convert pixels to EMU.

Parameters

int

$pValue

Value in pixels

Returns

int Value in EMU

Definition at line 44 of file Drawing.php.

Referenced by PHPExcel_Writer_Excel2007_Drawing\_writeDrawing().

                                                        {
                return round($pValue * 9525);
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::pixelsToPoints (   $pValue = 0 )

static

Convert pixels to points.

Parameters

int

$pValue

Value in pixels

Returns

int Value in points

Definition at line 96 of file Drawing.php.

Referenced by PHPExcel_Writer_HTML\buildCSS().

                                                           {
                return $pValue * 0.67777777;
        }

Here is the caller graph for this function:

static PHPExcel_Shared_Drawing::pointsToPixels (   $pValue = 0 )

static

Convert points to pixels.

Parameters

int

$pValue

Value in points

Returns

int Value in pixels

Definition at line 106 of file Drawing.php.

Referenced by PHPExcel_Shared_Excel5\sizeRow().

                                                           {
                if ($pValue != 0) {
                        return (int) ceil($pValue * 1.333333333);
                } else {
                        return 0;
                }
        }

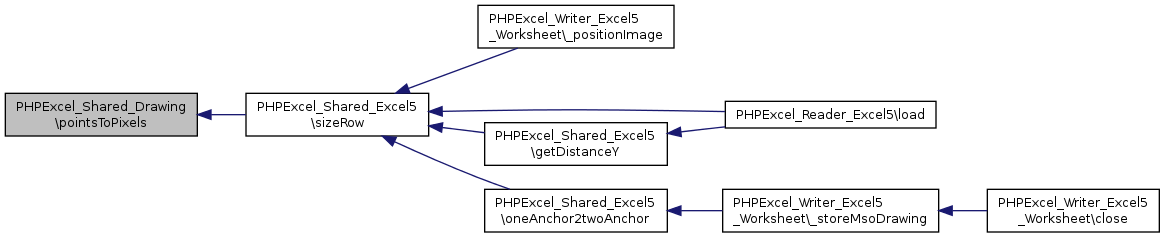

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• Services/Excel/classes/PHPExcel/Shared/Drawing.php
