PHPExcel_Writer_Excel5_Parser Class Reference

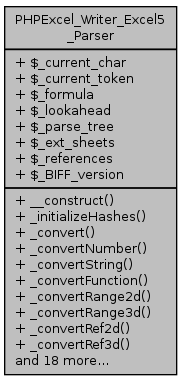

+ Collaboration diagram for PHPExcel_Writer_Excel5_Parser:

Public Member Functions

 __construct ($biff_version)
 The class constructor.
 _initializeHashes ()
 Initialize the ptg and function hashes.
 _convert ($token)
 Convert a token to the proper ptg value.
 _convertNumber ($num)
 Convert a number token to ptgInt or ptgNum.
 _convertString ($string)
 Convert a string token to ptgStr.
 _convertFunction ($token, $num_args)
 Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes.
 _convertRange2d ($range, $class=0)
 Convert an Excel range such as A1:D4 to a ptgRefV.
 _convertRange3d ($token)
 Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.
 _convertRef2d ($cell)
 Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.
 _convertRef3d ($cell)
 Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.
 _packExtRef ($ext_ref)
 Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure.
 _getRefIndex ($ext_ref)
 Look up the REF index that corresponds to an external sheet name (or range).
 _getSheetIndex ($sheet_name)
 Look up the index that corresponds to an external sheet name.
 setExtSheet ($name, $index)
 This method is used to update the array of sheet names.
 _cellToPackedRowcol ($cell)
 pack() row and column into the required 3 or 4 byte format.
 _rangeToPackedRange ($range)
 pack() row range into the required 3 or 4 byte format.
 _cellToRowcol ($cell)
 Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number.
 _advance ()
 Advance to the next valid token.
 _match ($token)
 Checks if it's a valid token.
 parse ($formula)
 The parsing method.
 _condition ()
 It parses a condition.
 _expression ()
 It parses a expression.
 _parenthesizedExpression ()
 This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards.
 _term ()
 It parses a term.
 _fact ()
 It parses a factor.
 _func ()
 It parses a function call.
 _createTree ($value, $left, $right)
 Creates a tree.
 toReversePolish ($tree=array())
 Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack).

Data Fields

 $_current_char
 $_current_token
 $_formula
 $_lookahead
 $_parse_tree
 $_ext_sheets
 $_references
 $_BIFF_version

Detailed Description

Definition at line 75 of file Parser.php.

Constructor & Destructor Documentation

PHPExcel_Writer_Excel5_Parser::__construct (   $biff_version)

The class constructor.

Parameters
integer$byte_orderThe byte order (Little endian or Big endian) of the architecture (optional). 1 => big endian, 0 (default) little endian.

Definition at line 131 of file Parser.php.

References _initializeHashes().

{
$this->_current_char = 0;
$this->_BIFF_version = $biff_version;
$this->_current_token = ''; // The token we are working on.
$this->_formula = ''; // The formula to parse.
$this->_lookahead = ''; // The character ahead of the current char.
$this->_parse_tree = ''; // The parse tree to be generated.
$this->_initializeHashes(); // Initialize the hashes: ptg's and function's ptg's
$this->_ext_sheets = array();
$this->_references = array();
}

+ Here is the call graph for this function:

Member Function Documentation

PHPExcel_Writer_Excel5_Parser::_advance ( )

Advance to the next valid token.

private

Definition at line 1056 of file Parser.php.

References $_current_char, and _match().

Referenced by _condition(), _expression(), _fact(), _func(), _term(), and parse().

{
$i = $this->_current_char;
$formula_length = strlen($this->_formula);
// eat up white spaces
if ($i < $formula_length) {
while ($this->_formula{$i} == " ") {
++$i;
}
if ($i < ($formula_length - 1)) {
$this->_lookahead = $this->_formula{$i+1};
}
$token = '';
}
while ($i < $formula_length) {
$token .= $this->_formula{$i};
if ($i < ($formula_length - 1)) {
$this->_lookahead = $this->_formula{$i+1};
} else {
$this->_lookahead = '';
}
if ($this->_match($token) != '') {
//if ($i < strlen($this->_formula) - 1) {
// $this->_lookahead = $this->_formula{$i+1};
//}
$this->_current_char = $i + 1;
$this->_current_token = $token;
return 1;
}
if ($i < ($formula_length - 2)) {
$this->_lookahead = $this->_formula{$i+2};
} else { // if we run out of characters _lookahead becomes empty
$this->_lookahead = '';
}
++$i;
}
//die("Lexical error ".$this->_current_char);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_cellToPackedRowcol (   $cell)

pack() row and column into the required 3 or 4 byte format.

private

Parameters
string$cellThe Excel cell reference to be packed
Returns
array Array containing the row and column in packed() format

Definition at line 944 of file Parser.php.

References $row, _cellToRowcol(), and elseif().

Referenced by _convertRange2d(), _convertRange3d(), _convertRef2d(), and _convertRef3d().

{
$cell = strtoupper($cell);
list($row, $col, $row_rel, $col_rel) = $this->_cellToRowcol($cell);
if ($col >= 256) {
throw new Exception("Column in: $cell greater than 255");
}
// FIXME: change for BIFF8
if ($row >= 16384) {
throw new Exception("Row in: $cell greater than 16384 ");
}
// Set the high bits to indicate if row or col are relative.
if ($this->_BIFF_version == 0x0500) {
$row |= $col_rel << 14;
$row |= $row_rel << 15;
$col = pack('C', $col);
} elseif ($this->_BIFF_version == 0x0600) {
$col |= $col_rel << 14;
$col |= $row_rel << 15;
$col = pack('v', $col);
}
$row = pack('v', $row);
return array($row, $col);
}

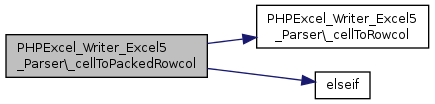

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_cellToRowcol (   $cell)

Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number.

Also returns two (0,1) values to indicate whether the row or column are relative references.

private

Parameters
string$cellThe Excel cell reference in A1 format.
Returns
array

Definition at line 1026 of file Parser.php.

References $row.

Referenced by _cellToPackedRowcol().

{
preg_match('/(\$)?([A-I]?[A-Z])(\$)?(\d+)/',$cell,$match);
// return absolute column if there is a $ in the ref
$col_rel = empty($match[1]) ? 1 : 0;
$col_ref = $match[2];
$row_rel = empty($match[3]) ? 1 : 0;
$row = $match[4];
// Convert base26 column string to a number.
$expn = strlen($col_ref) - 1;
$col = 0;
$col_ref_length = strlen($col_ref);
for ($i = 0; $i < $col_ref_length; ++$i) {
$col += (ord($col_ref{$i}) - ord('A') + 1) * pow(26, $expn);
--$expn;
}
// Convert 1-index to zero-index
--$row;
--$col;
return array($row, $col, $row_rel, $col_rel);
}

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_condition ( )

It parses a condition.

It assumes the following rule: Cond -> Expr [(">" | "<") Expr]

private

Returns
mixed The parsed ptg'd tree on success

Definition at line 1251 of file Parser.php.

References $result, _advance(), _createTree(), _expression(), and elseif().

Referenced by _func(), and parse().

{
$result = $this->_expression();
if ($this->_current_token == "<") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgLT', $result, $result2);
} elseif ($this->_current_token == ">") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgGT', $result, $result2);
} elseif ($this->_current_token == "<=") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgLE', $result, $result2);
} elseif ($this->_current_token == ">=") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgGE', $result, $result2);
} elseif ($this->_current_token == "=") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgEQ', $result, $result2);
} elseif ($this->_current_token == "<>") {
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgNE', $result, $result2);
}
return $result;
}

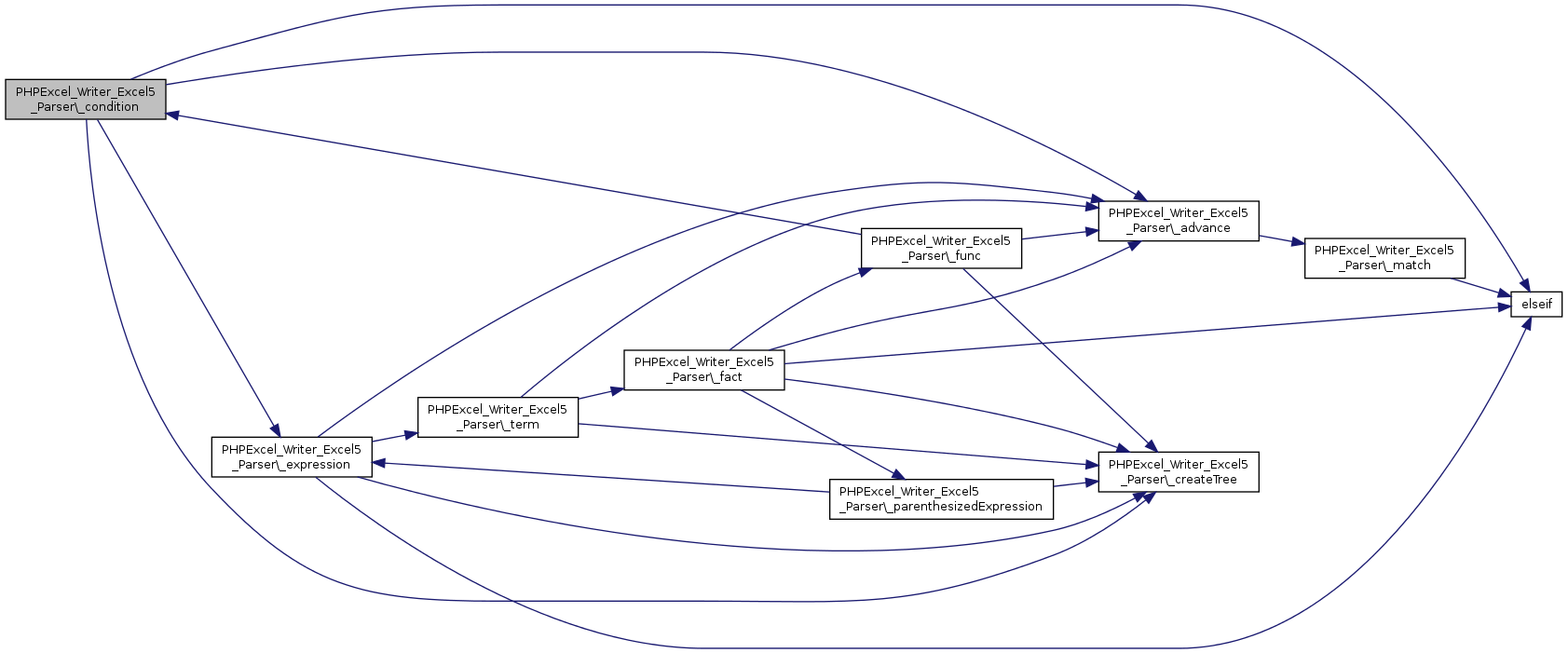

+ Here is the call graph for this function:

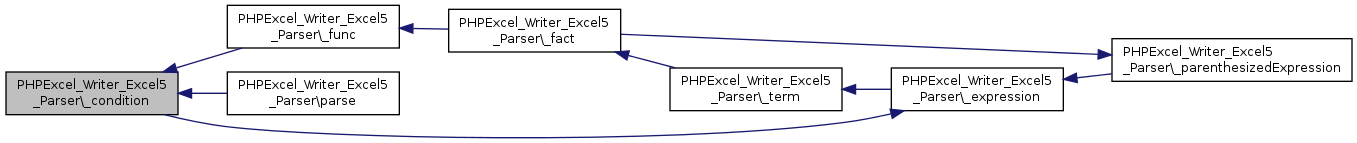

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convert (   $token)

Convert a token to the proper ptg value.

private

Parameters
mixed$tokenThe token to convert.
Returns
mixed the converted token on success

Definition at line 524 of file Parser.php.

References _convertNumber(), _convertRange2d(), _convertRange3d(), _convertRef2d(), _convertRef3d(), _convertString(), and elseif().

Referenced by toReversePolish().

{
if (preg_match("/^\"[^\"]{0,255}\"$/", $token)) {
return $this->_convertString($token);
} elseif (is_numeric($token)) {
return $this->_convertNumber($token);
// match references like A1 or $A$1
} elseif (preg_match('/^\$?([A-Ia-i]?[A-Za-z])\$?(\d+)$/',$token)) {
return $this->_convertRef2d($token);
// match external references like Sheet1!A1 or Sheet1:Sheet2!A1
} elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
return $this->_convertRef3d($token);
// match external references like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1
} elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
return $this->_convertRef3d($token);
// match ranges like A1:B2
} elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\:(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
return $this->_convertRange2d($token);
// match ranges like A1..B2
} elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
return $this->_convertRange2d($token);
// match external ranges like Sheet1!A1 or Sheet1:Sheet2!A1:B2
} elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
return $this->_convertRange3d($token);
// match external ranges like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
} elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
return $this->_convertRange3d($token);
// operators (including parentheses)
} elseif (isset($this->ptg[$token])) {
return pack("C", $this->ptg[$token]);
// commented so argument number can be processed correctly. See toReversePolish().
/*elseif (preg_match("/[A-Z0-9\xc0-\xdc\.]+/",$token))
{
return($this->_convertFunction($token,$this->_func_args));
}*/
// if it's an argument, ignore the token (the argument remains)
} elseif ($token == 'arg') {
return '';
}
// TODO: use real error codes
throw new Exception("Unknown token $token");
}

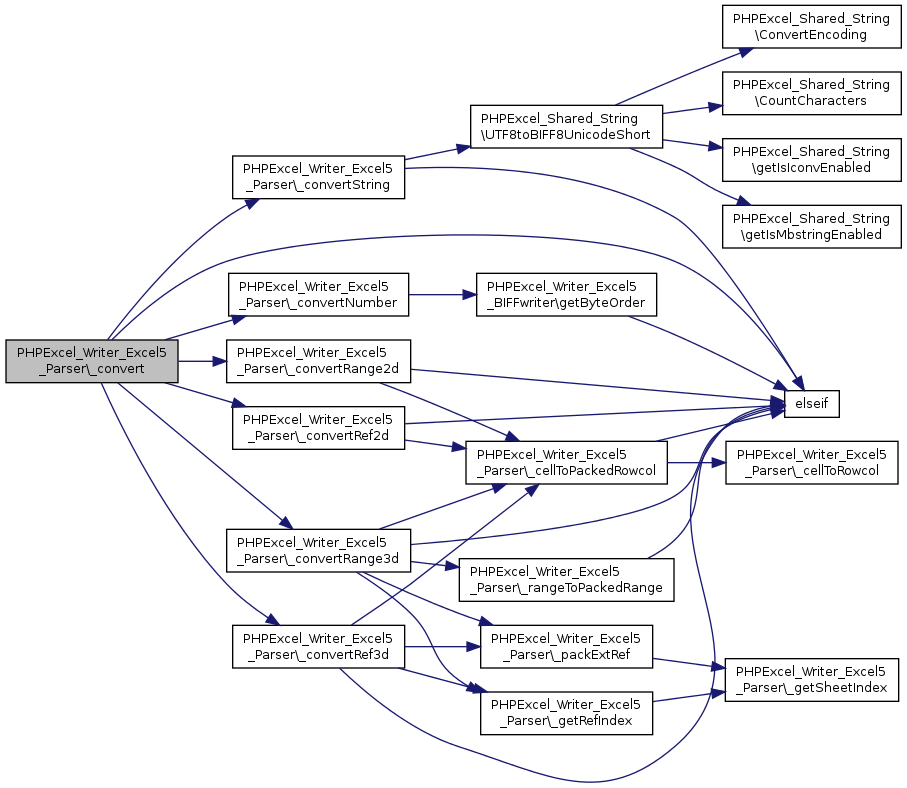

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertFunction (   $token,
  $num_args
)

Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes.

private

Parameters
string$tokenThe name of the function for convertion to ptg value.
integer$num_argsThe number of arguments the function receives.
Returns
string The packed ptg for the function

Definition at line 628 of file Parser.php.

{
$args = $this->_functions[$token][1];
$volatile = $this->_functions[$token][3];
// Fixed number of args eg. TIME($i,$j,$k).
if ($args >= 0) {
return pack("Cv", $this->ptg['ptgFuncV'], $this->_functions[$token][0]);
}
// Variable number of args eg. SUM($i,$j,$k, ..).
if ($args == -1) {
return pack("CCv", $this->ptg['ptgFuncVarV'], $num_args, $this->_functions[$token][0]);
}
}
PHPExcel_Writer_Excel5_Parser::_convertNumber (   $num)

Convert a number token to ptgInt or ptgNum.

private

Parameters
mixed$numan integer or double for conversion to its ptg value

Definition at line 584 of file Parser.php.

References PHPExcel_Writer_Excel5_BIFFwriter\getByteOrder().

Referenced by _convert().

{
// Integer in the range 0..2**16-1
if ((preg_match("/^\d+$/", $num)) and ($num <= 65535)) {
return pack("Cv", $this->ptg['ptgInt'], $num);
} else { // A float
if (PHPExcel_Writer_Excel5_BIFFwriter::getByteOrder()) { // if it's Big Endian
$num = strrev($num);
}
return pack("Cd", $this->ptg['ptgNum'], $num);
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertRange2d (   $range,
  $class = 0
)

Convert an Excel range such as A1:D4 to a ptgRefV.

private

Parameters
string$rangeAn Excel range in the A1:A2 or A1..A2 format.

Definition at line 649 of file Parser.php.

References _cellToPackedRowcol(), and elseif().

Referenced by _convert().

{
// TODO: possible class value 0,1,2 check Formula.pm
// Split the range into 2 cell refs
if (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\:([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
list($cell1, $cell2) = split(':', $range);
} elseif (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\.\.([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
list($cell1, $cell2) = split('\.\.', $range);
} else {
// TODO: use real error codes
throw new Exception("Unknown range separator");
}
// Convert the cell references
$cell_array1 = $this->_cellToPackedRowcol($cell1);
list($row1, $col1) = $cell_array1;
$cell_array2 = $this->_cellToPackedRowcol($cell2);
list($row2, $col2) = $cell_array2;
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgArea = pack("C", $this->ptg['ptgArea']);
} elseif ($class == 1) {
$ptgArea = pack("C", $this->ptg['ptgAreaV']);
} elseif ($class == 2) {
$ptgArea = pack("C", $this->ptg['ptgAreaA']);
} else {
// TODO: use real error codes
throw new Exception("Unknown class $class");
}
return $ptgArea . $row1 . $row2 . $col1. $col2;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertRange3d (   $token)

Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.

private

Parameters
string$tokenAn Excel range in the Sheet1!A1:A2 format.
Returns
mixed The packed ptgArea3d token on success.

Definition at line 692 of file Parser.php.

References _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), _rangeToPackedRange(), and elseif().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Split the ref at the ! symbol
list($ext_ref, $range) = split('!', $token);
// Convert the external reference part (different for BIFF8)
if ($this->_BIFF_version == 0x0500) {
$ext_ref = $this->_packExtRef($ext_ref);
} elseif ($this->_BIFF_version == 0x0600) {
$ext_ref = $this->_getRefIndex($ext_ref);
}
// Split the range into 2 cell refs
list($cell1, $cell2) = split(':', $range);
// Convert the cell references
if (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/", $cell1)) {
$cell_array1 = $this->_cellToPackedRowcol($cell1);
list($row1, $col1) = $cell_array1;
$cell_array2 = $this->_cellToPackedRowcol($cell2);
list($row2, $col2) = $cell_array2;
} else { // It's a rows range (like 26:27)
$cells_array = $this->_rangeToPackedRange($cell1.':'.$cell2);
list($row1, $col1, $row2, $col2) = $cells_array;
}
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgArea = pack("C", $this->ptg['ptgArea3d']);
} elseif ($class == 1) {
$ptgArea = pack("C", $this->ptg['ptgArea3dV']);
} elseif ($class == 2) {
$ptgArea = pack("C", $this->ptg['ptgArea3dA']);
} else {
throw new Exception("Unknown class $class");
}
return $ptgArea . $ext_ref . $row1 . $row2 . $col1. $col2;
}

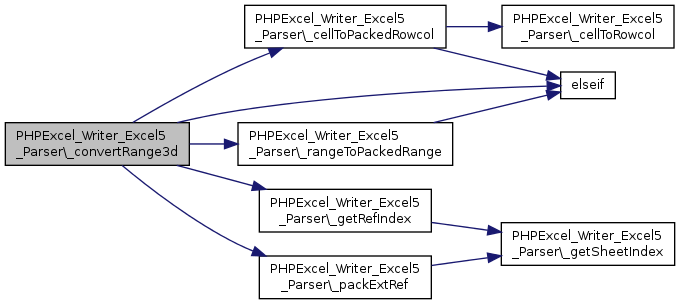

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertRef2d (   $cell)

Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.

private

Parameters
string$cellAn Excel cell reference
Returns
string The cell in packed() format with the corresponding ptg

Definition at line 741 of file Parser.php.

References $row, _cellToPackedRowcol(), and elseif().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Convert the cell reference
$cell_array = $this->_cellToPackedRowcol($cell);
list($row, $col) = $cell_array;
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgRef = pack("C", $this->ptg['ptgRef']);
} elseif ($class == 1) {
$ptgRef = pack("C", $this->ptg['ptgRefV']);
} elseif ($class == 2) {
$ptgRef = pack("C", $this->ptg['ptgRefA']);
} else {
// TODO: use real error codes
throw new Exception("Unknown class $class");
}
return $ptgRef.$row.$col;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertRef3d (   $cell)

Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.

private

Parameters
string$cellAn Excel cell reference
Returns
mixed The packed ptgRef3d token on success.

Definition at line 771 of file Parser.php.

References $row, _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), and elseif().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Split the ref at the ! symbol
list($ext_ref, $cell) = split('!', $cell);
// Convert the external reference part (different for BIFF8)
if ($this->_BIFF_version == 0x0500) {
$ext_ref = $this->_packExtRef($ext_ref);
} elseif ($this->_BIFF_version == 0x0600) {
$ext_ref = $this->_getRefIndex($ext_ref);
}
// Convert the cell reference part
list($row, $col) = $this->_cellToPackedRowcol($cell);
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgRef = pack("C", $this->ptg['ptgRef3d']);
} elseif ($class == 1) {
$ptgRef = pack("C", $this->ptg['ptgRef3dV']);
} elseif ($class == 2) {
$ptgRef = pack("C", $this->ptg['ptgRef3dA']);
} else {
throw new Exception("Unknown class $class");
}
return $ptgRef . $ext_ref. $row . $col;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_convertString (   $string)

Convert a string token to ptgStr.

private

Parameters
string$stringA string for conversion to its ptg value.
Returns
mixed the converted token on success

Definition at line 604 of file Parser.php.

References elseif(), and PHPExcel_Shared_String\UTF8toBIFF8UnicodeShort().

Referenced by _convert().

{
// chop away beggining and ending quotes
$string = substr($string, 1, strlen($string) - 2);
if (strlen($string) > 255) {
throw new Exception("String is too long");
}
if ($this->_BIFF_version == 0x0500) {
return pack("CC", $this->ptg['ptgStr'], strlen($string)).$string;
} elseif ($this->_BIFF_version == 0x0600) {
return pack('C', $this->ptg['ptgStr']) . PHPExcel_Shared_String::UTF8toBIFF8UnicodeShort($string);
}
}

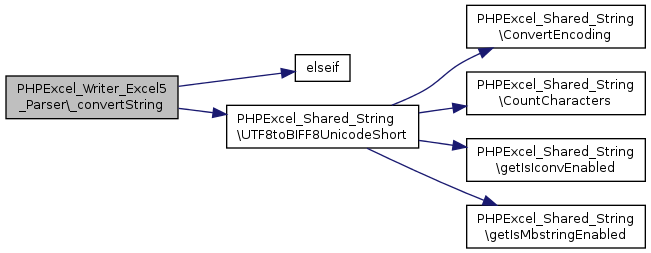

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_createTree (   $value,
  $left,
  $right
)

Creates a tree.

In fact an array which may have one or two arrays (sub-trees) as elements.

private

Parameters
mixed$valueThe value of this node.
mixed$leftThe left array (sub-tree) or a final node.
mixed$rightThe right array (sub-tree) or a final node.
Returns
array A tree

Definition at line 1501 of file Parser.php.

Referenced by _condition(), _expression(), _fact(), _func(), _parenthesizedExpression(), and _term().

{
return array('value' => $value, 'left' => $left, 'right' => $right);
}

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_expression ( )

It parses a expression.

It assumes the following rule: Expr -> Term [("+" | "-") Term] -> "string" -> "-" Term

private

Returns
mixed The parsed ptg'd tree on success

Definition at line 1291 of file Parser.php.

References $result, _advance(), _createTree(), _term(), and elseif().

Referenced by _condition(), and _parenthesizedExpression().

{
// If it's a string return a string node
if (ereg("^\"[^\"]{0,255}\"$", $this->_current_token)) {
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
} elseif ($this->_current_token == "-") {
// catch "-" Term
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgUminus', $result2, '');
return $result;
}
$result = $this->_term();
while (($this->_current_token == "+") or
($this->_current_token == "-")) {
if ($this->_current_token == "+") {
$this->_advance();
$result2 = $this->_term();
$result = $this->_createTree('ptgAdd', $result, $result2);
} else {
$this->_advance();
$result2 = $this->_term();
$result = $this->_createTree('ptgSub', $result, $result2);
}
}
return $result;
}

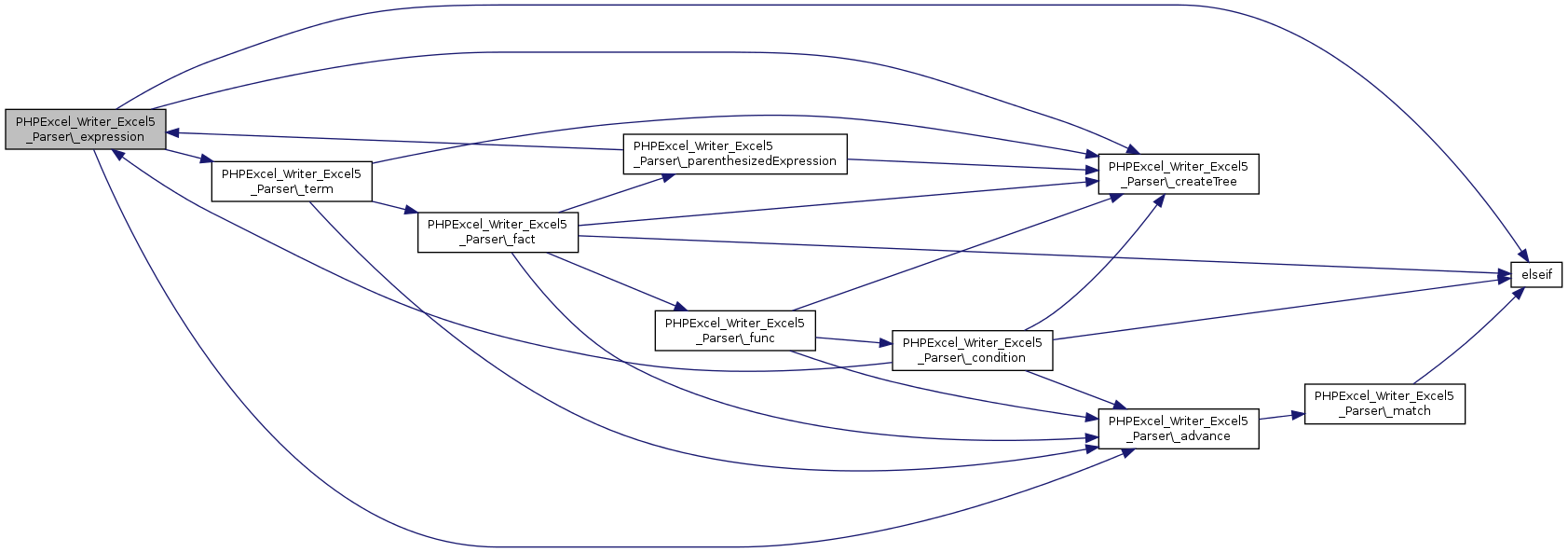

+ Here is the call graph for this function:

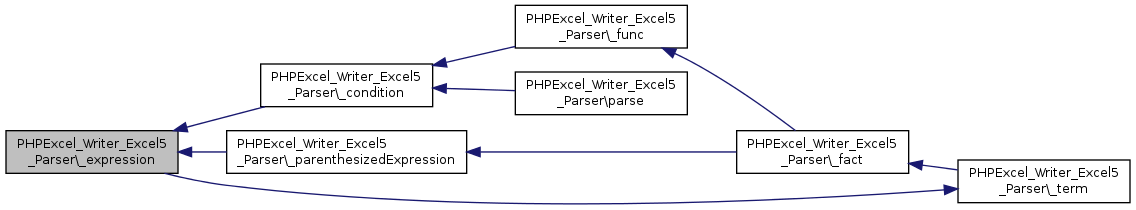

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_fact ( )

It parses a factor.

It assumes the following rule: Fact -> ( Expr ) | CellRef | CellRange | Number | Function

private

Returns
mixed The parsed ptg'd tree on success

Definition at line 1373 of file Parser.php.

References $_current_token, $result, _advance(), _createTree(), _func(), _parenthesizedExpression(), and elseif().

Referenced by _term().

{
if ($this->_current_token == "(") {
$this->_advance(); // eat the "("
$result = $this->_parenthesizedExpression();
if ($this->_current_token != ")") {
throw new Exception("')' token expected.");
}
$this->_advance(); // eat the ")"
return $result;
}
// if it's a reference
if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// if it's a range
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token) or
preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
// If it's an external range (Sheet1!A1 or Sheet1!A1:B2)
elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
// If it's an external range ('Sheet1'!A1 or 'Sheet1'!A1:B2)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
elseif (is_numeric($this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// if it's a function call
elseif (eregi("^[A-Z0-9\xc0-\xdc\.]+$",$this->_current_token))
{
$result = $this->_func();
return $result;
}
throw new Exception("Syntax error: ".$this->_current_token.
", lookahead: ".$this->_lookahead.
", current char: ".$this->_current_char);
}

+ Here is the call graph for this function:

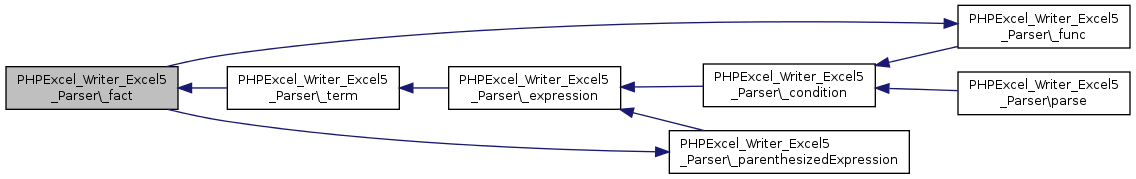

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_func ( )

It parses a function call.

It assumes the following rule: Func -> ( Expr [,Expr]* )

private

Returns
mixed The parsed ptg'd tree on success

Definition at line 1451 of file Parser.php.

References $result, _advance(), _condition(), and _createTree().

Referenced by _fact().

{
$num_args = 0; // number of arguments received
$function = strtoupper($this->_current_token);
$result = ''; // initialize result
$this->_advance();
$this->_advance(); // eat the "("
while ($this->_current_token != ')') {
if ($num_args > 0) {
if ($this->_current_token == "," or
$this->_current_token == ";")
{
$this->_advance(); // eat the "," or ";"
} else {
throw new Exception("Syntax error: comma expected in ".
"function $function, arg #{$num_args}");
}
$result2 = $this->_condition();
$result = $this->_createTree('arg', $result, $result2);
} else { // first argument
$result2 = $this->_condition();
$result = $this->_createTree('arg', '', $result2);
}
++$num_args;
}
if (!isset($this->_functions[$function])) {
throw new Exception("Function $function() doesn't exist");
}
$args = $this->_functions[$function][1];
// If fixed number of args eg. TIME($i,$j,$k). Check that the number of args is valid.
if (($args >= 0) and ($args != $num_args)) {
throw new Exception("Incorrect number of arguments in function $function() ");
}
$result = $this->_createTree($function, $result, $num_args);
$this->_advance(); // eat the ")"
return $result;
}

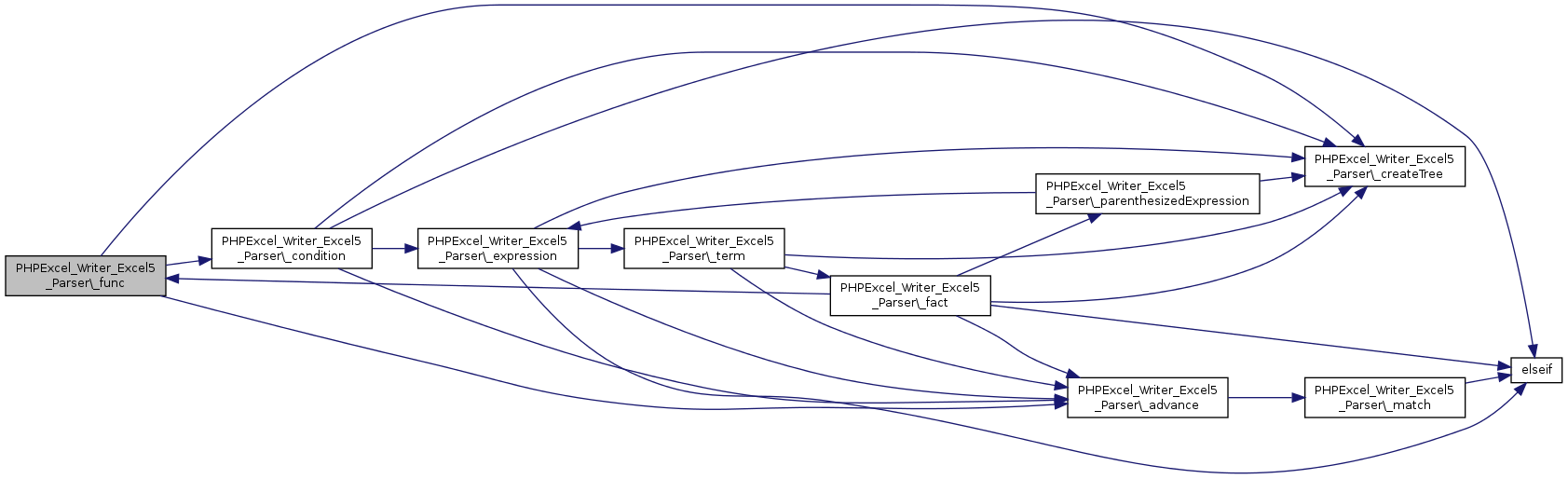

+ Here is the call graph for this function:

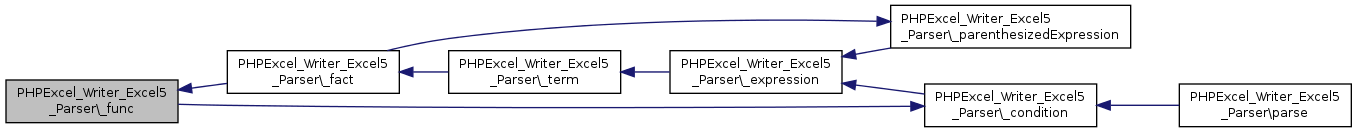

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_getRefIndex (   $ext_ref)

Look up the REF index that corresponds to an external sheet name (or range).

If it doesn't exist yet add it to the workbook's references array. It assumes all sheet names given must exist.

private

Parameters
string$ext_refThe name of the external reference
Returns
mixed The reference index in packed() format on success

Definition at line 855 of file Parser.php.

References _getSheetIndex().

Referenced by _convertRange3d(), and _convertRef3d().

{
$ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
$ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
// Check if there is a sheet range eg., Sheet1:Sheet2.
if (preg_match("/:/", $ext_ref)) {
list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
$sheet1 = $this->_getSheetIndex($sheet_name1);
if ($sheet1 == -1) {
throw new Exception("Unknown sheet name $sheet_name1 in formula");
}
$sheet2 = $this->_getSheetIndex($sheet_name2);
if ($sheet2 == -1) {
throw new Exception("Unknown sheet name $sheet_name2 in formula");
}
// Reverse max and min sheet numbers if necessary
if ($sheet1 > $sheet2) {
list($sheet1, $sheet2) = array($sheet2, $sheet1);
}
} else { // Single sheet name only.
$sheet1 = $this->_getSheetIndex($ext_ref);
if ($sheet1 == -1) {
throw new Exception("Unknown sheet name $ext_ref in formula");
}
$sheet2 = $sheet1;
}
// assume all references belong to this document
$supbook_index = 0x00;
$ref = pack('vvv', $supbook_index, $sheet1, $sheet2);
$total_references = count($this->_references);
$index = -1;
for ($i = 0; $i < $total_references; ++$i) {
if ($ref == $this->_references[$i]) {
$index = $i;
break;
}
}
// if REF was not found add it to references array
if ($index == -1) {
$this->_references[$total_references] = $ref;
$index = $total_references;
}
return pack('v', $index);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_getSheetIndex (   $sheet_name)

Look up the index that corresponds to an external sheet name.

The hash of sheet names is updated by the addworksheet() method of the PHPExcel_Writer_Excel5_Workbook class.

private

Returns
integer The sheet index, -1 if the sheet was not found

Definition at line 913 of file Parser.php.

Referenced by _getRefIndex(), and _packExtRef().

{
if (!isset($this->_ext_sheets[$sheet_name])) {
return -1;
} else {
return $this->_ext_sheets[$sheet_name];
}
}

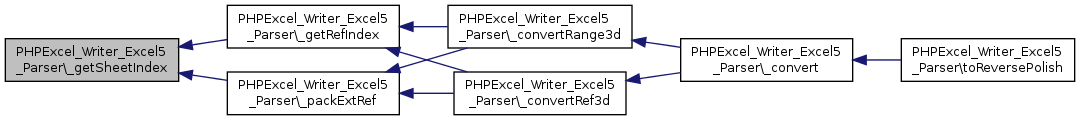

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_initializeHashes ( )

Initialize the ptg and function hashes.

private

Definition at line 149 of file Parser.php.

Referenced by __construct().

{
// The Excel ptg indices
$this->ptg = array(
'ptgExp' => 0x01,
'ptgTbl' => 0x02,
'ptgAdd' => 0x03,
'ptgSub' => 0x04,
'ptgMul' => 0x05,
'ptgDiv' => 0x06,
'ptgPower' => 0x07,
'ptgConcat' => 0x08,
'ptgLT' => 0x09,
'ptgLE' => 0x0A,
'ptgEQ' => 0x0B,
'ptgGE' => 0x0C,
'ptgGT' => 0x0D,
'ptgNE' => 0x0E,
'ptgIsect' => 0x0F,
'ptgUnion' => 0x10,
'ptgRange' => 0x11,
'ptgUplus' => 0x12,
'ptgUminus' => 0x13,
'ptgPercent' => 0x14,
'ptgParen' => 0x15,
'ptgMissArg' => 0x16,
'ptgStr' => 0x17,
'ptgAttr' => 0x19,
'ptgSheet' => 0x1A,
'ptgEndSheet' => 0x1B,
'ptgErr' => 0x1C,
'ptgBool' => 0x1D,
'ptgInt' => 0x1E,
'ptgNum' => 0x1F,
'ptgArray' => 0x20,
'ptgFunc' => 0x21,
'ptgFuncVar' => 0x22,
'ptgName' => 0x23,
'ptgRef' => 0x24,
'ptgArea' => 0x25,
'ptgMemArea' => 0x26,
'ptgMemErr' => 0x27,
'ptgMemNoMem' => 0x28,
'ptgMemFunc' => 0x29,
'ptgRefErr' => 0x2A,
'ptgAreaErr' => 0x2B,
'ptgRefN' => 0x2C,
'ptgAreaN' => 0x2D,
'ptgMemAreaN' => 0x2E,
'ptgMemNoMemN' => 0x2F,
'ptgNameX' => 0x39,
'ptgRef3d' => 0x3A,
'ptgArea3d' => 0x3B,
'ptgRefErr3d' => 0x3C,
'ptgAreaErr3d' => 0x3D,
'ptgArrayV' => 0x40,
'ptgFuncV' => 0x41,
'ptgFuncVarV' => 0x42,
'ptgNameV' => 0x43,
'ptgRefV' => 0x44,
'ptgAreaV' => 0x45,
'ptgMemAreaV' => 0x46,
'ptgMemErrV' => 0x47,
'ptgMemNoMemV' => 0x48,
'ptgMemFuncV' => 0x49,
'ptgRefErrV' => 0x4A,
'ptgAreaErrV' => 0x4B,
'ptgRefNV' => 0x4C,
'ptgAreaNV' => 0x4D,
'ptgMemAreaNV' => 0x4E,
'ptgMemNoMemN' => 0x4F,
'ptgFuncCEV' => 0x58,
'ptgNameXV' => 0x59,
'ptgRef3dV' => 0x5A,
'ptgArea3dV' => 0x5B,
'ptgRefErr3dV' => 0x5C,
'ptgAreaErr3d' => 0x5D,
'ptgArrayA' => 0x60,
'ptgFuncA' => 0x61,
'ptgFuncVarA' => 0x62,
'ptgNameA' => 0x63,
'ptgRefA' => 0x64,
'ptgAreaA' => 0x65,
'ptgMemAreaA' => 0x66,
'ptgMemErrA' => 0x67,
'ptgMemNoMemA' => 0x68,
'ptgMemFuncA' => 0x69,
'ptgRefErrA' => 0x6A,
'ptgAreaErrA' => 0x6B,
'ptgRefNA' => 0x6C,
'ptgAreaNA' => 0x6D,
'ptgMemAreaNA' => 0x6E,
'ptgMemNoMemN' => 0x6F,
'ptgFuncCEA' => 0x78,
'ptgNameXA' => 0x79,
'ptgRef3dA' => 0x7A,
'ptgArea3dA' => 0x7B,
'ptgRefErr3dA' => 0x7C,
'ptgAreaErr3d' => 0x7D
);
// Thanks to Michael Meeks and Gnumeric for the initial arg values.
//
// The following hash was generated by "function_locale.pl" in the distro.
// Refer to function_locale.pl for non-English function names.
//
// The array elements are as follow:
// ptg: The Excel function ptg code.
// args: The number of arguments that the function takes:
// >=0 is a fixed number of arguments.
// -1 is a variable number of arguments.
// class: The reference, value or array class of the function args.
// vol: The function is volatile.
//
$this->_functions = array(
// function ptg args class vol
'COUNT' => array( 0, -1, 0, 0 ),
'IF' => array( 1, -1, 1, 0 ),
'ISNA' => array( 2, 1, 1, 0 ),
'ISERROR' => array( 3, 1, 1, 0 ),
'SUM' => array( 4, -1, 0, 0 ),
'AVERAGE' => array( 5, -1, 0, 0 ),
'MIN' => array( 6, -1, 0, 0 ),
'MAX' => array( 7, -1, 0, 0 ),
'ROW' => array( 8, -1, 0, 0 ),
'COLUMN' => array( 9, -1, 0, 0 ),
'NA' => array( 10, 0, 0, 0 ),
'NPV' => array( 11, -1, 1, 0 ),
'STDEV' => array( 12, -1, 0, 0 ),
'DOLLAR' => array( 13, -1, 1, 0 ),
'FIXED' => array( 14, -1, 1, 0 ),
'SIN' => array( 15, 1, 1, 0 ),
'COS' => array( 16, 1, 1, 0 ),
'TAN' => array( 17, 1, 1, 0 ),
'ATAN' => array( 18, 1, 1, 0 ),
'PI' => array( 19, 0, 1, 0 ),
'SQRT' => array( 20, 1, 1, 0 ),
'EXP' => array( 21, 1, 1, 0 ),
'LN' => array( 22, 1, 1, 0 ),
'LOG10' => array( 23, 1, 1, 0 ),
'ABS' => array( 24, 1, 1, 0 ),
'INT' => array( 25, 1, 1, 0 ),
'SIGN' => array( 26, 1, 1, 0 ),
'ROUND' => array( 27, 2, 1, 0 ),
'LOOKUP' => array( 28, -1, 0, 0 ),
'INDEX' => array( 29, -1, 0, 1 ),
'REPT' => array( 30, 2, 1, 0 ),
'MID' => array( 31, 3, 1, 0 ),
'LEN' => array( 32, 1, 1, 0 ),
'VALUE' => array( 33, 1, 1, 0 ),
'TRUE' => array( 34, 0, 1, 0 ),
'FALSE' => array( 35, 0, 1, 0 ),
'AND' => array( 36, -1, 0, 0 ),
'OR' => array( 37, -1, 0, 0 ),
'NOT' => array( 38, 1, 1, 0 ),
'MOD' => array( 39, 2, 1, 0 ),
'DCOUNT' => array( 40, 3, 0, 0 ),
'DSUM' => array( 41, 3, 0, 0 ),
'DAVERAGE' => array( 42, 3, 0, 0 ),
'DMIN' => array( 43, 3, 0, 0 ),
'DMAX' => array( 44, 3, 0, 0 ),
'DSTDEV' => array( 45, 3, 0, 0 ),
'VAR' => array( 46, -1, 0, 0 ),
'DVAR' => array( 47, 3, 0, 0 ),
'TEXT' => array( 48, 2, 1, 0 ),
'LINEST' => array( 49, -1, 0, 0 ),
'TREND' => array( 50, -1, 0, 0 ),
'LOGEST' => array( 51, -1, 0, 0 ),
'GROWTH' => array( 52, -1, 0, 0 ),
'PV' => array( 56, -1, 1, 0 ),
'FV' => array( 57, -1, 1, 0 ),
'NPER' => array( 58, -1, 1, 0 ),
'PMT' => array( 59, -1, 1, 0 ),
'RATE' => array( 60, -1, 1, 0 ),
'MIRR' => array( 61, 3, 0, 0 ),
'IRR' => array( 62, -1, 0, 0 ),
'RAND' => array( 63, 0, 1, 1 ),
'MATCH' => array( 64, -1, 0, 0 ),
'DATE' => array( 65, 3, 1, 0 ),
'TIME' => array( 66, 3, 1, 0 ),
'DAY' => array( 67, 1, 1, 0 ),
'MONTH' => array( 68, 1, 1, 0 ),
'YEAR' => array( 69, 1, 1, 0 ),
'WEEKDAY' => array( 70, -1, 1, 0 ),
'HOUR' => array( 71, 1, 1, 0 ),
'MINUTE' => array( 72, 1, 1, 0 ),
'SECOND' => array( 73, 1, 1, 0 ),
'NOW' => array( 74, 0, 1, 1 ),
'AREAS' => array( 75, 1, 0, 1 ),
'ROWS' => array( 76, 1, 0, 1 ),
'COLUMNS' => array( 77, 1, 0, 1 ),
'OFFSET' => array( 78, -1, 0, 1 ),
'SEARCH' => array( 82, -1, 1, 0 ),
'TRANSPOSE' => array( 83, 1, 1, 0 ),
'TYPE' => array( 86, 1, 1, 0 ),
'ATAN2' => array( 97, 2, 1, 0 ),
'ASIN' => array( 98, 1, 1, 0 ),
'ACOS' => array( 99, 1, 1, 0 ),
'CHOOSE' => array( 100, -1, 1, 0 ),
'HLOOKUP' => array( 101, -1, 0, 0 ),
'VLOOKUP' => array( 102, -1, 0, 0 ),
'ISREF' => array( 105, 1, 0, 0 ),
'LOG' => array( 109, -1, 1, 0 ),
'CHAR' => array( 111, 1, 1, 0 ),
'LOWER' => array( 112, 1, 1, 0 ),
'UPPER' => array( 113, 1, 1, 0 ),
'PROPER' => array( 114, 1, 1, 0 ),
'LEFT' => array( 115, -1, 1, 0 ),
'RIGHT' => array( 116, -1, 1, 0 ),
'EXACT' => array( 117, 2, 1, 0 ),
'TRIM' => array( 118, 1, 1, 0 ),
'REPLACE' => array( 119, 4, 1, 0 ),
'SUBSTITUTE' => array( 120, -1, 1, 0 ),
'CODE' => array( 121, 1, 1, 0 ),
'FIND' => array( 124, -1, 1, 0 ),
'CELL' => array( 125, -1, 0, 1 ),
'ISERR' => array( 126, 1, 1, 0 ),
'ISTEXT' => array( 127, 1, 1, 0 ),
'ISNUMBER' => array( 128, 1, 1, 0 ),
'ISBLANK' => array( 129, 1, 1, 0 ),
'T' => array( 130, 1, 0, 0 ),
'N' => array( 131, 1, 0, 0 ),
'DATEVALUE' => array( 140, 1, 1, 0 ),
'TIMEVALUE' => array( 141, 1, 1, 0 ),
'SLN' => array( 142, 3, 1, 0 ),
'SYD' => array( 143, 4, 1, 0 ),
'DDB' => array( 144, -1, 1, 0 ),
'INDIRECT' => array( 148, -1, 1, 1 ),
'CALL' => array( 150, -1, 1, 0 ),
'CLEAN' => array( 162, 1, 1, 0 ),
'MDETERM' => array( 163, 1, 2, 0 ),
'MINVERSE' => array( 164, 1, 2, 0 ),
'MMULT' => array( 165, 2, 2, 0 ),
'IPMT' => array( 167, -1, 1, 0 ),
'PPMT' => array( 168, -1, 1, 0 ),
'COUNTA' => array( 169, -1, 0, 0 ),
'PRODUCT' => array( 183, -1, 0, 0 ),
'FACT' => array( 184, 1, 1, 0 ),
'DPRODUCT' => array( 189, 3, 0, 0 ),
'ISNONTEXT' => array( 190, 1, 1, 0 ),
'STDEVP' => array( 193, -1, 0, 0 ),
'VARP' => array( 194, -1, 0, 0 ),
'DSTDEVP' => array( 195, 3, 0, 0 ),
'DVARP' => array( 196, 3, 0, 0 ),
'TRUNC' => array( 197, -1, 1, 0 ),
'ISLOGICAL' => array( 198, 1, 1, 0 ),
'DCOUNTA' => array( 199, 3, 0, 0 ),
'USDOLLAR' => array( 204, -1, 1, 0 ),
'FINDB' => array( 205, -1, 1, 0 ),
'SEARCHB' => array( 206, -1, 1, 0 ),
'REPLACEB' => array( 207, 4, 1, 0 ),
'LEFTB' => array( 208, -1, 1, 0 ),
'RIGHTB' => array( 209, -1, 1, 0 ),
'MIDB' => array( 210, 3, 1, 0 ),
'LENB' => array( 211, 1, 1, 0 ),
'ROUNDUP' => array( 212, 2, 1, 0 ),
'ROUNDDOWN' => array( 213, 2, 1, 0 ),
'ASC' => array( 214, 1, 1, 0 ),
'DBCS' => array( 215, 1, 1, 0 ),
'RANK' => array( 216, -1, 0, 0 ),
'ADDRESS' => array( 219, -1, 1, 0 ),
'DAYS360' => array( 220, -1, 1, 0 ),
'TODAY' => array( 221, 0, 1, 1 ),
'VDB' => array( 222, -1, 1, 0 ),
'MEDIAN' => array( 227, -1, 0, 0 ),
'SUMPRODUCT' => array( 228, -1, 2, 0 ),
'SINH' => array( 229, 1, 1, 0 ),
'COSH' => array( 230, 1, 1, 0 ),
'TANH' => array( 231, 1, 1, 0 ),
'ASINH' => array( 232, 1, 1, 0 ),
'ACOSH' => array( 233, 1, 1, 0 ),
'ATANH' => array( 234, 1, 1, 0 ),
'DGET' => array( 235, 3, 0, 0 ),
'INFO' => array( 244, 1, 1, 1 ),
'DB' => array( 247, -1, 1, 0 ),
'FREQUENCY' => array( 252, 2, 0, 0 ),
'ERROR.TYPE' => array( 261, 1, 1, 0 ),
'REGISTER.ID' => array( 267, -1, 1, 0 ),
'AVEDEV' => array( 269, -1, 0, 0 ),
'BETADIST' => array( 270, -1, 1, 0 ),
'GAMMALN' => array( 271, 1, 1, 0 ),
'BETAINV' => array( 272, -1, 1, 0 ),
'BINOMDIST' => array( 273, 4, 1, 0 ),
'CHIDIST' => array( 274, 2, 1, 0 ),
'CHIINV' => array( 275, 2, 1, 0 ),
'COMBIN' => array( 276, 2, 1, 0 ),
'CONFIDENCE' => array( 277, 3, 1, 0 ),
'CRITBINOM' => array( 278, 3, 1, 0 ),
'EVEN' => array( 279, 1, 1, 0 ),
'EXPONDIST' => array( 280, 3, 1, 0 ),
'FDIST' => array( 281, 3, 1, 0 ),
'FINV' => array( 282, 3, 1, 0 ),
'FISHER' => array( 283, 1, 1, 0 ),
'FISHERINV' => array( 284, 1, 1, 0 ),
'FLOOR' => array( 285, 2, 1, 0 ),
'GAMMADIST' => array( 286, 4, 1, 0 ),
'GAMMAINV' => array( 287, 3, 1, 0 ),
'CEILING' => array( 288, 2, 1, 0 ),
'HYPGEOMDIST' => array( 289, 4, 1, 0 ),
'LOGNORMDIST' => array( 290, 3, 1, 0 ),
'LOGINV' => array( 291, 3, 1, 0 ),
'NEGBINOMDIST' => array( 292, 3, 1, 0 ),
'NORMDIST' => array( 293, 4, 1, 0 ),
'NORMSDIST' => array( 294, 1, 1, 0 ),
'NORMINV' => array( 295, 3, 1, 0 ),
'NORMSINV' => array( 296, 1, 1, 0 ),
'STANDARDIZE' => array( 297, 3, 1, 0 ),
'ODD' => array( 298, 1, 1, 0 ),
'PERMUT' => array( 299, 2, 1, 0 ),
'POISSON' => array( 300, 3, 1, 0 ),
'TDIST' => array( 301, 3, 1, 0 ),
'WEIBULL' => array( 302, 4, 1, 0 ),
'SUMXMY2' => array( 303, 2, 2, 0 ),
'SUMX2MY2' => array( 304, 2, 2, 0 ),
'SUMX2PY2' => array( 305, 2, 2, 0 ),
'CHITEST' => array( 306, 2, 2, 0 ),
'CORREL' => array( 307, 2, 2, 0 ),
'COVAR' => array( 308, 2, 2, 0 ),
'FORECAST' => array( 309, 3, 2, 0 ),
'FTEST' => array( 310, 2, 2, 0 ),
'INTERCEPT' => array( 311, 2, 2, 0 ),
'PEARSON' => array( 312, 2, 2, 0 ),
'RSQ' => array( 313, 2, 2, 0 ),
'STEYX' => array( 314, 2, 2, 0 ),
'SLOPE' => array( 315, 2, 2, 0 ),
'TTEST' => array( 316, 4, 2, 0 ),
'PROB' => array( 317, -1, 2, 0 ),
'DEVSQ' => array( 318, -1, 0, 0 ),
'GEOMEAN' => array( 319, -1, 0, 0 ),
'HARMEAN' => array( 320, -1, 0, 0 ),
'SUMSQ' => array( 321, -1, 0, 0 ),
'KURT' => array( 322, -1, 0, 0 ),
'SKEW' => array( 323, -1, 0, 0 ),
'ZTEST' => array( 324, -1, 0, 0 ),
'LARGE' => array( 325, 2, 0, 0 ),
'SMALL' => array( 326, 2, 0, 0 ),
'QUARTILE' => array( 327, 2, 0, 0 ),
'PERCENTILE' => array( 328, 2, 0, 0 ),
'PERCENTRANK' => array( 329, -1, 0, 0 ),
'MODE' => array( 330, -1, 2, 0 ),
'TRIMMEAN' => array( 331, 2, 0, 0 ),
'TINV' => array( 332, 2, 1, 0 ),
'CONCATENATE' => array( 336, -1, 1, 0 ),
'POWER' => array( 337, 2, 1, 0 ),
'RADIANS' => array( 342, 1, 1, 0 ),
'DEGREES' => array( 343, 1, 1, 0 ),
'SUBTOTAL' => array( 344, -1, 0, 0 ),
'SUMIF' => array( 345, -1, 0, 0 ),
'COUNTIF' => array( 346, 2, 0, 0 ),
'COUNTBLANK' => array( 347, 1, 0, 0 ),
'ISPMT' => array( 350, 4, 1, 0 ),
'DATEDIF' => array( 351, 3, 1, 0 ),
'DATESTRING' => array( 352, 1, 1, 0 ),
'NUMBERSTRING' => array( 353, 2, 1, 0 ),
'ROMAN' => array( 354, -1, 1, 0 ),
'GETPIVOTDATA' => array( 358, -1, 0, 0 ),
'HYPERLINK' => array( 359, -1, 1, 0 ),
'PHONETIC' => array( 360, 1, 0, 0 ),
'AVERAGEA' => array( 361, -1, 0, 0 ),
'MAXA' => array( 362, -1, 0, 0 ),
'MINA' => array( 363, -1, 0, 0 ),
'STDEVPA' => array( 364, -1, 0, 0 ),
'VARPA' => array( 365, -1, 0, 0 ),
'STDEVA' => array( 366, -1, 0, 0 ),
'VARA' => array( 367, -1, 0, 0 ),
);
}

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_match (   $token)

Checks if it's a valid token.

private

Parameters
mixed$tokenThe token to check.
Returns
mixed The checked token or false on failure

Definition at line 1106 of file Parser.php.

References elseif().

Referenced by _advance().

{
switch($token) {
case "+":
return $token;
break;
case "-":
return $token;
break;
case "*":
return $token;
break;
case "/":
return $token;
break;
case "(":
return $token;
break;
case ")":
return $token;
break;
case ",":
return $token;
break;
case ";":
return $token;
break;
case ">":
if ($this->_lookahead == '=') { // it's a GE token
break;
}
return $token;
break;
case "<":
// it's a LE or a NE token
if (($this->_lookahead == '=') or ($this->_lookahead == '>')) {
break;
}
return $token;
break;
case ">=":
return $token;
break;
case "<=":
return $token;
break;
case "=":
return $token;
break;
case "<>":
return $token;
break;
default:
// if it's a reference
if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$token) and
!ereg("[0-9]",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.') and
($this->_lookahead != '!'))
{
return $token;
}
// If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
!ereg("[0-9]",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.'))
{
return $token;
}
// If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
!ereg("[0-9]",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.'))
{
return $token;
}
// if it's a range (A1:A2)
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
!ereg("[0-9]",$this->_lookahead))
{
return $token;
}
// if it's a range (A1..A2)
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
!ereg("[0-9]",$this->_lookahead))
{
return $token;
}
// If it's an external range like Sheet1!A1 or Sheet1:Sheet2!A1:B2
elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
!ereg("[0-9]",$this->_lookahead))
{
return $token;
}
// If it's an external range like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
!ereg("[0-9]",$this->_lookahead))
{
return $token;
}
// If it's a number (check that it's not a sheet name or range)
elseif (is_numeric($token) and
(!is_numeric($token.$this->_lookahead) or ($this->_lookahead == '')) and
($this->_lookahead != '!') and ($this->_lookahead != ':'))
{
return $token;
}
// If it's a string (of maximum 255 characters)
elseif (ereg("^\"[^\"]{0,255}\"$",$token))
{
return $token;
}
// if it's a function call
elseif (eregi("^[A-Z0-9\xc0-\xdc\.]+$",$token) and ($this->_lookahead == "("))
{
return $token;
}
return '';
}
}

+ Here is the call graph for this function:

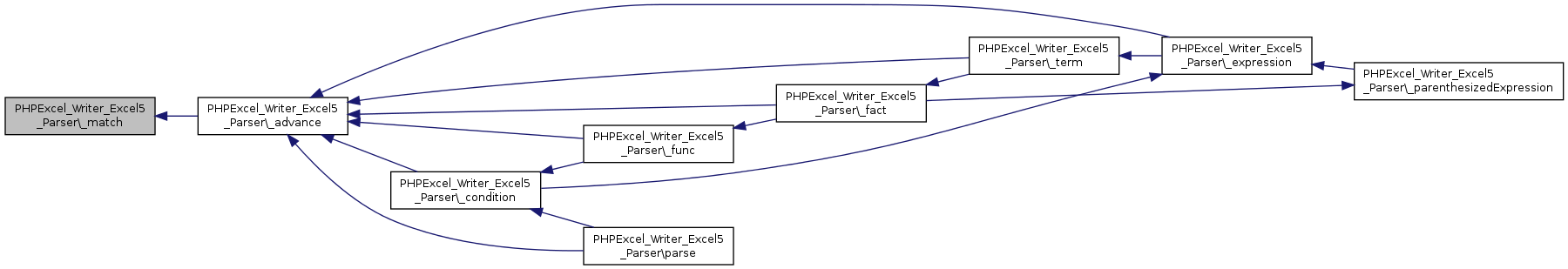

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_packExtRef (   $ext_ref)

Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure.

private

Parameters
string$ext_refThe name of the external reference
Returns
string The reference index in packed() format

Definition at line 810 of file Parser.php.

References _getSheetIndex().

Referenced by _convertRange3d(), and _convertRef3d().

{
$ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
$ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
// Check if there is a sheet range eg., Sheet1:Sheet2.
if (preg_match("/:/", $ext_ref)) {
list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
$sheet1 = $this->_getSheetIndex($sheet_name1);
if ($sheet1 == -1) {
throw new Exception("Unknown sheet name $sheet_name1 in formula");
}
$sheet2 = $this->_getSheetIndex($sheet_name2);
if ($sheet2 == -1) {
throw new Exception("Unknown sheet name $sheet_name2 in formula");
}
// Reverse max and min sheet numbers if necessary
if ($sheet1 > $sheet2) {
list($sheet1, $sheet2) = array($sheet2, $sheet1);
}
} else { // Single sheet name only.
$sheet1 = $this->_getSheetIndex($ext_ref);
if ($sheet1 == -1) {
throw new Exception("Unknown sheet name $ext_ref in formula");
}
$sheet2 = $sheet1;
}
// References are stored relative to 0xFFFF.
$offset = -1 - $sheet1;
return pack('vdvv', $offset, 0x00, $sheet1, $sheet2);
}

+ Here is the call graph for this function:

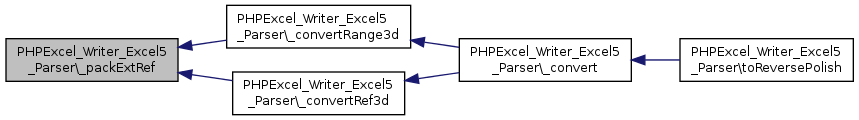

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_parenthesizedExpression ( )

This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards.

private

See Also
_fact()
Returns
array The parsed ptg'd tree

Definition at line 1330 of file Parser.php.

References $result, _createTree(), and _expression().

Referenced by _fact().

{
$result = $this->_createTree('ptgParen', $this->_expression(), '');
return $result;
}

+ Here is the call graph for this function:

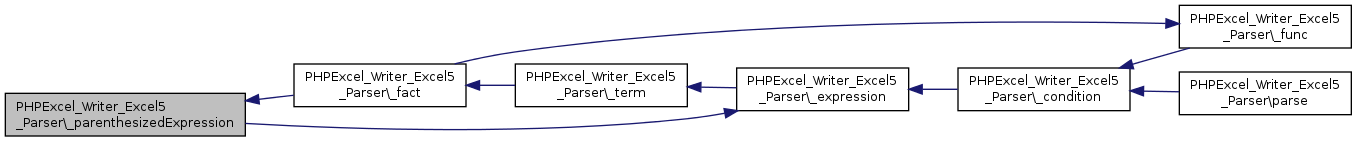

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_rangeToPackedRange (   $range)

pack() row range into the required 3 or 4 byte format.

Just using maximum col/rows, which is probably not the correct solution

private

Parameters
string$rangeThe Excel range to be packed
Returns
array Array containing (row1,col1,row2,col2) in packed() format

Definition at line 979 of file Parser.php.

References elseif().

Referenced by _convertRange3d().

{
preg_match('/(\$)?(\d+)\:(\$)?(\d+)/', $range, $match);
// return absolute rows if there is a $ in the ref
$row1_rel = empty($match[1]) ? 1 : 0;
$row1 = $match[2];
$row2_rel = empty($match[3]) ? 1 : 0;
$row2 = $match[4];
// Convert 1-index to zero-index
--$row1;
--$row2;
// Trick poor inocent Excel
$col1 = 0;
$col2 = 16383; // FIXME: maximum possible value for Excel 5 (change this!!!)
// FIXME: this changes for BIFF8
if (($row1 >= 16384) or ($row2 >= 16384)) {
throw new Exception("Row in: $range greater than 16384 ");
}
// Set the high bits to indicate if rows are relative.
if ($this->_BIFF_version == 0x0500) {
$row1 |= $row1_rel << 14; // FIXME: probably a bug
$row2 |= $row2_rel << 15;
$col1 = pack('C', $col1);
$col2 = pack('C', $col2);
} elseif ($this->_BIFF_version == 0x0600) {
$col1 |= $row1_rel << 15;
$col2 |= $row2_rel << 15;
$col1 = pack('v', $col1);
$col2 = pack('v', $col2);
}
$row1 = pack('v', $row1);
$row2 = pack('v', $row2);
return array($row1, $col1, $row2, $col2);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::_term ( )

It parses a term.

It assumes the following rule: Term -> Fact [("*" | "/") Fact]

private

Returns
mixed The parsed ptg'd tree on success

Definition at line 1343 of file Parser.php.

References $result, _advance(), _createTree(), and _fact().

Referenced by _expression().

{
$result = $this->_fact();
while (($this->_current_token == "*") or
($this->_current_token == "/")) {
if ($this->_current_token == "*") {
$this->_advance();
$result2 = $this->_fact();
$result = $this->_createTree('ptgMul', $result, $result2);
} else {
$this->_advance();
$result2 = $this->_fact();
$result = $this->_createTree('ptgDiv', $result, $result2);
}
}
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PHPExcel_Writer_Excel5_Parser::parse (   $formula)

The parsing method.

It parses a formula.

public

Parameters
string$formulaThe formula to parse, without the initial equal sign (=).
Returns
mixed true on success

Definition at line 1234 of file Parser.php.

References _advance(), and _condition().

{
$this->_current_char = 0;
$this->_formula = $formula;
$this->_lookahead = $formula{1};
$this->_advance();
$this->_parse_tree = $this->_condition();
return true;
}

+ Here is the call graph for this function:

PHPExcel_Writer_Excel5_Parser::setExtSheet (   $name,
  $index
)

This method is used to update the array of sheet names.

It is called by the addWorksheet() method of the PHPExcel_Writer_Excel5_Workbook class.

public

See Also
PHPExcel_Writer_Excel5_Workbook::addWorksheet()
Parameters
string$nameThe name of the worksheet being added
integer$indexThe index of the worksheet being added

Definition at line 932 of file Parser.php.

References $name.

{
$this->_ext_sheets[$name] = $index;
}
PHPExcel_Writer_Excel5_Parser::toReversePolish (   $tree = array())

Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack).

The following tree:

  • / \ 2 3

produces: "23+"

The following tree:

  • / \ 3 * / \ 6 A1

produces: "36A1*+"

In fact all operands, functions, references, etc... are written as ptg's

public

Parameters
array$treeThe optional tree to convert.
Returns
string The tree in reverse polish notation

Definition at line 1533 of file Parser.php.

References $_parse_tree, _convert(), and elseif().

{
$polish = ""; // the string we are going to return
if (empty($tree)) { // If it's the first call use _parse_tree
$tree = $this->_parse_tree;
}
if (is_array($tree['left'])) {
$converted_tree = $this->toReversePolish($tree['left']);
$polish .= $converted_tree;
} elseif ($tree['left'] != '') { // It's a final node
$converted_tree = $this->_convert($tree['left']);
$polish .= $converted_tree;
}
if (is_array($tree['right'])) {
$converted_tree = $this->toReversePolish($tree['right']);
$polish .= $converted_tree;
} elseif ($tree['right'] != '') { // It's a final node
$converted_tree = $this->_convert($tree['right']);
$polish .= $converted_tree;
}
// if it's a function convert it here (so we can set it's arguments)
if (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/",$tree['value']) and
!preg_match('/^([A-Ia-i]?[A-Za-z])(\d+)$/',$tree['value']) and
!preg_match("/^[A-Ia-i]?[A-Za-z](\d+)\.\.[A-Ia-i]?[A-Za-z](\d+)$/",$tree['value']) and
!is_numeric($tree['value']) and
!isset($this->ptg[$tree['value']]))
{
// left subtree for a function is always an array.
if ($tree['left'] != '') {
$left_tree = $this->toReversePolish($tree['left']);
} else {
$left_tree = '';
}
// add it's left subtree and return.
return $left_tree.$this->_convertFunction($tree['value'], $tree['right']);
} else {
$converted_tree = $this->_convert($tree['value']);
}
$polish .= $converted_tree;
return $polish;
}

+ Here is the call graph for this function:

Field Documentation

PHPExcel_Writer_Excel5_Parser::$_BIFF_version

Definition at line 123 of file Parser.php.

PHPExcel_Writer_Excel5_Parser::$_current_char

Definition at line 81 of file Parser.php.

Referenced by _advance().

PHPExcel_Writer_Excel5_Parser::$_current_token

Definition at line 87 of file Parser.php.

Referenced by _fact().

PHPExcel_Writer_Excel5_Parser::$_ext_sheets

Definition at line 111 of file Parser.php.

PHPExcel_Writer_Excel5_Parser::$_formula

Definition at line 93 of file Parser.php.

PHPExcel_Writer_Excel5_Parser::$_lookahead

Definition at line 99 of file Parser.php.

PHPExcel_Writer_Excel5_Parser::$_parse_tree

Definition at line 105 of file Parser.php.

Referenced by toReversePolish().

PHPExcel_Writer_Excel5_Parser::$_references

Definition at line 117 of file Parser.php.

The documentation for this class was generated from the following file:
