Inheritance diagram for ilBMFTransport_TCP:

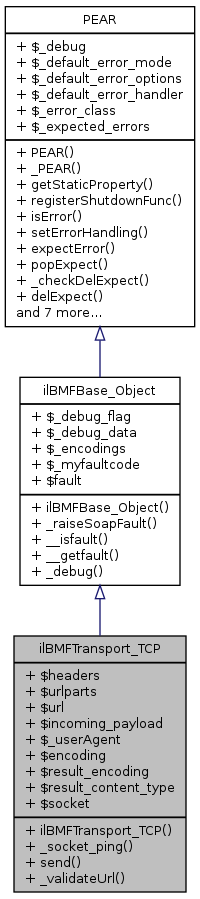

Collaboration diagram for ilBMFTransport_TCP:

Public Member Functions
	ilBMFTransport_TCP ($url, $encoding=SOAP_DEFAULT_ENCODING)
	Constructor.
	_socket_ping ()
	send ($msg, $options=NULL)
	Sends and receives SOAP data.
	_validateUrl ()
	Validates the url data passed to the constructor.
Public Member Functions inherited from ilBMFBase_Object
	ilBMFBase_Object ($faultcode= 'Client')
	Constructor.
&	_raiseSoapFault ($str, $detail= '', $actorURI= '', $code=null, $mode=null, $options=null, $skipmsg=false)
	Raises a SOAP error.
	__isfault ()
&	__getfault ()
	_debug ($string)
	Adds a string to the debug data.
Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor.
	_PEAR ()
	Destructor (the emulated type of...).
&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them.
	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes.
	isError ($data, $code=null)
	Tell whether a value is a PEAR error.
	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled.
	expectError ($code= '*')
	This method is used to tell which errors you expect to get.
	popExpect ()
	This method pops one element off the expected error codes stack.
	_checkDelExpect ($error_code)
	This method checks unsets an error code if available.
	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack.
&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied.
&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options.
	staticPushErrorHandling ($mode, $options=null)
	staticPopErrorHandling ()
	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack.
	popErrorHandling ()
	Pop the last error handler used.
	loadExtension ($ext)
	OS independant PHP extension load.

Data Fields
	$headers = array()
	$urlparts = null
	$url = ''
	$incoming_payload = ''
	$_userAgent = SOAP_LIBRARY_NAME
	$encoding = SOAP_DEFAULT_ENCODING
	$result_encoding = 'UTF-8'
	$result_content_type
	$socket = null
	socket
Data Fields inherited from ilBMFBase_Object
	$_debug_flag = false
	Store debugging information in $_debug_data?
	$_debug_data = ''
	String containing debugging information if $_debug_flag is true.
	$_encodings = array('ISO-8859-1', 'US-ASCII', 'UTF-8')
	Supported encodings, limited by XML extension.
	$_myfaultcode = ''
	Fault code.
	$fault = null
	Recent PEAR_Error object.
Data Fields inherited from PEAR
	$_debug = false
	$_default_error_mode = null
	$_default_error_options = null
	$_default_error_handler = ''
	$_error_class = 'PEAR_Error'
	$_expected_errors = array()

Detailed Description

Definition at line 33 of file class.ilBMFTransport_TCP.php.

Member Function Documentation

ilBMFTransport_TCP::_socket_ping ( )

Definition at line 65 of file class.ilBMFTransport_TCP.php.

References $result.

Referenced by send().

    {
        // XXX how do we restart after socket_shutdown?
        //if (!$this->socket) {
            // Create socket resource.
            $this->socket = @socket_create(AF_INET, SOCK_STREAM, SOL_TCP);
            if ($this->socket < 0) {
                return 0;
            }
            // Connect.
            $result = socket_connect($this->socket, $this->urlparts['host'],
                                     $this->urlparts['port']);
            if ($result < 0) {
                return 0;
            }
        //}
        return 1;
    }

Here is the caller graph for this function:

ilBMFTransport_TCP::_validateUrl ( )

Validates the url data passed to the constructor.

Returns: boolean private

Definition at line 142 of file class.ilBMFTransport_TCP.php.

References ilBMFBase_Object\_raiseSoapFault().

Referenced by send().

    {
        if (!is_array($this->urlparts) ) {
            $this->_raiseSoapFault("Unable to parse URL $url");
            return false;
        }
        if (!isset($this->urlparts['host'])) {
            $this->_raiseSoapFault("No host in URL $url");
            return false;
        }
        if (!isset($this->urlparts['path']) || !$this->urlparts['path']) {
            $this->urlparts['path'] = '/';
        }
        return true;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

ilBMFTransport_TCP::ilBMFTransport_TCP	(	$url,
		$encoding = `SOAP_DEFAULT_ENCODING`
	)

Constructor.

Parameters

string $url HTTP url to SOAP endpoint.

public

Definition at line 57 of file class.ilBMFTransport_TCP.php.

References $encoding, $url, and ilBMFBase_Object\ilBMFBase_Object().

    {
        parent::ilBMFBase_Object('TCP');
        $this->urlparts = @parse_url($url);
        $this->url = $url;
        $this->encoding = $encoding;
    }

Here is the call graph for this function:

ilBMFTransport_TCP::send	(	$msg,
		$options = `NULL`
	)

Sends and receives SOAP data.

Parameters

string	$msg	Outgoing POST data.
string	$action	SOAP Action header data.

Returns: string|ilBMFFault public

Definition at line 94 of file class.ilBMFTransport_TCP.php.

References ilBMFBase_Object\$fault, $incoming_payload, ilBMFBase_Object\_raiseSoapFault(), _socket_ping(), and _validateUrl().

    {
        $this->incoming_payload = '';
        $this->outgoing_payload = $msg;
        if (!$this->_validateUrl()) {
            return $this->fault;
        }
        // Check for TCP scheme.
        if (strcasecmp($this->urlparts['scheme'], 'TCP') == 0) {
            // Check connection.
            if (!$this->_socket_ping()) {
                return $this->_raiseSoapFault('Error connecting to ' . $this->url . '; reason: ' . socket_strerror(socket_last_error($this->socket)));
            }
            // Write to the socket.
            if (!@socket_write($this->socket, $this->outgoing_payload,
                               strlen($this->outgoing_payload))) {
                return $this->_raiseSoapFault('Error sending data to ' . $this->url . '; reason: ' . socket_strerror(socket_last_error($this->socket)));
            }
            // Shutdown writing.
            if(!socket_shutdown($this->socket, 1)) {
                return $this->_raiseSoapFault('Cannot change socket mode to read.');
            }
            // Read everything we can.
            while ($buf = @socket_read($this->socket, 1024, PHP_BINARY_READ)) {
                $this->incoming_payload .= $buf;
            }
            // Return payload or die.
            if ($this->incoming_payload) {
                return $this->incoming_payload;
            }
            return $this->_raiseSoapFault('Error reveiving data from ' . $this->url);
        }
        return $this->_raiseSoapFault('Invalid url scheme ' . $this->url);
    }
