Class ilSCORM2004Chapter. More...

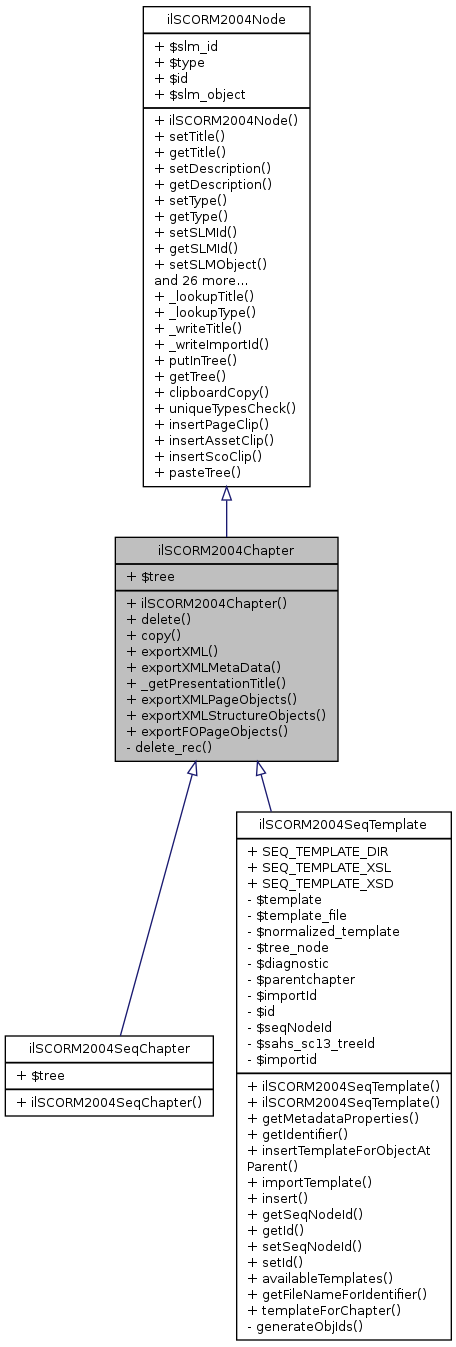

Inheritance diagram for ilSCORM2004Chapter:

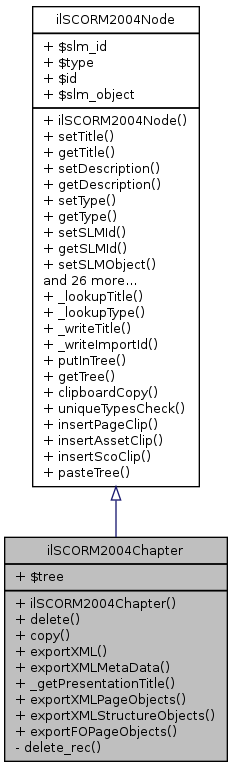

Collaboration diagram for ilSCORM2004Chapter:

Public Member Functions
	ilSCORM2004Chapter ($a_slm_object, $a_id=0)
	Constructor public.
	delete ($a_delete_meta_data=true)
	Delete a chapter.
	copy ($a_target_slm)
	Copy chapter.
	exportXML (&$a_xml_writer, $a_inst, &$expLog)
	Export object to xml (see ilias_co.dtd)
	exportXMLMetaData (&$a_xml_writer)
	export structure objects meta data to xml (see ilias_co.dtd)
	_getPresentationTitle ($a_st_id, $a_include_numbers=false)
	get presentation title
	exportXMLPageObjects (&$a_xml_writer, $a_inst=0)
	export page objects of structure object (see ilias_co.dtd)
	exportXMLStructureObjects (&$a_xml_writer, $a_inst, &$expLog)
	export (sub)structure objects of structure object (see ilias_co.dtd)
	exportFOPageObjects (&$a_xml_writer)
	export object to fo
Public Member Functions inherited from ilSCORM2004Node
	ilSCORM2004Node ($a_slm_object, $a_id=0)
	setTitle ($a_title)
	Set title.
	getTitle ()
	Get title.
	setDescription ($a_description)
	Set description.
	getDescription ()
	Get description.
	setType ($a_type)
	Set type.
	getType ()
	Get type.
	setSLMId ($a_slm_id)
	Set ID of parent Scorm Learning Module Object.
	getSLMId ()
	Get ID of parent Scorm Learning Module Object.
	setSLMObject ($a_slm_obj)
	Set Scorm Learning Module Object.
	getSLMObject ()
	Get scorm learning module object.
	getContentObject ()
	Get Scorm Learning Module Object.
	setId ($a_id)
	Set Node ID.
	getId ()
	Get Node ID.
	getImportId ()
	Set Import ID.
	setImportId ($a_id)
	Get Import ID.
	read ()
	Read Data of Node.
	MDUpdateListener ($a_element)
	Meta data update listener.
	createMetaData ()
	create meta data entry
	updateMetaData ()
	update meta data entry
	deleteMetaData ()
	delete meta data entry
	setDataRecord ($a_record)
	this method should only be called by class ilSCORM2004NodeFactory
	create ($a_upload=false)
	Create Node.
	update ()
	Update Node.
	delete ()
	Delete Node.
	_getIdForImportId ($a_import_id)
	Get Node ID for import ID (static)
	_exists ($a_id)
	Checks wether a node exists.
	_deleteAllSLMNodes ($a_slm_object)
	Delete all nodes of Scorm Learning Module.
	_lookupSLMID ($a_id)
	Lookup Scorm Learning Module ID for node id.
	clipboardCut ($a_slm_obj_id, $a_ids)
	Cut and copy a set of chapters/pages into the clipboard.
	insertChapterClip ($a_slm_obj, $a_as_sub=false)
	Insert Chapter from clipboard.
	getObjectives ()
	deleteSeqInfo ()
	parentHasSeqTemplate ()
	exportAsScorm12 ()
	exportAsScorm13 ()

Data Fields
	$tree
Data Fields inherited from ilSCORM2004Node
	$slm_id
	$type
	$id
	$slm_object

Private Member Functions
	delete_rec ($a_delete_meta_data=true)
	Delete data records of chapter (and nested objects)

Additional Inherited Members
Static Public Member Functions inherited from ilSCORM2004Node
static	_lookupTitle ($a_obj_id)
	Lookup Title.
static	_lookupType ($a_obj_id)
	Lookup Type.
static	_writeTitle ($a_obj_id, $a_title)
	Write Title.
static	_writeImportId ($a_id, $a_import_id)
	Write import ID.
static	putInTree ($a_obj, $a_parent_id="", $a_target_node_id="")
	put this object into content object tree
static	getTree ($a_slm_obj_id)
	Get scorm module editing tree.
static	clipboardCopy ($a_slm_obj_id, $a_ids)
	Copy a set of chapters/pages/scos into the clipboard.
static	uniqueTypesCheck ($a_items)
	Check for unique types (all pages or all chapters or all scos)
static	insertPageClip ($a_slm_obj)
	Insert pages from clipboard.
static	insertAssetClip ($a_slm_obj, $a_type="ass")
	Insert assets from clipboard.
static	insertScoClip ($a_slm_obj)
	Insert scos from clipboard.
static	pasteTree ($a_target_slm, $a_item_id, $a_parent_id, $a_target, $a_insert_time, &$a_copied_nodes, $a_as_copy=false)
	Paste item (tree) from clipboard to current scorm learning module.

Detailed Description

Class ilSCORM2004Chapter.

Chapter class for SCORM 2004 Editing

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Version: $Id$

Definition at line 17 of file class.ilSCORM2004Chapter.php.

Member Function Documentation

ilSCORM2004Chapter::_getPresentationTitle	(	$a_st_id,
		$a_include_numbers = `false`
	)

get presentation title

Definition at line 168 of file class.ilSCORM2004Chapter.php.

References $ilDB.

        {
                global $ilDB;
/*
                // get chapter data
                $query = "SELECT * FROM lm_data WHERE obj_id = ".$ilDB->quote($a_st_id);
                $st_set = $ilDB->query($query);
                $st_rec = $st_set->fetchRow(DB_FETCHMODE_ASSOC);
                $tree = new ilTree($st_rec["lm_id"]);
                $tree->setTableNames('lm_tree','lm_data');
                $tree->setTreeTablePK("lm_id");
                if ($a_include_numbers)
                {
                        if ($tree->isInTree($st_rec["obj_id"]))
                        {
                                // get chapter tree node
                                $query = "SELECT * FROM lm_tree WHERE child = ".
                                        $ilDB->quote($a_st_id)." AND lm_id = ".
                                        $ilDB->quote($st_rec["lm_id"]);
                                $tree_set = $ilDB->query($query);
                                $tree_node = $tree_set->fetchRow(DB_FETCHMODE_ASSOC);
                                $depth = $tree_node["depth"];
                                $nr = $tree->getChildSequenceNumber($tree_node, "st")." ";
                                for ($i = $depth - 1; $i > 1; $i --)
                                {
                                        // get next parent tree node
                                        $query = "SELECT * FROM lm_tree WHERE child = ".
                                                $ilDB->quote($tree_node["parent"])." AND lm_id = ".
                                                $ilDB->quote($st_rec["lm_id"]);
                                        $tree_set = $ilDB->query($query);
                                        $tree_node = $tree_set->fetchRow(DB_FETCHMODE_ASSOC);
                                        $seq = $tree->getChildSequenceNumber($tree_node, "st");
                                        $nr = $seq.".".$nr;
                                }
                        }
                }
                return $nr.$st_rec["title"];
*/
        }

ilSCORM2004Chapter::copy ( $a_target_slm )

Copy chapter.

Definition at line 71 of file class.ilSCORM2004Chapter.php.

References ilSCORM2004Node\getDescription(), ilSCORM2004Node\getId(), ilSCORM2004Node\getSLMId(), ilSCORM2004Node\getTitle(), ilSCORM2004Node\getType(), and ilSCORM2004Chapter().

        {
                $chap = new ilSCORM2004Chapter($a_target_slm);
                $chap->setTitle($this->getTitle());
                if ($this->getSLMId() != $a_target_slm->getId())
                {
                        $chap->setImportId("il__chap_".$this->getId());
                }
                $chap->setSLMId($a_target_slm->getId());
                $chap->setType($this->getType());
                $chap->setDescription($this->getDescription());
                $chap->create(true);
                $a_copied_nodes[$this->getId()] = $chap->getId();

                // copy meta data
                include_once("Services/MetaData/classes/class.ilMD.php");
                $md = new ilMD($this->getSLMId(), $this->getId(), $this->getType());
                $new_md =& $md->cloneMD($a_target_slm->getId(), $chap->getId(), $this->getType());

                return $chap;
        }

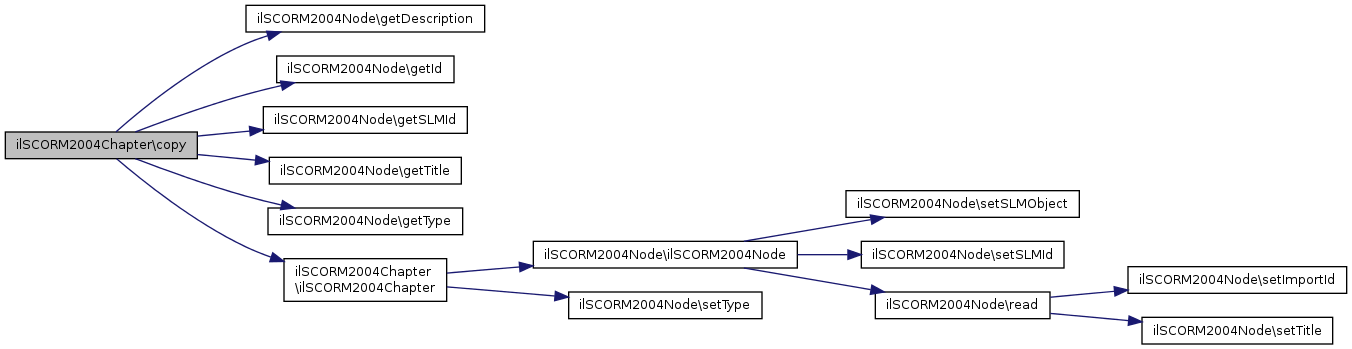

Here is the call graph for this function:

ilSCORM2004Chapter::delete ( $a_delete_meta_data = true )

Delete a chapter.

Definition at line 34 of file class.ilSCORM2004Chapter.php.

References delete_rec(), ilSCORM2004Node\deleteSeqInfo(), and ilSCORM2004Node\getId().

        {
                $node_data = $this->tree->getNodeData($this->getId());
                $this->delete_rec($a_delete_meta_data);
                $this->tree->deleteTree($node_data);
                parent::deleteSeqInfo();
        }

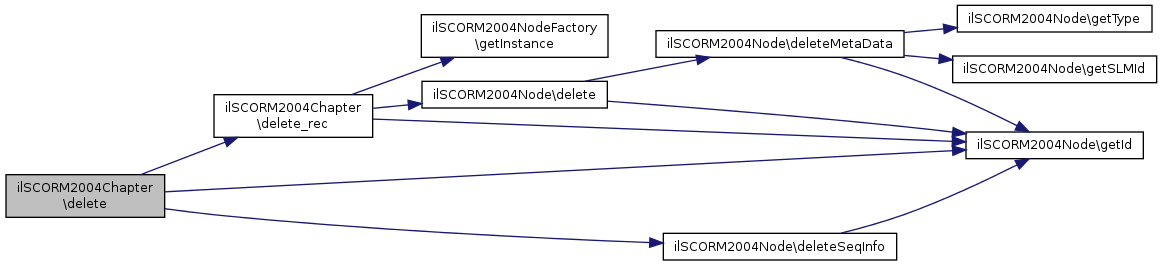

Here is the call graph for this function:

ilSCORM2004Chapter::delete_rec ( $a_delete_meta_data = true )

private

Delete data records of chapter (and nested objects)

Definition at line 45 of file class.ilSCORM2004Chapter.php.

References ilSCORM2004Node\delete(), ilSCORM2004Node\getId(), and ilSCORM2004NodeFactory\getInstance().

Referenced by delete().

        {
                $childs = $this->tree->getChilds($this->getId());
                foreach ($childs as $child)
                {
                        $obj =& ilSCORM2004NodeFactory::getInstance($this->slm_object, $child["obj_id"], false);
                        if (is_object($obj))
                        {
                                if ($obj->getType() == "chap")
                                {
                                        $obj->delete_rec($a_tree, $a_delete_meta_data);
                                }
                                if ($obj->getType() == "sco")
                                {
                                        $obj->delete($a_delete_meta_data);
                                }
                        }
                        unset($obj);
                }
                parent::delete($a_delete_meta_data);
        }

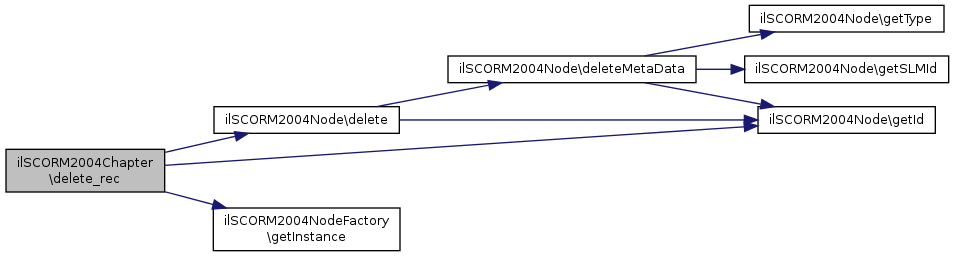

Here is the call graph for this function:

Here is the caller graph for this function:

ilSCORM2004Chapter::exportFOPageObjects ( & $a_xml_writer )

export object to fo

Parameters

object	$a_xml_writer	ilXmlWriter object that receives the xml data export page objects of structure object (see ilias_co.dtd)
object	$a_xml_writer	ilXmlWriter object that receives the xml data

Definition at line 323 of file class.ilSCORM2004Chapter.php.

        {
// @todo Check this
/*
                global $ilBench;
                $this->tree = new ilTree($this->getLmId());
                $this->tree->setTableNames('lm_tree', 'lm_data');
                $this->tree->setTreeTablePK("lm_id");
                $childs = $this->tree->getChilds($this->getId());
                foreach ($childs as $child)
                {
                        if($child["type"] != "pg")
                        {
                                continue;
                        }
                        // export xml to writer object
                        //$ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                        $page_obj = new ilLMPageObject($this->getContentObject(), $child["obj_id"]);
                        $page_obj->exportFO($a_xml_writer);
                        //$ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                }
*/
        }

ilSCORM2004Chapter::exportXML	(	&	$a_xml_writer,
			$a_inst,
		&	$expLog
	)

Export object to xml (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 99 of file class.ilSCORM2004Chapter.php.

        {
// @todo
/*
                global $ilBench;
                $expLog->write(date("[y-m-d H:i:s] ")."Structure Object ".$this->getId());
                $attrs = array();
                $a_xml_writer->xmlStartTag("StructureObject", $attrs);
                // MetaData
                $ilBench->start("ContentObjectExport", "exportStructureObject_exportMeta");
                $this->exportXMLMetaData($a_xml_writer);
                $ilBench->stop("ContentObjectExport", "exportStructureObject_exportMeta");
                // StructureObjects
                $ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjects");
                $this->exportXMLPageObjects($a_xml_writer, $a_inst);
                $ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjects");
                // PageObjects
                $this->exportXMLStructureObjects($a_xml_writer, $a_inst, $expLog);
                // Layout
                // not implemented
                $a_xml_writer->xmlEndTag("StructureObject");
*/
        }

ilSCORM2004Chapter::exportXMLMetaData ( & $a_xml_writer )

export structure objects meta data to xml (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 136 of file class.ilSCORM2004Chapter.php.

        {
// @todo
/*
                include_once("Services/MetaData/classes/class.ilMD2XML.php");
                $md2xml = new ilMD2XML($this->getLMId(), $this->getId(), $this->getType());
                $md2xml->setExportMode(true);
                $md2xml->startExport();
                $a_xml_writer->appendXML($md2xml->getXML());
*/
        }

ilSCORM2004Chapter::exportXMLPageObjects	(	&	$a_xml_writer,
			$a_inst = `0`
	)

export page objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 221 of file class.ilSCORM2004Chapter.php.

        {
// @todo Check this
/*
                include_once './Modules/LearningModule/classes/class.ilLMPageObject.php';
                global $ilBench;
                $this->tree = new ilTree($this->getLmId());
                $this->tree->setTableNames('lm_tree', 'lm_data');
                $this->tree->setTreeTablePK("lm_id");
                $childs = $this->tree->getChilds($this->getId());
                foreach ($childs as $child)
                {
                        if($child["type"] != "pg")
                        {
                                continue;
                        }
                        // export xml to writer object
                        $ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                        //$ilBench->start("ContentObjectExport", "exportStructureObject_getLMPageObject");
                        //$page_obj = new ilLMPageObject($this->getContentObject(), $child["obj_id"]);
                        //$ilBench->stop("ContentObjectExport", "exportStructureObject_getLMPageObject");
                        ilLMPageObject::_exportXMLAlias($a_xml_writer, $child["obj_id"], $a_inst);
                        //$page_obj->exportXML($a_xml_writer, "alias", $a_inst);
                        //unset($page_obj);
                        $ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                }
*/
        }

ilSCORM2004Chapter::exportXMLStructureObjects	(	&	$a_xml_writer,
			$a_inst,
		&	$expLog
	)

export (sub)structure objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 261 of file class.ilSCORM2004Chapter.php.

        {
// @todo Check this
/*
                $this->tree = new ilTree($this->getLmId());
                $this->tree->setTableNames('lm_tree', 'lm_data');
                $this->tree->setTreeTablePK("lm_id");
                $childs = $this->tree->getChilds($this->getId());
                foreach ($childs as $child)
                {
                        if($child["type"] != "st")
                        {
                                continue;
                        }
                        // export xml to writer object
                        $structure_obj = new ilStructureObject($this->getContentObject(),
                                $child["obj_id"]);
                        $structure_obj->exportXML($a_xml_writer, $a_inst, $expLog);
                        unset($structure_obj);
                }
*/
        }

ilSCORM2004Chapter::ilSCORM2004Chapter	(	$a_slm_object,
		$a_id = `0`
	)

Constructor public.

Definition at line 25 of file class.ilSCORM2004Chapter.php.

References ilSCORM2004Node\ilSCORM2004Node(), and ilSCORM2004Node\setType().

Referenced by copy(), ilSCORM2004SeqChapter\ilSCORM2004SeqChapter(), and ilSCORM2004SeqTemplate\importTemplate().

        {
                parent::ilSCORM2004Node($a_slm_object, $a_id);
                $this->setType("chap");
        }

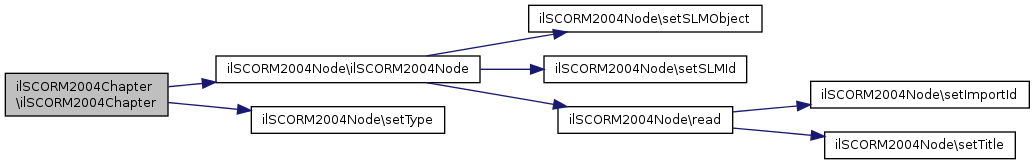

Here is the call graph for this function:

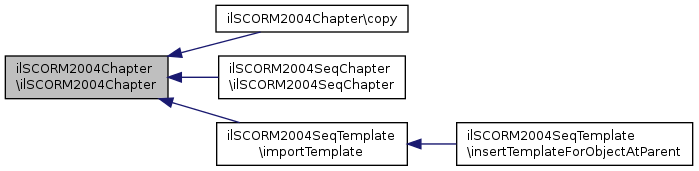

Here is the caller graph for this function:

Field Documentation

ilSCORM2004Chapter::$tree

Definition at line 19 of file class.ilSCORM2004Chapter.php.

The documentation for this class was generated from the following file:

Modules/Scorm2004/classes/class.ilSCORM2004Chapter.php

Public Member Functions

Data Fields

Private Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

Field Documentation
