Spreadsheet_Excel_Writer_Parser Class Reference
+ Inheritance diagram for Spreadsheet_Excel_Writer_Parser:

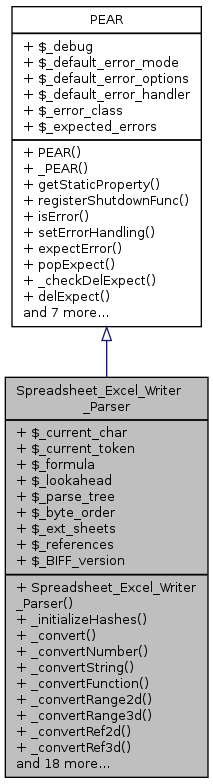

+ Collaboration diagram for Spreadsheet_Excel_Writer_Parser:

Public Member Functions

 Spreadsheet_Excel_Writer_Parser ($byte_order, $biff_version)
 The class constructor.
 _initializeHashes ()
 Initialize the ptg and function hashes.
 _convert ($token)
 Convert a token to the proper ptg value.
 _convertNumber ($num)
 Convert a number token to ptgInt or ptgNum.
 _convertString ($string)
 Convert a string token to ptgStr.
 _convertFunction ($token, $num_args)
 Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes.
 _convertRange2d ($range, $class=0)
 Convert an Excel range such as A1:D4 to a ptgRefV.
 _convertRange3d ($token)
 Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.
 _convertRef2d ($cell)
 Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.
 _convertRef3d ($cell)
 Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.
 _packExtRef ($ext_ref)
 Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure.
 _getRefIndex ($ext_ref)
 Look up the REF index that corresponds to an external sheet name (or range).
 _getSheetIndex ($sheet_name)
 Look up the index that corresponds to an external sheet name.
 setExtSheet ($name, $index)
 This method is used to update the array of sheet names.
 _cellToPackedRowcol ($cell)
 pack() row and column into the required 3 or 4 byte format.
 _rangeToPackedRange ($range)
 pack() row range into the required 3 or 4 byte format.
 _cellToRowcol ($cell)
 Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number.
 _advance ()
 Advance to the next valid token.
 _match ($token)
 Checks if it's a valid token.
 parse ($formula)
 The parsing method.
 _condition ()
 It parses a condition.
 _expression ()
 It parses a expression.
 _parenthesizedExpression ()
 This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards.
 _term ()
 It parses a term.
 _fact ()
 It parses a factor.
 _func ()
 It parses a function call.
 _createTree ($value, $left, $right)
 Creates a tree.
 toReversePolish ($tree=array())
 Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack).
- Public Member Functions inherited from PEAR
 PEAR ($error_class=null)
 Constructor.
 _PEAR ()
 Destructor (the emulated type of...).
& getStaticProperty ($class, $var)
 If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them.
 registerShutdownFunc ($func, $args=array())
 Use this function to register a shutdown method for static classes.
 isError ($data, $code=null)
 Tell whether a value is a PEAR error.
 setErrorHandling ($mode=null, $options=null)
 Sets how errors generated by this object should be handled.
 expectError ($code= '*')
 This method is used to tell which errors you expect to get.
 popExpect ()
 This method pops one element off the expected error codes stack.
 _checkDelExpect ($error_code)
 This method checks unsets an error code if available.
 delExpect ($error_code)
 This method deletes all occurences of the specified element from the expected error codes stack.
& raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
 This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied.
& throwError ($message=null, $code=null, $userinfo=null)
 Simpler form of raiseError with fewer options.
 staticPushErrorHandling ($mode, $options=null)
 staticPopErrorHandling ()
 pushErrorHandling ($mode, $options=null)
 Push a new error handler on top of the error handler options stack.
 popErrorHandling ()
 Pop the last error handler used.
 loadExtension ($ext)
 OS independant PHP extension load.

Data Fields

 $_current_char
 $_current_token
 $_formula
 $_lookahead
 $_parse_tree
 $_byte_order
 $_ext_sheets
 $_references
 $_BIFF_version
- Data Fields inherited from PEAR
 $_debug = false
 $_default_error_mode = null
 $_default_error_options = null
 $_default_error_handler = ''
 $_error_class = 'PEAR_Error'
 $_expected_errors = array()

Detailed Description

Definition at line 110 of file Parser.php.

Member Function Documentation

Spreadsheet_Excel_Writer_Parser::_advance ( )

Advance to the next valid token.

private

Definition at line 1108 of file Parser.php.

References $_current_char, and _match().

Referenced by _condition(), _expression(), _fact(), _func(), _term(), and parse().

{
$i = $this->_current_char;
$formula_length = strlen($this->_formula);
// eat up white spaces
if ($i < $formula_length) {
while ($this->_formula{$i} == " ") {
$i++;
}
if ($i < ($formula_length - 1)) {
$this->_lookahead = $this->_formula{$i+1};
}
$token = '';
}
while ($i < $formula_length) {
$token .= $this->_formula{$i};
if ($i < ($formula_length - 1)) {
$this->_lookahead = $this->_formula{$i+1};
} else {
$this->_lookahead = '';
}
if ($this->_match($token) != '') {
//if ($i < strlen($this->_formula) - 1) {
// $this->_lookahead = $this->_formula{$i+1};
//}
$this->_current_char = $i + 1;
$this->_current_token = $token;
return 1;
}
if ($i < ($formula_length - 2)) {
$this->_lookahead = $this->_formula{$i+2};
} else { // if we run out of characters _lookahead becomes empty
$this->_lookahead = '';
}
$i++;
}
//die("Lexical error ".$this->_current_char);
}

+ Here is the call graph for this function:

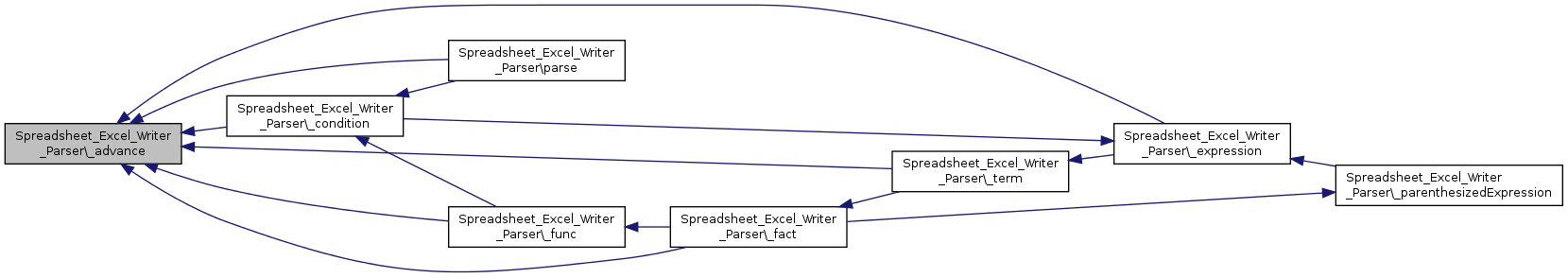

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_cellToPackedRowcol (   $cell)

pack() row and column into the required 3 or 4 byte format.

private

Parameters
string$cellThe Excel cell reference to be packed
Returns
array Array containing the row and column in packed() format

Definition at line 996 of file Parser.php.

References $row, _cellToRowcol(), and PEAR\raiseError().

Referenced by _convertRange2d(), _convertRange3d(), _convertRef2d(), and _convertRef3d().

{
$cell = strtoupper($cell);
list($row, $col, $row_rel, $col_rel) = $this->_cellToRowcol($cell);
if ($col >= 256) {
return $this->raiseError("Column in: $cell greater than 255");
}
// FIXME: change for BIFF8
if ($row >= 16384) {
return $this->raiseError("Row in: $cell greater than 16384 ");
}
// Set the high bits to indicate if row or col are relative.
if ($this->_BIFF_version == 0x0500) {
$row |= $col_rel << 14;
$row |= $row_rel << 15;
$col = pack('C', $col);
} elseif ($this->_BIFF_version == 0x0600) {
$col |= $col_rel << 14;
$col |= $row_rel << 15;
$col = pack('v', $col);
}
$row = pack('v', $row);
return array($row, $col);
}

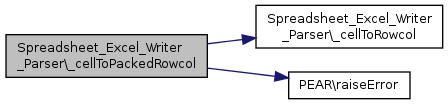

+ Here is the call graph for this function:

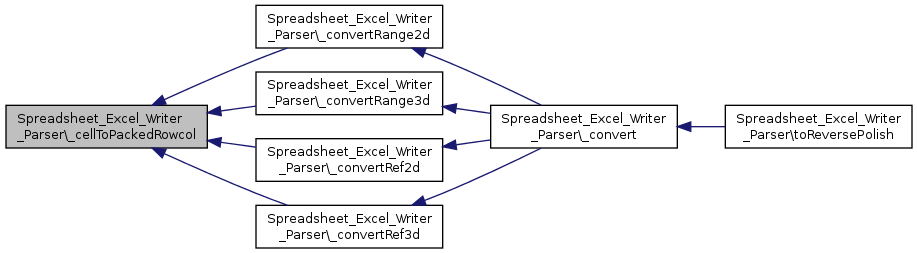

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_cellToRowcol (   $cell)

Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number.

Also returns two (0,1) values to indicate whether the row or column are relative references.

private

Parameters
string$cellThe Excel cell reference in A1 format.
Returns
array

Definition at line 1078 of file Parser.php.

References $row.

Referenced by _cellToPackedRowcol().

{
preg_match('/(\$)?([A-I]?[A-Z])(\$)?(\d+)/',$cell,$match);
// return absolute column if there is a $ in the ref
$col_rel = empty($match[1]) ? 1 : 0;
$col_ref = $match[2];
$row_rel = empty($match[3]) ? 1 : 0;
$row = $match[4];
// Convert base26 column string to a number.
$expn = strlen($col_ref) - 1;
$col = 0;
$col_ref_length = strlen($col_ref);
for ($i = 0; $i < $col_ref_length; $i++) {
$col += (ord($col_ref{$i}) - ord('A') + 1) * pow(26, $expn);
$expn--;
}
// Convert 1-index to zero-index
$row--;
$col--;
return array($row, $col, $row_rel, $col_rel);
}

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_condition ( )

It parses a condition.

It assumes the following rule: Cond -> Expr [(">" | "<") Expr]

private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1309 of file Parser.php.

References $result, _advance(), _createTree(), _expression(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_CONCAT, SPREADSHEET_EXCEL_WRITER_EQ, SPREADSHEET_EXCEL_WRITER_GE, SPREADSHEET_EXCEL_WRITER_GT, SPREADSHEET_EXCEL_WRITER_LE, SPREADSHEET_EXCEL_WRITER_LT, and SPREADSHEET_EXCEL_WRITER_NE.

Referenced by _func(), and parse().

{
$result = $this->_expression();
if (PEAR::isError($result)) {
return $result;
}
if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_LT) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgLT', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_GT) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgGT', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_LE) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgLE', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_GE) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgGE', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_EQ) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgEQ', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_NE) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgNE', $result, $result2);
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_CONCAT) {
$this->_advance();
$result2 = $this->_expression();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgConcat', $result, $result2);
}
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convert (   $token)

Convert a token to the proper ptg value.

private

Parameters
mixed$tokenThe token to convert.
Returns
mixed the converted token on success. PEAR_Error if the token is not recognized

Definition at line 543 of file Parser.php.

References _convertNumber(), _convertRange2d(), _convertRange3d(), _convertRef2d(), _convertRef3d(), _convertString(), and PEAR\raiseError().

Referenced by toReversePolish().

{
if (preg_match("/^\"[^\"]{0,255}\"$/", $token)) {
return $this->_convertString($token);
} elseif (is_numeric($token)) {
return $this->_convertNumber($token);
// match references like A1 or $A$1
} elseif (preg_match('/^\$?([A-Ia-i]?[A-Za-z])\$?(\d+)$/',$token)) {
return $this->_convertRef2d($token);
// match external references like Sheet1!A1 or Sheet1:Sheet2!A1
} elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
return $this->_convertRef3d($token);
// match external references like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1
} elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
return $this->_convertRef3d($token);
// match ranges like A1:B2
} elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\:(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
return $this->_convertRange2d($token);
// match ranges like A1..B2
} elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
return $this->_convertRange2d($token);
// match external ranges like Sheet1!A1 or Sheet1:Sheet2!A1:B2
} elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
return $this->_convertRange3d($token);
// match external ranges like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
} elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
return $this->_convertRange3d($token);
// operators (including parentheses)
} elseif (isset($this->ptg[$token])) {
return pack("C", $this->ptg[$token]);
// commented so argument number can be processed correctly. See toReversePolish().
/*elseif (preg_match("/[A-Z0-9\xc0-\xdc\.]+/",$token))
{
return($this->_convertFunction($token,$this->_func_args));
}*/
// if it's an argument, ignore the token (the argument remains)
} elseif ($token == 'arg') {
return '';
}
// TODO: use real error codes
return $this->raiseError("Unknown token $token");
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertFunction (   $token,
  $num_args
)

Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes.

private

Parameters
string$tokenThe name of the function for convertion to ptg value.
integer$num_argsThe number of arguments the function receives.
Returns
string The packed ptg for the function

Definition at line 649 of file Parser.php.

{
$args = $this->_functions[$token][1];
$volatile = $this->_functions[$token][3];
// Fixed number of args eg. TIME($i,$j,$k).
if ($args >= 0) {
return pack("Cv", $this->ptg['ptgFuncV'], $this->_functions[$token][0]);
}
// Variable number of args eg. SUM($i,$j,$k, ..).
if ($args == -1) {
return pack("CCv", $this->ptg['ptgFuncVarV'], $num_args, $this->_functions[$token][0]);
}
}
Spreadsheet_Excel_Writer_Parser::_convertNumber (   $num)

Convert a number token to ptgInt or ptgNum.

private

Parameters
mixed$numan integer or double for conversion to its ptg value

Definition at line 603 of file Parser.php.

Referenced by _convert().

{
// Integer in the range 0..2**16-1
if ((preg_match("/^\d+$/", $num)) and ($num <= 65535)) {
return pack("Cv", $this->ptg['ptgInt'], $num);
} else { // A float
if ($this->_byte_order) { // if it's Big Endian
$num = strrev($num);
}
return pack("Cd", $this->ptg['ptgNum'], $num);
}
}

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertRange2d (   $range,
  $class = 0
)

Convert an Excel range such as A1:D4 to a ptgRefV.

private

Parameters
string$rangeAn Excel range in the A1:A2 or A1..A2 format.

Definition at line 670 of file Parser.php.

References _cellToPackedRowcol(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

{
// TODO: possible class value 0,1,2 check Formula.pm
// Split the range into 2 cell refs
if (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\:([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
list($cell1, $cell2) = split(':', $range);
} elseif (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\.\.([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
list($cell1, $cell2) = split('\.\.', $range);
} else {
// TODO: use real error codes
return $this->raiseError("Unknown range separator", 0, PEAR_ERROR_DIE);
}
// Convert the cell references
$cell_array1 = $this->_cellToPackedRowcol($cell1);
if (PEAR::isError($cell_array1)) {
return $cell_array1;
}
list($row1, $col1) = $cell_array1;
$cell_array2 = $this->_cellToPackedRowcol($cell2);
if (PEAR::isError($cell_array2)) {
return $cell_array2;
}
list($row2, $col2) = $cell_array2;
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgArea = pack("C", $this->ptg['ptgArea']);
} elseif ($class == 1) {
$ptgArea = pack("C", $this->ptg['ptgAreaV']);
} elseif ($class == 2) {
$ptgArea = pack("C", $this->ptg['ptgAreaA']);
} else {
// TODO: use real error codes
return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
}
return $ptgArea . $row1 . $row2 . $col1. $col2;
}

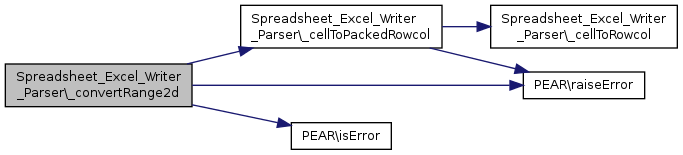

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertRange3d (   $token)

Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.

private

Parameters
string$tokenAn Excel range in the Sheet1!A1:A2 format.
Returns
mixed The packed ptgArea3d token on success, PEAR_Error on failure.

Definition at line 719 of file Parser.php.

References _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), _rangeToPackedRange(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Split the ref at the ! symbol
list($ext_ref, $range) = split('!', $token);
// Convert the external reference part (different for BIFF8)
if ($this->_BIFF_version == 0x0500) {
$ext_ref = $this->_packExtRef($ext_ref);
if (PEAR::isError($ext_ref)) {
return $ext_ref;
}
} elseif ($this->_BIFF_version == 0x0600) {
$ext_ref = $this->_getRefIndex($ext_ref);
if (PEAR::isError($ext_ref)) {
return $ext_ref;
}
}
// Split the range into 2 cell refs
list($cell1, $cell2) = split(':', $range);
// Convert the cell references
if (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/", $cell1)) {
$cell_array1 = $this->_cellToPackedRowcol($cell1);
if (PEAR::isError($cell_array1)) {
return $cell_array1;
}
list($row1, $col1) = $cell_array1;
$cell_array2 = $this->_cellToPackedRowcol($cell2);
if (PEAR::isError($cell_array2)) {
return $cell_array2;
}
list($row2, $col2) = $cell_array2;
} else { // It's a rows range (like 26:27)
$cells_array = $this->_rangeToPackedRange($cell1.':'.$cell2);
if (PEAR::isError($cells_array)) {
return $cells_array;
}
list($row1, $col1, $row2, $col2) = $cells_array;
}
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgArea = pack("C", $this->ptg['ptgArea3d']);
} elseif ($class == 1) {
$ptgArea = pack("C", $this->ptg['ptgArea3dV']);
} elseif ($class == 2) {
$ptgArea = pack("C", $this->ptg['ptgArea3dA']);
} else {
return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
}
return $ptgArea . $ext_ref . $row1 . $row2 . $col1. $col2;
}

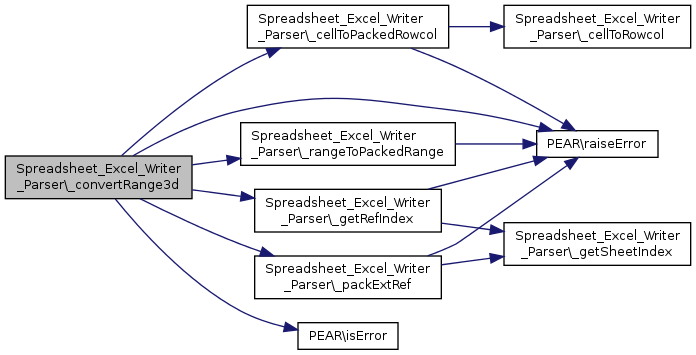

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertRef2d (   $cell)

Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.

private

Parameters
string$cellAn Excel cell reference
Returns
string The cell in packed() format with the corresponding ptg

Definition at line 783 of file Parser.php.

References $row, _cellToPackedRowcol(), PEAR\isError(), and PEAR\raiseError().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Convert the cell reference
$cell_array = $this->_cellToPackedRowcol($cell);
if (PEAR::isError($cell_array)) {
return $cell_array;
}
list($row, $col) = $cell_array;
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgRef = pack("C", $this->ptg['ptgRef']);
} elseif ($class == 1) {
$ptgRef = pack("C", $this->ptg['ptgRefV']);
} elseif ($class == 2) {
$ptgRef = pack("C", $this->ptg['ptgRefA']);
} else {
// TODO: use real error codes
return $this->raiseError("Unknown class $class");
}
return $ptgRef.$row.$col;
}

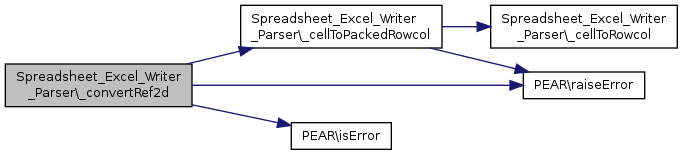

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertRef3d (   $cell)

Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.

private

Parameters
string$cellAn Excel cell reference
Returns
mixed The packed ptgRef3d token on success, PEAR_Error on failure.

Definition at line 816 of file Parser.php.

References $row, _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

{
$class = 2; // as far as I know, this is magick.
// Split the ref at the ! symbol
list($ext_ref, $cell) = split('!', $cell);
// Convert the external reference part (different for BIFF8)
if ($this->_BIFF_version == 0x0500) {
$ext_ref = $this->_packExtRef($ext_ref);
if (PEAR::isError($ext_ref)) {
return $ext_ref;
}
} elseif ($this->_BIFF_version == 0x0600) {
$ext_ref = $this->_getRefIndex($ext_ref);
if (PEAR::isError($ext_ref)) {
return $ext_ref;
}
}
// Convert the cell reference part
list($row, $col) = $this->_cellToPackedRowcol($cell);
// The ptg value depends on the class of the ptg.
if ($class == 0) {
$ptgRef = pack("C", $this->ptg['ptgRef3d']);
} elseif ($class == 1) {
$ptgRef = pack("C", $this->ptg['ptgRef3dV']);
} elseif ($class == 2) {
$ptgRef = pack("C", $this->ptg['ptgRef3dA']);
} else {
return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
}
return $ptgRef . $ext_ref. $row . $col;
}

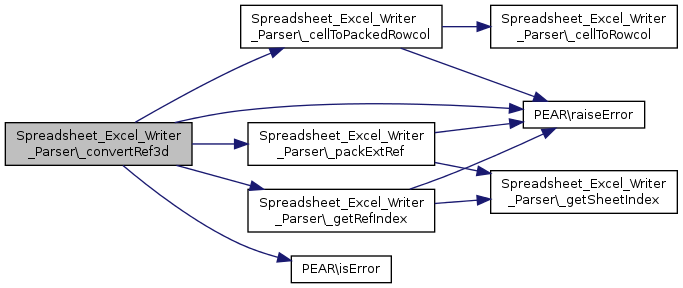

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_convertString (   $string)

Convert a string token to ptgStr.

private

Parameters
string$stringA string for conversion to its ptg value.
Returns
mixed the converted token on success. PEAR_Error if the string is longer than 255 characters.

Definition at line 624 of file Parser.php.

References PEAR\raiseError().

Referenced by _convert().

{
// chop away beggining and ending quotes
$string = substr($string, 1, strlen($string) - 2);
if (strlen($string) > 255) {
return $this->raiseError("String is too long");
}
if ($this->_BIFF_version == 0x0500) {
return pack("CC", $this->ptg['ptgStr'], strlen($string)).$string;
} elseif ($this->_BIFF_version == 0x0600) {
$encoding = 0; // TODO: Unicode support
return pack("CCC", $this->ptg['ptgStr'], strlen($string), $encoding).$string;
}
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_createTree (   $value,
  $left,
  $right
)

Creates a tree.

In fact an array which may have one or two arrays (sub-trees) as elements.

private

Parameters
mixed$valueThe value of this node.
mixed$leftThe left array (sub-tree) or a final node.
mixed$rightThe right array (sub-tree) or a final node.
Returns
array A tree

Definition at line 1611 of file Parser.php.

Referenced by _condition(), _expression(), _fact(), _func(), _parenthesizedExpression(), and _term().

{
return array('value' => $value, 'left' => $left, 'right' => $right);
}

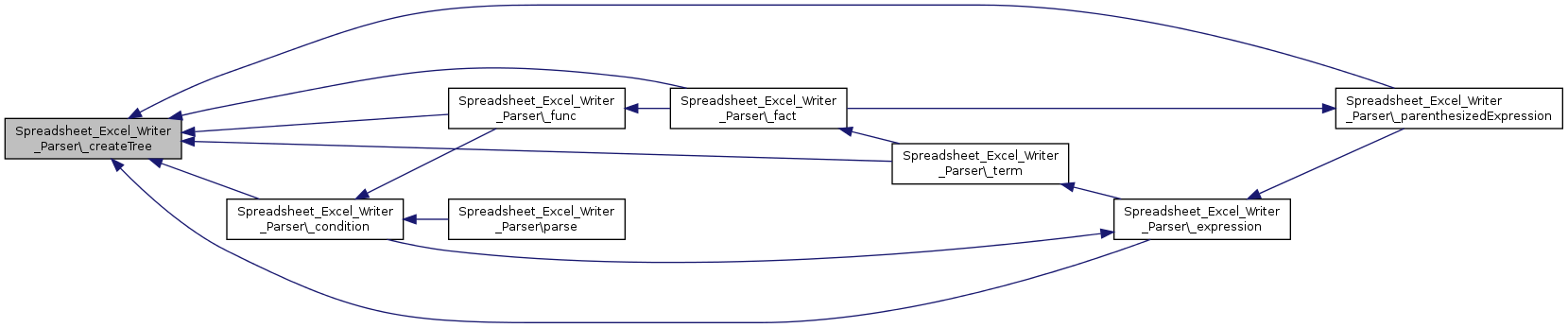

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_expression ( )

It parses a expression.

It assumes the following rule: Expr -> Term [("+" | "-") Term] -> "string" -> "-" Term

private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1377 of file Parser.php.

References $result, _advance(), _createTree(), _term(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_ADD, and SPREADSHEET_EXCEL_WRITER_SUB.

Referenced by _condition(), and _parenthesizedExpression().

{
// If it's a string return a string node
if (preg_match("/^\"[^\"]{0,255}\"$/", $this->_current_token)) {
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
} elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_SUB) {
// catch "-" Term
$this->_advance();
$result2 = $this->_expression();
$result = $this->_createTree('ptgUminus', $result2, '');
return $result;
}
$result = $this->_term();
if (PEAR::isError($result)) {
return $result;
}
while (($this->_current_token == SPREADSHEET_EXCEL_WRITER_ADD) or
($this->_current_token == SPREADSHEET_EXCEL_WRITER_SUB)) {
if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_ADD) {
$this->_advance();
$result2 = $this->_term();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgAdd', $result, $result2);
} else {
$this->_advance();
$result2 = $this->_term();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgSub', $result, $result2);
}
}
return $result;
}

+ Here is the call graph for this function:

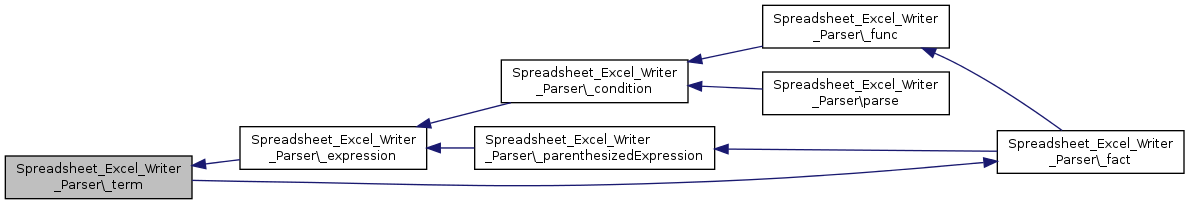

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_fact ( )

It parses a factor.

It assumes the following rule: Fact -> ( Expr ) | CellRef | CellRange | Number | Function

private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1477 of file Parser.php.

References $_current_token, $result, _advance(), _createTree(), _func(), _parenthesizedExpression(), PEAR\raiseError(), SPREADSHEET_EXCEL_WRITER_CLOSE, and SPREADSHEET_EXCEL_WRITER_OPEN.

Referenced by _term().

{
if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_OPEN) {
$this->_advance(); // eat the "("
$result = $this->_parenthesizedExpression();
if ($this->_current_token != SPREADSHEET_EXCEL_WRITER_CLOSE) {
return $this->raiseError("')' token expected.");
}
$this->_advance(); // eat the ")"
return $result;
}
// if it's a reference
if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// if it's a range
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token) or
preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
// If it's an external range (Sheet1!A1 or Sheet1!A1:B2)
elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
// If it's an external range ('Sheet1'!A1 or 'Sheet1'!A1:B2)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
{
$result = $this->_current_token;
$this->_advance();
return $result;
}
elseif (is_numeric($this->_current_token))
{
$result = $this->_createTree($this->_current_token, '', '');
$this->_advance();
return $result;
}
// if it's a function call
elseif (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/i",$this->_current_token))
{
$result = $this->_func();
return $result;
}
return $this->raiseError("Syntax error: ".$this->_current_token.
", lookahead: ".$this->_lookahead.
", current char: ".$this->_current_char);
}

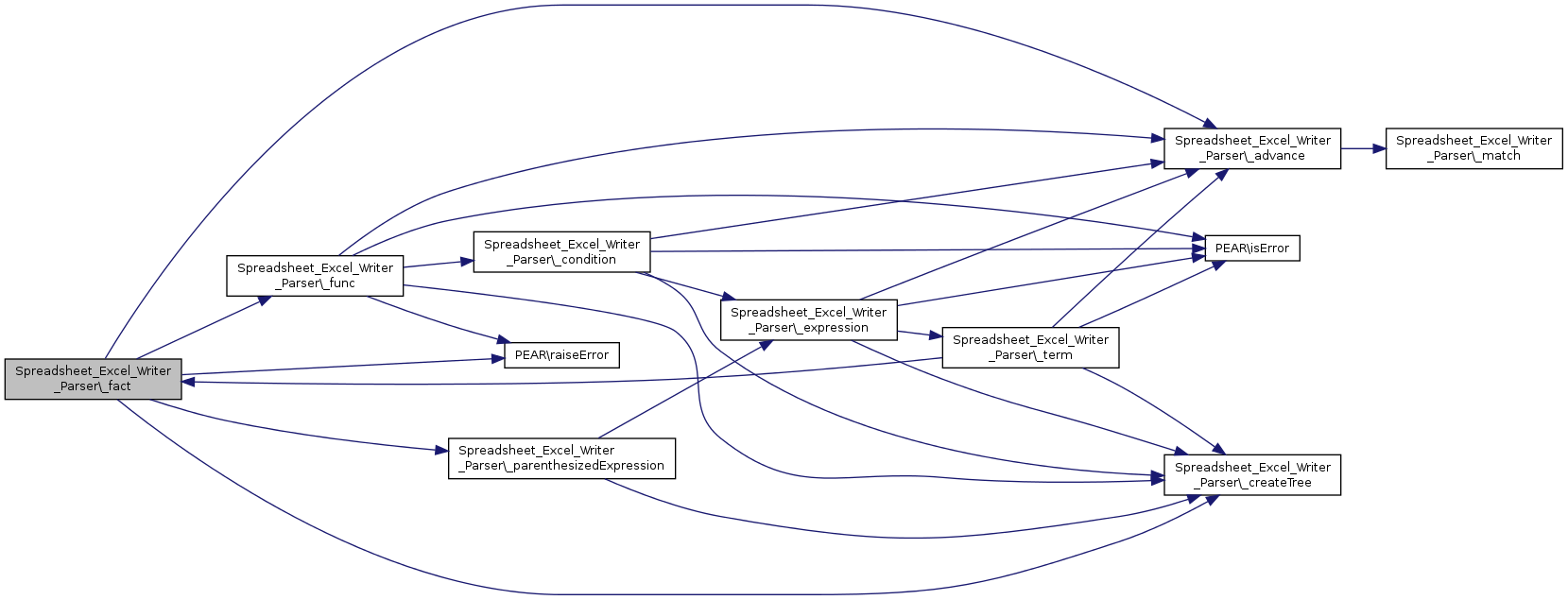

+ Here is the call graph for this function:

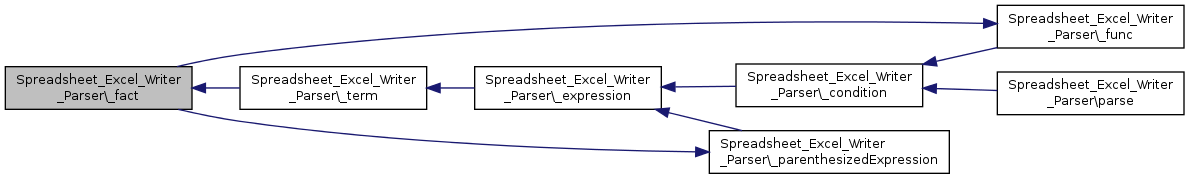

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_func ( )

It parses a function call.

It assumes the following rule: Func -> ( Expr [,Expr]* )

private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1555 of file Parser.php.

References $result, _advance(), _condition(), _createTree(), PEAR\isError(), PEAR\raiseError(), SPREADSHEET_EXCEL_WRITER_COMA, and SPREADSHEET_EXCEL_WRITER_SEMICOLON.

Referenced by _fact().

{
$num_args = 0; // number of arguments received
$function = strtoupper($this->_current_token);
$result = ''; // initialize result
$this->_advance();
$this->_advance(); // eat the "("
while ($this->_current_token != ')') {
if ($num_args > 0) {
if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_COMA or
$this->_current_token == SPREADSHEET_EXCEL_WRITER_SEMICOLON)
{
$this->_advance(); // eat the "," or ";"
} else {
return $this->raiseError("Syntax error: comma expected in ".
"function $function, arg #{$num_args}");
}
$result2 = $this->_condition();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('arg', $result, $result2);
} else { // first argument
$result2 = $this->_condition();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('arg', '', $result2);
}
$num_args++;
}
if (!isset($this->_functions[$function])) {
return $this->raiseError("Function $function() doesn't exist");
}
$args = $this->_functions[$function][1];
// If fixed number of args eg. TIME($i,$j,$k). Check that the number of args is valid.
if (($args >= 0) and ($args != $num_args)) {
return $this->raiseError("Incorrect number of arguments in function $function() ");
}
$result = $this->_createTree($function, $result, $num_args);
$this->_advance(); // eat the ")"
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_getRefIndex (   $ext_ref)

Look up the REF index that corresponds to an external sheet name (or range).

If it doesn't exist yet add it to the workbook's references array. It assumes all sheet names given must exist.

private

Parameters
string$ext_refThe name of the external reference
Returns
mixed The reference index in packed() format on success, PEAR_Error on failure

Definition at line 907 of file Parser.php.

References _getSheetIndex(), and PEAR\raiseError().

Referenced by _convertRange3d(), and _convertRef3d().

{
$ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
$ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
// Check if there is a sheet range eg., Sheet1:Sheet2.
if (preg_match("/:/", $ext_ref)) {
list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
$sheet1 = $this->_getSheetIndex($sheet_name1);
if ($sheet1 == -1) {
return $this->raiseError("Unknown sheet name $sheet_name1 in formula");
}
$sheet2 = $this->_getSheetIndex($sheet_name2);
if ($sheet2 == -1) {
return $this->raiseError("Unknown sheet name $sheet_name2 in formula");
}
// Reverse max and min sheet numbers if necessary
if ($sheet1 > $sheet2) {
list($sheet1, $sheet2) = array($sheet2, $sheet1);
}
} else { // Single sheet name only.
$sheet1 = $this->_getSheetIndex($ext_ref);
if ($sheet1 == -1) {
return $this->raiseError("Unknown sheet name $ext_ref in formula");
}
$sheet2 = $sheet1;
}
// assume all references belong to this document
$supbook_index = 0x00;
$ref = pack('vvv', $supbook_index, $sheet1, $sheet2);
$total_references = count($this->_references);
$index = -1;
for ($i = 0; $i < $total_references; $i++) {
if ($ref == $this->_references[$i]) {
$index = $i;
break;
}
}
// if REF was not found add it to references array
if ($index == -1) {
$this->_references[$total_references] = $ref;
$index = $total_references;
}
return pack('v', $index);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_getSheetIndex (   $sheet_name)

Look up the index that corresponds to an external sheet name.

The hash of sheet names is updated by the addworksheet() method of the Spreadsheet_Excel_Writer_Workbook class.

private

Returns
integer The sheet index, -1 if the sheet was not found

Definition at line 965 of file Parser.php.

Referenced by _getRefIndex(), and _packExtRef().

{
if (!isset($this->_ext_sheets[$sheet_name])) {
return -1;
} else {
return $this->_ext_sheets[$sheet_name];
}
}

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_initializeHashes ( )

Initialize the ptg and function hashes.

private

Definition at line 191 of file Parser.php.

Referenced by Spreadsheet_Excel_Writer_Parser().

{
// The Excel ptg indices
$this->ptg = array(
'ptgExp' => 0x01,
'ptgTbl' => 0x02,
'ptgAdd' => 0x03,
'ptgSub' => 0x04,
'ptgMul' => 0x05,
'ptgDiv' => 0x06,
'ptgPower' => 0x07,
'ptgConcat' => 0x08,
'ptgLT' => 0x09,
'ptgLE' => 0x0A,
'ptgEQ' => 0x0B,
'ptgGE' => 0x0C,
'ptgGT' => 0x0D,
'ptgNE' => 0x0E,
'ptgIsect' => 0x0F,
'ptgUnion' => 0x10,
'ptgRange' => 0x11,
'ptgUplus' => 0x12,
'ptgUminus' => 0x13,
'ptgPercent' => 0x14,
'ptgParen' => 0x15,
'ptgMissArg' => 0x16,
'ptgStr' => 0x17,
'ptgAttr' => 0x19,
'ptgSheet' => 0x1A,
'ptgEndSheet' => 0x1B,
'ptgErr' => 0x1C,
'ptgBool' => 0x1D,
'ptgInt' => 0x1E,
'ptgNum' => 0x1F,
'ptgArray' => 0x20,
'ptgFunc' => 0x21,
'ptgFuncVar' => 0x22,
'ptgName' => 0x23,
'ptgRef' => 0x24,
'ptgArea' => 0x25,
'ptgMemArea' => 0x26,
'ptgMemErr' => 0x27,
'ptgMemNoMem' => 0x28,
'ptgMemFunc' => 0x29,
'ptgRefErr' => 0x2A,
'ptgAreaErr' => 0x2B,
'ptgRefN' => 0x2C,
'ptgAreaN' => 0x2D,
'ptgMemAreaN' => 0x2E,
'ptgMemNoMemN' => 0x2F,
'ptgNameX' => 0x39,
'ptgRef3d' => 0x3A,
'ptgArea3d' => 0x3B,
'ptgRefErr3d' => 0x3C,
'ptgAreaErr3d' => 0x3D,
'ptgArrayV' => 0x40,
'ptgFuncV' => 0x41,
'ptgFuncVarV' => 0x42,
'ptgNameV' => 0x43,
'ptgRefV' => 0x44,
'ptgAreaV' => 0x45,
'ptgMemAreaV' => 0x46,
'ptgMemErrV' => 0x47,
'ptgMemNoMemV' => 0x48,
'ptgMemFuncV' => 0x49,
'ptgRefErrV' => 0x4A,
'ptgAreaErrV' => 0x4B,
'ptgRefNV' => 0x4C,
'ptgAreaNV' => 0x4D,
'ptgMemAreaNV' => 0x4E,
'ptgMemNoMemN' => 0x4F,
'ptgFuncCEV' => 0x58,
'ptgNameXV' => 0x59,
'ptgRef3dV' => 0x5A,
'ptgArea3dV' => 0x5B,
'ptgRefErr3dV' => 0x5C,
'ptgAreaErr3d' => 0x5D,
'ptgArrayA' => 0x60,
'ptgFuncA' => 0x61,
'ptgFuncVarA' => 0x62,
'ptgNameA' => 0x63,
'ptgRefA' => 0x64,
'ptgAreaA' => 0x65,
'ptgMemAreaA' => 0x66,
'ptgMemErrA' => 0x67,
'ptgMemNoMemA' => 0x68,
'ptgMemFuncA' => 0x69,
'ptgRefErrA' => 0x6A,
'ptgAreaErrA' => 0x6B,
'ptgRefNA' => 0x6C,
'ptgAreaNA' => 0x6D,
'ptgMemAreaNA' => 0x6E,
'ptgMemNoMemN' => 0x6F,
'ptgFuncCEA' => 0x78,
'ptgNameXA' => 0x79,
'ptgRef3dA' => 0x7A,
'ptgArea3dA' => 0x7B,
'ptgRefErr3dA' => 0x7C,
'ptgAreaErr3d' => 0x7D
);
// Thanks to Michael Meeks and Gnumeric for the initial arg values.
//
// The following hash was generated by "function_locale.pl" in the distro.
// Refer to function_locale.pl for non-English function names.
//
// The array elements are as follow:
// ptg: The Excel function ptg code.
// args: The number of arguments that the function takes:
// >=0 is a fixed number of arguments.
// -1 is a variable number of arguments.
// class: The reference, value or array class of the function args.
// vol: The function is volatile.
//
$this->_functions = array(
// function ptg args class vol
'COUNT' => array( 0, -1, 0, 0 ),
'IF' => array( 1, -1, 1, 0 ),
'ISNA' => array( 2, 1, 1, 0 ),
'ISERROR' => array( 3, 1, 1, 0 ),
'SUM' => array( 4, -1, 0, 0 ),
'AVERAGE' => array( 5, -1, 0, 0 ),
'MIN' => array( 6, -1, 0, 0 ),
'MAX' => array( 7, -1, 0, 0 ),
'ROW' => array( 8, -1, 0, 0 ),
'COLUMN' => array( 9, -1, 0, 0 ),
'NA' => array( 10, 0, 0, 0 ),
'NPV' => array( 11, -1, 1, 0 ),
'STDEV' => array( 12, -1, 0, 0 ),
'DOLLAR' => array( 13, -1, 1, 0 ),
'FIXED' => array( 14, -1, 1, 0 ),
'SIN' => array( 15, 1, 1, 0 ),
'COS' => array( 16, 1, 1, 0 ),
'TAN' => array( 17, 1, 1, 0 ),
'ATAN' => array( 18, 1, 1, 0 ),
'PI' => array( 19, 0, 1, 0 ),
'SQRT' => array( 20, 1, 1, 0 ),
'EXP' => array( 21, 1, 1, 0 ),
'LN' => array( 22, 1, 1, 0 ),
'LOG10' => array( 23, 1, 1, 0 ),
'ABS' => array( 24, 1, 1, 0 ),
'INT' => array( 25, 1, 1, 0 ),
'SIGN' => array( 26, 1, 1, 0 ),
'ROUND' => array( 27, 2, 1, 0 ),
'LOOKUP' => array( 28, -1, 0, 0 ),
'INDEX' => array( 29, -1, 0, 1 ),
'REPT' => array( 30, 2, 1, 0 ),
'MID' => array( 31, 3, 1, 0 ),
'LEN' => array( 32, 1, 1, 0 ),
'VALUE' => array( 33, 1, 1, 0 ),
'TRUE' => array( 34, 0, 1, 0 ),
'FALSE' => array( 35, 0, 1, 0 ),
'AND' => array( 36, -1, 0, 0 ),
'OR' => array( 37, -1, 0, 0 ),
'NOT' => array( 38, 1, 1, 0 ),
'MOD' => array( 39, 2, 1, 0 ),
'DCOUNT' => array( 40, 3, 0, 0 ),
'DSUM' => array( 41, 3, 0, 0 ),
'DAVERAGE' => array( 42, 3, 0, 0 ),
'DMIN' => array( 43, 3, 0, 0 ),
'DMAX' => array( 44, 3, 0, 0 ),
'DSTDEV' => array( 45, 3, 0, 0 ),
'VAR' => array( 46, -1, 0, 0 ),
'DVAR' => array( 47, 3, 0, 0 ),
'TEXT' => array( 48, 2, 1, 0 ),
'LINEST' => array( 49, -1, 0, 0 ),
'TREND' => array( 50, -1, 0, 0 ),
'LOGEST' => array( 51, -1, 0, 0 ),
'GROWTH' => array( 52, -1, 0, 0 ),
'PV' => array( 56, -1, 1, 0 ),
'FV' => array( 57, -1, 1, 0 ),
'NPER' => array( 58, -1, 1, 0 ),
'PMT' => array( 59, -1, 1, 0 ),
'RATE' => array( 60, -1, 1, 0 ),
'MIRR' => array( 61, 3, 0, 0 ),
'IRR' => array( 62, -1, 0, 0 ),
'RAND' => array( 63, 0, 1, 1 ),
'MATCH' => array( 64, -1, 0, 0 ),
'DATE' => array( 65, 3, 1, 0 ),
'TIME' => array( 66, 3, 1, 0 ),
'DAY' => array( 67, 1, 1, 0 ),
'MONTH' => array( 68, 1, 1, 0 ),
'YEAR' => array( 69, 1, 1, 0 ),
'WEEKDAY' => array( 70, -1, 1, 0 ),
'HOUR' => array( 71, 1, 1, 0 ),
'MINUTE' => array( 72, 1, 1, 0 ),
'SECOND' => array( 73, 1, 1, 0 ),
'NOW' => array( 74, 0, 1, 1 ),
'AREAS' => array( 75, 1, 0, 1 ),
'ROWS' => array( 76, 1, 0, 1 ),
'COLUMNS' => array( 77, 1, 0, 1 ),
'OFFSET' => array( 78, -1, 0, 1 ),
'SEARCH' => array( 82, -1, 1, 0 ),
'TRANSPOSE' => array( 83, 1, 1, 0 ),
'TYPE' => array( 86, 1, 1, 0 ),
'ATAN2' => array( 97, 2, 1, 0 ),
'ASIN' => array( 98, 1, 1, 0 ),
'ACOS' => array( 99, 1, 1, 0 ),
'CHOOSE' => array( 100, -1, 1, 0 ),
'HLOOKUP' => array( 101, -1, 0, 0 ),
'VLOOKUP' => array( 102, -1, 0, 0 ),
'ISREF' => array( 105, 1, 0, 0 ),
'LOG' => array( 109, -1, 1, 0 ),
'CHAR' => array( 111, 1, 1, 0 ),
'LOWER' => array( 112, 1, 1, 0 ),
'UPPER' => array( 113, 1, 1, 0 ),
'PROPER' => array( 114, 1, 1, 0 ),
'LEFT' => array( 115, -1, 1, 0 ),
'RIGHT' => array( 116, -1, 1, 0 ),
'EXACT' => array( 117, 2, 1, 0 ),
'TRIM' => array( 118, 1, 1, 0 ),
'REPLACE' => array( 119, 4, 1, 0 ),
'SUBSTITUTE' => array( 120, -1, 1, 0 ),
'CODE' => array( 121, 1, 1, 0 ),
'FIND' => array( 124, -1, 1, 0 ),
'CELL' => array( 125, -1, 0, 1 ),
'ISERR' => array( 126, 1, 1, 0 ),
'ISTEXT' => array( 127, 1, 1, 0 ),
'ISNUMBER' => array( 128, 1, 1, 0 ),
'ISBLANK' => array( 129, 1, 1, 0 ),
'T' => array( 130, 1, 0, 0 ),
'N' => array( 131, 1, 0, 0 ),
'DATEVALUE' => array( 140, 1, 1, 0 ),
'TIMEVALUE' => array( 141, 1, 1, 0 ),
'SLN' => array( 142, 3, 1, 0 ),
'SYD' => array( 143, 4, 1, 0 ),
'DDB' => array( 144, -1, 1, 0 ),
'INDIRECT' => array( 148, -1, 1, 1 ),
'CALL' => array( 150, -1, 1, 0 ),
'CLEAN' => array( 162, 1, 1, 0 ),
'MDETERM' => array( 163, 1, 2, 0 ),
'MINVERSE' => array( 164, 1, 2, 0 ),
'MMULT' => array( 165, 2, 2, 0 ),
'IPMT' => array( 167, -1, 1, 0 ),
'PPMT' => array( 168, -1, 1, 0 ),
'COUNTA' => array( 169, -1, 0, 0 ),
'PRODUCT' => array( 183, -1, 0, 0 ),
'FACT' => array( 184, 1, 1, 0 ),
'DPRODUCT' => array( 189, 3, 0, 0 ),
'ISNONTEXT' => array( 190, 1, 1, 0 ),
'STDEVP' => array( 193, -1, 0, 0 ),
'VARP' => array( 194, -1, 0, 0 ),
'DSTDEVP' => array( 195, 3, 0, 0 ),
'DVARP' => array( 196, 3, 0, 0 ),
'TRUNC' => array( 197, -1, 1, 0 ),
'ISLOGICAL' => array( 198, 1, 1, 0 ),
'DCOUNTA' => array( 199, 3, 0, 0 ),
'ROUNDUP' => array( 212, 2, 1, 0 ),
'ROUNDDOWN' => array( 213, 2, 1, 0 ),
'RANK' => array( 216, -1, 0, 0 ),
'ADDRESS' => array( 219, -1, 1, 0 ),
'DAYS360' => array( 220, -1, 1, 0 ),
'TODAY' => array( 221, 0, 1, 1 ),
'VDB' => array( 222, -1, 1, 0 ),
'MEDIAN' => array( 227, -1, 0, 0 ),
'SUMPRODUCT' => array( 228, -1, 2, 0 ),
'SINH' => array( 229, 1, 1, 0 ),
'COSH' => array( 230, 1, 1, 0 ),
'TANH' => array( 231, 1, 1, 0 ),
'ASINH' => array( 232, 1, 1, 0 ),
'ACOSH' => array( 233, 1, 1, 0 ),
'ATANH' => array( 234, 1, 1, 0 ),
'DGET' => array( 235, 3, 0, 0 ),
'INFO' => array( 244, 1, 1, 1 ),
'DB' => array( 247, -1, 1, 0 ),
'FREQUENCY' => array( 252, 2, 0, 0 ),
'ERROR.TYPE' => array( 261, 1, 1, 0 ),
'REGISTER.ID' => array( 267, -1, 1, 0 ),
'AVEDEV' => array( 269, -1, 0, 0 ),
'BETADIST' => array( 270, -1, 1, 0 ),
'GAMMALN' => array( 271, 1, 1, 0 ),
'BETAINV' => array( 272, -1, 1, 0 ),
'BINOMDIST' => array( 273, 4, 1, 0 ),
'CHIDIST' => array( 274, 2, 1, 0 ),
'CHIINV' => array( 275, 2, 1, 0 ),
'COMBIN' => array( 276, 2, 1, 0 ),
'CONFIDENCE' => array( 277, 3, 1, 0 ),
'CRITBINOM' => array( 278, 3, 1, 0 ),
'EVEN' => array( 279, 1, 1, 0 ),
'EXPONDIST' => array( 280, 3, 1, 0 ),
'FDIST' => array( 281, 3, 1, 0 ),
'FINV' => array( 282, 3, 1, 0 ),
'FISHER' => array( 283, 1, 1, 0 ),
'FISHERINV' => array( 284, 1, 1, 0 ),
'FLOOR' => array( 285, 2, 1, 0 ),
'GAMMADIST' => array( 286, 4, 1, 0 ),
'GAMMAINV' => array( 287, 3, 1, 0 ),
'CEILING' => array( 288, 2, 1, 0 ),
'HYPGEOMDIST' => array( 289, 4, 1, 0 ),
'LOGNORMDIST' => array( 290, 3, 1, 0 ),
'LOGINV' => array( 291, 3, 1, 0 ),
'NEGBINOMDIST' => array( 292, 3, 1, 0 ),
'NORMDIST' => array( 293, 4, 1, 0 ),
'NORMSDIST' => array( 294, 1, 1, 0 ),
'NORMINV' => array( 295, 3, 1, 0 ),
'NORMSINV' => array( 296, 1, 1, 0 ),
'STANDARDIZE' => array( 297, 3, 1, 0 ),
'ODD' => array( 298, 1, 1, 0 ),
'PERMUT' => array( 299, 2, 1, 0 ),
'POISSON' => array( 300, 3, 1, 0 ),
'TDIST' => array( 301, 3, 1, 0 ),
'WEIBULL' => array( 302, 4, 1, 0 ),
'SUMXMY2' => array( 303, 2, 2, 0 ),
'SUMX2MY2' => array( 304, 2, 2, 0 ),
'SUMX2PY2' => array( 305, 2, 2, 0 ),
'CHITEST' => array( 306, 2, 2, 0 ),
'CORREL' => array( 307, 2, 2, 0 ),
'COVAR' => array( 308, 2, 2, 0 ),
'FORECAST' => array( 309, 3, 2, 0 ),
'FTEST' => array( 310, 2, 2, 0 ),
'INTERCEPT' => array( 311, 2, 2, 0 ),
'PEARSON' => array( 312, 2, 2, 0 ),
'RSQ' => array( 313, 2, 2, 0 ),
'STEYX' => array( 314, 2, 2, 0 ),
'SLOPE' => array( 315, 2, 2, 0 ),
'TTEST' => array( 316, 4, 2, 0 ),
'PROB' => array( 317, -1, 2, 0 ),
'DEVSQ' => array( 318, -1, 0, 0 ),
'GEOMEAN' => array( 319, -1, 0, 0 ),
'HARMEAN' => array( 320, -1, 0, 0 ),
'SUMSQ' => array( 321, -1, 0, 0 ),
'KURT' => array( 322, -1, 0, 0 ),
'SKEW' => array( 323, -1, 0, 0 ),
'ZTEST' => array( 324, -1, 0, 0 ),
'LARGE' => array( 325, 2, 0, 0 ),
'SMALL' => array( 326, 2, 0, 0 ),
'QUARTILE' => array( 327, 2, 0, 0 ),
'PERCENTILE' => array( 328, 2, 0, 0 ),
'PERCENTRANK' => array( 329, -1, 0, 0 ),
'MODE' => array( 330, -1, 2, 0 ),
'TRIMMEAN' => array( 331, 2, 0, 0 ),
'TINV' => array( 332, 2, 1, 0 ),
'CONCATENATE' => array( 336, -1, 1, 0 ),
'POWER' => array( 337, 2, 1, 0 ),
'RADIANS' => array( 342, 1, 1, 0 ),
'DEGREES' => array( 343, 1, 1, 0 ),
'SUBTOTAL' => array( 344, -1, 0, 0 ),
'SUMIF' => array( 345, -1, 0, 0 ),
'COUNTIF' => array( 346, 2, 0, 0 ),
'COUNTBLANK' => array( 347, 1, 0, 0 ),
'ROMAN' => array( 354, -1, 1, 0 )
);
}

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_match (   $token)

Checks if it's a valid token.

private

Parameters
mixed$tokenThe token to check.
Returns
mixed The checked token or false on failure

Definition at line 1158 of file Parser.php.

References SPREADSHEET_EXCEL_WRITER_ADD, SPREADSHEET_EXCEL_WRITER_CLOSE, SPREADSHEET_EXCEL_WRITER_COMA, SPREADSHEET_EXCEL_WRITER_CONCAT, SPREADSHEET_EXCEL_WRITER_DIV, SPREADSHEET_EXCEL_WRITER_EQ, SPREADSHEET_EXCEL_WRITER_GE, SPREADSHEET_EXCEL_WRITER_GT, SPREADSHEET_EXCEL_WRITER_LE, SPREADSHEET_EXCEL_WRITER_LT, SPREADSHEET_EXCEL_WRITER_MUL, SPREADSHEET_EXCEL_WRITER_NE, SPREADSHEET_EXCEL_WRITER_OPEN, SPREADSHEET_EXCEL_WRITER_SEMICOLON, and SPREADSHEET_EXCEL_WRITER_SUB.

Referenced by _advance().

{
switch($token) {
case SPREADSHEET_EXCEL_WRITER_ADD:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_SUB:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_MUL:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_DIV:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_OPEN:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_CLOSE:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_COMA:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_SEMICOLON:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_GT:
if ($this->_lookahead == '=') { // it's a GE token
break;
}
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_LT:
// it's a LE or a NE token
if (($this->_lookahead == '=') or ($this->_lookahead == '>')) {
break;
}
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_GE:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_LE:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_EQ:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_NE:
return $token;
break;
case SPREADSHEET_EXCEL_WRITER_CONCAT:
return $token;
break;
default:
// if it's a reference
if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$token) and
!preg_match("/[0-9]/",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.') and
($this->_lookahead != '!'))
{
return $token;
}
// If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
!preg_match("/[0-9]/",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.'))
{
return $token;
}
// If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
!preg_match("/[0-9]/",$this->_lookahead) and
($this->_lookahead != ':') and ($this->_lookahead != '.'))
{
return $token;
}
// if it's a range (A1:A2)
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
!preg_match("/[0-9]/",$this->_lookahead))
{
return $token;
}
// if it's a range (A1..A2)
elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
!preg_match("/[0-9]/",$this->_lookahead))
{
return $token;
}
// If it's an external range like Sheet1!A1 or Sheet1:Sheet2!A1:B2
elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
!preg_match("/[0-9]/",$this->_lookahead))
{
return $token;
}
// If it's an external range like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
!preg_match("/[0-9]/",$this->_lookahead))
{
return $token;
}
// If it's a number (check that it's not a sheet name or range)
elseif (is_numeric($token) and
(!is_numeric($token.$this->_lookahead) or ($this->_lookahead == '')) and
($this->_lookahead != '!') and ($this->_lookahead != ':'))
{
return $token;
}
// If it's a string (of maximum 255 characters)
elseif (preg_match("/^\"[^\"]{0,255}\"$/",$token))
{
return $token;
}
// if it's a function call
elseif (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/i",$token) and ($this->_lookahead == "("))
{
return $token;
}
return '';
}
}

+ Here is the caller graph for this function:

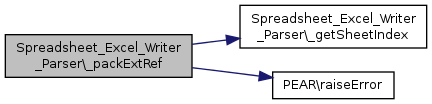

Spreadsheet_Excel_Writer_Parser::_packExtRef (   $ext_ref)

Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure.

private

Parameters
string$ext_refThe name of the external reference
Returns
string The reference index in packed() format

Definition at line 861 of file Parser.php.

References _getSheetIndex(), and PEAR\raiseError().

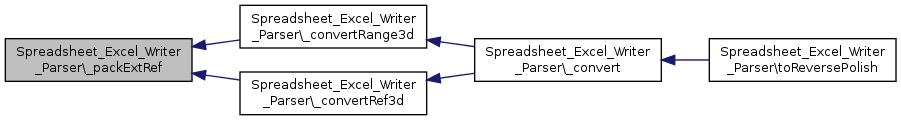

Referenced by _convertRange3d(), and _convertRef3d().

{
$ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
$ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
// Check if there is a sheet range eg., Sheet1:Sheet2.
if (preg_match("/:/", $ext_ref)) {
list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
$sheet1 = $this->_getSheetIndex($sheet_name1);
if ($sheet1 == -1) {
return $this->raiseError("Unknown sheet name $sheet_name1 in formula");
}
$sheet2 = $this->_getSheetIndex($sheet_name2);
if ($sheet2 == -1) {
return $this->raiseError("Unknown sheet name $sheet_name2 in formula");
}
// Reverse max and min sheet numbers if necessary
if ($sheet1 > $sheet2) {
list($sheet1, $sheet2) = array($sheet2, $sheet1);
}
} else { // Single sheet name only.
$sheet1 = $this->_getSheetIndex($ext_ref);
if ($sheet1 == -1) {
return $this->raiseError("Unknown sheet name $ext_ref in formula");
}
$sheet2 = $sheet1;
}
// References are stored relative to 0xFFFF.
$offset = -1 - $sheet1;
return pack('vdvv', $offset, 0x00, $sheet1, $sheet2);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_parenthesizedExpression ( )

This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards.

private

See Also
_fact()
Returns
array The parsed ptg'd tree

Definition at line 1425 of file Parser.php.

References $result, _createTree(), and _expression().

Referenced by _fact().

{
$result = $this->_createTree('ptgParen', $this->_expression(), '');
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_rangeToPackedRange (   $range)

pack() row range into the required 3 or 4 byte format.

Just using maximum col/rows, which is probably not the correct solution

private

Parameters
string$rangeThe Excel range to be packed
Returns
array Array containing (row1,col1,row2,col2) in packed() format

Definition at line 1031 of file Parser.php.

References PEAR\raiseError().

Referenced by _convertRange3d().

{
preg_match('/(\$)?(\d+)\:(\$)?(\d+)/', $range, $match);
// return absolute rows if there is a $ in the ref
$row1_rel = empty($match[1]) ? 1 : 0;
$row1 = $match[2];
$row2_rel = empty($match[3]) ? 1 : 0;
$row2 = $match[4];
// Convert 1-index to zero-index
$row1--;
$row2--;
// Trick poor inocent Excel
$col1 = 0;
$col2 = 16383; // FIXME: maximum possible value for Excel 5 (change this!!!)
// FIXME: this changes for BIFF8
if (($row1 >= 16384) or ($row2 >= 16384)) {
return $this->raiseError("Row in: $range greater than 16384 ");
}
// Set the high bits to indicate if rows are relative.
if ($this->_BIFF_version == 0x0500) {
$row1 |= $row1_rel << 14; // FIXME: probably a bug
$row2 |= $row2_rel << 15;
$col1 = pack('C', $col1);
$col2 = pack('C', $col2);
} elseif ($this->_BIFF_version == 0x0600) {
$col1 |= $row1_rel << 15;
$col2 |= $row2_rel << 15;
$col1 = pack('v', $col1);
$col2 = pack('v', $col2);
}
$row1 = pack('v', $row1);
$row2 = pack('v', $row2);
return array($row1, $col1, $row2, $col2);
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::_term ( )

It parses a term.

It assumes the following rule: Term -> Fact [("*" | "/") Fact]

private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1438 of file Parser.php.

References $result, _advance(), _createTree(), _fact(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_DIV, and SPREADSHEET_EXCEL_WRITER_MUL.

Referenced by _expression().

{
$result = $this->_fact();
if (PEAR::isError($result)) {
return $result;
}
while (($this->_current_token == SPREADSHEET_EXCEL_WRITER_MUL) or
($this->_current_token == SPREADSHEET_EXCEL_WRITER_DIV)) {
if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_MUL) {
$this->_advance();
$result2 = $this->_fact();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgMul', $result, $result2);
} else {
$this->_advance();
$result2 = $this->_fact();
if (PEAR::isError($result2)) {
return $result2;
}
$result = $this->_createTree('ptgDiv', $result, $result2);
}
}
return $result;
}

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Spreadsheet_Excel_Writer_Parser::parse (   $formula)

The parsing method.

It parses a formula.

public

Parameters
string$formulaThe formula to parse, without the initial equal sign (=).
Returns
mixed true on success, PEAR_Error on failure

Definition at line 1289 of file Parser.php.

References $_parse_tree, _advance(), _condition(), and PEAR\isError().

{
$this->_current_char = 0;
$this->_formula = $formula;
$this->_lookahead = $formula{1};
$this->_advance();
$this->_parse_tree = $this->_condition();
if (PEAR::isError($this->_parse_tree)) {
return $this->_parse_tree;
}
return true;
}

+ Here is the call graph for this function:

Spreadsheet_Excel_Writer_Parser::setExtSheet (   $name,
  $index
)

This method is used to update the array of sheet names.

It is called by the addWorksheet() method of the Spreadsheet_Excel_Writer_Workbook class.

public

See Also
Spreadsheet_Excel_Writer_Workbook::addWorksheet()
Parameters
string$nameThe name of the worksheet being added
integer$indexThe index of the worksheet being added

Definition at line 984 of file Parser.php.

{
$this->_ext_sheets[$name] = $index;
}
Spreadsheet_Excel_Writer_Parser::Spreadsheet_Excel_Writer_Parser (   $byte_order,
  $biff_version
)

The class constructor.

Parameters
integer$byte_orderThe byte order (Little endian or Big endian) of the architecture (optional). 1 => big endian, 0 (default) little endian.

Definition at line 172 of file Parser.php.

References _initializeHashes().

{
$this->_current_char = 0;
$this->_BIFF_version = $biff_version;
$this->_current_token = ''; // The token we are working on.
$this->_formula = ''; // The formula to parse.
$this->_lookahead = ''; // The character ahead of the current char.
$this->_parse_tree = ''; // The parse tree to be generated.
$this->_initializeHashes(); // Initialize the hashes: ptg's and function's ptg's
$this->_byte_order = $byte_order; // Little Endian or Big Endian
$this->_ext_sheets = array();
$this->_references = array();
}

+ Here is the call graph for this function:

Spreadsheet_Excel_Writer_Parser::toReversePolish (   $tree = array())

Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack).

The following tree:

  • / \ 2 3

produces: "23+"

The following tree:

  • / \ 3 * / \ 6 A1

produces: "36A1*+"

In fact all operands, functions, references, etc... are written as ptg's

public

Parameters
array$treeThe optional tree to convert.
Returns
string The tree in reverse polish notation

Definition at line 1643 of file Parser.php.

References $_parse_tree, _convert(), and PEAR\isError().

{
$polish = ""; // the string we are going to return
if (empty($tree)) { // If it's the first call use _parse_tree
$tree = $this->_parse_tree;
}
if (is_array($tree['left'])) {
$converted_tree = $this->toReversePolish($tree['left']);
if (PEAR::isError($converted_tree)) {
return $converted_tree;
}
$polish .= $converted_tree;
} elseif ($tree['left'] != '') { // It's a final node
$converted_tree = $this->_convert($tree['left']);
if (PEAR::isError($converted_tree)) {
return $converted_tree;
}
$polish .= $converted_tree;
}
if (is_array($tree['right'])) {
$converted_tree = $this->toReversePolish($tree['right']);
if (PEAR::isError($converted_tree)) {
return $converted_tree;
}
$polish .= $converted_tree;
} elseif ($tree['right'] != '') { // It's a final node
$converted_tree = $this->_convert($tree['right']);
if (PEAR::isError($converted_tree)) {
return $converted_tree;
}
$polish .= $converted_tree;
}
// if it's a function convert it here (so we can set it's arguments)
if (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/",$tree['value']) and
!preg_match('/^([A-Ia-i]?[A-Za-z])(\d+)$/',$tree['value']) and
!preg_match("/^[A-Ia-i]?[A-Za-z](\d+)\.\.[A-Ia-i]?[A-Za-z](\d+)$/",$tree['value']) and
!is_numeric($tree['value']) and
!isset($this->ptg[$tree['value']]))
{
// left subtree for a function is always an array.
if ($tree['left'] != '') {
$left_tree = $this->toReversePolish($tree['left']);
} else {
$left_tree = '';
}
if (PEAR::isError($left_tree)) {
return $left_tree;
}
// add it's left subtree and return.
return $left_tree.$this->_convertFunction($tree['value'], $tree['right']);
} else {
$converted_tree = $this->_convert($tree['value']);
if (PEAR::isError($converted_tree)) {
return $converted_tree;
}
}
$polish .= $converted_tree;
return $polish;
}

+ Here is the call graph for this function:

Field Documentation

Spreadsheet_Excel_Writer_Parser::$_BIFF_version

Definition at line 164 of file Parser.php.

Spreadsheet_Excel_Writer_Parser::$_byte_order

Definition at line 146 of file Parser.php.

Spreadsheet_Excel_Writer_Parser::$_current_char

Definition at line 116 of file Parser.php.

Referenced by _advance().

Spreadsheet_Excel_Writer_Parser::$_current_token

Definition at line 122 of file Parser.php.

Referenced by _fact().

Spreadsheet_Excel_Writer_Parser::$_ext_sheets

Definition at line 152 of file Parser.php.

Spreadsheet_Excel_Writer_Parser::$_formula

Definition at line 128 of file Parser.php.

Spreadsheet_Excel_Writer_Parser::$_lookahead

Definition at line 134 of file Parser.php.

Spreadsheet_Excel_Writer_Parser::$_parse_tree

Definition at line 140 of file Parser.php.

Referenced by parse(), and toReversePolish().

Spreadsheet_Excel_Writer_Parser::$_references

Definition at line 158 of file Parser.php.

The documentation for this class was generated from the following file:
