Auth_RADIUS_MSCHAPv1 Class Reference

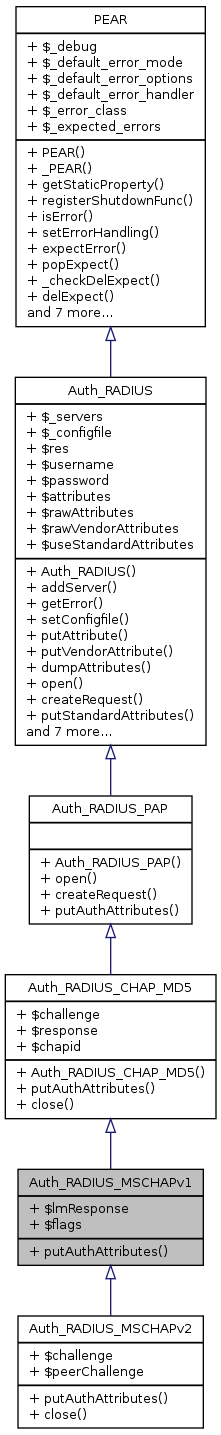

Inheritance diagram for Auth_RADIUS_MSCHAPv1:

Collaboration diagram for Auth_RADIUS_MSCHAPv1:

Public Member Functions
	putAuthAttributes ()
	Put MS-CHAPv1 specific attributes.
Public Member Functions inherited from Auth_RADIUS_CHAP_MD5
	Auth_RADIUS_CHAP_MD5 ($username=null, $challenge=null, $chapid=1)
	Constructor.
	close ()
	Frees resources.
Public Member Functions inherited from Auth_RADIUS_PAP
	Auth_RADIUS_PAP ($username=null, $password=null)
	Constructor.
	open ()
	Creates a RADIUS resource.
	createRequest ()
	Creates an authentication request.
Public Member Functions inherited from Auth_RADIUS
	Auth_RADIUS ()
	Constructor.
	addServer ($servername= 'localhost', $port=0, $sharedSecret= 'testing123', $timeout=3, $maxtries=3)
	Adds a RADIUS server to the list of servers for requests.
	getError ()
	Returns an error message, if an error occurred.
	setConfigfile ($file)
	Sets the configuration-file.
	putAttribute ($attrib, $value, $type=null)
	Puts an attribute.
	putVendorAttribute ($vendor, $attrib, $value, $type=null)
	Puts a vendor-specific attribute.
	dumpAttributes ()
	Prints known attributes received from the server.
	putStandardAttributes ()
	Puts standard attributes.
	putServer ($servername, $port=0, $sharedsecret= 'testing123', $timeout=3, $maxtries=3)
	Configures the radius library.
	putConfigfile ($file)
	Configures the radius library via external configurationfile.
	start ()
	Initiates a RADIUS request.
	send ()
	Sends a prepared RADIUS request and waits for a response.
	getAttributes ()
	Reads all received attributes after sending the request.
Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor.
	_PEAR ()
	Destructor (the emulated type of...).
&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them.
	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes.
	isError ($data, $code=null)
	Tell whether a value is a PEAR error.
	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled.
	expectError ($code= '*')
	This method is used to tell which errors you expect to get.
	popExpect ()
	This method pops one element off the expected error codes stack.
	_checkDelExpect ($error_code)
	This method checks unsets an error code if available.
	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack.
&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied.
&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options.
	staticPushErrorHandling ($mode, $options=null)
	staticPopErrorHandling ()
	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack.
	popErrorHandling ()
	Pop the last error handler used.
	loadExtension ($ext)
	OS independant PHP extension load.

Data Fields
	$lmResponse = null
	$flags = 1
Data Fields inherited from Auth_RADIUS_CHAP_MD5
	$challenge = null
	$response = null
	$chapid = 1

Detailed Description

Definition at line 726 of file RADIUS.php.

Member Function Documentation

Auth_RADIUS_MSCHAPv1::putAuthAttributes

(

)

Put MS-CHAPv1 specific attributes.

For authenticating using MS-CHAPv1 via RADIUS you have to put the challenge and the response. The response has this structure: struct rad_mschapvalue { u_char ident; u_char flags; u_char lm_response[24]; u_char response[24]; };

Returns

void

Reimplemented from Auth_RADIUS_CHAP_MD5.

Reimplemented in Auth_RADIUS_MSCHAPv2.

Definition at line 755 of file RADIUS.php.

References Auth_RADIUS\putAttribute(), and Auth_RADIUS\putVendorAttribute().

    {
        if (isset($this->username)) {
            $this->putAttribute(RADIUS_USER_NAME, $this->username);
        }
        if (isset($this->response) || isset($this->lmResponse)) {
            $lmResp = isset($this->lmResponse) ? $this->lmResponse : str_repeat ("\0", 24);
            $ntResp = isset($this->response)   ? $this->response :   str_repeat ("\0", 24);
            $resp = pack('CC', $this->chapid, $this->flags) . $lmResp . $ntResp;
            $this->putVendorAttribute(RADIUS_VENDOR_MICROSOFT, RADIUS_MICROSOFT_MS_CHAP_RESPONSE, $resp);
        }
        if (isset($this->challenge)) {
            $this->putVendorAttribute(RADIUS_VENDOR_MICROSOFT, RADIUS_MICROSOFT_MS_CHAP_CHALLENGE, $this->challenge);
        }
    }

Here is the call graph for this function:

Field Documentation

Auth_RADIUS_MSCHAPv1::$flags = 1

Definition at line 739 of file RADIUS.php.

Auth_RADIUS_MSCHAPv1::$lmResponse = null

Definition at line 732 of file RADIUS.php.

---

The documentation for this class was generated from the following file:

• Services/PEAR/lib/Auth/RADIUS.php
