ilColorPickerInputGUI Class Reference

Color picker form for selecting color hexcodes using yui library. More...

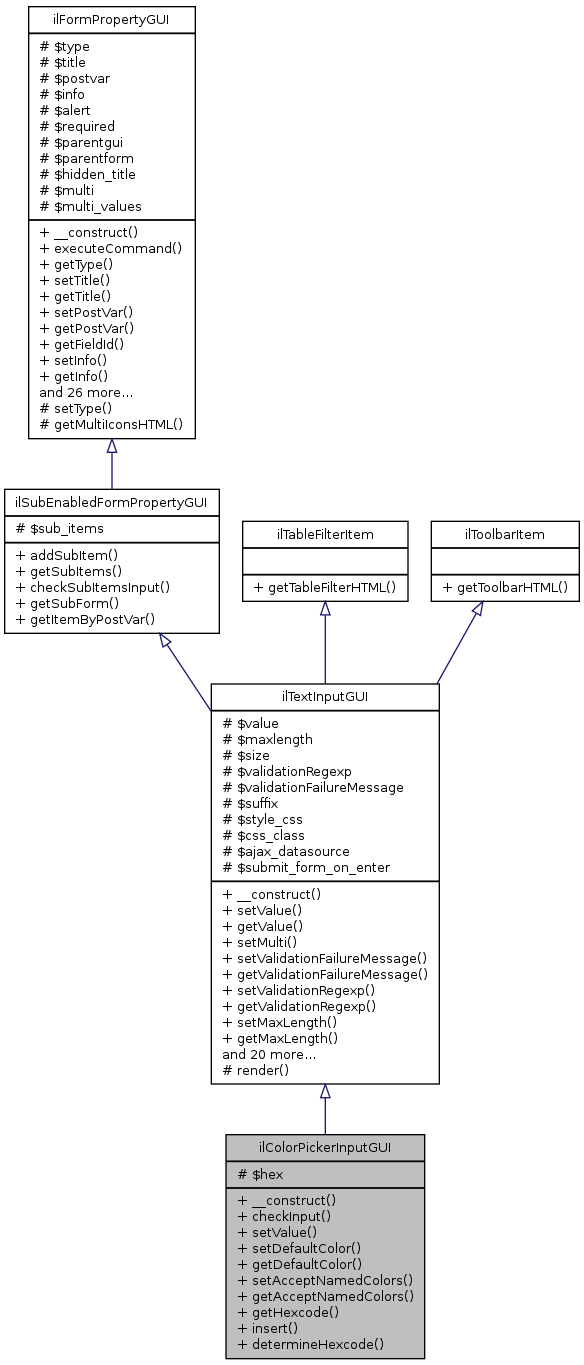

Inheritance diagram for ilColorPickerInputGUI:

Collaboration diagram for ilColorPickerInputGUI:

Public Member Functions
	__construct ($a_title="", $a_postvar="")
	Constructor.
	checkInput ()
	check input
	setValue ($a_value)
	set value
	setDefaultColor ($a_defaultcolor)
	Set Default Color.
	getDefaultColor ()
	Get Default Color.
	setAcceptNamedColors ($a_acceptnamedcolors)
	Set Accept Named Colors (Leading '!').
	getAcceptNamedColors ()
	Get Accept Named Colors (Leading '!').
	getHexcode ()
	get hexcode
	insert ($a_tpl)
	Insert property html.
Public Member Functions inherited from ilTextInputGUI
	getValue ()
	Get Value.
	setMulti ($a_multi, $a_sortable=false)
	setValidationFailureMessage ($a_msg)
	Set message string for validation failure.
	getValidationFailureMessage ()
	setValidationRegexp ($a_value)
	Set validation regexp.
	getValidationRegexp ()
	Get validation regexp.
	setMaxLength ($a_maxlength)
	Set Max Length.
	getMaxLength ()
	Get Max Length.
	setSize ($a_size)
	Set Size.
	setInlineStyle ($a_style)
	Set inline style.
	getInlineStyle ()
	Get inline style.
	setCssClass ($a_class)
	getCssClass ()
	setValueByArray ($a_values)
	Set value by array.
	getSize ()
	Get Size.
	setSuffix ($a_value)
	Set suffix.
	getSuffix ()
	Get suffix.
	setInputType ($a_type)
	set input type
	getInputType ()
	get input type
	setSubmitFormOnEnter ($a_val)
	Set submit form on enter.
	getSubmitFormOnEnter ()
	Get submit form on enter.
	getDataSource ()
	get datasource link for js autocomplete
	setDataSource ($href)
	set datasource link for js autocomplete
	setMultiValues (array $a_values)
	Set multi values.
	insert (&$a_tpl)
	Insert property html.
	getTableFilterHTML ()
	Get HTML for table filter.
	getToolbarHTML ()
	Get HTML for toolbar.
Public Member Functions inherited from ilSubEnabledFormPropertyGUI
	addSubItem ($a_item)
	Add Subitem.
	getSubItems ()
	Get Subitems.
	checkSubItemsInput ()
	Check SubItems.
	getSubForm ()
	Get sub form html.
	getItemByPostVar ($a_post_var)
	Get item by post var.
Public Member Functions inherited from ilFormPropertyGUI
&	executeCommand ()
	Execute command.
	getType ()
	Get Type.
	setTitle ($a_title)
	Set Title.
	getTitle ()
	Get Title.
	setPostVar ($a_postvar)
	Set Post Variable.
	getPostVar ()
	Get Post Variable.
	getFieldId ()
	Get Post Variable.
	setInfo ($a_info)
	Set Information Text.
	getInfo ()
	Get Information Text.
	setAlert ($a_alert)
	Set Alert Text.
	getAlert ()
	Get Alert Text.
	setRequired ($a_required)
	Set Required.
	getRequired ()
	Get Required.
	setDisabled ($a_disabled)
	Set Disabled.
	getDisabled ()
	Get Disabled.
	setParentForm ($a_parentform)
	Set Parent Form.
	getParentForm ()
	Get Parent Form.
	setParent ($a_val)
	Set Parent GUI object.
	getParent ()
	Get Parent GUI object.
	hideSubForm ()
	Sub form hidden on init?
	setHiddenTitle ($a_val)
	Set hidden title (for screenreaders)
	getHiddenTitle ()
	Get hidden title.
	serializeData ()
	serialize data
	unserializeData ($a_data)
	unserialize data
	writeToSession ()
	Write to session.
	clearFromSession ()
	Clear session value.
	readFromSession ()
	Read from session.
	getHiddenTag ($a_post_var, $a_value)
	Get hidden tag (used for disabled properties)
	setMulti ($a_multi)
	Set Multi.
	getMulti ()
	Get Multi.
	getMultiValues ()
	Get multi values.

Static Public Member Functions
static	determineHexcode ($a_value)
	Determine hex code for a given value.

Protected Attributes
	$hex
Protected Attributes inherited from ilTextInputGUI
	$value
	$maxlength = 200
	$size = 40
	$validationRegexp
	$validationFailureMessage = ''
	$suffix
	$style_css
	$css_class
	$ajax_datasource
	$submit_form_on_enter = false
Protected Attributes inherited from ilSubEnabledFormPropertyGUI
	$sub_items = array()
Protected Attributes inherited from ilFormPropertyGUI
	$type
	$title
	$postvar
	$info
	$alert
	$required = false
	$parentgui
	$parentform
	$hidden_title = ""
	$multi
	$multi_values

Additional Inherited Members
Protected Member Functions inherited from ilTextInputGUI
	render ($a_mode="")
	Render item.

Detailed Description

Color picker form for selecting color hexcodes using yui library.

Author

Stefan Meyer smeye.nosp@m.r.il.nosp@m.ias@g.nosp@m.mx.d.nosp@m.e

Version

$Id$

Definition at line 13 of file class.ilColorPickerInputGUI.php.

Constructor & Destructor Documentation

ilColorPickerInputGUI::__construct	(		$a_title = "",
			$a_postvar = ""
	)

Constructor.

Parameters

string	$a_title	Title
string	$a_postvar	Post Variable

Reimplemented from ilTextInputGUI.

Definition at line 23 of file class.ilColorPickerInputGUI.php.

References setDefaultColor(), and ilFormPropertyGUI\setType().

        {
                parent::__construct($a_title, $a_postvar);
                $this->setType("color");
                $this->setDefaultColor("04427e");
        }

Here is the call graph for this function:

Member Function Documentation

ilColorPickerInputGUI::checkInput

(

)

check input

public

Returns

Reimplemented from ilTextInputGUI.

Definition at line 36 of file class.ilColorPickerInputGUI.php.

References $_POST, determineHexcode(), getAcceptNamedColors(), and ilFormPropertyGUI\getPostVar().

        {
                if ($this->getAcceptNamedColors() && substr($_POST[$this->getPostVar()], 0, 1) == "!")
                {
                        $_POST[$this->getPostVar()] =
                                ilUtil::stripslashes(trim($_POST[$this->getPostVar()]));
                }
                else
                {
                        $_POST[$this->getPostVar()] =
                                $this->determineHexcode(ilUtil::stripslashes(trim($_POST[$this->getPostVar()])));
                }
                return true;
        }

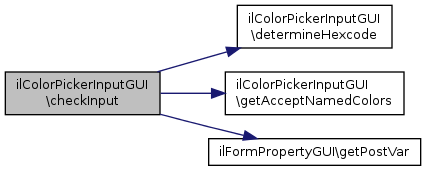

Here is the call graph for this function:

static ilColorPickerInputGUI::determineHexcode (   $a_value )

static

Determine hex code for a given value.

Definition at line 130 of file class.ilColorPickerInputGUI.php.

Referenced by checkInput(), insert(), ilTRBLColorPickerInputGUI\insert(), ilTRBLColorPickerInputGUI\setAllValue(), ilTRBLColorPickerInputGUI\setBottomValue(), ilTRBLColorPickerInputGUI\setLeftValue(), ilTRBLColorPickerInputGUI\setRightValue(), ilTRBLColorPickerInputGUI\setTopValue(), and setValue().

        {
                $a_value = trim(strtolower($a_value));

                // remove leading #
                if(strpos($a_value,'#') === 0)
                {
                        $a_value = substr($a_value,1);
                }

                // handle standard color names (no leading (!))
                switch ($a_value)
                {
                        // html4 colors
                        case "black": $a_value = "000000"; break;
                        case "maroon": $a_value = "800000"; break;
                        case "green": $a_value = "008000"; break;
                        case "olive": $a_value = "808000"; break;
                        case "navy": $a_value = "000080"; break;
                        case "purple": $a_value = "800080"; break;
                        case "teal": $a_value = "008080"; break;
                        case "silver": $a_value = "C0C0C0"; break;
                        case "gray": $a_value = "808080"; break;
                        case "red": $a_value = "ff0000"; break;
                        case "lime": $a_value = "00ff00"; break;
                        case "yellow": $a_value = "ffff00"; break;
                        case "blue": $a_value = "0000ff"; break;
                        case "fuchsia": $a_value = "ff00ff"; break;
                        case "aqua": $a_value = "00ffff"; break;
                        case "white": $a_value = "ffffff"; break;

                        // other colors used by ILIAS, supported by modern browsers
                        case "brown": $a_value = "a52a2a"; break;
                }

                // handle rgb values
                if (substr($a_value, 0, 3) == "rgb")
                {
                        $pos1 = strpos($a_value, "(");
                        $pos2 = strpos($a_value, ")");
                        $rgb = explode(",", substr($a_value, $pos1 + 1, $pos2 - $pos1 - 1));
                        $r = str_pad(dechex($rgb[0]), 2, "0", STR_PAD_LEFT);
                        $g = str_pad(dechex($rgb[1]), 2, "0", STR_PAD_LEFT);
                        $b = str_pad(dechex($rgb[2]), 2, "0", STR_PAD_LEFT);
                        $a_value = $r.$g.$b;
                }

                $a_value = trim(strtolower($a_value));

                // expand three digit hex numbers
                if (preg_match("/^[0-9a-f]3/", $a_value) && strlen($a_value == 3))
                {
                        $a_value = "".$a_value;
                        $a_value = "0".$a_value[0]."0".$a_value[1]."0".$a_value[2];
                }

                if (!preg_match("/^[a-f0-9]{6}/", $a_value))
                {
                        $a_value = "";
                }

                return strtoupper($a_value);
        }

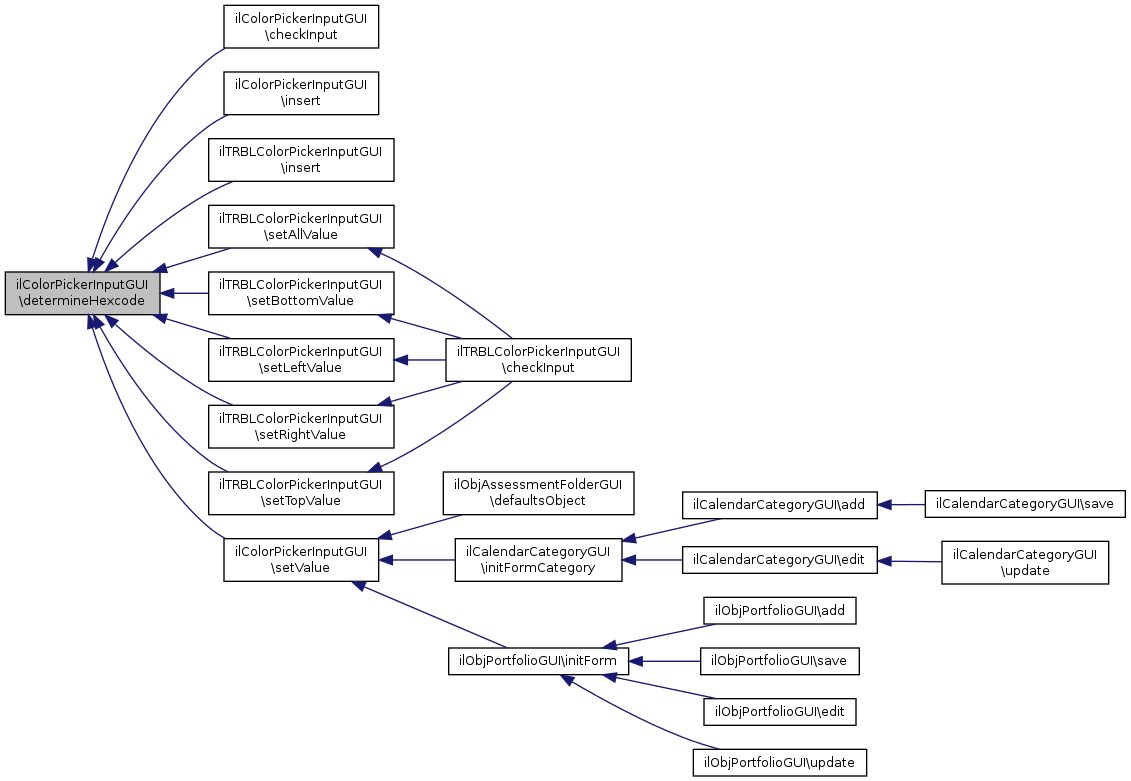

Here is the caller graph for this function:

ilColorPickerInputGUI::getAcceptNamedColors

(

)

Get Accept Named Colors (Leading '!').

Returns

boolean Accept Named Colors (Leading '!')

Definition at line 107 of file class.ilColorPickerInputGUI.php.

Referenced by checkInput(), insert(), and setValue().

        {
                return $this->acceptnamedcolors;
        }

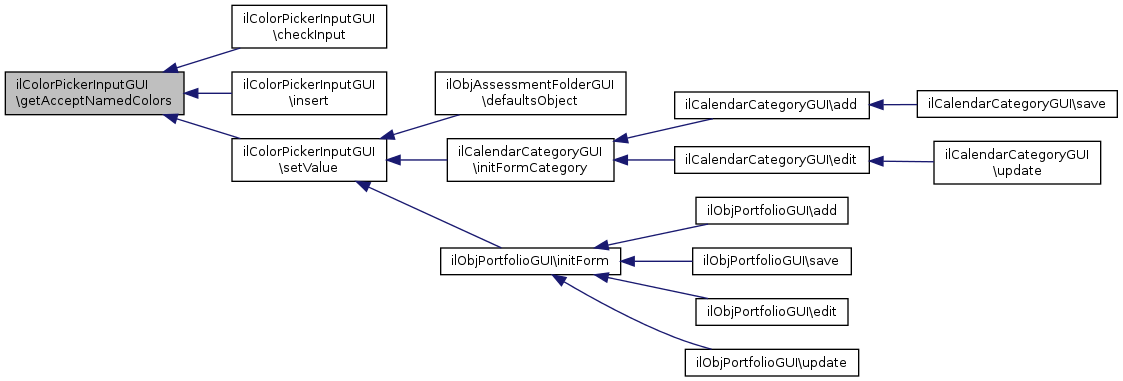

Here is the caller graph for this function:

ilColorPickerInputGUI::getDefaultColor

(

)

Get Default Color.

Returns

mixed Default Color

Definition at line 87 of file class.ilColorPickerInputGUI.php.

Referenced by getHexcode().

        {
                return $this->defaultcolor;
        }

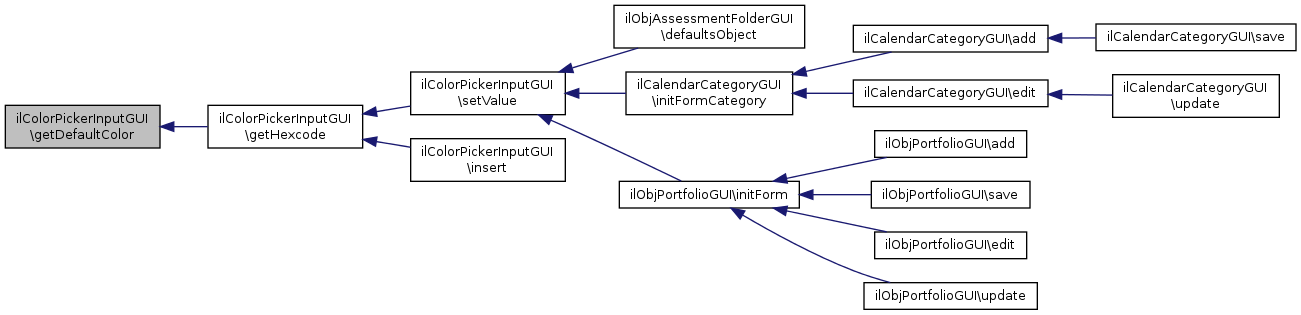

Here is the caller graph for this function:

ilColorPickerInputGUI::getHexcode

(

)

get hexcode

public

Returns

Definition at line 118 of file class.ilColorPickerInputGUI.php.

References getDefaultColor().

Referenced by insert(), and setValue().

        {
                if(strpos($this->hex,'#') === 0)
                {
                        return substr($this->hex,1);
                }
                return $this->hex ? $this->hex : $this->getDefaultColor();
        }

Here is the call graph for this function:

Here is the caller graph for this function:

ilColorPickerInputGUI::insert

(

$a_tpl

)

Insert property html.

Returns

int Size

Definition at line 199 of file class.ilColorPickerInputGUI.php.

References $tpl, determineHexcode(), getAcceptNamedColors(), ilFormPropertyGUI\getDisabled(), ilFormPropertyGUI\getFieldId(), getHexcode(), ilUtil\getImagePath(), ilFormPropertyGUI\getPostVar(), ilTextInputGUI\getValue(), ilYuiUtil\initColorPicker(), and ilUtil\prepareFormOutput().

        {
                global $tpl;

                include_once('./Services/YUI/classes/class.ilYuiUtil.php');

                ilYuiUtil::initColorPicker();


                $a_tpl->setCurrentBlock("prop_color");

                $js_tpl = new ilTemplate('tpl.color_picker.js',true,true,'Services/Form');
                $js_tpl->setVariable('THUMB_PATH',ilUtil::getImagePath('color_picker_thumb.png','Services/Form'));
                $js_tpl->setVariable('HUE_THUMB_PATH',ilUtil::getImagePath('color_picker_hue_thumb.png','Services/Form'));
                $js_tpl->setVariable('COLOR_ID',$this->getFieldId());
                $ic = ilColorPickerInputGUI::determineHexcode($this->getHexcode());
                if ($ic == "")
                {
                        $ic = "FFFFFF";
                }
                $js_tpl->setVariable('INIT_COLOR_SHORT',$ic);
                $js_tpl->setVariable('INIT_COLOR','#'.$this->getHexcode());
                $js_tpl->setVariable('POST_VAR', $this->getPostVar());


                if($this->getDisabled())
                {
                        $a_tpl->setVariable('COLOR_DISABLED','disabled="disabled"');
                }
                else
                {
                        $a_tpl->setVariable('PROP_COLOR_JS',$js_tpl->get());
                }
                $a_tpl->setVariable("POST_VAR", $this->getPostVar());
                $a_tpl->setVariable("PROP_COLOR_ID", $this->getFieldId());

                if (substr(trim($this->getValue()), 0, 1) == "!" && $this->getAcceptNamedColors())
                {
                        $a_tpl->setVariable("PROPERTY_VALUE_COLOR",ilUtil::prepareFormOutput(trim($this->getValue())));
                }
                else
                {
                        $a_tpl->setVariable("PROPERTY_VALUE_COLOR",ilUtil::prepareFormOutput($this->getHexcode()));
                }
                $a_tpl->parseCurrentBlock();
        }

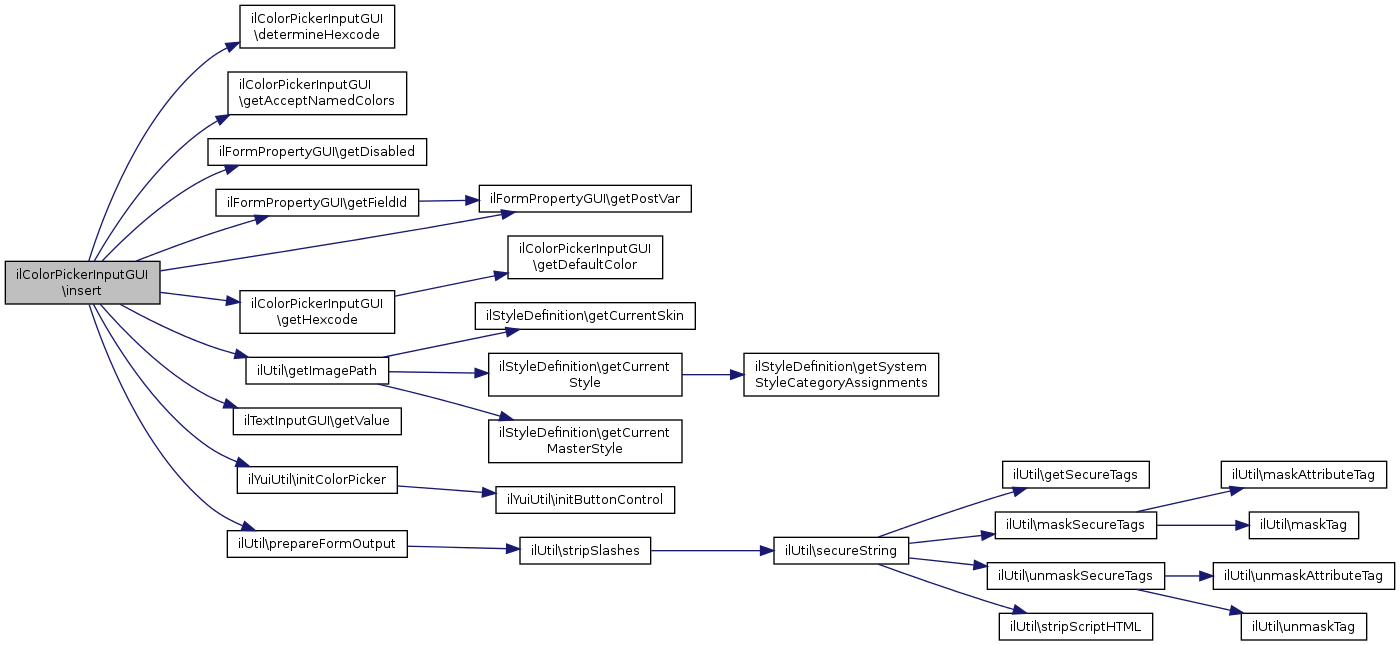

Here is the call graph for this function:

ilColorPickerInputGUI::setAcceptNamedColors

(

$a_acceptnamedcolors

)

Set Accept Named Colors (Leading '!').

Parameters

boolean

$a_acceptnamedcolors

Accept Named Colors (Leading '!')

Definition at line 97 of file class.ilColorPickerInputGUI.php.

        {
                $this->acceptnamedcolors = $a_acceptnamedcolors;
        }

ilColorPickerInputGUI::setDefaultColor

(

$a_defaultcolor

)

Set Default Color.

Parameters

mixed

$a_defaultcolor

Default Color

Definition at line 77 of file class.ilColorPickerInputGUI.php.

Referenced by __construct(), and ilObjStyleSheetGUI\initTagStyleForm().

        {
                $this->defaultcolor = $a_defaultcolor;
        }

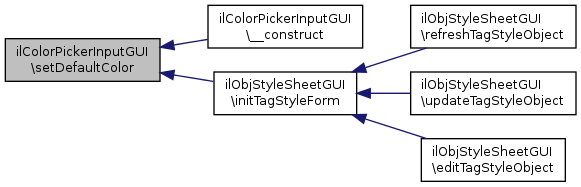

Here is the caller graph for this function:

ilColorPickerInputGUI::setValue

(

$a_value

)

set value

public

Parameters

string

$a_value

color hexcode

Returns

Reimplemented from ilTextInputGUI.

Definition at line 58 of file class.ilColorPickerInputGUI.php.

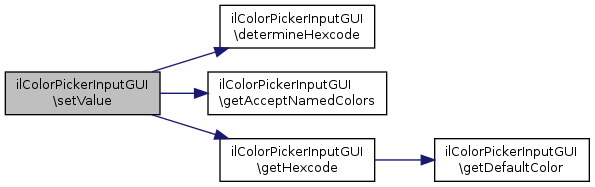

References determineHexcode(), getAcceptNamedColors(), and getHexcode().

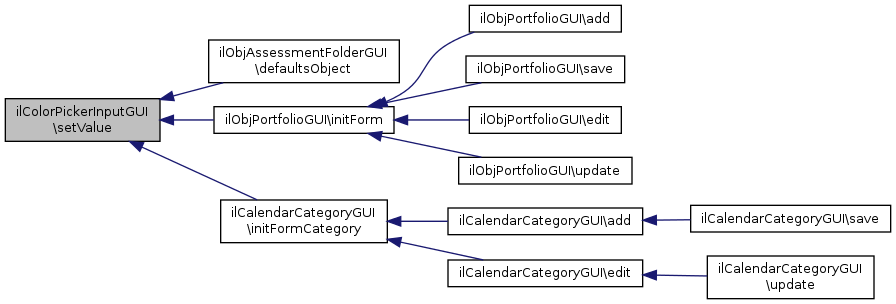

Referenced by ilObjAssessmentFolderGUI\defaultsObject(), ilObjPortfolioGUI\initForm(), and ilCalendarCategoryGUI\initFormCategory().

        {
                $a_value = trim($a_value);
                if ($this->getAcceptNamedColors() && substr($a_value, 0, 1) == "!")
                {
                        parent::setValue($a_value);
                }
                else
                {
                        $this->hex = ilColorPickerInputGUI::determineHexcode($a_value);
                        parent::setValue($this->getHexcode());
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

ilColorPickerInputGUI::$hex

protected

Definition at line 15 of file class.ilColorPickerInputGUI.php.

---

The documentation for this class was generated from the following file:

• Services/Form/classes/class.ilColorPickerInputGUI.php
