ilMathJaxImage Class Reference

Rendered MathJax image Supports image types SVG or PNG Files are stored in the web file system of ilias. More...

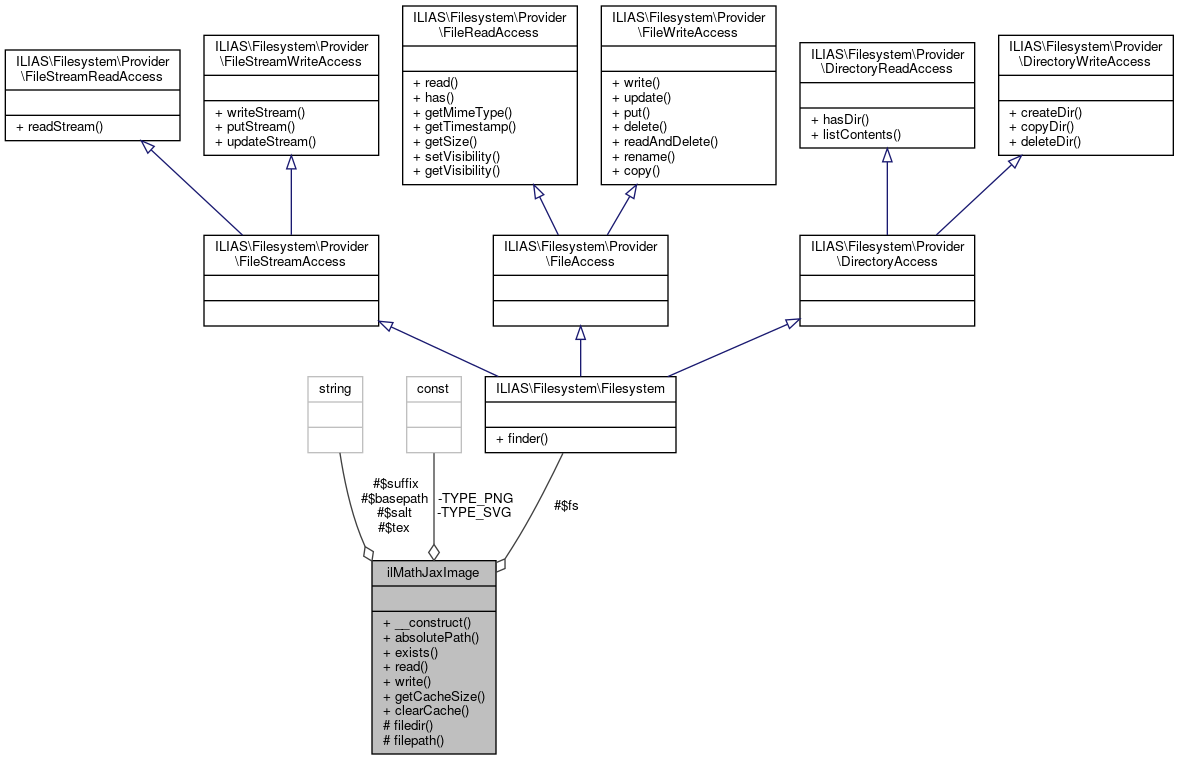

Collaboration diagram for ilMathJaxImage:

Public Member Functions
	__construct (string $a_tex, string $a_type, int $a_dpi)
	absolutePath ()
	Get the absolute path of the image. More...
	exists ()
	Check if an image is cached. More...
	read ()
	Read the content of a cached image. More...
	write (string $a_content)
	Save the content of a cached image. More...
	getCacheSize ()
	Get the total size of the cache with an appropriate unit for display. More...
	clearCache ()
	Delete all files from the cache. More...

Protected Member Functions
	filedir ()
	Get the relative directory path of the image. More...
	filepath ()
	Get the relative file path of the image. More...

Protected Attributes
Filesystem	$fs
string	$basepath = '/temp/tex'
string	$tex
string	$suffix
string	$salt

Private Attributes
const	TYPE_PNG = 'png'
const	TYPE_SVG = 'svg'

Detailed Description

Rendered MathJax image Supports image types SVG or PNG Files are stored in the web file system of ilias.

Definition at line 30 of file class.ilMathJaxImage.php.

Constructor & Destructor Documentation

__construct()

ilMathJaxImage::__construct	(	string	$a_tex,
		string	$a_type,
		int	$a_dpi
	)

Parameters

string	$a_tex	latex code
string	$a_type	image type ('png' or 'svg')
int	$a_dpi	dpi of rendered image

Definition at line 66 of file class.ilMathJaxImage.php.

References $DIC.

    {
        global $DIC;

        $this->fs = $DIC->filesystem()->web();
        $this->tex = $a_tex;

        switch ($a_type) {
            case self::TYPE_PNG:
                $this->suffix = '.png';
                break;
            case self::TYPE_SVG:
                $this->suffix = '.svg';
                break;
            default:
                throw new ilMathJaxException('imagetype not supported');
        }

        $this->salt = '#' . $a_dpi;
    }

Member Function Documentation

absolutePath()

ilMathJaxImage::absolutePath

(

)

Get the absolute path of the image.

Definition at line 110 of file class.ilMathJaxImage.php.

References CLIENT_WEB_DIR, and filepath().

                                  : string
    {
        return CLIENT_WEB_DIR . $this->filepath();
    }

Here is the call graph for this function:

clearCache()

ilMathJaxImage::clearCache

(

)

Delete all files from the cache.

Definition at line 181 of file class.ilMathJaxImage.php.

                                : void
    {
        $this->fs->deleteDir($this->basepath);
    }

exists()

ilMathJaxImage::exists

(

)

Check if an image is cached.

Definition at line 118 of file class.ilMathJaxImage.php.

References filepath().

                            : bool
    {
        return $this->fs->has($this->filepath());
    }

Here is the call graph for this function:

filedir()

ilMathJaxImage::filedir ( )

protected

Get the relative directory path of the image.

Definition at line 90 of file class.ilMathJaxImage.php.

Referenced by filepath(), and write().

                                : string
    {
        $hash = md5($this->tex . $this->salt);
        return $this->basepath
        . '/' . substr($hash, 0, 4)
        . '/' . substr($hash, 4, 4);
    }

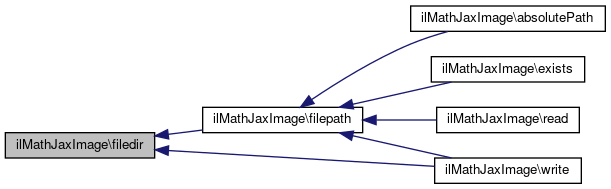

Here is the caller graph for this function:

filepath()

ilMathJaxImage::filepath ( )

protected

Get the relative file path of the image.

Definition at line 101 of file class.ilMathJaxImage.php.

References $suffix, and filedir().

Referenced by absolutePath(), exists(), read(), and write().

                                 : string
    {
        $hash = md5($this->tex . $this->salt);
        return $this->filedir() . '/' . $hash . $this->suffix;
    }

Here is the call graph for this function:

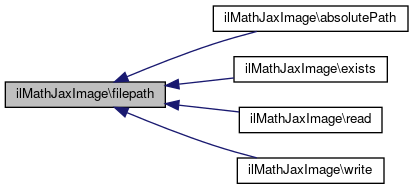

Here is the caller graph for this function:

getCacheSize()

ilMathJaxImage::getCacheSize

(

)

Get the total size of the cache with an appropriate unit for display.

Definition at line 158 of file class.ilMathJaxImage.php.

                                  : string
    {
        $size = 0;
        if ($this->fs->hasDir($this->basepath)) {
            foreach ($this->fs->finder()->in([$this->basepath])->files() as $meta) {
                $size += $this->fs->getSize($meta->getPath(), 1)->inBytes();
            }
        }

        $type = array("K", "M", "G", "T", "P", "E", "Z", "Y");
        $size /= 1000;
        $counter = 0;
        while ($size >= 1000) {
            $size /= 1000;
            $counter++;
        }

        return (round($size, 1) . " " . $type[$counter] . "B");
    }

read()

ilMathJaxImage::read

(

)

Read the content of a cached image.

Definition at line 126 of file class.ilMathJaxImage.php.

References filepath().

                          : string
    {
        return $this->fs->read($this->filepath());
    }

Here is the call graph for this function:

write()

ilMathJaxImage::write

(

string

$a_content

)

Save the content of a cached image.

Parameters

string

$a_content

image content

Definition at line 135 of file class.ilMathJaxImage.php.

References filedir(), and filepath().

                                            : void
    {
        // set the directory access of the whole relative file to visible
        // this is needed if TeX is used in certificates
        // the ILIAS java server must have read access to the files for the PDF generation
        // it may run with a different user account
        $dir = '';
        foreach (explode('/', $this->filedir()) as $part) {
            if (!empty($part)) {
                $dir = $dir . '/' . $part;
            }
            if (!$this->fs->hasDir($dir)) {
                $this->fs->createDir($dir, Visibility::PUBLIC_ACCESS);
            } else {
                $this->fs->setVisibility($dir, Visibility::PUBLIC_ACCESS);
            }
        }
        $this->fs->put($this->filepath(), $a_content);
    }

Here is the call graph for this function:

Field Documentation

$basepath

string ilMathJaxImage::$basepath = '/temp/tex'

protected

Definition at line 44 of file class.ilMathJaxImage.php.

$fs

Filesystem ilMathJaxImage::$fs

protected

Definition at line 39 of file class.ilMathJaxImage.php.

$salt

string ilMathJaxImage::$salt

protected

Definition at line 59 of file class.ilMathJaxImage.php.

$suffix

string ilMathJaxImage::$suffix

protected

Definition at line 54 of file class.ilMathJaxImage.php.

Referenced by filepath().

$tex

string ilMathJaxImage::$tex

protected

Definition at line 49 of file class.ilMathJaxImage.php.

TYPE_PNG

const ilMathJaxImage::TYPE_PNG = 'png'

private

Definition at line 32 of file class.ilMathJaxImage.php.

TYPE_SVG

const ilMathJaxImage::TYPE_SVG = 'svg'

private

Definition at line 33 of file class.ilMathJaxImage.php.

---

The documentation for this class was generated from the following file:

• components/ILIAS/MathJax/classes/class.ilMathJaxImage.php
