wsdl Class Reference

parses a WSDL file, allows access to it's data, other utility methods. More...

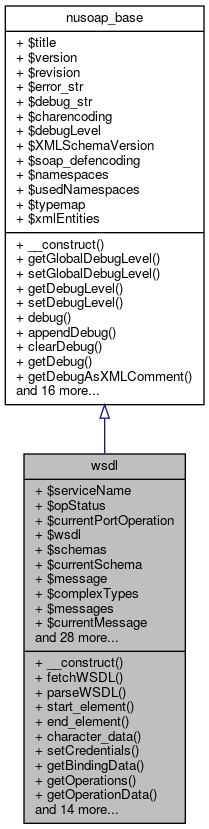

Inheritance diagram for wsdl:

Collaboration diagram for wsdl:

Public Member Functions
	__construct ($wsdl='', $proxyhost=false, $proxyport=false, $proxyusername=false, $proxypassword=false, $timeout=0, $response_timeout=30, $curl_options=null, $use_curl=false)
	constructor More...
	fetchWSDL ($wsdl)
	fetches the WSDL document and parses it More...
	parseWSDL ($wsdl='')
	parses the wsdl document More...
	start_element ($parser, $name, $attrs)
	start-element handler More...
	end_element ($parser, $name)
	end-element handler More...
	character_data ($parser, $data)
	element content handler More...
	setCredentials ($username, $password, $authtype='basic', $certRequest=array())
	if authenticating, set user credentials here More...
	getBindingData ($binding)
	getOperations ($bindingType='soap')
	returns an assoc array of operation names => operation data More...

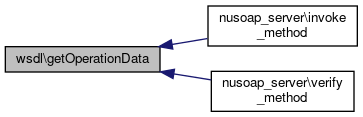

	getOperationData ($operation, $bindingType='soap')
	returns an associative array of data necessary for calling an operation More...
	getOperationDataForSoapAction ($soapAction, $bindingType='soap')
	returns an associative array of data necessary for calling an operation More...

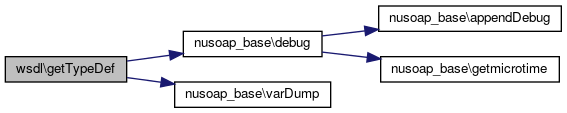

	getTypeDef ($type, $ns)
	returns an array of information about a given type returns false if no type exists by the given name More...
	webDescription ()
	prints html description of services More...

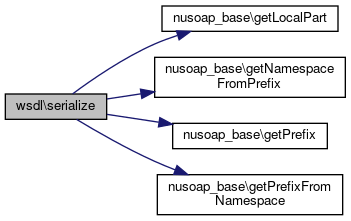

	serialize ($debug=0)
	serialize the parsed wsdl More...

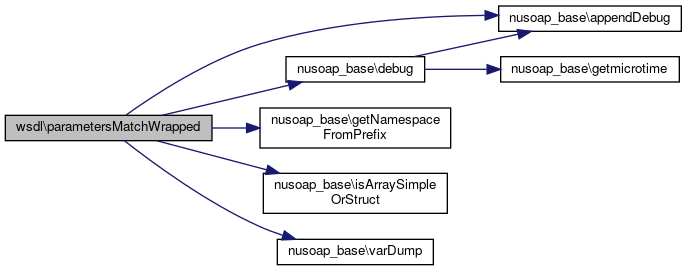

	parametersMatchWrapped ($type, &$parameters)
	determine whether a set of parameters are unwrapped when they are expect to be wrapped, Microsoft-style. More...
	serializeRPCParameters ($operation, $direction, $parameters, $bindingType='soap')
	serialize PHP values according to a WSDL message definition contrary to the method name, this is not limited to RPC More...

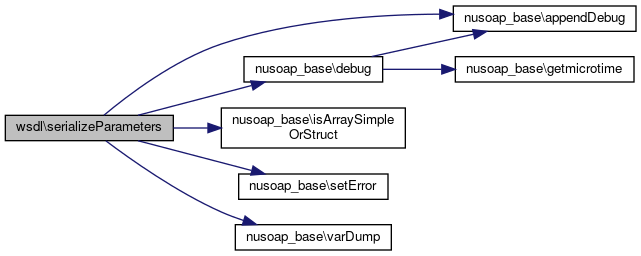

	serializeParameters ($operation, $direction, $parameters)
	serialize a PHP value according to a WSDL message definition More...
	serializeType ($name, $type, $value, $use='encoded', $encodingStyle=false, $unqualified=false)
	serializes a PHP value according a given type definition More...

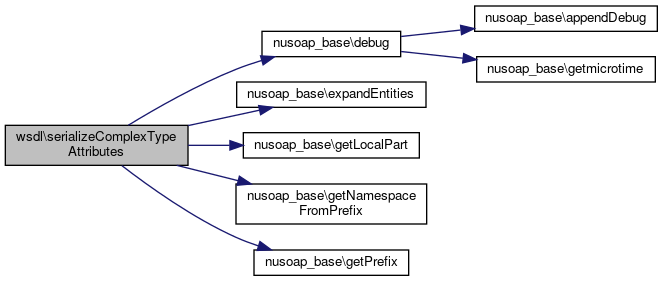

	serializeComplexTypeAttributes ($typeDef, $value, $ns, $uqType)
	serializes the attributes for a complexType More...
	serializeComplexTypeElements ($typeDef, $value, $ns, $uqType, $use='encoded', $encodingStyle=false)
	serializes the elements for a complexType More...
	addComplexType ($name, $typeClass='complexType', $phpType='array', $compositor='', $restrictionBase='', $elements=array(), $attrs=array(), $arrayType='')
	adds an XML Schema complex type to the WSDL types More...
	addSimpleType ($name, $restrictionBase='', $typeClass='simpleType', $phpType='scalar', $enumeration=array())
	adds an XML Schema simple type to the WSDL types More...
	addElement ($attrs)
	adds an element to the WSDL types More...
	addOperation ($name, $in=false, $out=false, $namespace=false, $soapaction=false, $style='rpc', $use='encoded', $documentation='', $encodingStyle='')
	register an operation with the server More...
Public Member Functions inherited from nusoap_base
	__construct ()
	constructor More...
	getGlobalDebugLevel ()
	gets the global debug level, which applies to future instances More...
	setGlobalDebugLevel ($level)
	sets the global debug level, which applies to future instances More...
	getDebugLevel ()
	gets the debug level for this instance More...
	setDebugLevel ($level)
	sets the debug level for this instance More...
	debug ($string)
	adds debug data to the instance debug string with formatting More...
	appendDebug ($string)
	adds debug data to the instance debug string without formatting More...
	clearDebug ()
	clears the current debug data for this instance More...
&	getDebug ()
	gets the current debug data for this instance More...
&	getDebugAsXMLComment ()
	gets the current debug data for this instance as an XML comment this may change the contents of the debug data More...
	expandEntities ($val)
	expands entities, e.g. More...
	getError ()
	returns error string if present More...
	setError ($str)
	sets error string More...
	isArraySimpleOrStruct ($val)
	detect if array is a simple array or a struct (associative array) More...
	serialize_val ($val, $name=false, $type=false, $name_ns=false, $type_ns=false, $attributes=false, $use='encoded', $soapval=false)
	serializes PHP values in accordance w/ section 5. More...
	serializeEnvelope ($body, $headers=false, $namespaces=array(), $style='rpc', $use='encoded', $encodingStyle='http://schemas.xmlsoap.org/soap/encoding/')
	serializes a message More...
	formatDump ($str)
	formats a string to be inserted into an HTML stream More...
	contractQname ($qname)
	contracts (changes namespace to prefix) a qualified name More...
	expandQname ($qname)
	expands (changes prefix to namespace) a qualified name More...
	getLocalPart ($str)
	returns the local part of a prefixed string returns the original string, if not prefixed More...
	getPrefix ($str)
	returns the prefix part of a prefixed string returns false, if not prefixed More...
	getNamespaceFromPrefix ($prefix)
	pass it a prefix, it returns a namespace More...
	getPrefixFromNamespace ($ns)
	returns the prefix for a given namespace (or prefix) or false if no prefixes registered for the given namespace More...
	getmicrotime ()
	returns the time in ODBC canonical form with microseconds More...
	varDump ($data)
	Returns a string with the output of var_dump. More...
	__toString ()
	represents the object as a string More...

Data Fields
	$serviceName
	$opStatus
	$currentPortOperation
	$wsdl
	$schemas = array()
	$currentSchema
	$message = array()
	$complexTypes = array()
	$messages = array()
	$currentMessage
	$currentOperation
	$portTypes = array()
	$currentPortType
	$bindings = array()
	$currentBinding
	$ports = array()
	$currentPort
	$opData = array()
	$status = ''
	$documentation = false
	$endpoint = ''
	$import = array()
	$parser
	$position = 0
	$depth = 0
	$depth_array = array()
	$proxyhost = ''
	$proxyport = ''
	$proxyusername = ''
	$proxypassword = ''
	$timeout = 0
	$response_timeout = 30
	$curl_options = array()
	$use_curl = false
	$username = ''
	$password = ''
	$authtype = ''
	$certRequest = array()
Data Fields inherited from nusoap_base
	$title = 'NuSOAP'
	$version = '0.7.3'
	$revision = '$Revision$'
	$error_str = ''
	$debug_str = ''
	$charencoding = true
	$debugLevel
	$XMLSchemaVersion = 'http://www.w3.org/2001/XMLSchema'
	$soap_defencoding = 'UTF-8'
	$namespaces
	$usedNamespaces = array()
	$typemap
	$xmlEntities

Detailed Description

parses a WSDL file, allows access to it's data, other utility methods.

also builds WSDL structures programmatically.

Author

Dietrich Ayala dietr.nosp@m.ich@.nosp@m.ganx4.nosp@m..com

Scott Nichol snich.nosp@m.ol@u.nosp@m.sers..nosp@m.sour.nosp@m.cefor.nosp@m.ge.n.nosp@m.et

Version

$Id$ public

Definition at line 4630 of file nusoap.php.

Constructor & Destructor Documentation

__construct()

wsdl::__construct	(		$wsdl = '',
			$proxyhost = false,
			$proxyport = false,
			$proxyusername = false,
			$proxypassword = false,
			$timeout = 0,
			$response_timeout = 30,
			$curl_options = null,
			$use_curl = false
	)

constructor

Parameters

string	$wsdl	WSDL document URL
string	$proxyhost
string	$proxyport
string	$proxyusername
string	$proxypassword
integer	$timeout	set the connection timeout
integer	$response_timeout	set the response timeout
array	$curl_options	user-specified cURL options
boolean	$use_curl	try to use cURL public

Definition at line 4691 of file nusoap.php.

References ILIAS\GlobalScreen\Provider\__construct(), and nusoap_base\debug().

    {
        parent::__construct();
        $this->debug("ctor wsdl=$wsdl timeout=$timeout response_timeout=$response_timeout");
        $this->proxyhost = $proxyhost;
        $this->proxyport = $proxyport;
        $this->proxyusername = $proxyusername;
        $this->proxypassword = $proxypassword;
        $this->timeout = $timeout;
        $this->response_timeout = $response_timeout;
        if (is_array($curl_options)) {
            $this->curl_options = $curl_options;
        }
        $this->use_curl = $use_curl;
        $this->fetchWSDL($wsdl);
    }

Here is the call graph for this function:

Member Function Documentation

addComplexType()

wsdl::addComplexType	(		$name,
			$typeClass = 'complexType',
			$phpType = 'array',
			$compositor = '',
			$restrictionBase = '',
			$elements = array(),
			$attrs = array(),
			$arrayType = ''
	)

adds an XML Schema complex type to the WSDL types

Parameters

string	$name
string	$typeClass	(complexType|simpleType|attribute)
string	$phpType	currently supported are array and struct (php assoc array)
string	$compositor	(all|sequence|choice)
string	$restrictionBase	namespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array)
array	$elements	e.g. array ( name => array(name=>'',type=>'') )
array	$attrs	e.g. array(array('ref'=>'SOAP-ENC:arrayType','wsdl:arrayType'=>'xsd:string[]'))
string	$arrayType	as namespace:name (xsd:string)

See also

nusoap_xmlschema public

Definition at line 6397 of file nusoap.php.

References Vendor\Package\$a, Vendor\Package\$e, and nusoap_base\expandQname().

    {
        if (count($elements) > 0) {
            $eElements = array();
            foreach ($elements as $n => $e) {
                // expand each element
                $ee = array();
                foreach ($e as $k => $v) {
                    $k = strpos($k, ':') ? $this->expandQname($k) : $k;
                    $v = strpos($v, ':') ? $this->expandQname($v) : $v;
                    $ee[$k] = $v;
                }
                $eElements[$n] = $ee;
            }
            $elements = $eElements;
        }

        if (count($attrs) > 0) {
            foreach ($attrs as $n => $a) {
                // expand each attribute
                foreach ($a as $k => $v) {
                    $k = strpos($k, ':') ? $this->expandQname($k) : $k;
                    $v = strpos($v, ':') ? $this->expandQname($v) : $v;
                    $aa[$k] = $v;
                }
                $eAttrs[$n] = $aa;
            }
            $attrs = $eAttrs;
        }

        $restrictionBase = strpos($restrictionBase, ':') ? $this->expandQname($restrictionBase) : $restrictionBase;
        $arrayType = strpos($arrayType, ':') ? $this->expandQname($arrayType) : $arrayType;

        $typens = isset($this->namespaces['types']) ? $this->namespaces['types'] : $this->namespaces['tns'];
        $this->schemas[$typens][0]->addComplexType($name, $typeClass, $phpType, $compositor, $restrictionBase, $elements, $attrs, $arrayType);
    }

Here is the call graph for this function:

addElement()

wsdl::addElement

(

$attrs

)

adds an element to the WSDL types

Parameters

array

$attrs

attributes that must include name and type

See also

nusoap_xmlschema public

Definition at line 6460 of file nusoap.php.

    {
        $typens = isset($this->namespaces['types']) ? $this->namespaces['types'] : $this->namespaces['tns'];
        $this->schemas[$typens][0]->addElement($attrs);
    }

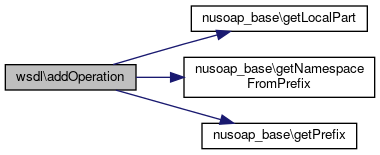

addOperation()

wsdl::addOperation	(		$name,
			$in = false,
			$out = false,
			$namespace = false,
			$soapaction = false,
			$style = 'rpc',
			$use = 'encoded',
			$documentation = '',
			$encodingStyle = ''
	)

register an operation with the server

Parameters

string	$name	operation (method) name
array	$in	assoc array of input values: key = param name, value = param type
array	$out	assoc array of output values: key = param name, value = param type
string	$namespace	optional The namespace for the operation
string	$soapaction	optional The soapaction for the operation
string	$style	(rpc|document) optional The style for the operation Note: when 'document' is specified, parameter and return wrappers are created for you automatically
string	$use	(encoded|literal) optional The use for the parameters (cannot mix right now)
string	$documentation	optional The description to include in the WSDL
string	$encodingStyle	optional (usually 'http://schemas.xmlsoap.org/soap/encoding/' for encoded) public

Definition at line 6480 of file nusoap.php.

References $namespace, $out, nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), and nusoap_base\getPrefix().

Referenced by nusoap_server\register().

    {
        if ($use == 'encoded' && $encodingStyle == '') {
            $encodingStyle = 'http://schemas.xmlsoap.org/soap/encoding/';
        }

        if ($style == 'document') {
            $elements = array();
            foreach ($in as $n => $t) {
                $elements[$n] = array('name' => $n, 'type' => $t);
            }
            $this->addComplexType($name . 'RequestType', 'complexType', 'struct', 'all', '', $elements);
            $this->addElement(array('name' => $name, 'type' => $name . 'RequestType'));
            $in = array('parameters' => 'tns:' . $name . '^');

            $elements = array();
            foreach ($out as $n => $t) {
                $elements[$n] = array('name' => $n, 'type' => $t);
            }
            $this->addComplexType($name . 'ResponseType', 'complexType', 'struct', 'all', '', $elements);
            $this->addElement(array('name' => $name . 'Response', 'type' => $name . 'ResponseType', 'form' => 'qualified'));
            $out = array('parameters' => 'tns:' . $name . 'Response' . '^');
        }

        // get binding
        $this->bindings[ $this->serviceName . 'Binding' ]['operations'][$name] =
        array(
        'name' => $name,
        'binding' => $this->serviceName . 'Binding',
        'endpoint' => $this->endpoint,
        'soapAction' => $soapaction,
        'style' => $style,
        'input' => array(
            'use' => $use,
            'namespace' => $namespace,
            'encodingStyle' => $encodingStyle,
            'message' => $name . 'Request',
            'parts' => $in),
        'output' => array(
            'use' => $use,
            'namespace' => $namespace,
            'encodingStyle' => $encodingStyle,
            'message' => $name . 'Response',
            'parts' => $out),
        'namespace' => $namespace,
        'transport' => 'http://schemas.xmlsoap.org/soap/http',
        'documentation' => $documentation);
        // add portTypes
        // add messages
        if ($in) {
            foreach ($in as $pName => $pType) {
                if (strpos($pType, ':')) {
                    $pType = $this->getNamespaceFromPrefix($this->getPrefix($pType)) . ":" . $this->getLocalPart($pType);
                }
                $this->messages[$name . 'Request'][$pName] = $pType;
            }
        } else {
            $this->messages[$name . 'Request']= '0';
        }
        if ($out) {
            foreach ($out as $pName => $pType) {
                if (strpos($pType, ':')) {
                    $pType = $this->getNamespaceFromPrefix($this->getPrefix($pType)) . ":" . $this->getLocalPart($pType);
                }
                $this->messages[$name . 'Response'][$pName] = $pType;
            }
        } else {
            $this->messages[$name . 'Response']= '0';
        }
        return true;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

addSimpleType()

wsdl::addSimpleType	(		$name,
			$restrictionBase = '',
			$typeClass = 'simpleType',
			$phpType = 'scalar',
			$enumeration = array()
	)

adds an XML Schema simple type to the WSDL types

Parameters

string	$name
string	$restrictionBase	namespace:name (http://schemas.xmlsoap.org/soap/encoding/:Array)
string	$typeClass	(should always be simpleType)
string	$phpType	(should always be scalar)
array	$enumeration	array of values

See also

nusoap_xmlschema public

Definition at line 6445 of file nusoap.php.

References nusoap_base\expandQname().

    {
        $restrictionBase = strpos($restrictionBase, ':') ? $this->expandQname($restrictionBase) : $restrictionBase;

        $typens = isset($this->namespaces['types']) ? $this->namespaces['types'] : $this->namespaces['tns'];
        $this->schemas[$typens][0]->addSimpleType($name, $restrictionBase, $typeClass, $phpType, $enumeration);
    }

Here is the call graph for this function:

character_data()

wsdl::character_data	(		$parser,
			$data
	)

element content handler

Parameters

string	$parser	XML parser object
string	$data	element content private

Definition at line 5166 of file nusoap.php.

References $data.

    {
        $pos = isset($this->depth_array[$this->depth]) ? $this->depth_array[$this->depth] : 0;
        if (isset($this->message[$pos]['cdata'])) {
            $this->message[$pos]['cdata'] .= $data;
        }
        if ($this->documentation) {
            $this->documentation .= $data;
        }
    }

end_element()

wsdl::end_element	(		$parser,
			$name
	)

end-element handler

Parameters

string	$parser	XML parser object
string	$name	element name private

Definition at line 5135 of file nusoap.php.

References nusoap_base\appendDebug(), and nusoap_base\debug().

    {
        // unset schema status
        if (/*preg_match('/types$/', $name) ||*/ preg_match('/schema$/', $name)) {
            $this->status = "";
            $this->appendDebug($this->currentSchema->getDebug());
            $this->currentSchema->clearDebug();
            $this->schemas[$this->currentSchema->schemaTargetNamespace][] = $this->currentSchema;
            $this->debug('Parsing WSDL schema done');
        }
        if ($this->status == 'schema') {
            $this->currentSchema->schemaEndElement($parser, $name);
        } else {
            // bring depth down a notch
            $this->depth--;
        }
        // end documentation
        if ($this->documentation) {
            //TODO: track the node to which documentation should be assigned; it can be a part, message, etc.
            //$this->portTypes[$this->currentPortType][$this->currentPortOperation]['documentation'] = $this->documentation;
            $this->documentation = false;
        }
    }

Here is the call graph for this function:

fetchWSDL()

wsdl::fetchWSDL

(

$wsdl

)

fetches the WSDL document and parses it

public

Definition at line 4713 of file nusoap.php.

References $data, $url, and nusoap_base\debug().

Referenced by nusoap_client\loadWSDL().

    {
        $this->debug("parse and process WSDL path=$wsdl");
        $this->wsdl = $wsdl;
        // parse wsdl file
        if ($this->wsdl != "") {
            $this->parseWSDL($this->wsdl);
        }
        // imports
        // TODO: handle imports more properly, grabbing them in-line and nesting them
        $imported_urls = array();
        $imported = 1;
        while ($imported > 0) {
            $imported = 0;
            // Schema imports
            foreach ($this->schemas as $ns => $list) {
                foreach ($list as $xs) {
                    $wsdlparts = parse_url($this->wsdl);        // this is bogusly simple!
                    foreach ($xs->imports as $ns2 => $list2) {
                        for ($ii = 0; $ii < count($list2); $ii++) {
                            if (! $list2[$ii]['loaded']) {
                                $this->schemas[$ns]->imports[$ns2][$ii]['loaded'] = true;
                                $url = $list2[$ii]['location'];
                                if ($url != '') {
                                    $urlparts = parse_url($url);
                                    if (!isset($urlparts['host'])) {
                                        $url = $wsdlparts['scheme'] . '://' . $wsdlparts['host'] . (isset($wsdlparts['port']) ? ':' . $wsdlparts['port'] : '') .
                                                substr($wsdlparts['path'], 0, strrpos($wsdlparts['path'], '/') + 1) . $urlparts['path'];
                                    }
                                    if (! in_array($url, $imported_urls)) {
                                        $this->parseWSDL($url);
                                        $imported++;
                                        $imported_urls[] = $url;
                                    }
                                } else {
                                    $this->debug("Unexpected scenario: empty URL for unloaded import");
                                }
                            }
                        }
                    }
                }
            }
            // WSDL imports
            $wsdlparts = parse_url($this->wsdl);        // this is bogusly simple!
            foreach ($this->import as $ns => $list) {
                for ($ii = 0; $ii < count($list); $ii++) {
                    if (! $list[$ii]['loaded']) {
                        $this->import[$ns][$ii]['loaded'] = true;
                        $url = $list[$ii]['location'];
                        if ($url != '') {
                            $urlparts = parse_url($url);
                            if (!isset($urlparts['host'])) {
                                $url = $wsdlparts['scheme'] . '://' . $wsdlparts['host'] . (isset($wsdlparts['port']) ? ':' . $wsdlparts['port'] : '') .
                                        substr($wsdlparts['path'], 0, strrpos($wsdlparts['path'], '/') + 1) . $urlparts['path'];
                            }
                            if (! in_array($url, $imported_urls)) {
                                $this->parseWSDL($url);
                                $imported++;
                                $imported_urls[] = $url;
                            }
                        } else {
                            $this->debug("Unexpected scenario: empty URL for unloaded import");
                        }
                    }
                }
            }
        }
        // add new data to operation data
        foreach ($this->bindings as $binding => $bindingData) {
            if (isset($bindingData['operations']) && is_array($bindingData['operations'])) {
                foreach ($bindingData['operations'] as $operation => $data) {
                    $this->debug('post-parse data gathering for ' . $operation);
                    $this->bindings[$binding]['operations'][$operation]['input'] =
                        isset($this->bindings[$binding]['operations'][$operation]['input']) ?
                        array_merge($this->bindings[$binding]['operations'][$operation]['input'], $this->portTypes[ $bindingData['portType'] ][$operation]['input']) :
                        $this->portTypes[ $bindingData['portType'] ][$operation]['input'];
                    $this->bindings[$binding]['operations'][$operation]['output'] =
                        isset($this->bindings[$binding]['operations'][$operation]['output']) ?
                        array_merge($this->bindings[$binding]['operations'][$operation]['output'], $this->portTypes[ $bindingData['portType'] ][$operation]['output']) :
                        $this->portTypes[ $bindingData['portType'] ][$operation]['output'];
                    if (isset($this->messages[ $this->bindings[$binding]['operations'][$operation]['input']['message'] ])) {
                        $this->bindings[$binding]['operations'][$operation]['input']['parts'] = $this->messages[ $this->bindings[$binding]['operations'][$operation]['input']['message'] ];
                    }
                    if (isset($this->messages[ $this->bindings[$binding]['operations'][$operation]['output']['message'] ])) {
                        $this->bindings[$binding]['operations'][$operation]['output']['parts'] = $this->messages[ $this->bindings[$binding]['operations'][$operation]['output']['message'] ];
                    }
                    // Set operation style if necessary, but do not override one already provided
                    if (isset($bindingData['style']) && !isset($this->bindings[$binding]['operations'][$operation]['style'])) {
                        $this->bindings[$binding]['operations'][$operation]['style'] = $bindingData['style'];
                    }
                    $this->bindings[$binding]['operations'][$operation]['transport'] = isset($bindingData['transport']) ? $bindingData['transport'] : '';
                    $this->bindings[$binding]['operations'][$operation]['documentation'] = isset($this->portTypes[ $bindingData['portType'] ][$operation]['documentation']) ? $this->portTypes[ $bindingData['portType'] ][$operation]['documentation'] : '';
                    $this->bindings[$binding]['operations'][$operation]['endpoint'] = isset($bindingData['endpoint']) ? $bindingData['endpoint'] : '';
                }
            }
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

getBindingData()

wsdl::getBindingData

(

$binding

)

Definition at line 5196 of file nusoap.php.

    {
        if (is_array($this->bindings[$binding])) {
            return $this->bindings[$binding];
        }
    }

getOperationData()

wsdl::getOperationData	(		$operation,
			$bindingType = 'soap'
	)

returns an associative array of data necessary for calling an operation

Parameters

string	$operation	name of operation
string	$bindingType	type of binding eg: soap, soap12

Returns

array public

Definition at line 5242 of file nusoap.php.

Referenced by nusoap_server\invoke_method(), and nusoap_server\verify_method().

    {
        if ($bindingType == 'soap') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap/';
        } elseif ($bindingType == 'soap12') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap12/';
        }
        // loop thru ports
        foreach ($this->ports as $port => $portData) {
            // binding type of port matches parameter
            if ($portData['bindingType'] == $bindingType) {
                // get binding
                //foreach($this->bindings[ $portData['binding'] ]['operations'] as $bOperation => $opData) {
                foreach (array_keys($this->bindings[ $portData['binding'] ]['operations']) as $bOperation) {
                    // note that we could/should also check the namespace here
                    if ($operation == $bOperation) {
                        $opData = $this->bindings[ $portData['binding'] ]['operations'][$operation];
                        return $opData;
                    }
                }
            }
        }
    }

Here is the caller graph for this function:

getOperationDataForSoapAction()

wsdl::getOperationDataForSoapAction	(		$soapAction,
			$bindingType = 'soap'
	)

returns an associative array of data necessary for calling an operation

Parameters

string	$soapAction	soapAction for operation
string	$bindingType	type of binding eg: soap, soap12

Returns

array public

Definition at line 5274 of file nusoap.php.

Referenced by nusoap_server\invoke_method().

    {
        if ($bindingType == 'soap') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap/';
        } elseif ($bindingType == 'soap12') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap12/';
        }
        // loop thru ports
        foreach ($this->ports as $port => $portData) {
            // binding type of port matches parameter
            if ($portData['bindingType'] == $bindingType) {
                // loop through operations for the binding
                foreach ($this->bindings[ $portData['binding'] ]['operations'] as $bOperation => $opData) {
                    if ($opData['soapAction'] == $soapAction) {
                        return $opData;
                    }
                }
            }
        }
    }

Here is the caller graph for this function:

getOperations()

wsdl::getOperations

(

$bindingType = 'soap'

)

returns an assoc array of operation names => operation data

Parameters

string

$bindingType

eg: soap, smtp, dime (only soap and soap12 are currently supported)

Returns

array public

Definition at line 5210 of file nusoap.php.

Referenced by nusoap_client\checkWSDL().

    {
        $ops = array();
        if ($bindingType == 'soap') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap/';
        } elseif ($bindingType == 'soap12') {
            $bindingType = 'http://schemas.xmlsoap.org/wsdl/soap12/';
        }
        // loop thru ports
        foreach ($this->ports as $port => $portData) {
            // binding type of port matches parameter
            if ($portData['bindingType'] == $bindingType) {
                //$this->debug("getOperations for port $port");
                //$this->debug("port data: " . $this->varDump($portData));
                //$this->debug("bindings: " . $this->varDump($this->bindings[ $portData['binding'] ]));
                // merge bindings
                if (isset($this->bindings[ $portData['binding'] ]['operations'])) {
                    $ops = array_merge($ops, $this->bindings[ $portData['binding'] ]['operations']);
                }
            }
        }
        return $ops;
    }

Here is the caller graph for this function:

getTypeDef()

wsdl::getTypeDef	(		$type,
			$ns
	)

returns an array of information about a given type returns false if no type exists by the given name

typeDef = array( 'elements' => array(), // refs to elements array 'restrictionBase' => '', 'phpType' => '', 'order' => '(sequence|all)', 'attrs' => array() // refs to attributes array )

Parameters

string	$type	the type
string	$ns	namespace (not prefix) of the type

Returns

mixed public

See also

nusoap_xmlschema

Definition at line 5313 of file nusoap.php.

References nusoap_base\debug(), and nusoap_base\varDump().

    {
        $this->debug("in getTypeDef: type=$type, ns=$ns");
        if ((! $ns) && isset($this->namespaces['tns'])) {
            $ns = $this->namespaces['tns'];
            $this->debug("in getTypeDef: type namespace forced to $ns");
        }
        if (!isset($this->schemas[$ns])) {
            foreach ($this->schemas as $ns0 => $schema0) {
                if (strcasecmp($ns, $ns0) == 0) {
                    $this->debug("in getTypeDef: replacing schema namespace $ns with $ns0");
                    $ns = $ns0;
                    break;
                }
            }
        }
        if (isset($this->schemas[$ns])) {
            $this->debug("in getTypeDef: have schema for namespace $ns");
            for ($i = 0; $i < count($this->schemas[$ns]); $i++) {
                $xs = &$this->schemas[$ns][$i];
                $t = $xs->getTypeDef($type);
                //$this->appendDebug($xs->getDebug());
                //$xs->clearDebug();
                if ($t) {
                    if (!isset($t['phpType'])) {
                        // get info for type to tack onto the element
                        $uqType = substr($t['type'], strrpos($t['type'], ':') + 1);
                        $ns = substr($t['type'], 0, strrpos($t['type'], ':'));
                        $etype = $this->getTypeDef($uqType, $ns);
                        if ($etype) {
                            $this->debug("found type for [element] $type:");
                            $this->debug($this->varDump($etype));
                            if (isset($etype['phpType'])) {
                                $t['phpType'] = $etype['phpType'];
                            }
                            if (isset($etype['elements'])) {
                                $t['elements'] = $etype['elements'];
                            }
                            if (isset($etype['attrs'])) {
                                $t['attrs'] = $etype['attrs'];
                            }
                        }
                    }
                    return $t;
                }
            }
        } else {
            $this->debug("in getTypeDef: do not have schema for namespace $ns");
        }
        return false;
    }

Here is the call graph for this function:

parametersMatchWrapped()

wsdl::parametersMatchWrapped	(		$type,
		&	$parameters
	)

determine whether a set of parameters are unwrapped when they are expect to be wrapped, Microsoft-style.

Parameters

string	$type	the type (element name) of the wrapper
array	$parameters	the parameter values for the SOAP call

Returns

boolean whether they parameters are unwrapped (and should be wrapped) private

Definition at line 5660 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\isArraySimpleOrStruct(), and nusoap_base\varDump().

    {
        $this->debug("in parametersMatchWrapped type=$type, parameters=");
        $this->appendDebug($this->varDump($parameters));

        // split type into namespace:unqualified-type
        if (strpos($type, ':')) {
            $uqType = substr($type, strrpos($type, ':') + 1);
            $ns = substr($type, 0, strrpos($type, ':'));
            $this->debug("in parametersMatchWrapped: got a prefixed type: $uqType, $ns");
            if ($this->getNamespaceFromPrefix($ns)) {
                $ns = $this->getNamespaceFromPrefix($ns);
                $this->debug("in parametersMatchWrapped: expanded prefixed type: $uqType, $ns");
            }
        } else {
            // TODO: should the type be compared to types in XSD, and the namespace
            // set to XSD if the type matches?
            $this->debug("in parametersMatchWrapped: No namespace for type $type");
            $ns = '';
            $uqType = $type;
        }

        // get the type information
        if (!$typeDef = $this->getTypeDef($uqType, $ns)) {
            $this->debug("in parametersMatchWrapped: $type ($uqType) is not a supported type.");
            return false;
        }
        $this->debug("in parametersMatchWrapped: found typeDef=");
        $this->appendDebug($this->varDump($typeDef));
        if (substr($uqType, -1) == '^') {
            $uqType = substr($uqType, 0, -1);
        }
        $phpType = $typeDef['phpType'];
        $arrayType = (isset($typeDef['arrayType']) ? $typeDef['arrayType'] : '');
        $this->debug("in parametersMatchWrapped: uqType: $uqType, ns: $ns, phptype: $phpType, arrayType: $arrayType");

        // we expect a complexType or element of complexType
        if ($phpType != 'struct') {
            $this->debug("in parametersMatchWrapped: not a struct");
            return false;
        }

        // see whether the parameter names match the elements
        if (isset($typeDef['elements']) && is_array($typeDef['elements'])) {
            $elements = 0;
            $matches = 0;
            $change = false;
            if ($this->isArraySimpleOrStruct($parameters) == 'arraySimple' && count($parameters) == count($typeDef['elements'])) {
                $this->debug("in parametersMatchWrapped: (wrapped return value kludge) correct number of elements in simple array, so change array and wrap");
                $change = true;
            }
            foreach ($typeDef['elements'] as $name => $attrs) {
                if ($change) {
                    $this->debug("in parametersMatchWrapped: change parameter $element to name $name");
                    $parameters[$name] = $parameters[$elements];
                    unset($parameters[$elements]);
                    $matches++;
                } elseif (isset($parameters[$name])) {
                    $this->debug("in parametersMatchWrapped: have parameter named $name");
                    $matches++;
                } else {
                    $this->debug("in parametersMatchWrapped: do not have parameter named $name");
                }
                $elements++;
            }

            $this->debug("in parametersMatchWrapped: $matches parameter names match $elements wrapped parameter names");
            if ($matches == 0) {
                return false;
            }
            return true;
        }

        // since there are no elements for the type, if the user passed no
        // parameters, the parameters match wrapped.
        $this->debug("in parametersMatchWrapped: no elements type $ns:$uqType");
        return count($parameters) == 0;
    }

Here is the call graph for this function:

parseWSDL()

wsdl::parseWSDL

(

$wsdl = ''

)

parses the wsdl document

Parameters

string

$wsdl

path or URL private

Definition at line 4817 of file nusoap.php.

References $data, $path, nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\getError(), and nusoap_base\setError().

    {
        $this->debug("parse WSDL at path=$wsdl");

        if ($wsdl == '') {
            $this->debug('no wsdl passed to parseWSDL()!!');
            $this->setError('no wsdl passed to parseWSDL()!!');
            return false;
        }

        // parse $wsdl for url format
        $wsdl_props = parse_url($wsdl);

        if (isset($wsdl_props['scheme']) && ($wsdl_props['scheme'] == 'http' || $wsdl_props['scheme'] == 'https')) {
            $this->debug('getting WSDL http(s) URL ' . $wsdl);
            // get wsdl
            $tr = new soap_transport_http($wsdl, $this->curl_options, $this->use_curl);
            $tr->request_method = 'GET';
            $tr->useSOAPAction = false;
            if ($this->proxyhost && $this->proxyport) {
                $tr->setProxy($this->proxyhost, $this->proxyport, $this->proxyusername, $this->proxypassword);
            }
            if ($this->authtype != '') {
                $tr->setCredentials($this->username, $this->password, $this->authtype, array(), $this->certRequest);
            }
            $tr->setEncoding('gzip, deflate');
            $wsdl_string = $tr->send('', $this->timeout, $this->response_timeout);
            //$this->debug("WSDL request\n" . $tr->outgoing_payload);
            //$this->debug("WSDL response\n" . $tr->incoming_payload);
            $this->appendDebug($tr->getDebug());
            // catch errors
            if ($err = $tr->getError()) {
                $errstr = 'HTTP ERROR: ' . $err;
                $this->debug($errstr);
                $this->setError($errstr);
                unset($tr);
                return false;
            }
            unset($tr);
            $this->debug("got WSDL URL");
        } else {
            // $wsdl is not http(s), so treat it as a file URL or plain file path
            if (isset($wsdl_props['scheme']) && ($wsdl_props['scheme'] == 'file') && isset($wsdl_props['path'])) {
                $path = isset($wsdl_props['host']) ? ($wsdl_props['host'] . ':' . $wsdl_props['path']) : $wsdl_props['path'];
            } else {
                $path = $wsdl;
            }
            $this->debug('getting WSDL file ' . $path);
            if ($fp = @fopen($path, 'r')) {
                $wsdl_string = '';
                while ($data = fread($fp, 32768)) {
                    $wsdl_string .= $data;
                }
                fclose($fp);
            } else {
                $errstr = "Bad path to WSDL file $path";
                $this->debug($errstr);
                $this->setError($errstr);
                return false;
            }
        }
        $this->debug('Parse WSDL');
        // end new code added
        // Create an XML parser.
        $this->parser = xml_parser_create();
        // Set the options for parsing the XML data.
        // xml_parser_set_option($parser, XML_OPTION_SKIP_WHITE, 1);
        xml_parser_set_option($this->parser, XML_OPTION_CASE_FOLDING, 0);
        // Set the object for the parser.
        xml_set_object($this->parser, $this);
        // Set the element handlers for the parser.
        xml_set_element_handler($this->parser, 'start_element', 'end_element');
        xml_set_character_data_handler($this->parser, 'character_data');
        // Parse the XML file.
        if (!xml_parse($this->parser, $wsdl_string, true)) {
            // Display an error message.
            $errstr = sprintf(
                'XML error parsing WSDL from %s on line %d: %s',
                $wsdl,
                xml_get_current_line_number($this->parser),
                xml_error_string(xml_get_error_code($this->parser))
            );
            $this->debug($errstr);
            $this->debug("XML payload:\n" . $wsdl_string);
            $this->setError($errstr);
            return false;
        }
        // free the parser
        xml_parser_free($this->parser);
        $this->debug('Parsing WSDL done');
        // catch wsdl parse errors
        if ($this->getError()) {
            return false;
        }
        return true;
    }

Here is the call graph for this function:

serialize()

wsdl::serialize

(

$debug = 0

)

serialize the parsed wsdl

Parameters

mixed

$debug

whether to put debug=1 in endpoint URL

Returns

string serialization of WSDL public

Definition at line 5512 of file nusoap.php.

References $_GET, $location, nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\getPrefix(), and nusoap_base\getPrefixFromNamespace().

Referenced by nusoap_server\service().

    {
        $xml = '<?xml version="1.0" encoding="ISO-8859-1"?>';
        $xml .= "\n<definitions";
        foreach ($this->namespaces as $k => $v) {
            $xml .= " xmlns:$k=\"$v\"";
        }
        // 10.9.02 - add poulter fix for wsdl and tns declarations
        if (isset($this->namespaces['wsdl'])) {
            $xml .= " xmlns=\"" . $this->namespaces['wsdl'] . "\"";
        }
        if (isset($this->namespaces['tns'])) {
            $xml .= " targetNamespace=\"" . $this->namespaces['tns'] . "\"";
        }
        $xml .= '>';
        // imports
        if (sizeof($this->import) > 0) {
            foreach ($this->import as $ns => $list) {
                foreach ($list as $ii) {
                    if ($ii['location'] != '') {
                        $xml .= '<import location="' . $ii['location'] . '" namespace="' . $ns . '" />';
                    } else {
                        $xml .= '<import namespace="' . $ns . '" />';
                    }
                }
            }
        }
        // types
        if (count($this->schemas)>=1) {
            $xml .= "\n<types>\n";
            foreach ($this->schemas as $ns => $list) {
                foreach ($list as $xs) {
                    $xml .= $xs->serializeSchema();
                }
            }
            $xml .= '</types>';
        }
        // messages
        if (count($this->messages) >= 1) {
            foreach ($this->messages as $msgName => $msgParts) {
                $xml .= "\n<message name=\"" . $msgName . '">';
                if (is_array($msgParts)) {
                    foreach ($msgParts as $partName => $partType) {
                        // print 'serializing '.$partType.', sv: '.$this->XMLSchemaVersion.'<br>';
                        if (strpos($partType, ':')) {
                            $typePrefix = $this->getPrefixFromNamespace($this->getPrefix($partType));
                        } elseif (isset($this->typemap[$this->namespaces['xsd']][$partType])) {
                            // print 'checking typemap: '.$this->XMLSchemaVersion.'<br>';
                            $typePrefix = 'xsd';
                        } else {
                            foreach ($this->typemap as $ns => $types) {
                                if (isset($types[$partType])) {
                                    $typePrefix = $this->getPrefixFromNamespace($ns);
                                }
                            }
                            if (!isset($typePrefix)) {
                                die("$partType has no namespace!");
                            }
                        }
                        $ns = $this->getNamespaceFromPrefix($typePrefix);
                        $localPart = $this->getLocalPart($partType);
                        $typeDef = $this->getTypeDef($localPart, $ns);
                        if (($typeDef['typeClass'] ?? '') == 'element') {
                            $elementortype = 'element';
                            if (substr($localPart, -1) == '^') {
                                $localPart = substr($localPart, 0, -1);
                            }
                        } else {
                            $elementortype = 'type';
                        }
                        $xml .= "\n" . '  <part name="' . $partName . '" ' . $elementortype . '="' . $typePrefix . ':' . $localPart . '" />';
                    }
                }
                $xml .= '</message>';
            }
        }
        // bindings & porttypes
        if (count($this->bindings) >= 1) {
            $binding_xml = '';
            $portType_xml = '';
            foreach ($this->bindings as $bindingName => $attrs) {
                $binding_xml .= "\n<binding name=\"" . $bindingName . '" type="tns:' . $attrs['portType'] . '">';
                $binding_xml .= "\n" . '  <soap:binding style="' . $attrs['style'] . '" transport="' . $attrs['transport'] . '"/>';
                $portType_xml .= "\n<portType name=\"" . $attrs['portType'] . '">';
                foreach ($attrs['operations'] as $opName => $opParts) {
                    $binding_xml .= "\n" . '  <operation name="' . $opName . '">';
                    $binding_xml .= "\n" . '    <soap:operation soapAction="' . $opParts['soapAction'] . '" style="' . $opParts['style'] . '"/>';
                    if (isset($opParts['input']['encodingStyle']) && $opParts['input']['encodingStyle'] != '') {
                        $enc_style = ' encodingStyle="' . $opParts['input']['encodingStyle'] . '"';
                    } else {
                        $enc_style = '';
                    }
                    $binding_xml .= "\n" . '    <input><soap:body use="' . $opParts['input']['use'] . '" namespace="' . $opParts['input']['namespace'] . '"' . $enc_style . '/></input>';
                    if (isset($opParts['output']['encodingStyle']) && $opParts['output']['encodingStyle'] != '') {
                        $enc_style = ' encodingStyle="' . $opParts['output']['encodingStyle'] . '"';
                    } else {
                        $enc_style = '';
                    }
                    $binding_xml .= "\n" . '    <output><soap:body use="' . $opParts['output']['use'] . '" namespace="' . $opParts['output']['namespace'] . '"' . $enc_style . '/></output>';
                    $binding_xml .= "\n" . '  </operation>';
                    $portType_xml .= "\n" . '  <operation name="' . $opParts['name'] . '"';
                    if (isset($opParts['parameterOrder'])) {
                        $portType_xml .= ' parameterOrder="' . $opParts['parameterOrder'] . '"';
                    }
                    $portType_xml .= '>';
                    if (isset($opParts['documentation']) && $opParts['documentation'] != '') {
                        $portType_xml .= "\n" . '    <documentation>' . htmlspecialchars($opParts['documentation']) . '</documentation>';
                    }
                    $portType_xml .= "\n" . '    <input message="tns:' . $opParts['input']['message'] . '"/>';
                    $portType_xml .= "\n" . '    <output message="tns:' . $opParts['output']['message'] . '"/>';
                    $portType_xml .= "\n" . '  </operation>';
                }
                $portType_xml .= "\n" . '</portType>';
                $binding_xml .= "\n" . '</binding>';
            }
            $xml .= $portType_xml . $binding_xml;
        }
        // services
        $xml .= "\n<service name=\"" . $this->serviceName . '">';
        $has_client = isset($_GET['client_id']);
        if (count($this->ports) >= 1) {
            foreach ($this->ports as $pName => $attrs) {
                $xml .= "\n" . '  <port name="' . $pName . '" binding="tns:' . $attrs['binding'] . '">';
                $locations = $attrs['location'];
                $locations = is_array($locations) ? $locations : [$locations];
                foreach ($locations as $location) {
                    $address = $location . ($debug || $has_client ? "?" : "")
                        . ($debug ? 'debug=1' : '') . ($debug && $has_client ? "&amp;" : "")
                        . ($has_client ? 'client_id=' . $_GET['client_id'] : '');
                    $xml .= "\n" . '    <soap:address location="' . $address . '"/>';
                }
                $xml .= "\n" . '  </port>';
            }
        }

        $xml .= "\n" . '</service>';
        return $xml . "\n</definitions>";
    }

Here is the call graph for this function:

Here is the caller graph for this function:

serializeComplexTypeAttributes()

wsdl::serializeComplexTypeAttributes	(		$typeDef,
			$value,
			$ns,
			$uqType
	)

serializes the attributes for a complexType

Parameters

array	$typeDef	our internal representation of an XML schema type (or element)
mixed	$value	a native PHP value (parameter value)
string	$ns	the namespace of the type
string	$uqType	the local part of the type

Returns

string value serialized as an XML string private

Definition at line 6231 of file nusoap.php.

References nusoap_base\debug(), nusoap_base\expandEntities(), nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), and nusoap_base\getPrefix().

    {
        $xml = '';
        if (isset($typeDef['attrs']) && is_array($typeDef['attrs'])) {
            $this->debug("serialize attributes for XML Schema type $ns:$uqType");
            if (is_array($value)) {
                $xvalue = $value;
            } elseif (is_object($value)) {
                $xvalue = get_object_vars($value);
            } else {
                $this->debug("value is neither an array nor an object for XML Schema type $ns:$uqType");
                $xvalue = array();
            }
            foreach ($typeDef['attrs'] as $aName => $attrs) {
                if (isset($xvalue['!' . $aName])) {
                    $xname = '!' . $aName;
                    $this->debug("value provided for attribute $aName with key $xname");
                } elseif (isset($xvalue[$aName])) {
                    $xname = $aName;
                    $this->debug("value provided for attribute $aName with key $xname");
                } elseif (isset($attrs['default'])) {
                    $xname = '!' . $aName;
                    $xvalue[$xname] = $attrs['default'];
                    $this->debug('use default value of ' . $xvalue[$aName] . ' for attribute ' . $aName);
                } else {
                    $xname = '';
                    $this->debug("no value provided for attribute $aName");
                }
                if ($xname) {
                    $xml .=  " $aName=\"" . $this->expandEntities($xvalue[$xname]) . "\"";
                }
            }
        } else {
            $this->debug("no attributes to serialize for XML Schema type $ns:$uqType");
        }
        if (isset($typeDef['extensionBase'])) {
            $ns = $this->getPrefix($typeDef['extensionBase']);
            $uqType = $this->getLocalPart($typeDef['extensionBase']);
            if ($this->getNamespaceFromPrefix($ns)) {
                $ns = $this->getNamespaceFromPrefix($ns);
            }
            if ($typeDef = $this->getTypeDef($uqType, $ns)) {
                $this->debug("serialize attributes for extension base $ns:$uqType");
                $xml .= $this->serializeComplexTypeAttributes($typeDef, $value, $ns, $uqType);
            } else {
                $this->debug("extension base $ns:$uqType is not a supported type");
            }
        }
        return $xml;
    }

Here is the call graph for this function:

serializeComplexTypeElements()

wsdl::serializeComplexTypeElements	(		$typeDef,
			$value,
			$ns,
			$uqType,
			$use = 'encoded',
			$encodingStyle = false
	)

serializes the elements for a complexType

Parameters

array	$typeDef	our internal representation of an XML schema type (or element)
mixed	$value	a native PHP value (parameter value)
string	$ns	the namespace of the type
string	$uqType	the local part of the type
string	$use	use for part (encoded|literal)
string	$encodingStyle	SOAP encoding style for the value (if different than the enclosing style)

Returns

string value serialized as an XML string private

Definition at line 6294 of file nusoap.php.

References nusoap_base\debug(), nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\getPrefix(), nusoap_base\isArraySimpleOrStruct(), and nusoap_base\serialize_val().

    {
        $xml = '';
        if (isset($typeDef['elements']) && is_array($typeDef['elements'])) {
            $this->debug("in serializeComplexTypeElements, serialize elements for XML Schema type $ns:$uqType");
            if (is_array($value)) {
                $xvalue = $value;
            } elseif (is_object($value)) {
                $xvalue = get_object_vars($value);
            } else {
                $this->debug("value is neither an array nor an object for XML Schema type $ns:$uqType");
                $xvalue = array();
            }
            // toggle whether all elements are present - ideally should validate against schema
            if (count($typeDef['elements']) != count($xvalue)) {
                $optionals = true;
            }
            foreach ($typeDef['elements'] as $eName => $attrs) {
                if (!isset($xvalue[$eName])) {
                    if (isset($attrs['default'])) {
                        $xvalue[$eName] = $attrs['default'];
                        $this->debug('use default value of ' . $xvalue[$eName] . ' for element ' . $eName);
                    }
                }
                // if user took advantage of a minOccurs=0, then only serialize named parameters
                if (isset($optionals)
                    && (!isset($xvalue[$eName]))
                    && ((!isset($attrs['nillable'])) || $attrs['nillable'] != 'true')
                ) {
                    if (isset($attrs['minOccurs']) && $attrs['minOccurs'] <> '0') {
                        $this->debug("apparent error: no value provided for element $eName with minOccurs=" . $attrs['minOccurs']);
                    }
                    // do nothing
                    $this->debug("no value provided for complexType element $eName and element is not nillable, so serialize nothing");
                } else {
                    // get value
                    if (isset($xvalue[$eName])) {
                        $v = $xvalue[$eName];
                    } else {
                        $v = null;
                    }
                    if (isset($attrs['form'])) {
                        $unqualified = ($attrs['form'] == 'unqualified');
                    } else {
                        $unqualified = false;
                    }
                    if (isset($attrs['maxOccurs']) && ($attrs['maxOccurs'] == 'unbounded' || $attrs['maxOccurs'] > 1) && isset($v) && is_array($v) && $this->isArraySimpleOrStruct($v) == 'arraySimple') {
                        $vv = $v;
                        foreach ($vv as $k => $v) {
                            if (isset($attrs['type']) || isset($attrs['ref'])) {
                                // serialize schema-defined type
                                $xml .= $this->serializeType($eName, isset($attrs['type']) ? $attrs['type'] : $attrs['ref'], $v, $use, $encodingStyle, $unqualified);
                            } else {
                                // serialize generic type (can this ever really happen?)
                                $this->debug("calling serialize_val() for $v, $eName, false, false, false, false, $use");
                                $xml .= $this->serialize_val($v, $eName, false, false, false, false, $use);
                            }
                        }
                    } else {
                        if (isset($attrs['type']) || isset($attrs['ref'])) {
                            // serialize schema-defined type
                            $xml .= $this->serializeType($eName, isset($attrs['type']) ? $attrs['type'] : $attrs['ref'], $v, $use, $encodingStyle, $unqualified);
                        } else {
                            // serialize generic type (can this ever really happen?)
                            $this->debug("calling serialize_val() for $v, $eName, false, false, false, false, $use");
                            $xml .= $this->serialize_val($v, $eName, false, false, false, false, $use);
                        }
                    }
                }
            }
        } else {
            $this->debug("no elements to serialize for XML Schema type $ns:$uqType");
        }
        if (isset($typeDef['extensionBase'])) {
            $ns = $this->getPrefix($typeDef['extensionBase']);
            $uqType = $this->getLocalPart($typeDef['extensionBase']);
            if ($this->getNamespaceFromPrefix($ns)) {
                $ns = $this->getNamespaceFromPrefix($ns);
            }
            if ($typeDef = $this->getTypeDef($uqType, $ns)) {
                $this->debug("serialize elements for extension base $ns:$uqType");
                $xml .= $this->serializeComplexTypeElements($typeDef, $value, $ns, $uqType, $use, $encodingStyle);
            } else {
                $this->debug("extension base $ns:$uqType is not a supported type");
            }
        }
        return $xml;
    }

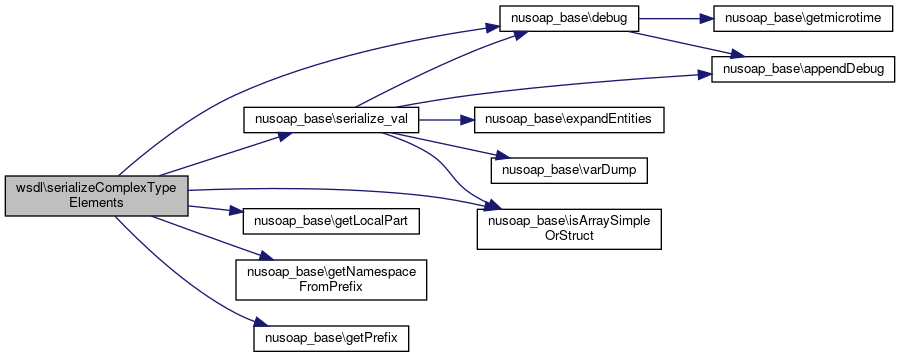

Here is the call graph for this function:

serializeParameters()

wsdl::serializeParameters	(		$operation,
			$direction,
			$parameters
	)

serialize a PHP value according to a WSDL message definition

TODO

• multi-ref serialization
• validate PHP values against type definitions, return errors if invalid

Parameters

string	$operation	operation name
string	$direction	(input|output)
mixed	$parameters	parameter value(s)

Returns

mixed parameters serialized as XML or false on error (e.g. operation not found) public

Deprecated:

Definition at line 5849 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\isArraySimpleOrStruct(), nusoap_base\setError(), and nusoap_base\varDump().

    {
        $this->debug("in serializeParameters: operation=$operation, direction=$direction, XMLSchemaVersion=$this->XMLSchemaVersion");
        $this->appendDebug('parameters=' . $this->varDump($parameters));

        if ($direction != 'input' && $direction != 'output') {
            $this->debug('The value of the \$direction argument needs to be either "input" or "output"');
            $this->setError('The value of the \$direction argument needs to be either "input" or "output"');
            return false;
        }
        if (!$opData = $this->getOperationData($operation)) {
            $this->debug('Unable to retrieve WSDL data for operation: ' . $operation);
            $this->setError('Unable to retrieve WSDL data for operation: ' . $operation);
            return false;
        }
        $this->debug('opData:');
        $this->appendDebug($this->varDump($opData));

        // Get encoding style for output and set to current
        $encodingStyle = 'http://schemas.xmlsoap.org/soap/encoding/';
        if (($direction == 'input') && isset($opData['output']['encodingStyle']) && ($opData['output']['encodingStyle'] != $encodingStyle)) {
            $encodingStyle = $opData['output']['encodingStyle'];
            $enc_style = $encodingStyle;
        }

        // set input params
        $xml = '';
        if (isset($opData[$direction]['parts']) && sizeof($opData[$direction]['parts']) > 0) {
            $use = $opData[$direction]['use'];
            $this->debug("use=$use");
            $this->debug('got ' . count($opData[$direction]['parts']) . ' part(s)');
            if (is_array($parameters)) {
                $parametersArrayType = $this->isArraySimpleOrStruct($parameters);
                $this->debug('have ' . $parametersArrayType . ' parameters');
                foreach ($opData[$direction]['parts'] as $name => $type) {
                    $this->debug('serializing part "' . $name . '" of type "' . $type . '"');
                    // Track encoding style
                    if (isset($opData[$direction]['encodingStyle']) && $encodingStyle != $opData[$direction]['encodingStyle']) {
                        $encodingStyle = $opData[$direction]['encodingStyle'];
                        $enc_style = $encodingStyle;
                    } else {
                        $enc_style = false;
                    }
                    // NOTE: add error handling here
                    // if serializeType returns false, then catch global error and fault
                    if ($parametersArrayType == 'arraySimple') {
                        $p = array_shift($parameters);
                        $this->debug('calling serializeType w/indexed param');
                        $xml .= $this->serializeType($name, $type, $p, $use, $enc_style);
                    } elseif (isset($parameters[$name])) {
                        $this->debug('calling serializeType w/named param');
                        $xml .= $this->serializeType($name, $type, $parameters[$name], $use, $enc_style);
                    } else {
                        // TODO: only send nillable
                        $this->debug('calling serializeType w/null param');
                        $xml .= $this->serializeType($name, $type, null, $use, $enc_style);
                    }
                }
            } else {
                $this->debug('no parameters passed.');
            }
        }
        $this->debug("serializeParameters returning: $xml");
        return $xml;
    }

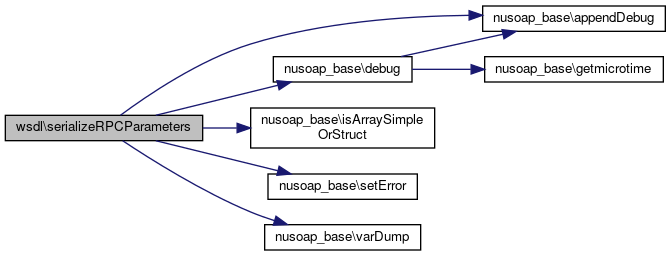

Here is the call graph for this function:

serializeRPCParameters()

wsdl::serializeRPCParameters	(		$operation,
			$direction,
			$parameters,
			$bindingType = 'soap'
	)

serialize PHP values according to a WSDL message definition contrary to the method name, this is not limited to RPC

TODO

• multi-ref serialization
• validate PHP values against type definitions, return errors if invalid

Parameters

string	$operation	operation name
string	$direction	(input|output)
mixed	$parameters	parameter value(s)
string	$bindingType	(soap|soap12)

Returns

mixed parameters serialized as XML or false on error (e.g. operation not found) public

Definition at line 5754 of file nusoap.php.

References $parts, nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\isArraySimpleOrStruct(), nusoap_base\setError(), and nusoap_base\varDump().

Referenced by nusoap_client\call(), and nusoap_server\serialize_return().

    {
        $this->debug("in serializeRPCParameters: operation=$operation, direction=$direction, XMLSchemaVersion=$this->XMLSchemaVersion, bindingType=$bindingType");
        $this->appendDebug('parameters=' . $this->varDump($parameters));

        if ($direction != 'input' && $direction != 'output') {
            $this->debug('The value of the \$direction argument needs to be either "input" or "output"');
            $this->setError('The value of the \$direction argument needs to be either "input" or "output"');
            return false;
        }
        if (!$opData = $this->getOperationData($operation, $bindingType)) {
            $this->debug('Unable to retrieve WSDL data for operation: ' . $operation . ' bindingType: ' . $bindingType);
            $this->setError('Unable to retrieve WSDL data for operation: ' . $operation . ' bindingType: ' . $bindingType);
            return false;
        }
        $this->debug('in serializeRPCParameters: opData:');
        $this->appendDebug($this->varDump($opData));

        // Get encoding style for output and set to current
        $encodingStyle = 'http://schemas.xmlsoap.org/soap/encoding/';
        if (($direction == 'input') && isset($opData['output']['encodingStyle']) && ($opData['output']['encodingStyle'] != $encodingStyle)) {
            $encodingStyle = $opData['output']['encodingStyle'];
            $enc_style = $encodingStyle;
        }

        // set input params
        $xml = '';
        if (isset($opData[$direction]['parts']) && sizeof($opData[$direction]['parts']) > 0) {
            $parts = &$opData[$direction]['parts'];
            $part_count = sizeof($parts);
            $style = $opData['style'];
            $use = $opData[$direction]['use'];
            $this->debug("have $part_count part(s) to serialize using $style/$use");
            if (is_array($parameters)) {
                $parametersArrayType = $this->isArraySimpleOrStruct($parameters);
                $parameter_count = count($parameters);
                $this->debug("have $parameter_count parameter(s) provided as $parametersArrayType to serialize");
                // check for Microsoft-style wrapped parameters
                if ($style == 'document' && $use == 'literal' && $part_count == 1 && isset($parts['parameters'])) {
                    $this->debug('check whether the caller has wrapped the parameters');
                    if ((($parametersArrayType == 'arrayStruct' || $parameter_count == 0) && !isset($parameters['parameters'])) || ($direction == 'output' && $parametersArrayType == 'arraySimple' && $parameter_count == 1)) {
                        $this->debug('check whether caller\'s parameters match the wrapped ones');
                        if ($this->parametersMatchWrapped($parts['parameters'], $parameters)) {
                            $this->debug('wrap the parameters for the caller');
                            $parameters = array('parameters' => $parameters);
                            $parameter_count = 1;
                        }
                    }
                }
                foreach ($parts as $name => $type) {
                    $this->debug("serializing part $name of type $type");
                    // Track encoding style
                    if (isset($opData[$direction]['encodingStyle']) && $encodingStyle != $opData[$direction]['encodingStyle']) {
                        $encodingStyle = $opData[$direction]['encodingStyle'];
                        $enc_style = $encodingStyle;
                    } else {
                        $enc_style = false;
                    }
                    // NOTE: add error handling here
                    // if serializeType returns false, then catch global error and fault
                    if ($parametersArrayType == 'arraySimple') {
                        $p = array_shift($parameters);
                        $this->debug('calling serializeType w/indexed param');
                        $xml .= $this->serializeType($name, $type, $p, $use, $enc_style);
                    } elseif (isset($parameters[$name])) {
                        $this->debug('calling serializeType w/named param');
                        $xml .= $this->serializeType($name, $type, $parameters[$name], $use, $enc_style);
                    } else {
                        // TODO: only send nillable
                        $this->debug('calling serializeType w/null param');
                        $xml .= $this->serializeType($name, $type, null, $use, $enc_style);
                    }
                }
            } else {
                $this->debug('no parameters passed.');
            }
        }
        $this->debug("serializeRPCParameters returning: $xml");
        return $xml;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

serializeType()

wsdl::serializeType	(		$name,
			$type,
			$value,
			$use = 'encoded',
			$encodingStyle = false,
			$unqualified = false
	)

serializes a PHP value according a given type definition

Parameters

string	$name	name of value (part or element)
string	$type	XML schema type of value (type or element)
mixed	$value	a native PHP value (parameter value)
string	$use	use for part (encoded|literal)
string	$encodingStyle	SOAP encoding style for the value (if different than the enclosing style)
boolean	$unqualified	a kludge for what should be XML namespace form handling

Returns

string value serialized as an XML string private

Definition at line 5927 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\expandEntities(), nusoap_base\getLocalPart(), nusoap_base\getNamespaceFromPrefix(), nusoap_base\getPrefix(), nusoap_base\getPrefixFromNamespace(), nusoap_base\serialize_val(), nusoap_base\setError(), and nusoap_base\varDump().

    {
        $this->debug("in serializeType: name=$name, type=$type, use=$use, encodingStyle=$encodingStyle, unqualified=" . ($unqualified ? "unqualified" : "qualified"));
        $this->appendDebug("value=" . $this->varDump($value));
        if ($use == 'encoded' && $encodingStyle) {
            $encodingStyle = ' SOAP-ENV:encodingStyle="' . $encodingStyle . '"';
        }

        // if a soapval has been supplied, let its type override the WSDL
        if (is_object($value) && get_class($value) == 'soapval') {
            if ($value->type_ns) {
                $type = $value->type_ns . ':' . $value->type;
                $forceType = true;
                $this->debug("in serializeType: soapval overrides type to $type");
            } elseif ($value->type) {
                $type = $value->type;
                $forceType = true;
                $this->debug("in serializeType: soapval overrides type to $type");
            } else {
                $forceType = false;
                $this->debug("in serializeType: soapval does not override type");
            }
            $attrs = $value->attributes;
            $value = $value->value;
            $this->debug("in serializeType: soapval overrides value to $value");
            if ($attrs) {
                if (!is_array($value)) {
                    $value['!'] = $value;
                }
                foreach ($attrs as $n => $v) {
                    $value['!' . $n] = $v;
                }
                $this->debug("in serializeType: soapval provides attributes");
            }
        } else {
            $forceType = false;
        }

        $xml = '';
        if (strpos($type, ':')) {
            $uqType = substr($type, strrpos($type, ':') + 1);
            $ns = substr($type, 0, strrpos($type, ':'));
            $this->debug("in serializeType: got a prefixed type: $uqType, $ns");
            if ($this->getNamespaceFromPrefix($ns)) {
                $ns = $this->getNamespaceFromPrefix($ns);
                $this->debug("in serializeType: expanded prefixed type: $uqType, $ns");
            }

            if ($ns == $this->XMLSchemaVersion || $ns == 'http://schemas.xmlsoap.org/soap/encoding/') {
                $this->debug('in serializeType: type namespace indicates XML Schema or SOAP Encoding type');
                if ($unqualified && $use == 'literal') {
                    $elementNS = " xmlns=\"\"";
                } else {
                    $elementNS = '';
                }
                if (is_null($value)) {
                    if ($use == 'literal') {
                        // TODO: depends on minOccurs
                        $xml = "<$name$elementNS/>";
                    } else {
                        // TODO: depends on nillable, which should be checked before calling this method
                        $xml = "<$name$elementNS xsi:nil=\"true\" xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\"/>";
                    }
                    $this->debug("in serializeType: returning: $xml");
                    return $xml;
                }
                if ($uqType == 'Array') {
                    // JBoss/Axis does this sometimes
                    return $this->serialize_val($value, $name, false, false, false, false, $use);
                }
                if ($uqType == 'boolean') {
                    if ((is_string($value) && $value == 'false') || (! $value)) {
                        $value = 'false';
                    } else {
                        $value = 'true';
                    }
                }
                if ($uqType == 'string' && gettype($value) == 'string') {
                    $value = $this->expandEntities($value);
                }
                if (($uqType == 'long' || $uqType == 'unsignedLong') && gettype($value) == 'double') {
                    $value = sprintf("%.0lf", $value);
                }
                // it's a scalar
                // TODO: what about null/nil values?
                // check type isn't a custom type extending xmlschema namespace
                if (!$this->getTypeDef($uqType, $ns)) {
                    if ($use == 'literal') {
                        if ($forceType) {
                            $xml = "<$name$elementNS xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\">$value</$name>";
                        } else {
                            $xml = "<$name$elementNS>$value</$name>";
                        }
                    } else {
                        $xml = "<$name$elementNS xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\"$encodingStyle>$value</$name>";
                    }
                    $this->debug("in serializeType: returning: $xml");
                    return $xml;
                }
                $this->debug('custom type extends XML Schema or SOAP Encoding namespace (yuck)');
            } elseif ($ns == 'http://xml.apache.org/xml-soap') {
                $this->debug('in serializeType: appears to be Apache SOAP type');
                if ($uqType == 'Map') {
                    $tt_prefix = $this->getPrefixFromNamespace('http://xml.apache.org/xml-soap');
                    if (! $tt_prefix) {
                        $this->debug('in serializeType: Add namespace for Apache SOAP type');
                        $tt_prefix = 'ns' . rand(1000, 9999);
                        $this->namespaces[$tt_prefix] = 'http://xml.apache.org/xml-soap';
                        // force this to be added to usedNamespaces
                        $tt_prefix = $this->getPrefixFromNamespace('http://xml.apache.org/xml-soap');
                    }
                    $contents = '';
                    foreach ($value as $k => $v) {
                        $this->debug("serializing map element: key $k, value $v");
                        $contents .= '<item>';
                        $contents .= $this->serialize_val($k, 'key', false, false, false, false, $use);
                        $contents .= $this->serialize_val($v, 'value', false, false, false, false, $use);
                        $contents .= '</item>';
                    }
                    if ($use == 'literal') {
                        if ($forceType) {
                            $xml = "<$name xsi:type=\"" . $tt_prefix . ":$uqType\">$contents</$name>";
                        } else {
                            $xml = "<$name>$contents</$name>";
                        }
                    } else {
                        $xml = "<$name xsi:type=\"" . $tt_prefix . ":$uqType\"$encodingStyle>$contents</$name>";
                    }
                    $this->debug("in serializeType: returning: $xml");
                    return $xml;
                }
                $this->debug('in serializeType: Apache SOAP type, but only support Map');
            }
        } else {
            // TODO: should the type be compared to types in XSD, and the namespace
            // set to XSD if the type matches?
            $this->debug("in serializeType: No namespace for type $type");
            $ns = '';
            $uqType = $type;
        }
        if (!$typeDef = $this->getTypeDef($uqType, $ns)) {
            $this->setError("$type ($uqType) is not a supported type.");
            $this->debug("in serializeType: $type ($uqType) is not a supported type.");
            return false;
        } else {
            $this->debug("in serializeType: found typeDef");
            $this->appendDebug('typeDef=' . $this->varDump($typeDef));
            if (substr($uqType, -1) == '^') {
                $uqType = substr($uqType, 0, -1);
            }
        }
        $phpType = $typeDef['phpType'];
        $this->debug("in serializeType: uqType: $uqType, ns: $ns, phptype: $phpType, arrayType: " . (isset($typeDef['arrayType']) ? $typeDef['arrayType'] : ''));
        // if php type == struct, map value to the <all> element names
        if ($phpType == 'struct') {
            if (isset($typeDef['typeClass']) && $typeDef['typeClass'] == 'element') {
                $elementName = $uqType;
                if (isset($typeDef['form']) && ($typeDef['form'] == 'qualified')) {
                    $elementNS = " xmlns=\"$ns\"";
                } else {
                    $elementNS = " xmlns=\"\"";
                }
            } else {
                $elementName = $name;
                if ($unqualified) {
                    $elementNS = " xmlns=\"\"";
                } else {
                    $elementNS = '';
                }
            }
            if (is_null($value)) {
                if ($use == 'literal') {
                    // TODO: depends on minOccurs
                    $xml = "<$elementName$elementNS/>";
                } else {
                    $xml = "<$elementName$elementNS xsi:nil=\"true\" xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\"/>";
                }
                $this->debug("in serializeType: returning: $xml");
                return $xml;
            }
            if (is_object($value)) {
                $value = get_object_vars($value);
            }
            if (is_array($value)) {
                $elementAttrs = $this->serializeComplexTypeAttributes($typeDef, $value, $ns, $uqType);
                if ($use == 'literal') {
                    if ($forceType) {
                        $xml = "<$elementName$elementNS$elementAttrs xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\">";
                    } else {
                        $xml = "<$elementName$elementNS$elementAttrs>";
                    }
                } else {
                    $xml = "<$elementName$elementNS$elementAttrs xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\"$encodingStyle>";
                }

                $xml .= $this->serializeComplexTypeElements($typeDef, $value, $ns, $uqType, $use, $encodingStyle);
                $xml .= "</$elementName>";
            } else {
                $this->debug("in serializeType: phpType is struct, but value is not an array");
                $this->setError("phpType is struct, but value is not an array: see debug output for details");
                $xml = '';
            }
        } elseif ($phpType == 'array') {
            if (isset($typeDef['form']) && ($typeDef['form'] == 'qualified')) {
                $elementNS = " xmlns=\"$ns\"";
            } else {
                if ($unqualified) {
                    $elementNS = " xmlns=\"\"";
                } else {
                    $elementNS = '';
                }
            }
            if (is_null($value)) {
                if ($use == 'literal') {
                    // TODO: depends on minOccurs
                    $xml = "<$name$elementNS/>";
                } else {
                    $xml = "<$name$elementNS xsi:nil=\"true\" xsi:type=\"" .
                        $this->getPrefixFromNamespace('http://schemas.xmlsoap.org/soap/encoding/') .
                        ":Array\" " .
                        $this->getPrefixFromNamespace('http://schemas.xmlsoap.org/soap/encoding/') .
                        ':arrayType="' .
                        $this->getPrefixFromNamespace($this->getPrefix($typeDef['arrayType'])) .
                        ':' .
                        $this->getLocalPart($typeDef['arrayType']) . "[0]\"/>";
                }
                $this->debug("in serializeType: returning: $xml");
                return $xml;
            }
            if (isset($typeDef['multidimensional'])) {
                $nv = array();
                foreach ($value as $v) {
                    $cols = ',' . sizeof($v);
                    $nv = array_merge($nv, $v);
                }
                $value = $nv;
            } else {
                $cols = '';
            }
            if (is_array($value) && sizeof($value) >= 1) {
                $rows = sizeof($value);
                $contents = '';
                foreach ($value as $k => $v) {
                    $this->debug("serializing array element: $k, $v of type: $typeDef[arrayType]");
                    //if (strpos($typeDef['arrayType'], ':') ) {
                    if (!in_array($typeDef['arrayType'], $this->typemap['http://www.w3.org/2001/XMLSchema'])) {
                        $contents .= $this->serializeType('item', $typeDef['arrayType'], $v, $use);
                    } else {
                        $contents .= $this->serialize_val($v, 'item', $typeDef['arrayType'], null, $this->XMLSchemaVersion, false, $use);
                    }
                }
            } else {
                $rows = 0;
                $contents = null;
            }
            // TODO: for now, an empty value will be serialized as a zero element
            // array.  Revisit this when coding the handling of null/nil values.
            if ($use == 'literal') {
                $xml = "<$name$elementNS>"
                    . $contents
                    . "</$name>";
            } else {
                $xml = "<$name$elementNS xsi:type=\"" . $this->getPrefixFromNamespace('http://schemas.xmlsoap.org/soap/encoding/') . ':Array" ' .
                    $this->getPrefixFromNamespace('http://schemas.xmlsoap.org/soap/encoding/')
                    . ':arrayType="'
                    . $this->getPrefixFromNamespace($this->getPrefix($typeDef['arrayType']))
                    . ":" . $this->getLocalPart($typeDef['arrayType']) . "[$rows$cols]\">"
                    . $contents
                    . "</$name>";
            }
        } elseif ($phpType == 'scalar') {
            if (isset($typeDef['form']) && ($typeDef['form'] == 'qualified')) {
                $elementNS = " xmlns=\"$ns\"";
            } else {
                if ($unqualified) {
                    $elementNS = " xmlns=\"\"";
                } else {
                    $elementNS = '';
                }
            }
            if ($use == 'literal') {
                if ($forceType) {
                    $xml = "<$name$elementNS xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\">$value</$name>";
                } else {
                    $xml = "<$name$elementNS>$value</$name>";
                }
            } else {
                $xml = "<$name$elementNS xsi:type=\"" . $this->getPrefixFromNamespace($ns) . ":$uqType\"$encodingStyle>$value</$name>";
            }
        }
        $this->debug("in serializeType: returning: $xml");
        return $xml;
    }

Here is the call graph for this function:

setCredentials()

wsdl::setCredentials	(		$username,
			$password,
			$authtype = 'basic',
			$certRequest = array()
	)

if authenticating, set user credentials here

Parameters

string	$username
string	$password
string	$authtype	(basic|digest|certificate|ntlm)
array	$certRequest	(keys must be cainfofile (optional), sslcertfile, sslkeyfile, passphrase, certpassword (optional), verifypeer (optional), verifyhost (optional): see corresponding options in cURL docs) public

Definition at line 5186 of file nusoap.php.

References nusoap_base\appendDebug(), nusoap_base\debug(), and nusoap_base\varDump().

Referenced by nusoap_client\loadWSDL().

    {
        $this->debug("setCredentials username=$username authtype=$authtype certRequest=");
        $this->appendDebug($this->varDump($certRequest));
        $this->username = $username;
        $this->password = $password;
        $this->authtype = $authtype;
        $this->certRequest = $certRequest;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

start_element()

wsdl::start_element	(		$parser,
			$name,
			$attrs
	)

start-element handler

Parameters

string	$parser	XML parser object
string	$name	element name
string	$attrs	associative array of attributes private

Definition at line 4922 of file nusoap.php.

References $namespace, nusoap_base\appendDebug(), nusoap_base\debug(), nusoap_base\expandQname(), nusoap_base\getLocalPart(), and nusoap_base\getPrefixFromNamespace().

    {
        if ($this->status == 'schema') {
            $this->currentSchema->schemaStartElement($parser, $name, $attrs);
            $this->appendDebug($this->currentSchema->getDebug());
            $this->currentSchema->clearDebug();
        } elseif (preg_match('/schema$/', $name)) {
            $this->debug('Parsing WSDL schema');
            // $this->debug("startElement for $name ($attrs[name]). status = $this->status (".$this->getLocalPart($name).")");
            $this->status = 'schema';
            $this->currentSchema = new nusoap_xmlschema('', '', $this->namespaces);
            $this->currentSchema->schemaStartElement($parser, $name, $attrs);
            $this->appendDebug($this->currentSchema->getDebug());
            $this->currentSchema->clearDebug();
        } else {
            // position in the total number of elements, starting from 0
            $pos = $this->position++;
            $depth = $this->depth++;
            // set self as current value for this depth
            $this->depth_array[$depth] = $pos;
            $this->message[$pos] = array('cdata' => '');
            // process attributes
            if (count($attrs) > 0) {
                // register namespace declarations
                foreach ($attrs as $k => $v) {
                    if (preg_match('/^xmlns/', $k)) {
                        if ($ns_prefix = substr(strrchr($k, ':'), 1)) {
                            $this->namespaces[$ns_prefix] = $v;
                        } else {
                            $this->namespaces['ns' . (count($this->namespaces) + 1)] = $v;
                        }
                        if ($v == 'http://www.w3.org/2001/XMLSchema' || $v == 'http://www.w3.org/1999/XMLSchema' || $v == 'http://www.w3.org/2000/10/XMLSchema') {
                            $this->XMLSchemaVersion = $v;
                            $this->namespaces['xsi'] = $v . '-instance';
                        }
                    }
                }
                // expand each attribute prefix to its namespace
                foreach ($attrs as $k => $v) {
                    $k = strpos($k, ':') ? $this->expandQname($k) : $k;
                    if ($k != 'location' && $k != 'soapAction' && $k != 'namespace') {
                        $v = strpos($v, ':') ? $this->expandQname($v) : $v;
                    }
                    $eAttrs[$k] = $v;
                }
                $attrs = $eAttrs;
            } else {
                $attrs = array();
            }
            // get element prefix, namespace and name
            if (preg_match('/:/', $name)) {
                // get ns prefix
                $prefix = substr($name, 0, strpos($name, ':'));
                // get ns
                $namespace = isset($this->namespaces[$prefix]) ? $this->namespaces[$prefix] : '';
                // get unqualified name
                $name = substr(strstr($name, ':'), 1);
            }
            // process attributes, expanding any prefixes to namespaces
            // find status, register data
            switch ($this->status) {
                case 'message':
                    if ($name == 'part') {
                        if (isset($attrs['type'])) {
                            $this->debug("msg " . $this->currentMessage . ": found part (with type) $attrs[name]: " . implode(',', $attrs));
                            $this->messages[$this->currentMessage][$attrs['name']] = $attrs['type'];
                        }
                        if (isset($attrs['element'])) {
                            $this->debug("msg " . $this->currentMessage . ": found part (with element) $attrs[name]: " . implode(',', $attrs));
                            $this->messages[$this->currentMessage][$attrs['name']] = $attrs['element'] . '^';
                        }
                    }
                    break;
                case 'portType':
                    switch ($name) {
                        case 'operation':
                            $this->currentPortOperation = $attrs['name'];
                            $this->debug("portType $this->currentPortType operation: $this->currentPortOperation");
                            if (isset($attrs['parameterOrder'])) {
                                $this->portTypes[$this->currentPortType][$attrs['name']]['parameterOrder'] = $attrs['parameterOrder'];
                            }
                            break;
                        case 'documentation':
                            $this->documentation = true;
                            break;
                            // merge input/output data
                        default:
                            $m = isset($attrs['message']) ? $this->getLocalPart($attrs['message']) : '';
                            $this->portTypes[$this->currentPortType][$this->currentPortOperation][$name]['message'] = $m;
                            break;
                    }
                    break;
                case 'binding':
                    switch ($name) {
                        case 'binding':
                            // get ns prefix
                            if (isset($attrs['style'])) {
                                $this->bindings[$this->currentBinding]['prefix'] = $prefix;
                            }
                            $this->bindings[$this->currentBinding] = array_merge($this->bindings[$this->currentBinding], $attrs);
                            break;
                        case 'header':
                            $this->bindings[$this->currentBinding]['operations'][$this->currentOperation][$this->opStatus]['headers'][] = $attrs;
                            break;
                        case 'operation':
                            if (isset($attrs['soapAction'])) {
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation]['soapAction'] = $attrs['soapAction'];
                            }
                            if (isset($attrs['style'])) {
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation]['style'] = $attrs['style'];
                            }
                            if (isset($attrs['name'])) {
                                $this->currentOperation = $attrs['name'];
                                $this->debug("current binding operation: $this->currentOperation");
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation]['name'] = $attrs['name'];
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation]['binding'] = $this->currentBinding;
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation]['endpoint'] = isset($this->bindings[$this->currentBinding]['endpoint']) ? $this->bindings[$this->currentBinding]['endpoint'] : '';
                            }
                            break;
                        case 'input':
                            $this->opStatus = 'input';
                            break;
                        case 'output':
                            $this->opStatus = 'output';
                            break;
                        case 'body':
                            if (isset($this->bindings[$this->currentBinding]['operations'][$this->currentOperation][$this->opStatus])) {
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation][$this->opStatus] = array_merge($this->bindings[$this->currentBinding]['operations'][$this->currentOperation][$this->opStatus], $attrs);
                            } else {
                                $this->bindings[$this->currentBinding]['operations'][$this->currentOperation][$this->opStatus] = $attrs;
                            }
                            break;
                    }
                    break;
                case 'service':
                    switch ($name) {
                        case 'port':
                            $this->currentPort = $attrs['name'];
                            $this->debug('current port: ' . $this->currentPort);
                            $this->ports[$this->currentPort]['binding'] = $this->getLocalPart($attrs['binding']);

                            break;
                        case 'address':
                            $this->ports[$this->currentPort]['location'] = $attrs['location'];
                            $this->ports[$this->currentPort]['bindingType'] = $namespace;
                            $this->bindings[ $this->ports[$this->currentPort]['binding'] ]['bindingType'] = $namespace;
                            $this->bindings[ $this->ports[$this->currentPort]['binding'] ]['endpoint'] = $attrs['location'];
                            break;
                    }
                    break;
            }
            // set status
            switch ($name) {
                case 'import':
                    if (isset($attrs['location'])) {
                        $this->import[$attrs['namespace']][] = array('location' => $attrs['location'], 'loaded' => false);
                        $this->debug('parsing import ' . $attrs['namespace'] . ' - ' . $attrs['location'] . ' (' . count($this->import[$attrs['namespace']]) . ')');
                    } else {
                        $this->import[$attrs['namespace']][] = array('location' => '', 'loaded' => true);
                        if (! $this->getPrefixFromNamespace($attrs['namespace'])) {
                            $this->namespaces['ns' . (count($this->namespaces)+1)] = $attrs['namespace'];
                        }
                        $this->debug('parsing import ' . $attrs['namespace'] . ' - [no location] (' . count($this->import[$attrs['namespace']]) . ')');
                    }
                    break;
                    //wait for schema
                    //case 'types':
                    //  $this->status = 'schema';
                    //  break;
                case 'message':
                    $this->status = 'message';
                    $this->messages[$attrs['name']] = array();
                    $this->currentMessage = $attrs['name'];
                    break;
                case 'portType':
                    $this->status = 'portType';
                    $this->portTypes[$attrs['name']] = array();
                    $this->currentPortType = $attrs['name'];
                    break;
                case "binding":
                    if (isset($attrs['name'])) {
                        // get binding name
                        if (strpos($attrs['name'], ':')) {
                            $this->currentBinding = $this->getLocalPart($attrs['name']);
                        } else {
                            $this->currentBinding = $attrs['name'];
                        }
                        $this->status = 'binding';
                        $this->bindings[$this->currentBinding]['portType'] = $this->getLocalPart($attrs['type']);
                        $this->debug("current binding: $this->currentBinding of portType: " . $attrs['type']);
                    }
                    break;
                case 'service':
                    $this->serviceName = $attrs['name'];
                    $this->status = 'service';
                    $this->debug('current service: ' . $this->serviceName);
                    break;
                case 'definitions':
                    foreach ($attrs as $name => $value) {
                        $this->wsdl_info[$name] = $value;
                    }
                    break;
            }
        }
    }

Here is the call graph for this function:

webDescription()

wsdl::webDescription

(

)

prints html description of services

private

Definition at line 5370 of file nusoap.php.

References $_SERVER, Vendor\Package\$b, $data, and nusoap_base\setError().

Referenced by nusoap_server\service().

    {
        global $HTTP_SERVER_VARS;

        if (isset($_SERVER)) {
            $PHP_SELF = $_SERVER['PHP_SELF'];
        } elseif (isset($HTTP_SERVER_VARS)) {
            $PHP_SELF = $HTTP_SERVER_VARS['PHP_SELF'];
        } else {
            $this->setError("Neither _SERVER nor HTTP_SERVER_VARS is available");
        }
        // begin-patch: https://mantis.ilias.de/view.php?id=28866
        $PHP_SELF = htmlspecialchars($PHP_SELF, ENT_QUOTES | ENT_HTML5, 'UTF-8');
        // end-patch

        $b = '
                <html><head><title>NuSOAP: ' . $this->serviceName . '</title>
                <style type="text/css">
                    body    { font-family: arial; color: #000000; background-color: #ffffff; margin: 0px 0px 0px 0px; }
                    p       { font-family: arial; color: #000000; margin-top: 0px; margin-bottom: 12px; }
                    pre { background-color: silver; padding: 5px; font-family: Courier New; font-size: x-small; color: #000000;}
                    ul      { margin-top: 10px; margin-left: 20px; }
                    li      { list-style-type: none; margin-top: 10px; color: #000000; }
                    .content{
                        margin-left: 0px; padding-bottom: 2em; }
                    .nav {
                        padding-top: 10px; padding-bottom: 10px; padding-left: 15px; font-size: .70em;
                        margin-top: 10px; margin-left: 0px; color: #000000;
                        background-color: #ccccff; width: 20%; margin-left: 20px; margin-top: 20px; }
                    .title {
                        font-family: arial; font-size: 26px; color: #ffffff;
                        background-color: #999999; width: 105%; margin-left: 0px;
                        padding-top: 10px; padding-bottom: 10px; padding-left: 15px;}
                    .hidden {
                        position: absolute; visibility: hidden; z-index: 200; left: 250px; top: 100px;
                        font-family: arial; overflow: hidden; width: 600;
                        padding: 20px; font-size: 10px; background-color: #999999;
                        layer-background-color:#FFFFFF; }
                    a,a:active  { color: charcoal; font-weight: bold; }
                    a:visited   { color: #666666; font-weight: bold; }
                    a:hover     { color: cc3300; font-weight: bold; }
                </style>
                <script language="JavaScript" type="text/javascript">
                <!--
                // POP-UP CAPTIONS...
                function lib_bwcheck(){ //Browsercheck (needed)
                    this.ver=navigator.appVersion
                    this.agent=navigator.userAgent
                    this.dom=document.getElementById?1:0
                    this.opera5=this.agent.indexOf("Opera 5")>-1
                    this.ie5=(this.ver.indexOf("MSIE 5")>-1 && this.dom && !this.opera5)?1:0;
                    this.ie6=(this.ver.indexOf("MSIE 6")>-1 && this.dom && !this.opera5)?1:0;
                    this.ie4=(document.all && !this.dom && !this.opera5)?1:0;
                    this.ie=this.ie4||this.ie5||this.ie6
                    this.mac=this.agent.indexOf("Mac")>-1
                    this.ns6=(this.dom && parseInt(this.ver) >= 5) ?1:0;
                    this.ns4=(document.layers && !this.dom)?1:0;
                    this.bw=(this.ie6 || this.ie5 || this.ie4 || this.ns4 || this.ns6 || this.opera5)
                    return this
                }
                var bw = new lib_bwcheck()
                //Makes crossbrowser object.
                function makeObj(obj){
                    this.evnt=bw.dom? document.getElementById(obj):bw.ie4?document.all[obj]:bw.ns4?document.layers[obj]:0;
                    if(!this.evnt) return false
                    this.css=bw.dom||bw.ie4?this.evnt.style:bw.ns4?this.evnt:0;
                    this.wref=bw.dom||bw.ie4?this.evnt:bw.ns4?this.css.document:0;
                    this.writeIt=b_writeIt;
                    return this
                }
                // A unit of measure that will be added when setting the position of a layer.
                //var px = bw.ns4||window.opera?"":"px";
                function b_writeIt(text){
                    if (bw.ns4){this.wref.write(text);this.wref.close()}
                    else this.wref.innerHTML = text
                }
                //Shows the messages
                var oDesc;
                function popup(divid){
                    if(oDesc = new makeObj(divid)){
                        oDesc.css.visibility = "visible"
                    }
                }
                function popout(){ // Hides message
                    if(oDesc) oDesc.css.visibility = "hidden"
                }
                //-->
                </script>
                </head>
                <body>
                <div class=content>
                        <br><br>
                        <div class=title>' . $this->serviceName . '</div>
                        <div class=nav>
                                <p>View the <a href="' . $PHP_SELF . '?wsdl">WSDL</a> for the service.
                                Click on an operation name to view it&apos;s details.</p>
                                <ul>';
        foreach ($this->getOperations() as $op => $data) {
            // begin-patch: https://mantis.ilias.de/view.php?id=28866
            if (isset($data['endpoint'])) {
                $data['endpoint'] = htmlspecialchars($data['endpoint'], ENT_QUOTES | ENT_HTML5, 'UTF-8');
            }
            // end-patch
            $b .= "<li><a href='#' onclick=\"popout();popup('$op')\">$op</a></li>";
            // create hidden div
            $b .= "<div id='$op' class='hidden'>
                                    <a href='#' onclick='popout()'><font color='#ffffff'>Close</font></a><br><br>";
            foreach ($data as $donnie => $marie) { // loop through opdata
                if ($donnie == 'input' || $donnie == 'output') { // show input/output data
                    $b .= "<font color='white'>" . ucfirst($donnie) . ':</font><br>';
                    foreach ($marie as $captain => $tenille) { // loop through data
                        if ($captain == 'parts') { // loop thru parts
                            $b .= "&nbsp;&nbsp;$captain:<br>";
                            //if(is_array($tenille)){
                            foreach ($tenille as $joanie => $chachi) {
                                $b .= "&nbsp;&nbsp;&nbsp;&nbsp;$joanie: $chachi<br>";
                            }
                            //}
                        } else {
                            $b .= "&nbsp;&nbsp;$captain: $tenille<br>";
                        }
                    }
                } else {
                    $b .= "<font color='white'>" . ucfirst($donnie) . ":</font> $marie<br>";
                }
            }
            $b .= '</div>';
        }
        $b .= '
                                <ul>
                        </div>
                </div></body></html>';
        return $b;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

$authtype

wsdl::$authtype = ''

Definition at line 4674 of file nusoap.php.

$bindings

wsdl::$bindings = array()

Definition at line 4647 of file nusoap.php.

$certRequest

wsdl::$certRequest = array()

Definition at line 4675 of file nusoap.php.

$complexTypes

wsdl::$complexTypes = array()

Definition at line 4641 of file nusoap.php.

$curl_options

wsdl::$curl_options = array()

Definition at line 4669 of file nusoap.php.

$currentBinding

wsdl::$currentBinding

Definition at line 4648 of file nusoap.php.

$currentMessage

wsdl::$currentMessage

Definition at line 4643 of file nusoap.php.

$currentOperation

wsdl::$currentOperation

Definition at line 4644 of file nusoap.php.

$currentPort

wsdl::$currentPort

Definition at line 4650 of file nusoap.php.

$currentPortOperation

wsdl::$currentPortOperation

Definition at line 4635 of file nusoap.php.

$currentPortType

wsdl::$currentPortType

Definition at line 4646 of file nusoap.php.

$currentSchema

wsdl::$currentSchema

Definition at line 4639 of file nusoap.php.

$depth

wsdl::$depth = 0

Definition at line 4660 of file nusoap.php.

$depth_array

wsdl::$depth_array = array()

Definition at line 4661 of file nusoap.php.

$documentation

wsdl::$documentation = false

Definition at line 4653 of file nusoap.php.

$endpoint

wsdl::$endpoint = ''

Definition at line 4654 of file nusoap.php.

$import

wsdl::$import = array()

Definition at line 4656 of file nusoap.php.

$message

wsdl::$message = array()

Definition at line 4640 of file nusoap.php.

$messages

wsdl::$messages = array()

Definition at line 4642 of file nusoap.php.

$opData

wsdl::$opData = array()

Definition at line 4651 of file nusoap.php.

$opStatus

wsdl::$opStatus

Definition at line 4634 of file nusoap.php.

$parser

wsdl::$parser

Definition at line 4658 of file nusoap.php.

$password

wsdl::$password = ''

Definition at line 4673 of file nusoap.php.

$ports

wsdl::$ports = array()

Definition at line 4649 of file nusoap.php.

$portTypes

wsdl::$portTypes = array()

Definition at line 4645 of file nusoap.php.

$position

wsdl::$position = 0

Definition at line 4659 of file nusoap.php.

$proxyhost

wsdl::$proxyhost = ''

Definition at line 4663 of file nusoap.php.

$proxypassword

wsdl::$proxypassword = ''

Definition at line 4666 of file nusoap.php.

$proxyport

wsdl::$proxyport = ''

Definition at line 4664 of file nusoap.php.

$proxyusername

wsdl::$proxyusername = ''

Definition at line 4665 of file nusoap.php.

$response_timeout

wsdl::$response_timeout = 30

Definition at line 4668 of file nusoap.php.

$schemas

wsdl::$schemas = array()

Definition at line 4638 of file nusoap.php.

$serviceName

wsdl::$serviceName

Definition at line 4633 of file nusoap.php.

$status

wsdl::$status = ''

Definition at line 4652 of file nusoap.php.

$timeout

wsdl::$timeout = 0

Definition at line 4667 of file nusoap.php.

$use_curl

wsdl::$use_curl = false

Definition at line 4670 of file nusoap.php.

$username

wsdl::$username = ''

Definition at line 4672 of file nusoap.php.

$wsdl

wsdl::$wsdl

Definition at line 4636 of file nusoap.php.

---

The documentation for this class was generated from the following file:

• components/ILIAS/soap/lib/nusoap.php
