TCPDFBarcode Class Reference

PHP class to creates array representations for common 1D barcodes to be used with TCPDF (http://www.tcpdf.org). More...

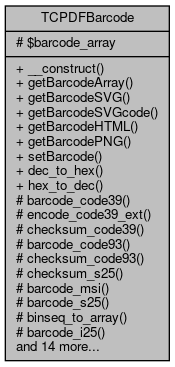

+ Collaboration diagram for TCPDFBarcode:

Public Member Functions

 __construct ($code, $type)
 This is the class constructor. More...

 getBarcodeArray ()
 Return an array representations of barcode. More...

 getBarcodeSVG ($w=2, $h=30, $color='black')
 Send barcode as SVG image object to the standard output. More...

 getBarcodeSVGcode ($w=2, $h=30, $color='black')
 Return a SVG string representation of barcode. More...

 getBarcodeHTML ($w=2, $h=30, $color='black')
 Return an HTML representation of barcode. More...

 getBarcodePNG ($w=2, $h=30, $color=array(0, 0, 0))
 Return a PNG image representation of barcode (requires GD or Imagick library). More...

 setBarcode ($code, $type)
 Set the barcode. More...

 dec_to_hex ($number)
 Convert large integer number to hexadecimal representation. More...

 hex_to_dec ($hex)
 Convert large hexadecimal number to decimal representation (string). More...


Protected Member Functions

 barcode_code39 ($code, $extended=false, $checksum=false)
 CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9. More...

 encode_code39_ext ($code)
 Encode a string to be used for CODE 39 Extended mode. More...

 checksum_code39 ($code)
 Calculate CODE 39 checksum (modulo 43). More...

 barcode_code93 ($code)
 CODE 93 - USS-93 Compact code similar to Code 39. More...

 checksum_code93 ($code)
 Calculate CODE 93 checksum (modulo 47). More...

 checksum_s25 ($code)
 Checksum for standard 2 of 5 barcodes. More...

 barcode_msi ($code, $checksum=false)
 MSI. More...

 barcode_s25 ($code, $checksum=false)
 Standard 2 of 5 barcodes. More...

 binseq_to_array ($seq, $bararray)
 Convert binary barcode sequence to TCPDF barcode array. More...

 barcode_i25 ($code, $checksum=false)
 Interleaved 2 of 5 barcodes. More...

 barcode_c128 ($code, $type='')
 C128 barcodes. More...

 get128ABsequence ($code)
 Split text code in A/B sequence for 128 code. More...

 barcode_eanupc ($code, $len=13)
 EAN13 and UPC-A barcodes. More...

 barcode_eanext ($code, $len=5)
 UPC-Based Extentions 2-Digit Ext. More...

 barcode_postnet ($code, $planet=false)
 POSTNET and PLANET barcodes. More...

 barcode_rms4cc ($code, $kix=false)
 RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant index - Customer index) RM4SCC is the name of the barcode symbology used by the Royal Mail for its Cleanmail service. More...

 barcode_codabar ($code)
 CODABAR barcodes. More...

 barcode_code11 ($code)
 CODE11 barcodes. More...

 barcode_pharmacode ($code)
 Pharmacode Contains digits (0 to 9) More...

 barcode_pharmacode2t ($code)
 Pharmacode two-track Contains digits (0 to 9) More...

 barcode_imb ($code)
 IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Mail barcode is a 65-bar code for use on mail in the United States. More...

 imb_crc11fcs ($code_arr)
 Intelligent Mail Barcode calculation of Frame Check Sequence. More...

 imb_reverse_us ($num)
 Reverse unsigned short value. More...

 imb_tables ($n, $size)
 generate Nof13 tables used for Intelligent Mail Barcode More...


Protected Attributes

 $barcode_array
 Array representation of barcode. More...


Detailed Description

PHP class to creates array representations for common 1D barcodes to be used with TCPDF (http://www.tcpdf.org).


Definition at line 50 of file tcpdf_barcodes_1d.php.

Constructor & Destructor Documentation

◆ __construct()

TCPDFBarcode::__construct (   $code,
  $type
)

This is the class constructor.

Return an array representations for common 1D barcodes:

  • $arrcode['code'] code to be printed on text label
  • $arrcode['maxh'] max barcode height
  • $arrcode['maxw'] max barcode width
  • $arrcode['bcode'][$k] single bar or space in $k position
  • $arrcode['bcode'][$k]['t'] bar type: true = bar, false = space.
  • $arrcode['bcode'][$k]['w'] bar width in units.
  • $arrcode['bcode'][$k]['h'] bar height in units.
  • $arrcode['bcode'][$k]['p'] bar top position (0 = top, 1 = middle)
Parameters
$code(string) code to print
$type(string) type of barcode:
  • C39 : CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
  • C39+ : CODE 39 with checksum
  • C39E : CODE 39 EXTENDED
  • C39E+ : CODE 39 EXTENDED + CHECKSUM
  • C93 : CODE 93 - USS-93
  • S25 : Standard 2 of 5
  • S25+ : Standard 2 of 5 + CHECKSUM
  • I25 : Interleaved 2 of 5
  • I25+ : Interleaved 2 of 5 + CHECKSUM
  • C128 : CODE 128
  • C128A : CODE 128 A
  • C128B : CODE 128 B
  • C128C : CODE 128 C
  • EAN2 : 2-Digits UPC-Based Extention
  • EAN5 : 5-Digits UPC-Based Extention
  • EAN8 : EAN 8
  • EAN13 : EAN 13
  • UPCA : UPC-A
  • UPCE : UPC-E
  • MSI : MSI (Variation of Plessey code)
  • MSI+ : MSI + CHECKSUM (modulo 11)
  • POSTNET : POSTNET
  • PLANET : PLANET
  • RMS4CC : RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
  • KIX : KIX (Klant index - Customer index)
  • IMB: Intelligent Mail Barcode - Onecode - USPS-B-3200
  • CODABAR : CODABAR
  • CODE11 : CODE 11
  • PHARMA : PHARMACODE
  • PHARMA2T : PHARMACODE TWO-TRACKS

Definition at line 73 of file tcpdf_barcodes_1d.php.

References setBarcode().

73  {
74  $this->setBarcode($code, $type);
75  }
TCPDFBarcode\setBarcode
setBarcode($code, $type)
Set the barcode.
Definition: tcpdf_barcodes_1d.php:233

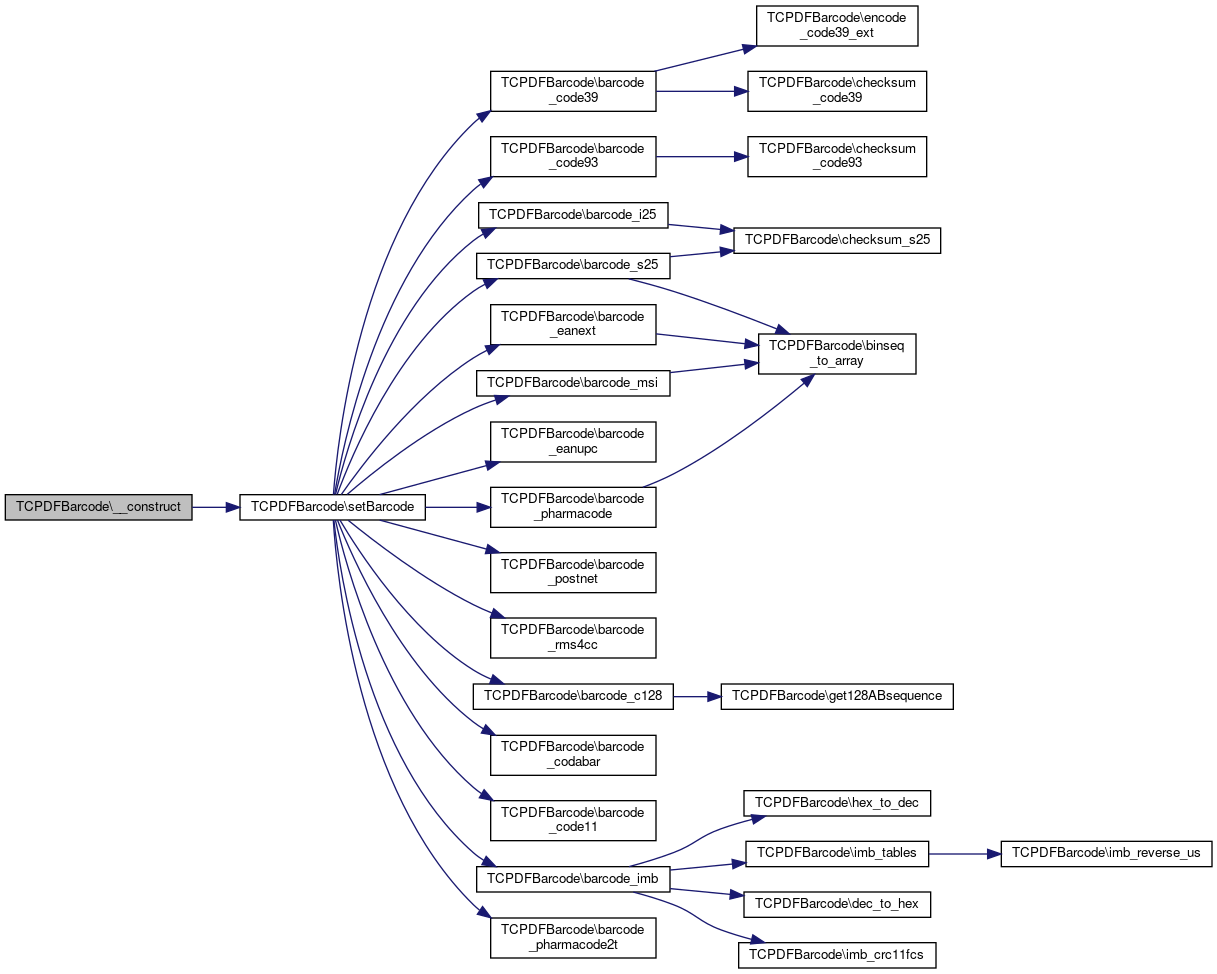

+ Here is the call graph for this function:

Member Function Documentation

◆ barcode_c128()

TCPDFBarcode::barcode_c128 (   $code,
  $type = ''
)
protected

C128 barcodes.

Very capable code, excellent density, high reliability; in very wide use world-wide

Parameters
$code(string) code to represent.
$type(string) barcode type: A, B, C or empty for automatic switch (AUTO mode)
Returns
array barcode representation.

Definition at line 938 of file tcpdf_barcodes_1d.php.

References $t, and get128ABsequence().

Referenced by setBarcode().

938  {
939  $chr = array(
940  '212222', /* 00 */
941  '222122', /* 01 */
942  '222221', /* 02 */
943  '121223', /* 03 */
944  '121322', /* 04 */
945  '131222', /* 05 */
946  '122213', /* 06 */
947  '122312', /* 07 */
948  '132212', /* 08 */
949  '221213', /* 09 */
950  '221312', /* 10 */
951  '231212', /* 11 */
952  '112232', /* 12 */
953  '122132', /* 13 */
954  '122231', /* 14 */
955  '113222', /* 15 */
956  '123122', /* 16 */
957  '123221', /* 17 */
958  '223211', /* 18 */
959  '221132', /* 19 */
960  '221231', /* 20 */
961  '213212', /* 21 */
962  '223112', /* 22 */
963  '312131', /* 23 */
964  '311222', /* 24 */
965  '321122', /* 25 */
966  '321221', /* 26 */
967  '312212', /* 27 */
968  '322112', /* 28 */
969  '322211', /* 29 */
970  '212123', /* 30 */
971  '212321', /* 31 */
972  '232121', /* 32 */
973  '111323', /* 33 */
974  '131123', /* 34 */
975  '131321', /* 35 */
976  '112313', /* 36 */
977  '132113', /* 37 */
978  '132311', /* 38 */
979  '211313', /* 39 */
980  '231113', /* 40 */
981  '231311', /* 41 */
982  '112133', /* 42 */
983  '112331', /* 43 */
984  '132131', /* 44 */
985  '113123', /* 45 */
986  '113321', /* 46 */
987  '133121', /* 47 */
988  '313121', /* 48 */
989  '211331', /* 49 */
990  '231131', /* 50 */
991  '213113', /* 51 */
992  '213311', /* 52 */
993  '213131', /* 53 */
994  '311123', /* 54 */
995  '311321', /* 55 */
996  '331121', /* 56 */
997  '312113', /* 57 */
998  '312311', /* 58 */
999  '332111', /* 59 */
1000  '314111', /* 60 */
1001  '221411', /* 61 */
1002  '431111', /* 62 */
1003  '111224', /* 63 */
1004  '111422', /* 64 */
1005  '121124', /* 65 */
1006  '121421', /* 66 */
1007  '141122', /* 67 */
1008  '141221', /* 68 */
1009  '112214', /* 69 */
1010  '112412', /* 70 */
1011  '122114', /* 71 */
1012  '122411', /* 72 */
1013  '142112', /* 73 */
1014  '142211', /* 74 */
1015  '241211', /* 75 */
1016  '221114', /* 76 */
1017  '413111', /* 77 */
1018  '241112', /* 78 */
1019  '134111', /* 79 */
1020  '111242', /* 80 */
1021  '121142', /* 81 */
1022  '121241', /* 82 */
1023  '114212', /* 83 */
1024  '124112', /* 84 */
1025  '124211', /* 85 */
1026  '411212', /* 86 */
1027  '421112', /* 87 */
1028  '421211', /* 88 */
1029  '212141', /* 89 */
1030  '214121', /* 90 */
1031  '412121', /* 91 */
1032  '111143', /* 92 */
1033  '111341', /* 93 */
1034  '131141', /* 94 */
1035  '114113', /* 95 */
1036  '114311', /* 96 */
1037  '411113', /* 97 */
1038  '411311', /* 98 */
1039  '113141', /* 99 */
1040  '114131', /* 100 */
1041  '311141', /* 101 */
1042  '411131', /* 102 */
1043  '211412', /* 103 START A */
1044  '211214', /* 104 START B */
1045  '211232', /* 105 START C */
1046  '233111', /* STOP */
1047  '200000' /* END */
1048  );
1049  // ASCII characters for code A (ASCII 00 - 95)
1050  $keys_a = ' !"#$%&\'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_';
1051  $keys_a .= chr(0).chr(1).chr(2).chr(3).chr(4).chr(5).chr(6).chr(7).chr(8).chr(9);
1052  $keys_a .= chr(10).chr(11).chr(12).chr(13).chr(14).chr(15).chr(16).chr(17).chr(18).chr(19);
1053  $keys_a .= chr(20).chr(21).chr(22).chr(23).chr(24).chr(25).chr(26).chr(27).chr(28).chr(29);
1054  $keys_a .= chr(30).chr(31);
1055  // ASCII characters for code B (ASCII 32 - 127)
1056  $keys_b = ' !"#$%&\'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_`abcdefghijklmnopqrstuvwxyz{|}~'.chr(127);
1057  // special codes
1058  $fnc_a = array(241 => 102, 242 => 97, 243 => 96, 244 => 101);
1059  $fnc_b = array(241 => 102, 242 => 97, 243 => 96, 244 => 100);
1060  // array of symbols
1061  $code_data = array();
1062  // lenght of the code
1063  $len = strlen($code);
1064  switch(strtoupper($type)) {
1065  case 'A': { // MODE A
1066  $startid = 103;
1067  for ($i = 0; $i < $len; ++$i) {
1068  $char = $code{$i};
1069  $char_id = ord($char);
1070  if (($char_id >= 241) AND ($char_id <= 244)) {
1071  $code_data[] = $fnc_a[$char_id];
1072  } elseif (($char_id >= 0) AND ($char_id <= 95)) {
1073  $code_data[] = strpos($keys_a, $char);
1074  } else {
1075  return false;
1076  }
1077  }
1078  break;
1079  }
1080  case 'B': { // MODE B
1081  $startid = 104;
1082  for ($i = 0; $i < $len; ++$i) {
1083  $char = $code{$i};
1084  $char_id = ord($char);
1085  if (($char_id >= 241) AND ($char_id <= 244)) {
1086  $code_data[] = $fnc_b[$char_id];
1087  } elseif (($char_id >= 32) AND ($char_id <= 127)) {
1088  $code_data[] = strpos($keys_b, $char);
1089  } else {
1090  return false;
1091  }
1092  }
1093  break;
1094  }
1095  case 'C': { // MODE C
1096  $startid = 105;
1097  if (ord($code{0}) == 241) {
1098  $code_data[] = 102;
1099  $code = substr($code, 1);
1100  --$len;
1101  }
1102  if (($len % 2) != 0) {
1103  // the length must be even
1104  return false;
1105  }
1106  for ($i = 0; $i < $len; $i+=2) {
1107  $chrnum = $code{$i}.$code{$i+1};
1108  if (preg_match('/([0-9]{2})/', $chrnum) > 0) {
1109  $code_data[] = intval($chrnum);
1110  } else {
1111  return false;
1112  }
1113  }
1114  break;
1115  }
1116  default: { // MODE AUTO
1117  // split code into sequences
1118  $sequence = array();
1119  // get numeric sequences (if any)
1120  $numseq = array();
1121  preg_match_all('/([0-9]{4,})/', $code, $numseq, PREG_OFFSET_CAPTURE);
1122  if (isset($numseq[1]) AND !empty($numseq[1])) {
1123  $end_offset = 0;
1124  foreach ($numseq[1] as $val) {
1125  $offset = $val[1];
1126  if ($offset > $end_offset) {
1127  // non numeric sequence
1128  $sequence = array_merge($sequence, $this->get128ABsequence(substr($code, $end_offset, ($offset - $end_offset))));
1129  }
1130  // numeric sequence
1131  $slen = strlen($val[0]);
1132  if (($slen % 2) != 0) {
1133  // the length must be even
1134  --$slen;
1135  }
1136  $sequence[] = array('C', substr($code, $offset, $slen), $slen);
1137  $end_offset = $offset + $slen;
1138  }
1139  if ($end_offset < $len) {
1140  $sequence = array_merge($sequence, $this->get128ABsequence(substr($code, $end_offset)));
1141  }
1142  } else {
1143  // text code (non C mode)
1144  $sequence = array_merge($sequence, $this->get128ABsequence($code));
1145  }
1146  // process the sequence
1147  foreach ($sequence as $key => $seq) {
1148  switch($seq[0]) {
1149  case 'A': {
1150  if ($key == 0) {
1151  $startid = 103;
1152  } elseif ($sequence[($key - 1)][0] != 'A') {
1153  if (($seq[2] == 1) AND ($key > 0) AND ($sequence[($key - 1)][0] == 'B') AND (!isset($sequence[($key - 1)][3]))) {
1154  // single character shift
1155  $code_data[] = 98;
1156  // mark shift
1157  $sequence[$key][3] = true;
1158  } elseif (!isset($sequence[($key - 1)][3])) {
1159  $code_data[] = 101;
1160  }
1161  }
1162  for ($i = 0; $i < $seq[2]; ++$i) {
1163  $char = $seq[1]{$i};
1164  $char_id = ord($char);
1165  if (($char_id >= 241) AND ($char_id <= 244)) {
1166  $code_data[] = $fnc_a[$char_id];
1167  } else {
1168  $code_data[] = strpos($keys_a, $char);
1169  }
1170  }
1171  break;
1172  }
1173  case 'B': {
1174  if ($key == 0) {
1175  $tmpchr = ord($seq[1]{0});
1176  if (($seq[2] == 1) AND ($tmpchr >= 241) AND ($tmpchr <= 244) AND isset($sequence[($key + 1)]) AND ($sequence[($key + 1)][0] != 'B')) {
1177  switch ($sequence[($key + 1)][0]) {
1178  case 'A': {
1179  $startid = 103;
1180  $sequence[$key][0] = 'A';
1181  $code_data[] = $fnc_a[$tmpchr];
1182  break;
1183  }
1184  case 'C': {
1185  $startid = 105;
1186  $sequence[$key][0] = 'C';
1187  $code_data[] = $fnc_a[$tmpchr];
1188  break;
1189  }
1190  }
1191  break;
1192  } else {
1193  $startid = 104;
1194  }
1195  } elseif ($sequence[($key - 1)][0] != 'B') {
1196  if (($seq[2] == 1) AND ($key > 0) AND ($sequence[($key - 1)][0] == 'A') AND (!isset($sequence[($key - 1)][3]))) {
1197  // single character shift
1198  $code_data[] = 98;
1199  // mark shift
1200  $sequence[$key][3] = true;
1201  } elseif (!isset($sequence[($key - 1)][3])) {
1202  $code_data[] = 100;
1203  }
1204  }
1205  for ($i = 0; $i < $seq[2]; ++$i) {
1206  $char = $seq[1]{$i};
1207  $char_id = ord($char);
1208  if (($char_id >= 241) AND ($char_id <= 244)) {
1209  $code_data[] = $fnc_b[$char_id];
1210  } else {
1211  $code_data[] = strpos($keys_b, $char);
1212  }
1213  }
1214  break;
1215  }
1216  case 'C': {
1217  if ($key == 0) {
1218  $startid = 105;
1219  } elseif ($sequence[($key - 1)][0] != 'C') {
1220  $code_data[] = 99;
1221  }
1222  for ($i = 0; $i < $seq[2]; $i+=2) {
1223  $chrnum = $seq[1]{$i}.$seq[1]{$i+1};
1224  $code_data[] = intval($chrnum);
1225  }
1226  break;
1227  }
1228  }
1229  }
1230  }
1231  }
1232  // calculate check character
1233  $sum = $startid;
1234  foreach ($code_data as $key => $val) {
1235  $sum += ($val * ($key + 1));
1236  }
1237  // add check character
1238  $code_data[] = ($sum % 103);
1239  // add stop sequence
1240  $code_data[] = 106;
1241  $code_data[] = 107;
1242  // add start code at the beginning
1243  array_unshift($code_data, $startid);
1244  // build barcode array
1245  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1246  foreach ($code_data as $val) {
1247  $seq = $chr[$val];
1248  for ($j = 0; $j < 6; ++$j) {
1249  if (($j % 2) == 0) {
1250  $t = true; // bar
1251  } else {
1252  $t = false; // space
1253  }
1254  $w = $seq{$j};
1255  $bararray['bcode'][] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1256  $bararray['maxw'] += $w;
1257  }
1258  }
1259  return $bararray;
1260  }
TCPDFBarcode\get128ABsequence
get128ABsequence($code)
Split text code in A/B sequence for 128 code.
Definition: tcpdf_barcodes_1d.php:1268
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_codabar()

TCPDFBarcode::barcode_codabar (   $code)
protected

CODABAR barcodes.

Older code often used in library systems, sometimes in blood banks

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1799 of file tcpdf_barcodes_1d.php.

References $t.

Referenced by setBarcode().

1799  {
1800  $chr = array(
1801  '0' => '11111221',
1802  '1' => '11112211',
1803  '2' => '11121121',
1804  '3' => '22111111',
1805  '4' => '11211211',
1806  '5' => '21111211',
1807  '6' => '12111121',
1808  '7' => '12112111',
1809  '8' => '12211111',
1810  '9' => '21121111',
1811  '-' => '11122111',
1812  '$' => '11221111',
1813  ':' => '21112121',
1814  '/' => '21211121',
1815  '.' => '21212111',
1816  '+' => '11222221',
1817  'A' => '11221211',
1818  'B' => '12121121',
1819  'C' => '11121221',
1820  'D' => '11122211'
1821  );
1822  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1823  $k = 0;
1824  $w = 0;
1825  $seq = '';
1826  $code = 'A'.strtoupper($code).'A';
1827  $len = strlen($code);
1828  for ($i = 0; $i < $len; ++$i) {
1829  if (!isset($chr[$code{$i}])) {
1830  return false;
1831  }
1832  $seq = $chr[$code{$i}];
1833  for ($j = 0; $j < 8; ++$j) {
1834  if (($j % 2) == 0) {
1835  $t = true; // bar
1836  } else {
1837  $t = false; // space
1838  }
1839  $w = $seq{$j};
1840  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1841  $bararray['maxw'] += $w;
1842  ++$k;
1843  }
1844  }
1845  return $bararray;
1846  }
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the caller graph for this function:

◆ barcode_code11()

TCPDFBarcode::barcode_code11 (   $code)
protected

CODE11 barcodes.

Used primarily for labeling telecommunications equipment

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1855 of file tcpdf_barcodes_1d.php.

References $t.

Referenced by setBarcode().

1855  {
1856  $chr = array(
1857  '0' => '111121',
1858  '1' => '211121',
1859  '2' => '121121',
1860  '3' => '221111',
1861  '4' => '112121',
1862  '5' => '212111',
1863  '6' => '122111',
1864  '7' => '111221',
1865  '8' => '211211',
1866  '9' => '211111',
1867  '-' => '112111',
1868  'S' => '112211'
1869  );
1870  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1871  $k = 0;
1872  $w = 0;
1873  $seq = '';
1874  $len = strlen($code);
1875  // calculate check digit C
1876  $p = 1;
1877  $check = 0;
1878  for ($i = ($len - 1); $i >= 0; --$i) {
1879  $digit = $code{$i};
1880  if ($digit == '-') {
1881  $dval = 10;
1882  } else {
1883  $dval = intval($digit);
1884  }
1885  $check += ($dval * $p);
1886  ++$p;
1887  if ($p > 10) {
1888  $p = 1;
1889  }
1890  }
1891  $check %= 11;
1892  if ($check == 10) {
1893  $check = '-';
1894  }
1895  $code .= $check;
1896  if ($len > 10) {
1897  // calculate check digit K
1898  $p = 1;
1899  $check = 0;
1900  for ($i = $len; $i >= 0; --$i) {
1901  $digit = $code{$i};
1902  if ($digit == '-') {
1903  $dval = 10;
1904  } else {
1905  $dval = intval($digit);
1906  }
1907  $check += ($dval * $p);
1908  ++$p;
1909  if ($p > 9) {
1910  $p = 1;
1911  }
1912  }
1913  $check %= 11;
1914  $code .= $check;
1915  ++$len;
1916  }
1917  $code = 'S'.$code.'S';
1918  $len += 3;
1919  for ($i = 0; $i < $len; ++$i) {
1920  if (!isset($chr[$code{$i}])) {
1921  return false;
1922  }
1923  $seq = $chr[$code{$i}];
1924  for ($j = 0; $j < 6; ++$j) {
1925  if (($j % 2) == 0) {
1926  $t = true; // bar
1927  } else {
1928  $t = false; // space
1929  }
1930  $w = $seq{$j};
1931  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1932  $bararray['maxw'] += $w;
1933  ++$k;
1934  }
1935  }
1936  return $bararray;
1937  }
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the caller graph for this function:

◆ barcode_code39()

TCPDFBarcode::barcode_code39 (   $code,
  $extended = false,
  $checksum = false
)
protected

CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.

General-purpose code in very wide use world-wide

Parameters
$code(string) code to represent.
$extended(boolean) if true uses the extended mode.
$checksum(boolean) if true add a checksum to the code.
Returns
array barcode representation.

Definition at line 373 of file tcpdf_barcodes_1d.php.

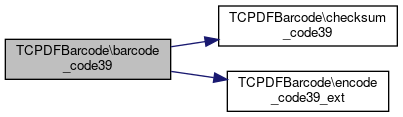

References $t, checksum_code39(), and encode_code39_ext().

Referenced by setBarcode().

373  {
374  $chr['0'] = '111331311';
375  $chr['1'] = '311311113';
376  $chr['2'] = '113311113';
377  $chr['3'] = '313311111';
378  $chr['4'] = '111331113';
379  $chr['5'] = '311331111';
380  $chr['6'] = '113331111';
381  $chr['7'] = '111311313';
382  $chr['8'] = '311311311';
383  $chr['9'] = '113311311';
384  $chr['A'] = '311113113';
385  $chr['B'] = '113113113';
386  $chr['C'] = '313113111';
387  $chr['D'] = '111133113';
388  $chr['E'] = '311133111';
389  $chr['F'] = '113133111';
390  $chr['G'] = '111113313';
391  $chr['H'] = '311113311';
392  $chr['I'] = '113113311';
393  $chr['J'] = '111133311';
394  $chr['K'] = '311111133';
395  $chr['L'] = '113111133';
396  $chr['M'] = '313111131';
397  $chr['N'] = '111131133';
398  $chr['O'] = '311131131';
399  $chr['P'] = '113131131';
400  $chr['Q'] = '111111333';
401  $chr['R'] = '311111331';
402  $chr['S'] = '113111331';
403  $chr['T'] = '111131331';
404  $chr['U'] = '331111113';
405  $chr['V'] = '133111113';
406  $chr['W'] = '333111111';
407  $chr['X'] = '131131113';
408  $chr['Y'] = '331131111';
409  $chr['Z'] = '133131111';
410  $chr['-'] = '131111313';
411  $chr['.'] = '331111311';
412  $chr[' '] = '133111311';
413  $chr['$'] = '131313111';
414  $chr['/'] = '131311131';
415  $chr['+'] = '131113131';
416  $chr['%'] = '111313131';
417  $chr['*'] = '131131311';
418  $code = strtoupper($code);
419  if ($extended) {
420  // extended mode
421  $code = $this->encode_code39_ext($code);
422  }
423  if ($code === false) {
424  return false;
425  }
426  if ($checksum) {
427  // checksum
428  $code .= $this->checksum_code39($code);
429  }
430  // add start and stop codes
431  $code = '*'.$code.'*';
432  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
433  $k = 0;
434  $clen = strlen($code);
435  for ($i = 0; $i < $clen; ++$i) {
436  $char = $code{$i};
437  if(!isset($chr[$char])) {
438  // invalid character
439  return false;
440  }
441  for ($j = 0; $j < 9; ++$j) {
442  if (($j % 2) == 0) {
443  $t = true; // bar
444  } else {
445  $t = false; // space
446  }
447  $w = $chr[$char]{$j};
448  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
449  $bararray['maxw'] += $w;
450  ++$k;
451  }
452  // intercharacter gap
453  $bararray['bcode'][$k] = array('t' => false, 'w' => 1, 'h' => 1, 'p' => 0);
454  $bararray['maxw'] += 1;
455  ++$k;
456  }
457  return $bararray;
458  }
TCPDFBarcode\checksum_code39
checksum_code39($code)
Calculate CODE 39 checksum (modulo 43).
Definition: tcpdf_barcodes_1d.php:517
$t
$t
Definition: class.ilBMFType_duration.php:154
TCPDFBarcode\encode_code39_ext
encode_code39_ext($code)
Encode a string to be used for CODE 39 Extended mode.
Definition: tcpdf_barcodes_1d.php:466
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_code93()

TCPDFBarcode::barcode_code93 (   $code)
protected

CODE 93 - USS-93 Compact code similar to Code 39.

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 540 of file tcpdf_barcodes_1d.php.

References $t, and checksum_code93().

Referenced by setBarcode().

540  {
541  $chr[48] = '131112'; // 0
542  $chr[49] = '111213'; // 1
543  $chr[50] = '111312'; // 2
544  $chr[51] = '111411'; // 3
545  $chr[52] = '121113'; // 4
546  $chr[53] = '121212'; // 5
547  $chr[54] = '121311'; // 6
548  $chr[55] = '111114'; // 7
549  $chr[56] = '131211'; // 8
550  $chr[57] = '141111'; // 9
551  $chr[65] = '211113'; // A
552  $chr[66] = '211212'; // B
553  $chr[67] = '211311'; // C
554  $chr[68] = '221112'; // D
555  $chr[69] = '221211'; // E
556  $chr[70] = '231111'; // F
557  $chr[71] = '112113'; // G
558  $chr[72] = '112212'; // H
559  $chr[73] = '112311'; // I
560  $chr[74] = '122112'; // J
561  $chr[75] = '132111'; // K
562  $chr[76] = '111123'; // L
563  $chr[77] = '111222'; // M
564  $chr[78] = '111321'; // N
565  $chr[79] = '121122'; // O
566  $chr[80] = '131121'; // P
567  $chr[81] = '212112'; // Q
568  $chr[82] = '212211'; // R
569  $chr[83] = '211122'; // S
570  $chr[84] = '211221'; // T
571  $chr[85] = '221121'; // U
572  $chr[86] = '222111'; // V
573  $chr[87] = '112122'; // W
574  $chr[88] = '112221'; // X
575  $chr[89] = '122121'; // Y
576  $chr[90] = '123111'; // Z
577  $chr[45] = '121131'; // -
578  $chr[46] = '311112'; // .
579  $chr[32] = '311211'; //
580  $chr[36] = '321111'; // $
581  $chr[47] = '112131'; // /
582  $chr[43] = '113121'; // +
583  $chr[37] = '211131'; // %
584  $chr[128] = '121221'; // ($)
585  $chr[129] = '311121'; // (/)
586  $chr[130] = '122211'; // (+)
587  $chr[131] = '312111'; // (%)
588  $chr[42] = '111141'; // start-stop
589  $code = strtoupper($code);
590  $encode = array(
591  chr(0) => chr(131).'U', chr(1) => chr(128).'A', chr(2) => chr(128).'B', chr(3) => chr(128).'C',
592  chr(4) => chr(128).'D', chr(5) => chr(128).'E', chr(6) => chr(128).'F', chr(7) => chr(128).'G',
593  chr(8) => chr(128).'H', chr(9) => chr(128).'I', chr(10) => chr(128).'J', chr(11) => '£K',
594  chr(12) => chr(128).'L', chr(13) => chr(128).'M', chr(14) => chr(128).'N', chr(15) => chr(128).'O',
595  chr(16) => chr(128).'P', chr(17) => chr(128).'Q', chr(18) => chr(128).'R', chr(19) => chr(128).'S',
596  chr(20) => chr(128).'T', chr(21) => chr(128).'U', chr(22) => chr(128).'V', chr(23) => chr(128).'W',
597  chr(24) => chr(128).'X', chr(25) => chr(128).'Y', chr(26) => chr(128).'Z', chr(27) => chr(131).'A',
598  chr(28) => chr(131).'B', chr(29) => chr(131).'C', chr(30) => chr(131).'D', chr(31) => chr(131).'E',
599  chr(32) => ' ', chr(33) => chr(129).'A', chr(34) => chr(129).'B', chr(35) => chr(129).'C',
600  chr(36) => chr(129).'D', chr(37) => chr(129).'E', chr(38) => chr(129).'F', chr(39) => chr(129).'G',
601  chr(40) => chr(129).'H', chr(41) => chr(129).'I', chr(42) => chr(129).'J', chr(43) => chr(129).'K',
602  chr(44) => chr(129).'L', chr(45) => '-', chr(46) => '.', chr(47) => chr(129).'O',
603  chr(48) => '0', chr(49) => '1', chr(50) => '2', chr(51) => '3',
604  chr(52) => '4', chr(53) => '5', chr(54) => '6', chr(55) => '7',
605  chr(56) => '8', chr(57) => '9', chr(58) => chr(129).'Z', chr(59) => chr(131).'F',
606  chr(60) => chr(131).'G', chr(61) => chr(131).'H', chr(62) => chr(131).'I', chr(63) => chr(131).'J',
607  chr(64) => chr(131).'V', chr(65) => 'A', chr(66) => 'B', chr(67) => 'C',
608  chr(68) => 'D', chr(69) => 'E', chr(70) => 'F', chr(71) => 'G',
609  chr(72) => 'H', chr(73) => 'I', chr(74) => 'J', chr(75) => 'K',
610  chr(76) => 'L', chr(77) => 'M', chr(78) => 'N', chr(79) => 'O',
611  chr(80) => 'P', chr(81) => 'Q', chr(82) => 'R', chr(83) => 'S',
612  chr(84) => 'T', chr(85) => 'U', chr(86) => 'V', chr(87) => 'W',
613  chr(88) => 'X', chr(89) => 'Y', chr(90) => 'Z', chr(91) => chr(131).'K',
614  chr(92) => chr(131).'L', chr(93) => chr(131).'M', chr(94) => chr(131).'N', chr(95) => chr(131).'O',
615  chr(96) => chr(131).'W', chr(97) => chr(130).'A', chr(98) => chr(130).'B', chr(99) => chr(130).'C',
616  chr(100) => chr(130).'D', chr(101) => chr(130).'E', chr(102) => chr(130).'F', chr(103) => chr(130).'G',
617  chr(104) => chr(130).'H', chr(105) => chr(130).'I', chr(106) => chr(130).'J', chr(107) => chr(130).'K',
618  chr(108) => chr(130).'L', chr(109) => chr(130).'M', chr(110) => chr(130).'N', chr(111) => chr(130).'O',
619  chr(112) => chr(130).'P', chr(113) => chr(130).'Q', chr(114) => chr(130).'R', chr(115) => chr(130).'S',
620  chr(116) => chr(130).'T', chr(117) => chr(130).'U', chr(118) => chr(130).'V', chr(119) => chr(130).'W',
621  chr(120) => chr(130).'X', chr(121) => chr(130).'Y', chr(122) => chr(130).'Z', chr(123) => chr(131).'P',
622  chr(124) => chr(131).'Q', chr(125) => chr(131).'R', chr(126) => chr(131).'S', chr(127) => chr(131).'T');
623  $code_ext = '';
624  $clen = strlen($code);
625  for ($i = 0 ; $i < $clen; ++$i) {
626  if (ord($code{$i}) > 127) {
627  return false;
628  }
629  $code_ext .= $encode[$code{$i}];
630  }
631  // checksum
632  $code_ext .= $this->checksum_code93($code_ext);
633  // add start and stop codes
634  $code = '*'.$code_ext.'*';
635  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
636  $k = 0;
637  $clen = strlen($code);
638  for ($i = 0; $i < $clen; ++$i) {
639  $char = ord($code{$i});
640  if(!isset($chr[$char])) {
641  // invalid character
642  return false;
643  }
644  for ($j = 0; $j < 6; ++$j) {
645  if (($j % 2) == 0) {
646  $t = true; // bar
647  } else {
648  $t = false; // space
649  }
650  $w = $chr[$char]{$j};
651  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
652  $bararray['maxw'] += $w;
653  ++$k;
654  }
655  }
656  $bararray['bcode'][$k] = array('t' => true, 'w' => 1, 'h' => 1, 'p' => 0);
657  $bararray['maxw'] += 1;
658  ++$k;
659  return $bararray;
660  }
TCPDFBarcode\checksum_code93
checksum_code93($code)
Calculate CODE 93 checksum (modulo 47).
Definition: tcpdf_barcodes_1d.php:668
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_eanext()

TCPDFBarcode::barcode_eanext (   $code,
  $len = 5
)
protected

UPC-Based Extentions 2-Digit Ext.

: Used to indicate magazines and newspaper issue numbers 5-Digit Ext.: Used to mark suggested retail price of books

Parameters
$code(string) code to represent.
$len(string) barcode type: 2 = 2-Digit, 5 = 5-Digit
Returns
array barcode representation.

Definition at line 1500 of file tcpdf_barcodes_1d.php.

References $r, and binseq_to_array().

Referenced by setBarcode().

1500  {
1501  //Padding
1502  $code = str_pad($code, $len, '0', STR_PAD_LEFT);
1503  // calculate check digit
1504  if ($len == 2) {
1505  $r = $code % 4;
1506  } elseif ($len == 5) {
1507  $r = (3 * ($code{0} + $code{2} + $code{4})) + (9 * ($code{1} + $code{3}));
1508  $r %= 10;
1509  } else {
1510  return false;
1511  }
1512  //Convert digits to bars
1513  $codes = array(
1514  'A'=>array( // left odd parity
1515  '0'=>'0001101',
1516  '1'=>'0011001',
1517  '2'=>'0010011',
1518  '3'=>'0111101',
1519  '4'=>'0100011',
1520  '5'=>'0110001',
1521  '6'=>'0101111',
1522  '7'=>'0111011',
1523  '8'=>'0110111',
1524  '9'=>'0001011'),
1525  'B'=>array( // left even parity
1526  '0'=>'0100111',
1527  '1'=>'0110011',
1528  '2'=>'0011011',
1529  '3'=>'0100001',
1530  '4'=>'0011101',
1531  '5'=>'0111001',
1532  '6'=>'0000101',
1533  '7'=>'0010001',
1534  '8'=>'0001001',
1535  '9'=>'0010111')
1536  );
1537  $parities = array();
1538  $parities[2] = array(
1539  '0'=>array('A','A'),
1540  '1'=>array('A','B'),
1541  '2'=>array('B','A'),
1542  '3'=>array('B','B')
1543  );
1544  $parities[5] = array(
1545  '0'=>array('B','B','A','A','A'),
1546  '1'=>array('B','A','B','A','A'),
1547  '2'=>array('B','A','A','B','A'),
1548  '3'=>array('B','A','A','A','B'),
1549  '4'=>array('A','B','B','A','A'),
1550  '5'=>array('A','A','B','B','A'),
1551  '6'=>array('A','A','A','B','B'),
1552  '7'=>array('A','B','A','B','A'),
1553  '8'=>array('A','B','A','A','B'),
1554  '9'=>array('A','A','B','A','B')
1555  );
1556  $p = $parities[$len][$r];
1557  $seq = '1011'; // left guard bar
1558  $seq .= $codes[$p[0]][$code{0}];
1559  for ($i = 1; $i < $len; ++$i) {
1560  $seq .= '01'; // separator
1561  $seq .= $codes[$p[$i]][$code{$i}];
1562  }
1563  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1564  return $this->binseq_to_array($seq, $bararray);
1565  }
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:844
$r
$r
Definition: shib_logout.php:151
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_eanupc()

TCPDFBarcode::barcode_eanupc (   $code,
  $len = 13
)
protected

EAN13 and UPC-A barcodes.

EAN13: European Article Numbering international retail product code UPC-A: Universal product code seen on almost all retail products in the USA and Canada UPC-E: Short version of UPC symbol

Parameters
$code(string) code to represent.
$len(string) barcode type: 6 = UPC-E, 8 = EAN8, 13 = EAN13, 12 = UPC-A
Returns
array barcode representation.

Definition at line 1307 of file tcpdf_barcodes_1d.php.

References $r, and $t.

Referenced by setBarcode().

1307  {
1308  $upce = false;
1309  if ($len == 6) {
1310  $len = 12; // UPC-A
1311  $upce = true; // UPC-E mode
1312  }
1313  $data_len = $len - 1;
1314  //Padding
1315  $code = str_pad($code, $data_len, '0', STR_PAD_LEFT);
1316  $code_len = strlen($code);
1317  // calculate check digit
1318  $sum_a = 0;
1319  for ($i = 1; $i < $data_len; $i+=2) {
1320  $sum_a += $code{$i};
1321  }
1322  if ($len > 12) {
1323  $sum_a *= 3;
1324  }
1325  $sum_b = 0;
1326  for ($i = 0; $i < $data_len; $i+=2) {
1327  $sum_b += ($code{$i});
1328  }
1329  if ($len < 13) {
1330  $sum_b *= 3;
1331  }
1332  $r = ($sum_a + $sum_b) % 10;
1333  if($r > 0) {
1334  $r = (10 - $r);
1335  }
1336  if ($code_len == $data_len) {
1337  // add check digit
1338  $code .= $r;
1339  } elseif ($r !== intval($code{$data_len})) {
1340  // wrong checkdigit
1341  return false;
1342  }
1343  if ($len == 12) {
1344  // UPC-A
1345  $code = '0'.$code;
1346  ++$len;
1347  }
1348  if ($upce) {
1349  // convert UPC-A to UPC-E
1350  $tmp = substr($code, 4, 3);
1351  if (($tmp == '000') OR ($tmp == '100') OR ($tmp == '200')) {
1352  // manufacturer code ends in 000, 100, or 200
1353  $upce_code = substr($code, 2, 2).substr($code, 9, 3).substr($code, 4, 1);
1354  } else {
1355  $tmp = substr($code, 5, 2);
1356  if ($tmp == '00') {
1357  // manufacturer code ends in 00
1358  $upce_code = substr($code, 2, 3).substr($code, 10, 2).'3';
1359  } else {
1360  $tmp = substr($code, 6, 1);
1361  if ($tmp == '0') {
1362  // manufacturer code ends in 0
1363  $upce_code = substr($code, 2, 4).substr($code, 11, 1).'4';
1364  } else {
1365  // manufacturer code does not end in zero
1366  $upce_code = substr($code, 2, 5).substr($code, 11, 1);
1367  }
1368  }
1369  }
1370  }
1371  //Convert digits to bars
1372  $codes = array(
1373  'A'=>array( // left odd parity
1374  '0'=>'0001101',
1375  '1'=>'0011001',
1376  '2'=>'0010011',
1377  '3'=>'0111101',
1378  '4'=>'0100011',
1379  '5'=>'0110001',
1380  '6'=>'0101111',
1381  '7'=>'0111011',
1382  '8'=>'0110111',
1383  '9'=>'0001011'),
1384  'B'=>array( // left even parity
1385  '0'=>'0100111',
1386  '1'=>'0110011',
1387  '2'=>'0011011',
1388  '3'=>'0100001',
1389  '4'=>'0011101',
1390  '5'=>'0111001',
1391  '6'=>'0000101',
1392  '7'=>'0010001',
1393  '8'=>'0001001',
1394  '9'=>'0010111'),
1395  'C'=>array( // right
1396  '0'=>'1110010',
1397  '1'=>'1100110',
1398  '2'=>'1101100',
1399  '3'=>'1000010',
1400  '4'=>'1011100',
1401  '5'=>'1001110',
1402  '6'=>'1010000',
1403  '7'=>'1000100',
1404  '8'=>'1001000',
1405  '9'=>'1110100')
1406  );
1407  $parities = array(
1408  '0'=>array('A','A','A','A','A','A'),
1409  '1'=>array('A','A','B','A','B','B'),
1410  '2'=>array('A','A','B','B','A','B'),
1411  '3'=>array('A','A','B','B','B','A'),
1412  '4'=>array('A','B','A','A','B','B'),
1413  '5'=>array('A','B','B','A','A','B'),
1414  '6'=>array('A','B','B','B','A','A'),
1415  '7'=>array('A','B','A','B','A','B'),
1416  '8'=>array('A','B','A','B','B','A'),
1417  '9'=>array('A','B','B','A','B','A')
1418  );
1419  $upce_parities = array();
1420  $upce_parities[0] = array(
1421  '0'=>array('B','B','B','A','A','A'),
1422  '1'=>array('B','B','A','B','A','A'),
1423  '2'=>array('B','B','A','A','B','A'),
1424  '3'=>array('B','B','A','A','A','B'),
1425  '4'=>array('B','A','B','B','A','A'),
1426  '5'=>array('B','A','A','B','B','A'),
1427  '6'=>array('B','A','A','A','B','B'),
1428  '7'=>array('B','A','B','A','B','A'),
1429  '8'=>array('B','A','B','A','A','B'),
1430  '9'=>array('B','A','A','B','A','B')
1431  );
1432  $upce_parities[1] = array(
1433  '0'=>array('A','A','A','B','B','B'),
1434  '1'=>array('A','A','B','A','B','B'),
1435  '2'=>array('A','A','B','B','A','B'),
1436  '3'=>array('A','A','B','B','B','A'),
1437  '4'=>array('A','B','A','A','B','B'),
1438  '5'=>array('A','B','B','A','A','B'),
1439  '6'=>array('A','B','B','B','A','A'),
1440  '7'=>array('A','B','A','B','A','B'),
1441  '8'=>array('A','B','A','B','B','A'),
1442  '9'=>array('A','B','B','A','B','A')
1443  );
1444  $k = 0;
1445  $seq = '101'; // left guard bar
1446  if ($upce) {
1447  $bararray = array('code' => $upce_code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1448  $p = $upce_parities[$code{1}][$r];
1449  for ($i = 0; $i < 6; ++$i) {
1450  $seq .= $codes[$p[$i]][$upce_code{$i}];
1451  }
1452  $seq .= '010101'; // right guard bar
1453  } else {
1454  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1455  $half_len = intval(ceil($len / 2));
1456  if ($len == 8) {
1457  for ($i = 0; $i < $half_len; ++$i) {
1458  $seq .= $codes['A'][$code{$i}];
1459  }
1460  } else {
1461  $p = $parities[$code{0}];
1462  for ($i = 1; $i < $half_len; ++$i) {
1463  $seq .= $codes[$p[$i-1]][$code{$i}];
1464  }
1465  }
1466  $seq .= '01010'; // center guard bar
1467  for ($i = $half_len; $i < $len; ++$i) {
1468  $seq .= $codes['C'][$code{$i}];
1469  }
1470  $seq .= '101'; // right guard bar
1471  }
1472  $clen = strlen($seq);
1473  $w = 0;
1474  for ($i = 0; $i < $clen; ++$i) {
1475  $w += 1;
1476  if (($i == ($clen - 1)) OR (($i < ($clen - 1)) AND ($seq{$i} != $seq{($i+1)}))) {
1477  if ($seq{$i} == '1') {
1478  $t = true; // bar
1479  } else {
1480  $t = false; // space
1481  }
1482  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1483  $bararray['maxw'] += $w;
1484  ++$k;
1485  $w = 0;
1486  }
1487  }
1488  return $bararray;
1489  }
$t
$t
Definition: class.ilBMFType_duration.php:154
$r
$r
Definition: shib_logout.php:151
+ Here is the caller graph for this function:

◆ barcode_i25()

TCPDFBarcode::barcode_i25 (   $code,
  $checksum = false
)
protected

Interleaved 2 of 5 barcodes.

Compact numeric code, widely used in industry, air cargo Contains digits (0 to 9) and encodes the data in the width of both bars and spaces.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code
Returns
array barcode representation.

Definition at line 874 of file tcpdf_barcodes_1d.php.

References $t, and checksum_s25().

Referenced by setBarcode().

874  {
875  $chr['0'] = '11221';
876  $chr['1'] = '21112';
877  $chr['2'] = '12112';
878  $chr['3'] = '22111';
879  $chr['4'] = '11212';
880  $chr['5'] = '21211';
881  $chr['6'] = '12211';
882  $chr['7'] = '11122';
883  $chr['8'] = '21121';
884  $chr['9'] = '12121';
885  $chr['A'] = '11';
886  $chr['Z'] = '21';
887  if ($checksum) {
888  // add checksum
889  $code .= $this->checksum_s25($code);
890  }
891  if((strlen($code) % 2) != 0) {
892  // add leading zero if code-length is odd
893  $code = '0'.$code;
894  }
895  // add start and stop codes
896  $code = 'AA'.strtolower($code).'ZA';
897
898  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
899  $k = 0;
900  $clen = strlen($code);
901  for ($i = 0; $i < $clen; $i = ($i + 2)) {
902  $char_bar = $code{$i};
903  $char_space = $code{$i+1};
904  if((!isset($chr[$char_bar])) OR (!isset($chr[$char_space]))) {
905  // invalid character
906  return false;
907  }
908  // create a bar-space sequence
909  $seq = '';
910  $chrlen = strlen($chr[$char_bar]);
911  for ($s = 0; $s < $chrlen; $s++){
912  $seq .= $chr[$char_bar]{$s} . $chr[$char_space]{$s};
913  }
914  $seqlen = strlen($seq);
915  for ($j = 0; $j < $seqlen; ++$j) {
916  if (($j % 2) == 0) {
917  $t = true; // bar
918  } else {
919  $t = false; // space
920  }
921  $w = $seq{$j};
922  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
923  $bararray['maxw'] += $w;
924  ++$k;
925  }
926  }
927  return $bararray;
928  }
$t
$t
Definition: class.ilBMFType_duration.php:154
TCPDFBarcode\checksum_s25
checksum_s25($code)
Checksum for standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:717

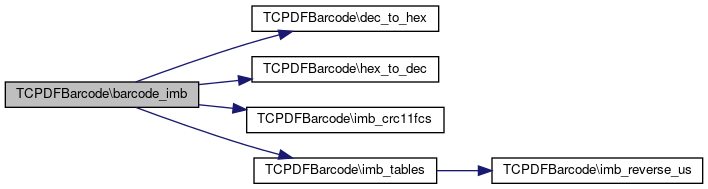

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_imb()

TCPDFBarcode::barcode_imb (   $code)
protected

IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Mail barcode is a 65-bar code for use on mail in the United States.

The fields are described as follows:

  • The Barcode Identifier shall be assigned by USPS to encode the presort identification that is currently printed in human readable form on the optional endorsement line (OEL) as well as for future USPS use. This shall be two digits, with the second digit in the range of 0–4. The allowable encoding ranges shall be 00–04, 10–14, 20–24, 30–34, 40–44, 50–54, 60–64, 70–74, 80–84, and 90–94.
  • The Service Type Identifier shall be assigned by USPS for any combination of services requested on the mailpiece. The allowable encoding range shall be 000http://it2.php.net/manual/en/function.dechex.php–999. Each 3-digit value shall correspond to a particular mail class with a particular combination of service(s). Each service program, such as OneCode Confirm and OneCode ACS, shall provide the list of Service Type Identifier values.
  • The Mailer or Customer Identifier shall be assigned by USPS as a unique, 6 or 9 digit number that identifies a business entity. The allowable encoding range for the 6 digit Mailer ID shall be 000000- 899999, while the allowable encoding range for the 9 digit Mailer ID shall be 900000000-999999999.
  • The Serial or Sequence Number shall be assigned by the mailer for uniquely identifying and tracking mailpieces. The allowable encoding range shall be 000000000–999999999 when used with a 6 digit Mailer ID and 000000-999999 when used with a 9 digit Mailer ID. e. The Delivery Point ZIP Code shall be assigned by the mailer for routing the mailpiece. This shall replace POSTNET for routing the mailpiece to its final delivery point. The length may be 0, 5, 9, or 11 digits. The allowable encoding ranges shall be no ZIP Code, 00000–99999, 000000000–999999999, and 00000000000–99999999999.
Parameters
$code(string) code to print, separate the ZIP (routing code) from the rest using a minus char '-' (BarcodeID_ServiceTypeID_MailerID_SerialNumber-RoutingCode)
Returns
array barcode representation.

Definition at line 2035 of file tcpdf_barcodes_1d.php.

References $data, dec_to_hex(), hex_to_dec(), imb_crc11fcs(), and imb_tables().

Referenced by setBarcode().

2035  {
2036  $asc_chr = array(4,0,2,6,3,5,1,9,8,7,1,2,0,6,4,8,2,9,5,3,0,1,3,7,4,6,8,9,2,0,5,1,9,4,3,8,6,7,1,2,4,3,9,5,7,8,3,0,2,1,4,0,9,1,7,0,2,4,6,3,7,1,9,5,8);
2037  $dsc_chr = array(7,1,9,5,8,0,2,4,6,3,5,8,9,7,3,0,6,1,7,4,6,8,9,2,5,1,7,5,4,3,8,7,6,0,2,5,4,9,3,0,1,6,8,2,0,4,5,9,6,7,5,2,6,3,8,5,1,9,8,7,4,0,2,6,3);
2038  $asc_pos = array(3,0,8,11,1,12,8,11,10,6,4,12,2,7,9,6,7,9,2,8,4,0,12,7,10,9,0,7,10,5,7,9,6,8,2,12,1,4,2,0,1,5,4,6,12,1,0,9,4,7,5,10,2,6,9,11,2,12,6,7,5,11,0,3,2);
2039  $dsc_pos = array(2,10,12,5,9,1,5,4,3,9,11,5,10,1,6,3,4,1,10,0,2,11,8,6,1,12,3,8,6,4,4,11,0,6,1,9,11,5,3,7,3,10,7,11,8,2,10,3,5,8,0,3,12,11,8,4,5,1,3,0,7,12,9,8,10);
2040  $code_arr = explode('-', $code);
2041  $tracking_number = $code_arr[0];
2042  if (isset($code_arr[1])) {
2043  $routing_code = $code_arr[1];
2044  } else {
2045  $routing_code = '';
2046  }
2047  // Conversion of Routing Code
2048  switch (strlen($routing_code)) {
2049  case 0: {
2050  $binary_code = 0;
2051  break;
2052  }
2053  case 5: {
2054  $binary_code = bcadd($routing_code, '1');
2055  break;
2056  }
2057  case 9: {
2058  $binary_code = bcadd($routing_code, '100001');
2059  break;
2060  }
2061  case 11: {
2062  $binary_code = bcadd($routing_code, '1000100001');
2063  break;
2064  }
2065  default: {
2066  return false;
2067  break;
2068  }
2069  }
2070  $binary_code = bcmul($binary_code, 10);
2071  $binary_code = bcadd($binary_code, $tracking_number{0});
2072  $binary_code = bcmul($binary_code, 5);
2073  $binary_code = bcadd($binary_code, $tracking_number{1});
2074  $binary_code .= substr($tracking_number, 2, 18);
2075  // convert to hexadecimal
2076  $binary_code = $this->dec_to_hex($binary_code);
2077  // pad to get 13 bytes
2078  $binary_code = str_pad($binary_code, 26, '0', STR_PAD_LEFT);
2079  // convert string to array of bytes
2080  $binary_code_arr = chunk_split($binary_code, 2, "\r");
2081  $binary_code_arr = substr($binary_code_arr, 0, -1);
2082  $binary_code_arr = explode("\r", $binary_code_arr);
2083  // calculate frame check sequence
2084  $fcs = $this->imb_crc11fcs($binary_code_arr);
2085  // exclude first 2 bits from first byte
2086  $first_byte = sprintf('%2s', dechex((hexdec($binary_code_arr[0]) << 2) >> 2));
2087  $binary_code_102bit = $first_byte.substr($binary_code, 2);
2088  // convert binary data to codewords
2089  $codewords = array();
2090  $data = $this->hex_to_dec($binary_code_102bit);
2091  $codewords[0] = bcmod($data, 636) * 2;
2092  $data = bcdiv($data, 636);
2093  for ($i = 1; $i < 9; ++$i) {
2094  $codewords[$i] = bcmod($data, 1365);
2095  $data = bcdiv($data, 1365);
2096  }
2097  $codewords[9] = $data;
2098  if (($fcs >> 10) == 1) {
2099  $codewords[9] += 659;
2100  }
2101  // generate lookup tables
2102  $table2of13 = $this->imb_tables(2, 78);
2103  $table5of13 = $this->imb_tables(5, 1287);
2104  // convert codewords to characters
2105  $characters = array();
2106  $bitmask = 512;
2107  foreach($codewords as $k => $val) {
2108  if ($val <= 1286) {
2109  $chrcode = $table5of13[$val];
2110  } else {
2111  $chrcode = $table2of13[($val - 1287)];
2112  }
2113  if (($fcs & $bitmask) > 0) {
2114  // bitwise invert
2115  $chrcode = ((~$chrcode) & 8191);
2116  }
2117  $characters[] = $chrcode;
2118  $bitmask /= 2;
2119  }
2120  $characters = array_reverse($characters);
2121  // build bars
2122  $k = 0;
2123  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 3, 'bcode' => array());
2124  for ($i = 0; $i < 65; ++$i) {
2125  $asc = (($characters[$asc_chr[$i]] & pow(2, $asc_pos[$i])) > 0);
2126  $dsc = (($characters[$dsc_chr[$i]] & pow(2, $dsc_pos[$i])) > 0);
2127  if ($asc AND $dsc) {
2128  // full bar (F)
2129  $p = 0;
2130  $h = 3;
2131  } elseif ($asc) {
2132  // ascender (A)
2133  $p = 0;
2134  $h = 2;
2135  } elseif ($dsc) {
2136  // descender (D)
2137  $p = 1;
2138  $h = 2;
2139  } else {
2140  // tracker (T)
2141  $p = 1;
2142  $h = 1;
2143  }
2144  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
2145  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
2146  $bararray['maxw'] += 2;
2147  }
2148  unset($bararray['bcode'][($k - 1)]);
2149  --$bararray['maxw'];
2150  return $bararray;
2151  }
TCPDFBarcode\imb_crc11fcs
imb_crc11fcs($code_arr)
Intelligent Mail Barcode calculation of Frame Check Sequence.
Definition: tcpdf_barcodes_1d.php:2200
TCPDFBarcode\hex_to_dec
hex_to_dec($hex)
Convert large hexadecimal number to decimal representation (string).
Definition: tcpdf_barcodes_1d.php:2183
$data
while($lm_rec=$ilDB->fetchAssoc($lm_set)) $data
Definition: storeScorm2004.php:35
TCPDFBarcode\imb_tables
imb_tables($n, $size)
generate Nof13 tables used for Intelligent Mail Barcode
Definition: tcpdf_barcodes_1d.php:2253
TCPDFBarcode\dec_to_hex
dec_to_hex($number)
Convert large integer number to hexadecimal representation.
Definition: tcpdf_barcodes_1d.php:2159
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_msi()

TCPDFBarcode::barcode_msi (   $code,
  $checksum = false
)
protected

MSI.

Variation of Plessey code, with similar applications Contains digits (0 to 9) and encodes the data only in the width of bars.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code (modulo 11)
Returns
array barcode representation.

Definition at line 743 of file tcpdf_barcodes_1d.php.

References binseq_to_array().

Referenced by setBarcode().

743  {
744  $chr['0'] = '100100100100';
745  $chr['1'] = '100100100110';
746  $chr['2'] = '100100110100';
747  $chr['3'] = '100100110110';
748  $chr['4'] = '100110100100';
749  $chr['5'] = '100110100110';
750  $chr['6'] = '100110110100';
751  $chr['7'] = '100110110110';
752  $chr['8'] = '110100100100';
753  $chr['9'] = '110100100110';
754  $chr['A'] = '110100110100';
755  $chr['B'] = '110100110110';
756  $chr['C'] = '110110100100';
757  $chr['D'] = '110110100110';
758  $chr['E'] = '110110110100';
759  $chr['F'] = '110110110110';
760  if ($checksum) {
761  // add checksum
762  $clen = strlen($code);
763  $p = 2;
764  $check = 0;
765  for ($i = ($clen - 1); $i >= 0; --$i) {
766  $check += (hexdec($code{$i}) * $p);
767  ++$p;
768  if ($p > 7) {
769  $p = 2;
770  }
771  }
772  $check %= 11;
773  if ($check > 0) {
774  $check = 11 - $check;
775  }
776  $code .= $check;
777  }
778  $seq = '110'; // left guard
779  $clen = strlen($code);
780  for ($i = 0; $i < $clen; ++$i) {
781  $digit = $code{$i};
782  if (!isset($chr[$digit])) {
783  // invalid character
784  return false;
785  }
786  $seq .= $chr[$digit];
787  }
788  $seq .= '1001'; // right guard
789  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
790  return $this->binseq_to_array($seq, $bararray);
791  }
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:844
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_pharmacode()

TCPDFBarcode::barcode_pharmacode (   $code)
protected

Pharmacode Contains digits (0 to 9)

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1946 of file tcpdf_barcodes_1d.php.

References binseq_to_array().

Referenced by setBarcode().

1946  {
1947  $seq = '';
1948  $code = intval($code);
1949  while ($code > 0) {
1950  if (($code % 2) == 0) {
1951  $seq .= '11100';
1952  $code -= 2;
1953  } else {
1954  $seq .= '100';
1955  $code -= 1;
1956  }
1957  $code /= 2;
1958  }
1959  $seq = substr($seq, 0, -2);
1960  $seq = strrev($seq);
1961  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1962  return $this->binseq_to_array($seq, $bararray);
1963  }
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:844
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_pharmacode2t()

TCPDFBarcode::barcode_pharmacode2t (   $code)
protected

Pharmacode two-track Contains digits (0 to 9)

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1972 of file tcpdf_barcodes_1d.php.

Referenced by setBarcode().

1972  {
1973  $seq = '';
1974  $code = intval($code);
1975  do {
1976  switch ($code % 3) {
1977  case 0: {
1978  $seq .= '3';
1979  $code = ($code - 3) / 3;
1980  break;
1981  }
1982  case 1: {
1983  $seq .= '1';
1984  $code = ($code - 1) / 3;
1985  break;
1986  }
1987  case 2: {
1988  $seq .= '2';
1989  $code = ($code - 2) / 3;
1990  break;
1991  }
1992  }
1993  } while($code != 0);
1994  $seq = strrev($seq);
1995  $k = 0;
1996  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 2, 'bcode' => array());
1997  $len = strlen($seq);
1998  for ($i = 0; $i < $len; ++$i) {
1999  switch ($seq{$i}) {
2000  case '1': {
2001  $p = 1;
2002  $h = 1;
2003  break;
2004  }
2005  case '2': {
2006  $p = 0;
2007  $h = 1;
2008  break;
2009  }
2010  case '3': {
2011  $p = 0;
2012  $h = 2;
2013  break;
2014  }
2015  }
2016  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
2017  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
2018  $bararray['maxw'] += 2;
2019  }
2020  unset($bararray['bcode'][($k - 1)]);
2021  --$bararray['maxw'];
2022  return $bararray;
2023  }
+ Here is the caller graph for this function:

◆ barcode_postnet()

TCPDFBarcode::barcode_postnet (   $code,
  $planet = false
)
protected

POSTNET and PLANET barcodes.

Used by U.S. Postal Service for automated mail sorting

Parameters
$code(string) zip code to represent. Must be a string containing a zip code of the form DDDDD or DDDDD-DDDD.
$planet(boolean) if true print the PLANET barcode, otherwise print POSTNET
Returns
array barcode representation.

Definition at line 1575 of file tcpdf_barcodes_1d.php.

Referenced by setBarcode().

1575  {
1576  // bar lenght
1577  if ($planet) {
1578  $barlen = Array(
1579  0 => Array(1,1,2,2,2),
1580  1 => Array(2,2,2,1,1),
1581  2 => Array(2,2,1,2,1),
1582  3 => Array(2,2,1,1,2),
1583  4 => Array(2,1,2,2,1),
1584  5 => Array(2,1,2,1,2),
1585  6 => Array(2,1,1,2,2),
1586  7 => Array(1,2,2,2,1),
1587  8 => Array(1,2,2,1,2),
1588  9 => Array(1,2,1,2,2)
1589  );
1590  } else {
1591  $barlen = Array(
1592  0 => Array(2,2,1,1,1),
1593  1 => Array(1,1,1,2,2),
1594  2 => Array(1,1,2,1,2),
1595  3 => Array(1,1,2,2,1),
1596  4 => Array(1,2,1,1,2),
1597  5 => Array(1,2,1,2,1),
1598  6 => Array(1,2,2,1,1),
1599  7 => Array(2,1,1,1,2),
1600  8 => Array(2,1,1,2,1),
1601  9 => Array(2,1,2,1,1)
1602  );
1603  }
1604  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 2, 'bcode' => array());
1605  $k = 0;
1606  $code = str_replace('-', '', $code);
1607  $code = str_replace(' ', '', $code);
1608  $len = strlen($code);
1609  // calculate checksum
1610  $sum = 0;
1611  for ($i = 0; $i < $len; ++$i) {
1612  $sum += intval($code{$i});
1613  }
1614  $chkd = ($sum % 10);
1615  if($chkd > 0) {
1616  $chkd = (10 - $chkd);
1617  }
1618  $code .= $chkd;
1619  $len = strlen($code);
1620  // start bar
1621  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1622  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1623  $bararray['maxw'] += 2;
1624  for ($i = 0; $i < $len; ++$i) {
1625  for ($j = 0; $j < 5; ++$j) {
1626  $h = $barlen[$code{$i}][$j];
1627  $p = floor(1 / $h);
1628  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
1629  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1630  $bararray['maxw'] += 2;
1631  }
1632  }
1633  // end bar
1634  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1635  $bararray['maxw'] += 1;
1636  return $bararray;
1637  }
+ Here is the caller graph for this function:

◆ barcode_rms4cc()

TCPDFBarcode::barcode_rms4cc (   $code,
  $kix = false
)
protected

RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant index - Customer index) RM4SCC is the name of the barcode symbology used by the Royal Mail for its Cleanmail service.

Parameters
$code(string) code to print
$kix(boolean) if true prints the KIX variation (doesn't use the start and end symbols, and the checksum) - in this case the house number must be sufficed with an X and placed at the end of the code.
Returns
array barcode representation.

Definition at line 1648 of file tcpdf_barcodes_1d.php.

References $row.

Referenced by setBarcode().

1648  {
1649  $notkix = !$kix;
1650  // bar mode
1651  // 1 = pos 1, length 2
1652  // 2 = pos 1, length 3
1653  // 3 = pos 2, length 1
1654  // 4 = pos 2, length 2
1655  $barmode = array(
1656  '0' => array(3,3,2,2),
1657  '1' => array(3,4,1,2),
1658  '2' => array(3,4,2,1),
1659  '3' => array(4,3,1,2),
1660  '4' => array(4,3,2,1),
1661  '5' => array(4,4,1,1),
1662  '6' => array(3,1,4,2),
1663  '7' => array(3,2,3,2),
1664  '8' => array(3,2,4,1),
1665  '9' => array(4,1,3,2),
1666  'A' => array(4,1,4,1),
1667  'B' => array(4,2,3,1),
1668  'C' => array(3,1,2,4),
1669  'D' => array(3,2,1,4),
1670  'E' => array(3,2,2,3),
1671  'F' => array(4,1,1,4),
1672  'G' => array(4,1,2,3),
1673  'H' => array(4,2,1,3),
1674  'I' => array(1,3,4,2),
1675  'J' => array(1,4,3,2),
1676  'K' => array(1,4,4,1),
1677  'L' => array(2,3,3,2),
1678  'M' => array(2,3,4,1),
1679  'N' => array(2,4,3,1),
1680  'O' => array(1,3,2,4),
1681  'P' => array(1,4,1,4),
1682  'Q' => array(1,4,2,3),
1683  'R' => array(2,3,1,4),
1684  'S' => array(2,3,2,3),
1685  'T' => array(2,4,1,3),
1686  'U' => array(1,1,4,4),
1687  'V' => array(1,2,3,4),
1688  'W' => array(1,2,4,3),
1689  'X' => array(2,1,3,4),
1690  'Y' => array(2,1,4,3),
1691  'Z' => array(2,2,3,3)
1692  );
1693  $code = strtoupper($code);
1694  $len = strlen($code);
1695  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 3, 'bcode' => array());
1696  if ($notkix) {
1697  // table for checksum calculation (row,col)
1698  $checktable = array(
1699  '0' => array(1,1),
1700  '1' => array(1,2),
1701  '2' => array(1,3),
1702  '3' => array(1,4),
1703  '4' => array(1,5),
1704  '5' => array(1,0),
1705  '6' => array(2,1),
1706  '7' => array(2,2),
1707  '8' => array(2,3),
1708  '9' => array(2,4),
1709  'A' => array(2,5),
1710  'B' => array(2,0),
1711  'C' => array(3,1),
1712  'D' => array(3,2),
1713  'E' => array(3,3),
1714  'F' => array(3,4),
1715  'G' => array(3,5),
1716  'H' => array(3,0),
1717  'I' => array(4,1),
1718  'J' => array(4,2),
1719  'K' => array(4,3),
1720  'L' => array(4,4),
1721  'M' => array(4,5),
1722  'N' => array(4,0),
1723  'O' => array(5,1),
1724  'P' => array(5,2),
1725  'Q' => array(5,3),
1726  'R' => array(5,4),
1727  'S' => array(5,5),
1728  'T' => array(5,0),
1729  'U' => array(0,1),
1730  'V' => array(0,2),
1731  'W' => array(0,3),
1732  'X' => array(0,4),
1733  'Y' => array(0,5),
1734  'Z' => array(0,0)
1735  );
1736  $row = 0;
1737  $col = 0;
1738  for ($i = 0; $i < $len; ++$i) {
1739  $row += $checktable[$code{$i}][0];
1740  $col += $checktable[$code{$i}][1];
1741  }
1742  $row %= 6;
1743  $col %= 6;
1744  $chk = array_keys($checktable, array($row,$col));
1745  $code .= $chk[0];
1746  ++$len;
1747  }
1748  $k = 0;
1749  if ($notkix) {
1750  // start bar
1751  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1752  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1753  $bararray['maxw'] += 2;
1754  }
1755  for ($i = 0; $i < $len; ++$i) {
1756  for ($j = 0; $j < 4; ++$j) {
1757  switch ($barmode[$code{$i}][$j]) {
1758  case 1: {
1759  $p = 0;
1760  $h = 2;
1761  break;
1762  }
1763  case 2: {
1764  $p = 0;
1765  $h = 3;
1766  break;
1767  }
1768  case 3: {
1769  $p = 1;
1770  $h = 1;
1771  break;
1772  }
1773  case 4: {
1774  $p = 1;
1775  $h = 2;
1776  break;
1777  }
1778  }
1779  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
1780  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1781  $bararray['maxw'] += 2;
1782  }
1783  }
1784  if ($notkix) {
1785  // stop bar
1786  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 3, 'p' => 0);
1787  $bararray['maxw'] += 1;
1788  }
1789  return $bararray;
1790  }
+ Here is the caller graph for this function:

◆ barcode_s25()

TCPDFBarcode::barcode_s25 (   $code,
  $checksum = false
)
protected

Standard 2 of 5 barcodes.

Used in airline ticket marking, photofinishing Contains digits (0 to 9) and encodes the data only in the width of bars.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code
Returns
array barcode representation.

Definition at line 802 of file tcpdf_barcodes_1d.php.

References binseq_to_array(), and checksum_s25().

Referenced by setBarcode().

802  {
803  $chr['0'] = '10101110111010';
804  $chr['1'] = '11101010101110';
805  $chr['2'] = '10111010101110';
806  $chr['3'] = '11101110101010';
807  $chr['4'] = '10101110101110';
808  $chr['5'] = '11101011101010';
809  $chr['6'] = '10111011101010';
810  $chr['7'] = '10101011101110';
811  $chr['8'] = '10101110111010';
812  $chr['9'] = '10111010111010';
813  if ($checksum) {
814  // add checksum
815  $code .= $this->checksum_s25($code);
816  }
817  if((strlen($code) % 2) != 0) {
818  // add leading zero if code-length is odd
819  $code = '0'.$code;
820  }
821  $seq = '11011010';
822  $clen = strlen($code);
823  for ($i = 0; $i < $clen; ++$i) {
824  $digit = $code{$i};
825  if (!isset($chr[$digit])) {
826  // invalid character
827  return false;
828  }
829  $seq .= $chr[$digit];
830  }
831  $seq .= '1101011';
832  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
833  return $this->binseq_to_array($seq, $bararray);
834  }
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:844
TCPDFBarcode\checksum_s25
checksum_s25($code)
Checksum for standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:717
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ binseq_to_array()

TCPDFBarcode::binseq_to_array (   $seq,
  $bararray
)
protected

Convert binary barcode sequence to TCPDF barcode array.

Parameters
$seq(string) barcode as binary sequence.
$bararray(array) barcode array. òparam array $bararray TCPDF barcode array to fill up
Returns
array barcode representation.

Definition at line 844 of file tcpdf_barcodes_1d.php.

References $t.

Referenced by barcode_eanext(), barcode_msi(), barcode_pharmacode(), and barcode_s25().

844  {
845  $len = strlen($seq);
846  $w = 0;
847  $k = 0;
848  for ($i = 0; $i < $len; ++$i) {
849  $w += 1;
850  if (($i == ($len - 1)) OR (($i < ($len - 1)) AND ($seq{$i} != $seq{($i+1)}))) {
851  if ($seq{$i} == '1') {
852  $t = true; // bar
853  } else {
854  $t = false; // space
855  }
856  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
857  $bararray['maxw'] += $w;
858  ++$k;
859  $w = 0;
860  }
861  }
862  return $bararray;
863  }
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the caller graph for this function:

◆ checksum_code39()

TCPDFBarcode::checksum_code39 (   $code)
protected

Calculate CODE 39 checksum (modulo 43).

Parameters
$code(string) code to represent.
Returns
char checksum.

Definition at line 517 of file tcpdf_barcodes_1d.php.

Referenced by barcode_code39().

517  {
518  $chars = array(
519  '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
520  'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K',
521  'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
522  'W', 'X', 'Y', 'Z', '-', '.', ' ', '$', '/', '+', '%');
523  $sum = 0;
524  $clen = strlen($code);
525  for ($i = 0 ; $i < $clen; ++$i) {
526  $k = array_keys($chars, $code{$i});
527  $sum += $k[0];
528  }
529  $j = ($sum % 43);
530  return $chars[$j];
531  }
+ Here is the caller graph for this function:

◆ checksum_code93()

TCPDFBarcode::checksum_code93 (   $code)
protected

Calculate CODE 93 checksum (modulo 47).

Parameters
$code(string) code to represent.
Returns
string checksum code.

Definition at line 668 of file tcpdf_barcodes_1d.php.

Referenced by barcode_code93().

668  {
669  $chars = array(
670  '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
671  'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K',
672  'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
673  'W', 'X', 'Y', 'Z', '-', '.', ' ', '$', '/', '+', '%',
674  '<', '=', '>', '?');
675  // translate special characters
676  $code = strtr($code, chr(128).chr(131).chr(129).chr(130), '<=>?');
677  $len = strlen($code);
678  // calculate check digit C
679  $p = 1;
680  $check = 0;
681  for ($i = ($len - 1); $i >= 0; --$i) {
682  $k = array_keys($chars, $code{$i});
683  $check += ($k[0] * $p);
684  ++$p;
685  if ($p > 20) {
686  $p = 1;
687  }
688  }
689  $check %= 47;
690  $c = $chars[$check];
691  $code .= $c;
692  // calculate check digit K
693  $p = 1;
694  $check = 0;
695  for ($i = $len; $i >= 0; --$i) {
696  $k = array_keys($chars, $code{$i});
697  $check += ($k[0] * $p);
698  ++$p;
699  if ($p > 15) {
700  $p = 1;
701  }
702  }
703  $check %= 47;
704  $k = $chars[$check];
705  $checksum = $c.$k;
706  // resto respecial characters
707  $checksum = strtr($checksum, '<=>?', chr(128).chr(131).chr(129).chr(130));
708  return $checksum;
709  }
+ Here is the caller graph for this function:

◆ checksum_s25()

TCPDFBarcode::checksum_s25 (   $code)
protected

Checksum for standard 2 of 5 barcodes.

Parameters
$code(string) code to process.
Returns
int checksum.

Definition at line 717 of file tcpdf_barcodes_1d.php.

References $r.

Referenced by barcode_i25(), and barcode_s25().

717  {
718  $len = strlen($code);
719  $sum = 0;
720  for ($i = 0; $i < $len; $i+=2) {
721  $sum += $code{$i};
722  }
723  $sum *= 3;
724  for ($i = 1; $i < $len; $i+=2) {
725  $sum += ($code{$i});
726  }
727  $r = $sum % 10;
728  if($r > 0) {
729  $r = (10 - $r);
730  }
731  return $r;
732  }
$r
$r
Definition: shib_logout.php:151
+ Here is the caller graph for this function:

◆ dec_to_hex()

TCPDFBarcode::dec_to_hex (   $number)

Convert large integer number to hexadecimal representation.

(requires PHP bcmath extension)

Parameters
$number(string) number to convert specified as a string
Returns
string hexadecimal representation

Definition at line 2159 of file tcpdf_barcodes_1d.php.

Referenced by barcode_imb().

2159  {
2160  $i = 0;
2161  $hex = array();
2162  if($number == 0) {
2163  return '00';
2164  }
2165  while($number > 0) {
2166  if($number == 0) {
2167  array_push($hex, '0');
2168  } else {
2169  array_push($hex, strtoupper(dechex(bcmod($number, '16'))));
2170  $number = bcdiv($number, '16', 0);
2171  }
2172  }
2173  $hex = array_reverse($hex);
2174  return implode($hex);
2175  }
+ Here is the caller graph for this function:

◆ encode_code39_ext()

TCPDFBarcode::encode_code39_ext (   $code)
protected

Encode a string to be used for CODE 39 Extended mode.

Parameters
$code(string) code to represent.
Returns
encoded string.

Definition at line 466 of file tcpdf_barcodes_1d.php.

Referenced by barcode_code39().

466  {
467  $encode = array(
468  chr(0) => '%U', chr(1) => '$A', chr(2) => '$B', chr(3) => '$C',
469  chr(4) => '$D', chr(5) => '$E', chr(6) => '$F', chr(7) => '$G',
470  chr(8) => '$H', chr(9) => '$I', chr(10) => '$J', chr(11) => '£K',
471  chr(12) => '$L', chr(13) => '$M', chr(14) => '$N', chr(15) => '$O',
472  chr(16) => '$P', chr(17) => '$Q', chr(18) => '$R', chr(19) => '$S',
473  chr(20) => '$T', chr(21) => '$U', chr(22) => '$V', chr(23) => '$W',
474  chr(24) => '$X', chr(25) => '$Y', chr(26) => '$Z', chr(27) => '%A',
475  chr(28) => '%B', chr(29) => '%C', chr(30) => '%D', chr(31) => '%E',
476  chr(32) => ' ', chr(33) => '/A', chr(34) => '/B', chr(35) => '/C',
477  chr(36) => '/D', chr(37) => '/E', chr(38) => '/F', chr(39) => '/G',
478  chr(40) => '/H', chr(41) => '/I', chr(42) => '/J', chr(43) => '/K',
479  chr(44) => '/L', chr(45) => '-', chr(46) => '.', chr(47) => '/O',
480  chr(48) => '0', chr(49) => '1', chr(50) => '2', chr(51) => '3',
481  chr(52) => '4', chr(53) => '5', chr(54) => '6', chr(55) => '7',
482  chr(56) => '8', chr(57) => '9', chr(58) => '/Z', chr(59) => '%F',
483  chr(60) => '%G', chr(61) => '%H', chr(62) => '%I', chr(63) => '%J',
484  chr(64) => '%V', chr(65) => 'A', chr(66) => 'B', chr(67) => 'C',
485  chr(68) => 'D', chr(69) => 'E', chr(70) => 'F', chr(71) => 'G',
486  chr(72) => 'H', chr(73) => 'I', chr(74) => 'J', chr(75) => 'K',
487  chr(76) => 'L', chr(77) => 'M', chr(78) => 'N', chr(79) => 'O',
488  chr(80) => 'P', chr(81) => 'Q', chr(82) => 'R', chr(83) => 'S',
489  chr(84) => 'T', chr(85) => 'U', chr(86) => 'V', chr(87) => 'W',
490  chr(88) => 'X', chr(89) => 'Y', chr(90) => 'Z', chr(91) => '%K',
491  chr(92) => '%L', chr(93) => '%M', chr(94) => '%N', chr(95) => '%O',
492  chr(96) => '%W', chr(97) => '+A', chr(98) => '+B', chr(99) => '+C',
493  chr(100) => '+D', chr(101) => '+E', chr(102) => '+F', chr(103) => '+G',
494  chr(104) => '+H', chr(105) => '+I', chr(106) => '+J', chr(107) => '+K',
495  chr(108) => '+L', chr(109) => '+M', chr(110) => '+N', chr(111) => '+O',
496  chr(112) => '+P', chr(113) => '+Q', chr(114) => '+R', chr(115) => '+S',
497  chr(116) => '+T', chr(117) => '+U', chr(118) => '+V', chr(119) => '+W',
498  chr(120) => '+X', chr(121) => '+Y', chr(122) => '+Z', chr(123) => '%P',
499  chr(124) => '%Q', chr(125) => '%R', chr(126) => '%S', chr(127) => '%T');
500  $code_ext = '';
501  $clen = strlen($code);
502  for ($i = 0 ; $i < $clen; ++$i) {
503  if (ord($code{$i}) > 127) {
504  return false;
505  }
506  $code_ext .= $encode[$code{$i}];
507  }
508  return $code_ext;
509  }
+ Here is the caller graph for this function:

◆ get128ABsequence()

TCPDFBarcode::get128ABsequence (   $code)
protected

Split text code in A/B sequence for 128 code.

Parameters
$code(string) code to split.
Returns
array sequence

Definition at line 1268 of file tcpdf_barcodes_1d.php.

Referenced by barcode_c128().

1268  {
1269  $len = strlen($code);
1270  $sequence = array();
1271  // get A sequences (if any)
1272  $numseq = array();
1273  preg_match_all('/([\0-\31])/', $code, $numseq, PREG_OFFSET_CAPTURE);
1274  if (isset($numseq[1]) AND !empty($numseq[1])) {
1275  $end_offset = 0;
1276  foreach ($numseq[1] as $val) {
1277  $offset = $val[1];
1278  if ($offset > $end_offset) {
1279  // B sequence
1280  $sequence[] = array('B', substr($code, $end_offset, ($offset - $end_offset)), ($offset - $end_offset));
1281  }
1282  // A sequence
1283  $slen = strlen($val[0]);
1284  $sequence[] = array('A', substr($code, $offset, $slen), $slen);
1285  $end_offset = $offset + $slen;
1286  }
1287  if ($end_offset < $len) {
1288  $sequence[] = array('B', substr($code, $end_offset), ($len - $end_offset));
1289  }
1290  } else {
1291  // only B sequence
1292  $sequence[] = array('B', $code, $len);
1293  }
1294  return $sequence;
1295  }
+ Here is the caller graph for this function:

◆ getBarcodeArray()

TCPDFBarcode::getBarcodeArray ( )

Return an array representations of barcode.

Returns
array

Definition at line 82 of file tcpdf_barcodes_1d.php.

References $barcode_array.

82  {
83  return $this->barcode_array;
84  }
TCPDFBarcode\$barcode_array
$barcode_array
Array representation of barcode.
Definition: tcpdf_barcodes_1d.php:56

◆ getBarcodeHTML()

TCPDFBarcode::getBarcodeHTML (   $w = 2,
  $h = 30,
  $color = 'black'
)

Return an HTML representation of barcode.

Parameters
$w(int) Width of a single bar element in pixels.
$h(int) Height of a single bar element in pixels.
$color(string) Foreground color for bar elements (background is transparent).
Returns
string HTML code.

Definition at line 147 of file tcpdf_barcodes_1d.php.

147  {
148  $html = '<div style="font-size:0;position:relative;width:'.($this->barcode_array['maxw'] * $w).'px;height:'.($h).'px;">'."\n";
149  // print bars
150  $x = 0;
151  foreach ($this->barcode_array['bcode'] as $k => $v) {
152  $bw = round(($v['w'] * $w), 3);
153  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
154  if ($v['t']) {
155  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
156  // draw a vertical bar
157  $html .= '<div style="background-color:'.$color.';width:'.$bw.'px;height:'.$bh.'px;position:absolute;left:'.$x.'px;top:'.$y.'px;">&nbsp;</div>'."\n";
158  }
159  $x += $bw;
160  }
161  $html .= '</div>'."\n";
162  return $html;
163  }

◆ getBarcodePNG()

TCPDFBarcode::getBarcodePNG (   $w = 2,
  $h = 30,
  $color = array(0,0,0)
)

Return a PNG image representation of barcode (requires GD or Imagick library).

Parameters
$w(int) Width of a single bar element in pixels.
$h(int) Height of a single bar element in pixels.
$color(array) RGB (0-255) foreground color for bar elements (background is transparent).
Returns
image or false in case of error.

Definition at line 173 of file tcpdf_barcodes_1d.php.

173  {
174  // calculate image size
175  $width = ($this->barcode_array['maxw'] * $w);
176  $height = $h;
177  if (function_exists('imagecreate')) {
178  // GD library
179  $imagick = false;
180  $png = imagecreate($width, $height);
181  $bgcol = imagecolorallocate($png, 255, 255, 255);
182  imagecolortransparent($png, $bgcol);
183  $fgcol = imagecolorallocate($png, $color[0], $color[1], $color[2]);
184  } elseif (extension_loaded('imagick')) {
185  $imagick = true;
186  $bgcol = new imagickpixel('rgb(255,255,255');
187  $fgcol = new imagickpixel('rgb('.$color[0].','.$color[1].','.$color[2].')');
188  $png = new Imagick();
189  $png->newImage($width, $height, 'none', 'png');
190  $bar = new imagickdraw();
191  $bar->setfillcolor($fgcol);
192  } else {
193  return false;
194  }
195  // print bars
196  $x = 0;
197  foreach ($this->barcode_array['bcode'] as $k => $v) {
198  $bw = round(($v['w'] * $w), 3);
199  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
200  if ($v['t']) {
201  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
202  // draw a vertical bar
203  if ($imagick) {
204  $bar->rectangle($x, $y, ($x + $bw - 1), ($y + $bh - 1));
205  } else {
206  imagefilledrectangle($png, $x, $y, ($x + $bw - 1), ($y + $bh - 1), $fgcol);
207  }
208  }
209  $x += $bw;
210  }
211  // send headers
212  header('Content-Type: image/png');
213  header('Cache-Control: public, must-revalidate, max-age=0'); // HTTP/1.1
214  header('Pragma: public');
215  header('Expires: Sat, 26 Jul 1997 05:00:00 GMT'); // Date in the past
216  header('Last-Modified: '.gmdate('D, d M Y H:i:s').' GMT');
217  if ($imagick) {
218  $png->drawimage($bar);
219  echo $png;
220  } else {
221  imagepng($png);
222  imagedestroy($png);
223  }
224  }

◆ getBarcodeSVG()

TCPDFBarcode::getBarcodeSVG (   $w = 2,
  $h = 30,
  $color = 'black'
)

Send barcode as SVG image object to the standard output.

Parameters
$w(int) Minimum width of a single bar in user units.
$h(int) Height of barcode in user units.
$color(string) Foreground color (in SVG format) for bar elements (background is transparent).

Definition at line 93 of file tcpdf_barcodes_1d.php.

References getBarcodeSVGcode().

93  {
94  // send headers
95  $code = $this->getBarcodeSVGcode($w, $h, $color);
96  header('Content-Type: application/svg+xml');
97  header('Cache-Control: public, must-revalidate, max-age=0'); // HTTP/1.1
98  header('Pragma: public');
99  header('Expires: Sat, 26 Jul 1997 05:00:00 GMT'); // Date in the past
100  header('Last-Modified: '.gmdate('D, d M Y H:i:s').' GMT');
101  header('Content-Disposition: inline; filename="'.md5($code).'.svg";');
102  //header('Content-Length: '.strlen($code));
103  echo $code;
104  }
TCPDFBarcode\getBarcodeSVGcode
getBarcodeSVGcode($w=2, $h=30, $color='black')
Return a SVG string representation of barcode.
Definition: tcpdf_barcodes_1d.php:114
+ Here is the call graph for this function:

◆ getBarcodeSVGcode()

TCPDFBarcode::getBarcodeSVGcode (   $w = 2,
  $h = 30,
  $color = 'black'
)

Return a SVG string representation of barcode.

Parameters
$w(int) Minimum width of a single bar in user units.
$h(int) Height of barcode in user units.
$color(string) Foreground color (in SVG format) for bar elements (background is transparent).
Returns
string SVG code.

Definition at line 114 of file tcpdf_barcodes_1d.php.

Referenced by getBarcodeSVG().

114  {
115  // replace table for special characters
116  $repstr = array("\0" => '', '&' => '&amp;', '<' => '&lt;', '>' => '&gt;');
117  $svg = '<'.'?'.'xml version="1.0" standalone="no"'.'?'.'>'."\n";
118  $svg .= '<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">'."\n";
119  $svg .= '<svg width="'.round(($this->barcode_array['maxw'] * $w), 3).'" height="'.$h.'" version="1.1" xmlns="http://www.w3.org/2000/svg">'."\n";
120  $svg .= "\t".'<desc>'.strtr($this->barcode_array['code'], $repstr).'</desc>'."\n";
121  $svg .= "\t".'<g id="bars" fill="'.$color.'" stroke="none">'."\n";
122  // print bars
123  $x = 0;
124  foreach ($this->barcode_array['bcode'] as $k => $v) {
125  $bw = round(($v['w'] * $w), 3);
126  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
127  if ($v['t']) {
128  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
129  // draw a vertical bar
130  $svg .= "\t\t".'<rect x="'.$x.'" y="'.$y.'" width="'.$bw.'" height="'.$bh.'" />'."\n";
131  }
132  $x += $bw;
133  }
134  $svg .= "\t".'</g>'."\n";
135  $svg .= '</svg>'."\n";
136  return $svg;
137  }
+ Here is the caller graph for this function:

◆ hex_to_dec()

TCPDFBarcode::hex_to_dec (   $hex)

Convert large hexadecimal number to decimal representation (string).

(requires PHP bcmath extension)

Parameters
$hex(string) hexadecimal number to convert specified as a string
Returns
string hexadecimal representation

Definition at line 2183 of file tcpdf_barcodes_1d.php.

Referenced by barcode_imb().

2183  {
2184  $dec = 0;
2185  $bitval = 1;
2186  $len = strlen($hex);
2187  for($pos = ($len - 1); $pos >= 0; --$pos) {
2188  $dec = bcadd($dec, bcmul(hexdec($hex{$pos}), $bitval));
2189  $bitval = bcmul($bitval, 16);
2190  }
2191  return $dec;
2192  }
+ Here is the caller graph for this function:

◆ imb_crc11fcs()

TCPDFBarcode::imb_crc11fcs (   $code_arr)
protected

Intelligent Mail Barcode calculation of Frame Check Sequence.

Parameters
$code_arr(string) array of hexadecimal values (13 bytes holding 102 bits right justified).
Returns
int 11 bit Frame Check Sequence as integer (decimal base)

Definition at line 2200 of file tcpdf_barcodes_1d.php.

References $data.

Referenced by barcode_imb().

2200  {
2201  $genpoly = 0x0F35; // generator polynomial
2202  $fcs = 0x07FF; // Frame Check Sequence
2203  // do most significant byte skipping the 2 most significant bits
2204  $data = hexdec($code_arr[0]) << 5;
2205  for ($bit = 2; $bit < 8; ++$bit) {
2206  if (($fcs ^ $data) & 0x400) {
2207  $fcs = ($fcs << 1) ^ $genpoly;
2208  } else {
2209  $fcs = ($fcs << 1);
2210  }
2211  $fcs &= 0x7FF;
2212  $data <<= 1;
2213  }
2214  // do rest of bytes
2215  for ($byte = 1; $byte < 13; ++$byte) {
2216  $data = hexdec($code_arr[$byte]) << 3;
2217  for ($bit = 0; $bit < 8; ++$bit) {
2218  if (($fcs ^ $data) & 0x400) {
2219  $fcs = ($fcs << 1) ^ $genpoly;
2220  } else {
2221  $fcs = ($fcs << 1);
2222  }
2223  $fcs &= 0x7FF;
2224  $data <<= 1;
2225  }
2226  }
2227  return $fcs;
2228  }
$data
while($lm_rec=$ilDB->fetchAssoc($lm_set)) $data
Definition: storeScorm2004.php:35
+ Here is the caller graph for this function:

◆ imb_reverse_us()

TCPDFBarcode::imb_reverse_us (   $num)
protected

Reverse unsigned short value.

Parameters
$num(int) value to reversr
Returns
int reversed value

Definition at line 2236 of file tcpdf_barcodes_1d.php.

Referenced by imb_tables().

2236  {
2237  $rev = 0;
2238  for ($i = 0; $i < 16; ++$i) {
2239  $rev <<= 1;
2240  $rev |= ($num & 1);
2241  $num >>= 1;
2242  }
2243  return $rev;
2244  }
+ Here is the caller graph for this function:

◆ imb_tables()

TCPDFBarcode::imb_tables (   $n,
  $size
)
protected

generate Nof13 tables used for Intelligent Mail Barcode

Parameters
$n(int) is the type of table: 2 for 2of13 table, 5 for 5of13table
$size(int) size of table (78 for n=2 and 1287 for n=5)
Returns
array requested table

Definition at line 2253 of file tcpdf_barcodes_1d.php.

References $n, $size, and imb_reverse_us().

Referenced by barcode_imb().

2253  {
2254  $table = array();
2255  $lli = 0; // LUT lower index
2256  $lui = $size - 1; // LUT upper index
2257  for ($count = 0; $count < 8192; ++$count) {
2258  $bit_count = 0;
2259  for ($bit_index = 0; $bit_index < 13; ++$bit_index) {
2260  $bit_count += intval(($count & (1 << $bit_index)) != 0);
2261  }
2262  // if we don't have the right number of bits on, go on to the next value
2263  if ($bit_count == $n) {
2264  $reverse = ($this->imb_reverse_us($count) >> 3);
2265  // if the reverse is less than count, we have already visited this pair before
2266  if ($reverse >= $count) {
2267  // If count is symmetric, place it at the first free slot from the end of the list.
2268  // Otherwise, place it at the first free slot from the beginning of the list AND place $reverse ath the next free slot from the beginning of the list
2269  if ($reverse == $count) {
2270  $table[$lui] = $count;
2271  --$lui;
2272  } else {
2273  $table[$lli] = $count;
2274  ++$lli;
2275  $table[$lli] = $reverse;
2276  ++$lli;
2277  }
2278  }
2279  }
2280  }
2281  return $table;
2282  }
$size
$size
Definition: RandomTest.php:79
TCPDFBarcode\imb_reverse_us
imb_reverse_us($num)
Reverse unsigned short value.
Definition: tcpdf_barcodes_1d.php:2236
$n
$n
Definition: RandomTest.php:80
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ setBarcode()

TCPDFBarcode::setBarcode (   $code,
  $type
)

Set the barcode.

Parameters
$code(string) code to print
$type(string) type of barcode:
  • C39 : CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
  • C39+ : CODE 39 with checksum
  • C39E : CODE 39 EXTENDED
  • C39E+ : CODE 39 EXTENDED + CHECKSUM
  • C93 : CODE 93 - USS-93
  • S25 : Standard 2 of 5
  • S25+ : Standard 2 of 5 + CHECKSUM
  • I25 : Interleaved 2 of 5
  • I25+ : Interleaved 2 of 5 + CHECKSUM
  • C128 : CODE 128
  • C128A : CODE 128 A
  • C128B : CODE 128 B
  • C128C : CODE 128 C
  • EAN2 : 2-Digits UPC-Based Extention
  • EAN5 : 5-Digits UPC-Based Extention
  • EAN8 : EAN 8
  • EAN13 : EAN 13
  • UPCA : UPC-A
  • UPCE : UPC-E
  • MSI : MSI (Variation of Plessey code)
  • MSI+ : MSI + CHECKSUM (modulo 11)
  • POSTNET : POSTNET
  • PLANET : PLANET
  • RMS4CC : RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
  • KIX : KIX (Klant index - Customer index)
  • IMB: Intelligent Mail Barcode - Onecode - USPS-B-3200
  • CODABAR : CODABAR
  • CODE11 : CODE 11
  • PHARMA : PHARMACODE
  • PHARMA2T : PHARMACODE TWO-TRACKS
Returns
array barcode array

Definition at line 233 of file tcpdf_barcodes_1d.php.

References barcode_c128(), barcode_codabar(), barcode_code11(), barcode_code39(), barcode_code93(), barcode_eanext(), barcode_eanupc(), barcode_i25(), barcode_imb(), barcode_msi(), barcode_pharmacode(), barcode_pharmacode2t(), barcode_postnet(), barcode_rms4cc(), and barcode_s25().

Referenced by __construct().

233  {
234  switch (strtoupper($type)) {
235  case 'C39': { // CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
236  $arrcode = $this->barcode_code39($code, false, false);
237  break;
238  }
239  case 'C39+': { // CODE 39 with checksum
240  $arrcode = $this->barcode_code39($code, false, true);
241  break;
242  }
243  case 'C39E': { // CODE 39 EXTENDED
244  $arrcode = $this->barcode_code39($code, true, false);
245  break;
246  }
247  case 'C39E+': { // CODE 39 EXTENDED + CHECKSUM
248  $arrcode = $this->barcode_code39($code, true, true);
249  break;
250  }
251  case 'C93': { // CODE 93 - USS-93
252  $arrcode = $this->barcode_code93($code);
253  break;
254  }
255  case 'S25': { // Standard 2 of 5
256  $arrcode = $this->barcode_s25($code, false);
257  break;
258  }
259  case 'S25+': { // Standard 2 of 5 + CHECKSUM
260  $arrcode = $this->barcode_s25($code, true);
261  break;
262  }
263  case 'I25': { // Interleaved 2 of 5
264  $arrcode = $this->barcode_i25($code, false);
265  break;
266  }
267  case 'I25+': { // Interleaved 2 of 5 + CHECKSUM
268  $arrcode = $this->barcode_i25($code, true);
269  break;
270  }
271  case 'C128': { // CODE 128
272  $arrcode = $this->barcode_c128($code, '');
273  break;
274  }
275  case 'C128A': { // CODE 128 A
276  $arrcode = $this->barcode_c128($code, 'A');
277  break;
278  }
279  case 'C128B': { // CODE 128 B
280  $arrcode = $this->barcode_c128($code, 'B');
281  break;
282  }
283  case 'C128C': { // CODE 128 C
284  $arrcode = $this->barcode_c128($code, 'C');
285  break;
286  }
287  case 'EAN2': { // 2-Digits UPC-Based Extention
288  $arrcode = $this->barcode_eanext($code, 2);
289  break;
290  }
291  case 'EAN5': { // 5-Digits UPC-Based Extention
292  $arrcode = $this->barcode_eanext($code, 5);
293  break;
294  }
295  case 'EAN8': { // EAN 8
296  $arrcode = $this->barcode_eanupc($code, 8);
297  break;
298  }
299  case 'EAN13': { // EAN 13
300  $arrcode = $this->barcode_eanupc($code, 13);
301  break;
302  }
303  case 'UPCA': { // UPC-A
304  $arrcode = $this->barcode_eanupc($code, 12);
305  break;
306  }
307  case 'UPCE': { // UPC-E
308  $arrcode = $this->barcode_eanupc($code, 6);
309  break;
310  }
311  case 'MSI': { // MSI (Variation of Plessey code)
312  $arrcode = $this->barcode_msi($code, false);
313  break;
314  }
315  case 'MSI+': { // MSI + CHECKSUM (modulo 11)
316  $arrcode = $this->barcode_msi($code, true);
317  break;
318  }
319  case 'POSTNET': { // POSTNET
320  $arrcode = $this->barcode_postnet($code, false);
321  break;
322  }
323  case 'PLANET': { // PLANET
324  $arrcode = $this->barcode_postnet($code, true);
325  break;
326  }
327  case 'RMS4CC': { // RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
328  $arrcode = $this->barcode_rms4cc($code, false);
329  break;
330  }
331  case 'KIX': { // KIX (Klant index - Customer index)
332  $arrcode = $this->barcode_rms4cc($code, true);
333  break;
334  }
335  case 'IMB': { // IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200
336  $arrcode = $this->barcode_imb($code);
337  break;
338  }
339  case 'CODABAR': { // CODABAR
340  $arrcode = $this->barcode_codabar($code);
341  break;
342  }
343  case 'CODE11': { // CODE 11
344  $arrcode = $this->barcode_code11($code);
345  break;
346  }
347  case 'PHARMA': { // PHARMACODE
348  $arrcode = $this->barcode_pharmacode($code);
349  break;
350  }
351  case 'PHARMA2T': { // PHARMACODE TWO-TRACKS
352  $arrcode = $this->barcode_pharmacode2t($code);
353  break;
354  }
355  default: {
356  $this->barcode_array = false;
357  $arrcode = false;
358  break;
359  }
360  }
361  $this->barcode_array = $arrcode;
362  }
TCPDFBarcode\barcode_i25
barcode_i25($code, $checksum=false)
Interleaved 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:874
TCPDFBarcode\barcode_eanext
barcode_eanext($code, $len=5)
UPC-Based Extentions 2-Digit Ext.
Definition: tcpdf_barcodes_1d.php:1500
TCPDFBarcode\barcode_code39
barcode_code39($code, $extended=false, $checksum=false)
CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
Definition: tcpdf_barcodes_1d.php:373
TCPDFBarcode\barcode_postnet
barcode_postnet($code, $planet=false)
POSTNET and PLANET barcodes.
Definition: tcpdf_barcodes_1d.php:1575
TCPDFBarcode\barcode_codabar
barcode_codabar($code)
CODABAR barcodes.
Definition: tcpdf_barcodes_1d.php:1799
TCPDFBarcode\barcode_rms4cc
barcode_rms4cc($code, $kix=false)
RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant i...
Definition: tcpdf_barcodes_1d.php:1648
TCPDFBarcode\barcode_imb
barcode_imb($code)
IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Ma...
Definition: tcpdf_barcodes_1d.php:2035
TCPDFBarcode\barcode_msi
barcode_msi($code, $checksum=false)
MSI.
Definition: tcpdf_barcodes_1d.php:743
TCPDFBarcode\barcode_pharmacode
barcode_pharmacode($code)
Pharmacode Contains digits (0 to 9)
Definition: tcpdf_barcodes_1d.php:1946
TCPDFBarcode\barcode_s25
barcode_s25($code, $checksum=false)
Standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:802
TCPDFBarcode\barcode_eanupc
barcode_eanupc($code, $len=13)
EAN13 and UPC-A barcodes.
Definition: tcpdf_barcodes_1d.php:1307
TCPDFBarcode\barcode_c128
barcode_c128($code, $type='')
C128 barcodes.
Definition: tcpdf_barcodes_1d.php:938
TCPDFBarcode\barcode_pharmacode2t
barcode_pharmacode2t($code)
Pharmacode two-track Contains digits (0 to 9)
Definition: tcpdf_barcodes_1d.php:1972
TCPDFBarcode\barcode_code11
barcode_code11($code)
CODE11 barcodes.
Definition: tcpdf_barcodes_1d.php:1855
TCPDFBarcode\barcode_code93
barcode_code93($code)
CODE 93 - USS-93 Compact code similar to Code 39.
Definition: tcpdf_barcodes_1d.php:540
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $barcode_array

TCPDFBarcode::$barcode_array
protected

Array representation of barcode.

Definition at line 56 of file tcpdf_barcodes_1d.php.

Referenced by getBarcodeArray().

The documentation for this class was generated from the following file:
