Inheritance diagram for OLE:

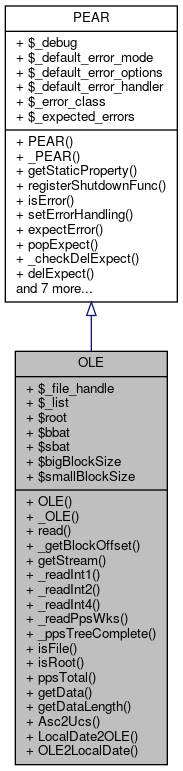

Collaboration diagram for OLE:

Public Member Functions
	OLE ()
	Creates a new OLE object public. More...

	_OLE ()
	Destructor (using PEAR) Just closes the file handle on the OLE file. More...

	read ($file)
	Reads an OLE container from the contents of the file given. More...

	_getBlockOffset ($blockId)

	getStream ($blockIdOrPps)
	Returns a stream for use with fread() etc. More...

	_readInt1 ($fh)
	Reads a signed char. More...

	_readInt2 ($fh)
	Reads an unsigned short (2 octets). More...

	_readInt4 ($fh)
	Reads an unsigned long (4 octets). More...

	_readPpsWks ($blockId)
	Gets information about all PPS's on the OLE container from the PPS WK's creates an OLE_PPS object for each one. More...

	_ppsTreeComplete ($index)
	It checks whether the PPS tree is complete (all PPS's read) starting with the given PPS (not necessarily root) More...

	isFile ($index)
	Checks whether a PPS is a File PPS or not. More...

	isRoot ($index)
	Checks whether a PPS is a Root PPS or not. More...

	ppsTotal ()
	Gives the total number of PPS's found in the OLE container. More...

	getData ($index, $position, $length)
	Gets data from a PPS If there is no PPS for the index given, it will return an empty string. More...

	getDataLength ($index)
	Gets the data length from a PPS If there is no PPS for the index given, it will return 0. More...

Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor. More...

	_PEAR ()
	Destructor (the emulated type of...). More...

&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...

	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes. More...

	isError ($data, $code=null)
	Tell whether a value is a PEAR error. More...

	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled. More...

	expectError ($code=' *')
	This method is used to tell which errors you expect to get. More...

	popExpect ()
	This method pops one element off the expected error codes stack. More...

	_checkDelExpect ($error_code)
	This method checks unsets an error code if available. More...

	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack. More...

&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...

&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options. More...

	staticPushErrorHandling ($mode, $options=null)

	staticPopErrorHandling ()

	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack. More...

	popErrorHandling ()
	Pop the last error handler used. More...

	loadExtension ($ext)
	OS independant PHP extension load. More...

Static Public Member Functions
	Asc2Ucs ($ascii)
	Utility function to transform ASCII text to Unicode. More...

	LocalDate2OLE ($date=null)
	Utility function Returns a string for the OLE container with the date given. More...

	OLE2LocalDate ($string)
	Returns a timestamp from an OLE container's date. More...

Data Fields
	$_file_handle

	$_list

	$root

	$bbat

	$sbat

	$bigBlockSize

	$smallBlockSize

Data Fields inherited from PEAR
	$_debug = false

	$_default_error_mode = null

	$_default_error_options = null

	$_default_error_handler = ''

	$_error_class = 'PEAR_Error'

	$_expected_errors = array()

Detailed Description

Definition at line 50 of file OLE.php.

Member Function Documentation

◆ _getBlockOffset()

OLE::_getBlockOffset ( $blockId )

Parameters

int $blockId block id

Returns: int byte offset from beginning of file private

Definition at line 212 of file OLE.php.

References $bigBlockSize.

Referenced by read().

     {
         return 512 + $blockId * $this->bigBlockSize;
     }

Here is the caller graph for this function:

◆ _OLE()

OLE::_OLE ( )

Destructor (using PEAR) Just closes the file handle on the OLE file.

private

Definition at line 110 of file OLE.php.

     {
         fclose($this->_file_handle);
     }

◆ _ppsTreeComplete()

OLE::_ppsTreeComplete ( $index )

It checks whether the PPS tree is complete (all PPS's read) starting with the given PPS (not necessarily root)

private

Parameters

integer $index The index of the PPS from which we are checking

Returns: boolean Whether the PPS tree for the given PPS is complete

Definition at line 372 of file OLE.php.

Referenced by _readPpsWks().

     {
         return isset($this->_list[$index]) &&
                ($pps = $this->_list[$index]) &&
                ($pps->PrevPps == -1 ||
                 $this->_ppsTreeComplete($pps->PrevPps)) &&
                ($pps->NextPps == -1 ||
                 $this->_ppsTreeComplete($pps->NextPps)) &&
                ($pps->DirPps == -1 ||
                 $this->_ppsTreeComplete($pps->DirPps));
     }

Here is the caller graph for this function:

◆ _readInt1()

OLE::_readInt1 ( $fh )

Reads a signed char.

Parameters

resource $fh file handle

Returns: int private

Definition at line 255 of file OLE.php.

Referenced by _readPpsWks().

     {
         list(, $tmp) = unpack("c", fread($fh, 1));
         return $tmp;
     }

Here is the caller graph for this function:

◆ _readInt2()

OLE::_readInt2 ( $fh )

Reads an unsigned short (2 octets).

Parameters

resource $fh file handle

Returns: int private

Definition at line 267 of file OLE.php.

Referenced by _readPpsWks(), and read().

     {
         list(, $tmp) = unpack("v", fread($fh, 2));
         return $tmp;
     }

Here is the caller graph for this function:

◆ _readInt4()

OLE::_readInt4 ( $fh )

Reads an unsigned long (4 octets).

Parameters

resource file handle

Returns: int private

Definition at line 279 of file OLE.php.

Referenced by _readPpsWks(), and read().

     {
         list(, $tmp) = unpack("V", fread($fh, 4));
         return $tmp;
     }

Here is the caller graph for this function:

◆ _readPpsWks()

OLE::_readPpsWks ( $blockId )

Gets information about all PPS's on the OLE container from the PPS WK's creates an OLE_PPS object for each one.

private

Parameters

integer $blockId the block id of the first block

Returns: mixed true on success, PEAR_Error on failure

Definition at line 293 of file OLE.php.

References _ppsTreeComplete(), _readInt1(), _readInt2(), _readInt4(), getStream(), OLE2LocalDate(), OLE_PPS_TYPE_DIR, OLE_PPS_TYPE_FILE, and OLE_PPS_TYPE_ROOT.

Referenced by read().

     {
         $fh = $this->getStream($blockId);
         for ($pos = 0; ; $pos += 128) {
             fseek($fh, $pos, SEEK_SET);
             $nameUtf16 = fread($fh, 64);
             $nameLength = $this->_readInt2($fh);
             $nameUtf16 = substr($nameUtf16, 0, $nameLength - 2);
             // Simple conversion from UTF-16LE to ISO-8859-1
             $name = str_replace("\x00", "", $nameUtf16);
             $type = $this->_readInt1($fh);
             switch ($type) {
             case OLE_PPS_TYPE_ROOT:
                 require_once 'OLE/PPS/Root.php';
                 $pps = new OLE_PPS_Root(null, null, array());
                 $this->root = $pps;
                 break;
             case OLE_PPS_TYPE_DIR:
                 $pps = new OLE_PPS(null, null, null, null, null,
                                    null, null, null, null, array());
                 break;
             case OLE_PPS_TYPE_FILE:
                 require_once 'OLE/PPS/File.php';
                 $pps = new OLE_PPS_File($name);
                 break;
             default:
                 continue;
             }
             fseek($fh, 1, SEEK_CUR);
             $pps->Type    = $type;
             $pps->Name    = $name;
             $pps->PrevPps = $this->_readInt4($fh);
             $pps->NextPps = $this->_readInt4($fh);
             $pps->DirPps  = $this->_readInt4($fh);
             fseek($fh, 20, SEEK_CUR);
             $pps->Time1st = OLE::OLE2LocalDate(fread($fh, 8));
             $pps->Time2nd = OLE::OLE2LocalDate(fread($fh, 8));
             $pps->_StartBlock = $this->_readInt4($fh);
             $pps->Size = $this->_readInt4($fh);
             $pps->No = count($this->_list);
             $this->_list[] = $pps;

             // check if the PPS tree (starting from root) is complete
             if (isset($this->root) &&
                 $this->_ppsTreeComplete($this->root->No)) {

                 break;
             }
         }
         fclose($fh);

         // Initialize $pps->children on directories
         foreach ($this->_list as $pps) {
             if ($pps->Type == OLE_PPS_TYPE_DIR || $pps->Type == OLE_PPS_TYPE_ROOT) {
                 $nos = array($pps->DirPps);
                 $pps->children = array();
                 while ($nos) {
                     $no = array_pop($nos);
                     if ($no != -1) {
                         $childPps = $this->_list[$no];
                         $nos[] = $childPps->PrevPps;
                         $nos[] = $childPps->NextPps;
                         $pps->children[] = $childPps;
                     }
                 }
             }
         }

         return true;
     }

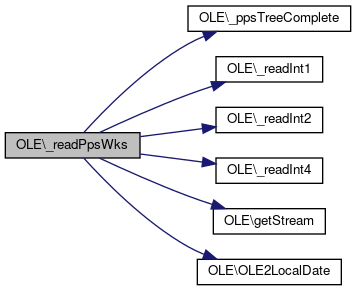

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Asc2Ucs()

OLE::Asc2Ucs ( $ascii )

static

Utility function to transform ASCII text to Unicode.

public

Parameters

string $ascii The ASCII string to transform

Returns: string The string in Unicode

Definition at line 473 of file OLE.php.

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeOLEFile(), and OLE_PPS_Root\OLE_PPS_Root().

     {
         $rawname = '';
         for ($i = 0; $i < strlen($ascii); $i++) {
             $rawname .= $ascii{$i} . "\x00";
         }
         return $rawname;
     }

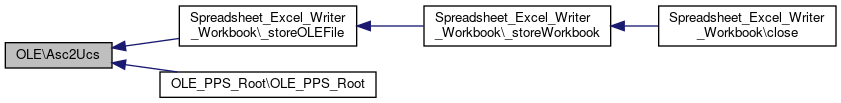

Here is the caller graph for this function:

◆ getData()

OLE::getData	(	$index,
		$position,
		$length
	)

Gets data from a PPS If there is no PPS for the index given, it will return an empty string.

Parameters

integer	$index	The index for the PPS
integer	$position	The position from which to start reading (relative to the PPS)
integer	$length	The amount of bytes to read (at most)

Returns: string The binary string containing the data requested public

See also: OLE_PPS_File::getStream()

Definition at line 435 of file OLE.php.

References $data, and getStream().

     {
         // if position is not valid return empty string
         if (!isset($this->_list[$index]) ||
             $position >= $this->_list[$index]->Size ||
             $position < 0) {

             return '';
         }
         $fh = $this->getStream($this->_list[$index]);
         $data = stream_get_contents($fh, $length, $position);
         fclose($fh);
         return $data;
     }

Here is the call graph for this function:

◆ getDataLength()

OLE::getDataLength ( $index )

Gets the data length from a PPS If there is no PPS for the index given, it will return 0.

Parameters

integer $index The index for the PPS

Returns: integer The amount of bytes in data the PPS has public

Definition at line 457 of file OLE.php.

     {
         if (isset($this->_list[$index])) {
             return $this->_list[$index]->Size;
         }
         return 0;
     }

◆ getStream()

OLE::getStream ( $blockIdOrPps )

Returns a stream for use with fread() etc.

External callers should use OLE_PPS_File::getStream().

Parameters

int | PPS $blockIdOrPps block id or PPS

Returns: resource read-only stream

Definition at line 223 of file OLE.php.

References $GLOBALS, and $path.

Referenced by _readPpsWks(), getData(), and read().

     {
         include_once 'OLE/ChainedBlockStream.php';
         static $isRegistered = false;
         if (!$isRegistered) {
             stream_wrapper_register('ole-chainedblockstream',
                                     'OLE_ChainedBlockStream');
             $isRegistered = true;
         }

         // Store current instance in global array, so that it can be accessed
         // in OLE_ChainedBlockStream::stream_open().
         // Object is removed from self::$instances in OLE_Stream::close().
         $GLOBALS['_OLE_INSTANCES'][] = $this;
         $instanceId = end(array_keys($GLOBALS['_OLE_INSTANCES']));

         $path = 'ole-chainedblockstream://oleInstanceId=' . $instanceId;
         if (is_a($blockIdOrPps, 'OLE_PPS')) {
             $path .= '&blockId=' . $blockIdOrPps->_StartBlock;
             $path .= '&size=' . $blockIdOrPps->Size;
         } else {
             $path .= '&blockId=' . $blockIdOrPps;
         }
         return fopen($path, 'r');
     }

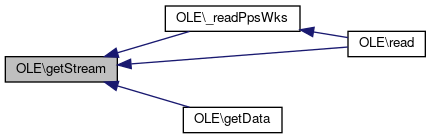

Here is the caller graph for this function:

◆ isFile()

OLE::isFile ( $index )

Checks whether a PPS is a File PPS or not.

If there is no PPS for the index given, it will return false.

Parameters

integer $index The index for the PPS

Returns: bool true if it's a File PPS, false otherwise public

Definition at line 391 of file OLE.php.

References OLE_PPS_TYPE_FILE.

     {
         if (isset($this->_list[$index])) {
             return ($this->_list[$index]->Type == OLE_PPS_TYPE_FILE);
         }
         return false;
     }

◆ isRoot()

OLE::isRoot ( $index )

Checks whether a PPS is a Root PPS or not.

If there is no PPS for the index given, it will return false.

Parameters

integer $index The index for the PPS.

Returns: bool true if it's a Root PPS, false otherwise public

Definition at line 406 of file OLE.php.

References OLE_PPS_TYPE_ROOT.

     {
         if (isset($this->_list[$index])) {
             return ($this->_list[$index]->Type == OLE_PPS_TYPE_ROOT);
         }
         return false;
     }

◆ LocalDate2OLE()

OLE::LocalDate2OLE ( $date = null )

static

Utility function Returns a string for the OLE container with the date given.

public

Parameters

integer $date A timestamp

Returns: string The string for the OLE container

Definition at line 491 of file OLE.php.

References $res.

Referenced by OLE_PPS\_getPpsWk().

     {
         if (!isset($date)) {
             return "\x00\x00\x00\x00\x00\x00\x00\x00";
         }

         // factor used for separating numbers into 4 bytes parts
         $factor = pow(2, 32);

         // days from 1-1-1601 until the beggining of UNIX era
         $days = 134774;
         // calculate seconds
         $big_date = $days * 24 * 3600 +
             gmmktime(date("H",$date),date("i",$date),date("s",$date),
                      date("m",$date),date("d",$date),date("Y",$date));
         // multiply just to make MS happy
         $big_date *= 10000000;

         $high_part = floor($big_date / $factor);
         // lower 4 bytes
         $low_part = floor((($big_date / $factor) - $high_part) * $factor);

         // Make HEX string
         $res = '';

         for ($i = 0; $i < 4; $i++) {
             $hex = $low_part % 0x100;
             $res .= pack('c', $hex);
             $low_part /= 0x100;
         }
         for ($i = 0; $i < 4; $i++) {
             $hex = $high_part % 0x100;
             $res .= pack('c', $hex);
             $high_part /= 0x100;
         }
         return $res;
     }

Here is the caller graph for this function:

◆ OLE()

OLE::OLE ( )

Creates a new OLE object public.

Definition at line 99 of file OLE.php.

     {
         $this->_list = array();
     }

◆ OLE2LocalDate()

OLE::OLE2LocalDate ( $string )

static

Returns a timestamp from an OLE container's date.

Parameters

integer $string A binary string with the encoded date

Returns: string The timestamp corresponding to the string public

Definition at line 536 of file OLE.php.

Referenced by _readPpsWks().

     {
         if (strlen($string) != 8) {
             return new PEAR_Error("Expecting 8 byte string");
         }

         // factor used for separating numbers into 4 bytes parts
         $factor = pow(2,32);
         $high_part = 0;
         for ($i = 0; $i < 4; $i++) {
             list(, $high_part) = unpack('C', $string{(7 - $i)});
             if ($i < 3) {
                 $high_part *= 0x100;
             }
         }
         $low_part = 0;
         for ($i = 4; $i < 8; $i++) {
             list(, $low_part) = unpack('C', $string{(7 - $i)});
             if ($i < 7) {
                 $low_part *= 0x100;
             }
         }
         $big_date = ($high_part * $factor) + $low_part;
         // translate to seconds
         $big_date /= 10000000;

         // days from 1-1-1601 until the beggining of UNIX era
         $days = 134774;

         // translate to seconds from beggining of UNIX era
         $big_date -= $days * 24 * 3600;
         return floor($big_date);
     }

Here is the caller graph for this function:

◆ ppsTotal()

OLE::ppsTotal ( )

Gives the total number of PPS's found in the OLE container.

Returns: integer The total number of PPS's found in the OLE container public

Definition at line 419 of file OLE.php.

     {
         return count($this->_list);
     }

◆ read()

OLE::read ( $file )

Reads an OLE container from the contents of the file given.

public

Parameters

string $file

Returns: mixed true on success, PEAR_Error on failure

Definition at line 122 of file OLE.php.

References $file, _getBlockOffset(), _readInt2(), _readInt4(), _readPpsWks(), getStream(), and PEAR\raiseError().

     {
         $fh = @fopen($file, "r");
         if (!$fh) {
             return $this->raiseError("Can't open file $file");
         }
         $this->_file_handle = $fh;

         $signature = fread($fh, 8);
         if ("\xD0\xCF\x11\xE0\xA1\xB1\x1A\xE1" != $signature) {
             return $this->raiseError("File doesn't seem to be an OLE container.");
         }
         fseek($fh, 28);
         if (fread($fh, 2) != "\xFE\xFF") {
             // This shouldn't be a problem in practice
             return $this->raiseError("Only Little-Endian encoding is supported.");
         }
         // Size of blocks and short blocks in bytes
         $this->bigBlockSize   = pow(2, $this->_readInt2($fh));
         $this->smallBlockSize = pow(2, $this->_readInt2($fh));

         // Skip UID, revision number and version number
         fseek($fh, 44);
         // Number of blocks in Big Block Allocation Table
         $bbatBlockCount = $this->_readInt4($fh);

         // Root chain 1st block
         $directoryFirstBlockId = $this->_readInt4($fh);

         // Skip unused bytes
         fseek($fh, 56);
         // Streams shorter than this are stored using small blocks
         $this->bigBlockThreshold = $this->_readInt4($fh);
         // Block id of first sector in Short Block Allocation Table
         $sbatFirstBlockId = $this->_readInt4($fh);
         // Number of blocks in Short Block Allocation Table
         $sbbatBlockCount = $this->_readInt4($fh);
         // Block id of first sector in Master Block Allocation Table
         $mbatFirstBlockId = $this->_readInt4($fh);
         // Number of blocks in Master Block Allocation Table
         $mbbatBlockCount = $this->_readInt4($fh);
         $this->bbat = array();

         // Remaining 4 * 109 bytes of current block is beginning of Master
         // Block Allocation Table
         $mbatBlocks = array();
         for ($i = 0; $i < 109; $i++) {
             $mbatBlocks[] = $this->_readInt4($fh);
         }

         // Read rest of Master Block Allocation Table (if any is left)
         $pos = $this->_getBlockOffset($mbatFirstBlockId);
         for ($i = 0; $i < $mbbatBlockCount; $i++) {
             fseek($fh, $pos);
             for ($j = 0; $j < $this->bigBlockSize / 4 - 1; $j++) {
                 $mbatBlocks[] = $this->_readInt4($fh);
             }
             // Last block id in each block points to next block
             $pos = $this->_getBlockOffset($this->_readInt4($fh));
         }

         // Read Big Block Allocation Table according to chain specified by
         // $mbatBlocks
         for ($i = 0; $i < $bbatBlockCount; $i++) {
             $pos = $this->_getBlockOffset($mbatBlocks[$i]);
             fseek($fh, $pos);
             for ($j = 0 ; $j < $this->bigBlockSize / 4; $j++) {
                 $this->bbat[] = $this->_readInt4($fh);
             }
         }

         // Read short block allocation table (SBAT)
         $this->sbat = array();
         $shortBlockCount = $sbbatBlockCount * $this->bigBlockSize / 4;
         $sbatFh = $this->getStream($sbatFirstBlockId);
         for ($blockId = 0; $blockId < $shortBlockCount; $blockId++) {
             $this->sbat[$blockId] = $this->_readInt4($sbatFh);
         }
         fclose($sbatFh);

         $this->_readPpsWks($directoryFirstBlockId);

         return true;
     }

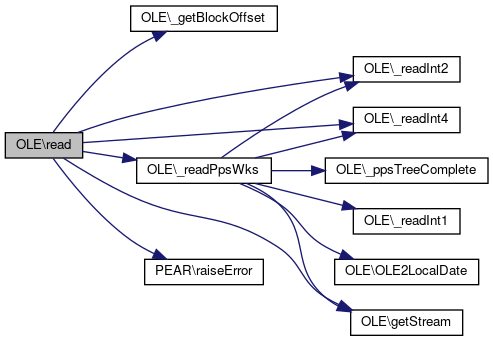

Here is the call graph for this function:

Field Documentation

◆ $_file_handle

OLE::$_file_handle

Definition at line 57 of file OLE.php.

◆ $_list

OLE::$_list

Definition at line 63 of file OLE.php.

◆ $bbat

OLE::$bbat

Definition at line 75 of file OLE.php.

◆ $bigBlockSize

OLE::$bigBlockSize

Definition at line 87 of file OLE.php.

Referenced by _getBlockOffset().

◆ $root

OLE::$root

Definition at line 69 of file OLE.php.

◆ $sbat

OLE::$sbat

Definition at line 81 of file OLE.php.

◆ $smallBlockSize

OLE::$smallBlockSize

Definition at line 93 of file OLE.php.

The documentation for this class was generated from the following file:

Services/PEAR/lib/OLE/OLE.php

Public Member Functions

Static Public Member Functions

Data Fields

Detailed Description

Member Function Documentation

◆ _getBlockOffset()

◆ _OLE()

◆ _ppsTreeComplete()

◆ _readInt1()

◆ _readInt2()

◆ _readInt4()

◆ _readPpsWks()

◆ Asc2Ucs()

◆ getData()

◆ getDataLength()

◆ getStream()

◆ isFile()

◆ isRoot()

◆ LocalDate2OLE()

◆ OLE()

◆ OLE2LocalDate()

◆ ppsTotal()

◆ read()

Field Documentation

◆ $_file_handle

◆ $_list

◆ $bbat

◆ $bigBlockSize

◆ $root

◆ $sbat

◆ $smallBlockSize
