Class for category export. More...

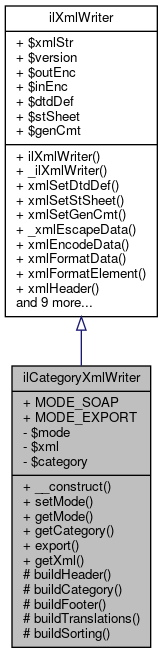

Inheritance diagram for ilCategoryXmlWriter:

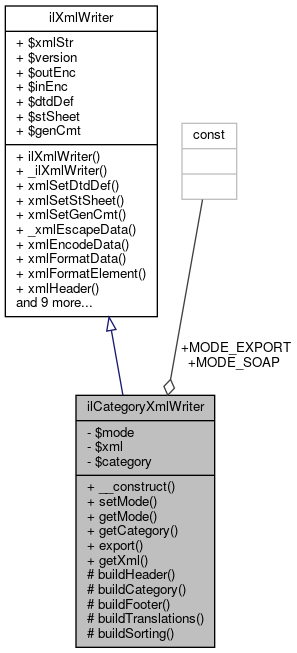

Collaboration diagram for ilCategoryXmlWriter:

Public Member Functions
	__construct (ilObjCategory $cat=null)
	constructor More...

	setMode ($a_mode)
	Set export mode. More...

	getMode ()
	get export mode More...

	getCategory ()
	Get category object. More...

	export ($a_with_header=true)
	Start wrting xml. More...

	getXml ()
	get XML More...

Public Member Functions inherited from ilXmlWriter
	ilXmlWriter ($version="1.0", $outEnc="utf-8", $inEnc="utf-8")
	constructor More...

	_ilXmlWriter ()
	destructor public More...

	xmlSetDtdDef ($dtdDef)
	Sets dtd definition. More...

	xmlSetStSheet ($stSheet)
	Sets stylesheet. More...

	xmlSetGenCmt ($genCmt)
	Sets generated comment. More...

	_xmlEscapeData ($data)
	Escapes reserved characters. More...

	xmlEncodeData ($data)
	Encodes text from input encoding into output encoding. More...

	xmlFormatData ($data)
	Indents text for better reading. More...

	xmlFormatElement ($array)
	Callback function for xmlFormatData; do not invoke directly. More...

	xmlHeader ()
	Writes xml header public. More...

	xmlStartTag ($tag, $attrs=NULL, $empty=FALSE, $encode=TRUE, $escape=TRUE)
	Writes a starttag. More...

	xmlEndTag ($tag)
	Writes an endtag. More...

	xmlComment ($comment)
	Writes a comment. More...

	xmlData ($data, $encode=TRUE, $escape=TRUE)
	Writes data. More...

	xmlElement ($tag, $attrs=NULL, $data=Null, $encode=TRUE, $escape=TRUE)
	Writes a basic element (no children, just textual content) More...

	xmlDumpFile ($file, $format=TRUE)
	Dumps xml document from memory into a file. More...

	xmlDumpMem ($format=TRUE)
	Returns xml document from memory. More...

	appendXML ($a_str)
	append xml string to document More...

	xmlClear ()
	clears xmlStr public More...

Data Fields
const	MODE_SOAP = 1

const	MODE_EXPORT = 2

Data Fields inherited from ilXmlWriter
	$xmlStr

	$version

	$outEnc

	$inEnc

	$dtdDef = ""

	$stSheet = ""

	$genCmt = "Generated by ILIAS XmlWriter"

Protected Member Functions
	buildHeader ()
	Build xml header <type> $ilSetting. More...

	buildCategory ()
	Build category xml. More...

	buildFooter ()
	Add footer elements. More...

	buildTranslations ()
	Add Translations. More...

	buildSorting ()
	Add sorting. More...

Private Attributes
	$mode = self::MODE_SOAP

	$xml

	$category

Detailed Description

Class for category export.

Author: Stefan Meyer smeye.nosp@m.r.il.nosp@m.ias@g.nosp@m.mx.d.nosp@m.e $Id$

Definition at line 12 of file class.ilCategoryXmlWriter.php.

Constructor & Destructor Documentation

◆ __construct()

ilCategoryXmlWriter::__construct ( ilObjCategory $cat = null )

constructor

Parameters

string	xml version
string	output encoding
string	input encoding public

Definition at line 28 of file class.ilCategoryXmlWriter.php.

         {
                 global $ilias;

                 parent::__construct();

                 $this->category = $cat;
         }

Member Function Documentation

◆ buildCategory()

ilCategoryXmlWriter::buildCategory ( )

protected

Build category xml.

Definition at line 112 of file class.ilCategoryXmlWriter.php.

References ilXmlWriter\xmlStartTag().

Referenced by export().

         {
                 $this->xmlStartTag('Category');
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildFooter()

ilCategoryXmlWriter::buildFooter ( )

protected

Add footer elements.

Definition at line 120 of file class.ilCategoryXmlWriter.php.

References ilXmlWriter\xmlEndTag().

Referenced by export().

         {
                 $this->xmlEndTag('Category');
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildHeader()

ilCategoryXmlWriter::buildHeader ( )

protected

Build xml header <type> $ilSetting.

Returns: <type>

Definition at line 97 of file class.ilCategoryXmlWriter.php.

References $ilSetting, getCategory(), ilXmlWriter\xmlHeader(), ilXmlWriter\xmlSetDtdDef(), and ilXmlWriter\xmlSetGenCmt().

Referenced by export().

         {
                 global $ilSetting;

                 $this->xmlSetDtdDef("<!DOCTYPE category PUBLIC \"-//ILIAS//DTD Group//EN\" \"".ILIAS_HTTP_PATH."/xml/ilias_category_4_3.dtd\">");
                 $this->xmlSetGenCmt("Export of ILIAS category ". $this->getCategory()->getId()." of installation ".$ilSetting->get('inst_id').".");
                 $this->xmlHeader();


                 return true;
         }

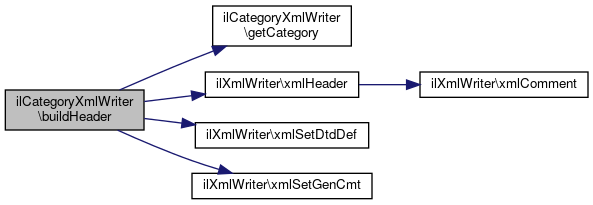

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildSorting()

ilCategoryXmlWriter::buildSorting ( )

protected

Add sorting.

Definition at line 151 of file class.ilCategoryXmlWriter.php.

References getCategory(), ilContainer\SORT_MANUAL, and ilXmlWriter\xmlElement().

Referenced by export().

         {
                 include_once './Services/Container/classes/class.ilContainerSortingSettings.php';
                 include_once './Services/Container/classes/class.ilContainer.php';

                 $sorting = new ilContainerSortingSettings($this->getCategory()->getId());
                 switch($sorting->getSortMode())
                 {
                         case ilContainer::SORT_MANUAL:
                                 $type = 'Manual';
                                 break;

                         default:
                                 $type = 'Title';
                                 break;

                 }
                 $this->xmlElement('Sorting', array('type' => $type));
         }

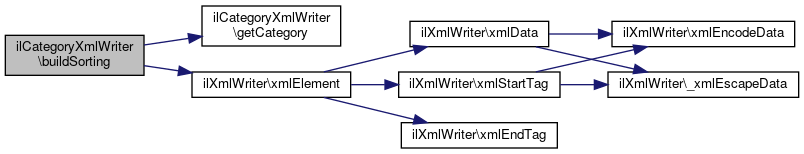

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildTranslations()

ilCategoryXmlWriter::buildTranslations ( )

protected

Add Translations.

Definition at line 128 of file class.ilCategoryXmlWriter.php.

References getCategory(), ilXmlWriter\xmlElement(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

Referenced by export().

         {
                 $this->xmlStartTag('Translations');

                 $translations = $this->getCategory()->getTranslations();


                 $first = true;
                 foreach((array) $translations['Fobject'] as $translation)
                 {
                         $this->xmlStartTag('Translation', array('default' => (int) $first, 'language' => $translation['lang']));
                         $this->xmlElement('Title', array(),$translation['title']);
                         $this->xmlElement('Description',array(),$translation['desc']);
                         $this->xmlEndTag('Translation');

                         $first = false;
                 }
                 $this->xmlEndTag('Translations');
         }

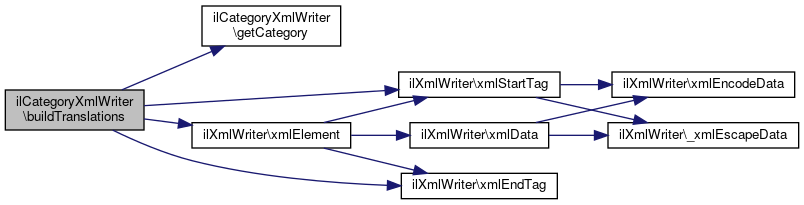

Here is the call graph for this function:

Here is the caller graph for this function:

◆ export()

ilCategoryXmlWriter::export ( $a_with_header = true )

Start wrting xml.

Definition at line 68 of file class.ilCategoryXmlWriter.php.

References buildCategory(), buildFooter(), buildHeader(), buildSorting(), buildTranslations(), and getMode().

         {
                 if($this->getMode() == self::MODE_EXPORT)
                 {
                         if($a_with_header)
                         {
                                 $this->buildHeader();
                         }
                         $this->buildCategory();
                         $this->buildTranslations();
                         $this->buildSorting();
                         $this->buildFooter();
                 }
         }

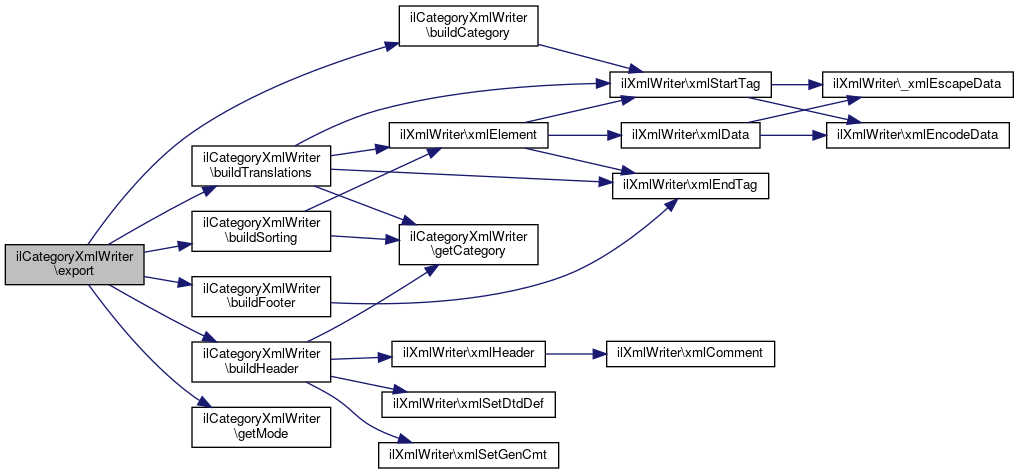

Here is the call graph for this function:

◆ getCategory()

ilCategoryXmlWriter::getCategory ( )

Get category object.

Returns: ilObjCategory

Definition at line 59 of file class.ilCategoryXmlWriter.php.

References $category.

Referenced by buildHeader(), buildSorting(), and buildTranslations().

         {
                 return $this->category;
         }

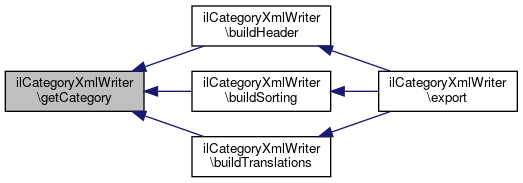

Here is the caller graph for this function:

◆ getMode()

ilCategoryXmlWriter::getMode ( )

get export mode

Returns: int

Definition at line 50 of file class.ilCategoryXmlWriter.php.

References $mode.

Referenced by export().

         {
                 return $this->mode;
         }

Here is the caller graph for this function:

◆ getXml()

ilCategoryXmlWriter::getXml ( )

get XML

Returns: string

Definition at line 87 of file class.ilCategoryXmlWriter.php.

References ilXmlWriter\xmlDumpMem().

         {
                 return $this->xmlDumpMem(false);
         }

Here is the call graph for this function:

◆ setMode()

ilCategoryXmlWriter::setMode ( $a_mode )

Set export mode.

Parameters

int $a_mode

Definition at line 41 of file class.ilCategoryXmlWriter.php.

         {
                 $this->mode = $a_mode;
         }

Field Documentation

◆ $category

ilCategoryXmlWriter::$category

private

Definition at line 19 of file class.ilCategoryXmlWriter.php.

Referenced by getCategory().

◆ $mode

ilCategoryXmlWriter::$mode = self::MODE_SOAP

private

Definition at line 17 of file class.ilCategoryXmlWriter.php.

Referenced by getMode().

◆ $xml

ilCategoryXmlWriter::$xml

private

Definition at line 18 of file class.ilCategoryXmlWriter.php.

◆ MODE_EXPORT

const ilCategoryXmlWriter::MODE_EXPORT = 2

Definition at line 15 of file class.ilCategoryXmlWriter.php.

Referenced by ilCategoryExporter\getXmlRepresentation().

◆ MODE_SOAP

const ilCategoryXmlWriter::MODE_SOAP = 1

Definition at line 14 of file class.ilCategoryXmlWriter.php.

The documentation for this class was generated from the following file:

Modules/Category/classes/class.ilCategoryXmlWriter.php
