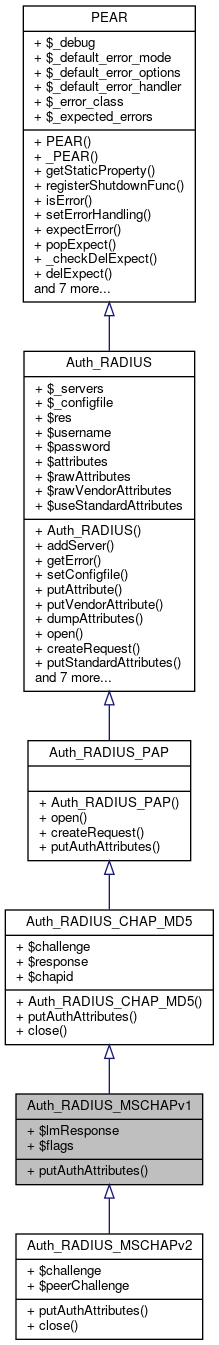

Inheritance diagram for Auth_RADIUS_MSCHAPv1:

Collaboration diagram for Auth_RADIUS_MSCHAPv1:

Public Member Functions
	putAuthAttributes ()
	Put MS-CHAPv1 specific attributes. More...

Public Member Functions inherited from Auth_RADIUS_CHAP_MD5
	Auth_RADIUS_CHAP_MD5 ($username=null, $challenge=null, $chapid=1)
	Constructor. More...

	putAuthAttributes ()
	Put CHAP-MD5 specific attributes. More...

	close ()
	Frees resources. More...

Public Member Functions inherited from Auth_RADIUS_PAP
	Auth_RADIUS_PAP ($username=null, $password=null)
	Constructor. More...

	open ()
	Creates a RADIUS resource. More...

	createRequest ()
	Creates an authentication request. More...

	putAuthAttributes ()
	Put authentication specific attributes. More...

Public Member Functions inherited from Auth_RADIUS
	Auth_RADIUS ()
	Constructor. More...

	addServer ($servername='localhost', $port=0, $sharedSecret='testing123', $timeout=3, $maxtries=3)
	Adds a RADIUS server to the list of servers for requests. More...

	getError ()
	Returns an error message, if an error occurred. More...

	setConfigfile ($file)
	Sets the configuration-file. More...

	putAttribute ($attrib, $value, $type=null)
	Puts an attribute. More...

	putVendorAttribute ($vendor, $attrib, $value, $type=null)
	Puts a vendor-specific attribute. More...

	dumpAttributes ()
	Prints known attributes received from the server. More...

	open ()
	Overwrite this. More...

	createRequest ()
	Overwrite this. More...

	putStandardAttributes ()
	Puts standard attributes. More...

	putAuthAttributes ()
	Puts custom attributes. More...

	putServer ($servername, $port=0, $sharedsecret='testing123', $timeout=3, $maxtries=3)
	Configures the radius library. More...

	putConfigfile ($file)
	Configures the radius library via external configurationfile. More...

	start ()
	Initiates a RADIUS request. More...

	send ()
	Sends a prepared RADIUS request and waits for a response. More...

	getAttributes ()
	Reads all received attributes after sending the request. More...

	close ()
	Frees resources. More...

Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor. More...

	_PEAR ()
	Destructor (the emulated type of...). More...

&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...

	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes. More...

	isError ($data, $code=null)
	Tell whether a value is a PEAR error. More...

	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled. More...

	expectError ($code=' *')
	This method is used to tell which errors you expect to get. More...

	popExpect ()
	This method pops one element off the expected error codes stack. More...

	_checkDelExpect ($error_code)
	This method checks unsets an error code if available. More...

	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack. More...

&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...

&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options. More...

	staticPushErrorHandling ($mode, $options=null)

	staticPopErrorHandling ()

	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack. More...

	popErrorHandling ()
	Pop the last error handler used. More...

	loadExtension ($ext)
	OS independant PHP extension load. More...

Data Fields
	$lmResponse = null

	$flags = 1

Data Fields inherited from Auth_RADIUS_CHAP_MD5
	$challenge = null

	$response = null

	$chapid = 1

Data Fields inherited from Auth_RADIUS
	$_servers = array()

	$_configfile = null

	$res = null

	$username = null

	$password = null

	$attributes = array()

	$rawAttributes = array()

	$rawVendorAttributes = array()

	$useStandardAttributes = true

Data Fields inherited from PEAR
	$_debug = false

	$_default_error_mode = null

	$_default_error_options = null

	$_default_error_handler = ''

	$_error_class = 'PEAR_Error'

	$_expected_errors = array()

Detailed Description

Definition at line 726 of file RADIUS.php.

Member Function Documentation

◆ putAuthAttributes()

Auth_RADIUS_MSCHAPv1::putAuthAttributes ( )

Put MS-CHAPv1 specific attributes.

For authenticating using MS-CHAPv1 via RADIUS you have to put the challenge and the response. The response has this structure: struct rad_mschapvalue { u_char ident; u_char flags; u_char lm_response[24]; u_char response[24]; };

Returns: void

Definition at line 755 of file RADIUS.php.

References Auth_RADIUS\putAttribute(), and Auth_RADIUS\putVendorAttribute().

     {
         if (isset($this->username)) {
             $this->putAttribute(RADIUS_USER_NAME, $this->username);
         }
         if (isset($this->response) || isset($this->lmResponse)) {
             $lmResp = isset($this->lmResponse) ? $this->lmResponse : str_repeat ("\0", 24);
             $ntResp = isset($this->response)   ? $this->response :   str_repeat ("\0", 24);
             $resp = pack('CC', $this->chapid, $this->flags) . $lmResp . $ntResp;
             $this->putVendorAttribute(RADIUS_VENDOR_MICROSOFT, RADIUS_MICROSOFT_MS_CHAP_RESPONSE, $resp);
         }
         if (isset($this->challenge)) {
             $this->putVendorAttribute(RADIUS_VENDOR_MICROSOFT, RADIUS_MICROSOFT_MS_CHAP_CHALLENGE, $this->challenge);
         }
     }

Here is the call graph for this function:

Field Documentation

◆ $flags

Auth_RADIUS_MSCHAPv1::$flags = 1

Definition at line 739 of file RADIUS.php.

◆ $lmResponse

Auth_RADIUS_MSCHAPv1::$lmResponse = null

Definition at line 732 of file RADIUS.php.

The documentation for this class was generated from the following file:

Services/PEAR/lib/Auth/RADIUS.php
