Datamatrix Class Reference

Class to create DataMatrix ECC 200 barcode arrays for TCPDF class. More...

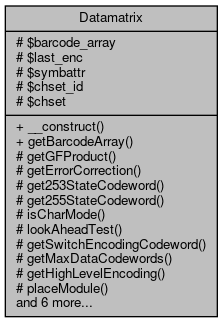

+ Collaboration diagram for Datamatrix:

Public Member Functions

 __construct ($code)
 This is the class constructor. More...

 getBarcodeArray ()
 Returns a barcode array which is readable by TCPDF. More...


Protected Member Functions

 getGFProduct ($a, $b, $log, $alog, $gf)
 Product of two numbers in a Power-of-Two Galois Field. More...

 getErrorCorrection ($wd, $nb, $nd, $nc, $gf=256, $pp=301)
 Add error correction codewords to data codewords array (ANNEX E). More...

 get253StateCodeword ($cwpad, $cwpos)
 Return the 253-state codeword. More...

 get255StateCodeword ($cwpad, $cwpos)
 Return the 255-state codeword. More...

 isCharMode ($chr, $mode)
 Returns true if the char belongs to the selected mode. More...

 lookAheadTest ($data, $pos, $mode)
 The look-ahead test scans the data to be encoded to find the best mode (Annex P - steps from J to S). More...

 getSwitchEncodingCodeword ($mode)
 Get the switching codeword to a new encoding mode (latch codeword) More...

 getMaxDataCodewords ($numcw)
 Choose the minimum matrix size and return the max number of data codewords. More...

 getHighLevelEncoding ($data)
 Get high level encoding using the minimum symbol data characters for ECC 200. More...

 placeModule ($marr, $nrow, $ncol, $row, $col, $chr, $bit)
 Places "chr+bit" with appropriate wrapping within array[]. More...

 placeUtah ($marr, $nrow, $ncol, $row, $col, $chr)
 Places the 8 bits of a utah-shaped symbol character. More...

 placeCornerA ($marr, $nrow, $ncol, $chr)
 Places the 8 bits of the first special corner case. More...

 placeCornerB ($marr, $nrow, $ncol, $chr)
 Places the 8 bits of the second special corner case. More...

 placeCornerC ($marr, $nrow, $ncol, $chr)
 Places the 8 bits of the third special corner case. More...

 placeCornerD ($marr, $nrow, $ncol, $chr)
 Places the 8 bits of the fourth special corner case. More...

 getPlacementMap ($nrow, $ncol)
 Build a placement map. More...


Protected Attributes

 $barcode_array = array()
 Barcode array to be returned which is readable by TCPDF. More...

 $last_enc = ENC_ASCII
 Store last used encoding for data codewords. More...

 $symbattr
 Table of Data Matrix ECC 200 Symbol Attributes: More...

 $chset_id = array(ENC_C40 => 'C40', ENC_TXT => 'TXT', ENC_X12 =>'X12')
 Map encodation modes whit character sets. More...

 $chset
 Basic set of characters for each encodation mode. More...


Detailed Description

Class to create DataMatrix ECC 200 barcode arrays for TCPDF class.

DataMatrix (ISO/IEC 16022:2006) is a 2-dimensional bar code.

Definition at line 110 of file datamatrix.php.

Constructor & Destructor Documentation

◆ __construct()

Datamatrix::__construct (   $code)

This is the class constructor.

Creates a datamatrix object

Parameters
$code(string) Code to represent using Datamatrix.

Definition at line 235 of file datamatrix.php.

References $barcode_array, $r, $row, ENC_ASCII, ENC_BASE256, ENC_EDF, get253StateCodeword(), getErrorCorrection(), getHighLevelEncoding(), and getPlacementMap().

235  {
236  $barcode_array = array();
237  if ((is_null($code)) OR ($code == '\0') OR ($code == '')) {
238  return false;
239  }
240  // get data codewords
241  $cw = $this->getHighLevelEncoding($code);
242  // number of data codewords
243  $nd = count($cw);
244  // check size
245  if ($nd > 1558) {
246  return false;
247  }
248  // get minimum required matrix size.
249  foreach ($this->symbattr as $params) {
250  if ($params[11] >= $nd) {
251  break;
252  }
253  }
254  if ($params[11] < $nd) {
255  // too much data
256  return false;
257  } elseif ($params[11] > $nd) {
258  // add padding
259  if ($this->last_enc == ENC_EDF) {
260  // switch to ASCII encoding
261  $cw[] = 124;
262  ++$nd;
263  } elseif (($this->last_enc != ENC_ASCII) AND ($this->last_enc != ENC_BASE256)) {
264  // switch to ASCII encoding
265  $cw[] = 254;
266  ++$nd;
267  }
268  if ($params[11] > $nd) {
269  // add first pad
270  $cw[] = 129;
271  ++$nd;
272  // add remaining pads
273  for ($i = $nd; $i < $params[11]; ++$i) {
274  $cw[] = $this->get253StateCodeword(129, $i);
275  }
276  }
277  }
278  // add error correction codewords
279  $cw = $this->getErrorCorrection($cw, $params[13], $params[14], $params[15]);
280  // initialize empty arrays
281  $grid = array_fill(0, ($params[2] * $params[3]), 0);
282  // get placement map
283  $places = $this->getPlacementMap($params[2], $params[3]);
284  // fill the grid with data
285  $grid = array();
286  $i = 0;
287  // region data row max index
288  $rdri = ($params[4] - 1);
289  // region data column max index
290  $rdci = ($params[5] - 1);
291  // for each vertical region
292  for ($vr = 0; $vr < $params[9]; ++$vr) {
293  // for each row on region
294  for ($r = 0; $r < $params[4]; ++$r) {
295  // get row
296  $row = (($vr * $params[4]) + $r);
297  // for each horizontal region
298  for ($hr = 0; $hr < $params[8]; ++$hr) {
299  // for each column on region
300  for ($c = 0; $c < $params[5]; ++$c) {
301  // get column
302  $col = (($hr * $params[5]) + $c);
303  // braw bits by case
304  if ($r == 0) {
305  // top finder pattern
306  if ($c % 2) {
307  $grid[$row][$col] = 0;
308  } else {
309  $grid[$row][$col] = 1;
310  }
311  } elseif ($r == $rdri) {
312  // bottom finder pattern
313  $grid[$row][$col] = 1;
314  } elseif ($c == 0) {
315  // left finder pattern
316  $grid[$row][$col] = 1;
317  } elseif ($c == $rdci) {
318  // right finder pattern
319  if ($r % 2) {
320  $grid[$row][$col] = 1;
321  } else {
322  $grid[$row][$col] = 0;
323  }
324  } else { // data bit
325  if ($places[$i] < 2) {
326  $grid[$row][$col] = $places[$i];
327  } else {
328  // codeword ID
329  $cw_id = (floor($places[$i] / 10) - 1);
330  // codeword BIT mask
331  $cw_bit = pow(2, (8 - ($places[$i] % 10)));
332  $grid[$row][$col] = (($cw[$cw_id] & $cw_bit) == 0) ? 0 : 1;
333  }
334  ++$i;
335  }
336  }
337  }
338  }
339  }
340  $this->barcode_array['num_rows'] = $params[0];
341  $this->barcode_array['num_cols'] = $params[1];
342  $this->barcode_array['bcode'] = $grid;
343  }
ENC_EDF
const ENC_EDF
EDIFACT encoding: ASCII character 32 to 94 (4/3 bytes per CW)
Definition: datamatrix.php:84
Datamatrix\getPlacementMap
getPlacementMap($nrow, $ncol)
Build a placement map.
Definition: datamatrix.php:1089
Datamatrix\getErrorCorrection
getErrorCorrection($wd, $nb, $nd, $nc, $gf=256, $pp=301)
Add error correction codewords to data codewords array (ANNEX E).
Definition: datamatrix.php:382
Datamatrix\get253StateCodeword
get253StateCodeword($cwpad, $cwpos)
Return the 253-state codeword.
Definition: datamatrix.php:444
ENC_BASE256
const ENC_BASE256
BASE 256 encoding: ASCII character 0 to 255 (1 byte per CW)
Definition: datamatrix.php:89
ENC_ASCII
const ENC_ASCII(!defined('DATAMATRIXDEFS'))
ASCII encoding: ASCII character 0 to 127 (1 byte per CW)
Definition: datamatrix.php:64
Datamatrix\getHighLevelEncoding
getHighLevelEncoding($data)
Get high level encoding using the minimum symbol data characters for ECC 200.
Definition: datamatrix.php:702
Datamatrix\$barcode_array
$barcode_array
Barcode array to be returned which is readable by TCPDF.
Definition: datamatrix.php:116
$r
$r
Definition: shib_logout.php:151
+ Here is the call graph for this function:

Member Function Documentation

◆ get253StateCodeword()

Datamatrix::get253StateCodeword (   $cwpad,
  $cwpos
)
protected

Return the 253-state codeword.

Parameters
$cwpad(int) Pad codeword.
$cwpos(int) Number of data codewords from the beginning of encoded data.
Returns
pad codeword

Definition at line 444 of file datamatrix.php.

Referenced by __construct().

444  {
445  $pad = ($cwpad + (((149 * $cwpos) % 253) + 1));
446  if ($pad > 254) {
447  $pad -= 254;
448  }
449  return $pad;
450  }
+ Here is the caller graph for this function:

◆ get255StateCodeword()

Datamatrix::get255StateCodeword (   $cwpad,
  $cwpos
)
protected

Return the 255-state codeword.

Parameters
$cwpad(int) Pad codeword.
$cwpos(int) Number of data codewords from the beginning of encoded data.
Returns
pad codeword

Definition at line 459 of file datamatrix.php.

Referenced by getHighLevelEncoding().

459  {
460  $pad = ($cwpad + (((149 * $cwpos) % 255) + 1));
461  if ($pad > 255) {
462  $pad -= 256;
463  }
464  return $pad;
465  }
+ Here is the caller graph for this function:

◆ getBarcodeArray()

Datamatrix::getBarcodeArray ( )

Returns a barcode array which is readable by TCPDF.

Returns
array barcode array readable by TCPDF;

Definition at line 350 of file datamatrix.php.

References $barcode_array.

350  {
351  return $this->barcode_array;
352  }
Datamatrix\$barcode_array
$barcode_array
Barcode array to be returned which is readable by TCPDF.
Definition: datamatrix.php:116

◆ getErrorCorrection()

Datamatrix::getErrorCorrection (   $wd,
  $nb,
  $nd,
  $nc,
  $gf = 256,
  $pp = 301
)
protected

Add error correction codewords to data codewords array (ANNEX E).

Parameters
$wd(array) Array of datacodewords.
$nb(int) Number of blocks.
$nd(int) Number of data codewords per block.
$nc(int) Number of correction codewords per block.
$gf(int) numner of fields on log/antilog table (power of 2).
$pp(int) The value of its prime modulus polynomial (301 for ECC200).
Returns
array data codewords + error codewords

Definition at line 382 of file datamatrix.php.

References $log, $n, and getGFProduct().

Referenced by __construct().

382  {
383  // generate the log ($log) and antilog ($alog) tables
384  $log[0] = 0;
385  $alog[0] = 1;
386  for ($i = 1; $i < $gf; ++$i) {
387  $alog[$i] = ($alog[($i - 1)] * 2);
388  if ($alog[$i] >= $gf) {
389  $alog[$i] ^= $pp;
390  }
391  $log[$alog[$i]] = $i;
392  }
393  ksort($log);
394  // generate the polynomial coefficients (c)
395  $c = array_fill(0, ($nc + 1), 0);
396  $c[0] = 1;
397  for ($i = 1; $i <= $nc; ++$i) {
398  $c[$i] = $c[($i-1)];
399  for ($j = ($i - 1); $j >= 1; --$j) {
400  $c[$j] = $c[($j - 1)] ^ $this->getGFProduct($c[$j], $alog[$i], $log, $alog, $gf);
401  }
402  $c[0] = $this->getGFProduct($c[0], $alog[$i], $log, $alog, $gf);
403  }
404  ksort($c);
405  // total number of data codewords
406  $num_wd = ($nb * $nd);
407  // total number of error codewords
408  $num_we = ($nb * $nc);
409  // for each block
410  for ($b = 0; $b < $nb; ++$b) {
411  // create interleaved data block
412  $block = array();
413  for ($n = $b; $n < $num_wd; $n += $nb) {
414  $block[] = $wd[$n];
415  }
416  // initialize error codewords
417  $we = array_fill(0, ($nc + 1), 0);
418  // calculate error correction codewords for this block
419  for ($i = 0; $i < $nd; ++$i) {
420  $k = ($we[0] ^ $block[$i]);
421  for ($j = 0; $j < $nc; ++$j) {
422  $we[$j] = ($we[($j + 1)] ^ $this->getGFProduct($k, $c[($nc - $j - 1)], $log, $alog, $gf));
423  }
424  }
425  // add error codewords at the end of data codewords
426  $j = 0;
427  for ($i = $b; $i < $num_we; $i += $nb) {
428  $wd[($num_wd + $i)] = $we[$j];
429  ++$j;
430  }
431  }
432  // reorder codewords
433  ksort($wd);
434  return $wd;
435  }
$n
$n
Definition: RandomTest.php:80
Datamatrix\getGFProduct
getGFProduct($a, $b, $log, $alog, $gf)
Product of two numbers in a Power-of-Two Galois Field.
Definition: datamatrix.php:364
$log
$log
Definition: inc.setup_header.php:125
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getGFProduct()

Datamatrix::getGFProduct (   $a,
  $b,
  $log,
  $alog,
  $gf
)
protected

Product of two numbers in a Power-of-Two Galois Field.

Parameters
$a(int) first number to multiply.
$b(int) second number to multiply.
$log(array) Log table.
$alog(array) Anti-Log table.
$gf(array) Number of Factors of the Reed-Solomon polynomial.
Returns
int product

Definition at line 364 of file datamatrix.php.

References $log.

Referenced by getErrorCorrection().

364  {
365  if (($a == 0) OR ($b == 0)) {
366  return 0;
367  }
368  return ($alog[($log[$a] + $log[$b]) % ($gf - 1)]);
369  }
$log
$log
Definition: inc.setup_header.php:125
+ Here is the caller graph for this function:

◆ getHighLevelEncoding()

Datamatrix::getHighLevelEncoding (   $data)
protected

Get high level encoding using the minimum symbol data characters for ECC 200.

Parameters
$data(string) data to encode
Returns
array of codewords

Definition at line 702 of file datamatrix.php.

References $data, ENC_ASCII, ENC_ASCII_EXT, ENC_ASCII_NUM, ENC_BASE256, ENC_C40, ENC_EDF, ENC_TXT, ENC_X12, get255StateCodeword(), getMaxDataCodewords(), getSwitchEncodingCodeword(), isCharMode(), and lookAheadTest().

Referenced by __construct().

702  {
703  // STEP A. Start in ASCII encodation.
704  $enc = ENC_ASCII; // current encoding mode
705  $pos = 0; // current position
706  $cw = array(); // array of codewords to be returned
707  $cw_num = 0; // number of data codewords
708  $data_lenght = strlen($data); // number of chars
709  while ($pos < $data_lenght) {
710  switch ($enc) {
711  case ENC_ASCII: { // STEP B. While in ASCII encodation
712  if (($data_lenght > 1) AND ($pos < ($data_lenght - 1)) AND ($this->isCharMode(ord($data[$pos]), ENC_ASCII_NUM) AND $this->isCharMode(ord($data[$pos + 1]), ENC_ASCII_NUM))) {
713  // 1. If the next data sequence is at least 2 consecutive digits, encode the next two digits as a double digit in ASCII mode.
714  $cw[] = (intval(substr($data, $pos, 2)) + 130);
715  ++$cw_num;
716  $pos += 2;
717  } else {
718  // 2. If the look-ahead test (starting at step J) indicates another mode, switch to that mode.
719  $newenc = $this->lookAheadTest($data, $pos, $enc);
720  if ($newenc != $enc) {
721  // switch to new encoding
722  $enc = $newenc;
723  $cw[] = $this->getSwitchEncodingCodeword($enc);
724  ++$cw_num;
725  } else {
726  // get new byte
727  $chr = ord($data[$pos]);
728  ++$pos;
729  if ($this->isCharMode($chr, ENC_ASCII_EXT)) {
730  // 3. If the next data character is extended ASCII (greater than 127) encode it in ASCII mode first using the Upper Shift (value 235) character.
731  $cw[] = 235;
732  $cw[] = ($chr - 127);
733  $cw_num += 2;
734  } else {
735  // 4. Otherwise process the next data character in ASCII encodation.
736  $cw[] = ($chr + 1);
737  ++$cw_num;
738  }
739  }
740  }
741  break;
742  }
743  case ENC_C40 : // Upper-case alphanumeric
744  case ENC_TXT : // Lower-case alphanumeric
745  case ENC_X12 : { // ANSI X12
746  $temp_cw = array();
747  $p = 0;
748  $epos = $pos;
749  // get charset ID
750  $set_id = $this->chset_id[$enc];
751  // get basic charset for current encoding
752  $charset = $this->chset[$set_id];
753  do {
754  // 2. process the next character in C40 encodation.
755  $chr = ord($data[$epos]);
756  ++$epos;
757  // check for extended character
758  if ($chr & 0x80) {
759  if ($enc == ENC_X12) {
760  return false;
761  }
762  $chr = ($chr & 0x7f);
763  $temp_cw[] = 1; // shift 2
764  $temp_cw[] = 30; // upper shift
765  $p += 2;
766  }
767  if (isset($charset[$chr])) {
768  $temp_cw[] = $charset[$chr];
769  ++$p;
770  } else {
771  if (isset($this->chset['SH1'][$chr])) {
772  $temp_cw[] = 0; // shift 1
773  $shiftset = $this->chset['SH1'];
774  } elseif (isset($chr, $this->chset['SH2'][$chr])) {
775  $temp_cw[] = 1; // shift 2
776  $shiftset = $this->chset['SH2'];
777  } elseif (($enc == ENC_C40) AND isset($this->chset['S3C'][$chr])) {
778  $temp_cw[] = 2; // shift 3
779  $shiftset = $this->chset['S3C'];
780  } elseif (($enc == ENC_TXT) AND isset($this->chset['S3T'][$chr])) {
781  $temp_cw[] = 2; // shift 3
782  $shiftset = $this->chset['S3T'];
783  } else {
784  return false;
785  }
786  $temp_cw[] = $shiftset[$chr];
787  $p += 2;
788  }
789  if ($p >= 3) {
790  $c1 = array_shift($temp_cw);
791  $c2 = array_shift($temp_cw);
792  $c3 = array_shift($temp_cw);
793  $p -= 3;
794  $tmp = ((1600 * $c1) + (40 * $c2) + $c3 + 1);
795  $cw[] = ($tmp >> 8);
796  $cw[] = ($tmp % 256);
797  $cw_num += 2;
798  $pos = $epos;
799  // 1. If the C40 encoding is at the point of starting a new double symbol character and if the look-ahead test (starting at step J) indicates another mode, switch to that mode.
800  $newenc = $this->lookAheadTest($data, $pos, $enc);
801  if ($newenc != $enc) {
802  $enc = $newenc;
803  $cw[] = $this->getSwitchEncodingCodeword($enc);
804  ++$cw_num;
805  $pos -= $p;
806  $p = 0;
807  break;
808  }
809  }
810  } while (($p > 0) AND ($epos < $data_lenght));
811  // process last data (if any)
812  if ($p > 0) {
813  // get remaining number of data symbols
814  $cwr = ($this->getMaxDataCodewords($cw_num + 2) - $cw_num);
815  if (($cwr == 1) AND ($p == 1)) {
816  // d. If one symbol character remains and one C40 value (data character) remains to be encoded
817  $c1 = array_shift($temp_cw);
818  --$p;
819  $cw[] = ($c1 + 1);
820  ++$cw_num;
821  } elseif (($cwr == 2) AND ($p == 1)) {
822  // c. If two symbol characters remain and only one C40 value (data character) remains to be encoded
823  $c1 = array_shift($temp_cw);
824  --$p;
825  $cw[] = 254;
826  $cw[] = ($c1 + 1);
827  $cw_num += 2;
828  } elseif (($cwr == 2) AND ($p == 2)) {
829  // b. If two symbol characters remain and two C40 values remain to be encoded
830  $c1 = array_shift($temp_cw);
831  $c2 = array_shift($temp_cw);
832  $p -= 2;
833  $tmp = ((1600 * $c1) + (40 * $c2) + 1);
834  $cw[] = ($tmp >> 8);
835  $cw[] = ($tmp % 256);
836  $cw_num += 2;
837  } else {
838  // switch to ASCII encoding
839  if ($enc != ENC_ASCII) {
840  $enc = ENC_ASCII;
841  $cw[] = $this->getSwitchEncodingCodeword($enc);
842  ++$cw_num;
843  }
844  }
845  }
846  break;
847  }
848  case ENC_EDF: { // F. While in EDIFACT (EDF) encodation
849  // initialize temporary array with 0 lenght
850  $temp_cw = array();
851  $epos = $pos;
852  $field_lenght = 0;
853  $newenc = $enc;
854  do {
855  // 2. process the next character in EDIFACT encodation.
856  $chr = ord($data[$epos]);
857  if ($this->isCharMode($chr, ENC_EDF)) {
858  ++$epos;
859  $temp_cw[] = $chr;
860  ++$field_lenght;
861  }
862  if (($field_lenght == 4) OR ($epos == $data_lenght) OR !$this->isCharMode($chr, ENC_EDF)) {
863  if ($field_lenght < 4) {
864  // set unlatch character
865  $temp_cw[] = 0x1f;
866  ++$field_lenght;
867  // fill empty characters
868  for ($i = $field_lenght; $i < 4; ++$i) {
869  $temp_cw[] = 0;
870  }
871  $enc = ENC_ASCII;
872  }
873  // encodes four data characters in three codewords
874  $tcw = (($temp_cw[0] & 0x3F) << 2) + (($temp_cw[1] & 0x30) >> 4);
875  if ($tcw > 0) {
876  $cw[] = $tcw;
877  $cw_num++;
878  }
879  $tcw= (($temp_cw[1] & 0x0F) << 4) + (($temp_cw[2] & 0x3C) >> 2);
880  if ($tcw > 0) {
881  $cw[] = $tcw;
882  $cw_num++;
883  }
884  $tcw = (($temp_cw[2] & 0x03) << 6) + ($temp_cw[3] & 0x3F);
885  if ($tcw > 0) {
886  $cw[] = $tcw;
887  $cw_num++;
888  }
889  $temp_cw = array();
890  $pos = $epos;
891  $field_lenght = 0;
892  if ($enc == ENC_ASCII) {
893  break; // exit from EDIFACT mode
894  }
895  }
896  } while ($epos < $data_lenght);
897  break;
898  }
899  case ENC_BASE256: { // G. While in Base 256 (B256) encodation
900  // initialize temporary array with 0 lenght
901  $temp_cw = array();
902  $field_lenght = 0;
903  while (($pos < $data_lenght) AND ($field_lenght <= 1555)) {
904  $newenc = $this->lookAheadTest($data, $pos, $enc);
905  if ($newenc != $enc) {
906  // 1. If the look-ahead test (starting at step J) indicates another mode, switch to that mode.
907  $enc = $newenc;
908  $cw[] = $this->getSwitchEncodingCodeword($enc);
909  ++$cw_num;
910  break; // exit from B256 mode
911  } else {
912  // 2. Otherwise, process the next character in Base 256 encodation.
913  $chr = ord($data[$pos]);
914  ++$pos;
915  $temp_cw[] = $chr;
916  ++$field_lenght;
917  }
918  }
919  // set field lenght
920  if ($field_lenght <= 249) {
921  $cw[] = $field_lenght;
922  ++$cw_num;
923  } else {
924  $cw[] = (floor($field_lenght / 250) + 249);
925  $cw[] = ($field_lenght % 250);
926  $cw_num += 2;
927  }
928  if (!empty($temp_cw)) {
929  // add B256 field
930  foreach ($temp_cw as $p => $cht) {
931  $cw[] = $this->get255StateCodeword($chr, ($cw_num + $p));
932  }
933  }
934  break;
935  }
936  } // end of switch enc
937  } // end of while
938  // set last used encoding
939  $this->last_enc = $enc;
940  return $cw;
941  }
ENC_ASCII_NUM
const ENC_ASCII_NUM
ASCII number encoding: ASCII digits (2 bytes per CW)
Definition: datamatrix.php:99
Datamatrix\get255StateCodeword
get255StateCodeword($cwpad, $cwpos)
Return the 255-state codeword.
Definition: datamatrix.php:459
ENC_TXT
const ENC_TXT
TEXT encoding: Lower-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:74
ENC_EDF
const ENC_EDF
EDIFACT encoding: ASCII character 32 to 94 (4/3 bytes per CW)
Definition: datamatrix.php:84
Datamatrix\lookAheadTest
lookAheadTest($data, $pos, $mode)
The look-ahead test scans the data to be encoded to find the best mode (Annex P - steps from J to S)...
Definition: datamatrix.php:521
Datamatrix\isCharMode
isCharMode($chr, $mode)
Returns true if the char belongs to the selected mode.
Definition: datamatrix.php:474
ENC_ASCII_EXT
const ENC_ASCII_EXT
ASCII extended encoding: ASCII character 128 to 255 (1/2 byte per CW)
Definition: datamatrix.php:94
Datamatrix\getSwitchEncodingCodeword
getSwitchEncodingCodeword($mode)
Get the switching codeword to a new encoding mode (latch codeword)
Definition: datamatrix.php:651
ENC_C40
const ENC_C40
C40 encoding: Upper-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:69
Datamatrix\getMaxDataCodewords
getMaxDataCodewords($numcw)
Choose the minimum matrix size and return the max number of data codewords.
Definition: datamatrix.php:687
$data
while($lm_rec=$ilDB->fetchAssoc($lm_set)) $data
Definition: storeScorm2004.php:35
ENC_BASE256
const ENC_BASE256
BASE 256 encoding: ASCII character 0 to 255 (1 byte per CW)
Definition: datamatrix.php:89
ENC_ASCII
const ENC_ASCII(!defined('DATAMATRIXDEFS'))
ASCII encoding: ASCII character 0 to 127 (1 byte per CW)
Definition: datamatrix.php:64
ENC_X12
const ENC_X12
X12 encoding: ANSI X12 (3/2 byte per CW)
Definition: datamatrix.php:79

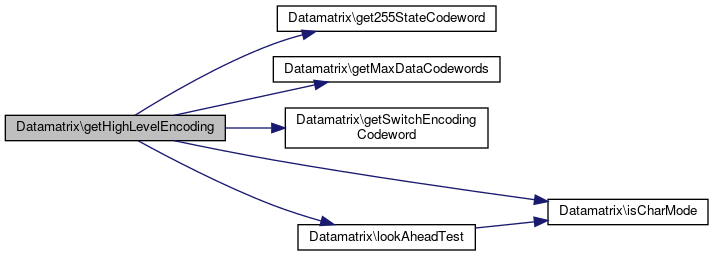

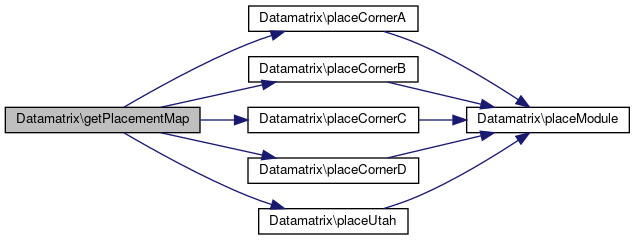

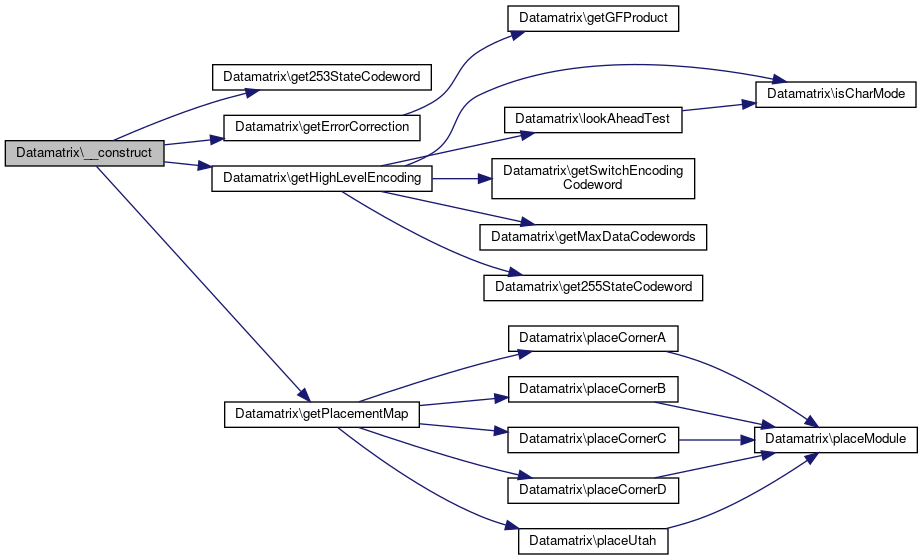

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getMaxDataCodewords()

Datamatrix::getMaxDataCodewords (   $numcw)
protected

Choose the minimum matrix size and return the max number of data codewords.

Parameters
$numcw(int) Number of current codewords.
Returns
number of data codewords in matrix

Definition at line 687 of file datamatrix.php.

Referenced by getHighLevelEncoding().

687  {
688  foreach ($this->symbattr as $key => $matrix) {
689  if ($matrix[11] >= $numcw) {
690  return $matrix[11];
691  }
692  }
693  return 0;
694  }
+ Here is the caller graph for this function:

◆ getPlacementMap()

Datamatrix::getPlacementMap (   $nrow,
  $ncol
)
protected

Build a placement map.

(Annex F - ECC 200 symbol character placement)

Parameters
$nrow(int) Number of rows.
$ncol(int) Number of columns.
Returns
array

Definition at line 1089 of file datamatrix.php.

References $row, placeCornerA(), placeCornerB(), placeCornerC(), placeCornerD(), and placeUtah().

Referenced by __construct().

1089  {
1090  // initialize array with zeros
1091  $marr = array_fill(0, ($nrow * $ncol), 0);
1092  // set starting values
1093  $chr = 1;
1094  $row = 4;
1095  $col = 0;
1096  do {
1097  // repeatedly first check for one of the special corner cases, then
1098  if (($row == $nrow) AND ($col == 0)) {
1099  $marr = $this->placeCornerA($marr, $nrow, $ncol, $chr);
1100  ++$chr;
1101  }
1102  if (($row == ($nrow - 2)) AND ($col == 0) AND ($ncol % 4)) {
1103  $marr = $this->placeCornerB($marr, $nrow, $ncol, $chr);
1104  ++$chr;
1105  }
1106  if (($row == ($nrow - 2)) AND ($col == 0) AND (($ncol % 8) == 4)) {
1107  $marr = $this->placeCornerC($marr, $nrow, $ncol, $chr);
1108  ++$chr;
1109  }
1110  if (($row == ($nrow + 4)) AND ($col == 2) AND (!($ncol % 8))) {
1111  $marr = $this->placeCornerD($marr, $nrow, $ncol, $chr);
1112  ++$chr;
1113  }
1114  // sweep upward diagonally, inserting successive characters,
1115  do {
1116  if (($row < $nrow) AND ($col >= 0) AND (!$marr[(($row * $ncol) + $col)])) {
1117  $marr = $this->placeUtah($marr, $nrow, $ncol, $row, $col, $chr);
1118  ++$chr;
1119  }
1120  $row -= 2;
1121  $col += 2;
1122  } while (($row >= 0) AND ($col < $ncol));
1123  ++$row;
1124  $col += 3;
1125  // & then sweep downward diagonally, inserting successive characters,...
1126  do {
1127  if (($row >= 0) AND ($col < $ncol) AND (!$marr[(($row * $ncol) + $col)])) {
1128  $marr = $this->placeUtah($marr, $nrow, $ncol, $row, $col, $chr);
1129  ++$chr;
1130  }
1131  $row += 2;
1132  $col -= 2;
1133  } while (($row < $nrow) AND ($col >= 0));
1134  $row += 3;
1135  ++$col;
1136  // ... until the entire array is scanned
1137  } while (($row < $nrow) OR ($col < $ncol));
1138  // lastly, if the lower righthand corner is untouched, fill in fixed pattern
1139  if (!$marr[(($nrow * $ncol) - 1)]) {
1140  $marr[(($nrow * $ncol) - 1)] = 1;
1141  $marr[(($nrow * $ncol) - $ncol - 2)] = 1;
1142  }
1143  return $marr;
1144  }
Datamatrix\placeUtah
placeUtah($marr, $nrow, $ncol, $row, $col, $chr)
Places the 8 bits of a utah-shaped symbol character.
Definition: datamatrix.php:981
Datamatrix\placeCornerD
placeCornerD($marr, $nrow, $ncol, $chr)
Places the 8 bits of the fourth special corner case.
Definition: datamatrix.php:1069
Datamatrix\placeCornerC
placeCornerC($marr, $nrow, $ncol, $chr)
Places the 8 bits of the third special corner case.
Definition: datamatrix.php:1047
Datamatrix\placeCornerB
placeCornerB($marr, $nrow, $ncol, $chr)
Places the 8 bits of the second special corner case.
Definition: datamatrix.php:1025
Datamatrix\placeCornerA
placeCornerA($marr, $nrow, $ncol, $chr)
Places the 8 bits of the first special corner case.
Definition: datamatrix.php:1003
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getSwitchEncodingCodeword()

Datamatrix::getSwitchEncodingCodeword (   $mode)
protected

Get the switching codeword to a new encoding mode (latch codeword)

Parameters
$mode(int) New encoding mode.
Returns
(int) Switch codeword.

Definition at line 651 of file datamatrix.php.

References ENC_ASCII, ENC_BASE256, ENC_C40, ENC_EDF, ENC_TXT, and ENC_X12.

Referenced by getHighLevelEncoding().

651  {
652  switch ($mode) {
653  case ENC_ASCII: { // ASCII character 0 to 127
654  $cw = 254;
655  break;
656  }
657  case ENC_C40: { // Upper-case alphanumeric
658  $cw = 230;
659  break;
660  }
661  case ENC_TXT: { // Lower-case alphanumeric
662  $cw = 239;
663  break;
664  }
665  case ENC_X12: { // ANSI X12
666  $cw = 238;
667  break;
668  }
669  case ENC_EDF: { // ASCII character 32 to 94
670  $cw = 240;
671  break;
672  }
673  case ENC_BASE256: { // Function character (FNC1, Structured Append, Reader Program, or Code Page)
674  $cw = 231;
675  break;
676  }
677  }
678  return $cw;
679  }
ENC_TXT
const ENC_TXT
TEXT encoding: Lower-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:74
ENC_EDF
const ENC_EDF
EDIFACT encoding: ASCII character 32 to 94 (4/3 bytes per CW)
Definition: datamatrix.php:84
ENC_C40
const ENC_C40
C40 encoding: Upper-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:69
ENC_BASE256
const ENC_BASE256
BASE 256 encoding: ASCII character 0 to 255 (1 byte per CW)
Definition: datamatrix.php:89
ENC_ASCII
const ENC_ASCII(!defined('DATAMATRIXDEFS'))
ASCII encoding: ASCII character 0 to 127 (1 byte per CW)
Definition: datamatrix.php:64
ENC_X12
const ENC_X12
X12 encoding: ANSI X12 (3/2 byte per CW)
Definition: datamatrix.php:79
+ Here is the caller graph for this function:

◆ isCharMode()

Datamatrix::isCharMode (   $chr,
  $mode
)
protected

Returns true if the char belongs to the selected mode.

Parameters
$chr(int) Character (byte) to check.
$mode(int) Current encoding mode.
Returns
boolean true if the char is of the selected mode.

Definition at line 474 of file datamatrix.php.

References ENC_ASCII, ENC_ASCII_EXT, ENC_ASCII_NUM, ENC_BASE256, ENC_C40, ENC_EDF, ENC_TXT, and ENC_X12.

Referenced by getHighLevelEncoding(), and lookAheadTest().

474  {
475  $status = false;
476  switch ($mode) {
477  case ENC_ASCII: { // ASCII character 0 to 127
478  $status = (($chr >= 0) AND ($chr <= 127));
479  break;
480  }
481  case ENC_C40: { // Upper-case alphanumeric
482  $status = (($chr == 32) OR (($chr >= 48) AND ($chr <= 57)) OR (($chr >= 65) AND ($chr <= 90)));
483  break;
484  }
485  case ENC_TXT: { // Lower-case alphanumeric
486  $status = (($chr == 32) OR (($chr >= 48) AND ($chr <= 57)) OR (($chr >= 97) AND ($chr <= 122)));
487  break;
488  }
489  case ENC_X12: { // ANSI X12
490  $status = (($chr == 13) OR ($chr == 42) OR ($chr == 62));
491  break;
492  }
493  case ENC_EDF: { // ASCII character 32 to 94
494  $status = (($chr >= 32) AND ($chr <= 94));
495  break;
496  }
497  case ENC_BASE256: { // Function character (FNC1, Structured Append, Reader Program, or Code Page)
498  $status = (($chr == 232) OR ($chr == 233) OR ($chr == 234) OR ($chr == 241));
499  break;
500  }
501  case ENC_ASCII_EXT: { // ASCII character 128 to 255
502  $status = (($chr >= 128) AND ($chr <= 255));
503  break;
504  }
505  case ENC_ASCII_NUM: { // ASCII digits
506  $status = (($chr >= 48) AND ($chr <= 57));
507  break;
508  }
509  }
510  return $status;
511  }
ENC_ASCII_NUM
const ENC_ASCII_NUM
ASCII number encoding: ASCII digits (2 bytes per CW)
Definition: datamatrix.php:99
ENC_TXT
const ENC_TXT
TEXT encoding: Lower-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:74
ENC_EDF
const ENC_EDF
EDIFACT encoding: ASCII character 32 to 94 (4/3 bytes per CW)
Definition: datamatrix.php:84
ENC_ASCII_EXT
const ENC_ASCII_EXT
ASCII extended encoding: ASCII character 128 to 255 (1/2 byte per CW)
Definition: datamatrix.php:94
ENC_C40
const ENC_C40
C40 encoding: Upper-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:69
ENC_BASE256
const ENC_BASE256
BASE 256 encoding: ASCII character 0 to 255 (1 byte per CW)
Definition: datamatrix.php:89
ENC_ASCII
const ENC_ASCII(!defined('DATAMATRIXDEFS'))
ASCII encoding: ASCII character 0 to 127 (1 byte per CW)
Definition: datamatrix.php:64
ENC_X12
const ENC_X12
X12 encoding: ANSI X12 (3/2 byte per CW)
Definition: datamatrix.php:79
+ Here is the caller graph for this function:

◆ lookAheadTest()

Datamatrix::lookAheadTest (   $data,
  $pos,
  $mode
)
protected

The look-ahead test scans the data to be encoded to find the best mode (Annex P - steps from J to S).

Parameters
$data(string) data to encode
$pos(int) current position
$mode(int) current encoding mode
Returns
int encoding mode

Definition at line 521 of file datamatrix.php.

References $data, ENC_ASCII, ENC_ASCII_EXT, ENC_ASCII_NUM, ENC_BASE256, ENC_C40, ENC_EDF, ENC_TXT, ENC_X12, and isCharMode().

Referenced by getHighLevelEncoding().

521  {
522  $data_length = strlen($data);
523  if ($pos >= $data_length) {
524  return $mode;
525  }
526  $charscount = 0; // count processed chars
527  // STEP J
528  if ($mode == ENC_ASCII) {
529  $numch = array(0, 1, 1, 1, 1, 1.25);
530  } else {
531  $numch = array(1, 2, 2, 2, 2, 2.25);
532  $numch[$mode] = 0;
533  }
534  while (true) {
535  // STEP K
536  if (($pos + $charscount) == $data_length) {
537  if ($numch[ENC_ASCII] <= ceil(min($numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_EDF], $numch[ENC_BASE256]))) {
538  return ENC_ASCII;
539  }
540  if ($numch[ENC_BASE256] < ceil(min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_EDF]))) {
541  return ENC_BASE256;
542  }
543  if ($numch[ENC_EDF] < ceil(min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_BASE256]))) {
544  return ENC_EDF;
545  }
546  if ($numch[ENC_TXT] < ceil(min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_X12], $numch[ENC_EDF], $numch[ENC_BASE256]))) {
547  return ENC_TXT;
548  }
549  if ($numch[ENC_X12] < ceil(min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_EDF], $numch[ENC_BASE256]))) {
550  return ENC_X12;
551  }
552  return ENC_C40;
553  }
554  // get char
555  $chr = ord($data[$pos + $charscount]);
556  $charscount++;
557  // STEP L
558  if ($this->isCharMode($chr, ENC_ASCII_NUM)) {
559  $numch[ENC_ASCII] += (1 / 2);
560  } elseif ($this->isCharMode($chr, ENC_ASCII_EXT)) {
561  $numch[ENC_ASCII] = ceil($numch[ENC_ASCII]);
562  $numch[ENC_ASCII] += 2;
563  } else {
564  $numch[ENC_ASCII] = ceil($numch[ENC_ASCII]);
565  $numch[ENC_ASCII] += 1;
566  }
567  // STEP M
568  if ($this->isCharMode($chr, ENC_C40)) {
569  $numch[ENC_C40] += (2 / 3);
570  } elseif ($this->isCharMode($chr, ENC_ASCII_EXT)) {
571  $numch[ENC_C40] += (8 / 3);
572  } else {
573  $numch[ENC_C40] += (4 / 3);
574  }
575  // STEP N
576  if ($this->isCharMode($chr, ENC_TXT)) {
577  $numch[ENC_TXT] += (2 / 3);
578  } elseif ($this->isCharMode($chr, ENC_ASCII_EXT)) {
579  $numch[ENC_TXT] += (8 / 3);
580  } else {
581  $numch[ENC_TXT] += (4 / 3);
582  }
583  // STEP O
584  if ($this->isCharMode($chr, ENC_X12) OR $this->isCharMode($chr, ENC_C40)) {
585  $numch[ENC_X12] += (2 / 3);
586  } elseif ($this->isCharMode($chr, ENC_ASCII_EXT)) {
587  $numch[ENC_X12] += (13 / 3);
588  } else {
589  $numch[ENC_X12] += (10 / 3);
590  }
591  // STEP P
592  if ($this->isCharMode($chr, ENC_EDF)) {
593  $numch[ENC_EDF] += (3 / 4);
594  } elseif ($this->isCharMode($chr, ENC_ASCII_EXT)) {
595  $numch[ENC_EDF] += (17 / 4);
596  } else {
597  $numch[ENC_EDF] += (13 / 4);
598  }
599  // STEP Q
600  if ($this->isCharMode($chr, ENC_BASE256)) {
601  $numch[ENC_BASE256] += 4;
602  } else {
603  $numch[ENC_BASE256] += 1;
604  }
605  // STEP R
606  if ($charscount >= 4) {
607  if (($numch[ENC_ASCII] + 1) <= min($numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_EDF], $numch[ENC_BASE256])) {
608  return ENC_ASCII;
609  }
610  if ((($numch[ENC_BASE256] + 1) <= $numch[ENC_ASCII])
611  OR (($numch[ENC_BASE256] + 1) < min($numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_EDF]))) {
612  return ENC_BASE256;
613  }
614  if (($numch[ENC_EDF] + 1) < min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_X12], $numch[ENC_BASE256])) {
615  return ENC_EDF;
616  }
617  if (($numch[ENC_TXT] + 1) < min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_X12], $numch[ENC_EDF], $numch[ENC_BASE256])) {
618  return ENC_TXT;
619  }
620  if (($numch[ENC_X12] + 1) < min($numch[ENC_ASCII], $numch[ENC_C40], $numch[ENC_TXT], $numch[ENC_EDF], $numch[ENC_BASE256])) {
621  return ENC_X12;
622  }
623  if (($numch[ENC_C40] + 1) < min($numch[ENC_ASCII], $numch[ENC_TXT], $numch[ENC_EDF], $numch[ENC_BASE256])) {
624  if ($numch[ENC_C40] < $numch[ENC_X12]) {
625  return ENC_C40;
626  }
627  if ($numch[ENC_C40] == $numch[ENC_X12]) {
628  $k = ($pos + $charscount + 1);
629  while ($k < $data_length) {
630  $tmpchr = ord($data{$k});
631  if ($this->isCharMode($tmpchr, ENC_X12)) {
632  return ENC_X12;
633  } elseif (!($this->isCharMode($tmpchr, ENC_X12) OR $this->isCharMode($tmpchr, ENC_C40))) {
634  break;
635  }
636  ++$k;
637  }
638  return ENC_C40;
639  }
640  }
641  }
642  } // end of while
643  }
ENC_ASCII_NUM
const ENC_ASCII_NUM
ASCII number encoding: ASCII digits (2 bytes per CW)
Definition: datamatrix.php:99
ENC_TXT
const ENC_TXT
TEXT encoding: Lower-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:74
ENC_EDF
const ENC_EDF
EDIFACT encoding: ASCII character 32 to 94 (4/3 bytes per CW)
Definition: datamatrix.php:84
Datamatrix\isCharMode
isCharMode($chr, $mode)
Returns true if the char belongs to the selected mode.
Definition: datamatrix.php:474
ENC_ASCII_EXT
const ENC_ASCII_EXT
ASCII extended encoding: ASCII character 128 to 255 (1/2 byte per CW)
Definition: datamatrix.php:94
ENC_C40
const ENC_C40
C40 encoding: Upper-case alphanumeric (3/2 bytes per CW)
Definition: datamatrix.php:69
$data
while($lm_rec=$ilDB->fetchAssoc($lm_set)) $data
Definition: storeScorm2004.php:35
ENC_BASE256
const ENC_BASE256
BASE 256 encoding: ASCII character 0 to 255 (1 byte per CW)
Definition: datamatrix.php:89
ENC_ASCII
const ENC_ASCII(!defined('DATAMATRIXDEFS'))
ASCII encoding: ASCII character 0 to 127 (1 byte per CW)
Definition: datamatrix.php:64
ENC_X12
const ENC_X12
X12 encoding: ANSI X12 (3/2 byte per CW)
Definition: datamatrix.php:79
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ placeCornerA()

Datamatrix::placeCornerA (   $marr,
  $nrow,
  $ncol,
  $chr
)
protected

Places the 8 bits of the first special corner case.

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$chr(int) Char byte.
Returns
array

Definition at line 1003 of file datamatrix.php.

References placeModule().

Referenced by getPlacementMap().

1003  {
1004  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 0, $chr, 1);
1005  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 1, $chr, 2);
1006  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 2, $chr, 3);
1007  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-2, $chr, 4);
1008  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-1, $chr, 5);
1009  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-1, $chr, 6);
1010  $marr = $this->placeModule($marr, $nrow, $ncol, 2, $ncol-1, $chr, 7);
1011  $marr = $this->placeModule($marr, $nrow, $ncol, 3, $ncol-1, $chr, 8);
1012  return $marr;
1013  }
Datamatrix\placeModule
placeModule($marr, $nrow, $ncol, $row, $col, $chr, $bit)
Places "chr+bit" with appropriate wrapping within array[].
Definition: datamatrix.php:956
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ placeCornerB()

Datamatrix::placeCornerB (   $marr,
  $nrow,
  $ncol,
  $chr
)
protected

Places the 8 bits of the second special corner case.

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$chr(int) Char byte.
Returns
array

Definition at line 1025 of file datamatrix.php.

References placeModule().

Referenced by getPlacementMap().

1025  {
1026  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-3, 0, $chr, 1);
1027  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-2, 0, $chr, 2);
1028  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 0, $chr, 3);
1029  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-4, $chr, 4);
1030  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-3, $chr, 5);
1031  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-2, $chr, 6);
1032  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-1, $chr, 7);
1033  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-1, $chr, 8);
1034  return $marr;
1035  }
Datamatrix\placeModule
placeModule($marr, $nrow, $ncol, $row, $col, $chr, $bit)
Places "chr+bit" with appropriate wrapping within array[].
Definition: datamatrix.php:956
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ placeCornerC()

Datamatrix::placeCornerC (   $marr,
  $nrow,
  $ncol,
  $chr
)
protected

Places the 8 bits of the third special corner case.

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$chr(int) Char byte.
Returns
array

Definition at line 1047 of file datamatrix.php.

References placeModule().

Referenced by getPlacementMap().

1047  {
1048  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-3, 0, $chr, 1);
1049  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-2, 0, $chr, 2);
1050  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 0, $chr, 3);
1051  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-2, $chr, 4);
1052  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-1, $chr, 5);
1053  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-1, $chr, 6);
1054  $marr = $this->placeModule($marr, $nrow, $ncol, 2, $ncol-1, $chr, 7);
1055  $marr = $this->placeModule($marr, $nrow, $ncol, 3, $ncol-1, $chr, 8);
1056  return $marr;
1057  }
Datamatrix\placeModule
placeModule($marr, $nrow, $ncol, $row, $col, $chr, $bit)
Places "chr+bit" with appropriate wrapping within array[].
Definition: datamatrix.php:956
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ placeCornerD()

Datamatrix::placeCornerD (   $marr,
  $nrow,
  $ncol,
  $chr
)
protected

Places the 8 bits of the fourth special corner case.

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$chr(int) Char byte.
Returns
array

Definition at line 1069 of file datamatrix.php.

References placeModule().

Referenced by getPlacementMap().

1069  {
1070  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, 0, $chr, 1);
1071  $marr = $this->placeModule($marr, $nrow, $ncol, $nrow-1, $ncol-1, $chr, 2);
1072  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-3, $chr, 3);
1073  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-2, $chr, 4);
1074  $marr = $this->placeModule($marr, $nrow, $ncol, 0, $ncol-1, $chr, 5);
1075  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-3, $chr, 6);
1076  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-2, $chr, 7);
1077  $marr = $this->placeModule($marr, $nrow, $ncol, 1, $ncol-1, $chr, 8);
1078  return $marr;
1079  }
Datamatrix\placeModule
placeModule($marr, $nrow, $ncol, $row, $col, $chr, $bit)
Places "chr+bit" with appropriate wrapping within array[].
Definition: datamatrix.php:956
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ placeModule()

Datamatrix::placeModule (   $marr,
  $nrow,
  $ncol,
  $row,
  $col,
  $chr,
  $bit
)
protected

Places "chr+bit" with appropriate wrapping within array[].

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$row(int) Row number.
$col(int) Column number.
$chr(int) Char byte.
$bit(int) Bit.
Returns
array

Definition at line 956 of file datamatrix.php.

References $row.

Referenced by placeCornerA(), placeCornerB(), placeCornerC(), placeCornerD(), and placeUtah().

956  {
957  if ($row < 0) {
958  $row += $nrow;
959  $col += (4 - (($nrow + 4) % 8));
960  }
961  if ($col < 0) {
962  $col += $ncol;
963  $row += (4 - (($ncol + 4) % 8));
964  }
965  $marr[(($row * $ncol) + $col)] = ((10 * $chr) + $bit);
966  return $marr;
967  }
+ Here is the caller graph for this function:

◆ placeUtah()

Datamatrix::placeUtah (   $marr,
  $nrow,
  $ncol,
  $row,
  $col,
  $chr
)
protected

Places the 8 bits of a utah-shaped symbol character.

(Annex F - ECC 200 symbol character placement)

Parameters
$marr(array) Array of symbols.
$nrow(int) Number of rows.
$ncol(int) Number of columns.
$row(int) Row number.
$col(int) Column number.
$chr(int) Char byte.
Returns
array

Definition at line 981 of file datamatrix.php.

References $row, and placeModule().

Referenced by getPlacementMap().

981  {
982  $marr = $this->placeModule($marr, $nrow, $ncol, $row-2, $col-2, $chr, 1);
983  $marr = $this->placeModule($marr, $nrow, $ncol, $row-2, $col-1, $chr, 2);
984  $marr = $this->placeModule($marr, $nrow, $ncol, $row-1, $col-2, $chr, 3);
985  $marr = $this->placeModule($marr, $nrow, $ncol, $row-1, $col-1, $chr, 4);
986  $marr = $this->placeModule($marr, $nrow, $ncol, $row-1, $col, $chr, 5);
987  $marr = $this->placeModule($marr, $nrow, $ncol, $row, $col-2, $chr, 6);
988  $marr = $this->placeModule($marr, $nrow, $ncol, $row, $col-1, $chr, 7);
989  $marr = $this->placeModule($marr, $nrow, $ncol, $row, $col, $chr, 8);
990  return $marr;
991  }
Datamatrix\placeModule
placeModule($marr, $nrow, $ncol, $row, $col, $chr, $bit)
Places "chr+bit" with appropriate wrapping within array[].
Definition: datamatrix.php:956
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $barcode_array

Datamatrix::$barcode_array = array()
protected

Barcode array to be returned which is readable by TCPDF.

Definition at line 116 of file datamatrix.php.

Referenced by __construct(), and getBarcodeArray().

◆ $chset

Datamatrix::$chset
protected

Basic set of characters for each encodation mode.

Definition at line 190 of file datamatrix.php.

◆ $chset_id

Datamatrix::$chset_id = array(ENC_C40 => 'C40', ENC_TXT => 'TXT', ENC_X12 =>'X12')
protected

Map encodation modes whit character sets.

Definition at line 184 of file datamatrix.php.

◆ $last_enc

Datamatrix::$last_enc = ENC_ASCII
protected

Store last used encoding for data codewords.

Definition at line 122 of file datamatrix.php.

◆ $symbattr

Datamatrix::$symbattr
protected

Table of Data Matrix ECC 200 Symbol Attributes:

  • total matrix rows (including finder pattern)
  • total matrix cols (including finder pattern)
  • total matrix rows (without finder pattern)
  • total matrix cols (without finder pattern)
  • region data rows (with finder pattern)
  • region data col (with finder pattern)
  • region data rows (without finder pattern)
  • region data col (without finder pattern)
  • horizontal regions
  • vertical regions
  • regions
  • data codewords
  • error codewords
  • blocks
  • data codewords per block
  • error codewords per block

Definition at line 145 of file datamatrix.php.

The documentation for this class was generated from the following file:
