assOrderingQuestionGUI Class Reference

Ordering question GUI representation. More...

Inheritance diagram for assOrderingQuestionGUI:

Collaboration diagram for assOrderingQuestionGUI:

Public Member Functions
	__construct ($id=-1)
	assOrderingQuestionGUI constructor More...
	setClearAnswersOnWritingPostDataEnabled ($clearAnswersOnWritingPostDataEnabled)
	isClearAnswersOnWritingPostDataEnabled ()
	changeToPictures ()
	changeToText ()
	orderNestedTerms ()
	orderNestedPictures ()
	addanswers ()
	removeimageanswers ()
	removeanswers ()
	upanswers ()
	downanswers ()
	uploadanswers ()
	writeQuestionSpecificPostData (ilPropertyFormGUI $form)
	Extracts the question specific values from $_POST and applies them to the data object. More...
	writeAnswerSpecificPostData (ilPropertyFormGUI $form)
	Extracts the answer specific values from $_POST and applies them to the data object. More...
	populateAnswerSpecificFormPart (ilPropertyFormGUI $form)
	Adds the answer specific form parts to a question property form gui. More...
	populateQuestionSpecificFormPart (\ilPropertyFormGUI $form)
	writePostData ($always=false)
	Evaluates a posted edit form and writes the form data in the question object. More...
	editQuestion ($checkonly=FALSE)
	Creates an output of the edit form for the question. More...
	getSolutionOutput ( $active_id, $pass=NULL, $graphicalOutput=FALSE, $result_output=FALSE, $show_question_only=TRUE, $show_feedback=FALSE, $show_correct_solution=FALSE, $show_manual_scoring=FALSE, $show_question_text=TRUE)
	Get the question solution output. More...
	getPreview ($show_question_only=FALSE, $showInlineFeedback=false)
	getTestOutput ($active_id, $pass=NULL, $is_postponed=FALSE, $user_post_solution=FALSE)
	setQuestionTabs ()
	Sets the ILIAS tabs for this question type. More...
	getSpecificFeedbackOutput ($active_id, $pass)
	setLeveledOrdering ($new_hierarchy)
	getAfterParticipationSuppressionAnswerPostVars ()
	Returns a list of postvars which will be suppressed in the form output when used in scoring adjustment. More...
	getAfterParticipationSuppressionQuestionPostVars ()
	Returns a list of postvars which will be suppressed in the form output when used in scoring adjustment. More...
	getAggregatedAnswersView ($relevant_answers)
	Returns an html string containing a question specific representation of the answers so far given in the test for use in the right column in the scoring adjustment user interface. More...
	aggregateAnswers ($relevant_answers_chosen, $answers_defined_on_question)
	renderAggregateView ($aggregate)
Public Member Functions inherited from assQuestionGUI
	__construct ()
	assQuestionGUI constructor More...
&	executeCommand ()
	execute command More...
	getCommand ($cmd)
	getType ()
	needed for page editor compliance More...
	setTaxonomyIds ($taxonomyIds)
	getTaxonomyIds ()
	setTargetGui ($linkTargetGui)
	setTargetGuiClass ($targetGuiClass)
	getTargetGuiClass ()
	setQuestionHeaderBlockBuilder ($questionHeaderBlockBuilder)
	setQuestionActionCmd ($questionActionCmd)
	getQuestionActionCmd ()
&	_getQuestionGUI ($question_type, $question_id=-1)
	Creates a question gui representation and returns the alias to the question gui note: please do not use $this inside this method to allow static calls. More...
	_getGUIClassNameForId ($a_q_id)
	_getClassNameForQType ($q_type)
&	createQuestionGUI ($question_type, $question_id=-1)
	Creates a question gui representation. More...
	getQuestionTemplate ()
	get question template More...
	getILIASPage ($html="")
	Returns the ILIAS Page around a question. More...
	outQuestionPage ($a_temp_var, $a_postponed=false, $active_id="", $html="")
	output question page More...
	cancel ()
	cancel action More...
	originalSyncForm ($return_to="", $return_to_feedback='')
	sync ()
	cancelSync ()
	saveEdit ()
	save question More...
	save ()
	save question More...
	saveReturn ()
	save question More...
	apply ()
	apply changes More...
	getContextPath ($cont_obj, $a_endnode_id, $a_startnode_id=1)
	get context path in content object tree More...
	setSequenceNumber ($nr)
	getSequenceNumber ()
	setQuestionCount ($a_question_count)
	getQuestionCount ()
	getErrorMessage ()
	setErrorMessage ($errormessage)
	addErrorMessage ($errormessage)
	outAdditionalOutput ()
	getQuestionType ()
	Returns the question type string. More...
	getAsValueAttribute ($a_value)
	Returns a HTML value attribute. More...
	addNewIdListener (&$a_object, $a_method, $a_parameters="")
	Add a listener that is notified with the new question ID, when a new question is saved. More...
	callNewIdListeners ($a_new_id)
	Call the new id listeners. More...
	addQuestionFormCommandButtons ($form)
	Add the command buttons of a question properties form. More...
	addBasicQuestionFormProperties ($form)
	Add basic question form properties: assessment: title, author, description, question, working time. More...
	getSelfAssessmentTags ()
	Get tags allowed in question tags in self assessment mode. More...
	getAnswerFeedbackOutput ($active_id, $pass)
	Returns the answer generic feedback depending on the results of the question. More...
	getGenericFeedbackOutput ($active_id, $pass)
	Returns the answer specific feedback for the question. More...
	getGenericFeedbackOutputForCorrectSolution ()
	getGenericFeedbackOutputForIncorrectSolution ()
	getSpecificFeedbackOutput ($active_id, $pass)
	Returns the answer specific feedback for the question. More...
	outQuestionType ()
	showSuggestedSolution ()
	suggestedsolution ()
	Allows to add suggested solutions for questions. More...
	outSolutionExplorer ()
	saveSuggestedSolution ()
	cancelExplorer ()
	outPageSelector ()
	outChapterSelector ()
	outGlossarySelector ()
	linkChilds ()
	addPG ()
	addST ()
	addGIT ()
	isSaveCommand ()
	setQuestionTabs ()
	addTab_SuggestedSolution (ilTabsGUI $tabs, $classname)
	getEditQuestionTabCommands ()
	getSolutionOutput ( $active_id, $pass=NULL, $graphicalOutput=FALSE, $result_output=FALSE, $show_question_only=TRUE, $show_feedback=FALSE, $show_correct_solution=FALSE, $show_manual_scoring=FALSE, $show_question_text=TRUE)
	isAutosaveable ()
	getPreview ($show_question_only=FALSE, $showInlineFeedback=false)
	outQuestionForTest ( $formaction, $active_id, $pass=NULL, $is_question_postponed=FALSE, $user_post_solutions=FALSE, $show_specific_inline_feedback=FALSE)
	setPreviewSession ($previewSession)
	getPreviewSession ()
	showHints ()
Public Member Functions inherited from ilGuiQuestionScoringAdjustable
	populateQuestionSpecificFormPart (ilPropertyFormGUI $form)
	Adds the question specific forms parts to a question property form gui. More...

Data Fields
	$old_ordering_depth = array()
	$leveled_ordering = array()
Data Fields inherited from assQuestionGUI
const	FORM_MODE_EDIT = 'edit'
const	FORM_MODE_ADJUST = 'adjust'
const	FORM_ENCODING_URLENCODE = 'application/x-www-form-urlencoded'
const	FORM_ENCODING_MULTIPART = 'multipart/form-data'
const	SESSION_PREVIEW_DATA_BASE_INDEX = 'ilAssQuestionPreviewAnswers'
	$object
	$tpl
	$lng
	$error
	$errormessage
	$sequence_no
	sequence number in test More...
	$question_count
	question count in test More...

Private Member Functions
	getAnswerImageFileUploadWizardFormProperty ()
	isUploadAnswersCommand ()
	populateCommandButtons (ilPropertyFormGUI $form)
	getRandomIdToAnswerMap ()
	getDepthRecursive ($child, $ordering_depth)
	getOldLeveledOrdering ()

Private Attributes
	$uploadAlert = null
	$clearAnswersOnWritingPostDataEnabled

Additional Inherited Members
Static Public Member Functions inherited from assQuestionGUI
static	getCommandsFromClassConstants ($guiClassName, $cmdConstantNameBegin='CMD_')
	extracts values of all constants of given class with given prefix as array can be used to get all possible commands in case of these commands are defined as constants More...
Protected Member Functions inherited from assQuestionGUI
	writePostData ()
	Evaluates a posted edit form and writes the form data in the question object. More...
	saveTaxonomyAssignments ()
	populateTaxonomyFormSection (ilPropertyFormGUI $form)
	getBasicEditQuestionTabCommands ()
	getAdditionalEditQuestionCommands ()
	addTab_QuestionFeedback (ilTabsGUI $tabs)
	adds the feedback tab to ilTabsGUI More...
	addTab_QuestionHints (ilTabsGUI $tabs)
	adds the hints tab to ilTabsGUI More...
	addTab_QuestionPreview (ilTabsGUI $tabsGUI)
	writeQuestionGenericPostData ()
	getFormEncodingType ()
	addBackTab (ilTabsGUI $ilTabs)
	buildBasicEditFormObject ()

Detailed Description

Ordering question GUI representation.

The assOrderingQuestionGUI class encapsulates the GUI representation for ordering questions.

Author

Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m

Björn Heyser bheys.nosp@m.er@d.nosp@m.ataba.nosp@m.y.de

Maximilian Becker mbeck.nosp@m.er@d.nosp@m.ataba.nosp@m.y.de

Version

$Id$

Definition at line 22 of file class.assOrderingQuestionGUI.php.

Constructor & Destructor Documentation

__construct()

assOrderingQuestionGUI::__construct

(

$id = -1

)

assOrderingQuestionGUI constructor

The constructor takes possible arguments an creates an instance of the assOrderingQuestionGUI object.

Parameters

integer

$id

The database id of a ordering question object

Returns

assOrderingQuestionGUI

Definition at line 43 of file class.assOrderingQuestionGUI.php.

References OUTPUT_JAVASCRIPT.

        {
                parent::__construct();
                include_once "./Modules/TestQuestionPool/classes/class.assOrderingQuestion.php";
                $this->object = new assOrderingQuestion();
                if ($id >= 0)
                {
                        $this->object->loadFromDb($id);
                }
                $this->object->setOutputType(OUTPUT_JAVASCRIPT);

                $this->clearAnswersOnWritingPostDataEnabled = false;
        }

Member Function Documentation

addanswers()

assOrderingQuestionGUI::addanswers

(

)

Definition at line 124 of file class.assOrderingQuestionGUI.php.

References $_POST, editQuestion(), and assQuestionGUI\writePostData().

        {
                $this->writePostData(true);
                $position = key($_POST["cmd"]["addanswers"]);
                $this->object->addAnswer("", $position+1);
                $this->editQuestion();
        }

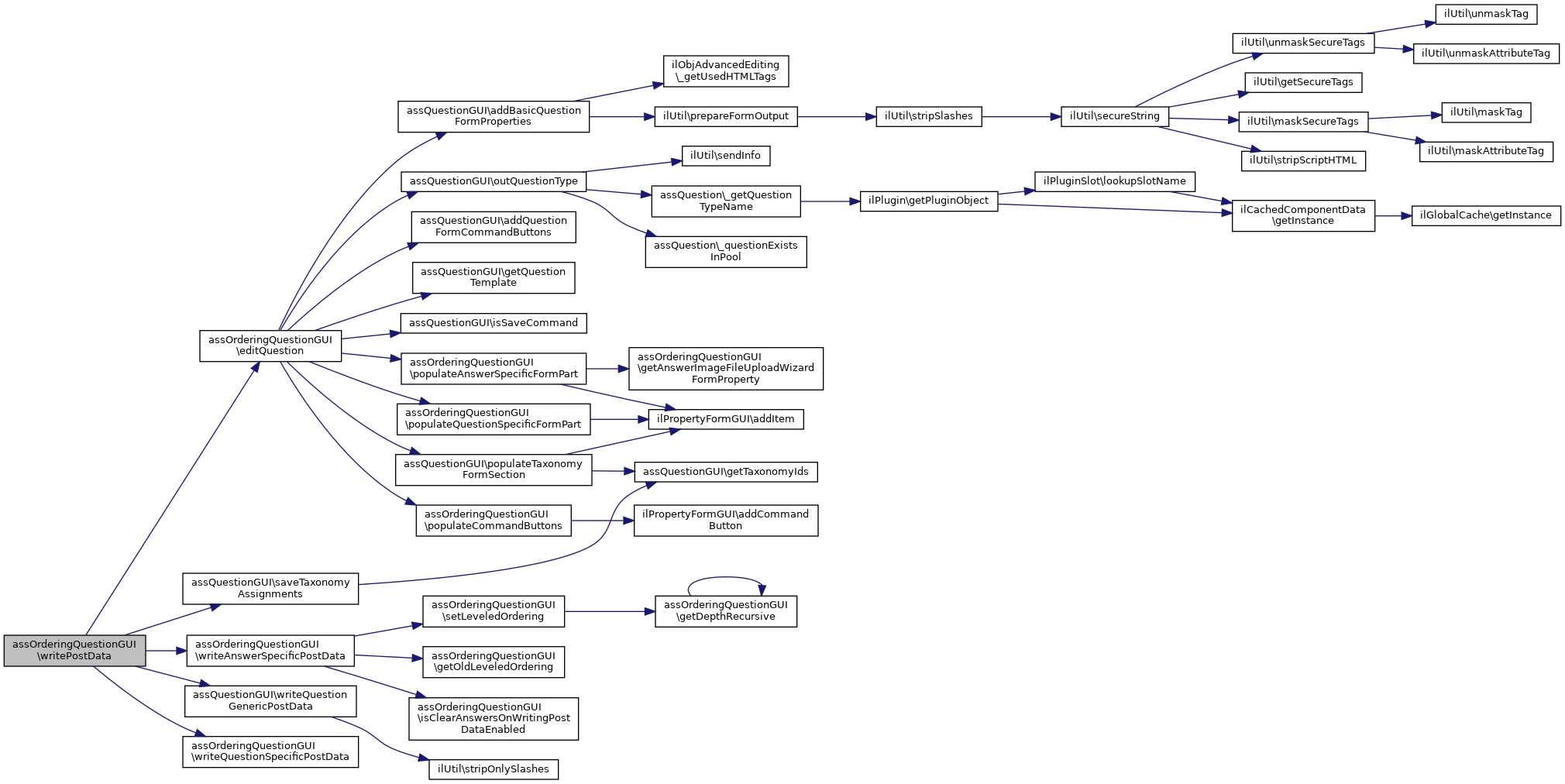

Here is the call graph for this function:

aggregateAnswers()

assOrderingQuestionGUI::aggregateAnswers	(		$relevant_answers_chosen,
			$answers_defined_on_question
	)

Definition at line 1402 of file class.assOrderingQuestionGUI.php.

References $data.

Referenced by getAggregatedAnswersView().

        {
                $passdata = array(); // Regroup answers into units of passes.
                foreach($relevant_answers_chosen as $answer_chosen)
                {
                        $passdata[$answer_chosen['active_fi'].'-'. $answer_chosen['pass']][$answer_chosen['value2']] = $answer_chosen['value1'];
                }

                $variants = array(); // Determine unique variants.
                foreach($passdata as $key => $data)
                {
                        $hash = md5(implode('-', $data));
                        $value_set = false;
                        foreach ($variants as $vkey => $variant)
                        {
                                if ($variant['hash'] == $hash)
                                {
                                        $variant['count']++;
                                        $value_set = true;
                                }
                        }
                        if (!$value_set)
                        {
                                $variants[$key]['hash'] = $hash;
                                $variants[$key]['count'] = 1;
                        }
                }

                $aggregate = array(); // Render aggregate from variant.
                foreach ($variants as $key => $variant_entry)
                {
                        $variant = $passdata[$key];

                        foreach($variant as $variant_key => $variant_line)
                        {
                                $i = 0;
                                $aggregated_info_for_answer['count'] = $variant_entry['count'];
                                foreach ($answers_defined_on_question as $answer)
                                {
                                        $i++;
                                        $aggregated_info_for_answer[$i . ' - ' . $answer->getAnswerText()]
                                                = $passdata[$key][$i];
                                }

                        }
                        $aggregate[] = $aggregated_info_for_answer;
                }
                return $aggregate;
        }

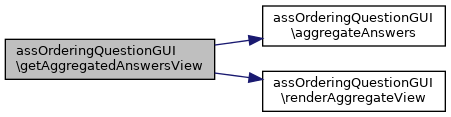

Here is the caller graph for this function:

changeToPictures()

assOrderingQuestionGUI::changeToPictures

(

)

Definition at line 73 of file class.assOrderingQuestionGUI.php.

References editQuestion(), OQ_NESTED_PICTURES, OQ_PICTURES, setClearAnswersOnWritingPostDataEnabled(), and assQuestionGUI\writePostData().

        {
                if($this->object->getOrderingType() != OQ_NESTED_PICTURES && $this->object->getOrderingType() != OQ_PICTURES)
                {
                        $this->setClearAnswersOnWritingPostDataEnabled(true);
                }

                $this->object->setOrderingType(OQ_PICTURES);
                $this->writePostData(true);
                $this->object->saveToDb();

                $this->editQuestion();
        }

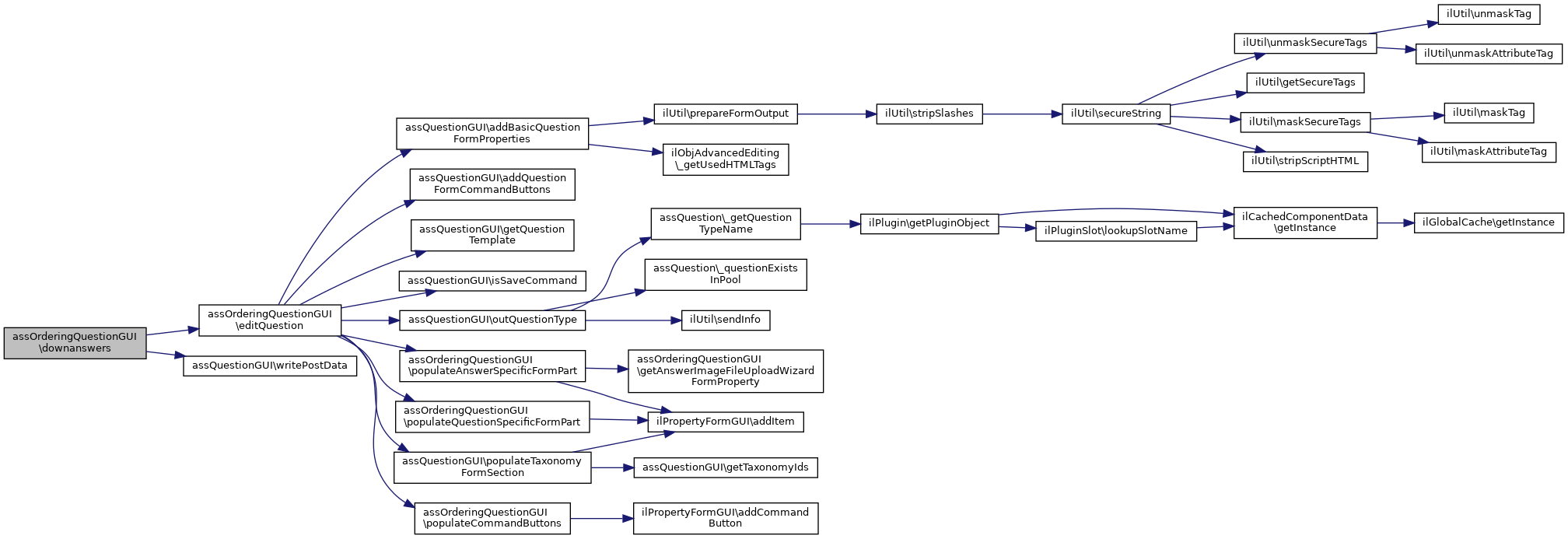

Here is the call graph for this function:

changeToText()

assOrderingQuestionGUI::changeToText

(

)

Definition at line 87 of file class.assOrderingQuestionGUI.php.

References editQuestion(), OQ_NESTED_TERMS, OQ_TERMS, setClearAnswersOnWritingPostDataEnabled(), and assQuestionGUI\writePostData().

        {
                if($this->object->getOrderingType() != OQ_NESTED_TERMS && $this->object->getOrderingType() != OQ_TERMS)
                {
                        $this->setClearAnswersOnWritingPostDataEnabled(true);
                }

                $this->object->setOrderingType(OQ_TERMS);
                $this->writePostData(true);
                $this->object->saveToDb();

                $this->editQuestion();
        }

Here is the call graph for this function:

downanswers()

assOrderingQuestionGUI::downanswers

(

)

Definition at line 157 of file class.assOrderingQuestionGUI.php.

References $_POST, editQuestion(), and assQuestionGUI\writePostData().

        {
                $this->writePostData(true);
                $position = key($_POST["cmd"]["downanswers"]);
                $this->object->moveAnswerDown($position);
                $this->editQuestion();
        }

Here is the call graph for this function:

editQuestion()

assOrderingQuestionGUI::editQuestion

(

$checkonly = FALSE

)

Creates an output of the edit form for the question.

Definition at line 451 of file class.assOrderingQuestionGUI.php.

References $errors, assQuestionGUI\addBasicQuestionFormProperties(), assQuestionGUI\addQuestionFormCommandButtons(), assQuestionGUI\getQuestionTemplate(), assQuestionGUI\isSaveCommand(), OQ_PICTURES, assQuestionGUI\outQuestionType(), populateAnswerSpecificFormPart(), populateCommandButtons(), populateQuestionSpecificFormPart(), and assQuestionGUI\populateTaxonomyFormSection().

Referenced by addanswers(), changeToPictures(), changeToText(), downanswers(), orderNestedPictures(), orderNestedTerms(), removeanswers(), removeimageanswers(), upanswers(), uploadanswers(), and writePostData().

        {
                $save = $this->isSaveCommand();
                $this->getQuestionTemplate();

                $orderingtype = $this->object->getOrderingType();

                require_once "./Services/Form/classes/class.ilPropertyFormGUI.php";
                $form = new ilPropertyFormGUI();
                $form->setFormAction($this->ctrl->getFormAction($this));
                $form->setTitle($this->outQuestionType());
                $form->setMultipart(($orderingtype == OQ_PICTURES) ? TRUE : FALSE);
                $form->setTableWidth("100%");
                $form->setId("ordering");
                // title, author, description, question, working time (assessment mode)
                $this->addBasicQuestionFormProperties( $form );
                $this->populateQuestionSpecificFormPart($form );
                $this->populateAnswerSpecificFormPart( $form );

                if (true || !$this->object->getSelfAssessmentEditingMode())
                {
                        $this->populateCommandButtons($form);
                }

                $this->populateTaxonomyFormSection($form);
                $this->addQuestionFormCommandButtons($form);
                $errors = false;
                if ($save)
                {
                        $form->setValuesByPost();
                        $errors = !$form->checkInput();
                        $form->setValuesByPost(); // again, because checkInput now performs the whole stripSlashes handling and we need this if we don't want to have duplication of backslashes
                        if ($errors) $checkonly = false;
                }

                if (!$checkonly) $this->tpl->setVariable("QUESTION_DATA", $form->getHTML());
                return $errors;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

getAfterParticipationSuppressionAnswerPostVars()

assOrderingQuestionGUI::getAfterParticipationSuppressionAnswerPostVars

(

)

Returns a list of postvars which will be suppressed in the form output when used in scoring adjustment.

The form elements will be shown disabled, so the users see the usual form but can only edit the settings, which make sense in the given context.

E.g. array('cloze_type', 'image_filename')

Returns

string[]

Implements ilGuiAnswerScoringAdjustable.

Definition at line 1369 of file class.assOrderingQuestionGUI.php.

        {
                return array();
        }

getAfterParticipationSuppressionQuestionPostVars()

assOrderingQuestionGUI::getAfterParticipationSuppressionQuestionPostVars

(

)

Returns a list of postvars which will be suppressed in the form output when used in scoring adjustment.

The form elements will be shown disabled, so the users see the usual form but can only edit the settings, which make sense in the given context.

E.g. array('cloze_type', 'image_filename')

Returns

string[]

Implements ilGuiQuestionScoringAdjustable.

Definition at line 1383 of file class.assOrderingQuestionGUI.php.

        {
                return array();
        }

getAggregatedAnswersView()

assOrderingQuestionGUI::getAggregatedAnswersView

(

$relevant_answers

)

Returns an html string containing a question specific representation of the answers so far given in the test for use in the right column in the scoring adjustment user interface.

Parameters

array

$relevant_answers

Returns

string

Implements ilGuiQuestionScoringAdjustable.

Definition at line 1396 of file class.assOrderingQuestionGUI.php.

References aggregateAnswers(), and renderAggregateView().

        {
                return  $this->renderAggregateView(
                                        $this->aggregateAnswers( $relevant_answers, $this->object->getAnswers() ) )->get();
        }

Here is the call graph for this function:

getAnswerImageFileUploadWizardFormProperty()

assOrderingQuestionGUI::getAnswerImageFileUploadWizardFormProperty ( )

private

Returns

Definition at line 168 of file class.assOrderingQuestionGUI.php.

References ilFormPropertyGUI\setRequired().

Referenced by populateAnswerSpecificFormPart(), and uploadanswers().

        {
                include_once "./Modules/TestQuestionPool/classes/class.ilImageWizardInputGUI.php";
                $answers = new ilImageWizardInputGUI($this->lng->txt("answers"), "answers");
                $answers->setRequired(TRUE);
                $answers->setQuestionObject($this->object);
                $answers->setInfo($this->lng->txt('ordering_answer_sequence_info'));
                $answers->setAllowMove(TRUE);
                $answervalues = array();
                foreach ($this->object->getAnswers() as $index => $answervalue)
                {
                        $answervalues[$index] = $answervalue->getAnswertext();
                }
                $answers->setValues($answervalues);
                return $answers;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

getDepthRecursive()

assOrderingQuestionGUI::getDepthRecursive (   $child,   $ordering_depth  )

private

Definition at line 1312 of file class.assOrderingQuestionGUI.php.

Referenced by setLeveledOrdering().

        {
                if(is_array($child->children))
                {
                        foreach($child->children as $grand_child)
                        {
                                $ordering_depth++;
                                $this->leveled_ordering[] = $ordering_depth;
                                $this->getDepthRecursive($grand_child, $ordering_depth);
                        }
                }
                else
                {
                        $ordering_depth++;
                        $this->leveled_ordering[] = $ordering_depth;
                }
        }

Here is the caller graph for this function:

getOldLeveledOrdering()

assOrderingQuestionGUI::getOldLeveledOrdering ( )

private

Definition at line 1347 of file class.assOrderingQuestionGUI.php.

References $ilDB, $old_ordering_depth, $res, and $row.

Referenced by writeAnswerSpecificPostData().

        {
                global $ilDB;

                $res = $ilDB->queryF('SELECT depth FROM qpl_a_ordering WHERE question_fi = %s ORDER BY solution_order ASC',
                        array('integer'), array($this->object->getId()));
                while($row = $ilDB->fetchAssoc($res))
                {
                        $this->old_ordering_depth[] = $row['depth'];
                }
                return $this->old_ordering_depth;
        }

Here is the caller graph for this function:

getPreview()

assOrderingQuestionGUI::getPreview	(		$show_question_only = FALSE,
			$showInlineFeedback = false
	)

Definition at line 816 of file class.assOrderingQuestionGUI.php.

References $ilUser, assQuestionGUI\$tpl, assQuestionGUI\getILIASPage(), ilUtil\getImagePath(), assQuestionGUI\getPreviewSession(), getRandomIdToAnswerMap(), ilUtil\getStyleSheetLocation(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, OQ_PICTURES, OUTPUT_JAVASCRIPT, and ilNestedOrderingGUI\setOrderingType().

        {
                global $tpl;

                $this->object->setOutputType(OUTPUT_JAVASCRIPT);
                $tpl->addCss(ilUtil::getStyleSheetLocation("output", "test_javascript.css", "Modules/TestQuestionPool"));

                include_once "./Services/UICore/classes/class.ilTemplate.php";
                $template = new ilTemplate("tpl.il_as_qpl_ordering_output.html", TRUE, TRUE, "Modules/TestQuestionPool");

                if( is_object($this->getPreviewSession()) && count((array)$this->getPreviewSession()->getParticipantsSolution()) )
                {
                        if ($this->object->getOrderingType() == OQ_NESTED_TERMS || $this->object->getOrderingType() == OQ_NESTED_PICTURES)
                        {
                                $answerMap = $this->getRandomIdToAnswerMap();

                                $answerArray = array();
                                $shuffleAnswers = false;

                                foreach((array)$this->getPreviewSession()->getParticipantsSolution() as $val1 => $val2)
                                {
                                        list($randomId, $depth) = explode(':', $val2);

                                        $answ = new ASS_AnswerOrdering(
                                                $answerMap[$randomId]->getAnswertext(), $randomId, $depth
                                        );

                                        $answerArray[] = $answ;

                                        $jssolutions[$val2] = $val1;
                                }
                        }
                        else
                        {
                                foreach((array)$this->getPreviewSession()->getParticipantsSolution() as $val1 => $val2)
                                {
                                        $jssolutions[$val2] = $val1;
                                }
                        }
                }
                else
                {
                        $answerArray = $this->object->answers;
                        $shuffleAnswers = true;
                }


                global $ilUser;

                // shuffle output
                $keys = array_keys($this->object->answers);
                if($shuffleAnswers)
                {
                        shuffle($keys);
                }

                if ($this->object->getOrderingType() == OQ_NESTED_TERMS || $this->object->getOrderingType() == OQ_NESTED_PICTURES)
                {
                        include_once 'Services/Form/classes/class.ilPropertyFormGUI.php';
                        include_once 'Modules/TestQuestionPool/classes/class.ilNestedOrderingGUI.php';
                        $answers = new ilNestedOrderingGUI($this->lng->txt("answers"), "answers");
                        $answers->setOrderingType($this->object->getOrderingType());
                        $answers->setObjAnswersArray($answerArray, $shuffleAnswers);

                        if($this->object->getOrderingType() == OQ_NESTED_PICTURES)
                        {
                                $answers->setImagePath($this->object->getImagePath());
                                $answers->setImagePathWeb($this->object->getImagePathWeb());
                                $answers->setThumbPrefix($this->object->getThumbPrefix());
                        }

                        $template->setCurrentBlock('nested_ordering_output');
                        $template->setVariable('NESTED_ORDERING',$answers->getHtml());
                        $template->parseCurrentBlock();
                        $questiontext = $this->object->getQuestion();
                        $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        $questionoutput = $template->get();
                        if (!$show_question_only)
                        {
                                // get page object output
                                $questionoutput = $this->getILIASPage($questionoutput);
                        }
                        return $questionoutput;

                }
                else
                {
                        $this->tpl->addJavascript("./Modules/TestQuestionPool/templates/default/ordering.js");

                        $template->setCurrentBlock('form_submit_register');
                        $template->touchBlock('form_submit_register');
                        $template->parseCurrentBlock();

                        if(count($jssolutions))
                        {
                                ksort($jssolutions);
                                $initial_order = array();
                                foreach($jssolutions as $key => $value)
                                {
                                        if(is_object($this->object->getAnswer($value)))
                                        {
                                                $initial_order[] = 'id_' . $this->object->getAnswer($value)->getRandomID();
                                        }
                                }

                                $template->setVariable('INITIAL_ORDER', json_encode($initial_order));
                        }
                        else
                        {
                                $template->setVariable('INITIAL_ORDER', json_encode(array()));
                        }

                        foreach ($keys as $idx)
                        {
                                $answer = $this->object->answers[$idx];
                                if ($this->object->getOrderingType() == OQ_PICTURES)
                                {
                                        $template->setCurrentBlock("ordering_row_javascript_pictures");
                                        $template->setVariable("PICTURE_HREF", $this->object->getImagePathWeb() . $answer->getAnswertext());
                                        $thumbweb = $this->object->getImagePathWeb() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        $thumb = $this->object->getImagePath() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        if (!@file_exists($thumb)) $this->object->rebuildThumbnails();
                                        $template->setVariable("THUMB_HREF", $thumbweb);
                                        $template->setVariable("THUMB_ALT", $this->lng->txt("thumbnail"));
                                        $template->setVariable("THUMB_TITLE", $this->lng->txt("thumbnail"));
                                        $template->setVariable("ENLARGE_HREF", ilUtil::getImagePath("enlarge.svg", FALSE));
                                        $template->setVariable("ENLARGE_ALT", $this->lng->txt("enlarge"));
                                        $template->setVariable("ENLARGE_TITLE", $this->lng->txt("enlarge"));
                                        $template->setVariable("ANSWER_ID", $answer->getRandomID());
                                        $template->parseCurrentBlock();
                                }
                                else
                                {
                                        $template->setCurrentBlock("ordering_row_javascript_text");
                                        $template->setVariable("ANSWER_TEXT", $this->object->prepareTextareaOutput($answer->getAnswertext(), TRUE));
                                        $template->setVariable("ANSWER_ID", $answer->getRandomID());
                                        $template->parseCurrentBlock();
                                }
                        }
                        if ($this->object->getOrderingType() == OQ_PICTURES)
                        {
                                $template->setVariable("RESET_POSITIONS", $this->lng->txt("reset_pictures"));
                        }
                        else
                        {
                                $template->setVariable("RESET_POSITIONS", $this->lng->txt("reset_definitions"));
                        }

                        $questiontext = $this->object->getQuestion();
                        $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        $template->setVariable("QUESTION_ID", $this->object->getId());
                        $questionoutput = $template->get();
                        if (!$show_question_only)
                        {
                                // get page object output
                                $questionoutput = $this->getILIASPage($questionoutput);
                        }
                        return $questionoutput;
                }
        }

Here is the call graph for this function:

getRandomIdToAnswerMap()

assOrderingQuestionGUI::getRandomIdToAnswerMap ( )

private

Definition at line 977 of file class.assOrderingQuestionGUI.php.

Referenced by getPreview(), and getTestOutput().

        {
                $randomIdToAnswerMap = array();

                foreach($this->object->answers as $answer)
                {
                        $randomIdToAnswerMap[$answer->getRandomId()] = $answer;
                }

                return $randomIdToAnswerMap;
        }

Here is the caller graph for this function:

getSolutionOutput()

assOrderingQuestionGUI::getSolutionOutput	(		$active_id,
			$pass = NULL,
			$graphicalOutput = FALSE,
			$result_output = FALSE,
			$show_question_only = TRUE,
			$show_feedback = FALSE,
			$show_correct_solution = FALSE,
			$show_manual_scoring = FALSE,
			$show_question_text = TRUE
	)

Get the question solution output.

Parameters

integer	$active_id	The active user id
integer	$pass	The test pass
boolean	$graphicalOutput	Show visual feedback for right/wrong answers
boolean	$result_output	Show the reached points for parts of the question
boolean	$show_question_only	Show the question without the ILIAS content around
boolean	$show_feedback	Show the question feedback
boolean	$show_correct_solution	Show the correct solution instead of the user solution
boolean	$show_manual_scoring	Show specific information for the manual scoring output
bool	$show_question_text

Returns

string The solution output of the question as HTML code

Definition at line 535 of file class.assOrderingQuestionGUI.php.

References $ok, $pass, assQuestionGUI\getAnswerFeedbackOutput(), assQuestionGUI\getGenericFeedbackOutput(), assQuestionGUI\getILIASPage(), ilUtil\getImagePath(), getSpecificFeedbackOutput(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, and OQ_PICTURES.

        {
                if($this->object->getOrderingType() == OQ_NESTED_TERMS
                        || $this->object->getOrderingType() == OQ_NESTED_PICTURES)
                {
                $keys = array_keys($this->object->answers);

                // generate the question output
                include_once "./Services/UICore/classes/class.ilTemplate.php";
                        $template = new ilTemplate("tpl.il_as_qpl_nested_ordering_output_solution.html", TRUE, TRUE, "Modules/TestQuestionPool");

                        $solutiontemplate = new ilTemplate("tpl.il_as_tst_solution_output.html",TRUE, TRUE, "Modules/TestQuestionPool");

                        // get the solution of the user for the active pass or from the last pass if allowed
                        $solutions = array();

                        if (($active_id > 0) && (!$show_correct_solution))
                        {
                                $solutions = $this->object->getSolutionValues($active_id, $pass);
                                $user_order = array();
                                foreach ($solutions as $solution)
                                {
                                        if(strchr( $solution['value2'],':') == true)
                                        {
                                                $current_solution = explode(':', $solution['value2']);

                                                $user_order[$solution["value1"]]['index'] =  $solution["value1"];
                                                $user_order[$solution["value1"]]['random_id'] = $current_solution[0];
                                                $user_order[$solution["value1"]]['depth'] = $current_solution[1];
                                                // needed for graphical output
                                                $answer_text = $this->object->lookupAnswerTextByRandomId($current_solution[0], $this->object->getId());
                                                $user_order[$solution["value1"]]['answertext'] =  $answer_text;
                                        }
                                }
                                foreach ($this->object->answers as $k => $a)
                                {
                                        $ok = FALSE;
                                        if ($k == $user_order[$k]['index']
                                                && $a->getOrderingDepth() == $user_order[$k]['depth']
                                                && $a->getAnswerText() == $user_order[$k]['answertext'])
                                        {
                                                $ok = TRUE;

                                        }
                                        $user_order[$k]['ok'] = $ok;
                                }

                                $solution_output = $user_order;
                        }
                        else
                        {
                                foreach ($this->object->answers as $index => $answer)
                                {

                                        $expected_solution[$index]['index'] = $index;
                                        $expected_solution[$index]['random_id'] = $answer->getRandomId();
                                        $expected_solution[$index]['depth'] = $answer->getOrderingDepth();
                                        if($this->object->getOrderingType() == OQ_NESTED_PICTURES)
                                        {
                                                $expected_solution[$index]['answertext'] = $answer->getAnswertext();
                                        }
                                        else
                                        {
                                                $expected_solution[$index]['answertext'] = $answer->getAnswertext();
                                        }
                                }
                                $solution_output = $expected_solution;
                        }

                        include_once 'Services/Form/classes/class.ilPropertyFormGUI.php';
                        include_once 'Modules/TestQuestionPool/classes/class.ilNestedOrderingGUI.php';

                        $answers_gui = new ilNestedOrderingGUI($this->lng->txt("answers"), "answers", $graphicalOutput);

                        $no_js_for_cmds = array('outParticipantsPassDetails', 'outCorrectSolution', 'showManScoringParticipantScreen');

                        //PERFORM_JAVASCRIPT
                        if(in_array($this->ctrl->getCmd(), $no_js_for_cmds))
                        {
                                $answers_gui->setPerformJavascript(false);
                        }
                        else
                        {
                                $answers_gui->setPerformJavascript(true);
                        }

                        $answers_gui->setOrderingType($this->object->getOrderingType());

                        if($this->object->getOrderingType() == OQ_NESTED_PICTURES)
                        {
                                $answers_gui->setImagePath($this->object->getImagePath());
                                $answers_gui->setImagePathWeb($this->object->getImagePathWeb());
                                $answers_gui->setThumbPrefix($this->object->getThumbPrefix());
                        }

                        $solution_html = $answers_gui->getSolutionHTML($solution_output);

                        $template->setVariable('SOLUTION_OUTPUT', $solution_html);

                        $questiontext = $this->object->getQuestion();
                        if ($show_question_text==true)
                        {
                                $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        }
                        $questionoutput = $template->get();

                        $feedback = '';
                        if($show_feedback)
                        {
                                $fb = $this->getGenericFeedbackOutput($active_id, $pass);
                                $feedback .=  strlen($fb) ? $fb : '';

                                $fb = $this->getSpecificFeedbackOutput($active_id, $pass);
                                $feedback .=  strlen($fb) ? $fb : '';
                        }
                        if (strlen($feedback)) $solutiontemplate->setVariable("FEEDBACK", $this->object->prepareTextareaOutput( $feedback, true ));

                        $solutiontemplate->setVariable("SOLUTION_OUTPUT", $questionoutput);

                        $solutionoutput = $solutiontemplate->get();
                        if (!$show_question_only)
                        {
                                // get page object output
                                $solutionoutput = $this->getILIASPage($solutionoutput);
                        }
                }
                else
                {
                        $keys = array_keys($this->object->answers);

                        // generate the question output
                        include_once "./Services/UICore/classes/class.ilTemplate.php";
                        $template = new ilTemplate("tpl.il_as_qpl_ordering_output_solution.html", TRUE, TRUE, "Modules/TestQuestionPool");
                        $solutiontemplate = new ilTemplate("tpl.il_as_tst_solution_output.html",TRUE, TRUE, "Modules/TestQuestionPool");

                        // get the solution of the user for the active pass or from the last pass if allowed
                        $solutions = array();
                        if (($active_id > 0) && (!$show_correct_solution))
                        {
                                $solutions = $this->object->getSolutionValues($active_id, $pass);
                        }
                        else
                        {
                                foreach ($this->object->answers as $index => $answer)
                                {
                                        array_push($solutions, array("value1" => $index, "value2" => $index+1));
                                }
                        }
                        foreach ($keys as $idx)
                        {
                                if (!$show_correct_solution)
                                {
                                        foreach($solutions as $index => $item)
                                        {
                                                if($item['value2'] == $idx+1)
                                                {
                                                        $answer = $this->object->answers[$item['value1']];
                                                }
                                        }
                                }
                                else
                                {
                                        $answer = $this->object->answers[$idx];
                                }
                                if (!$answer)
                                {
                                        continue;
                                }
                                if (($active_id > 0) && (!$show_correct_solution))
                                {
                                        if ($graphicalOutput)
                                        {
                                                $sol = array();
                                                foreach ($solutions as $solution)
                                                {
                                                        $sol[$solution["value1"]] = $solution["value2"];
                                                }
                                                asort($sol);
                                                $sol = array_keys($sol);
                                                $ans = array();
                                                foreach ($this->object->answers as $k => $a)
                                                {
                                                        $ans[$k] = $k;
                                                }
                                                asort($ans);
                                                $ans = array_keys($ans);
                                                $ok = FALSE;
                                                foreach ($ans as $arr_idx => $ans_idx)
                                                {
                                                        if ($ans_idx == $idx)
                                                        {
                                                                if ($ans_idx == $sol[$arr_idx])
                                                                {
                                                                        $ok = TRUE;
                                                                }
                                                        }
                                                }
                                                // output of ok/not ok icons for user entered solutions
                                                if ($ok)
                                                {
                                                        $template->setCurrentBlock("icon_ok");
                                                        $template->setVariable("ICON_OK", ilUtil::getImagePath("icon_ok.svg"));
                                                        $template->setVariable("TEXT_OK", $this->lng->txt("answer_is_right"));
                                                        $template->parseCurrentBlock();
                                                }
                                                else
                                                {
                                                        $template->setCurrentBlock("icon_ok");
                                                        $template->setVariable("ICON_NOT_OK", ilUtil::getImagePath("icon_not_ok.svg"));
                                                        $template->setVariable("TEXT_NOT_OK", $this->lng->txt("answer_is_wrong"));
                                                        $template->parseCurrentBlock();
                                                }
                                        }
                                }
                                if ($this->object->getOrderingType() == OQ_PICTURES)
                                {
                                        $template->setCurrentBlock("ordering_row_standard_pictures");
                                        $thumbweb = $this->object->getImagePathWeb() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        $thumb = $this->object->getImagePath() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        if (!@file_exists($thumb)) $this->object->rebuildThumbnails();
                                        $template->setVariable("THUMB_HREF", $thumbweb);
                                        list($width, $height, $type, $attr) = getimagesize($thumb);
                                        $template->setVariable("ATTR", $attr);
                                        $template->setVariable("THUMB_ALT", $this->lng->txt("thumbnail"));
                                        $template->setVariable("THUMB_TITLE", $this->lng->txt("enlarge"));
                                        $template->parseCurrentBlock();
                                }
                                else
                                {
                                        $template->setCurrentBlock("ordering_row_standard_text");
                                        $template->setVariable("ANSWER_TEXT", $this->object->prepareTextareaOutput($answer->getAnswertext(), TRUE));
                                        $template->parseCurrentBlock();
                                }
                                $template->setCurrentBlock("ordering_row_standard");
                                if ($result_output)
                                {
                                        $answer = $this->object->answers[$idx];
                                        $points = $answer->getPoints();
                                        $resulttext = ($points == 1) ? "(%s " . $this->lng->txt("point") . ")" : "(%s " . $this->lng->txt("points") . ")";
                                        $template->setVariable("RESULT_OUTPUT", sprintf($resulttext, $points));
                                }
                                foreach ($solutions as $solution)
                                {
                                        if (strcmp($solution["value1"], $idx) == 0)
                                        {
                                                $template->setVariable("ANSWER_ORDER", $solution["value2"]);
                                        }
                                }
                                $template->parseCurrentBlock();
                        }
                        $questiontext = $this->object->getQuestion();
                        if ($show_question_text==true)
                        {
                                $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        }
                        $questionoutput = $template->get();
                        $feedback = ($show_feedback) ? $this->getAnswerFeedbackOutput($active_id, $pass) : "";
                        if (strlen($feedback)) $solutiontemplate->setVariable("FEEDBACK", $this->object->prepareTextareaOutput( $feedback, true ));
                        $solutiontemplate->setVariable("SOLUTION_OUTPUT", $questionoutput);

                        $solutionoutput = $solutiontemplate->get();
                        if (!$show_question_only)
                        {
                                // get page object output
                                $solutionoutput = $this->getILIASPage($solutionoutput);
                        }
                }

                return $solutionoutput;
        }

Here is the call graph for this function:

getSpecificFeedbackOutput()

assOrderingQuestionGUI::getSpecificFeedbackOutput	(		$active_id,
			$pass
	)

Definition at line 1289 of file class.assOrderingQuestionGUI.php.

Referenced by getSolutionOutput().

        {
                if( !$this->object->feedbackOBJ->specificAnswerFeedbackExists($this->object->getAnswers()) )
                {
                        return '';
                }

                $output = '<table class="test_specific_feedback"><tbody>';

                foreach($this->object->getAnswers() as $idx => $answer)
                {
                        $feedback = $this->object->feedbackOBJ->getSpecificAnswerFeedbackTestPresentation(
                                $this->object->getId(), $idx
                        );

                        $output .= "<tr><td>{$answer->getAnswerText()}</td><td>{$feedback}</td></tr>";
                }

                $output .= '</tbody></table>';

                return $this->object->prepareTextareaOutput($output, TRUE);
        }

Here is the caller graph for this function:

getTestOutput()

assOrderingQuestionGUI::getTestOutput	(		$active_id,
			$pass = NULL,
			$is_postponed = FALSE,
			$user_post_solution = FALSE
	)

Definition at line 989 of file class.assOrderingQuestionGUI.php.

References $_POST, $_SESSION, $pass, assQuestionGUI\$tpl, ilObjTest\_getPass(), ilObjTest\_getUsePreviousAnswers(), ilUtil\getImagePath(), getRandomIdToAnswerMap(), ilUtil\getStyleSheetLocation(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, OQ_PICTURES, OUTPUT_JAVASCRIPT, assQuestionGUI\outQuestionPage(), and ilNestedOrderingGUI\setInstanceId().

        {
                global $tpl;

                $tpl->addCss(ilUtil::getStyleSheetLocation("output", "test_javascript.css", "Modules/TestQuestionPool"));

                // generate the question output
                include_once "./Services/UICore/classes/class.ilTemplate.php";
                $template = new ilTemplate("tpl.il_as_qpl_ordering_output.html", TRUE, TRUE, "Modules/TestQuestionPool");

                $this->object->setOutputType(OUTPUT_JAVASCRIPT);
                // shuffle output
                $keys = array();
                if (is_array($user_post_solution))
                {
                        $keys = $_SESSION["ordering_keys"];
                }
                else
                {
                        $keys = array_keys($this->object->answers);
                        shuffle($keys);
                }
                $_SESSION["ordering_keys"] = $keys;


                if ($this->object->getOrderingType() == OQ_NESTED_TERMS
                || $this->object->getOrderingType() == OQ_NESTED_PICTURES)
                {

                        include_once 'Services/Form/classes/class.ilPropertyFormGUI.php';
                        include_once 'Modules/TestQuestionPool/classes/class.ilNestedOrderingGUI.php';
                        $answerGUI = new ilNestedOrderingGUI($this->lng->txt("answers"), "answers");
                        $answerGUI->setInstanceId('participant');
                        $answerGUI->setOrderingType($this->object->getOrderingType());

                        $answerMap = $this->getRandomIdToAnswerMap();

                        $answerArray = array();
                        $shuffleAnswers = false;

                        if( is_array($user_post_solution) && isset($user_post_solution['answers_ordering__participant']) )
                        {
                                $answers_ordering = $_POST['answers_ordering__participant'];
                                $user_solution_hierarchy = json_decode($answers_ordering);
                                $with_random_id = true;
                                $this->object->setLeveledOrdering($user_solution_hierarchy, $with_random_id);

                                foreach($this->object->leveled_ordering as $randomId => $depth)
                                {
                                        $answ = new ASS_AnswerOrdering(
                                                $answerMap[$randomId]->getAnswertext(), $randomId, $depth
                                        );

                                        $answerArray[] = $answ;
                                }
                        }
                        else
                        {
                                include_once "./Modules/Test/classes/class.ilObjTest.php";

                                if (!ilObjTest::_getUsePreviousAnswers($active_id, true))
                                {
                                        if (is_null($pass)) $pass = ilObjTest::_getPass($active_id);
                                }

                                $solutions =& $this->object->getSolutionValues($active_id, $pass);

                                if( count($solutions) )
                                {
                                        foreach($solutions as $solution)
                                        {
                                                list($randomId, $depth) = explode(':', $solution['value2']);

                                                $answ = new ASS_AnswerOrdering(
                                                        $answerMap[$randomId]->getAnswertext(), $randomId, $depth
                                                );

                                                $answerArray[] = $answ;
                                        }
                                }
                                else
                                {
                                        $answerArray = $this->object->answers;
                                        $shuffleAnswers = true;
                                }
                        }

                        $answerGUI->setObjAnswersArray($answerArray, $shuffleAnswers);

                        if($this->object->getOrderingType() == OQ_NESTED_PICTURES)
                        {
                                $answerGUI->setImagePath($this->object->getImagePath());
                                $answerGUI->setImagePathWeb($this->object->getImagePathWeb());
                                $answerGUI->setThumbPrefix($this->object->getThumbPrefix());
                        }

                        $template->setCurrentBlock('nested_ordering_output');
                        $template->setVariable('NESTED_ORDERING',$answerGUI->getHtml($shuffleAnswers));
                        $template->parseCurrentBlock();
                        $questiontext = $this->object->getQuestion();
                        $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        $questionoutput = $template->get();
                        $pageoutput = $this->outQuestionPage("", $is_postponed, $active_id, $questionoutput);
                        return $pageoutput;
                }
                else
                {
                        $this->tpl->addJavascript("./Modules/TestQuestionPool/templates/default/ordering.js");

                        // BEGIN: onsubmit form action for javascript enabled ordering questions
                        $this->tpl->setVariable("ON_SUBMIT", "return $('div.ilVerticalOrderingQuestion').ilOrderingQuestion('saveOrder');");
                        // END: onsubmit form action for javascript enabled ordering questions

                        // get the solution of the user for the active pass or from the last pass if allowed
                        if ($active_id)
                        {
                                $solutions = NULL;
                                include_once "./Modules/Test/classes/class.ilObjTest.php";
                                if (!ilObjTest::_getUsePreviousAnswers($active_id, true))
                                {
                                        if (is_null($pass)) $pass = ilObjTest::_getPass($active_id);
                                }
                                if (is_array($user_post_solution))
                                {
                                        $solutions = array();
                                        foreach ($user_post_solution as $key => $value)
                                        {
                                                if (preg_match("/order_(\d+)/", $key, $matches))
                                                {
                                                        foreach ($this->object->getAnswers() as $answeridx => $answer)
                                                        {
                                                                if ($answer->getRandomID() == $matches[1])
                                                                {
                                                                        array_push($solutions, array("value1" => $answeridx, "value2" => $value));
                                                                }
                                                        }
                                                }
                                        }
                                }
                                else
                                {
                                        $solutions =& $this->object->getSolutionValues($active_id, $pass);
                                }

                                $jssolutions = array();
                                foreach ($solutions as $idx => $solution_value)
                                {
                                        if ((strcmp($solution_value["value2"], "") != 0) && (strcmp($solution_value["value1"], "") != 0))
                                        {
                                                $jssolutions[$solution_value["value2"]] = $solution_value["value1"];
                                        }
                                }
                                if(count($jssolutions))
                                {
                                        ksort($jssolutions);
                                        $initial_order = array();
                                        foreach($jssolutions as $key => $value)
                                        {
                                                if(is_object($this->object->getAnswer($value)))
                                                {
                                                        $initial_order[] = 'id_' . $this->object->getAnswer($value)->getRandomID();
                                                }
                                        }

                                        $template->setVariable('INITIAL_ORDER', json_encode($initial_order));
                                }
                                else
                                {
                                        $template->setVariable('INITIAL_ORDER', json_encode(array()));
                                }
                        }

                        foreach ($keys as $idx)
                        {
                                $answer = $this->object->answers[$idx];
                                if ($this->object->getOrderingType() == OQ_PICTURES)
                                {
                                        $template->setCurrentBlock("ordering_row_javascript_pictures");
                                        $template->setVariable("PICTURE_HREF", $this->object->getImagePathWeb() . $answer->getAnswertext());
                                        $thumbweb = $this->object->getImagePathWeb() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        $thumb = $this->object->getImagePath() . $this->object->getThumbPrefix() . $answer->getAnswertext();
                                        if (!@file_exists($thumb)) $this->object->rebuildThumbnails();
                                        $template->setVariable("THUMB_HREF", $thumbweb);
                                        $template->setVariable("THUMB_ALT", $this->lng->txt("thumbnail"));
                                        $template->setVariable("THUMB_TITLE", $this->lng->txt("thumbnail"));
                                        $template->setVariable("ENLARGE_HREF", ilUtil::getImagePath("enlarge.svg", FALSE));
                                        $template->setVariable("ENLARGE_ALT", $this->lng->txt("enlarge"));
                                        $template->setVariable("ENLARGE_TITLE", $this->lng->txt("enlarge"));
                                        $template->setVariable("ANSWER_ID", $answer->getRandomID());
                                        $template->parseCurrentBlock();
                                }
                                else
                                {
                                        $template->setCurrentBlock("ordering_row_javascript_text");
                                        $template->setVariable("ANSWER_TEXT", $this->object->prepareTextareaOutput($answer->getAnswertext(), TRUE));
                                        $template->setVariable("ANSWER_ID", $answer->getRandomID());
                                        $template->parseCurrentBlock();
                                }
                        }
                        if($this->object->getOrderingType() == OQ_PICTURES)
                        {
                                $template->setVariable("RESET_POSITIONS", $this->lng->txt("reset_pictures"));
                        }
                        else
                        {
                                $template->setVariable("RESET_POSITIONS", $this->lng->txt("reset_definitions"));
                        }

                        $questiontext = $this->object->getQuestion();
                        $template->setVariable("QUESTIONTEXT", $this->object->prepareTextareaOutput($questiontext, TRUE));
                        $template->setVariable("QUESTION_ID", $this->object->getId());
                        $questionoutput = $template->get();
                        $pageoutput = $this->outQuestionPage("", $is_postponed, $active_id, $questionoutput);
                        $this->tpl->addJavascript("./Modules/TestQuestionPool/templates/default/ordering.js");
                        return $pageoutput;
                }
        }

Here is the call graph for this function:

isClearAnswersOnWritingPostDataEnabled()

assOrderingQuestionGUI::isClearAnswersOnWritingPostDataEnabled

(

)

Returns

boolean

Definition at line 68 of file class.assOrderingQuestionGUI.php.

References $clearAnswersOnWritingPostDataEnabled.

Referenced by writeAnswerSpecificPostData().

        {
                return $this->clearAnswersOnWritingPostDataEnabled;
        }

Here is the caller graph for this function:

isUploadAnswersCommand()

assOrderingQuestionGUI::isUploadAnswersCommand ( )

private

Definition at line 419 of file class.assOrderingQuestionGUI.php.

        {
                return $this->ctrl->getCmd() == 'uploadanswers';
        }

orderNestedPictures()

assOrderingQuestionGUI::orderNestedPictures

(

)

Definition at line 115 of file class.assOrderingQuestionGUI.php.

References editQuestion(), OQ_NESTED_PICTURES, and assQuestionGUI\writePostData().

        {
                $this->object->setOrderingType(OQ_NESTED_PICTURES);
                $this->writePostData(true);
                $this->object->saveToDb();

                $this->editQuestion();
        }

Here is the call graph for this function:

orderNestedTerms()

assOrderingQuestionGUI::orderNestedTerms

(

)

Definition at line 101 of file class.assOrderingQuestionGUI.php.

References editQuestion(), OQ_NESTED_TERMS, OQ_TERMS, setClearAnswersOnWritingPostDataEnabled(), and assQuestionGUI\writePostData().

        {
                if($this->object->getOrderingType() != OQ_NESTED_TERMS && $this->object->getOrderingType() != OQ_TERMS)
                {
                        $this->setClearAnswersOnWritingPostDataEnabled(true);
                }

                $this->object->setOrderingType(OQ_NESTED_TERMS);
                $this->writePostData(true);
                $this->object->saveToDb();

                $this->editQuestion();
        }

Here is the call graph for this function:

populateAnswerSpecificFormPart()

assOrderingQuestionGUI::populateAnswerSpecificFormPart

(

ilPropertyFormGUI

$form

)

Adds the answer specific form parts to a question property form gui.

Parameters

ilPropertyFormGUI

$form

Returns

ilPropertyFormGUI

Implements ilGuiAnswerScoringAdjustable.

Definition at line 314 of file class.assOrderingQuestionGUI.php.

References ilPropertyFormGUI\addItem(), getAnswerImageFileUploadWizardFormProperty(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, OQ_PICTURES, and ilNestedOrderingGUI\setOrderingType().

Referenced by editQuestion().

        {
                $orderingtype = $this->object->getOrderingType();

                if (count($this->object->getAnswers()) == 0)
                {
                        $this->object->addAnswer();
                }

                $header = new ilFormSectionHeaderGUI();
                $header->setTitle($this->lng->txt('oq_header_ordering_elements'));
                $form->addItem($header);

                if ($orderingtype == OQ_PICTURES)
                {
                        $answerImageUpload = $this->getAnswerImageFileUploadWizardFormProperty();
                        if ($this->uploadAlert !== null)
                        {
                                $answerImageUpload->setAlert( $this->uploadAlert );
                        }
                        $form->addItem( $answerImageUpload );
                }
                else if ($orderingtype == OQ_NESTED_TERMS || $orderingtype == OQ_NESTED_PICTURES)
                {
                        require_once 'Modules/TestQuestionPool/classes/class.ilNestedOrderingGUI.php';
                        $answers = new ilNestedOrderingGUI($this->lng->txt( "answers" ), "answers");
                        $answers->setOrderingType( $orderingtype );
                        $answers->setObjAnswersArray( $this->object->getAnswers() );

                        if ($orderingtype == OQ_NESTED_PICTURES)
                        {
                                $answers->setImagePath( $this->object->getImagePath() );
                                $answers->setImagePathWeb( $this->object->getImagePathWeb() );
                                $answers->setThumbPrefix( $this->object->getThumbPrefix() );
                        }
                        $answers->setInfo( $this->lng->txt( 'ordering_answer_sequence_info' ) );
                        $form->addItem( $answers );
                }
                else
                {
                        $answers      = new ilTextWizardInputGUI($this->lng->txt( "answers" ), "answers");
                        $answervalues = array();
                        foreach ($this->object->getAnswers() as $index => $answervalue)
                        {
                                $answervalues[$index] = $answervalue->getAnswertext();
                        }
                        ksort( $answervalues );
                        $answers->setValues( $answervalues );
                        $answers->setAllowMove( TRUE );
                        $answers->setRequired( TRUE );

                        $answers->setInfo( $this->lng->txt( 'ordering_answer_sequence_info' ) );
                        $form->addItem( $answers );
                }

                return $form;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

populateCommandButtons()

assOrderingQuestionGUI::populateCommandButtons ( ilPropertyFormGUI  $form )

private

Definition at line 490 of file class.assOrderingQuestionGUI.php.

References ilPropertyFormGUI\addCommandButton(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, OQ_PICTURES, and OQ_TERMS.

Referenced by editQuestion().

        {
                switch( $this->object->getOrderingType() )
                {
                        case OQ_TERMS:

                                $form->addCommandButton("changeToPictures", $this->lng->txt("oq_btn_use_order_pictures"));
                                $form->addCommandButton("orderNestedTerms", $this->lng->txt("oq_btn_nest_terms"));
                                break;

                        case OQ_PICTURES:

                                $form->addCommandButton("changeToText", $this->lng->txt("oq_btn_use_order_terms"));
                                $form->addCommandButton("orderNestedPictures", $this->lng->txt("oq_btn_nest_pictures"));
                                break;

                        case OQ_NESTED_TERMS:

                                $form->addCommandButton("changeToPictures", $this->lng->txt("oq_btn_use_order_pictures"));
                                $form->addCommandButton("changeToText", $this->lng->txt("oq_btn_define_terms"));
                                break;

                        case OQ_NESTED_PICTURES:

                                $form->addCommandButton("changeToText", $this->lng->txt("oq_btn_use_order_terms"));
                                $form->addCommandButton("changeToPictures", $this->lng->txt("oq_btn_define_pictures"));
                                break;
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

populateQuestionSpecificFormPart()

assOrderingQuestionGUI::populateQuestionSpecificFormPart

(

\ilPropertyFormGUI

$form

)

Definition at line 372 of file class.assOrderingQuestionGUI.php.

References ilPropertyFormGUI\addItem(), ilNumberInputGUI\allowDecimals(), OQ_PICTURES, and ilNumberInputGUI\setValue().

Referenced by editQuestion().

        {
                $orderingtype = $this->object->getOrderingType();

                // Edit mode

                //$hidden = new ilHiddenInputGUI("ordering_type");
                //$hidden->setValue( $orderingtype );
                //$form->addItem( $hidden );

                if (!$this->object->getSelfAssessmentEditingMode())
                {
                        $element_height = new ilNumberInputGUI($this->lng->txt( "element_height" ), "element_height");
                        $element_height->setValue( $this->object->getElementHeight() );
                        $element_height->setRequired( false );
                        $element_height->setMaxLength( 6 );
                        $element_height->setMinValue( 20 );
                        $element_height->setSize( 6 );
                        $element_height->setInfo( $this->lng->txt( "element_height_info" ) );
                        $form->addItem( $element_height );
                }

                if ($orderingtype == OQ_PICTURES)
                {
                        $geometry = new ilNumberInputGUI($this->lng->txt( "thumb_geometry" ), "thumb_geometry");
                        $geometry->setValue( $this->object->getThumbGeometry() );
                        $geometry->setRequired( true );
                        $geometry->setMaxLength( 6 );
                        $geometry->setMinValue( 20 );
                        $geometry->setSize( 6 );
                        $geometry->setInfo( $this->lng->txt( "thumb_geometry_info" ) );
                        $form->addItem( $geometry );
                }

                // points
                $points = new ilNumberInputGUI($this->lng->txt( "points" ), "points");
                $points->allowDecimals( true );
                $points->setValue( $this->object->getPoints() );
                $points->setRequired( TRUE );
                $points->setSize( 3 );
                $points->setMinValue( 0 );
                $points->setMinvalueShouldBeGreater( true );
                $form->addItem( $points );

                return $form;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

removeanswers()

assOrderingQuestionGUI::removeanswers

(

)

Definition at line 141 of file class.assOrderingQuestionGUI.php.

References $_POST, editQuestion(), and assQuestionGUI\writePostData().

        {
                $this->writePostData(true);
                $position = key($_POST["cmd"]["removeanswers"]);
                $this->object->deleteAnswer($position);
                $this->editQuestion();
        }

Here is the call graph for this function:

removeimageanswers()

assOrderingQuestionGUI::removeimageanswers

(

)

Definition at line 132 of file class.assOrderingQuestionGUI.php.

References $_POST, $filename, editQuestion(), and assQuestionGUI\writePostData().

        {
                $this->writePostData(true);
                $position = key($_POST['cmd']['removeimageanswers']);
                $filename = $_POST['answers']['imagename'][$position];
                $this->object->removeAnswerImage($position);
                $this->editQuestion();
        }

Here is the call graph for this function:

renderAggregateView()

assOrderingQuestionGUI::renderAggregateView

(

$aggregate

)

Parameters

$aggregate

Returns

ilTemplate

Definition at line 1457 of file class.assOrderingQuestionGUI.php.

References assQuestionGUI\$tpl.

Referenced by getAggregatedAnswersView().

        {
                $tpl = new ilTemplate('tpl.il_as_aggregated_answers_table.html', true, true, "Modules/TestQuestionPool");

                foreach ($aggregate as $line_data)
                {
                        $tpl->setCurrentBlock( 'aggregaterow' );
                        $count = array_shift($line_data);
                        $html = '<ul>';
                        foreach($line_data as $key => $line)
                        {
                                $html .= '<li>'. ++$line .'&nbsp;-&nbsp;' .$key. '</li>';
                        }
                        $html .= '</ul>';
                        $tpl->setVariable( 'COUNT', $count );
                        $tpl->setVariable( 'OPTION', $html );

                        $tpl->parseCurrentBlock();
                }
                return $tpl;
        }

Here is the caller graph for this function:

setClearAnswersOnWritingPostDataEnabled()

assOrderingQuestionGUI::setClearAnswersOnWritingPostDataEnabled

(

$clearAnswersOnWritingPostDataEnabled

)

Parameters

boolean

$clearAnswersOnWritingPostDataEnabled

Definition at line 60 of file class.assOrderingQuestionGUI.php.

References $clearAnswersOnWritingPostDataEnabled.

Referenced by changeToPictures(), changeToText(), and orderNestedTerms().

        {
                $this->clearAnswersOnWritingPostDataEnabled = $clearAnswersOnWritingPostDataEnabled;
        }

Here is the caller graph for this function:

setLeveledOrdering()

assOrderingQuestionGUI::setLeveledOrdering

(

$new_hierarchy

)

Definition at line 1330 of file class.assOrderingQuestionGUI.php.

References getDepthRecursive().

Referenced by writeAnswerSpecificPostData().

        {
                foreach($new_hierarchy as $id)
                {
                        $ordering_depth = 0;
                        $this->leveled_ordering[] = $ordering_depth;

                        if(is_array($id->children))
                        {
                                foreach($id->children as $child)
                                {
                                        $this->getDepthRecursive($child, $ordering_depth);
                                }
                        }
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

setQuestionTabs()

assOrderingQuestionGUI::setQuestionTabs

(

)

Sets the ILIAS tabs for this question type.

public

Todo:

: MOVE THIS STEPS TO COMMON QUESTION CLASS assQuestionGUI

Definition at line 1214 of file class.assOrderingQuestionGUI.php.

References $_GET, $_POST, assQuestionGUI\addBackTab(), assQuestionGUI\addTab_QuestionFeedback(), assQuestionGUI\addTab_QuestionHints(), assQuestionGUI\addTab_QuestionPreview(), and assQuestionGUI\addTab_SuggestedSolution().

        {
                global $rbacsystem, $ilTabs;

                $ilTabs->clearTargets();

                $this->ctrl->setParameterByClass("ilAssQuestionPageGUI", "q_id", $_GET["q_id"]);
                include_once "./Modules/TestQuestionPool/classes/class.assQuestion.php";
                $q_type = $this->object->getQuestionType();

                if (strlen($q_type))
                {
                        $classname = $q_type . "GUI";
                        $this->ctrl->setParameterByClass(strtolower($classname), "sel_question_types", $q_type);
                        $this->ctrl->setParameterByClass(strtolower($classname), "q_id", $_GET["q_id"]);
                }

                if ($_GET["q_id"])
                {
                        if ($rbacsystem->checkAccess('write', $_GET["ref_id"]))
                        {
                                // edit page
                                $ilTabs->addTarget("edit_page",
                                        $this->ctrl->getLinkTargetByClass("ilAssQuestionPageGUI", "edit"),
                                        array("edit", "insert", "exec_pg"),
                                        "", "", $force_active);
                        }

                        $this->addTab_QuestionPreview($ilTabs);
                }

                $force_active = false;
                if ($rbacsystem->checkAccess('write', $_GET["ref_id"]))
                {
                        $url = "";
                        if ($classname) $url = $this->ctrl->getLinkTargetByClass($classname, "editQuestion");
                        $commands = $_POST["cmd"];
                        if (is_array($commands))
                        {
                                foreach ($commands as $key => $value)
                                {
                                        if (preg_match("/^delete_.*/", $key, $matches))
                                        {
                                                $force_active = true;
                                        }
                                }
                        }
                        // edit question properties
                        $ilTabs->addTarget("edit_question",
                                $url,
                                array("orderNestedTerms","orderNestedPictures","editQuestion", "save", "saveEdit", "addanswers", "removeanswers", "changeToPictures", "uploadanswers", "changeToText", "upanswers", "downanswers", "originalSyncForm"),
                                $classname, "", $force_active);
                }

                // add tab for question feedback within common class assQuestionGUI
                $this->addTab_QuestionFeedback($ilTabs);

                // add tab for question hint within common class assQuestionGUI
                $this->addTab_QuestionHints($ilTabs);

                // add tab for question's suggested solution within common class assQuestionGUI
                $this->addTab_SuggestedSolution($ilTabs, $classname);

                // Assessment of questions sub menu entry
                if ($_GET["q_id"])
                {
                        $ilTabs->addTarget("statistics",
                                $this->ctrl->getLinkTargetByClass($classname, "assessment"),
                                array("assessment"),
                                $classname, "");
                }

                $this->addBackTab($ilTabs);
        }

Here is the call graph for this function:

upanswers()

assOrderingQuestionGUI::upanswers

(

)

Definition at line 149 of file class.assOrderingQuestionGUI.php.

References $_POST, editQuestion(), and assQuestionGUI\writePostData().

        {
                $this->writePostData(true);
                $position = key($_POST["cmd"]["upanswers"]);
                $this->object->moveAnswerUp($position);
                $this->editQuestion();
        }

Here is the call graph for this function:

uploadanswers()

assOrderingQuestionGUI::uploadanswers

(

)

Definition at line 185 of file class.assOrderingQuestionGUI.php.

References editQuestion(), getAnswerImageFileUploadWizardFormProperty(), ilUtil\sendFailure(), and assQuestionGUI\writePostData().

        {
                $this->lng->loadLanguageModule('form');

                $inp = $this->getAnswerImageFileUploadWizardFormProperty();

                if( !$inp->checkInput() )
                {
                        $this->uploadAlert = $inp->getAlert();
                        ilUtil::sendFailure($inp->getAlert());
                }

                $this->writePostData(true);
                $this->editQuestion();
        }

Here is the call graph for this function:

writeAnswerSpecificPostData()

assOrderingQuestionGUI::writeAnswerSpecificPostData

(

ilPropertyFormGUI

$form

)

Extracts the answer specific values from $_POST and applies them to the data object.

Parameters

bool

$always

If true, a check for form validity is omitted.

Returns

void

Implements ilGuiAnswerScoringAdjustable.

Definition at line 209 of file class.assOrderingQuestionGUI.php.

References $_POST, $filename, $old_ordering_depth, getOldLeveledOrdering(), isClearAnswersOnWritingPostDataEnabled(), OQ_NESTED_PICTURES, OQ_NESTED_TERMS, OQ_TERMS, and setLeveledOrdering().

Referenced by writePostData().

        {
                $ordering_type = $this->object->getOrderingType();
                // Delete all existing answers and create new answers from the form data
                $this->object->flushAnswers();
                $saved = false;

                // add answers
                if ($ordering_type == OQ_TERMS
                        || $ordering_type == OQ_NESTED_TERMS
                        || $ordering_type == OQ_NESTED_PICTURES
                )
                {
                        $answers = $_POST["answers"];
                        if (is_array( $answers ))
                        {
                                $answers_ordering = $_POST['answers_ordering__default']; // __default is added by js
                                $new_hierarchy    = json_decode( $answers_ordering );

                                $this->getOldLeveledOrdering();

                                if (!is_array( $new_hierarchy ))
                                {
                                        $this->leveled_ordering = $this->old_ordering_depth;
                                }
                                else
                                {
                                        $this->setLeveledOrdering( $new_hierarchy );
                                }

                                $counter = 0;

                                if(is_array($answers['imagename']))
                                {
                                        foreach($answers['imagename'] as $index => $answer)
                                        {
                                                if($this->isClearAnswersOnWritingPostDataEnabled())
                                                {
                                                        $answer = "";
                                                }
                                                $this->object->addAnswer($answer, -1, $this->leveled_ordering[$counter]);
                                                $counter++;
                                        }
                                }
                                else
                                {
                                        foreach($answers as $index => $answer)
                                        {
                                                if($this->isClearAnswersOnWritingPostDataEnabled())
                                                {
                                                        $answer = "";
                                                }
                                                $this->object->addAnswer($answer, -1, $this->leveled_ordering[$counter]);
                                                $counter++;
                                        }
                                }
                        }
                }
                else
                {
                        if (is_array( $_POST['answers']['count'] ))
                        {
                                foreach (array_keys( $_POST['answers']['count'] ) as $index)
                                {
                                        if( $this->isClearAnswersOnWritingPostDataEnabled() )
                                        {
                                                $this->object->addAnswer( "" );
                                                continue;
                                        }

                                        $picturefile    = $_POST['answers']['imagename'][$index];
                                        $file_org_name  = $_FILES['answers']['name']['image'][$index];
                                        $file_temp_name = $_FILES['answers']['tmp_name']['image'][$index];

                                        // new file
                                        if (strlen( $file_temp_name ))
                                        {
                                                // check suffix
                                                $suffix = strtolower( array_pop( explode( ".", $file_org_name ) ) );
                                                if (in_array( $suffix, array( "jpg", "jpeg", "png", "gif" ) ))
                                                {
                                                        // upload image
                                                        $filename = $this->object->createNewImageFileName( $file_org_name );
                                                        $filename = $this->object->getEncryptedFilename( $filename );
                                                        if ($this->object->setImageFile( $file_temp_name, $filename, $picturefile ))
                                                        {
                                                                $picturefile = $filename;
                                                        }
                                                }
                                        }

                                        $this->object->addAnswer( $picturefile );
                                }
                        }
                        else if(is_array($_POST['answers']))
                        {
                                foreach($_POST['answers'] as $random_id => $text_value)
                                {
                                        $this->object->addAnswer( $text_value );
                                }
                        }
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

writePostData()

assOrderingQuestionGUI::writePostData

(

$always = false

)

Evaluates a posted edit form and writes the form data in the question object.

Parameters

bool	$always
bool	$clear_answers

Returns

integer A positive value, if one of the required fields wasn't set, else 0

Definition at line 432 of file class.assOrderingQuestionGUI.php.

References editQuestion(), assQuestionGUI\saveTaxonomyAssignments(), writeAnswerSpecificPostData(), assQuestionGUI\writeQuestionGenericPostData(), and writeQuestionSpecificPostData().

        {
                $hasErrors = (!$always) ? $this->editQuestion(true) : false;
                if (!$hasErrors)
                {
                        require_once 'Services/Form/classes/class.ilPropertyFormGUI.php';
                        $this->writeQuestionGenericPostData();
                        $this->writeQuestionSpecificPostData(new ilPropertyFormGUI());
                        $this->writeAnswerSpecificPostData(new ilPropertyFormGUI());
                        $this->saveTaxonomyAssignments();
                        return 0;
                }

                return 1;
        }

Here is the call graph for this function:

writeQuestionSpecificPostData()

assOrderingQuestionGUI::writeQuestionSpecificPostData

(

ilPropertyFormGUI

$form

)

Extracts the question specific values from $_POST and applies them to the data object.

Parameters

bool

$always

If true, a check for form validity is omitted.

Returns

void

Implements ilGuiQuestionScoringAdjustable.

Definition at line 201 of file class.assOrderingQuestionGUI.php.

References $_POST.

Referenced by writePostData().

        {
                $this->object->setThumbGeometry( $_POST["thumb_geometry"] );
                $this->object->setElementHeight( $_POST["element_height"] );
                //$this->object->setOrderingType( $_POST["ordering_type"] );
                $this->object->setPoints($_POST["points"]);
        }

Here is the caller graph for this function:

Field Documentation

$clearAnswersOnWritingPostDataEnabled

assOrderingQuestionGUI::$clearAnswersOnWritingPostDataEnabled

private

Definition at line 32 of file class.assOrderingQuestionGUI.php.

Referenced by isClearAnswersOnWritingPostDataEnabled(), and setClearAnswersOnWritingPostDataEnabled().

$leveled_ordering

assOrderingQuestionGUI::$leveled_ordering = array()

Definition at line 27 of file class.assOrderingQuestionGUI.php.

$old_ordering_depth

assOrderingQuestionGUI::$old_ordering_depth = array()

Definition at line 26 of file class.assOrderingQuestionGUI.php.

Referenced by getOldLeveledOrdering(), and writeAnswerSpecificPostData().

$uploadAlert

assOrderingQuestionGUI::$uploadAlert = null

private

Definition at line 24 of file class.assOrderingQuestionGUI.php.

---

The documentation for this class was generated from the following file:

• Modules/TestQuestionPool/classes/class.assOrderingQuestionGUI.php
