TCPDF_STATIC Class Reference

Static methods used by the TCPDF class. More...

+ Collaboration diagram for TCPDF_STATIC:

Static Public Member Functions

static getTCPDFVersion ()
 Return the current TCPDF version. More...

static getTCPDFProducer ()
 Return the current TCPDF producer. More...

static set_mqr ($mqr)
 Sets the current active configuration setting of magic_quotes_runtime (if the set_magic_quotes_runtime function exist) More...

static get_mqr ()
 Gets the current active configuration setting of magic_quotes_runtime (if the get_magic_quotes_runtime function exist) More...

static getPageSizeFromFormat ($format)
 Get page dimensions from format name. More...

static setPageBoxes ($page, $type, $llx, $lly, $urx, $ury, $points=false, $k, $pagedim=array())
 Set page boundaries. More...

static swapPageBoxCoordinates ($page, $pagedim)
 Swap X and Y coordinates of page boxes (change page boxes orientation). More...

static getPageLayoutMode ($layout='SinglePage')
 Get the canonical page layout mode. More...

static getPageMode ($mode='UseNone')
 Get the canonical page layout mode. More...

static isValidURL ($url)
 Check if the URL exist. More...

static removeSHY ($txt='', $unicode=true)
 Removes SHY characters from text. More...

static getBorderMode ($brd, $position='start', $opencell=true)
 Get the border mode accounting for multicell position (opens bottom side of multicell crossing pages) More...

static empty_string ($str)
 Determine whether a string is empty. More...

static getObjFilename ($name)
 Returns a temporary filename for caching object on filesystem. More...

static _escape ($s)
 Add "\" before "\", "(" and ")". More...

static _escapeXML ($str)
 Escape some special characters (< > &) for XML output. More...

static objclone ($object)
 Creates a copy of a class object. More...

static sendOutputData ($data, $length)
 Ouput input data and compress it if possible. More...

static replacePageNumAliases ($page, $replace, $diff=0)
 Replace page number aliases with number. More...

static getTimestamp ($date)
 Returns timestamp in seconds from formatted date-time. More...

static getFormattedDate ($time)
 Returns a formatted date-time. More...

static _getULONG ($str, $offset)
 Get ULONG from string (Big Endian 32-bit unsigned integer). More...

static _getUSHORT ($str, $offset)
 Get USHORT from string (Big Endian 16-bit unsigned integer). More...

static _getSHORT ($str, $offset)
 Get SHORT from string (Big Endian 16-bit signed integer). More...

static _getFWORD ($str, $offset)
 Get FWORD from string (Big Endian 16-bit signed integer). More...

static _getUFWORD ($str, $offset)
 Get UFWORD from string (Big Endian 16-bit unsigned integer). More...

static _getFIXED ($str, $offset)
 Get FIXED from string (32-bit signed fixed-point number (16.16). More...

static _getBYTE ($str, $offset)
 Get BYTE from string (8-bit unsigned integer). More...

static rfread ($handle, $length)
 Binary-safe and URL-safe file read. More...

static _freadint ($f)
 Read a 4-byte (32 bit) integer from file. More...

static getRandomSeed ($seed='')
 Returns a string containing random data to be used as a seed for encryption methods. More...

static _md5_16 ($str)
 Encrypts a string using MD5 and returns it's value as a binary string. More...

static _AES ($key, $text)
 Returns the input text exrypted using AES algorithm and the specified key. More...

static _RC4 ($key, $text, &$last_enc_key, &$last_enc_key_c)
 Returns the input text encrypted using RC4 algorithm and the specified key. More...

static getUserPermissionCode ($permissions, $mode=0)
 Return the premission code used on encryption (P value). More...

static convertHexStringToString ($bs)
 Convert hexadecimal string to string. More...

static convertStringToHexString ($s)
 Convert string to hexadecimal string (byte string) More...

static getEncPermissionsString ($protection)
 Convert encryption P value to a string of bytes, low-order byte first. More...

static encodeNameObject ($name)
 Encode a name object. More...

static getAnnotOptFromJSProp ($prop, &$spot_colors, $rtl=false)
 Convert JavaScript form fields properties array to Annotation Properties array. More...

static formatPageNumber ($num)
 Format the page numbers. More...

static formatTOCPageNumber ($num)
 Format the page numbers on the Table Of Content. More...

static extractCSSproperties ($cssdata)
 Extracts the CSS properties from a CSS string. More...

static fixHTMLCode ($html, $default_css='', $tagvs='', $tidy_options='', &$tagvspaces)
 Cleanup HTML code (requires HTML Tidy library). More...

static isValidCSSSelectorForTag ($dom, $key, $selector)
 Returns true if the CSS selector is valid for the selected HTML tag. More...

static getCSSdataArray ($dom, $key, $css)
 Returns the styles array that apply for the selected HTML tag. More...

static getTagStyleFromCSSarray ($css)
 Compact CSS data array into single string. More...

static intToRoman ($number)
 Returns the Roman representation of an integer number. More...

static revstrpos ($haystack, $needle, $offset=0)
 Find position of last occurrence of a substring in a string. More...

static serializeTCPDFtagParameters ($pararray)
 Serialize an array of parameters to be used with TCPDF tag in HTML code. More...

static getHyphenPatternsFromTEX ($file)
 Returns an array of hyphenation patterns. More...

static getPathPaintOperator ($style, $default='S')
 Get the Path-Painting Operators. More...

static getTransformationMatrixProduct ($ta, $tb)
 Get the product of two SVG tranformation matrices. More...

static getSVGTransformMatrix ($attribute)
 Get the tranformation matrix from SVG transform attribute. More...

static getVectorsAngle ($x1, $y1, $x2, $y2)
 Returns the angle in radiants between two vectors. More...


Static Public Attributes

static $alias_tot_pages = '{:ptp:}'
 String alias for total number of pages. More...

static $alias_num_page = '{:pnp:}'
 String alias for page number. More...

static $alias_group_tot_pages = '{:ptg:}'
 String alias for total number of pages in a single group. More...

static $alias_group_num_page = '{:png:}'
 String alias for group page number. More...

static $alias_right_shift = '{rsc:'
 String alias for right shift compensation used to correctly align page numbers on the right. More...

static $enc_padding = "\x28\xBF\x4E\x5E\x4E\x75\x8A\x41\x64\x00\x4E\x56\xFF\xFA\x01\x08\x2E\x2E\x00\xB6\xD0\x68\x3E\x80\x2F\x0C\xA9\xFE\x64\x53\x69\x7A"
 Encryption padding string. More...

static $byterange_string = '/ByteRange[0 ********** ********** **********]'
 ByteRange placemark used during digital signature process. More...

static $pageboxes = array('MediaBox', 'CropBox', 'BleedBox', 'TrimBox', 'ArtBox')
 Array page boxes names static. More...


Static Private Attributes

static $tcpdf_version = '6.0.015'
 Current TCPDF version. More...


Detailed Description

Static methods used by the TCPDF class.

Definition at line 52 of file tcpdf_static.php.

Member Function Documentation

◆ _AES()

static TCPDF_STATIC::_AES (   $key,
  $text
)
static

Returns the input text exrypted using AES algorithm and the specified key.

This method requires mcrypt.

Parameters
$key(string) encryption key
$text(String) input text to be encrypted
Returns
String encrypted text
Author
Nicola Asuni
Since
5.0.005 (2010-05-11) static

Definition at line 1408 of file tcpdf_static.php.

Referenced by TCPDF\_encrypt_data().

1408  {
1409  // padding (RFC 2898, PKCS #5: Password-Based Cryptography Specification Version 2.0)
1410  $padding = 16 - (strlen($text) % 16);
1411  $text .= str_repeat(chr($padding), $padding);
1412  $iv = mcrypt_create_iv(mcrypt_get_iv_size(MCRYPT_RIJNDAEL_128, MCRYPT_MODE_CBC), MCRYPT_RAND);
1413  $text = mcrypt_encrypt(MCRYPT_RIJNDAEL_128, $key, $text, MCRYPT_MODE_CBC, $iv);
1414  $text = $iv.$text;
1415  return $text;
1416  }
+ Here is the caller graph for this function:

◆ _escape()

static TCPDF_STATIC::_escape (   $s)
static

Add "\" before "\", "(" and ")".

Parameters
$s(string) string to escape.
Returns
string escaped string. static

Definition at line 1110 of file tcpdf_static.php.

Referenced by TCPDF\_datastring(), TCPDF\_escapetext(), TCPDF\getCellCode(), and TCPDF\getInternalPageNumberAliases().

1110  {
1111  // the chr(13) substitution fixes the Bugs item #1421290.
1112  return strtr($s, array(')' => '\\)', '(' => '\\(', '\\' => '\\\\', chr(13) => '\r'));
1113  }
+ Here is the caller graph for this function:

◆ _escapeXML()

static TCPDF_STATIC::_escapeXML (   $str)
static

Escape some special characters (< > &) for XML output.

Parameters
$str(string) Input string to convert.
Returns
converted string
Since
5.9.121 (2011-09-28) static

Definition at line 1122 of file tcpdf_static.php.

Referenced by TCPDF\_putXMP().

1122  {
1123  $replaceTable = array("\0" => '', '&' => '&amp;', '<' => '&lt;', '>' => '&gt;');
1124  $str = strtr($str, $replaceTable);
1125  return $str;
1126  }
+ Here is the caller graph for this function:

◆ _freadint()

static TCPDF_STATIC::_freadint (   $f)
static

Read a 4-byte (32 bit) integer from file.

Parameters
$f(string) file name.
Returns
4-byte integer static

Definition at line 1336 of file tcpdf_static.php.

Referenced by TCPDF_IMAGES\_parsepng().

1336  {
1337  $a = unpack('Ni', fread($f, 4));
1338  return $a['i'];
1339  }
+ Here is the caller graph for this function:

◆ _getBYTE()

static TCPDF_STATIC::_getBYTE (   $str,
  $offset
)
static

Get BYTE from string (8-bit unsigned integer).

Parameters
$str(string) String from where to extract value.
$offset(int) Point from where to read the data.
Returns
int 8 bit value
Author
Nicola Asuni
Since
5.2.000 (2010-06-02) static

Definition at line 1304 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\_getTrueTypeFontSubset(), and TCPDF_FONTS\addTTFfont().

1304  {
1305  $v = unpack('Ci', substr($str, $offset, 1));
1306  return $v['i'];
1307  }
+ Here is the caller graph for this function:

◆ _getFIXED()

static TCPDF_STATIC::_getFIXED (   $str,
  $offset
)
static

Get FIXED from string (32-bit signed fixed-point number (16.16).

Parameters
$str(string) string from where to extract value
$offset(int) point from where to read the data
Returns
int 16 bit value
Author
Nicola Asuni
Since
5.9.123 (2011-09-30) static

Definition at line 1286 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\addTTFfont().

1286  {
1287  // mantissa
1288  $m = self::_getFWORD($str, $offset);
1289  // fraction
1290  $f = self::_getUSHORT($str, ($offset + 2));
1291  $v = floatval(''.$m.'.'.$f.'');
1292  return $v;
1293  }
+ Here is the caller graph for this function:

◆ _getFWORD()

static TCPDF_STATIC::_getFWORD (   $str,
  $offset
)
static

Get FWORD from string (Big Endian 16-bit signed integer).

Parameters
$str(string) String from where to extract value.
$offset(int) Point from where to read the data.
Returns
int 16 bit value
Author
Nicola Asuni
Since
5.9.123 (2011-09-30) static

Definition at line 1255 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\addTTFfont().

1255  {
1256  $v = self::_getUSHORT($str, $offset);
1257  if ($v > 0x7fff) {
1258  $v -= 0x10000;
1259  }
1260  return $v;
1261  }
+ Here is the caller graph for this function:

◆ _getSHORT()

static TCPDF_STATIC::_getSHORT (   $str,
  $offset
)
static

Get SHORT from string (Big Endian 16-bit signed integer).

Parameters
$str(string) String from where to extract value.
$offset(int) Point from where to read the data.
Returns
int 16 bit value
Author
Nicola Asuni
Since
5.2.000 (2010-06-02) static

Definition at line 1241 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\_getTrueTypeFontSubset(), and TCPDF_FONTS\addTTFfont().

1241  {
1242  $v = unpack('si', substr($str, $offset, 2));
1243  return $v['i'];
1244  }
+ Here is the caller graph for this function:

◆ _getUFWORD()

static TCPDF_STATIC::_getUFWORD (   $str,
  $offset
)
static

Get UFWORD from string (Big Endian 16-bit unsigned integer).

Parameters
$str(string) string from where to extract value
$offset(int) point from where to read the data
Returns
int 16 bit value
Author
Nicola Asuni
Since
5.9.123 (2011-09-30) static

Definition at line 1272 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\addTTFfont().

1272  {
1273  $v = self::_getUSHORT($str, $offset);
1274  return $v;
1275  }
+ Here is the caller graph for this function:

◆ _getULONG()

static TCPDF_STATIC::_getULONG (   $str,
  $offset
)
static

Get ULONG from string (Big Endian 32-bit unsigned integer).

Parameters
$str(string) string from where to extract value
$offset(int) point from where to read the data
Returns
int 32 bit value
Author
Nicola Asuni
Since
5.2.000 (2010-06-02) static

Definition at line 1213 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\_getTrueTypeFontSubset(), and TCPDF_FONTS\addTTFfont().

1213  {
1214  $v = unpack('Ni', substr($str, $offset, 4));
1215  return $v['i'];
1216  }
+ Here is the caller graph for this function:

◆ _getUSHORT()

static TCPDF_STATIC::_getUSHORT (   $str,
  $offset
)
static

Get USHORT from string (Big Endian 16-bit unsigned integer).

Parameters
$str(string) string from where to extract value
$offset(int) point from where to read the data
Returns
int 16 bit value
Author
Nicola Asuni
Since
5.2.000 (2010-06-02) static

Definition at line 1227 of file tcpdf_static.php.

Referenced by TCPDF_FONTS\_getTrueTypeFontSubset(), TCPDF_IMAGES\_parsejpeg(), and TCPDF_FONTS\addTTFfont().

1227  {
1228  $v = unpack('ni', substr($str, $offset, 2));
1229  return $v['i'];
1230  }
+ Here is the caller graph for this function:

◆ _md5_16()

static TCPDF_STATIC::_md5_16 (   $str)
static

Encrypts a string using MD5 and returns it's value as a binary string.

Parameters
$str(string) input string
Returns
String MD5 encrypted binary string
Since
2.0.000 (2008-01-02) static

Definition at line 1394 of file tcpdf_static.php.

Referenced by TCPDF\_generateencryptionkey(), TCPDF\_objectkey(), TCPDF\_Ovalue(), and TCPDF\_Uvalue().

1394  {
1395  return pack('H*', md5($str));
1396  }
+ Here is the caller graph for this function:

◆ _RC4()

static TCPDF_STATIC::_RC4 (   $key,
  $text,
&  $last_enc_key,
&  $last_enc_key_c
)
static

Returns the input text encrypted using RC4 algorithm and the specified key.

RC4 is the standard encryption algorithm used in PDF format

Parameters
$key(string) Encryption key.
$text(String) Input text to be encrypted.
$last_enc_key(String) Reference to last RC4 key encrypted.
$last_enc_key_c(String) Reference to last RC4 computed key.
Returns
String encrypted text
Since
2.0.000 (2008-01-02)
Author
Klemen Vodopivec, Nicola Asuni static

Definition at line 1430 of file tcpdf_static.php.

References $out, and $t.

Referenced by TCPDF\_encrypt_data(), TCPDF\_Ovalue(), and TCPDF\_Uvalue().

1430  {
1431  if (function_exists('mcrypt_decrypt') AND ($out = @mcrypt_decrypt(MCRYPT_ARCFOUR, $key, $text, MCRYPT_MODE_STREAM, ''))) {
1432  // try to use mcrypt function if exist
1433  return $out;
1434  }
1435  if ($last_enc_key != $key) {
1436  $k = str_repeat($key, ((256 / strlen($key)) + 1));
1437  $rc4 = range(0, 255);
1438  $j = 0;
1439  for ($i = 0; $i < 256; ++$i) {
1440  $t = $rc4[$i];
1441  $j = ($j + $t + ord($k[$i])) % 256;
1442  $rc4[$i] = $rc4[$j];
1443  $rc4[$j] = $t;
1444  }
1445  $last_enc_key = $key;
1446  $last_enc_key_c = $rc4;
1447  } else {
1448  $rc4 = $last_enc_key_c;
1449  }
1450  $len = strlen($text);
1451  $a = 0;
1452  $b = 0;
1453  $out = '';
1454  for ($i = 0; $i < $len; ++$i) {
1455  $a = ($a + 1) % 256;
1456  $t = $rc4[$a];
1457  $b = ($b + $t) % 256;
1458  $rc4[$a] = $rc4[$b];
1459  $rc4[$b] = $t;
1460  $k = $rc4[($rc4[$a] + $rc4[$b]) % 256];
1461  $out .= chr(ord($text[$i]) ^ $k);
1462  }
1463  return $out;
1464  }
$t
$t
Definition: class.ilBMFType_duration.php:154
+ Here is the caller graph for this function:

◆ convertHexStringToString()

static TCPDF_STATIC::convertHexStringToString (   $bs)
static

Convert hexadecimal string to string.

Parameters
$bs(string) byte-string to convert
Returns
String
Since
5.0.005 (2010-05-12)
Author
Nicola Asuni static

Definition at line 1511 of file tcpdf_static.php.

Referenced by TCPDF\SetProtection().

1511  {
1512  $string = ''; // string to be returned
1513  $bslength = strlen($bs);
1514  if (($bslength % 2) != 0) {
1515  // padding
1516  $bs .= '0';
1517  ++$bslength;
1518  }
1519  for ($i = 0; $i < $bslength; $i += 2) {
1520  $string .= chr(hexdec($bs[$i].$bs[($i + 1)]));
1521  }
1522  return $string;
1523  }
+ Here is the caller graph for this function:

◆ convertStringToHexString()

static TCPDF_STATIC::convertStringToHexString (   $s)
static

Convert string to hexadecimal string (byte string)

Parameters
$s(string) string to convert
Returns
byte string
Since
5.0.010 (2010-05-17)
Author
Nicola Asuni static

Definition at line 1533 of file tcpdf_static.php.

1533  {
1534  $bs = '';
1535  $chars = preg_split('//', $s, -1, PREG_SPLIT_NO_EMPTY);
1536  foreach ($chars as $c) {
1537  $bs .= sprintf('%02s', dechex(ord($c)));
1538  }
1539  return $bs;
1540  }

◆ empty_string()

static TCPDF_STATIC::empty_string (   $str)
static

Determine whether a string is empty.

Parameters
$str(string) string to be checked
Returns
boolean true if string is empty
Since
4.5.044 (2009-04-16) static

Definition at line 1089 of file tcpdf_static.php.

Referenced by TCPDF\_beginpage(), TCPDF\_destroy(), TCPDF\_putcatalog(), TCPDF\_putfonts(), TCPDF\_putinfo(), TCPDF\_putsignature(), TCPDF\_puttruetypeunicode(), TCPDF\_putviewerpreferences(), TCPDF\AddFont(), TCPDF\addHTMLTOC(), TCPDF\addTOC(), TCPDF\Annotation(), TCPDF\checkPageBreak(), TCPDF\drawHTMLTagBorder(), TCPDF\Ellipse(), TCPDF\GetArrStringWidth(), TCPDF\getCellCode(), TCPDF\getHtmlDomArray(), getHyphenPatternsFromTEX(), TCPDF_IMAGES\getImageFileType(), TCPDF\getNumLines(), TCPDF\hyphenateText(), TCPDF\isCharDefined(), TCPDF\MultiCell(), TCPDF\openHTMLTagHandler(), TCPDF\putHtmlListBullet(), TCPDF\RadioButton(), TCPDF\replaceBuffer(), TCPDF\replaceMissingChars(), TCPDF\selectColumn(), TCPDF\setAlpha(), TCPDF\setBuffer(), TCPDF\setDestination(), TCPDF\setEqualColumns(), TCPDF\setGraphicVars(), TCPDF\setOverprint(), TCPDF\setPageOrientation(), TCPDF\setTableHeader(), TCPDF\startSVGElementHandler(), TCPDF_FONTS\utf8Bidi(), TCPDF\write1DBarcode(), TCPDF\write2DBarcode(), and TCPDF\writeHTML().

1089  {
1090  return (is_null($str) OR (is_string($str) AND (strlen($str) == 0)));
1091  }
+ Here is the caller graph for this function:

◆ encodeNameObject()

static TCPDF_STATIC::encodeNameObject (   $name)
static

Encode a name object.

Parameters
$name(string) Name object to encode.
Returns
(string) Encoded name object.
Author
Nicola Asuni
Since
5.9.097 (2011-06-23) static

Definition at line 1567 of file tcpdf_static.php.

Referenced by TCPDF\setDestination().

1567  {
1568  $escname = '';
1569  $length = strlen($name);
1570  for ($i = 0; $i < $length; ++$i) {
1571  $chr = $name[$i];
1572  if (preg_match('/[0-9a-zA-Z]/', $chr) == 1) {
1573  $escname .= $chr;
1574  } else {
1575  $escname .= sprintf('#%02X', ord($chr));
1576  }
1577  }
1578  return $escname;
1579  }
+ Here is the caller graph for this function:

◆ extractCSSproperties()

static TCPDF_STATIC::extractCSSproperties (   $cssdata)
static

Extracts the CSS properties from a CSS string.

Parameters
$cssdata(string) string containing CSS definitions.
Returns
An array where the keys are the CSS selectors and the values are the CSS properties.
Author
Nicola Asuni
Since
5.1.000 (2010-05-25) static

Definition at line 1981 of file tcpdf_static.php.

References $d.

Referenced by TCPDF\getHtmlDomArray().

1981  {
1982  if (empty($cssdata)) {
1983  return array();
1984  }
1985  // remove comments
1986  $cssdata = preg_replace('/\/\*[^\*]*\*\//', '', $cssdata);
1987  // remove newlines and multiple spaces
1988  $cssdata = preg_replace('/[\s]+/', ' ', $cssdata);
1989  // remove some spaces
1990  $cssdata = preg_replace('/[\s]*([;:\{\}]{1})[\s]*/', '\\1', $cssdata);
1991  // remove empty blocks
1992  $cssdata = preg_replace('/([^\}\{]+)\{\}/', '', $cssdata);
1993  // replace media type parenthesis
1994  $cssdata = preg_replace('/@media[\s]+([^\{]*)\{/i', '@media \\1§', $cssdata);
1995  $cssdata = preg_replace('/\}\}/si', '}§', $cssdata);
1996  // trim string
1997  $cssdata = trim($cssdata);
1998  // find media blocks (all, braille, embossed, handheld, print, projection, screen, speech, tty, tv)
1999  $cssblocks = array();
2000  $matches = array();
2001  if (preg_match_all('/@media[\s]+([^\� foreach ($matches[1] as $key => $type) { $cssblocks[$type] = $matches[2][$key]; } // remove media blocks $cssdata = preg_replace('/@media[\s]+([^\§]*)§([^§]*)§/i', '', $cssdata); } // keep 'all' and 'print' media, other media types are discarded if (isset($cssblocks['all']) AND !empty($cssblocks['all'])) { $cssdata .= $cssblocks['all']; } if (isset($cssblocks['print']) AND !empty($cssblocks['print'])) { $cssdata .= $cssblocks['print']; } // reset css blocks array $cssblocks = array(); $matches = array(); // explode css data string into array if (substr($cssdata, -1) == '}') { // remove last parethesis $cssdata = substr($cssdata, 0, -1); } $matches = explode('}', $cssdata); foreach ($matches as $key => $block) { // index 0 contains the CSS selector, index 1 contains CSS properties $cssblocks[$key] = explode('{', $block); if (!isset($cssblocks[$key][1])) { // remove empty definitions unset($cssblocks[$key]); } } // split groups of selectors (comma-separated list of selectors) foreach ($cssblocks as $key => $block) { if (strpos($block[0], ',') > 0) { $selectors = explode(',', $block[0]); foreach ($selectors as $sel) { $cssblocks[] = array(0 => trim($sel), 1 => $block[1]); } unset($cssblocks[$key]); } } // covert array to selector => properties $cssdata = array(); foreach ($cssblocks as $block) { $selector = $block[0]; // calculate selector's specificity $matches = array(); $a = 0; // the declaration is not from is a 'style' attribute $b = intval(preg_match_all('/[\#]/', $selector, $matches)); // number of ID attributes $c = intval(preg_match_all('/[\[\.]/', $selector, $matches)); // number of other attributes $c += intval(preg_match_all('/[\:]link|visited|hover|active|focus|target|lang|enabled|disabled|checked|indeterminate|root|nth|first|last|only|empty|contains|not/i', $selector, $matches)); // number of pseudo-classes $d = intval(preg_match_all('/[>\+\~\s]{1}[a-zA-Z0-9]+/', ' '.$selector, $matches)); // number of element names $d += intval(preg_match_all('/[\:][\:]/', $selector, $matches)); // number of pseudo-elements $specificity = $a.$b.$c.$d; // add specificity to the beginning of the selector $cssdata[$specificity.' '.$selector] = $block[1]; } // sort selectors alphabetically to account for specificity ksort($cssdata, SORT_STRING); // return array return $cssdata; } �]*)§([^§]*)§/i', $cssdata, $matches) > 0) {
2002  foreach ($matches[1] as $key => $type) {
2003  $cssblocks[$type] = $matches[2][$key];
2004  }
2005  // remove media blocks
2006  $cssdata = preg_replace('/@media[\s]+([^\� } // keep 'all' and 'print' media, other media types are discarded if (isset($cssblocks['all']) AND !empty($cssblocks['all'])) { $cssdata .= $cssblocks['all']; } if (isset($cssblocks['print']) AND !empty($cssblocks['print'])) { $cssdata .= $cssblocks['print']; } // reset css blocks array $cssblocks = array(); $matches = array(); // explode css data string into array if (substr($cssdata, -1) == '}') { // remove last parethesis $cssdata = substr($cssdata, 0, -1); } $matches = explode('}', $cssdata); foreach ($matches as $key => $block) { // index 0 contains the CSS selector, index 1 contains CSS properties $cssblocks[$key] = explode('{', $block); if (!isset($cssblocks[$key][1])) { // remove empty definitions unset($cssblocks[$key]); } } // split groups of selectors (comma-separated list of selectors) foreach ($cssblocks as $key => $block) { if (strpos($block[0], ',') > 0) { $selectors = explode(',', $block[0]); foreach ($selectors as $sel) { $cssblocks[] = array(0 => trim($sel), 1 => $block[1]); } unset($cssblocks[$key]); } } // covert array to selector => properties $cssdata = array(); foreach ($cssblocks as $block) { $selector = $block[0]; // calculate selector's specificity $matches = array(); $a = 0; // the declaration is not from is a 'style' attribute $b = intval(preg_match_all('/[\#]/', $selector, $matches)); // number of ID attributes $c = intval(preg_match_all('/[\[\.]/', $selector, $matches)); // number of other attributes $c += intval(preg_match_all('/[\:]link|visited|hover|active|focus|target|lang|enabled|disabled|checked|indeterminate|root|nth|first|last|only|empty|contains|not/i', $selector, $matches)); // number of pseudo-classes $d = intval(preg_match_all('/[>\+\~\s]{1}[a-zA-Z0-9]+/', ' '.$selector, $matches)); // number of element names $d += intval(preg_match_all('/[\:][\:]/', $selector, $matches)); // number of pseudo-elements $specificity = $a.$b.$c.$d; // add specificity to the beginning of the selector $cssdata[$specificity.' '.$selector] = $block[1]; } // sort selectors alphabetically to account for specificity ksort($cssdata, SORT_STRING); // return array return $cssdata; } �]*)§([^§]*)§/i', '', $cssdata);
2007  }
2008  // keep 'all' and 'print' media, other media types are discarded
2009  if (isset($cssblocks['all']) AND !empty($cssblocks['all'])) {
2010  $cssdata .= $cssblocks['all'];
2011  }
2012  if (isset($cssblocks['print']) AND !empty($cssblocks['print'])) {
2013  $cssdata .= $cssblocks['print'];
2014  }
2015  // reset css blocks array
2016  $cssblocks = array();
2017  $matches = array();
2018  // explode css data string into array
2019  if (substr($cssdata, -1) == '}') {
2020  // remove last parethesis
2021  $cssdata = substr($cssdata, 0, -1);
2022  }
2023  $matches = explode('}', $cssdata);
2024  foreach ($matches as $key => $block) {
2025  // index 0 contains the CSS selector, index 1 contains CSS properties
2026  $cssblocks[$key] = explode('{', $block);
2027  if (!isset($cssblocks[$key][1])) {
2028  // remove empty definitions
2029  unset($cssblocks[$key]);
2030  }
2031  }
2032  // split groups of selectors (comma-separated list of selectors)
2033  foreach ($cssblocks as $key => $block) {
2034  if (strpos($block[0], ',') > 0) {
2035  $selectors = explode(',', $block[0]);
2036  foreach ($selectors as $sel) {
2037  $cssblocks[] = array(0 => trim($sel), 1 => $block[1]);
2038  }
2039  unset($cssblocks[$key]);
2040  }
2041  }
2042  // covert array to selector => properties
2043  $cssdata = array();
2044  foreach ($cssblocks as $block) {
2045  $selector = $block[0];
2046  // calculate selector's specificity
2047  $matches = array();
2048  $a = 0; // the declaration is not from is a 'style' attribute
2049  $b = intval(preg_match_all('/[\#]/', $selector, $matches)); // number of ID attributes
2050  $c = intval(preg_match_all('/[\[\.]/', $selector, $matches)); // number of other attributes
2051  $c += intval(preg_match_all('/[\:]link|visited|hover|active|focus|target|lang|enabled|disabled|checked|indeterminate|root|nth|first|last|only|empty|contains|not/i', $selector, $matches)); // number of pseudo-classes
2052  $d = intval(preg_match_all('/[>\+\~\s]{1}[a-zA-Z0-9]+/', ' '.$selector, $matches)); // number of element names
2053  $d += intval(preg_match_all('/[\:][\:]/', $selector, $matches)); // number of pseudo-elements
2054  $specificity = $a.$b.$c.$d;
2055  // add specificity to the beginning of the selector
2056  $cssdata[$specificity.' '.$selector] = $block[1];
2057  }
2058  // sort selectors alphabetically to account for specificity
2059  ksort($cssdata, SORT_STRING);
2060  // return array
2061  return $cssdata;
2062  }
+ Here is the caller graph for this function:

◆ fixHTMLCode()

static TCPDF_STATIC::fixHTMLCode (   $html,
  $default_css = '',
  $tagvs = '',
  $tidy_options = '',
&  $tagvspaces
)
static

Cleanup HTML code (requires HTML Tidy library).

Parameters
$html(string) htmlcode to fix
$default_css(string) CSS commands to add
$tagvs(array) parameters for setHtmlVSpace method
$tidy_options(array) options for tidy_parse_string function
$tagvspaces(array) Array of vertical spaces for tags.
Returns
string XHTML code cleaned up
Author
Nicola Asuni
Since
5.9.017 (2010-11-16)
See also
setHtmlVSpace() static

Definition at line 2077 of file tcpdf_static.php.

Referenced by TCPDF\fixHTMLCode().

2077  {
2078  // configure parameters for HTML Tidy
2079  if ($tidy_options === '') {
2080  $tidy_options = array (
2081  'clean' => 1,
2082  'drop-empty-paras' => 0,
2083  'drop-proprietary-attributes' => 1,
2084  'fix-backslash' => 1,
2085  'hide-comments' => 1,
2086  'join-styles' => 1,
2087  'lower-literals' => 1,
2088  'merge-divs' => 1,
2089  'merge-spans' => 1,
2090  'output-xhtml' => 1,
2091  'word-2000' => 1,
2092  'wrap' => 0,
2093  'output-bom' => 0,
2094  //'char-encoding' => 'utf8',
2095  //'input-encoding' => 'utf8',
2096  //'output-encoding' => 'utf8'
2097  );
2098  }
2099  // clean up the HTML code
2100  $tidy = tidy_parse_string($html, $tidy_options);
2101  // fix the HTML
2102  $tidy->cleanRepair();
2103  // get the CSS part
2104  $tidy_head = tidy_get_head($tidy);
2105  $css = $tidy_head->value;
2106  $css = preg_replace('/<style([^>]+)>/ims', '<style>', $css);
2107  $css = preg_replace('/<\/style>(.*)<style>/ims', "\n", $css);
2108  $css = str_replace('/*<![CDATA[*/', '', $css);
2109  $css = str_replace('/*]]>*/', '', $css);
2110  preg_match('/<style>(.*)<\/style>/ims', $css, $matches);
2111  if (isset($matches[1])) {
2112  $css = strtolower($matches[1]);
2113  } else {
2114  $css = '';
2115  }
2116  // include default css
2117  $css = '<style>'.$default_css.$css.'</style>';
2118  // get the body part
2119  $tidy_body = tidy_get_body($tidy);
2120  $html = $tidy_body->value;
2121  // fix some self-closing tags
2122  $html = str_replace('<br>', '<br />', $html);
2123  // remove some empty tag blocks
2124  $html = preg_replace('/<div([^>]*)><\/div>/', '', $html);
2125  $html = preg_replace('/<p([^>]*)><\/p>/', '', $html);
2126  if ($tagvs !== '') {
2127  // set vertical space for some XHTML tags
2128  $tagvspaces = $tagvs;
2129  }
2130  // return the cleaned XHTML code + CSS
2131  return $css.$html;
2132  }

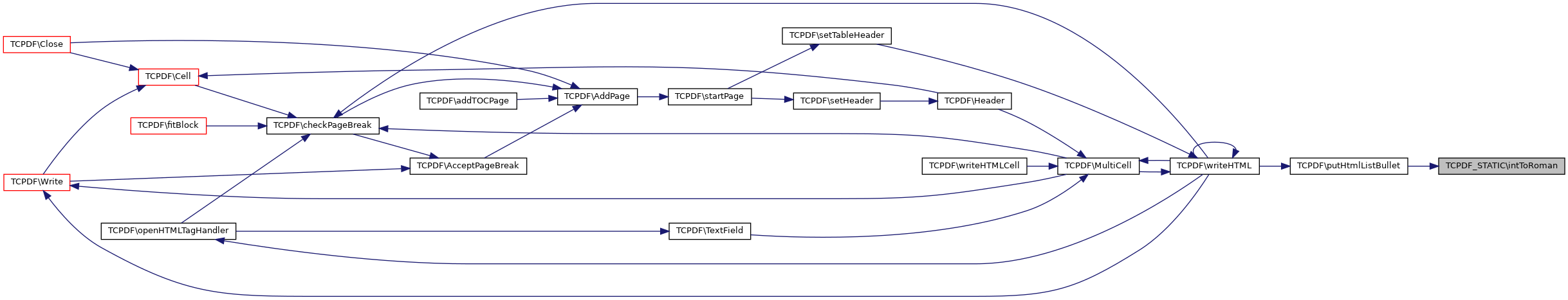

+ Here is the caller graph for this function:

◆ formatPageNumber()

static TCPDF_STATIC::formatPageNumber (   $num)
static

Format the page numbers.

This method can be overriden for custom formats.

Parameters
$num(int) page number
Since
4.2.005 (2008-11-06) static

Definition at line 1957 of file tcpdf_static.php.

Referenced by TCPDF\_putpages(), TCPDF\getGroupPageNoFormatted(), and TCPDF\PageNoFormatted().

1957  {
1958  return number_format((float)$num, 0, '', '.');
1959  }

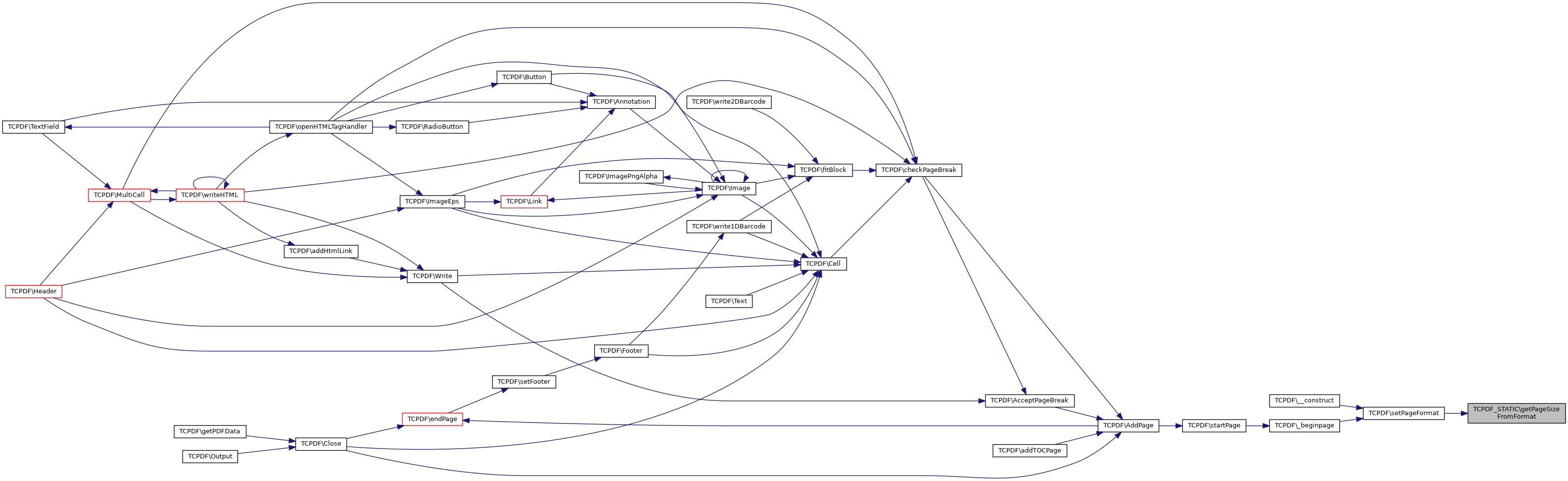

+ Here is the caller graph for this function:

◆ formatTOCPageNumber()

static TCPDF_STATIC::formatTOCPageNumber (   $num)
static

Format the page numbers on the Table Of Content.

This method can be overriden for custom formats.

Parameters
$num(int) page number
Since
4.5.001 (2009-01-04)
See also
addTOC(), addHTMLTOC() static

Definition at line 1969 of file tcpdf_static.php.

Referenced by TCPDF\addHTMLTOC(), and TCPDF\addTOC().

1969  {
1970  return number_format((float)$num, 0, '', '.');
1971  }
+ Here is the caller graph for this function:

◆ get_mqr()

static TCPDF_STATIC::get_mqr ( )
static

Gets the current active configuration setting of magic_quotes_runtime (if the get_magic_quotes_runtime function exist)

Returns
Returns 0 if magic quotes runtime is off or get_magic_quotes_runtime doesn't exist, 1 otherwise.
Since
4.6.025 (2009-08-17) static

Definition at line 153 of file tcpdf_static.php.

Referenced by TCPDF\_putfonts(), and TCPDF\Image().

153  {
154  if (!defined('PHP_VERSION_ID')) {
155  $version = PHP_VERSION;
156  define('PHP_VERSION_ID', (($version{0} * 10000) + ($version{2} * 100) + $version{4}));
157  }
158  if (PHP_VERSION_ID < 50300) {
159  return @get_magic_quotes_runtime();
160  }
161  return 0;
162  }
+ Here is the caller graph for this function:

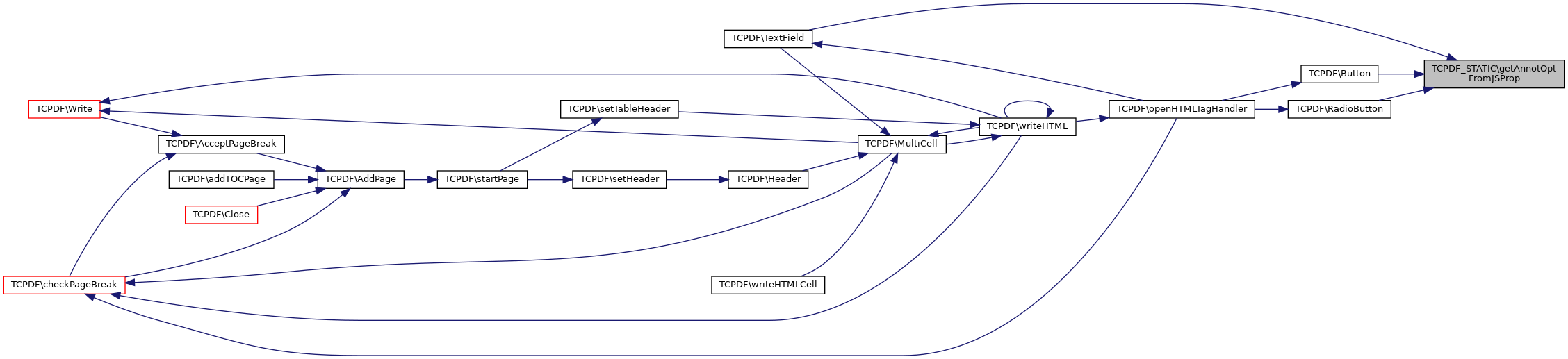

◆ getAnnotOptFromJSProp()

static TCPDF_STATIC::getAnnotOptFromJSProp (   $prop,
&  $spot_colors,
  $rtl = false
)
static

Convert JavaScript form fields properties array to Annotation Properties array.

Parameters
$prop(array) javascript field properties. Possible values are described on official Javascript for Acrobat API reference.
$spot_colors(array) Reference to spot colors array.
$rtl(boolean) True if in Right-To-Left text direction mode, false otherwise.
Returns
array of annotation properties
Author
Nicola Asuni
Since
4.8.000 (2009-09-06) static

Definition at line 1591 of file tcpdf_static.php.

References TCPDF_COLORS\convertHTMLColorToDec().

Referenced by TCPDF\Button(), TCPDF\RadioButton(), and TCPDF\TextField().

1591  {
1592  if (isset($prop['aopt']) AND is_array($prop['aopt'])) {
1593  // the annotation options area lready defined
1594  return $prop['aopt'];
1595  }
1596  $opt = array(); // value to be returned
1597  // alignment: Controls how the text is laid out within the text field.
1598  if (isset($prop['alignment'])) {
1599  switch ($prop['alignment']) {
1600  case 'left': {
1601  $opt['q'] = 0;
1602  break;
1603  }
1604  case 'center': {
1605  $opt['q'] = 1;
1606  break;
1607  }
1608  case 'right': {
1609  $opt['q'] = 2;
1610  break;
1611  }
1612  default: {
1613  $opt['q'] = ($rtl)?2:0;
1614  break;
1615  }
1616  }
1617  }
1618  // lineWidth: Specifies the thickness of the border when stroking the perimeter of a field's rectangle.
1619  if (isset($prop['lineWidth'])) {
1620  $linewidth = intval($prop['lineWidth']);
1621  } else {
1622  $linewidth = 1;
1623  }
1624  // borderStyle: The border style for a field.
1625  if (isset($prop['borderStyle'])) {
1626  switch ($prop['borderStyle']) {
1627  case 'border.d':
1628  case 'dashed': {
1629  $opt['border'] = array(0, 0, $linewidth, array(3, 2));
1630  $opt['bs'] = array('w'=>$linewidth, 's'=>'D', 'd'=>array(3, 2));
1631  break;
1632  }
1633  case 'border.b':
1634  case 'beveled': {
1635  $opt['border'] = array(0, 0, $linewidth);
1636  $opt['bs'] = array('w'=>$linewidth, 's'=>'B');
1637  break;
1638  }
1639  case 'border.i':
1640  case 'inset': {
1641  $opt['border'] = array(0, 0, $linewidth);
1642  $opt['bs'] = array('w'=>$linewidth, 's'=>'I');
1643  break;
1644  }
1645  case 'border.u':
1646  case 'underline': {
1647  $opt['border'] = array(0, 0, $linewidth);
1648  $opt['bs'] = array('w'=>$linewidth, 's'=>'U');
1649  break;
1650  }
1651  case 'border.s':
1652  case 'solid': {
1653  $opt['border'] = array(0, 0, $linewidth);
1654  $opt['bs'] = array('w'=>$linewidth, 's'=>'S');
1655  break;
1656  }
1657  default: {
1658  break;
1659  }
1660  }
1661  }
1662  if (isset($prop['border']) AND is_array($prop['border'])) {
1663  $opt['border'] = $prop['border'];
1664  }
1665  if (!isset($opt['mk'])) {
1666  $opt['mk'] = array();
1667  }
1668  if (!isset($opt['mk']['if'])) {
1669  $opt['mk']['if'] = array();
1670  }
1671  $opt['mk']['if']['a'] = array(0.5, 0.5);
1672  // buttonAlignX: Controls how space is distributed from the left of the button face with respect to the icon.
1673  if (isset($prop['buttonAlignX'])) {
1674  $opt['mk']['if']['a'][0] = $prop['buttonAlignX'];
1675  }
1676  // buttonAlignY: Controls how unused space is distributed from the bottom of the button face with respect to the icon.
1677  if (isset($prop['buttonAlignY'])) {
1678  $opt['mk']['if']['a'][1] = $prop['buttonAlignY'];
1679  }
1680  // buttonFitBounds: If true, the extent to which the icon may be scaled is set to the bounds of the button field.
1681  if (isset($prop['buttonFitBounds']) AND ($prop['buttonFitBounds'] == 'true')) {
1682  $opt['mk']['if']['fb'] = true;
1683  }
1684  // buttonScaleHow: Controls how the icon is scaled (if necessary) to fit inside the button face.
1685  if (isset($prop['buttonScaleHow'])) {
1686  switch ($prop['buttonScaleHow']) {
1687  case 'scaleHow.proportional': {
1688  $opt['mk']['if']['s'] = 'P';
1689  break;
1690  }
1691  case 'scaleHow.anamorphic': {
1692  $opt['mk']['if']['s'] = 'A';
1693  break;
1694  }
1695  }
1696  }
1697  // buttonScaleWhen: Controls when an icon is scaled to fit inside the button face.
1698  if (isset($prop['buttonScaleWhen'])) {
1699  switch ($prop['buttonScaleWhen']) {
1700  case 'scaleWhen.always': {
1701  $opt['mk']['if']['sw'] = 'A';
1702  break;
1703  }
1704  case 'scaleWhen.never': {
1705  $opt['mk']['if']['sw'] = 'N';
1706  break;
1707  }
1708  case 'scaleWhen.tooBig': {
1709  $opt['mk']['if']['sw'] = 'B';
1710  break;
1711  }
1712  case 'scaleWhen.tooSmall': {
1713  $opt['mk']['if']['sw'] = 'S';
1714  break;
1715  }
1716  }
1717  }
1718  // buttonPosition: Controls how the text and the icon of the button are positioned with respect to each other within the button face.
1719  if (isset($prop['buttonPosition'])) {
1720  switch ($prop['buttonPosition']) {
1721  case 0:
1722  case 'position.textOnly': {
1723  $opt['mk']['tp'] = 0;
1724  break;
1725  }
1726  case 1:
1727  case 'position.iconOnly': {
1728  $opt['mk']['tp'] = 1;
1729  break;
1730  }
1731  case 2:
1732  case 'position.iconTextV': {
1733  $opt['mk']['tp'] = 2;
1734  break;
1735  }
1736  case 3:
1737  case 'position.textIconV': {
1738  $opt['mk']['tp'] = 3;
1739  break;
1740  }
1741  case 4:
1742  case 'position.iconTextH': {
1743  $opt['mk']['tp'] = 4;
1744  break;
1745  }
1746  case 5:
1747  case 'position.textIconH': {
1748  $opt['mk']['tp'] = 5;
1749  break;
1750  }
1751  case 6:
1752  case 'position.overlay': {
1753  $opt['mk']['tp'] = 6;
1754  break;
1755  }
1756  }
1757  }
1758  // fillColor: Specifies the background color for a field.
1759  if (isset($prop['fillColor'])) {
1760  if (is_array($prop['fillColor'])) {
1761  $opt['mk']['bg'] = $prop['fillColor'];
1762  } else {
1763  $opt['mk']['bg'] = TCPDF_COLORS::convertHTMLColorToDec($prop['fillColor'], $spot_colors);
1764  }
1765  }
1766  // strokeColor: Specifies the stroke color for a field that is used to stroke the rectangle of the field with a line as large as the line width.
1767  if (isset($prop['strokeColor'])) {
1768  if (is_array($prop['strokeColor'])) {
1769  $opt['mk']['bc'] = $prop['strokeColor'];
1770  } else {
1771  $opt['mk']['bc'] = TCPDF_COLORS::convertHTMLColorToDec($prop['strokeColor'], $spot_colors);
1772  }
1773  }
1774  // rotation: The rotation of a widget in counterclockwise increments.
1775  if (isset($prop['rotation'])) {
1776  $opt['mk']['r'] = $prop['rotation'];
1777  }
1778  // charLimit: Limits the number of characters that a user can type into a text field.
1779  if (isset($prop['charLimit'])) {
1780  $opt['maxlen'] = intval($prop['charLimit']);
1781  }
1782  if (!isset($ff)) {
1783  $ff = 0; // default value
1784  }
1785  // readonly: The read-only characteristic of a field. If a field is read-only, the user can see the field but cannot change it.
1786  if (isset($prop['readonly']) AND ($prop['readonly'] == 'true')) {
1787  $ff += 1 << 0;
1788  }
1789  // required: Specifies whether a field requires a value.
1790  if (isset($prop['required']) AND ($prop['required'] == 'true')) {
1791  $ff += 1 << 1;
1792  }
1793  // multiline: Controls how text is wrapped within the field.
1794  if (isset($prop['multiline']) AND ($prop['multiline'] == 'true')) {
1795  $ff += 1 << 12;
1796  }
1797  // password: Specifies whether the field should display asterisks when data is entered in the field.
1798  if (isset($prop['password']) AND ($prop['password'] == 'true')) {
1799  $ff += 1 << 13;
1800  }
1801  // NoToggleToOff: If set, exactly one radio button shall be selected at all times; selecting the currently selected button has no effect.
1802  if (isset($prop['NoToggleToOff']) AND ($prop['NoToggleToOff'] == 'true')) {
1803  $ff += 1 << 14;
1804  }
1805  // Radio: If set, the field is a set of radio buttons.
1806  if (isset($prop['Radio']) AND ($prop['Radio'] == 'true')) {
1807  $ff += 1 << 15;
1808  }
1809  // Pushbutton: If set, the field is a pushbutton that does not retain a permanent value.
1810  if (isset($prop['Pushbutton']) AND ($prop['Pushbutton'] == 'true')) {
1811  $ff += 1 << 16;
1812  }
1813  // Combo: If set, the field is a combo box; if clear, the field is a list box.
1814  if (isset($prop['Combo']) AND ($prop['Combo'] == 'true')) {
1815  $ff += 1 << 17;
1816  }
1817  // editable: Controls whether a combo box is editable.
1818  if (isset($prop['editable']) AND ($prop['editable'] == 'true')) {
1819  $ff += 1 << 18;
1820  }
1821  // Sort: If set, the field's option items shall be sorted alphabetically.
1822  if (isset($prop['Sort']) AND ($prop['Sort'] == 'true')) {
1823  $ff += 1 << 19;
1824  }
1825  // fileSelect: If true, sets the file-select flag in the Options tab of the text field (Field is Used for File Selection).
1826  if (isset($prop['fileSelect']) AND ($prop['fileSelect'] == 'true')) {
1827  $ff += 1 << 20;
1828  }
1829  // multipleSelection: If true, indicates that a list box allows a multiple selection of items.
1830  if (isset($prop['multipleSelection']) AND ($prop['multipleSelection'] == 'true')) {
1831  $ff += 1 << 21;
1832  }
1833  // doNotSpellCheck: If true, spell checking is not performed on this editable text field.
1834  if (isset($prop['doNotSpellCheck']) AND ($prop['doNotSpellCheck'] == 'true')) {
1835  $ff += 1 << 22;
1836  }
1837  // doNotScroll: If true, the text field does not scroll and the user, therefore, is limited by the rectangular region designed for the field.
1838  if (isset($prop['doNotScroll']) AND ($prop['doNotScroll'] == 'true')) {
1839  $ff += 1 << 23;
1840  }
1841  // comb: If set to true, the field background is drawn as series of boxes (one for each character in the value of the field) and each character of the content is drawn within those boxes. The number of boxes drawn is determined from the charLimit property. It applies only to text fields. The setter will also raise if any of the following field properties are also set multiline, password, and fileSelect. A side-effect of setting this property is that the doNotScroll property is also set.
1842  if (isset($prop['comb']) AND ($prop['comb'] == 'true')) {
1843  $ff += 1 << 24;
1844  }
1845  // radiosInUnison: If false, even if a group of radio buttons have the same name and export value, they behave in a mutually exclusive fashion, like HTML radio buttons.
1846  if (isset($prop['radiosInUnison']) AND ($prop['radiosInUnison'] == 'true')) {
1847  $ff += 1 << 25;
1848  }
1849  // richText: If true, the field allows rich text formatting.
1850  if (isset($prop['richText']) AND ($prop['richText'] == 'true')) {
1851  $ff += 1 << 25;
1852  }
1853  // commitOnSelChange: Controls whether a field value is committed after a selection change.
1854  if (isset($prop['commitOnSelChange']) AND ($prop['commitOnSelChange'] == 'true')) {
1855  $ff += 1 << 26;
1856  }
1857  $opt['ff'] = $ff;
1858  // defaultValue: The default value of a field - that is, the value that the field is set to when the form is reset.
1859  if (isset($prop['defaultValue'])) {
1860  $opt['dv'] = $prop['defaultValue'];
1861  }
1862  $f = 4; // default value for annotation flags
1863  // readonly: The read-only characteristic of a field. If a field is read-only, the user can see the field but cannot change it.
1864  if (isset($prop['readonly']) AND ($prop['readonly'] == 'true')) {
1865  $f += 1 << 6;
1866  }
1867  // display: Controls whether the field is hidden or visible on screen and in print.
1868  if (isset($prop['display'])) {
1869  if ($prop['display'] == 'display.visible') {
1870  //
1871  } elseif ($prop['display'] == 'display.hidden') {
1872  $f += 1 << 1;
1873  } elseif ($prop['display'] == 'display.noPrint') {
1874  $f -= 1 << 2;
1875  } elseif ($prop['display'] == 'display.noView') {
1876  $f += 1 << 5;
1877  }
1878  }
1879  $opt['f'] = $f;
1880  // currentValueIndices: Reads and writes single or multiple values of a list box or combo box.
1881  if (isset($prop['currentValueIndices']) AND is_array($prop['currentValueIndices'])) {
1882  $opt['i'] = $prop['currentValueIndices'];
1883  }
1884  // value: The value of the field data that the user has entered.
1885  if (isset($prop['value'])) {
1886  if (is_array($prop['value'])) {
1887  $opt['opt'] = array();
1888  foreach ($prop['value'] AS $key => $optval) {
1889  // exportValues: An array of strings representing the export values for the field.
1890  if (isset($prop['exportValues'][$key])) {
1891  $opt['opt'][$key] = array($prop['exportValues'][$key], $prop['value'][$key]);
1892  } else {
1893  $opt['opt'][$key] = $prop['value'][$key];
1894  }
1895  }
1896  } else {
1897  $opt['v'] = $prop['value'];
1898  }
1899  }
1900  // richValue: This property specifies the text contents and formatting of a rich text field.
1901  if (isset($prop['richValue'])) {
1902  $opt['rv'] = $prop['richValue'];
1903  }
1904  // submitName: If nonempty, used during form submission instead of name. Only applicable if submitting in HTML format (that is, URL-encoded).
1905  if (isset($prop['submitName'])) {
1906  $opt['tm'] = $prop['submitName'];
1907  }
1908  // name: Fully qualified field name.
1909  if (isset($prop['name'])) {
1910  $opt['t'] = $prop['name'];
1911  }
1912  // userName: The user name (short description string) of the field.
1913  if (isset($prop['userName'])) {
1914  $opt['tu'] = $prop['userName'];
1915  }
1916  // highlight: Defines how a button reacts when a user clicks it.
1917  if (isset($prop['highlight'])) {
1918  switch ($prop['highlight']) {
1919  case 'none':
1920  case 'highlight.n': {
1921  $opt['h'] = 'N';
1922  break;
1923  }
1924  case 'invert':
1925  case 'highlight.i': {
1926  $opt['h'] = 'i';
1927  break;
1928  }
1929  case 'push':
1930  case 'highlight.p': {
1931  $opt['h'] = 'P';
1932  break;
1933  }
1934  case 'outline':
1935  case 'highlight.o': {
1936  $opt['h'] = 'O';
1937  break;
1938  }
1939  }
1940  }
1941  // Unsupported options:
1942  // - calcOrderIndex: Changes the calculation order of fields in the document.
1943  // - delay: Delays the redrawing of a field's appearance.
1944  // - defaultStyle: This property defines the default style attributes for the form field.
1945  // - style: Allows the user to set the glyph style of a check box or radio button.
1946  // - textColor, textFont, textSize
1947  return $opt;
1948  }
TCPDF_COLORS\convertHTMLColorToDec
static convertHTMLColorToDec($hcolor, &$spotc, $defcol=array('R'=>128, 'G'=>128, 'B'=>128))
Returns an array (RGB or CMYK) from an html color name, or a six-digit (i.e.
Definition: tcpdf_colors.php:263
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getBorderMode()

static TCPDF_STATIC::getBorderMode (   $brd,
  $position = 'start',
  $opencell = true
)
static

Get the border mode accounting for multicell position (opens bottom side of multicell crossing pages)

Parameters
$brd(mixed) Indicates if borders must be drawn around the cell block. The value can be a number:
  • 0: no border (default)
  • 1: frame
or a string containing some or all of the following characters (in any order):
  • L: left
  • T: top
  • R: right
  • B: bottom
or an array of line styles for each border group: array('LTRB' => array('width' => 2, 'cap' => 'butt', 'join' => 'miter', 'dash' => 0, 'color' => array(0, 0, 0)))
$position(string) multicell position: 'start', 'middle', 'end'
$opencell(boolean) True when the cell is left open at the page bottom, false otherwise.
Returns
border mode array
Since
4.4.002 (2008-12-09) static

Definition at line 1017 of file tcpdf_static.php.

Referenced by TCPDF\drawHTMLTagBorder(), and TCPDF\MultiCell().

1017  {
1018  if ((!$opencell) OR empty($brd)) {
1019  return $brd;
1020  }
1021  if ($brd == 1) {
1022  $brd = 'LTRB';
1023  }
1024  if (is_string($brd)) {
1025  // convert string to array
1026  $slen = strlen($brd);
1027  $newbrd = array();
1028  for ($i = 0; $i < $slen; ++$i) {
1029  $newbrd[$brd[$i]] = array('cap' => 'square', 'join' => 'miter');
1030  }
1031  $brd = $newbrd;
1032  }
1033  foreach ($brd as $border => $style) {
1034  switch ($position) {
1035  case 'start': {
1036  if (strpos($border, 'B') !== false) {
1037  // remove bottom line
1038  $newkey = str_replace('B', '', $border);
1039  if (strlen($newkey) > 0) {
1040  $brd[$newkey] = $style;
1041  }
1042  unset($brd[$border]);
1043  }
1044  break;
1045  }
1046  case 'middle': {
1047  if (strpos($border, 'B') !== false) {
1048  // remove bottom line
1049  $newkey = str_replace('B', '', $border);
1050  if (strlen($newkey) > 0) {
1051  $brd[$newkey] = $style;
1052  }
1053  unset($brd[$border]);
1054  $border = $newkey;
1055  }
1056  if (strpos($border, 'T') !== false) {
1057  // remove bottom line
1058  $newkey = str_replace('T', '', $border);
1059  if (strlen($newkey) > 0) {
1060  $brd[$newkey] = $style;
1061  }
1062  unset($brd[$border]);
1063  }
1064  break;
1065  }
1066  case 'end': {
1067  if (strpos($border, 'T') !== false) {
1068  // remove bottom line
1069  $newkey = str_replace('T', '', $border);
1070  if (strlen($newkey) > 0) {
1071  $brd[$newkey] = $style;
1072  }
1073  unset($brd[$border]);
1074  }
1075  break;
1076  }
1077  }
1078  }
1079  return $brd;
1080  }
+ Here is the caller graph for this function:

◆ getCSSdataArray()

static TCPDF_STATIC::getCSSdataArray (   $dom,
  $key,
  $css
)
static

Returns the styles array that apply for the selected HTML tag.

Parameters
$dom(array) array of HTML tags and properties
$key(int) key of the current HTML tag
$css(array) array of CSS properties
Returns
array containing CSS properties
Since
5.1.000 (2010-05-25) static

Definition at line 2303 of file tcpdf_static.php.

Referenced by TCPDF\getHtmlDomArray().

2303  {
2304  $cssarray = array(); // style to be returned
2305  // get parent CSS selectors
2306  $selectors = array();
2307  if (isset($dom[($dom[$key]['parent'])]['csssel'])) {
2308  $selectors = $dom[($dom[$key]['parent'])]['csssel'];
2309  }
2310  // get all styles that apply
2311  foreach($css as $selector => $style) {
2312  $pos = strpos($selector, ' ');
2313  // get specificity
2314  $specificity = substr($selector, 0, $pos);
2315  // remove specificity
2316  $selector = substr($selector, $pos);
2317  // check if this selector apply to current tag
2318  if (self::isValidCSSSelectorForTag($dom, $key, $selector)) {
2319  if (!in_array($selector, $selectors)) {
2320  // add style if not already added on parent selector
2321  $cssarray[] = array('k' => $selector, 's' => $specificity, 'c' => $style);
2322  $selectors[] = $selector;
2323  }
2324  }
2325  }
2326  if (isset($dom[$key]['attribute']['style'])) {
2327  // attach inline style (latest properties have high priority)
2328  $cssarray[] = array('k' => '', 's' => '1000', 'c' => $dom[$key]['attribute']['style']);
2329  }
2330  // order the css array to account for specificity
2331  $cssordered = array();
2332  foreach ($cssarray as $key => $val) {
2333  $skey = sprintf('%04d', $key);
2334  $cssordered[$val['s'].'_'.$skey] = $val;
2335  }
2336  // sort selectors alphabetically to account for specificity
2337  ksort($cssordered, SORT_STRING);
2338  return array($selectors, $cssordered);
2339  }
+ Here is the caller graph for this function:

◆ getEncPermissionsString()

static TCPDF_STATIC::getEncPermissionsString (   $protection)
static

Convert encryption P value to a string of bytes, low-order byte first.

Parameters
$protection(string) 32bit encryption permission value (P value)
Returns
String
Since
5.0.005 (2010-05-12)
Author
Nicola Asuni static

Definition at line 1550 of file tcpdf_static.php.

Referenced by TCPDF\_generateencryptionkey().

1550  {
1551  $binprot = sprintf('%032b', $protection);
1552  $str = chr(bindec(substr($binprot, 24, 8)));
1553  $str .= chr(bindec(substr($binprot, 16, 8)));
1554  $str .= chr(bindec(substr($binprot, 8, 8)));
1555  $str .= chr(bindec(substr($binprot, 0, 8)));
1556  return $str;
1557  }
+ Here is the caller graph for this function:

◆ getFormattedDate()

static TCPDF_STATIC::getFormattedDate (   $time)
static

Returns a formatted date-time.

Parameters
$time(int) Time in seconds.
Returns
string escaped date string.
Since
5.9.152 (2012-03-23) static

Definition at line 1200 of file tcpdf_static.php.

Referenced by TCPDF\_datestring(), and TCPDF\_putXMP().

1200  {
1201  return substr_replace(date('YmdHisO', intval($time)), '\'', (0 - 2), 0).'\'';
1202  }
+ Here is the caller graph for this function:

◆ getHyphenPatternsFromTEX()

static TCPDF_STATIC::getHyphenPatternsFromTEX (   $file)
static

Returns an array of hyphenation patterns.

Parameters
$file(string) TEX file containing hypenation patterns. TEX pattrns can be downloaded from http://www.ctan.org/tex-archive/language/hyph-utf8/tex/generic/hyph-utf8/patterns/
Returns
array of hyphenation patterns
Author
Nicola Asuni
Since
4.9.012 (2010-04-12) static

Definition at line 2471 of file tcpdf_static.php.

References $data, $file, and empty_string().

Referenced by TCPDF\hyphenateText().

2471  {
2472  // TEX patterns are available at:
2473  // http://www.ctan.org/tex-archive/language/hyph-utf8/tex/generic/hyph-utf8/patterns/
2474  $data = file_get_contents($file);
2475  $patterns = array();
2476  // remove comments
2477  $data = preg_replace('/\%[^\n]*/', '', $data);
2478  // extract the patterns part
2479  preg_match('/\\\\patterns\{([^\}]*)\}/i', $data, $matches);
2480  $data = trim(substr($matches[0], 10, -1));
2481  // extract each pattern
2482  $patterns_array = preg_split('/[\s]+/', $data);
2483  // create new language array of patterns
2484  $patterns = array();
2485  foreach($patterns_array as $val) {
2486  if (!TCPDF_STATIC::empty_string($val)) {
2487  $val = trim($val);
2488  $val = str_replace('\'', '\\\'', $val);
2489  $key = preg_replace('/[0-9]+/', '', $val);
2490  $patterns[$key] = $val;
2491  }
2492  }
2493  return $patterns;
2494  }
$file
print $file
Definition: HFile_ueconv.php:128
TCPDF_STATIC\empty_string
static empty_string($str)
Determine whether a string is empty.
Definition: tcpdf_static.php:1089
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getObjFilename()

static TCPDF_STATIC::getObjFilename (   $name)
static

Returns a temporary filename for caching object on filesystem.

Parameters
$name(string) Prefix to add to the file name.
Returns
string filename.
Since
4.5.000 (2008-12-31) static

Definition at line 1100 of file tcpdf_static.php.

Referenced by TCPDF\_generateencryptionkey(), TCPDF_IMAGES\_toJPEG(), TCPDF_IMAGES\_toPNG(), TCPDF\Image(), TCPDF\Output(), TCPDF\replaceBuffer(), TCPDF\setBuffer(), TCPDF\setFontBuffer(), TCPDF\setImageBuffer(), and TCPDF\setPageBuffer().

1100  {
1101  return tempnam(K_PATH_CACHE, $name.'_');
1102  }
+ Here is the caller graph for this function:

◆ getPageLayoutMode()

static TCPDF_STATIC::getPageLayoutMode (   $layout = 'SinglePage')
static

Get the canonical page layout mode.

Parameters
$layout(string) The page layout. Possible values are:
  • SinglePage Display one page at a time
  • OneColumn Display the pages in one column
  • TwoColumnLeft Display the pages in two columns, with odd-numbered pages on the left
  • TwoColumnRight Display the pages in two columns, with odd-numbered pages on the right
  • TwoPageLeft (PDF 1.5) Display the pages two at a time, with odd-numbered pages on the left
  • TwoPageRight (PDF 1.5) Display the pages two at a time, with odd-numbered pages on the right
Returns
(string) Canonical page layout name. static

Definition at line 894 of file tcpdf_static.php.

Referenced by TCPDF\SetDisplayMode().

894  {
895  switch ($layout) {
896  case 'default':
897  case 'single':
898  case 'SinglePage': {
899  $layout_mode = 'SinglePage';
900  break;
901  }
902  case 'continuous':
903  case 'OneColumn': {
904  $layout_mode = 'OneColumn';
905  break;
906  }
907  case 'two':
908  case 'TwoColumnLeft': {
909  $layout_mode = 'TwoColumnLeft';
910  break;
911  }
912  case 'TwoColumnRight': {
913  $layout_mode = 'TwoColumnRight';
914  break;
915  }
916  case 'TwoPageLeft': {
917  $layout_mode = 'TwoPageLeft';
918  break;
919  }
920  case 'TwoPageRight': {
921  $layout_mode = 'TwoPageRight';
922  break;
923  }
924  default: {
925  $layout_mode = 'SinglePage';
926  }
927  }
928  return $layout_mode;
929  }
+ Here is the caller graph for this function:

◆ getPageMode()

static TCPDF_STATIC::getPageMode (   $mode = 'UseNone')
static

Get the canonical page layout mode.

Parameters
$mode(string) A name object specifying how the document should be displayed when opened:
  • UseNone Neither document outline nor thumbnail images visible
  • UseOutlines Document outline visible
  • UseThumbs Thumbnail images visible
  • FullScreen Full-screen mode, with no menu bar, window controls, or any other window visible
  • UseOC (PDF 1.5) Optional content group panel visible
  • UseAttachments (PDF 1.6) Attachments panel visible
Returns
(string) Canonical page mode name. static

Definition at line 937 of file tcpdf_static.php.

Referenced by TCPDF\SetDisplayMode().

937  {
938  switch ($mode) {
939  case 'UseNone': {
940  $page_mode = 'UseNone';
941  break;
942  }
943  case 'UseOutlines': {
944  $page_mode = 'UseOutlines';
945  break;
946  }
947  case 'UseThumbs': {
948  $page_mode = 'UseThumbs';
949  break;
950  }
951  case 'FullScreen': {
952  $page_mode = 'FullScreen';
953  break;
954  }
955  case 'UseOC': {
956  $page_mode = 'UseOC';
957  break;
958  }
959  case '': {
960  $page_mode = 'UseAttachments';
961  break;
962  }
963  default: {
964  $page_mode = 'UseNone';
965  }
966  }
967  return $page_mode;
968  }
+ Here is the caller graph for this function:

◆ getPageSizeFromFormat()

static TCPDF_STATIC::getPageSizeFromFormat (   $format)
static

Get page dimensions from format name.

Parameters
$format(mixed) The format name. It can be:
  • ISO 216 A Series + 2 SIS 014711 extensions
  • A0 (841x1189 mm ; 33.11x46.81 in)
  • A1 (594x841 mm ; 23.39x33.11 in)
  • A2 (420x594 mm ; 16.54x23.39 in)
  • A3 (297x420 mm ; 11.69x16.54 in)
  • A4 (210x297 mm ; 8.27x11.69 in)
  • A5 (148x210 mm ; 5.83x8.27 in)
  • A6 (105x148 mm ; 4.13x5.83 in)
  • A7 (74x105 mm ; 2.91x4.13 in)
  • A8 (52x74 mm ; 2.05x2.91 in)
  • A9 (37x52 mm ; 1.46x2.05 in)
  • A10 (26x37 mm ; 1.02x1.46 in)
  • A11 (18x26 mm ; 0.71x1.02 in)
  • A12 (13x18 mm ; 0.51x0.71 in)
  • ISO 216 B Series + 2 SIS 014711 extensions
  • B0 (1000x1414 mm ; 39.37x55.67 in)
  • B1 (707x1000 mm ; 27.83x39.37 in)
  • B2 (500x707 mm ; 19.69x27.83 in)
  • B3 (353x500 mm ; 13.90x19.69 in)
  • B4 (250x353 mm ; 9.84x13.90 in)
  • B5 (176x250 mm ; 6.93x9.84 in)
  • B6 (125x176 mm ; 4.92x6.93 in)
  • B7 (88x125 mm ; 3.46x4.92 in)
  • B8 (62x88 mm ; 2.44x3.46 in)
  • B9 (44x62 mm ; 1.73x2.44 in)
  • B10 (31x44 mm ; 1.22x1.73 in)
  • B11 (22x31 mm ; 0.87x1.22 in)
  • B12 (15x22 mm ; 0.59x0.87 in)
  • ISO 216 C Series + 2 SIS 014711 extensions + 2 EXTENSION
  • C0 (917x1297 mm ; 36.10x51.06 in)
  • C1 (648x917 mm ; 25.51x36.10 in)
  • C2 (458x648 mm ; 18.03x25.51 in)
  • C3 (324x458 mm ; 12.76x18.03 in)
  • C4 (229x324 mm ; 9.02x12.76 in)
  • C5 (162x229 mm ; 6.38x9.02 in)
  • C6 (114x162 mm ; 4.49x6.38 in)
  • C7 (81x114 mm ; 3.19x4.49 in)
  • C8 (57x81 mm ; 2.24x3.19 in)
  • C9 (40x57 mm ; 1.57x2.24 in)
  • C10 (28x40 mm ; 1.10x1.57 in)
  • C11 (20x28 mm ; 0.79x1.10 in)
  • C12 (14x20 mm ; 0.55x0.79 in)
  • C76 (81x162 mm ; 3.19x6.38 in)
  • DL (110x220 mm ; 4.33x8.66 in)
  • SIS 014711 E Series
  • E0 (879x1241 mm ; 34.61x48.86 in)
  • E1 (620x879 mm ; 24.41x34.61 in)
  • E2 (440x620 mm ; 17.32x24.41 in)
  • E3 (310x440 mm ; 12.20x17.32 in)
  • E4 (220x310 mm ; 8.66x12.20 in)
  • E5 (155x220 mm ; 6.10x8.66 in)
  • E6 (110x155 mm ; 4.33x6.10 in)
  • E7 (78x110 mm ; 3.07x4.33 in)
  • E8 (55x78 mm ; 2.17x3.07 in)
  • E9 (39x55 mm ; 1.54x2.17 in)
  • E10 (27x39 mm ; 1.06x1.54 in)
  • E11 (19x27 mm ; 0.75x1.06 in)
  • E12 (13x19 mm ; 0.51x0.75 in)
  • SIS 014711 G Series
  • G0 (958x1354 mm ; 37.72x53.31 in)
  • G1 (677x958 mm ; 26.65x37.72 in)
  • G2 (479x677 mm ; 18.86x26.65 in)
  • G3 (338x479 mm ; 13.31x18.86 in)
  • G4 (239x338 mm ; 9.41x13.31 in)
  • G5 (169x239 mm ; 6.65x9.41 in)
  • G6 (119x169 mm ; 4.69x6.65 in)
  • G7 (84x119 mm ; 3.31x4.69 in)
  • G8 (59x84 mm ; 2.32x3.31 in)
  • G9 (42x59 mm ; 1.65x2.32 in)
  • G10 (29x42 mm ; 1.14x1.65 in)
  • G11 (21x29 mm ; 0.83x1.14 in)
  • G12 (14x21 mm ; 0.55x0.83 in)
  • ISO Press
  • RA0 (860x1220 mm ; 33.86x48.03 in)
  • RA1 (610x860 mm ; 24.02x33.86 in)
  • RA2 (430x610 mm ; 16.93x24.02 in)
  • RA3 (305x430 mm ; 12.01x16.93 in)
  • RA4 (215x305 mm ; 8.46x12.01 in)
  • SRA0 (900x1280 mm ; 35.43x50.39 in)
  • SRA1 (640x900 mm ; 25.20x35.43 in)
  • SRA2 (450x640 mm ; 17.72x25.20 in)
  • SRA3 (320x450 mm ; 12.60x17.72 in)
  • SRA4 (225x320 mm ; 8.86x12.60 in)
  • German DIN 476
  • 4A0 (1682x2378 mm ; 66.22x93.62 in)
  • 2A0 (1189x1682 mm ; 46.81x66.22 in)
  • Variations on the ISO Standard
  • A2_EXTRA (445x619 mm ; 17.52x24.37 in)
  • A3+ (329x483 mm ; 12.95x19.02 in)
  • A3_EXTRA (322x445 mm ; 12.68x17.52 in)
  • A3_SUPER (305x508 mm ; 12.01x20.00 in)
  • SUPER_A3 (305x487 mm ; 12.01x19.17 in)
  • A4_EXTRA (235x322 mm ; 9.25x12.68 in)
  • A4_SUPER (229x322 mm ; 9.02x12.68 in)
  • SUPER_A4 (227x356 mm ; 8.94x14.02 in)
  • A4_LONG (210x348 mm ; 8.27x13.70 in)
  • F4 (210x330 mm ; 8.27x12.99 in)
  • SO_B5_EXTRA (202x276 mm ; 7.95x10.87 in)
  • A5_EXTRA (173x235 mm ; 6.81x9.25 in)
  • ANSI Series
  • ANSI_E (864x1118 mm ; 34.00x44.00 in)
  • ANSI_D (559x864 mm ; 22.00x34.00 in)
  • ANSI_C (432x559 mm ; 17.00x22.00 in)
  • ANSI_B (279x432 mm ; 11.00x17.00 in)
  • ANSI_A (216x279 mm ; 8.50x11.00 in)
  • Traditional 'Loose' North American Paper Sizes
  • LEDGER, USLEDGER (432x279 mm ; 17.00x11.00 in)
  • TABLOID, USTABLOID, BIBLE, ORGANIZERK (279x432 mm ; 11.00x17.00 in)
  • LETTER, USLETTER, ORGANIZERM (216x279 mm ; 8.50x11.00 in)
  • LEGAL, USLEGAL (216x356 mm ; 8.50x14.00 in)
  • GLETTER, GOVERNMENTLETTER (203x267 mm ; 8.00x10.50 in)
  • JLEGAL, JUNIORLEGAL (203x127 mm ; 8.00x5.00 in)
  • Other North American Paper Sizes
  • QUADDEMY (889x1143 mm ; 35.00x45.00 in)
  • SUPER_B (330x483 mm ; 13.00x19.00 in)
  • QUARTO (229x279 mm ; 9.00x11.00 in)
  • FOLIO, GOVERNMENTLEGAL (216x330 mm ; 8.50x13.00 in)
  • EXECUTIVE, MONARCH (184x267 mm ; 7.25x10.50 in)
  • MEMO, STATEMENT, ORGANIZERL (140x216 mm ; 5.50x8.50 in)
  • FOOLSCAP (210x330 mm ; 8.27x13.00 in)
  • COMPACT (108x171 mm ; 4.25x6.75 in)
  • ORGANIZERJ (70x127 mm ; 2.75x5.00 in)
  • Canadian standard CAN 2-9.60M
  • P1 (560x860 mm ; 22.05x33.86 in)
  • P2 (430x560 mm ; 16.93x22.05 in)
  • P3 (280x430 mm ; 11.02x16.93 in)
  • P4 (215x280 mm ; 8.46x11.02 in)
  • P5 (140x215 mm ; 5.51x8.46 in)
  • P6 (107x140 mm ; 4.21x5.51 in)
  • North American Architectural Sizes
  • ARCH_E (914x1219 mm ; 36.00x48.00 in)
  • ARCH_E1 (762x1067 mm ; 30.00x42.00 in)
  • ARCH_D (610x914 mm ; 24.00x36.00 in)
  • ARCH_C, BROADSHEET (457x610 mm ; 18.00x24.00 in)
  • ARCH_B (305x457 mm ; 12.00x18.00 in)
  • ARCH_A (229x305 mm ; 9.00x12.00 in)
  • Announcement Envelopes
  • ANNENV_A2 (111x146 mm ; 4.37x5.75 in)
  • ANNENV_A6 (121x165 mm ; 4.75x6.50 in)
  • ANNENV_A7 (133x184 mm ; 5.25x7.25 in)
  • ANNENV_A8 (140x206 mm ; 5.50x8.12 in)
  • ANNENV_A10 (159x244 mm ; 6.25x9.62 in)
  • ANNENV_SLIM (98x225 mm ; 3.87x8.87 in)
  • Commercial Envelopes
  • COMMENV_N6_1/4 (89x152 mm ; 3.50x6.00 in)
  • COMMENV_N6_3/4 (92x165 mm ; 3.62x6.50 in)
  • COMMENV_N8 (98x191 mm ; 3.87x7.50 in)
  • COMMENV_N9 (98x225 mm ; 3.87x8.87 in)
  • COMMENV_N10 (105x241 mm ; 4.12x9.50 in)
  • COMMENV_N11 (114x263 mm ; 4.50x10.37 in)
  • COMMENV_N12 (121x279 mm ; 4.75x11.00 in)
  • COMMENV_N14 (127x292 mm ; 5.00x11.50 in)
  • Catalogue Envelopes
  • CATENV_N1 (152x229 mm ; 6.00x9.00 in)
  • CATENV_N1_3/4 (165x241 mm ; 6.50x9.50 in)
  • CATENV_N2 (165x254 mm ; 6.50x10.00 in)
  • CATENV_N3 (178x254 mm ; 7.00x10.00 in)
  • CATENV_N6 (191x267 mm ; 7.50x10.50 in)
  • CATENV_N7 (203x279 mm ; 8.00x11.00 in)
  • CATENV_N8 (210x286 mm ; 8.25x11.25 in)
  • CATENV_N9_1/2 (216x267 mm ; 8.50x10.50 in)
  • CATENV_N9_3/4 (222x286 mm ; 8.75x11.25 in)
  • CATENV_N10_1/2 (229x305 mm ; 9.00x12.00 in)
  • CATENV_N12_1/2 (241x318 mm ; 9.50x12.50 in)
  • CATENV_N13_1/2 (254x330 mm ; 10.00x13.00 in)
  • CATENV_N14_1/4 (286x311 mm ; 11.25x12.25 in)
  • CATENV_N14_1/2 (292x368 mm ; 11.50x14.50 in)
  • Japanese (JIS P 0138-61) Standard B-Series
  • JIS_B0 (1030x1456 mm ; 40.55x57.32 in)
  • JIS_B1 (728x1030 mm ; 28.66x40.55 in)
  • JIS_B2 (515x728 mm ; 20.28x28.66 in)
  • JIS_B3 (364x515 mm ; 14.33x20.28 in)
  • JIS_B4 (257x364 mm ; 10.12x14.33 in)
  • JIS_B5 (182x257 mm ; 7.17x10.12 in)
  • JIS_B6 (128x182 mm ; 5.04x7.17 in)
  • JIS_B7 (91x128 mm ; 3.58x5.04 in)
  • JIS_B8 (64x91 mm ; 2.52x3.58 in)
  • JIS_B9 (45x64 mm ; 1.77x2.52 in)
  • JIS_B10 (32x45 mm ; 1.26x1.77 in)
  • JIS_B11 (22x32 mm ; 0.87x1.26 in)
  • JIS_B12 (16x22 mm ; 0.63x0.87 in)
  • PA Series
  • PA0 (840x1120 mm ; 33.07x44.09 in)
  • PA1 (560x840 mm ; 22.05x33.07 in)
  • PA2 (420x560 mm ; 16.54x22.05 in)
  • PA3 (280x420 mm ; 11.02x16.54 in)
  • PA4 (210x280 mm ; 8.27x11.02 in)
  • PA5 (140x210 mm ; 5.51x8.27 in)
  • PA6 (105x140 mm ; 4.13x5.51 in)
  • PA7 (70x105 mm ; 2.76x4.13 in)
  • PA8 (52x70 mm ; 2.05x2.76 in)
  • PA9 (35x52 mm ; 1.38x2.05 in)
  • PA10 (26x35 mm ; 1.02x1.38 in)
  • Standard Photographic Print Sizes
  • PASSPORT_PHOTO (35x45 mm ; 1.38x1.77 in)
  • E (82x120 mm ; 3.25x4.72 in)
  • 3R, L (89x127 mm ; 3.50x5.00 in)
  • 4R, KG (102x152 mm ; 4.02x5.98 in)
  • 4D (120x152 mm ; 4.72x5.98 in)
  • 5R, 2L (127x178 mm ; 5.00x7.01 in)
  • 6R, 8P (152x203 mm ; 5.98x7.99 in)
  • 8R, 6P (203x254 mm ; 7.99x10.00 in)
  • S8R, 6PW (203x305 mm ; 7.99x12.01 in)
  • 10R, 4P (254x305 mm ; 10.00x12.01 in)
  • S10R, 4PW (254x381 mm ; 10.00x15.00 in)
  • 11R (279x356 mm ; 10.98x14.02 in)
  • S11R (279x432 mm ; 10.98x17.01 in)
  • 12R (305x381 mm ; 12.01x15.00 in)
  • S12R (305x456 mm ; 12.01x17.95 in)
  • Common Newspaper Sizes
  • NEWSPAPER_BROADSHEET (750x600 mm ; 29.53x23.62 in)
  • NEWSPAPER_BERLINER (470x315 mm ; 18.50x12.40 in)
  • NEWSPAPER_COMPACT, NEWSPAPER_TABLOID (430x280 mm ; 16.93x11.02 in)
  • Business Cards
  • CREDIT_CARD, BUSINESS_CARD, BUSINESS_CARD_ISO7810 (54x86 mm ; 2.13x3.37 in)
  • BUSINESS_CARD_ISO216 (52x74 mm ; 2.05x2.91 in)
  • BUSINESS_CARD_IT, BUSINESS_CARD_UK, BUSINESS_CARD_FR, BUSINESS_CARD_DE, BUSINESS_CARD_ES (55x85 mm ; 2.17x3.35 in)
  • BUSINESS_CARD_US, BUSINESS_CARD_CA (51x89 mm ; 2.01x3.50 in)
  • BUSINESS_CARD_JP (55x91 mm ; 2.17x3.58 in)
  • BUSINESS_CARD_HK (54x90 mm ; 2.13x3.54 in)
  • BUSINESS_CARD_AU, BUSINESS_CARD_DK, BUSINESS_CARD_SE (55x90 mm ; 2.17x3.54 in)
  • BUSINESS_CARD_RU, BUSINESS_CARD_CZ, BUSINESS_CARD_FI, BUSINESS_CARD_HU, BUSINESS_CARD_IL (50x90 mm ; 1.97x3.54 in)
  • Billboards
  • 4SHEET (1016x1524 mm ; 40.00x60.00 in)
  • 6SHEET (1200x1800 mm ; 47.24x70.87 in)
  • 12SHEET (3048x1524 mm ; 120.00x60.00 in)
  • 16SHEET (2032x3048 mm ; 80.00x120.00 in)
  • 32SHEET (4064x3048 mm ; 160.00x120.00 in)
  • 48SHEET (6096x3048 mm ; 240.00x120.00 in)
  • 64SHEET (8128x3048 mm ; 320.00x120.00 in)
  • 96SHEET (12192x3048 mm ; 480.00x120.00 in)
  • Old Imperial English (some are still used in USA)
  • EN_EMPEROR (1219x1829 mm ; 48.00x72.00 in)
  • EN_ANTIQUARIAN (787x1346 mm ; 31.00x53.00 in)
  • EN_GRAND_EAGLE (730x1067 mm ; 28.75x42.00 in)
  • EN_DOUBLE_ELEPHANT (679x1016 mm ; 26.75x40.00 in)
  • EN_ATLAS (660x864 mm ; 26.00x34.00 in)
  • EN_COLOMBIER (597x876 mm ; 23.50x34.50 in)
  • EN_ELEPHANT (584x711 mm ; 23.00x28.00 in)
  • EN_DOUBLE_DEMY (572x902 mm ; 22.50x35.50 in)
  • EN_IMPERIAL (559x762 mm ; 22.00x30.00 in)
  • EN_PRINCESS (546x711 mm ; 21.50x28.00 in)
  • EN_CARTRIDGE (533x660 mm ; 21.00x26.00 in)
  • EN_DOUBLE_LARGE_POST (533x838 mm ; 21.00x33.00 in)
  • EN_ROYAL (508x635 mm ; 20.00x25.00 in)
  • EN_SHEET, EN_HALF_POST (495x597 mm ; 19.50x23.50 in)
  • EN_SUPER_ROYAL (483x686 mm ; 19.00x27.00 in)
  • EN_DOUBLE_POST (483x775 mm ; 19.00x30.50 in)
  • EN_MEDIUM (445x584 mm ; 17.50x23.00 in)
  • EN_DEMY (445x572 mm ; 17.50x22.50 in)
  • EN_LARGE_POST (419x533 mm ; 16.50x21.00 in)
  • EN_COPY_DRAUGHT (406x508 mm ; 16.00x20.00 in)
  • EN_POST (394x489 mm ; 15.50x19.25 in)
  • EN_CROWN (381x508 mm ; 15.00x20.00 in)
  • EN_PINCHED_POST (375x470 mm ; 14.75x18.50 in)
  • EN_BRIEF (343x406 mm ; 13.50x16.00 in)
  • EN_FOOLSCAP (343x432 mm ; 13.50x17.00 in)
  • EN_SMALL_FOOLSCAP (337x419 mm ; 13.25x16.50 in)
  • EN_POTT (318x381 mm ; 12.50x15.00 in)
  • Old Imperial Belgian
  • BE_GRAND_AIGLE (700x1040 mm ; 27.56x40.94 in)
  • BE_COLOMBIER (620x850 mm ; 24.41x33.46 in)
  • BE_DOUBLE_CARRE (620x920 mm ; 24.41x36.22 in)
  • BE_ELEPHANT (616x770 mm ; 24.25x30.31 in)
  • BE_PETIT_AIGLE (600x840 mm ; 23.62x33.07 in)
  • BE_GRAND_JESUS (550x730 mm ; 21.65x28.74 in)
  • BE_JESUS (540x730 mm ; 21.26x28.74 in)
  • BE_RAISIN (500x650 mm ; 19.69x25.59 in)
  • BE_GRAND_MEDIAN (460x605 mm ; 18.11x23.82 in)
  • BE_DOUBLE_POSTE (435x565 mm ; 17.13x22.24 in)
  • BE_COQUILLE (430x560 mm ; 16.93x22.05 in)
  • BE_PETIT_MEDIAN (415x530 mm ; 16.34x20.87 in)
  • BE_RUCHE (360x460 mm ; 14.17x18.11 in)
  • BE_PROPATRIA (345x430 mm ; 13.58x16.93 in)
  • BE_LYS (317x397 mm ; 12.48x15.63 in)
  • BE_POT (307x384 mm ; 12.09x15.12 in)
  • BE_ROSETTE (270x347 mm ; 10.63x13.66 in)
  • Old Imperial French
  • FR_UNIVERS (1000x1300 mm ; 39.37x51.18 in)
  • FR_DOUBLE_COLOMBIER (900x1260 mm ; 35.43x49.61 in)
  • FR_GRANDE_MONDE (900x1260 mm ; 35.43x49.61 in)
  • FR_DOUBLE_SOLEIL (800x1200 mm ; 31.50x47.24 in)
  • FR_DOUBLE_JESUS (760x1120 mm ; 29.92x44.09 in)
  • FR_GRAND_AIGLE (750x1060 mm ; 29.53x41.73 in)
  • FR_PETIT_AIGLE (700x940 mm ; 27.56x37.01 in)
  • FR_DOUBLE_RAISIN (650x1000 mm ; 25.59x39.37 in)
  • FR_JOURNAL (650x940 mm ; 25.59x37.01 in)
  • FR_COLOMBIER_AFFICHE (630x900 mm ; 24.80x35.43 in)
  • FR_DOUBLE_CAVALIER (620x920 mm ; 24.41x36.22 in)
  • FR_CLOCHE (600x800 mm ; 23.62x31.50 in)
  • FR_SOLEIL (600x800 mm ; 23.62x31.50 in)
  • FR_DOUBLE_CARRE (560x900 mm ; 22.05x35.43 in)
  • FR_DOUBLE_COQUILLE (560x880 mm ; 22.05x34.65 in)
  • FR_JESUS (560x760 mm ; 22.05x29.92 in)
  • FR_RAISIN (500x650 mm ; 19.69x25.59 in)
  • FR_CAVALIER (460x620 mm ; 18.11x24.41 in)
  • FR_DOUBLE_COURONNE (460x720 mm ; 18.11x28.35 in)
  • FR_CARRE (450x560 mm ; 17.72x22.05 in)
  • FR_COQUILLE (440x560 mm ; 17.32x22.05 in)
  • FR_DOUBLE_TELLIERE (440x680 mm ; 17.32x26.77 in)
  • FR_DOUBLE_CLOCHE (400x600 mm ; 15.75x23.62 in)
  • FR_DOUBLE_POT (400x620 mm ; 15.75x24.41 in)
  • FR_ECU (400x520 mm ; 15.75x20.47 in)
  • FR_COURONNE (360x460 mm ; 14.17x18.11 in)
  • FR_TELLIERE (340x440 mm ; 13.39x17.32 in)
  • FR_POT (310x400 mm ; 12.20x15.75 in)
Returns
array containing page width and height in points
Since
5.0.010 (2010-05-17) static

Definition at line 478 of file tcpdf_static.php.

Referenced by TCPDF\setPageFormat().

478  {
479  // Paper cordinates are calculated in this way: (inches * 72) where (1 inch = 25.4 mm)
480  switch (strtoupper($format)) {
481  // ISO 216 A Series + 2 SIS 014711 extensions
482  case 'A0' : {$pf = array( 2383.937, 3370.394); break;}
483  case 'A1' : {$pf = array( 1683.780, 2383.937); break;}
484  case 'A2' : {$pf = array( 1190.551, 1683.780); break;}
485  case 'A3' : {$pf = array( 841.890, 1190.551); break;}
486  case 'A4' : {$pf = array( 595.276, 841.890); break;}
487  case 'A5' : {$pf = array( 419.528, 595.276); break;}
488  case 'A6' : {$pf = array( 297.638, 419.528); break;}
489  case 'A7' : {$pf = array( 209.764, 297.638); break;}
490  case 'A8' : {$pf = array( 147.402, 209.764); break;}
491  case 'A9' : {$pf = array( 104.882, 147.402); break;}
492  case 'A10': {$pf = array( 73.701, 104.882); break;}
493  case 'A11': {$pf = array( 51.024, 73.701); break;}
494  case 'A12': {$pf = array( 36.850, 51.024); break;}
495  // ISO 216 B Series + 2 SIS 014711 extensions
496  case 'B0' : {$pf = array( 2834.646, 4008.189); break;}
497  case 'B1' : {$pf = array( 2004.094, 2834.646); break;}
498  case 'B2' : {$pf = array( 1417.323, 2004.094); break;}
499  case 'B3' : {$pf = array( 1000.630, 1417.323); break;}
500  case 'B4' : {$pf = array( 708.661, 1000.630); break;}
501  case 'B5' : {$pf = array( 498.898, 708.661); break;}
502  case 'B6' : {$pf = array( 354.331, 498.898); break;}
503  case 'B7' : {$pf = array( 249.449, 354.331); break;}
504  case 'B8' : {$pf = array( 175.748, 249.449); break;}
505  case 'B9' : {$pf = array( 124.724, 175.748); break;}
506  case 'B10': {$pf = array( 87.874, 124.724); break;}
507  case 'B11': {$pf = array( 62.362, 87.874); break;}
508  case 'B12': {$pf = array( 42.520, 62.362); break;}
509  // ISO 216 C Series + 2 SIS 014711 extensions + 2 EXTENSION
510  case 'C0' : {$pf = array( 2599.370, 3676.535); break;}
511  case 'C1' : {$pf = array( 1836.850, 2599.370); break;}
512  case 'C2' : {$pf = array( 1298.268, 1836.850); break;}
513  case 'C3' : {$pf = array( 918.425, 1298.268); break;}
514  case 'C4' : {$pf = array( 649.134, 918.425); break;}
515  case 'C5' : {$pf = array( 459.213, 649.134); break;}
516  case 'C6' : {$pf = array( 323.150, 459.213); break;}
517  case 'C7' : {$pf = array( 229.606, 323.150); break;}
518  case 'C8' : {$pf = array( 161.575, 229.606); break;}
519  case 'C9' : {$pf = array( 113.386, 161.575); break;}
520  case 'C10': {$pf = array( 79.370, 113.386); break;}
521  case 'C11': {$pf = array( 56.693, 79.370); break;}
522  case 'C12': {$pf = array( 39.685, 56.693); break;}
523  case 'C76': {$pf = array( 229.606, 459.213); break;}
524  case 'DL' : {$pf = array( 311.811, 623.622); break;}
525  // SIS 014711 E Series
526  case 'E0' : {$pf = array( 2491.654, 3517.795); break;}
527  case 'E1' : {$pf = array( 1757.480, 2491.654); break;}
528  case 'E2' : {$pf = array( 1247.244, 1757.480); break;}
529  case 'E3' : {$pf = array( 878.740, 1247.244); break;}
530  case 'E4' : {$pf = array( 623.622, 878.740); break;}
531  case 'E5' : {$pf = array( 439.370, 623.622); break;}
532  case 'E6' : {$pf = array( 311.811, 439.370); break;}
533  case 'E7' : {$pf = array( 221.102, 311.811); break;}
534  case 'E8' : {$pf = array( 155.906, 221.102); break;}
535  case 'E9' : {$pf = array( 110.551, 155.906); break;}
536  case 'E10': {$pf = array( 76.535, 110.551); break;}
537  case 'E11': {$pf = array( 53.858, 76.535); break;}
538  case 'E12': {$pf = array( 36.850, 53.858); break;}
539  // SIS 014711 G Series
540  case 'G0' : {$pf = array( 2715.591, 3838.110); break;}
541  case 'G1' : {$pf = array( 1919.055, 2715.591); break;}
542  case 'G2' : {$pf = array( 1357.795, 1919.055); break;}
543  case 'G3' : {$pf = array( 958.110, 1357.795); break;}
544  case 'G4' : {$pf = array( 677.480, 958.110); break;}
545  case 'G5' : {$pf = array( 479.055, 677.480); break;}
546  case 'G6' : {$pf = array( 337.323, 479.055); break;}
547  case 'G7' : {$pf = array( 238.110, 337.323); break;}
548  case 'G8' : {$pf = array( 167.244, 238.110); break;}
549  case 'G9' : {$pf = array( 119.055, 167.244); break;}
550  case 'G10': {$pf = array( 82.205, 119.055); break;}
551  case 'G11': {$pf = array( 59.528, 82.205); break;}
552  case 'G12': {$pf = array( 39.685, 59.528); break;}
553  // ISO Press
554  case 'RA0': {$pf = array( 2437.795, 3458.268); break;}
555  case 'RA1': {$pf = array( 1729.134, 2437.795); break;}
556  case 'RA2': {$pf = array( 1218.898, 1729.134); break;}
557  case 'RA3': {$pf = array( 864.567, 1218.898); break;}
558  case 'RA4': {$pf = array( 609.449, 864.567); break;}
559  case 'SRA0': {$pf = array( 2551.181, 3628.346); break;}
560  case 'SRA1': {$pf = array( 1814.173, 2551.181); break;}
561  case 'SRA2': {$pf = array( 1275.591, 1814.173); break;}
562  case 'SRA3': {$pf = array( 907.087, 1275.591); break;}
563  case 'SRA4': {$pf = array( 637.795, 907.087); break;}
564  // German DIN 476
565  case '4A0': {$pf = array( 4767.874, 6740.787); break;}
566  case '2A0': {$pf = array( 3370.394, 4767.874); break;}
567  // Variations on the ISO Standard
568  case 'A2_EXTRA' : {$pf = array( 1261.417, 1754.646); break;}
569  case 'A3+' : {$pf = array( 932.598, 1369.134); break;}
570  case 'A3_EXTRA' : {$pf = array( 912.756, 1261.417); break;}
571  case 'A3_SUPER' : {$pf = array( 864.567, 1440.000); break;}
572  case 'SUPER_A3' : {$pf = array( 864.567, 1380.472); break;}
573  case 'A4_EXTRA' : {$pf = array( 666.142, 912.756); break;}
574  case 'A4_SUPER' : {$pf = array( 649.134, 912.756); break;}
575  case 'SUPER_A4' : {$pf = array( 643.465, 1009.134); break;}
576  case 'A4_LONG' : {$pf = array( 595.276, 986.457); break;}
577  case 'F4' : {$pf = array( 595.276, 935.433); break;}
578  case 'SO_B5_EXTRA': {$pf = array( 572.598, 782.362); break;}
579  case 'A5_EXTRA' : {$pf = array( 490.394, 666.142); break;}
580  // ANSI Series
581  case 'ANSI_E': {$pf = array( 2448.000, 3168.000); break;}
582  case 'ANSI_D': {$pf = array( 1584.000, 2448.000); break;}
583  case 'ANSI_C': {$pf = array( 1224.000, 1584.000); break;}
584  case 'ANSI_B': {$pf = array( 792.000, 1224.000); break;}
585  case 'ANSI_A': {$pf = array( 612.000, 792.000); break;}
586  // Traditional 'Loose' North American Paper Sizes
587  case 'USLEDGER':
588  case 'LEDGER' : {$pf = array( 1224.000, 792.000); break;}
589  case 'ORGANIZERK':
590  case 'BIBLE':
591  case 'USTABLOID':
592  case 'TABLOID': {$pf = array( 792.000, 1224.000); break;}
593  case 'ORGANIZERM':
594  case 'USLETTER':
595  case 'LETTER' : {$pf = array( 612.000, 792.000); break;}
596  case 'USLEGAL':
597  case 'LEGAL' : {$pf = array( 612.000, 1008.000); break;}
598  case 'GOVERNMENTLETTER':
599  case 'GLETTER': {$pf = array( 576.000, 756.000); break;}
600  case 'JUNIORLEGAL':
601  case 'JLEGAL' : {$pf = array( 576.000, 360.000); break;}
602  // Other North American Paper Sizes
603  case 'QUADDEMY': {$pf = array( 2520.000, 3240.000); break;}
604  case 'SUPER_B': {$pf = array( 936.000, 1368.000); break;}
605  case 'QUARTO': {$pf = array( 648.000, 792.000); break;}
606  case 'GOVERNMENTLEGAL':
607  case 'FOLIO': {$pf = array( 612.000, 936.000); break;}
608  case 'MONARCH':
609  case 'EXECUTIVE': {$pf = array( 522.000, 756.000); break;}
610  case 'ORGANIZERL':
611  case 'STATEMENT':
612  case 'MEMO': {$pf = array( 396.000, 612.000); break;}
613  case 'FOOLSCAP': {$pf = array( 595.440, 936.000); break;}
614  case 'COMPACT': {$pf = array( 306.000, 486.000); break;}
615  case 'ORGANIZERJ': {$pf = array( 198.000, 360.000); break;}
616  // Canadian standard CAN 2-9.60M
617  case 'P1': {$pf = array( 1587.402, 2437.795); break;}
618  case 'P2': {$pf = array( 1218.898, 1587.402); break;}
619  case 'P3': {$pf = array( 793.701, 1218.898); break;}
620  case 'P4': {$pf = array( 609.449, 793.701); break;}
621  case 'P5': {$pf = array( 396.850, 609.449); break;}
622  case 'P6': {$pf = array( 303.307, 396.850); break;}
623  // North American Architectural Sizes
624  case 'ARCH_E' : {$pf = array( 2592.000, 3456.000); break;}
625  case 'ARCH_E1': {$pf = array( 2160.000, 3024.000); break;}
626  case 'ARCH_D' : {$pf = array( 1728.000, 2592.000); break;}
627  case 'BROADSHEET':
628  case 'ARCH_C' : {$pf = array( 1296.000, 1728.000); break;}
629  case 'ARCH_B' : {$pf = array( 864.000, 1296.000); break;}
630  case 'ARCH_A' : {$pf = array( 648.000, 864.000); break;}
631  // --- North American Envelope Sizes ---
632  // - Announcement Envelopes
633  case 'ANNENV_A2' : {$pf = array( 314.640, 414.000); break;}
634  case 'ANNENV_A6' : {$pf = array( 342.000, 468.000); break;}
635  case 'ANNENV_A7' : {$pf = array( 378.000, 522.000); break;}
636  case 'ANNENV_A8' : {$pf = array( 396.000, 584.640); break;}
637  case 'ANNENV_A10' : {$pf = array( 450.000, 692.640); break;}
638  case 'ANNENV_SLIM': {$pf = array( 278.640, 638.640); break;}
639  // - Commercial Envelopes
640  case 'COMMENV_N6_1/4': {$pf = array( 252.000, 432.000); break;}
641  case 'COMMENV_N6_3/4': {$pf = array( 260.640, 468.000); break;}
642  case 'COMMENV_N8' : {$pf = array( 278.640, 540.000); break;}
643  case 'COMMENV_N9' : {$pf = array( 278.640, 638.640); break;}
644  case 'COMMENV_N10' : {$pf = array( 296.640, 684.000); break;}
645  case 'COMMENV_N11' : {$pf = array( 324.000, 746.640); break;}
646  case 'COMMENV_N12' : {$pf = array( 342.000, 792.000); break;}
647  case 'COMMENV_N14' : {$pf = array( 360.000, 828.000); break;}
648  // - Catalogue Envelopes
649  case 'CATENV_N1' : {$pf = array( 432.000, 648.000); break;}
650  case 'CATENV_N1_3/4' : {$pf = array( 468.000, 684.000); break;}
651  case 'CATENV_N2' : {$pf = array( 468.000, 720.000); break;}
652  case 'CATENV_N3' : {$pf = array( 504.000, 720.000); break;}
653  case 'CATENV_N6' : {$pf = array( 540.000, 756.000); break;}
654  case 'CATENV_N7' : {$pf = array( 576.000, 792.000); break;}
655  case 'CATENV_N8' : {$pf = array( 594.000, 810.000); break;}
656  case 'CATENV_N9_1/2' : {$pf = array( 612.000, 756.000); break;}
657  case 'CATENV_N9_3/4' : {$pf = array( 630.000, 810.000); break;}
658  case 'CATENV_N10_1/2': {$pf = array( 648.000, 864.000); break;}
659  case 'CATENV_N12_1/2': {$pf = array( 684.000, 900.000); break;}
660  case 'CATENV_N13_1/2': {$pf = array( 720.000, 936.000); break;}
661  case 'CATENV_N14_1/4': {$pf = array( 810.000, 882.000); break;}
662  case 'CATENV_N14_1/2': {$pf = array( 828.000, 1044.000); break;}
663  // Japanese (JIS P 0138-61) Standard B-Series
664  case 'JIS_B0' : {$pf = array( 2919.685, 4127.244); break;}
665  case 'JIS_B1' : {$pf = array( 2063.622, 2919.685); break;}
666  case 'JIS_B2' : {$pf = array( 1459.843, 2063.622); break;}
667  case 'JIS_B3' : {$pf = array( 1031.811, 1459.843); break;}
668  case 'JIS_B4' : {$pf = array( 728.504, 1031.811); break;}
669  case 'JIS_B5' : {$pf = array( 515.906, 728.504); break;}
670  case 'JIS_B6' : {$pf = array( 362.835, 515.906); break;}
671  case 'JIS_B7' : {$pf = array( 257.953, 362.835); break;}
672  case 'JIS_B8' : {$pf = array( 181.417, 257.953); break;}
673  case 'JIS_B9' : {$pf = array( 127.559, 181.417); break;}
674  case 'JIS_B10': {$pf = array( 90.709, 127.559); break;}
675  case 'JIS_B11': {$pf = array( 62.362, 90.709); break;}
676  case 'JIS_B12': {$pf = array( 45.354, 62.362); break;}
677  // PA Series
678  case 'PA0' : {$pf = array( 2381.102, 3174.803,); break;}
679  case 'PA1' : {$pf = array( 1587.402, 2381.102); break;}
680  case 'PA2' : {$pf = array( 1190.551, 1587.402); break;}
681  case 'PA3' : {$pf = array( 793.701, 1190.551); break;}
682  case 'PA4' : {$pf = array( 595.276, 793.701); break;}
683  case 'PA5' : {$pf = array( 396.850, 595.276); break;}
684  case 'PA6' : {$pf = array( 297.638, 396.850); break;}
685  case 'PA7' : {$pf = array( 198.425, 297.638); break;}
686  case 'PA8' : {$pf = array( 147.402, 198.425); break;}
687  case 'PA9' : {$pf = array( 99.213, 147.402); break;}
688  case 'PA10': {$pf = array( 73.701, 99.213); break;}
689  // Standard Photographic Print Sizes
690  case 'PASSPORT_PHOTO': {$pf = array( 99.213, 127.559); break;}
691  case 'E' : {$pf = array( 233.858, 340.157); break;}
692  case 'L':
693  case '3R' : {$pf = array( 252.283, 360.000); break;}
694  case 'KG':
695  case '4R' : {$pf = array( 289.134, 430.866); break;}
696  case '4D' : {$pf = array( 340.157, 430.866); break;}
697  case '2L':
698  case '5R' : {$pf = array( 360.000, 504.567); break;}
699  case '8P':
700  case '6R' : {$pf = array( 430.866, 575.433); break;}
701  case '6P':
702  case '8R' : {$pf = array( 575.433, 720.000); break;}
703  case '6PW':
704  case 'S8R' : {$pf = array( 575.433, 864.567); break;}
705  case '4P':
706  case '10R' : {$pf = array( 720.000, 864.567); break;}
707  case '4PW':
708  case 'S10R': {$pf = array( 720.000, 1080.000); break;}
709  case '11R' : {$pf = array( 790.866, 1009.134); break;}
710  case 'S11R': {$pf = array( 790.866, 1224.567); break;}
711  case '12R' : {$pf = array( 864.567, 1080.000); break;}
712  case 'S12R': {$pf = array( 864.567, 1292.598); break;}
713  // Common Newspaper Sizes
714  case 'NEWSPAPER_BROADSHEET': {$pf = array( 2125.984, 1700.787); break;}
715  case 'NEWSPAPER_BERLINER' : {$pf = array( 1332.283, 892.913); break;}
716  case 'NEWSPAPER_TABLOID':
717  case 'NEWSPAPER_COMPACT' : {$pf = array( 1218.898, 793.701); break;}
718  // Business Cards
719  case 'CREDIT_CARD':
720  case 'BUSINESS_CARD':
721  case 'BUSINESS_CARD_ISO7810': {$pf = array( 153.014, 242.646); break;}
722  case 'BUSINESS_CARD_ISO216' : {$pf = array( 147.402, 209.764); break;}
723  case 'BUSINESS_CARD_IT':
724  case 'BUSINESS_CARD_UK':
725  case 'BUSINESS_CARD_FR':
726  case 'BUSINESS_CARD_DE':
727  case 'BUSINESS_CARD_ES' : {$pf = array( 155.906, 240.945); break;}
728  case 'BUSINESS_CARD_CA':
729  case 'BUSINESS_CARD_US' : {$pf = array( 144.567, 252.283); break;}
730  case 'BUSINESS_CARD_JP' : {$pf = array( 155.906, 257.953); break;}
731  case 'BUSINESS_CARD_HK' : {$pf = array( 153.071, 255.118); break;}
732  case 'BUSINESS_CARD_AU':
733  case 'BUSINESS_CARD_DK':
734  case 'BUSINESS_CARD_SE' : {$pf = array( 155.906, 255.118); break;}
735  case 'BUSINESS_CARD_RU':
736  case 'BUSINESS_CARD_CZ':
737  case 'BUSINESS_CARD_FI':
738  case 'BUSINESS_CARD_HU':
739  case 'BUSINESS_CARD_IL' : {$pf = array( 141.732, 255.118); break;}
740  // Billboards
741  case '4SHEET' : {$pf = array( 2880.000, 4320.000); break;}
742  case '6SHEET' : {$pf = array( 3401.575, 5102.362); break;}
743  case '12SHEET': {$pf = array( 8640.000, 4320.000); break;}
744  case '16SHEET': {$pf = array( 5760.000, 8640.000); break;}
745  case '32SHEET': {$pf = array(11520.000, 8640.000); break;}
746  case '48SHEET': {$pf = array(17280.000, 8640.000); break;}
747  case '64SHEET': {$pf = array(23040.000, 8640.000); break;}
748  case '96SHEET': {$pf = array(34560.000, 8640.000); break;}
749  // Old European Sizes
750  // - Old Imperial English Sizes
751  case 'EN_EMPEROR' : {$pf = array( 3456.000, 5184.000); break;}
752  case 'EN_ANTIQUARIAN' : {$pf = array( 2232.000, 3816.000); break;}
753  case 'EN_GRAND_EAGLE' : {$pf = array( 2070.000, 3024.000); break;}
754  case 'EN_DOUBLE_ELEPHANT' : {$pf = array( 1926.000, 2880.000); break;}
755  case 'EN_ATLAS' : {$pf = array( 1872.000, 2448.000); break;}
756  case 'EN_COLOMBIER' : {$pf = array( 1692.000, 2484.000); break;}
757  case 'EN_ELEPHANT' : {$pf = array( 1656.000, 2016.000); break;}
758  case 'EN_DOUBLE_DEMY' : {$pf = array( 1620.000, 2556.000); break;}
759  case 'EN_IMPERIAL' : {$pf = array( 1584.000, 2160.000); break;}
760  case 'EN_PRINCESS' : {$pf = array( 1548.000, 2016.000); break;}
761  case 'EN_CARTRIDGE' : {$pf = array( 1512.000, 1872.000); break;}
762  case 'EN_DOUBLE_LARGE_POST': {$pf = array( 1512.000, 2376.000); break;}
763  case 'EN_ROYAL' : {$pf = array( 1440.000, 1800.000); break;}
764  case 'EN_SHEET':
765  case 'EN_HALF_POST' : {$pf = array( 1404.000, 1692.000); break;}
766  case 'EN_SUPER_ROYAL' : {$pf = array( 1368.000, 1944.000); break;}
767  case 'EN_DOUBLE_POST' : {$pf = array( 1368.000, 2196.000); break;}
768  case 'EN_MEDIUM' : {$pf = array( 1260.000, 1656.000); break;}
769  case 'EN_DEMY' : {$pf = array( 1260.000, 1620.000); break;}
770  case 'EN_LARGE_POST' : {$pf = array( 1188.000, 1512.000); break;}
771  case 'EN_COPY_DRAUGHT' : {$pf = array( 1152.000, 1440.000); break;}
772  case 'EN_POST' : {$pf = array( 1116.000, 1386.000); break;}
773  case 'EN_CROWN' : {$pf = array( 1080.000, 1440.000); break;}
774  case 'EN_PINCHED_POST' : {$pf = array( 1062.000, 1332.000); break;}
775  case 'EN_BRIEF' : {$pf = array( 972.000, 1152.000); break;}
776  case 'EN_FOOLSCAP' : {$pf = array( 972.000, 1224.000); break;}
777  case 'EN_SMALL_FOOLSCAP' : {$pf = array( 954.000, 1188.000); break;}
778  case 'EN_POTT' : {$pf = array( 900.000, 1080.000); break;}
779  // - Old Imperial Belgian Sizes
780  case 'BE_GRAND_AIGLE' : {$pf = array( 1984.252, 2948.031); break;}
781  case 'BE_COLOMBIER' : {$pf = array( 1757.480, 2409.449); break;}
782  case 'BE_DOUBLE_CARRE': {$pf = array( 1757.480, 2607.874); break;}
783  case 'BE_ELEPHANT' : {$pf = array( 1746.142, 2182.677); break;}
784  case 'BE_PETIT_AIGLE' : {$pf = array( 1700.787, 2381.102); break;}
785  case 'BE_GRAND_JESUS' : {$pf = array( 1559.055, 2069.291); break;}
786  case 'BE_JESUS' : {$pf = array( 1530.709, 2069.291); break;}
787  case 'BE_RAISIN' : {$pf = array( 1417.323, 1842.520); break;}
788  case 'BE_GRAND_MEDIAN': {$pf = array( 1303.937, 1714.961); break;}
789  case 'BE_DOUBLE_POSTE': {$pf = array( 1233.071, 1601.575); break;}
790  case 'BE_COQUILLE' : {$pf = array( 1218.898, 1587.402); break;}
791  case 'BE_PETIT_MEDIAN': {$pf = array( 1176.378, 1502.362); break;}
792  case 'BE_RUCHE' : {$pf = array( 1020.472, 1303.937); break;}
793  case 'BE_PROPATRIA' : {$pf = array( 977.953, 1218.898); break;}
794  case 'BE_LYS' : {$pf = array( 898.583, 1125.354); break;}
795  case 'BE_POT' : {$pf = array( 870.236, 1088.504); break;}
796  case 'BE_ROSETTE' : {$pf = array( 765.354, 983.622); break;}
797  // - Old Imperial French Sizes
798  case 'FR_UNIVERS' : {$pf = array( 2834.646, 3685.039); break;}
799  case 'FR_DOUBLE_COLOMBIER' : {$pf = array( 2551.181, 3571.654); break;}
800  case 'FR_GRANDE_MONDE' : {$pf = array( 2551.181, 3571.654); break;}
801  case 'FR_DOUBLE_SOLEIL' : {$pf = array( 2267.717, 3401.575); break;}
802  case 'FR_DOUBLE_JESUS' : {$pf = array( 2154.331, 3174.803); break;}
803  case 'FR_GRAND_AIGLE' : {$pf = array( 2125.984, 3004.724); break;}
804  case 'FR_PETIT_AIGLE' : {$pf = array( 1984.252, 2664.567); break;}
805  case 'FR_DOUBLE_RAISIN' : {$pf = array( 1842.520, 2834.646); break;}
806  case 'FR_JOURNAL' : {$pf = array( 1842.520, 2664.567); break;}
807  case 'FR_COLOMBIER_AFFICHE': {$pf = array( 1785.827, 2551.181); break;}
808  case 'FR_DOUBLE_CAVALIER' : {$pf = array( 1757.480, 2607.874); break;}
809  case 'FR_CLOCHE' : {$pf = array( 1700.787, 2267.717); break;}
810  case 'FR_SOLEIL' : {$pf = array( 1700.787, 2267.717); break;}
811  case 'FR_DOUBLE_CARRE' : {$pf = array( 1587.402, 2551.181); break;}
812  case 'FR_DOUBLE_COQUILLE' : {$pf = array( 1587.402, 2494.488); break;}
813  case 'FR_JESUS' : {$pf = array( 1587.402, 2154.331); break;}
814  case 'FR_RAISIN' : {$pf = array( 1417.323, 1842.520); break;}
815  case 'FR_CAVALIER' : {$pf = array( 1303.937, 1757.480); break;}
816  case 'FR_DOUBLE_COURONNE' : {$pf = array( 1303.937, 2040.945); break;}
817  case 'FR_CARRE' : {$pf = array( 1275.591, 1587.402); break;}
818  case 'FR_COQUILLE' : {$pf = array( 1247.244, 1587.402); break;}
819  case 'FR_DOUBLE_TELLIERE' : {$pf = array( 1247.244, 1927.559); break;}
820  case 'FR_DOUBLE_CLOCHE' : {$pf = array( 1133.858, 1700.787); break;}
821  case 'FR_DOUBLE_POT' : {$pf = array( 1133.858, 1757.480); break;}
822  case 'FR_ECU' : {$pf = array( 1133.858, 1474.016); break;}
823  case 'FR_COURONNE' : {$pf = array( 1020.472, 1303.937); break;}
824  case 'FR_TELLIERE' : {$pf = array( 963.780, 1247.244); break;}
825  case 'FR_POT' : {$pf = array( 878.740, 1133.858); break;}
826  // DEFAULT ISO A4
827  default: {$pf = array( 595.276, 841.890); break;}
828  }
829  return $pf;
830  }
+ Here is the caller graph for this function:

◆ getPathPaintOperator()

static TCPDF_STATIC::getPathPaintOperator (   $style,
  $default = 'S'
)
static

Get the Path-Painting Operators.

Parameters
$style(string) Style of rendering. Possible values are:
  • S or D: Stroke the path.
  • s or d: Close and stroke the path.
  • f or F: Fill the path, using the nonzero winding number rule to determine the region to fill.
  • f* or F*: Fill the path, using the even-odd rule to determine the region to fill.
  • B or FD or DF: Fill and then stroke the path, using the nonzero winding number rule to determine the region to fill.
  • B* or F*D or DF*: Fill and then stroke the path, using the even-odd rule to determine the region to fill.
  • b or fd or df: Close, fill, and then stroke the path, using the nonzero winding number rule to determine the region to fill.
  • b or f*d or df*: Close, fill, and then stroke the path, using the even-odd rule to determine the region to fill.
  • CNZ: Clipping mode using the even-odd rule to determine which regions lie inside the clipping path.
  • CEO: Clipping mode using the nonzero winding number rule to determine which regions lie inside the clipping path
  • n: End the path object without filling or stroking it.
$default(string) default style
Author
Nicola Asuni
Since
5.0.000 (2010-04-30) static

Definition at line 2517 of file tcpdf_static.php.

Referenced by TCPDF\Curve(), TCPDF\Ellipse(), TCPDF\PieSectorXY(), TCPDF\Polycurve(), TCPDF\Polygon(), TCPDF\Rect(), TCPDF\RoundedRectXY(), and TCPDF\SVGPath().

2517  {
2518  $op = '';
2519  switch($style) {
2520  case 'S':
2521  case 'D': {
2522  $op = 'S';
2523  break;
2524  }
2525  case 's':
2526  case 'd': {
2527  $op = 's';
2528  break;
2529  }
2530  case 'f':
2531  case 'F': {
2532  $op = 'f';
2533  break;
2534  }
2535  case 'f*':
2536  case 'F*': {
2537  $op = 'f*';
2538  break;
2539  }
2540  case 'B':
2541  case 'FD':
2542  case 'DF': {
2543  $op = 'B';
2544  break;
2545  }
2546  case 'B*':
2547  case 'F*D':
2548  case 'DF*': {
2549  $op = 'B*';
2550  break;
2551  }
2552  case 'b':
2553  case 'fd':
2554  case 'df': {
2555  $op = 'b';
2556  break;
2557  }
2558  case 'b*':
2559  case 'f*d':
2560  case 'df*': {
2561  $op = 'b*';
2562  break;
2563  }
2564  case 'CNZ': {
2565  $op = 'W n';
2566  break;
2567  }
2568  case 'CEO': {
2569  $op = 'W* n';
2570  break;
2571  }
2572  case 'n': {
2573  $op = 'n';
2574  break;
2575  }
2576  default: {
2577  if (!empty($default)) {
2578  $op = self::getPathPaintOperator($default, '');
2579  } else {
2580  $op = '';
2581  }
2582  }
2583  }
2584  return $op;
2585  }
+ Here is the caller graph for this function:

◆ getRandomSeed()

static TCPDF_STATIC::getRandomSeed (   $seed = '')
static

Returns a string containing random data to be used as a seed for encryption methods.

Parameters
$seed(string) starting seed value
Returns
string containing random data
Author
Nicola Asuni
Since
5.9.006 (2010-10-19) static

Definition at line 1349 of file tcpdf_static.php.

Referenced by TCPDF\__construct(), TCPDF\_generateencryptionkey(), TCPDF\_Ovalue(), TCPDF\_Uvalue(), and TCPDF\SetProtection().

1349  {
1350  $seed .= microtime();
1351  if (function_exists('openssl_random_pseudo_bytes') AND (strtoupper(substr(PHP_OS, 0, 3)) !== 'WIN')) {
1352  // this is not used on windows systems because it is very slow for a know bug
1353  $seed .= openssl_random_pseudo_bytes(512);
1354  } else {
1355  for ($i = 0; $i < 23; ++$i) {
1356  $seed .= uniqid('', true);
1357  }
1358  }
1359  $seed .= uniqid('', true);
1360  $seed .= rand();
1361  $seed .= getmypid();
1362  $seed .= __FILE__;
1363  if (isset($_SERVER['REMOTE_ADDR'])) {
1364  $seed .= $_SERVER['REMOTE_ADDR'];
1365  }
1366  if (isset($_SERVER['HTTP_USER_AGENT'])) {
1367  $seed .= $_SERVER['HTTP_USER_AGENT'];
1368  }
1369  if (isset($_SERVER['HTTP_ACCEPT'])) {
1370  $seed .= $_SERVER['HTTP_ACCEPT'];
1371  }
1372  if (isset($_SERVER['HTTP_ACCEPT_ENCODING'])) {
1373  $seed .= $_SERVER['HTTP_ACCEPT_ENCODING'];
1374  }
1375  if (isset($_SERVER['HTTP_ACCEPT_LANGUAGE'])) {
1376  $seed .= $_SERVER['HTTP_ACCEPT_LANGUAGE'];
1377  }
1378  if (isset($_SERVER['HTTP_ACCEPT_CHARSET'])) {
1379  $seed .= $_SERVER['HTTP_ACCEPT_CHARSET'];
1380  }
1381  $seed .= rand();
1382  $seed .= uniqid('', true);
1383  $seed .= microtime();
1384  return $seed;
1385  }
+ Here is the caller graph for this function:

◆ getSVGTransformMatrix()

static TCPDF_STATIC::getSVGTransformMatrix (   $attribute)
static

Get the tranformation matrix from SVG transform attribute.

Parameters
$attribute(string) transformation
Returns
array of transformations
Author
Nicola Asuni
Since
5.0.000 (2010-05-02) static

Definition at line 2615 of file tcpdf_static.php.

References $d, and $data.

Referenced by TCPDF\startSVGElementHandler().

2615  {
2616  // identity matrix
2617  $tm = array(1, 0, 0, 1, 0, 0);
2618  $transform = array();
2619  if (preg_match_all('/(matrix|translate|scale|rotate|skewX|skewY)[\s]*\(([^\)]+)\)/si', $attribute, $transform, PREG_SET_ORDER) > 0) {
2620  foreach ($transform as $key => $data) {
2621  if (!empty($data[2])) {
2622  $a = 1;
2623  $b = 0;
2624  $c = 0;
2625  $d = 1;
2626  $e = 0;
2627  $f = 0;
2628  $regs = array();
2629  switch ($data[1]) {
2630  case 'matrix': {
2631  if (preg_match('/([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2632  $a = $regs[1];
2633  $b = $regs[2];
2634  $c = $regs[3];
2635  $d = $regs[4];
2636  $e = $regs[5];
2637  $f = $regs[6];
2638  }
2639  break;
2640  }
2641  case 'translate': {
2642  if (preg_match('/([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2643  $e = $regs[1];
2644  $f = $regs[2];
2645  } elseif (preg_match('/([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2646  $e = $regs[1];
2647  }
2648  break;
2649  }
2650  case 'scale': {
2651  if (preg_match('/([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2652  $a = $regs[1];
2653  $d = $regs[2];
2654  } elseif (preg_match('/([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2655  $a = $regs[1];
2656  $d = $a;
2657  }
2658  break;
2659  }
2660  case 'rotate': {
2661  if (preg_match('/([0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)[\,\s]+([a-z0-9\-\.]+)/si', $data[2], $regs)) {
2662  $ang = deg2rad($regs[1]);
2663  $x = $regs[2];
2664  $y = $regs[3];
2665  $a = cos($ang);
2666  $b = sin($ang);
2667  $c = -$b;
2668  $d = $a;
2669  $e = ($x * (1 - $a)) - ($y * $c);
2670  $f = ($y * (1 - $d)) - ($x * $b);
2671  } elseif (preg_match('/([0-9\-\.]+)/si', $data[2], $regs)) {
2672  $ang = deg2rad($regs[1]);
2673  $a = cos($ang);
2674  $b = sin($ang);
2675  $c = -$b;
2676  $d = $a;
2677  $e = 0;
2678  $f = 0;
2679  }
2680  break;
2681  }
2682  case 'skewX': {
2683  if (preg_match('/([0-9\-\.]+)/si', $data[2], $regs)) {
2684  $c = tan(deg2rad($regs[1]));
2685  }
2686  break;
2687  }
2688  case 'skewY': {
2689  if (preg_match('/([0-9\-\.]+)/si', $data[2], $regs)) {
2690  $b = tan(deg2rad($regs[1]));
2691  }
2692  break;
2693  }
2694  }
2695  $tm = self::getTransformationMatrixProduct($tm, array($a, $b, $c, $d, $e, $f));
2696  }
2697  }
2698  }
2699  return $tm;
2700  }
+ Here is the caller graph for this function:

◆ getTagStyleFromCSSarray()

static TCPDF_STATIC::getTagStyleFromCSSarray (   $css)
static

Compact CSS data array into single string.

Parameters
$css(array) array of CSS properties
Returns
string containing merged CSS properties
Since
5.9.070 (2011-04-19) static

Definition at line 2348 of file tcpdf_static.php.

References $cmd.

Referenced by TCPDF\getHtmlDomArray().

2348  {
2349  $tagstyle = ''; // value to be returned
2350  foreach ($css as $style) {
2351  // split single css commands
2352  $csscmds = explode(';', $style['c']);
2353  foreach ($csscmds as $cmd) {
2354  if (!empty($cmd)) {
2355  $pos = strpos($cmd, ':');
2356  if ($pos !== false) {
2357  $cmd = substr($cmd, 0, ($pos + 1));
2358  if (strpos($tagstyle, $cmd) !== false) {
2359  // remove duplicate commands (last commands have high priority)
2360  $tagstyle = preg_replace('/'.$cmd.'[^;]+/i', '', $tagstyle);
2361  }
2362  }
2363  }
2364  }
2365  $tagstyle .= ';'.$style['c'];
2366  }
2367  // remove multiple semicolons
2368  $tagstyle = preg_replace('/[;]+/', ';', $tagstyle);
2369  return $tagstyle;
2370  }
$cmd
$cmd
Definition: sahs_server.php:35
+ Here is the caller graph for this function:

◆ getTCPDFProducer()

static TCPDF_STATIC::getTCPDFProducer ( )
static

Return the current TCPDF producer.

Returns
TCPDF producer string
Since
6.0.000 (2013-03-16) static

Definition at line 127 of file tcpdf_static.php.

Referenced by TCPDF\_putinfo(), and TCPDF\_putXMP().

127  {
128  return "\x54\x43\x50\x44\x46\x20".self::getTCPDFVersion()."\x20\x28\x68\x74\x74\x70\x3a\x2f\x2f\x77\x77\x77\x2e\x74\x63\x70\x64\x66\x2e\x6f\x72\x67\x29";
129  }
+ Here is the caller graph for this function:

◆ getTCPDFVersion()

static TCPDF_STATIC::getTCPDFVersion ( )
static

Return the current TCPDF version.

Returns
TCPDF version string
Since
5.9.012 (2010-11-10) static

Definition at line 117 of file tcpdf_static.php.

117  {
118  return self::$tcpdf_version;
119  }

◆ getTimestamp()

static TCPDF_STATIC::getTimestamp (   $date)
static

Returns timestamp in seconds from formatted date-time.

Parameters
$date(string) Formatted date-time.
Returns
int seconds.
Since
5.9.152 (2012-03-23) static

Definition at line 1185 of file tcpdf_static.php.

Referenced by TCPDF\setDocCreationTimestamp(), and TCPDF\setDocModificationTimestamp().

1185  {
1186  if (($date[0] == 'D') AND ($date[1] == ':')) {
1187  // remove date prefix if present
1188  $date = substr($date, 2);
1189  }
1190  return strtotime($date);
1191  }
+ Here is the caller graph for this function:

◆ getTransformationMatrixProduct()

static TCPDF_STATIC::getTransformationMatrixProduct (   $ta,
  $tb
)
static

Get the product of two SVG tranformation matrices.

Parameters
$ta(array) first SVG tranformation matrix
$tb(array) second SVG tranformation matrix
Returns
transformation array
Author
Nicola Asuni
Since
5.0.000 (2010-05-02) static

Definition at line 2596 of file tcpdf_static.php.

Referenced by TCPDF\printTemplate(), and TCPDF\startSVGElementHandler().

2596  {
2597  $tm = array();
2598  $tm[0] = ($ta[0] * $tb[0]) + ($ta[2] * $tb[1]);
2599  $tm[1] = ($ta[1] * $tb[0]) + ($ta[3] * $tb[1]);
2600  $tm[2] = ($ta[0] * $tb[2]) + ($ta[2] * $tb[3]);
2601  $tm[3] = ($ta[1] * $tb[2]) + ($ta[3] * $tb[3]);
2602  $tm[4] = ($ta[0] * $tb[4]) + ($ta[2] * $tb[5]) + $ta[4];
2603  $tm[5] = ($ta[1] * $tb[4]) + ($ta[3] * $tb[5]) + $ta[5];
2604  return $tm;
2605  }
+ Here is the caller graph for this function:

◆ getUserPermissionCode()

static TCPDF_STATIC::getUserPermissionCode (   $permissions,
  $mode = 0
)
static

Return the premission code used on encryption (P value).

Parameters
$permissions(Array) the set of permissions (specify the ones you want to block).
$mode(int) encryption strength: 0 = RC4 40 bit; 1 = RC4 128 bit; 2 = AES 128 bit; 3 = AES 256 bit.
Since
5.0.005 (2010-05-12)
Author
Nicola Asuni static

Definition at line 1474 of file tcpdf_static.php.

References $options.

Referenced by TCPDF\_generateencryptionkey(), and TCPDF\SetProtection().

1474  {
1475  $options = array(
1476  'owner' => 2, // bit 2 -- inverted logic: cleared by default
1477  'print' => 4, // bit 3
1478  'modify' => 8, // bit 4
1479  'copy' => 16, // bit 5
1480  'annot-forms' => 32, // bit 6
1481  'fill-forms' => 256, // bit 9
1482  'extract' => 512, // bit 10
1483  'assemble' => 1024,// bit 11
1484  'print-high' => 2048 // bit 12
1485  );
1486  $protection = 2147422012; // 32 bit: (01111111 11111111 00001111 00111100)
1487  foreach ($permissions as $permission) {
1488  if (isset($options[$permission])) {
1489  if (($mode > 0) OR ($options[$permission] <= 32)) {
1490  // set only valid permissions
1491  if ($options[$permission] == 2) {
1492  // the logic for bit 2 is inverted (cleared by default)
1493  $protection += $options[$permission];
1494  } else {
1495  $protection -= $options[$permission];
1496  }
1497  }
1498  }
1499  }
1500  return $protection;
1501  }
$options
if(!is_array($argv)) $options
Definition: tcpdf_addfont.php:137
+ Here is the caller graph for this function:

◆ getVectorsAngle()

static TCPDF_STATIC::getVectorsAngle (   $x1,
  $y1,
  $x2,
  $y2
)
static

Returns the angle in radiants between two vectors.

Parameters
$x1(int) X coordinate of first vector point
$y1(int) Y coordinate of first vector point
$x2(int) X coordinate of second vector point
$y2(int) Y coordinate of second vector point
Author
Nicola Asuni
Since
5.0.000 (2010-05-04) static

Definition at line 2712 of file tcpdf_static.php.

Referenced by TCPDF\SVGPath().

2712  {
2713  $dprod = ($x1 * $x2) + ($y1 * $y2);
2714  $dist1 = sqrt(($x1 * $x1) + ($y1 * $y1));
2715  $dist2 = sqrt(($x2 * $x2) + ($y2 * $y2));
2716  $angle = acos($dprod / ($dist1 * $dist2));
2717  if (is_nan($angle)) {
2718  $angle = M_PI;
2719  }
2720  if ((($x1 * $y2) - ($x2 * $y1)) < 0) {
2721  $angle *= -1;
2722  }
2723  return $angle;
2724  }
+ Here is the caller graph for this function:

◆ intToRoman()

static TCPDF_STATIC::intToRoman (   $number)
static

Returns the Roman representation of an integer number.

Parameters
$number(int) number to convert
Returns
string roman representation of the specified number
Since
4.4.004 (2008-12-10) static

Definition at line 2379 of file tcpdf_static.php.

Referenced by TCPDF\putHtmlListBullet().

2379  {
2380  $roman = '';
2381  while ($number >= 1000) {
2382  $roman .= 'M';
2383  $number -= 1000;
2384  }
2385  while ($number >= 900) {
2386  $roman .= 'CM';
2387  $number -= 900;
2388  }
2389  while ($number >= 500) {
2390  $roman .= 'D';
2391  $number -= 500;
2392  }
2393  while ($number >= 400) {
2394  $roman .= 'CD';
2395  $number -= 400;
2396  }
2397  while ($number >= 100) {
2398  $roman .= 'C';
2399  $number -= 100;
2400  }
2401  while ($number >= 90) {
2402  $roman .= 'XC';
2403  $number -= 90;
2404  }
2405  while ($number >= 50) {
2406  $roman .= 'L';
2407  $number -= 50;
2408  }
2409  while ($number >= 40) {
2410  $roman .= 'XL';
2411  $number -= 40;
2412  }
2413  while ($number >= 10) {
2414  $roman .= 'X';
2415  $number -= 10;
2416  }
2417  while ($number >= 9) {
2418  $roman .= 'IX';
2419  $number -= 9;
2420  }
2421  while ($number >= 5) {
2422  $roman .= 'V';
2423  $number -= 5;
2424  }
2425  while ($number >= 4) {
2426  $roman .= 'IV';
2427  $number -= 4;
2428  }
2429  while ($number >= 1) {
2430  $roman .= 'I';
2431  --$number;
2432  }
2433  return $roman;
2434  }
+ Here is the caller graph for this function:

◆ isValidCSSSelectorForTag()

static TCPDF_STATIC::isValidCSSSelectorForTag (   $dom,
  $key,
  $selector
)
static

Returns true if the CSS selector is valid for the selected HTML tag.

Parameters
$dom(array) array of HTML tags and properties
$key(int) key of the current HTML tag
$selector(string) CSS selector string
Returns
true if the selector is valid, false otherwise
Since
5.1.000 (2010-05-25) static

Definition at line 2143 of file tcpdf_static.php.

References $attrib, and $valid.

2143  {
2144  $valid = false; // value to be returned
2145  $tag = $dom[$key]['value'];
2146  $class = array();
2147  if (isset($dom[$key]['attribute']['class']) AND !empty($dom[$key]['attribute']['class'])) {
2148  $class = explode(' ', strtolower($dom[$key]['attribute']['class']));
2149  }
2150  $id = '';
2151  if (isset($dom[$key]['attribute']['id']) AND !empty($dom[$key]['attribute']['id'])) {
2152  $id = strtolower($dom[$key]['attribute']['id']);
2153  }
2154  $selector = preg_replace('/([>\+\~\s]{1})([\.]{1})([^>\+\~\s]*)/si', '\\1*.\\3', $selector);
2155  $matches = array();
2156  if (preg_match_all('/([>\+\~\s]{1})([a-zA-Z0-9\*]+)([^>\+\~\s]*)/si', $selector, $matches, PREG_PATTERN_ORDER | PREG_OFFSET_CAPTURE) > 0) {
2157  $parentop = array_pop($matches[1]);
2158  $operator = $parentop[0];
2159  $offset = $parentop[1];
2160  $lasttag = array_pop($matches[2]);
2161  $lasttag = strtolower(trim($lasttag[0]));
2162  if (($lasttag == '*') OR ($lasttag == $tag)) {
2163  // the last element on selector is our tag or 'any tag'
2164  $attrib = array_pop($matches[3]);
2165  $attrib = strtolower(trim($attrib[0]));
2166  if (!empty($attrib)) {
2167  // check if matches class, id, attribute, pseudo-class or pseudo-element
2168  switch ($attrib{0}) {
2169  case '.': { // class
2170  if (in_array(substr($attrib, 1), $class)) {
2171  $valid = true;
2172  }
2173  break;
2174  }
2175  case '#': { // ID
2176  if (substr($attrib, 1) == $id) {
2177  $valid = true;
2178  }
2179  break;
2180  }
2181  case '[': { // attribute
2182  $attrmatch = array();
2183  if (preg_match('/\[([a-zA-Z0-9]*)[\s]*([\~\^\$\*\|\=]*)[\s]*["]?([^"\]]*)["]?\]/i', $attrib, $attrmatch) > 0) {
2184  $att = strtolower($attrmatch[1]);
2185  $val = $attrmatch[3];
2186  if (isset($dom[$key]['attribute'][$att])) {
2187  switch ($attrmatch[2]) {
2188  case '=': {
2189  if ($dom[$key]['attribute'][$att] == $val) {
2190  $valid = true;
2191  }
2192  break;
2193  }
2194  case '~=': {
2195  if (in_array($val, explode(' ', $dom[$key]['attribute'][$att]))) {
2196  $valid = true;
2197  }
2198  break;
2199  }
2200  case '^=': {
2201  if ($val == substr($dom[$key]['attribute'][$att], 0, strlen($val))) {
2202  $valid = true;
2203  }
2204  break;
2205  }
2206  case '$=': {
2207  if ($val == substr($dom[$key]['attribute'][$att], -strlen($val))) {
2208  $valid = true;
2209  }
2210  break;
2211  }
2212  case '*=': {
2213  if (strpos($dom[$key]['attribute'][$att], $val) !== false) {
2214  $valid = true;
2215  }
2216  break;
2217  }
2218  case '|=': {
2219  if ($dom[$key]['attribute'][$att] == $val) {
2220  $valid = true;
2221  } elseif (preg_match('/'.$val.'[\-]{1}/i', $dom[$key]['attribute'][$att]) > 0) {
2222  $valid = true;
2223  }
2224  break;
2225  }
2226  default: {
2227  $valid = true;
2228  }
2229  }
2230  }
2231  }
2232  break;
2233  }
2234  case ':': { // pseudo-class or pseudo-element
2235  if ($attrib{1} == ':') { // pseudo-element
2236  // pseudo-elements are not supported!
2237  // (::first-line, ::first-letter, ::before, ::after)
2238  } else { // pseudo-class
2239  // pseudo-classes are not supported!
2240  // (:root, :nth-child(n), :nth-last-child(n), :nth-of-type(n), :nth-last-of-type(n), :first-child, :last-child, :first-of-type, :last-of-type, :only-child, :only-of-type, :empty, :link, :visited, :active, :hover, :focus, :target, :lang(fr), :enabled, :disabled, :checked)
2241  }
2242  break;
2243  }
2244  } // end of switch
2245  } else {
2246  $valid = true;
2247  }
2248  if ($valid AND ($offset > 0)) {
2249  $valid = false;
2250  // check remaining selector part
2251  $selector = substr($selector, 0, $offset);
2252  switch ($operator) {
2253  case ' ': { // descendant of an element
2254  while ($dom[$key]['parent'] > 0) {
2255  if (self::isValidCSSSelectorForTag($dom, $dom[$key]['parent'], $selector)) {
2256  $valid = true;
2257  break;
2258  } else {
2259  $key = $dom[$key]['parent'];
2260  }
2261  }
2262  break;
2263  }
2264  case '>': { // child of an element
2265  $valid = self::isValidCSSSelectorForTag($dom, $dom[$key]['parent'], $selector);
2266  break;
2267  }
2268  case '+': { // immediately preceded by an element
2269  for ($i = ($key - 1); $i > $dom[$key]['parent']; --$i) {
2270  if ($dom[$i]['tag'] AND $dom[$i]['opening']) {
2271  $valid = self::isValidCSSSelectorForTag($dom, $i, $selector);
2272  break;
2273  }
2274  }
2275  break;
2276  }
2277  case '~': { // preceded by an element
2278  for ($i = ($key - 1); $i > $dom[$key]['parent']; --$i) {
2279  if ($dom[$i]['tag'] AND $dom[$i]['opening']) {
2280  if (self::isValidCSSSelectorForTag($dom, $i, $selector)) {
2281  break;
2282  }
2283  }
2284  }
2285  break;
2286  }
2287  }
2288  }
2289  }
2290  }
2291  return $valid;
2292  }
$attrib
$attrib
Regular expression to match HTML/XML attribute pairs within a tag.
Definition: Sanitizer.php:41
$valid
$valid
Definition: dummy_client.php:53

◆ isValidURL()

static TCPDF_STATIC::isValidURL (   $url)
static

Check if the URL exist.

Parameters
$url(string) URL to check.
Returns
Boolean true if the URl exist, false otherwise.
Since
5.9.204 (2013-01-28) static

Definition at line 977 of file tcpdf_static.php.

Referenced by TCPDF\Annotation().

977  {
978  $headers = @get_headers($url);
979  return (strpos($headers[0], '200') !== false);
980  }
+ Here is the caller graph for this function:

◆ objclone()

static TCPDF_STATIC::objclone (   $object)
static

Creates a copy of a class object.

Parameters
$object(object) class object to be cloned
Returns
cloned object
Since
4.5.029 (2009-03-19) static

Definition at line 1135 of file tcpdf_static.php.

Referenced by TCPDF\ImagePngAlpha(), and TCPDF\startTransaction().

1135  {
1136  if (($object instanceof Imagick) AND (version_compare(phpversion('imagick'), '3.0.1') !== 1)) {
1137  // on the versions after 3.0.1 the clone() method was deprecated in favour of clone keyword
1138  return @$object->clone();
1139  }
1140  return @clone($object);
1141  }
+ Here is the caller graph for this function:

◆ removeSHY()

static TCPDF_STATIC::removeSHY (   $txt = '',
  $unicode = true
)
static

Removes SHY characters from text.

Unicode Data:

  • Name : SOFT HYPHEN, commonly abbreviated as SHY
  • HTML Entity (decimal): "&amp;#173;"
  • HTML Entity (hex): "&amp;#xad;"
  • HTML Entity (named): "&amp;shy;"
  • How to type in Microsoft Windows: [Alt +00AD] or [Alt 0173]
  • UTF-8 (hex): 0xC2 0xAD (c2ad)
  • UTF-8 character: chr(194).chr(173)
Parameters
$txt(string) input string
$unicode(boolean) True if we are in unicode mode, false otherwise.
Returns
string without SHY characters.
Since
(4.5.019) 2009-02-28 static

Definition at line 999 of file tcpdf_static.php.

References $txt.

Referenced by TCPDF\getCellCode().

999  {
1000  $txt = preg_replace('/([\\xc2]{1}[\\xad]{1})/', '', $txt);
1001  if (!$unicode) {
1002  $txt = preg_replace('/([\\xad]{1})/', '', $txt);
1003  }
1004  return $txt;
1005  }
$txt
$txt
Definition: error.php:10
+ Here is the caller graph for this function:

◆ replacePageNumAliases()

static TCPDF_STATIC::replacePageNumAliases (   $page,
  $replace,
  $diff = 0
)
static

Replace page number aliases with number.

Parameters
$page(string) Page content.
$replace(array) Array of replacements (array keys are replacement strings, values are alias arrays).
$diff(int) If passed, this will be set to the total char number difference between alias and replacements.
Returns
replaced page content and updated $diff parameter as array. static

Definition at line 1166 of file tcpdf_static.php.

Referenced by TCPDF\_putpages().

1166  {
1167  foreach ($replace as $rep) {
1168  foreach ($rep[3] as $a) {
1169  if (strpos($page, $a) !== false) {
1170  $page = str_replace($a, $rep[0], $page);
1171  $diff += ($rep[2] - $rep[1]);
1172  }
1173  }
1174  }
1175  return array($page, $diff);
1176  }
+ Here is the caller graph for this function:

◆ revstrpos()

static TCPDF_STATIC::revstrpos (   $haystack,
  $needle,
  $offset = 0
)
static

Find position of last occurrence of a substring in a string.

Parameters
$haystack(string) The string to search in.
$needle(string) substring to search.
$offset(int) May be specified to begin searching an arbitrary number of characters into the string.
Returns
Returns the position where the needle exists. Returns FALSE if the needle was not found.
Since
4.8.038 (2010-03-13) static

Definition at line 2445 of file tcpdf_static.php.

Referenced by TCPDF\writeHTML().

2445  {
2446  $length = strlen($haystack);
2447  $offset = ($offset > 0)?($length - $offset):abs($offset);
2448  $pos = strpos(strrev($haystack), strrev($needle), $offset);
2449  return ($pos === false)?false:($length - $pos - strlen($needle));
2450  }
+ Here is the caller graph for this function:

◆ rfread()

static TCPDF_STATIC::rfread (   $handle,
  $length
)
static

Binary-safe and URL-safe file read.

Reads up to length bytes from the file pointer referenced by handle. Reading stops as soon as one of the following conditions is met: length bytes have been read; EOF (end of file) is reached.

Parameters
$handle(resource)
$length(int)
Returns
Returns the read string or FALSE in case of error.
Author
Nicola Asuni
Since
4.5.027 (2009-03-16) static

Definition at line 1318 of file tcpdf_static.php.

References $data, and $rest.

Referenced by TCPDF_IMAGES\_parsepng().

1318  {
1319  $data = fread($handle, $length);
1320  if ($data === false) {
1321  return false;
1322  }
1323  $rest = ($length - strlen($data));
1324  if ($rest > 0) {
1325  $data .= self::rfread($handle, $rest);
1326  }
1327  return $data;
1328  }
$rest
$rest
Definition: goto.php:85
+ Here is the caller graph for this function:

◆ sendOutputData()

static TCPDF_STATIC::sendOutputData (   $data,
  $length
)
static

Ouput input data and compress it if possible.

Parameters
$data(string) Data to output.
$length(int) Data length in bytes.
Since
5.9.086 static

Definition at line 1150 of file tcpdf_static.php.

References $data.

Referenced by TCPDF\Output().

1150  {
1151  if (!isset($_SERVER['HTTP_ACCEPT_ENCODING']) OR empty($_SERVER['HTTP_ACCEPT_ENCODING'])) {
1152  // the content length may vary if the server is using compression
1153  header('Content-Length: '.$length);
1154  }
1155  echo $data;
1156  }
+ Here is the caller graph for this function:

◆ serializeTCPDFtagParameters()

static TCPDF_STATIC::serializeTCPDFtagParameters (   $pararray)
static

Serialize an array of parameters to be used with TCPDF tag in HTML code.

Parameters
$pararray(array) parameters array
Returns
sting containing serialized data
Since
4.9.006 (2010-04-02) static

Definition at line 2459 of file tcpdf_static.php.

Referenced by TCPDF\serializeTCPDFtagParameters().

2459  {
2460  return urlencode(serialize($pararray));
2461  }
+ Here is the caller graph for this function:

◆ set_mqr()

static TCPDF_STATIC::set_mqr (   $mqr)
static

Sets the current active configuration setting of magic_quotes_runtime (if the set_magic_quotes_runtime function exist)

Parameters
$mqr(boolean) FALSE for off, TRUE for on.
Since
4.6.025 (2009-08-17) static

Definition at line 137 of file tcpdf_static.php.

Referenced by TCPDF\_putfonts(), and TCPDF\Image().

137  {
138  if (!defined('PHP_VERSION_ID')) {
139  $version = PHP_VERSION;
140  define('PHP_VERSION_ID', (($version{0} * 10000) + ($version{2} * 100) + $version{4}));
141  }
142  if (PHP_VERSION_ID < 50300) {
143  @set_magic_quotes_runtime($mqr);
144  }
145  }
+ Here is the caller graph for this function:

◆ setPageBoxes()

static TCPDF_STATIC::setPageBoxes (   $page,
  $type,
  $llx,
  $lly,
  $urx,
  $ury,
  $points = false,
  $k,
  $pagedim = array()
)
static

Set page boundaries.

Parameters
$page(int) page number
$type(string) valid values are:
  • 'MediaBox' : the boundaries of the physical medium on which the page shall be displayed or printed;
  • 'CropBox' : the visible region of default user space;
  • 'BleedBox' : the region to which the contents of the page shall be clipped when output in a production environment;
  • 'TrimBox' : the intended dimensions of the finished page after trimming;
  • 'ArtBox' : the page's meaningful content (including potential white space).
$llx(float) lower-left x coordinate in user units.
$lly(float) lower-left y coordinate in user units.
$urx(float) upper-right x coordinate in user units.
$ury(float) upper-right y coordinate in user units.
$points(boolean) If true uses user units as unit of measure, otherwise uses PDF points.
$k(float) Scale factor (number of points in user unit).
$pagedim(array) Array of page dimensions.
Returns
pagedim array of page dimensions.
Since
5.0.010 (2010-05-17) static

Definition at line 847 of file tcpdf_static.php.

Referenced by TCPDF\setPageFormat(), and TCPDF\setPageOrientation().

847  {
848  if (!isset($pagedim[$page])) {
849  // initialize array
850  $pagedim[$page] = array();
851  }
852  if (!in_array($type, self::$pageboxes)) {
853  return;
854  }
855  if ($points) {
856  $k = 1;
857  }
858  $pagedim[$page][$type]['llx'] = ($llx * $k);
859  $pagedim[$page][$type]['lly'] = ($lly * $k);
860  $pagedim[$page][$type]['urx'] = ($urx * $k);
861  $pagedim[$page][$type]['ury'] = ($ury * $k);
862  return $pagedim;
863  }
+ Here is the caller graph for this function:

◆ swapPageBoxCoordinates()

static TCPDF_STATIC::swapPageBoxCoordinates (   $page,
  $pagedim
)
static

Swap X and Y coordinates of page boxes (change page boxes orientation).

Parameters
$page(int) page number
$pagedim(array) Array of page dimensions.
Returns
pagedim array of page dimensions.
Since
5.0.010 (2010-05-17) static

Definition at line 873 of file tcpdf_static.php.

Referenced by TCPDF\setPageOrientation().

873  {
874  foreach (self::$pageboxes as $type) {
875  // swap X and Y coordinates
876  if (isset($pagedim[$page][$type])) {
877  $tmp = $pagedim[$page][$type]['llx'];
878  $pagedim[$page][$type]['llx'] = $pagedim[$page][$type]['lly'];
879  $pagedim[$page][$type]['lly'] = $tmp;
880  $tmp = $pagedim[$page][$type]['urx'];
881  $pagedim[$page][$type]['urx'] = $pagedim[$page][$type]['ury'];
882  $pagedim[$page][$type]['ury'] = $tmp;
883  }
884  }
885  return $pagedim;
886  }
+ Here is the caller graph for this function:

Field Documentation

◆ $alias_group_num_page

TCPDF_STATIC::$alias_group_num_page = '{:png:}'
static

String alias for group page number.

static

Definition at line 82 of file tcpdf_static.php.

Referenced by TCPDF\getAllInternalPageNumberAliases(), and TCPDF\getPageNumGroupAlias().

◆ $alias_group_tot_pages

TCPDF_STATIC::$alias_group_tot_pages = '{:ptg:}'
static

String alias for total number of pages in a single group.

static

Definition at line 76 of file tcpdf_static.php.

Referenced by TCPDF\getAllInternalPageNumberAliases(), and TCPDF\getPageGroupAlias().

◆ $alias_num_page

TCPDF_STATIC::$alias_num_page = '{:pnp:}'
static

String alias for page number.

static

Definition at line 70 of file tcpdf_static.php.

Referenced by TCPDF\getAliasNumPage(), TCPDF\getAliasRightShift(), and TCPDF\getAllInternalPageNumberAliases().

◆ $alias_right_shift

TCPDF_STATIC::$alias_right_shift = '{rsc:'
static

String alias for right shift compensation used to correctly align page numbers on the right.

static

Definition at line 88 of file tcpdf_static.php.

Referenced by TCPDF\getAliasRightShift(), and TCPDF\getAllInternalPageNumberAliases().

◆ $alias_tot_pages

TCPDF_STATIC::$alias_tot_pages = '{:ptp:}'
static

String alias for total number of pages.

static

Definition at line 64 of file tcpdf_static.php.

Referenced by TCPDF\getAliasNbPages(), TCPDF\getAliasRightShift(), and TCPDF\getAllInternalPageNumberAliases().

◆ $byterange_string

TCPDF_STATIC::$byterange_string = '/ByteRange[0 ********** ********** **********]'
static

ByteRange placemark used during digital signature process.

Since
4.6.028 (2009-08-25) static

Definition at line 101 of file tcpdf_static.php.

Referenced by TCPDF\Output().

◆ $enc_padding

TCPDF_STATIC::$enc_padding = "\x28\xBF\x4E\x5E\x4E\x75\x8A\x41\x64\x00\x4E\x56\xFF\xFA\x01\x08\x2E\x2E\x00\xB6\xD0\x68\x3E\x80\x2F\x0C\xA9\xFE\x64\x53\x69\x7A"
static

Encryption padding string.

static

Definition at line 94 of file tcpdf_static.php.

Referenced by TCPDF\_generateencryptionkey(), and TCPDF\_Uvalue().

◆ $pageboxes

TCPDF_STATIC::$pageboxes = array('MediaBox', 'CropBox', 'BleedBox', 'TrimBox', 'ArtBox')
static

Array page boxes names static.

Definition at line 107 of file tcpdf_static.php.

Referenced by TCPDF\setPageBoxTypes().

◆ $tcpdf_version

TCPDF_STATIC::$tcpdf_version = '6.0.015'
staticprivate

Current TCPDF version.

static

Definition at line 58 of file tcpdf_static.php.

The documentation for this class was generated from the following file:
