TCPDF_PARSER Class Reference

This is a PHP class for parsing PDF documents. More...

+ Collaboration diagram for TCPDF_PARSER:

Public Member Functions

 __construct ($data)
 Parse a PDF document an return an array of objects. More...

 getParsedData ()
 Return an array of parsed PDF document objects. More...

 Error ($msg)
 This method is automatically called in case of fatal error; it simply outputs the message and halts the execution. More...


Protected Member Functions

 getXrefData ($offset=0, $xref=array())
 Get Cross-Reference (xref) table and trailer data from PDF document data. More...

 decodeXref ($startxref, $xref=array())
 Decode the Cross-Reference section. More...

 decodeXrefStream ($startxref, $xref=array())
 Decode the Cross-Reference Stream section. More...

 getRawObject ($offset=0)
 Get object type, raw value and offset to next object. More...

 getIndirectObject ($obj_ref, $offset=0, $decoding=true)
 Get content of indirect object. More...

 getObjectVal ($obj)
 Get the content of object, resolving indect object reference if necessary. More...

 decodeStream ($sdic, $stream)
 Decode the specified stream. More...


Protected Attributes

 $xref = array()
 XREF data. More...

 $objects = array()
 Array of PDF objects. More...


Private Attributes

 $pdfdata = ''
 Raw content of the PDF document. More...

 $FilterDecoders
 Class object for decoding filters. More...


Detailed Description

This is a PHP class for parsing PDF documents.


Definition at line 54 of file tcpdf_parser.php.

Constructor & Destructor Documentation

◆ __construct()

TCPDF_PARSER::__construct (   $data)

Parse a PDF document an return an array of objects.

Parameters
$data(string) PDF data to parse.
Since
1.0.000 (2011-05-24)

Definition at line 88 of file tcpdf_parser.php.

88 {
89 if (empty($data)) {
90 $this->Error('Empty PDF data.');
91 }
92 $this->pdfdata = $data;
93 // get length
94 $pdflen = strlen($this->pdfdata);
95 // initialize class for decoding filters
96 $this->FilterDecoders = new TCPDF_FILTERS();
97 // get xref and trailer data
98 $this->xref = $this->getXrefData();
99 // parse all document objects
100 $this->objects = array();
101 foreach ($this->xref['xref'] as $obj => $offset) {
102 if (!isset($this->objects[$obj]) AND ($offset > 0)) {
103 // decode only objects with positive offset
104 $this->objects[$obj] = $this->getIndirectObject($obj, $offset, true);
105 }
106 }
107 // release some memory
108 unset($this->pdfdata);
109 $this->pdfdata = '';
110 }
TCPDF_FILTERS
This is a PHP class for decoding common PDF filters (PDF 32000-2008 - 7.4 Filters).
Definition: tcpdf_filters.php:51
TCPDF_PARSER\Error
Error($msg)
This method is automatically called in case of fatal error; it simply outputs the message and halts t...
Definition: tcpdf_parser.php:736
TCPDF_PARSER\getIndirectObject
getIndirectObject($obj_ref, $offset=0, $decoding=true)
Get content of indirect object.
Definition: tcpdf_parser.php:621
TCPDF_PARSER\getXrefData
getXrefData($offset=0, $xref=array())
Get Cross-Reference (xref) table and trailer data from PDF document data.
Definition: tcpdf_parser.php:130

References $data, Error(), getIndirectObject(), and getXrefData().

+ Here is the call graph for this function:

Member Function Documentation

◆ decodeStream()

TCPDF_PARSER::decodeStream (   $sdic,
  $stream
)
protected

Decode the specified stream.

Parameters
$sdic(array) Stream's dictionary array.
$stream(string) Stream to decode.
Returns
array containing decoded stream data and remaining filters.
Since
1.0.000 (2011-06-22)

Definition at line 684 of file tcpdf_parser.php.

684 {
685 // get stream lenght and filters
686 $slength = strlen($stream);
687 if ($slength <= 0) {
688 return array('', array());
689 }
690 $filters = array();
691 foreach ($sdic as $k => $v) {
692 if ($v[0] == '/') {
693 if (($v[1] == 'Length') AND (isset($sdic[($k + 1)])) AND ($sdic[($k + 1)][0] == 'numeric')) {
694 // get declared stream lenght
695 $declength = intval($sdic[($k + 1)][1]);
696 if ($declength < $slength) {
697 $stream = substr($stream, 0, $declength);
698 $slength = $declength;
699 }
700 } elseif (($v[1] == 'Filter') AND (isset($sdic[($k + 1)]))) {
701 // resolve indirect object
702 $objval = $this->getObjectVal($sdic[($k + 1)]);
703 if ($objval[0] == '/') {
704 // single filter
705 $filters[] = $objval[1];
706 } elseif ($objval[0] == '[') {
707 // array of filters
708 foreach ($objval[1] as $flt) {
709 if ($flt[0] == '/') {
710 $filters[] = $flt[1];
711 }
712 }
713 }
714 }
715 }
716 }
717 // decode the stream
718 $remaining_filters = array();
719 foreach ($filters as $filter) {
720 if (in_array($filter, $this->FilterDecoders->getAvailableFilters())) {
721 $stream = $this->FilterDecoders->decodeFilter($filter, $stream);
722 } else {
723 // add missing filter to array
724 $remaining_filters[] = $filter;
725 }
726 }
727 return array($stream, $remaining_filters);
728 }
TCPDF_PARSER\getObjectVal
getObjectVal($obj)
Get the content of object, resolving indect object reference if necessary.
Definition: tcpdf_parser.php:661

References getObjectVal().

Referenced by getIndirectObject().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ decodeXref()

TCPDF_PARSER::decodeXref (   $startxref,
  $xref = array()
)
protected

Decode the Cross-Reference section.

Parameters
$startxref(int) Offset at which the xref section starts.
$xref(array) Previous xref array (if any).
Returns
Array containing xref and trailer data.
Since
1.0.000 (2011-06-20)

Definition at line 171 of file tcpdf_parser.php.

171 {
172 // extract xref data (object indexes and offsets)
173 $xoffset = $startxref + 5;
174 // initialize object number
175 $obj_num = 0;
176 $offset = $xoffset;
177 while (preg_match('/^([0-9]+)[\s]([0-9]+)[\s]?([nf]?)/im', $this->pdfdata, $matches, PREG_OFFSET_CAPTURE, $offset) > 0) {
178 $offset = (strlen($matches[0][0]) + $matches[0][1]);
179 if ($matches[3][0] == 'n') {
180 // create unique object index: [object number]_[generation number]
181 $index = $obj_num.'_'.intval($matches[2][0]);
182 // check if object already exist
183 if (!isset($xref['xref'][$index])) {
184 // store object offset position
185 $xref['xref'][$index] = intval($matches[1][0]);
186 }
187 ++$obj_num;
188 $offset += 2;
189 } elseif ($matches[3][0] == 'f') {
190 ++$obj_num;
191 $offset += 2;
192 } else {
193 // object number (index)
194 $obj_num = intval($matches[1][0]);
195 }
196 }
197 // get trailer data
198 if (preg_match('/trailer[\s]*<<(.*)>>[\s]*[\r\n]+startxref[\s]*[\r\n]+/isU', $this->pdfdata, $matches, PREG_OFFSET_CAPTURE, $xoffset) > 0) {
199 $trailer_data = $matches[1][0];
200 if (!isset($xref['trailer']) OR empty($xref['trailer'])) {
201 // get only the last updated version
202 $xref['trailer'] = array();
203 // parse trailer_data
204 if (preg_match('/Size[\s]+([0-9]+)/i', $trailer_data, $matches) > 0) {
205 $xref['trailer']['size'] = intval($matches[1]);
206 }
207 if (preg_match('/Root[\s]+([0-9]+)[\s]+([0-9]+)[\s]+R/i', $trailer_data, $matches) > 0) {
208 $xref['trailer']['root'] = intval($matches[1]).'_'.intval($matches[2]);
209 }
210 if (preg_match('/Encrypt[\s]+([0-9]+)[\s]+([0-9]+)[\s]+R/i', $trailer_data, $matches) > 0) {
211 $xref['trailer']['encrypt'] = intval($matches[1]).'_'.intval($matches[2]);
212 }
213 if (preg_match('/Info[\s]+([0-9]+)[\s]+([0-9]+)[\s]+R/i', $trailer_data, $matches) > 0) {
214 $xref['trailer']['info'] = intval($matches[1]).'_'.intval($matches[2]);
215 }
216 if (preg_match('/ID[\s]*[\[][\s]*[<]([^>]*)[>][\s]*[<]([^>]*)[>]/i', $trailer_data, $matches) > 0) {
217 $xref['trailer']['id'] = array();
218 $xref['trailer']['id'][0] = $matches[1];
219 $xref['trailer']['id'][1] = $matches[2];
220 }
221 }
222 if (preg_match('/Prev[\s]+([0-9]+)/i', $trailer_data, $matches) > 0) {
223 // get previous xref
224 $xref = $this->getXrefData(intval($matches[1]), $xref);
225 }
226 } else {
227 $this->Error('Unable to find trailer');
228 }
229 return $xref;
230 }
TCPDF_PARSER\$xref
$xref
XREF data.
Definition: tcpdf_parser.php:66

References $xref, Error(), and getXrefData().

Referenced by getXrefData().

+ Here is the call graph for this function:

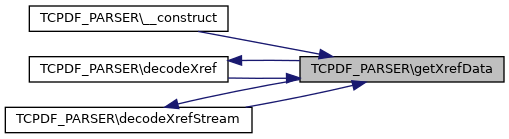

+ Here is the caller graph for this function:

◆ decodeXrefStream()

TCPDF_PARSER::decodeXrefStream (   $startxref,
  $xref = array()
)
protected

Decode the Cross-Reference Stream section.

Parameters
$startxref(int) Offset at which the xref section starts.
$xref(array) Previous xref array (if any).
Returns
Array containing xref and trailer data.
Since
1.0.003 (2013-03-16)

Definition at line 240 of file tcpdf_parser.php.

240 {
241 // try to read Cross-Reference Stream
242 $xrefobj = $this->getRawObject($startxref);
243 $xrefcrs = $this->getIndirectObject($xrefobj[1], $startxref, true);
244 if (!isset($xref['trailer']) OR empty($xref['trailer'])) {
245 // get only the last updated version
246 $xref['trailer'] = array();
247 $filltrailer = true;
248 } else {
249 $filltrailer = false;
250 }
251 $valid_crs = false;
252 $sarr = $xrefcrs[0][1];
253 foreach ($sarr as $k => $v) {
254 if (($v[0] == '/') AND ($v[1] == 'Type') AND (isset($sarr[($k +1)]) AND ($sarr[($k +1)][0] == '/') AND ($sarr[($k +1)][1] == 'XRef'))) {
255 $valid_crs = true;
256 } elseif (($v[0] == '/') AND ($v[1] == 'Index') AND (isset($sarr[($k +1)]))) {
257 // first object number in the subsection
258 $index_first = intval($sarr[($k +1)][1][0][1]);
259 // number of entries in the subsection
260 $index_entries = intval($sarr[($k +1)][1][1][1]);
261 } elseif (($v[0] == '/') AND ($v[1] == 'Prev') AND (isset($sarr[($k +1)]) AND ($sarr[($k +1)][0] == 'numeric'))) {
262 // get previous xref offset
263 $prevxref = intval($sarr[($k +1)][1]);
264 } elseif (($v[0] == '/') AND ($v[1] == 'W') AND (isset($sarr[($k +1)]))) {
265 // number of bytes (in the decoded stream) of the corresponding field
266 $wb = array();
267 $wb[0] = intval($sarr[($k +1)][1][0][1]);
268 $wb[1] = intval($sarr[($k +1)][1][1][1]);
269 $wb[2] = intval($sarr[($k +1)][1][2][1]);
270 } elseif (($v[0] == '/') AND ($v[1] == 'DecodeParms') AND (isset($sarr[($k +1)][1]))) {
271 $decpar = $sarr[($k +1)][1];
272 foreach ($decpar as $kdc => $vdc) {
273 if (($vdc[0] == '/') AND ($vdc[1] == 'Columns') AND (isset($decpar[($kdc +1)]) AND ($decpar[($kdc +1)][0] == 'numeric'))) {
274 $columns = intval($decpar[($kdc +1)][1]);
275 } elseif (($vdc[0] == '/') AND ($vdc[1] == 'Predictor') AND (isset($decpar[($kdc +1)]) AND ($decpar[($kdc +1)][0] == 'numeric'))) {
276 $predictor = intval($decpar[($kdc +1)][1]);
277 }
278 }
279 } elseif ($filltrailer) {
280 if (($v[0] == '/') AND ($v[1] == 'Size') AND (isset($sarr[($k +1)]) AND ($sarr[($k +1)][0] == 'numeric'))) {
281 $xref['trailer']['size'] = $sarr[($k +1)][1];
282 } elseif (($v[0] == '/') AND ($v[1] == 'Root') AND (isset($sarr[($k +1)]) AND ($sarr[($k +1)][0] == 'ojbref'))) {
283 $xref['trailer']['root'] = $sarr[($k +1)][1];
284 } elseif (($v[0] == '/') AND ($v[1] == 'Info') AND (isset($sarr[($k +1)]) AND ($sarr[($k +1)][0] == 'ojbref'))) {
285 $xref['trailer']['info'] = $sarr[($k +1)][1];
286 } elseif (($v[0] == '/') AND ($v[1] == 'ID') AND (isset($sarr[($k +1)]))) {
287 $xref['trailer']['id'] = array();
288 $xref['trailer']['id'][0] = $sarr[($k +1)][1][0][1];
289 $xref['trailer']['id'][1] = $sarr[($k +1)][1][1][1];
290 }
291 }
292 }
293 // decode data
294 if ($valid_crs AND isset($xrefcrs[1][3][0])) {
295 // number of bytes in a row
296 $rowlen = ($columns + 1);
297 // convert the stream into an array of integers
298 $sdata = unpack('C*', $xrefcrs[1][3][0]);
299 // split the rows
300 $sdata = array_chunk($sdata, $rowlen);
301 // initialize decoded array
302 $ddata = array();
303 // initialize first row with zeros
304 $prev_row = array_fill (0, $rowlen, 0);
305 // for each row apply PNG unpredictor
306 foreach ($sdata as $k => $row) {
307 // initialize new row
308 $ddata[$k] = array();
309 // get PNG predictor value
310 $predictor = (10 + $row[0]);
311 // for each byte on the row
312 for ($i=1; $i<=$columns; ++$i) {
313 // new index
314 $j = ($i - 1);
315 $row_up = $prev_row[$j];
316 if ($i == 1) {
317 $row_left = 0;
318 $row_upleft = 0;
319 } else {
320 $row_left = $row[($i - 1)];
321 $row_upleft = $prev_row[($j - 1)];
322 }
323 switch ($predictor) {
324 case 10: { // PNG prediction (on encoding, PNG None on all rows)
325 $ddata[$k][$j] = $row[$i];
326 break;
327 }
328 case 11: { // PNG prediction (on encoding, PNG Sub on all rows)
329 $ddata[$k][$j] = (($row[$i] + $row_left) & 0xff);
330 break;
331 }
332 case 12: { // PNG prediction (on encoding, PNG Up on all rows)
333 $ddata[$k][$j] = (($row[$i] + $row_up) & 0xff);
334 break;
335 }
336 case 13: { // PNG prediction (on encoding, PNG Average on all rows)
337 $ddata[$k][$j] = (($row[$i] + (($row_left + $row_up) / 2)) & 0xff);
338 break;
339 }
340 case 14: { // PNG prediction (on encoding, PNG Paeth on all rows)
341 // initial estimate
342 $p = ($row_left + $row_up - $row_upleft);
343 // distances
344 $pa = abs($p - $row_left);
345 $pb = abs($p - $row_up);
346 $pc = abs($p - $row_upleft);
347 $pmin = min($pa, $pb, $pc);
348 // return minumum distance
349 switch ($pmin) {
350 case $pa: {
351 $ddata[$k][$j] = (($row[$i] + $row_left) & 0xff);
352 break;
353 }
354 case $pb: {
355 $ddata[$k][$j] = (($row[$i] + $row_up) & 0xff);
356 break;
357 }
358 case $pc: {
359 $ddata[$k][$j] = (($row[$i] + $row_upleft) & 0xff);
360 break;
361 }
362 }
363 break;
364 }
365 default: { // PNG prediction (on encoding, PNG optimum)
366 $this->Error('Unknown PNG predictor');
367 break;
368 }
369 }
370 }
371 $prev_row = $ddata[$k];
372 } // end for each row
373 // complete decoding
374 $sdata = array();
375 // for every row
376 foreach ($ddata as $k => $row) {
377 // initialize new row
378 $sdata[$k] = array(0, 0, 0);
379 if ($wb[0] == 0) {
380 // default type field
381 $sdata[$k][0] = 1;
382 }
383 $i = 0; // count bytes on the row
384 // for every column
385 for ($c = 0; $c < 3; ++$c) {
386 // for every byte on the column
387 for ($b = 0; $b < $wb[$c]; ++$b) {
388 $sdata[$k][$c] += ($row[$i] << (($wb[$c] - 1 - $b) * 8));
389 ++$i;
390 }
391 }
392 }
393 $ddata = array();
394 // fill xref
395 if (isset($index_first)) {
396 $obj_num = $index_first;
397 } else {
398 $obj_num = 0;
399 }
400 foreach ($sdata as $k => $row) {
401 switch ($row[0]) {
402 case 0: { // (f) linked list of free objects
403 ++$obj_num;
404 break;
405 }
406 case 1: { // (n) objects that are in use but are not compressed
407 // create unique object index: [object number]_[generation number]
408 $index = $obj_num.'_'.$row[2];
409 // check if object already exist
410 if (!isset($xref['xref'][$index])) {
411 // store object offset position
412 $xref['xref'][$index] = $row[1];
413 }
414 ++$obj_num;
415 break;
416 }
417 case 2: { // compressed objects
418 // $row[1] = object number of the object stream in which this object is stored
419 // $row[2] = index of this object within the object stream
420 $index = $row[1].'_0_'.$row[2];
421 $xref['xref'][$index] = -1;
422 break;
423 }
424 default: { // null objects
425 break;
426 }
427 }
428 }
429 } // end decoding data
430 if (isset($prevxref)) {
431 // get previous xref
432 $xref = $this->getXrefData($prevxref, $xref);
433 }
434 return $xref;
435 }
$columns
if(! $in) $columns
Definition: Utf8Test.php:46
TCPDF_PARSER\getRawObject
getRawObject($offset=0)
Get object type, raw value and offset to next object.
Definition: tcpdf_parser.php:444

References $columns, $row, $xref, Error(), getIndirectObject(), getRawObject(), and getXrefData().

Referenced by getXrefData().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Error()

TCPDF_PARSER::Error (   $msg)

This method is automatically called in case of fatal error; it simply outputs the message and halts the execution.

Parameters
$msg(string) The error message
Since
1.0.000 (2011-05-23)

Definition at line 736 of file tcpdf_parser.php.

736 {
737 // exit program and print error
738 die('<strong>TCPDF_PARSER ERROR: </strong>'.$msg);
739 }

Referenced by __construct(), decodeXref(), decodeXrefStream(), getIndirectObject(), and getXrefData().

+ Here is the caller graph for this function:

◆ getIndirectObject()

TCPDF_PARSER::getIndirectObject (   $obj_ref,
  $offset = 0,
  $decoding = true
)
protected

Get content of indirect object.

Parameters
$obj_ref(string) Object number and generation number separated by underscore character.
$offset(int) Object offset.
$decoding(boolean) If true decode streams.
Returns
array containing object data.
Since
1.0.000 (2011-05-24)

Definition at line 621 of file tcpdf_parser.php.

621 {
622 $obj = explode('_', $obj_ref);
623 if (($obj === false) OR (count($obj) != 2)) {
624 $this->Error('Invalid object reference: '.$obj);
625 return;
626 }
627 $objref = $obj[0].' '.$obj[1].' obj';
628 if (strpos($this->pdfdata, $objref, $offset) != $offset) {
629 // an indirect reference to an undefined object shall be considered a reference to the null object
630 return array('null', 'null', $offset);
631 }
632 // starting position of object content
633 $offset += strlen($objref);
634 // get array of object content
635 $objdata = array();
636 $i = 0; // object main index
637 do {
638 // get element
639 $element = $this->getRawObject($offset);
640 $offset = $element[2];
641 // decode stream using stream's dictionary information
642 if ($decoding AND ($element[0] == 'stream') AND (isset($objdata[($i - 1)][0])) AND ($objdata[($i - 1)][0] == '<<')) {
643 $element[3] = $this->decodeStream($objdata[($i - 1)][1], substr($element[1], 1));
644 }
645 $objdata[$i] = $element;
646 ++$i;
647 } while ($element[0] != 'endobj');
648 // remove closing delimiter
649 array_pop($objdata);
650 // return raw object content
651 return $objdata;
652 }
TCPDF_PARSER\decodeStream
decodeStream($sdic, $stream)
Decode the specified stream.
Definition: tcpdf_parser.php:684

References decodeStream(), Error(), and getRawObject().

Referenced by __construct(), decodeXrefStream(), and getObjectVal().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getObjectVal()

TCPDF_PARSER::getObjectVal (   $obj)
protected

Get the content of object, resolving indect object reference if necessary.

Parameters
$obj(string) Object value.
Returns
array containing object data.
Since
1.0.000 (2011-06-26)

Definition at line 661 of file tcpdf_parser.php.

661 {
662 if ($obj[0] == 'objref') {
663 // reference to indirect object
664 if (isset($this->objects[$obj[1]])) {
665 // this object has been already parsed
666 return $this->objects[$obj[1]];
667 } elseif (isset($this->xref[$obj[1]])) {
668 // parse new object
669 $this->objects[$obj[1]] = $this->getIndirectObject($obj[1], $this->xref[$obj[1]], false);
670 return $this->objects[$obj[1]];
671 }
672 }
673 return $obj;
674 }

References getIndirectObject().

Referenced by decodeStream().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getParsedData()

TCPDF_PARSER::getParsedData ( )

Return an array of parsed PDF document objects.

Returns
(array) Array of parsed PDF document objects.
Since
1.0.000 (2011-06-26)

Definition at line 118 of file tcpdf_parser.php.

118 {
119 return array($this->xref, $this->objects);
120 }

◆ getRawObject()

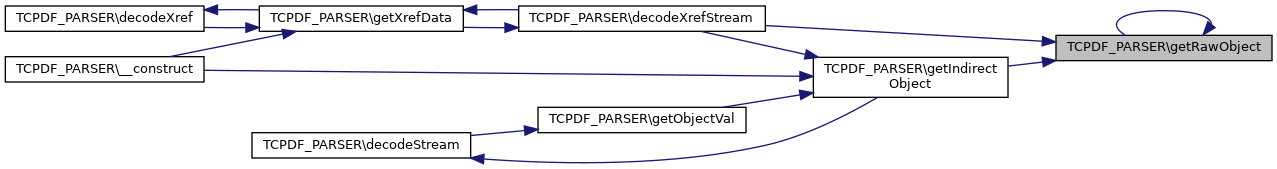

TCPDF_PARSER::getRawObject (   $offset = 0)
protected

Get object type, raw value and offset to next object.

Parameters
$offset(int) Object offset.
Returns
array containing object type, raw value and offset to next object
Since
1.0.000 (2011-06-20)

Definition at line 444 of file tcpdf_parser.php.

444 {
445 $objtype = ''; // object type to be returned
446 $objval = ''; // object value to be returned
447 // skip initial white space chars: \x00 null (NUL), \x09 horizontal tab (HT), \x0A line feed (LF), \x0C form feed (FF), \x0D carriage return (CR), \x20 space (SP)
448 $offset += strspn($this->pdfdata, "\x00\x09\x0a\x0c\x0d\x20", $offset);
449 // get first char
450 $char = $this->pdfdata{$offset};
451 // get object type
452 switch ($char) {
453 case '%': { // \x25 PERCENT SIGN
454 // skip comment and search for next token
455 $next = strcspn($this->pdfdata, "\r\n", $offset);
456 if ($next > 0) {
457 $offset += $next;
458 return $this->getRawObject($this->pdfdata, $offset);
459 }
460 break;
461 }
462 case '/': { // \x2F SOLIDUS
463 // name object
464 $objtype = $char;
465 ++$offset;
466 if (preg_match('/^([^\x00\x09\x0a\x0c\x0d\x20\s\x28\x29\x3c\x3e\x5b\x5d\x7b\x7d\x2f\x25]+)/', substr($this->pdfdata, $offset, 256), $matches) == 1) {
467 $objval = $matches[1]; // unescaped value
468 $offset += strlen($objval);
469 }
470 break;
471 }
472 case '(': // \x28 LEFT PARENTHESIS
473 case ')': { // \x29 RIGHT PARENTHESIS
474 // literal string object
475 $objtype = $char;
476 ++$offset;
477 $strpos = $offset;
478 if ($char == '(') {
479 $open_bracket = 1;
480 while ($open_bracket > 0) {
481 if (!isset($this->pdfdata{$strpos})) {
482 break;
483 }
484 $ch = $this->pdfdata{$strpos};
485 switch ($ch) {
486 case '\\': { // REVERSE SOLIDUS (5Ch) (Backslash)
487 // skip next character
488 ++$strpos;
489 break;
490 }
491 case '(': { // LEFT PARENHESIS (28h)
492 ++$open_bracket;
493 break;
494 }
495 case ')': { // RIGHT PARENTHESIS (29h)
496 --$open_bracket;
497 break;
498 }
499 }
500 ++$strpos;
501 }
502 $objval = substr($this->pdfdata, $offset, ($strpos - $offset - 1));
503 $offset = $strpos;
504 }
505 break;
506 }
507 case '[': // \x5B LEFT SQUARE BRACKET
508 case ']': { // \x5D RIGHT SQUARE BRACKET
509 // array object
510 $objtype = $char;
511 ++$offset;
512 if ($char == '[') {
513 // get array content
514 $objval = array();
515 do {
516 // get element
517 $element = $this->getRawObject($offset);
518 $offset = $element[2];
519 $objval[] = $element;
520 } while ($element[0] != ']');
521 // remove closing delimiter
522 array_pop($objval);
523 }
524 break;
525 }
526 case '<': // \x3C LESS-THAN SIGN
527 case '>': { // \x3E GREATER-THAN SIGN
528 if (isset($this->pdfdata{($offset + 1)}) AND ($this->pdfdata{($offset + 1)} == $char)) {
529 // dictionary object
530 $objtype = $char.$char;
531 $offset += 2;
532 if ($char == '<') {
533 // get array content
534 $objval = array();
535 do {
536 // get element
537 $element = $this->getRawObject($offset);
538 $offset = $element[2];
539 $objval[] = $element;
540 } while ($element[0] != '>>');
541 // remove closing delimiter
542 array_pop($objval);
543 }
544 } else {
545 // hexadecimal string object
546 $objtype = $char;
547 ++$offset;
548 if (($char == '<') AND (preg_match('/^([0-9A-Fa-f]+)[>]/iU', substr($this->pdfdata, $offset), $matches) == 1)) {
549 $objval = $matches[1];
550 $offset += strlen($matches[0]);
551 }
552 }
553 break;
554 }
555 default: {
556 if (substr($this->pdfdata, $offset, 6) == 'endobj') {
557 // indirect object
558 $objtype = 'endobj';
559 $offset += 6;
560 } elseif (substr($this->pdfdata, $offset, 4) == 'null') {
561 // null object
562 $objtype = 'null';
563 $offset += 4;
564 $objval = 'null';
565 } elseif (substr($this->pdfdata, $offset, 4) == 'true') {
566 // boolean true object
567 $objtype = 'boolean';
568 $offset += 4;
569 $objval = 'true';
570 } elseif (substr($this->pdfdata, $offset, 5) == 'false') {
571 // boolean false object
572 $objtype = 'boolean';
573 $offset += 5;
574 $objval = 'false';
575 } elseif (substr($this->pdfdata, $offset, 6) == 'stream') {
576 // start stream object
577 $objtype = 'stream';
578 $offset += 6;
579 if (preg_match('/^([\r\n]+)/isU', substr($this->pdfdata, $offset), $matches) == 1) {
580 $offset += strlen($matches[0]);
581 }
582 if (preg_match('/([\r\n]*endstream)/isU', substr($this->pdfdata, $offset), $matches, PREG_OFFSET_CAPTURE) == 1) {
583 $objval = substr($this->pdfdata, $offset, $matches[0][1]);
584 $offset += $matches[0][1];
585 }
586 } elseif (substr($this->pdfdata, $offset, 9) == 'endstream') {
587 // end stream object
588 $objtype = 'endstream';
589 $offset += 9;
590 } elseif (preg_match('/^([0-9]+)[\s]+([0-9]+)[\s]+R/iU', substr($this->pdfdata, $offset, 33), $matches) == 1) {
591 // indirect object reference
592 $objtype = 'ojbref';
593 $offset += strlen($matches[0]);
594 $objval = intval($matches[1]).'_'.intval($matches[2]);
595 } elseif (preg_match('/^([0-9]+)[\s]+([0-9]+)[\s]+obj/iU', substr($this->pdfdata, $offset, 33), $matches) == 1) {
596 // object start
597 $objtype = 'ojb';
598 $objval = intval($matches[1]).'_'.intval($matches[2]);
599 $offset += strlen ($matches[0]);
600 } elseif (($numlen = strspn($this->pdfdata, '+-.0123456789', $offset)) > 0) {
601 // numeric object
602 $objtype = 'numeric';
603 $objval = substr($this->pdfdata, $offset, $numlen);
604 $offset += $numlen;
605 }
606 break;
607 }
608 }
609 return array($objtype, $objval, $offset);
610 }

References getRawObject().

Referenced by decodeXrefStream(), getIndirectObject(), and getRawObject().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getXrefData()

TCPDF_PARSER::getXrefData (   $offset = 0,
  $xref = array()
)
protected

Get Cross-Reference (xref) table and trailer data from PDF document data.

Parameters
$offset(int) xref offset (if know).
$xref(array) previous xref array (if any).
Returns
Array containing xref and trailer data.
Since
1.0.000 (2011-05-24)

Definition at line 130 of file tcpdf_parser.php.

130 {
131 if ($offset == 0) {
132 // find last startxref
133 if (preg_match_all('/[\r\n]startxref[\s]*[\r\n]+([0-9]+)[\s]*[\r\n]+%%EOF/i', $this->pdfdata, $matches, PREG_SET_ORDER, $offset) == 0) {
134 $this->Error('Unable to find startxref');
135 }
136 $matches = array_pop($matches);
137 $startxref = $matches[1];
138 } else {
139 if (preg_match('/([0-9]+[\s][0-9]+[\s]obj)/i', $this->pdfdata, $matches, PREG_OFFSET_CAPTURE, $offset)) {
140 // Cross-Reference Stream object
141 $startxref = $offset;
142 } elseif (preg_match('/[\r\n]startxref[\s]*[\r\n]+([0-9]+)[\s]*[\r\n]+%%EOF/i', $this->pdfdata, $matches, PREG_OFFSET_CAPTURE, $offset)) {
143 // startxref found
144 $startxref = $matches[1][0];
145 } else {
146 $this->Error('Unable to find startxref');
147 }
148 }
149 // check xref position
150 if (strpos($this->pdfdata, 'xref', $startxref) == $startxref) {
151 // Cross-Reference
152 $xref = $this->decodeXref($startxref, $xref);
153 } else {
154 // Cross-Reference Stream
155 $xref = $this->decodeXrefStream($startxref, $xref);
156 }
157 if (empty($xref)) {
158 $this->Error('Unable to find xref');
159 }
160 return $xref;
161 }
TCPDF_PARSER\decodeXrefStream
decodeXrefStream($startxref, $xref=array())
Decode the Cross-Reference Stream section.
Definition: tcpdf_parser.php:240
TCPDF_PARSER\decodeXref
decodeXref($startxref, $xref=array())
Decode the Cross-Reference section.
Definition: tcpdf_parser.php:171

References $xref, decodeXref(), decodeXrefStream(), and Error().

Referenced by __construct(), decodeXref(), and decodeXrefStream().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $FilterDecoders

TCPDF_PARSER::$FilterDecoders
private

Class object for decoding filters.

Definition at line 78 of file tcpdf_parser.php.

◆ $objects

TCPDF_PARSER::$objects = array()
protected

Array of PDF objects.

Definition at line 72 of file tcpdf_parser.php.

◆ $pdfdata

TCPDF_PARSER::$pdfdata = ''
private

Raw content of the PDF document.

Definition at line 60 of file tcpdf_parser.php.

◆ $xref

TCPDF_PARSER::$xref = array()
protected

XREF data.

Definition at line 66 of file tcpdf_parser.php.

Referenced by decodeXref(), decodeXrefStream(), and getXrefData().

The documentation for this class was generated from the following file:
