Spreadsheet_Excel_Writer_BIFFwriter Class Reference

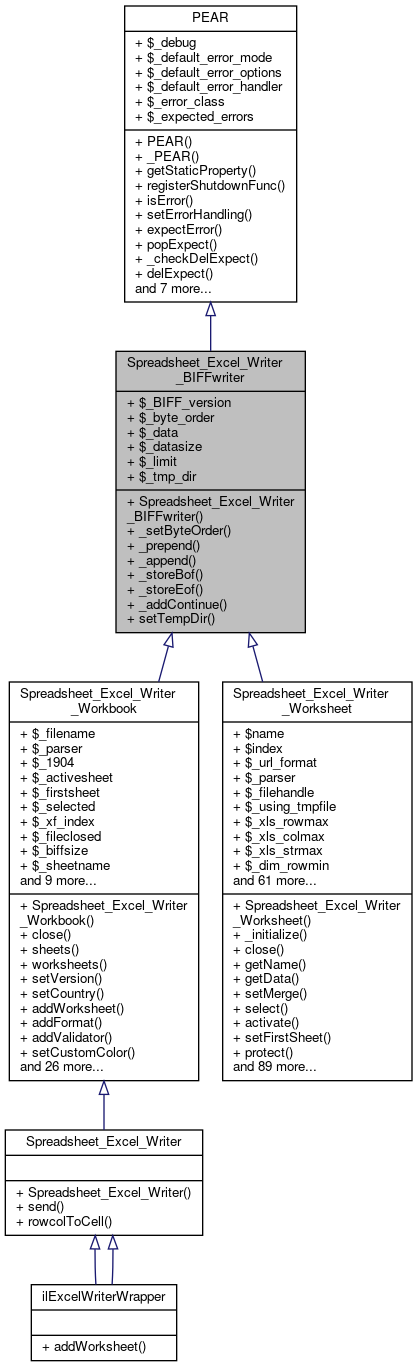

Inheritance diagram for Spreadsheet_Excel_Writer_BIFFwriter:

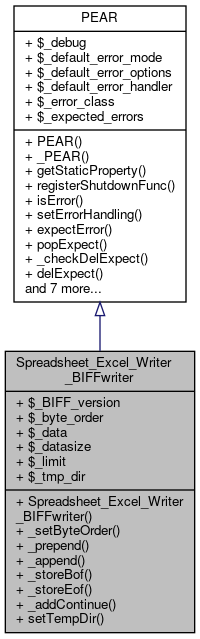

Collaboration diagram for Spreadsheet_Excel_Writer_BIFFwriter:

Public Member Functions
	Spreadsheet_Excel_Writer_BIFFwriter ()
	Constructor. More...
	_setByteOrder ()
	Determine the byte order and store it as class data to avoid recalculating it for each call to new(). More...
	_prepend ($data)
	General storage function. More...
	_append ($data)
	General storage function. More...
	_storeBof ($type)
	Writes Excel BOF record to indicate the beginning of a stream or sub-stream in the BIFF file. More...
	_storeEof ()
	Writes Excel EOF record to indicate the end of a BIFF stream. More...
	_addContinue ($data)
	Excel limits the size of BIFF records. More...
	setTempDir ($dir)
	Sets the temp dir used for storing the OLE file. More...
Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor. More...
	_PEAR ()
	Destructor (the emulated type of...). More...
&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...
	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes. More...
	isError ($data, $code=null)
	Tell whether a value is a PEAR error. More...
	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled. More...
	expectError ($code=' *')
	This method is used to tell which errors you expect to get. More...
	popExpect ()
	This method pops one element off the expected error codes stack. More...
	_checkDelExpect ($error_code)
	This method checks unsets an error code if available. More...
	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack. More...
&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...
&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options. More...
	staticPushErrorHandling ($mode, $options=null)
	staticPopErrorHandling ()
	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack. More...
	popErrorHandling ()
	Pop the last error handler used. More...
	loadExtension ($ext)
	OS independant PHP extension load. More...

Data Fields
	$_BIFF_version = 0x0500
	$_byte_order
	$_data
	$_datasize
	$_limit
	$_tmp_dir
Data Fields inherited from PEAR
	$_debug = false
	$_default_error_mode = null
	$_default_error_options = null
	$_default_error_handler = ''
	$_error_class = 'PEAR_Error'
	$_expected_errors = array()

Detailed Description

Definition at line 54 of file BIFFwriter.php.

Member Function Documentation

_addContinue()

Spreadsheet_Excel_Writer_BIFFwriter::_addContinue

(

$data

)

Excel limits the size of BIFF records.

In Excel 5 the limit is 2084 bytes. In Excel 97 the limit is 8228 bytes. Records that are longer than these limits must be split up into CONTINUE blocks.

This function takes a long BIFF record and inserts CONTINUE records as necessary.

Parameters

string

$data

The original binary data to be written

Returns

string A very convenient string of continue blocks @access private

Definition at line 219 of file BIFFwriter.php.

    {
        $limit  = $this->_limit;
        $record = 0x003C;         // Record identifier

        // The first 2080/8224 bytes remain intact. However, we have to change
        // the length field of the record.
        $tmp = substr($data, 0, 2).pack("v", $limit-4).substr($data, 4, $limit - 4);

        $header = pack("vv", $record, $limit);  // Headers for continue records

        // Retrieve chunks of 2080/8224 bytes +4 for the header.
        $data_length = strlen($data);
        for ($i = $limit; $i <  ($data_length - $limit); $i += $limit) {
            $tmp .= $header;
            $tmp .= substr($data, $i, $limit);
        }

        // Retrieve the last chunk of data
        $header  = pack("vv", $record, strlen($data) - $i);
        $tmp    .= $header;
        $tmp    .= substr($data, $i, strlen($data) - $i);

        return $tmp;
    }

References $_limit, and $data.

Referenced by _append(), Spreadsheet_Excel_Writer_Worksheet\_append(), and _prepend().

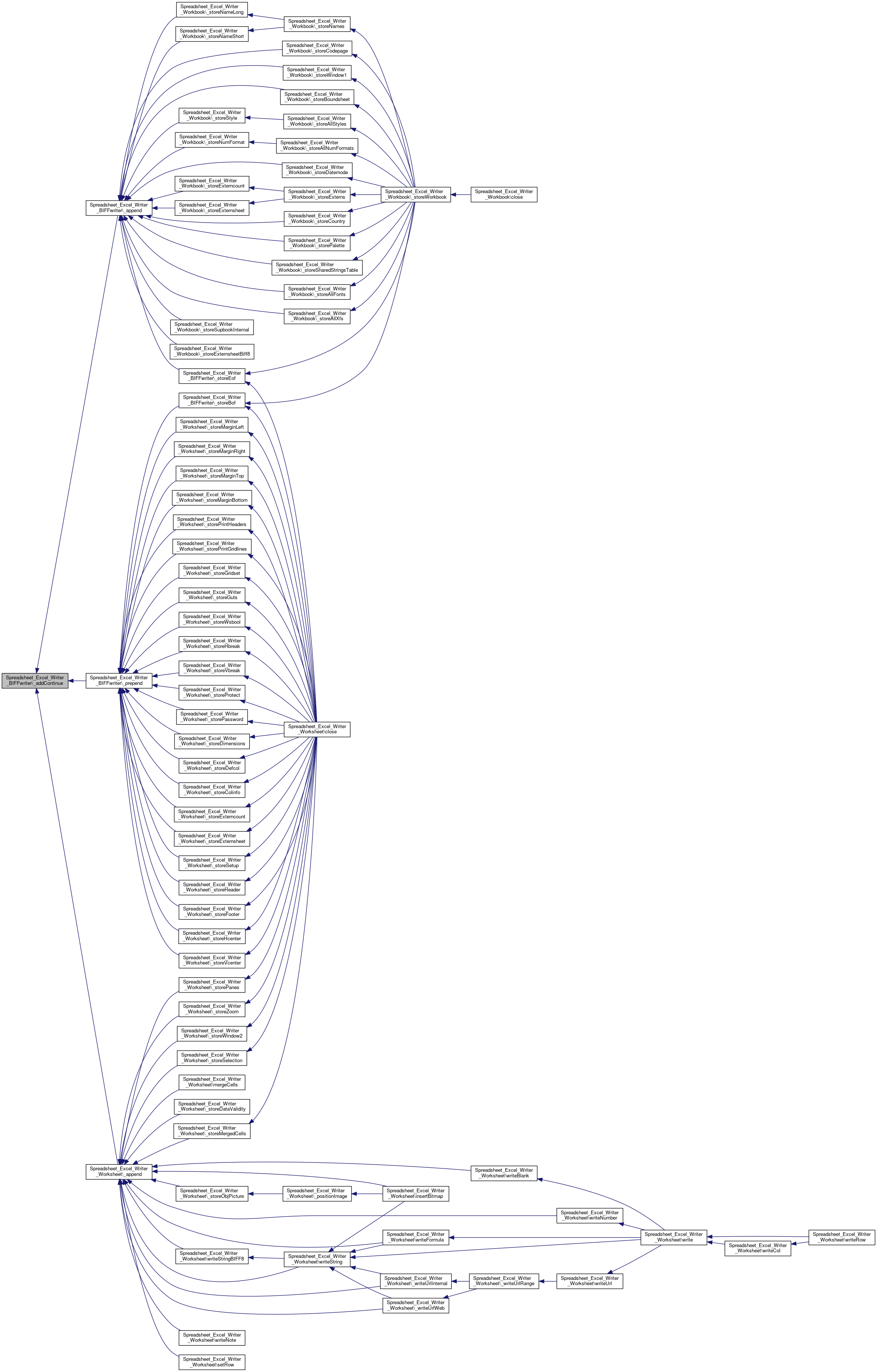

Here is the caller graph for this function:

_append()

Spreadsheet_Excel_Writer_BIFFwriter::_append

(

$data

)

General storage function.

Parameters

string

$data

binary data to append @access private

Reimplemented in Spreadsheet_Excel_Writer_Worksheet.

Definition at line 153 of file BIFFwriter.php.

    {
        if (strlen($data) > $this->_limit) {
            $data = $this->_addContinue($data);
        }
        $this->_data      = $this->_data.$data;
        $this->_datasize += strlen($data);
    }

References $data, and _addContinue().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeAllFonts(), Spreadsheet_Excel_Writer_Workbook\_storeAllXfs(), Spreadsheet_Excel_Writer_Workbook\_storeBoundsheet(), Spreadsheet_Excel_Writer_Workbook\_storeCodepage(), Spreadsheet_Excel_Writer_Workbook\_storeCountry(), Spreadsheet_Excel_Writer_Workbook\_storeDatemode(), _storeEof(), Spreadsheet_Excel_Writer_Workbook\_storeExterncount(), Spreadsheet_Excel_Writer_Workbook\_storeExternsheet(), Spreadsheet_Excel_Writer_Workbook\_storeExternsheetBiff8(), Spreadsheet_Excel_Writer_Workbook\_storeNameLong(), Spreadsheet_Excel_Writer_Workbook\_storeNameShort(), Spreadsheet_Excel_Writer_Workbook\_storeNumFormat(), Spreadsheet_Excel_Writer_Workbook\_storePalette(), Spreadsheet_Excel_Writer_Workbook\_storeSharedStringsTable(), Spreadsheet_Excel_Writer_Workbook\_storeStyle(), Spreadsheet_Excel_Writer_Workbook\_storeSupbookInternal(), and Spreadsheet_Excel_Writer_Workbook\_storeWindow1().

Here is the call graph for this function:

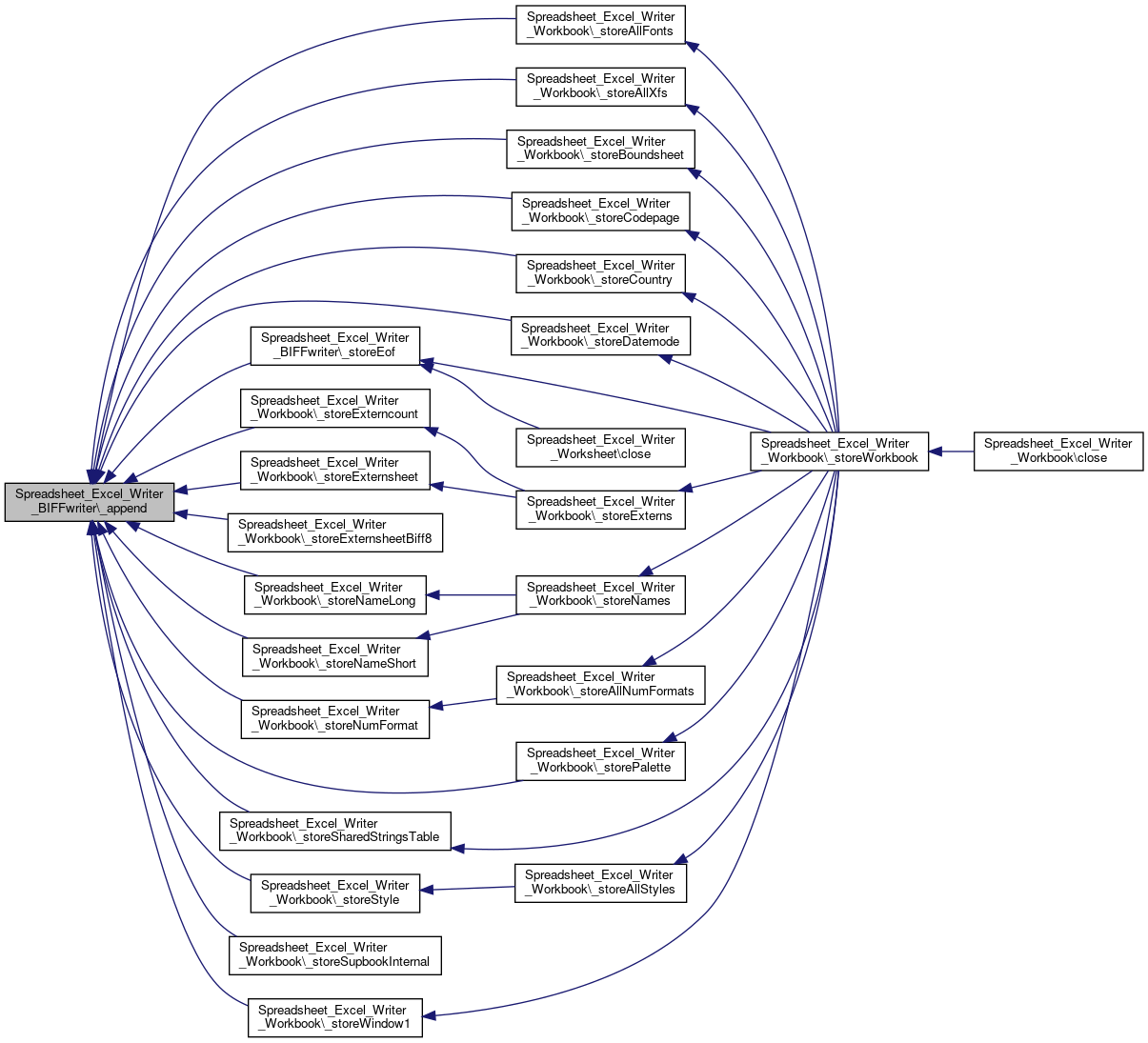

Here is the caller graph for this function:

_prepend()

Spreadsheet_Excel_Writer_BIFFwriter::_prepend

(

$data

)

General storage function.

Parameters

string

$data

binary data to prepend @access private

Definition at line 138 of file BIFFwriter.php.

    {
        if (strlen($data) > $this->_limit) {
            $data = $this->_addContinue($data);
        }
        $this->_data      = $data.$this->_data;
        $this->_datasize += strlen($data);
    }

References $data, and _addContinue().

Referenced by _storeBof().

Here is the call graph for this function:

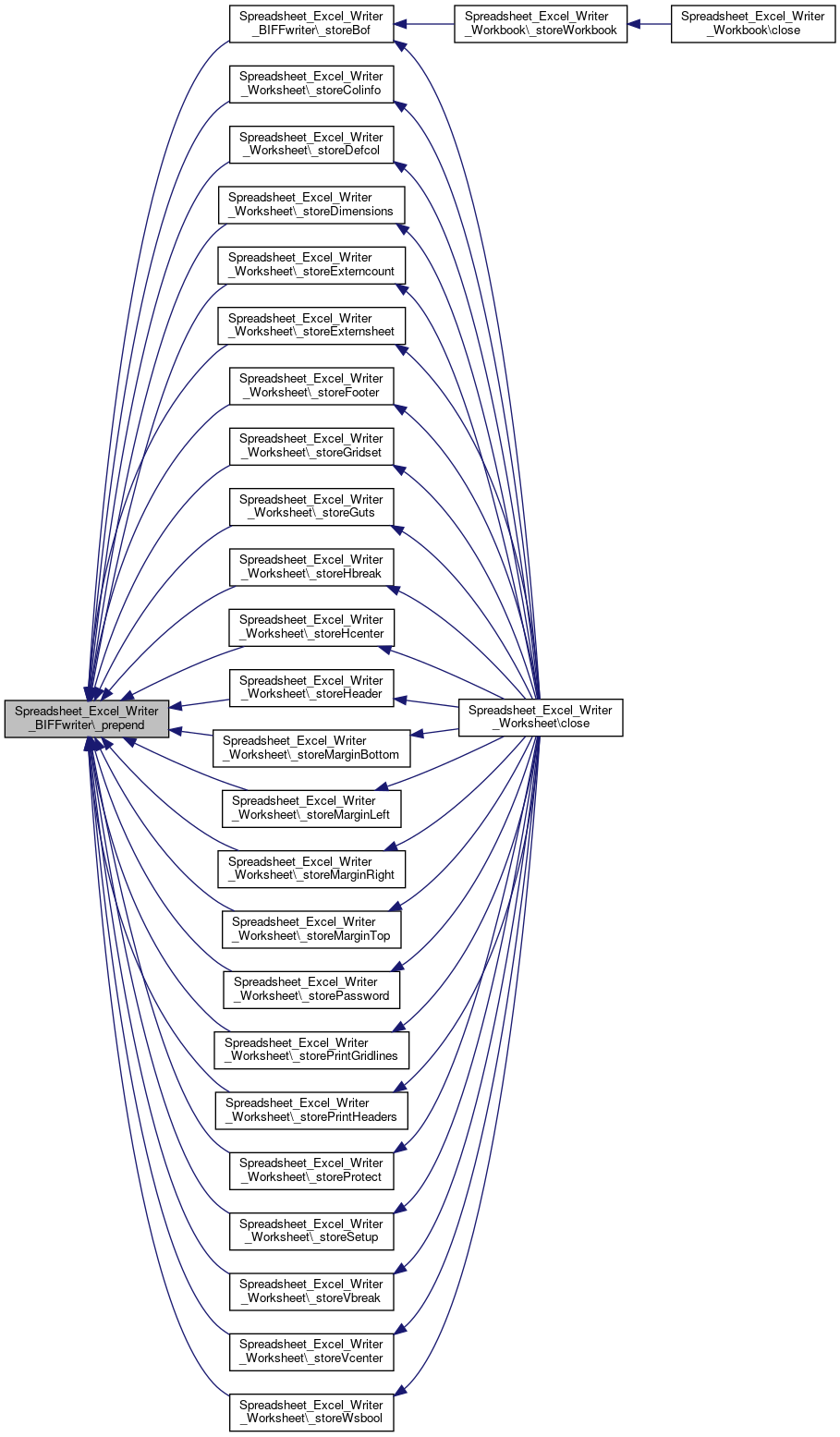

Here is the caller graph for this function:

_setByteOrder()

Spreadsheet_Excel_Writer_BIFFwriter::_setByteOrder

(

)

Determine the byte order and store it as class data to avoid recalculating it for each call to new().

@access private

Definition at line 115 of file BIFFwriter.php.

    {
        // Check if "pack" gives the required IEEE 64bit float
        $teststr = pack("d", 1.2345);
        $number  = pack("C8", 0x8D, 0x97, 0x6E, 0x12, 0x83, 0xC0, 0xF3, 0x3F);
        if ($number == $teststr) {
            $byte_order = 0;    // Little Endian
        } elseif ($number == strrev($teststr)){
            $byte_order = 1;    // Big Endian
        } else {
            // Give up. I'll fix this in a later version.
            return $this->raiseError("Required floating point format ".
                                     "not supported on this platform.");
        }
        $this->_byte_order = $byte_order;
    }

References PEAR\raiseError().

Referenced by Spreadsheet_Excel_Writer_BIFFwriter().

Here is the call graph for this function:

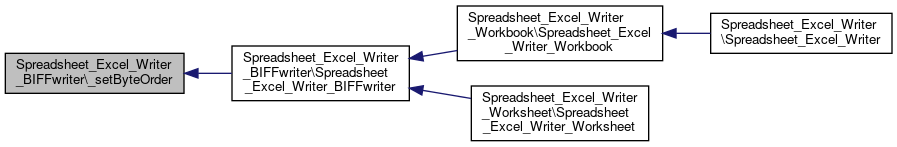

Here is the caller graph for this function:

_storeBof()

Spreadsheet_Excel_Writer_BIFFwriter::_storeBof

(

$type

)

Writes Excel BOF record to indicate the beginning of a stream or sub-stream in the BIFF file.

Parameters

integer

$type

Type of BIFF file to write: 0x0005 Workbook, 0x0010 Worksheet. @access private

Definition at line 170 of file BIFFwriter.php.

    {
        $record  = 0x0809;        // Record identifier

        // According to the SDK $build and $year should be set to zero.
        // However, this throws a warning in Excel 5. So, use magic numbers.
        if ($this->_BIFF_version == 0x0500) {
            $length  = 0x0008;
            $unknown = '';
            $build   = 0x096C;
            $year    = 0x07C9;
        } elseif ($this->_BIFF_version == 0x0600) {
            $length  = 0x0010;
            $unknown = pack("VV", 0x00000041, 0x00000006); //unknown last 8 bytes for BIFF8
            $build   = 0x0DBB;
            $year    = 0x07CC;
        }
        $version = $this->_BIFF_version;

        $header  = pack("vv",   $record, $length);
        $data    = pack("vvvv", $version, $type, $build, $year);
        $this->_prepend($header . $data . $unknown);
    }

References $_BIFF_version, $data, and _prepend().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeWorkbook(), and Spreadsheet_Excel_Writer_Worksheet\close().

Here is the call graph for this function:

Here is the caller graph for this function:

_storeEof()

Spreadsheet_Excel_Writer_BIFFwriter::_storeEof

(

)

Writes Excel EOF record to indicate the end of a BIFF stream.

@access private

Definition at line 199 of file BIFFwriter.php.

    {
        $record    = 0x000A;   // Record identifier
        $length    = 0x0000;   // Number of bytes to follow
        $header    = pack("vv", $record, $length);
        $this->_append($header);
    }

References _append().

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeWorkbook(), and Spreadsheet_Excel_Writer_Worksheet\close().

Here is the call graph for this function:

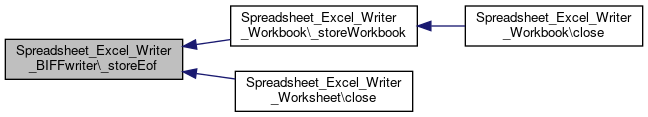

Here is the caller graph for this function:

setTempDir()

Spreadsheet_Excel_Writer_BIFFwriter::setTempDir

(

$dir

)

Sets the temp dir used for storing the OLE file.

@access public

Parameters

string

$dir

The dir to be used as temp dir

Returns

true if given dir is valid, false otherwise

Definition at line 252 of file BIFFwriter.php.

    {
        if (is_dir($dir)) {
            $this->_tmp_dir = $dir;
            return true;
        }
        return false;
    }

Spreadsheet_Excel_Writer_BIFFwriter()

Spreadsheet_Excel_Writer_BIFFwriter::Spreadsheet_Excel_Writer_BIFFwriter

(

)

Constructor.

@access public

Definition at line 98 of file BIFFwriter.php.

    {
        $this->_byte_order = '';
        $this->_data       = '';
        $this->_datasize   = 0;
        $this->_limit      = 2080;
        $this->_tmp_dir    = '';
        // Set the byte order
        $this->_setByteOrder();
    }

References _setByteOrder().

Referenced by Spreadsheet_Excel_Writer_Workbook\Spreadsheet_Excel_Writer_Workbook(), and Spreadsheet_Excel_Writer_Worksheet\Spreadsheet_Excel_Writer_Worksheet().

Here is the call graph for this function:

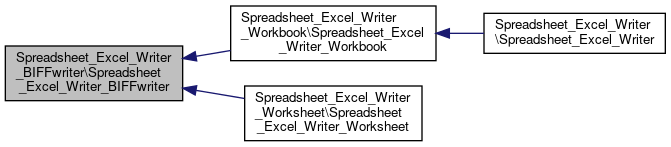

Here is the caller graph for this function:

Field Documentation

$_BIFF_version

Spreadsheet_Excel_Writer_BIFFwriter::$_BIFF_version = 0x0500

Definition at line 60 of file BIFFwriter.php.

Referenced by _storeBof().

$_byte_order

Spreadsheet_Excel_Writer_BIFFwriter::$_byte_order

Definition at line 66 of file BIFFwriter.php.

$_data

Spreadsheet_Excel_Writer_BIFFwriter::$_data

Definition at line 72 of file BIFFwriter.php.

Referenced by Spreadsheet_Excel_Writer_Worksheet\getData().

$_datasize

Spreadsheet_Excel_Writer_BIFFwriter::$_datasize

Definition at line 78 of file BIFFwriter.php.

Referenced by Spreadsheet_Excel_Writer_Workbook\_calcSheetOffsets().

$_limit

Spreadsheet_Excel_Writer_BIFFwriter::$_limit

Definition at line 85 of file BIFFwriter.php.

Referenced by _addContinue().

$_tmp_dir

Spreadsheet_Excel_Writer_BIFFwriter::$_tmp_dir

Definition at line 91 of file BIFFwriter.php.

---

The documentation for this class was generated from the following file:

• Services/PEAR/lib/Spreadsheet/Excel/Writer/BIFFwriter.php
