Collaboration diagram for ilMapArea:

Public Member Functions
	ilMapArea ($a_item_id=0, $a_nr=0)
	map area More...

	create ()
	create persistent map area object in db More...

	_getMaxNr ($a_item_id)
	get maximum nr of media item (static) More...

	read ()
	read map area data into object (item id and nr must be set) More...

	update ()
	update map area More...

	_resolveIntLinks ($a_item_id)
	resolve internal links of an item id More...

	_getIntLinks ($a_item_id)
	get all internal links of a media items map areas More...

	getAllHighlightModes ()
	Get all highlight modes. More...

	setHighlightMode ($a_val)
	Set highlight mode. More...

	getHighlightMode ()
	Get highlight mode. More...

	getAllHighlightClasses ()
	Get all highlight classes. More...

	setHighlightClass ($a_val)
	Set highlight class. More...

	getHighlightClass ()
	Get highlight class. More...

	setItemId ($a_item_id)
	set media item id More...

	getItemId ()
	get item id More...

	setNr ($a_nr)
	set area number More...

	getNr ()
	get area number More...

	setShape ($a_shape)
	set shape (IL_AREA_RECT, IL_AREA_CIRCLE, IL_AREA_POLY, IL_AREA_WHOLE_PICTURE) More...

	getShape ()
	get shape More...

	setCoords ($a_coords)
	set coords of area More...

	getCoords ()
	get coords More...

	setTitle ($a_title)
	set (tooltip)title of area More...

	appendTitle ($a_title_str)
	append string to (tooltip) title of area More...

	getTitle ()
	get (tooltip) title More...

	setLinkType ($a_link_type)
	set link type More...

	getLinkType ()
	get link type More...

	setHref ($a_href)
	set hyper reference (external link only) More...

	getHref ()
	get hyper reference url (external link only) More...

	setExtTitle ($a_title)
	set link text (external link only) More...

	getExtTitle ()
	get link text (external link only) More...

	setTarget ($a_target)
	set link target (internal link only) More...

	getTarget ($a_insert_inst=false)
	get link target (internal link only) More...

	setType ($a_type)
	set link type (internal link only) More...

	getType ()
	get link type (internal link only) More...

	setTargetFrame ($a_target_frame)
	set link target frame (internal link only) More...

	getTargetFrame ()
	get link target frame (internal link only) More...

	draw (&$a_image, $a_col1, $a_col2, $a_close_poly=true, $a_x_ratio=1, $a_y_ratio=1)
	draw image to More...

	drawLine (&$im, $x1, $y1, $x2, $y2, $c1, $c2)
	draws an outlined two color line in an image More...

	drawRect (&$im, $coords, $c1, $c2, $a_x_ratio=1, $a_y_ratio=1)
	draws an outlined two color rectangle More...

	drawPoly (&$im, $coords, $c1, $c2, $closed, $a_x_ratio=1, $a_y_ratio=1)
	draws an outlined two color polygon More...

	drawCircle (&$im, $coords, $c1, $c2, $a_x_ratio=1, $a_y_ratio=1)
	draws an outlined two colored circle More...

	countCoords ($c)
	count the number of coordinates (x,y) in a coordinate string (format: "x1,y1,x2,y2,x3,y3,...") More...

Static Public Member Functions
static	_getMobsForTarget ($a_type, $a_target)
	Get areas for a certain target. More...

Data Fields
const	HL_NONE = ""

const	HL_HOVER = "Hover"

const	HL_ALWAYS = "Always"

const	HLCL_ACCENTED = ""

const	HLCL_LIGHT = "Light"

const	HLCL_DARK = "Dark"

	$item_id

	$nr

	$shape

	$coords

	$title

	$linktype

	$xl_title

	$xl_href

	$il_target

	$il_type

	$il_target_frame

Detailed Description

Class ilMapArea.

Map Area of an Image Map, subobject of Media Item

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Version: $Id$

Definition at line 36 of file class.ilMapArea.php.

Member Function Documentation

◆ _getIntLinks()

ilMapArea::_getIntLinks ( $a_item_id )

get all internal links of a media items map areas

Parameters

int $a_item_id media item id

Definition at line 207 of file class.ilMapArea.php.

References $ilDB, and IL_INT_LINK.

Referenced by ilMediaItem\_getMapAreasIntLinks(), and ilObjMediaObject\getLinkedMediaObjects().

         {
                 global $ilDB;

                 $q = "SELECT * FROM map_area WHERE item_id = ".
                         $ilDB->quote($a_item_id, "integer");
                 $area_set = $ilDB->query($q);

                 $links = array();

                 while ($area_rec = $ilDB->fetchAssoc($area_set))
                 {
                         $target = $area_rec["target"];
                         $type = $area_rec["type"];
                         $targetframe = $area_rec["target_frame"];

                         if (($area_rec["link_type"] == IL_INT_LINK) && (is_int(strpos($target, "__"))))
                         {
                                 $links[$target.":".$type.":".$targetframe] =
                                         array("Target" => $target, "Type" => $type,
                                                 "TargetFrame" => $targetframe);
                         }
                 }
                 return $links;
         }

Here is the caller graph for this function:

◆ _getMaxNr()

ilMapArea::_getMaxNr ( $a_item_id )

get maximum nr of media item (static)

Parameters

int $a_item_id item id

Returns: int maximum nr

Definition at line 107 of file class.ilMapArea.php.

References $ilDB.

Referenced by ilMediaItem\_getMediaItemsOfMOb(), ilImageMapEditorGUI\deleteAreas(), ilImageMapTableGUI\getItems(), ilMediaItem\read(), ilImageMapEditorGUI\saveArea(), and ilImageMapEditorGUI\updateAreas().

         {
                 global $ilDB;

                 $q = "SELECT max(nr) AS max_nr FROM map_area WHERE item_id = ".
                         $ilDB->quote($a_item_id, "integer");
                 $max_set = $ilDB->query($q);
                 $max_rec = $ilDB->fetchAssoc($max_set);

                 return $max_rec["max_nr"];
         }

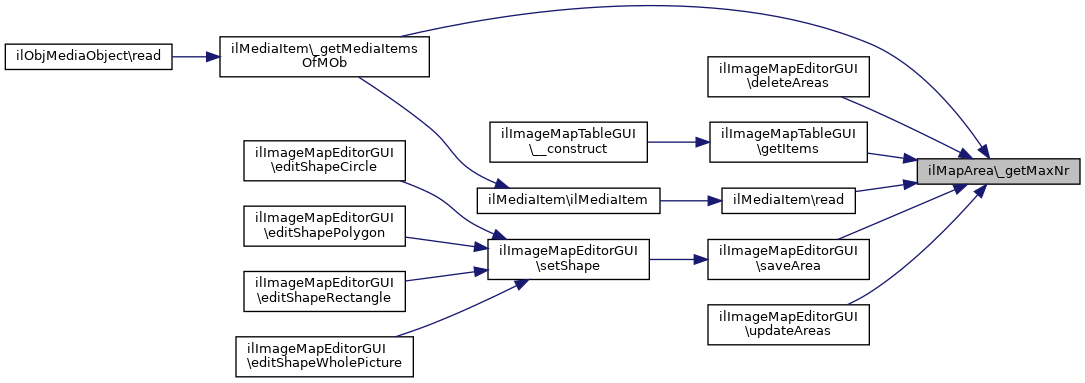

Here is the caller graph for this function:

◆ _getMobsForTarget()

static ilMapArea::_getMobsForTarget	(	$a_type,
		$a_target
	)

static

Get areas for a certain target.

Definition at line 236 of file class.ilMapArea.php.

References $ilDB, $mobs, and ilMediaItem\_lookupMobId().

Referenced by ilLMObject\updateInternalLinks().

         {
                 global $ilDB;

                 $q = "SELECT * FROM map_area WHERE ".
                         " link_type = ".$ilDB->quote($a_type, "text").
                         " AND target = ".$ilDB->quote($a_target, "text");
                 $set = $ilDB->query($q);

                 $mobs = array();
                 while($rec = $ilDB->fetchAssoc($set))
                 {
                         $mob_id = ilMediaItem::_lookupMobId($rec["item_id"]);
                         $mobs[$mob_id] = $mob_id;
                 }

                 return $mobs;
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _resolveIntLinks()

ilMapArea::_resolveIntLinks ( $a_item_id )

resolve internal links of an item id

Definition at line 172 of file class.ilMapArea.php.

References $ilDB, $query, ilInternalLink\_getIdForImportId(), and IL_INT_LINK.

Referenced by ilMediaItem\_resolveMapAreaLinks().

         {
                 global $ilDB;

 //echo "maparea::resolve<br>";
                 $q = "SELECT * FROM map_area WHERE item_id = ".
                         $ilDB->quote($a_item_id, "integer");
                 $area_set = $ilDB->query($q);
                 while ($area_rec = $ilDB->fetchAssoc($area_set))
                 {
                         $target = $area_rec["target"];
                         $type = $area_rec["type"];
                         $item_id = $area_rec["item_id"];
                         $nr = $area_rec["nr"];

                         if (($area_rec["link_type"] == IL_INT_LINK) && (!is_int(strpos($target, "__"))))
                         {
                                 $new_target = ilInternalLink::_getIdForImportId($type, $target);
                                 if ($new_target !== false)
                                 {
                                         $query = "UPDATE map_area SET ".
                                                 "target = ".$ilDB->quote($new_target, "text")." ".
                                                 "WHERE item_id = ".$ilDB->quote($item_id, "integer").
                                                 " AND nr = ".$ilDB->quote($nr, "integer");
                                         $ilDB->manipulate($query);
                                 }
                         }
                 }
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ appendTitle()

ilMapArea::appendTitle ( $a_title_str )

append string to (tooltip) title of area

Parameters

string $a_title_str title string

Definition at line 426 of file class.ilMapArea.php.

         {
                 $this->title.= $a_title_str;
         }

◆ countCoords()

ilMapArea::countCoords ( $c )

count the number of coordinates (x,y) in a coordinate string (format: "x1,y1,x2,y2,x3,y3,...")

Parameters

string $c coordinate string

Definition at line 706 of file class.ilMapArea.php.

Referenced by ilImageMapEditorGUI\addArea(), drawPoly(), ilImageMapEditorGUI\editMapArea(), and ilImageMapEditorGUI\setShape().

         {
                 if ($c == "")
                 {
                         return 0;
                 }
                 else
                 {
                         $coord_array = explode(",", $c);
                         return (count($coord_array) / 2);
                 }
         }

Here is the caller graph for this function:

◆ create()

ilMapArea::create ( )

create persistent map area object in db

Definition at line 78 of file class.ilMapArea.php.

References $ilDB, getCoords(), getHighlightClass(), getHighlightMode(), getHref(), getItemId(), getLinkType(), getNr(), getShape(), getTarget(), getTargetFrame(), getTitle(), and getType().

         {
                 global $ilDB;

                 $q = "INSERT INTO map_area (item_id, nr, shape, ".
                         "coords, link_type, title, href, target, type, highlight_mode, highlight_class, target_frame) ".
                         " VALUES (".
                         $ilDB->quote($this->getItemId(), "integer").",".
                         $ilDB->quote($this->getNr(), "integer").",".
                         $ilDB->quote($this->getShape(), "text").",".
                         $ilDB->quote($this->getCoords(), "text").",".
                         $ilDB->quote($this->getLinkType(), "text").",".
                         $ilDB->quote($this->getTitle(), "text").",".
                         $ilDB->quote($this->getHref(), "text").",".
                         $ilDB->quote($this->getTarget(), "text").",".
                         $ilDB->quote($this->getType(), "text").",".
                         $ilDB->quote($this->getHighlightMode(), "text").",".
                         $ilDB->quote($this->getHighlightClass(), "text").",".
                         $ilDB->quote($this->getTargetFrame(), "text").")";
                 $ilDB->manipulate($q);
         }

Here is the call graph for this function:

◆ draw()

ilMapArea::draw	(	&	$a_image,
			$a_col1,
			$a_col2,
			$a_close_poly = `true`,
			$a_x_ratio = `1`,
			$a_y_ratio = `1`
	)

draw image to

Parameters

boolean $a_close_poly close polygon

Definition at line 576 of file class.ilMapArea.php.

References drawCircle(), drawPoly(), drawRect(), getCoords(), and getShape().

         {
                 switch ($this->getShape())
                 {
                         case "Rect" :
                                 $this->drawRect($a_image, $this->getCoords(), $a_col1, $a_col2,
                                         $a_x_ratio, $a_y_ratio);
                                 break;

                         case "Circle" :
                                 $this->drawCircle($a_image, $this->getCoords(), $a_col1, $a_col2,
                                         $a_x_ratio, $a_y_ratio);
                                 break;

                         case "Poly" :
                                 $this->drawPoly($a_image, $this->getCoords(), $a_col1, $a_col2, $a_close_poly,
                                         $a_x_ratio, $a_y_ratio);
                                 break;
                 }
         }

Here is the call graph for this function:

◆ drawCircle()

ilMapArea::drawCircle	(	&	$im,
			$coords,
			$c1,
			$c2,
			$a_x_ratio = `1`,
			$a_y_ratio = `1`
	)

draws an outlined two colored circle

Parameters

int	$im	image identifier as returned by ImageCreateFromGIF()
string	$coords	coordinate string, format : "x,y,r" with (x,y) as center point and r as radius
int	$c1	color identifier 1
int	$c3	color identifier 2

Definition at line 690 of file class.ilMapArea.php.

Referenced by draw().

         {
                 $c = explode(",", $coords);
                 imagearc($im, $c[0] / $a_x_ratio, $c[1] / $a_y_ratio,
                         ($c[2]+1)*2 / $a_x_ratio, ($c[2]+1)*2 / $a_y_ratio, 1, 360, $c1);
                 imagearc($im, $c[0] / $a_x_ratio, $c[1] / $a_y_ratio,
                         ($c[2]-1)*2 / $a_x_ratio, ($c[2]-1)*2 / $a_y_ratio, 1, 360, $c1);
                 imagearc($im, $c[0] / $a_x_ratio, $c[1] / $a_y_ratio,
                         $c[2]*2 / $a_x_ratio, $c[2]*2 / $a_y_ratio, 1, 360, $c2);
         }

Here is the caller graph for this function:

◆ drawLine()

ilMapArea::drawLine	(	&	$im,
			$x1,
			$y1,
			$x2,
			$y2,
			$c1,
			$c2
	)

draws an outlined two color line in an image

Parameters

int	$im	image identifier as returned by ImageCreateFromGIF() etc.
int	$x1	x-coordinate of starting point
int	$y1	y-coordinate of starting point
int	$x2	x-coordinate of ending point
int	$y2	y-coordinate of ending point
int	$c1	color identifier 1
int	$c2	color identifier 2

Definition at line 609 of file class.ilMapArea.php.

Referenced by drawPoly(), and drawRect().

         {
                 imageline($im, $x1+1, $y1, $x2+1, $y2, $c1);
                 imageline($im, $x1-1, $y1, $x2-1, $y2, $c1);
                 imageline($im, $x1, $y1+1, $x2, $y2+1, $c1);
                 imageline($im, $x1, $y1-1, $x2, $y2-1, $c1);
                 imageline($im, $x1, $y1, $x2, $y2, $c2);
         }

Here is the caller graph for this function:

◆ drawPoly()

ilMapArea::drawPoly	(	&	$im,
			$coords,
			$c1,
			$c2,
			$closed,
			$a_x_ratio = `1`,
			$a_y_ratio = `1`
	)

draws an outlined two color polygon

Parameters

int	$im	image identifier as returned by ImageCreateFromGIF() etc.
string	$coords	coordinate string, format : "x1,y1,x2,y2,..." with every (x,y) pair is an ending point of a line of the polygon
int	$c1	color identifier 1
int	$c3	color identifier 2
boolean	$closed	true: the first and the last point will be connected with a line

Definition at line 652 of file class.ilMapArea.php.

References countCoords(), and drawLine().

Referenced by draw().

         {
                 if ($closed)
                 {
                         $p = 0;
                 }
                 else
                 {
                         $p = 1;
                 }

                 $anz = ilMapArea::countCoords($coords);

                 if ($anz < (3 - $p))
                 {
                         return;
                 }

                 $c = explode(",", $coords);

                 for($i=0; $i<$anz-$p; $i++)
                 {
                         $this->drawLine($im, $c[$i*2] / $a_x_ratio, $c[$i*2+1] / $a_y_ratio,
                                 $c[($i*2+2)%(2*$anz)] / $a_x_ratio,
                                 $c[($i*2+3)%(2*$anz)] / $a_y_ratio, $c1, $c2);
                 }
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawRect()

ilMapArea::drawRect	(	&	$im,
			$coords,
			$c1,
			$c2,
			$a_x_ratio = `1`,
			$a_y_ratio = `1`
	)

draws an outlined two color rectangle

Parameters

int	$im	image identifier as returned by ImageCreateFromGIF() etc.
string	$coords	coordinate string, format : "x1,y1,x2,y2" with (x1,y1) is top left and (x2,y2) is bottom right point of the rectangle
int	$c1	color identifier 1
int	$c2	color identifier 2

Definition at line 627 of file class.ilMapArea.php.

References drawLine().

Referenced by draw().

         {
                 $coord=explode(",", $coords);

                 $this->drawLine($im, $coord[0] / $a_x_ratio, $coord[1] / $a_y_ratio,
                         $coord[0] / $a_x_ratio, $coord[3] / $a_y_ratio, $c1, $c2);
                 $this->drawLine($im, $coord[0] / $a_x_ratio, $coord[3] / $a_y_ratio,
                         $coord[2] / $a_x_ratio, $coord[3] / $a_y_ratio, $c1, $c2);
                 $this->drawLine($im, $coord[2] / $a_x_ratio, $coord[3] / $a_y_ratio,
                         $coord[2] / $a_x_ratio, $coord[1] / $a_y_ratio, $c1, $c2);
                 $this->drawLine($im, $coord[2] / $a_x_ratio, $coord[1] / $a_y_ratio,
                         $coord[0] / $a_x_ratio, $coord[1] / $a_y_ratio, $c1, $c2);
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getAllHighlightClasses()

ilMapArea::getAllHighlightClasses ( )

Get all highlight classes.

Parameters

Definition at line 300 of file class.ilMapArea.php.

References $lng.

Referenced by ilImageMapTableGUI\__construct().

         {
                 global $lng;

                 return array(
                         self::HLCL_ACCENTED => $lng->txt("cont_accented"),
                         self::HLCL_LIGHT => $lng->txt("cont_light"),
                         self::HLCL_DARK => $lng->txt("cont_dark"),
                 );
         }

Here is the caller graph for this function:

◆ getAllHighlightModes()

ilMapArea::getAllHighlightModes ( )

Get all highlight modes.

Parameters

Definition at line 261 of file class.ilMapArea.php.

References $lng.

Referenced by ilImageMapTableGUI\__construct().

         {
                 global $lng;

                 return array(
                         self::HL_NONE => $lng->txt("cont_none"),
                         self::HL_HOVER => $lng->txt("cont_hover"),
                         self::HL_ALWAYS => $lng->txt("cont_always")
                         );

         }

Here is the caller graph for this function:

◆ getCoords()

ilMapArea::getCoords ( )

get coords

Returns: string coords (comma separated integers)

Definition at line 406 of file class.ilMapArea.php.

References $coords.

Referenced by create(), draw(), and update().

         {
                 return $this->coords;
         }

Here is the caller graph for this function:

◆ getExtTitle()

ilMapArea::getExtTitle ( )

get link text (external link only)

Returns: string link text

Definition at line 496 of file class.ilMapArea.php.

References $xl_title.

         {
                 return $this->xl_title;
         }

◆ getHighlightClass()

ilMapArea::getHighlightClass ( )

Get highlight class.

Returns: string highlight class

Definition at line 326 of file class.ilMapArea.php.

Referenced by create(), and update().

         {
                 return $this->highlight_class;
         }

Here is the caller graph for this function:

◆ getHighlightMode()

ilMapArea::getHighlightMode ( )

Get highlight mode.

Returns: string highlight mode

Definition at line 289 of file class.ilMapArea.php.

Referenced by create(), and update().

         {
                 return $this->highlight_mode;
         }

Here is the caller graph for this function:

◆ getHref()

ilMapArea::getHref ( )

get hyper reference url (external link only)

Parameters

string hyper ref url

Definition at line 476 of file class.ilMapArea.php.

References $xl_href.

Referenced by create(), and update().

         {
                 return $this->xl_href;
         }

Here is the caller graph for this function:

◆ getItemId()

ilMapArea::getItemId ( )

get item id

Returns: int media item id

Definition at line 346 of file class.ilMapArea.php.

References $item_id.

Referenced by create(), read(), and update().

         {
                 return $this->item_id;
         }

Here is the caller graph for this function:

◆ getLinkType()

ilMapArea::getLinkType ( )

get link type

Returns: int link type (IL_INT_LINK, IL_EXT_LINK)

Definition at line 456 of file class.ilMapArea.php.

References $linktype.

Referenced by create(), and update().

         {
                 return $this->linktype;
         }

Here is the caller graph for this function:

◆ getNr()

ilMapArea::getNr ( )

get area number

Returns: int number (of area within parent media object)

Definition at line 366 of file class.ilMapArea.php.

References $nr.

Referenced by create(), read(), and update().

         {
                 return $this->nr;
         }

Here is the caller graph for this function:

◆ getShape()

ilMapArea::getShape ( )

get shape

Returns: string (IL_AREA_RECT, IL_AREA_CIRCLE, IL_AREA_POLY, IL_AREA_WHOLE_PICTURE)

Definition at line 386 of file class.ilMapArea.php.

References $shape.

Referenced by create(), draw(), and update().

         {
                 return $this->shape;
         }

Here is the caller graph for this function:

◆ getTarget()

ilMapArea::getTarget ( $a_insert_inst = false )

get link target (internal link only)

Returns: string link target

Definition at line 516 of file class.ilMapArea.php.

References $il_target.

Referenced by create(), and update().

         {
                 $target = $this->il_target;

                 if ((substr($target, 0, 4) == "il__") && $a_insert_inst)
                 {
                         $target = "il_".IL_INST_ID."_".substr($target, 4, strlen($target) - 4);
                 }

                 return $target;
         }

Here is the caller graph for this function:

◆ getTargetFrame()

ilMapArea::getTargetFrame ( )

get link target frame (internal link only)

Returns: string link target frame target frame (IL_TF_MEDIA | IL_TF_FAQ | IL_TF_GLOSSARY | IL_TF_NEW)

Definition at line 566 of file class.ilMapArea.php.

References $il_target_frame.

Referenced by create(), and update().

         {
                 return $this->il_target_frame;
         }

Here is the caller graph for this function:

◆ getTitle()

ilMapArea::getTitle ( )

get (tooltip) title

Returns: string title

Definition at line 436 of file class.ilMapArea.php.

References $title.

Referenced by create(), and update().

         {
                 return $this->title;
         }

Here is the caller graph for this function:

◆ getType()

ilMapArea::getType ( )

get link type (internal link only)

Returns: string (IL_LT_STRUCTURE | IL_LT_PAGE | IL_LT_MEDIA | IL_LT_GLITEM)

Definition at line 544 of file class.ilMapArea.php.

References $il_type.

Referenced by create(), and update().

         {
                 return $this->il_type;
         }

Here is the caller graph for this function:

◆ ilMapArea()

ilMapArea::ilMapArea	(	$a_item_id = `0`,
		$a_nr = `0`
	)

map area

Parameters

int	$a_item_id	parent media item id
int	$a_nr	map area number within media item

Definition at line 64 of file class.ilMapArea.php.

References read(), setItemId(), and setNr().

         {
                 $this->title = "";
                 if ($a_item_id !=0 && $a_nr != 0)
                 {
                         $this->setItemId($a_item_id);
                         $this->setNr($a_nr);
                         $this->read();
                 }
         }

Here is the call graph for this function:

◆ read()

ilMapArea::read ( )

read map area data into object (item id and nr must be set)

Definition at line 122 of file class.ilMapArea.php.

References $ilDB, getItemId(), getNr(), setCoords(), setHighlightClass(), setHighlightMode(), setHref(), setLinkType(), setNr(), setShape(), setTarget(), setTargetFrame(), setTitle(), and setType().

Referenced by ilMapArea().

         {
                 global $ilDB;

                 $q = "SELECT * FROM map_area WHERE item_id = ".
                         $ilDB->quote($this->getItemId(), "integer").
                         " AND nr = ".$ilDB->quote($this->getNr(), "integer");
                 $area_set = $ilDB->query($q);
                 $area_rec = $ilDB->fetchAssoc($area_set);

                 $this->setShape($area_rec["shape"]);
 //echo $area_rec["Shape"];
                 $this->setNr($area_rec["nr"]);
                 $this->setCoords($area_rec["coords"]);
                 $this->setLinkType($area_rec["link_type"]);
                 $this->setTitle($area_rec["title"]);
                 $this->setHref($area_rec["href"]);
                 $this->setTarget($area_rec["target"]);
                 $this->setType($area_rec["type"]);
                 $this->setTargetFrame($area_rec["target_frame"]);
                 $this->setHighlightMode($area_rec["highlight_mode"]);
                 $this->setHighlightClass($area_rec["highlight_class"]);

         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCoords()

ilMapArea::setCoords ( $a_coords )

set coords of area

Parameters

string $a_coords coords (comma separated integers)

Definition at line 396 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->coords = $a_coords;
         }

Here is the caller graph for this function:

◆ setExtTitle()

ilMapArea::setExtTitle ( $a_title )

set link text (external link only)

Parameters

string $a_title link text

Definition at line 486 of file class.ilMapArea.php.

         {
                 $this->xl_title = $a_title;
         }

◆ setHighlightClass()

ilMapArea::setHighlightClass ( $a_val )

Set highlight class.

Parameters

string $a_val highlight class

Definition at line 316 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->highlight_class = $a_val;
         }

Here is the caller graph for this function:

◆ setHighlightMode()

ilMapArea::setHighlightMode ( $a_val )

Set highlight mode.

Parameters

string $a_val highlight mode

Definition at line 279 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->highlight_mode = $a_val;
         }

Here is the caller graph for this function:

◆ setHref()

ilMapArea::setHref ( $a_href )

set hyper reference (external link only)

Parameters

string $a_href hyper ref url

Definition at line 466 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->xl_href = $a_href;
         }

Here is the caller graph for this function:

◆ setItemId()

ilMapArea::setItemId ( $a_item_id )

set media item id

Parameters

int $a_item_id media item id

Definition at line 336 of file class.ilMapArea.php.

Referenced by ilMapArea().

         {
                 $this->item_id = $a_item_id;
         }

Here is the caller graph for this function:

◆ setLinkType()

ilMapArea::setLinkType ( $a_link_type )

set link type

Parameters

string $a_linktype link type (IL_INT_LINK, IL_EXT_LINK)

Definition at line 446 of file class.ilMapArea.php.

Referenced by read(), and ilImageMapEditorGUI\saveArea().

         {
                 $this->linktype = $a_link_type;
         }

Here is the caller graph for this function:

◆ setNr()

ilMapArea::setNr ( $a_nr )

set area number

Parameters

int $a_nr number (of area within parent media object)

Definition at line 356 of file class.ilMapArea.php.

Referenced by ilMapArea(), and read().

         {
                 $this->nr = $a_nr;
         }

Here is the caller graph for this function:

◆ setShape()

ilMapArea::setShape ( $a_shape )

set shape (IL_AREA_RECT, IL_AREA_CIRCLE, IL_AREA_POLY, IL_AREA_WHOLE_PICTURE)

Parameters

string $a_shape shape of map area

Definition at line 376 of file class.ilMapArea.php.

Referenced by read(), and ilImageMapEditorGUI\saveArea().

         {
                 $this->shape = $a_shape;
         }

Here is the caller graph for this function:

◆ setTarget()

ilMapArea::setTarget ( $a_target )

set link target (internal link only)

Parameters

string $a_target link target (e.g. "il__pg_23")

Definition at line 506 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->il_target = $a_target;
         }

Here is the caller graph for this function:

◆ setTargetFrame()

ilMapArea::setTargetFrame ( $a_target_frame )

set link target frame (internal link only)

Parameters

string $a_target_frame target frame (IL_TF_MEDIA | IL_TF_FAQ | IL_TF_GLOSSARY | IL_TF_NEW)

Definition at line 555 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->il_target_frame = $a_target_frame;
         }

Here is the caller graph for this function:

◆ setTitle()

ilMapArea::setTitle ( $a_title )

set (tooltip)title of area

Parameters

string $a_title title

Definition at line 416 of file class.ilMapArea.php.

Referenced by read(), and ilImageMapEditorGUI\updateAreas().

         {
                 $this->title = $a_title;
         }

Here is the caller graph for this function:

◆ setType()

ilMapArea::setType ( $a_type )

set link type (internal link only)

Parameters

string $a_type link type (IL_LT_STRUCTURE | IL_LT_PAGE | IL_LT_MEDIA | IL_LT_GLITEM)

Definition at line 534 of file class.ilMapArea.php.

Referenced by read().

         {
                 $this->il_type = $a_type;
         }

Here is the caller graph for this function:

◆ update()

ilMapArea::update ( )

update map area

Definition at line 150 of file class.ilMapArea.php.

References $ilDB, getCoords(), getHighlightClass(), getHighlightMode(), getHref(), getItemId(), getLinkType(), getNr(), getShape(), getTarget(), getTargetFrame(), getTitle(), and getType().

         {
                 global $ilDB;

                 $q = "UPDATE map_area SET shape = ".$ilDB->quote($this->getShape(), "text").
                         ", coords = ".$ilDB->quote($this->getCoords(), "text").
                         ", link_type = ".$ilDB->quote($this->getLinkType(), "text").
                         ", title = ".$ilDB->quote($this->getTitle(), "text").
                         ", href = ".$ilDB->quote($this->getHref(), "text").
                         ", target = ".$ilDB->quote($this->getTarget(), "text").
                         ", type = ".$ilDB->quote($this->getType(), "text").
                         ", highlight_mode = ".$ilDB->quote($this->getHighlightMode(), "text").
                         ", highlight_class = ".$ilDB->quote($this->getHighlightClass(), "text").
                         ", target_frame = ".$ilDB->quote($this->getTargetFrame(), "text").
                         " WHERE item_id = ".$ilDB->quote($this->getItemId(), "integer").
                         " AND nr = ".$ilDB->quote($this->getNr(), "integer");
                 $ilDB->manipulate($q);
         }

Here is the call graph for this function:

Field Documentation

◆ $coords

ilMapArea::$coords

Definition at line 48 of file class.ilMapArea.php.

Referenced by getCoords().

◆ $il_target

ilMapArea::$il_target

Definition at line 53 of file class.ilMapArea.php.

Referenced by getTarget().

◆ $il_target_frame

ilMapArea::$il_target_frame

Definition at line 55 of file class.ilMapArea.php.

Referenced by getTargetFrame().

◆ $il_type

ilMapArea::$il_type

Definition at line 54 of file class.ilMapArea.php.

Referenced by getType().

◆ $item_id

ilMapArea::$item_id

Definition at line 45 of file class.ilMapArea.php.

Referenced by getItemId().

◆ $linktype

ilMapArea::$linktype

Definition at line 50 of file class.ilMapArea.php.

Referenced by getLinkType().

◆ $nr

ilMapArea::$nr

Definition at line 46 of file class.ilMapArea.php.

Referenced by getNr().

◆ $shape

ilMapArea::$shape

Definition at line 47 of file class.ilMapArea.php.

Referenced by getShape().

◆ $title

ilMapArea::$title

Definition at line 49 of file class.ilMapArea.php.

Referenced by getTitle().

◆ $xl_href

ilMapArea::$xl_href

Definition at line 52 of file class.ilMapArea.php.

Referenced by getHref().

◆ $xl_title

ilMapArea::$xl_title

Definition at line 51 of file class.ilMapArea.php.

Referenced by getExtTitle().

◆ HL_ALWAYS

const ilMapArea::HL_ALWAYS = "Always"

Definition at line 40 of file class.ilMapArea.php.

◆ HL_HOVER

const ilMapArea::HL_HOVER = "Hover"

Definition at line 39 of file class.ilMapArea.php.

◆ HL_NONE

const ilMapArea::HL_NONE = ""

Definition at line 38 of file class.ilMapArea.php.

◆ HLCL_ACCENTED

const ilMapArea::HLCL_ACCENTED = ""

Definition at line 41 of file class.ilMapArea.php.

◆ HLCL_DARK

const ilMapArea::HLCL_DARK = "Dark"

Definition at line 43 of file class.ilMapArea.php.

◆ HLCL_LIGHT

const ilMapArea::HLCL_LIGHT = "Light"

Definition at line 42 of file class.ilMapArea.php.

The documentation for this class was generated from the following file:

Services/MediaObjects/classes/class.ilMapArea.php

Public Member Functions

Static Public Member Functions

Data Fields

Detailed Description

Member Function Documentation

◆ _getIntLinks()

◆ _getMaxNr()

◆ _getMobsForTarget()

◆ _resolveIntLinks()

◆ appendTitle()

◆ countCoords()

◆ create()

◆ draw()

◆ drawCircle()

◆ drawLine()

◆ drawPoly()

◆ drawRect()

◆ getAllHighlightClasses()

◆ getAllHighlightModes()

◆ getCoords()

◆ getExtTitle()

◆ getHighlightClass()

◆ getHighlightMode()

◆ getHref()

◆ getItemId()

◆ getLinkType()

◆ getNr()

◆ getShape()

◆ getTarget()

◆ getTargetFrame()

◆ getTitle()

◆ getType()

◆ ilMapArea()

◆ read()

◆ setCoords()

◆ setExtTitle()

◆ setHighlightClass()

◆ setHighlightMode()

◆ setHref()

◆ setItemId()

◆ setLinkType()

◆ setNr()

◆ setShape()

◆ setTarget()

◆ setTargetFrame()

◆ setTitle()

◆ setType()

◆ update()

Field Documentation

◆ $coords

◆ $il_target

◆ $il_target_frame

◆ $il_type

◆ $item_id

◆ $linktype

◆ $nr

◆ $shape

◆ $title

◆ $xl_href

◆ $xl_title

◆ HL_ALWAYS

◆ HL_HOVER

◆ HL_NONE

◆ HLCL_ACCENTED

◆ HLCL_DARK

◆ HLCL_LIGHT
