XML writer class. More...

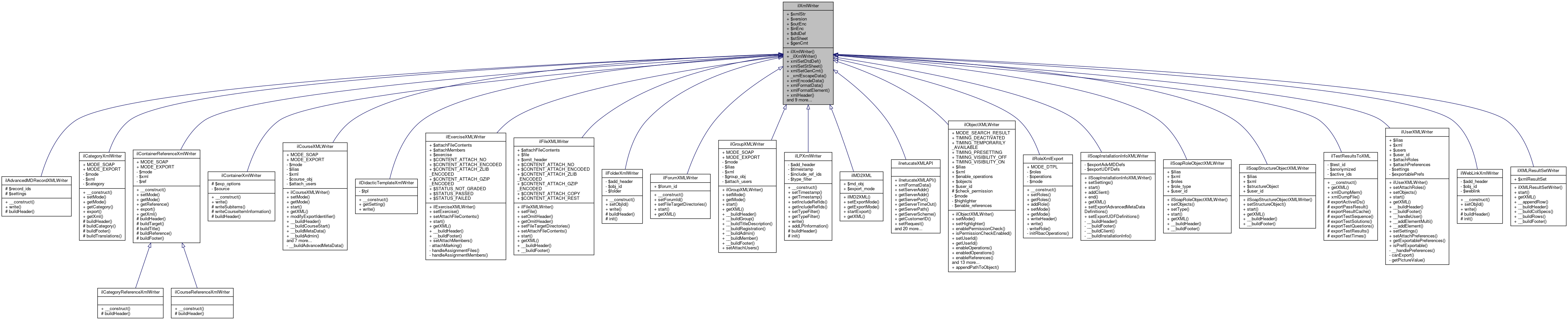

Inheritance diagram for ilXmlWriter:

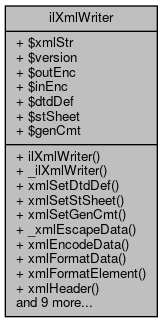

Collaboration diagram for ilXmlWriter:

Public Member Functions
	ilXmlWriter ($version="1.0", $outEnc="utf-8", $inEnc="utf-8")
	constructor More...

	_ilXmlWriter ()
	destructor @access public More...

	xmlSetDtdDef ($dtdDef)
	Sets dtd definition. More...

	xmlSetStSheet ($stSheet)
	Sets stylesheet. More...

	xmlSetGenCmt ($genCmt)
	Sets generated comment. More...

	_xmlEscapeData ($data)
	Escapes reserved characters. More...

	xmlEncodeData ($data)
	Encodes text from input encoding into output encoding. More...

	xmlFormatData ($data)
	Indents text for better reading. More...

	xmlFormatElement ($array)
	Callback function for xmlFormatData; do not invoke directly. More...

	xmlHeader ()
	Writes xml header @access public. More...

	xmlStartTag ($tag, $attrs=NULL, $empty=FALSE, $encode=TRUE, $escape=TRUE)
	Writes a starttag. More...

	xmlEndTag ($tag)
	Writes an endtag. More...

	xmlComment ($comment)
	Writes a comment. More...

	xmlData ($data, $encode=TRUE, $escape=TRUE)
	Writes data. More...

	xmlElement ($tag, $attrs=NULL, $data=Null, $encode=TRUE, $escape=TRUE)
	Writes a basic element (no children, just textual content) More...

	xmlDumpFile ($file, $format=TRUE)
	Dumps xml document from memory into a file. More...

	xmlDumpMem ($format=TRUE)
	Returns xml document from memory. More...

	appendXML ($a_str)
	append xml string to document More...

	xmlClear ()
	clears xmlStr @access public More...

Data Fields
	$xmlStr

	$version

	$outEnc

	$inEnc

	$dtdDef = ""

	$stSheet = ""

	$genCmt = "Generated by ILIAS XmlWriter"

Detailed Description

XML writer class.

Class to simplify manual writing of xml documents. It only supports writing xml sequentially, because the xml document is saved in a string with no additional structure information. The author is responsible for well-formedness and validity of the xml document.

Author: Matthias Rulinski matth.nosp@m.ias..nosp@m.rulin.nosp@m.ski@.nosp@m.mi.un.nosp@m.i-ko.nosp@m.eln.d.nosp@m.e

Version: $Id$

Definition at line 17 of file class.ilXmlWriter.php.

Member Function Documentation

◆ _ilXmlWriter()

ilXmlWriter::_ilXmlWriter ( )

destructor @access public

Definition at line 90 of file class.ilXmlWriter.php.

        {
                // terminate xml string
                unset($this->xmlStr);
        }

◆ _xmlEscapeData()

ilXmlWriter::_xmlEscapeData ( $data )

Escapes reserved characters.

Parameters

string input text

Returns: string escaped text @access static

Definition at line 132 of file class.ilXmlWriter.php.

        {
                $position = 0;
                $length = strlen($data);
                $escapedData = "";

                for(; $position < $length;)
                {
                        $character = substr($data, $position, 1);
                        $code = Ord($character);

                        switch($code)
                        {
                                case 34:
                                        $character = "&quot;";
                                        break;

                                case 38:
                                        $character = "&amp;";
                                        break;

                                case 39:
                                        $character = "&apos;";
                                        break;

                                case 60:
                                        $character = "&lt;";
                                        break;

                                case 62:
                                        $character = "&gt;";
                                        break;

                                default:
                                        if ($code < 32)
                                        {
                                                $character = ("&#".strval($code).";");
                                        }
                                        break;
                        }

                        $escapedData .= $character;
                        $position ++;
                }
                return $escapedData;
        }

References $data.

Referenced by xmlData(), and xmlStartTag().

Here is the caller graph for this function:

◆ appendXML()

ilXmlWriter::appendXML ( $a_str )

append xml string to document

Definition at line 505 of file class.ilXmlWriter.php.

        {
                $this->xmlStr .= $a_str;
        }

Referenced by ilCourseXMLWriter\__buildMetaData(), ilObjLinkResource\toXML(), ilDidacticTemplateLocalPolicyAction\toXml(), and ilDidacticTemplateLocalRoleAction\toXml().

Here is the caller graph for this function:

◆ ilXmlWriter()

ilXmlWriter::ilXmlWriter	(	$version = `"1.0"`,
		$outEnc = `"utf-8"`,
		$inEnc = `"utf-8"`
	)

constructor

Parameters

string	xml version
string	output encoding
string	input encoding @access public

Definition at line 75 of file class.ilXmlWriter.php.

        {
                // initialize xml string
                $this->xmlStr = "";

                // set properties
                $this->version = $version;
                $this->outEnc = $outEnc;
                $this->inEnc = $inEnc;
        }

References $inEnc, $outEnc, and $version.

◆ xmlClear()

ilXmlWriter::xmlClear ( )

clears xmlStr @access public

Definition at line 514 of file class.ilXmlWriter.php.

        {
                // reset xml string
                $this->xmlStr = "";
        }

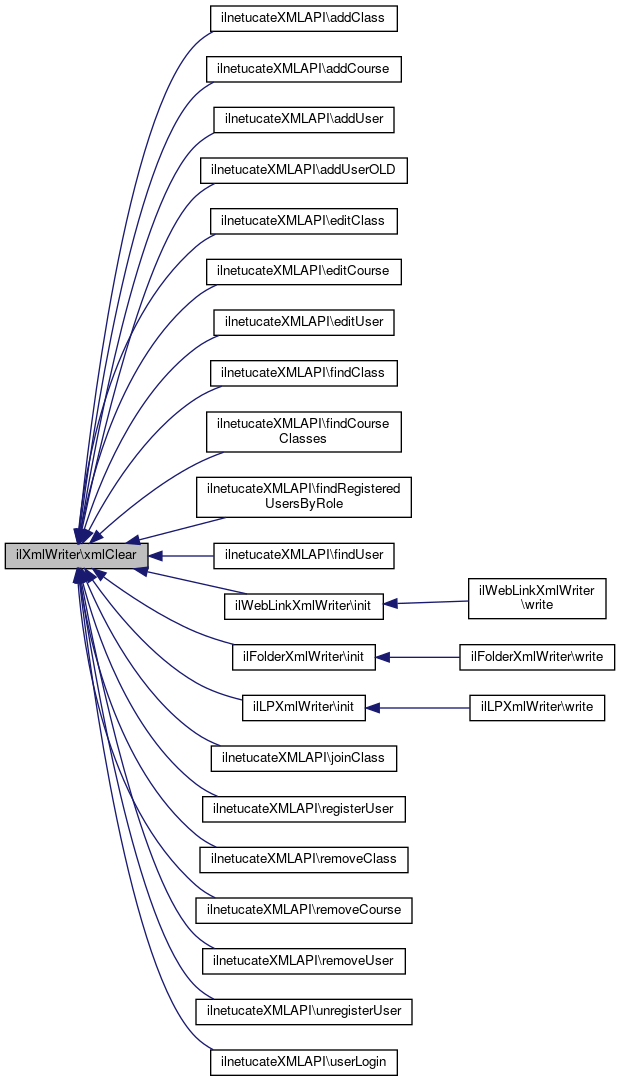

Here is the caller graph for this function:

◆ xmlComment()

ilXmlWriter::xmlComment ( $comment )

Writes a comment.

Parameters

string comment @access public

Definition at line 385 of file class.ilXmlWriter.php.

        {
                $this->xmlStr .= "<!--".$comment."-->";
        }

Referenced by xmlHeader().

Here is the caller graph for this function:

◆ xmlData()

ilXmlWriter::xmlData	(	$data,
		$encode = `TRUE`,
		$escape = `TRUE`
	)

Writes data.

Parameters

string	data
string	ecode data (TRUE) or not (FALSE)
string	escape data (TRUE) or not (FALSE) @access public

Definition at line 397 of file class.ilXmlWriter.php.

        {
                // encode
                if ($encode)
                {
                    $data = $this->xmlEncodeData($data);
                }

                // escape
                if ($escape)
                {
                        $data = ilXmlWriter::_xmlEscapeData($data);
            }

                $this->xmlStr .= $data;
        }

References $data, _xmlEscapeData(), and xmlEncodeData().

Referenced by ilContainer\_exportContainerSettings(), and xmlElement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xmlDumpFile()

ilXmlWriter::xmlDumpFile	(	$file,
		$format = `TRUE`
	)

Dumps xml document from memory into a file.

Parameters

string	file name (full path)
boolean	indent text (TRUE) or not (FALSE) @access public

Reimplemented in ilTestResultsToXML.

Definition at line 452 of file class.ilXmlWriter.php.

        {
                // open file
                if (!($fp = @fopen($file,"w+")))
                {
                        die ("<b>Error</b>: Could not open \"".$file."\" for writing".
                                        " in <b>".__FILE__."</b> on line <b>".__LINE__."</b><br />");
                }

                // set file permissions
                chmod($file, 0770);

                // format xml data
                if ($format)
                {
                        $xmlStr = $this->xmlFormatData($this->xmlStr);
                }
                else
                {
                        $xmlStr = $this->xmlStr;
                }

                // write xml data into the file
                fwrite($fp, $xmlStr);

                // close file
                fclose($fp);
        }

References $file, $xmlStr, and xmlFormatData().

Here is the call graph for this function:

◆ xmlDumpMem()

ilXmlWriter::xmlDumpMem ( $format = TRUE )

Returns xml document from memory.

Parameters

boolean indent text (TRUE) or not (FALSE)

Returns: string xml document @access public

Reimplemented in ilTestResultsToXML.

Definition at line 487 of file class.ilXmlWriter.php.

        {
                // format xml data
                if ($format)
                {
                        $xmlStr = $this->xmlFormatData($this->xmlStr);
                }
                else
                {
                        $xmlStr = $this->xmlStr;
                }

                return $xmlStr;
        }

References $xmlStr, and xmlFormatData().

Referenced by ilCategoryXmlWriter\getXml(), ilCourseXMLWriter\getXML(), ilExerciseXMLWriter\getXML(), ilFileXMLWriter\getXML(), ilForumXMLWriter\getXML(), ilGroupXMLWriter\getXML(), ilContainerReferenceXmlWriter\getXml(), ilMD2XML\getXML(), ilUserXMLWriter\getXML(), ilObjectXMLWriter\getXML(), ilSoapInstallationInfoXMLWriter\getXML(), ilSoapRoleObjectXMLWriter\getXML(), ilSoapStructureObjectXMLWriter\getXML(), ilXMLResultSetWriter\getXML(), and ilnetucateXMLAPI\sendRequest().

Here is the call graph for this function:

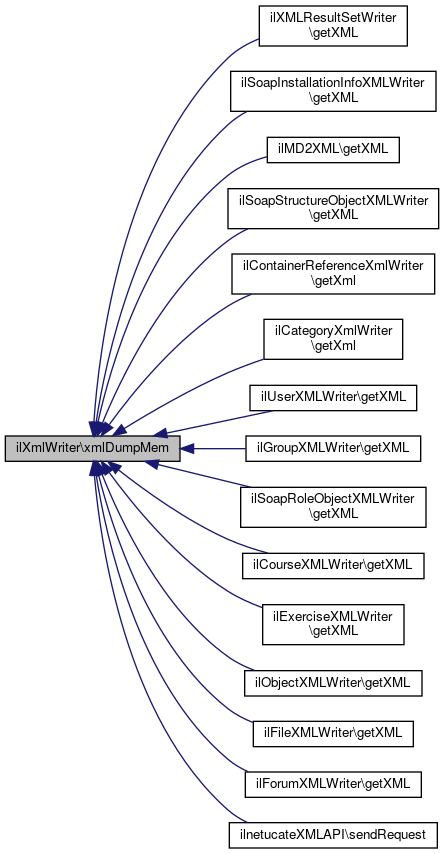

Here is the caller graph for this function:

◆ xmlElement()

ilXmlWriter::xmlElement	(	$tag,
		$attrs = `NULL`,
		$data = `Null`,
		$encode = `TRUE`,
		$escape = `TRUE`
	)

Writes a basic element (no children, just textual content)

Parameters

string	tag name
array	attributes (name => value)
string	data
boolean	ecode attributes' values and data (TRUE) or not (FALSE)
boolean	escape attributes' values and data (TRUE) or not (FALSE) @access public

Definition at line 423 of file class.ilXmlWriter.php.

        {
                // check for existing data (element's content)
                if (is_string($data) or
                        is_integer($data) or
                        is_float($data))
                {
                        // write starttag
                        $this->xmlStartTag($tag, $attrs, FALSE, $encode, $escape);

                        // write text
                        $this->xmlData($data, $encode, $escape);

                        // write endtag
                        $this->xmlEndTag($tag);
                }
                else // no data
                {
                        // write starttag (= empty tag)
                        $this->xmlStartTag($tag, $attrs, TRUE, $encode, $escape);
                }
        }

References $data, xmlData(), xmlEndTag(), and xmlStartTag().

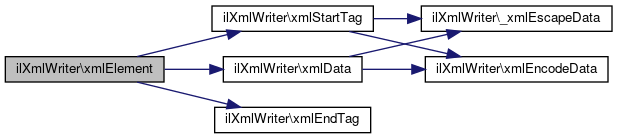

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xmlEncodeData()

ilXmlWriter::xmlEncodeData ( $data )

Encodes text from input encoding into output encoding.

Parameters

string input text

Returns: string encoded text @access private

Definition at line 185 of file class.ilXmlWriter.php.

        {
                if ($this->inEnc == $this->outEnc)
                {
                        $encodedData = $data;
                }
                else
                {
                        switch(strtolower($this->outEnc))
                        {
                                case "utf-8":
                                        if(strtolower($this->inEnc) == "iso-8859-1")
                                        {
                                                $encodedData = utf8_encode($data);
                                        }
                                        else
                                        {
                                                die ("<b>Error</b>: Cannot encode iso-8859-1 data in ".$this->outEnc.
                                                                " in <b>".__FILE__."</b> on line <b>".__LINE__."</b><br />");
                                        }
                                        break;

                                case "iso-8859-1":
                                        if(strtolower($this->inEnc) == "utf-8")
                                        {
                                                $encodedData = utf8_decode($data);
                                        }
                                        else
                                        {
                                                die ("<b>Error</b>: Cannot encode utf-8 data in ".$this->outEnc.
                                                                " in <b>".__FILE__."</b> on line <b>".__LINE__."</b><br />");
                                        }
                                        break;

                                default:
                                        die ("<b>Error</b>: Cannot encode ".$this->inEnc." data in ".$this->outEnc.
                                                        " in <b>".__FILE__."</b> on line <b>".__LINE__."</b><br />");
                        }
                }
                return $encodedData;
        }

References $data.

Referenced by xmlData(), and xmlStartTag().

Here is the caller graph for this function:

◆ xmlEndTag()

ilXmlWriter::xmlEndTag ( $tag )

Writes an endtag.

Parameters

string tag name @access public

Definition at line 375 of file class.ilXmlWriter.php.

        {
                $this->xmlStr .= "</".$tag.">";
        }

Here is the caller graph for this function:

◆ xmlFormatData()

ilXmlWriter::xmlFormatData ( $data )

Indents text for better reading.

Parameters

string input text

Returns: string indented text @access private

Reimplemented in ilnetucateXMLAPI.

Definition at line 233 of file class.ilXmlWriter.php.

        {
                // regular expression for tags
                $formatedXml = preg_replace_callback("|<[^>]*>[^<]*|", array($this, "xmlFormatElement"), $data);

                return $formatedXml;
        }

References $data.

Referenced by xmlDumpFile(), and xmlDumpMem().

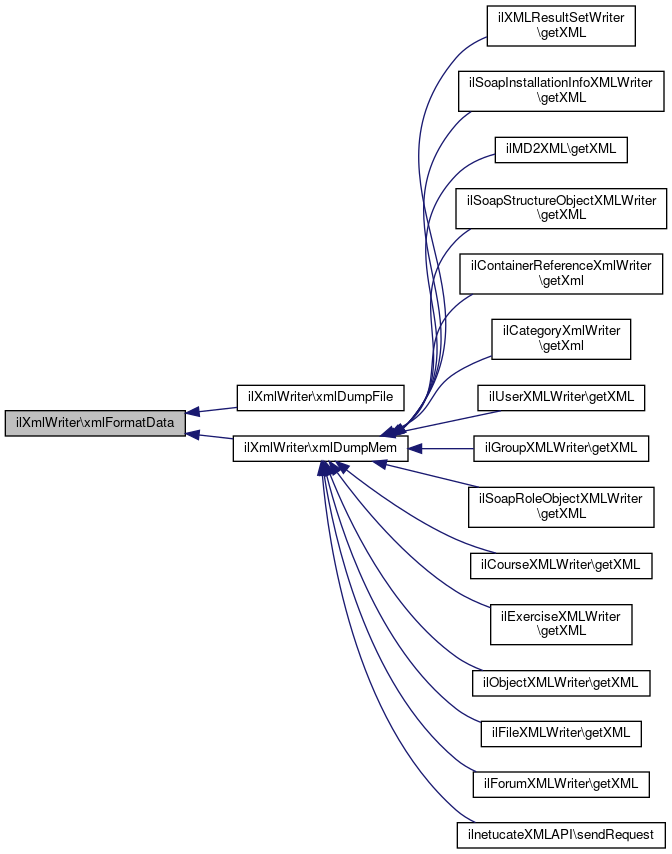

Here is the caller graph for this function:

◆ xmlFormatElement()

ilXmlWriter::xmlFormatElement ( $array )

Callback function for xmlFormatData; do not invoke directly.

Parameters

array result of reg. expr. search

Returns: string indented substring @access private

Definition at line 247 of file class.ilXmlWriter.php.

        {
                $found = trim($array[0]);

                static $indent;

                // linebreak (default)
                $nl = "\n";

                $tab = str_repeat(" ", $indent * 2);

                // closing tag
                if (substr($found, 0, 2) == "</")
                {
                        if($indent)
                        {
                                $indent --;
                        }
                        $tab = str_repeat(" ", $indent * 2);
                }
                elseif (substr($found, -2, 1) == "/" or // opening and closing, comment, ...
                                strpos($found, "/>") or
                                substr($found, 0, 2) == "<!")
                {
                        // do not change indent
                }
                elseif (substr($found, 0, 2) == "<?")
                {
                        // do not change indent
                        // no linebreak
                        $nl = "";
                }
                else // opening tag
                {
                        $indent ++;
                }

                // content
                if (substr($found, -1) != ">")
                {
                        $found = str_replace(">", ">\n".str_repeat(" ", ($indent + 0) * 2), $found);
                }

                return $nl.$tab.$found;
        }

References $tab.

◆ xmlHeader()

ilXmlWriter::xmlHeader ( )

Writes xml header @access public.

Definition at line 297 of file class.ilXmlWriter.php.

        {
                // version and encoding
                $this->xmlStr .= "<?xml version=\"".$this->version."\" encoding=\"".$this->outEnc."\"?>";

                // dtd definition
                if ($this->dtdDef <> "")
                {
                        $this->xmlStr .= $this->dtdDef;
                }

                // stSheet
                if ($this->stSheet <> "")
                {
                        $this->xmlStr .= $this->stSheet;
                }

                // generated comment
                if ($this->genCmt <> "")
                {
                        $this->xmlComment($this->genCmt);
                }

                return $xmlStr;
        }

References $dtdDef, $stSheet, $xmlStr, and xmlComment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xmlSetDtdDef()

ilXmlWriter::xmlSetDtdDef ( $dtdDef )

Sets dtd definition.

Parameters

string dtd definition @access public

Definition at line 101 of file class.ilXmlWriter.php.

        {
                $this->dtdDef = $dtdDef;
        }

References $dtdDef.

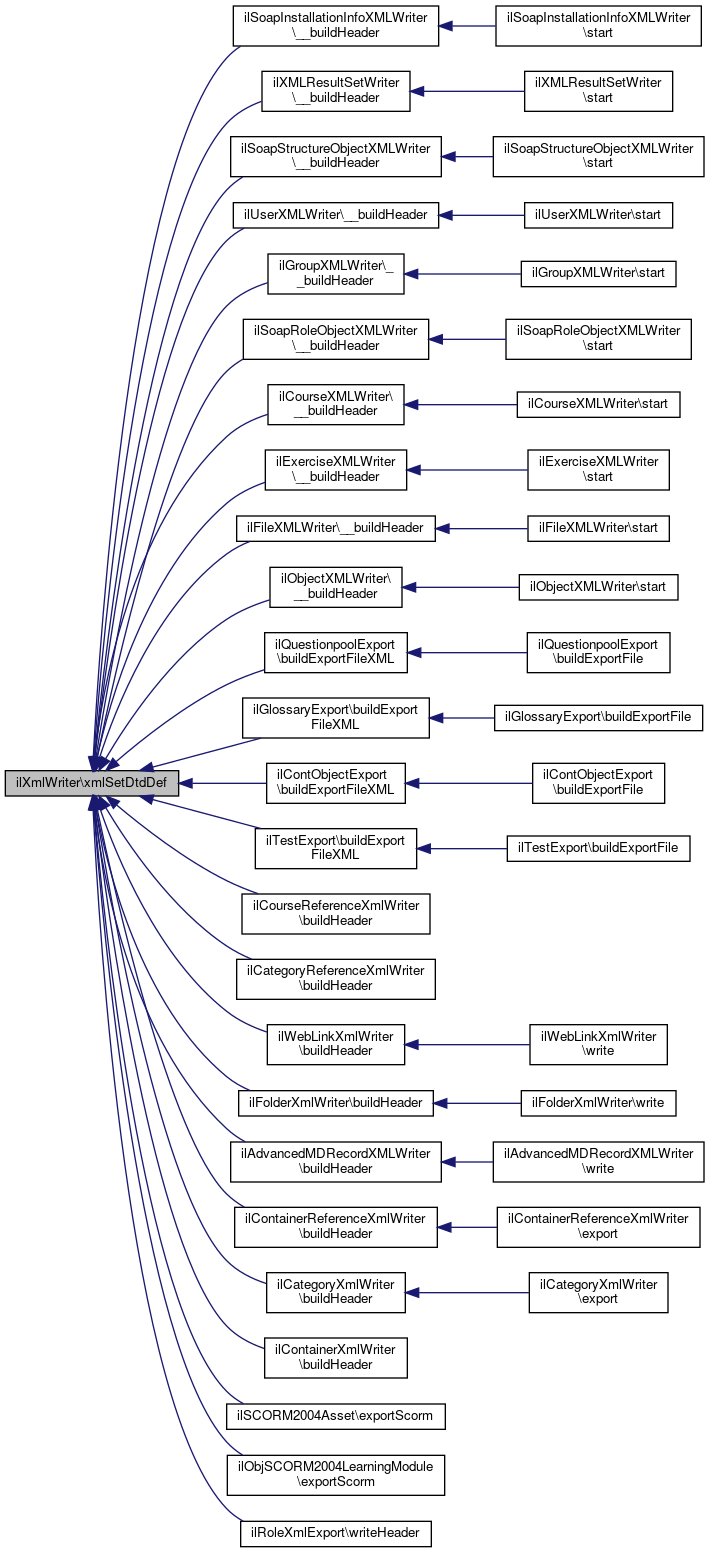

Here is the caller graph for this function:

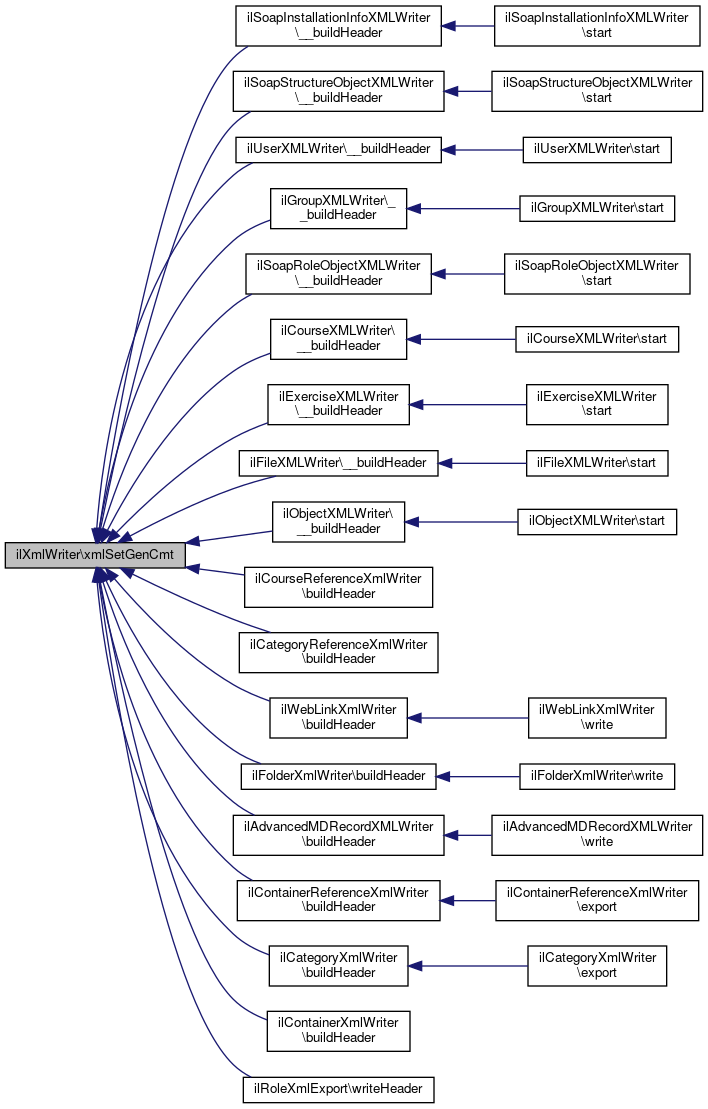

◆ xmlSetGenCmt()

ilXmlWriter::xmlSetGenCmt ( $genCmt )

Sets generated comment.

Parameters

string generated comment @access public

Definition at line 121 of file class.ilXmlWriter.php.

        {
                $this->genCmt = $genCmt;
        }

References $genCmt.

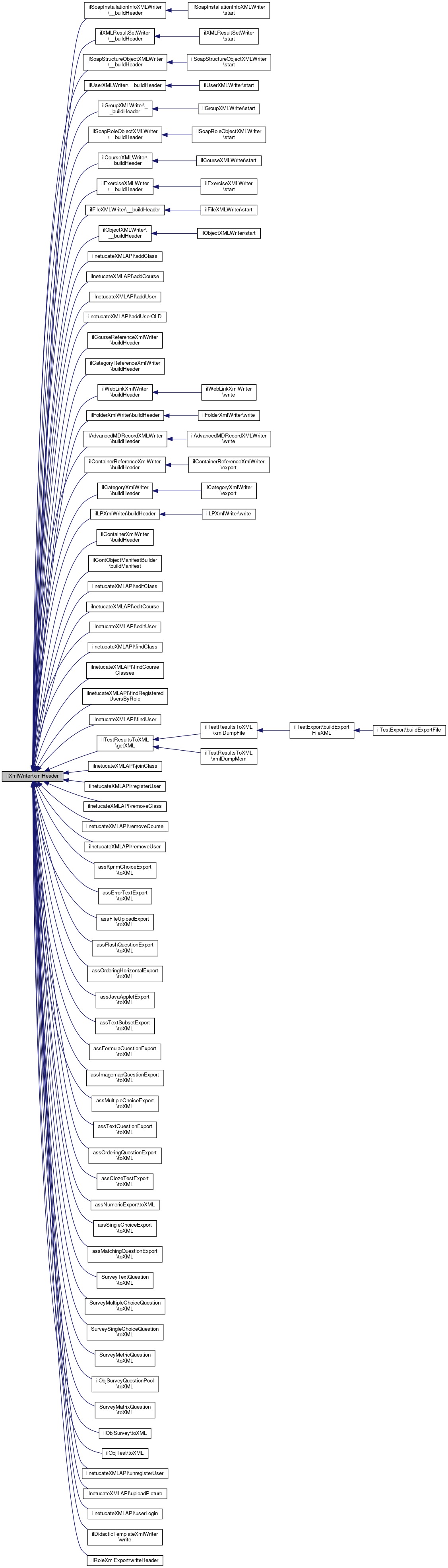

Here is the caller graph for this function:

◆ xmlSetStSheet()

ilXmlWriter::xmlSetStSheet ( $stSheet )

Sets stylesheet.

Parameters

string stylesheet @access public

Definition at line 111 of file class.ilXmlWriter.php.

        {
                $this->stSheet = $stSheet;
        }

References $stSheet.

◆ xmlStartTag()

ilXmlWriter::xmlStartTag	(	$tag,
		$attrs = `NULL`,
		$empty = `FALSE`,
		$encode = `TRUE`,
		$escape = `TRUE`
	)

Writes a starttag.

Parameters

string	tag name
array	attributes (name => value)
boolean	tag empty (TRUE) or not (FALSE)
boolean	ecode attributes' values (TRUE) or not (FALSE)
boolean	escape attributes' values (TRUE) or not (FALSE) @access public

Definition at line 332 of file class.ilXmlWriter.php.

        {
                // write first part of the starttag
                $this->xmlStr .= "<".$tag;

                // check for existing attributes
                if (is_array($attrs))
                {
                        // write attributes
                        foreach ($attrs as $name => $value)
                        {
                                // encode
                                if ($encode)
                                {
                                $value = $this->xmlEncodeData($value);
                                }

                                // escape
                                if ($escape)
                                {
                                        $value = ilXmlWriter::_xmlEscapeData($value);
                        }

                                $this->xmlStr .= " ".$name."=\"".$value."\"";
                        }
                }

                // write last part of the starttag
                if ($empty)
                {
                        $this->xmlStr .= "/>";
                }
                else
                {
                        $this->xmlStr .= ">";
                }
        }

References _xmlEscapeData(), and xmlEncodeData().

Referenced by ilObjectXMLWriter\__appendObject(), ilObjectXMLWriter\__appendObjectProperties(), ilXMLResultSetWriter\__appendRow(), ilObjectXMLWriter\__appendTimeTargets(), ilCourseXMLWriter\__buildAdmin(), ilSoapInstallationInfoXMLWriter\__buildClient(), ilXMLResultSetWriter\__buildColSpecs(), ilCourseXMLWriter\__buildCourseStart(), ilGroupXMLWriter\__buildGroup(), ilUserXMLWriter\__buildHeader(), ilObjectXMLWriter\__buildHeader(), ilSoapInstallationInfoXMLWriter\__buildHeader(), ilSoapRoleObjectXMLWriter\__buildHeader(), ilXMLResultSetWriter\__buildHeader(), ilSoapInstallationInfoXMLWriter\__buildInstallationInfo(), ilCourseXMLWriter\__buildMember(), ilGroupXMLWriter\__buildRegistration(), ilXMLResultSetWriter\__buildRows(), ilCourseXMLWriter\__buildSetting(), ilCourseXMLWriter\__buildSubscriber(), ilCourseXMLWriter\__buildTutor(), ilCourseXMLWriter\__buildWaitingList(), ilUserXMLWriter\__handlePreferences(), ilUserXMLWriter\__handleUser(), ilAdvancedMDValues\_appendXMLByObjId(), ilContainer\_exportContainerSettings(), assQuestionExport\addAnswerSpecificFeedback(), ilnetucateXMLAPI\addClass(), ilnetucateXMLAPI\addCourse(), ilLPXmlWriter\addLPInformation(), assQuestionExport\addQtiMetaDataField(), ilnetucateXMLAPI\addUser(), ilnetucateXMLAPI\addUserOLD(), ilExerciseXMLWriter\attachMarking(), ilCategoryXmlWriter\buildCategory(), ilContainerReferenceXmlWriter\buildReference(), ilCategoryXmlWriter\buildTranslations(), ilnetucateXMLAPI\editClass(), ilnetucateXMLAPI\editCourse(), ilnetucateXMLAPI\editUser(), ilTestResultsToXML\exportActiveIDs(), ilTestResultsToXML\exportPassResult(), ilObjSCORM2004LearningModule\exportPDF(), ilSCORM2004Asset\exportPDF(), ilTestResultsToXML\exportResultCache(), ilTestResultsToXML\exportTestQuestions(), ilTestResultsToXML\exportTestResults(), ilTestResultsToXML\exportTestSequence(), ilTestResultsToXML\exportTestSolutions(), ilTestResultsToXML\exportTestTimes(), ilnetucateXMLAPI\findClass(), ilnetucateXMLAPI\findCourseClasses(), ilnetucateXMLAPI\findRegisteredUsersByRole(), ilnetucateXMLAPI\findUser(), ilTestResultsToXML\getXML(), ilAdvancedMetaDataExporter\getXmlRepresentation(), ilExerciseXMLWriter\handleAssignmentFiles(), ilExerciseXMLWriter\handleAssignmentMembers(), ilnetucateXMLAPI\joinClass(), ilnetucateXMLAPI\registerUser(), ilnetucateXMLAPI\removeClass(), ilnetucateXMLAPI\removeCourse(), ilnetucateXMLAPI\removeUser(), ilExerciseXMLWriter\start(), ilFileXMLWriter\start(), ilForumXMLWriter\start(), ilSoapInstallationInfoXMLWriter\start(), ilSoapRoleObjectXMLWriter\start(), ilAdvancedMDFieldDefinition\toXML(), ilLinkResourceItems\toXML(), ilObjLinkResource\toXML(), ilAdvancedMDRecord\toXML(), ilDidacticTemplateBlockRoleAction\toXml(), ilDidacticTemplateLocalPolicyAction\toXml(), ilDidacticTemplateLocalRoleAction\toXml(), ilDidacticTemplateSetting\toXml(), ilnetucateXMLAPI\unregisterUser(), ilnetucateXMLAPI\uploadPicture(), ilnetucateXMLAPI\userLogin(), ilFolderXmlWriter\write(), ilRoleXmlExport\write(), ilAdvancedMDRecordXMLWriter\write(), ilContainerXmlWriter\write(), ilDidacticTemplateXmlWriter\write(), ilContainerXmlWriter\writeCourseItemInformation(), ilRoleXmlExport\writeRole(), ilContainerXmlWriter\writeSubitems(), and xmlElement().

Here is the call graph for this function:

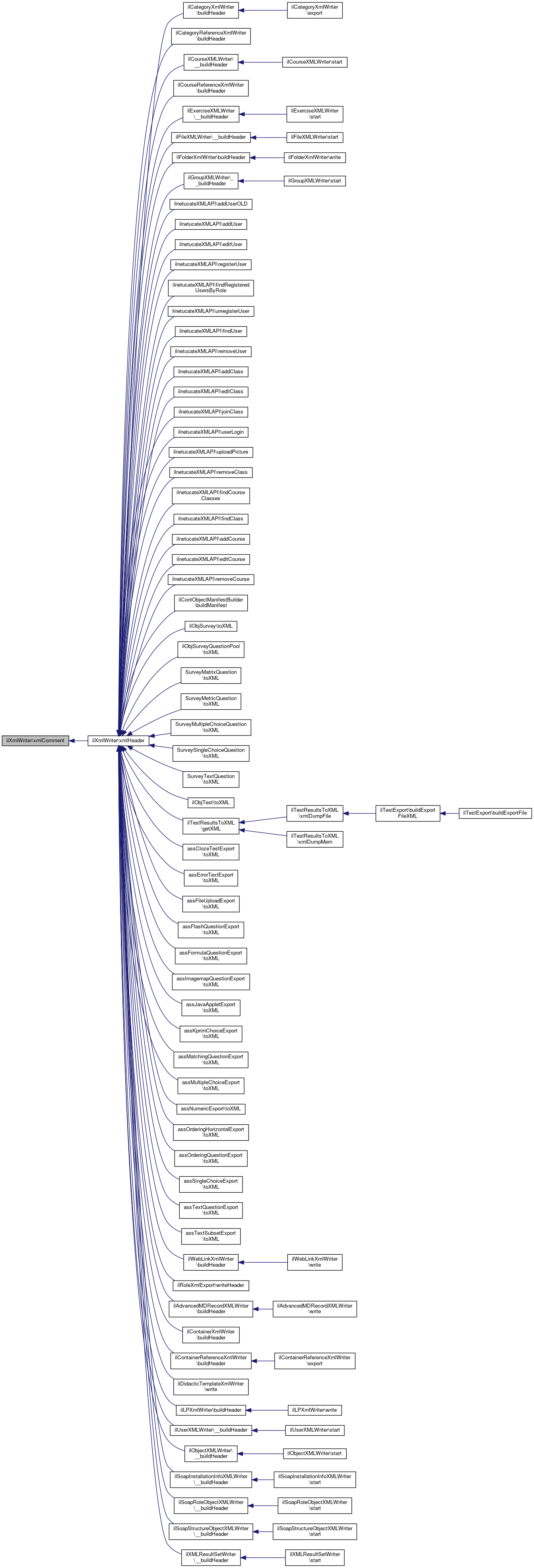

Here is the caller graph for this function:

Field Documentation

◆ $dtdDef

ilXmlWriter::$dtdDef = ""

Definition at line 52 of file class.ilXmlWriter.php.

Referenced by xmlHeader(), and xmlSetDtdDef().

◆ $genCmt

ilXmlWriter::$genCmt = "Generated by ILIAS XmlWriter"

Definition at line 66 of file class.ilXmlWriter.php.

Referenced by xmlSetGenCmt().

◆ $inEnc

ilXmlWriter::$inEnc

Definition at line 45 of file class.ilXmlWriter.php.

Referenced by ilXmlWriter().

◆ $outEnc

ilXmlWriter::$outEnc

Definition at line 38 of file class.ilXmlWriter.php.

Referenced by ilXmlWriter().

◆ $stSheet

ilXmlWriter::$stSheet = ""

Definition at line 59 of file class.ilXmlWriter.php.

Referenced by xmlHeader(), and xmlSetStSheet().

◆ $version

ilXmlWriter::$version

Definition at line 31 of file class.ilXmlWriter.php.

Referenced by ilXmlWriter(), and ilFileXMLWriter\start().

◆ $xmlStr

ilXmlWriter::$xmlStr

Definition at line 24 of file class.ilXmlWriter.php.

Referenced by xmlDumpFile(), xmlDumpMem(), and xmlHeader().

The documentation for this class was generated from the following file:

Services/Xml/classes/class.ilXmlWriter.php

Public Member Functions

Data Fields

Detailed Description

Member Function Documentation

◆ _ilXmlWriter()

◆ _xmlEscapeData()

◆ appendXML()

◆ ilXmlWriter()

◆ xmlClear()

◆ xmlComment()

◆ xmlData()

◆ xmlDumpFile()

◆ xmlDumpMem()

◆ xmlElement()

◆ xmlEncodeData()

◆ xmlEndTag()

◆ xmlFormatData()

◆ xmlFormatElement()

◆ xmlHeader()

◆ xmlSetDtdDef()

◆ xmlSetGenCmt()

◆ xmlSetStSheet()

◆ xmlStartTag()

Field Documentation

◆ $dtdDef

◆ $genCmt

◆ $inEnc

◆ $outEnc

◆ $stSheet

◆ $version

◆ $xmlStr
