Spreadsheet_Excel_Writer_Parser Class Reference
+ Inheritance diagram for Spreadsheet_Excel_Writer_Parser:

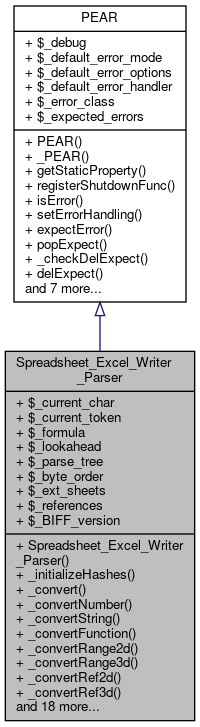

+ Collaboration diagram for Spreadsheet_Excel_Writer_Parser:

Public Member Functions

 Spreadsheet_Excel_Writer_Parser ($byte_order, $biff_version)
 The class constructor. More...

 _initializeHashes ()
 Initialize the ptg and function hashes. More...

 _convert ($token)
 Convert a token to the proper ptg value. More...

 _convertNumber ($num)
 Convert a number token to ptgInt or ptgNum. More...

 _convertString ($string)
 Convert a string token to ptgStr. More...

 _convertFunction ($token, $num_args)
 Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes. More...

 _convertRange2d ($range, $class=0)
 Convert an Excel range such as A1:D4 to a ptgRefV. More...

 _convertRange3d ($token)
 Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d. More...

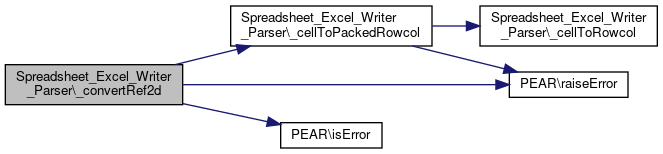

 _convertRef2d ($cell)
 Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV. More...

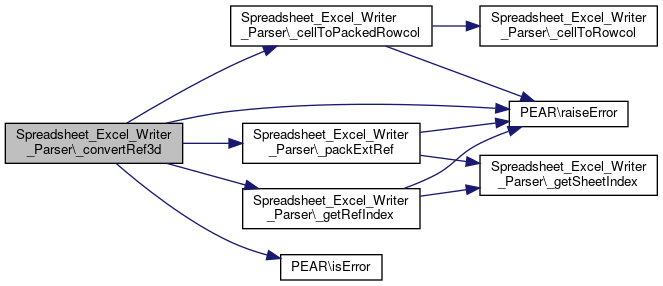

 _convertRef3d ($cell)
 Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d. More...

 _packExtRef ($ext_ref)
 Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure. More...

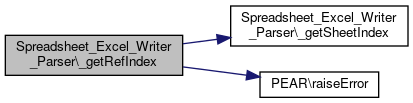

 _getRefIndex ($ext_ref)
 Look up the REF index that corresponds to an external sheet name (or range). More...

 _getSheetIndex ($sheet_name)
 Look up the index that corresponds to an external sheet name. More...

 setExtSheet ($name, $index)
 This method is used to update the array of sheet names. More...

 _cellToPackedRowcol ($cell)
 pack() row and column into the required 3 or 4 byte format. More...

 _rangeToPackedRange ($range)
 pack() row range into the required 3 or 4 byte format. More...

 _cellToRowcol ($cell)
 Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number. More...

 _advance ()
 Advance to the next valid token. More...

 _match ($token)
 Checks if it's a valid token. More...

 parse ($formula)
 The parsing method. More...

 _condition ()
 It parses a condition. More...

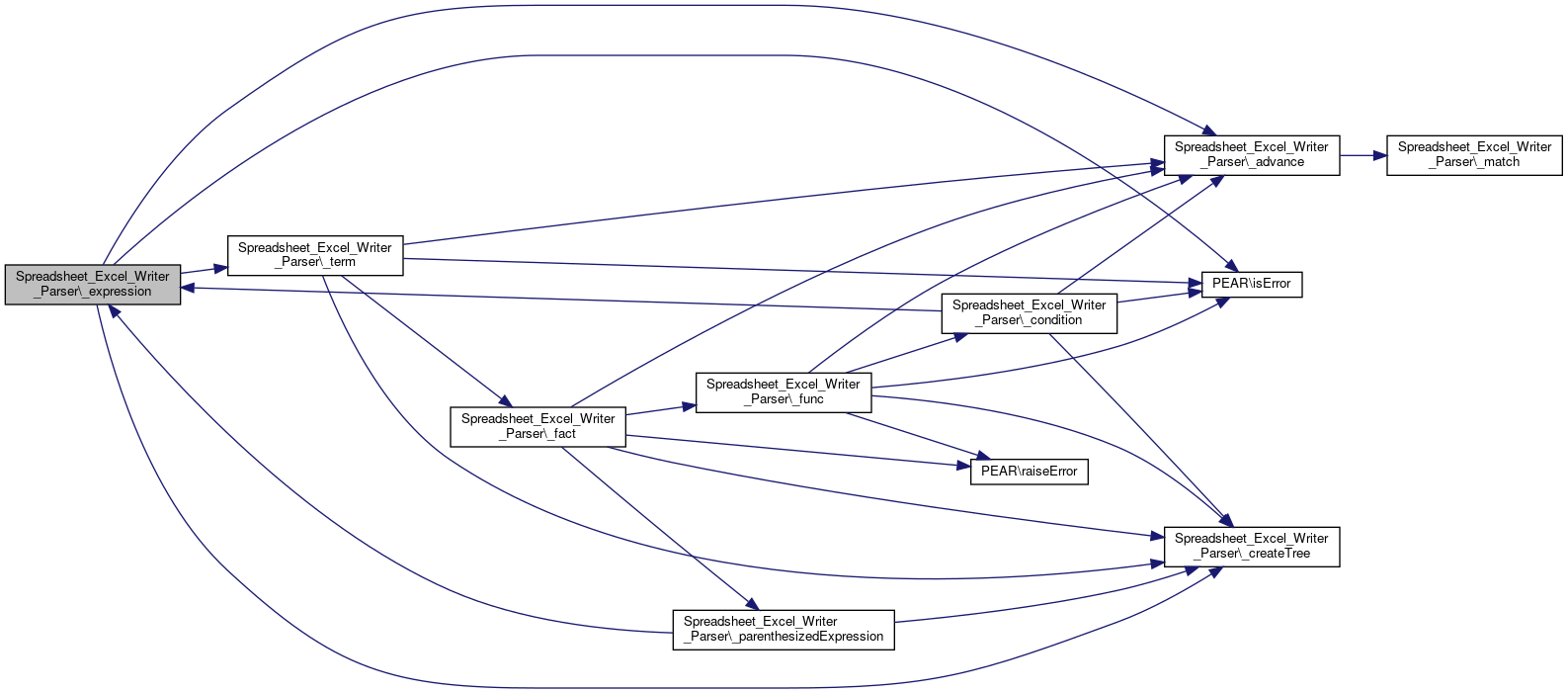

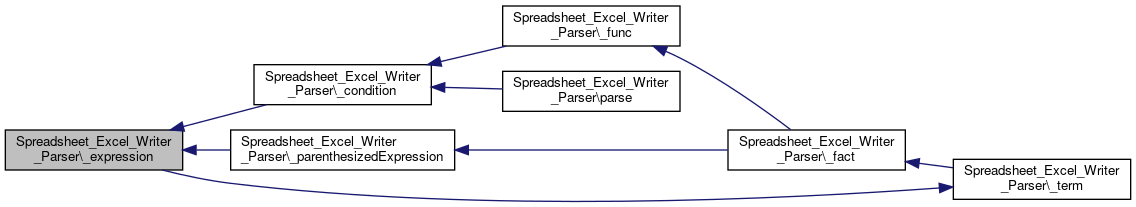

 _expression ()
 It parses a expression. More...

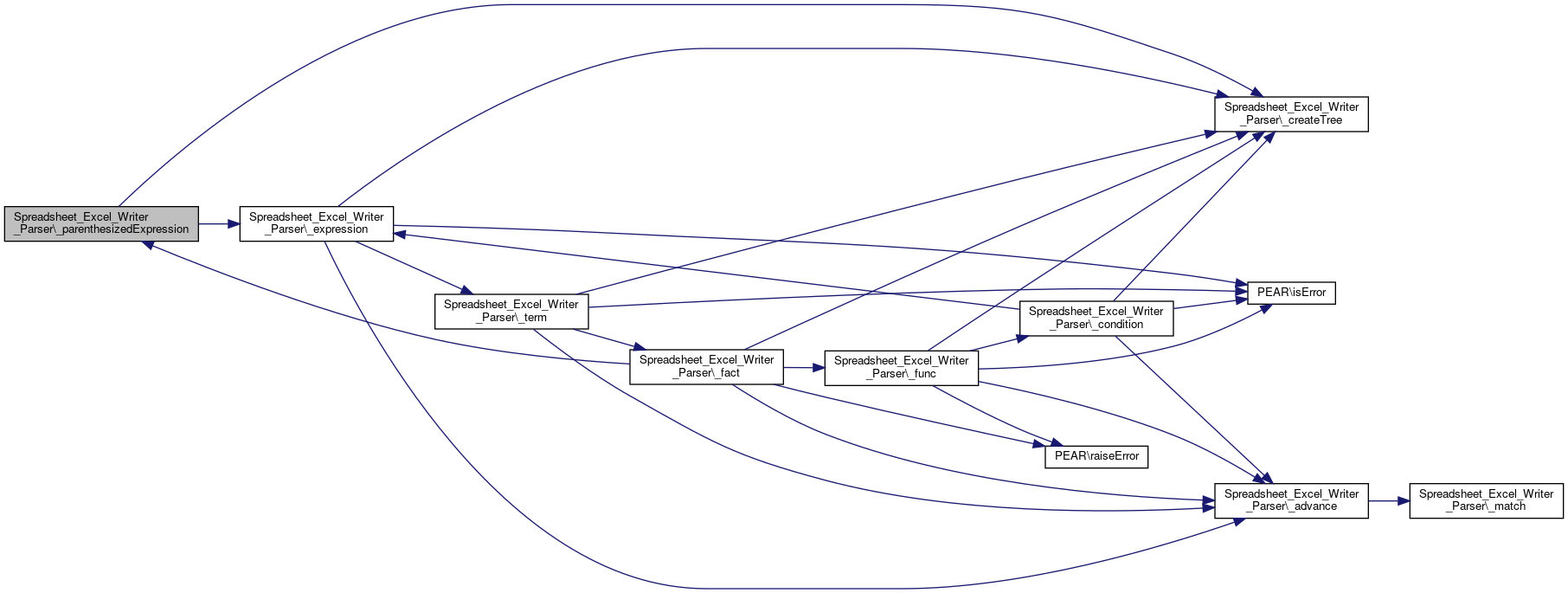

 _parenthesizedExpression ()
 This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards. More...

 _term ()
 It parses a term. More...

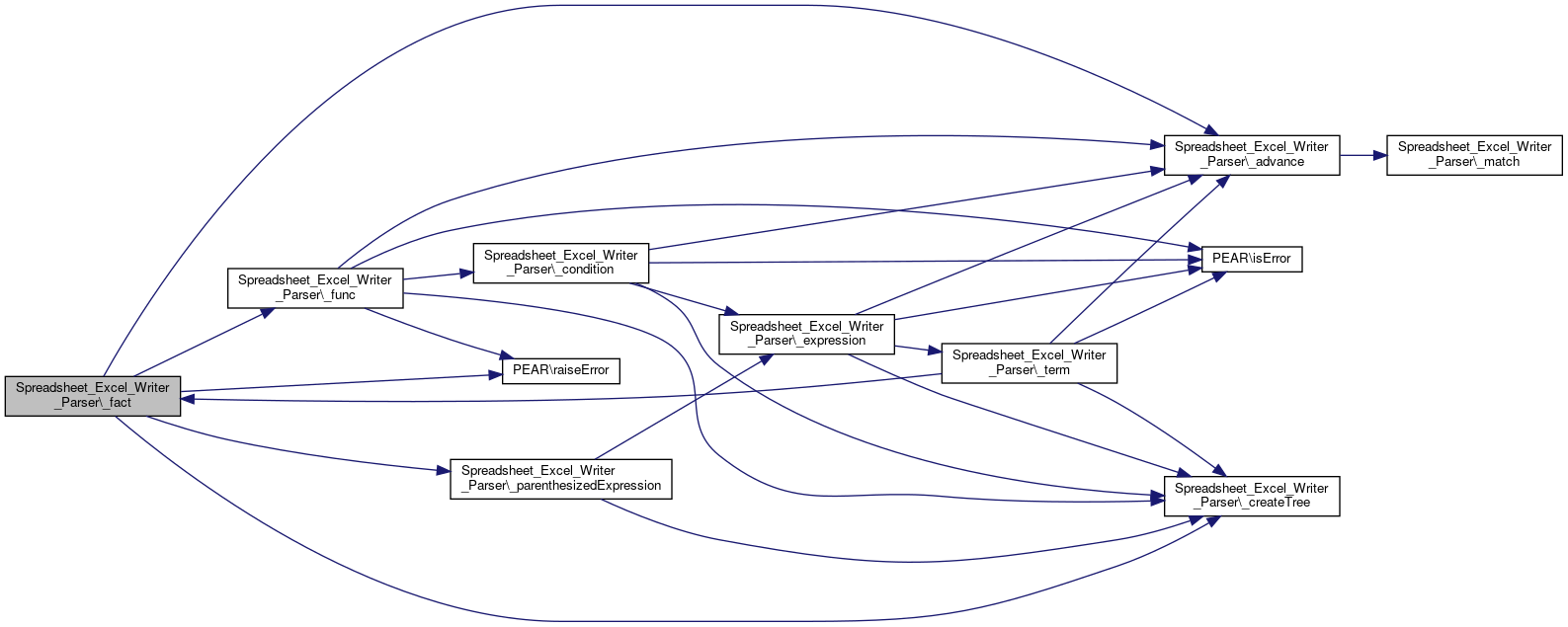

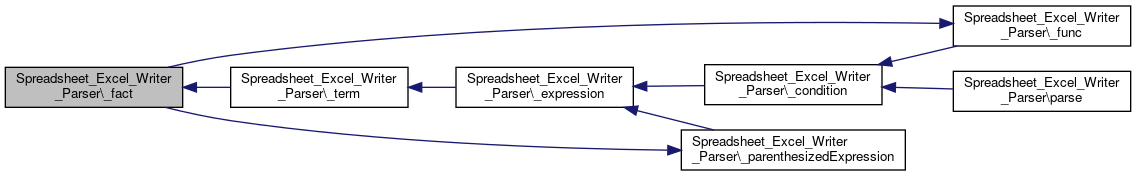

 _fact ()
 It parses a factor. More...

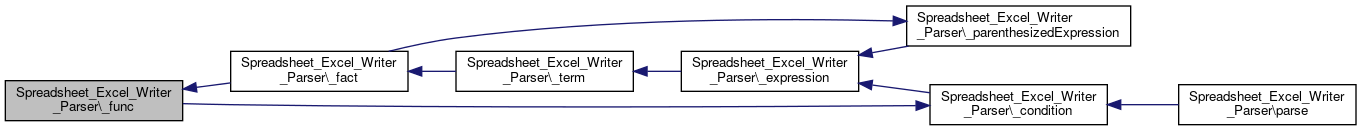

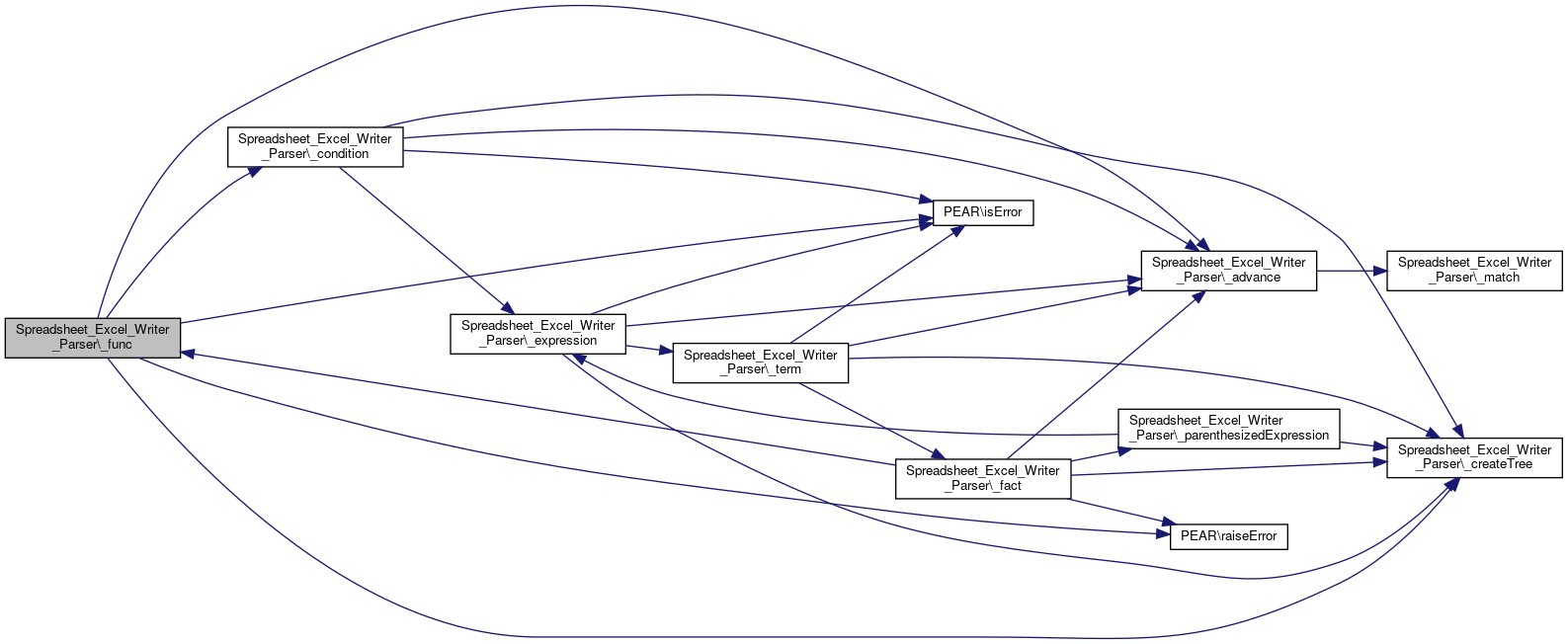

 _func ()
 It parses a function call. More...

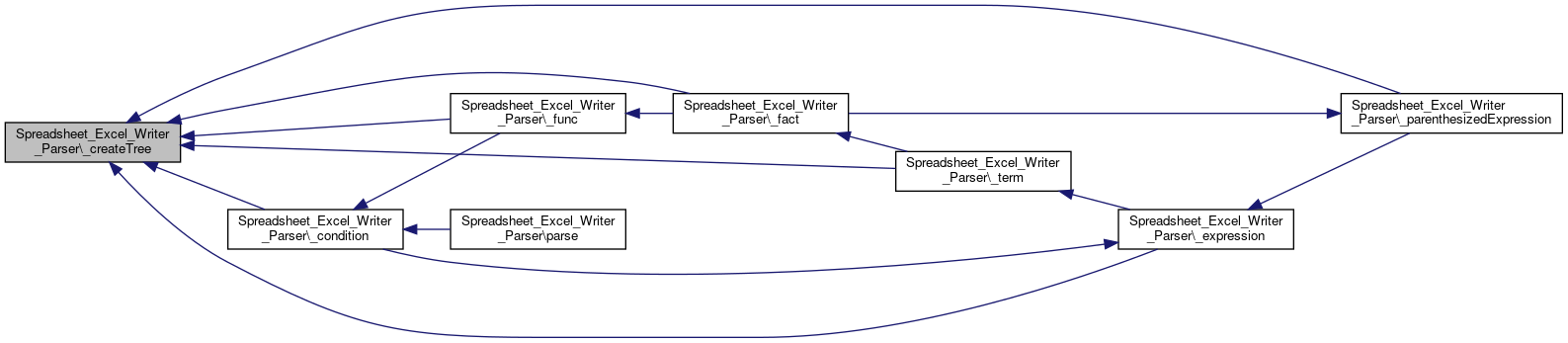

 _createTree ($value, $left, $right)
 Creates a tree. More...

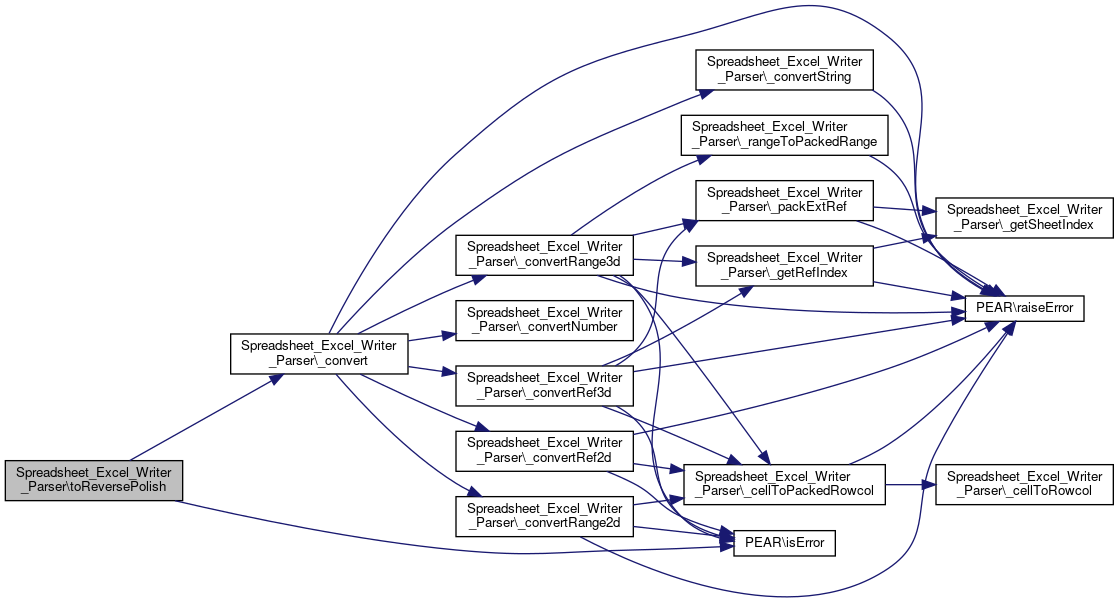

 toReversePolish ($tree=array())
 Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack). More...

- Public Member Functions inherited from PEAR
 PEAR ($error_class=null)
 Constructor. More...

 _PEAR ()
 Destructor (the emulated type of...). More...

getStaticProperty ($class, $var)
 If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...

 registerShutdownFunc ($func, $args=array())
 Use this function to register a shutdown method for static classes. More...

 isError ($data, $code=null)
 Tell whether a value is a PEAR error. More...

 setErrorHandling ($mode=null, $options=null)
 Sets how errors generated by this object should be handled. More...

 expectError ($code=' *')
 This method is used to tell which errors you expect to get. More...

 popExpect ()
 This method pops one element off the expected error codes stack. More...

 _checkDelExpect ($error_code)
 This method checks unsets an error code if available. More...

 delExpect ($error_code)
 This method deletes all occurences of the specified element from the expected error codes stack. More...

raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
 This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...

throwError ($message=null, $code=null, $userinfo=null)
 Simpler form of raiseError with fewer options. More...

 staticPushErrorHandling ($mode, $options=null)

 staticPopErrorHandling ()

 pushErrorHandling ($mode, $options=null)
 Push a new error handler on top of the error handler options stack. More...

 popErrorHandling ()
 Pop the last error handler used. More...

 loadExtension ($ext)
 OS independant PHP extension load. More...


Data Fields

 $_current_char

 $_current_token

 $_formula

 $_lookahead

 $_parse_tree

 $_byte_order

 $_ext_sheets

 $_references

 $_BIFF_version

- Data Fields inherited from PEAR
 $_debug = false

 $_default_error_mode = null

 $_default_error_options = null

 $_default_error_handler = ''

 $_error_class = 'PEAR_Error'

 $_expected_errors = array()


Detailed Description

Definition at line 110 of file Parser.php.

Member Function Documentation

◆ _advance()

Spreadsheet_Excel_Writer_Parser::_advance ( )

Advance to the next valid token.

@access private

Definition at line 1108 of file Parser.php.

1109 {
1111 $formula_length = strlen($this->_formula);
1112 // eat up white spaces
1113 if ($i < $formula_length) {
1114 while ($this->_formula{$i} == " ") {
1115 $i++;
1116 }
1117
1118 if ($i < ($formula_length - 1)) {
1119 $this->_lookahead = $this->_formula{$i+1};
1120 }
1121 $token = '';
1122 }
1123
1124 while ($i < $formula_length) {
1125 $token .= $this->_formula{$i};
1126 if ($i < ($formula_length - 1)) {
1127 $this->_lookahead = $this->_formula{$i+1};
1128 } else {
1129 $this->_lookahead = '';
1130 }
1131
1132 if ($this->_match($token) != '') {
1133 //if ($i < strlen($this->_formula) - 1) {
1134 // $this->_lookahead = $this->_formula{$i+1};
1135 //}
1136 $this->_current_char = $i + 1;
1137 $this->_current_token = $token;
1138 return 1;
1139 }
1140
1141 if ($i < ($formula_length - 2)) {
1142 $this->_lookahead = $this->_formula{$i+2};
1143 } else { // if we run out of characters _lookahead becomes empty
1144 $this->_lookahead = '';
1145 }
1146 $i++;
1147 }
1148 //die("Lexical error ".$this->_current_char);
1149 }
_match($token)
Checks if it's a valid token.
Definition: Parser.php:1158

References $_current_char, and _match().

Referenced by _condition(), _expression(), _fact(), _func(), _term(), and parse().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _cellToPackedRowcol()

Spreadsheet_Excel_Writer_Parser::_cellToPackedRowcol (   $cell)

pack() row and column into the required 3 or 4 byte format.

@access private

Parameters
string$cellThe Excel cell reference to be packed
Returns
array Array containing the row and column in packed() format

Definition at line 996 of file Parser.php.

997 {
998 $cell = strtoupper($cell);
999 list($row, $col, $row_rel, $col_rel) = $this->_cellToRowcol($cell);
1000 if ($col >= 256) {
1001 return $this->raiseError("Column in: $cell greater than 255");
1002 }
1003 // FIXME: change for BIFF8
1004 if ($row >= 16384) {
1005 return $this->raiseError("Row in: $cell greater than 16384 ");
1006 }
1007
1008 // Set the high bits to indicate if row or col are relative.
1009 if ($this->_BIFF_version == 0x0500) {
1010 $row |= $col_rel << 14;
1011 $row |= $row_rel << 15;
1012 $col = pack('C', $col);
1013 } elseif ($this->_BIFF_version == 0x0600) {
1014 $col |= $col_rel << 14;
1015 $col |= $row_rel << 15;
1016 $col = pack('v', $col);
1017 }
1018 $row = pack('v', $row);
1019
1020 return array($row, $col);
1021 }
& raiseError($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
This method is a wrapper that returns an instance of the configured error class with this object's de...
Definition: PEAR.php:524
_cellToRowcol($cell)
Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column num...
Definition: Parser.php:1078

References $row, _cellToRowcol(), and PEAR\raiseError().

Referenced by _convertRange2d(), _convertRange3d(), _convertRef2d(), and _convertRef3d().

+ Here is the call graph for this function:

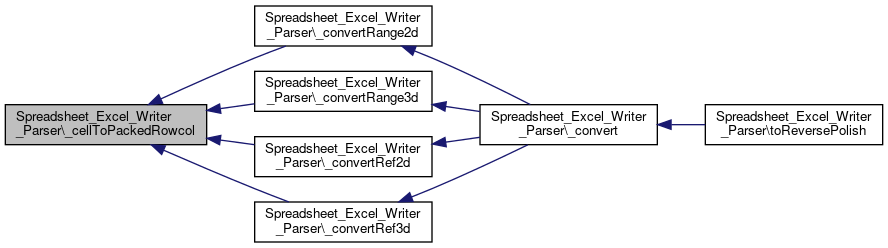

+ Here is the caller graph for this function:

◆ _cellToRowcol()

Spreadsheet_Excel_Writer_Parser::_cellToRowcol (   $cell)

Convert an Excel cell reference such as A1 or $B2 or C$3 or $D$4 to a zero indexed row and column number.

Also returns two (0,1) values to indicate whether the row or column are relative references.

@access private

Parameters
string$cellThe Excel cell reference in A1 format.
Returns
array

Definition at line 1078 of file Parser.php.

1079 {
1080 preg_match('/(\$)?([A-I]?[A-Z])(\$)?(\d+)/',$cell,$match);
1081 // return absolute column if there is a $ in the ref
1082 $col_rel = empty($match[1]) ? 1 : 0;
1083 $col_ref = $match[2];
1084 $row_rel = empty($match[3]) ? 1 : 0;
1085 $row = $match[4];
1086
1087 // Convert base26 column string to a number.
1088 $expn = strlen($col_ref) - 1;
1089 $col = 0;
1090 $col_ref_length = strlen($col_ref);
1091 for ($i = 0; $i < $col_ref_length; $i++) {
1092 $col += (ord($col_ref{$i}) - ord('A') + 1) * pow(26, $expn);
1093 $expn--;
1094 }
1095
1096 // Convert 1-index to zero-index
1097 $row--;
1098 $col--;
1099
1100 return array($row, $col, $row_rel, $col_rel);
1101 }

References $row.

Referenced by _cellToPackedRowcol().

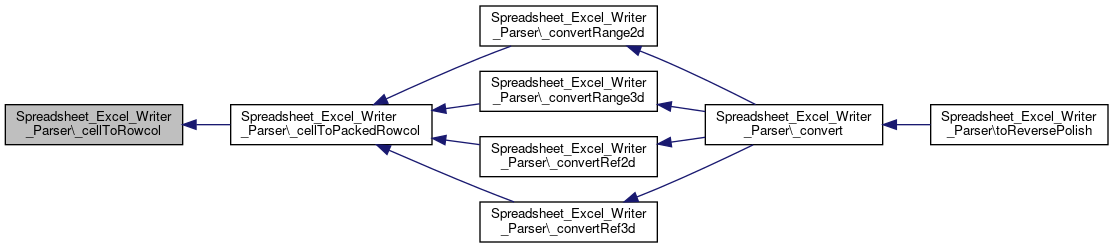

+ Here is the caller graph for this function:

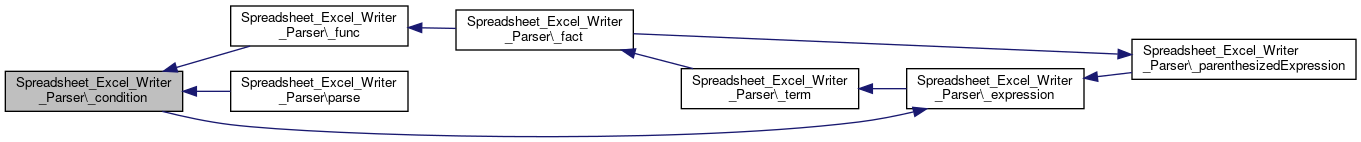

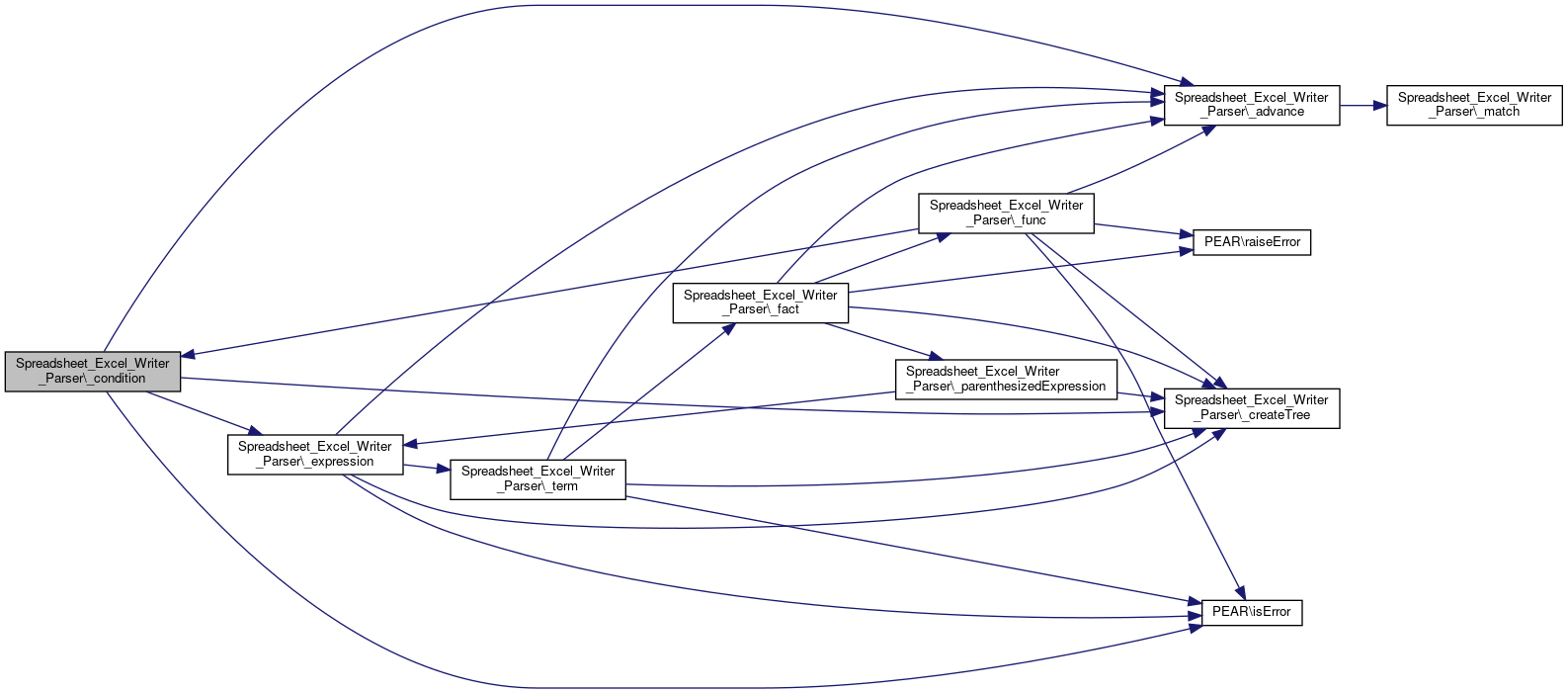

◆ _condition()

Spreadsheet_Excel_Writer_Parser::_condition ( )

It parses a condition.

It assumes the following rule: Cond -> Expr [(">" | "<") Expr]

@access private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1309 of file Parser.php.

1310 {
1311 $result = $this->_expression();
1312 if (PEAR::isError($result)) {
1313 return $result;
1314 }
1315 if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_LT) {
1316 $this->_advance();
1317 $result2 = $this->_expression();
1318 if (PEAR::isError($result2)) {
1319 return $result2;
1320 }
1321 $result = $this->_createTree('ptgLT', $result, $result2);
1322 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_GT) {
1323 $this->_advance();
1324 $result2 = $this->_expression();
1325 if (PEAR::isError($result2)) {
1326 return $result2;
1327 }
1328 $result = $this->_createTree('ptgGT', $result, $result2);
1329 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_LE) {
1330 $this->_advance();
1331 $result2 = $this->_expression();
1332 if (PEAR::isError($result2)) {
1333 return $result2;
1334 }
1335 $result = $this->_createTree('ptgLE', $result, $result2);
1336 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_GE) {
1337 $this->_advance();
1338 $result2 = $this->_expression();
1339 if (PEAR::isError($result2)) {
1340 return $result2;
1341 }
1342 $result = $this->_createTree('ptgGE', $result, $result2);
1343 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_EQ) {
1344 $this->_advance();
1345 $result2 = $this->_expression();
1346 if (PEAR::isError($result2)) {
1347 return $result2;
1348 }
1349 $result = $this->_createTree('ptgEQ', $result, $result2);
1350 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_NE) {
1351 $this->_advance();
1352 $result2 = $this->_expression();
1353 if (PEAR::isError($result2)) {
1354 return $result2;
1355 }
1356 $result = $this->_createTree('ptgNE', $result, $result2);
1357 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_CONCAT) {
1358 $this->_advance();
1359 $result2 = $this->_expression();
1360 if (PEAR::isError($result2)) {
1361 return $result2;
1362 }
1363 $result = $this->_createTree('ptgConcat', $result, $result2);
1364 }
1365 return $result;
1366 }
$result
const SPREADSHEET_EXCEL_WRITER_CONCAT
Definition: Parser.php:98
const SPREADSHEET_EXCEL_WRITER_EQ
@const SPREADSHEET_EXCEL_WRITER_EQ token identifier for character "="
Definition: Parser.php:88
const SPREADSHEET_EXCEL_WRITER_GE
@const SPREADSHEET_EXCEL_WRITER_GE token identifier for character ">="
Definition: Parser.php:83
const SPREADSHEET_EXCEL_WRITER_GT
@const SPREADSHEET_EXCEL_WRITER_GT token identifier for character ">"
Definition: Parser.php:68
const SPREADSHEET_EXCEL_WRITER_NE
@const SPREADSHEET_EXCEL_WRITER_NE token identifier for character "<>"
Definition: Parser.php:93
const SPREADSHEET_EXCEL_WRITER_LT
@const SPREADSHEET_EXCEL_WRITER_LT token identifier for character "<"
Definition: Parser.php:73
const SPREADSHEET_EXCEL_WRITER_LE
@const SPREADSHEET_EXCEL_WRITER_LE token identifier for character "<="
Definition: Parser.php:78
isError($data, $code=null)
Tell whether a value is a PEAR error.
Definition: PEAR.php:279
_createTree($value, $left, $right)
Creates a tree.
Definition: Parser.php:1611
_expression()
It parses a expression.
Definition: Parser.php:1377
_advance()
Advance to the next valid token.
Definition: Parser.php:1108

References $result, _advance(), _createTree(), _expression(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_CONCAT, SPREADSHEET_EXCEL_WRITER_EQ, SPREADSHEET_EXCEL_WRITER_GE, SPREADSHEET_EXCEL_WRITER_GT, SPREADSHEET_EXCEL_WRITER_LE, SPREADSHEET_EXCEL_WRITER_LT, and SPREADSHEET_EXCEL_WRITER_NE.

Referenced by _func(), and parse().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convert()

Spreadsheet_Excel_Writer_Parser::_convert (   $token)

Convert a token to the proper ptg value.

@access private

Parameters
mixed$tokenThe token to convert.
Returns
mixed the converted token on success. PEAR_Error if the token is not recognized

Definition at line 543 of file Parser.php.

544 {
545 if (preg_match("/^\"[^\"]{0,255}\"$/", $token)) {
546 return $this->_convertString($token);
547
548 } elseif (is_numeric($token)) {
549 return $this->_convertNumber($token);
550
551 // match references like A1 or $A$1
552 } elseif (preg_match('/^\$?([A-Ia-i]?[A-Za-z])\$?(\d+)$/',$token)) {
553 return $this->_convertRef2d($token);
554
555 // match external references like Sheet1!A1 or Sheet1:Sheet2!A1
556 } elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
557 return $this->_convertRef3d($token);
558
559 // match external references like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1
560 } elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z](\d+)$/u",$token)) {
561 return $this->_convertRef3d($token);
562
563 // match ranges like A1:B2
564 } elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\:(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
565 return $this->_convertRange2d($token);
566
567 // match ranges like A1..B2
568 } elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/",$token)) {
569 return $this->_convertRange2d($token);
570
571 // match external ranges like Sheet1!A1 or Sheet1:Sheet2!A1:B2
572 } elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
573 return $this->_convertRange3d($token);
574
575 // match external ranges like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
576 } elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?(\d+)\:([A-Ia-i]?[A-Za-z])?(\d+)$/u",$token)) {
577 return $this->_convertRange3d($token);
578
579 // operators (including parentheses)
580 } elseif (isset($this->ptg[$token])) {
581 return pack("C", $this->ptg[$token]);
582
583 // commented so argument number can be processed correctly. See toReversePolish().
584 /*elseif (preg_match("/[A-Z0-9\xc0-\xdc\.]+/",$token))
585 {
586 return($this->_convertFunction($token,$this->_func_args));
587 }*/
588
589 // if it's an argument, ignore the token (the argument remains)
590 } elseif ($token == 'arg') {
591 return '';
592 }
593 // TODO: use real error codes
594 return $this->raiseError("Unknown token $token");
595 }
_convertString($string)
Convert a string token to ptgStr.
Definition: Parser.php:624
_convertNumber($num)
Convert a number token to ptgInt or ptgNum.
Definition: Parser.php:603
_convertRef2d($cell)
Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.
Definition: Parser.php:783
_convertRef3d($cell)
Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.
Definition: Parser.php:816
_convertRange3d($token)
Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.
Definition: Parser.php:719
_convertRange2d($range, $class=0)
Convert an Excel range such as A1:D4 to a ptgRefV.
Definition: Parser.php:670

References _convertNumber(), _convertRange2d(), _convertRange3d(), _convertRef2d(), _convertRef3d(), _convertString(), and PEAR\raiseError().

Referenced by toReversePolish().

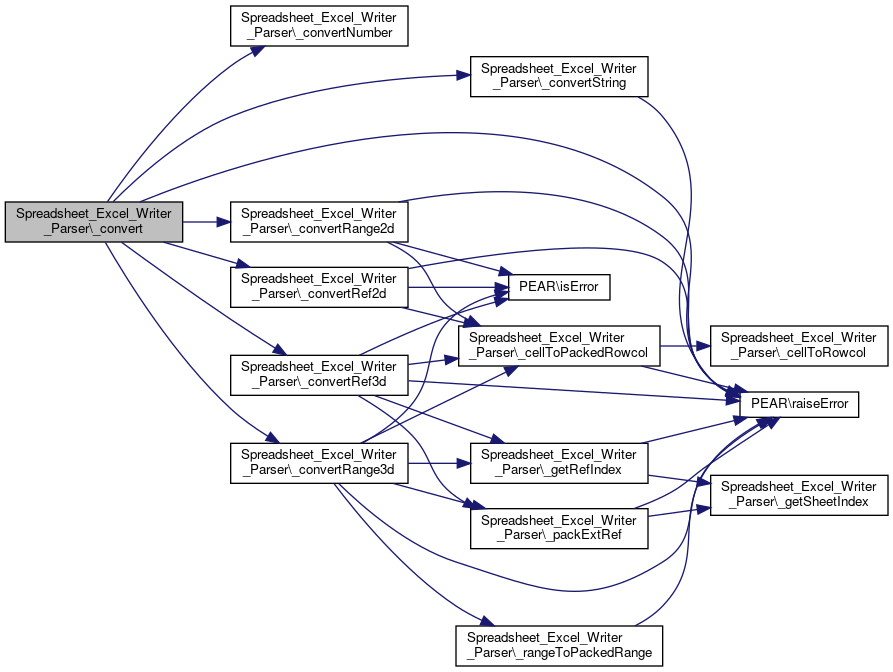

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convertFunction()

Spreadsheet_Excel_Writer_Parser::_convertFunction (   $token,
  $num_args
)

Convert a function to a ptgFunc or ptgFuncVarV depending on the number of args that it takes.

@access private

Parameters
string$tokenThe name of the function for convertion to ptg value.
integer$num_argsThe number of arguments the function receives.
Returns
string The packed ptg for the function

Definition at line 649 of file Parser.php.

650 {
651 $args = $this->_functions[$token][1];
652 $volatile = $this->_functions[$token][3];
653
654 // Fixed number of args eg. TIME($i,$j,$k).
655 if ($args >= 0) {
656 return pack("Cv", $this->ptg['ptgFuncV'], $this->_functions[$token][0]);
657 }
658 // Variable number of args eg. SUM($i,$j,$k, ..).
659 if ($args == -1) {
660 return pack("CCv", $this->ptg['ptgFuncVarV'], $num_args, $this->_functions[$token][0]);
661 }
662 }

◆ _convertNumber()

Spreadsheet_Excel_Writer_Parser::_convertNumber (   $num)

Convert a number token to ptgInt or ptgNum.

@access private

Parameters
mixed$numan integer or double for conversion to its ptg value

Definition at line 603 of file Parser.php.

604 {
605 // Integer in the range 0..2**16-1
606 if ((preg_match("/^\d+$/", $num)) and ($num <= 65535)) {
607 return pack("Cv", $this->ptg['ptgInt'], $num);
608 } else { // A float
609 if ($this->_byte_order) { // if it's Big Endian
610 $num = strrev($num);
611 }
612 return pack("Cd", $this->ptg['ptgNum'], $num);
613 }
614 }

Referenced by _convert().

+ Here is the caller graph for this function:

◆ _convertRange2d()

Spreadsheet_Excel_Writer_Parser::_convertRange2d (   $range,
  $class = 0
)

Convert an Excel range such as A1:D4 to a ptgRefV.

@access private

Parameters
string$rangeAn Excel range in the A1:A2 or A1..A2 format.

Definition at line 670 of file Parser.php.

671 {
672
673 // TODO: possible class value 0,1,2 check Formula.pm
674 // Split the range into 2 cell refs
675 if (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\:([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
676 list($cell1, $cell2) = split(':', $range);
677 } elseif (preg_match("/^([A-Ia-i]?[A-Za-z])(\d+)\.\.([A-Ia-i]?[A-Za-z])(\d+)$/", $range)) {
678 list($cell1, $cell2) = split('\.\.', $range);
679
680 } else {
681 // TODO: use real error codes
682 return $this->raiseError("Unknown range separator", 0, PEAR_ERROR_DIE);
683 }
684
685 // Convert the cell references
686 $cell_array1 = $this->_cellToPackedRowcol($cell1);
687 if (PEAR::isError($cell_array1)) {
688 return $cell_array1;
689 }
690 list($row1, $col1) = $cell_array1;
691 $cell_array2 = $this->_cellToPackedRowcol($cell2);
692 if (PEAR::isError($cell_array2)) {
693 return $cell_array2;
694 }
695 list($row2, $col2) = $cell_array2;
696
697 // The ptg value depends on the class of the ptg.
698 if ($class == 0) {
699 $ptgArea = pack("C", $this->ptg['ptgArea']);
700 } elseif ($class == 1) {
701 $ptgArea = pack("C", $this->ptg['ptgAreaV']);
702 } elseif ($class == 2) {
703 $ptgArea = pack("C", $this->ptg['ptgAreaA']);
704 } else {
705 // TODO: use real error codes
706 return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
707 }
708 return $ptgArea . $row1 . $row2 . $col1. $col2;
709 }
const PEAR_ERROR_DIE
Definition: PEAR.php:34
_cellToPackedRowcol($cell)
pack() row and column into the required 3 or 4 byte format.
Definition: Parser.php:996

References _cellToPackedRowcol(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convertRange3d()

Spreadsheet_Excel_Writer_Parser::_convertRange3d (   $token)

Convert an Excel 3d range such as "Sheet1!A1:D4" or "Sheet1:Sheet2!A1:D4" to a ptgArea3d.

@access private

Parameters
string$tokenAn Excel range in the Sheet1!A1:A2 format.
Returns
mixed The packed ptgArea3d token on success, PEAR_Error on failure.

Definition at line 719 of file Parser.php.

720 {
721 $class = 2; // as far as I know, this is magick.
722
723 // Split the ref at the ! symbol
724 list($ext_ref, $range) = split('!', $token);
725
726 // Convert the external reference part (different for BIFF8)
727 if ($this->_BIFF_version == 0x0500) {
728 $ext_ref = $this->_packExtRef($ext_ref);
729 if (PEAR::isError($ext_ref)) {
730 return $ext_ref;
731 }
732 } elseif ($this->_BIFF_version == 0x0600) {
733 $ext_ref = $this->_getRefIndex($ext_ref);
734 if (PEAR::isError($ext_ref)) {
735 return $ext_ref;
736 }
737 }
738
739 // Split the range into 2 cell refs
740 list($cell1, $cell2) = split(':', $range);
741
742 // Convert the cell references
743 if (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?(\d+)$/", $cell1)) {
744 $cell_array1 = $this->_cellToPackedRowcol($cell1);
745 if (PEAR::isError($cell_array1)) {
746 return $cell_array1;
747 }
748 list($row1, $col1) = $cell_array1;
749 $cell_array2 = $this->_cellToPackedRowcol($cell2);
750 if (PEAR::isError($cell_array2)) {
751 return $cell_array2;
752 }
753 list($row2, $col2) = $cell_array2;
754 } else { // It's a rows range (like 26:27)
755 $cells_array = $this->_rangeToPackedRange($cell1.':'.$cell2);
756 if (PEAR::isError($cells_array)) {
757 return $cells_array;
758 }
759 list($row1, $col1, $row2, $col2) = $cells_array;
760 }
761
762 // The ptg value depends on the class of the ptg.
763 if ($class == 0) {
764 $ptgArea = pack("C", $this->ptg['ptgArea3d']);
765 } elseif ($class == 1) {
766 $ptgArea = pack("C", $this->ptg['ptgArea3dV']);
767 } elseif ($class == 2) {
768 $ptgArea = pack("C", $this->ptg['ptgArea3dA']);
769 } else {
770 return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
771 }
772
773 return $ptgArea . $ext_ref . $row1 . $row2 . $col1. $col2;
774 }
_getRefIndex($ext_ref)
Look up the REF index that corresponds to an external sheet name (or range).
Definition: Parser.php:907
_packExtRef($ext_ref)
Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2",...
Definition: Parser.php:861
_rangeToPackedRange($range)
pack() row range into the required 3 or 4 byte format.
Definition: Parser.php:1031

References _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), _rangeToPackedRange(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

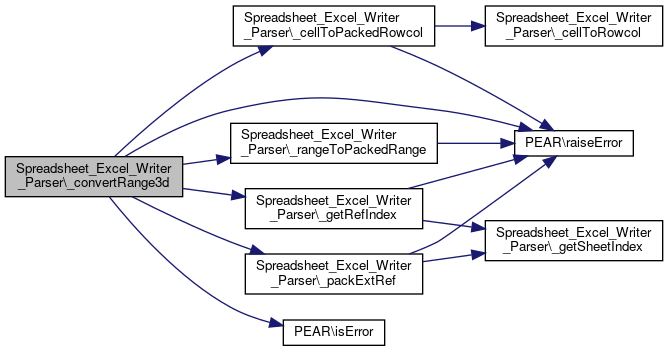

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convertRef2d()

Spreadsheet_Excel_Writer_Parser::_convertRef2d (   $cell)

Convert an Excel reference such as A1, $B2, C$3 or $D$4 to a ptgRefV.

@access private

Parameters
string$cellAn Excel cell reference
Returns
string The cell in packed() format with the corresponding ptg

Definition at line 783 of file Parser.php.

784 {
785 $class = 2; // as far as I know, this is magick.
786
787 // Convert the cell reference
788 $cell_array = $this->_cellToPackedRowcol($cell);
789 if (PEAR::isError($cell_array)) {
790 return $cell_array;
791 }
792 list($row, $col) = $cell_array;
793
794 // The ptg value depends on the class of the ptg.
795 if ($class == 0) {
796 $ptgRef = pack("C", $this->ptg['ptgRef']);
797 } elseif ($class == 1) {
798 $ptgRef = pack("C", $this->ptg['ptgRefV']);
799 } elseif ($class == 2) {
800 $ptgRef = pack("C", $this->ptg['ptgRefA']);
801 } else {
802 // TODO: use real error codes
803 return $this->raiseError("Unknown class $class");
804 }
805 return $ptgRef.$row.$col;
806 }

References $row, _cellToPackedRowcol(), PEAR\isError(), and PEAR\raiseError().

Referenced by _convert().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convertRef3d()

Spreadsheet_Excel_Writer_Parser::_convertRef3d (   $cell)

Convert an Excel 3d reference such as "Sheet1!A1" or "Sheet1:Sheet2!A1" to a ptgRef3d.

@access private

Parameters
string$cellAn Excel cell reference
Returns
mixed The packed ptgRef3d token on success, PEAR_Error on failure.

Definition at line 816 of file Parser.php.

817 {
818 $class = 2; // as far as I know, this is magick.
819
820 // Split the ref at the ! symbol
821 list($ext_ref, $cell) = split('!', $cell);
822
823 // Convert the external reference part (different for BIFF8)
824 if ($this->_BIFF_version == 0x0500) {
825 $ext_ref = $this->_packExtRef($ext_ref);
826 if (PEAR::isError($ext_ref)) {
827 return $ext_ref;
828 }
829 } elseif ($this->_BIFF_version == 0x0600) {
830 $ext_ref = $this->_getRefIndex($ext_ref);
831 if (PEAR::isError($ext_ref)) {
832 return $ext_ref;
833 }
834 }
835
836 // Convert the cell reference part
837 list($row, $col) = $this->_cellToPackedRowcol($cell);
838
839 // The ptg value depends on the class of the ptg.
840 if ($class == 0) {
841 $ptgRef = pack("C", $this->ptg['ptgRef3d']);
842 } elseif ($class == 1) {
843 $ptgRef = pack("C", $this->ptg['ptgRef3dV']);
844 } elseif ($class == 2) {
845 $ptgRef = pack("C", $this->ptg['ptgRef3dA']);
846 } else {
847 return $this->raiseError("Unknown class $class", 0, PEAR_ERROR_DIE);
848 }
849
850 return $ptgRef . $ext_ref. $row . $col;
851 }

References $row, _cellToPackedRowcol(), _getRefIndex(), _packExtRef(), PEAR\isError(), PEAR_ERROR_DIE, and PEAR\raiseError().

Referenced by _convert().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _convertString()

Spreadsheet_Excel_Writer_Parser::_convertString (   $string)

Convert a string token to ptgStr.

@access private

Parameters
string$stringA string for conversion to its ptg value.
Returns
mixed the converted token on success. PEAR_Error if the string is longer than 255 characters.

Definition at line 624 of file Parser.php.

625 {
626 // chop away beggining and ending quotes
627 $string = substr($string, 1, strlen($string) - 2);
628 if (strlen($string) > 255) {
629 return $this->raiseError("String is too long");
630 }
631
632 if ($this->_BIFF_version == 0x0500) {
633 return pack("CC", $this->ptg['ptgStr'], strlen($string)).$string;
634 } elseif ($this->_BIFF_version == 0x0600) {
635 $encoding = 0; // TODO: Unicode support
636 return pack("CCC", $this->ptg['ptgStr'], strlen($string), $encoding).$string;
637 }
638 }

References PEAR\raiseError().

Referenced by _convert().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _createTree()

Spreadsheet_Excel_Writer_Parser::_createTree (   $value,
  $left,
  $right
)

Creates a tree.

In fact an array which may have one or two arrays (sub-trees) as elements.

@access private

Parameters
mixed$valueThe value of this node.
mixed$leftThe left array (sub-tree) or a final node.
mixed$rightThe right array (sub-tree) or a final node.
Returns
array A tree

Definition at line 1611 of file Parser.php.

1612 {
1613 return array('value' => $value, 'left' => $left, 'right' => $right);
1614 }

Referenced by _condition(), _expression(), _fact(), _func(), _parenthesizedExpression(), and _term().

+ Here is the caller graph for this function:

◆ _expression()

Spreadsheet_Excel_Writer_Parser::_expression ( )

It parses a expression.

It assumes the following rule: Expr -> Term [("+" | "-") Term] -> "string" -> "-" Term

@access private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1377 of file Parser.php.

1378 {
1379 // If it's a string return a string node
1380 if (preg_match("/^\"[^\"]{0,255}\"$/", $this->_current_token)) {
1381 $result = $this->_createTree($this->_current_token, '', '');
1382 $this->_advance();
1383 return $result;
1384 } elseif ($this->_current_token == SPREADSHEET_EXCEL_WRITER_SUB) {
1385 // catch "-" Term
1386 $this->_advance();
1387 $result2 = $this->_expression();
1388 $result = $this->_createTree('ptgUminus', $result2, '');
1389 return $result;
1390 }
1391 $result = $this->_term();
1392 if (PEAR::isError($result)) {
1393 return $result;
1394 }
1395 while (($this->_current_token == SPREADSHEET_EXCEL_WRITER_ADD) or
1396 ($this->_current_token == SPREADSHEET_EXCEL_WRITER_SUB)) {
1397
1398 if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_ADD) {
1399 $this->_advance();
1400 $result2 = $this->_term();
1401 if (PEAR::isError($result2)) {
1402 return $result2;
1403 }
1404 $result = $this->_createTree('ptgAdd', $result, $result2);
1405 } else {
1406 $this->_advance();
1407 $result2 = $this->_term();
1408 if (PEAR::isError($result2)) {
1409 return $result2;
1410 }
1411 $result = $this->_createTree('ptgSub', $result, $result2);
1412 }
1413 }
1414 return $result;
1415 }
const SPREADSHEET_EXCEL_WRITER_ADD
Class for parsing Excel formulas.
Definition: Parser.php:28
const SPREADSHEET_EXCEL_WRITER_SUB
@const SPREADSHEET_EXCEL_WRITER_SUB token identifier for character "-"
Definition: Parser.php:33
_term()
It parses a term.
Definition: Parser.php:1438

References $result, _advance(), _createTree(), _expression(), _term(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_ADD, and SPREADSHEET_EXCEL_WRITER_SUB.

Referenced by _condition(), _expression(), and _parenthesizedExpression().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _fact()

Spreadsheet_Excel_Writer_Parser::_fact ( )

It parses a factor.

It assumes the following rule: Fact -> ( Expr ) | CellRef | CellRange | Number | Function

@access private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1477 of file Parser.php.

1478 {
1479 if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_OPEN) {
1480 $this->_advance(); // eat the "("
1482 if ($this->_current_token != SPREADSHEET_EXCEL_WRITER_CLOSE) {
1483 return $this->raiseError("')' token expected.");
1484 }
1485 $this->_advance(); // eat the ")"
1486 return $result;
1487 }
1488 // if it's a reference
1489 if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$this->_current_token))
1490 {
1491 $result = $this->_createTree($this->_current_token, '', '');
1492 $this->_advance();
1493 return $result;
1494 }
1495 // If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
1496 elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
1497 {
1498 $result = $this->_createTree($this->_current_token, '', '');
1499 $this->_advance();
1500 return $result;
1501 }
1502 // If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
1503 elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$this->_current_token))
1504 {
1505 $result = $this->_createTree($this->_current_token, '', '');
1506 $this->_advance();
1507 return $result;
1508 }
1509 // if it's a range
1510 elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token) or
1511 preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$this->_current_token))
1512 {
1514 $this->_advance();
1515 return $result;
1516 }
1517 // If it's an external range (Sheet1!A1 or Sheet1!A1:B2)
1518 elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
1519 {
1521 $this->_advance();
1522 return $result;
1523 }
1524 // If it's an external range ('Sheet1'!A1 or 'Sheet1'!A1:B2)
1525 elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$this->_current_token))
1526 {
1528 $this->_advance();
1529 return $result;
1530 }
1531 elseif (is_numeric($this->_current_token))
1532 {
1533 $result = $this->_createTree($this->_current_token, '', '');
1534 $this->_advance();
1535 return $result;
1536 }
1537 // if it's a function call
1538 elseif (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/i",$this->_current_token))
1539 {
1540 $result = $this->_func();
1541 return $result;
1542 }
1543 return $this->raiseError("Syntax error: ".$this->_current_token.
1544 ", lookahead: ".$this->_lookahead.
1545 ", current char: ".$this->_current_char);
1546 }
const SPREADSHEET_EXCEL_WRITER_OPEN
@const SPREADSHEET_EXCEL_WRITER_OPEN token identifier for character "("
Definition: Parser.php:48
const SPREADSHEET_EXCEL_WRITER_CLOSE
@const SPREADSHEET_EXCEL_WRITER_CLOSE token identifier for character ")"
Definition: Parser.php:53
_parenthesizedExpression()
This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when...
Definition: Parser.php:1425
_func()
It parses a function call.
Definition: Parser.php:1555

References $_current_token, $result, _advance(), _createTree(), _func(), _parenthesizedExpression(), PEAR\raiseError(), SPREADSHEET_EXCEL_WRITER_CLOSE, and SPREADSHEET_EXCEL_WRITER_OPEN.

Referenced by _term().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _func()

Spreadsheet_Excel_Writer_Parser::_func ( )

It parses a function call.

It assumes the following rule: Func -> ( Expr [,Expr]* )

@access private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1555 of file Parser.php.

1556 {
1557 $num_args = 0; // number of arguments received
1558 $function = strtoupper($this->_current_token);
1559 $result = ''; // initialize result
1560 $this->_advance();
1561 $this->_advance(); // eat the "("
1562 while ($this->_current_token != ')') {
1563
1564 if ($num_args > 0) {
1565 if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_COMA or
1566 $this->_current_token == SPREADSHEET_EXCEL_WRITER_SEMICOLON)
1567 {
1568 $this->_advance(); // eat the "," or ";"
1569 } else {
1570 return $this->raiseError("Syntax error: comma expected in ".
1571 "function $function, arg #{$num_args}");
1572 }
1573 $result2 = $this->_condition();
1574 if (PEAR::isError($result2)) {
1575 return $result2;
1576 }
1577 $result = $this->_createTree('arg', $result, $result2);
1578 } else { // first argument
1579 $result2 = $this->_condition();
1580 if (PEAR::isError($result2)) {
1581 return $result2;
1582 }
1583 $result = $this->_createTree('arg', '', $result2);
1584 }
1585 $num_args++;
1586 }
1587 if (!isset($this->_functions[$function])) {
1588 return $this->raiseError("Function $function() doesn't exist");
1589 }
1590 $args = $this->_functions[$function][1];
1591 // If fixed number of args eg. TIME($i,$j,$k). Check that the number of args is valid.
1592 if (($args >= 0) and ($args != $num_args)) {
1593 return $this->raiseError("Incorrect number of arguments in function $function() ");
1594 }
1595
1596 $result = $this->_createTree($function, $result, $num_args);
1597 $this->_advance(); // eat the ")"
1598 return $result;
1599 }
const SPREADSHEET_EXCEL_WRITER_COMA
@const SPREADSHEET_EXCEL_WRITER_COMA token identifier for character ","
Definition: Parser.php:58
const SPREADSHEET_EXCEL_WRITER_SEMICOLON
@const SPREADSHEET_EXCEL_WRITER_SEMICOLON token identifier for character ";"
Definition: Parser.php:63
_condition()
It parses a condition.
Definition: Parser.php:1309

References $result, _advance(), _condition(), _createTree(), PEAR\isError(), PEAR\raiseError(), SPREADSHEET_EXCEL_WRITER_COMA, and SPREADSHEET_EXCEL_WRITER_SEMICOLON.

Referenced by _fact().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _getRefIndex()

Spreadsheet_Excel_Writer_Parser::_getRefIndex (   $ext_ref)

Look up the REF index that corresponds to an external sheet name (or range).

If it doesn't exist yet add it to the workbook's references array. It assumes all sheet names given must exist.

@access private

Parameters
string$ext_refThe name of the external reference
Returns
mixed The reference index in packed() format on success, PEAR_Error on failure

Definition at line 907 of file Parser.php.

908 {
909 $ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
910 $ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
911
912 // Check if there is a sheet range eg., Sheet1:Sheet2.
913 if (preg_match("/:/", $ext_ref)) {
914 list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
915
916 $sheet1 = $this->_getSheetIndex($sheet_name1);
917 if ($sheet1 == -1) {
918 return $this->raiseError("Unknown sheet name $sheet_name1 in formula");
919 }
920 $sheet2 = $this->_getSheetIndex($sheet_name2);
921 if ($sheet2 == -1) {
922 return $this->raiseError("Unknown sheet name $sheet_name2 in formula");
923 }
924
925 // Reverse max and min sheet numbers if necessary
926 if ($sheet1 > $sheet2) {
927 list($sheet1, $sheet2) = array($sheet2, $sheet1);
928 }
929 } else { // Single sheet name only.
930 $sheet1 = $this->_getSheetIndex($ext_ref);
931 if ($sheet1 == -1) {
932 return $this->raiseError("Unknown sheet name $ext_ref in formula");
933 }
934 $sheet2 = $sheet1;
935 }
936
937 // assume all references belong to this document
938 $supbook_index = 0x00;
939 $ref = pack('vvv', $supbook_index, $sheet1, $sheet2);
940 $total_references = count($this->_references);
941 $index = -1;
942 for ($i = 0; $i < $total_references; $i++) {
943 if ($ref == $this->_references[$i]) {
944 $index = $i;
945 break;
946 }
947 }
948 // if REF was not found add it to references array
949 if ($index == -1) {
950 $this->_references[$total_references] = $ref;
951 $index = $total_references;
952 }
953
954 return pack('v', $index);
955 }
_getSheetIndex($sheet_name)
Look up the index that corresponds to an external sheet name.
Definition: Parser.php:965

References _getSheetIndex(), and PEAR\raiseError().

Referenced by _convertRange3d(), and _convertRef3d().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _getSheetIndex()

Spreadsheet_Excel_Writer_Parser::_getSheetIndex (   $sheet_name)

Look up the index that corresponds to an external sheet name.

The hash of sheet names is updated by the addworksheet() method of the Spreadsheet_Excel_Writer_Workbook class.

@access private

Returns
integer The sheet index, -1 if the sheet was not found

Definition at line 965 of file Parser.php.

966 {
967 if (!isset($this->_ext_sheets[$sheet_name])) {
968 return -1;
969 } else {
970 return $this->_ext_sheets[$sheet_name];
971 }
972 }

Referenced by _getRefIndex(), and _packExtRef().

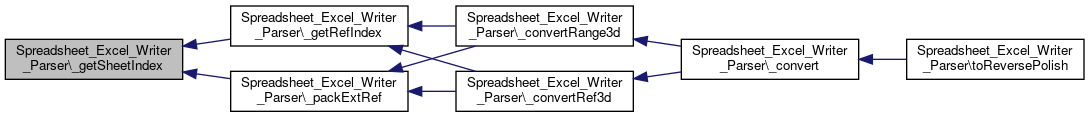

+ Here is the caller graph for this function:

◆ _initializeHashes()

Spreadsheet_Excel_Writer_Parser::_initializeHashes ( )

Initialize the ptg and function hashes.

@access private

Definition at line 191 of file Parser.php.

192 {
193 // The Excel ptg indices
194 $this->ptg = array(
195 'ptgExp' => 0x01,
196 'ptgTbl' => 0x02,
197 'ptgAdd' => 0x03,
198 'ptgSub' => 0x04,
199 'ptgMul' => 0x05,
200 'ptgDiv' => 0x06,
201 'ptgPower' => 0x07,
202 'ptgConcat' => 0x08,
203 'ptgLT' => 0x09,
204 'ptgLE' => 0x0A,
205 'ptgEQ' => 0x0B,
206 'ptgGE' => 0x0C,
207 'ptgGT' => 0x0D,
208 'ptgNE' => 0x0E,
209 'ptgIsect' => 0x0F,
210 'ptgUnion' => 0x10,
211 'ptgRange' => 0x11,
212 'ptgUplus' => 0x12,
213 'ptgUminus' => 0x13,
214 'ptgPercent' => 0x14,
215 'ptgParen' => 0x15,
216 'ptgMissArg' => 0x16,
217 'ptgStr' => 0x17,
218 'ptgAttr' => 0x19,
219 'ptgSheet' => 0x1A,
220 'ptgEndSheet' => 0x1B,
221 'ptgErr' => 0x1C,
222 'ptgBool' => 0x1D,
223 'ptgInt' => 0x1E,
224 'ptgNum' => 0x1F,
225 'ptgArray' => 0x20,
226 'ptgFunc' => 0x21,
227 'ptgFuncVar' => 0x22,
228 'ptgName' => 0x23,
229 'ptgRef' => 0x24,
230 'ptgArea' => 0x25,
231 'ptgMemArea' => 0x26,
232 'ptgMemErr' => 0x27,
233 'ptgMemNoMem' => 0x28,
234 'ptgMemFunc' => 0x29,
235 'ptgRefErr' => 0x2A,
236 'ptgAreaErr' => 0x2B,
237 'ptgRefN' => 0x2C,
238 'ptgAreaN' => 0x2D,
239 'ptgMemAreaN' => 0x2E,
240 'ptgMemNoMemN' => 0x2F,
241 'ptgNameX' => 0x39,
242 'ptgRef3d' => 0x3A,
243 'ptgArea3d' => 0x3B,
244 'ptgRefErr3d' => 0x3C,
245 'ptgAreaErr3d' => 0x3D,
246 'ptgArrayV' => 0x40,
247 'ptgFuncV' => 0x41,
248 'ptgFuncVarV' => 0x42,
249 'ptgNameV' => 0x43,
250 'ptgRefV' => 0x44,
251 'ptgAreaV' => 0x45,
252 'ptgMemAreaV' => 0x46,
253 'ptgMemErrV' => 0x47,
254 'ptgMemNoMemV' => 0x48,
255 'ptgMemFuncV' => 0x49,
256 'ptgRefErrV' => 0x4A,
257 'ptgAreaErrV' => 0x4B,
258 'ptgRefNV' => 0x4C,
259 'ptgAreaNV' => 0x4D,
260 'ptgMemAreaNV' => 0x4E,
261 'ptgMemNoMemN' => 0x4F,
262 'ptgFuncCEV' => 0x58,
263 'ptgNameXV' => 0x59,
264 'ptgRef3dV' => 0x5A,
265 'ptgArea3dV' => 0x5B,
266 'ptgRefErr3dV' => 0x5C,
267 'ptgAreaErr3d' => 0x5D,
268 'ptgArrayA' => 0x60,
269 'ptgFuncA' => 0x61,
270 'ptgFuncVarA' => 0x62,
271 'ptgNameA' => 0x63,
272 'ptgRefA' => 0x64,
273 'ptgAreaA' => 0x65,
274 'ptgMemAreaA' => 0x66,
275 'ptgMemErrA' => 0x67,
276 'ptgMemNoMemA' => 0x68,
277 'ptgMemFuncA' => 0x69,
278 'ptgRefErrA' => 0x6A,
279 'ptgAreaErrA' => 0x6B,
280 'ptgRefNA' => 0x6C,
281 'ptgAreaNA' => 0x6D,
282 'ptgMemAreaNA' => 0x6E,
283 'ptgMemNoMemN' => 0x6F,
284 'ptgFuncCEA' => 0x78,
285 'ptgNameXA' => 0x79,
286 'ptgRef3dA' => 0x7A,
287 'ptgArea3dA' => 0x7B,
288 'ptgRefErr3dA' => 0x7C,
289 'ptgAreaErr3d' => 0x7D
290 );
291
292 // Thanks to Michael Meeks and Gnumeric for the initial arg values.
293 //
294 // The following hash was generated by "function_locale.pl" in the distro.
295 // Refer to function_locale.pl for non-English function names.
296 //
297 // The array elements are as follow:
298 // ptg: The Excel function ptg code.
299 // args: The number of arguments that the function takes:
300 // >=0 is a fixed number of arguments.
301 // -1 is a variable number of arguments.
302 // class: The reference, value or array class of the function args.
303 // vol: The function is volatile.
304 //
305 $this->_functions = array(
306 // function ptg args class vol
307 'COUNT' => array( 0, -1, 0, 0 ),
308 'IF' => array( 1, -1, 1, 0 ),
309 'ISNA' => array( 2, 1, 1, 0 ),
310 'ISERROR' => array( 3, 1, 1, 0 ),
311 'SUM' => array( 4, -1, 0, 0 ),
312 'AVERAGE' => array( 5, -1, 0, 0 ),
313 'MIN' => array( 6, -1, 0, 0 ),
314 'MAX' => array( 7, -1, 0, 0 ),
315 'ROW' => array( 8, -1, 0, 0 ),
316 'COLUMN' => array( 9, -1, 0, 0 ),
317 'NA' => array( 10, 0, 0, 0 ),
318 'NPV' => array( 11, -1, 1, 0 ),
319 'STDEV' => array( 12, -1, 0, 0 ),
320 'DOLLAR' => array( 13, -1, 1, 0 ),
321 'FIXED' => array( 14, -1, 1, 0 ),
322 'SIN' => array( 15, 1, 1, 0 ),
323 'COS' => array( 16, 1, 1, 0 ),
324 'TAN' => array( 17, 1, 1, 0 ),
325 'ATAN' => array( 18, 1, 1, 0 ),
326 'PI' => array( 19, 0, 1, 0 ),
327 'SQRT' => array( 20, 1, 1, 0 ),
328 'EXP' => array( 21, 1, 1, 0 ),
329 'LN' => array( 22, 1, 1, 0 ),
330 'LOG10' => array( 23, 1, 1, 0 ),
331 'ABS' => array( 24, 1, 1, 0 ),
332 'INT' => array( 25, 1, 1, 0 ),
333 'SIGN' => array( 26, 1, 1, 0 ),
334 'ROUND' => array( 27, 2, 1, 0 ),
335 'LOOKUP' => array( 28, -1, 0, 0 ),
336 'INDEX' => array( 29, -1, 0, 1 ),
337 'REPT' => array( 30, 2, 1, 0 ),
338 'MID' => array( 31, 3, 1, 0 ),
339 'LEN' => array( 32, 1, 1, 0 ),
340 'VALUE' => array( 33, 1, 1, 0 ),
341 'TRUE' => array( 34, 0, 1, 0 ),
342 'FALSE' => array( 35, 0, 1, 0 ),
343 'AND' => array( 36, -1, 0, 0 ),
344 'OR' => array( 37, -1, 0, 0 ),
345 'NOT' => array( 38, 1, 1, 0 ),
346 'MOD' => array( 39, 2, 1, 0 ),
347 'DCOUNT' => array( 40, 3, 0, 0 ),
348 'DSUM' => array( 41, 3, 0, 0 ),
349 'DAVERAGE' => array( 42, 3, 0, 0 ),
350 'DMIN' => array( 43, 3, 0, 0 ),
351 'DMAX' => array( 44, 3, 0, 0 ),
352 'DSTDEV' => array( 45, 3, 0, 0 ),
353 'VAR' => array( 46, -1, 0, 0 ),
354 'DVAR' => array( 47, 3, 0, 0 ),
355 'TEXT' => array( 48, 2, 1, 0 ),
356 'LINEST' => array( 49, -1, 0, 0 ),
357 'TREND' => array( 50, -1, 0, 0 ),
358 'LOGEST' => array( 51, -1, 0, 0 ),
359 'GROWTH' => array( 52, -1, 0, 0 ),
360 'PV' => array( 56, -1, 1, 0 ),
361 'FV' => array( 57, -1, 1, 0 ),
362 'NPER' => array( 58, -1, 1, 0 ),
363 'PMT' => array( 59, -1, 1, 0 ),
364 'RATE' => array( 60, -1, 1, 0 ),
365 'MIRR' => array( 61, 3, 0, 0 ),
366 'IRR' => array( 62, -1, 0, 0 ),
367 'RAND' => array( 63, 0, 1, 1 ),
368 'MATCH' => array( 64, -1, 0, 0 ),
369 'DATE' => array( 65, 3, 1, 0 ),
370 'TIME' => array( 66, 3, 1, 0 ),
371 'DAY' => array( 67, 1, 1, 0 ),
372 'MONTH' => array( 68, 1, 1, 0 ),
373 'YEAR' => array( 69, 1, 1, 0 ),
374 'WEEKDAY' => array( 70, -1, 1, 0 ),
375 'HOUR' => array( 71, 1, 1, 0 ),
376 'MINUTE' => array( 72, 1, 1, 0 ),
377 'SECOND' => array( 73, 1, 1, 0 ),
378 'NOW' => array( 74, 0, 1, 1 ),
379 'AREAS' => array( 75, 1, 0, 1 ),
380 'ROWS' => array( 76, 1, 0, 1 ),
381 'COLUMNS' => array( 77, 1, 0, 1 ),
382 'OFFSET' => array( 78, -1, 0, 1 ),
383 'SEARCH' => array( 82, -1, 1, 0 ),
384 'TRANSPOSE' => array( 83, 1, 1, 0 ),
385 'TYPE' => array( 86, 1, 1, 0 ),
386 'ATAN2' => array( 97, 2, 1, 0 ),
387 'ASIN' => array( 98, 1, 1, 0 ),
388 'ACOS' => array( 99, 1, 1, 0 ),
389 'CHOOSE' => array( 100, -1, 1, 0 ),
390 'HLOOKUP' => array( 101, -1, 0, 0 ),
391 'VLOOKUP' => array( 102, -1, 0, 0 ),
392 'ISREF' => array( 105, 1, 0, 0 ),
393 'LOG' => array( 109, -1, 1, 0 ),
394 'CHAR' => array( 111, 1, 1, 0 ),
395 'LOWER' => array( 112, 1, 1, 0 ),
396 'UPPER' => array( 113, 1, 1, 0 ),
397 'PROPER' => array( 114, 1, 1, 0 ),
398 'LEFT' => array( 115, -1, 1, 0 ),
399 'RIGHT' => array( 116, -1, 1, 0 ),
400 'EXACT' => array( 117, 2, 1, 0 ),
401 'TRIM' => array( 118, 1, 1, 0 ),
402 'REPLACE' => array( 119, 4, 1, 0 ),
403 'SUBSTITUTE' => array( 120, -1, 1, 0 ),
404 'CODE' => array( 121, 1, 1, 0 ),
405 'FIND' => array( 124, -1, 1, 0 ),
406 'CELL' => array( 125, -1, 0, 1 ),
407 'ISERR' => array( 126, 1, 1, 0 ),
408 'ISTEXT' => array( 127, 1, 1, 0 ),
409 'ISNUMBER' => array( 128, 1, 1, 0 ),
410 'ISBLANK' => array( 129, 1, 1, 0 ),
411 'T' => array( 130, 1, 0, 0 ),
412 'N' => array( 131, 1, 0, 0 ),
413 'DATEVALUE' => array( 140, 1, 1, 0 ),
414 'TIMEVALUE' => array( 141, 1, 1, 0 ),
415 'SLN' => array( 142, 3, 1, 0 ),
416 'SYD' => array( 143, 4, 1, 0 ),
417 'DDB' => array( 144, -1, 1, 0 ),
418 'INDIRECT' => array( 148, -1, 1, 1 ),
419 'CALL' => array( 150, -1, 1, 0 ),
420 'CLEAN' => array( 162, 1, 1, 0 ),
421 'MDETERM' => array( 163, 1, 2, 0 ),
422 'MINVERSE' => array( 164, 1, 2, 0 ),
423 'MMULT' => array( 165, 2, 2, 0 ),
424 'IPMT' => array( 167, -1, 1, 0 ),
425 'PPMT' => array( 168, -1, 1, 0 ),
426 'COUNTA' => array( 169, -1, 0, 0 ),
427 'PRODUCT' => array( 183, -1, 0, 0 ),
428 'FACT' => array( 184, 1, 1, 0 ),
429 'DPRODUCT' => array( 189, 3, 0, 0 ),
430 'ISNONTEXT' => array( 190, 1, 1, 0 ),
431 'STDEVP' => array( 193, -1, 0, 0 ),
432 'VARP' => array( 194, -1, 0, 0 ),
433 'DSTDEVP' => array( 195, 3, 0, 0 ),
434 'DVARP' => array( 196, 3, 0, 0 ),
435 'TRUNC' => array( 197, -1, 1, 0 ),
436 'ISLOGICAL' => array( 198, 1, 1, 0 ),
437 'DCOUNTA' => array( 199, 3, 0, 0 ),
438 'ROUNDUP' => array( 212, 2, 1, 0 ),
439 'ROUNDDOWN' => array( 213, 2, 1, 0 ),
440 'RANK' => array( 216, -1, 0, 0 ),
441 'ADDRESS' => array( 219, -1, 1, 0 ),
442 'DAYS360' => array( 220, -1, 1, 0 ),
443 'TODAY' => array( 221, 0, 1, 1 ),
444 'VDB' => array( 222, -1, 1, 0 ),
445 'MEDIAN' => array( 227, -1, 0, 0 ),
446 'SUMPRODUCT' => array( 228, -1, 2, 0 ),
447 'SINH' => array( 229, 1, 1, 0 ),
448 'COSH' => array( 230, 1, 1, 0 ),
449 'TANH' => array( 231, 1, 1, 0 ),
450 'ASINH' => array( 232, 1, 1, 0 ),
451 'ACOSH' => array( 233, 1, 1, 0 ),
452 'ATANH' => array( 234, 1, 1, 0 ),
453 'DGET' => array( 235, 3, 0, 0 ),
454 'INFO' => array( 244, 1, 1, 1 ),
455 'DB' => array( 247, -1, 1, 0 ),
456 'FREQUENCY' => array( 252, 2, 0, 0 ),
457 'ERROR.TYPE' => array( 261, 1, 1, 0 ),
458 'REGISTER.ID' => array( 267, -1, 1, 0 ),
459 'AVEDEV' => array( 269, -1, 0, 0 ),
460 'BETADIST' => array( 270, -1, 1, 0 ),
461 'GAMMALN' => array( 271, 1, 1, 0 ),
462 'BETAINV' => array( 272, -1, 1, 0 ),
463 'BINOMDIST' => array( 273, 4, 1, 0 ),
464 'CHIDIST' => array( 274, 2, 1, 0 ),
465 'CHIINV' => array( 275, 2, 1, 0 ),
466 'COMBIN' => array( 276, 2, 1, 0 ),
467 'CONFIDENCE' => array( 277, 3, 1, 0 ),
468 'CRITBINOM' => array( 278, 3, 1, 0 ),
469 'EVEN' => array( 279, 1, 1, 0 ),
470 'EXPONDIST' => array( 280, 3, 1, 0 ),
471 'FDIST' => array( 281, 3, 1, 0 ),
472 'FINV' => array( 282, 3, 1, 0 ),
473 'FISHER' => array( 283, 1, 1, 0 ),
474 'FISHERINV' => array( 284, 1, 1, 0 ),
475 'FLOOR' => array( 285, 2, 1, 0 ),
476 'GAMMADIST' => array( 286, 4, 1, 0 ),
477 'GAMMAINV' => array( 287, 3, 1, 0 ),
478 'CEILING' => array( 288, 2, 1, 0 ),
479 'HYPGEOMDIST' => array( 289, 4, 1, 0 ),
480 'LOGNORMDIST' => array( 290, 3, 1, 0 ),
481 'LOGINV' => array( 291, 3, 1, 0 ),
482 'NEGBINOMDIST' => array( 292, 3, 1, 0 ),
483 'NORMDIST' => array( 293, 4, 1, 0 ),
484 'NORMSDIST' => array( 294, 1, 1, 0 ),
485 'NORMINV' => array( 295, 3, 1, 0 ),
486 'NORMSINV' => array( 296, 1, 1, 0 ),
487 'STANDARDIZE' => array( 297, 3, 1, 0 ),
488 'ODD' => array( 298, 1, 1, 0 ),
489 'PERMUT' => array( 299, 2, 1, 0 ),
490 'POISSON' => array( 300, 3, 1, 0 ),
491 'TDIST' => array( 301, 3, 1, 0 ),
492 'WEIBULL' => array( 302, 4, 1, 0 ),
493 'SUMXMY2' => array( 303, 2, 2, 0 ),
494 'SUMX2MY2' => array( 304, 2, 2, 0 ),
495 'SUMX2PY2' => array( 305, 2, 2, 0 ),
496 'CHITEST' => array( 306, 2, 2, 0 ),
497 'CORREL' => array( 307, 2, 2, 0 ),
498 'COVAR' => array( 308, 2, 2, 0 ),
499 'FORECAST' => array( 309, 3, 2, 0 ),
500 'FTEST' => array( 310, 2, 2, 0 ),
501 'INTERCEPT' => array( 311, 2, 2, 0 ),
502 'PEARSON' => array( 312, 2, 2, 0 ),
503 'RSQ' => array( 313, 2, 2, 0 ),
504 'STEYX' => array( 314, 2, 2, 0 ),
505 'SLOPE' => array( 315, 2, 2, 0 ),
506 'TTEST' => array( 316, 4, 2, 0 ),
507 'PROB' => array( 317, -1, 2, 0 ),
508 'DEVSQ' => array( 318, -1, 0, 0 ),
509 'GEOMEAN' => array( 319, -1, 0, 0 ),
510 'HARMEAN' => array( 320, -1, 0, 0 ),
511 'SUMSQ' => array( 321, -1, 0, 0 ),
512 'KURT' => array( 322, -1, 0, 0 ),
513 'SKEW' => array( 323, -1, 0, 0 ),
514 'ZTEST' => array( 324, -1, 0, 0 ),
515 'LARGE' => array( 325, 2, 0, 0 ),
516 'SMALL' => array( 326, 2, 0, 0 ),
517 'QUARTILE' => array( 327, 2, 0, 0 ),
518 'PERCENTILE' => array( 328, 2, 0, 0 ),
519 'PERCENTRANK' => array( 329, -1, 0, 0 ),
520 'MODE' => array( 330, -1, 2, 0 ),
521 'TRIMMEAN' => array( 331, 2, 0, 0 ),
522 'TINV' => array( 332, 2, 1, 0 ),
523 'CONCATENATE' => array( 336, -1, 1, 0 ),
524 'POWER' => array( 337, 2, 1, 0 ),
525 'RADIANS' => array( 342, 1, 1, 0 ),
526 'DEGREES' => array( 343, 1, 1, 0 ),
527 'SUBTOTAL' => array( 344, -1, 0, 0 ),
528 'SUMIF' => array( 345, -1, 0, 0 ),
529 'COUNTIF' => array( 346, 2, 0, 0 ),
530 'COUNTBLANK' => array( 347, 1, 0, 0 ),
531 'ROMAN' => array( 354, -1, 1, 0 )
532 );
533 }

Referenced by Spreadsheet_Excel_Writer_Parser().

+ Here is the caller graph for this function:

◆ _match()

Spreadsheet_Excel_Writer_Parser::_match (   $token)

Checks if it's a valid token.

@access private

Parameters
mixed$tokenThe token to check.
Returns
mixed The checked token or false on failure

Definition at line 1158 of file Parser.php.

1159 {
1160 switch($token) {
1162 return $token;
1163 break;
1165 return $token;
1166 break;
1168 return $token;
1169 break;
1171 return $token;
1172 break;
1174 return $token;
1175 break;
1177 return $token;
1178 break;
1180 return $token;
1181 break;
1183 return $token;
1184 break;
1186 if ($this->_lookahead == '=') { // it's a GE token
1187 break;
1188 }
1189 return $token;
1190 break;
1192 // it's a LE or a NE token
1193 if (($this->_lookahead == '=') or ($this->_lookahead == '>')) {
1194 break;
1195 }
1196 return $token;
1197 break;
1199 return $token;
1200 break;
1202 return $token;
1203 break;
1205 return $token;
1206 break;
1208 return $token;
1209 break;
1211 return $token;
1212 break;
1213 default:
1214 // if it's a reference
1215 if (preg_match('/^\$?[A-Ia-i]?[A-Za-z]\$?[0-9]+$/',$token) and
1216 !preg_match("/[0-9]/",$this->_lookahead) and
1217 ($this->_lookahead != ':') and ($this->_lookahead != '.') and
1218 ($this->_lookahead != '!'))
1219 {
1220 return $token;
1221 }
1222 // If it's an external reference (Sheet1!A1 or Sheet1:Sheet2!A1)
1223 elseif (preg_match("/^\w+(\:\w+)?\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
1224 !preg_match("/[0-9]/",$this->_lookahead) and
1225 ($this->_lookahead != ':') and ($this->_lookahead != '.'))
1226 {
1227 return $token;
1228 }
1229 // If it's an external reference ('Sheet1'!A1 or 'Sheet1:Sheet2'!A1)
1230 elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\![A-Ia-i]?[A-Za-z][0-9]+$/u",$token) and
1231 !preg_match("/[0-9]/",$this->_lookahead) and
1232 ($this->_lookahead != ':') and ($this->_lookahead != '.'))
1233 {
1234 return $token;
1235 }
1236 // if it's a range (A1:A2)
1237 elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+:(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
1238 !preg_match("/[0-9]/",$this->_lookahead))
1239 {
1240 return $token;
1241 }
1242 // if it's a range (A1..A2)
1243 elseif (preg_match("/^(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+\.\.(\$)?[A-Ia-i]?[A-Za-z](\$)?[0-9]+$/",$token) and
1244 !preg_match("/[0-9]/",$this->_lookahead))
1245 {
1246 return $token;
1247 }
1248 // If it's an external range like Sheet1!A1 or Sheet1:Sheet2!A1:B2
1249 elseif (preg_match("/^\w+(\:\w+)?\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
1250 !preg_match("/[0-9]/",$this->_lookahead))
1251 {
1252 return $token;
1253 }
1254 // If it's an external range like 'Sheet1'!A1 or 'Sheet1:Sheet2'!A1:B2
1255 elseif (preg_match("/^'[\w -]+(\:[\w -]+)?'\!([A-Ia-i]?[A-Za-z])?[0-9]+:([A-Ia-i]?[A-Za-z])?[0-9]+$/u",$token) and
1256 !preg_match("/[0-9]/",$this->_lookahead))
1257 {
1258 return $token;
1259 }
1260 // If it's a number (check that it's not a sheet name or range)
1261 elseif (is_numeric($token) and
1262 (!is_numeric($token.$this->_lookahead) or ($this->_lookahead == '')) and
1263 ($this->_lookahead != '!') and ($this->_lookahead != ':'))
1264 {
1265 return $token;
1266 }
1267 // If it's a string (of maximum 255 characters)
1268 elseif (preg_match("/^\"[^\"]{0,255}\"$/",$token))
1269 {
1270 return $token;
1271 }
1272 // if it's a function call
1273 elseif (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/i",$token) and ($this->_lookahead == "("))
1274 {
1275 return $token;
1276 }
1277 return '';
1278 }
1279 }
const SPREADSHEET_EXCEL_WRITER_MUL
@const SPREADSHEET_EXCEL_WRITER_MUL token identifier for character "*"
Definition: Parser.php:38
const SPREADSHEET_EXCEL_WRITER_DIV
@const SPREADSHEET_EXCEL_WRITER_DIV token identifier for character "/"
Definition: Parser.php:43

References SPREADSHEET_EXCEL_WRITER_ADD, SPREADSHEET_EXCEL_WRITER_CLOSE, SPREADSHEET_EXCEL_WRITER_COMA, SPREADSHEET_EXCEL_WRITER_CONCAT, SPREADSHEET_EXCEL_WRITER_DIV, SPREADSHEET_EXCEL_WRITER_EQ, SPREADSHEET_EXCEL_WRITER_GE, SPREADSHEET_EXCEL_WRITER_GT, SPREADSHEET_EXCEL_WRITER_LE, SPREADSHEET_EXCEL_WRITER_LT, SPREADSHEET_EXCEL_WRITER_MUL, SPREADSHEET_EXCEL_WRITER_NE, SPREADSHEET_EXCEL_WRITER_OPEN, SPREADSHEET_EXCEL_WRITER_SEMICOLON, and SPREADSHEET_EXCEL_WRITER_SUB.

Referenced by _advance().

+ Here is the caller graph for this function:

◆ _packExtRef()

Spreadsheet_Excel_Writer_Parser::_packExtRef (   $ext_ref)

Convert the sheet name part of an external reference, for example "Sheet1" or "Sheet1:Sheet2", to a packed structure.

@access private

Parameters
string$ext_refThe name of the external reference
Returns
string The reference index in packed() format

Definition at line 861 of file Parser.php.

862 {
863 $ext_ref = preg_replace("/^'/", '', $ext_ref); // Remove leading ' if any.
864 $ext_ref = preg_replace("/'$/", '', $ext_ref); // Remove trailing ' if any.
865
866 // Check if there is a sheet range eg., Sheet1:Sheet2.
867 if (preg_match("/:/", $ext_ref)) {
868 list($sheet_name1, $sheet_name2) = split(':', $ext_ref);
869
870 $sheet1 = $this->_getSheetIndex($sheet_name1);
871 if ($sheet1 == -1) {
872 return $this->raiseError("Unknown sheet name $sheet_name1 in formula");
873 }
874 $sheet2 = $this->_getSheetIndex($sheet_name2);
875 if ($sheet2 == -1) {
876 return $this->raiseError("Unknown sheet name $sheet_name2 in formula");
877 }
878
879 // Reverse max and min sheet numbers if necessary
880 if ($sheet1 > $sheet2) {
881 list($sheet1, $sheet2) = array($sheet2, $sheet1);
882 }
883 } else { // Single sheet name only.
884 $sheet1 = $this->_getSheetIndex($ext_ref);
885 if ($sheet1 == -1) {
886 return $this->raiseError("Unknown sheet name $ext_ref in formula");
887 }
888 $sheet2 = $sheet1;
889 }
890
891 // References are stored relative to 0xFFFF.
892 $offset = -1 - $sheet1;
893
894 return pack('vdvv', $offset, 0x00, $sheet1, $sheet2);
895 }

References _getSheetIndex(), and PEAR\raiseError().

Referenced by _convertRange3d(), and _convertRef3d().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _parenthesizedExpression()

Spreadsheet_Excel_Writer_Parser::_parenthesizedExpression ( )

This function just introduces a ptgParen element in the tree, so that Excel doesn't get confused when working with a parenthesized formula afterwards.

@access private

See also
_fact()
Returns
array The parsed ptg'd tree

Definition at line 1425 of file Parser.php.

1426 {
1427 $result = $this->_createTree('ptgParen', $this->_expression(), '');
1428 return $result;
1429 }

References $result, _createTree(), and _expression().

Referenced by _fact().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _rangeToPackedRange()

Spreadsheet_Excel_Writer_Parser::_rangeToPackedRange (   $range)

pack() row range into the required 3 or 4 byte format.

Just using maximum col/rows, which is probably not the correct solution

@access private

Parameters
string$rangeThe Excel range to be packed
Returns
array Array containing (row1,col1,row2,col2) in packed() format

Definition at line 1031 of file Parser.php.

1032 {
1033 preg_match('/(\$)?(\d+)\:(\$)?(\d+)/', $range, $match);
1034 // return absolute rows if there is a $ in the ref
1035 $row1_rel = empty($match[1]) ? 1 : 0;
1036 $row1 = $match[2];
1037 $row2_rel = empty($match[3]) ? 1 : 0;
1038 $row2 = $match[4];
1039 // Convert 1-index to zero-index
1040 $row1--;
1041 $row2--;
1042 // Trick poor inocent Excel
1043 $col1 = 0;
1044 $col2 = 16383; // FIXME: maximum possible value for Excel 5 (change this!!!)
1045
1046 // FIXME: this changes for BIFF8
1047 if (($row1 >= 16384) or ($row2 >= 16384)) {
1048 return $this->raiseError("Row in: $range greater than 16384 ");
1049 }
1050
1051 // Set the high bits to indicate if rows are relative.
1052 if ($this->_BIFF_version == 0x0500) {
1053 $row1 |= $row1_rel << 14; // FIXME: probably a bug
1054 $row2 |= $row2_rel << 15;
1055 $col1 = pack('C', $col1);
1056 $col2 = pack('C', $col2);
1057 } elseif ($this->_BIFF_version == 0x0600) {
1058 $col1 |= $row1_rel << 15;
1059 $col2 |= $row2_rel << 15;
1060 $col1 = pack('v', $col1);
1061 $col2 = pack('v', $col2);
1062 }
1063 $row1 = pack('v', $row1);
1064 $row2 = pack('v', $row2);
1065
1066 return array($row1, $col1, $row2, $col2);
1067 }

References PEAR\raiseError().

Referenced by _convertRange3d().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ _term()

Spreadsheet_Excel_Writer_Parser::_term ( )

It parses a term.

It assumes the following rule: Term -> Fact [("*" | "/") Fact]

@access private

Returns
mixed The parsed ptg'd tree on success, PEAR_Error on failure

Definition at line 1438 of file Parser.php.

1439 {
1440 $result = $this->_fact();
1441 if (PEAR::isError($result)) {
1442 return $result;
1443 }
1444 while (($this->_current_token == SPREADSHEET_EXCEL_WRITER_MUL) or
1445 ($this->_current_token == SPREADSHEET_EXCEL_WRITER_DIV)) {
1446
1447 if ($this->_current_token == SPREADSHEET_EXCEL_WRITER_MUL) {
1448 $this->_advance();
1449 $result2 = $this->_fact();
1450 if (PEAR::isError($result2)) {
1451 return $result2;
1452 }
1453 $result = $this->_createTree('ptgMul', $result, $result2);
1454 } else {
1455 $this->_advance();
1456 $result2 = $this->_fact();
1457 if (PEAR::isError($result2)) {
1458 return $result2;
1459 }
1460 $result = $this->_createTree('ptgDiv', $result, $result2);
1461 }
1462 }
1463 return $result;
1464 }
_fact()
It parses a factor.
Definition: Parser.php:1477

References $result, _advance(), _createTree(), _fact(), PEAR\isError(), SPREADSHEET_EXCEL_WRITER_DIV, and SPREADSHEET_EXCEL_WRITER_MUL.

Referenced by _expression().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ parse()

Spreadsheet_Excel_Writer_Parser::parse (   $formula)

The parsing method.

It parses a formula.

@access public

Parameters
string$formulaThe formula to parse, without the initial equal sign (=).
Returns
mixed true on success, PEAR_Error on failure

Definition at line 1289 of file Parser.php.

1290 {
1291 $this->_current_char = 0;
1292 $this->_formula = $formula;
1293 $this->_lookahead = $formula{1};
1294 $this->_advance();
1295 $this->_parse_tree = $this->_condition();
1296 if (PEAR::isError($this->_parse_tree)) {
1297 return $this->_parse_tree;
1298 }
1299 return true;
1300 }

References $_parse_tree, _advance(), _condition(), and PEAR\isError().

+ Here is the call graph for this function:

◆ setExtSheet()

Spreadsheet_Excel_Writer_Parser::setExtSheet (   $name,
  $index
)

This method is used to update the array of sheet names.

It is called by the addWorksheet() method of the Spreadsheet_Excel_Writer_Workbook class.

@access public

See also
Spreadsheet_Excel_Writer_Workbook::addWorksheet()
Parameters
string$nameThe name of the worksheet being added
integer$indexThe index of the worksheet being added

Definition at line 984 of file Parser.php.

985 {
986 $this->_ext_sheets[$name] = $index;
987 }

◆ Spreadsheet_Excel_Writer_Parser()

Spreadsheet_Excel_Writer_Parser::Spreadsheet_Excel_Writer_Parser (   $byte_order,
  $biff_version
)

The class constructor.

Parameters
integer$byte_orderThe byte order (Little endian or Big endian) of the architecture (optional). 1 => big endian, 0 (default) little endian.

Definition at line 172 of file Parser.php.

173 {
174 $this->_current_char = 0;
175 $this->_BIFF_version = $biff_version;
176 $this->_current_token = ''; // The token we are working on.
177 $this->_formula = ''; // The formula to parse.
178 $this->_lookahead = ''; // The character ahead of the current char.
179 $this->_parse_tree = ''; // The parse tree to be generated.
180 $this->_initializeHashes(); // Initialize the hashes: ptg's and function's ptg's
181 $this->_byte_order = $byte_order; // Little Endian or Big Endian
182 $this->_ext_sheets = array();
183 $this->_references = array();
184 }
_initializeHashes()
Initialize the ptg and function hashes.
Definition: Parser.php:191

References _initializeHashes().

+ Here is the call graph for this function:

◆ toReversePolish()

Spreadsheet_Excel_Writer_Parser::toReversePolish (   $tree = array())

Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator stack).

The following tree:

  • / \ 2 3

produces: "23+"

The following tree:

  • / \ 3 * / \ 6 A1

produces: "36A1*+"

In fact all operands, functions, references, etc... are written as ptg's

@access public

Parameters
array$treeThe optional tree to convert.
Returns
string The tree in reverse polish notation

Definition at line 1643 of file Parser.php.

1644 {
1645 $polish = ""; // the string we are going to return
1646 if (empty($tree)) { // If it's the first call use _parse_tree
1647 $tree = $this->_parse_tree;
1648 }
1649 if (is_array($tree['left'])) {
1650 $converted_tree = $this->toReversePolish($tree['left']);
1651 if (PEAR::isError($converted_tree)) {
1652 return $converted_tree;
1653 }
1654 $polish .= $converted_tree;
1655 } elseif ($tree['left'] != '') { // It's a final node
1656 $converted_tree = $this->_convert($tree['left']);
1657 if (PEAR::isError($converted_tree)) {
1658 return $converted_tree;
1659 }
1660 $polish .= $converted_tree;
1661 }
1662 if (is_array($tree['right'])) {
1663 $converted_tree = $this->toReversePolish($tree['right']);
1664 if (PEAR::isError($converted_tree)) {
1665 return $converted_tree;
1666 }
1667 $polish .= $converted_tree;
1668 } elseif ($tree['right'] != '') { // It's a final node
1669 $converted_tree = $this->_convert($tree['right']);
1670 if (PEAR::isError($converted_tree)) {
1671 return $converted_tree;
1672 }
1673 $polish .= $converted_tree;
1674 }
1675 // if it's a function convert it here (so we can set it's arguments)
1676 if (preg_match("/^[A-Z0-9\xc0-\xdc\.]+$/",$tree['value']) and
1677 !preg_match('/^([A-Ia-i]?[A-Za-z])(\d+)$/',$tree['value']) and
1678 !preg_match("/^[A-Ia-i]?[A-Za-z](\d+)\.\.[A-Ia-i]?[A-Za-z](\d+)$/",$tree['value']) and
1679 !is_numeric($tree['value']) and
1680 !isset($this->ptg[$tree['value']]))
1681 {
1682 // left subtree for a function is always an array.
1683 if ($tree['left'] != '') {
1684 $left_tree = $this->toReversePolish($tree['left']);
1685 } else {
1686 $left_tree = '';
1687 }
1688 if (PEAR::isError($left_tree)) {
1689 return $left_tree;
1690 }
1691 // add it's left subtree and return.
1692 return $left_tree.$this->_convertFunction($tree['value'], $tree['right']);
1693 } else {
1694 $converted_tree = $this->_convert($tree['value']);
1695 if (PEAR::isError($converted_tree)) {
1696 return $converted_tree;
1697 }
1698 }
1699 $polish .= $converted_tree;
1700 return $polish;
1701 }
toReversePolish($tree=array())
Builds a string containing the tree in reverse polish notation (What you would use in a HP calculator...
Definition: Parser.php:1643
_convert($token)
Convert a token to the proper ptg value.
Definition: Parser.php:543

References $_parse_tree, _convert(), PEAR\isError(), and toReversePolish().

Referenced by toReversePolish().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $_BIFF_version

Spreadsheet_Excel_Writer_Parser::$_BIFF_version

Definition at line 164 of file Parser.php.

◆ $_byte_order

Spreadsheet_Excel_Writer_Parser::$_byte_order

Definition at line 146 of file Parser.php.

◆ $_current_char

Spreadsheet_Excel_Writer_Parser::$_current_char

Definition at line 116 of file Parser.php.

Referenced by _advance().

◆ $_current_token

Spreadsheet_Excel_Writer_Parser::$_current_token

Definition at line 122 of file Parser.php.

Referenced by _fact().

◆ $_ext_sheets

Spreadsheet_Excel_Writer_Parser::$_ext_sheets

Definition at line 152 of file Parser.php.

◆ $_formula

Spreadsheet_Excel_Writer_Parser::$_formula

Definition at line 128 of file Parser.php.

◆ $_lookahead

Spreadsheet_Excel_Writer_Parser::$_lookahead

Definition at line 134 of file Parser.php.

◆ $_parse_tree

Spreadsheet_Excel_Writer_Parser::$_parse_tree

Definition at line 140 of file Parser.php.

Referenced by parse(), and toReversePolish().

◆ $_references

Spreadsheet_Excel_Writer_Parser::$_references

Definition at line 158 of file Parser.php.


The documentation for this class was generated from the following file:
