TCPDFBarcode Class Reference

PHP class to creates array representations for common 1D barcodes to be used with TCPDF (http://www.tcpdf.org). More...

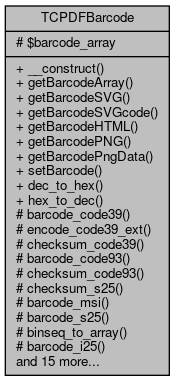

+ Collaboration diagram for TCPDFBarcode:

Public Member Functions

 __construct ($code, $type)
 This is the class constructor. More...

 getBarcodeArray ()
 Return an array representations of barcode. More...

 getBarcodeSVG ($w=2, $h=30, $color='black')
 Send barcode as SVG image object to the standard output. More...

 getBarcodeSVGcode ($w=2, $h=30, $color='black')
 Return a SVG string representation of barcode. More...

 getBarcodeHTML ($w=2, $h=30, $color='black')
 Return an HTML representation of barcode. More...

 getBarcodePNG ($w=2, $h=30, $color=array(0, 0, 0))
 Send a PNG image representation of barcode (requires GD or Imagick library). More...

 getBarcodePngData ($w=2, $h=30, $color=array(0, 0, 0))
 Return a PNG image representation of barcode (requires GD or Imagick library). More...

 setBarcode ($code, $type)
 Set the barcode. More...

 dec_to_hex ($number)
 Convert large integer number to hexadecimal representation. More...

 hex_to_dec ($hex)
 Convert large hexadecimal number to decimal representation (string). More...


Protected Member Functions

 barcode_code39 ($code, $extended=false, $checksum=false)
 CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9. More...

 encode_code39_ext ($code)
 Encode a string to be used for CODE 39 Extended mode. More...

 checksum_code39 ($code)
 Calculate CODE 39 checksum (modulo 43). More...

 barcode_code93 ($code)
 CODE 93 - USS-93 Compact code similar to Code 39. More...

 checksum_code93 ($code)
 Calculate CODE 93 checksum (modulo 47). More...

 checksum_s25 ($code)
 Checksum for standard 2 of 5 barcodes. More...

 barcode_msi ($code, $checksum=false)
 MSI. More...

 barcode_s25 ($code, $checksum=false)
 Standard 2 of 5 barcodes. More...

 binseq_to_array ($seq, $bararray)
 Convert binary barcode sequence to TCPDF barcode array. More...

 barcode_i25 ($code, $checksum=false)
 Interleaved 2 of 5 barcodes. More...

 barcode_c128 ($code, $type='')
 C128 barcodes. More...

 get128ABsequence ($code)
 Split text code in A/B sequence for 128 code. More...

 barcode_eanupc ($code, $len=13)
 EAN13 and UPC-A barcodes. More...

 barcode_eanext ($code, $len=5)
 UPC-Based Extensions 2-Digit Ext. More...

 barcode_postnet ($code, $planet=false)
 POSTNET and PLANET barcodes. More...

 barcode_rms4cc ($code, $kix=false)
 RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant index - Customer index) RM4SCC is the name of the barcode symbology used by the Royal Mail for its Cleanmail service. More...

 barcode_codabar ($code)
 CODABAR barcodes. More...

 barcode_code11 ($code)
 CODE11 barcodes. More...

 barcode_pharmacode ($code)
 Pharmacode Contains digits (0 to 9) More...

 barcode_pharmacode2t ($code)
 Pharmacode two-track Contains digits (0 to 9) More...

 barcode_imb ($code)
 IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Mail barcode is a 65-bar code for use on mail in the United States. More...

 barcode_imb_pre ($code)
 IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200. More...

 imb_crc11fcs ($code_arr)
 Intelligent Mail Barcode calculation of Frame Check Sequence. More...

 imb_reverse_us ($num)
 Reverse unsigned short value. More...

 imb_tables ($n, $size)
 generate Nof13 tables used for Intelligent Mail Barcode More...


Protected Attributes

 $barcode_array
 Array representation of barcode. More...


Detailed Description

PHP class to creates array representations for common 1D barcodes to be used with TCPDF (http://www.tcpdf.org).


Definition at line 50 of file tcpdf_barcodes_1d.php.

Constructor & Destructor Documentation

◆ __construct()

TCPDFBarcode::__construct (   $code,
  $type
)

This is the class constructor.

Return an array representations for common 1D barcodes:

  • $arrcode['code'] code to be printed on text label
  • $arrcode['maxh'] max barcode height
  • $arrcode['maxw'] max barcode width
  • $arrcode['bcode'][$k] single bar or space in $k position
  • $arrcode['bcode'][$k]['t'] bar type: true = bar, false = space.
  • $arrcode['bcode'][$k]['w'] bar width in units.
  • $arrcode['bcode'][$k]['h'] bar height in units.
  • $arrcode['bcode'][$k]['p'] bar top position (0 = top, 1 = middle)
Parameters
$code(string) code to print
$type(string) type of barcode:
  • C39 : CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
  • C39+ : CODE 39 with checksum
  • C39E : CODE 39 EXTENDED
  • C39E+ : CODE 39 EXTENDED + CHECKSUM
  • C93 : CODE 93 - USS-93
  • S25 : Standard 2 of 5
  • S25+ : Standard 2 of 5 + CHECKSUM
  • I25 : Interleaved 2 of 5
  • I25+ : Interleaved 2 of 5 + CHECKSUM
  • C128 : CODE 128
  • C128A : CODE 128 A
  • C128B : CODE 128 B
  • C128C : CODE 128 C
  • EAN2 : 2-Digits UPC-Based Extension
  • EAN5 : 5-Digits UPC-Based Extension
  • EAN8 : EAN 8
  • EAN13 : EAN 13
  • UPCA : UPC-A
  • UPCE : UPC-E
  • MSI : MSI (Variation of Plessey code)
  • MSI+ : MSI + CHECKSUM (modulo 11)
  • POSTNET : POSTNET
  • PLANET : PLANET
  • RMS4CC : RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
  • KIX : KIX (Klant index - Customer index)
  • IMB: Intelligent Mail Barcode - Onecode - USPS-B-3200
  • CODABAR : CODABAR
  • CODE11 : CODE 11
  • PHARMA : PHARMACODE
  • PHARMA2T : PHARMACODE TWO-TRACKS

Definition at line 73 of file tcpdf_barcodes_1d.php.

References $code, and setBarcode().

73  {
74  $this->setBarcode($code, $type);
75  }
$code
$code
Definition: example_050.php:99
TCPDFBarcode\setBarcode
setBarcode($code, $type)
Set the barcode.
Definition: tcpdf_barcodes_1d.php:249

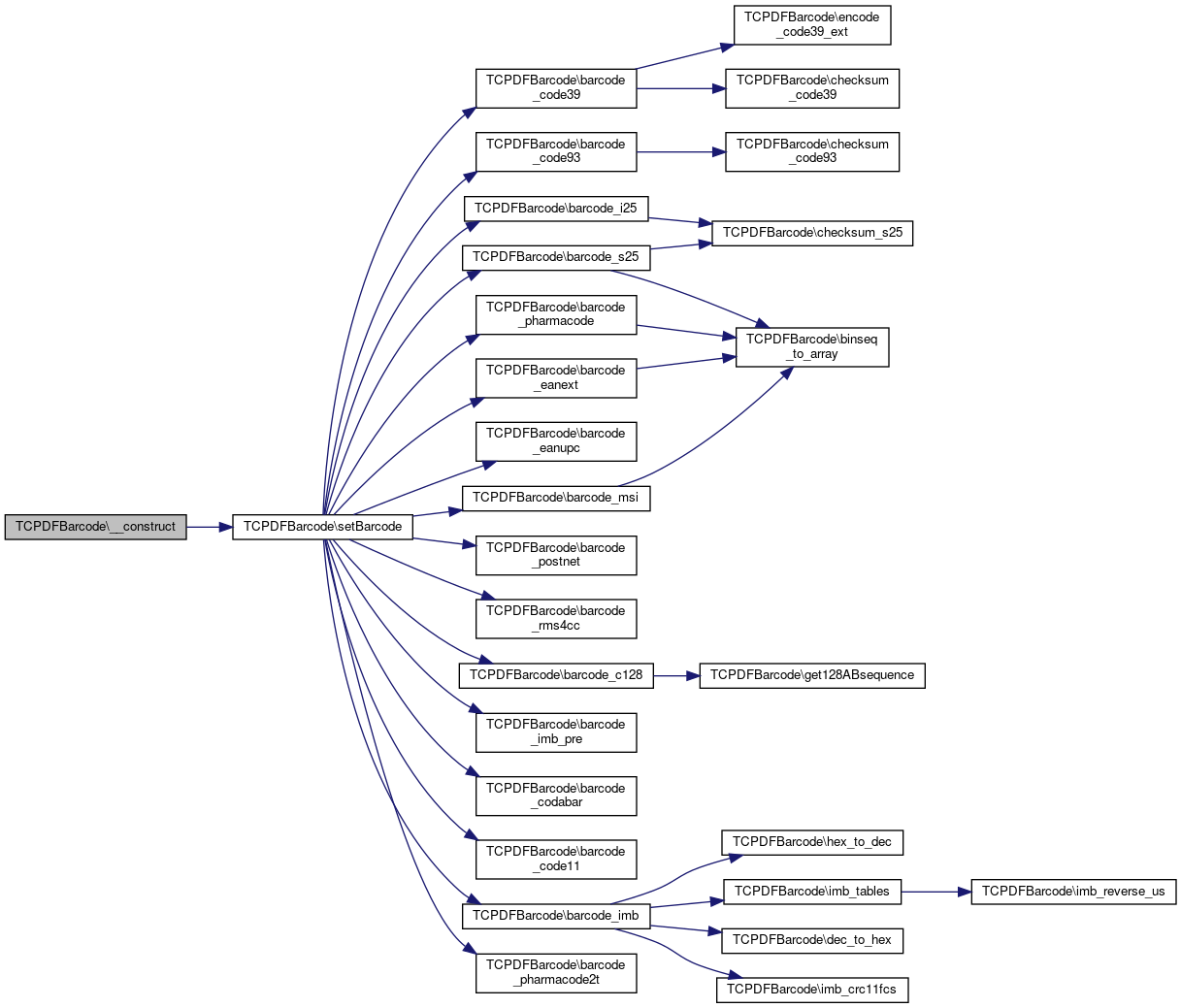

+ Here is the call graph for this function:

Member Function Documentation

◆ barcode_c128()

TCPDFBarcode::barcode_c128 (   $code,
  $type = ''
)
protected

C128 barcodes.

Very capable code, excellent density, high reliability; in very wide use world-wide

Parameters
$code(string) code to represent.
$type(string) barcode type: A, B, C or empty for automatic switch (AUTO mode)
Returns
array barcode representation.

Definition at line 958 of file tcpdf_barcodes_1d.php.

References $code, $t, $w, and get128ABsequence().

Referenced by setBarcode().

958  {
959  $chr = array(
960  '212222', /* 00 */
961  '222122', /* 01 */
962  '222221', /* 02 */
963  '121223', /* 03 */
964  '121322', /* 04 */
965  '131222', /* 05 */
966  '122213', /* 06 */
967  '122312', /* 07 */
968  '132212', /* 08 */
969  '221213', /* 09 */
970  '221312', /* 10 */
971  '231212', /* 11 */
972  '112232', /* 12 */
973  '122132', /* 13 */
974  '122231', /* 14 */
975  '113222', /* 15 */
976  '123122', /* 16 */
977  '123221', /* 17 */
978  '223211', /* 18 */
979  '221132', /* 19 */
980  '221231', /* 20 */
981  '213212', /* 21 */
982  '223112', /* 22 */
983  '312131', /* 23 */
984  '311222', /* 24 */
985  '321122', /* 25 */
986  '321221', /* 26 */
987  '312212', /* 27 */
988  '322112', /* 28 */
989  '322211', /* 29 */
990  '212123', /* 30 */
991  '212321', /* 31 */
992  '232121', /* 32 */
993  '111323', /* 33 */
994  '131123', /* 34 */
995  '131321', /* 35 */
996  '112313', /* 36 */
997  '132113', /* 37 */
998  '132311', /* 38 */
999  '211313', /* 39 */
1000  '231113', /* 40 */
1001  '231311', /* 41 */
1002  '112133', /* 42 */
1003  '112331', /* 43 */
1004  '132131', /* 44 */
1005  '113123', /* 45 */
1006  '113321', /* 46 */
1007  '133121', /* 47 */
1008  '313121', /* 48 */
1009  '211331', /* 49 */
1010  '231131', /* 50 */
1011  '213113', /* 51 */
1012  '213311', /* 52 */
1013  '213131', /* 53 */
1014  '311123', /* 54 */
1015  '311321', /* 55 */
1016  '331121', /* 56 */
1017  '312113', /* 57 */
1018  '312311', /* 58 */
1019  '332111', /* 59 */
1020  '314111', /* 60 */
1021  '221411', /* 61 */
1022  '431111', /* 62 */
1023  '111224', /* 63 */
1024  '111422', /* 64 */
1025  '121124', /* 65 */
1026  '121421', /* 66 */
1027  '141122', /* 67 */
1028  '141221', /* 68 */
1029  '112214', /* 69 */
1030  '112412', /* 70 */
1031  '122114', /* 71 */
1032  '122411', /* 72 */
1033  '142112', /* 73 */
1034  '142211', /* 74 */
1035  '241211', /* 75 */
1036  '221114', /* 76 */
1037  '413111', /* 77 */
1038  '241112', /* 78 */
1039  '134111', /* 79 */
1040  '111242', /* 80 */
1041  '121142', /* 81 */
1042  '121241', /* 82 */
1043  '114212', /* 83 */
1044  '124112', /* 84 */
1045  '124211', /* 85 */
1046  '411212', /* 86 */
1047  '421112', /* 87 */
1048  '421211', /* 88 */
1049  '212141', /* 89 */
1050  '214121', /* 90 */
1051  '412121', /* 91 */
1052  '111143', /* 92 */
1053  '111341', /* 93 */
1054  '131141', /* 94 */
1055  '114113', /* 95 */
1056  '114311', /* 96 */
1057  '411113', /* 97 */
1058  '411311', /* 98 */
1059  '113141', /* 99 */
1060  '114131', /* 100 */
1061  '311141', /* 101 */
1062  '411131', /* 102 */
1063  '211412', /* 103 START A */
1064  '211214', /* 104 START B */
1065  '211232', /* 105 START C */
1066  '233111', /* STOP */
1067  '200000' /* END */
1068  );
1069  // ASCII characters for code A (ASCII 00 - 95)
1070  $keys_a = ' !"#$%&\'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_';
1071  $keys_a .= chr(0).chr(1).chr(2).chr(3).chr(4).chr(5).chr(6).chr(7).chr(8).chr(9);
1072  $keys_a .= chr(10).chr(11).chr(12).chr(13).chr(14).chr(15).chr(16).chr(17).chr(18).chr(19);
1073  $keys_a .= chr(20).chr(21).chr(22).chr(23).chr(24).chr(25).chr(26).chr(27).chr(28).chr(29);
1074  $keys_a .= chr(30).chr(31);
1075  // ASCII characters for code B (ASCII 32 - 127)
1076  $keys_b = ' !"#$%&\'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_`abcdefghijklmnopqrstuvwxyz{|}~'.chr(127);
1077  // special codes
1078  $fnc_a = array(241 => 102, 242 => 97, 243 => 96, 244 => 101);
1079  $fnc_b = array(241 => 102, 242 => 97, 243 => 96, 244 => 100);
1080  // array of symbols
1081  $code_data = array();
1082  // length of the code
1083  $len = strlen($code);
1084  switch(strtoupper($type)) {
1085  case 'A': { // MODE A
1086  $startid = 103;
1087  for ($i = 0; $i < $len; ++$i) {
1088  $char = $code{$i};
1089  $char_id = ord($char);
1090  if (($char_id >= 241) AND ($char_id <= 244)) {
1091  $code_data[] = $fnc_a[$char_id];
1092  } elseif (($char_id >= 0) AND ($char_id <= 95)) {
1093  $code_data[] = strpos($keys_a, $char);
1094  } else {
1095  return false;
1096  }
1097  }
1098  break;
1099  }
1100  case 'B': { // MODE B
1101  $startid = 104;
1102  for ($i = 0; $i < $len; ++$i) {
1103  $char = $code{$i};
1104  $char_id = ord($char);
1105  if (($char_id >= 241) AND ($char_id <= 244)) {
1106  $code_data[] = $fnc_b[$char_id];
1107  } elseif (($char_id >= 32) AND ($char_id <= 127)) {
1108  $code_data[] = strpos($keys_b, $char);
1109  } else {
1110  return false;
1111  }
1112  }
1113  break;
1114  }
1115  case 'C': { // MODE C
1116  $startid = 105;
1117  if (ord($code[0]) == 241) {
1118  $code_data[] = 102;
1119  $code = substr($code, 1);
1120  --$len;
1121  }
1122  if (($len % 2) != 0) {
1123  // the length must be even
1124  return false;
1125  }
1126  for ($i = 0; $i < $len; $i+=2) {
1127  $chrnum = $code{$i}.$code{$i+1};
1128  if (preg_match('/([0-9]{2})/', $chrnum) > 0) {
1129  $code_data[] = intval($chrnum);
1130  } else {
1131  return false;
1132  }
1133  }
1134  break;
1135  }
1136  default: { // MODE AUTO
1137  // split code into sequences
1138  $sequence = array();
1139  // get numeric sequences (if any)
1140  $numseq = array();
1141  preg_match_all('/([0-9]{4,})/', $code, $numseq, PREG_OFFSET_CAPTURE);
1142  if (isset($numseq[1]) AND !empty($numseq[1])) {
1143  $end_offset = 0;
1144  foreach ($numseq[1] as $val) {
1145  $offset = $val[1];
1146  if ($offset > $end_offset) {
1147  // non numeric sequence
1148  $sequence = array_merge($sequence, $this->get128ABsequence(substr($code, $end_offset, ($offset - $end_offset))));
1149  }
1150  // numeric sequence
1151  $slen = strlen($val[0]);
1152  if (($slen % 2) != 0) {
1153  // the length must be even
1154  --$slen;
1155  }
1156  $sequence[] = array('C', substr($code, $offset, $slen), $slen);
1157  $end_offset = $offset + $slen;
1158  }
1159  if ($end_offset < $len) {
1160  $sequence = array_merge($sequence, $this->get128ABsequence(substr($code, $end_offset)));
1161  }
1162  } else {
1163  // text code (non C mode)
1164  $sequence = array_merge($sequence, $this->get128ABsequence($code));
1165  }
1166  // process the sequence
1167  foreach ($sequence as $key => $seq) {
1168  switch($seq[0]) {
1169  case 'A': {
1170  if ($key == 0) {
1171  $startid = 103;
1172  } elseif ($sequence[($key - 1)][0] != 'A') {
1173  if (($seq[2] == 1) AND ($key > 0) AND ($sequence[($key - 1)][0] == 'B') AND (!isset($sequence[($key - 1)][3]))) {
1174  // single character shift
1175  $code_data[] = 98;
1176  // mark shift
1177  $sequence[$key][3] = true;
1178  } elseif (!isset($sequence[($key - 1)][3])) {
1179  $code_data[] = 101;
1180  }
1181  }
1182  for ($i = 0; $i < $seq[2]; ++$i) {
1183  $char = $seq[1]{$i};
1184  $char_id = ord($char);
1185  if (($char_id >= 241) AND ($char_id <= 244)) {
1186  $code_data[] = $fnc_a[$char_id];
1187  } else {
1188  $code_data[] = strpos($keys_a, $char);
1189  }
1190  }
1191  break;
1192  }
1193  case 'B': {
1194  if ($key == 0) {
1195  $tmpchr = ord($seq[1][0]);
1196  if (($seq[2] == 1) AND ($tmpchr >= 241) AND ($tmpchr <= 244) AND isset($sequence[($key + 1)]) AND ($sequence[($key + 1)][0] != 'B')) {
1197  switch ($sequence[($key + 1)][0]) {
1198  case 'A': {
1199  $startid = 103;
1200  $sequence[$key][0] = 'A';
1201  $code_data[] = $fnc_a[$tmpchr];
1202  break;
1203  }
1204  case 'C': {
1205  $startid = 105;
1206  $sequence[$key][0] = 'C';
1207  $code_data[] = $fnc_a[$tmpchr];
1208  break;
1209  }
1210  }
1211  break;
1212  } else {
1213  $startid = 104;
1214  }
1215  } elseif ($sequence[($key - 1)][0] != 'B') {
1216  if (($seq[2] == 1) AND ($key > 0) AND ($sequence[($key - 1)][0] == 'A') AND (!isset($sequence[($key - 1)][3]))) {
1217  // single character shift
1218  $code_data[] = 98;
1219  // mark shift
1220  $sequence[$key][3] = true;
1221  } elseif (!isset($sequence[($key - 1)][3])) {
1222  $code_data[] = 100;
1223  }
1224  }
1225  for ($i = 0; $i < $seq[2]; ++$i) {
1226  $char = $seq[1]{$i};
1227  $char_id = ord($char);
1228  if (($char_id >= 241) AND ($char_id <= 244)) {
1229  $code_data[] = $fnc_b[$char_id];
1230  } else {
1231  $code_data[] = strpos($keys_b, $char);
1232  }
1233  }
1234  break;
1235  }
1236  case 'C': {
1237  if ($key == 0) {
1238  $startid = 105;
1239  } elseif ($sequence[($key - 1)][0] != 'C') {
1240  $code_data[] = 99;
1241  }
1242  for ($i = 0; $i < $seq[2]; $i+=2) {
1243  $chrnum = $seq[1]{$i}.$seq[1]{$i+1};
1244  $code_data[] = intval($chrnum);
1245  }
1246  break;
1247  }
1248  }
1249  }
1250  }
1251  }
1252  // calculate check character
1253  $sum = $startid;
1254  foreach ($code_data as $key => $val) {
1255  $sum += ($val * ($key + 1));
1256  }
1257  // add check character
1258  $code_data[] = ($sum % 103);
1259  // add stop sequence
1260  $code_data[] = 106;
1261  $code_data[] = 107;
1262  // add start code at the beginning
1263  array_unshift($code_data, $startid);
1264  // build barcode array
1265  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1266  foreach ($code_data as $val) {
1267  $seq = $chr[$val];
1268  for ($j = 0; $j < 6; ++$j) {
1269  if (($j % 2) == 0) {
1270  $t = true; // bar
1271  } else {
1272  $t = false; // space
1273  }
1274  $w = $seq{$j};
1275  $bararray['bcode'][] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1276  $bararray['maxw'] += $w;
1277  }
1278  }
1279  return $bararray;
1280  }
TCPDFBarcode\get128ABsequence
get128ABsequence($code)
Split text code in A/B sequence for 128 code.
Definition: tcpdf_barcodes_1d.php:1288
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_codabar()

TCPDFBarcode::barcode_codabar (   $code)
protected

CODABAR barcodes.

Older code often used in library systems, sometimes in blood banks

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1819 of file tcpdf_barcodes_1d.php.

References $code, $t, and $w.

Referenced by setBarcode().

1819  {
1820  $chr = array(
1821  '0' => '11111221',
1822  '1' => '11112211',
1823  '2' => '11121121',
1824  '3' => '22111111',
1825  '4' => '11211211',
1826  '5' => '21111211',
1827  '6' => '12111121',
1828  '7' => '12112111',
1829  '8' => '12211111',
1830  '9' => '21121111',
1831  '-' => '11122111',
1832  '$' => '11221111',
1833  ':' => '21112121',
1834  '/' => '21211121',
1835  '.' => '21212111',
1836  '+' => '11222221',
1837  'A' => '11221211',
1838  'B' => '12121121',
1839  'C' => '11121221',
1840  'D' => '11122211'
1841  );
1842  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1843  $k = 0;
1844  $w = 0;
1845  $seq = '';
1846  $code = 'A'.strtoupper($code).'A';
1847  $len = strlen($code);
1848  for ($i = 0; $i < $len; ++$i) {
1849  if (!isset($chr[$code{$i}])) {
1850  return false;
1851  }
1852  $seq = $chr[$code{$i}];
1853  for ($j = 0; $j < 8; ++$j) {
1854  if (($j % 2) == 0) {
1855  $t = true; // bar
1856  } else {
1857  $t = false; // space
1858  }
1859  $w = $seq{$j};
1860  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1861  $bararray['maxw'] += $w;
1862  ++$k;
1863  }
1864  }
1865  return $bararray;
1866  }
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
+ Here is the caller graph for this function:

◆ barcode_code11()

TCPDFBarcode::barcode_code11 (   $code)
protected

CODE11 barcodes.

Used primarily for labeling telecommunications equipment

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1875 of file tcpdf_barcodes_1d.php.

References $code, $t, and $w.

Referenced by setBarcode().

1875  {
1876  $chr = array(
1877  '0' => '111121',
1878  '1' => '211121',
1879  '2' => '121121',
1880  '3' => '221111',
1881  '4' => '112121',
1882  '5' => '212111',
1883  '6' => '122111',
1884  '7' => '111221',
1885  '8' => '211211',
1886  '9' => '211111',
1887  '-' => '112111',
1888  'S' => '112211'
1889  );
1890  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1891  $k = 0;
1892  $w = 0;
1893  $seq = '';
1894  $len = strlen($code);
1895  // calculate check digit C
1896  $p = 1;
1897  $check = 0;
1898  for ($i = ($len - 1); $i >= 0; --$i) {
1899  $digit = $code{$i};
1900  if ($digit == '-') {
1901  $dval = 10;
1902  } else {
1903  $dval = intval($digit);
1904  }
1905  $check += ($dval * $p);
1906  ++$p;
1907  if ($p > 10) {
1908  $p = 1;
1909  }
1910  }
1911  $check %= 11;
1912  if ($check == 10) {
1913  $check = '-';
1914  }
1915  $code .= $check;
1916  if ($len > 10) {
1917  // calculate check digit K
1918  $p = 1;
1919  $check = 0;
1920  for ($i = $len; $i >= 0; --$i) {
1921  $digit = $code{$i};
1922  if ($digit == '-') {
1923  $dval = 10;
1924  } else {
1925  $dval = intval($digit);
1926  }
1927  $check += ($dval * $p);
1928  ++$p;
1929  if ($p > 9) {
1930  $p = 1;
1931  }
1932  }
1933  $check %= 11;
1934  $code .= $check;
1935  ++$len;
1936  }
1937  $code = 'S'.$code.'S';
1938  $len += 3;
1939  for ($i = 0; $i < $len; ++$i) {
1940  if (!isset($chr[$code{$i}])) {
1941  return false;
1942  }
1943  $seq = $chr[$code{$i}];
1944  for ($j = 0; $j < 6; ++$j) {
1945  if (($j % 2) == 0) {
1946  $t = true; // bar
1947  } else {
1948  $t = false; // space
1949  }
1950  $w = $seq{$j};
1951  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1952  $bararray['maxw'] += $w;
1953  ++$k;
1954  }
1955  }
1956  return $bararray;
1957  }
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
+ Here is the caller graph for this function:

◆ barcode_code39()

TCPDFBarcode::barcode_code39 (   $code,
  $extended = false,
  $checksum = false
)
protected

CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.

General-purpose code in very wide use world-wide

Parameters
$code(string) code to represent.
$extended(boolean) if true uses the extended mode.
$checksum(boolean) if true add a checksum to the code.
Returns
array barcode representation.

Definition at line 393 of file tcpdf_barcodes_1d.php.

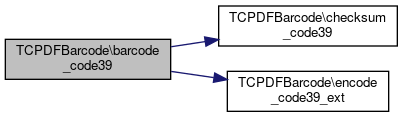

References $code, $t, $w, checksum_code39(), and encode_code39_ext().

Referenced by setBarcode().

393  {
394  $chr['0'] = '111331311';
395  $chr['1'] = '311311113';
396  $chr['2'] = '113311113';
397  $chr['3'] = '313311111';
398  $chr['4'] = '111331113';
399  $chr['5'] = '311331111';
400  $chr['6'] = '113331111';
401  $chr['7'] = '111311313';
402  $chr['8'] = '311311311';
403  $chr['9'] = '113311311';
404  $chr['A'] = '311113113';
405  $chr['B'] = '113113113';
406  $chr['C'] = '313113111';
407  $chr['D'] = '111133113';
408  $chr['E'] = '311133111';
409  $chr['F'] = '113133111';
410  $chr['G'] = '111113313';
411  $chr['H'] = '311113311';
412  $chr['I'] = '113113311';
413  $chr['J'] = '111133311';
414  $chr['K'] = '311111133';
415  $chr['L'] = '113111133';
416  $chr['M'] = '313111131';
417  $chr['N'] = '111131133';
418  $chr['O'] = '311131131';
419  $chr['P'] = '113131131';
420  $chr['Q'] = '111111333';
421  $chr['R'] = '311111331';
422  $chr['S'] = '113111331';
423  $chr['T'] = '111131331';
424  $chr['U'] = '331111113';
425  $chr['V'] = '133111113';
426  $chr['W'] = '333111111';
427  $chr['X'] = '131131113';
428  $chr['Y'] = '331131111';
429  $chr['Z'] = '133131111';
430  $chr['-'] = '131111313';
431  $chr['.'] = '331111311';
432  $chr[' '] = '133111311';
433  $chr['$'] = '131313111';
434  $chr['/'] = '131311131';
435  $chr['+'] = '131113131';
436  $chr['%'] = '111313131';
437  $chr['*'] = '131131311';
438  $code = strtoupper($code);
439  if ($extended) {
440  // extended mode
441  $code = $this->encode_code39_ext($code);
442  }
443  if ($code === false) {
444  return false;
445  }
446  if ($checksum) {
447  // checksum
448  $code .= $this->checksum_code39($code);
449  }
450  // add start and stop codes
451  $code = '*'.$code.'*';
452  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
453  $k = 0;
454  $clen = strlen($code);
455  for ($i = 0; $i < $clen; ++$i) {
456  $char = $code{$i};
457  if(!isset($chr[$char])) {
458  // invalid character
459  return false;
460  }
461  for ($j = 0; $j < 9; ++$j) {
462  if (($j % 2) == 0) {
463  $t = true; // bar
464  } else {
465  $t = false; // space
466  }
467  $w = $chr[$char]{$j};
468  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
469  $bararray['maxw'] += $w;
470  ++$k;
471  }
472  // intercharacter gap
473  $bararray['bcode'][$k] = array('t' => false, 'w' => 1, 'h' => 1, 'p' => 0);
474  $bararray['maxw'] += 1;
475  ++$k;
476  }
477  return $bararray;
478  }
TCPDFBarcode\checksum_code39
checksum_code39($code)
Calculate CODE 39 checksum (modulo 43).
Definition: tcpdf_barcodes_1d.php:537
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
TCPDFBarcode\encode_code39_ext
encode_code39_ext($code)
Encode a string to be used for CODE 39 Extended mode.
Definition: tcpdf_barcodes_1d.php:486
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_code93()

TCPDFBarcode::barcode_code93 (   $code)
protected

CODE 93 - USS-93 Compact code similar to Code 39.

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 560 of file tcpdf_barcodes_1d.php.

References $code, $t, $w, and checksum_code93().

Referenced by setBarcode().

560  {
561  $chr[48] = '131112'; // 0
562  $chr[49] = '111213'; // 1
563  $chr[50] = '111312'; // 2
564  $chr[51] = '111411'; // 3
565  $chr[52] = '121113'; // 4
566  $chr[53] = '121212'; // 5
567  $chr[54] = '121311'; // 6
568  $chr[55] = '111114'; // 7
569  $chr[56] = '131211'; // 8
570  $chr[57] = '141111'; // 9
571  $chr[65] = '211113'; // A
572  $chr[66] = '211212'; // B
573  $chr[67] = '211311'; // C
574  $chr[68] = '221112'; // D
575  $chr[69] = '221211'; // E
576  $chr[70] = '231111'; // F
577  $chr[71] = '112113'; // G
578  $chr[72] = '112212'; // H
579  $chr[73] = '112311'; // I
580  $chr[74] = '122112'; // J
581  $chr[75] = '132111'; // K
582  $chr[76] = '111123'; // L
583  $chr[77] = '111222'; // M
584  $chr[78] = '111321'; // N
585  $chr[79] = '121122'; // O
586  $chr[80] = '131121'; // P
587  $chr[81] = '212112'; // Q
588  $chr[82] = '212211'; // R
589  $chr[83] = '211122'; // S
590  $chr[84] = '211221'; // T
591  $chr[85] = '221121'; // U
592  $chr[86] = '222111'; // V
593  $chr[87] = '112122'; // W
594  $chr[88] = '112221'; // X
595  $chr[89] = '122121'; // Y
596  $chr[90] = '123111'; // Z
597  $chr[45] = '121131'; // -
598  $chr[46] = '311112'; // .
599  $chr[32] = '311211'; //
600  $chr[36] = '321111'; // $
601  $chr[47] = '112131'; // /
602  $chr[43] = '113121'; // +
603  $chr[37] = '211131'; // %
604  $chr[128] = '121221'; // ($)
605  $chr[129] = '311121'; // (/)
606  $chr[130] = '122211'; // (+)
607  $chr[131] = '312111'; // (%)
608  $chr[42] = '111141'; // start-stop
609  $code = strtoupper($code);
610  $encode = array(
611  chr(0) => chr(131).'U', chr(1) => chr(128).'A', chr(2) => chr(128).'B', chr(3) => chr(128).'C',
612  chr(4) => chr(128).'D', chr(5) => chr(128).'E', chr(6) => chr(128).'F', chr(7) => chr(128).'G',
613  chr(8) => chr(128).'H', chr(9) => chr(128).'I', chr(10) => chr(128).'J', chr(11) => '£K',
614  chr(12) => chr(128).'L', chr(13) => chr(128).'M', chr(14) => chr(128).'N', chr(15) => chr(128).'O',
615  chr(16) => chr(128).'P', chr(17) => chr(128).'Q', chr(18) => chr(128).'R', chr(19) => chr(128).'S',
616  chr(20) => chr(128).'T', chr(21) => chr(128).'U', chr(22) => chr(128).'V', chr(23) => chr(128).'W',
617  chr(24) => chr(128).'X', chr(25) => chr(128).'Y', chr(26) => chr(128).'Z', chr(27) => chr(131).'A',
618  chr(28) => chr(131).'B', chr(29) => chr(131).'C', chr(30) => chr(131).'D', chr(31) => chr(131).'E',
619  chr(32) => ' ', chr(33) => chr(129).'A', chr(34) => chr(129).'B', chr(35) => chr(129).'C',
620  chr(36) => chr(129).'D', chr(37) => chr(129).'E', chr(38) => chr(129).'F', chr(39) => chr(129).'G',
621  chr(40) => chr(129).'H', chr(41) => chr(129).'I', chr(42) => chr(129).'J', chr(43) => chr(129).'K',
622  chr(44) => chr(129).'L', chr(45) => '-', chr(46) => '.', chr(47) => chr(129).'O',
623  chr(48) => '0', chr(49) => '1', chr(50) => '2', chr(51) => '3',
624  chr(52) => '4', chr(53) => '5', chr(54) => '6', chr(55) => '7',
625  chr(56) => '8', chr(57) => '9', chr(58) => chr(129).'Z', chr(59) => chr(131).'F',
626  chr(60) => chr(131).'G', chr(61) => chr(131).'H', chr(62) => chr(131).'I', chr(63) => chr(131).'J',
627  chr(64) => chr(131).'V', chr(65) => 'A', chr(66) => 'B', chr(67) => 'C',
628  chr(68) => 'D', chr(69) => 'E', chr(70) => 'F', chr(71) => 'G',
629  chr(72) => 'H', chr(73) => 'I', chr(74) => 'J', chr(75) => 'K',
630  chr(76) => 'L', chr(77) => 'M', chr(78) => 'N', chr(79) => 'O',
631  chr(80) => 'P', chr(81) => 'Q', chr(82) => 'R', chr(83) => 'S',
632  chr(84) => 'T', chr(85) => 'U', chr(86) => 'V', chr(87) => 'W',
633  chr(88) => 'X', chr(89) => 'Y', chr(90) => 'Z', chr(91) => chr(131).'K',
634  chr(92) => chr(131).'L', chr(93) => chr(131).'M', chr(94) => chr(131).'N', chr(95) => chr(131).'O',
635  chr(96) => chr(131).'W', chr(97) => chr(130).'A', chr(98) => chr(130).'B', chr(99) => chr(130).'C',
636  chr(100) => chr(130).'D', chr(101) => chr(130).'E', chr(102) => chr(130).'F', chr(103) => chr(130).'G',
637  chr(104) => chr(130).'H', chr(105) => chr(130).'I', chr(106) => chr(130).'J', chr(107) => chr(130).'K',
638  chr(108) => chr(130).'L', chr(109) => chr(130).'M', chr(110) => chr(130).'N', chr(111) => chr(130).'O',
639  chr(112) => chr(130).'P', chr(113) => chr(130).'Q', chr(114) => chr(130).'R', chr(115) => chr(130).'S',
640  chr(116) => chr(130).'T', chr(117) => chr(130).'U', chr(118) => chr(130).'V', chr(119) => chr(130).'W',
641  chr(120) => chr(130).'X', chr(121) => chr(130).'Y', chr(122) => chr(130).'Z', chr(123) => chr(131).'P',
642  chr(124) => chr(131).'Q', chr(125) => chr(131).'R', chr(126) => chr(131).'S', chr(127) => chr(131).'T');
643  $code_ext = '';
644  $clen = strlen($code);
645  for ($i = 0 ; $i < $clen; ++$i) {
646  if (ord($code{$i}) > 127) {
647  return false;
648  }
649  $code_ext .= $encode[$code{$i}];
650  }
651  // checksum
652  $code_ext .= $this->checksum_code93($code_ext);
653  // add start and stop codes
654  $code = '*'.$code_ext.'*';
655  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
656  $k = 0;
657  $clen = strlen($code);
658  for ($i = 0; $i < $clen; ++$i) {
659  $char = ord($code{$i});
660  if(!isset($chr[$char])) {
661  // invalid character
662  return false;
663  }
664  for ($j = 0; $j < 6; ++$j) {
665  if (($j % 2) == 0) {
666  $t = true; // bar
667  } else {
668  $t = false; // space
669  }
670  $w = $chr[$char]{$j};
671  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
672  $bararray['maxw'] += $w;
673  ++$k;
674  }
675  }
676  $bararray['bcode'][$k] = array('t' => true, 'w' => 1, 'h' => 1, 'p' => 0);
677  $bararray['maxw'] += 1;
678  ++$k;
679  return $bararray;
680  }
TCPDFBarcode\checksum_code93
checksum_code93($code)
Calculate CODE 93 checksum (modulo 47).
Definition: tcpdf_barcodes_1d.php:688
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_eanext()

TCPDFBarcode::barcode_eanext (   $code,
  $len = 5
)
protected

UPC-Based Extensions 2-Digit Ext.

: Used to indicate magazines and newspaper issue numbers 5-Digit Ext.: Used to mark suggested retail price of books

Parameters
$code(string) code to represent.
$len(string) barcode type: 2 = 2-Digit, 5 = 5-Digit
Returns
array barcode representation.

Definition at line 1520 of file tcpdf_barcodes_1d.php.

References $code, $r, and binseq_to_array().

Referenced by setBarcode().

1520  {
1521  //Padding
1522  $code = str_pad($code, $len, '0', STR_PAD_LEFT);
1523  // calculate check digit
1524  if ($len == 2) {
1525  $r = $code % 4;
1526  } elseif ($len == 5) {
1527  $r = (3 * ($code[0] + $code[2] + $code[4])) + (9 * ($code[1] + $code[3]));
1528  $r %= 10;
1529  } else {
1530  return false;
1531  }
1532  //Convert digits to bars
1533  $codes = array(
1534  'A'=>array( // left odd parity
1535  '0'=>'0001101',
1536  '1'=>'0011001',
1537  '2'=>'0010011',
1538  '3'=>'0111101',
1539  '4'=>'0100011',
1540  '5'=>'0110001',
1541  '6'=>'0101111',
1542  '7'=>'0111011',
1543  '8'=>'0110111',
1544  '9'=>'0001011'),
1545  'B'=>array( // left even parity
1546  '0'=>'0100111',
1547  '1'=>'0110011',
1548  '2'=>'0011011',
1549  '3'=>'0100001',
1550  '4'=>'0011101',
1551  '5'=>'0111001',
1552  '6'=>'0000101',
1553  '7'=>'0010001',
1554  '8'=>'0001001',
1555  '9'=>'0010111')
1556  );
1557  $parities = array();
1558  $parities[2] = array(
1559  '0'=>array('A','A'),
1560  '1'=>array('A','B'),
1561  '2'=>array('B','A'),
1562  '3'=>array('B','B')
1563  );
1564  $parities[5] = array(
1565  '0'=>array('B','B','A','A','A'),
1566  '1'=>array('B','A','B','A','A'),
1567  '2'=>array('B','A','A','B','A'),
1568  '3'=>array('B','A','A','A','B'),
1569  '4'=>array('A','B','B','A','A'),
1570  '5'=>array('A','A','B','B','A'),
1571  '6'=>array('A','A','A','B','B'),
1572  '7'=>array('A','B','A','B','A'),
1573  '8'=>array('A','B','A','A','B'),
1574  '9'=>array('A','A','B','A','B')
1575  );
1576  $p = $parities[$len][$r];
1577  $seq = '1011'; // left guard bar
1578  $seq .= $codes[$p[0]][$code[0]];
1579  for ($i = 1; $i < $len; ++$i) {
1580  $seq .= '01'; // separator
1581  $seq .= $codes[$p[$i]][$code{$i}];
1582  }
1583  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1584  return $this->binseq_to_array($seq, $bararray);
1585  }
$code
$code
Definition: example_050.php:99
$r
$r
Definition: example_031.php:79
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:864

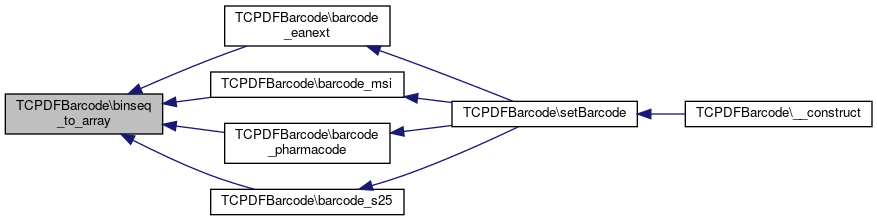

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_eanupc()

TCPDFBarcode::barcode_eanupc (   $code,
  $len = 13
)
protected

EAN13 and UPC-A barcodes.

EAN13: European Article Numbering international retail product code UPC-A: Universal product code seen on almost all retail products in the USA and Canada UPC-E: Short version of UPC symbol

Parameters
$code(string) code to represent.
$len(string) barcode type: 6 = UPC-E, 8 = EAN8, 13 = EAN13, 12 = UPC-A
Returns
array barcode representation.

Definition at line 1327 of file tcpdf_barcodes_1d.php.

References $code, $r, $t, and $w.

Referenced by setBarcode().

1327  {
1328  $upce = false;
1329  if ($len == 6) {
1330  $len = 12; // UPC-A
1331  $upce = true; // UPC-E mode
1332  }
1333  $data_len = $len - 1;
1334  //Padding
1335  $code = str_pad($code, $data_len, '0', STR_PAD_LEFT);
1336  $code_len = strlen($code);
1337  // calculate check digit
1338  $sum_a = 0;
1339  for ($i = 1; $i < $data_len; $i+=2) {
1340  $sum_a += $code{$i};
1341  }
1342  if ($len > 12) {
1343  $sum_a *= 3;
1344  }
1345  $sum_b = 0;
1346  for ($i = 0; $i < $data_len; $i+=2) {
1347  $sum_b += ($code{$i});
1348  }
1349  if ($len < 13) {
1350  $sum_b *= 3;
1351  }
1352  $r = ($sum_a + $sum_b) % 10;
1353  if($r > 0) {
1354  $r = (10 - $r);
1355  }
1356  if ($code_len == $data_len) {
1357  // add check digit
1358  $code .= $r;
1359  } elseif ($r !== intval($code{$data_len})) {
1360  // wrong checkdigit
1361  return false;
1362  }
1363  if ($len == 12) {
1364  // UPC-A
1365  $code = '0'.$code;
1366  ++$len;
1367  }
1368  if ($upce) {
1369  // convert UPC-A to UPC-E
1370  $tmp = substr($code, 4, 3);
1371  if (($tmp == '000') OR ($tmp == '100') OR ($tmp == '200')) {
1372  // manufacturer code ends in 000, 100, or 200
1373  $upce_code = substr($code, 2, 2).substr($code, 9, 3).substr($code, 4, 1);
1374  } else {
1375  $tmp = substr($code, 5, 2);
1376  if ($tmp == '00') {
1377  // manufacturer code ends in 00
1378  $upce_code = substr($code, 2, 3).substr($code, 10, 2).'3';
1379  } else {
1380  $tmp = substr($code, 6, 1);
1381  if ($tmp == '0') {
1382  // manufacturer code ends in 0
1383  $upce_code = substr($code, 2, 4).substr($code, 11, 1).'4';
1384  } else {
1385  // manufacturer code does not end in zero
1386  $upce_code = substr($code, 2, 5).substr($code, 11, 1);
1387  }
1388  }
1389  }
1390  }
1391  //Convert digits to bars
1392  $codes = array(
1393  'A'=>array( // left odd parity
1394  '0'=>'0001101',
1395  '1'=>'0011001',
1396  '2'=>'0010011',
1397  '3'=>'0111101',
1398  '4'=>'0100011',
1399  '5'=>'0110001',
1400  '6'=>'0101111',
1401  '7'=>'0111011',
1402  '8'=>'0110111',
1403  '9'=>'0001011'),
1404  'B'=>array( // left even parity
1405  '0'=>'0100111',
1406  '1'=>'0110011',
1407  '2'=>'0011011',
1408  '3'=>'0100001',
1409  '4'=>'0011101',
1410  '5'=>'0111001',
1411  '6'=>'0000101',
1412  '7'=>'0010001',
1413  '8'=>'0001001',
1414  '9'=>'0010111'),
1415  'C'=>array( // right
1416  '0'=>'1110010',
1417  '1'=>'1100110',
1418  '2'=>'1101100',
1419  '3'=>'1000010',
1420  '4'=>'1011100',
1421  '5'=>'1001110',
1422  '6'=>'1010000',
1423  '7'=>'1000100',
1424  '8'=>'1001000',
1425  '9'=>'1110100')
1426  );
1427  $parities = array(
1428  '0'=>array('A','A','A','A','A','A'),
1429  '1'=>array('A','A','B','A','B','B'),
1430  '2'=>array('A','A','B','B','A','B'),
1431  '3'=>array('A','A','B','B','B','A'),
1432  '4'=>array('A','B','A','A','B','B'),
1433  '5'=>array('A','B','B','A','A','B'),
1434  '6'=>array('A','B','B','B','A','A'),
1435  '7'=>array('A','B','A','B','A','B'),
1436  '8'=>array('A','B','A','B','B','A'),
1437  '9'=>array('A','B','B','A','B','A')
1438  );
1439  $upce_parities = array();
1440  $upce_parities[0] = array(
1441  '0'=>array('B','B','B','A','A','A'),
1442  '1'=>array('B','B','A','B','A','A'),
1443  '2'=>array('B','B','A','A','B','A'),
1444  '3'=>array('B','B','A','A','A','B'),
1445  '4'=>array('B','A','B','B','A','A'),
1446  '5'=>array('B','A','A','B','B','A'),
1447  '6'=>array('B','A','A','A','B','B'),
1448  '7'=>array('B','A','B','A','B','A'),
1449  '8'=>array('B','A','B','A','A','B'),
1450  '9'=>array('B','A','A','B','A','B')
1451  );
1452  $upce_parities[1] = array(
1453  '0'=>array('A','A','A','B','B','B'),
1454  '1'=>array('A','A','B','A','B','B'),
1455  '2'=>array('A','A','B','B','A','B'),
1456  '3'=>array('A','A','B','B','B','A'),
1457  '4'=>array('A','B','A','A','B','B'),
1458  '5'=>array('A','B','B','A','A','B'),
1459  '6'=>array('A','B','B','B','A','A'),
1460  '7'=>array('A','B','A','B','A','B'),
1461  '8'=>array('A','B','A','B','B','A'),
1462  '9'=>array('A','B','B','A','B','A')
1463  );
1464  $k = 0;
1465  $seq = '101'; // left guard bar
1466  if ($upce) {
1467  $bararray = array('code' => $upce_code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1468  $p = $upce_parities[$code[1]][$r];
1469  for ($i = 0; $i < 6; ++$i) {
1470  $seq .= $codes[$p[$i]][$upce_code{$i}];
1471  }
1472  $seq .= '010101'; // right guard bar
1473  } else {
1474  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1475  $half_len = intval(ceil($len / 2));
1476  if ($len == 8) {
1477  for ($i = 0; $i < $half_len; ++$i) {
1478  $seq .= $codes['A'][$code{$i}];
1479  }
1480  } else {
1481  $p = $parities[$code[0]];
1482  for ($i = 1; $i < $half_len; ++$i) {
1483  $seq .= $codes[$p[$i-1]][$code{$i}];
1484  }
1485  }
1486  $seq .= '01010'; // center guard bar
1487  for ($i = $half_len; $i < $len; ++$i) {
1488  $seq .= $codes['C'][$code{$i}];
1489  }
1490  $seq .= '101'; // right guard bar
1491  }
1492  $clen = strlen($seq);
1493  $w = 0;
1494  for ($i = 0; $i < $clen; ++$i) {
1495  $w += 1;
1496  if (($i == ($clen - 1)) OR (($i < ($clen - 1)) AND ($seq{$i} != $seq{($i+1)}))) {
1497  if ($seq{$i} == '1') {
1498  $t = true; // bar
1499  } else {
1500  $t = false; // space
1501  }
1502  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
1503  $bararray['maxw'] += $w;
1504  ++$k;
1505  $w = 0;
1506  }
1507  }
1508  return $bararray;
1509  }
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
$r
$r
Definition: example_031.php:79
+ Here is the caller graph for this function:

◆ barcode_i25()

TCPDFBarcode::barcode_i25 (   $code,
  $checksum = false
)
protected

Interleaved 2 of 5 barcodes.

Compact numeric code, widely used in industry, air cargo Contains digits (0 to 9) and encodes the data in the width of both bars and spaces.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code
Returns
array barcode representation.

Definition at line 894 of file tcpdf_barcodes_1d.php.

References $code, $t, $w, and checksum_s25().

Referenced by setBarcode().

894  {
895  $chr['0'] = '11221';
896  $chr['1'] = '21112';
897  $chr['2'] = '12112';
898  $chr['3'] = '22111';
899  $chr['4'] = '11212';
900  $chr['5'] = '21211';
901  $chr['6'] = '12211';
902  $chr['7'] = '11122';
903  $chr['8'] = '21121';
904  $chr['9'] = '12121';
905  $chr['A'] = '11';
906  $chr['Z'] = '21';
907  if ($checksum) {
908  // add checksum
909  $code .= $this->checksum_s25($code);
910  }
911  if((strlen($code) % 2) != 0) {
912  // add leading zero if code-length is odd
913  $code = '0'.$code;
914  }
915  // add start and stop codes
916  $code = 'AA'.strtolower($code).'ZA';
917
918  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
919  $k = 0;
920  $clen = strlen($code);
921  for ($i = 0; $i < $clen; $i = ($i + 2)) {
922  $char_bar = $code{$i};
923  $char_space = $code{$i+1};
924  if((!isset($chr[$char_bar])) OR (!isset($chr[$char_space]))) {
925  // invalid character
926  return false;
927  }
928  // create a bar-space sequence
929  $seq = '';
930  $chrlen = strlen($chr[$char_bar]);
931  for ($s = 0; $s < $chrlen; $s++){
932  $seq .= $chr[$char_bar]{$s} . $chr[$char_space]{$s};
933  }
934  $seqlen = strlen($seq);
935  for ($j = 0; $j < $seqlen; ++$j) {
936  if (($j % 2) == 0) {
937  $t = true; // bar
938  } else {
939  $t = false; // space
940  }
941  $w = $seq{$j};
942  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
943  $bararray['maxw'] += $w;
944  ++$k;
945  }
946  }
947  return $bararray;
948  }
$code
$code
Definition: example_050.php:99
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
TCPDFBarcode\checksum_s25
checksum_s25($code)
Checksum for standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:737
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_imb()

TCPDFBarcode::barcode_imb (   $code)
protected

IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Mail barcode is a 65-bar code for use on mail in the United States.

The fields are described as follows:

  • The Barcode Identifier shall be assigned by USPS to encode the presort identification that is currently printed in human readable form on the optional endorsement line (OEL) as well as for future USPS use. This shall be two digits, with the second digit in the range of 0–4. The allowable encoding ranges shall be 00–04, 10–14, 20–24, 30–34, 40–44, 50–54, 60–64, 70–74, 80–84, and 90–94.
  • The Service Type Identifier shall be assigned by USPS for any combination of services requested on the mailpiece. The allowable encoding range shall be 000http://it2.php.net/manual/en/function.dechex.php–999. Each 3-digit value shall correspond to a particular mail class with a particular combination of service(s). Each service program, such as OneCode Confirm and OneCode ACS, shall provide the list of Service Type Identifier values.
  • The Mailer or Customer Identifier shall be assigned by USPS as a unique, 6 or 9 digit number that identifies a business entity. The allowable encoding range for the 6 digit Mailer ID shall be 000000- 899999, while the allowable encoding range for the 9 digit Mailer ID shall be 900000000-999999999.
  • The Serial or Sequence Number shall be assigned by the mailer for uniquely identifying and tracking mailpieces. The allowable encoding range shall be 000000000–999999999 when used with a 6 digit Mailer ID and 000000-999999 when used with a 9 digit Mailer ID. e. The Delivery Point ZIP Code shall be assigned by the mailer for routing the mailpiece. This shall replace POSTNET for routing the mailpiece to its final delivery point. The length may be 0, 5, 9, or 11 digits. The allowable encoding ranges shall be no ZIP Code, 00000–99999, 000000000–999999999, and 00000000000–99999999999.
Parameters
$code(string) code to print, separate the ZIP (routing code) from the rest using a minus char '-' (BarcodeID_ServiceTypeID_MailerID_SerialNumber-RoutingCode)
Returns
array barcode representation.

Definition at line 2054 of file tcpdf_barcodes_1d.php.

References $code, $data, $h, dec_to_hex(), hex_to_dec(), imb_crc11fcs(), and imb_tables().

Referenced by setBarcode().

2054  {
2055  $asc_chr = array(4,0,2,6,3,5,1,9,8,7,1,2,0,6,4,8,2,9,5,3,0,1,3,7,4,6,8,9,2,0,5,1,9,4,3,8,6,7,1,2,4,3,9,5,7,8,3,0,2,1,4,0,9,1,7,0,2,4,6,3,7,1,9,5,8);
2056  $dsc_chr = array(7,1,9,5,8,0,2,4,6,3,5,8,9,7,3,0,6,1,7,4,6,8,9,2,5,1,7,5,4,3,8,7,6,0,2,5,4,9,3,0,1,6,8,2,0,4,5,9,6,7,5,2,6,3,8,5,1,9,8,7,4,0,2,6,3);
2057  $asc_pos = array(3,0,8,11,1,12,8,11,10,6,4,12,2,7,9,6,7,9,2,8,4,0,12,7,10,9,0,7,10,5,7,9,6,8,2,12,1,4,2,0,1,5,4,6,12,1,0,9,4,7,5,10,2,6,9,11,2,12,6,7,5,11,0,3,2);
2058  $dsc_pos = array(2,10,12,5,9,1,5,4,3,9,11,5,10,1,6,3,4,1,10,0,2,11,8,6,1,12,3,8,6,4,4,11,0,6,1,9,11,5,3,7,3,10,7,11,8,2,10,3,5,8,0,3,12,11,8,4,5,1,3,0,7,12,9,8,10);
2059  $code_arr = explode('-', $code);
2060  $tracking_number = $code_arr[0];
2061  if (isset($code_arr[1])) {
2062  $routing_code = $code_arr[1];
2063  } else {
2064  $routing_code = '';
2065  }
2066  // Conversion of Routing Code
2067  switch (strlen($routing_code)) {
2068  case 0: {
2069  $binary_code = 0;
2070  break;
2071  }
2072  case 5: {
2073  $binary_code = bcadd($routing_code, '1');
2074  break;
2075  }
2076  case 9: {
2077  $binary_code = bcadd($routing_code, '100001');
2078  break;
2079  }
2080  case 11: {
2081  $binary_code = bcadd($routing_code, '1000100001');
2082  break;
2083  }
2084  default: {
2085  return false;
2086  break;
2087  }
2088  }
2089  $binary_code = bcmul($binary_code, 10);
2090  $binary_code = bcadd($binary_code, $tracking_number[0]);
2091  $binary_code = bcmul($binary_code, 5);
2092  $binary_code = bcadd($binary_code, $tracking_number[1]);
2093  $binary_code .= substr($tracking_number, 2, 18);
2094  // convert to hexadecimal
2095  $binary_code = $this->dec_to_hex($binary_code);
2096  // pad to get 13 bytes
2097  $binary_code = str_pad($binary_code, 26, '0', STR_PAD_LEFT);
2098  // convert string to array of bytes
2099  $binary_code_arr = chunk_split($binary_code, 2, "\r");
2100  $binary_code_arr = substr($binary_code_arr, 0, -1);
2101  $binary_code_arr = explode("\r", $binary_code_arr);
2102  // calculate frame check sequence
2103  $fcs = $this->imb_crc11fcs($binary_code_arr);
2104  // exclude first 2 bits from first byte
2105  $first_byte = sprintf('%2s', dechex((hexdec($binary_code_arr[0]) << 2) >> 2));
2106  $binary_code_102bit = $first_byte.substr($binary_code, 2);
2107  // convert binary data to codewords
2108  $codewords = array();
2109  $data = $this->hex_to_dec($binary_code_102bit);
2110  $codewords[0] = bcmod($data, 636) * 2;
2111  $data = bcdiv($data, 636);
2112  for ($i = 1; $i < 9; ++$i) {
2113  $codewords[$i] = bcmod($data, 1365);
2114  $data = bcdiv($data, 1365);
2115  }
2116  $codewords[9] = $data;
2117  if (($fcs >> 10) == 1) {
2118  $codewords[9] += 659;
2119  }
2120  // generate lookup tables
2121  $table2of13 = $this->imb_tables(2, 78);
2122  $table5of13 = $this->imb_tables(5, 1287);
2123  // convert codewords to characters
2124  $characters = array();
2125  $bitmask = 512;
2126  foreach($codewords as $k => $val) {
2127  if ($val <= 1286) {
2128  $chrcode = $table5of13[$val];
2129  } else {
2130  $chrcode = $table2of13[($val - 1287)];
2131  }
2132  if (($fcs & $bitmask) > 0) {
2133  // bitwise invert
2134  $chrcode = ((~$chrcode) & 8191);
2135  }
2136  $characters[] = $chrcode;
2137  $bitmask /= 2;
2138  }
2139  $characters = array_reverse($characters);
2140  // build bars
2141  $k = 0;
2142  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 3, 'bcode' => array());
2143  for ($i = 0; $i < 65; ++$i) {
2144  $asc = (($characters[$asc_chr[$i]] & pow(2, $asc_pos[$i])) > 0);
2145  $dsc = (($characters[$dsc_chr[$i]] & pow(2, $dsc_pos[$i])) > 0);
2146  if ($asc AND $dsc) {
2147  // full bar (F)
2148  $p = 0;
2149  $h = 3;
2150  } elseif ($asc) {
2151  // ascender (A)
2152  $p = 0;
2153  $h = 2;
2154  } elseif ($dsc) {
2155  // descender (D)
2156  $p = 1;
2157  $h = 2;
2158  } else {
2159  // tracker (T)
2160  $p = 1;
2161  $h = 1;
2162  }
2163  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
2164  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
2165  $bararray['maxw'] += 2;
2166  }
2167  unset($bararray['bcode'][($k - 1)]);
2168  --$bararray['maxw'];
2169  return $bararray;
2170  }
TCPDFBarcode\imb_crc11fcs
imb_crc11fcs($code_arr)
Intelligent Mail Barcode calculation of Frame Check Sequence.
Definition: tcpdf_barcodes_1d.php:2270
TCPDFBarcode\hex_to_dec
hex_to_dec($hex)
Convert large hexadecimal number to decimal representation (string).
Definition: tcpdf_barcodes_1d.php:2253
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
$data
$data
Definition: example_011.php:126
TCPDFBarcode\imb_tables
imb_tables($n, $size)
generate Nof13 tables used for Intelligent Mail Barcode
Definition: tcpdf_barcodes_1d.php:2323
TCPDFBarcode\dec_to_hex
dec_to_hex($number)
Convert large integer number to hexadecimal representation.
Definition: tcpdf_barcodes_1d.php:2229
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_imb_pre()

TCPDFBarcode::barcode_imb_pre (   $code)
protected

IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200.

Parameters
$code(string) pre-formatted IMB barcode (65 chars "FADT")
Returns
array barcode representation.

Definition at line 2179 of file tcpdf_barcodes_1d.php.

References $code, and $h.

Referenced by setBarcode().

2179  {
2180  if (!preg_match('/^[fadtFADT]{65}$/', $code) == 1) {
2181  return false;
2182  }
2183  $characters = str_split(strtolower($code), 1);
2184  // build bars
2185  $k = 0;
2186  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 3, 'bcode' => array());
2187  for ($i = 0; $i < 65; ++$i) {
2188  switch($characters[$i]) {
2189  case 'f': {
2190  // full bar
2191  $p = 0;
2192  $h = 3;
2193  break;
2194  }
2195  case 'a': {
2196  // ascender
2197  $p = 0;
2198  $h = 2;
2199  break;
2200  }
2201  case 'd': {
2202  // descender
2203  $p = 1;
2204  $h = 2;
2205  break;
2206  }
2207  case 't': {
2208  // tracker (short)
2209  $p = 1;
2210  $h = 1;
2211  break;
2212  }
2213  }
2214  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
2215  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
2216  $bararray['maxw'] += 2;
2217  }
2218  unset($bararray['bcode'][($k - 1)]);
2219  --$bararray['maxw'];
2220  return $bararray;
2221  }
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ barcode_msi()

TCPDFBarcode::barcode_msi (   $code,
  $checksum = false
)
protected

MSI.

Variation of Plessey code, with similar applications Contains digits (0 to 9) and encodes the data only in the width of bars.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code (modulo 11)
Returns
array barcode representation.

Definition at line 763 of file tcpdf_barcodes_1d.php.

References $code, and binseq_to_array().

Referenced by setBarcode().

763  {
764  $chr['0'] = '100100100100';
765  $chr['1'] = '100100100110';
766  $chr['2'] = '100100110100';
767  $chr['3'] = '100100110110';
768  $chr['4'] = '100110100100';
769  $chr['5'] = '100110100110';
770  $chr['6'] = '100110110100';
771  $chr['7'] = '100110110110';
772  $chr['8'] = '110100100100';
773  $chr['9'] = '110100100110';
774  $chr['A'] = '110100110100';
775  $chr['B'] = '110100110110';
776  $chr['C'] = '110110100100';
777  $chr['D'] = '110110100110';
778  $chr['E'] = '110110110100';
779  $chr['F'] = '110110110110';
780  if ($checksum) {
781  // add checksum
782  $clen = strlen($code);
783  $p = 2;
784  $check = 0;
785  for ($i = ($clen - 1); $i >= 0; --$i) {
786  $check += (hexdec($code{$i}) * $p);
787  ++$p;
788  if ($p > 7) {
789  $p = 2;
790  }
791  }
792  $check %= 11;
793  if ($check > 0) {
794  $check = 11 - $check;
795  }
796  $code .= $check;
797  }
798  $seq = '110'; // left guard
799  $clen = strlen($code);
800  for ($i = 0; $i < $clen; ++$i) {
801  $digit = $code{$i};
802  if (!isset($chr[$digit])) {
803  // invalid character
804  return false;
805  }
806  $seq .= $chr[$digit];
807  }
808  $seq .= '1001'; // right guard
809  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
810  return $this->binseq_to_array($seq, $bararray);
811  }
$code
$code
Definition: example_050.php:99
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:864
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_pharmacode()

TCPDFBarcode::barcode_pharmacode (   $code)
protected

Pharmacode Contains digits (0 to 9)

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1966 of file tcpdf_barcodes_1d.php.

References $code, and binseq_to_array().

Referenced by setBarcode().

1966  {
1967  $seq = '';
1968  $code = intval($code);
1969  while ($code > 0) {
1970  if (($code % 2) == 0) {
1971  $seq .= '11100';
1972  $code -= 2;
1973  } else {
1974  $seq .= '100';
1975  $code -= 1;
1976  }
1977  $code /= 2;
1978  }
1979  $seq = substr($seq, 0, -2);
1980  $seq = strrev($seq);
1981  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
1982  return $this->binseq_to_array($seq, $bararray);
1983  }
$code
$code
Definition: example_050.php:99
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:864
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ barcode_pharmacode2t()

TCPDFBarcode::barcode_pharmacode2t (   $code)
protected

Pharmacode two-track Contains digits (0 to 9)

Parameters
$code(string) code to represent.
Returns
array barcode representation.

Definition at line 1992 of file tcpdf_barcodes_1d.php.

References $code, and $h.

Referenced by setBarcode().

1992  {
1993  $seq = '';
1994  $code = intval($code);
1995  do {
1996  switch ($code % 3) {
1997  case 0: {
1998  $seq .= '3';
1999  $code = ($code - 3) / 3;
2000  break;
2001  }
2002  case 1: {
2003  $seq .= '1';
2004  $code = ($code - 1) / 3;
2005  break;
2006  }
2007  case 2: {
2008  $seq .= '2';
2009  $code = ($code - 2) / 3;
2010  break;
2011  }
2012  }
2013  } while($code != 0);
2014  $seq = strrev($seq);
2015  $k = 0;
2016  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 2, 'bcode' => array());
2017  $len = strlen($seq);
2018  for ($i = 0; $i < $len; ++$i) {
2019  switch ($seq{$i}) {
2020  case '1': {
2021  $p = 1;
2022  $h = 1;
2023  break;
2024  }
2025  case '2': {
2026  $p = 0;
2027  $h = 1;
2028  break;
2029  }
2030  case '3': {
2031  $p = 0;
2032  $h = 2;
2033  break;
2034  }
2035  }
2036  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
2037  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
2038  $bararray['maxw'] += 2;
2039  }
2040  unset($bararray['bcode'][($k - 1)]);
2041  --$bararray['maxw'];
2042  return $bararray;
2043  }
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ barcode_postnet()

TCPDFBarcode::barcode_postnet (   $code,
  $planet = false
)
protected

POSTNET and PLANET barcodes.

Used by U.S. Postal Service for automated mail sorting

Parameters
$code(string) zip code to represent. Must be a string containing a zip code of the form DDDDD or DDDDD-DDDD.
$planet(boolean) if true print the PLANET barcode, otherwise print POSTNET
Returns
array barcode representation.

Definition at line 1595 of file tcpdf_barcodes_1d.php.

References $code, and $h.

Referenced by setBarcode().

1595  {
1596  // bar length
1597  if ($planet) {
1598  $barlen = Array(
1599  0 => Array(1,1,2,2,2),
1600  1 => Array(2,2,2,1,1),
1601  2 => Array(2,2,1,2,1),
1602  3 => Array(2,2,1,1,2),
1603  4 => Array(2,1,2,2,1),
1604  5 => Array(2,1,2,1,2),
1605  6 => Array(2,1,1,2,2),
1606  7 => Array(1,2,2,2,1),
1607  8 => Array(1,2,2,1,2),
1608  9 => Array(1,2,1,2,2)
1609  );
1610  } else {
1611  $barlen = Array(
1612  0 => Array(2,2,1,1,1),
1613  1 => Array(1,1,1,2,2),
1614  2 => Array(1,1,2,1,2),
1615  3 => Array(1,1,2,2,1),
1616  4 => Array(1,2,1,1,2),
1617  5 => Array(1,2,1,2,1),
1618  6 => Array(1,2,2,1,1),
1619  7 => Array(2,1,1,1,2),
1620  8 => Array(2,1,1,2,1),
1621  9 => Array(2,1,2,1,1)
1622  );
1623  }
1624  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 2, 'bcode' => array());
1625  $k = 0;
1626  $code = str_replace('-', '', $code);
1627  $code = str_replace(' ', '', $code);
1628  $len = strlen($code);
1629  // calculate checksum
1630  $sum = 0;
1631  for ($i = 0; $i < $len; ++$i) {
1632  $sum += intval($code{$i});
1633  }
1634  $chkd = ($sum % 10);
1635  if($chkd > 0) {
1636  $chkd = (10 - $chkd);
1637  }
1638  $code .= $chkd;
1639  $len = strlen($code);
1640  // start bar
1641  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1642  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1643  $bararray['maxw'] += 2;
1644  for ($i = 0; $i < $len; ++$i) {
1645  for ($j = 0; $j < 5; ++$j) {
1646  $h = $barlen[$code{$i}][$j];
1647  $p = floor(1 / $h);
1648  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
1649  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1650  $bararray['maxw'] += 2;
1651  }
1652  }
1653  // end bar
1654  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1655  $bararray['maxw'] += 1;
1656  return $bararray;
1657  }
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ barcode_rms4cc()

TCPDFBarcode::barcode_rms4cc (   $code,
  $kix = false
)
protected

RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant index - Customer index) RM4SCC is the name of the barcode symbology used by the Royal Mail for its Cleanmail service.

Parameters
$code(string) code to print
$kix(boolean) if true prints the KIX variation (doesn't use the start and end symbols, and the checksum) - in this case the house number must be sufficed with an X and placed at the end of the code.
Returns
array barcode representation.

Definition at line 1668 of file tcpdf_barcodes_1d.php.

References $code, $h, and $row.

Referenced by setBarcode().

1668  {
1669  $notkix = !$kix;
1670  // bar mode
1671  // 1 = pos 1, length 2
1672  // 2 = pos 1, length 3
1673  // 3 = pos 2, length 1
1674  // 4 = pos 2, length 2
1675  $barmode = array(
1676  '0' => array(3,3,2,2),
1677  '1' => array(3,4,1,2),
1678  '2' => array(3,4,2,1),
1679  '3' => array(4,3,1,2),
1680  '4' => array(4,3,2,1),
1681  '5' => array(4,4,1,1),
1682  '6' => array(3,1,4,2),
1683  '7' => array(3,2,3,2),
1684  '8' => array(3,2,4,1),
1685  '9' => array(4,1,3,2),
1686  'A' => array(4,1,4,1),
1687  'B' => array(4,2,3,1),
1688  'C' => array(3,1,2,4),
1689  'D' => array(3,2,1,4),
1690  'E' => array(3,2,2,3),
1691  'F' => array(4,1,1,4),
1692  'G' => array(4,1,2,3),
1693  'H' => array(4,2,1,3),
1694  'I' => array(1,3,4,2),
1695  'J' => array(1,4,3,2),
1696  'K' => array(1,4,4,1),
1697  'L' => array(2,3,3,2),
1698  'M' => array(2,3,4,1),
1699  'N' => array(2,4,3,1),
1700  'O' => array(1,3,2,4),
1701  'P' => array(1,4,1,4),
1702  'Q' => array(1,4,2,3),
1703  'R' => array(2,3,1,4),
1704  'S' => array(2,3,2,3),
1705  'T' => array(2,4,1,3),
1706  'U' => array(1,1,4,4),
1707  'V' => array(1,2,3,4),
1708  'W' => array(1,2,4,3),
1709  'X' => array(2,1,3,4),
1710  'Y' => array(2,1,4,3),
1711  'Z' => array(2,2,3,3)
1712  );
1713  $code = strtoupper($code);
1714  $len = strlen($code);
1715  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 3, 'bcode' => array());
1716  if ($notkix) {
1717  // table for checksum calculation (row,col)
1718  $checktable = array(
1719  '0' => array(1,1),
1720  '1' => array(1,2),
1721  '2' => array(1,3),
1722  '3' => array(1,4),
1723  '4' => array(1,5),
1724  '5' => array(1,0),
1725  '6' => array(2,1),
1726  '7' => array(2,2),
1727  '8' => array(2,3),
1728  '9' => array(2,4),
1729  'A' => array(2,5),
1730  'B' => array(2,0),
1731  'C' => array(3,1),
1732  'D' => array(3,2),
1733  'E' => array(3,3),
1734  'F' => array(3,4),
1735  'G' => array(3,5),
1736  'H' => array(3,0),
1737  'I' => array(4,1),
1738  'J' => array(4,2),
1739  'K' => array(4,3),
1740  'L' => array(4,4),
1741  'M' => array(4,5),
1742  'N' => array(4,0),
1743  'O' => array(5,1),
1744  'P' => array(5,2),
1745  'Q' => array(5,3),
1746  'R' => array(5,4),
1747  'S' => array(5,5),
1748  'T' => array(5,0),
1749  'U' => array(0,1),
1750  'V' => array(0,2),
1751  'W' => array(0,3),
1752  'X' => array(0,4),
1753  'Y' => array(0,5),
1754  'Z' => array(0,0)
1755  );
1756  $row = 0;
1757  $col = 0;
1758  for ($i = 0; $i < $len; ++$i) {
1759  $row += $checktable[$code{$i}][0];
1760  $col += $checktable[$code{$i}][1];
1761  }
1762  $row %= 6;
1763  $col %= 6;
1764  $chk = array_keys($checktable, array($row,$col));
1765  $code .= $chk[0];
1766  ++$len;
1767  }
1768  $k = 0;
1769  if ($notkix) {
1770  // start bar
1771  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 2, 'p' => 0);
1772  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1773  $bararray['maxw'] += 2;
1774  }
1775  for ($i = 0; $i < $len; ++$i) {
1776  for ($j = 0; $j < 4; ++$j) {
1777  switch ($barmode[$code{$i}][$j]) {
1778  case 1: {
1779  $p = 0;
1780  $h = 2;
1781  break;
1782  }
1783  case 2: {
1784  $p = 0;
1785  $h = 3;
1786  break;
1787  }
1788  case 3: {
1789  $p = 1;
1790  $h = 1;
1791  break;
1792  }
1793  case 4: {
1794  $p = 1;
1795  $h = 2;
1796  break;
1797  }
1798  }
1799  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => $h, 'p' => $p);
1800  $bararray['bcode'][$k++] = array('t' => 0, 'w' => 1, 'h' => 2, 'p' => 0);
1801  $bararray['maxw'] += 2;
1802  }
1803  }
1804  if ($notkix) {
1805  // stop bar
1806  $bararray['bcode'][$k++] = array('t' => 1, 'w' => 1, 'h' => 3, 'p' => 0);
1807  $bararray['maxw'] += 1;
1808  }
1809  return $bararray;
1810  }
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ barcode_s25()

TCPDFBarcode::barcode_s25 (   $code,
  $checksum = false
)
protected

Standard 2 of 5 barcodes.

Used in airline ticket marking, photofinishing Contains digits (0 to 9) and encodes the data only in the width of bars.

Parameters
$code(string) code to represent.
$checksum(boolean) if true add a checksum to the code
Returns
array barcode representation.

Definition at line 822 of file tcpdf_barcodes_1d.php.

References $code, binseq_to_array(), and checksum_s25().

Referenced by setBarcode().

822  {
823  $chr['0'] = '10101110111010';
824  $chr['1'] = '11101010101110';
825  $chr['2'] = '10111010101110';
826  $chr['3'] = '11101110101010';
827  $chr['4'] = '10101110101110';
828  $chr['5'] = '11101011101010';
829  $chr['6'] = '10111011101010';
830  $chr['7'] = '10101011101110';
831  $chr['8'] = '10101110111010';
832  $chr['9'] = '10111010111010';
833  if ($checksum) {
834  // add checksum
835  $code .= $this->checksum_s25($code);
836  }
837  if((strlen($code) % 2) != 0) {
838  // add leading zero if code-length is odd
839  $code = '0'.$code;
840  }
841  $seq = '11011010';
842  $clen = strlen($code);
843  for ($i = 0; $i < $clen; ++$i) {
844  $digit = $code{$i};
845  if (!isset($chr[$digit])) {
846  // invalid character
847  return false;
848  }
849  $seq .= $chr[$digit];
850  }
851  $seq .= '1101011';
852  $bararray = array('code' => $code, 'maxw' => 0, 'maxh' => 1, 'bcode' => array());
853  return $this->binseq_to_array($seq, $bararray);
854  }
$code
$code
Definition: example_050.php:99
TCPDFBarcode\binseq_to_array
binseq_to_array($seq, $bararray)
Convert binary barcode sequence to TCPDF barcode array.
Definition: tcpdf_barcodes_1d.php:864
TCPDFBarcode\checksum_s25
checksum_s25($code)
Checksum for standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:737
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ binseq_to_array()

TCPDFBarcode::binseq_to_array (   $seq,
  $bararray
)
protected

Convert binary barcode sequence to TCPDF barcode array.

Parameters
$seq(string) barcode as binary sequence.
$bararray(array) barcode array. òparam array $bararray TCPDF barcode array to fill up
Returns
array barcode representation.

Definition at line 864 of file tcpdf_barcodes_1d.php.

References $t, and $w.

Referenced by barcode_eanext(), barcode_msi(), barcode_pharmacode(), and barcode_s25().

864  {
865  $len = strlen($seq);
866  $w = 0;
867  $k = 0;
868  for ($i = 0; $i < $len; ++$i) {
869  $w += 1;
870  if (($i == ($len - 1)) OR (($i < ($len - 1)) AND ($seq{$i} != $seq{($i+1)}))) {
871  if ($seq{$i} == '1') {
872  $t = true; // bar
873  } else {
874  $t = false; // space
875  }
876  $bararray['bcode'][$k] = array('t' => $t, 'w' => $w, 'h' => 1, 'p' => 0);
877  $bararray['maxw'] += $w;
878  ++$k;
879  $w = 0;
880  }
881  }
882  return $bararray;
883  }
$t
$t
Definition: class.ilBMFType_duration.php:154
$w
$w
Definition: example_009.php:100
+ Here is the caller graph for this function:

◆ checksum_code39()

TCPDFBarcode::checksum_code39 (   $code)
protected

Calculate CODE 39 checksum (modulo 43).

Parameters
$code(string) code to represent.
Returns
char checksum.

Definition at line 537 of file tcpdf_barcodes_1d.php.

References $code.

Referenced by barcode_code39().

537  {
538  $chars = array(
539  '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
540  'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K',
541  'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
542  'W', 'X', 'Y', 'Z', '-', '.', ' ', '$', '/', '+', '%');
543  $sum = 0;
544  $clen = strlen($code);
545  for ($i = 0 ; $i < $clen; ++$i) {
546  $k = array_keys($chars, $code{$i});
547  $sum += $k[0];
548  }
549  $j = ($sum % 43);
550  return $chars[$j];
551  }
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ checksum_code93()

TCPDFBarcode::checksum_code93 (   $code)
protected

Calculate CODE 93 checksum (modulo 47).

Parameters
$code(string) code to represent.
Returns
string checksum code.

Definition at line 688 of file tcpdf_barcodes_1d.php.

References $code.

Referenced by barcode_code93().

688  {
689  $chars = array(
690  '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
691  'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K',
692  'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
693  'W', 'X', 'Y', 'Z', '-', '.', ' ', '$', '/', '+', '%',
694  '<', '=', '>', '?');
695  // translate special characters
696  $code = strtr($code, chr(128).chr(131).chr(129).chr(130), '<=>?');
697  $len = strlen($code);
698  // calculate check digit C
699  $p = 1;
700  $check = 0;
701  for ($i = ($len - 1); $i >= 0; --$i) {
702  $k = array_keys($chars, $code{$i});
703  $check += ($k[0] * $p);
704  ++$p;
705  if ($p > 20) {
706  $p = 1;
707  }
708  }
709  $check %= 47;
710  $c = $chars[$check];
711  $code .= $c;
712  // calculate check digit K
713  $p = 1;
714  $check = 0;
715  for ($i = $len; $i >= 0; --$i) {
716  $k = array_keys($chars, $code{$i});
717  $check += ($k[0] * $p);
718  ++$p;
719  if ($p > 15) {
720  $p = 1;
721  }
722  }
723  $check %= 47;
724  $k = $chars[$check];
725  $checksum = $c.$k;
726  // resto respecial characters
727  $checksum = strtr($checksum, '<=>?', chr(128).chr(131).chr(129).chr(130));
728  return $checksum;
729  }
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ checksum_s25()

TCPDFBarcode::checksum_s25 (   $code)
protected

Checksum for standard 2 of 5 barcodes.

Parameters
$code(string) code to process.
Returns
int checksum.

Definition at line 737 of file tcpdf_barcodes_1d.php.

References $code, and $r.

Referenced by barcode_i25(), and barcode_s25().

737  {
738  $len = strlen($code);
739  $sum = 0;
740  for ($i = 0; $i < $len; $i+=2) {
741  $sum += $code{$i};
742  }
743  $sum *= 3;
744  for ($i = 1; $i < $len; $i+=2) {
745  $sum += ($code{$i});
746  }
747  $r = $sum % 10;
748  if($r > 0) {
749  $r = (10 - $r);
750  }
751  return $r;
752  }
$code
$code
Definition: example_050.php:99
$r
$r
Definition: example_031.php:79
+ Here is the caller graph for this function:

◆ dec_to_hex()

TCPDFBarcode::dec_to_hex (   $number)

Convert large integer number to hexadecimal representation.

(requires PHP bcmath extension)

Parameters
$number(string) number to convert specified as a string
Returns
string hexadecimal representation

Definition at line 2229 of file tcpdf_barcodes_1d.php.

Referenced by barcode_imb().

2229  {
2230  $i = 0;
2231  $hex = array();
2232  if($number == 0) {
2233  return '00';
2234  }
2235  while($number > 0) {
2236  if($number == 0) {
2237  array_push($hex, '0');
2238  } else {
2239  array_push($hex, strtoupper(dechex(bcmod($number, '16'))));
2240  $number = bcdiv($number, '16', 0);
2241  }
2242  }
2243  $hex = array_reverse($hex);
2244  return implode($hex);
2245  }
+ Here is the caller graph for this function:

◆ encode_code39_ext()

TCPDFBarcode::encode_code39_ext (   $code)
protected

Encode a string to be used for CODE 39 Extended mode.

Parameters
$code(string) code to represent.
Returns
encoded string.

Definition at line 486 of file tcpdf_barcodes_1d.php.

References $code.

Referenced by barcode_code39().

486  {
487  $encode = array(
488  chr(0) => '%U', chr(1) => '$A', chr(2) => '$B', chr(3) => '$C',
489  chr(4) => '$D', chr(5) => '$E', chr(6) => '$F', chr(7) => '$G',
490  chr(8) => '$H', chr(9) => '$I', chr(10) => '$J', chr(11) => '£K',
491  chr(12) => '$L', chr(13) => '$M', chr(14) => '$N', chr(15) => '$O',
492  chr(16) => '$P', chr(17) => '$Q', chr(18) => '$R', chr(19) => '$S',
493  chr(20) => '$T', chr(21) => '$U', chr(22) => '$V', chr(23) => '$W',
494  chr(24) => '$X', chr(25) => '$Y', chr(26) => '$Z', chr(27) => '%A',
495  chr(28) => '%B', chr(29) => '%C', chr(30) => '%D', chr(31) => '%E',
496  chr(32) => ' ', chr(33) => '/A', chr(34) => '/B', chr(35) => '/C',
497  chr(36) => '/D', chr(37) => '/E', chr(38) => '/F', chr(39) => '/G',
498  chr(40) => '/H', chr(41) => '/I', chr(42) => '/J', chr(43) => '/K',
499  chr(44) => '/L', chr(45) => '-', chr(46) => '.', chr(47) => '/O',
500  chr(48) => '0', chr(49) => '1', chr(50) => '2', chr(51) => '3',
501  chr(52) => '4', chr(53) => '5', chr(54) => '6', chr(55) => '7',
502  chr(56) => '8', chr(57) => '9', chr(58) => '/Z', chr(59) => '%F',
503  chr(60) => '%G', chr(61) => '%H', chr(62) => '%I', chr(63) => '%J',
504  chr(64) => '%V', chr(65) => 'A', chr(66) => 'B', chr(67) => 'C',
505  chr(68) => 'D', chr(69) => 'E', chr(70) => 'F', chr(71) => 'G',
506  chr(72) => 'H', chr(73) => 'I', chr(74) => 'J', chr(75) => 'K',
507  chr(76) => 'L', chr(77) => 'M', chr(78) => 'N', chr(79) => 'O',
508  chr(80) => 'P', chr(81) => 'Q', chr(82) => 'R', chr(83) => 'S',
509  chr(84) => 'T', chr(85) => 'U', chr(86) => 'V', chr(87) => 'W',
510  chr(88) => 'X', chr(89) => 'Y', chr(90) => 'Z', chr(91) => '%K',
511  chr(92) => '%L', chr(93) => '%M', chr(94) => '%N', chr(95) => '%O',
512  chr(96) => '%W', chr(97) => '+A', chr(98) => '+B', chr(99) => '+C',
513  chr(100) => '+D', chr(101) => '+E', chr(102) => '+F', chr(103) => '+G',
514  chr(104) => '+H', chr(105) => '+I', chr(106) => '+J', chr(107) => '+K',
515  chr(108) => '+L', chr(109) => '+M', chr(110) => '+N', chr(111) => '+O',
516  chr(112) => '+P', chr(113) => '+Q', chr(114) => '+R', chr(115) => '+S',
517  chr(116) => '+T', chr(117) => '+U', chr(118) => '+V', chr(119) => '+W',
518  chr(120) => '+X', chr(121) => '+Y', chr(122) => '+Z', chr(123) => '%P',
519  chr(124) => '%Q', chr(125) => '%R', chr(126) => '%S', chr(127) => '%T');
520  $code_ext = '';
521  $clen = strlen($code);
522  for ($i = 0 ; $i < $clen; ++$i) {
523  if (ord($code{$i}) > 127) {
524  return false;
525  }
526  $code_ext .= $encode[$code{$i}];
527  }
528  return $code_ext;
529  }
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ get128ABsequence()

TCPDFBarcode::get128ABsequence (   $code)
protected

Split text code in A/B sequence for 128 code.

Parameters
$code(string) code to split.
Returns
array sequence

Definition at line 1288 of file tcpdf_barcodes_1d.php.

References $code.

Referenced by barcode_c128().

1288  {
1289  $len = strlen($code);
1290  $sequence = array();
1291  // get A sequences (if any)
1292  $numseq = array();
1293  preg_match_all('/([\0-\31])/', $code, $numseq, PREG_OFFSET_CAPTURE);
1294  if (isset($numseq[1]) AND !empty($numseq[1])) {
1295  $end_offset = 0;
1296  foreach ($numseq[1] as $val) {
1297  $offset = $val[1];
1298  if ($offset > $end_offset) {
1299  // B sequence
1300  $sequence[] = array('B', substr($code, $end_offset, ($offset - $end_offset)), ($offset - $end_offset));
1301  }
1302  // A sequence
1303  $slen = strlen($val[0]);
1304  $sequence[] = array('A', substr($code, $offset, $slen), $slen);
1305  $end_offset = $offset + $slen;
1306  }
1307  if ($end_offset < $len) {
1308  $sequence[] = array('B', substr($code, $end_offset), ($len - $end_offset));
1309  }
1310  } else {
1311  // only B sequence
1312  $sequence[] = array('B', $code, $len);
1313  }
1314  return $sequence;
1315  }
$code
$code
Definition: example_050.php:99
+ Here is the caller graph for this function:

◆ getBarcodeArray()

TCPDFBarcode::getBarcodeArray ( )

Return an array representations of barcode.

Returns
array

Definition at line 82 of file tcpdf_barcodes_1d.php.

References $barcode_array.

82  {
83  return $this->barcode_array;
84  }
TCPDFBarcode\$barcode_array
$barcode_array
Array representation of barcode.
Definition: tcpdf_barcodes_1d.php:56

◆ getBarcodeHTML()

TCPDFBarcode::getBarcodeHTML (   $w = 2,
  $h = 30,
  $color = 'black'
)

Return an HTML representation of barcode.

Parameters
$w(int) Width of a single bar element in pixels.
$h(int) Height of a single bar element in pixels.
$color(string) Foreground color for bar elements (background is transparent).
Returns
string HTML code.

Definition at line 147 of file tcpdf_barcodes_1d.php.

References $h, $html, $w, $x, and $y.

147  {
148  $html = '<div style="font-size:0;position:relative;width:'.($this->barcode_array['maxw'] * $w).'px;height:'.($h).'px;">'."\n";
149  // print bars
150  $x = 0;
151  foreach ($this->barcode_array['bcode'] as $k => $v) {
152  $bw = round(($v['w'] * $w), 3);
153  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
154  if ($v['t']) {
155  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
156  // draw a vertical bar
157  $html .= '<div style="background-color:'.$color.';width:'.$bw.'px;height:'.$bh.'px;position:absolute;left:'.$x.'px;top:'.$y.'px;">&nbsp;</div>'."\n";
158  }
159  $x += $bw;
160  }
161  $html .= '</div>'."\n";
162  return $html;
163  }
$x
$x
Definition: example_009.php:98
$h
$h
Definition: example_009.php:101
$w
$w
Definition: example_009.php:100
$y
$y
Definition: example_007.php:83
$html
$html
Definition: example_001.php:87

◆ getBarcodePNG()

TCPDFBarcode::getBarcodePNG (   $w = 2,
  $h = 30,
  $color = array(0,0,0)
)

Send a PNG image representation of barcode (requires GD or Imagick library).

Parameters
$w(int) Width of a single bar element in pixels.
$h(int) Height of a single bar element in pixels.
$color(array) RGB (0-255) foreground color for bar elements (background is transparent).

Definition at line 172 of file tcpdf_barcodes_1d.php.

References $data, $h, $w, and getBarcodePngData().

172  {
173  $data = $this->getBarcodePngData($w, $h, $color);
174  // send headers
175  header('Content-Type: image/png');
176  header('Cache-Control: public, must-revalidate, max-age=0'); // HTTP/1.1
177  header('Pragma: public');
178  header('Expires: Sat, 26 Jul 1997 05:00:00 GMT'); // Date in the past
179  header('Last-Modified: '.gmdate('D, d M Y H:i:s').' GMT');
180  //header('Content-Length: '.strlen($data));
181  echo $data;
182  }
$h
$h
Definition: example_009.php:101
$w
$w
Definition: example_009.php:100
$data
$data
Definition: example_011.php:126
TCPDFBarcode\getBarcodePngData
getBarcodePngData($w=2, $h=30, $color=array(0, 0, 0))
Return a PNG image representation of barcode (requires GD or Imagick library).
Definition: tcpdf_barcodes_1d.php:192
+ Here is the call graph for this function:

◆ getBarcodePngData()

TCPDFBarcode::getBarcodePngData (   $w = 2,
  $h = 30,
  $color = array(0,0,0)
)

Return a PNG image representation of barcode (requires GD or Imagick library).

Parameters
$w(int) Width of a single bar element in pixels.
$h(int) Height of a single bar element in pixels.
$color(array) RGB (0-255) foreground color for bar elements (background is transparent).
Returns
image or false in case of error.

Definition at line 192 of file tcpdf_barcodes_1d.php.

References $h, $w, $x, and $y.

Referenced by getBarcodePNG().

192  {
193  // calculate image size
194  $width = ($this->barcode_array['maxw'] * $w);
195  $height = $h;
196  if (function_exists('imagecreate')) {
197  // GD library
198  $imagick = false;
199  $png = imagecreate($width, $height);
200  $bgcol = imagecolorallocate($png, 255, 255, 255);
201  imagecolortransparent($png, $bgcol);
202  $fgcol = imagecolorallocate($png, $color[0], $color[1], $color[2]);
203  } elseif (extension_loaded('imagick')) {
204  $imagick = true;
205  $bgcol = new imagickpixel('rgb(255,255,255');
206  $fgcol = new imagickpixel('rgb('.$color[0].','.$color[1].','.$color[2].')');
207  $png = new Imagick();
208  $png->newImage($width, $height, 'none', 'png');
209  $bar = new imagickdraw();
210  $bar->setfillcolor($fgcol);
211  } else {
212  return false;
213  }
214  // print bars
215  $x = 0;
216  foreach ($this->barcode_array['bcode'] as $k => $v) {
217  $bw = round(($v['w'] * $w), 3);
218  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
219  if ($v['t']) {
220  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
221  // draw a vertical bar
222  if ($imagick) {
223  $bar->rectangle($x, $y, ($x + $bw - 1), ($y + $bh - 1));
224  } else {
225  imagefilledrectangle($png, $x, $y, ($x + $bw - 1), ($y + $bh - 1), $fgcol);
226  }
227  }
228  $x += $bw;
229  }
230  if ($imagick) {
231  $png->drawimage($bar);
232  return $png;
233  } else {
234  ob_start();
235  imagepng($png);
236  $imagedata = ob_get_clean();
237  imagedestroy($png);
238  return $imagedata;
239  }
240  }
$x
$x
Definition: example_009.php:98
$h
$h
Definition: example_009.php:101
$w
$w
Definition: example_009.php:100
$y
$y
Definition: example_007.php:83
+ Here is the caller graph for this function:

◆ getBarcodeSVG()

TCPDFBarcode::getBarcodeSVG (   $w = 2,
  $h = 30,
  $color = 'black'
)

Send barcode as SVG image object to the standard output.

Parameters
$w(int) Minimum width of a single bar in user units.
$h(int) Height of barcode in user units.
$color(string) Foreground color (in SVG format) for bar elements (background is transparent).

Definition at line 93 of file tcpdf_barcodes_1d.php.

References $code, $h, $w, and getBarcodeSVGcode().

93  {
94  // send headers
95  $code = $this->getBarcodeSVGcode($w, $h, $color);
96  header('Content-Type: application/svg+xml');
97  header('Cache-Control: public, must-revalidate, max-age=0'); // HTTP/1.1
98  header('Pragma: public');
99  header('Expires: Sat, 26 Jul 1997 05:00:00 GMT'); // Date in the past
100  header('Last-Modified: '.gmdate('D, d M Y H:i:s').' GMT');
101  header('Content-Disposition: inline; filename="'.md5($code).'.svg";');
102  //header('Content-Length: '.strlen($code));
103  echo $code;
104  }
$h
$h
Definition: example_009.php:101
$code
$code
Definition: example_050.php:99
$w
$w
Definition: example_009.php:100
TCPDFBarcode\getBarcodeSVGcode
getBarcodeSVGcode($w=2, $h=30, $color='black')
Return a SVG string representation of barcode.
Definition: tcpdf_barcodes_1d.php:114
+ Here is the call graph for this function:

◆ getBarcodeSVGcode()

TCPDFBarcode::getBarcodeSVGcode (   $w = 2,
  $h = 30,
  $color = 'black'
)

Return a SVG string representation of barcode.

Parameters
$w(int) Minimum width of a single bar in user units.
$h(int) Height of barcode in user units.
$color(string) Foreground color (in SVG format) for bar elements (background is transparent).
Returns
string SVG code.

Definition at line 114 of file tcpdf_barcodes_1d.php.

References $h, $w, $x, and $y.

Referenced by getBarcodeSVG().

114  {
115  // replace table for special characters
116  $repstr = array("\0" => '', '&' => '&amp;', '<' => '&lt;', '>' => '&gt;');
117  $svg = '<'.'?'.'xml version="1.0" standalone="no"'.'?'.'>'."\n";
118  $svg .= '<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">'."\n";
119  $svg .= '<svg width="'.round(($this->barcode_array['maxw'] * $w), 3).'" height="'.$h.'" version="1.1" xmlns="http://www.w3.org/2000/svg">'."\n";
120  $svg .= "\t".'<desc>'.strtr($this->barcode_array['code'], $repstr).'</desc>'."\n";
121  $svg .= "\t".'<g id="bars" fill="'.$color.'" stroke="none">'."\n";
122  // print bars
123  $x = 0;
124  foreach ($this->barcode_array['bcode'] as $k => $v) {
125  $bw = round(($v['w'] * $w), 3);
126  $bh = round(($v['h'] * $h / $this->barcode_array['maxh']), 3);
127  if ($v['t']) {
128  $y = round(($v['p'] * $h / $this->barcode_array['maxh']), 3);
129  // draw a vertical bar
130  $svg .= "\t\t".'<rect x="'.$x.'" y="'.$y.'" width="'.$bw.'" height="'.$bh.'" />'."\n";
131  }
132  $x += $bw;
133  }
134  $svg .= "\t".'</g>'."\n";
135  $svg .= '</svg>'."\n";
136  return $svg;
137  }
$x
$x
Definition: example_009.php:98
$h
$h
Definition: example_009.php:101
$w
$w
Definition: example_009.php:100
$y
$y
Definition: example_007.php:83
+ Here is the caller graph for this function:

◆ hex_to_dec()

TCPDFBarcode::hex_to_dec (   $hex)

Convert large hexadecimal number to decimal representation (string).

(requires PHP bcmath extension)

Parameters
$hex(string) hexadecimal number to convert specified as a string
Returns
string hexadecimal representation

Definition at line 2253 of file tcpdf_barcodes_1d.php.

Referenced by barcode_imb().

2253  {
2254  $dec = 0;
2255  $bitval = 1;
2256  $len = strlen($hex);
2257  for($pos = ($len - 1); $pos >= 0; --$pos) {
2258  $dec = bcadd($dec, bcmul(hexdec($hex{$pos}), $bitval));
2259  $bitval = bcmul($bitval, 16);
2260  }
2261  return $dec;
2262  }
+ Here is the caller graph for this function:

◆ imb_crc11fcs()

TCPDFBarcode::imb_crc11fcs (   $code_arr)
protected

Intelligent Mail Barcode calculation of Frame Check Sequence.

Parameters
$code_arr(string) array of hexadecimal values (13 bytes holding 102 bits right justified).
Returns
int 11 bit Frame Check Sequence as integer (decimal base)

Definition at line 2270 of file tcpdf_barcodes_1d.php.

References $data.

Referenced by barcode_imb().

2270  {
2271  $genpoly = 0x0F35; // generator polynomial
2272  $fcs = 0x07FF; // Frame Check Sequence
2273  // do most significant byte skipping the 2 most significant bits
2274  $data = hexdec($code_arr[0]) << 5;
2275  for ($bit = 2; $bit < 8; ++$bit) {
2276  if (($fcs ^ $data) & 0x400) {
2277  $fcs = ($fcs << 1) ^ $genpoly;
2278  } else {
2279  $fcs = ($fcs << 1);
2280  }
2281  $fcs &= 0x7FF;
2282  $data <<= 1;
2283  }
2284  // do rest of bytes
2285  for ($byte = 1; $byte < 13; ++$byte) {
2286  $data = hexdec($code_arr[$byte]) << 3;
2287  for ($bit = 0; $bit < 8; ++$bit) {
2288  if (($fcs ^ $data) & 0x400) {
2289  $fcs = ($fcs << 1) ^ $genpoly;
2290  } else {
2291  $fcs = ($fcs << 1);
2292  }
2293  $fcs &= 0x7FF;
2294  $data <<= 1;
2295  }
2296  }
2297  return $fcs;
2298  }
$data
$data
Definition: example_011.php:126
+ Here is the caller graph for this function:

◆ imb_reverse_us()

TCPDFBarcode::imb_reverse_us (   $num)
protected

Reverse unsigned short value.

Parameters
$num(int) value to reversr
Returns
int reversed value

Definition at line 2306 of file tcpdf_barcodes_1d.php.

Referenced by imb_tables().

2306  {
2307  $rev = 0;
2308  for ($i = 0; $i < 16; ++$i) {
2309  $rev <<= 1;
2310  $rev |= ($num & 1);
2311  $num >>= 1;
2312  }
2313  return $rev;
2314  }
+ Here is the caller graph for this function:

◆ imb_tables()

TCPDFBarcode::imb_tables (   $n,
  $size
)
protected

generate Nof13 tables used for Intelligent Mail Barcode

Parameters
$n(int) is the type of table: 2 for 2of13 table, 5 for 5of13table
$size(int) size of table (78 for n=2 and 1287 for n=5)
Returns
array requested table

Definition at line 2323 of file tcpdf_barcodes_1d.php.

References $n, $size, and imb_reverse_us().

Referenced by barcode_imb().

2323  {
2324  $table = array();
2325  $lli = 0; // LUT lower index
2326  $lui = $size - 1; // LUT upper index
2327  for ($count = 0; $count < 8192; ++$count) {
2328  $bit_count = 0;
2329  for ($bit_index = 0; $bit_index < 13; ++$bit_index) {
2330  $bit_count += intval(($count & (1 << $bit_index)) != 0);
2331  }
2332  // if we don't have the right number of bits on, go on to the next value
2333  if ($bit_count == $n) {
2334  $reverse = ($this->imb_reverse_us($count) >> 3);
2335  // if the reverse is less than count, we have already visited this pair before
2336  if ($reverse >= $count) {
2337  // If count is symmetric, place it at the first free slot from the end of the list.
2338  // Otherwise, place it at the first free slot from the beginning of the list AND place $reverse ath the next free slot from the beginning of the list
2339  if ($reverse == $count) {
2340  $table[$lui] = $count;
2341  --$lui;
2342  } else {
2343  $table[$lli] = $count;
2344  ++$lli;
2345  $table[$lli] = $reverse;
2346  ++$lli;
2347  }
2348  }
2349  }
2350  }
2351  return $table;
2352  }
$size
$size
Definition: RandomTest.php:79
TCPDFBarcode\imb_reverse_us
imb_reverse_us($num)
Reverse unsigned short value.
Definition: tcpdf_barcodes_1d.php:2306
$n
$n
Definition: RandomTest.php:80
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ setBarcode()

TCPDFBarcode::setBarcode (   $code,
  $type
)

Set the barcode.

Parameters
$code(string) code to print
$type(string) type of barcode:
  • C39 : CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
  • C39+ : CODE 39 with checksum
  • C39E : CODE 39 EXTENDED
  • C39E+ : CODE 39 EXTENDED + CHECKSUM
  • C93 : CODE 93 - USS-93
  • S25 : Standard 2 of 5
  • S25+ : Standard 2 of 5 + CHECKSUM
  • I25 : Interleaved 2 of 5
  • I25+ : Interleaved 2 of 5 + CHECKSUM
  • C128 : CODE 128
  • C128A : CODE 128 A
  • C128B : CODE 128 B
  • C128C : CODE 128 C
  • EAN2 : 2-Digits UPC-Based Extension
  • EAN5 : 5-Digits UPC-Based Extension
  • EAN8 : EAN 8
  • EAN13 : EAN 13
  • UPCA : UPC-A
  • UPCE : UPC-E
  • MSI : MSI (Variation of Plessey code)
  • MSI+ : MSI + CHECKSUM (modulo 11)
  • POSTNET : POSTNET
  • PLANET : PLANET
  • RMS4CC : RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
  • KIX : KIX (Klant index - Customer index)
  • IMB: Intelligent Mail Barcode - Onecode - USPS-B-3200
  • IMBPRE: Pre-processed Intelligent Mail Barcode - Onecode - USPS-B-3200, using only F,A,D,T letters
  • CODABAR : CODABAR
  • CODE11 : CODE 11
  • PHARMA : PHARMACODE
  • PHARMA2T : PHARMACODE TWO-TRACKS
Returns
array barcode array

Definition at line 249 of file tcpdf_barcodes_1d.php.

References $code, barcode_c128(), barcode_codabar(), barcode_code11(), barcode_code39(), barcode_code93(), barcode_eanext(), barcode_eanupc(), barcode_i25(), barcode_imb(), barcode_imb_pre(), barcode_msi(), barcode_pharmacode(), barcode_pharmacode2t(), barcode_postnet(), barcode_rms4cc(), and barcode_s25().

Referenced by __construct().

249  {
250  switch (strtoupper($type)) {
251  case 'C39': { // CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
252  $arrcode = $this->barcode_code39($code, false, false);
253  break;
254  }
255  case 'C39+': { // CODE 39 with checksum
256  $arrcode = $this->barcode_code39($code, false, true);
257  break;
258  }
259  case 'C39E': { // CODE 39 EXTENDED
260  $arrcode = $this->barcode_code39($code, true, false);
261  break;
262  }
263  case 'C39E+': { // CODE 39 EXTENDED + CHECKSUM
264  $arrcode = $this->barcode_code39($code, true, true);
265  break;
266  }
267  case 'C93': { // CODE 93 - USS-93
268  $arrcode = $this->barcode_code93($code);
269  break;
270  }
271  case 'S25': { // Standard 2 of 5
272  $arrcode = $this->barcode_s25($code, false);
273  break;
274  }
275  case 'S25+': { // Standard 2 of 5 + CHECKSUM
276  $arrcode = $this->barcode_s25($code, true);
277  break;
278  }
279  case 'I25': { // Interleaved 2 of 5
280  $arrcode = $this->barcode_i25($code, false);
281  break;
282  }
283  case 'I25+': { // Interleaved 2 of 5 + CHECKSUM
284  $arrcode = $this->barcode_i25($code, true);
285  break;
286  }
287  case 'C128': { // CODE 128
288  $arrcode = $this->barcode_c128($code, '');
289  break;
290  }
291  case 'C128A': { // CODE 128 A
292  $arrcode = $this->barcode_c128($code, 'A');
293  break;
294  }
295  case 'C128B': { // CODE 128 B
296  $arrcode = $this->barcode_c128($code, 'B');
297  break;
298  }
299  case 'C128C': { // CODE 128 C
300  $arrcode = $this->barcode_c128($code, 'C');
301  break;
302  }
303  case 'EAN2': { // 2-Digits UPC-Based Extension
304  $arrcode = $this->barcode_eanext($code, 2);
305  break;
306  }
307  case 'EAN5': { // 5-Digits UPC-Based Extension
308  $arrcode = $this->barcode_eanext($code, 5);
309  break;
310  }
311  case 'EAN8': { // EAN 8
312  $arrcode = $this->barcode_eanupc($code, 8);
313  break;
314  }
315  case 'EAN13': { // EAN 13
316  $arrcode = $this->barcode_eanupc($code, 13);
317  break;
318  }
319  case 'UPCA': { // UPC-A
320  $arrcode = $this->barcode_eanupc($code, 12);
321  break;
322  }
323  case 'UPCE': { // UPC-E
324  $arrcode = $this->barcode_eanupc($code, 6);
325  break;
326  }
327  case 'MSI': { // MSI (Variation of Plessey code)
328  $arrcode = $this->barcode_msi($code, false);
329  break;
330  }
331  case 'MSI+': { // MSI + CHECKSUM (modulo 11)
332  $arrcode = $this->barcode_msi($code, true);
333  break;
334  }
335  case 'POSTNET': { // POSTNET
336  $arrcode = $this->barcode_postnet($code, false);
337  break;
338  }
339  case 'PLANET': { // PLANET
340  $arrcode = $this->barcode_postnet($code, true);
341  break;
342  }
343  case 'RMS4CC': { // RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code)
344  $arrcode = $this->barcode_rms4cc($code, false);
345  break;
346  }
347  case 'KIX': { // KIX (Klant index - Customer index)
348  $arrcode = $this->barcode_rms4cc($code, true);
349  break;
350  }
351  case 'IMB': { // IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200
352  $arrcode = $this->barcode_imb($code);
353  break;
354  }
355  case 'IMBPRE': { // IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200- pre-processed
356  $arrcode = $this->barcode_imb_pre($code);
357  break;
358  }
359  case 'CODABAR': { // CODABAR
360  $arrcode = $this->barcode_codabar($code);
361  break;
362  }
363  case 'CODE11': { // CODE 11
364  $arrcode = $this->barcode_code11($code);
365  break;
366  }
367  case 'PHARMA': { // PHARMACODE
368  $arrcode = $this->barcode_pharmacode($code);
369  break;
370  }
371  case 'PHARMA2T': { // PHARMACODE TWO-TRACKS
372  $arrcode = $this->barcode_pharmacode2t($code);
373  break;
374  }
375  default: {
376  $this->barcode_array = false;
377  $arrcode = false;
378  break;
379  }
380  }
381  $this->barcode_array = $arrcode;
382  }
TCPDFBarcode\barcode_i25
barcode_i25($code, $checksum=false)
Interleaved 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:894
TCPDFBarcode\barcode_eanext
barcode_eanext($code, $len=5)
UPC-Based Extensions 2-Digit Ext.
Definition: tcpdf_barcodes_1d.php:1520
TCPDFBarcode\barcode_code39
barcode_code39($code, $extended=false, $checksum=false)
CODE 39 - ANSI MH10.8M-1983 - USD-3 - 3 of 9.
Definition: tcpdf_barcodes_1d.php:393
$code
$code
Definition: example_050.php:99
TCPDFBarcode\barcode_postnet
barcode_postnet($code, $planet=false)
POSTNET and PLANET barcodes.
Definition: tcpdf_barcodes_1d.php:1595
TCPDFBarcode\barcode_codabar
barcode_codabar($code)
CODABAR barcodes.
Definition: tcpdf_barcodes_1d.php:1819
TCPDFBarcode\barcode_rms4cc
barcode_rms4cc($code, $kix=false)
RMS4CC - CBC - KIX RMS4CC (Royal Mail 4-state Customer Code) - CBC (Customer Bar Code) - KIX (Klant i...
Definition: tcpdf_barcodes_1d.php:1668
TCPDFBarcode\barcode_imb
barcode_imb($code)
IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200 (requires PHP bcmath extension) Intelligent Ma...
Definition: tcpdf_barcodes_1d.php:2054
TCPDFBarcode\barcode_imb_pre
barcode_imb_pre($code)
IMB - Intelligent Mail Barcode - Onecode - USPS-B-3200.
Definition: tcpdf_barcodes_1d.php:2179
TCPDFBarcode\barcode_msi
barcode_msi($code, $checksum=false)
MSI.
Definition: tcpdf_barcodes_1d.php:763
TCPDFBarcode\barcode_pharmacode
barcode_pharmacode($code)
Pharmacode Contains digits (0 to 9)
Definition: tcpdf_barcodes_1d.php:1966
TCPDFBarcode\barcode_s25
barcode_s25($code, $checksum=false)
Standard 2 of 5 barcodes.
Definition: tcpdf_barcodes_1d.php:822
TCPDFBarcode\barcode_eanupc
barcode_eanupc($code, $len=13)
EAN13 and UPC-A barcodes.
Definition: tcpdf_barcodes_1d.php:1327
TCPDFBarcode\barcode_c128
barcode_c128($code, $type='')
C128 barcodes.
Definition: tcpdf_barcodes_1d.php:958
TCPDFBarcode\barcode_pharmacode2t
barcode_pharmacode2t($code)
Pharmacode two-track Contains digits (0 to 9)
Definition: tcpdf_barcodes_1d.php:1992
TCPDFBarcode\barcode_code11
barcode_code11($code)
CODE11 barcodes.
Definition: tcpdf_barcodes_1d.php:1875
TCPDFBarcode\barcode_code93
barcode_code93($code)
CODE 93 - USS-93 Compact code similar to Code 39.
Definition: tcpdf_barcodes_1d.php:560
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Field Documentation

◆ $barcode_array

TCPDFBarcode::$barcode_array
protected

Array representation of barcode.

Definition at line 56 of file tcpdf_barcodes_1d.php.

Referenced by getBarcodeArray().

The documentation for this class was generated from the following file:
