Xml export of roles and role templates. More...

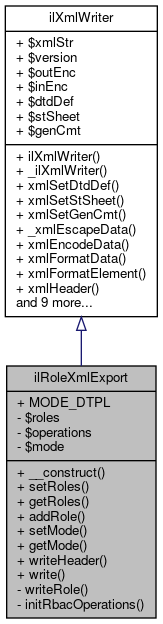

Inheritance diagram for ilRoleXmlExport:

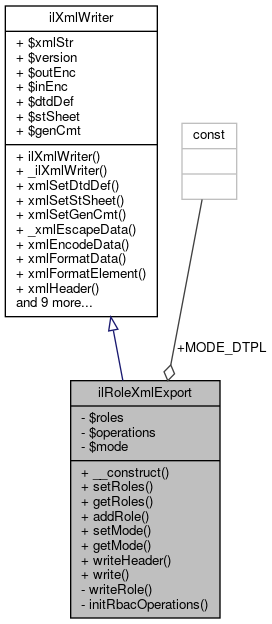

Collaboration diagram for ilRoleXmlExport:

Public Member Functions
	__construct ()
	Constructor. More...

	setRoles ($a_roles)
	Set roles Format is: array(role_id => array(role_folder_id)) More...

	getRoles ()
	Get roles. More...

	addRole ($a_role_id, $a_rolf_id)
	Add one role. More...

	setMode ($a_mode)

	getMode ()

	writeHeader ()
	Write xml header. More...

	write ()
	Write xml presentation of chosen roles. More...

Public Member Functions inherited from ilXmlWriter
	ilXmlWriter ($version="1.0", $outEnc="utf-8", $inEnc="utf-8")
	constructor More...

	_ilXmlWriter ()
	destructor public More...

	xmlSetDtdDef ($dtdDef)
	Sets dtd definition. More...

	xmlSetStSheet ($stSheet)
	Sets stylesheet. More...

	xmlSetGenCmt ($genCmt)
	Sets generated comment. More...

	_xmlEscapeData ($data)
	Escapes reserved characters. More...

	xmlEncodeData ($data)
	Encodes text from input encoding into output encoding. More...

	xmlFormatData ($data)
	Indents text for better reading. More...

	xmlFormatElement ($array)
	Callback function for xmlFormatData; do not invoke directly. More...

	xmlHeader ()
	Writes xml header public. More...

	xmlStartTag ($tag, $attrs=NULL, $empty=FALSE, $encode=TRUE, $escape=TRUE)
	Writes a starttag. More...

	xmlEndTag ($tag)
	Writes an endtag. More...

	xmlComment ($comment)
	Writes a comment. More...

	xmlData ($data, $encode=TRUE, $escape=TRUE)
	Writes data. More...

	xmlElement ($tag, $attrs=NULL, $data=Null, $encode=TRUE, $escape=TRUE)
	Writes a basic element (no children, just textual content) More...

	xmlDumpFile ($file, $format=TRUE)
	Dumps xml document from memory into a file. More...

	xmlDumpMem ($format=TRUE)
	Returns xml document from memory. More...

	appendXML ($a_str)
	append xml string to document More...

	xmlClear ()
	clears xmlStr public More...

Data Fields
const	MODE_DTPL = 1

Data Fields inherited from ilXmlWriter
	$xmlStr

	$version

	$outEnc

	$inEnc

	$dtdDef = ""

	$stSheet = ""

	$genCmt = "Generated by ILIAS XmlWriter"

Private Member Functions
	writeRole ($a_role_id, $a_rolf)
	Write xml presentation of one role. More...

	initRbacOperations ()
	Cache rbac operations. More...

Private Attributes
	$roles = array()

	$operations = array()

	$mode = 0

Detailed Description

Xml export of roles and role templates.

Author: Stefan Meyer smeye.nosp@m.r.il.nosp@m.ias@g.nosp@m.mx.d.nosp@m.e

Definition at line 12 of file class.ilRoleXmlExport.php.

Constructor & Destructor Documentation

◆ __construct()

ilRoleXmlExport::__construct ( )

Constructor.

Definition at line 26 of file class.ilRoleXmlExport.php.

References initRbacOperations().

         {
                 parent::__construct();

                 $this->initRbacOperations();
         }

Here is the call graph for this function:

Member Function Documentation

◆ addRole()

ilRoleXmlExport::addRole	(	$a_role_id,
		$a_rolf_id
	)

Add one role.

Parameters

int	$a_role_id
int	$a_ref_id	of source object

Definition at line 60 of file class.ilRoleXmlExport.php.

         {
                 $this->roles[$a_role_id][] = $a_rolf_id;
         }

◆ getMode()

ilRoleXmlExport::getMode ( )

Definition at line 70 of file class.ilRoleXmlExport.php.

References $mode.

Referenced by write().

         {
                 return $this->mode;
         }

Here is the caller graph for this function:

◆ getRoles()

ilRoleXmlExport::getRoles ( )

Get roles.

Returns: array

Definition at line 50 of file class.ilRoleXmlExport.php.

References $roles.

Referenced by write().

         {
                 return (array) $this->roles;
         }

Here is the caller graph for this function:

◆ initRbacOperations()

ilRoleXmlExport::initRbacOperations ( )

private

Cache rbac operations.

Definition at line 149 of file class.ilRoleXmlExport.php.

Referenced by __construct().

         {
                 global $rbacreview;

                 foreach($rbacreview->getOperations() as $operation)
                 {
                         $this->operations[$operation['ops_id']] = $operation['operation'];
                 }
                 return true;
         }

Here is the caller graph for this function:

◆ setMode()

ilRoleXmlExport::setMode ( $a_mode )

Definition at line 65 of file class.ilRoleXmlExport.php.

         {
                 $this->mode = $a_mode;
         }

◆ setRoles()

ilRoleXmlExport::setRoles ( $a_roles )

Set roles Format is: array(role_id => array(role_folder_id))

Parameters

array $a_roles

Returns: void

Definition at line 41 of file class.ilRoleXmlExport.php.

         {
                 $this->roles = (array) $a_roles;
         }

◆ write()

ilRoleXmlExport::write ( )

Write xml presentation of chosen roles.

Returns: bool

Definition at line 91 of file class.ilRoleXmlExport.php.

References getMode(), getRoles(), writeRole(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

         {

                 if($this->getMode() != self::MODE_DTPL)
                 {
                         $this->xmlStartTag('roles');
                 }

                 foreach($this->getRoles() as $role_id => $role_folder_ids)
                 {
                         foreach((array) $role_folder_ids as $rolf)
                         {
                                 $this->writeRole($role_id, $rolf);
                         }
                 }

                 if($this->getMode() != self::MODE_DTPL)
                 {
                         $this->xmlEndTag('roles');
                 }
         }

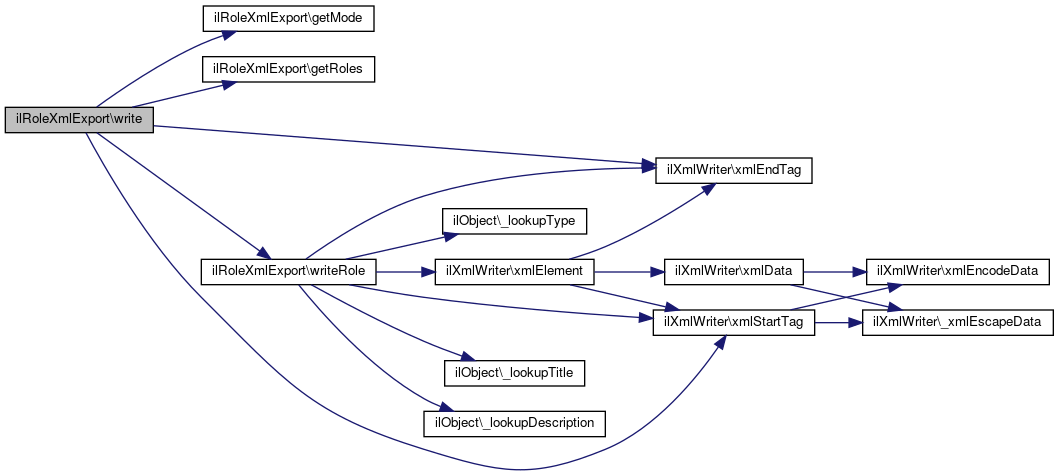

Here is the call graph for this function:

◆ writeHeader()

ilRoleXmlExport::writeHeader ( )

Write xml header.

Definition at line 79 of file class.ilRoleXmlExport.php.

References ilXmlWriter\xmlHeader(), ilXmlWriter\xmlSetDtdDef(), and ilXmlWriter\xmlSetGenCmt().

         {
                 $this->xmlSetDtdDef("<!DOCTYPE Roles PUBLIC \"-//ILIAS//DTD ILIAS Roles//EN\" \"".ILIAS_HTTP_PATH."/xml/ilias_role_definition_4_2.dtd\">");
                 $this->xmlSetGenCmt("Role Definition");
                 $this->xmlHeader();
                 return true;
         }

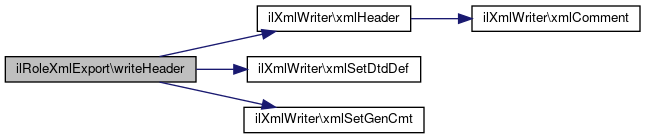

Here is the call graph for this function:

◆ writeRole()

ilRoleXmlExport::writeRole	(	$a_role_id,
		$a_rolf
	)

private

Write xml presentation of one role.

Parameters

int	$a_role_id
int	$a_rolf

Definition at line 118 of file class.ilRoleXmlExport.php.

References $GLOBALS, $operations, ilObject\_lookupDescription(), ilObject\_lookupTitle(), ilObject\_lookupType(), ilXmlWriter\xmlElement(), ilXmlWriter\xmlEndTag(), and ilXmlWriter\xmlStartTag().

Referenced by write().

         {
                 global $rbacreview;

                 $attributes = array(
                         'type'  => ilObject::_lookupType($a_role_id),
                         'id'    => 'il_'.IL_INST_ID.'_'.ilObject::_lookupType($a_role_id).'_'.$a_role_id,
                         'protected' => ($GLOBALS['rbacreview']->isProtected($a_rolf,$a_role_id) ? 1 : 0)
                 );

                 $this->xmlStartTag('role',$attributes);

                 $this->xmlElement('title',array(),ilObject::_lookupTitle($a_role_id));
                 $this->xmlElement('description', array(), ilObject::_lookupDescription($a_role_id));

                 $this->xmlStartTag('operations');
                 foreach($rbacreview->getAllOperationsOfRole($a_role_id, $a_rolf) as $obj_group => $operations)
                 {
                         foreach($operations as $ops_id)
                         {
                                 $this->xmlElement('operation', array('group' => $obj_group), trim($this->operations[$ops_id]));
                         }
                 }
                 $this->xmlEndTag('operations');
                 $this->xmlEndTag('role');
                 return true;
         }

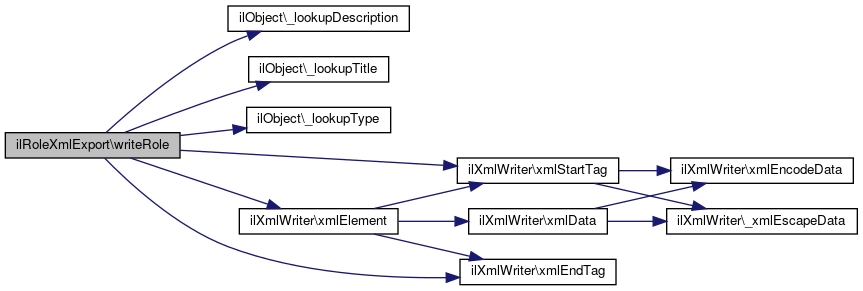

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ $mode

ilRoleXmlExport::$mode = 0

private

Definition at line 20 of file class.ilRoleXmlExport.php.

Referenced by getMode().

◆ $operations

ilRoleXmlExport::$operations = array()

private

Definition at line 18 of file class.ilRoleXmlExport.php.

Referenced by writeRole().

◆ $roles

ilRoleXmlExport::$roles = array()

private

Definition at line 17 of file class.ilRoleXmlExport.php.

Referenced by getRoles().

◆ MODE_DTPL

const ilRoleXmlExport::MODE_DTPL = 1

Definition at line 14 of file class.ilRoleXmlExport.php.

Referenced by ilDidacticTemplateLocalRoleAction\toXml(), and ilDidacticTemplateLocalPolicyAction\toXml().

The documentation for this class was generated from the following file:

Services/AccessControl/classes/class.ilRoleXmlExport.php
