ilWorkspaceTree Class Reference

Tree handler for personal workspace. More...

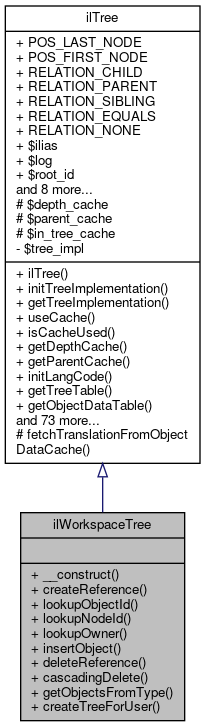

Inheritance diagram for ilWorkspaceTree:

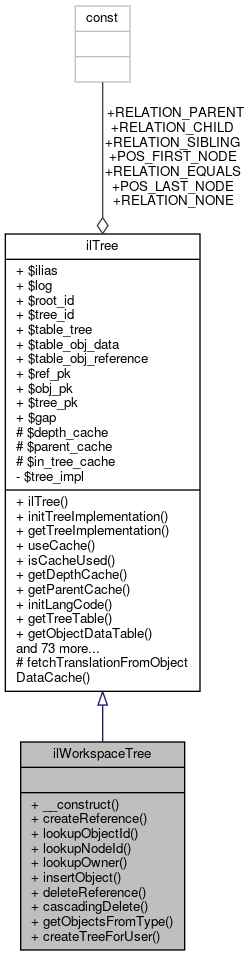

Collaboration diagram for ilWorkspaceTree:

Public Member Functions
	__construct ($a_tree_id, $a_root_id=0)
	createReference ($a_object_id)
	Create workspace reference for object. More...
	lookupObjectId ($a_node_id)
	Get object id for node id. More...
	lookupNodeId ($a_obj_id)
	Get node id for object id. More...
	lookupOwner ($a_node_id)
	Get owner for node id. More...
	insertObject ($a_parent_node_id, $a_object_id)
	Add object to tree. More...
	deleteReference ($a_node_id)
	Delete object from reference table. More...
	cascadingDelete ()
	Remove all tree and node data. More...
	getObjectsFromType ($a_type)
	Get all workspace objects of specific type. More...
	createTreeForUser ($a_user_id)
	Create personal workspace tree for user. More...
Public Member Functions inherited from ilTree
	ilTree ($a_tree_id, $a_root_id=0)
	Constructor public. More...
	initTreeImplementation ()
	Init tree implementation. More...
	getTreeImplementation ()
	Get tree implementation. More...
	useCache ($a_use=true)
	Use Cache (usually activated) More...
	isCacheUsed ()
	Check if cache is active. More...
	getDepthCache ()
	Get depth cache. More...
	getParentCache ()
	Get parent cache. More...
	initLangCode ()
	Store user language. More...
	getTreeTable ()
	Get tree table name. More...
	getObjectDataTable ()
	Get object data table. More...
	getTreePk ()
	Get tree primary key. More...
	getTableReference ()
	Get reference table if available. More...
	getGap ()
	Get default gap *. More...
	resetInTreeCache ()
	setTableNames ($a_table_tree, $a_table_obj_data, $a_table_obj_reference="")
	set table names The primary key of the table containing your object_data must be 'obj_id' You may use a reference table. More...
	setReferenceTablePK ($a_column_name)
	set column containing primary key in reference table public More...
	setObjectTablePK ($a_column_name)
	set column containing primary key in object table public More...
	setTreeTablePK ($a_column_name)
	set column containing primary key in tree table public More...
	buildJoin ()
	build join depending on table settings private More...
	getRelation ($a_node_a, $a_node_b)
	Get relation of two nodes. More...
	getRelationOfNodes ($a_node_a_arr, $a_node_b_arr)
	get relation of two nodes by node data More...
	getChildIds ($a_node)
	Get node child ids type $ilDB. More...
	getChilds ($a_node_id, $a_order="", $a_direction="ASC")
	get child nodes of given node public More...
	getFilteredChilds ($a_filter, $a_node, $a_order="", $a_direction="ASC")
	get child nodes of given node (exclude filtered obj_types) public More...
	getChildsByType ($a_node_id, $a_type)
	get child nodes of given node by object type public More...
	getChildsByTypeFilter ($a_node_id, $a_types, $a_order="", $a_direction="ASC")
	get child nodes of given node by object type public More...
	insertNodeFromTrash ($a_source_id, $a_target_id, $a_tree_id, $a_pos=IL_LAST_NODE, $a_reset_deleted_date=false)
	Insert node from trash deletes trash entry. More...
	insertNode ($a_node_id, $a_parent_id, $a_pos=IL_LAST_NODE, $a_reset_deletion_date=false)
	insert new node with node_id under parent node with parent_id public More...
	getFilteredSubTree ($a_node_id, $a_filter=array())
	get filtered subtree More...
	getSubTreeIds ($a_ref_id)
	Get all ids of subnodes. More...
	getSubTree ($a_node, $a_with_data=true, $a_type="")
	get all nodes in the subtree under specified node More...
	getSubTreeTypes ($a_node, $a_filter=0)
	get types of nodes in the subtree under specified node More...
	deleteTree ($a_node)
	delete node and the whole subtree under this node public More...
	validateParentRelations ()
	Validate parent relations of tree. More...
	getPathFull ($a_endnode_id, $a_startnode_id=0)
	get path from a given startnode to a given endnode if startnode is not given the rootnode is startnode. More...
	preloadDepthParent ($a_node_ids)
	Preload depth/parent. More...
	getPathId ($a_endnode_id, $a_startnode_id=0)
	get path from a given startnode to a given endnode if startnode is not given the rootnode is startnode public More...
	getNodePathForTitlePath ($titlePath, $a_startnode_id=null)
	Converts a path consisting of object titles into a path consisting of tree nodes. More...
	getNodePath ($a_endnode_id, $a_startnode_id=0)
	Returns the node path for the specified object reference. More...
	checkTree ()
	check consistence of tree all left & right values are checked if they are exists only once public More...
	checkTreeChilds ($a_no_zero_child=true)
	check, if all childs of tree nodes exist in object table More...
	getMaximumDepth ()
	Return the current maximum depth in the tree public. More...
	getDepth ($a_node_id)
	return depth of a node in tree private More...
	getNodeTreeData ($a_node_id)
	return all columns of tabel tree More...
	getNodeData ($a_node_id, $a_tree_pk=null)
	get all information of a node. More...
	fetchNodeData ($a_row)
	get data of parent node from tree and object_data private More...
	isInTree ($a_node_id)
	get all information of a node. More...
	getParentNodeData ($a_node_id)
	get data of parent node from tree and object_data public More...
	isGrandChild ($a_startnode_id, $a_querynode_id)
	checks if a node is in the path of an other node public More...
	addTree ($a_tree_id, $a_node_id=-1)
	create a new tree to do: ??? More...
	getNodeDataByType ($a_type)
	get nodes by type More...
	removeTree ($a_tree_id)
	remove an existing tree More...
	moveToTrash ($a_node_id, $a_set_deleted=false)
	Wrapper for saveSubTree. More...
	saveSubTree ($a_node_id, $a_set_deleted=false)
	Use the wrapper moveToTrash save subtree: delete a subtree (defined by node_id) to a new tree with $this->tree_id -node_id. More...
	isDeleted ($a_node_id)
	This is a wrapper for isSaved() with a more useful name. More...
	isSaved ($a_node_id)
	Use method isDeleted check if node is saved. More...
	preloadDeleted ($a_node_ids)
	Preload deleted information. More...
	getSavedNodeData ($a_parent_id)
	get data saved/deleted nodes More...
	getSavedNodeObjIds (array $a_obj_ids)
	get object id of saved/deleted nodes More...
	getParentId ($a_node_id)
	get parent id of given node public More...
	getLeftValue ($a_node_id)
	get left value of given node public More...
	getChildSequenceNumber ($a_node, $type="")
	get sequence number of node in sibling sequence public More...
	readRootId ()
	read root id from database More...
	getRootId ()
	get the root id of tree public More...
	setRootId ($a_root_id)
	getTreeId ()
	get tree id public More...
	setTreeId ($a_tree_id)
	set tree id public More...
	fetchSuccessorNode ($a_node_id, $a_type="")
	get node data of successor node More...
	fetchPredecessorNode ($a_node_id, $a_type="")
	get node data of predecessor node More...
	renumber ($node_id=1, $i=1)
	Wrapper for renumber. More...
	__renumber ($node_id=1, $i=1)
	This method is private. More...
	checkForParentType ($a_ref_id, $a_type, $a_exclude_source_check=false)
	Check for parent type e.g check if a folder (ref_id 3) is in a parent course obj => checkForParentType(3,'crs');. More...
	_removeEntry ($a_tree, $a_child, $a_db_table="tree")
	STATIC METHOD Removes a single entry from a tree. More...
	__isMainTree ()
	Check if operations are done on main tree. More...
	__checkDelete ($a_node)
	Check for deleteTree() compares a subtree of a given node by checking lft, rgt against parent relation. More...
	__getSubTreeByParentRelation ($a_node_id, &$parent_childs)
	type $ilDB More...
	__validateSubtrees (&$lft_childs, $parent_childs)
	moveTree ($a_source_id, $a_target_id, $a_location=self::POS_LAST_NODE)
	Move Tree Implementation. More...
	getRbacSubtreeInfo ($a_endnode_id)
	This method is used for change existing objects and returns all necessary information for this action. More...
	getSubTreeQuery ($a_node_id, $a_fields=array(), $a_types='', $a_force_join_reference=false)
	Get tree subtree query. More...
	getSubTreeFilteredByObjIds ($a_node_id, array $a_obj_ids, array $a_fields=array())
	get all node ids in the subtree under specified node id, filter by object ids More...
	deleteNode ($a_tree_id, $a_node_id)
	lookupTrashedObjectTypes ()
	Lookup object types in trash type $ilDB. More...

Additional Inherited Members
Data Fields inherited from ilTree
const	POS_LAST_NODE = -2
const	POS_FIRST_NODE = -1
const	RELATION_CHILD = 1
const	RELATION_PARENT = 2
const	RELATION_SIBLING = 3
const	RELATION_EQUALS = 4
const	RELATION_NONE = 5
	$ilias
	$log
	$root_id
	$tree_id
	$table_tree
	$table_obj_data
	$table_obj_reference
	$ref_pk
	$obj_pk
	$tree_pk
	$gap
Protected Member Functions inherited from ilTree
	fetchTranslationFromObjectDataCache ($a_obj_ids)
	Get translation data from object cache (trigger in object cache on preload) More...
Protected Attributes inherited from ilTree
	$depth_cache = array()
	$parent_cache = array()
	$in_tree_cache = array()

Detailed Description

Tree handler for personal workspace.

Author

Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Version

Id

class.ilPersonalDesktopGUI.php 26976 2010-12-16 13:24:38Z akill

Definition at line 13 of file class.ilWorkspaceTree.php.

Constructor & Destructor Documentation

__construct()

ilWorkspaceTree::__construct	(		$a_tree_id,
			$a_root_id = 0
	)

Definition at line 15 of file class.ilWorkspaceTree.php.

References ilTree\readRootId(), ilTree\setObjectTablePK(), ilTree\setReferenceTablePK(), ilTree\setTableNames(), and ilTree\setTreeTablePK().

        {
                parent::__construct($a_tree_id, $a_root_id);

                $this->setTableNames('tree_workspace', 'object_data', 'object_reference_ws');
                $this->setTreeTablePK('tree');
                $this->setObjectTablePK('obj_id');
                $this->setReferenceTablePK('wsp_id');

                // ilTree sets it to ROOT_FOLDER_ID if not given...
                if(!$a_root_id)
                {
                        $this->readRootId();
                }
        }

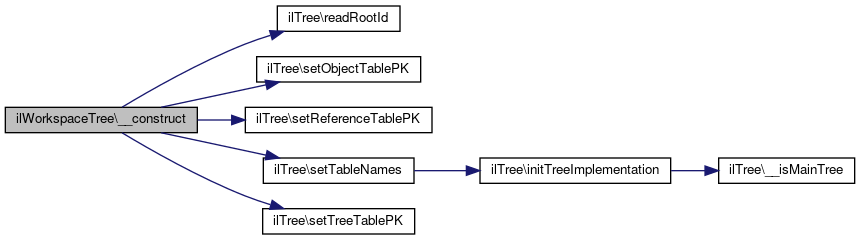

Here is the call graph for this function:

Member Function Documentation

cascadingDelete()

ilWorkspaceTree::cascadingDelete

(

)

Remove all tree and node data.

Definition at line 141 of file class.ilWorkspaceTree.php.

References ilTree\$root_id, deleteReference(), ilTree\deleteTree(), ilObjectFactory\getInstanceByObjId(), ilTree\getNodeData(), ilTree\getSubTree(), and ilTree\readRootId().

        {
                $root_id = $this->readRootId();
                if(!$root_id)
                {
                        return;
                }

                $root = $this->getNodeData($root_id);

                include_once "Services/PersonalWorkspace/classes/class.ilWorkspaceAccessHandler.php";
                $access_handler = new ilWorkspaceAccessHandler($this);

                // delete node data
                $nodes = $this->getSubTree($root);
                foreach($nodes as $node)
                {
                        $access_handler->removePermission($node["wsp_id"]);

                        $object = ilObjectFactory::getInstanceByObjId($node["obj_id"], false);
                        if($object)
                        {
                                $object->delete();
                        }

                        $this->deleteReference($node["wsp_id"]);
                }

            $this->deleteTree($root);
        }

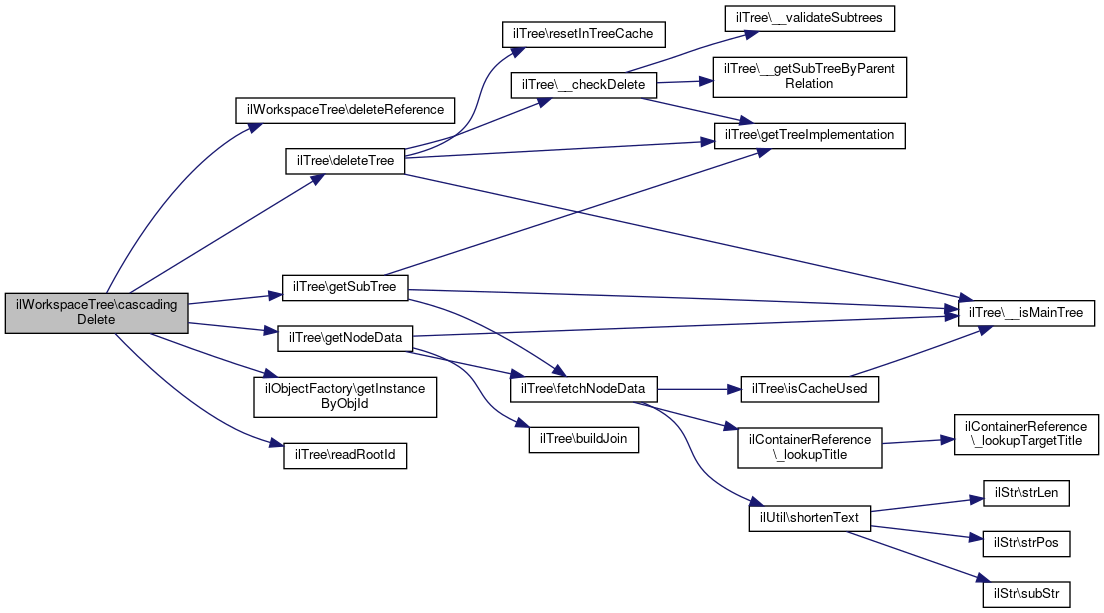

Here is the call graph for this function:

createReference()

ilWorkspaceTree::createReference

(

$a_object_id

)

Create workspace reference for object.

Parameters

int

$a_object_id

Returns

int node id

Definition at line 37 of file class.ilWorkspaceTree.php.

References $ilDB.

Referenced by ilWorkspaceExplorer\__construct(), createTreeForUser(), and insertObject().

        {
                global $ilDB;

                $next_id = $ilDB->nextId($this->table_obj_reference);

                $fields = array($this->ref_pk => array("integer", $next_id),
                        $this->obj_pk => array("integer", $a_object_id));

                $ilDB->insert($this->table_obj_reference, $fields);

                return $next_id;
        }

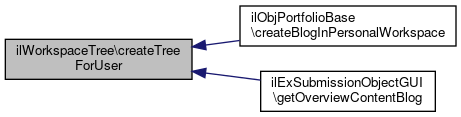

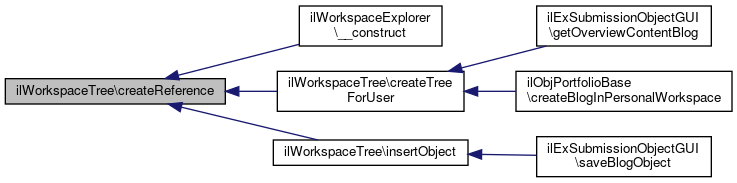

Here is the caller graph for this function:

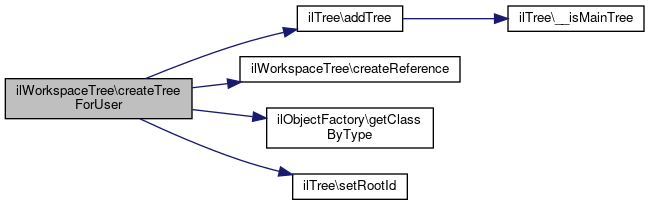

createTreeForUser()

ilWorkspaceTree::createTreeForUser

(

$a_user_id

)

Create personal workspace tree for user.

Parameters

int

$a_user_id

Definition at line 190 of file class.ilWorkspaceTree.php.

References ilTree\$root_id, ilTree\addTree(), createReference(), ilObjectFactory\getClassByType(), and ilTree\setRootId().

Referenced by ilObjPortfolioBase\createBlogInPersonalWorkspace(), and ilExSubmissionObjectGUI\getOverviewContentBlog().

        {
                $root = ilObjectFactory::getClassByType("wsrt");
                $root = new $root(null);
                $root->create();

                $root_id = $this->createReference($root->getId());
                $this->addTree($a_user_id, $root_id);
                $this->setRootId($root_id);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

deleteReference()

ilWorkspaceTree::deleteReference

(

$a_node_id

)

Delete object from reference table.

Parameters

int

$a_node_id

Returns

bool

Definition at line 129 of file class.ilWorkspaceTree.php.

References $ilDB, and $query.

Referenced by cascadingDelete().

        {
                global $ilDB;

                $query = "DELETE FROM ".$this->table_obj_reference.
                        " WHERE ".$this->ref_pk." = ".$ilDB->quote($a_node_id, "integer");
                return $ilDB->manipulate($query);
        }

Here is the caller graph for this function:

getObjectsFromType()

ilWorkspaceTree::getObjectsFromType

(

$a_type

)

Get all workspace objects of specific type.

Parameters

string

$a_type

Returns

array

Definition at line 178 of file class.ilWorkspaceTree.php.

References ilTree\getNodeData(), ilTree\getRootId(), and ilTree\getSubTree().

        {
                return $this->getSubTree(
                        $this->getNodeData($this->getRootId()),
                        false, $a_type);
        }

Here is the call graph for this function:

insertObject()

ilWorkspaceTree::insertObject	(		$a_parent_node_id,
			$a_object_id
	)

Add object to tree.

Parameters

int	$a_parent_node_id
int	$a_object_id

Returns

int node id

Definition at line 116 of file class.ilWorkspaceTree.php.

References createReference(), and ilTree\insertNode().

Referenced by ilExSubmissionObjectGUI\saveBlogObject().

        {
                $node_id = $this->createReference($a_object_id);
                $this->insertNode($node_id, $a_parent_node_id);
                return $node_id;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

lookupNodeId()

ilWorkspaceTree::lookupNodeId

(

$a_obj_id

)

Get node id for object id.

As we do not allow references in workspace this should not be ambigious

Parameters

int

$a_obj_id

Returns

int node id

Definition at line 78 of file class.ilWorkspaceTree.php.

References $ilDB, ilTree\$ref_pk, and $res.

Referenced by ilNote\_getRelatedObjectsOfUser().

        {
                global $ilDB;

                $set = $ilDB->query("SELECT ".$this->ref_pk.
                        " FROM ".$this->table_obj_reference.
                        " WHERE ".$this->obj_pk." = ".$ilDB->quote($a_obj_id, "integer"));
                $res = $ilDB->fetchAssoc($set);

                return $res[$this->ref_pk];
        }

Here is the caller graph for this function:

lookupObjectId()

ilWorkspaceTree::lookupObjectId

(

$a_node_id

)

Get object id for node id.

Parameters

int

$a_node_id

Returns

int object id

Definition at line 57 of file class.ilWorkspaceTree.php.

References $ilDB, ilTree\$obj_pk, and $res.

Referenced by ilObject2GUI\__construct(), ilTemplate\buildLoginTarget(), and ilObjBlog\sendNotification().

        {
                global $ilDB;

                $set = $ilDB->query("SELECT ".$this->obj_pk.
                        " FROM ".$this->table_obj_reference.
                        " WHERE ".$this->ref_pk." = ".$ilDB->quote($a_node_id, "integer"));
                $res = $ilDB->fetchAssoc($set);

                return $res[$this->obj_pk];
        }

Here is the caller graph for this function:

lookupOwner()

ilWorkspaceTree::lookupOwner

(

$a_node_id

)

Get owner for node id.

Parameters

int

$a_node_id

Returns

int object id

Definition at line 96 of file class.ilWorkspaceTree.php.

References $ilDB, and $res.

Referenced by ilSharedResourceGUI\cancelPassword().

        {
                global $ilDB;

                $set = $ilDB->query("SELECT tree".
                        " FROM ".$this->table_obj_reference.
                        " JOIN ".$this->table_tree." ON (".$this->table_obj_reference.".".$this->ref_pk." = ".$this->table_tree.".child)".
                        " WHERE ".$this->ref_pk." = ".$ilDB->quote($a_node_id, "integer"));
                $res = $ilDB->fetchAssoc($set);

                return $res["tree"];
        }

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• Services/PersonalWorkspace/classes/class.ilWorkspaceTree.php
