getid3_midi Class Reference

getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g // More...

+ Inheritance diagram for getid3_midi:

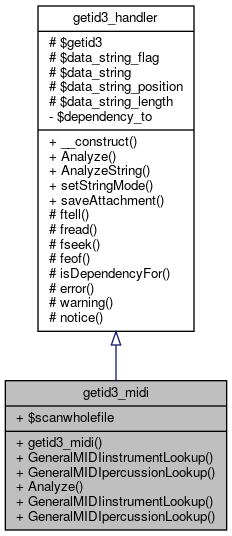

+ Collaboration diagram for getid3_midi:

Public Member Functions

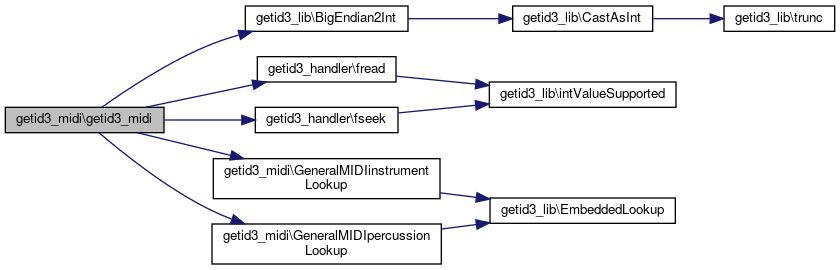

 getid3_midi (&$fd, &$ThisFileInfo, $scanwholefile=true)

 GeneralMIDIinstrumentLookup ($instrumentid)

 GeneralMIDIpercussionLookup ($instrumentid)

 Analyze ()

 GeneralMIDIinstrumentLookup ($instrumentid)

 GeneralMIDIpercussionLookup ($instrumentid)

- Public Member Functions inherited from getid3_handler
 __construct (getID3 $getid3, $call_module=null)

 Analyze ()

 AnalyzeString ($string)

 setStringMode ($string)

 saveAttachment ($name, $offset, $length, $image_mime=null)


Data Fields

 $scanwholefile = true


Additional Inherited Members

- Protected Member Functions inherited from getid3_handler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

 notice ($text)

- Protected Attributes inherited from getid3_handler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //

Definition at line 17 of file module.audio.midi.php.

Member Function Documentation

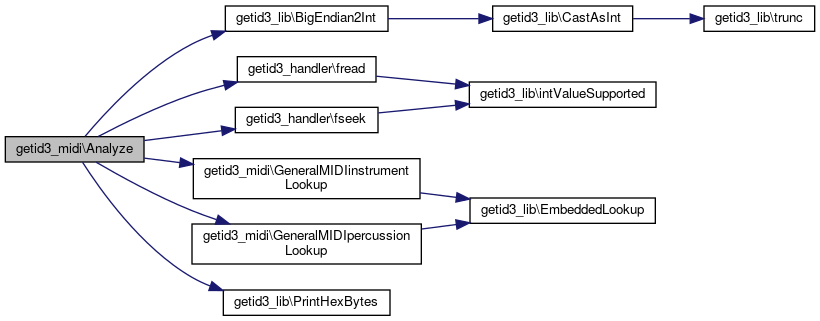

◆ Analyze()

getid3_midi::Analyze ( )

Reimplemented from getid3_handler.

Definition at line 24 of file module.audio.midi.php.

24 {
25 $info = &$this->getid3->info;
26
27 // shortcut
28 $info['midi']['raw'] = array();
29 $thisfile_midi = &$info['midi'];
30 $thisfile_midi_raw = &$thisfile_midi['raw'];
31
32 $info['fileformat'] = 'midi';
33 $info['audio']['dataformat'] = 'midi';
34
35 $this->fseek($info['avdataoffset']);
36 $MIDIdata = $this->fread($this->getid3->fread_buffer_size());
37 $offset = 0;
38 $MIDIheaderID = substr($MIDIdata, $offset, 4); // 'MThd'
39 if ($MIDIheaderID != GETID3_MIDI_MAGIC_MTHD) {
40 $info['error'][] = 'Expecting "'.getid3_lib::PrintHexBytes(GETID3_MIDI_MAGIC_MTHD).'" at offset '.$info['avdataoffset'].', found "'.getid3_lib::PrintHexBytes($MIDIheaderID).'"';
41 unset($info['fileformat']);
42 return false;
43 }
44 $offset += 4;
45 $thisfile_midi_raw['headersize'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 4));
46 $offset += 4;
47 $thisfile_midi_raw['fileformat'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
48 $offset += 2;
49 $thisfile_midi_raw['tracks'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
50 $offset += 2;
51 $thisfile_midi_raw['ticksperqnote'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
52 $offset += 2;
53
54 for ($i = 0; $i < $thisfile_midi_raw['tracks']; $i++) {
55 while ((strlen($MIDIdata) - $offset) < 8) {
56 if ($buffer = $this->fread($this->getid3->fread_buffer_size())) {
57 $MIDIdata .= $buffer;
58 } else {
59 $info['warning'][] = 'only processed '.($i - 1).' of '.$thisfile_midi_raw['tracks'].' tracks';
60 $info['error'][] = 'Unabled to read more file data at '.$this->ftell().' (trying to seek to : '.$offset.'), was expecting at least 8 more bytes';
61 return false;
62 }
63 }
64 $trackID = substr($MIDIdata, $offset, 4);
65 $offset += 4;
66 if ($trackID == GETID3_MIDI_MAGIC_MTRK) {
67 $tracksize = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 4));
68 $offset += 4;
69 //$thisfile_midi['tracks'][$i]['size'] = $tracksize;
70 $trackdataarray[$i] = substr($MIDIdata, $offset, $tracksize);
71 $offset += $tracksize;
72 } else {
73 $info['error'][] = 'Expecting "'.getid3_lib::PrintHexBytes(GETID3_MIDI_MAGIC_MTRK).'" at '.($offset - 4).', found "'.getid3_lib::PrintHexBytes($trackID).'" instead';
74 return false;
75 }
76 }
77
78 if (!isset($trackdataarray) || !is_array($trackdataarray)) {
79 $info['error'][] = 'Cannot find MIDI track information';
80 unset($thisfile_midi);
81 unset($info['fileformat']);
82 return false;
83 }
84
85 if ($this->scanwholefile) { // this can take quite a long time, so have the option to bypass it if speed is very important
86 $thisfile_midi['totalticks'] = 0;
87 $info['playtime_seconds'] = 0;
88 $CurrentMicroSecondsPerBeat = 500000; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
89 $CurrentBeatsPerMinute = 120; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
90 $MicroSecondsPerQuarterNoteAfter = array ();
91
92 foreach ($trackdataarray as $tracknumber => $trackdata) {
93
94 $eventsoffset = 0;
95 $LastIssuedMIDIcommand = 0;
96 $LastIssuedMIDIchannel = 0;
97 $CumulativeDeltaTime = 0;
98 $TicksAtCurrentBPM = 0;
99 while ($eventsoffset < strlen($trackdata)) {
100 $eventid = 0;
101 if (isset($MIDIevents[$tracknumber]) && is_array($MIDIevents[$tracknumber])) {
102 $eventid = count($MIDIevents[$tracknumber]);
103 }
104 $deltatime = 0;
105 for ($i = 0; $i < 4; $i++) {
106 $deltatimebyte = ord(substr($trackdata, $eventsoffset++, 1));
107 $deltatime = ($deltatime << 7) + ($deltatimebyte & 0x7F);
108 if ($deltatimebyte & 0x80) {
109 // another byte follows
110 } else {
111 break;
112 }
113 }
114 $CumulativeDeltaTime += $deltatime;
115 $TicksAtCurrentBPM += $deltatime;
116 $MIDIevents[$tracknumber][$eventid]['deltatime'] = $deltatime;
117 $MIDI_event_channel = ord(substr($trackdata, $eventsoffset++, 1));
118 if ($MIDI_event_channel & 0x80) {
119 // OK, normal event - MIDI command has MSB set
120 $LastIssuedMIDIcommand = $MIDI_event_channel >> 4;
121 $LastIssuedMIDIchannel = $MIDI_event_channel & 0x0F;
122 } else {
123 // running event - assume last command
124 $eventsoffset--;
125 }
126 $MIDIevents[$tracknumber][$eventid]['eventid'] = $LastIssuedMIDIcommand;
127 $MIDIevents[$tracknumber][$eventid]['channel'] = $LastIssuedMIDIchannel;
128 if ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x08) { // Note off (key is released)
129
130 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
131 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
132
133 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x09) { // Note on (key is pressed)
134
135 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
136 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
137
138 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0A) { // Key after-touch
139
140 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
141 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
142
143 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0B) { // Control Change
144
145 $controllernum = ord(substr($trackdata, $eventsoffset++, 1));
146 $newvalue = ord(substr($trackdata, $eventsoffset++, 1));
147
148 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0C) { // Program (patch) change
149
150 $newprogramnum = ord(substr($trackdata, $eventsoffset++, 1));
151
152 $thisfile_midi_raw['track'][$tracknumber]['instrumentid'] = $newprogramnum;
153 if ($tracknumber == 10) {
154 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIpercussionLookup($newprogramnum);
155 } else {
156 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIinstrumentLookup($newprogramnum);
157 }
158
159 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0D) { // Channel after-touch
160
161 $channelnumber = ord(substr($trackdata, $eventsoffset++, 1));
162
163 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0E) { // Pitch wheel change (2000H is normal or no change)
164
165 $changeLSB = ord(substr($trackdata, $eventsoffset++, 1));
166 $changeMSB = ord(substr($trackdata, $eventsoffset++, 1));
167 $pitchwheelchange = (($changeMSB & 0x7F) << 7) & ($changeLSB & 0x7F);
168
169 } elseif (($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0F) && ($MIDIevents[$tracknumber][$eventid]['channel'] == 0x0F)) {
170
171 $METAeventCommand = ord(substr($trackdata, $eventsoffset++, 1));
172 $METAeventLength = ord(substr($trackdata, $eventsoffset++, 1));
173 $METAeventData = substr($trackdata, $eventsoffset, $METAeventLength);
174 $eventsoffset += $METAeventLength;
175 switch ($METAeventCommand) {
176 case 0x00: // Set track sequence number
177 $track_sequence_number = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
178 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['seqno'] = $track_sequence_number;
179 break;
180
181 case 0x01: // Text: generic
182 $text_generic = substr($METAeventData, 0, $METAeventLength);
183 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['text'] = $text_generic;
184 $thisfile_midi['comments']['comment'][] = $text_generic;
185 break;
186
187 case 0x02: // Text: copyright
188 $text_copyright = substr($METAeventData, 0, $METAeventLength);
189 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['copyright'] = $text_copyright;
190 $thisfile_midi['comments']['copyright'][] = $text_copyright;
191 break;
192
193 case 0x03: // Text: track name
194 $text_trackname = substr($METAeventData, 0, $METAeventLength);
195 $thisfile_midi_raw['track'][$tracknumber]['name'] = $text_trackname;
196 break;
197
198 case 0x04: // Text: track instrument name
199 $text_instrument = substr($METAeventData, 0, $METAeventLength);
200 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['instrument'] = $text_instrument;
201 break;
202
203 case 0x05: // Text: lyrics
204 $text_lyrics = substr($METAeventData, 0, $METAeventLength);
205 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['lyrics'] = $text_lyrics;
206 if (!isset($thisfile_midi['lyrics'])) {
207 $thisfile_midi['lyrics'] = '';
208 }
209 $thisfile_midi['lyrics'] .= $text_lyrics."\n";
210 break;
211
212 case 0x06: // Text: marker
213 $text_marker = substr($METAeventData, 0, $METAeventLength);
214 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['marker'] = $text_marker;
215 break;
216
217 case 0x07: // Text: cue point
218 $text_cuepoint = substr($METAeventData, 0, $METAeventLength);
219 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['cuepoint'] = $text_cuepoint;
220 break;
221
222 case 0x2F: // End Of Track
223 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['EOT'] = $CumulativeDeltaTime;
224 break;
225
226 case 0x51: // Tempo: microseconds / quarter note
227 $CurrentMicroSecondsPerBeat = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
228 if ($CurrentMicroSecondsPerBeat == 0) {
229 $info['error'][] = 'Corrupt MIDI file: CurrentMicroSecondsPerBeat == zero';
230 return false;
231 }
232 $thisfile_midi_raw['events'][$tracknumber][$CumulativeDeltaTime]['us_qnote'] = $CurrentMicroSecondsPerBeat;
233 $CurrentBeatsPerMinute = (1000000 / $CurrentMicroSecondsPerBeat) * 60;
234 $MicroSecondsPerQuarterNoteAfter[$CumulativeDeltaTime] = $CurrentMicroSecondsPerBeat;
235 $TicksAtCurrentBPM = 0;
236 break;
237
238 case 0x58: // Time signature
239 $timesig_numerator = getid3_lib::BigEndian2Int($METAeventData{0});
240 $timesig_denominator = pow(2, getid3_lib::BigEndian2Int($METAeventData{1})); // $02 -> x/4, $03 -> x/8, etc
241 $timesig_32inqnote = getid3_lib::BigEndian2Int($METAeventData{2}); // number of 32nd notes to the quarter note
242 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_32inqnote'] = $timesig_32inqnote;
243 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_numerator'] = $timesig_numerator;
244 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_denominator'] = $timesig_denominator;
245 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_text'] = $timesig_numerator.'/'.$timesig_denominator;
246 $thisfile_midi['timesignature'][] = $timesig_numerator.'/'.$timesig_denominator;
247 break;
248
249 case 0x59: // Keysignature
250 $keysig_sharpsflats = getid3_lib::BigEndian2Int($METAeventData{0});
251 if ($keysig_sharpsflats & 0x80) {
252 // (-7 -> 7 flats, 0 ->key of C, 7 -> 7 sharps)
253 $keysig_sharpsflats -= 256;
254 }
255
256 $keysig_majorminor = getid3_lib::BigEndian2Int($METAeventData{1}); // 0 -> major, 1 -> minor
257 $keysigs = array(-7=>'Cb', -6=>'Gb', -5=>'Db', -4=>'Ab', -3=>'Eb', -2=>'Bb', -1=>'F', 0=>'C', 1=>'G', 2=>'D', 3=>'A', 4=>'E', 5=>'B', 6=>'F#', 7=>'C#');
258 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_sharps'] = (($keysig_sharpsflats > 0) ? abs($keysig_sharpsflats) : 0);
259 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_flats'] = (($keysig_sharpsflats < 0) ? abs($keysig_sharpsflats) : 0);
260 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] = (bool) $keysig_majorminor;
261 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_text'] = $keysigs[$keysig_sharpsflats].' '.($thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] ? 'minor' : 'major');
262
263 // $keysigs[$keysig_sharpsflats] gets an int key (correct) - $keysigs["$keysig_sharpsflats"] gets a string key (incorrect)
264 $thisfile_midi['keysignature'][] = $keysigs[$keysig_sharpsflats].' '.((bool) $keysig_majorminor ? 'minor' : 'major');
265 break;
266
267 case 0x7F: // Sequencer specific information
268 $custom_data = substr($METAeventData, 0, $METAeventLength);
269 break;
270
271 default:
272 $info['warning'][] = 'Unhandled META Event Command: '.$METAeventCommand;
273 break;
274 }
275
276 } else {
277
278 $info['warning'][] = 'Unhandled MIDI Event ID: '.$MIDIevents[$tracknumber][$eventid]['eventid'].' + Channel ID: '.$MIDIevents[$tracknumber][$eventid]['channel'];
279
280 }
281 }
282 if (($tracknumber > 0) || (count($trackdataarray) == 1)) {
283 $thisfile_midi['totalticks'] = max($thisfile_midi['totalticks'], $CumulativeDeltaTime);
284 }
285 }
286 $previoustickoffset = null;
287
288 ksort($MicroSecondsPerQuarterNoteAfter);
289 foreach ($MicroSecondsPerQuarterNoteAfter as $tickoffset => $microsecondsperbeat) {
290 if (is_null($previoustickoffset)) {
291 $prevmicrosecondsperbeat = $microsecondsperbeat;
292 $previoustickoffset = $tickoffset;
293 continue;
294 }
295 if ($thisfile_midi['totalticks'] > $tickoffset) {
296
297 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
298 $info['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
299 return false;
300 }
301
302 $info['playtime_seconds'] += (($tickoffset - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($prevmicrosecondsperbeat / 1000000);
303
304 $prevmicrosecondsperbeat = $microsecondsperbeat;
305 $previoustickoffset = $tickoffset;
306 }
307 }
308 if ($thisfile_midi['totalticks'] > $previoustickoffset) {
309
310 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
311 $info['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
312 return false;
313 }
314
315 $info['playtime_seconds'] += (($thisfile_midi['totalticks'] - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($microsecondsperbeat / 1000000);
316
317 }
318 }
319
320
321 if (!empty($info['playtime_seconds'])) {
322 $info['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
323 }
324
325 if (!empty($thisfile_midi['lyrics'])) {
326 $thisfile_midi['comments']['lyrics'][] = $thisfile_midi['lyrics'];
327 }
328
329 return true;
330 }
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
fread($bytes)
Definition: getid3.php:1685
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
PrintHexBytes($string, $hex=true, $spaces=true, $htmlsafe=true)
Definition: getid3.lib.php:17
GeneralMIDIinstrumentLookup($instrumentid)
GeneralMIDIpercussionLookup($instrumentid)
$info
Definition: example_052.php:80
const GETID3_MIDI_MAGIC_MTHD
getID3() by James Heinrich info@getid3.org //
const GETID3_MIDI_MAGIC_MTRK

References $info, getid3_lib\BigEndian2Int(), getid3_handler\fread(), getid3_handler\fseek(), GeneralMIDIinstrumentLookup(), GeneralMIDIpercussionLookup(), GETID3_MIDI_MAGIC_MTHD, GETID3_MIDI_MAGIC_MTRK, and getid3_lib\PrintHexBytes().

+ Here is the call graph for this function:

◆ GeneralMIDIinstrumentLookup() [1/2]

getid3_midi::GeneralMIDIinstrumentLookup (   $instrumentid)

This is not a comment!

0   Acoustic Grand
1   Bright Acoustic
2   Electric Grand
3   Honky-Tonk
4   Electric Piano 1
5   Electric Piano 2
6   Harpsichord
7   Clavier
8   Celesta
9   Glockenspiel
10  Music Box
11  Vibraphone
12  Marimba
13  Xylophone
14  Tubular Bells
15  Dulcimer
16  Drawbar Organ
17  Percussive Organ
18  Rock Organ
19  Church Organ
20  Reed Organ
21  Accordian
22  Harmonica
23  Tango Accordian
24  Acoustic Guitar (nylon)
25  Acoustic Guitar (steel)
26  Electric Guitar (jazz)
27  Electric Guitar (clean)
28  Electric Guitar (muted)
29  Overdriven Guitar
30  Distortion Guitar
31  Guitar Harmonics
32  Acoustic Bass
33  Electric Bass (finger)
34  Electric Bass (pick)
35  Fretless Bass
36  Slap Bass 1
37  Slap Bass 2
38  Synth Bass 1
39  Synth Bass 2
40  Violin
41  Viola
42  Cello
43  Contrabass
44  Tremolo Strings
45  Pizzicato Strings
46  Orchestral Strings
47  Timpani
48  String Ensemble 1
49  String Ensemble 2
50  SynthStrings 1
51  SynthStrings 2
52  Choir Aahs
53  Voice Oohs
54  Synth Voice
55  Orchestra Hit
56  Trumpet
57  Trombone
58  Tuba
59  Muted Trumpet
60  French Horn
61  Brass Section
62  SynthBrass 1
63  SynthBrass 2
64  Soprano Sax
65  Alto Sax
66  Tenor Sax
67  Baritone Sax
68  Oboe
69  English Horn
70  Bassoon
71  Clarinet
72  Piccolo
73  Flute
74  Recorder
75  Pan Flute
76  Blown Bottle
77  Shakuhachi
78  Whistle
79  Ocarina
80  Lead 1 (square)
81  Lead 2 (sawtooth)
82  Lead 3 (calliope)
83  Lead 4 (chiff)
84  Lead 5 (charang)
85  Lead 6 (voice)
86  Lead 7 (fifths)
87  Lead 8 (bass + lead)
88  Pad 1 (new age)
89  Pad 2 (warm)
90  Pad 3 (polysynth)
91  Pad 4 (choir)
92  Pad 5 (bowed)
93  Pad 6 (metallic)
94  Pad 7 (halo)
95  Pad 8 (sweep)
96  FX 1 (rain)
97  FX 2 (soundtrack)
98  FX 3 (crystal)
99  FX 4 (atmosphere)
100 FX 5 (brightness)
101 FX 6 (goblins)
102 FX 7 (echoes)
103 FX 8 (sci-fi)
104 Sitar
105 Banjo
106 Shamisen
107 Koto
108 Kalimba
109 Bagpipe
110 Fiddle
111 Shanai
112 Tinkle Bell
113 Agogo
114 Steel Drums
115 Woodblock
116 Taiko Drum
117 Melodic Tom
118 Synth Drum
119 Reverse Cymbal
120 Guitar Fret Noise
121 Breath Noise
122 Seashore
123 Bird Tweet
124 Telephone Ring
125 Helicopter
126 Applause
127 Gunshot

Definition at line 319 of file module.audio.midi.php.

319 {
320
321 $begin = __LINE__;
322
456 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIinstrument');
457 }
EmbeddedLookup($key, $begin, $end, $file, $name)

References getid3_lib\EmbeddedLookup().

Referenced by Analyze(), and getid3_midi().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GeneralMIDIinstrumentLookup() [2/2]

getid3_midi::GeneralMIDIinstrumentLookup (   $instrumentid)

This is not a comment!

0   Acoustic Grand
1   Bright Acoustic
2   Electric Grand
3   Honky-Tonk
4   Electric Piano 1
5   Electric Piano 2
6   Harpsichord
7   Clavier
8   Celesta
9   Glockenspiel
10  Music Box
11  Vibraphone
12  Marimba
13  Xylophone
14  Tubular Bells
15  Dulcimer
16  Drawbar Organ
17  Percussive Organ
18  Rock Organ
19  Church Organ
20  Reed Organ
21  Accordian
22  Harmonica
23  Tango Accordian
24  Acoustic Guitar (nylon)
25  Acoustic Guitar (steel)
26  Electric Guitar (jazz)
27  Electric Guitar (clean)
28  Electric Guitar (muted)
29  Overdriven Guitar
30  Distortion Guitar
31  Guitar Harmonics
32  Acoustic Bass
33  Electric Bass (finger)
34  Electric Bass (pick)
35  Fretless Bass
36  Slap Bass 1
37  Slap Bass 2
38  Synth Bass 1
39  Synth Bass 2
40  Violin
41  Viola
42  Cello
43  Contrabass
44  Tremolo Strings
45  Pizzicato Strings
46  Orchestral Strings
47  Timpani
48  String Ensemble 1
49  String Ensemble 2
50  SynthStrings 1
51  SynthStrings 2
52  Choir Aahs
53  Voice Oohs
54  Synth Voice
55  Orchestra Hit
56  Trumpet
57  Trombone
58  Tuba
59  Muted Trumpet
60  French Horn
61  Brass Section
62  SynthBrass 1
63  SynthBrass 2
64  Soprano Sax
65  Alto Sax
66  Tenor Sax
67  Baritone Sax
68  Oboe
69  English Horn
70  Bassoon
71  Clarinet
72  Piccolo
73  Flute
74  Recorder
75  Pan Flute
76  Blown Bottle
77  Shakuhachi
78  Whistle
79  Ocarina
80  Lead 1 (square)
81  Lead 2 (sawtooth)
82  Lead 3 (calliope)
83  Lead 4 (chiff)
84  Lead 5 (charang)
85  Lead 6 (voice)
86  Lead 7 (fifths)
87  Lead 8 (bass + lead)
88  Pad 1 (new age)
89  Pad 2 (warm)
90  Pad 3 (polysynth)
91  Pad 4 (choir)
92  Pad 5 (bowed)
93  Pad 6 (metallic)
94  Pad 7 (halo)
95  Pad 8 (sweep)
96  FX 1 (rain)
97  FX 2 (soundtrack)
98  FX 3 (crystal)
99  FX 4 (atmosphere)
100 FX 5 (brightness)
101 FX 6 (goblins)
102 FX 7 (echoes)
103 FX 8 (sci-fi)
104 Sitar
105 Banjo
106 Shamisen
107 Koto
108 Kalimba
109 Bagpipe
110 Fiddle
111 Shanai
112 Tinkle Bell
113 Agogo
114 Steel Drums
115 Woodblock
116 Taiko Drum
117 Melodic Tom
118 Synth Drum
119 Reverse Cymbal
120 Guitar Fret Noise
121 Breath Noise
122 Seashore
123 Bird Tweet
124 Telephone Ring
125 Helicopter
126 Applause
127 Gunshot

Definition at line 332 of file module.audio.midi.php.

332 {
333
334 $begin = __LINE__;
335
469 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIinstrument');
470 }

References getid3_lib\EmbeddedLookup().

+ Here is the call graph for this function:

◆ GeneralMIDIpercussionLookup() [1/2]

getid3_midi::GeneralMIDIpercussionLookup (   $instrumentid)

This is not a comment!

35  Acoustic Bass Drum
36  Bass Drum 1
37  Side Stick
38  Acoustic Snare
39  Hand Clap
40  Electric Snare
41  Low Floor Tom
42  Closed Hi-Hat
43  High Floor Tom
44  Pedal Hi-Hat
45  Low Tom
46  Open Hi-Hat
47  Low-Mid Tom
48  Hi-Mid Tom
49  Crash Cymbal 1
50  High Tom
51  Ride Cymbal 1
52  Chinese Cymbal
53  Ride Bell
54  Tambourine
55  Splash Cymbal
56  Cowbell
57  Crash Cymbal 2
59  Ride Cymbal 2
60  Hi Bongo
61  Low Bongo
62  Mute Hi Conga
63  Open Hi Conga
64  Low Conga
65  High Timbale
66  Low Timbale
67  High Agogo
68  Low Agogo
69  Cabasa
70  Maracas
71  Short Whistle
72  Long Whistle
73  Short Guiro
74  Long Guiro
75  Claves
76  Hi Wood Block
77  Low Wood Block
78  Mute Cuica
79  Open Cuica
80  Mute Triangle
81  Open Triangle

Definition at line 459 of file module.audio.midi.php.

459 {
460
461 $begin = __LINE__;
462
514 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIpercussion');
515 }

References getid3_lib\EmbeddedLookup().

Referenced by Analyze(), and getid3_midi().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GeneralMIDIpercussionLookup() [2/2]

getid3_midi::GeneralMIDIpercussionLookup (   $instrumentid)

This is not a comment!

35  Acoustic Bass Drum
36  Bass Drum 1
37  Side Stick
38  Acoustic Snare
39  Hand Clap
40  Electric Snare
41  Low Floor Tom
42  Closed Hi-Hat
43  High Floor Tom
44  Pedal Hi-Hat
45  Low Tom
46  Open Hi-Hat
47  Low-Mid Tom
48  Hi-Mid Tom
49  Crash Cymbal 1
50  High Tom
51  Ride Cymbal 1
52  Chinese Cymbal
53  Ride Bell
54  Tambourine
55  Splash Cymbal
56  Cowbell
57  Crash Cymbal 2
59  Ride Cymbal 2
60  Hi Bongo
61  Low Bongo
62  Mute Hi Conga
63  Open Hi Conga
64  Low Conga
65  High Timbale
66  Low Timbale
67  High Agogo
68  Low Agogo
69  Cabasa
70  Maracas
71  Short Whistle
72  Long Whistle
73  Short Guiro
74  Long Guiro
75  Claves
76  Hi Wood Block
77  Low Wood Block
78  Mute Cuica
79  Open Cuica
80  Mute Triangle
81  Open Triangle

Definition at line 472 of file module.audio.midi.php.

472 {
473
474 $begin = __LINE__;
475
527 return getid3_lib::EmbeddedLookup($instrumentid, $begin, __LINE__, __FILE__, 'GeneralMIDIpercussion');
528 }

References getid3_lib\EmbeddedLookup().

+ Here is the call graph for this function:

◆ getid3_midi()

getid3_midi::getid3_midi ( $fd,
$ThisFileInfo,
  $scanwholefile = true
)

Definition at line 20 of file module.audio.midi.php.

20 {
21
22 // shortcut
23 $ThisFileInfo['midi']['raw'] = array();
24 $thisfile_midi = &$ThisFileInfo['midi'];
25 $thisfile_midi_raw = &$thisfile_midi['raw'];
26
27 $ThisFileInfo['fileformat'] = 'midi';
28 $ThisFileInfo['audio']['dataformat'] = 'midi';
29
30 fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
31 $MIDIdata = fread($fd, GETID3_FREAD_BUFFER_SIZE);
32 $offset = 0;
33 $MIDIheaderID = substr($MIDIdata, $offset, 4); // 'MThd'
34 if ($MIDIheaderID != 'MThd') {
35 $ThisFileInfo['error'][] = 'Expecting "MThd" at offset '.$ThisFileInfo['avdataoffset'].', found "'.$MIDIheaderID.'"';
36 unset($ThisFileInfo['fileformat']);
37 return false;
38 }
39 $offset += 4;
40 $thisfile_midi_raw['headersize'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 4));
41 $offset += 4;
42 $thisfile_midi_raw['fileformat'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
43 $offset += 2;
44 $thisfile_midi_raw['tracks'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
45 $offset += 2;
46 $thisfile_midi_raw['ticksperqnote'] = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 2));
47 $offset += 2;
48
49 for ($i = 0; $i < $thisfile_midi_raw['tracks']; $i++) {
50 if ((strlen($MIDIdata) - $offset) < 8) {
51 $MIDIdata .= fread($fd, GETID3_FREAD_BUFFER_SIZE);
52 }
53 $trackID = substr($MIDIdata, $offset, 4);
54 $offset += 4;
55 if ($trackID == 'MTrk') {
56 $tracksize = getid3_lib::BigEndian2Int(substr($MIDIdata, $offset, 4));
57 $offset += 4;
58 // $thisfile_midi['tracks'][$i]['size'] = $tracksize;
59 $trackdataarray[$i] = substr($MIDIdata, $offset, $tracksize);
60 $offset += $tracksize;
61 } else {
62 $ThisFileInfo['error'][] = 'Expecting "MTrk" at '.$offset.', found '.$trackID.' instead';
63 return false;
64 }
65 }
66
67 if (!isset($trackdataarray) || !is_array($trackdataarray)) {
68 $ThisFileInfo['error'][] = 'Cannot find MIDI track information';
69 unset($thisfile_midi);
70 unset($ThisFileInfo['fileformat']);
71 return false;
72 }
73
74 if ($scanwholefile) { // this can take quite a long time, so have the option to bypass it if speed is very important
75 $thisfile_midi['totalticks'] = 0;
76 $ThisFileInfo['playtime_seconds'] = 0;
77 $CurrentMicroSecondsPerBeat = 500000; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
78 $CurrentBeatsPerMinute = 120; // 120 beats per minute; 60,000,000 microseconds per minute -> 500,000 microseconds per beat
79
80 foreach ($trackdataarray as $tracknumber => $trackdata) {
81
82 $eventsoffset = 0;
83 $LastIssuedMIDIcommand = 0;
84 $LastIssuedMIDIchannel = 0;
85 $CumulativeDeltaTime = 0;
86 $TicksAtCurrentBPM = 0;
87 while ($eventsoffset < strlen($trackdata)) {
88 $eventid = 0;
89 if (isset($MIDIevents[$tracknumber]) && is_array($MIDIevents[$tracknumber])) {
90 $eventid = count($MIDIevents[$tracknumber]);
91 }
92 $deltatime = 0;
93 for ($i = 0; $i < 4; $i++) {
94 $deltatimebyte = ord(substr($trackdata, $eventsoffset++, 1));
95 $deltatime = ($deltatime << 7) + ($deltatimebyte & 0x7F);
96 if ($deltatimebyte & 0x80) {
97 // another byte follows
98 } else {
99 break;
100 }
101 }
102 $CumulativeDeltaTime += $deltatime;
103 $TicksAtCurrentBPM += $deltatime;
104 $MIDIevents[$tracknumber][$eventid]['deltatime'] = $deltatime;
105 $MIDI_event_channel = ord(substr($trackdata, $eventsoffset++, 1));
106 if ($MIDI_event_channel & 0x80) {
107 // OK, normal event - MIDI command has MSB set
108 $LastIssuedMIDIcommand = $MIDI_event_channel >> 4;
109 $LastIssuedMIDIchannel = $MIDI_event_channel & 0x0F;
110 } else {
111 // running event - assume last command
112 $eventsoffset--;
113 }
114 $MIDIevents[$tracknumber][$eventid]['eventid'] = $LastIssuedMIDIcommand;
115 $MIDIevents[$tracknumber][$eventid]['channel'] = $LastIssuedMIDIchannel;
116 if ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x08) { // Note off (key is released)
117
118 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
119 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
120
121 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x09) { // Note on (key is pressed)
122
123 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
124 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
125
126 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0A) { // Key after-touch
127
128 $notenumber = ord(substr($trackdata, $eventsoffset++, 1));
129 $velocity = ord(substr($trackdata, $eventsoffset++, 1));
130
131 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0B) { // Control Change
132
133 $controllernum = ord(substr($trackdata, $eventsoffset++, 1));
134 $newvalue = ord(substr($trackdata, $eventsoffset++, 1));
135
136 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0C) { // Program (patch) change
137
138 $newprogramnum = ord(substr($trackdata, $eventsoffset++, 1));
139
140 $thisfile_midi_raw['track'][$tracknumber]['instrumentid'] = $newprogramnum;
141 if ($tracknumber == 10) {
142 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIpercussionLookup($newprogramnum);
143 } else {
144 $thisfile_midi_raw['track'][$tracknumber]['instrument'] = $this->GeneralMIDIinstrumentLookup($newprogramnum);
145 }
146
147 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0D) { // Channel after-touch
148
149 $channelnumber = ord(substr($trackdata, $eventsoffset++, 1));
150
151 } elseif ($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0E) { // Pitch wheel change (2000H is normal or no change)
152
153 $changeLSB = ord(substr($trackdata, $eventsoffset++, 1));
154 $changeMSB = ord(substr($trackdata, $eventsoffset++, 1));
155 $pitchwheelchange = (($changeMSB & 0x7F) << 7) & ($changeLSB & 0x7F);
156
157 } elseif (($MIDIevents[$tracknumber][$eventid]['eventid'] == 0x0F) && ($MIDIevents[$tracknumber][$eventid]['channel'] == 0x0F)) {
158
159 $METAeventCommand = ord(substr($trackdata, $eventsoffset++, 1));
160 $METAeventLength = ord(substr($trackdata, $eventsoffset++, 1));
161 $METAeventData = substr($trackdata, $eventsoffset, $METAeventLength);
162 $eventsoffset += $METAeventLength;
163 switch ($METAeventCommand) {
164 case 0x00: // Set track sequence number
165 $track_sequence_number = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
166 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['seqno'] = $track_sequence_number;
167 break;
168
169 case 0x01: // Text: generic
170 $text_generic = substr($METAeventData, 0, $METAeventLength);
171 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['text'] = $text_generic;
172 $thisfile_midi['comments']['comment'][] = $text_generic;
173 break;
174
175 case 0x02: // Text: copyright
176 $text_copyright = substr($METAeventData, 0, $METAeventLength);
177 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['copyright'] = $text_copyright;
178 $thisfile_midi['comments']['copyright'][] = $text_copyright;
179 break;
180
181 case 0x03: // Text: track name
182 $text_trackname = substr($METAeventData, 0, $METAeventLength);
183 $thisfile_midi_raw['track'][$tracknumber]['name'] = $text_trackname;
184 break;
185
186 case 0x04: // Text: track instrument name
187 $text_instrument = substr($METAeventData, 0, $METAeventLength);
188 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['instrument'] = $text_instrument;
189 break;
190
191 case 0x05: // Text: lyrics
192 $text_lyrics = substr($METAeventData, 0, $METAeventLength);
193 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['lyrics'] = $text_lyrics;
194 if (!isset($thisfile_midi['lyrics'])) {
195 $thisfile_midi['lyrics'] = '';
196 }
197 $thisfile_midi['lyrics'] .= $text_lyrics."\n";
198 break;
199
200 case 0x06: // Text: marker
201 $text_marker = substr($METAeventData, 0, $METAeventLength);
202 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['marker'] = $text_marker;
203 break;
204
205 case 0x07: // Text: cue point
206 $text_cuepoint = substr($METAeventData, 0, $METAeventLength);
207 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['cuepoint'] = $text_cuepoint;
208 break;
209
210 case 0x2F: // End Of Track
211 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['EOT'] = $CumulativeDeltaTime;
212 break;
213
214 case 0x51: // Tempo: microseconds / quarter note
215 $CurrentMicroSecondsPerBeat = getid3_lib::BigEndian2Int(substr($METAeventData, 0, $METAeventLength));
216 if ($CurrentMicroSecondsPerBeat == 0) {
217 $ThisFileInfo['error'][] = 'Corrupt MIDI file: CurrentMicroSecondsPerBeat == zero';
218 return false;
219 }
220 $thisfile_midi_raw['events'][$tracknumber][$CumulativeDeltaTime]['us_qnote'] = $CurrentMicroSecondsPerBeat;
221 $CurrentBeatsPerMinute = (1000000 / $CurrentMicroSecondsPerBeat) * 60;
222 $MicroSecondsPerQuarterNoteAfter[$CumulativeDeltaTime] = $CurrentMicroSecondsPerBeat;
223 $TicksAtCurrentBPM = 0;
224 break;
225
226 case 0x58: // Time signature
227 $timesig_numerator = getid3_lib::BigEndian2Int($METAeventData{0});
228 $timesig_denominator = pow(2, getid3_lib::BigEndian2Int($METAeventData{1})); // $02 -> x/4, $03 -> x/8, etc
229 $timesig_32inqnote = getid3_lib::BigEndian2Int($METAeventData{2}); // number of 32nd notes to the quarter note
230 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_32inqnote'] = $timesig_32inqnote;
231 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_numerator'] = $timesig_numerator;
232 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_denominator'] = $timesig_denominator;
233 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['timesig_text'] = $timesig_numerator.'/'.$timesig_denominator;
234 $thisfile_midi['timesignature'][] = $timesig_numerator.'/'.$timesig_denominator;
235 break;
236
237 case 0x59: // Keysignature
238 $keysig_sharpsflats = getid3_lib::BigEndian2Int($METAeventData{0});
239 if ($keysig_sharpsflats & 0x80) {
240 // (-7 -> 7 flats, 0 ->key of C, 7 -> 7 sharps)
241 $keysig_sharpsflats -= 256;
242 }
243
244 $keysig_majorminor = getid3_lib::BigEndian2Int($METAeventData{1}); // 0 -> major, 1 -> minor
245 $keysigs = array(-7=>'Cb', -6=>'Gb', -5=>'Db', -4=>'Ab', -3=>'Eb', -2=>'Bb', -1=>'F', 0=>'C', 1=>'G', 2=>'D', 3=>'A', 4=>'E', 5=>'B', 6=>'F#', 7=>'C#');
246 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_sharps'] = (($keysig_sharpsflats > 0) ? abs($keysig_sharpsflats) : 0);
247 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_flats'] = (($keysig_sharpsflats < 0) ? abs($keysig_sharpsflats) : 0);
248 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] = (bool) $keysig_majorminor;
249 //$thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_text'] = $keysigs[$keysig_sharpsflats].' '.($thisfile_midi_raw['events'][$tracknumber][$eventid]['keysig_minor'] ? 'minor' : 'major');
250
251 // $keysigs[$keysig_sharpsflats] gets an int key (correct) - $keysigs["$keysig_sharpsflats"] gets a string key (incorrect)
252 $thisfile_midi['keysignature'][] = $keysigs[$keysig_sharpsflats].' '.((bool) $keysig_majorminor ? 'minor' : 'major');
253 break;
254
255 case 0x7F: // Sequencer specific information
256 $custom_data = substr($METAeventData, 0, $METAeventLength);
257 break;
258
259 default:
260 $ThisFileInfo['warning'][] = 'Unhandled META Event Command: '.$METAeventCommand;
261 break;
262 }
263
264 } else {
265
266 $ThisFileInfo['warning'][] = 'Unhandled MIDI Event ID: '.$MIDIevents[$tracknumber][$eventid]['eventid'].' + Channel ID: '.$MIDIevents[$tracknumber][$eventid]['channel'];
267
268 }
269 }
270 if (($tracknumber > 0) || (count($trackdataarray) == 1)) {
271 $thisfile_midi['totalticks'] = max($thisfile_midi['totalticks'], $CumulativeDeltaTime);
272 }
273 }
274 $previoustickoffset = null;
275
276 ksort($MicroSecondsPerQuarterNoteAfter);
277 foreach ($MicroSecondsPerQuarterNoteAfter as $tickoffset => $microsecondsperbeat) {
278 if (is_null($previoustickoffset)) {
279 $prevmicrosecondsperbeat = $microsecondsperbeat;
280 $previoustickoffset = $tickoffset;
281 continue;
282 }
283 if ($thisfile_midi['totalticks'] > $tickoffset) {
284
285 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
286 $ThisFileInfo['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
287 return false;
288 }
289
290 $ThisFileInfo['playtime_seconds'] += (($tickoffset - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($prevmicrosecondsperbeat / 1000000);
291
292 $prevmicrosecondsperbeat = $microsecondsperbeat;
293 $previoustickoffset = $tickoffset;
294 }
295 }
296 if ($thisfile_midi['totalticks'] > $previoustickoffset) {
297
298 if ($thisfile_midi_raw['ticksperqnote'] == 0) {
299 $ThisFileInfo['error'][] = 'Corrupt MIDI file: ticksperqnote == zero';
300 return false;
301 }
302
303 $ThisFileInfo['playtime_seconds'] += (($thisfile_midi['totalticks'] - $previoustickoffset) / $thisfile_midi_raw['ticksperqnote']) * ($microsecondsperbeat / 1000000);
304
305 }
306 }
307
308 if ($ThisFileInfo['playtime_seconds'] > 0) {
309 $ThisFileInfo['bitrate'] = (($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / $ThisFileInfo['playtime_seconds'];
310 }
311
312 if (!empty($thisfile_midi['lyrics'])) {
313 $thisfile_midi['comments']['lyrics'][] = $thisfile_midi['lyrics'];
314 }
315
316 return true;
317 }
const GETID3_FREAD_BUFFER_SIZE
Definition: getid3.php:14

References $scanwholefile, getid3_lib\BigEndian2Int(), getid3_handler\fread(), getid3_handler\fseek(), GeneralMIDIinstrumentLookup(), GeneralMIDIpercussionLookup(), and GETID3_FREAD_BUFFER_SIZE.

+ Here is the call graph for this function:

Field Documentation

◆ $scanwholefile

getid3_midi::$scanwholefile = true

Definition at line 22 of file module.audio.midi.php.

Referenced by getid3_midi().


The documentation for this class was generated from the following files:
