getid3_flv Class Reference

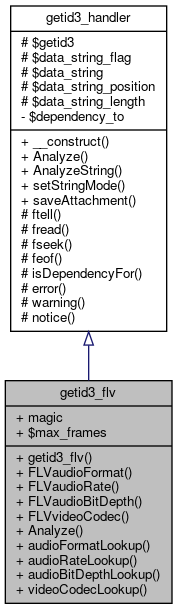

+ Inheritance diagram for getid3_flv:

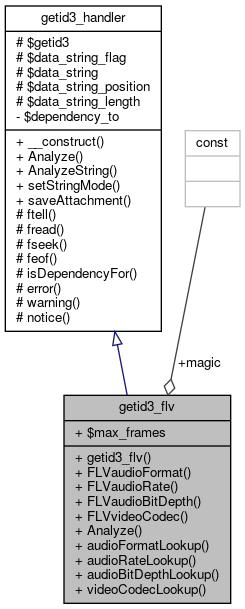

+ Collaboration diagram for getid3_flv:

Public Member Functions

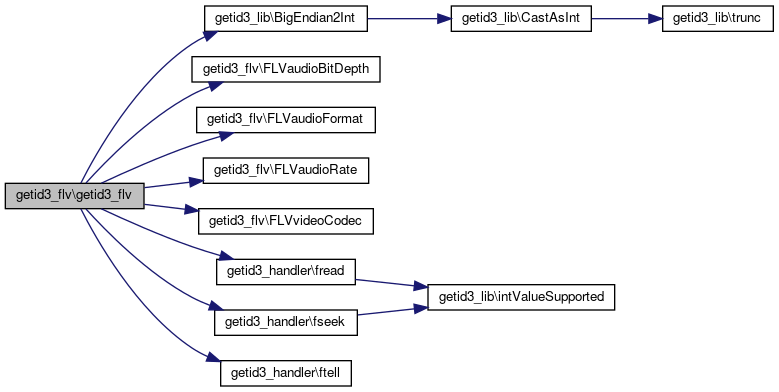

 getid3_flv (&$fd, &$ThisFileInfo, $ReturnAllTagData=false)

 FLVaudioFormat ($id)

 FLVaudioRate ($id)

 FLVaudioBitDepth ($id)

 FLVvideoCodec ($id)

 Analyze ()

- Public Member Functions inherited from getid3_handler
 __construct (getID3 $getid3, $call_module=null)

 Analyze ()

 AnalyzeString ($string)

 setStringMode ($string)

 saveAttachment ($name, $offset, $length, $image_mime=null)


Static Public Member Functions

static audioFormatLookup ($id)

static audioRateLookup ($id)

static audioBitDepthLookup ($id)

static videoCodecLookup ($id)


Data Fields

const magic = 'FLV'

 $max_frames = 100000


Additional Inherited Members

- Protected Member Functions inherited from getid3_handler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

 notice ($text)

- Protected Attributes inherited from getid3_handler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

Definition at line 38 of file module.audio-video.flv.php.

Member Function Documentation

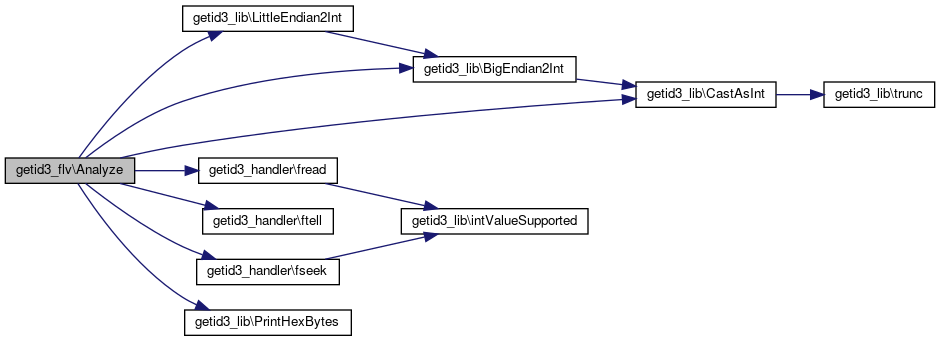

◆ Analyze()

getid3_flv::Analyze ( )

Definition at line 82 of file module.audio-video.flv.php.

References $info, $reader, getid3_lib\BigEndian2Int(), getid3_lib\CastAsInt(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GETID3_FLV_TAG_AUDIO, GETID3_FLV_TAG_META, GETID3_FLV_TAG_VIDEO, GETID3_FLV_VIDEO_H263, GETID3_FLV_VIDEO_H264, GETID3_FLV_VIDEO_VP6FLV_ALPHA, H264_AVC_SEQUENCE_HEADER, getid3_lib\LittleEndian2Int(), and getid3_lib\PrintHexBytes().

82  {
83  $info = &$this->getid3->info;
84
85  $this->fseek($info['avdataoffset']);
86
87  $FLVdataLength = $info['avdataend'] - $info['avdataoffset'];
88  $FLVheader = $this->fread(5);
89
90  $info['fileformat'] = 'flv';
91  $info['flv']['header']['signature'] = substr($FLVheader, 0, 3);
92  $info['flv']['header']['version'] = getid3_lib::BigEndian2Int(substr($FLVheader, 3, 1));
93  $TypeFlags = getid3_lib::BigEndian2Int(substr($FLVheader, 4, 1));
94
95  if ($info['flv']['header']['signature'] != self::magic) {
96  $info['error'][] = 'Expecting "'.getid3_lib::PrintHexBytes(self::magic).'" at offset '.$info['avdataoffset'].', found "'.getid3_lib::PrintHexBytes($info['flv']['header']['signature']).'"';
97  unset($info['flv'], $info['fileformat']);
98  return false;
99  }
100
101  $info['flv']['header']['hasAudio'] = (bool) ($TypeFlags & 0x04);
102  $info['flv']['header']['hasVideo'] = (bool) ($TypeFlags & 0x01);
103
104  $FrameSizeDataLength = getid3_lib::BigEndian2Int($this->fread(4));
105  $FLVheaderFrameLength = 9;
106  if ($FrameSizeDataLength > $FLVheaderFrameLength) {
107  $this->fseek($FrameSizeDataLength - $FLVheaderFrameLength, SEEK_CUR);
108  }
109  $Duration = 0;
110  $found_video = false;
111  $found_audio = false;
112  $found_meta = false;
113  $found_valid_meta_playtime = false;
114  $tagParseCount = 0;
115  $info['flv']['framecount'] = array('total'=>0, 'audio'=>0, 'video'=>0);
116  $flv_framecount = &$info['flv']['framecount'];
117  while ((($this->ftell() + 16) < $info['avdataend']) && (($tagParseCount++ <= $this->max_frames) || !$found_valid_meta_playtime)) {
118  $ThisTagHeader = $this->fread(16);
119
120  $PreviousTagLength = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 0, 4));
121  $TagType = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 4, 1));
122  $DataLength = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 5, 3));
123  $Timestamp = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 8, 3));
124  $LastHeaderByte = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 15, 1));
125  $NextOffset = $this->ftell() - 1 + $DataLength;
126  if ($Timestamp > $Duration) {
127  $Duration = $Timestamp;
128  }
129
130  $flv_framecount['total']++;
131  switch ($TagType) {
132  case GETID3_FLV_TAG_AUDIO:
133  $flv_framecount['audio']++;
134  if (!$found_audio) {
135  $found_audio = true;
136  $info['flv']['audio']['audioFormat'] = ($LastHeaderByte >> 4) & 0x0F;
137  $info['flv']['audio']['audioRate'] = ($LastHeaderByte >> 2) & 0x03;
138  $info['flv']['audio']['audioSampleSize'] = ($LastHeaderByte >> 1) & 0x01;
139  $info['flv']['audio']['audioType'] = $LastHeaderByte & 0x01;
140  }
141  break;
142
143  case GETID3_FLV_TAG_VIDEO:
144  $flv_framecount['video']++;
145  if (!$found_video) {
146  $found_video = true;
147  $info['flv']['video']['videoCodec'] = $LastHeaderByte & 0x07;
148
149  $FLVvideoHeader = $this->fread(11);
150
151  if ($info['flv']['video']['videoCodec'] == GETID3_FLV_VIDEO_H264) {
152  // this code block contributed by: moysevichØgmail*com
153
154  $AVCPacketType = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 0, 1));
155  if ($AVCPacketType == H264_AVC_SEQUENCE_HEADER) {
156  // read AVCDecoderConfigurationRecord
157  $configurationVersion = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 4, 1));
158  $AVCProfileIndication = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 1));
159  $profile_compatibility = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 1));
160  $lengthSizeMinusOne = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 7, 1));
161  $numOfSequenceParameterSets = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 8, 1));
162
163  if (($numOfSequenceParameterSets & 0x1F) != 0) {
164  // there is at least one SequenceParameterSet
165  // read size of the first SequenceParameterSet
166  //$spsSize = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 9, 2));
167  $spsSize = getid3_lib::LittleEndian2Int(substr($FLVvideoHeader, 9, 2));
168  // read the first SequenceParameterSet
169  $sps = $this->fread($spsSize);
170  if (strlen($sps) == $spsSize) { // make sure that whole SequenceParameterSet was red
171  $spsReader = new AVCSequenceParameterSetReader($sps);
172  $spsReader->readData();
173  $info['video']['resolution_x'] = $spsReader->getWidth();
174  $info['video']['resolution_y'] = $spsReader->getHeight();
175  }
176  }
177  }
178  // end: moysevichØgmail*com
179
180  } elseif ($info['flv']['video']['videoCodec'] == GETID3_FLV_VIDEO_H263) {
181
182  $PictureSizeType = (getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 3, 2))) >> 7;
183  $PictureSizeType = $PictureSizeType & 0x0007;
184  $info['flv']['header']['videoSizeType'] = $PictureSizeType;
185  switch ($PictureSizeType) {
186  case 0:
187  //$PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 2));
188  //$PictureSizeEnc <<= 1;
189  //$info['video']['resolution_x'] = ($PictureSizeEnc & 0xFF00) >> 8;
190  //$PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 2));
191  //$PictureSizeEnc <<= 1;
192  //$info['video']['resolution_y'] = ($PictureSizeEnc & 0xFF00) >> 8;
193
194  $PictureSizeEnc['x'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 4, 2)) >> 7;
195  $PictureSizeEnc['y'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 2)) >> 7;
196  $info['video']['resolution_x'] = $PictureSizeEnc['x'] & 0xFF;
197  $info['video']['resolution_y'] = $PictureSizeEnc['y'] & 0xFF;
198  break;
199
200  case 1:
201  $PictureSizeEnc['x'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 4, 3)) >> 7;
202  $PictureSizeEnc['y'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 3)) >> 7;
203  $info['video']['resolution_x'] = $PictureSizeEnc['x'] & 0xFFFF;
204  $info['video']['resolution_y'] = $PictureSizeEnc['y'] & 0xFFFF;
205  break;
206
207  case 2:
208  $info['video']['resolution_x'] = 352;
209  $info['video']['resolution_y'] = 288;
210  break;
211
212  case 3:
213  $info['video']['resolution_x'] = 176;
214  $info['video']['resolution_y'] = 144;
215  break;
216
217  case 4:
218  $info['video']['resolution_x'] = 128;
219  $info['video']['resolution_y'] = 96;
220  break;
221
222  case 5:
223  $info['video']['resolution_x'] = 320;
224  $info['video']['resolution_y'] = 240;
225  break;
226
227  case 6:
228  $info['video']['resolution_x'] = 160;
229  $info['video']['resolution_y'] = 120;
230  break;
231
232  default:
233  $info['video']['resolution_x'] = 0;
234  $info['video']['resolution_y'] = 0;
235  break;
236
237  }
238
239  } elseif ($info['flv']['video']['videoCodec'] == GETID3_FLV_VIDEO_VP6FLV_ALPHA) {
240
241  /* contributed by schouwerwouØgmail*com */
242  if (!isset($info['video']['resolution_x'])) { // only when meta data isn't set
243  $PictureSizeEnc['x'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 2));
244  $PictureSizeEnc['y'] = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 7, 2));
245  $info['video']['resolution_x'] = ($PictureSizeEnc['x'] & 0xFF) << 3;
246  $info['video']['resolution_y'] = ($PictureSizeEnc['y'] & 0xFF) << 3;
247  }
248  /* end schouwerwouØgmail*com */
249
250  }
251  if (!empty($info['video']['resolution_x']) && !empty($info['video']['resolution_y'])) {
252  $info['video']['pixel_aspect_ratio'] = $info['video']['resolution_x'] / $info['video']['resolution_y'];
253  }
254  }
255  break;
256
257  // Meta tag
258  case GETID3_FLV_TAG_META:
259  if (!$found_meta) {
260  $found_meta = true;
261  $this->fseek(-1, SEEK_CUR);
262  $datachunk = $this->fread($DataLength);
263  $AMFstream = new AMFStream($datachunk);
264  $reader = new AMFReader($AMFstream);
265  $eventName = $reader->readData();
266  $info['flv']['meta'][$eventName] = $reader->readData();
267  unset($reader);
268
269  $copykeys = array('framerate'=>'frame_rate', 'width'=>'resolution_x', 'height'=>'resolution_y', 'audiodatarate'=>'bitrate', 'videodatarate'=>'bitrate');
270  foreach ($copykeys as $sourcekey => $destkey) {
271  if (isset($info['flv']['meta']['onMetaData'][$sourcekey])) {
272  switch ($sourcekey) {
273  case 'width':
274  case 'height':
275  $info['video'][$destkey] = intval(round($info['flv']['meta']['onMetaData'][$sourcekey]));
276  break;
277  case 'audiodatarate':
278  $info['audio'][$destkey] = getid3_lib::CastAsInt(round($info['flv']['meta']['onMetaData'][$sourcekey] * 1000));
279  break;
280  case 'videodatarate':
281  case 'frame_rate':
282  default:
283  $info['video'][$destkey] = $info['flv']['meta']['onMetaData'][$sourcekey];
284  break;
285  }
286  }
287  }
288  if (!empty($info['flv']['meta']['onMetaData']['duration'])) {
289  $found_valid_meta_playtime = true;
290  }
291  }
292  break;
293
294  default:
295  // noop
296  break;
297  }
298  $this->fseek($NextOffset);
299  }
300
301  $info['playtime_seconds'] = $Duration / 1000;
302  if ($info['playtime_seconds'] > 0) {
303  $info['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
304  }
305
306  if ($info['flv']['header']['hasAudio']) {
307  $info['audio']['codec'] = self::audioFormatLookup($info['flv']['audio']['audioFormat']);
308  $info['audio']['sample_rate'] = self::audioRateLookup($info['flv']['audio']['audioRate']);
309  $info['audio']['bits_per_sample'] = self::audioBitDepthLookup($info['flv']['audio']['audioSampleSize']);
310
311  $info['audio']['channels'] = $info['flv']['audio']['audioType'] + 1; // 0=mono,1=stereo
312  $info['audio']['lossless'] = ($info['flv']['audio']['audioFormat'] ? false : true); // 0=uncompressed
313  $info['audio']['dataformat'] = 'flv';
314  }
315  if (!empty($info['flv']['header']['hasVideo'])) {
316  $info['video']['codec'] = self::videoCodecLookup($info['flv']['video']['videoCodec']);
317  $info['video']['dataformat'] = 'flv';
318  $info['video']['lossless'] = false;
319  }
320
321  // Set information from meta
322  if (!empty($info['flv']['meta']['onMetaData']['duration'])) {
323  $info['playtime_seconds'] = $info['flv']['meta']['onMetaData']['duration'];
324  $info['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
325  }
326  if (isset($info['flv']['meta']['onMetaData']['audiocodecid'])) {
327  $info['audio']['codec'] = self::audioFormatLookup($info['flv']['meta']['onMetaData']['audiocodecid']);
328  }
329  if (isset($info['flv']['meta']['onMetaData']['videocodecid'])) {
330  $info['video']['codec'] = self::videoCodecLookup($info['flv']['meta']['onMetaData']['videocodecid']);
331  }
332  return true;
333  }
GETID3_FLV_VIDEO_H264
const GETID3_FLV_VIDEO_H264
Definition: module.audio-video.flv.php:64
GETID3_FLV_TAG_AUDIO
const GETID3_FLV_TAG_AUDIO
getID3() by James Heinrich info@getid3.org //
Definition: module.audio-video.flv.php:30
H264_AVC_SEQUENCE_HEADER
const H264_AVC_SEQUENCE_HEADER
Definition: module.audio-video.flv.php:66
GETID3_FLV_TAG_VIDEO
const GETID3_FLV_TAG_VIDEO
Definition: module.audio-video.flv.php:31
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
$info
$info
Definition: example_052.php:80
GETID3_FLV_VIDEO_H263
const GETID3_FLV_VIDEO_H263
Definition: module.audio-video.flv.php:34
GETID3_FLV_TAG_META
const GETID3_FLV_TAG_META
Definition: module.audio-video.flv.php:32
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\BigEndian2Int
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
getid3_lib\CastAsInt
CastAsInt($floatnum)
Definition: getid3.lib.php:60
GETID3_FLV_VIDEO_VP6FLV_ALPHA
const GETID3_FLV_VIDEO_VP6FLV_ALPHA
Definition: module.audio-video.flv.php:62
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_lib\PrintHexBytes
PrintHexBytes($string, $hex=true, $spaces=true, $htmlsafe=true)
Definition: getid3.lib.php:17
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
+ Here is the call graph for this function:

◆ audioBitDepthLookup()

static getid3_flv::audioBitDepthLookup (   $id)
static

Definition at line 368 of file module.audio-video.flv.php.

368  {
369  static $lookup = array(
370  0 => 8,
371  1 => 16,
372  );
373  return (isset($lookup[$id]) ? $lookup[$id] : false);
374  }

◆ audioFormatLookup()

static getid3_flv::audioFormatLookup (   $id)
static

Definition at line 336 of file module.audio-video.flv.php.

336  {
337  static $lookup = array(
338  0 => 'Linear PCM, platform endian',
339  1 => 'ADPCM',
340  2 => 'mp3',
341  3 => 'Linear PCM, little endian',
342  4 => 'Nellymoser 16kHz mono',
343  5 => 'Nellymoser 8kHz mono',
344  6 => 'Nellymoser',
345  7 => 'G.711A-law logarithmic PCM',
346  8 => 'G.711 mu-law logarithmic PCM',
347  9 => 'reserved',
348  10 => 'AAC',
349  11 => 'Speex',
350  12 => false, // unknown?
351  13 => false, // unknown?
352  14 => 'mp3 8kHz',
353  15 => 'Device-specific sound',
354  );
355  return (isset($lookup[$id]) ? $lookup[$id] : false);
356  }

◆ audioRateLookup()

static getid3_flv::audioRateLookup (   $id)
static

Definition at line 358 of file module.audio-video.flv.php.

358  {
359  static $lookup = array(
360  0 => 5500,
361  1 => 11025,
362  2 => 22050,
363  3 => 44100,
364  );
365  return (isset($lookup[$id]) ? $lookup[$id] : false);
366  }

◆ FLVaudioBitDepth()

getid3_flv::FLVaudioBitDepth (   $id)

Definition at line 230 of file module.audio-video.flv.php.

Referenced by getid3_flv().

230  {
231  $FLVaudioBitDepth = array(
232  0 => 8,
233  1 => 16,
234  );
235  return (@$FLVaudioBitDepth[$id] ? @$FLVaudioBitDepth[$id] : false);
236  }
+ Here is the caller graph for this function:

◆ FLVaudioFormat()

getid3_flv::FLVaudioFormat (   $id)

Definition at line 209 of file module.audio-video.flv.php.

Referenced by getid3_flv().

209  {
210  $FLVaudioFormat = array(
211  0 => 'uncompressed',
212  1 => 'ADPCM',
213  2 => 'mp3',
214  5 => 'Nellymoser 8kHz mono',
215  6 => 'Nellymoser',
216  );
217  return (@$FLVaudioFormat[$id] ? @$FLVaudioFormat[$id] : false);
218  }
+ Here is the caller graph for this function:

◆ FLVaudioRate()

getid3_flv::FLVaudioRate (   $id)

Definition at line 220 of file module.audio-video.flv.php.

Referenced by getid3_flv().

220  {
221  $FLVaudioRate = array(
222  0 => 5500,
223  1 => 11025,
224  2 => 22050,
225  3 => 44100,
226  );
227  return (@$FLVaudioRate[$id] ? @$FLVaudioRate[$id] : false);
228  }
+ Here is the caller graph for this function:

◆ FLVvideoCodec()

getid3_flv::FLVvideoCodec (   $id)

Definition at line 238 of file module.audio-video.flv.php.

References GETID3_FLV_VIDEO_H263, GETID3_FLV_VIDEO_SCREEN, and GETID3_FLV_VIDEO_VP6.

Referenced by getid3_flv().

238  {
239  $FLVvideoCodec = array(
240  GETID3_FLV_VIDEO_H263 => 'Sorenson H.263',
241  GETID3_FLV_VIDEO_SCREEN => 'Screen video',
242  GETID3_FLV_VIDEO_VP6 => 'On2 VP6',
243  );
244  return (@$FLVvideoCodec[$id] ? @$FLVvideoCodec[$id] : false);
245  }
GETID3_FLV_VIDEO_SCREEN
const GETID3_FLV_VIDEO_SCREEN
Definition: module.audio-video.flv.php:35
GETID3_FLV_VIDEO_H263
const GETID3_FLV_VIDEO_H263
Definition: module.audio-video.flv.php:34
GETID3_FLV_VIDEO_VP6
const GETID3_FLV_VIDEO_VP6
Definition: module.audio-video.flv.php:36
+ Here is the caller graph for this function:

◆ getid3_flv()

getid3_flv::getid3_flv ( &  $fd,
&  $ThisFileInfo,
  $ReturnAllTagData = false
)

Definition at line 41 of file module.audio-video.flv.php.

References $reader, getid3_lib\BigEndian2Int(), FLVaudioBitDepth(), FLVaudioFormat(), FLVaudioRate(), FLVvideoCodec(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GETID3_FLV_TAG_AUDIO, GETID3_FLV_TAG_META, GETID3_FLV_TAG_VIDEO, and GETID3_FLV_VIDEO_VP6.

41  {
42  fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
43
44  $FLVdataLength = $ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset'];
45  $FLVheader = fread($fd, 5);
46
47  $ThisFileInfo['fileformat'] = 'flv';
48  $ThisFileInfo['flv']['header']['signature'] = substr($FLVheader, 0, 3);
49  $ThisFileInfo['flv']['header']['version'] = getid3_lib::BigEndian2Int(substr($FLVheader, 3, 1));
50  $TypeFlags = getid3_lib::BigEndian2Int(substr($FLVheader, 4, 1));
51
52  if ($ThisFileInfo['flv']['header']['signature'] != 'FLV') {
53  $ThisFileInfo['error'][] = 'Expecting "FLV" at offset '.$ThisFileInfo['avdataoffset'].', found "'.$ThisFileInfo['flv']['header']['signature'].'"';
54  unset($ThisFileInfo['flv']);
55  unset($ThisFileInfo['fileformat']);
56  return false;
57  }
58
59  $ThisFileInfo['flv']['header']['hasAudio'] = (bool) ($TypeFlags & 0x04);
60  $ThisFileInfo['flv']['header']['hasVideo'] = (bool) ($TypeFlags & 0x01);
61
62  $FrameSizeDataLength = getid3_lib::BigEndian2Int(fread($fd, 4));
63  $FLVheaderFrameLength = 9;
64  if ($FrameSizeDataLength > $FLVheaderFrameLength) {
65  fseek($fd, $FrameSizeDataLength - $FLVheaderFrameLength, SEEK_CUR);
66  }
67
68  $Duration = 0;
69  while ((ftell($fd) + 1) < $ThisFileInfo['avdataend']) {
70  //if (!$ThisFileInfo['flv']['header']['hasAudio'] || isset($ThisFileInfo['flv']['audio']['audioFormat'])) {
71  // if (!$ThisFileInfo['flv']['header']['hasVideo'] || isset($ThisFileInfo['flv']['video']['videoCodec'])) {
72  // break;
73  // }
74  //}
75
76  $ThisTagHeader = fread($fd, 16);
77
78  $PreviousTagLength = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 0, 4));
79  $TagType = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 4, 1));
80  $DataLength = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 5, 3));
81  $Timestamp = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 8, 3));
82  $LastHeaderByte = getid3_lib::BigEndian2Int(substr($ThisTagHeader, 15, 1));
83  $NextOffset = ftell($fd) - 1 + $DataLength;
84
85  switch ($TagType) {
86  case GETID3_FLV_TAG_AUDIO:
87  if (!isset($ThisFileInfo['flv']['audio']['audioFormat'])) {
88  $ThisFileInfo['flv']['audio']['audioFormat'] = $LastHeaderByte & 0x07;
89  $ThisFileInfo['flv']['audio']['audioRate'] = ($LastHeaderByte & 0x30) / 0x10;
90  $ThisFileInfo['flv']['audio']['audioSampleSize'] = ($LastHeaderByte & 0x40) / 0x40;
91  $ThisFileInfo['flv']['audio']['audioType'] = ($LastHeaderByte & 0x80) / 0x80;
92  }
93  break;
94
95  case GETID3_FLV_TAG_VIDEO:
96  if (!isset($ThisFileInfo['flv']['video']['videoCodec'])) {
97  $ThisFileInfo['flv']['video']['videoCodec'] = $LastHeaderByte & 0x07;
98
99  $FLVvideoHeader = fread($fd, 11);
100
101  if ($ThisFileInfo['flv']['video']['videoCodec'] != GETID3_FLV_VIDEO_VP6) {
102
103  $PictureSizeType = (getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 3, 2))) >> 7;
104  $PictureSizeType = $PictureSizeType & 0x0007;
105  $ThisFileInfo['flv']['header']['videoSizeType'] = $PictureSizeType;
106  switch ($PictureSizeType) {
107  case 0:
108  $PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 2));
109  $PictureSizeEnc <<= 1;
110  $ThisFileInfo['video']['resolution_x'] = ($PictureSizeEnc & 0xFF00) >> 8;
111  $PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 6, 2));
112  $PictureSizeEnc <<= 1;
113  $ThisFileInfo['video']['resolution_y'] = ($PictureSizeEnc & 0xFF00) >> 8;
114  break;
115
116  case 1:
117  $PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 5, 4));
118  $PictureSizeEnc <<= 1;
119  $ThisFileInfo['video']['resolution_x'] = ($PictureSizeEnc & 0xFFFF0000) >> 16;
120
121  $PictureSizeEnc = getid3_lib::BigEndian2Int(substr($FLVvideoHeader, 7, 4));
122  $PictureSizeEnc <<= 1;
123  $ThisFileInfo['video']['resolution_y'] = ($PictureSizeEnc & 0xFFFF0000) >> 16;
124  break;
125
126  case 2:
127  $ThisFileInfo['video']['resolution_x'] = 352;
128  $ThisFileInfo['video']['resolution_y'] = 288;
129  break;
130
131  case 3:
132  $ThisFileInfo['video']['resolution_x'] = 176;
133  $ThisFileInfo['video']['resolution_y'] = 144;
134  break;
135
136  case 4:
137  $ThisFileInfo['video']['resolution_x'] = 128;
138  $ThisFileInfo['video']['resolution_y'] = 96;
139  break;
140
141  case 5:
142  $ThisFileInfo['video']['resolution_x'] = 320;
143  $ThisFileInfo['video']['resolution_y'] = 240;
144  break;
145
146  case 6:
147  $ThisFileInfo['video']['resolution_x'] = 160;
148  $ThisFileInfo['video']['resolution_y'] = 120;
149  break;
150
151  default:
152  $ThisFileInfo['video']['resolution_x'] = 0;
153  $ThisFileInfo['video']['resolution_y'] = 0;
154  break;
155
156  }
157  }
158  }
159  break;
160
161  // Meta tag
162  case GETID3_FLV_TAG_META:
163
164  fseek($fd, -1, SEEK_CUR);
165  $reader = new AMFReader(new AMFStream(fread($fd, $DataLength)));
166  $eventName = $reader->readData();
167  $ThisFileInfo['meta'][$eventName] = $reader->readData();
168  unset($reader);
169
170  $ThisFileInfo['video']['frame_rate'] = $ThisFileInfo['meta']['onMetaData']['framerate'];
171  $ThisFileInfo['video']['resolution_x'] = $ThisFileInfo['meta']['onMetaData']['width'];
172  $ThisFileInfo['video']['resolution_y'] = $ThisFileInfo['meta']['onMetaData']['height'];
173  break;
174
175  default:
176  // noop
177  break;
178  }
179
180  if ($Timestamp > $Duration) {
181  $Duration = $Timestamp;
182  }
183
184  fseek($fd, $NextOffset, SEEK_SET);
185  }
186
187  $ThisFileInfo['playtime_seconds'] = $Duration / 1000;
188  $ThisFileInfo['bitrate'] = ($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) / $ThisFileInfo['playtime_seconds'];
189
190  if ($ThisFileInfo['flv']['header']['hasAudio']) {
191  $ThisFileInfo['audio']['codec'] = $this->FLVaudioFormat($ThisFileInfo['flv']['audio']['audioFormat']);
192  $ThisFileInfo['audio']['sample_rate'] = $this->FLVaudioRate($ThisFileInfo['flv']['audio']['audioRate']);
193  $ThisFileInfo['audio']['bits_per_sample'] = $this->FLVaudioBitDepth($ThisFileInfo['flv']['audio']['audioSampleSize']);
194
195  $ThisFileInfo['audio']['channels'] = $ThisFileInfo['flv']['audio']['audioType'] + 1; // 0=mono,1=stereo
196  $ThisFileInfo['audio']['lossless'] = ($ThisFileInfo['flv']['audio']['audioFormat'] ? false : true); // 0=uncompressed
197  $ThisFileInfo['audio']['dataformat'] = 'flv';
198  }
199  if (@$ThisFileInfo['flv']['header']['hasVideo']) {
200  $ThisFileInfo['video']['codec'] = $this->FLVvideoCodec($ThisFileInfo['flv']['video']['videoCodec']);
201  $ThisFileInfo['video']['dataformat'] = 'flv';
202  $ThisFileInfo['video']['lossless'] = false;
203  }
204
205  return true;
206  }
getid3_flv\FLVvideoCodec
FLVvideoCodec($id)
Definition: module.audio-video.flv.php:238
getid3_flv\FLVaudioRate
FLVaudioRate($id)
Definition: module.audio-video.flv.php:220
GETID3_FLV_TAG_AUDIO
const GETID3_FLV_TAG_AUDIO
getID3() by James Heinrich info@getid3.org //
Definition: module.audio-video.flv.php:30
getid3_flv\FLVaudioFormat
FLVaudioFormat($id)
Definition: module.audio-video.flv.php:209
getid3_flv\FLVaudioBitDepth
FLVaudioBitDepth($id)
Definition: module.audio-video.flv.php:230
GETID3_FLV_TAG_VIDEO
const GETID3_FLV_TAG_VIDEO
Definition: module.audio-video.flv.php:31
GETID3_FLV_TAG_META
const GETID3_FLV_TAG_META
Definition: module.audio-video.flv.php:32
GETID3_FLV_VIDEO_VP6
const GETID3_FLV_VIDEO_VP6
Definition: module.audio-video.flv.php:36
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\BigEndian2Int
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
+ Here is the call graph for this function:

◆ videoCodecLookup()

static getid3_flv::videoCodecLookup (   $id)
static

Definition at line 376 of file module.audio-video.flv.php.

References GETID3_FLV_VIDEO_H263, GETID3_FLV_VIDEO_H264, GETID3_FLV_VIDEO_SCREEN, GETID3_FLV_VIDEO_SCREENV2, GETID3_FLV_VIDEO_VP6FLV, and GETID3_FLV_VIDEO_VP6FLV_ALPHA.

376  {
377  static $lookup = array(
378  GETID3_FLV_VIDEO_H263 => 'Sorenson H.263',
379  GETID3_FLV_VIDEO_SCREEN => 'Screen video',
380  GETID3_FLV_VIDEO_VP6FLV => 'On2 VP6',
381  GETID3_FLV_VIDEO_VP6FLV_ALPHA => 'On2 VP6 with alpha channel',
382  GETID3_FLV_VIDEO_SCREENV2 => 'Screen video v2',
383  GETID3_FLV_VIDEO_H264 => 'Sorenson H.264',
384  );
385  return (isset($lookup[$id]) ? $lookup[$id] : false);
386  }
GETID3_FLV_VIDEO_H264
const GETID3_FLV_VIDEO_H264
Definition: module.audio-video.flv.php:64
GETID3_FLV_VIDEO_SCREEN
const GETID3_FLV_VIDEO_SCREEN
Definition: module.audio-video.flv.php:35
GETID3_FLV_VIDEO_VP6FLV
const GETID3_FLV_VIDEO_VP6FLV
Definition: module.audio-video.flv.php:61
GETID3_FLV_VIDEO_H263
const GETID3_FLV_VIDEO_H263
Definition: module.audio-video.flv.php:34
GETID3_FLV_VIDEO_SCREENV2
const GETID3_FLV_VIDEO_SCREENV2
Definition: module.audio-video.flv.php:63
GETID3_FLV_VIDEO_VP6FLV_ALPHA
const GETID3_FLV_VIDEO_VP6FLV_ALPHA
Definition: module.audio-video.flv.php:62

Field Documentation

◆ $max_frames

getid3_flv::$max_frames = 100000

Definition at line 80 of file module.audio-video.flv.php.

◆ magic

const getid3_flv::magic = 'FLV'

Definition at line 78 of file module.audio-video.flv.php.

The documentation for this class was generated from the following file:
