getid3_ogg Class Reference
+ Inheritance diagram for getid3_ogg:

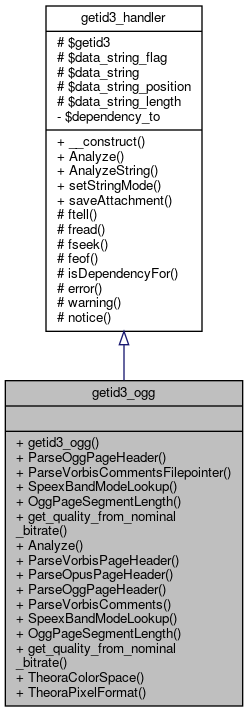

+ Collaboration diagram for getid3_ogg:

Public Member Functions

 getid3_ogg (&$fd, &$ThisFileInfo)

 ParseOggPageHeader (&$fd)

 ParseVorbisCommentsFilepointer (&$fd, &$ThisFileInfo)

 SpeexBandModeLookup ($mode)

 OggPageSegmentLength ($OggInfoArray, $SegmentNumber=1)

 get_quality_from_nominal_bitrate ($nominal_bitrate)

 Analyze ()

 ParseVorbisPageHeader (&$filedata, &$filedataoffset, &$oggpageinfo)

 ParseOpusPageHeader (&$filedata, &$filedataoffset, &$oggpageinfo)

 ParseOggPageHeader ()

 ParseVorbisComments ()

- Public Member Functions inherited from getid3_handler
 __construct (getID3 $getid3, $call_module=null)

 Analyze ()

 AnalyzeString ($string)

 setStringMode ($string)

 saveAttachment ($name, $offset, $length, $image_mime=null)


Static Public Member Functions

static SpeexBandModeLookup ($mode)

static OggPageSegmentLength ($OggInfoArray, $SegmentNumber=1)

static get_quality_from_nominal_bitrate ($nominal_bitrate)

static TheoraColorSpace ($colorspace_id)

static TheoraPixelFormat ($pixelformat_id)


Additional Inherited Members

- Protected Member Functions inherited from getid3_handler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

 notice ($text)

- Protected Attributes inherited from getid3_handler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

Definition at line 18 of file module.audio.ogg.php.

Member Function Documentation

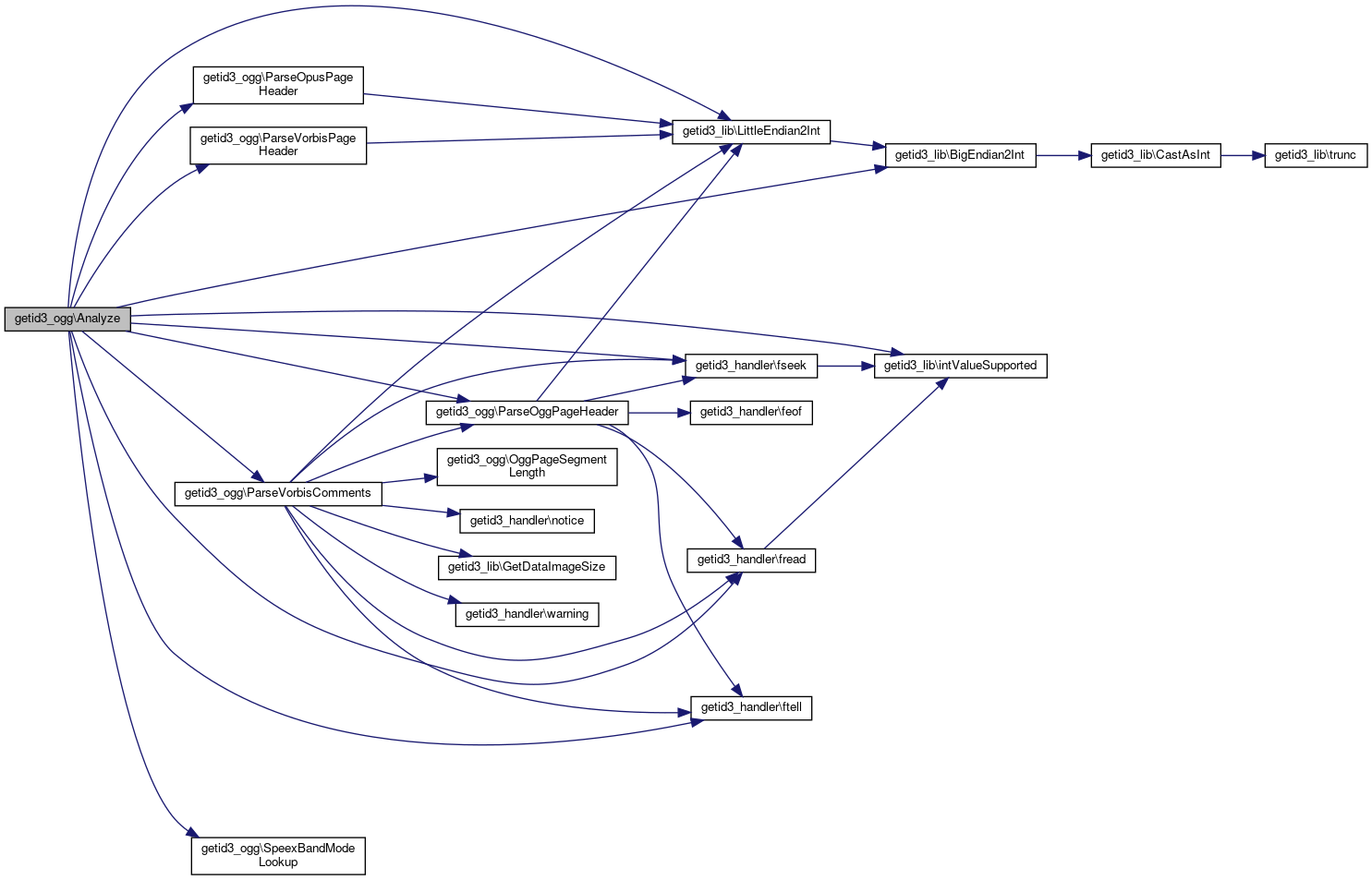

◆ Analyze()

getid3_ogg::Analyze ( )

Definition at line 22 of file module.audio.ogg.php.

References $info, getid3_lib\BigEndian2Int(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), getid3_lib\intValueSupported(), getid3_lib\LittleEndian2Int(), ParseOggPageHeader(), ParseOpusPageHeader(), ParseVorbisComments(), ParseVorbisPageHeader(), and SpeexBandModeLookup().

22  {
23  $info = &$this->getid3->info;
24
25  $info['fileformat'] = 'ogg';
26
27  // Warn about illegal tags - only vorbiscomments are allowed
28  if (isset($info['id3v2'])) {
29  $info['warning'][] = 'Illegal ID3v2 tag present.';
30  }
31  if (isset($info['id3v1'])) {
32  $info['warning'][] = 'Illegal ID3v1 tag present.';
33  }
34  if (isset($info['ape'])) {
35  $info['warning'][] = 'Illegal APE tag present.';
36  }
37
38
39  // Page 1 - Stream Header
40
41  $this->fseek($info['avdataoffset']);
42
43  $oggpageinfo = $this->ParseOggPageHeader();
44  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
45
46  if ($this->ftell() >= $this->getid3->fread_buffer_size()) {
47  $info['error'][] = 'Could not find start of Ogg page in the first '.$this->getid3->fread_buffer_size().' bytes (this might not be an Ogg-Vorbis file?)';
48  unset($info['fileformat']);
49  unset($info['ogg']);
50  return false;
51  }
52
53  $filedata = $this->fread($oggpageinfo['page_length']);
54  $filedataoffset = 0;
55
56  if (substr($filedata, 0, 4) == 'fLaC') {
57
58  $info['audio']['dataformat'] = 'flac';
59  $info['audio']['bitrate_mode'] = 'vbr';
60  $info['audio']['lossless'] = true;
61
62  } elseif (substr($filedata, 1, 6) == 'vorbis') {
63
64  $this->ParseVorbisPageHeader($filedata, $filedataoffset, $oggpageinfo);
65
66  } elseif (substr($filedata, 0, 8) == 'OpusHead') {
67
68  if( $this->ParseOpusPageHeader($filedata, $filedataoffset, $oggpageinfo) == false ) {
69  return false;
70  }
71
72  } elseif (substr($filedata, 0, 8) == 'Speex ') {
73
74  // http://www.speex.org/manual/node10.html
75
76  $info['audio']['dataformat'] = 'speex';
77  $info['mime_type'] = 'audio/speex';
78  $info['audio']['bitrate_mode'] = 'abr';
79  $info['audio']['lossless'] = false;
80
81  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_string'] = substr($filedata, $filedataoffset, 8); // hard-coded to 'Speex '
82  $filedataoffset += 8;
83  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version'] = substr($filedata, $filedataoffset, 20);
84  $filedataoffset += 20;
85  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version_id'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
86  $filedataoffset += 4;
87  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['header_size'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
88  $filedataoffset += 4;
89  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['rate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
90  $filedataoffset += 4;
91  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
92  $filedataoffset += 4;
93  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode_bitstream_version'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
94  $filedataoffset += 4;
95  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['nb_channels'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
96  $filedataoffset += 4;
97  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['bitrate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
98  $filedataoffset += 4;
99  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['framesize'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
100  $filedataoffset += 4;
101  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['vbr'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
102  $filedataoffset += 4;
103  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['frames_per_packet'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
104  $filedataoffset += 4;
105  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['extra_headers'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
106  $filedataoffset += 4;
107  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['reserved1'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
108  $filedataoffset += 4;
109  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['reserved2'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
110  $filedataoffset += 4;
111
112  $info['speex']['speex_version'] = trim($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version']);
113  $info['speex']['sample_rate'] = $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['rate'];
114  $info['speex']['channels'] = $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['nb_channels'];
115  $info['speex']['vbr'] = (bool) $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['vbr'];
116  $info['speex']['band_type'] = $this->SpeexBandModeLookup($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode']);
117
118  $info['audio']['sample_rate'] = $info['speex']['sample_rate'];
119  $info['audio']['channels'] = $info['speex']['channels'];
120  if ($info['speex']['vbr']) {
121  $info['audio']['bitrate_mode'] = 'vbr';
122  }
123
124  } elseif (substr($filedata, 0, 7) == "\x80".'theora') {
125
126  // http://www.theora.org/doc/Theora.pdf (section 6.2)
127
128  $info['ogg']['pageheader']['theora']['theora_magic'] = substr($filedata, $filedataoffset, 7); // hard-coded to "\x80.'theora'
129  $filedataoffset += 7;
130  $info['ogg']['pageheader']['theora']['version_major'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
131  $filedataoffset += 1;
132  $info['ogg']['pageheader']['theora']['version_minor'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
133  $filedataoffset += 1;
134  $info['ogg']['pageheader']['theora']['version_revision'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
135  $filedataoffset += 1;
136  $info['ogg']['pageheader']['theora']['frame_width_macroblocks'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 2));
137  $filedataoffset += 2;
138  $info['ogg']['pageheader']['theora']['frame_height_macroblocks'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 2));
139  $filedataoffset += 2;
140  $info['ogg']['pageheader']['theora']['resolution_x'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 3));
141  $filedataoffset += 3;
142  $info['ogg']['pageheader']['theora']['resolution_y'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 3));
143  $filedataoffset += 3;
144  $info['ogg']['pageheader']['theora']['picture_offset_x'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
145  $filedataoffset += 1;
146  $info['ogg']['pageheader']['theora']['picture_offset_y'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
147  $filedataoffset += 1;
148  $info['ogg']['pageheader']['theora']['frame_rate_numerator'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 4));
149  $filedataoffset += 4;
150  $info['ogg']['pageheader']['theora']['frame_rate_denominator'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 4));
151  $filedataoffset += 4;
152  $info['ogg']['pageheader']['theora']['pixel_aspect_numerator'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 3));
153  $filedataoffset += 3;
154  $info['ogg']['pageheader']['theora']['pixel_aspect_denominator'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 3));
155  $filedataoffset += 3;
156  $info['ogg']['pageheader']['theora']['color_space_id'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 1));
157  $filedataoffset += 1;
158  $info['ogg']['pageheader']['theora']['nominal_bitrate'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 3));
159  $filedataoffset += 3;
160  $info['ogg']['pageheader']['theora']['flags'] = getid3_lib::BigEndian2Int(substr($filedata, $filedataoffset, 2));
161  $filedataoffset += 2;
162
163  $info['ogg']['pageheader']['theora']['quality'] = ($info['ogg']['pageheader']['theora']['flags'] & 0xFC00) >> 10;
164  $info['ogg']['pageheader']['theora']['kfg_shift'] = ($info['ogg']['pageheader']['theora']['flags'] & 0x03E0) >> 5;
165  $info['ogg']['pageheader']['theora']['pixel_format_id'] = ($info['ogg']['pageheader']['theora']['flags'] & 0x0018) >> 3;
166  $info['ogg']['pageheader']['theora']['reserved'] = ($info['ogg']['pageheader']['theora']['flags'] & 0x0007) >> 0; // should be 0
167  $info['ogg']['pageheader']['theora']['color_space'] = self::TheoraColorSpace($info['ogg']['pageheader']['theora']['color_space_id']);
168  $info['ogg']['pageheader']['theora']['pixel_format'] = self::TheoraPixelFormat($info['ogg']['pageheader']['theora']['pixel_format_id']);
169
170  $info['video']['dataformat'] = 'theora';
171  $info['mime_type'] = 'video/ogg';
172  //$info['audio']['bitrate_mode'] = 'abr';
173  //$info['audio']['lossless'] = false;
174  $info['video']['resolution_x'] = $info['ogg']['pageheader']['theora']['resolution_x'];
175  $info['video']['resolution_y'] = $info['ogg']['pageheader']['theora']['resolution_y'];
176  if ($info['ogg']['pageheader']['theora']['frame_rate_denominator'] > 0) {
177  $info['video']['frame_rate'] = (float) $info['ogg']['pageheader']['theora']['frame_rate_numerator'] / $info['ogg']['pageheader']['theora']['frame_rate_denominator'];
178  }
179  if ($info['ogg']['pageheader']['theora']['pixel_aspect_denominator'] > 0) {
180  $info['video']['pixel_aspect_ratio'] = (float) $info['ogg']['pageheader']['theora']['pixel_aspect_numerator'] / $info['ogg']['pageheader']['theora']['pixel_aspect_denominator'];
181  }
182 $info['warning'][] = 'Ogg Theora (v3) not fully supported in this version of getID3 ['.$this->getid3->version().'] -- bitrate, playtime and all audio data are currently unavailable';
183
184
185  } elseif (substr($filedata, 0, 8) == "fishead\x00") {
186
187  // Ogg Skeleton version 3.0 Format Specification
188  // http://xiph.org/ogg/doc/skeleton.html
189  $filedataoffset += 8;
190  $info['ogg']['skeleton']['fishead']['raw']['version_major'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 2));
191  $filedataoffset += 2;
192  $info['ogg']['skeleton']['fishead']['raw']['version_minor'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 2));
193  $filedataoffset += 2;
194  $info['ogg']['skeleton']['fishead']['raw']['presentationtime_numerator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
195  $filedataoffset += 8;
196  $info['ogg']['skeleton']['fishead']['raw']['presentationtime_denominator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
197  $filedataoffset += 8;
198  $info['ogg']['skeleton']['fishead']['raw']['basetime_numerator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
199  $filedataoffset += 8;
200  $info['ogg']['skeleton']['fishead']['raw']['basetime_denominator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
201  $filedataoffset += 8;
202  $info['ogg']['skeleton']['fishead']['raw']['utc'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 20));
203  $filedataoffset += 20;
204
205  $info['ogg']['skeleton']['fishead']['version'] = $info['ogg']['skeleton']['fishead']['raw']['version_major'].'.'.$info['ogg']['skeleton']['fishead']['raw']['version_minor'];
206  $info['ogg']['skeleton']['fishead']['presentationtime'] = $info['ogg']['skeleton']['fishead']['raw']['presentationtime_numerator'] / $info['ogg']['skeleton']['fishead']['raw']['presentationtime_denominator'];
207  $info['ogg']['skeleton']['fishead']['basetime'] = $info['ogg']['skeleton']['fishead']['raw']['basetime_numerator'] / $info['ogg']['skeleton']['fishead']['raw']['basetime_denominator'];
208  $info['ogg']['skeleton']['fishead']['utc'] = $info['ogg']['skeleton']['fishead']['raw']['utc'];
209
210
211  $counter = 0;
212  do {
213  $oggpageinfo = $this->ParseOggPageHeader();
214  $info['ogg']['pageheader'][$oggpageinfo['page_seqno'].'.'.$counter++] = $oggpageinfo;
215  $filedata = $this->fread($oggpageinfo['page_length']);
216  $this->fseek($oggpageinfo['page_end_offset']);
217
218  if (substr($filedata, 0, 8) == "fisbone\x00") {
219
220  $filedataoffset = 8;
221  $info['ogg']['skeleton']['fisbone']['raw']['message_header_offset'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
222  $filedataoffset += 4;
223  $info['ogg']['skeleton']['fisbone']['raw']['serial_number'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
224  $filedataoffset += 4;
225  $info['ogg']['skeleton']['fisbone']['raw']['number_header_packets'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
226  $filedataoffset += 4;
227  $info['ogg']['skeleton']['fisbone']['raw']['granulerate_numerator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
228  $filedataoffset += 8;
229  $info['ogg']['skeleton']['fisbone']['raw']['granulerate_denominator'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
230  $filedataoffset += 8;
231  $info['ogg']['skeleton']['fisbone']['raw']['basegranule'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
232  $filedataoffset += 8;
233  $info['ogg']['skeleton']['fisbone']['raw']['preroll'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
234  $filedataoffset += 4;
235  $info['ogg']['skeleton']['fisbone']['raw']['granuleshift'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
236  $filedataoffset += 1;
237  $info['ogg']['skeleton']['fisbone']['raw']['padding'] = substr($filedata, $filedataoffset, 3);
238  $filedataoffset += 3;
239
240  } elseif (substr($filedata, 1, 6) == 'theora') {
241
242  $info['video']['dataformat'] = 'theora1';
243  $info['error'][] = 'Ogg Theora (v1) not correctly handled in this version of getID3 ['.$this->getid3->version().']';
244  //break;
245
246  } elseif (substr($filedata, 1, 6) == 'vorbis') {
247
248  $this->ParseVorbisPageHeader($filedata, $filedataoffset, $oggpageinfo);
249
250  } else {
251  $info['error'][] = 'unexpected';
252  //break;
253  }
254  //} while ($oggpageinfo['page_seqno'] == 0);
255  } while (($oggpageinfo['page_seqno'] == 0) && (substr($filedata, 0, 8) != "fisbone\x00"));
256
257  $this->fseek($oggpageinfo['page_start_offset']);
258
259  $info['error'][] = 'Ogg Skeleton not correctly handled in this version of getID3 ['.$this->getid3->version().']';
260  //return false;
261
262  } else {
263
264  $info['error'][] = 'Expecting either "Speex ", "OpusHead" or "vorbis" identifier strings, found "'.substr($filedata, 0, 8).'"';
265  unset($info['ogg']);
266  unset($info['mime_type']);
267  return false;
268
269  }
270
271  // Page 2 - Comment Header
272  $oggpageinfo = $this->ParseOggPageHeader();
273  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
274
275  switch ($info['audio']['dataformat']) {
276  case 'vorbis':
277  $filedata = $this->fread($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
278  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['packet_type'] = getid3_lib::LittleEndian2Int(substr($filedata, 0, 1));
279  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['stream_type'] = substr($filedata, 1, 6); // hard-coded to 'vorbis'
280
281  $this->ParseVorbisComments();
282  break;
283
284  case 'flac':
285  $flac = new getid3_flac($this->getid3);
286  if (!$flac->parseMETAdata()) {
287  $info['error'][] = 'Failed to parse FLAC headers';
288  return false;
289  }
290  unset($flac);
291  break;
292
293  case 'speex':
294  $this->fseek($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length'], SEEK_CUR);
295  $this->ParseVorbisComments();
296  break;
297
298  case 'opus':
299  $filedata = $this->fread($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
300  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['stream_type'] = substr($filedata, 0, 8); // hard-coded to 'OpusTags'
301  if(substr($filedata, 0, 8) != 'OpusTags') {
302  $info['error'][] = 'Expected "OpusTags" as header but got "'.substr($filedata, 0, 8).'"';
303  return false;
304  }
305
306  $this->ParseVorbisComments();
307  break;
308
309  }
310
311  // Last Page - Number of Samples
312  if (!getid3_lib::intValueSupported($info['avdataend'])) {
313
314  $info['warning'][] = 'Unable to parse Ogg end chunk file (PHP does not support file operations beyond '.round(PHP_INT_MAX / 1073741824).'GB)';
315
316  } else {
317
318  $this->fseek(max($info['avdataend'] - $this->getid3->fread_buffer_size(), 0));
319  $LastChunkOfOgg = strrev($this->fread($this->getid3->fread_buffer_size()));
320  if ($LastOggSpostion = strpos($LastChunkOfOgg, 'SggO')) {
321  $this->fseek($info['avdataend'] - ($LastOggSpostion + strlen('SggO')));
322  $info['avdataend'] = $this->ftell();
323  $info['ogg']['pageheader']['eos'] = $this->ParseOggPageHeader();
324  $info['ogg']['samples'] = $info['ogg']['pageheader']['eos']['pcm_abs_position'];
325  if ($info['ogg']['samples'] == 0) {
326  $info['error'][] = 'Corrupt Ogg file: eos.number of samples == zero';
327  return false;
328  }
329  if (!empty($info['audio']['sample_rate'])) {
330  $info['ogg']['bitrate_average'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / ($info['ogg']['samples'] / $info['audio']['sample_rate']);
331  }
332  }
333
334  }
335
336  if (!empty($info['ogg']['bitrate_average'])) {
337  $info['audio']['bitrate'] = $info['ogg']['bitrate_average'];
338  } elseif (!empty($info['ogg']['bitrate_nominal'])) {
339  $info['audio']['bitrate'] = $info['ogg']['bitrate_nominal'];
340  } elseif (!empty($info['ogg']['bitrate_min']) && !empty($info['ogg']['bitrate_max'])) {
341  $info['audio']['bitrate'] = ($info['ogg']['bitrate_min'] + $info['ogg']['bitrate_max']) / 2;
342  }
343  if (isset($info['audio']['bitrate']) && !isset($info['playtime_seconds'])) {
344  if ($info['audio']['bitrate'] == 0) {
345  $info['error'][] = 'Corrupt Ogg file: bitrate_audio == zero';
346  return false;
347  }
348  $info['playtime_seconds'] = (float) ((($info['avdataend'] - $info['avdataoffset']) * 8) / $info['audio']['bitrate']);
349  }
350
351  if (isset($info['ogg']['vendor'])) {
352  $info['audio']['encoder'] = preg_replace('/^Encoded with /', '', $info['ogg']['vendor']);
353
354  // Vorbis only
355  if ($info['audio']['dataformat'] == 'vorbis') {
356
357  // Vorbis 1.0 starts with Xiph.Org
358  if (preg_match('/^Xiph.Org/', $info['audio']['encoder'])) {
359
360  if ($info['audio']['bitrate_mode'] == 'abr') {
361
362  // Set -b 128 on abr files
363  $info['audio']['encoder_options'] = '-b '.round($info['ogg']['bitrate_nominal'] / 1000);
364
365  } elseif (($info['audio']['bitrate_mode'] == 'vbr') && ($info['audio']['channels'] == 2) && ($info['audio']['sample_rate'] >= 44100) && ($info['audio']['sample_rate'] <= 48000)) {
366  // Set -q N on vbr files
367  $info['audio']['encoder_options'] = '-q '.$this->get_quality_from_nominal_bitrate($info['ogg']['bitrate_nominal']);
368
369  }
370  }
371
372  if (empty($info['audio']['encoder_options']) && !empty($info['ogg']['bitrate_nominal'])) {
373  $info['audio']['encoder_options'] = 'Nominal bitrate: '.intval(round($info['ogg']['bitrate_nominal'] / 1000)).'kbps';
374  }
375  }
376  }
377
378  return true;
379  }
getid3_ogg\ParseOpusPageHeader
ParseOpusPageHeader(&$filedata, &$filedataoffset, &$oggpageinfo)
Definition: module.audio.ogg.php:430
getid3_lib\intValueSupported
static intValueSupported($num)
Definition: getid3.lib.php:80
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
$info
$info
Definition: example_052.php:80
getid3_ogg\ParseVorbisComments
ParseVorbisComments()
Definition: module.audio.ogg.php:532
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\BigEndian2Int
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
getid3_ogg\ParseVorbisPageHeader
ParseVorbisPageHeader(&$filedata, &$filedataoffset, &$oggpageinfo)
Definition: module.audio.ogg.php:381
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
getid3_ogg\ParseOggPageHeader
ParseOggPageHeader()
Definition: module.audio.ogg.php:480
getid3_flac
http://flac.sourceforge.net/format.html
Definition: module.audio.flac.php:19
getid3_ogg\SpeexBandModeLookup
SpeexBandModeLookup($mode)
Definition: module.audio.ogg.php:493
+ Here is the call graph for this function:

◆ get_quality_from_nominal_bitrate() [1/2]

getid3_ogg::get_quality_from_nominal_bitrate (   $nominal_bitrate)

Definition at line 518 of file module.audio.ogg.php.

518  {
519
520  // decrease precision
521  $nominal_bitrate = $nominal_bitrate / 1000;
522
523  if ($nominal_bitrate < 128) {
524  // q-1 to q4
525  $qval = ($nominal_bitrate - 64) / 16;
526  } elseif ($nominal_bitrate < 256) {
527  // q4 to q8
528  $qval = $nominal_bitrate / 32;
529  } elseif ($nominal_bitrate < 320) {
530  // q8 to q9
531  $qval = ($nominal_bitrate + 256) / 64;
532  } else {
533  // q9 to q10
534  $qval = ($nominal_bitrate + 1300) / 180;
535  }
536  //return $qval; // 5.031324
537  //return intval($qval); // 5
538  return round($qval, 1); // 5 or 4.9
539  }

◆ get_quality_from_nominal_bitrate() [2/2]

static getid3_ogg::get_quality_from_nominal_bitrate (   $nominal_bitrate)
static

Definition at line 793 of file module.audio.ogg.php.

793  {
794
795  // decrease precision
796  $nominal_bitrate = $nominal_bitrate / 1000;
797
798  if ($nominal_bitrate < 128) {
799  // q-1 to q4
800  $qval = ($nominal_bitrate - 64) / 16;
801  } elseif ($nominal_bitrate < 256) {
802  // q4 to q8
803  $qval = $nominal_bitrate / 32;
804  } elseif ($nominal_bitrate < 320) {
805  // q8 to q9
806  $qval = ($nominal_bitrate + 256) / 64;
807  } else {
808  // q9 to q10
809  $qval = ($nominal_bitrate + 1300) / 180;
810  }
811  //return $qval; // 5.031324
812  //return intval($qval); // 5
813  return round($qval, 1); // 5 or 4.9
814  }

◆ getid3_ogg()

getid3_ogg::getid3_ogg ( &  $fd,
&  $ThisFileInfo
)

Definition at line 21 of file module.audio.ogg.php.

References getid3_flac\FLACparseMETAdata(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GETID3_FREAD_BUFFER_SIZE, getid3_lib\LittleEndian2Int(), ParseOggPageHeader(), ParseVorbisCommentsFilepointer(), and SpeexBandModeLookup().

21  {
22
23  $ThisFileInfo['fileformat'] = 'ogg';
24
25  // Warn about illegal tags - only vorbiscomments are allowed
26  if (isset($ThisFileInfo['id3v2'])) {
27  $ThisFileInfo['warning'][] = 'Illegal ID3v2 tag present.';
28  }
29  if (isset($ThisFileInfo['id3v1'])) {
30  $ThisFileInfo['warning'][] = 'Illegal ID3v1 tag present.';
31  }
32  if (isset($ThisFileInfo['ape'])) {
33  $ThisFileInfo['warning'][] = 'Illegal APE tag present.';
34  }
35
36
37  // Page 1 - Stream Header
38
39  fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
40
41  $oggpageinfo = getid3_ogg::ParseOggPageHeader($fd);
42  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
43
44  if (ftell($fd) >= GETID3_FREAD_BUFFER_SIZE) {
45  $ThisFileInfo['error'][] = 'Could not find start of Ogg page in the first '.GETID3_FREAD_BUFFER_SIZE.' bytes (this might not be an Ogg-Vorbis file?)';
46  unset($ThisFileInfo['fileformat']);
47  unset($ThisFileInfo['ogg']);
48  return false;
49  }
50
51  $filedata = fread($fd, $oggpageinfo['page_length']);
52  $filedataoffset = 0;
53
54  if (substr($filedata, 0, 4) == 'fLaC') {
55
56  $ThisFileInfo['audio']['dataformat'] = 'flac';
57  $ThisFileInfo['audio']['bitrate_mode'] = 'vbr';
58  $ThisFileInfo['audio']['lossless'] = true;
59
60  } elseif (substr($filedata, 1, 6) == 'vorbis') {
61
62  $ThisFileInfo['audio']['dataformat'] = 'vorbis';
63  $ThisFileInfo['audio']['lossless'] = false;
64
65  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['packet_type'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
66  $filedataoffset += 1;
67  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['stream_type'] = substr($filedata, $filedataoffset, 6); // hard-coded to 'vorbis'
68  $filedataoffset += 6;
69  $ThisFileInfo['ogg']['bitstreamversion'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
70  $filedataoffset += 4;
71  $ThisFileInfo['ogg']['numberofchannels'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
72  $filedataoffset += 1;
73  $ThisFileInfo['audio']['channels'] = $ThisFileInfo['ogg']['numberofchannels'];
74  $ThisFileInfo['ogg']['samplerate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
75  $filedataoffset += 4;
76  if ($ThisFileInfo['ogg']['samplerate'] == 0) {
77  $ThisFileInfo['error'][] = 'Corrupt Ogg file: sample rate == zero';
78  return false;
79  }
80  $ThisFileInfo['audio']['sample_rate'] = $ThisFileInfo['ogg']['samplerate'];
81  $ThisFileInfo['ogg']['samples'] = 0; // filled in later
82  $ThisFileInfo['ogg']['bitrate_average'] = 0; // filled in later
83  $ThisFileInfo['ogg']['bitrate_max'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
84  $filedataoffset += 4;
85  $ThisFileInfo['ogg']['bitrate_nominal'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
86  $filedataoffset += 4;
87  $ThisFileInfo['ogg']['bitrate_min'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
88  $filedataoffset += 4;
89  $ThisFileInfo['ogg']['blocksize_small'] = pow(2, getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)) & 0x0F);
90  $ThisFileInfo['ogg']['blocksize_large'] = pow(2, (getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)) & 0xF0) >> 4);
91  $ThisFileInfo['ogg']['stop_bit'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)); // must be 1, marks end of packet
92
93  $ThisFileInfo['audio']['bitrate_mode'] = 'vbr'; // overridden if actually abr
94  if ($ThisFileInfo['ogg']['bitrate_max'] == 0xFFFFFFFF) {
95  unset($ThisFileInfo['ogg']['bitrate_max']);
96  $ThisFileInfo['audio']['bitrate_mode'] = 'abr';
97  }
98  if ($ThisFileInfo['ogg']['bitrate_nominal'] == 0xFFFFFFFF) {
99  unset($ThisFileInfo['ogg']['bitrate_nominal']);
100  }
101  if ($ThisFileInfo['ogg']['bitrate_min'] == 0xFFFFFFFF) {
102  unset($ThisFileInfo['ogg']['bitrate_min']);
103  $ThisFileInfo['audio']['bitrate_mode'] = 'abr';
104  }
105
106  } elseif (substr($filedata, 0, 8) == 'Speex ') {
107
108  // http://www.speex.org/manual/node10.html
109
110  $ThisFileInfo['audio']['dataformat'] = 'speex';
111  $ThisFileInfo['mime_type'] = 'audio/speex';
112  $ThisFileInfo['audio']['bitrate_mode'] = 'abr';
113  $ThisFileInfo['audio']['lossless'] = false;
114
115  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_string'] = substr($filedata, $filedataoffset, 8); // hard-coded to 'Speex '
116  $filedataoffset += 8;
117  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version'] = substr($filedata, $filedataoffset, 20);
118  $filedataoffset += 20;
119  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version_id'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
120  $filedataoffset += 4;
121  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['header_size'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
122  $filedataoffset += 4;
123  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['rate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
124  $filedataoffset += 4;
125  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
126  $filedataoffset += 4;
127  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode_bitstream_version'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
128  $filedataoffset += 4;
129  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['nb_channels'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
130  $filedataoffset += 4;
131  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['bitrate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
132  $filedataoffset += 4;
133  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['framesize'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
134  $filedataoffset += 4;
135  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['vbr'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
136  $filedataoffset += 4;
137  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['frames_per_packet'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
138  $filedataoffset += 4;
139  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['extra_headers'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
140  $filedataoffset += 4;
141  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['reserved1'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
142  $filedataoffset += 4;
143  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['reserved2'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
144  $filedataoffset += 4;
145
146  $ThisFileInfo['speex']['speex_version'] = trim($ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['speex_version']);
147  $ThisFileInfo['speex']['sample_rate'] = $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['rate'];
148  $ThisFileInfo['speex']['channels'] = $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['nb_channels'];
149  $ThisFileInfo['speex']['vbr'] = (bool) $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['vbr'];
150  $ThisFileInfo['speex']['band_type'] = getid3_ogg::SpeexBandModeLookup($ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['mode']);
151
152  $ThisFileInfo['audio']['sample_rate'] = $ThisFileInfo['speex']['sample_rate'];
153  $ThisFileInfo['audio']['channels'] = $ThisFileInfo['speex']['channels'];
154  if ($ThisFileInfo['speex']['vbr']) {
155  $ThisFileInfo['audio']['bitrate_mode'] = 'vbr';
156  }
157
158  } else {
159
160  $ThisFileInfo['error'][] = 'Expecting either "Speex " or "vorbis" identifier strings, found neither';
161  unset($ThisFileInfo['ogg']);
162  unset($ThisFileInfo['mime_type']);
163  return false;
164
165  }
166
167
168  // Page 2 - Comment Header
169
170  $oggpageinfo = getid3_ogg::ParseOggPageHeader($fd);
171  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
172
173  switch ($ThisFileInfo['audio']['dataformat']) {
174
175  case 'vorbis':
176  $filedata = fread($fd, $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
177  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['packet_type'] = getid3_lib::LittleEndian2Int(substr($filedata, 0, 1));
178  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['stream_type'] = substr($filedata, 1, 6); // hard-coded to 'vorbis'
179
180  getid3_ogg::ParseVorbisCommentsFilepointer($fd, $ThisFileInfo);
181  break;
182
183  case 'flac':
184  if (!getid3_flac::FLACparseMETAdata($fd, $ThisFileInfo)) {
185  $ThisFileInfo['error'][] = 'Failed to parse FLAC headers';
186  return false;
187  }
188  break;
189
190  case 'speex':
191  fseek($fd, $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length'], SEEK_CUR);
192  getid3_ogg::ParseVorbisCommentsFilepointer($fd, $ThisFileInfo);
193  break;
194
195  }
196
197
198
199  // Last Page - Number of Samples
200
201  fseek($fd, max($ThisFileInfo['avdataend'] - GETID3_FREAD_BUFFER_SIZE, 0), SEEK_SET);
202  $LastChunkOfOgg = strrev(fread($fd, GETID3_FREAD_BUFFER_SIZE));
203  if ($LastOggSpostion = strpos($LastChunkOfOgg, 'SggO')) {
204  fseek($fd, $ThisFileInfo['avdataend'] - ($LastOggSpostion + strlen('SggO')), SEEK_SET);
205  $ThisFileInfo['avdataend'] = ftell($fd);
206  $ThisFileInfo['ogg']['pageheader']['eos'] = getid3_ogg::ParseOggPageHeader($fd);
207  $ThisFileInfo['ogg']['samples'] = $ThisFileInfo['ogg']['pageheader']['eos']['pcm_abs_position'];
208  if ($ThisFileInfo['ogg']['samples'] == 0) {
209  $ThisFileInfo['error'][] = 'Corrupt Ogg file: eos.number of samples == zero';
210  return false;
211  }
212  $ThisFileInfo['ogg']['bitrate_average'] = (($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / ($ThisFileInfo['ogg']['samples'] / $ThisFileInfo['audio']['sample_rate']);
213  }
214
215  if (!empty($ThisFileInfo['ogg']['bitrate_average'])) {
216  $ThisFileInfo['audio']['bitrate'] = $ThisFileInfo['ogg']['bitrate_average'];
217  } elseif (!empty($ThisFileInfo['ogg']['bitrate_nominal'])) {
218  $ThisFileInfo['audio']['bitrate'] = $ThisFileInfo['ogg']['bitrate_nominal'];
219  } elseif (!empty($ThisFileInfo['ogg']['bitrate_min']) && !empty($ThisFileInfo['ogg']['bitrate_max'])) {
220  $ThisFileInfo['audio']['bitrate'] = ($ThisFileInfo['ogg']['bitrate_min'] + $ThisFileInfo['ogg']['bitrate_max']) / 2;
221  }
222  if (isset($ThisFileInfo['audio']['bitrate']) && !isset($ThisFileInfo['playtime_seconds'])) {
223  if ($ThisFileInfo['audio']['bitrate'] == 0) {
224  $ThisFileInfo['error'][] = 'Corrupt Ogg file: bitrate_audio == zero';
225  return false;
226  }
227  $ThisFileInfo['playtime_seconds'] = (float) ((($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / $ThisFileInfo['audio']['bitrate']);
228  }
229
230  if (isset($ThisFileInfo['ogg']['vendor'])) {
231  $ThisFileInfo['audio']['encoder'] = preg_replace('/^Encoded with /', '', $ThisFileInfo['ogg']['vendor']);
232
233  // Vorbis only
234  if ($ThisFileInfo['audio']['dataformat'] == 'vorbis') {
235
236  // Vorbis 1.0 starts with Xiph.Org
237  if (preg_match('/^Xiph.Org/', $ThisFileInfo['audio']['encoder'])) {
238
239  if ($ThisFileInfo['audio']['bitrate_mode'] == 'abr') {
240
241  // Set -b 128 on abr files
242  $ThisFileInfo['audio']['encoder_options'] = '-b '.round($ThisFileInfo['ogg']['bitrate_nominal'] / 1000);
243
244  } elseif (($ThisFileInfo['audio']['bitrate_mode'] == 'vbr') && ($ThisFileInfo['audio']['channels'] == 2) && ($ThisFileInfo['audio']['sample_rate'] >= 44100) && ($ThisFileInfo['audio']['sample_rate'] <= 48000)) {
245  // Set -q N on vbr files
246  $ThisFileInfo['audio']['encoder_options'] = '-q '.$this->get_quality_from_nominal_bitrate($ThisFileInfo['ogg']['bitrate_nominal']);
247
248  }
249  }
250
251  if (empty($ThisFileInfo['audio']['encoder_options']) && !empty($ThisFileInfo['ogg']['bitrate_nominal'])) {
252  $ThisFileInfo['audio']['encoder_options'] = 'Nominal bitrate: '.intval(round($ThisFileInfo['ogg']['bitrate_nominal'] / 1000)).'kbps';
253  }
254  }
255  }
256
257  return true;
258  }
getid3_ogg\ParseVorbisCommentsFilepointer
ParseVorbisCommentsFilepointer(&$fd, &$ThisFileInfo)
Definition: module.audio.ogg.php:313
GETID3_FREAD_BUFFER_SIZE
const GETID3_FREAD_BUFFER_SIZE
Definition: getid3.php:14
getid3_flac\FLACparseMETAdata
FLACparseMETAdata(&$fd, &$ThisFileInfo)
Definition: module.audio.flac.php:40
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
getid3_ogg\ParseOggPageHeader
ParseOggPageHeader()
Definition: module.audio.ogg.php:480
getid3_ogg\SpeexBandModeLookup
SpeexBandModeLookup($mode)
Definition: module.audio.ogg.php:493
+ Here is the call graph for this function:

◆ OggPageSegmentLength() [1/2]

getid3_ogg::OggPageSegmentLength (   $OggInfoArray,
  $SegmentNumber = 1
)

Definition at line 504 of file module.audio.ogg.php.

Referenced by ParseVorbisComments(), and ParseVorbisCommentsFilepointer().

504  {
505  for ($i = 0; $i < $SegmentNumber; $i++) {
506  $segmentlength = 0;
507  foreach ($OggInfoArray['segment_table'] as $key => $value) {
508  $segmentlength += $value;
509  if ($value < 255) {
510  break;
511  }
512  }
513  }
514  return $segmentlength;
515  }

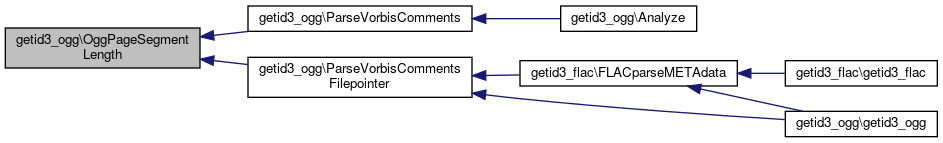

+ Here is the caller graph for this function:

◆ OggPageSegmentLength() [2/2]

static getid3_ogg::OggPageSegmentLength (   $OggInfoArray,
  $SegmentNumber = 1
)
static

Definition at line 779 of file module.audio.ogg.php.

779  {
780  for ($i = 0; $i < $SegmentNumber; $i++) {
781  $segmentlength = 0;
782  foreach ($OggInfoArray['segment_table'] as $key => $value) {
783  $segmentlength += $value;
784  if ($value < 255) {
785  break;
786  }
787  }
788  }
789  return $segmentlength;
790  }

◆ ParseOggPageHeader() [1/2]

getid3_ogg::ParseOggPageHeader ( &  $fd)

Definition at line 261 of file module.audio.ogg.php.

References getid3_handler\feof(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GETID3_FREAD_BUFFER_SIZE, and getid3_lib\LittleEndian2Int().

261  {
262  // http://xiph.org/ogg/vorbis/doc/framing.html
263  $oggheader['page_start_offset'] = ftell($fd); // where we started from in the file
264
265  $filedata = fread($fd, GETID3_FREAD_BUFFER_SIZE);
266  $filedataoffset = 0;
267  while ((substr($filedata, $filedataoffset++, 4) != 'OggS')) {
268  if ((ftell($fd) - $oggheader['page_start_offset']) >= GETID3_FREAD_BUFFER_SIZE) {
269  // should be found before here
270  return false;
271  }
272  if ((($filedataoffset + 28) > strlen($filedata)) || (strlen($filedata) < 28)) {
273  if (feof($fd) || (($filedata .= fread($fd, GETID3_FREAD_BUFFER_SIZE)) === false)) {
274  // get some more data, unless eof, in which case fail
275  return false;
276  }
277  }
278  }
279  $filedataoffset += strlen('OggS') - 1; // page, delimited by 'OggS'
280
281  $oggheader['stream_structver'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
282  $filedataoffset += 1;
283  $oggheader['flags_raw'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
284  $filedataoffset += 1;
285  $oggheader['flags']['fresh'] = (bool) ($oggheader['flags_raw'] & 0x01); // fresh packet
286  $oggheader['flags']['bos'] = (bool) ($oggheader['flags_raw'] & 0x02); // first page of logical bitstream (bos)
287  $oggheader['flags']['eos'] = (bool) ($oggheader['flags_raw'] & 0x04); // last page of logical bitstream (eos)
288
289  $oggheader['pcm_abs_position'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
290  $filedataoffset += 8;
291  $oggheader['stream_serialno'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
292  $filedataoffset += 4;
293  $oggheader['page_seqno'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
294  $filedataoffset += 4;
295  $oggheader['page_checksum'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
296  $filedataoffset += 4;
297  $oggheader['page_segments'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
298  $filedataoffset += 1;
299  $oggheader['page_length'] = 0;
300  for ($i = 0; $i < $oggheader['page_segments']; $i++) {
301  $oggheader['segment_table'][$i] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
302  $filedataoffset += 1;
303  $oggheader['page_length'] += $oggheader['segment_table'][$i];
304  }
305  $oggheader['header_end_offset'] = $oggheader['page_start_offset'] + $filedataoffset;
306  $oggheader['page_end_offset'] = $oggheader['header_end_offset'] + $oggheader['page_length'];
307  fseek($fd, $oggheader['header_end_offset'], SEEK_SET);
308
309  return $oggheader;
310  }
GETID3_FREAD_BUFFER_SIZE
const GETID3_FREAD_BUFFER_SIZE
Definition: getid3.php:14
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\feof
feof()
Definition: getid3.php:1727
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678

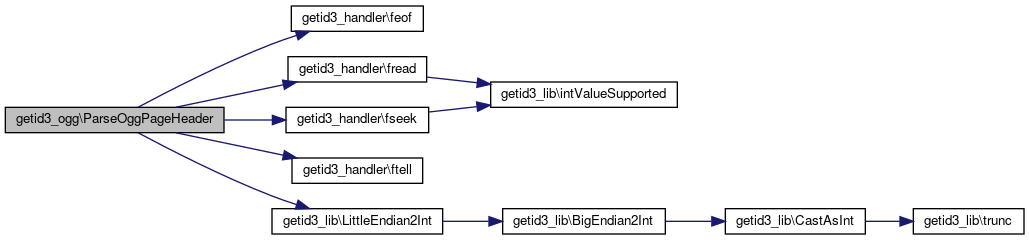

+ Here is the call graph for this function:

◆ ParseOggPageHeader() [2/2]

getid3_ogg::ParseOggPageHeader ( )

Definition at line 480 of file module.audio.ogg.php.

References getid3_handler\feof(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), and getid3_lib\LittleEndian2Int().

Referenced by Analyze(), getid3_ogg(), ParseVorbisComments(), and ParseVorbisCommentsFilepointer().

480  {
481  // http://xiph.org/ogg/vorbis/doc/framing.html
482  $oggheader['page_start_offset'] = $this->ftell(); // where we started from in the file
483
484  $filedata = $this->fread($this->getid3->fread_buffer_size());
485  $filedataoffset = 0;
486  while ((substr($filedata, $filedataoffset++, 4) != 'OggS')) {
487  if (($this->ftell() - $oggheader['page_start_offset']) >= $this->getid3->fread_buffer_size()) {
488  // should be found before here
489  return false;
490  }
491  if ((($filedataoffset + 28) > strlen($filedata)) || (strlen($filedata) < 28)) {
492  if ($this->feof() || (($filedata .= $this->fread($this->getid3->fread_buffer_size())) === false)) {
493  // get some more data, unless eof, in which case fail
494  return false;
495  }
496  }
497  }
498  $filedataoffset += strlen('OggS') - 1; // page, delimited by 'OggS'
499
500  $oggheader['stream_structver'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
501  $filedataoffset += 1;
502  $oggheader['flags_raw'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
503  $filedataoffset += 1;
504  $oggheader['flags']['fresh'] = (bool) ($oggheader['flags_raw'] & 0x01); // fresh packet
505  $oggheader['flags']['bos'] = (bool) ($oggheader['flags_raw'] & 0x02); // first page of logical bitstream (bos)
506  $oggheader['flags']['eos'] = (bool) ($oggheader['flags_raw'] & 0x04); // last page of logical bitstream (eos)
507
508  $oggheader['pcm_abs_position'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 8));
509  $filedataoffset += 8;
510  $oggheader['stream_serialno'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
511  $filedataoffset += 4;
512  $oggheader['page_seqno'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
513  $filedataoffset += 4;
514  $oggheader['page_checksum'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
515  $filedataoffset += 4;
516  $oggheader['page_segments'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
517  $filedataoffset += 1;
518  $oggheader['page_length'] = 0;
519  for ($i = 0; $i < $oggheader['page_segments']; $i++) {
520  $oggheader['segment_table'][$i] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
521  $filedataoffset += 1;
522  $oggheader['page_length'] += $oggheader['segment_table'][$i];
523  }
524  $oggheader['header_end_offset'] = $oggheader['page_start_offset'] + $filedataoffset;
525  $oggheader['page_end_offset'] = $oggheader['header_end_offset'] + $oggheader['page_length'];
526  $this->fseek($oggheader['header_end_offset']);
527
528  return $oggheader;
529  }
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\feof
feof()
Definition: getid3.php:1727
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
+ Here is the call graph for this function:

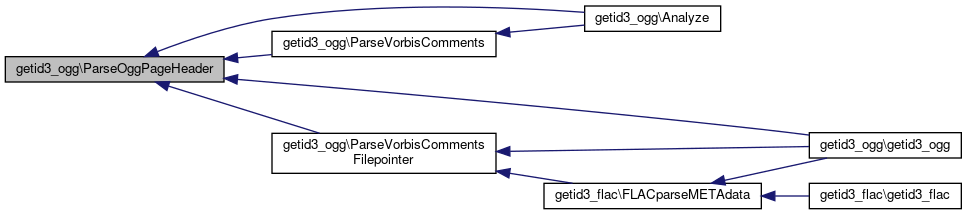

+ Here is the caller graph for this function:

◆ ParseOpusPageHeader()

getid3_ogg::ParseOpusPageHeader ( &  $filedata,
&  $filedataoffset,
&  $oggpageinfo
)
Todo:
find a usable way to detect abr (vbr that is padded to be abr)

Definition at line 430 of file module.audio.ogg.php.

References $info, and getid3_lib\LittleEndian2Int().

Referenced by Analyze().

430  {
431  $info = &$this->getid3->info;
432  $info['audio']['dataformat'] = 'opus';
433  $info['mime_type'] = 'audio/ogg; codecs=opus';
434
436  $info['audio']['bitrate_mode'] = 'vbr';
437
438  $info['audio']['lossless'] = false;
439
440  $info['ogg']['pageheader']['opus']['opus_magic'] = substr($filedata, $filedataoffset, 8); // hard-coded to 'OpusHead'
441  $filedataoffset += 8;
442  $info['ogg']['pageheader']['opus']['version'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
443  $filedataoffset += 1;
444
445  if ($info['ogg']['pageheader']['opus']['version'] < 1 || $info['ogg']['pageheader']['opus']['version'] > 15) {
446  $info['error'][] = 'Unknown opus version number (only accepting 1-15)';
447  return false;
448  }
449
450  $info['ogg']['pageheader']['opus']['out_channel_count'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
451  $filedataoffset += 1;
452
453  if ($info['ogg']['pageheader']['opus']['out_channel_count'] == 0) {
454  $info['error'][] = 'Invalid channel count in opus header (must not be zero)';
455  return false;
456  }
457
458  $info['ogg']['pageheader']['opus']['pre_skip'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 2));
459  $filedataoffset += 2;
460
461  $info['ogg']['pageheader']['opus']['sample_rate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
462  $filedataoffset += 4;
463
464  //$info['ogg']['pageheader']['opus']['output_gain'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 2));
465  //$filedataoffset += 2;
466
467  //$info['ogg']['pageheader']['opus']['channel_mapping_family'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
468  //$filedataoffset += 1;
469
470  $info['opus']['opus_version'] = $info['ogg']['pageheader']['opus']['version'];
471  $info['opus']['sample_rate'] = $info['ogg']['pageheader']['opus']['sample_rate'];
472  $info['opus']['out_channel_count'] = $info['ogg']['pageheader']['opus']['out_channel_count'];
473
474  $info['audio']['channels'] = $info['opus']['out_channel_count'];
475  $info['audio']['sample_rate'] = $info['opus']['sample_rate'];
476  return true;
477  }
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
$info
$info
Definition: example_052.php:80
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ParseVorbisComments()

getid3_ogg::ParseVorbisComments ( )
Todo:
use 'coverartmime' where available

Definition at line 532 of file module.audio.ogg.php.

References $data, getid3_handler\$getid3, $info, getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), getid3_lib\GetDataImageSize(), getid3_lib\LittleEndian2Int(), getid3_handler\notice(), OggPageSegmentLength(), ParseOggPageHeader(), and getid3_handler\warning().

Referenced by Analyze().

532  {
533  $info = &$this->getid3->info;
534
535  $OriginalOffset = $this->ftell();
536  $commentdataoffset = 0;
537  $VorbisCommentPage = 1;
538
539  switch ($info['audio']['dataformat']) {
540  case 'vorbis':
541  case 'speex':
542  case 'opus':
543  $CommentStartOffset = $info['ogg']['pageheader'][$VorbisCommentPage]['page_start_offset']; // Second Ogg page, after header block
544  $this->fseek($CommentStartOffset);
545  $commentdataoffset = 27 + $info['ogg']['pageheader'][$VorbisCommentPage]['page_segments'];
546  $commentdata = $this->fread(self::OggPageSegmentLength($info['ogg']['pageheader'][$VorbisCommentPage], 1) + $commentdataoffset);
547
548  if ($info['audio']['dataformat'] == 'vorbis') {
549  $commentdataoffset += (strlen('vorbis') + 1);
550  }
551  else if ($info['audio']['dataformat'] == 'opus') {
552  $commentdataoffset += strlen('OpusTags');
553  }
554
555  break;
556
557  case 'flac':
558  $CommentStartOffset = $info['flac']['VORBIS_COMMENT']['raw']['offset'] + 4;
559  $this->fseek($CommentStartOffset);
560  $commentdata = $this->fread($info['flac']['VORBIS_COMMENT']['raw']['block_length']);
561  break;
562
563  default:
564  return false;
565  break;
566  }
567
568  $VendorSize = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
569  $commentdataoffset += 4;
570
571  $info['ogg']['vendor'] = substr($commentdata, $commentdataoffset, $VendorSize);
572  $commentdataoffset += $VendorSize;
573
574  $CommentsCount = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
575  $commentdataoffset += 4;
576  $info['avdataoffset'] = $CommentStartOffset + $commentdataoffset;
577
578  $basicfields = array('TITLE', 'ARTIST', 'ALBUM', 'TRACKNUMBER', 'GENRE', 'DATE', 'DESCRIPTION', 'COMMENT');
579  $ThisFileInfo_ogg_comments_raw = &$info['ogg']['comments_raw'];
580  for ($i = 0; $i < $CommentsCount; $i++) {
581
582  if ($i >= 10000) {
583  // https://github.com/owncloud/music/issues/212#issuecomment-43082336
584  $info['warning'][] = 'Unexpectedly large number ('.$CommentsCount.') of Ogg comments - breaking after reading '.$i.' comments';
585  break;
586  }
587
588  $ThisFileInfo_ogg_comments_raw[$i]['dataoffset'] = $CommentStartOffset + $commentdataoffset;
589
590  if ($this->ftell() < ($ThisFileInfo_ogg_comments_raw[$i]['dataoffset'] + 4)) {
591  if ($oggpageinfo = $this->ParseOggPageHeader()) {
592  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
593
594  $VorbisCommentPage++;
595
596  // First, save what we haven't read yet
597  $AsYetUnusedData = substr($commentdata, $commentdataoffset);
598
599  // Then take that data off the end
600  $commentdata = substr($commentdata, 0, $commentdataoffset);
601
602  // Add [headerlength] bytes of dummy data for the Ogg Page Header, just to keep absolute offsets correct
603  $commentdata .= str_repeat("\x00", 27 + $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
604  $commentdataoffset += (27 + $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
605
606  // Finally, stick the unused data back on the end
607  $commentdata .= $AsYetUnusedData;
608
609  //$commentdata .= $this->fread($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
610  $commentdata .= $this->fread($this->OggPageSegmentLength($info['ogg']['pageheader'][$VorbisCommentPage], 1));
611  }
612
613  }
614  $ThisFileInfo_ogg_comments_raw[$i]['size'] = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
615
616  // replace avdataoffset with position just after the last vorbiscomment
617  $info['avdataoffset'] = $ThisFileInfo_ogg_comments_raw[$i]['dataoffset'] + $ThisFileInfo_ogg_comments_raw[$i]['size'] + 4;
618
619  $commentdataoffset += 4;
620  while ((strlen($commentdata) - $commentdataoffset) < $ThisFileInfo_ogg_comments_raw[$i]['size']) {
621  if (($ThisFileInfo_ogg_comments_raw[$i]['size'] > $info['avdataend']) || ($ThisFileInfo_ogg_comments_raw[$i]['size'] < 0)) {
622  $info['warning'][] = 'Invalid Ogg comment size (comment #'.$i.', claims to be '.number_format($ThisFileInfo_ogg_comments_raw[$i]['size']).' bytes) - aborting reading comments';
623  break 2;
624  }
625
626  $VorbisCommentPage++;
627
628  $oggpageinfo = $this->ParseOggPageHeader();
629  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
630
631  // First, save what we haven't read yet
632  $AsYetUnusedData = substr($commentdata, $commentdataoffset);
633
634  // Then take that data off the end
635  $commentdata = substr($commentdata, 0, $commentdataoffset);
636
637  // Add [headerlength] bytes of dummy data for the Ogg Page Header, just to keep absolute offsets correct
638  $commentdata .= str_repeat("\x00", 27 + $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
639  $commentdataoffset += (27 + $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
640
641  // Finally, stick the unused data back on the end
642  $commentdata .= $AsYetUnusedData;
643
644  //$commentdata .= $this->fread($info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
645  if (!isset($info['ogg']['pageheader'][$VorbisCommentPage])) {
646  $info['warning'][] = 'undefined Vorbis Comment page "'.$VorbisCommentPage.'" at offset '.$this->ftell();
647  break;
648  }
649  $readlength = self::OggPageSegmentLength($info['ogg']['pageheader'][$VorbisCommentPage], 1);
650  if ($readlength <= 0) {
651  $info['warning'][] = 'invalid length Vorbis Comment page "'.$VorbisCommentPage.'" at offset '.$this->ftell();
652  break;
653  }
654  $commentdata .= $this->fread($readlength);
655
656  //$filebaseoffset += $oggpageinfo['header_end_offset'] - $oggpageinfo['page_start_offset'];
657  }
658  $ThisFileInfo_ogg_comments_raw[$i]['offset'] = $commentdataoffset;
659  $commentstring = substr($commentdata, $commentdataoffset, $ThisFileInfo_ogg_comments_raw[$i]['size']);
660  $commentdataoffset += $ThisFileInfo_ogg_comments_raw[$i]['size'];
661
662  if (!$commentstring) {
663
664  // no comment?
665  $info['warning'][] = 'Blank Ogg comment ['.$i.']';
666
667  } elseif (strstr($commentstring, '=')) {
668
669  $commentexploded = explode('=', $commentstring, 2);
670  $ThisFileInfo_ogg_comments_raw[$i]['key'] = strtoupper($commentexploded[0]);
671  $ThisFileInfo_ogg_comments_raw[$i]['value'] = (isset($commentexploded[1]) ? $commentexploded[1] : '');
672
673  if ($ThisFileInfo_ogg_comments_raw[$i]['key'] == 'METADATA_BLOCK_PICTURE') {
674
675  // http://wiki.xiph.org/VorbisComment#METADATA_BLOCK_PICTURE
676  // The unencoded format is that of the FLAC picture block. The fields are stored in big endian order as in FLAC, picture data is stored according to the relevant standard.
677  // http://flac.sourceforge.net/format.html#metadata_block_picture
678  $flac = new getid3_flac($this->getid3);
679  $flac->setStringMode(base64_decode($ThisFileInfo_ogg_comments_raw[$i]['value']));
680  $flac->parsePICTURE();
681  $info['ogg']['comments']['picture'][] = $flac->getid3->info['flac']['PICTURE'][0];
682  unset($flac);
683
684  } elseif ($ThisFileInfo_ogg_comments_raw[$i]['key'] == 'COVERART') {
685
686  $data = base64_decode($ThisFileInfo_ogg_comments_raw[$i]['value']);
687  $this->notice('Found deprecated COVERART tag, it should be replaced in honor of METADATA_BLOCK_PICTURE structure');
689  $imageinfo = getid3_lib::GetDataImageSize($data);
690  if ($imageinfo === false || !isset($imageinfo['mime'])) {
691  $this->warning('COVERART vorbiscomment tag contains invalid image');
692  continue;
693  }
694
695  $ogg = new self($this->getid3);
696  $ogg->setStringMode($data);
697  $info['ogg']['comments']['picture'][] = array(
698  'image_mime' => $imageinfo['mime'],
699  'datalength' => strlen($data),
700  'picturetype' => 'cover art',
701  'image_height' => $imageinfo['height'],
702  'image_width' => $imageinfo['width'],
703  'data' => $ogg->saveAttachment('coverart', 0, strlen($data), $imageinfo['mime']),
704  );
705  unset($ogg);
706
707  } else {
708
709  $info['ogg']['comments'][strtolower($ThisFileInfo_ogg_comments_raw[$i]['key'])][] = $ThisFileInfo_ogg_comments_raw[$i]['value'];
710
711  }
712
713  } else {
714
715  $info['warning'][] = '[known problem with CDex >= v1.40, < v1.50b7] Invalid Ogg comment name/value pair ['.$i.']: '.$commentstring;
716
717  }
718  unset($ThisFileInfo_ogg_comments_raw[$i]);
719  }
720  unset($ThisFileInfo_ogg_comments_raw);
721
722
723  // Replay Gain Adjustment
724  // http://privatewww.essex.ac.uk/~djmrob/replaygain/
725  if (isset($info['ogg']['comments']) && is_array($info['ogg']['comments'])) {
726  foreach ($info['ogg']['comments'] as $index => $commentvalue) {
727  switch ($index) {
728  case 'rg_audiophile':
729  case 'replaygain_album_gain':
730  $info['replay_gain']['album']['adjustment'] = (double) $commentvalue[0];
731  unset($info['ogg']['comments'][$index]);
732  break;
733
734  case 'rg_radio':
735  case 'replaygain_track_gain':
736  $info['replay_gain']['track']['adjustment'] = (double) $commentvalue[0];
737  unset($info['ogg']['comments'][$index]);
738  break;
739
740  case 'replaygain_album_peak':
741  $info['replay_gain']['album']['peak'] = (double) $commentvalue[0];
742  unset($info['ogg']['comments'][$index]);
743  break;
744
745  case 'rg_peak':
746  case 'replaygain_track_peak':
747  $info['replay_gain']['track']['peak'] = (double) $commentvalue[0];
748  unset($info['ogg']['comments'][$index]);
749  break;
750
751  case 'replaygain_reference_loudness':
752  $info['replay_gain']['reference_volume'] = (double) $commentvalue[0];
753  unset($info['ogg']['comments'][$index]);
754  break;
755
756  default:
757  // do nothing
758  break;
759  }
760  }
761  }
762
763  $this->fseek($OriginalOffset);
764
765  return true;
766  }
getid3_handler\$getid3
$getid3
Definition: getid3.php:1623
getid3_handler\notice
notice($text)
Definition: getid3.php:1748
getid3_ogg\OggPageSegmentLength
OggPageSegmentLength($OggInfoArray, $SegmentNumber=1)
Definition: module.audio.ogg.php:504
getid3_handler\warning
warning($text)
Definition: getid3.php:1744
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
getid3_lib\GetDataImageSize
GetDataImageSize($imgData)
Definition: getid3.lib.php:1170
$info
$info
Definition: example_052.php:80
$data
$data
Definition: example_011.php:126
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
getid3_ogg\ParseOggPageHeader
ParseOggPageHeader()
Definition: module.audio.ogg.php:480
getid3_flac
http://flac.sourceforge.net/format.html
Definition: module.audio.flac.php:19
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ParseVorbisCommentsFilepointer()

getid3_ogg::ParseVorbisCommentsFilepointer ( &  $fd,
&  $ThisFileInfo
)

Definition at line 313 of file module.audio.ogg.php.

References getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), getid3_lib\GetDataImageSize(), getid3_lib\image_type_to_mime_type(), getid3_lib\LittleEndian2Int(), OggPageSegmentLength(), and ParseOggPageHeader().

Referenced by getid3_flac\FLACparseMETAdata(), and getid3_ogg().

313  {
314
315  $OriginalOffset = ftell($fd);
316  $CommentStartOffset = $OriginalOffset;
317  $commentdataoffset = 0;
318  $VorbisCommentPage = 1;
319
320  switch ($ThisFileInfo['audio']['dataformat']) {
321  case 'vorbis':
322  $CommentStartOffset = $ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage]['page_start_offset']; // Second Ogg page, after header block
323  fseek($fd, $CommentStartOffset, SEEK_SET);
324  $commentdataoffset = 27 + $ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage]['page_segments'];
325  $commentdata = fread($fd, getid3_ogg::OggPageSegmentLength($ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage], 1) + $commentdataoffset);
326
327  $commentdataoffset += (strlen('vorbis') + 1);
328  break;
329
330  case 'flac':
331  fseek($fd, $ThisFileInfo['flac']['VORBIS_COMMENT']['raw']['offset'] + 4, SEEK_SET);
332  $commentdata = fread($fd, $ThisFileInfo['flac']['VORBIS_COMMENT']['raw']['block_length']);
333  break;
334
335  case 'speex':
336  $CommentStartOffset = $ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage]['page_start_offset']; // Second Ogg page, after header block
337  fseek($fd, $CommentStartOffset, SEEK_SET);
338  $commentdataoffset = 27 + $ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage]['page_segments'];
339  $commentdata = fread($fd, getid3_ogg::OggPageSegmentLength($ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage], 1) + $commentdataoffset);
340  break;
341
342  default:
343  return false;
344  break;
345  }
346
347  $VendorSize = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
348  $commentdataoffset += 4;
349
350  $ThisFileInfo['ogg']['vendor'] = substr($commentdata, $commentdataoffset, $VendorSize);
351  $commentdataoffset += $VendorSize;
352
353  $CommentsCount = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
354  $commentdataoffset += 4;
355  $ThisFileInfo['avdataoffset'] = $CommentStartOffset + $commentdataoffset;
356
357  $basicfields = array('TITLE', 'ARTIST', 'ALBUM', 'TRACKNUMBER', 'GENRE', 'DATE', 'DESCRIPTION', 'COMMENT');
358  for ($i = 0; $i < $CommentsCount; $i++) {
359
360  $ThisFileInfo['ogg']['comments_raw'][$i]['dataoffset'] = $CommentStartOffset + $commentdataoffset;
361
362  if (ftell($fd) < ($ThisFileInfo['ogg']['comments_raw'][$i]['dataoffset'] + 4)) {
363  $VorbisCommentPage++;
364
365  $oggpageinfo = getid3_ogg::ParseOggPageHeader($fd);
366  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
367
368  // First, save what we haven't read yet
369  $AsYetUnusedData = substr($commentdata, $commentdataoffset);
370
371  // Then take that data off the end
372  $commentdata = substr($commentdata, 0, $commentdataoffset);
373
374  // Add [headerlength] bytes of dummy data for the Ogg Page Header, just to keep absolute offsets correct
375  $commentdata .= str_repeat("\x00", 27 + $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
376  $commentdataoffset += (27 + $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
377
378  // Finally, stick the unused data back on the end
379  $commentdata .= $AsYetUnusedData;
380
381  //$commentdata .= fread($fd, $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
382  $commentdata .= fread($fd, getid3_ogg::OggPageSegmentLength($ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage], 1));
383
384  }
385  $ThisFileInfo['ogg']['comments_raw'][$i]['size'] = getid3_lib::LittleEndian2Int(substr($commentdata, $commentdataoffset, 4));
386
387  // replace avdataoffset with position just after the last vorbiscomment
388  $ThisFileInfo['avdataoffset'] = $ThisFileInfo['ogg']['comments_raw'][$i]['dataoffset'] + $ThisFileInfo['ogg']['comments_raw'][$i]['size'] + 4;
389
390  $commentdataoffset += 4;
391  while ((strlen($commentdata) - $commentdataoffset) < $ThisFileInfo['ogg']['comments_raw'][$i]['size']) {
392  if (($ThisFileInfo['ogg']['comments_raw'][$i]['size'] > $ThisFileInfo['avdataend']) || ($ThisFileInfo['ogg']['comments_raw'][$i]['size'] < 0)) {
393  $ThisFileInfo['error'][] = 'Invalid Ogg comment size (comment #'.$i.', claims to be '.number_format($ThisFileInfo['ogg']['comments_raw'][$i]['size']).' bytes) - aborting reading comments';
394  break 2;
395  }
396
397  $VorbisCommentPage++;
398
399  $oggpageinfo = getid3_ogg::ParseOggPageHeader($fd);
400  $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']] = $oggpageinfo;
401
402  // First, save what we haven't read yet
403  $AsYetUnusedData = substr($commentdata, $commentdataoffset);
404
405  // Then take that data off the end
406  $commentdata = substr($commentdata, 0, $commentdataoffset);
407
408  // Add [headerlength] bytes of dummy data for the Ogg Page Header, just to keep absolute offsets correct
409  $commentdata .= str_repeat("\x00", 27 + $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
410  $commentdataoffset += (27 + $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_segments']);
411
412  // Finally, stick the unused data back on the end
413  $commentdata .= $AsYetUnusedData;
414
415  //$commentdata .= fread($fd, $ThisFileInfo['ogg']['pageheader'][$oggpageinfo['page_seqno']]['page_length']);
416  $commentdata .= fread($fd, getid3_ogg::OggPageSegmentLength($ThisFileInfo['ogg']['pageheader'][$VorbisCommentPage], 1));
417
418  //$filebaseoffset += $oggpageinfo['header_end_offset'] - $oggpageinfo['page_start_offset'];
419  }
420  $commentstring = substr($commentdata, $commentdataoffset, $ThisFileInfo['ogg']['comments_raw'][$i]['size']);
421  $commentdataoffset += $ThisFileInfo['ogg']['comments_raw'][$i]['size'];
422
423  if (!$commentstring) {
424
425  // no comment?
426  $ThisFileInfo['warning'][] = 'Blank Ogg comment ['.$i.']';
427
428  } elseif (strstr($commentstring, '=')) {
429
430  $commentexploded = explode('=', $commentstring, 2);
431  $ThisFileInfo['ogg']['comments_raw'][$i]['key'] = strtoupper($commentexploded[0]);
432  $ThisFileInfo['ogg']['comments_raw'][$i]['value'] = @$commentexploded[1];
433  $ThisFileInfo['ogg']['comments_raw'][$i]['data'] = base64_decode($ThisFileInfo['ogg']['comments_raw'][$i]['value']);
434
435  $ThisFileInfo['ogg']['comments'][strtolower($ThisFileInfo['ogg']['comments_raw'][$i]['key'])][] = $ThisFileInfo['ogg']['comments_raw'][$i]['value'];
436
437  $imagechunkcheck = getid3_lib::GetDataImageSize($ThisFileInfo['ogg']['comments_raw'][$i]['data']);
438  $ThisFileInfo['ogg']['comments_raw'][$i]['image_mime'] = getid3_lib::image_type_to_mime_type($imagechunkcheck[2]);
439  if (!$ThisFileInfo['ogg']['comments_raw'][$i]['image_mime'] || ($ThisFileInfo['ogg']['comments_raw'][$i]['image_mime'] == 'application/octet-stream')) {
440  unset($ThisFileInfo['ogg']['comments_raw'][$i]['image_mime']);
441  unset($ThisFileInfo['ogg']['comments_raw'][$i]['data']);
442  }
443
444  } else {
445
446  $ThisFileInfo['warning'][] = '[known problem with CDex >= v1.40, < v1.50b7] Invalid Ogg comment name/value pair ['.$i.']: '.$commentstring;
447
448  }
449  }
450
451
452  // Replay Gain Adjustment
453  // http://privatewww.essex.ac.uk/~djmrob/replaygain/
454  if (isset($ThisFileInfo['ogg']['comments']) && is_array($ThisFileInfo['ogg']['comments'])) {
455  foreach ($ThisFileInfo['ogg']['comments'] as $index => $commentvalue) {
456  switch ($index) {
457  case 'rg_audiophile':
458  case 'replaygain_album_gain':
459  $ThisFileInfo['replay_gain']['album']['adjustment'] = (double) $commentvalue[0];
460  unset($ThisFileInfo['ogg']['comments'][$index]);
461  break;
462
463  case 'rg_radio':
464  case 'replaygain_track_gain':
465  $ThisFileInfo['replay_gain']['track']['adjustment'] = (double) $commentvalue[0];
466  unset($ThisFileInfo['ogg']['comments'][$index]);
467  break;
468
469  case 'replaygain_album_peak':
470  $ThisFileInfo['replay_gain']['album']['peak'] = (double) $commentvalue[0];
471  unset($ThisFileInfo['ogg']['comments'][$index]);
472  break;
473
474  case 'rg_peak':
475  case 'replaygain_track_peak':
476  $ThisFileInfo['replay_gain']['track']['peak'] = (double) $commentvalue[0];
477  unset($ThisFileInfo['ogg']['comments'][$index]);
478  break;
479
480
481  default:
482  // do nothing
483  break;
484  }
485  }
486  }
487
488  fseek($fd, $OriginalOffset, SEEK_SET);
489
490  return true;
491  }
getid3_ogg\OggPageSegmentLength
OggPageSegmentLength($OggInfoArray, $SegmentNumber=1)
Definition: module.audio.ogg.php:504
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
getid3_lib\GetDataImageSize
GetDataImageSize($imgData)
Definition: getid3.lib.php:1170
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_lib\image_type_to_mime_type
image_type_to_mime_type($imagetypeid)
Definition: getid3.lib.php:419
getid3_handler\ftell
ftell()
Definition: getid3.php:1678
getid3_ogg\ParseOggPageHeader
ParseOggPageHeader()
Definition: module.audio.ogg.php:480
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ParseVorbisPageHeader()

getid3_ogg::ParseVorbisPageHeader ( &  $filedata,
&  $filedataoffset,
&  $oggpageinfo
)

Definition at line 381 of file module.audio.ogg.php.

References $info, and getid3_lib\LittleEndian2Int().

Referenced by Analyze().

381  {
382  $info = &$this->getid3->info;
383  $info['audio']['dataformat'] = 'vorbis';
384  $info['audio']['lossless'] = false;
385
386  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['packet_type'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
387  $filedataoffset += 1;
388  $info['ogg']['pageheader'][$oggpageinfo['page_seqno']]['stream_type'] = substr($filedata, $filedataoffset, 6); // hard-coded to 'vorbis'
389  $filedataoffset += 6;
390  $info['ogg']['bitstreamversion'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
391  $filedataoffset += 4;
392  $info['ogg']['numberofchannels'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1));
393  $filedataoffset += 1;
394  $info['audio']['channels'] = $info['ogg']['numberofchannels'];
395  $info['ogg']['samplerate'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
396  $filedataoffset += 4;
397  if ($info['ogg']['samplerate'] == 0) {
398  $info['error'][] = 'Corrupt Ogg file: sample rate == zero';
399  return false;
400  }
401  $info['audio']['sample_rate'] = $info['ogg']['samplerate'];
402  $info['ogg']['samples'] = 0; // filled in later
403  $info['ogg']['bitrate_average'] = 0; // filled in later
404  $info['ogg']['bitrate_max'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
405  $filedataoffset += 4;
406  $info['ogg']['bitrate_nominal'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
407  $filedataoffset += 4;
408  $info['ogg']['bitrate_min'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 4));
409  $filedataoffset += 4;
410  $info['ogg']['blocksize_small'] = pow(2, getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)) & 0x0F);
411  $info['ogg']['blocksize_large'] = pow(2, (getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)) & 0xF0) >> 4);
412  $info['ogg']['stop_bit'] = getid3_lib::LittleEndian2Int(substr($filedata, $filedataoffset, 1)); // must be 1, marks end of packet
413
414  $info['audio']['bitrate_mode'] = 'vbr'; // overridden if actually abr
415  if ($info['ogg']['bitrate_max'] == 0xFFFFFFFF) {
416  unset($info['ogg']['bitrate_max']);
417  $info['audio']['bitrate_mode'] = 'abr';
418  }
419  if ($info['ogg']['bitrate_nominal'] == 0xFFFFFFFF) {
420  unset($info['ogg']['bitrate_nominal']);
421  }
422  if ($info['ogg']['bitrate_min'] == 0xFFFFFFFF) {
423  unset($info['ogg']['bitrate_min']);
424  $info['audio']['bitrate_mode'] = 'abr';
425  }
426  return true;
427  }
getid3_lib\LittleEndian2Int
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
$info
$info
Definition: example_052.php:80
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SpeexBandModeLookup() [1/2]

getid3_ogg::SpeexBandModeLookup (   $mode)

Definition at line 493 of file module.audio.ogg.php.

Referenced by Analyze(), and getid3_ogg().

493  {
494  static $SpeexBandModeLookup = array();
495  if (empty($SpeexBandModeLookup)) {
496  $SpeexBandModeLookup[0] = 'narrow';
497  $SpeexBandModeLookup[1] = 'wide';
498  $SpeexBandModeLookup[2] = 'ultra-wide';
499  }
500  return (isset($SpeexBandModeLookup[$mode]) ? $SpeexBandModeLookup[$mode] : null);
501  }
+ Here is the caller graph for this function:

◆ SpeexBandModeLookup() [2/2]

static getid3_ogg::SpeexBandModeLookup (   $mode)
static

Definition at line 768 of file module.audio.ogg.php.

768  {
769  static $SpeexBandModeLookup = array();
770  if (empty($SpeexBandModeLookup)) {
771  $SpeexBandModeLookup[0] = 'narrow';
772  $SpeexBandModeLookup[1] = 'wide';
773  $SpeexBandModeLookup[2] = 'ultra-wide';
774  }
775  return (isset($SpeexBandModeLookup[$mode]) ? $SpeexBandModeLookup[$mode] : null);
776  }

◆ TheoraColorSpace()

static getid3_ogg::TheoraColorSpace (   $colorspace_id)
static

Definition at line 816 of file module.audio.ogg.php.

816  {
817  // http://www.theora.org/doc/Theora.pdf (table 6.3)
818  static $TheoraColorSpaceLookup = array();
819  if (empty($TheoraColorSpaceLookup)) {
820  $TheoraColorSpaceLookup[0] = 'Undefined';
821  $TheoraColorSpaceLookup[1] = 'Rec. 470M';
822  $TheoraColorSpaceLookup[2] = 'Rec. 470BG';
823  $TheoraColorSpaceLookup[3] = 'Reserved';
824  }
825  return (isset($TheoraColorSpaceLookup[$colorspace_id]) ? $TheoraColorSpaceLookup[$colorspace_id] : null);
826  }

◆ TheoraPixelFormat()

static getid3_ogg::TheoraPixelFormat (   $pixelformat_id)
static

Definition at line 828 of file module.audio.ogg.php.

828  {
829  // http://www.theora.org/doc/Theora.pdf (table 6.4)
830  static $TheoraPixelFormatLookup = array();
831  if (empty($TheoraPixelFormatLookup)) {
832  $TheoraPixelFormatLookup[0] = '4:2:0';
833  $TheoraPixelFormatLookup[1] = 'Reserved';
834  $TheoraPixelFormatLookup[2] = '4:2:2';
835  $TheoraPixelFormatLookup[3] = '4:4:4';
836  }
837  return (isset($TheoraPixelFormatLookup[$pixelformat_id]) ? $TheoraPixelFormatLookup[$pixelformat_id] : null);
838  }
The documentation for this class was generated from the following file:
