assFormulaQuestionResult Class Reference

Formula Question Result. More...

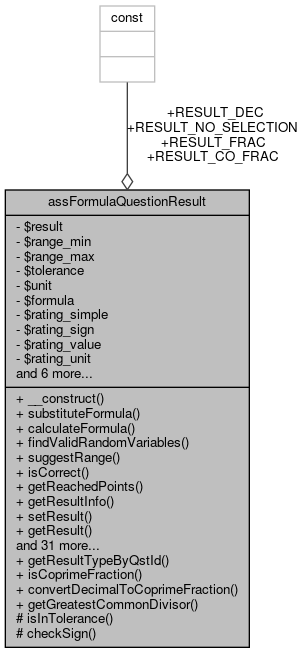

Collaboration diagram for assFormulaQuestionResult:

Public Member Functions
	__construct ($result, $range_min, $range_max, $tolerance, $unit, $formula, $points, $precision, $rating_simple=TRUE, $rating_sign=33, $rating_value=34, $rating_unit=33, $result_type=0)
	assFormulaQuestionResult constructor More...

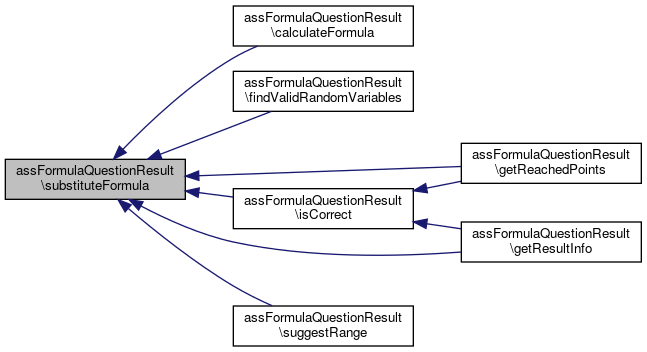

	substituteFormula ($variables, $results)
	calculateFormula ($variables, $results, $question_id=0, $use_precision=true)
	findValidRandomVariables ($variables, $results)

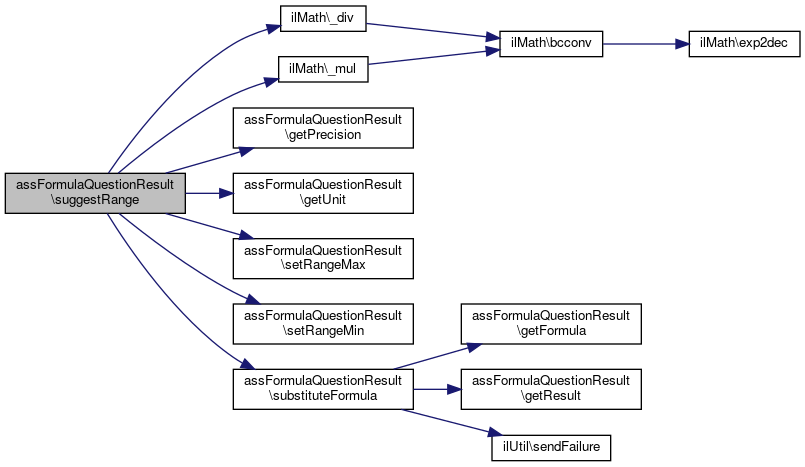

	suggestRange ($variables, $results)

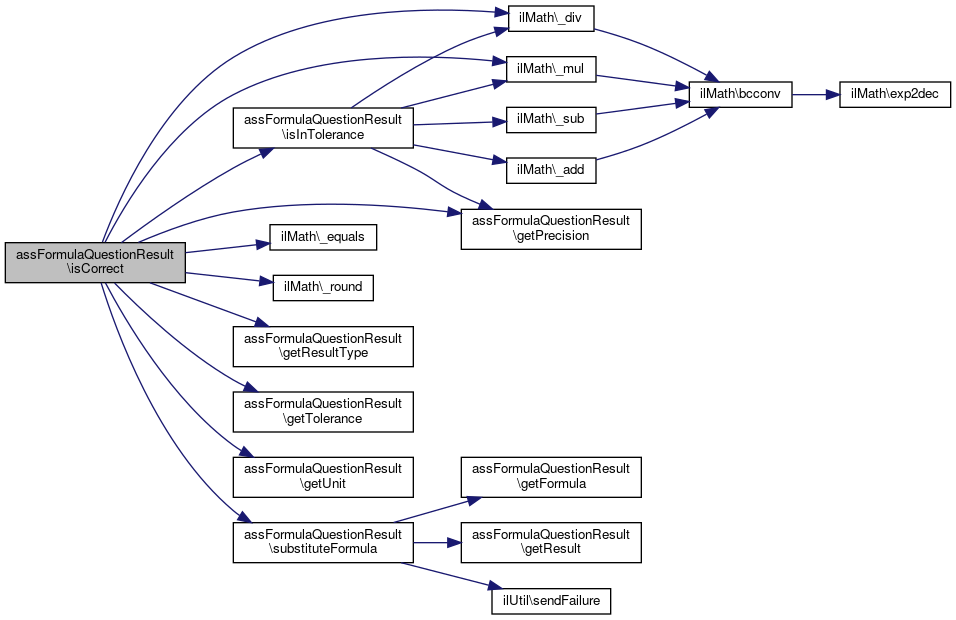

	isCorrect ($variables, $results, $value, $unit=NULL)
	getReachedPoints ($variables, $results, $value, $unit, $units)
	getResultInfo ($variables, $results, $value, $unit, $units)
	setResult ($result)

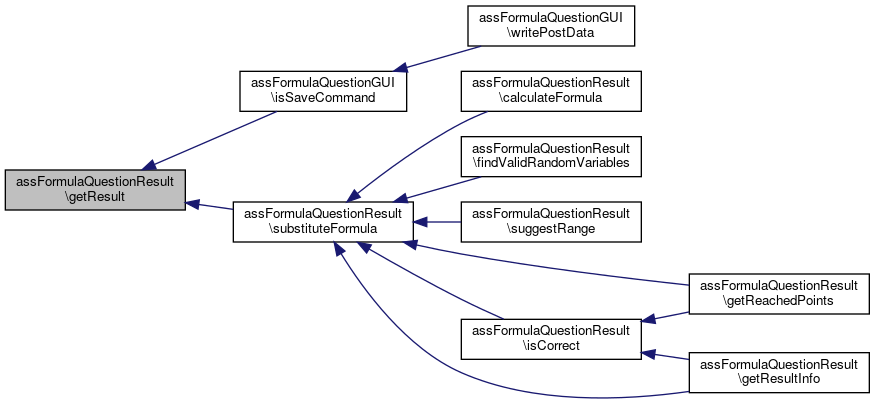

	getResult ()

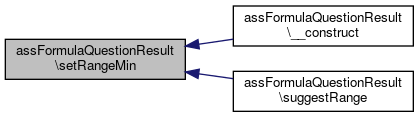

	setRangeMin ($range_min)
	getRangeMin ()
	getRangeMinBase ()
	setRangeMax ($range_max)
	getRangeMax ()
	getRangeMaxBase ()
	setTolerance ($tolerance)

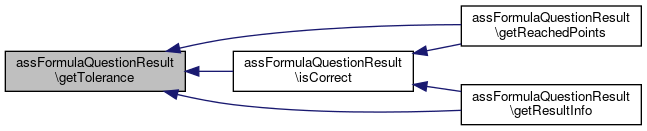

	getTolerance ()
	setUnit ($unit)

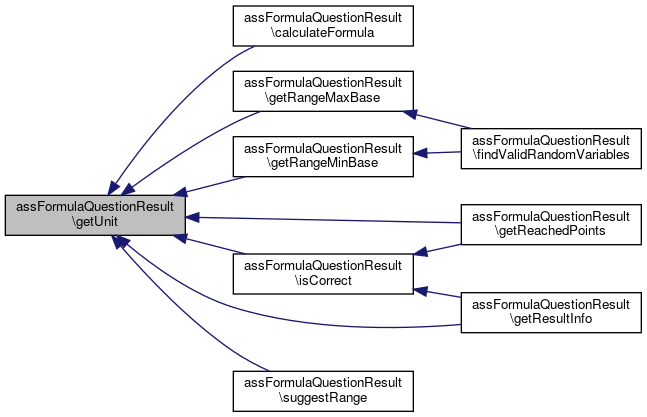

	getUnit ()
	setFormula ($formula)
	getFormula ()
	setPoints ($points)
	getPoints ()
	setRatingSimple ($rating_simple)
	getRatingSimple ()
	setRatingSign ($rating_sign)
	getRatingSign ()
	setRatingValue ($rating_value)
	getRatingValue ()
	setRatingUnit ($rating_unit)

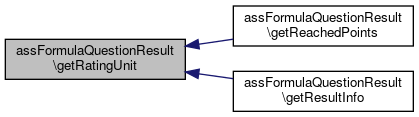

	getRatingUnit ()
	setPrecision ($precision)
	getPrecision ()
	setResultType ($a_result_type)
	getResultType ()
	setRangeMaxTxt ($range_max_txt)
	getRangeMaxTxt ()
	setRangeMinTxt ($range_min_txt)
	getRangeMinTxt ()
	getAvailableResultUnits ($question_id)

Static Public Member Functions

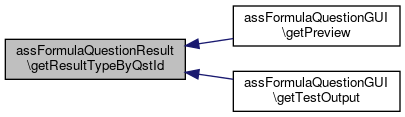

static	getResultTypeByQstId ($a_qst_id, $a_result)
static	isCoprimeFraction ($numerator, $denominator)
static	convertDecimalToCoprimeFraction ($decimal_value, $tolerance=1.e-9)
static	getGreatestCommonDivisor ($a, $b)

Data Fields
const	RESULT_NO_SELECTION = 0
const	RESULT_DEC = 1
const	RESULT_FRAC = 2
const	RESULT_CO_FRAC = 3

Protected Member Functions
	isInTolerance ($v1, $v2, $p)
	checkSign ($v1, $v2)

Private Attributes
	$result
	$range_min
	$range_max
	$tolerance
	$unit
	$formula
	$rating_simple
	$rating_sign
	$rating_value
	$rating_unit
	$points
	$precision
	$result_type
	$range_min_txt
	$range_max_txt
	$available_units = array()

Detailed Description

Formula Question Result.

Author

Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m

Version

Id

class.assFormulaQuestionResult.php 944 2009-11-09 16:11:30Z hschottm

Definition at line 10 of file class.assFormulaQuestionResult.php.

Constructor & Destructor Documentation

__construct()

assFormulaQuestionResult::__construct	(		$result,
			$range_min,
			$range_max,
			$tolerance,
			$unit,
			$formula,
			$points,
			$precision,
			$rating_simple = TRUE,
			$rating_sign = 33,
			$rating_value = 34,
			$rating_unit = 33,
			$result_type = 0
	)

assFormulaQuestionResult constructor

Parameters

string	$result	Result name
double	$range_min	Range minimum
double	$range_max	Range maximum
double	$tolerance	Tolerance of the result in percent
object	$unit	Unit
string	$formula	The formula to calculate the result
double	$points	The maximum available points for the result
integer	$precision	Number of decimal places of the value
boolean	$rating_simple	Use simple rating (100% if right, 0 % if wrong)
double	$rating_sign	Percentage of rating for the correct sign
double	$rating_value	Percentage of rating for the correct value
double	$rating_unit	Percentage of rating for the correct unit @access public

Definition at line 51 of file class.assFormulaQuestionResult.php.

        {
                $this->result = $result;
                #       $this->setRangeMin((is_numeric($range_min)) ? $range_min : NULL);
                #       $this->setRangeMax((is_numeric($range_max)) ? $range_max : NULL);
                $this->setRangeMin($range_min);
                $this->setRangeMax($range_max);


                $this->tolerance     = $tolerance;
                $this->unit          = $unit;
                $this->formula       = $formula;
                $this->points        = $points;
                $this->precision     = $precision;
                $this->rating_simple = $rating_simple;
                $this->rating_sign   = $rating_sign;
                $this->rating_value  = $rating_value;
                $this->rating_unit   = $rating_unit;
                $this->result_type   = $result_type;
                $this->setRangeMinTxt($range_min);
                $this->setRangeMaxTxt($range_max);
        }

References $formula, $points, $precision, $range_max, $range_min, $rating_sign, $rating_simple, $rating_unit, $rating_value, $result, $result_type, $tolerance, $unit, setRangeMax(), setRangeMaxTxt(), setRangeMin(), and setRangeMinTxt().

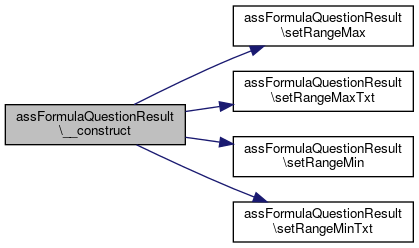

Here is the call graph for this function:

Member Function Documentation

calculateFormula()

assFormulaQuestionResult::calculateFormula	(		$variables,
			$results,
			$question_id = 0,
			$use_precision = true
	)

Definition at line 105 of file class.assFormulaQuestionResult.php.

        {

                $resultunits = array();
                if($question_id > 0)
                {
                        $resultunits = $this->getAvailableResultUnits($question_id);
                }

                include_once "./Services/Math/classes/class.ilMath.php";
                include_once "./Services/Math/classes/class.EvalMath.php";
                $formula = $this->substituteFormula($variables, $results);
                if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                {
                        foreach($matches[1] as $variable)
                        {
                                $varObj  = $variables[$variable];
                                if(!is_object($varObj))
                                {
                                        continue;
                                }
                                $value   = $varObj->getBaseValue();
                                $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$value.")" . "\\1", $formula);
                        }
                }
                $math                  = new EvalMath();
                $math->suppress_errors = TRUE;

                $formula = str_replace(",", ".", $formula);
                $result                = $math->evaluate($formula);
                if(is_object($this->getUnit()))
                {
                        $result = ilMath::_div($result, $this->getUnit()->getFactor(), 100);
                }

                // @todo DON'T USE ilMath::_mul() ... bcmul() returns wrong result !!!!

                if($use_precision == true)
                {
                        $res = $result * 1;
                        if (is_numeric($this->getPrecision()))
                        {
                                if( $this->getResultType()==self::RESULT_DEC || $this->getResultType()==self::RESULT_NO_SELECTION )
                                {
                                        $result = ilMath::_round($res, $this->getPrecision());
                                }
                        }
                }
                return $result;
        }

References $formula, $res, $result, $results, ilMath\_div(), ilMath\_round(), getAvailableResultUnits(), getPrecision(), getResultType(), getUnit(), and substituteFormula().

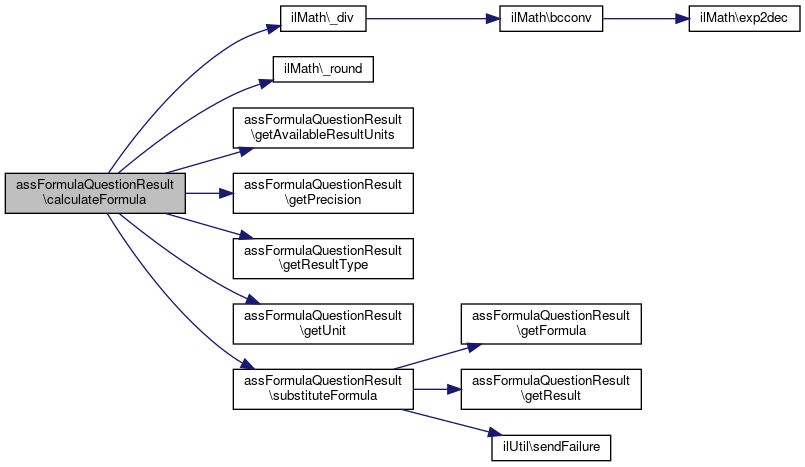

Here is the call graph for this function:

checkSign()

assFormulaQuestionResult::checkSign (   $v1,   $v2  )

protected

Definition at line 477 of file class.assFormulaQuestionResult.php.

        {
                if((($v1 >= 0) && ($v2 >= 0)) || (($v1 <= 0) && ($v2 <= 0)))
                {
                        return TRUE;
                }
                else
                {
                        return FALSE;
                }
        }

Referenced by getReachedPoints(), and getResultInfo().

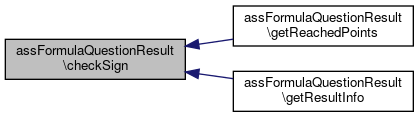

Here is the caller graph for this function:

convertDecimalToCoprimeFraction()

static assFormulaQuestionResult::convertDecimalToCoprimeFraction (   $decimal_value,   $tolerance = 1.e-9  )

static

Definition at line 948 of file class.assFormulaQuestionResult.php.

        {
                $to_string   = (string) $decimal_value;
                $is_negative = strpos($to_string, '-') === 0;
                if($is_negative)
                {
                        $decimal_value = substr($decimal_value, 1);
                }
                $h1=1;
                $h2=0;
                $k1=0;
                $k2=1;
                $b = 1 / $decimal_value;
                do {
                                $b = 1 / $b;
                                $a = floor($b);
                                $aux = $h1;
                                $h1 = $a * $h1 + $h2;
                                $h2 = $aux;
                                $aux = $k1;
                                $k1 = $a * $k1 + $k2;
                                $k2 = $aux;
                                $b = $b - $a;
                        }while ((abs($decimal_value - $h1 / $k1) > $decimal_value * $tolerance) || ( $k1 < 0 || $b < 0 ));
                if($k1 == 1)
                {
                        $result = $h1;
                        $checkResult = $h1;
                }
                else
                {
                        $result = "$h1/$k1";
                        $checkResult = ($h1/$k1);
                }
                if($is_negative)
                {
                        $result =  '-'.$result;
                        $checkResult = ($h1/$k1)*-1;
                }
                if($to_string == $checkResult.'' || $checkResult.'' == $result)
                {
                        return $result;
                }
                else
                {
                        return array($to_string,$result);
                }
        }

References $result, and $tolerance.

Referenced by assFormulaQuestion\getBestSolution(), and assFormulaQuestion\substituteVariables().

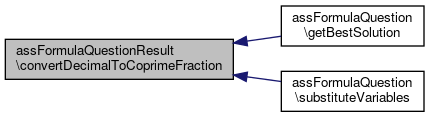

Here is the caller graph for this function:

findValidRandomVariables()

assFormulaQuestionResult::findValidRandomVariables	(		$variables,
			$results
	)

Definition at line 156 of file class.assFormulaQuestionResult.php.

        {
                include_once "./Services/Math/classes/class.EvalMath.php";
                $i       = 0;
                $inRange = FALSE;
                while($i < 1000 && !$inRange)
                {
                        $formula = $this->substituteFormula($variables, $results);
                        if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                        {
                                foreach($matches[1] as $variable)
                                {
                                        $varObj = $variables[$variable];
                                        if(!is_object($varObj))
                                        {
                                                continue;
                                        }
                                        $varObj->setRandomValue();
                                        $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$varObj->getBaseValue().")" . "\\1", $formula);
                                }
                        }
                        $math                  = new EvalMath();
                        $math->suppress_errors = TRUE;
                        $result                = $math->evaluate($formula);
                        $inRange               = (is_numeric($result)) ? TRUE : FALSE;
                        if($inRange)
                        {
                                if(is_numeric($this->getRangeMin()))
                                {
                                        if($result < $this->getRangeMinBase())
                                        {
                                                $inRange = FALSE;
                                        }
                                }
                                if(is_numeric($this->getRangeMax()))
                                {
                                        if($result > $this->getRangeMaxBase())
                                        {
                                                $inRange = FALSE;
                                        }
                                }
                        }
                        $i++;
                }
        }

References $formula, $result, $results, getRangeMax(), getRangeMaxBase(), getRangeMin(), getRangeMinBase(), and substituteFormula().

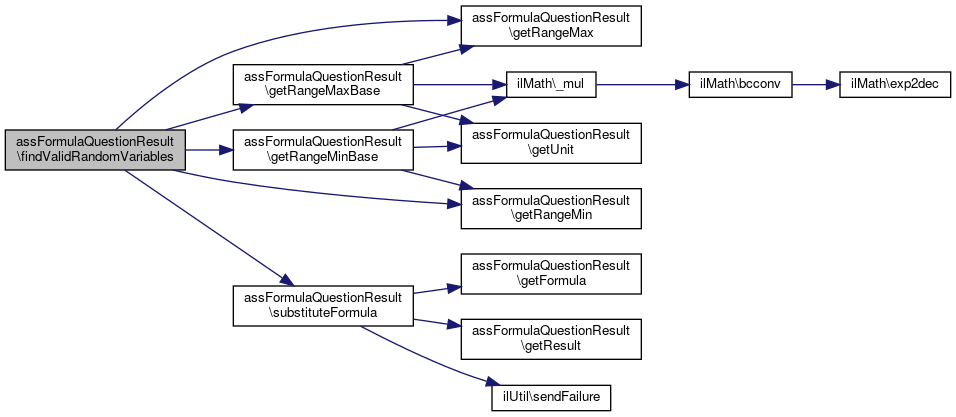

Here is the call graph for this function:

getAvailableResultUnits()

assFormulaQuestionResult::getAvailableResultUnits

(

$question_id

)

Definition at line 1010 of file class.assFormulaQuestionResult.php.

        {
                global $ilDB;

                $res = $ilDB->queryF('
                        SELECT * FROM il_qpl_qst_fq_res_unit
                        WHERE question_fi = %s
                        ORDER BY result',
                        array('integer'), array($question_id));


                while ($row = $ilDB->fetchAssoc($res))
                {
                        $this->available_units[$row['result']][] = $row['unit_fi'] ;
                }

                return $this->available_units;
        }

References $available_units, $ilDB, $res, and $row.

Referenced by calculateFormula().

Here is the caller graph for this function:

getFormula()

assFormulaQuestionResult::getFormula

(

)

Definition at line 828 of file class.assFormulaQuestionResult.php.

        {
                return $this->formula;
        }

References $formula.

Referenced by substituteFormula().

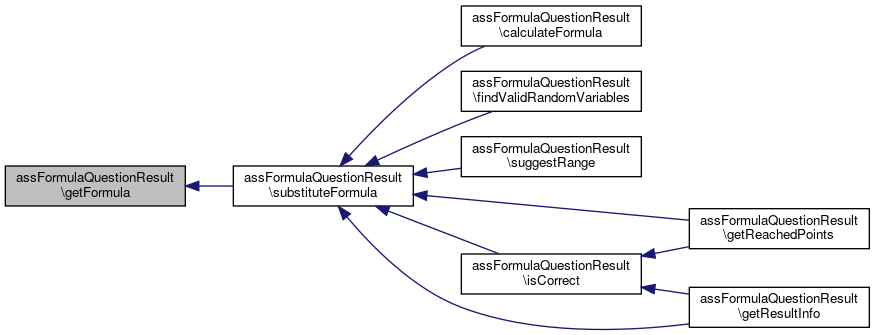

Here is the caller graph for this function:

getGreatestCommonDivisor()

static assFormulaQuestionResult::getGreatestCommonDivisor (   $a,   $b  )

static

Definition at line 997 of file class.assFormulaQuestionResult.php.

        {
                if ($b > 0)
                {
                        return self::getGreatestCommonDivisor($b, $a % $b);
                }
                else
                {
                        return $a;
                }
        }

References getGreatestCommonDivisor().

Referenced by getGreatestCommonDivisor(), and isCoprimeFraction().

Here is the call graph for this function:

Here is the caller graph for this function:

getPoints()

assFormulaQuestionResult::getPoints

(

)

Definition at line 838 of file class.assFormulaQuestionResult.php.

        {
                return $this->points;
        }

References $points.

Referenced by getReachedPoints(), and getResultInfo().

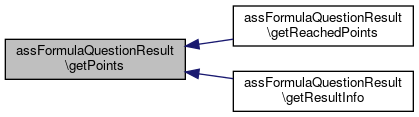

Here is the caller graph for this function:

getPrecision()

assFormulaQuestionResult::getPrecision

(

)

Definition at line 888 of file class.assFormulaQuestionResult.php.

        {
                return (int)$this->precision;
        }

References $precision.

Referenced by calculateFormula(), getReachedPoints(), isCorrect(), isInTolerance(), and suggestRange().

Here is the caller graph for this function:

getRangeMax()

assFormulaQuestionResult::getRangeMax

(

)

Definition at line 785 of file class.assFormulaQuestionResult.php.

        {
                return $this->range_max;
        }

References $range_max.

Referenced by findValidRandomVariables(), and getRangeMaxBase().

Here is the caller graph for this function:

getRangeMaxBase()

assFormulaQuestionResult::getRangeMaxBase

(

)

Definition at line 790 of file class.assFormulaQuestionResult.php.

        {
                if(is_numeric($this->getRangeMax()))
                {
                        if(is_object($this->getUnit()))
                        {
                                include_once "./Services/Math/classes/class.ilMath.php";
                                return ilMath::_mul($this->getRangeMax(), $this->getUnit()->getFactor(), 100);
                        }
                }
                return $this->getRangeMax();
        }

References ilMath\_mul(), getRangeMax(), and getUnit().

Referenced by findValidRandomVariables().

Here is the call graph for this function:

Here is the caller graph for this function:

getRangeMaxTxt()

assFormulaQuestionResult::getRangeMaxTxt

(

)

Definition at line 908 of file class.assFormulaQuestionResult.php.

        {
                return $this->range_max_txt;
        }

References $range_max_txt.

getRangeMin()

assFormulaQuestionResult::getRangeMin

(

)

Definition at line 750 of file class.assFormulaQuestionResult.php.

        {
                return $this->range_min;
        }

References $range_min.

Referenced by findValidRandomVariables(), and getRangeMinBase().

Here is the caller graph for this function:

getRangeMinBase()

assFormulaQuestionResult::getRangeMinBase

(

)

Definition at line 755 of file class.assFormulaQuestionResult.php.

        {
                if(is_numeric($this->getRangeMin()))
                {
                        if(is_object($this->getUnit()))
                        {
                                include_once "./Services/Math/classes/class.ilMath.php";
                                return ilMath::_mul($this->getRangeMin(), $this->getUnit()->getFactor(), 100);
                        }
                }
                return $this->getRangeMin();
        }

References ilMath\_mul(), getRangeMin(), and getUnit().

Referenced by findValidRandomVariables().

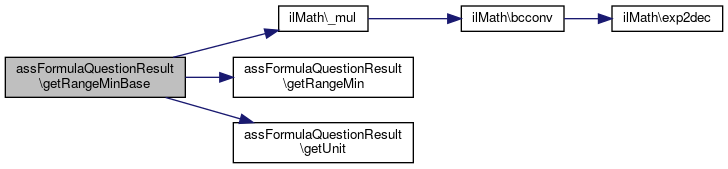

Here is the call graph for this function:

Here is the caller graph for this function:

getRangeMinTxt()

assFormulaQuestionResult::getRangeMinTxt

(

)

Definition at line 918 of file class.assFormulaQuestionResult.php.

        {
                return $this->range_min_txt;
        }

References $range_min_txt.

getRatingSign()

assFormulaQuestionResult::getRatingSign

(

)

Definition at line 858 of file class.assFormulaQuestionResult.php.

        {
                return $this->rating_sign;
        }

References $rating_sign.

Referenced by getReachedPoints(), and getResultInfo().

Here is the caller graph for this function:

getRatingSimple()

assFormulaQuestionResult::getRatingSimple

(

)

Definition at line 848 of file class.assFormulaQuestionResult.php.

        {
                return $this->rating_simple;
        }

References $rating_simple.

Referenced by getReachedPoints(), and getResultInfo().

Here is the caller graph for this function:

getRatingUnit()

assFormulaQuestionResult::getRatingUnit

(

)

Definition at line 878 of file class.assFormulaQuestionResult.php.

        {
                return $this->rating_unit;
        }

References $rating_unit.

Referenced by getReachedPoints(), and getResultInfo().

Here is the caller graph for this function:

getRatingValue()

assFormulaQuestionResult::getRatingValue

(

)

Definition at line 868 of file class.assFormulaQuestionResult.php.

        {
                return $this->rating_value;
        }

References $rating_value.

Referenced by getReachedPoints(), and getResultInfo().

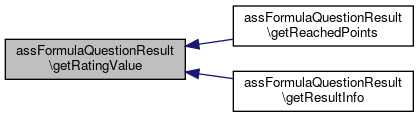

Here is the caller graph for this function:

getReachedPoints()

assFormulaQuestionResult::getReachedPoints	(		$variables,
			$results,
			$value,
			$unit,
			$units
	)

Definition at line 489 of file class.assFormulaQuestionResult.php.

        {
                global $ilLog;
                if($this->getRatingSimple())
                {
                        if($this->isCorrect($variables, $results, $value, $units[$unit]))
                        {
                                return $this->getPoints();
                        }
                        else
                        {
                                return 0;
                        }
                }
                else
                {
                        $points = 0;
                        include_once "./Services/Math/classes/class.EvalMath.php";
                        include_once "./Services/Math/classes/class.ilMath.php";
                        $formula = $this->substituteFormula($variables, $results);

                        if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                        {
                                foreach($matches[1] as $variable)
                                {
                                        $varObj = $variables[$variable];
                                        if(!is_object($varObj))
                                        {
                                                continue;
                                        }
                                        if($varObj->getUnit() != NULL)
                                        {
                                                //convert unit and value to baseunit
                                                if($varObj->getUnit()->getBaseUnit() != -1)
                                                {
                                                        $tmp_value = $varObj->getValue() * $varObj->getUnit()->getFactor();
                                                }
                                                else
                                                {
                                                        $tmp_value = $varObj->getValue();
                                                }
                                        }
                                        else
                                        {
                                                $tmp_value = $varObj->getValue();
                                        }
                                        $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$tmp_value.")" . "\\1", $formula);
                                }
                        }

                        $math                  = new EvalMath();
                        $math->suppress_errors = TRUE;
                        $result                = $math->evaluate($formula);

// result_type extension
                        switch($this->getResultType())
                        {
                                case assFormulaQuestionResult::RESULT_DEC:
                                        if((substr_count($value, '.') == 1) || (substr_count($value, ',') == 1))
                                        {
                                                $exp_val    = $value;
                                                $frac_value = str_replace(',', '.', $exp_val);
                                        }
                                        else
                                        {
                                                $frac_value = $value;
                                        }
                                        $check_fraction = TRUE;
                                        break;
                                case assFormulaQuestionResult::RESULT_FRAC:
                                        $exp_val = explode('/', $value);
                                        if(count($exp_val) == 1)
                                        {
                                                $frac_value = ilMath::_div($exp_val[0], 1, $this->getPrecision());
                                                if( ilMath::_equals(abs($frac_value), abs($result), $this->getPrecision()) )
                                                {
                                                        $check_fraction = TRUE;
                                                }
                                                else
                                                {
                                                        $check_fraction = FALSE;
                                                }
                                        }
                                        else
                                        {
                                                $frac_value =  ilMath::_div($exp_val[0], $exp_val[1], $this->getPrecision());
                                                if(ilMath::_equals(abs($frac_value), abs($result), $this->getPrecision()) )
                                                {
                                                        $check_fraction = TRUE;
                                                }
                                        }
                                        break;
                                case assFormulaQuestionResult::RESULT_CO_FRAC:
                                        $exp_val = explode('/', $value);
                                        if(count($exp_val) == 1)
                                        {
                                                $check_fraction = FALSE;
                                        }
                                        else
                                        {
                                                $frac_value = ilMath::_div($exp_val[0], $exp_val[1], $this->getPrecision());
                                                if(self::isCoprimeFraction($exp_val[0], $exp_val[1]))
                                                {
                                                        $check_fraction = TRUE;
                                                }
                                        }
                                        break;
                                case assFormulaQuestionResult::RESULT_NO_SELECTION:
                                default:
                                        $check_fraction = TRUE;
                                        break;
                        }

                        // result unit!!
                        if(is_object($this->getUnit()))
                        {
                                // if expected resultunit != baseunit convert to resultunit
                                if($this->getUnit()->getBaseUnit() != -1)
                                {
                                        $result = ilMath::_div($result, $this->getUnit()->getFactor(), $this->getPrecision());
                                }
                                else
                                {
                                        //if resultunit == baseunit calculate to get correct precision
                                        $result = ilMath::_mul($result, $this->getUnit()->getFactor(), $this->getPrecision());
                                }
                        }

                        if(is_object($unit))
                        {
                                if(isset($frac_value))
                                {
                                        $value = ilMath::_mul($frac_value, $unit->getFactor(), 100);
                                }
                        }

                        if($this->checkSign($result, $value))
                        {
                                $points += ilMath::_mul($this->getPoints(), ilMath::_div($this->getRatingSign(), 100));
                        }
                        if($this->isInTolerance(abs($value), abs($result), $this->getTolerance()))
                        {
                                $points += ilMath::_mul($this->getPoints(), ilMath::_div($this->getRatingValue(), 100));
                        }
                        if(is_object($this->getUnit()))
                        {
                                $base1 = $units[$unit];
                                if(is_object($base1)) $base1 = $units[$base1->getBaseUnit()];
                                $base2 = $units[$this->getUnit()->getBaseUnit()];
                                if(is_object($base1) && is_object($base2) && $base1->getId() == $base2->getId())
                                {
                                        $points += ilMath::_mul($this->getPoints(), ilMath::_div($this->getRatingUnit(), 100));
                                }
                        }
                        return $points;
                }
        }

References $formula, $ilLog, $points, $result, $results, $unit, ilMath\_div(), ilMath\_equals(), ilMath\_mul(), checkSign(), getPoints(), getPrecision(), getRatingSign(), getRatingSimple(), getRatingUnit(), getRatingValue(), getResultType(), getTolerance(), getUnit(), isCorrect(), isInTolerance(), RESULT_CO_FRAC, RESULT_DEC, RESULT_FRAC, RESULT_NO_SELECTION, and substituteFormula().

Here is the call graph for this function:

getResult()

assFormulaQuestionResult::getResult

(

)

Definition at line 727 of file class.assFormulaQuestionResult.php.

        {
                return $this->result;
        }

References $result.

Referenced by substituteFormula().

Here is the caller graph for this function:

getResultInfo()

assFormulaQuestionResult::getResultInfo	(		$variables,
			$results,
			$value,
			$unit,
			$units
	)

Definition at line 647 of file class.assFormulaQuestionResult.php.

        {
                if($this->getRatingSimple())
                {
                        if($this->isCorrect($variables, $results, $value, $units[$unit]))
                        {
                                return array("points" => $this->getPoints());
                        }
                        else
                        {
                                return array("points" => 0);
                        }
                }
                else
                {
                        include_once "./Services/Math/classes/class.EvalMath.php";
                        include_once "./Services/Math/classes/class.ilMath.php";
                        $totalpoints = 0;
                        $formula     = $this->substituteFormula($variables, $results);
                        if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                        {
                                foreach($matches[1] as $variable)
                                {
                                        $varObj  = $variables[$variable];
                                        $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$varObj->getBaseValue().")" . "\\1", $formula);
                                }
                        }
                        $math                  = new EvalMath();
                        $math->suppress_errors = TRUE;
                        $result                = $math->evaluate($formula);
                        if(is_object($this->getUnit()))
                        {
                                $result = ilMath::_mul($result, $this->getUnit()->getFactor(), 100);
                        }
                        if(is_object($unit))
                        {
                                $value = ilMath::_mul($value, $unit->getFactor(), 100);
                        }
                        else
                        {
                        }
                        $details = array();
                        if($this->checkSign($result, $value))
                        {
                                $points = ilMath::_mul($this->getPoints(), $this->getRatingSign()/100);
                                $totalpoints += $points;
                                $details['sign'] = $points;
                        }
                        if($this->isInTolerance(abs($value), abs($result), $this->getTolerance()))
                        {
                                $points     = ilMath::_mul($this->getPoints(), $this->getRatingValue()/100);
                                $totalpoints += $points;
                                $details['value'] = $points;
                        }
                        if(is_object($this->getUnit()))
                        {
                                $base1 = $units[$unit];
                                if(is_object($base1)) $base1 = $units[$base1->getBaseUnit()];
                                $base2 = $units[$this->getUnit()->getBaseUnit()];
                                if(is_object($base1) && is_object($base2) && $base1->getId() == $base2->getId())
                                {
                                        $points = ilMath::_mul($this->getPoints(), $this->getRatingUnit()/100);
                                        $totalpoints += $points;
                                        $details['unit'] = $points;
                                }
                        }
                        $details['points'] = $totalpoints;
                        return $details;
                }
        }

References $formula, $points, $result, $results, $unit, ilMath\_mul(), checkSign(), getPoints(), getRatingSign(), getRatingSimple(), getRatingUnit(), getRatingValue(), getTolerance(), getUnit(), isCorrect(), isInTolerance(), and substituteFormula().

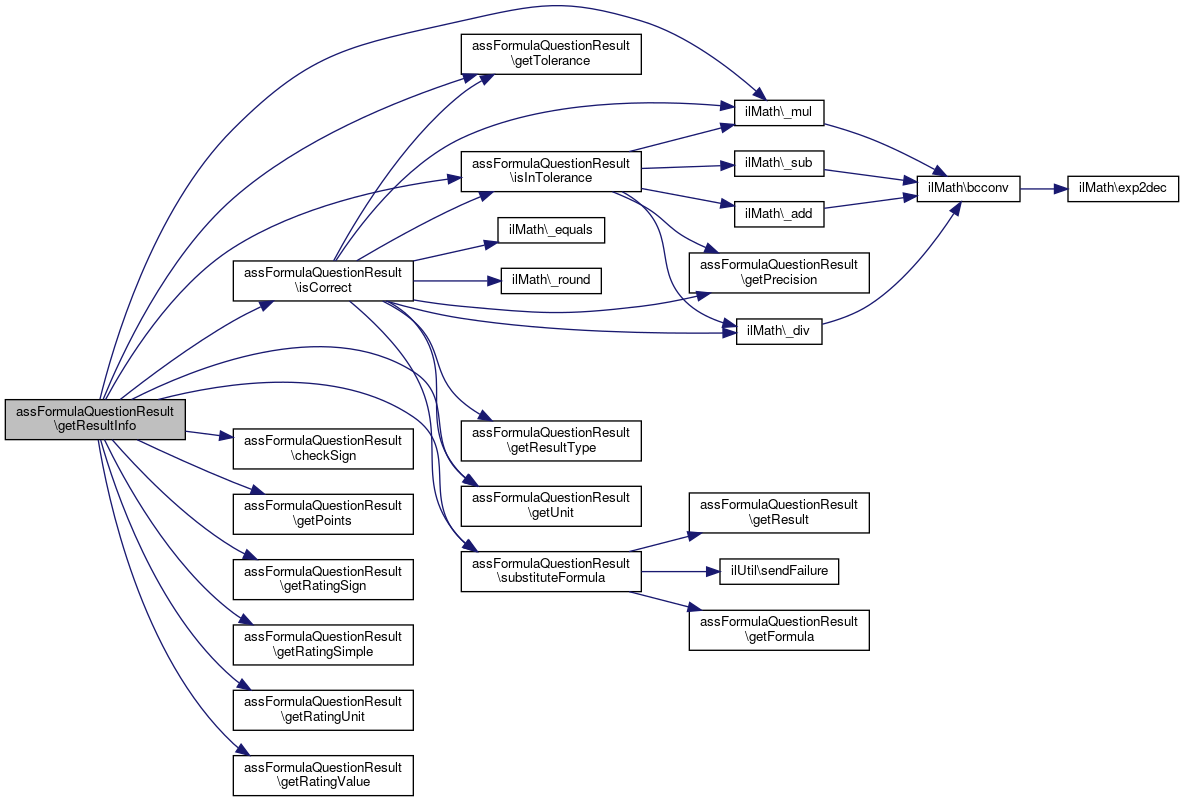

Here is the call graph for this function:

getResultType()

assFormulaQuestionResult::getResultType

(

)

Definition at line 898 of file class.assFormulaQuestionResult.php.

        {
                return (int)$this->result_type;
        }

References $result_type.

Referenced by calculateFormula(), getReachedPoints(), and isCorrect().

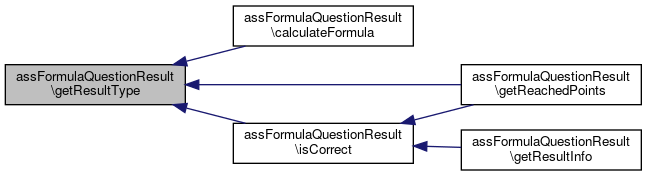

Here is the caller graph for this function:

getResultTypeByQstId()

static assFormulaQuestionResult::getResultTypeByQstId (   $a_qst_id,   $a_result  )

static

Definition at line 923 of file class.assFormulaQuestionResult.php.

        {
                global $ilDB;

                $res = $ilDB->queryF('
                        SELECT result_type
                        FROM il_qpl_qst_fq_res
                        WHERE question_fi = %s
                        AND result = %s',
                        array('integer', 'text'),
                        array($a_qst_id, $a_result));

                $row = $ilDB->fetchAssoc($res);

                return $row['result_type'];

        }

References $ilDB, $res, and $row.

Referenced by assFormulaQuestionGUI\getPreview(), and assFormulaQuestionGUI\getTestOutput().

Here is the caller graph for this function:

getTolerance()

assFormulaQuestionResult::getTolerance

(

)

Definition at line 808 of file class.assFormulaQuestionResult.php.

        {
                return $this->tolerance;
        }

References $tolerance.

Referenced by getReachedPoints(), getResultInfo(), and isCorrect().

Here is the caller graph for this function:

getUnit()

assFormulaQuestionResult::getUnit

(

)

Definition at line 818 of file class.assFormulaQuestionResult.php.

        {
                return $this->unit;
        }

References $unit.

Referenced by calculateFormula(), getRangeMaxBase(), getRangeMinBase(), getReachedPoints(), getResultInfo(), isCorrect(), and suggestRange().

Here is the caller graph for this function:

isCoprimeFraction()

static assFormulaQuestionResult::isCoprimeFraction (   $numerator,   $denominator  )

static

Definition at line 941 of file class.assFormulaQuestionResult.php.

        {
                $gcd = self::getGreatestCommonDivisor(abs($numerator), abs($denominator));

                return $gcd == 1 ? true : false;
        }

References getGreatestCommonDivisor().

Here is the call graph for this function:

isCorrect()

assFormulaQuestionResult::isCorrect	(		$variables,
			$results,
			$value,
			$unit = NULL
	)

Parameters

	$variables	formula variables containing units
	$results	formula results containing units
	$value	user input value
null	$unit	user input unit

Returns

bool

Definition at line 248 of file class.assFormulaQuestionResult.php.

        {
                // The user did not answer the question ....
                if($value === NULL || 0 == strlen($value))
                {
                        return false;
                }
                $value=str_replace(' ', '',$value);

                include_once "./Services/Math/classes/class.EvalMath.php";
                include_once "./Services/Math/classes/class.ilMath.php";
                $formula = $this->substituteFormula($variables, $results);

                $check_valid_chars = true;

                if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                {
                        foreach($matches[1] as $variable)
                        {
                                $varObj = $variables[$variable];
                                if(!is_object($varObj))
                                {
                                        continue;
                                }

                                if($varObj->getUnit() != NULL)
                                {
                                        //convert unit and value to baseunit.... because vars could have different units
                                        if($varObj->getUnit()->getBaseUnit() != -1) #$this->getUnit() != NULL)
                                        {
                                                $tmp_value = $varObj->getValue() * $varObj->getUnit()->getFactor();
                                        }
                                        else
                                        {
                                                $tmp_value = $varObj->getValue();
                                        }
                                }
                                else
                                {
                                        $tmp_value = $varObj->getValue();
                                }

                                $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$tmp_value.")" . "\\1", $formula);
                        }
                }

                $math                  = new EvalMath();
                $math->suppress_errors = true;
                $result                = $math->evaluate($formula); // baseunit-result!!

                $result = ilMath::_round($result, $this->getPrecision());

                //      check for valid chars ("0-9",",|.|/","0-9","e|E","+|-","0-9")
                $has_valid_chars = preg_match("/^-?([0-9]*)(,|\\.|\\/){0,1}([0-9]*)([eE][\\+|-]([0-9])+)?$/", $value, $matches);
                if(!$has_valid_chars)
                {
                        $check_valid_chars = false;
                }
                else if($matches[2] == '/' && strtolower($matches[4]) == "e" && (!strlen($matches[1]) || !strlen($matches[3]) || $matches[3] == 0))
                {
                        $check_valid_chars = false;
                }
// result_type extension
                switch($this->getResultType())
                {
                        case assFormulaQuestionResult::RESULT_DEC:
                                if(substr_count($value, '.') == 1 || substr_count($value, ',') == 1)
                                {
                                        $exp_val    = $value;
                                        $frac_value = str_replace(',', '.', $exp_val);
                                }
                                else
                                {
                                        $frac_value = $value;
                                }

                                $frac_value =  ilMath::_round($frac_value, $this->getPrecision());

                                if(substr_count($value, '/') >= 1)
                                {
                                        $check_fraction = FALSE;
                                }
                                else
                                {
                                        $check_fraction = TRUE;
                                }
                                break;

                        case assFormulaQuestionResult::RESULT_FRAC:
                        case assFormulaQuestionResult::RESULT_CO_FRAC:
                                $exp_val = explode('/', $value);
                                if(count($exp_val) == 1)
                                {
                                        $frac_value = ilMath::_div($exp_val[0], 1, $this->getPrecision());
                                        if( ilMath::_equals($frac_value, $result, $this->getPrecision()) )
                                        {
                                                $check_fraction = TRUE;
                                        }
                                        else
                                        {
                                                $check_fraction = FALSE;
                                        }
                                }
                                else
                                {
                                        $frac_value = ilMath::_div($exp_val[0], $exp_val[1]);
                                        $frac_value = ilMath::_round($frac_value, $this->getPrecision());
                                        $frac_value = str_replace(',', '.', $frac_value);

                                        if( ilMath::_equals($frac_value, $result, $this->getPrecision()) )
                                        {
                                                $check_fraction = TRUE;
                                        }

                                        if($this->getResultType() == assFormulaQuestionResult::RESULT_CO_FRAC)
                                        {
                                                if(!self::isCoprimeFraction($exp_val[0], $exp_val[1]))
                                                {
                                                        $check_fraction = FALSE;
                                                }
                                        }
                                }

                                if(substr_count($value, '.') >= 1 || substr_count($value, ',') >= 1)
                                {
                                        $check_fraction = FALSE;
                                }
                                break;

                        case assFormulaQuestionResult::RESULT_NO_SELECTION:
                        default:
                                if(substr_count($value, '.') == 1 || substr_count($value, ',') == 1)
                                {
                                        $frac_value = str_replace(',', '.', $value);
                                }
                                elseif( substr_count($value, '/') == 1 )
                                {
                                        $exp_val = explode('/', $value);
                                        $frac_value = ilMath::_div($exp_val[0], $exp_val[1], $this->getPrecision());
                                }
                                else
                                {
                                        $frac_value = $value;
                                }
                                $frac_value = ilMath::_round($frac_value, $this->getPrecision());
                                $check_fraction = TRUE;
                        break;
                }

                // result unit!!
                if(is_object($this->getUnit()))
                {
                        //there is a "fix" result_unit defined!

                        // if expected resultunit != baseunit convert to "fix" result_unit
                        if($this->getUnit()->getBaseUnit() != -1)
                        {
                                $result = ilMath::_div($result, $this->getUnit()->getFactor(), $this->getPrecision());
                        }
                        else
                        {
                                //if resultunit == baseunit calculate to get correct precision
                                $result = ilMath::_mul($result, $this->getUnit()->getFactor(), $this->getPrecision());
                        }
                }
                else if($this->getUnit() == NULL && $unit != NULL)
                {
                        // there is no "fix" result_unit defined, but the user has selected a unit ...
                        // so .... there are "available resultunits" in multi-selectbox selected
                        // -> check if selected user-unit is baseunit

                        if((int)$unit->getFactor() == 1)
                        {
                                // result is already calculated to baseunit.... -> get correct precision..
                                $result = ilMath::_mul($result, 1, $this->getPrecision());
                        }
                        else
                        {
                                $result = ilMath::_div($result, $unit->getFactor(), 100);
                        }
                }
                if(is_object($unit))
                {
                        if(isset($frac_value))
                        {
                                $value = ilMath::_mul($frac_value, $unit->getFactor(), 100);
                        }
                }

                $checkvalue = FALSE;
                if(isset($frac_value))
                {
                        if($this->isInTolerance($frac_value, $result, $this->getTolerance()))
                        {
                                $checkvalue = TRUE;
                        }
                }
                else
                {
                        if($this->isInTolerance($value, $result, $this->getTolerance()))
                        {
                                $checkvalue = TRUE;
                        }
                }

                $checkunit = TRUE;
                if(is_object($this->getUnit()))
                {
                        if(is_object($unit))
                        {
                                if($unit->getId() != $this->getUnit()->getId())
                                {
                                        $checkunit = FALSE;
                                }
                        }
                }
                return $checkvalue && $checkunit && $check_fraction && $check_valid_chars;
        }

References $formula, $result, $results, $unit, ilMath\_div(), ilMath\_equals(), ilMath\_mul(), ilMath\_round(), getPrecision(), getResultType(), getTolerance(), getUnit(), isInTolerance(), RESULT_CO_FRAC, RESULT_DEC, RESULT_FRAC, RESULT_NO_SELECTION, and substituteFormula().

Referenced by getReachedPoints(), and getResultInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

isInTolerance()

assFormulaQuestionResult::isInTolerance (   $v1,   $v2,   $p  )

protected

Definition at line 467 of file class.assFormulaQuestionResult.php.

        {
                include_once "./Services/Math/classes/class.ilMath.php";
                $v1 = ilMath::_mul($v1, 1, $this->getPrecision());
                $b1 = ilMath::_sub($v2, abs(ilMath::_div(ilMath::_mul($p, $v2, 100), 100)), $this->getPrecision());
                $b2 = ilMath::_add($v2, abs(ilMath::_div(ilMath::_mul($p, $v2, 100), 100)), $this->getPrecision());
                if(($b1 <= $v1) && ($b2 >= $v1)) return TRUE;
                else return FALSE;
        }

References ilMath\_add(), ilMath\_div(), ilMath\_mul(), ilMath\_sub(), and getPrecision().

Referenced by getReachedPoints(), getResultInfo(), and isCorrect().

Here is the call graph for this function:

Here is the caller graph for this function:

setFormula()

assFormulaQuestionResult::setFormula

(

$formula

)

Definition at line 823 of file class.assFormulaQuestionResult.php.

        {
                $this->formula = $formula;
        }

References $formula.

setPoints()

assFormulaQuestionResult::setPoints

(

$points

)

Definition at line 833 of file class.assFormulaQuestionResult.php.

        {
                $this->points = $points;
        }

References $points.

setPrecision()

assFormulaQuestionResult::setPrecision

(

$precision

)

Definition at line 883 of file class.assFormulaQuestionResult.php.

        {
                $this->precision = $precision;
        }

References $precision.

setRangeMax()

assFormulaQuestionResult::setRangeMax

(

$range_max

)

Definition at line 768 of file class.assFormulaQuestionResult.php.

        {
//              include_once "./Services/Math/classes/class.EvalMath.php";
//              $math = new EvalMath();
//              $math->suppress_errors = TRUE;
//              $result = $math->evaluate($range_max);
//              $val = (strlen($result) > 8) ? strtoupper(sprintf("%e", $result)) : $result;
//              $this->range_max = $val;

                include_once "./Services/Math/classes/class.EvalMath.php";
                $math                  = new EvalMath();
                $math->suppress_errors = TRUE;
                $result                = $math->evaluate($range_max);
                $this->range_max       = $result;

        }

References $range_max, and $result.

Referenced by __construct(), and suggestRange().

Here is the caller graph for this function:

setRangeMaxTxt()

assFormulaQuestionResult::setRangeMaxTxt

(

$range_max_txt

)

Definition at line 903 of file class.assFormulaQuestionResult.php.

        {
                $this->range_max_txt = $range_max_txt;
        }

References $range_max_txt.

Referenced by __construct().

Here is the caller graph for this function:

setRangeMin()

assFormulaQuestionResult::setRangeMin

(

$range_min

)

Definition at line 732 of file class.assFormulaQuestionResult.php.

        {
//              include_once "./Services/Math/classes/class.EvalMath.php";
//              $math = new EvalMath();
//              $math->suppress_errors = TRUE;
//              $result = $math->evaluate($range_min);
//              $val = (strlen($result) > 8) ? strtoupper(sprintf("%e", $result)) : $result;
//              $this->range_min = $val;

                include_once "./Services/Math/classes/class.EvalMath.php";
                $math                  = new EvalMath();
                $math->suppress_errors = TRUE;
                $result                = $math->evaluate($range_min);
                $this->range_min       = $result;


        }

References $range_min, and $result.

Referenced by __construct(), and suggestRange().

Here is the caller graph for this function:

setRangeMinTxt()

assFormulaQuestionResult::setRangeMinTxt

(

$range_min_txt

)

Definition at line 913 of file class.assFormulaQuestionResult.php.

        {
                $this->range_min_txt = $range_min_txt;
        }

References $range_min_txt.

Referenced by __construct().

Here is the caller graph for this function:

setRatingSign()

assFormulaQuestionResult::setRatingSign

(

$rating_sign

)

Definition at line 853 of file class.assFormulaQuestionResult.php.

        {
                $this->rating_sign = $rating_sign;
        }

References $rating_sign.

setRatingSimple()

assFormulaQuestionResult::setRatingSimple

(

$rating_simple

)

Definition at line 843 of file class.assFormulaQuestionResult.php.

        {
                $this->rating_simple = $rating_simple;
        }

References $rating_simple.

setRatingUnit()

assFormulaQuestionResult::setRatingUnit

(

$rating_unit

)

Definition at line 873 of file class.assFormulaQuestionResult.php.

        {
                $this->rating_unit = $rating_unit;
        }

References $rating_unit.

setRatingValue()

assFormulaQuestionResult::setRatingValue

(

$rating_value

)

Definition at line 863 of file class.assFormulaQuestionResult.php.

        {
                $this->rating_value = $rating_value;
        }

References $rating_value.

setResult()

assFormulaQuestionResult::setResult

(

$result

)

Definition at line 722 of file class.assFormulaQuestionResult.php.

        {
                $this->result = $result;
        }

References $result.

setResultType()

assFormulaQuestionResult::setResultType

(

$a_result_type

)

Definition at line 893 of file class.assFormulaQuestionResult.php.

        {
                $this->result_type = $a_result_type;
        }

setTolerance()

assFormulaQuestionResult::setTolerance

(

$tolerance

)

Definition at line 803 of file class.assFormulaQuestionResult.php.

        {
                $this->tolerance = $tolerance;
        }

References $tolerance.

setUnit()

assFormulaQuestionResult::setUnit

(

$unit

)

Definition at line 813 of file class.assFormulaQuestionResult.php.

        {
                $this->unit = $unit;
        }

References $unit.

substituteFormula()

assFormulaQuestionResult::substituteFormula	(		$variables,
			$results
	)

Definition at line 74 of file class.assFormulaQuestionResult.php.

        {
                global $lng;

                $formula = $this->getFormula();

                if(preg_match_all("/(\\\$r\\d+)/ims", $formula, $matches))
                {
                        foreach($matches[1] as $result)
                        {
                                if(strcmp($result, $this->getResult()) == 0)
                                {
                                        ilUtil::sendFailure($lng->txt("errRecursionInResult"));
                                        return false;
                                }

                                if(is_object($results[$result]))
                                {
                                        $formula = str_replace($result, $results[$result]->substituteFormula($variables, $results), $formula);
                                }
                                else
                                {
                                        ilUtil::sendFailure($lng->txt("errFormulaQuestion"));
                                        return false;
                                }
                        }
                }

                return "(".$formula.")";
        }

References $formula, $lng, $result, $results, getFormula(), getResult(), ilUtil\sendFailure(), and substituteFormula().

Referenced by calculateFormula(), findValidRandomVariables(), getReachedPoints(), getResultInfo(), isCorrect(), substituteFormula(), and suggestRange().

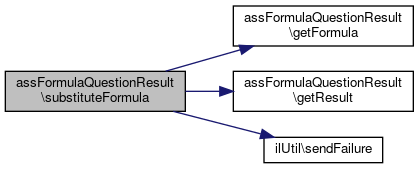

Here is the call graph for this function:

Here is the caller graph for this function:

suggestRange()

assFormulaQuestionResult::suggestRange	(		$variables,
			$results
	)

Definition at line 202 of file class.assFormulaQuestionResult.php.

        {

//              @todo Check this
                include_once "./Services/Math/classes/class.EvalMath.php";
                $range_min = NULL;
                $range_max = NULL;
                for($i = 0; $i < 1000; $i++)
                {
                        $formula = $this->substituteFormula($variables, $results);
                        if(preg_match_all("/(\\\$v\\d+)/ims", $formula, $matches))
                        {
                                foreach($matches[1] as $variable)
                                {
                                        $varObj = $variables[$variable];
                                        if(!is_object($varObj))
                                        {
                                                continue;
                                        }
                                        $varObj->setRandomValue();
                                        $formula = preg_replace("/\\\$" . substr($variable, 1) . "(?![0-9]+)/", "(".$varObj->getBaseValue().")" . "\\1", $formula);
                                }
                        }
                        $math                  = new EvalMath();
                        $math->suppress_errors = TRUE;
                        $result                = $math->evaluate($formula);
                        if(($range_min == NULL) || ($result < $range_min)) $range_min = $result;
                        if(($range_max == NULL) || ($result > $range_max)) $range_max = $result;
                }
                include_once "./Services/Math/classes/class.ilMath.php";
                if(is_object($this->getUnit()))
                {
                        $range_min = ilMath::_div($range_min, $this->getUnit()->getFactor());
                        $range_max = ilMath::_div($range_max, $this->getUnit()->getFactor());
                }
                $this->setRangeMin(ilMath::_mul($range_min, 1, $this->getPrecision()));
                $this->setRangeMax(ilMath::_mul($range_max, 1, $this->getPrecision()));
        }

References $formula, $range_max, $range_min, $result, $results, ilMath\_div(), ilMath\_mul(), getPrecision(), getUnit(), setRangeMax(), setRangeMin(), and substituteFormula().

Here is the call graph for this function:

Field Documentation

$available_units

assFormulaQuestionResult::$available_units = array()

private

Definition at line 33 of file class.assFormulaQuestionResult.php.

Referenced by getAvailableResultUnits().

$formula

assFormulaQuestionResult::$formula

private

Definition at line 22 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), calculateFormula(), findValidRandomVariables(), getFormula(), getReachedPoints(), getResultInfo(), isCorrect(), setFormula(), substituteFormula(), and suggestRange().

$points

assFormulaQuestionResult::$points

private

Definition at line 27 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getPoints(), getReachedPoints(), getResultInfo(), and setPoints().

$precision

assFormulaQuestionResult::$precision

private

Definition at line 28 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getPrecision(), and setPrecision().

$range_max

assFormulaQuestionResult::$range_max

private

Definition at line 19 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRangeMax(), setRangeMax(), and suggestRange().

$range_max_txt

assFormulaQuestionResult::$range_max_txt

private

Definition at line 31 of file class.assFormulaQuestionResult.php.

Referenced by getRangeMaxTxt(), and setRangeMaxTxt().

$range_min

assFormulaQuestionResult::$range_min

private

Definition at line 18 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRangeMin(), setRangeMin(), and suggestRange().

$range_min_txt

assFormulaQuestionResult::$range_min_txt

private

Definition at line 30 of file class.assFormulaQuestionResult.php.

Referenced by getRangeMinTxt(), and setRangeMinTxt().

$rating_sign

assFormulaQuestionResult::$rating_sign

private

Definition at line 24 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRatingSign(), and setRatingSign().

$rating_simple

assFormulaQuestionResult::$rating_simple

private

Definition at line 23 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRatingSimple(), and setRatingSimple().

$rating_unit

assFormulaQuestionResult::$rating_unit

private

Definition at line 26 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRatingUnit(), and setRatingUnit().

$rating_value

assFormulaQuestionResult::$rating_value

private

Definition at line 25 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getRatingValue(), and setRatingValue().

$result

assFormulaQuestionResult::$result

private

Definition at line 17 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), calculateFormula(), convertDecimalToCoprimeFraction(), findValidRandomVariables(), getReachedPoints(), getResult(), getResultInfo(), isCorrect(), setRangeMax(), setRangeMin(), setResult(), substituteFormula(), and suggestRange().

$result_type

assFormulaQuestionResult::$result_type

private

Definition at line 29 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), and getResultType().

$tolerance

assFormulaQuestionResult::$tolerance

private

Definition at line 20 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), convertDecimalToCoprimeFraction(), getTolerance(), and setTolerance().

$unit

assFormulaQuestionResult::$unit

private

Definition at line 21 of file class.assFormulaQuestionResult.php.

Referenced by __construct(), getReachedPoints(), getResultInfo(), getUnit(), isCorrect(), and setUnit().

RESULT_CO_FRAC

const assFormulaQuestionResult::RESULT_CO_FRAC = 3

Definition at line 15 of file class.assFormulaQuestionResult.php.

Referenced by assFormulaQuestion\getBestSolution(), getReachedPoints(), isCorrect(), and assFormulaQuestion\substituteVariables().

RESULT_DEC

const assFormulaQuestionResult::RESULT_DEC = 1

Definition at line 13 of file class.assFormulaQuestionResult.php.

Referenced by getReachedPoints(), isCorrect(), and assFormulaQuestion\substituteVariables().

RESULT_FRAC

const assFormulaQuestionResult::RESULT_FRAC = 2

Definition at line 14 of file class.assFormulaQuestionResult.php.

Referenced by assFormulaQuestion\getBestSolution(), getReachedPoints(), isCorrect(), and assFormulaQuestion\substituteVariables().

RESULT_NO_SELECTION

const assFormulaQuestionResult::RESULT_NO_SELECTION = 0

Definition at line 12 of file class.assFormulaQuestionResult.php.

Referenced by getReachedPoints(), isCorrect(), and assFormulaQuestion\substituteVariables().

---

The documentation for this class was generated from the following file:

• Modules/TestQuestionPool/classes/class.assFormulaQuestionResult.php
