Class for container reference export. More...

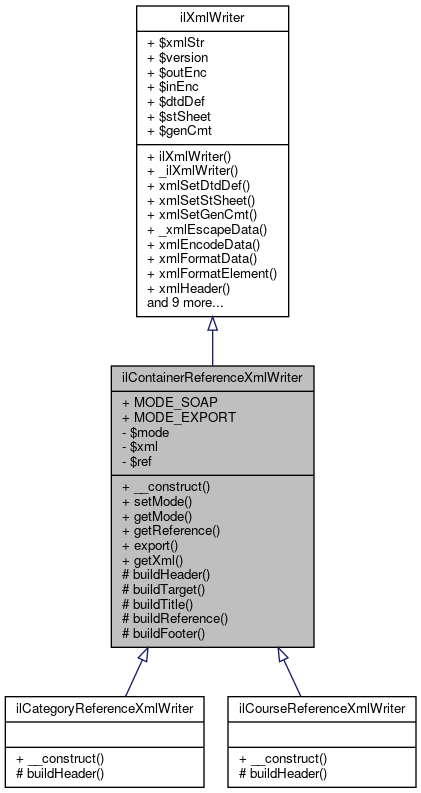

Inheritance diagram for ilContainerReferenceXmlWriter:

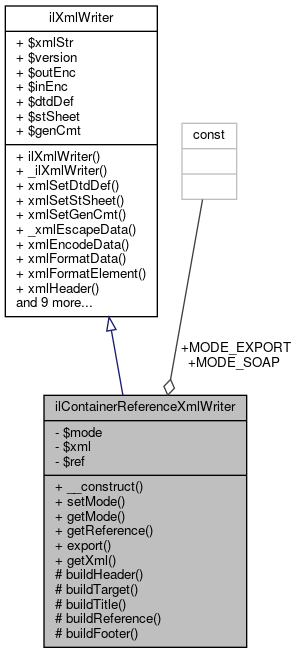

Collaboration diagram for ilContainerReferenceXmlWriter:

Public Member Functions
	__construct (ilContainerReference $ref=null)
	constructor More...

	setMode ($a_mode)
	Set export mode. More...

	getMode ()
	get export mode More...

	getReference ()
	Get category object. More...

	export ($a_with_header=true)
	Start wrting xml. More...

	getXml ()
	get XML More...

Public Member Functions inherited from ilXmlWriter
	ilXmlWriter ($version="1.0", $outEnc="utf-8", $inEnc="utf-8")
	constructor More...

	_ilXmlWriter ()
	destructor @access public More...

	xmlSetDtdDef ($dtdDef)
	Sets dtd definition. More...

	xmlSetStSheet ($stSheet)
	Sets stylesheet. More...

	xmlSetGenCmt ($genCmt)
	Sets generated comment. More...

	_xmlEscapeData ($data)
	Escapes reserved characters. More...

	xmlEncodeData ($data)
	Encodes text from input encoding into output encoding. More...

	xmlFormatData ($data)
	Indents text for better reading. More...

	xmlFormatElement ($array)
	Callback function for xmlFormatData; do not invoke directly. More...

	xmlHeader ()
	Writes xml header @access public. More...

	xmlStartTag ($tag, $attrs=NULL, $empty=FALSE, $encode=TRUE, $escape=TRUE)
	Writes a starttag. More...

	xmlEndTag ($tag)
	Writes an endtag. More...

	xmlComment ($comment)
	Writes a comment. More...

	xmlData ($data, $encode=TRUE, $escape=TRUE)
	Writes data. More...

	xmlElement ($tag, $attrs=NULL, $data=Null, $encode=TRUE, $escape=TRUE)
	Writes a basic element (no children, just textual content) More...

	xmlDumpFile ($file, $format=TRUE)
	Dumps xml document from memory into a file. More...

	xmlDumpMem ($format=TRUE)
	Returns xml document from memory. More...

	appendXML ($a_str)
	append xml string to document More...

	xmlClear ()
	clears xmlStr @access public More...

Data Fields
const	MODE_SOAP = 1

const	MODE_EXPORT = 2

Data Fields inherited from ilXmlWriter
	$xmlStr

	$version

	$outEnc

	$inEnc

	$dtdDef = ""

	$stSheet = ""

	$genCmt = "Generated by ILIAS XmlWriter"

Protected Member Functions
	buildHeader ()
	Build xml header @global <type> $ilSetting. More...

	buildTarget ()
	Build target element. More...

	buildTitle ()
	Build title element. More...

	buildReference ()
	Build category xml. More...

	buildFooter ()
	Add footer elements. More...

Private Attributes
	$mode = self::MODE_SOAP

	$xml

	$ref

Detailed Description

Class for container reference export.

Author: Stefan Meyer smeye.nosp@m.r.il.nosp@m.ias@g.nosp@m.mx.d.nosp@m.e $Id$

Definition at line 12 of file class.ilContainerReferenceXmlWriter.php.

Constructor & Destructor Documentation

◆ __construct()

ilContainerReferenceXmlWriter::__construct ( ilContainerReference $ref = null )

constructor

Parameters

string	xml version
string	output encoding
string	input encoding @access public

Definition at line 28 of file class.ilContainerReferenceXmlWriter.php.

        {
                parent::__construct();
                $this->ref = $ref;
        }

References $ref.

Member Function Documentation

◆ buildFooter()

ilContainerReferenceXmlWriter::buildFooter ( )

protected

Add footer elements.

Definition at line 144 of file class.ilContainerReferenceXmlWriter.php.

        {
                $this->xmlEndTag('ContainerReference');
        }

References ilXmlWriter\xmlEndTag().

Referenced by export().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildHeader()

ilContainerReferenceXmlWriter::buildHeader ( )

protected

Build xml header @global <type> $ilSetting.

Returns: <type>

Reimplemented in ilCategoryReferenceXmlWriter, and ilCourseReferenceXmlWriter.

Definition at line 94 of file class.ilContainerReferenceXmlWriter.php.

        {
                global $ilSetting;

                $this->xmlSetDtdDef("<!DOCTYPE container reference PUBLIC \"-//ILIAS//DTD Group//EN\" \"".ILIAS_HTTP_PATH."/xml/ilias_container_reference_4_3.dtd\">");
                $this->xmlSetGenCmt("Export of ILIAS container reference ". $this->getReference()->getId()." of installation ".$ilSetting->get('inst_id').".");
                $this->xmlHeader();

                return true;
        }

References $ilSetting, getReference(), ilXmlWriter\xmlHeader(), ilXmlWriter\xmlSetDtdDef(), and ilXmlWriter\xmlSetGenCmt().

Referenced by export().

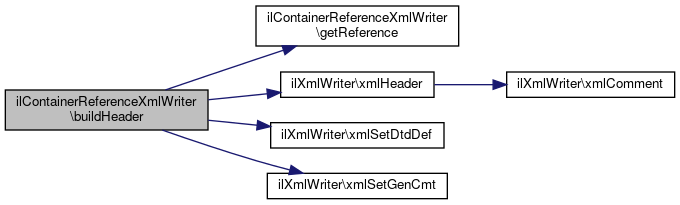

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildReference()

ilContainerReferenceXmlWriter::buildReference ( )

protected

Build category xml.

Definition at line 136 of file class.ilContainerReferenceXmlWriter.php.

        {
                $this->xmlStartTag('ContainerReference');
        }

References ilXmlWriter\xmlStartTag().

Referenced by export().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildTarget()

ilContainerReferenceXmlWriter::buildTarget ( )

protected

Build target element.

Definition at line 108 of file class.ilContainerReferenceXmlWriter.php.

        {
                $this->xmlElement('Target', array('id' => $this->getReference()->getTargetId()));
        }

References getReference(), and ilXmlWriter\xmlElement().

Referenced by export().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildTitle()

ilContainerReferenceXmlWriter::buildTitle ( )

protected

Build title element.

Definition at line 116 of file class.ilContainerReferenceXmlWriter.php.

        {
                $title = '';
                if($this->getReference()->getTitleType() == ilContainerReference::TITLE_TYPE_CUSTOM)
                {
                        $title = $this->getReference()->getTitle();
                }

                $this->xmlElement(
                                'Title',
                                array(
                                        'type' => $this->getReference()->getTitleType()
                                ),
                                $title
                        );
        }

References getReference(), ilContainerReference\TITLE_TYPE_CUSTOM, and ilXmlWriter\xmlElement().

Referenced by export().

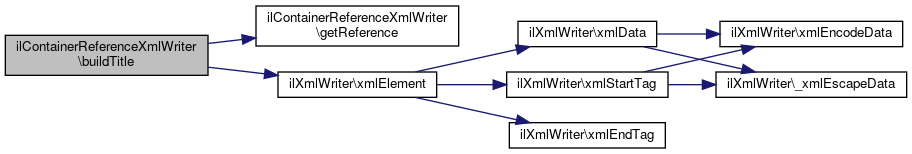

Here is the call graph for this function:

Here is the caller graph for this function:

◆ export()

ilContainerReferenceXmlWriter::export ( $a_with_header = true )

Start wrting xml.

Definition at line 65 of file class.ilContainerReferenceXmlWriter.php.

        {
                if($this->getMode() == self::MODE_EXPORT)
                {
                        if($a_with_header)
                        {
                                $this->buildHeader();
                        }
                        $this->buildReference();
                        $this->buildTarget();
                        $this->buildTitle();
                        $this->buildFooter();
                }
        }

References buildFooter(), buildHeader(), buildReference(), buildTarget(), buildTitle(), and getMode().

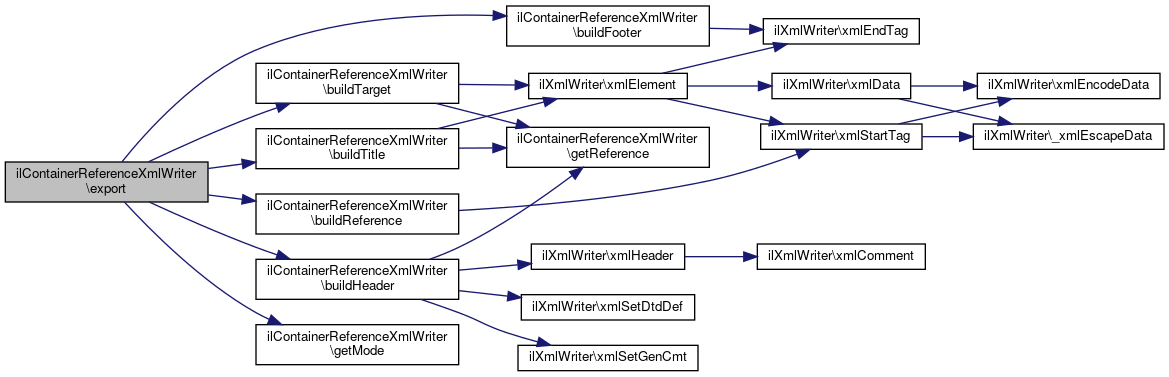

Here is the call graph for this function:

◆ getMode()

ilContainerReferenceXmlWriter::getMode ( )

get export mode

Returns: int

Definition at line 47 of file class.ilContainerReferenceXmlWriter.php.

        {
                return $this->mode;
        }

References $mode.

Referenced by export().

Here is the caller graph for this function:

◆ getReference()

ilContainerReferenceXmlWriter::getReference ( )

Get category object.

Returns: ilContainerReference

Definition at line 56 of file class.ilContainerReferenceXmlWriter.php.

        {
                return $this->ref;
        }

References $ref.

Referenced by ilCategoryReferenceXmlWriter\buildHeader(), ilCourseReferenceXmlWriter\buildHeader(), buildHeader(), buildTarget(), and buildTitle().

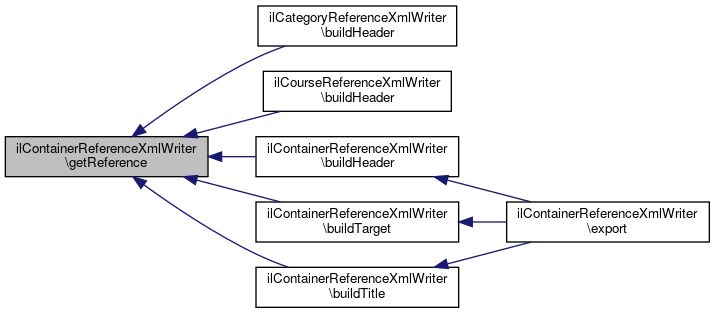

Here is the caller graph for this function:

◆ getXml()

ilContainerReferenceXmlWriter::getXml ( )

get XML

Returns: string

Definition at line 84 of file class.ilContainerReferenceXmlWriter.php.

        {
                return $this->xmlDumpMem(false);
        }

References ilXmlWriter\xmlDumpMem().

Here is the call graph for this function:

◆ setMode()

ilContainerReferenceXmlWriter::setMode ( $a_mode )

Set export mode.

Parameters

int $a_mode

Definition at line 38 of file class.ilContainerReferenceXmlWriter.php.

        {
                $this->mode = $a_mode;
        }

Field Documentation

◆ $mode

ilContainerReferenceXmlWriter::$mode = self::MODE_SOAP

private

Definition at line 17 of file class.ilContainerReferenceXmlWriter.php.

Referenced by getMode().

◆ $ref

ilContainerReferenceXmlWriter::$ref

private

Definition at line 19 of file class.ilContainerReferenceXmlWriter.php.

Referenced by __construct(), ilCategoryReferenceXmlWriter\__construct(), ilCourseReferenceXmlWriter\__construct(), and getReference().

◆ $xml

ilContainerReferenceXmlWriter::$xml

private

Definition at line 18 of file class.ilContainerReferenceXmlWriter.php.

◆ MODE_EXPORT

const ilContainerReferenceXmlWriter::MODE_EXPORT = 2

Definition at line 15 of file class.ilContainerReferenceXmlWriter.php.

Referenced by ilContainerReferenceExporter\getXmlRepresentation().

◆ MODE_SOAP

const ilContainerReferenceXmlWriter::MODE_SOAP = 1

Definition at line 14 of file class.ilContainerReferenceXmlWriter.php.

The documentation for this class was generated from the following file:

Services/ContainerReference/classes/class.ilContainerReferenceXmlWriter.php
