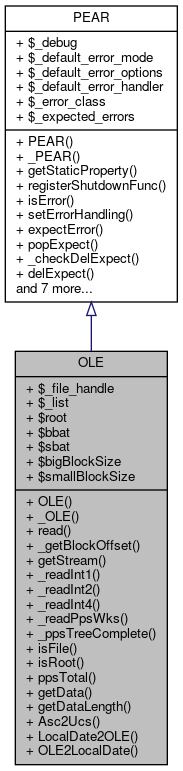

Inheritance diagram for OLE:

Collaboration diagram for OLE:

Public Member Functions
	OLE ()
	Creates a new OLE object @access public. More...

	_OLE ()
	Destructor (using PEAR) Just closes the file handle on the OLE file. More...

	read ($file)
	Reads an OLE container from the contents of the file given. More...

	_getBlockOffset ($blockId)

	getStream ($blockIdOrPps)
	Returns a stream for use with fread() etc. More...

	_readInt1 ($fh)
	Reads a signed char. More...

	_readInt2 ($fh)
	Reads an unsigned short (2 octets). More...

	_readInt4 ($fh)
	Reads an unsigned long (4 octets). More...

	_readPpsWks ($blockId)
	Gets information about all PPS's on the OLE container from the PPS WK's creates an OLE_PPS object for each one. More...

	_ppsTreeComplete ($index)
	It checks whether the PPS tree is complete (all PPS's read) starting with the given PPS (not necessarily root) More...

	isFile ($index)
	Checks whether a PPS is a File PPS or not. More...

	isRoot ($index)
	Checks whether a PPS is a Root PPS or not. More...

	ppsTotal ()
	Gives the total number of PPS's found in the OLE container. More...

	getData ($index, $position, $length)
	Gets data from a PPS If there is no PPS for the index given, it will return an empty string. More...

	getDataLength ($index)
	Gets the data length from a PPS If there is no PPS for the index given, it will return 0. More...

Public Member Functions inherited from PEAR
	PEAR ($error_class=null)
	Constructor. More...

	_PEAR ()
	Destructor (the emulated type of...). More...

&	getStaticProperty ($class, $var)
	If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...

	registerShutdownFunc ($func, $args=array())
	Use this function to register a shutdown method for static classes. More...

	isError ($data, $code=null)
	Tell whether a value is a PEAR error. More...

	setErrorHandling ($mode=null, $options=null)
	Sets how errors generated by this object should be handled. More...

	expectError ($code=' *')
	This method is used to tell which errors you expect to get. More...

	popExpect ()
	This method pops one element off the expected error codes stack. More...

	_checkDelExpect ($error_code)
	This method checks unsets an error code if available. More...

	delExpect ($error_code)
	This method deletes all occurences of the specified element from the expected error codes stack. More...

&	raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
	This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...

&	throwError ($message=null, $code=null, $userinfo=null)
	Simpler form of raiseError with fewer options. More...

	staticPushErrorHandling ($mode, $options=null)

	staticPopErrorHandling ()

	pushErrorHandling ($mode, $options=null)
	Push a new error handler on top of the error handler options stack. More...

	popErrorHandling ()
	Pop the last error handler used. More...

	loadExtension ($ext)
	OS independant PHP extension load. More...

Static Public Member Functions
	Asc2Ucs ($ascii)
	Utility function to transform ASCII text to Unicode. More...

	LocalDate2OLE ($date=null)
	Utility function Returns a string for the OLE container with the date given. More...

	OLE2LocalDate ($string)
	Returns a timestamp from an OLE container's date. More...

Data Fields
	$_file_handle

	$_list

	$root

	$bbat

	$sbat

	$bigBlockSize

	$smallBlockSize

Data Fields inherited from PEAR
	$_debug = false

	$_default_error_mode = null

	$_default_error_options = null

	$_default_error_handler = ''

	$_error_class = 'PEAR_Error'

	$_expected_errors = array()

Detailed Description

Definition at line 50 of file OLE.php.

Member Function Documentation

◆ _getBlockOffset()

OLE::_getBlockOffset ( $blockId )

Parameters

int $blockId block id

Returns: int byte offset from beginning of file @access private

Definition at line 212 of file OLE.php.

    {
        return 512 + $blockId * $this->bigBlockSize;
    }

References $bigBlockSize.

Referenced by read().

Here is the caller graph for this function:

◆ _OLE()

OLE::_OLE ( )

Destructor (using PEAR) Just closes the file handle on the OLE file.

@access private

Definition at line 110 of file OLE.php.

    {
        fclose($this->_file_handle);
    }

◆ _ppsTreeComplete()

OLE::_ppsTreeComplete ( $index )

It checks whether the PPS tree is complete (all PPS's read) starting with the given PPS (not necessarily root)

@access private

Parameters

integer $index The index of the PPS from which we are checking

Returns: boolean Whether the PPS tree for the given PPS is complete

Definition at line 372 of file OLE.php.

    {
        return isset($this->_list[$index]) &&
               ($pps = $this->_list[$index]) &&
               ($pps->PrevPps == -1 ||
                $this->_ppsTreeComplete($pps->PrevPps)) &&
               ($pps->NextPps == -1 ||
                $this->_ppsTreeComplete($pps->NextPps)) &&
               ($pps->DirPps == -1 ||
                $this->_ppsTreeComplete($pps->DirPps));
    }

Referenced by _readPpsWks().

Here is the caller graph for this function:

◆ _readInt1()

OLE::_readInt1 ( $fh )

Reads a signed char.

Parameters

resource $fh file handle

Returns: int @access private

Definition at line 255 of file OLE.php.

    {
        list(, $tmp) = unpack("c", fread($fh, 1));
        return $tmp;
    }

Referenced by _readPpsWks().

Here is the caller graph for this function:

◆ _readInt2()

OLE::_readInt2 ( $fh )

Reads an unsigned short (2 octets).

Parameters

resource $fh file handle

Returns: int @access private

Definition at line 267 of file OLE.php.

    {
        list(, $tmp) = unpack("v", fread($fh, 2));
        return $tmp;
    }

Referenced by _readPpsWks(), and read().

Here is the caller graph for this function:

◆ _readInt4()

OLE::_readInt4 ( $fh )

Reads an unsigned long (4 octets).

Parameters

resource file handle

Returns: int @access private

Definition at line 279 of file OLE.php.

    {
        list(, $tmp) = unpack("V", fread($fh, 4));
        return $tmp;
    }

Referenced by _readPpsWks(), and read().

Here is the caller graph for this function:

◆ _readPpsWks()

OLE::_readPpsWks ( $blockId )

Gets information about all PPS's on the OLE container from the PPS WK's creates an OLE_PPS object for each one.

@access private

Parameters

integer $blockId the block id of the first block

Returns: mixed true on success, PEAR_Error on failure

Definition at line 293 of file OLE.php.

    {
        $fh = $this->getStream($blockId);
        for ($pos = 0; ; $pos += 128) {
            fseek($fh, $pos, SEEK_SET);
            $nameUtf16 = fread($fh, 64);
            $nameLength = $this->_readInt2($fh);
            $nameUtf16 = substr($nameUtf16, 0, $nameLength - 2);
            // Simple conversion from UTF-16LE to ISO-8859-1
            $name = str_replace("\x00", "", $nameUtf16);
            $type = $this->_readInt1($fh);
            switch ($type) {
            case OLE_PPS_TYPE_ROOT:
                require_once 'OLE/PPS/Root.php';
                $pps = new OLE_PPS_Root(null, null, array());
                $this->root = $pps;
                break;
            case OLE_PPS_TYPE_DIR:
                $pps = new OLE_PPS(null, null, null, null, null,
                                   null, null, null, null, array());
                break;
            case OLE_PPS_TYPE_FILE:
                require_once 'OLE/PPS/File.php';
                $pps = new OLE_PPS_File($name);
                break;
            default:
                continue;
            }
            fseek($fh, 1, SEEK_CUR);
            $pps->Type    = $type;
            $pps->Name    = $name;
            $pps->PrevPps = $this->_readInt4($fh);
            $pps->NextPps = $this->_readInt4($fh);
            $pps->DirPps  = $this->_readInt4($fh);
            fseek($fh, 20, SEEK_CUR);
            $pps->Time1st = OLE::OLE2LocalDate(fread($fh, 8));
            $pps->Time2nd = OLE::OLE2LocalDate(fread($fh, 8));
            $pps->_StartBlock = $this->_readInt4($fh);
            $pps->Size = $this->_readInt4($fh);
            $pps->No = count($this->_list);
            $this->_list[] = $pps;

            // check if the PPS tree (starting from root) is complete
            if (isset($this->root) &&
                $this->_ppsTreeComplete($this->root->No)) {

                break;
            }
        }
        fclose($fh);

        // Initialize $pps->children on directories
        foreach ($this->_list as $pps) {
            if ($pps->Type == OLE_PPS_TYPE_DIR || $pps->Type == OLE_PPS_TYPE_ROOT) {
                $nos = array($pps->DirPps);
                $pps->children = array();
                while ($nos) {
                    $no = array_pop($nos);
                    if ($no != -1) {
                        $childPps = $this->_list[$no];
                        $nos[] = $childPps->PrevPps;
                        $nos[] = $childPps->NextPps;
                        $pps->children[] = $childPps;
                    }
                }
            }
        }

        return true;
    }

References _ppsTreeComplete(), _readInt1(), _readInt2(), _readInt4(), getStream(), OLE2LocalDate(), OLE_PPS_TYPE_DIR, OLE_PPS_TYPE_FILE, and OLE_PPS_TYPE_ROOT.

Referenced by read().

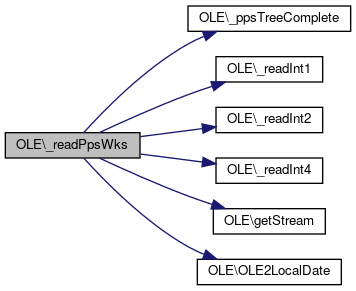

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Asc2Ucs()

OLE::Asc2Ucs ( $ascii )

static

Utility function to transform ASCII text to Unicode.

@access public

Parameters

string $ascii The ASCII string to transform

Returns: string The string in Unicode

Definition at line 473 of file OLE.php.

    {
        $rawname = '';
        for ($i = 0; $i < strlen($ascii); $i++) {
            $rawname .= $ascii{$i} . "\x00";
        }
        return $rawname;
    }

Referenced by Spreadsheet_Excel_Writer_Workbook\_storeOLEFile(), and OLE_PPS_Root\OLE_PPS_Root().

Here is the caller graph for this function:

◆ getData()

OLE::getData	(	$index,
		$position,
		$length
	)

Gets data from a PPS If there is no PPS for the index given, it will return an empty string.

Parameters

integer	$index	The index for the PPS
integer	$position	The position from which to start reading (relative to the PPS)
integer	$length	The amount of bytes to read (at most)

Returns: string The binary string containing the data requested @access public

See also: OLE_PPS_File::getStream()

Definition at line 435 of file OLE.php.

    {
        // if position is not valid return empty string
        if (!isset($this->_list[$index]) ||
            $position >= $this->_list[$index]->Size ||
            $position < 0) {

            return '';
        }
        $fh = $this->getStream($this->_list[$index]);
        $data = stream_get_contents($fh, $length, $position);
        fclose($fh);
        return $data;
    }

References $data, and getStream().

Here is the call graph for this function:

◆ getDataLength()

OLE::getDataLength ( $index )

Gets the data length from a PPS If there is no PPS for the index given, it will return 0.

Parameters

integer $index The index for the PPS

Returns: integer The amount of bytes in data the PPS has @access public

Definition at line 457 of file OLE.php.

    {
        if (isset($this->_list[$index])) {
            return $this->_list[$index]->Size;
        }
        return 0;
    }

◆ getStream()

OLE::getStream ( $blockIdOrPps )

Returns a stream for use with fread() etc.

External callers should use OLE_PPS_File::getStream().

Parameters

int | PPS $blockIdOrPps block id or PPS

Returns: resource read-only stream

Definition at line 223 of file OLE.php.

    {
        include_once 'OLE/ChainedBlockStream.php';
        static $isRegistered = false;
        if (!$isRegistered) {
            stream_wrapper_register('ole-chainedblockstream',
                                    'OLE_ChainedBlockStream');
            $isRegistered = true;
        }

        // Store current instance in global array, so that it can be accessed
        // in OLE_ChainedBlockStream::stream_open().
        // Object is removed from self::$instances in OLE_Stream::close().
        $GLOBALS['_OLE_INSTANCES'][] = $this;
        $instanceId = end(array_keys($GLOBALS['_OLE_INSTANCES']));

        $path = 'ole-chainedblockstream://oleInstanceId=' . $instanceId;
        if (is_a($blockIdOrPps, 'OLE_PPS')) {
            $path .= '&blockId=' . $blockIdOrPps->_StartBlock;
            $path .= '&size=' . $blockIdOrPps->Size;
        } else {
            $path .= '&blockId=' . $blockIdOrPps;
        }
        return fopen($path, 'r');
    }

References $GLOBALS, and $path.

Referenced by _readPpsWks(), getData(), and read().

Here is the caller graph for this function:

◆ isFile()

OLE::isFile ( $index )

Checks whether a PPS is a File PPS or not.

If there is no PPS for the index given, it will return false.

Parameters

integer $index The index for the PPS

Returns: bool true if it's a File PPS, false otherwise @access public

Definition at line 391 of file OLE.php.

    {
        if (isset($this->_list[$index])) {
            return ($this->_list[$index]->Type == OLE_PPS_TYPE_FILE);
        }
        return false;
    }

References OLE_PPS_TYPE_FILE.

◆ isRoot()

OLE::isRoot ( $index )

Checks whether a PPS is a Root PPS or not.

If there is no PPS for the index given, it will return false.

Parameters

integer $index The index for the PPS.

Returns: bool true if it's a Root PPS, false otherwise @access public

Definition at line 406 of file OLE.php.

    {
        if (isset($this->_list[$index])) {
            return ($this->_list[$index]->Type == OLE_PPS_TYPE_ROOT);
        }
        return false;
    }

References OLE_PPS_TYPE_ROOT.

◆ LocalDate2OLE()

OLE::LocalDate2OLE ( $date = null )

static

Utility function Returns a string for the OLE container with the date given.

@access public

Parameters

integer $date A timestamp

Returns: string The string for the OLE container

Definition at line 491 of file OLE.php.

    {
        if (!isset($date)) {
            return "\x00\x00\x00\x00\x00\x00\x00\x00";
        }

        // factor used for separating numbers into 4 bytes parts
        $factor = pow(2, 32);

        // days from 1-1-1601 until the beggining of UNIX era
        $days = 134774;
        // calculate seconds
        $big_date = $days * 24 * 3600 +
            gmmktime(date("H",$date),date("i",$date),date("s",$date),
                     date("m",$date),date("d",$date),date("Y",$date));
        // multiply just to make MS happy
        $big_date *= 10000000;

        $high_part = floor($big_date / $factor);
        // lower 4 bytes
        $low_part = floor((($big_date / $factor) - $high_part) * $factor);

        // Make HEX string
        $res = '';

        for ($i = 0; $i < 4; $i++) {
            $hex = $low_part % 0x100;
            $res .= pack('c', $hex);
            $low_part /= 0x100;
        }
        for ($i = 0; $i < 4; $i++) {
            $hex = $high_part % 0x100;
            $res .= pack('c', $hex);
            $high_part /= 0x100;
        }
        return $res;
    }

References $res.

Referenced by OLE_PPS\_getPpsWk().

Here is the caller graph for this function:

◆ OLE()

OLE::OLE ( )

Creates a new OLE object @access public.

Definition at line 99 of file OLE.php.

    {
        $this->_list = array();
    }

◆ OLE2LocalDate()

OLE::OLE2LocalDate ( $string )

static

Returns a timestamp from an OLE container's date.

Parameters

integer $string A binary string with the encoded date

Returns: string The timestamp corresponding to the string @access public

Definition at line 536 of file OLE.php.

    {
        if (strlen($string) != 8) {
            return new PEAR_Error("Expecting 8 byte string");
        }

        // factor used for separating numbers into 4 bytes parts
        $factor = pow(2,32);
        $high_part = 0;
        for ($i = 0; $i < 4; $i++) {
            list(, $high_part) = unpack('C', $string{(7 - $i)});
            if ($i < 3) {
                $high_part *= 0x100;
            }
        }
        $low_part = 0;
        for ($i = 4; $i < 8; $i++) {
            list(, $low_part) = unpack('C', $string{(7 - $i)});
            if ($i < 7) {
                $low_part *= 0x100;
            }
        }
        $big_date = ($high_part * $factor) + $low_part;
        // translate to seconds
        $big_date /= 10000000;

        // days from 1-1-1601 until the beggining of UNIX era
        $days = 134774;

        // translate to seconds from beggining of UNIX era
        $big_date -= $days * 24 * 3600;
        return floor($big_date);
    }

Referenced by _readPpsWks().

Here is the caller graph for this function:

◆ ppsTotal()

OLE::ppsTotal ( )

Gives the total number of PPS's found in the OLE container.

Returns: integer The total number of PPS's found in the OLE container @access public

Definition at line 419 of file OLE.php.

    {
        return count($this->_list);
    }

◆ read()

OLE::read ( $file )

Reads an OLE container from the contents of the file given.

@access public

Parameters

string $file

Returns: mixed true on success, PEAR_Error on failure

Definition at line 122 of file OLE.php.

    {
        $fh = @fopen($file, "r");
        if (!$fh) {
            return $this->raiseError("Can't open file $file");
        }
        $this->_file_handle = $fh;

        $signature = fread($fh, 8);
        if ("\xD0\xCF\x11\xE0\xA1\xB1\x1A\xE1" != $signature) {
            return $this->raiseError("File doesn't seem to be an OLE container.");
        }
        fseek($fh, 28);
        if (fread($fh, 2) != "\xFE\xFF") {
            // This shouldn't be a problem in practice
            return $this->raiseError("Only Little-Endian encoding is supported.");
        }
        // Size of blocks and short blocks in bytes
        $this->bigBlockSize   = pow(2, $this->_readInt2($fh));
        $this->smallBlockSize = pow(2, $this->_readInt2($fh));

        // Skip UID, revision number and version number
        fseek($fh, 44);
        // Number of blocks in Big Block Allocation Table
        $bbatBlockCount = $this->_readInt4($fh);

        // Root chain 1st block
        $directoryFirstBlockId = $this->_readInt4($fh);

        // Skip unused bytes
        fseek($fh, 56);
        // Streams shorter than this are stored using small blocks
        $this->bigBlockThreshold = $this->_readInt4($fh);
        // Block id of first sector in Short Block Allocation Table
        $sbatFirstBlockId = $this->_readInt4($fh);
        // Number of blocks in Short Block Allocation Table
        $sbbatBlockCount = $this->_readInt4($fh);
        // Block id of first sector in Master Block Allocation Table
        $mbatFirstBlockId = $this->_readInt4($fh);
        // Number of blocks in Master Block Allocation Table
        $mbbatBlockCount = $this->_readInt4($fh);
        $this->bbat = array();

        // Remaining 4 * 109 bytes of current block is beginning of Master
        // Block Allocation Table
        $mbatBlocks = array();
        for ($i = 0; $i < 109; $i++) {
            $mbatBlocks[] = $this->_readInt4($fh);
        }

        // Read rest of Master Block Allocation Table (if any is left)
        $pos = $this->_getBlockOffset($mbatFirstBlockId);
        for ($i = 0; $i < $mbbatBlockCount; $i++) {
            fseek($fh, $pos);
            for ($j = 0; $j < $this->bigBlockSize / 4 - 1; $j++) {
                $mbatBlocks[] = $this->_readInt4($fh);
            }
            // Last block id in each block points to next block
            $pos = $this->_getBlockOffset($this->_readInt4($fh));
        }

        // Read Big Block Allocation Table according to chain specified by
        // $mbatBlocks
        for ($i = 0; $i < $bbatBlockCount; $i++) {
            $pos = $this->_getBlockOffset($mbatBlocks[$i]);
            fseek($fh, $pos);
            for ($j = 0 ; $j < $this->bigBlockSize / 4; $j++) {
                $this->bbat[] = $this->_readInt4($fh);
            }
        }

        // Read short block allocation table (SBAT)
        $this->sbat = array();
        $shortBlockCount = $sbbatBlockCount * $this->bigBlockSize / 4;
        $sbatFh = $this->getStream($sbatFirstBlockId);
        for ($blockId = 0; $blockId < $shortBlockCount; $blockId++) {
            $this->sbat[$blockId] = $this->_readInt4($sbatFh);
        }
        fclose($sbatFh);

        $this->_readPpsWks($directoryFirstBlockId);

        return true;
    }

References $file, _getBlockOffset(), _readInt2(), _readInt4(), _readPpsWks(), getStream(), and PEAR\raiseError().

Here is the call graph for this function:

Field Documentation

◆ $_file_handle

OLE::$_file_handle

Definition at line 57 of file OLE.php.

◆ $_list

OLE::$_list

Definition at line 63 of file OLE.php.

◆ $bbat

OLE::$bbat

Definition at line 75 of file OLE.php.

◆ $bigBlockSize

OLE::$bigBlockSize

Definition at line 87 of file OLE.php.

Referenced by _getBlockOffset().

◆ $root

OLE::$root

Definition at line 69 of file OLE.php.

◆ $sbat

OLE::$sbat

Definition at line 81 of file OLE.php.

◆ $smallBlockSize

OLE::$smallBlockSize

Definition at line 93 of file OLE.php.

The documentation for this class was generated from the following file:

Services/PEAR/lib/OLE/OLE.php

Public Member Functions

Static Public Member Functions

Data Fields

Detailed Description

Member Function Documentation

◆ _getBlockOffset()

◆ _OLE()

◆ _ppsTreeComplete()

◆ _readInt1()

◆ _readInt2()

◆ _readInt4()

◆ _readPpsWks()

◆ Asc2Ucs()

◆ getData()

◆ getDataLength()

◆ getStream()

◆ isFile()

◆ isRoot()

◆ LocalDate2OLE()

◆ OLE()

◆ OLE2LocalDate()

◆ ppsTotal()

◆ read()

Field Documentation

◆ $_file_handle

◆ $_list

◆ $bbat

◆ $bigBlockSize

◆ $root

◆ $sbat

◆ $smallBlockSize
