Chart data pie series. More...

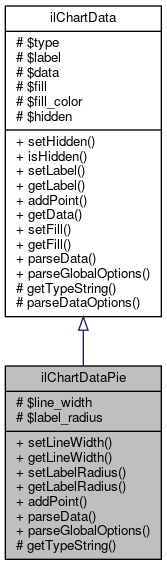

Inheritance diagram for ilChartDataPie:

Collaboration diagram for ilChartDataPie:

Public Member Functions
	setLineWidth ($a_value)
	Set line width. More...

	getLineWidth ()
	Get line width. More...

	setLabelRadius ($a_value)
	Sets the radius at which to place the labels. More...

	getLabelRadius ()

	addPoint ($a_value, $a_caption=null)
	Set data. More...

	parseData (array &$a_data)
	Convert data to flot config. More...

	parseGlobalOptions (stdClass $a_options, ilChart $a_chart)
	Convert (global) properties to flot config. More...

Public Member Functions inherited from ilChartData
	setHidden ($a_value)
	Set hidden. More...

	isHidden ()
	Is hidden? More...

	setLabel ($a_value)
	Set label. More...

	getLabel ()
	Get label. More...

	addPoint ($a_x, $a_y=null)
	Set data. More...

	getData ()
	Get data. More...

	setFill ($a_value, $a_color=null)
	Set fill. More...

	getFill ()
	Get fill. More...

	parseData (array &$a_data)
	Convert data to flot config. More...

	parseGlobalOptions (stdClass $a_options, ilChart $a_chart)
	Convert (global) properties to flot config. More...

Protected Member Functions
	getTypeString ()
	Get series type. More...

Protected Member Functions inherited from ilChartData
	getTypeString ()
	Get series type. More...

	parseDataOptions (array &$a_options)
	Convert data options to flot config. More...

Protected Attributes
	$line_width

	$label_radius

Protected Attributes inherited from ilChartData
	$type

	$label

	$data

	$fill

	$fill_color

	$hidden

Detailed Description

Chart data pie series.

Author: Jörg Lützenkirchen luetz.nosp@m.enki.nosp@m.rchen.nosp@m.@lei.nosp@m.fos.c.nosp@m.om

Version: $Id$

Definition at line 13 of file class.ilChartDataPie.php.

Member Function Documentation

◆ addPoint()

ilChartDataPie::addPoint	(	$a_x,
		$a_y = `null`
	)

Set data.

Parameters

float	$a_x
float	$a_y

Reimplemented from ilChartData.

Definition at line 64 of file class.ilChartDataPie.php.

        {
                $this->data[] = array($a_value, $a_caption);
        }

◆ getLabelRadius()

ilChartDataPie::getLabelRadius ( )

Returns: mixed

Definition at line 59 of file class.ilChartDataPie.php.

    {
        return $this->label_radius;
    }

References $label_radius.

Referenced by parseData().

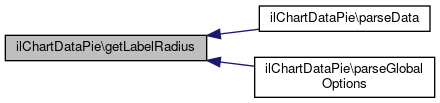

Here is the caller graph for this function:

◆ getLineWidth()

ilChartDataPie::getLineWidth ( )

Get line width.

Returns: int

Definition at line 38 of file class.ilChartDataPie.php.

        {
                return $this->line_width;
        }

References $line_width.

◆ getTypeString()

ilChartDataPie::getTypeString ( )

protected

Get series type.

Returns: string

Reimplemented from ilChartData.

Definition at line 18 of file class.ilChartDataPie.php.

        {
                return "pie";
        }

Referenced by parseData().

Here is the caller graph for this function:

◆ parseData()

ilChartDataPie::parseData ( array & $a_data )

Convert data to flot config.

Parameters

array $a_data

Returns: object

Reimplemented from ilChartData.

Definition at line 69 of file class.ilChartDataPie.php.

        {
                foreach($this->data as $slice)
                {
                        $series = new stdClass();
                        $series->label = str_replace("\"", "\\\"", $slice[1]);

                        // add percentage to legend
                        if(!$this->getLabelRadius())
                        {
                                $series->label .= " (".$slice[0]."%)";
                        }

                        $series->data = $slice[0];

                        $options = array("show"=>($this->isHidden() ? false : true));

                        $series->{$this->getTypeString()} = $options;

                        $a_data[] = $series;
                }
        }

References $options, getLabelRadius(), getTypeString(), and ilChartData\isHidden().

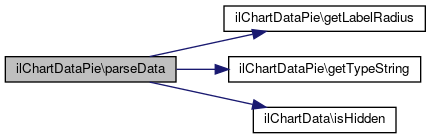

Here is the call graph for this function:

◆ parseGlobalOptions()

ilChartDataPie::parseGlobalOptions	(	stdClass	$a_options,
		ilChart	$a_chart
	)

Convert (global) properties to flot config.

Parameters

object	$a_options
ilChart	$a_chart

Reimplemented from ilChartData.

Definition at line 92 of file class.ilChartDataPie.php.

        {
                $a_options->series->pie = new stdClass();
                $a_options->series->pie->show = true;

                // fill vs. stroke - trying to normalize data attributes

                $fill = $this->getFill();
                $width = $this->getLineWidth();
                if($fill["fill"] || $width)
                {
                        $a_options->series->pie->stroke = new stdClass;
                        if($width)
                        {
                                $a_options->series->pie->stroke->width = $width;
                        }
                        if($fill["color"])
                        {
                                $a_options->series->pie->stroke->color = ilChart::renderColor($fill["color"], $fill["fill"]);
                        }
                }

                $radius = $this->getLabelRadius();
                if ($radius)
                {
                        $a_options->series->pie->label = new stdClass;
                        $a_options->series->pie->label->background = new stdClass;
                        $a_options->series->pie->radius = 1;
                        $a_options->series->pie->label->radius = $radius;
                        $a_options->series->pie->label->show = true;
                        $a_options->series->pie->label->background->color = "#444";
                        $a_options->series->pie->label->background->opacity = 0.8;
                }
        }

References ilChart\renderColor().

Here is the call graph for this function:

◆ setLabelRadius()

ilChartDataPie::setLabelRadius ( $a_value )

Sets the radius at which to place the labels.

If value is between 0 and 1 (inclusive) then it will use that as a percentage of the available space (size of the container), otherwise it will use the value as a direct pixel length.

Parameters

mixed $a_value

Definition at line 51 of file class.ilChartDataPie.php.

    {
        $this->label_radius = $a_value;
    }

◆ setLineWidth()

ilChartDataPie::setLineWidth ( $a_value )

Set line width.

Parameters

int $a_value

Definition at line 28 of file class.ilChartDataPie.php.

        {
                $this->line_width = (int)$a_value;
        }

Field Documentation

◆ $label_radius

ilChartDataPie::$label_radius

protected

Definition at line 16 of file class.ilChartDataPie.php.

Referenced by getLabelRadius().

◆ $line_width

ilChartDataPie::$line_width

protected

Definition at line 15 of file class.ilChartDataPie.php.

Referenced by getLineWidth().

The documentation for this class was generated from the following file:

Services/Chart/classes/class.ilChartDataPie.php
