QRcode Class Reference

Class to create QR-code arrays for TCPDF class. More...

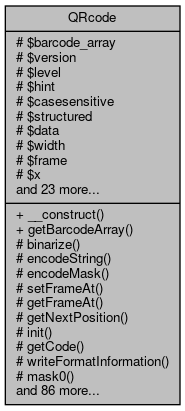

Collaboration diagram for QRcode:

Public Member Functions
	__construct ($code, $eclevel='L')
	This is the class constructor. More...
	getBarcodeArray ()
	Returns a barcode array which is readable by TCPDF. More...

Protected Member Functions
	binarize ($frame)
	Convert the frame in binary form. More...
	encodeString ($string)
	Encode the input string to QR code. More...
	encodeMask ($mask)
	Encode mask. More...
	setFrameAt ($at, $val)
	Set frame value at specified position. More...
	getFrameAt ($at)
	Get frame value at specified position. More...
	getNextPosition ()
	Return the next frame position. More...

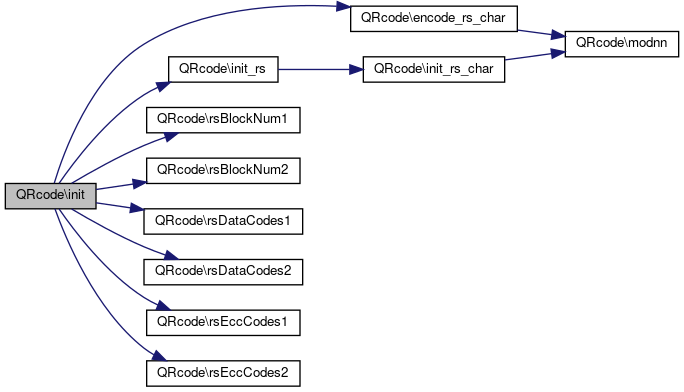

	init ($spec)
	Initialize code. More...
	getCode ()
	Return Reed-Solomon block code. More...
	writeFormatInformation ($width, &$frame, $mask, $level)
	Write Format Information on frame and returns the number of black bits. More...
	mask0 ($x, $y)
	mask0 More...
	mask1 ($x, $y)
	mask1 More...
	mask2 ($x, $y)
	mask2 More...
	mask3 ($x, $y)
	mask3 More...
	mask4 ($x, $y)
	mask4 More...
	mask5 ($x, $y)
	mask5 More...
	mask6 ($x, $y)
	mask6 More...
	mask7 ($x, $y)
	mask7 More...
	generateMaskNo ($maskNo, $width, $frame)
	Return bitmask. More...
	makeMaskNo ($maskNo, $width, $s, &$d, $maskGenOnly=false)
	makeMaskNo More...
	makeMask ($width, $frame, $maskNo, $level)
	makeMask More...
	calcN1N3 ($length)
	calcN1N3 More...
	evaluateSymbol ($width, $frame)
	evaluateSymbol More...
	mask ($width, $frame, $level)
	mask More...
	isdigitat ($str, $pos)
	Return true if the character at specified position is a number. More...

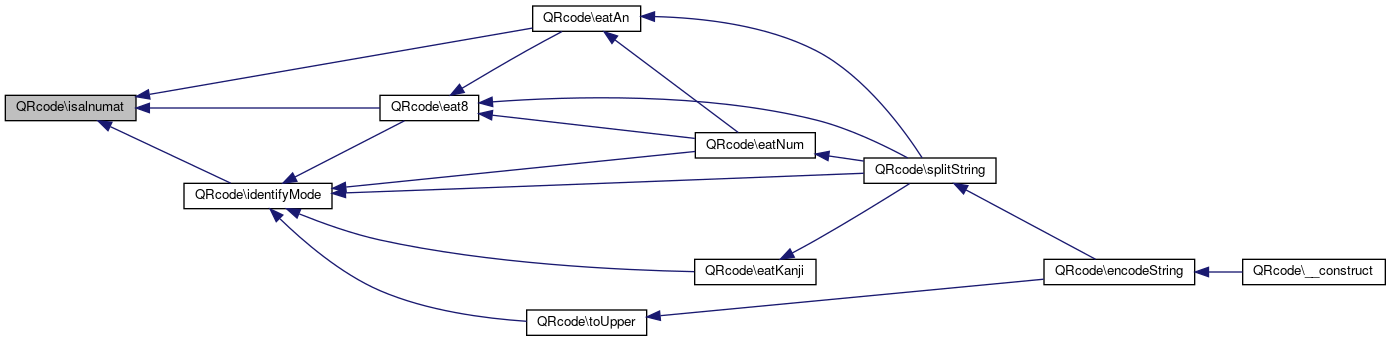

	isalnumat ($str, $pos)
	Return true if the character at specified position is an alphanumeric character. More...
	identifyMode ($pos)
	identifyMode More...
	eatNum ()
	eatNum More...
	eatAn ()
	eatAn More...
	eatKanji ()
	eatKanji More...

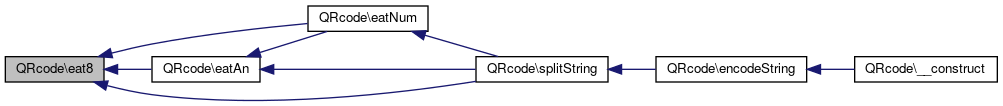

	eat8 ()
	eat8 More...
	splitString ()
	splitString More...
	toUpper ()
	toUpper More...
	newInputItem ($mode, $size, $data, $bstream=null)
	newInputItem More...
	encodeModeNum ($inputitem, $version)
	encodeModeNum More...

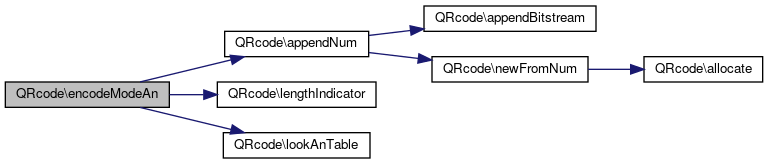

	encodeModeAn ($inputitem, $version)
	encodeModeAn More...
	encodeMode8 ($inputitem, $version)
	encodeMode8 More...
	encodeModeKanji ($inputitem, $version)
	encodeModeKanji More...
	encodeModeStructure ($inputitem)
	encodeModeStructure More...
	encodeBitStream ($inputitem, $version)
	encodeBitStream More...
	appendNewInputItem ($items, $mode, $size, $data)
	Append data to an input object. More...
	insertStructuredAppendHeader ($items, $size, $index, $parity)
	insertStructuredAppendHeader More...
	calcParity ($items)
	calcParity More...
	checkModeNum ($size, $data)
	checkModeNum More...
	lookAnTable ($c)
	Look up the alphabet-numeric convesion table (see JIS X0510:2004, pp.19). More...
	checkModeAn ($size, $data)
	checkModeAn More...

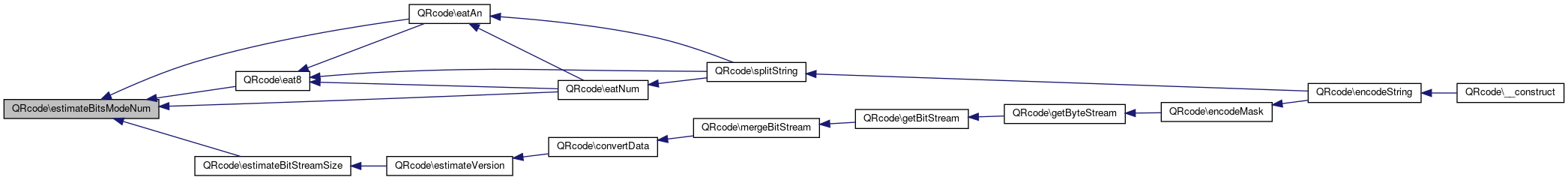

	estimateBitsModeNum ($size)
	estimateBitsModeNum More...
	estimateBitsModeAn ($size)
	estimateBitsModeAn More...
	estimateBitsMode8 ($size)
	estimateBitsMode8 More...
	estimateBitsModeKanji ($size)
	estimateBitsModeKanji More...
	checkModeKanji ($size, $data)
	checkModeKanji More...

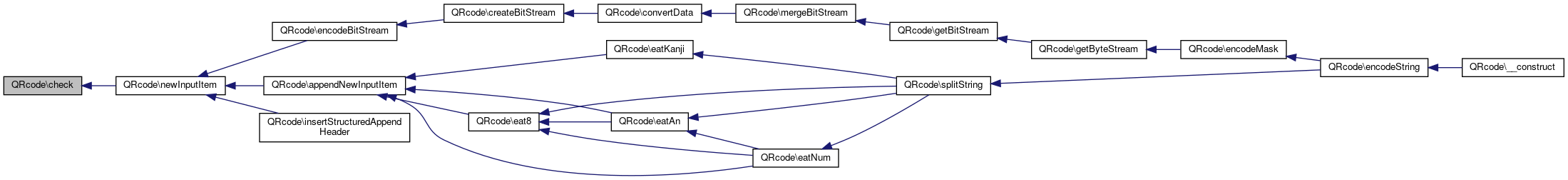

	check ($mode, $size, $data)
	Validate the input data. More...
	estimateBitStreamSize ($items, $version)
	estimateBitStreamSize More...
	estimateVersion ($items)
	estimateVersion More...
	lengthOfCode ($mode, $version, $bits)
	lengthOfCode More...
	createBitStream ($items)
	createBitStream More...
	convertData ($items)
	convertData More...

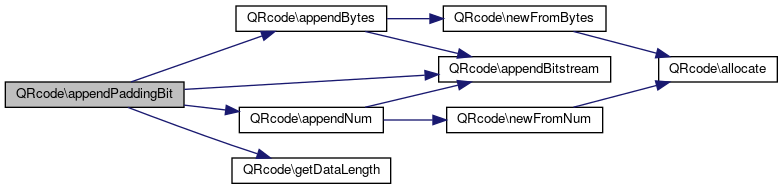

	appendPaddingBit ($bstream)
	Append Padding Bit to bitstream. More...
	mergeBitStream ($items)
	mergeBitStream More...
	getBitStream ($items)
	Returns a stream of bits. More...
	getByteStream ($items)
	Pack all bit streams padding bits into a byte array. More...
	allocate ($setLength)
	Return an array with zeros. More...
	newFromNum ($bits, $num)
	Return new bitstream from number. More...
	newFromBytes ($size, $data)
	Return new bitstream from bytes. More...
	appendBitstream ($bitstream, $append)
	Append one bitstream to another. More...
	appendNum ($bitstream, $bits, $num)
	Append one bitstream created from number to another. More...
	appendBytes ($bitstream, $size, $data)
	Append one bitstream created from bytes to another. More...
	bitstreamToByte ($bstream)
	Convert bitstream to bytes. More...
	qrstrset ($srctab, $x, $y, $repl, $replLen=false)
	Replace a value on the array at the specified position. More...
	getDataLength ($version, $level)
	Return maximum data code length (bytes) for the version. More...
	getECCLength ($version, $level)
	Return maximum error correction code length (bytes) for the version. More...
	getWidth ($version)
	Return the width of the symbol for the version. More...
	getRemainder ($version)
	Return the numer of remainder bits. More...
	getMinimumVersion ($size, $level)
	Return a version number that satisfies the input code length. More...
	lengthIndicator ($mode, $version)
	Return the size of length indicator for the mode and version. More...
	maximumWords ($mode, $version)
	Return the maximum length for the mode and version. More...
	getEccSpec ($version, $level, $spec)
	Return an array of ECC specification. More...
	putAlignmentMarker ($frame, $ox, $oy)
	Put an alignment marker. More...
	putAlignmentPattern ($version, $frame, $width)
	Put an alignment pattern. More...
	getVersionPattern ($version)
	Return BCH encoded version information pattern that is used for the symbol of version 7 or greater. More...
	getFormatInfo ($mask, $level)
	Return BCH encoded format information pattern. More...
	putFinderPattern ($frame, $ox, $oy)
	Put a finder pattern. More...

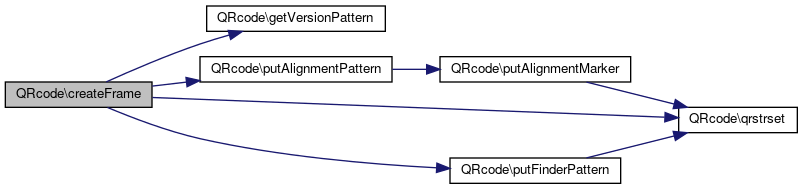

	createFrame ($version)
	Return a copy of initialized frame. More...

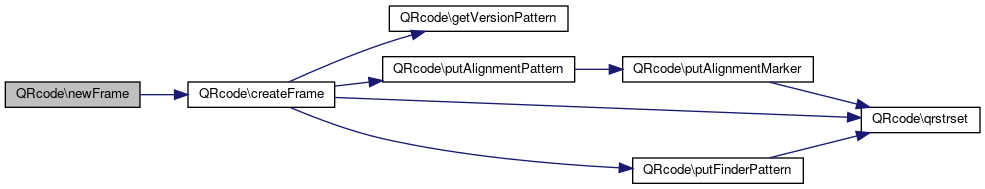

	newFrame ($version)
	Set new frame for the specified version. More...
	rsBlockNum ($spec)
	Return block number 0. More...
	rsBlockNum1 ($spec)
	Return block number 1. More...
	rsDataCodes1 ($spec)
	Return data codes 1. More...
	rsEccCodes1 ($spec)
	Return ecc codes 1. More...
	rsBlockNum2 ($spec)
	Return block number 2. More...
	rsDataCodes2 ($spec)
	Return data codes 2. More...
	rsEccCodes2 ($spec)
	Return ecc codes 2. More...
	rsDataLength ($spec)
	Return data length. More...
	rsEccLength ($spec)
	Return ecc length. More...
	init_rs ($symsize, $gfpoly, $fcr, $prim, $nroots, $pad)
	Initialize a Reed-Solomon codec and add it to existing rsitems. More...
	modnn ($rs, $x)
	modnn More...
	init_rs_char ($symsize, $gfpoly, $fcr, $prim, $nroots, $pad)
	Initialize a Reed-Solomon codec and returns an array of values. More...
	encode_rs_char ($rs, $data, $parity)
	Encode a Reed-Solomon codec and returns the parity array. More...

Protected Attributes
	$barcode_array = array()
	Barcode array to be returned which is readable by TCPDF. More...
	$version = 0
	QR code version. More...
	$level = QR_ECLEVEL_L
	Levels of error correction. More...
	$hint = QR_MODE_8B
	Encoding mode. More...
	$casesensitive = true
	Boolean flag, if true the input string will be converted to uppercase. More...
	$structured = 0
	Structured QR code (not supported yet). More...
	$data
	Mask data. More...
	$width
	Width. More...
	$frame
	Frame. More...
	$x
	X position of bit. More...
	$y
	Y position of bit. More...
	$dir
	Direction. More...
	$bit
	Single bit value. More...
	$datacode = array()
	Data code. More...
	$ecccode = array()
	Error correction code. More...
	$blocks
	Blocks. More...
	$rsblocks = array()
	Reed-Solomon blocks. More...
	$count
	Counter. More...
	$dataLength
	Data length. More...
	$eccLength
	Error correction length. More...
	$b1
	Value b1. More...
	$runLength = array()
	Run length. More...
	$dataStr = ''
	Input data string. More...
	$items
	Input items. More...
	$rsitems = array()
	Reed-Solomon items. More...
	$frames = array()
	Array of frames. More...
	$anTable
	Alphabet-numeric convesion table. More...
	$capacity
	Array Table of the capacity of symbols. More...
	$lengthTableBits
	Array Length indicator. More...
	$eccTable
	Array Table of the error correction code (Reed-Solomon block). More...
	$alignmentPattern
	Array Positions of alignment patterns. More...
	$versionPattern
	Array Version information pattern (BCH coded). More...
	$formatInfo
	Array Format information. More...

Detailed Description

Class to create QR-code arrays for TCPDF class.

QR Code symbol is a 2D barcode that can be scanned by handy terminals such as a mobile phone with CCD. The capacity of QR Code is up to 7000 digits or 4000 characters, and has high robustness. This class supports QR Code model 2, described in JIS (Japanese Industrial Standards) X0510:2004 or ISO/IEC 18004. Currently the following features are not supported: ECI and FNC1 mode, Micro QR Code, QR Code model 1, Structured mode.

This class is derived from "PHP QR Code encoder" by Dominik Dzienia (http://phpqrcode.sourceforge.net/) based on "libqrencode C library 3.1.1." by Kentaro Fukuchi (http://megaui.net/fukuchi/works/qrencode/index.en.html), contains Reed-Solomon code written by Phil Karn, KA9Q. QR Code is registered trademark of DENSO WAVE INCORPORATED (http://www.denso-wave.com/qrcode/index-e.html). Please read comments on this class source file for full copyright and license information.

Definition at line 291 of file qrcode.php.

Constructor & Destructor Documentation

__construct()

QRcode::__construct	(		$code,
			$eclevel = 'L'
	)

This is the class constructor.

Creates a QRcode object

Parameters

$code	(string) code to represent using QRcode
$eclevel	(string) error level: L : About 7% or less errors can be corrected. M : About 15% or less errors can be corrected. Q : About 25% or less errors can be corrected. H : About 30% or less errors can be corrected.

Since

1.0.000

Definition at line 639 of file qrcode.php.

References $barcode_array, $code, $size, binarize(), and encodeString().

                                                           {
                $barcode_array = array();
                if ((is_null($code)) OR ($code == '\0') OR ($code == '')) {
                        return false;
                }
                // set error correction level
                $this->level = array_search($eclevel, array('L', 'M', 'Q', 'H'));
                if ($this->level === false) {
                        $this->level = QR_ECLEVEL_L;
                }
                if (($this->hint != QR_MODE_8B) AND ($this->hint != QR_MODE_KJ)) {
                        return false;
                }
                if (($this->version < 0) OR ($this->version > QRSPEC_VERSION_MAX)) {
                        return false;
                }
                $this->items = array();
                $this->encodeString($code);
                if (is_null($this->data)) {
                        return false;
                }
                $qrTab = $this->binarize($this->data);
                $size = count($qrTab);
                $barcode_array['num_rows'] = $size;
                $barcode_array['num_cols'] = $size;
                $barcode_array['bcode'] = array();
                foreach ($qrTab as $line) {
                        $arrAdd = array();
                        foreach (str_split($line) as $char) {
                                $arrAdd[] = ($char=='1')?1:0;
                        }
                        $barcode_array['bcode'][] = $arrAdd;
                }
                $this->barcode_array = $barcode_array;
        }

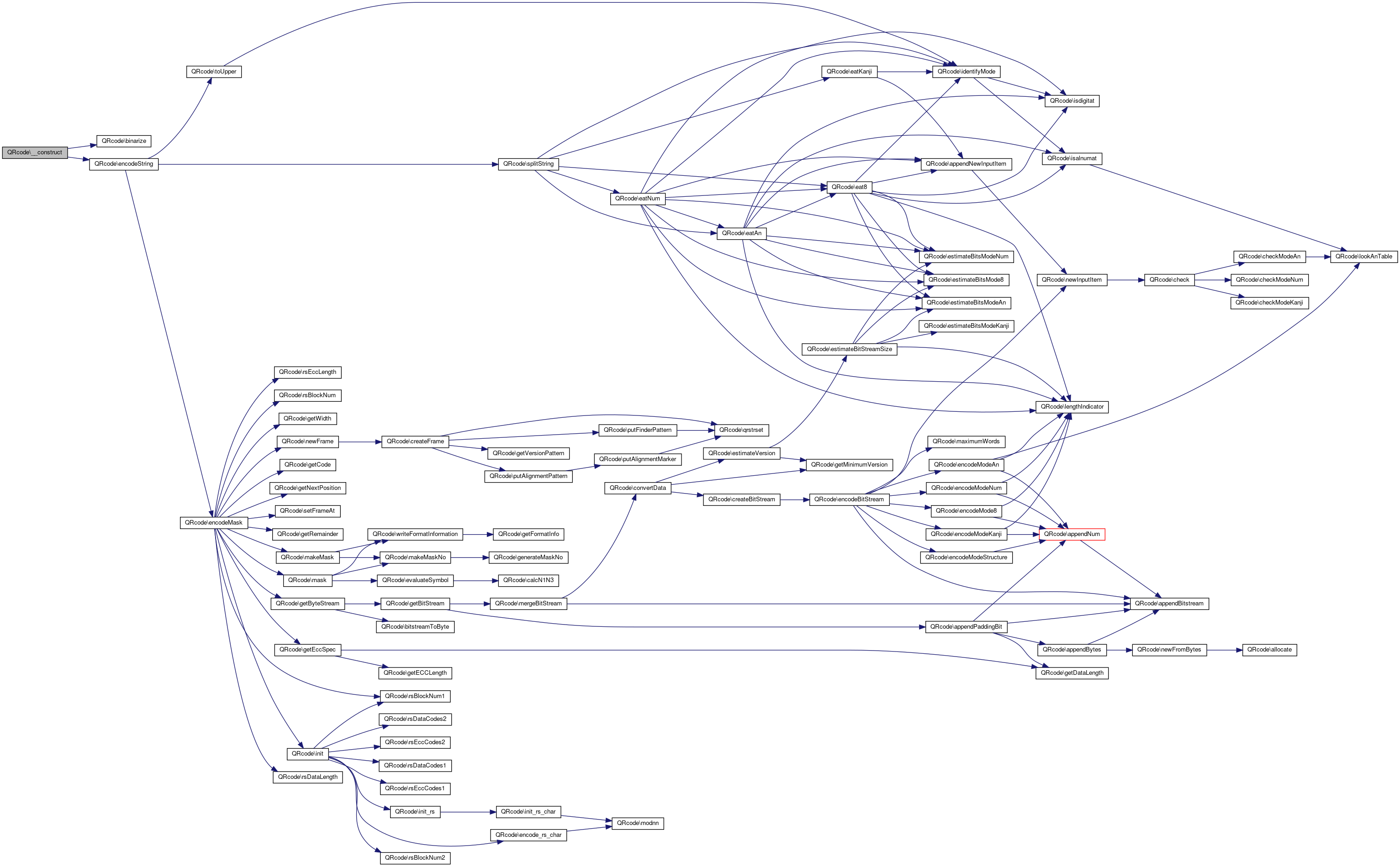

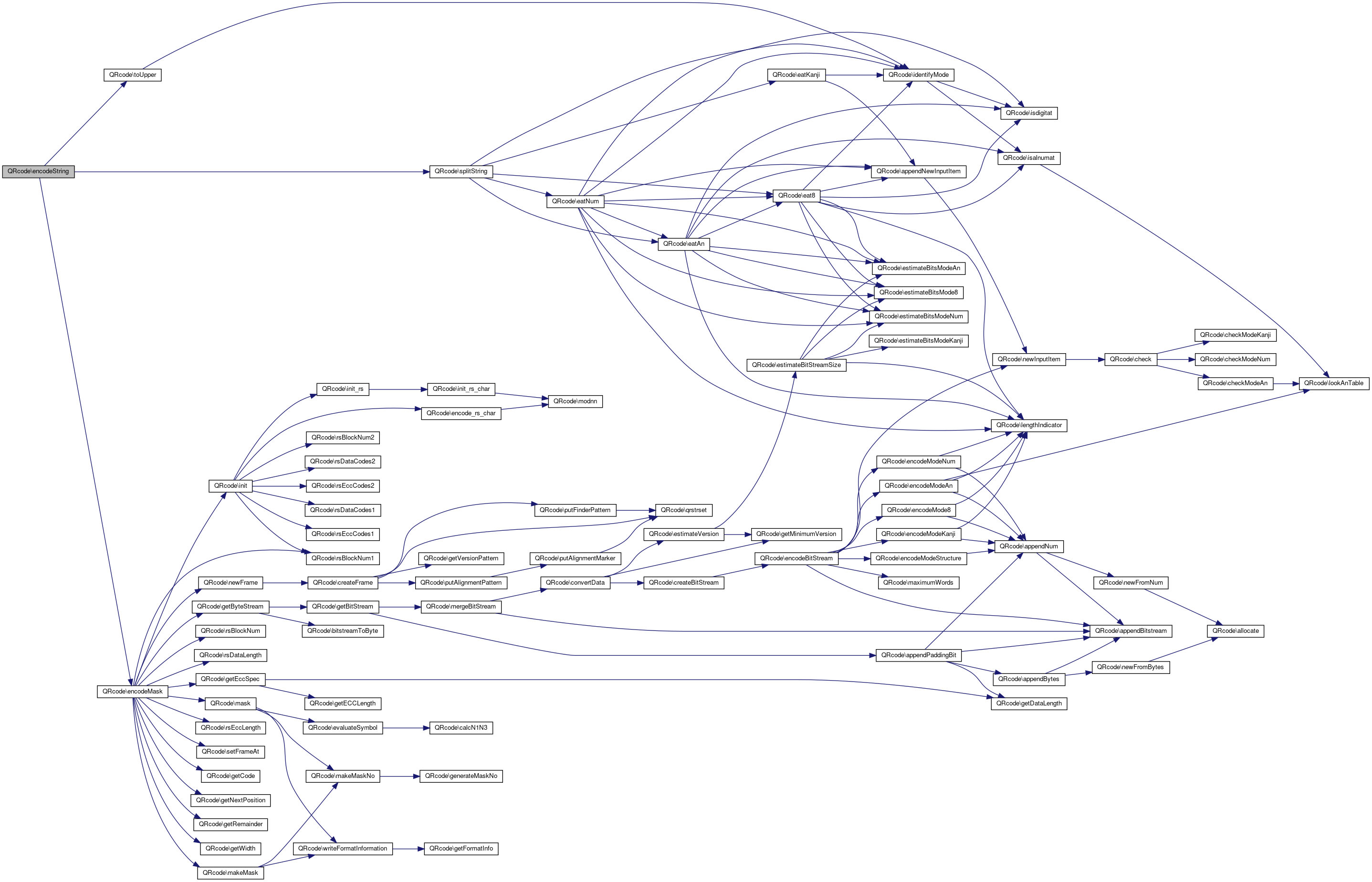

Here is the call graph for this function:

Member Function Documentation

allocate()

QRcode::allocate (   $setLength )

protected

Return an array with zeros.

Parameters

$setLength

(int) array size

Returns

array

Definition at line 2129 of file qrcode.php.

Referenced by newFromBytes(), and newFromNum().

                                                 {
                return array_fill(0, $setLength, 0);
        }

Here is the caller graph for this function:

appendBitstream()

QRcode::appendBitstream (   $bitstream,   $append  )

protected

Append one bitstream to another.

Parameters

$bitstream	(array) original bitstream
$append	(array) bitstream to append

Returns

array bitstream

Definition at line 2183 of file qrcode.php.

Referenced by appendBytes(), appendNum(), appendPaddingBit(), encodeBitStream(), and mergeBitStream().

                                                                 {
                if ((!is_array($append)) OR (count($append) == 0)) {
                        return $bitstream;
                }
                if (count($bitstream) == 0) {
                        return $append;
                }
                return array_values(array_merge($bitstream, $append));
        }

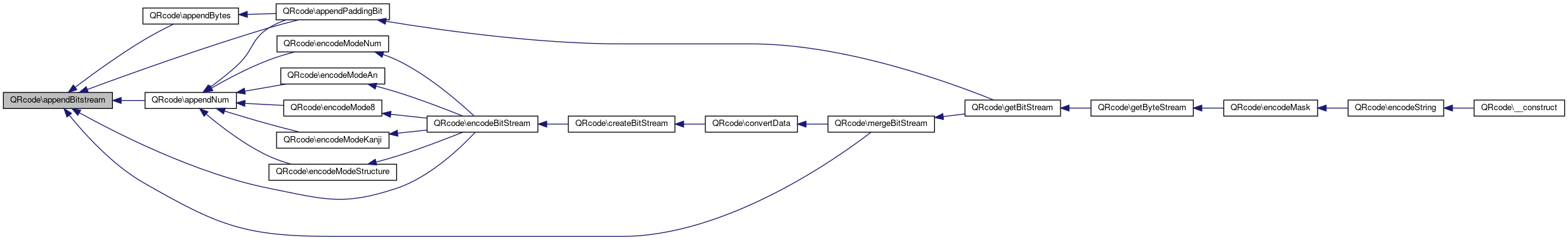

Here is the caller graph for this function:

appendBytes()

QRcode::appendBytes (   $bitstream,   $size,   $data  )

protected

Append one bitstream created from bytes to another.

Parameters

$bitstream	(array) original bitstream
$size	(int) size
$data	(array) bytes

Returns

array bitstream

Definition at line 2215 of file qrcode.php.

References $data, $size, appendBitstream(), and newFromBytes().

Referenced by appendPaddingBit().

                                                                  {
                if ($size == 0) {
                        return 0;
                }
                $b = $this->newFromBytes($size, $data);
                return $this->appendBitstream($bitstream, $b);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

appendNewInputItem()

QRcode::appendNewInputItem (   $items,   $mode,   $size,   $data  )

protected

Append data to an input object.

The data is copied and appended to the input object.

Parameters

$items	(arrray) input items
$mode	(int) encoding mode.
$size	(int) size of data (byte).
$data	(array) array of input data.

Returns

items

Definition at line 1696 of file qrcode.php.

References $data, $items, $size, and newInputItem().

Referenced by eat8(), eatAn(), eatKanji(), and eatNum().

                                                                           {
                $newitem = $this->newInputItem($mode, $size, $data);
                if (!empty($newitem)) {
                        $items[] = $newitem;
                }
                return $items;
        }

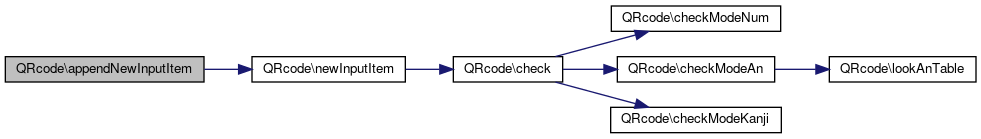

Here is the call graph for this function:

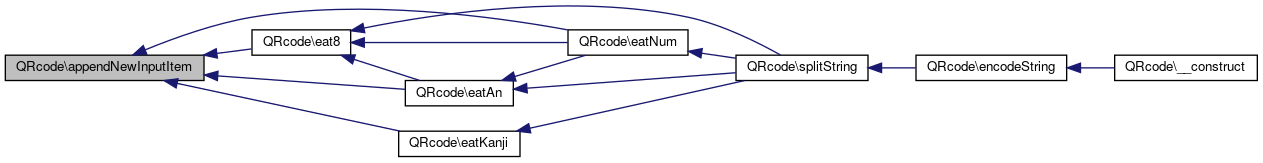

Here is the caller graph for this function:

appendNum()

QRcode::appendNum (   $bitstream,   $bits,   $num  )

protected

Append one bitstream created from number to another.

Parameters

$bitstream	(array) original bitstream
$bits	(int) number of bits
$num	(int) number

Returns

array bitstream

Definition at line 2200 of file qrcode.php.

References appendBitstream(), and newFromNum().

Referenced by appendPaddingBit(), encodeMode8(), encodeModeAn(), encodeModeKanji(), encodeModeNum(), and encodeModeStructure().

                                                               {
                if ($bits == 0) {
                        return 0;
                }
                $b = $this->newFromNum($bits, $num);
                return $this->appendBitstream($bitstream, $b);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

appendPaddingBit()

QRcode::appendPaddingBit (   $bstream )

protected

Append Padding Bit to bitstream.

Parameters

$bstream

(array)

Returns

array bitstream

Definition at line 2055 of file qrcode.php.

References appendBitstream(), appendBytes(), appendNum(), and getDataLength().

Referenced by getBitStream().

                                                       {
                if (is_null($bstream)) {
                        return null;
                }
                $bits = count($bstream);
                $maxwords = $this->getDataLength($this->version, $this->level);
                $maxbits = $maxwords * 8;
                if ($maxbits == $bits) {
                        return $bstream;
                }
                if ($maxbits - $bits < 5) {
                        return $this->appendNum($bstream, $maxbits - $bits, 0);
                }
                $bits += 4;
                $words = (int)(($bits + 7) / 8);
                $padding = array();
                $padding = $this->appendNum($padding, $words * 8 - $bits + 4, 0);
                $padlen = $maxwords - $words;
                if ($padlen > 0) {
                        $padbuf = array();
                        for ($i=0; $i<$padlen; ++$i) {
                                $padbuf[$i] = ($i&1)?0x11:0xec;
                        }
                        $padding = $this->appendBytes($padding, $padlen, $padbuf);
                }
                return $this->appendBitstream($bstream, $padding);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

binarize()

QRcode::binarize (   $frame )

protected

Convert the frame in binary form.

Parameters

$frame

(array) array to binarize

Returns

array frame in binary form

Definition at line 689 of file qrcode.php.

References $frame.

Referenced by __construct().

                                            {
                $len = count($frame);
                // the frame is square (width = height)
                foreach ($frame as &$frameLine) {
                        for ($i=0; $i<$len; $i++) {
                                $frameLine[$i] = (ord($frameLine[$i])&1)?'1':'0';
                        }
                }
                return $frame;
        }

Here is the caller graph for this function:

bitstreamToByte()

QRcode::bitstreamToByte (   $bstream )

protected

Convert bitstream to bytes.

Parameters

$bstream

(array) original bitstream

Returns

array of bytes

Definition at line 2228 of file qrcode.php.

References $data, and $size.

Referenced by getByteStream().

                                                      {
                if (is_null($bstream)) {
                        return null;
                }
                $size = count($bstream);
                if ($size == 0) {
                        return array();
                }
                $data = array_fill(0, (int)(($size + 7) / 8), 0);
                $bytes = (int)($size / 8);
                $p = 0;
                for ($i=0; $i<$bytes; $i++) {
                        $v = 0;
                        for ($j=0; $j<8; $j++) {
                                $v = $v << 1;
                                $v |= $bstream[$p];
                                $p++;
                        }
                        $data[$i] = $v;
                }
                if ($size & 7) {
                        $v = 0;
                        for ($j=0; $j<($size & 7); $j++) {
                                $v = $v << 1;
                                $v |= $bstream[$p];
                                $p++;
                        }
                        $data[$bytes] = $v;
                }
                return $data;
        }

Here is the caller graph for this function:

calcN1N3()

QRcode::calcN1N3 (   $length )

protected

calcN1N3

Parameters

$length

(int)

Returns

int demerit

Definition at line 1127 of file qrcode.php.

Referenced by evaluateSymbol().

                                              {
                $demerit = 0;
                for ($i=0; $i<$length; ++$i) {
                        if ($this->runLength[$i] >= 5) {
                                $demerit += (N1 + ($this->runLength[$i] - 5));
                        }
                        if ($i & 1) {
                                if (($i >= 3) AND ($i < ($length-2)) AND ($this->runLength[$i] % 3 == 0)) {
                                        $fact = (int)($this->runLength[$i] / 3);
                                        if (($this->runLength[$i-2] == $fact)
                                                AND ($this->runLength[$i-1] == $fact)
                                                AND ($this->runLength[$i+1] == $fact)
                                                AND ($this->runLength[$i+2] == $fact)) {
                                                if (($this->runLength[$i-3] < 0) OR ($this->runLength[$i-3] >= (4 * $fact))) {
                                                        $demerit += N3;
                                                } elseif ((($i+3) >= $length) OR ($this->runLength[$i+3] >= (4 * $fact))) {
                                                        $demerit += N3;
                                                }
                                        }
                                }
                        }
                }
                return $demerit;
        }

Here is the caller graph for this function:

calcParity()

QRcode::calcParity (   $items )

protected

calcParity

Parameters

$items

(array)

Returns

int parity

Definition at line 1730 of file qrcode.php.

References $items.

                                               {
                $parity = 0;
                foreach ($items as $item) {
                        if ($item['mode'] != QR_MODE_ST) {
                                for ($i=$item['size']-1; $i>=0; --$i) {
                                        $parity ^= $item['data'][$i];
                                }
                        }
                }
                return $parity;
        }

check()

QRcode::check (   $mode,   $size,   $data  )

protected

Validate the input data.

Parameters

$mode	(int) encoding mode.
$size	(int) size of data (byte).
$data	(array) data to validate

Returns

boolean true in case of valid data, false otherwise

Definition at line 1859 of file qrcode.php.

References $data, $size, checkModeAn(), checkModeKanji(), and checkModeNum().

Referenced by newInputItem().

                                                      {
                if ($size <= 0) {
                        return false;
                }
                switch($mode) {
                        case QR_MODE_NM: {
                                return $this->checkModeNum($size, $data);
                        }
                        case QR_MODE_AN: {
                                return $this->checkModeAn($size, $data);
                        }
                        case QR_MODE_KJ: {
                                return $this->checkModeKanji($size, $data);
                        }
                        case QR_MODE_8B: {
                                return true;
                        }
                        case QR_MODE_ST: {
                                return true;
                        }
                        default: {
                                break;
                        }
                }
                return false;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

checkModeAn()

QRcode::checkModeAn (   $size,   $data  )

protected

checkModeAn

Parameters

$size	(int)
$data	(array)

Returns

boolean true or false

Definition at line 1772 of file qrcode.php.

References $data, $size, and lookAnTable().

Referenced by check().

                                                      {
                for ($i=0; $i<$size; ++$i) {
                        if ($this->lookAnTable(ord($data[$i])) == -1) {
                                return false;
                        }
                }
                return true;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

checkModeKanji()

QRcode::checkModeKanji (   $size,   $data  )

protected

checkModeKanji

Parameters

$size	(int)
$data	(array)

Returns

boolean true or false

Definition at line 1839 of file qrcode.php.

References $data, and $size.

Referenced by check().

                                                         {
                if ($size & 1) {
                        return false;
                }
                for ($i=0; $i<$size; $i+=2) {
                        $val = (ord($data[$i]) << 8) | ord($data[$i+1]);
                        if (($val < 0x8140) OR (($val > 0x9ffc) AND ($val < 0xe040)) OR ($val > 0xebbf)) {
                                return false;
                        }
                }
                return true;
        }

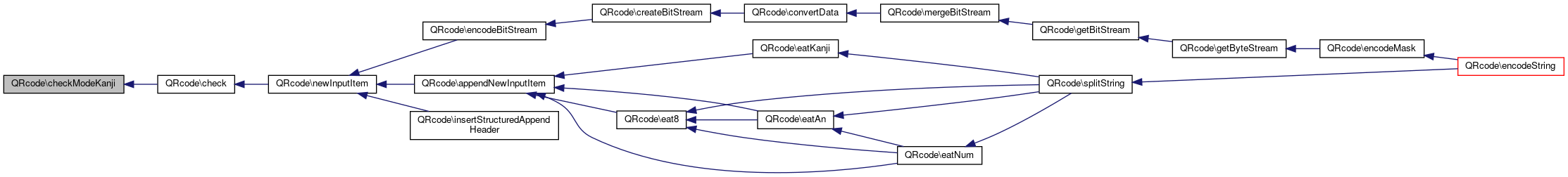

Here is the caller graph for this function:

checkModeNum()

QRcode::checkModeNum (   $size,   $data  )

protected

checkModeNum

Parameters

$size	(int)
$data	(array)

Returns

boolean true or false

Definition at line 1748 of file qrcode.php.

References $data, and $size.

Referenced by check().

                                                       {
                for ($i=0; $i<$size; ++$i) {
                        if ((ord($data[$i]) < ord('0')) OR (ord($data[$i]) > ord('9'))){
                                return false;
                        }
                }
                return true;
        }

Here is the caller graph for this function:

convertData()

QRcode::convertData (   $items )

protected

convertData

Parameters

$items

(array)

Returns

array items

Definition at line 2026 of file qrcode.php.

References $items, createBitStream(), estimateVersion(), and getMinimumVersion().

Referenced by mergeBitStream().

                                                {
                $ver = $this->estimateVersion($items);
                if ($ver > $this->version) {
                        $this->version = $ver;
                }
                while (true) {
                        $cbs = $this->createBitStream($items);
                        $items = $cbs[0];
                        $bits = $cbs[1];
                        if ($bits < 0) {
                                return -1;
                        }
                        $ver = $this->getMinimumVersion((int)(($bits + 7) / 8), $this->level);
                        if ($ver < 0) {
                                return -1;
                        } elseif ($ver > $this->version) {
                                $this->version = $ver;
                        } else {
                                break;
                        }
                }
                return $items;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

createBitStream()

QRcode::createBitStream (   $items )

protected

createBitStream

Parameters

$items

(array)

Returns

array of items and total bits

Definition at line 2011 of file qrcode.php.

References $items, $total, and encodeBitStream().

Referenced by convertData().

                                                    {
                $total = 0;
                foreach ($items as $key => $item) {
                        $items[$key] = $this->encodeBitStream($item, $this->version);
                        $bits = count($items[$key]['bstream']);
                        $total += $bits;
                }
                return array($items, $total);
        }

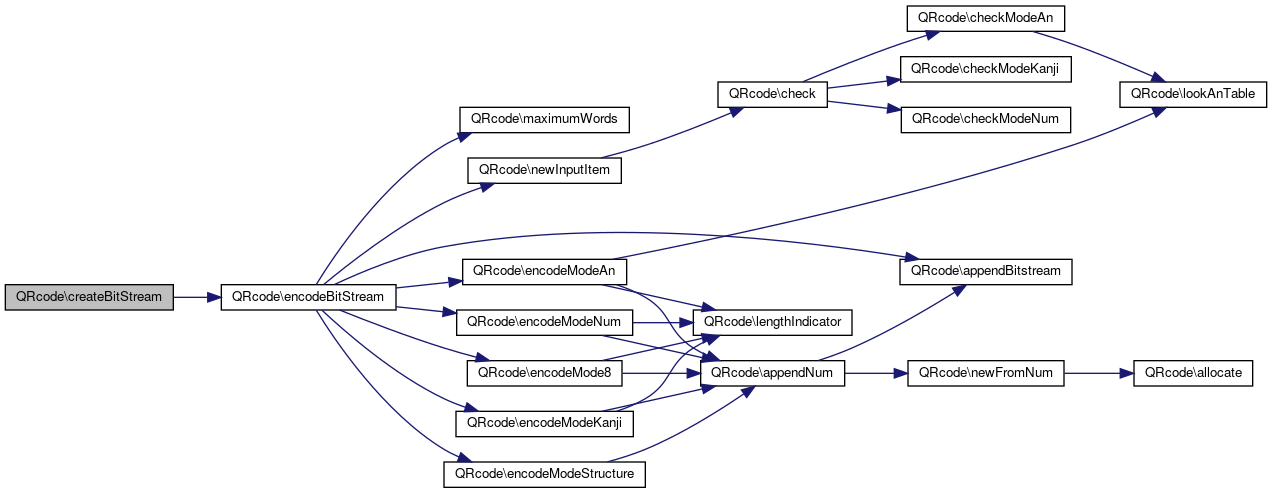

Here is the call graph for this function:

Here is the caller graph for this function:

createFrame()

QRcode::createFrame (   $version )

protected

Return a copy of initialized frame.

Parameters

$version

(int) version

Returns

Array of unsigned char.

Definition at line 2530 of file qrcode.php.

References $frame, $version, $width, $x, $y, getVersionPattern(), putAlignmentPattern(), putFinderPattern(), and qrstrset().

Referenced by newFrame().

                                                 {
                $width = $this->capacity[$version][QRCAP_WIDTH];
                $frameLine = str_repeat ("\0", $width);
                $frame = array_fill(0, $width, $frameLine);
                // Finder pattern
                $frame = $this->putFinderPattern($frame, 0, 0);
                $frame = $this->putFinderPattern($frame, $width - 7, 0);
                $frame = $this->putFinderPattern($frame, 0, $width - 7);
                // Separator
                $yOffset = $width - 7;
                for ($y=0; $y < 7; ++$y) {
                        $frame[$y][7] = "\xc0";
                        $frame[$y][$width - 8] = "\xc0";
                        $frame[$yOffset][7] = "\xc0";
                        ++$yOffset;
                }
                $setPattern = str_repeat("\xc0", 8);
                $frame = $this->qrstrset($frame, 0, 7, $setPattern);
                $frame = $this->qrstrset($frame, $width-8, 7, $setPattern);
                $frame = $this->qrstrset($frame, 0, $width - 8, $setPattern);
                // Format info
                $setPattern = str_repeat("\x84", 9);
                $frame = $this->qrstrset($frame, 0, 8, $setPattern);
                $frame = $this->qrstrset($frame, $width - 8, 8, $setPattern, 8);
                $yOffset = $width - 8;
                for ($y=0; $y < 8; ++$y,++$yOffset) {
                        $frame[$y][8] = "\x84";
                        $frame[$yOffset][8] = "\x84";
                }
                // Timing pattern
                $wo = $width - 15;
                for ($i=1; $i < $wo; ++$i) {
                        $frame[6][7+$i] = chr(0x90 | ($i & 1));
                        $frame[7+$i][6] = chr(0x90 | ($i & 1));
                }
                // Alignment pattern
                $frame = $this->putAlignmentPattern($version, $frame, $width);
                // Version information
                if ($version >= 7) {
                        $vinf = $this->getVersionPattern($version);
                        $v = $vinf;
                        for ($x=0; $x<6; ++$x) {
                                for ($y=0; $y<3; ++$y) {
                                        $frame[($width - 11)+$y][$x] = chr(0x88 | ($v & 1));
                                        $v = $v >> 1;
                                }
                        }
                        $v = $vinf;
                        for ($y=0; $y<6; ++$y) {
                                for ($x=0; $x<3; ++$x) {
                                        $frame[$y][$x+($width - 11)] = chr(0x88 | ($v & 1));
                                        $v = $v >> 1;
                                }
                        }
                }
                // and a little bit...
                $frame[$width - 8][8] = "\x81";
                return $frame;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

eat8()

QRcode::eat8 ( )

protected

eat8

Returns

int run

Definition at line 1396 of file qrcode.php.

References appendNewInputItem(), estimateBitsMode8(), estimateBitsModeAn(), estimateBitsModeNum(), identifyMode(), isalnumat(), isdigitat(), and lengthIndicator().

Referenced by eatAn(), eatNum(), and splitString().

                                   {
                $la = $this->lengthIndicator(QR_MODE_AN, $this->version);
                $ln = $this->lengthIndicator(QR_MODE_NM, $this->version);
                $p = 1;
                $dataStrLen = strlen($this->dataStr);
                while($p < $dataStrLen) {
                        $mode = $this->identifyMode($p);
                        if ($mode == QR_MODE_KJ) {
                                break;
                        }
                        if ($mode == QR_MODE_NM) {
                                $q = $p;
                                while($this->isdigitat($this->dataStr, $q)) {
                                        $q++;
                                }
                                $dif = $this->estimateBitsMode8($p) // + 4 + l8
                                + $this->estimateBitsModeNum($q - $p) + 4 + $ln
                                - $this->estimateBitsMode8($q); // - 4 - l8
                                if ($dif < 0) {
                                        break;
                                } else {
                                        $p = $q;
                                }
                        } elseif ($mode == QR_MODE_AN) {
                                $q = $p;
                                while($this->isalnumat($this->dataStr, $q)) {
                                        $q++;
                                }
                                $dif = $this->estimateBitsMode8($p)  // + 4 + l8
                                + $this->estimateBitsModeAn($q - $p) + 4 + $la
                                - $this->estimateBitsMode8($q); // - 4 - l8
                                if ($dif < 0) {
                                        break;
                                } else {
                                        $p = $q;
                                }
                        } else {
                                $p++;
                        }
                }
                $run = $p;
                $this->items = $this->appendNewInputItem($this->items, QR_MODE_8B, $run, str_split($this->dataStr));
                return $run;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

eatAn()

QRcode::eatAn ( )

protected

eatAn

Returns

int run

Definition at line 1344 of file qrcode.php.

References appendNewInputItem(), eat8(), estimateBitsMode8(), estimateBitsModeAn(), estimateBitsModeNum(), isalnumat(), isdigitat(), and lengthIndicator().

Referenced by eatNum(), and splitString().

                                    {
                $la = $this->lengthIndicator(QR_MODE_AN,  $this->version);
                $ln = $this->lengthIndicator(QR_MODE_NM, $this->version);
                $p =1 ;
                while($this->isalnumat($this->dataStr, $p)) {
                        if ($this->isdigitat($this->dataStr, $p)) {
                                $q = $p;
                                while($this->isdigitat($this->dataStr, $q)) {
                                        $q++;
                                }
                                $dif = $this->estimateBitsModeAn($p) // + 4 + la
                                + $this->estimateBitsModeNum($q - $p) + 4 + $ln
                                - $this->estimateBitsModeAn($q); // - 4 - la
                                if ($dif < 0) {
                                        break;
                                } else {
                                        $p = $q;
                                }
                        } else {
                                $p++;
                        }
                }
                $run = $p;
                if (!$this->isalnumat($this->dataStr, $p)) {
                        $dif = $this->estimateBitsModeAn($run) + 4 + $la
                        + $this->estimateBitsMode8(1) // + 4 + l8
                        - $this->estimateBitsMode8($run + 1); // - 4 - l8
                        if ($dif > 0) {
                                return $this->eat8();
                        }
                }
                $this->items = $this->appendNewInputItem($this->items, QR_MODE_AN, $run, str_split($this->dataStr));
                return $run;
        }

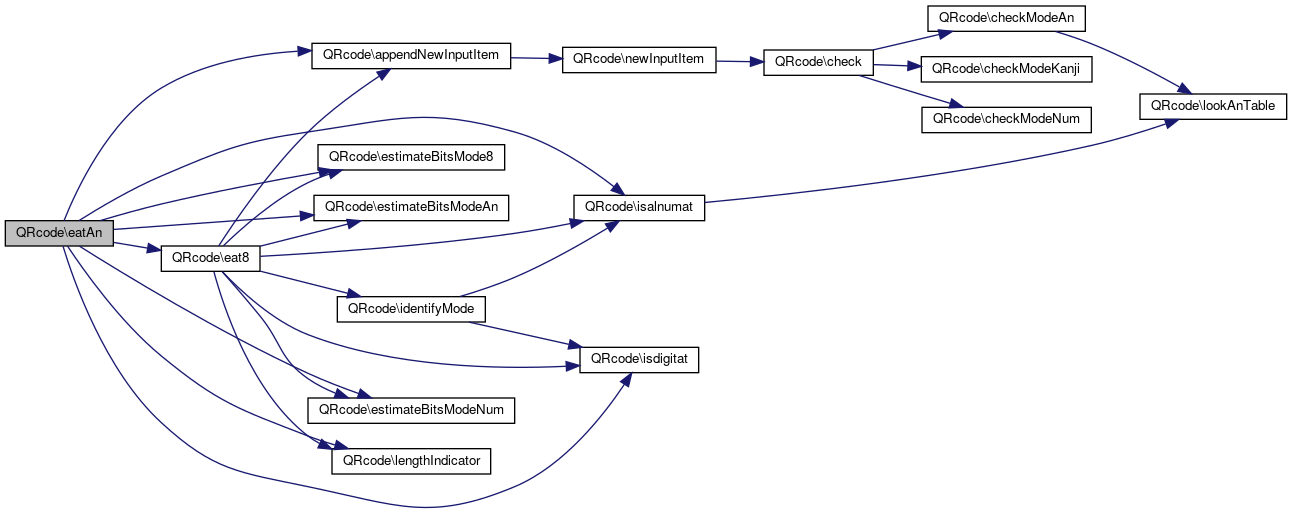

Here is the call graph for this function:

Here is the caller graph for this function:

eatKanji()

QRcode::eatKanji ( )

protected

eatKanji

Returns

int run

Definition at line 1383 of file qrcode.php.

References appendNewInputItem(), and identifyMode().

Referenced by splitString().

                                       {
                $p = 0;
                while($this->identifyMode($p) == QR_MODE_KJ) {
                        $p += 2;
                }
                $this->items = $this->appendNewInputItem($this->items, QR_MODE_KJ, $p, str_split($this->dataStr));
                return $run;
        }

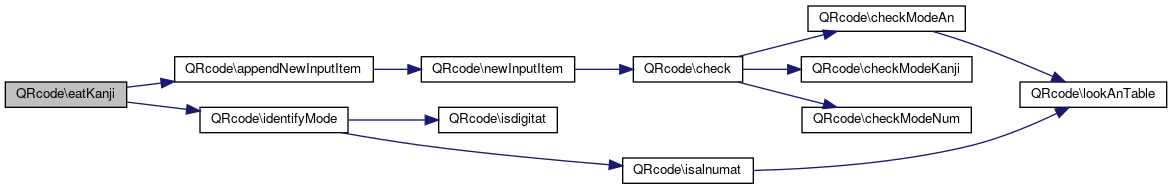

Here is the call graph for this function:

Here is the caller graph for this function:

eatNum()

QRcode::eatNum ( )

protected

eatNum

Returns

int run

Definition at line 1312 of file qrcode.php.

References appendNewInputItem(), eat8(), eatAn(), estimateBitsMode8(), estimateBitsModeAn(), estimateBitsModeNum(), identifyMode(), isdigitat(), and lengthIndicator().

Referenced by splitString().

                                     {
                $ln = $this->lengthIndicator(QR_MODE_NM, $this->version);
                $p = 0;
                while($this->isdigitat($this->dataStr, $p)) {
                        $p++;
                }
                $run = $p;
                $mode = $this->identifyMode($p);
                if ($mode == QR_MODE_8B) {
                        $dif = $this->estimateBitsModeNum($run) + 4 + $ln
                        + $this->estimateBitsMode8(1)         // + 4 + l8
                        - $this->estimateBitsMode8($run + 1); // - 4 - l8
                        if ($dif > 0) {
                                return $this->eat8();
                        }
                }
                if ($mode == QR_MODE_AN) {
                        $dif = $this->estimateBitsModeNum($run) + 4 + $ln
                        + $this->estimateBitsModeAn(1)        // + 4 + la
                        - $this->estimateBitsModeAn($run + 1);// - 4 - la
                        if ($dif > 0) {
                                return $this->eatAn();
                        }
                }
                $this->items = $this->appendNewInputItem($this->items, QR_MODE_NM, $run, str_split($this->dataStr));
                return $run;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

encode_rs_char()

QRcode::encode_rs_char (   $rs,   $data,   $parity  )

protected

Encode a Reed-Solomon codec and returns the parity array.

Parameters

$rs	(array) RS values
$data	(array) data
$parity	(array) parity

Returns

parity array

Definition at line 2828 of file qrcode.php.

References $data, and modnn().

Referenced by init().

                                                                {
                $MM       =& $rs['mm']; // bits per symbol
                $NN       =& $rs['nn']; // the total number of symbols in a RS block
                $ALPHA_TO =& $rs['alpha_to']; // the address of an array of NN elements to convert Galois field elements in index (log) form to polynomial form
                $INDEX_OF =& $rs['index_of']; // the address of an array of NN elements to convert Galois field elements in polynomial form to index (log) form
                $GENPOLY  =& $rs['genpoly']; // an array of NROOTS+1 elements containing the generator polynomial in index form
                $NROOTS   =& $rs['nroots']; // the number of roots in the RS code generator polynomial, which is the same as the number of parity symbols in a block
                $FCR      =& $rs['fcr']; // first consecutive root, index form
                $PRIM     =& $rs['prim']; // primitive element, index form
                $IPRIM    =& $rs['iprim']; // prim-th root of 1, index form
                $PAD      =& $rs['pad']; // the number of pad symbols in a block
                $A0       =& $NN;
                $parity = array_fill(0, $NROOTS, 0);
                for ($i=0; $i < ($NN - $NROOTS - $PAD); $i++) {
                        $feedback = $INDEX_OF[$data[$i] ^ $parity[0]];
                        if ($feedback != $A0) {
                                // feedback term is non-zero
                                // This line is unnecessary when GENPOLY[NROOTS] is unity, as it must
                                // always be for the polynomials constructed by init_rs()
                                $feedback = $this->modnn($rs, $NN - $GENPOLY[$NROOTS] + $feedback);
                                for ($j=1; $j < $NROOTS; ++$j) {
                                $parity[$j] ^= $ALPHA_TO[$this->modnn($rs, $feedback + $GENPOLY[($NROOTS - $j)])];
                                }
                        }
                        // Shift
                        array_shift($parity);
                        if ($feedback != $A0) {
                                array_push($parity, $ALPHA_TO[$this->modnn($rs, $feedback + $GENPOLY[0])]);
                        } else {
                                array_push($parity, 0);
                        }
                }
                return $parity;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

encodeBitStream()

QRcode::encodeBitStream (   $inputitem,   $version  )

protected

encodeBitStream

Parameters

$inputitem	(array)
$version	(int)

Returns

array input item

Definition at line 1641 of file qrcode.php.

References $version, appendBitstream(), encodeMode8(), encodeModeAn(), encodeModeKanji(), encodeModeNum(), encodeModeStructure(), maximumWords(), and newInputItem().

Referenced by createBitStream().

                                                                  {
                $inputitem['bstream'] = array();
                $words = $this->maximumWords($inputitem['mode'], $version);
                if ($inputitem['size'] > $words) {
                        $st1 = $this->newInputItem($inputitem['mode'], $words, $inputitem['data']);
                        $st2 = $this->newInputItem($inputitem['mode'], $inputitem['size'] - $words, array_slice($inputitem['data'], $words));
                        $st1 = $this->encodeBitStream($st1, $version);
                        $st2 = $this->encodeBitStream($st2, $version);
                        $inputitem['bstream'] = array();
                        $inputitem['bstream'] = $this->appendBitstream($inputitem['bstream'], $st1['bstream']);
                        $inputitem['bstream'] = $this->appendBitstream($inputitem['bstream'], $st2['bstream']);
                } else {
                        switch($inputitem['mode']) {
                                case QR_MODE_NM: {
                                        $inputitem = $this->encodeModeNum($inputitem, $version);
                                        break;
                                }
                                case QR_MODE_AN: {
                                        $inputitem = $this->encodeModeAn($inputitem, $version);
                                        break;
                                }
                                case QR_MODE_8B: {
                                        $inputitem = $this->encodeMode8($inputitem, $version);
                                        break;
                                }
                                case QR_MODE_KJ: {
                                        $inputitem = $this->encodeModeKanji($inputitem, $version);
                                        break;
                                }
                                case QR_MODE_ST: {
                                        $inputitem = $this->encodeModeStructure($inputitem);
                                        break;
                                }
                                default: {
                                        break;
                                }
                        }
                }
                return $inputitem;
        }

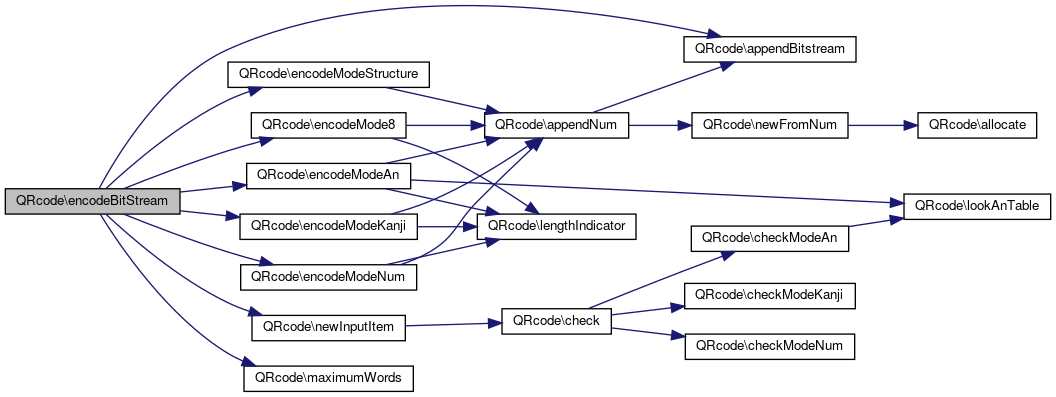

Here is the call graph for this function:

Here is the caller graph for this function:

encodeMask()

QRcode::encodeMask (   $mask )

protected

Encode mask.

Parameters

$mask

(int) masking mode

Definition at line 720 of file qrcode.php.

References $bit, $code, $eccLength, $mask, $ret, getByteStream(), getCode(), getEccSpec(), getNextPosition(), getRemainder(), getWidth(), init(), makeMask(), mask(), newFrame(), rsBlockNum(), rsBlockNum1(), rsDataLength(), rsEccLength(), and setFrameAt().

Referenced by encodeString().

                                             {
                $spec = array(0, 0, 0, 0, 0);
                $this->datacode = $this->getByteStream($this->items);

                if (is_null($this->datacode)) {
                        return NULL;
                }
                $spec = $this->getEccSpec($this->version, $this->level, $spec);
                $this->b1 = $this->rsBlockNum1($spec);
                $this->dataLength = $this->rsDataLength($spec);
                $this->eccLength = $this->rsEccLength($spec);
                $this->ecccode = array_fill(0, $this->eccLength, 0);
                $this->blocks = $this->rsBlockNum($spec);
                $ret = $this->init($spec);
                if ($ret < 0) {
                        return NULL;
                }
                $this->count = 0;
                $this->width = $this->getWidth($this->version);
                $this->frame = $this->newFrame($this->version);
                $this->x = $this->width - 1;
                $this->y = $this->width - 1;
                $this->dir = -1;
                $this->bit = -1;
                // inteleaved data and ecc codes
                for ($i=0; $i < ($this->dataLength + $this->eccLength); $i++) {
                        $code = $this->getCode();
                        $bit = 0x80;
                        for ($j=0; $j<8; $j++) {
                                $addr = $this->getNextPosition();
                                $this->setFrameAt($addr, 0x02 | (($bit & $code) != 0));
                                $bit = $bit >> 1;
                        }
                }
                // remainder bits
                $j = $this->getRemainder($this->version);
                for ($i=0; $i<$j; $i++) {
                        $addr = $this->getNextPosition();
                        $this->setFrameAt($addr, 0x02);
                }
                // masking
                $this->runLength = array_fill(0, QRSPEC_WIDTH_MAX + 1, 0);
                if ($mask < 0) {
                        if (QR_FIND_BEST_MASK) {
                                $masked = $this->mask($this->width, $this->frame, $this->level);
                        } else {
                                $masked = $this->makeMask($this->width, $this->frame, (intval(QR_DEFAULT_MASK) % 8), $this->level);
                        }
                } else {
                        $masked = $this->makeMask($this->width, $this->frame, $mask, $this->level);
                }
                if ($masked == NULL) {
                        return NULL;
                }
                $this->data = $masked;
        }

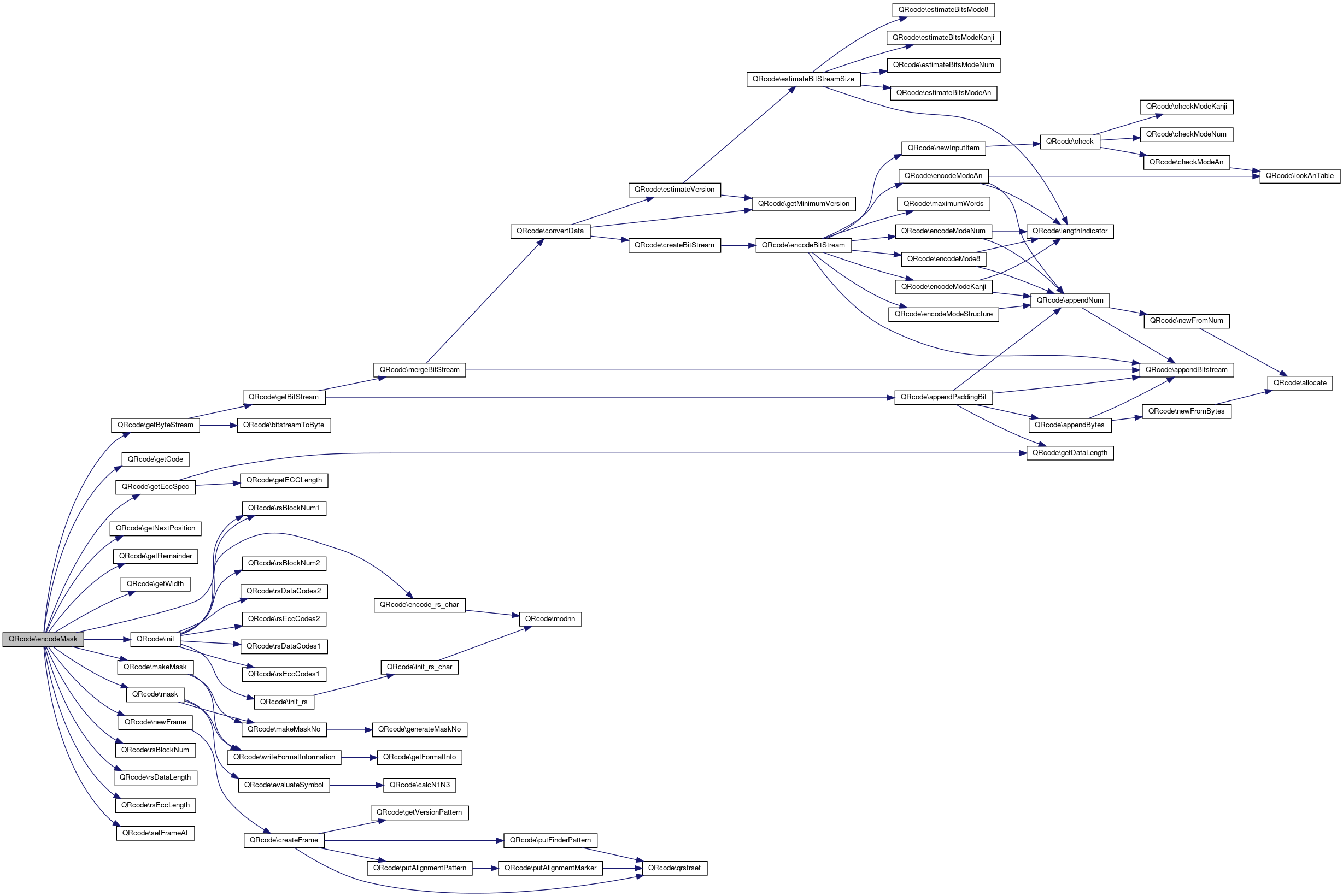

Here is the call graph for this function:

Here is the caller graph for this function:

encodeMode8()

QRcode::encodeMode8 (   $inputitem,   $version  )

protected

encodeMode8

Parameters

$inputitem	(array)
$version	(int)

Returns

array input item

Definition at line 1587 of file qrcode.php.

References $version, appendNum(), and lengthIndicator().

Referenced by encodeBitStream().

                                                              {
                $inputitem['bstream'] = array();
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, 0x4);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], $this->lengthIndicator(QR_MODE_8B, $version), $inputitem['size']);
                for ($i=0; $i < $inputitem['size']; ++$i) {
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 8, ord($inputitem['data'][$i]));
                }
                return $inputitem;
        }

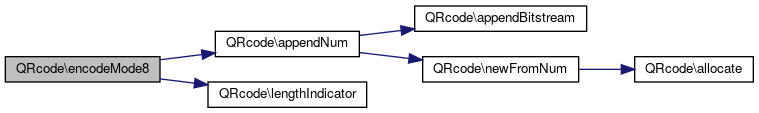

Here is the call graph for this function:

Here is the caller graph for this function:

encodeModeAn()

QRcode::encodeModeAn (   $inputitem,   $version  )

protected

encodeModeAn

Parameters

$inputitem	(array)
$version	(int)

Returns

array input item

Definition at line 1564 of file qrcode.php.

References $version, appendNum(), lengthIndicator(), and lookAnTable().

Referenced by encodeBitStream().

                                                               {
                $words = (int)($inputitem['size'] / 2);
                $inputitem['bstream'] = array();
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, 0x02);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], $this->lengthIndicator(QR_MODE_AN, $version), $inputitem['size']);
                for ($i=0; $i < $words; ++$i) {
                        $val  = (int)($this->lookAnTable(ord($inputitem['data'][$i*2])) * 45);
                        $val += (int)($this->lookAnTable(ord($inputitem['data'][($i*2)+1])));
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 11, $val);
                }
                if ($inputitem['size'] & 1) {
                        $val = $this->lookAnTable(ord($inputitem['data'][($words * 2)]));
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 6, $val);
                }
                return $inputitem;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

encodeModeKanji()

QRcode::encodeModeKanji (   $inputitem,   $version  )

protected

encodeModeKanji

Parameters

$inputitem	(array)
$version	(int)

Returns

array input item

Definition at line 1603 of file qrcode.php.

References $h, $version, appendNum(), and lengthIndicator().

Referenced by encodeBitStream().

                                                                  {
                $inputitem['bstream'] = array();
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, 0x8);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], $this->lengthIndicator(QR_MODE_KJ, $version), (int)($inputitem['size'] / 2));
                for ($i=0; $i<$inputitem['size']; $i+=2) {
                        $val = (ord($inputitem['data'][$i]) << 8) | ord($inputitem['data'][$i+1]);
                        if ($val <= 0x9ffc) {
                                $val -= 0x8140;
                        } else {
                                $val -= 0xc140;
                        }
                        $h = ($val >> 8) * 0xc0;
                        $val = ($val & 0xff) + $h;
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 13, $val);
                }
                return $inputitem;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

encodeModeNum()

QRcode::encodeModeNum (   $inputitem,   $version  )

protected

encodeModeNum

Parameters

$inputitem	(array)
$version	(int)

Returns

array input item

Definition at line 1535 of file qrcode.php.

References $version, appendNum(), and lengthIndicator().

Referenced by encodeBitStream().

                                                                {
                $words = (int)($inputitem['size'] / 3);
                $inputitem['bstream'] = array();
                $val = 0x1;
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, $val);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], $this->lengthIndicator(QR_MODE_NM, $version), $inputitem['size']);
                for ($i=0; $i < $words; ++$i) {
                        $val  = (ord($inputitem['data'][$i*3  ]) - ord('0')) * 100;
                        $val += (ord($inputitem['data'][$i*3+1]) - ord('0')) * 10;
                        $val += (ord($inputitem['data'][$i*3+2]) - ord('0'));
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 10, $val);
                }
                if ($inputitem['size'] - $words * 3 == 1) {
                        $val = ord($inputitem['data'][$words*3]) - ord('0');
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, $val);
                } elseif (($inputitem['size'] - ($words * 3)) == 2) {
                        $val  = (ord($inputitem['data'][$words*3  ]) - ord('0')) * 10;
                        $val += (ord($inputitem['data'][$words*3+1]) - ord('0'));
                        $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 7, $val);
                }
                return $inputitem;
        }

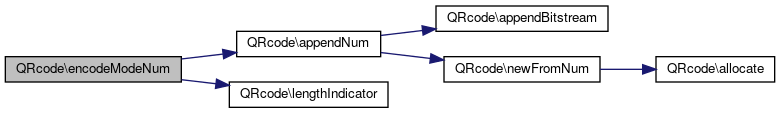

Here is the call graph for this function:

Here is the caller graph for this function:

encodeModeStructure()

QRcode::encodeModeStructure (   $inputitem )

protected

encodeModeStructure

Parameters

$inputitem

(array)

Returns

array input item

Definition at line 1626 of file qrcode.php.

References appendNum().

Referenced by encodeBitStream().

                                                            {
                $inputitem['bstream'] = array();
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, 0x03);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, ord($inputitem['data'][1]) - 1);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 4, ord($inputitem['data'][0]) - 1);
                $inputitem['bstream'] = $this->appendNum($inputitem['bstream'], 8, ord($inputitem['data'][2]));
                return $inputitem;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

encodeString()

QRcode::encodeString (   $string )

protected

Encode the input string to QR code.

Parameters

$string

(string) input string to encode

Definition at line 704 of file qrcode.php.

References $ret, encodeMask(), splitString(), and toUpper().

Referenced by __construct().

                                                 {
                $this->dataStr = $string;
                if (!$this->casesensitive) {
                        $this->toUpper();
                }
                $ret = $this->splitString();
                if ($ret < 0) {
                        return NULL;
                }
                $this->encodeMask(-1);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

estimateBitsMode8()

QRcode::estimateBitsMode8 (   $size )

protected

estimateBitsMode8

Parameters

$size

(int)

Returns

int number of bits

Definition at line 1820 of file qrcode.php.

References $size.

Referenced by eat8(), eatAn(), eatNum(), and estimateBitStreamSize().

                                                     {
                return (int)($size * 8);
        }

Here is the caller graph for this function:

estimateBitsModeAn()

QRcode::estimateBitsModeAn (   $size )

protected

estimateBitsModeAn

Parameters

$size

(int)

Returns

int number of bits

Definition at line 1807 of file qrcode.php.

References $size.

Referenced by eat8(), eatAn(), eatNum(), and estimateBitStreamSize().

                                                      {
                $bits = (int)($size * 5.5); // (size / 2 ) * 11
                if ($size & 1) {
                        $bits += 6;
                }
                return $bits;
        }

Here is the caller graph for this function:

estimateBitsModeKanji()

QRcode::estimateBitsModeKanji (   $size )

protected

estimateBitsModeKanji

Parameters

$size

(int)

Returns

int number of bits

Definition at line 1829 of file qrcode.php.

References $size.

Referenced by estimateBitStreamSize().

                                                         {
                return (int)($size * 6.5); // (size / 2 ) * 13
        }

Here is the caller graph for this function:

estimateBitsModeNum()

QRcode::estimateBitsModeNum (   $size )

protected

estimateBitsModeNum

Parameters

$size

(int)

Returns

int number of bits

Definition at line 1786 of file qrcode.php.

References $size, and $w.

Referenced by eat8(), eatAn(), eatNum(), and estimateBitStreamSize().

                                                       {
                $w = (int)($size / 3);
                $bits = ($w * 10);
                switch($size - ($w * 3)) {
                        case 1: {
                                $bits += 4;
                                break;
                        }
                        case 2: {
                                $bits += 7;
                                break;
                        }
                }
                return $bits;
        }

Here is the caller graph for this function:

estimateBitStreamSize()

QRcode::estimateBitStreamSize (   $items,   $version  )

protected

estimateBitStreamSize

Parameters

$items	(array)
$version	(int)

Returns

int bits

Definition at line 1892 of file qrcode.php.

References $items, $l, $version, estimateBitsMode8(), estimateBitsModeAn(), estimateBitsModeKanji(), estimateBitsModeNum(), and lengthIndicator().

Referenced by estimateVersion().

                                                                    {
                $bits = 0;
                if ($version == 0) {
                        $version = 1;
                }
                foreach ($items as $item) {
                        switch($item['mode']) {
                                case QR_MODE_NM: {
                                        $bits = $this->estimateBitsModeNum($item['size']);
                                        break;
                                }
                                case QR_MODE_AN: {
                                        $bits = $this->estimateBitsModeAn($item['size']);
                                        break;
                                }
                                case QR_MODE_8B: {
                                        $bits = $this->estimateBitsMode8($item['size']);
                                        break;
                                }
                                case QR_MODE_KJ: {
                                        $bits = $this->estimateBitsModeKanji($item['size']);
                                        break;
                                }
                                case QR_MODE_ST: {
                                        return STRUCTURE_HEADER_BITS;
                                }
                                default: {
                                        return 0;
                                }
                        }
                        $l = $this->lengthIndicator($item['mode'], $version);
                        $m = 1 << $l;
                        $num = (int)(($item['size'] + $m - 1) / $m);
                        $bits += $num * (4 + $l);
                }
                return $bits;
        }

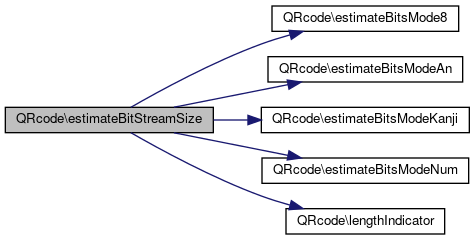

Here is the call graph for this function:

Here is the caller graph for this function:

estimateVersion()

QRcode::estimateVersion (   $items )

protected

estimateVersion

Parameters

$items

(array)

Returns

int version

Definition at line 1935 of file qrcode.php.

References $items, $version, estimateBitStreamSize(), and getMinimumVersion().

Referenced by convertData().

                                                    {
                $version = 0;
                $prev = 0;
                do {
                        $prev = $version;
                        $bits = $this->estimateBitStreamSize($items, $prev);
                        $version = $this->getMinimumVersion((int)(($bits + 7) / 8), $this->level);
                        if ($version < 0) {
                                return -1;
                        }
                } while ($version > $prev);
                return $version;
        }

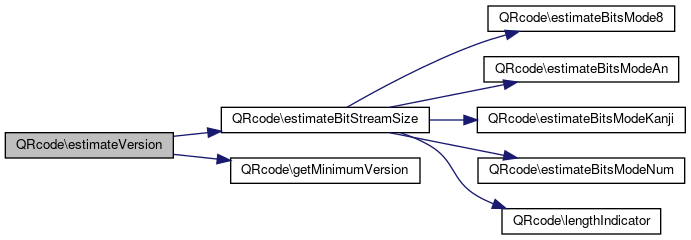

Here is the call graph for this function:

Here is the caller graph for this function:

evaluateSymbol()

QRcode::evaluateSymbol (   $width,   $frame  )

protected

evaluateSymbol

Parameters

$width	(int)
$frame	(array)

Returns

int demerit

Definition at line 1158 of file qrcode.php.

References $frame, $width, $x, $y, and calcN1N3().

Referenced by mask().

                                                           {
                $head = 0;
                $demerit = 0;
                for ($y=0; $y<$width; ++$y) {
                        $head = 0;
                        $this->runLength[0] = 1;
                        $frameY = $frame[$y];
                        if ($y > 0) {
                                $frameYM = $frame[$y-1];
                        }
                        for ($x=0; $x<$width; ++$x) {
                                if (($x > 0) AND ($y > 0)) {
                                        $b22 = ord($frameY[$x]) & ord($frameY[$x-1]) & ord($frameYM[$x]) & ord($frameYM[$x-1]);
                                        $w22 = ord($frameY[$x]) | ord($frameY[$x-1]) | ord($frameYM[$x]) | ord($frameYM[$x-1]);
                                        if (($b22 | ($w22 ^ 1)) & 1) {
                                                $demerit += N2;
                                        }
                                }
                                if (($x == 0) AND (ord($frameY[$x]) & 1)) {
                                        $this->runLength[0] = -1;
                                        $head = 1;
                                        $this->runLength[$head] = 1;
                                } elseif ($x > 0) {
                                        if ((ord($frameY[$x]) ^ ord($frameY[$x-1])) & 1) {
                                                $head++;
                                                $this->runLength[$head] = 1;
                                        } else {
                                                $this->runLength[$head]++;
                                        }
                                }
                        }
                        $demerit += $this->calcN1N3($head+1);
                }
                for ($x=0; $x<$width; ++$x) {
                        $head = 0;
                        $this->runLength[0] = 1;
                        for ($y=0; $y<$width; ++$y) {
                                if (($y == 0) AND (ord($frame[$y][$x]) & 1)) {
                                        $this->runLength[0] = -1;
                                        $head = 1;
                                        $this->runLength[$head] = 1;
                                } elseif ($y > 0) {
                                        if ((ord($frame[$y][$x]) ^ ord($frame[$y-1][$x])) & 1) {
                                                $head++;
                                                $this->runLength[$head] = 1;
                                        } else {
                                                $this->runLength[$head]++;
                                        }
                                }
                        }
                        $demerit += $this->calcN1N3($head+1);
                }
                return $demerit;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

generateMaskNo()

QRcode::generateMaskNo (   $maskNo,   $width,   $frame  )

protected

Return bitmask.

Parameters

$maskNo	(int) mask number
$width	(int) width
$frame	(array) frame

Returns

array bitmask

Definition at line 1064 of file qrcode.php.

References $frame, $width, $x, and $y.

Referenced by makeMaskNo().

                                                                   {
                $bitMask = array_fill(0, $width, array_fill(0, $width, 0));
                for ($y=0; $y<$width; ++$y) {
                        for ($x=0; $x<$width; ++$x) {
                                if (ord($frame[$y][$x]) & 0x80) {
                                        $bitMask[$y][$x] = 0;
                                } else {
                                        $maskFunc = call_user_func(array($this, 'mask'.$maskNo), $x, $y);
                                        $bitMask[$y][$x] = ($maskFunc == 0)?1:0;
                                }
                        }
                }
                return $bitMask;
        }

Here is the caller graph for this function:

getBarcodeArray()

QRcode::getBarcodeArray

(

)

Returns a barcode array which is readable by TCPDF.

Returns

array barcode array readable by TCPDF;

Definition at line 680 of file qrcode.php.

References $barcode_array.

                                          {
                return $this->barcode_array;
        }

getBitStream()

QRcode::getBitStream (   $items )

protected

Returns a stream of bits.

Parameters

$items

(int)

Returns

array padded merged byte stream

Definition at line 2105 of file qrcode.php.

References $items, appendPaddingBit(), and mergeBitStream().

Referenced by getByteStream().

                                                {
                $bstream = $this->mergeBitStream($items);
                return $this->appendPaddingBit($bstream);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

getByteStream()

QRcode::getByteStream (   $items )

protected

Pack all bit streams padding bits into a byte array.

Parameters

$items

(int)

Returns

array padded merged byte stream

Definition at line 2115 of file qrcode.php.

References $items, bitstreamToByte(), and getBitStream().

Referenced by encodeMask().

                                                 {
                $bstream = $this->getBitStream($items);
                return $this->bitstreamToByte($bstream);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

getCode()

QRcode::getCode ( )

protected

Return Reed-Solomon block code.

Returns

array rsblocks

Definition at line 910 of file qrcode.php.

References $b1, $blocks, $dataLength, $ret, and $row.

Referenced by encodeMask().

                                     {
                if ($this->count < $this->dataLength) {
                        $row = $this->count % $this->blocks;
                        $col = $this->count / $this->blocks;
                        if ($col >= $this->rsblocks[0]['dataLength']) {
                                $row += $this->b1;
                        }
                        $ret = $this->rsblocks[$row]['data'][$col];
                } elseif ($this->count < $this->dataLength + $this->eccLength) {
                        $row = ($this->count - $this->dataLength) % $this->blocks;
                        $col = ($this->count - $this->dataLength) / $this->blocks;
                        $ret = $this->rsblocks[$row]['ecc'][$col];
                } else {
                        return 0;
                }
                $this->count++;
                return $ret;
        }

Here is the caller graph for this function:

getDataLength()

QRcode::getDataLength (   $version,   $level  )

protected

Return maximum data code length (bytes) for the version.

Parameters

$version	(int) version
$level	(int) error correction level

Returns

int maximum size (bytes)

Definition at line 2284 of file qrcode.php.

References $level, and $version.

Referenced by appendPaddingBit(), and getEccSpec().

                                                           {
                return $this->capacity[$version][QRCAP_WORDS] - $this->capacity[$version][QRCAP_EC][$level];
        }

Here is the caller graph for this function:

getECCLength()

QRcode::getECCLength (   $version,   $level  )

protected

Return maximum error correction code length (bytes) for the version.

Parameters

$version	(int) version
$level	(int) error correction level

Returns

int ECC size (bytes)

Definition at line 2294 of file qrcode.php.

References $level, and $version.

Referenced by getEccSpec().

                                                         {
                return $this->capacity[$version][QRCAP_EC][$level];
        }

Here is the caller graph for this function:

getEccSpec()

QRcode::getEccSpec (   $version,   $level,   $spec  )

protected

Return an array of ECC specification.

Parameters

$version	(int) version
$level	(int) error correction level
$spec	(array) an array of ECC specification contains as following: {# of type1 blocks, # of data code, # of ecc code, # of type2 blocks, # of data code}

Returns

array spec

Definition at line 2385 of file qrcode.php.

References $b1, $data, $level, $version, getDataLength(), and getECCLength().

Referenced by encodeMask().

                                                               {
                if (count($spec) < 5) {
                        $spec = array(0, 0, 0, 0, 0);
                }
                $b1 = $this->eccTable[$version][$level][0];
                $b2 = $this->eccTable[$version][$level][1];
                $data = $this->getDataLength($version, $level);
                $ecc = $this->getECCLength($version, $level);
                if ($b2 == 0) {
                        $spec[0] = $b1;
                        $spec[1] = (int)($data / $b1);
                        $spec[2] = (int)($ecc / $b1);
                        $spec[3] = 0;
                        $spec[4] = 0;
                } else {
                        $spec[0] = $b1;
                        $spec[1] = (int)($data / ($b1 + $b2));
                        $spec[2] = (int)($ecc  / ($b1 + $b2));
                        $spec[3] = $b2;
                        $spec[4] = $spec[1] + 1;
                }
                return $spec;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

getFormatInfo()

QRcode::getFormatInfo (   $mask,   $level  )

protected

Return BCH encoded format information pattern.

Parameters

$mask	(array)
$level	(int) error correction level

Returns

BCH encoded format information pattern

Definition at line 2492 of file qrcode.php.

References $level, and $mask.

Referenced by writeFormatInformation().

                                                        {
                if (($mask < 0) OR ($mask > 7)) {
                        return 0;
                }
                if (($level < 0) OR ($level > 3)) {
                        return 0;
                }
                return $this->formatInfo[$level][$mask];
        }

Here is the caller graph for this function:

getFrameAt()

QRcode::getFrameAt (   $at )

protected

Get frame value at specified position.

Parameters

$at	(array) x,y position

Returns

value at specified position

Definition at line 795 of file qrcode.php.

                                           {
                return ord($this->frame[$at['y']][$at['x']]);
        }

getMinimumVersion()

QRcode::getMinimumVersion (   $size,   $level  )

protected

Return a version number that satisfies the input code length.

Parameters

$size	(int) input code length (bytes)
$level	(int) error correction level

Returns

int version number

Definition at line 2322 of file qrcode.php.

References $level, and $size.

Referenced by convertData(), and estimateVersion().

                                                            {
                for ($i = 1; $i <= QRSPEC_VERSION_MAX; ++$i) {
                        $words = ($this->capacity[$i][QRCAP_WORDS] - $this->capacity[$i][QRCAP_EC][$level]);
                        if ($words >= $size) {
                                return $i;
                        }
                }
                // the size of input data is greater than QR capacity, try to lover the error correction mode
                return -1;
        }

Here is the caller graph for this function:

getNextPosition()

QRcode::getNextPosition ( )

protected

Return the next frame position.

Returns

array of x,y coordinates

Definition at line 803 of file qrcode.php.

References $dir, $w, $width, $x, and $y.

Referenced by encodeMask().

                                             {
                do {
                        if ($this->bit == -1) {
                                $this->bit = 0;
                                return array('x'=>$this->x, 'y'=>$this->y);
                        }
                        $x = $this->x;
                        $y = $this->y;
                        $w = $this->width;
                        if ($this->bit == 0) {
                                $x--;
                                $this->bit++;
                        } else {
                                $x++;
                                $y += $this->dir;
                                $this->bit--;
                        }
                        if ($this->dir < 0) {
                                if ($y < 0) {
                                        $y = 0;
                                        $x -= 2;
                                        $this->dir = 1;
                                        if ($x == 6) {
                                                $x--;
                                                $y = 9;
                                        }
                                }
                        } else {
                                if ($y == $w) {
                                        $y = $w - 1;
                                        $x -= 2;
                                        $this->dir = -1;
                                        if ($x == 6) {
                                                $x--;
                                                $y -= 8;
                                        }
                                }
                        }
                        if (($x < 0) OR ($y < 0)) {
                                return NULL;
                        }
                        $this->x = $x;
                        $this->y = $y;
                } while(ord($this->frame[$y][$x]) & 0x80);
                return array('x'=>$x, 'y'=>$y);
        }

Here is the caller graph for this function:

getRemainder()

QRcode::getRemainder (   $version )

protected

Return the numer of remainder bits.

Parameters

$version

(int) version

Returns

int number of remainder bits

Definition at line 2312 of file qrcode.php.

References $version.

Referenced by encodeMask().

                                                  {
                return $this->capacity[$version][QRCAP_REMINDER];
        }

Here is the caller graph for this function:

getVersionPattern()

QRcode::getVersionPattern (   $version )

protected

Return BCH encoded version information pattern that is used for the symbol of version 7 or greater.

Use lower 18 bits.

Parameters

$version

(int) version

Returns

BCH encoded version information pattern

Definition at line 2479 of file qrcode.php.

References $version.

Referenced by createFrame().

                                                       {
                if (($version < 7) OR ($version > QRSPEC_VERSION_MAX)) {
                        return 0;
                }
                return $this->versionPattern[($version - 7)];
        }

Here is the caller graph for this function:

getWidth()

QRcode::getWidth (   $version )

protected

Return the width of the symbol for the version.

Parameters

$version

(int) version

Returns

int width

Definition at line 2303 of file qrcode.php.

References $version.

Referenced by encodeMask().

                                              {
                return $this->capacity[$version][QRCAP_WIDTH];
        }

Here is the caller graph for this function:

identifyMode()

QRcode::identifyMode (   $pos )

protected

identifyMode

Parameters

$pos

(int)

Returns

int mode

Definition at line 1287 of file qrcode.php.

References $d, isalnumat(), and isdigitat().

Referenced by eat8(), eatKanji(), eatNum(), splitString(), and toUpper().

                                               {
                if ($pos >= strlen($this->dataStr)) {
                        return QR_MODE_NL;
                }
                $c = $this->dataStr[$pos];
                if ($this->isdigitat($this->dataStr, $pos)) {
                        return QR_MODE_NM;
                } elseif ($this->isalnumat($this->dataStr, $pos)) {
                        return QR_MODE_AN;
                } elseif ($this->hint == QR_MODE_KJ) {
                        if ($pos+1 < strlen($this->dataStr)) {
                                $d = $this->dataStr[$pos+1];
                                $word = (ord($c) << 8) | ord($d);
                                if (($word >= 0x8140 && $word <= 0x9ffc) OR ($word >= 0xe040 && $word <= 0xebbf)) {
                                        return QR_MODE_KJ;
                                }
                        }
                }
                return QR_MODE_8B;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

init()

QRcode::init (   $spec )

protected

Initialize code.

Parameters

$spec

(array) array of ECC specification

Returns

0 in case of success, -1 in case of error

Definition at line 859 of file qrcode.php.

References encode_rs_char(), init_rs(), rsBlockNum1(), rsBlockNum2(), rsDataCodes1(), rsDataCodes2(), rsEccCodes1(), and rsEccCodes2().

Referenced by encodeMask().

                                       {
                $dl = $this->rsDataCodes1($spec);
                $el = $this->rsEccCodes1($spec);
                $rs = $this->init_rs(8, 0x11d, 0, 1, $el, 255 - $dl - $el);
                $blockNo = 0;
                $dataPos = 0;
                $eccPos = 0;
                $endfor = $this->rsBlockNum1($spec);
                for ($i=0; $i < $endfor; ++$i) {
                        $ecc = array_slice($this->ecccode, $eccPos);
                        $this->rsblocks[$blockNo] = array();
                        $this->rsblocks[$blockNo]['dataLength'] = $dl;
                        $this->rsblocks[$blockNo]['data'] = array_slice($this->datacode, $dataPos);
                        $this->rsblocks[$blockNo]['eccLength'] = $el;
                        $ecc = $this->encode_rs_char($rs, $this->rsblocks[$blockNo]['data'], $ecc);
                        $this->rsblocks[$blockNo]['ecc'] = $ecc;
                        $this->ecccode = array_merge(array_slice($this->ecccode,0, $eccPos), $ecc);
                        $dataPos += $dl;
                        $eccPos += $el;
                        $blockNo++;
                }
                if ($this->rsBlockNum2($spec) == 0) {
                        return 0;
                }
                $dl = $this->rsDataCodes2($spec);
                $el = $this->rsEccCodes2($spec);
                $rs = $this->init_rs(8, 0x11d, 0, 1, $el, 255 - $dl - $el);
                if ($rs == NULL) {
                        return -1;
                }
                $endfor = $this->rsBlockNum2($spec);
                for ($i=0; $i < $endfor; ++$i) {
                        $ecc = array_slice($this->ecccode, $eccPos);
                        $this->rsblocks[$blockNo] = array();
                        $this->rsblocks[$blockNo]['dataLength'] = $dl;
                        $this->rsblocks[$blockNo]['data'] = array_slice($this->datacode, $dataPos);
                        $this->rsblocks[$blockNo]['eccLength'] = $el;
                        $ecc = $this->encode_rs_char($rs, $this->rsblocks[$blockNo]['data'], $ecc);
                        $this->rsblocks[$blockNo]['ecc'] = $ecc;
                        $this->ecccode = array_merge(array_slice($this->ecccode, 0, $eccPos), $ecc);
                        $dataPos += $dl;
                        $eccPos += $el;
                        $blockNo++;
                }
                return 0;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

init_rs()

QRcode::init_rs (   $symsize,   $gfpoly,   $fcr,   $prim,   $nroots,   $pad  )

protected

Initialize a Reed-Solomon codec and add it to existing rsitems.

Parameters

$symsize	(int) symbol size, bits
$gfpoly	(int) Field generator polynomial coefficients
$fcr	(int) first root of RS code generator polynomial, index form
$prim	(int) primitive element to generate polynomial roots
$nroots	(int) RS code generator polynomial degree (number of roots)
$pad	(int) padding bytes at front of shortened block

Returns

array Array of RS values:

• mm = Bits per symbol;
• nn = Symbols per block;
• alpha_to = log lookup table array;
• index_of = Antilog lookup table array;
• genpoly = Generator polynomial array;
• nroots = Number of generator;
• roots = number of parity symbols;
• fcr = First consecutive root, index form;
• prim = Primitive element, index form;
• iprim = prim-th root of 1, index form;
• pad = Padding bytes in shortened block;
• gfpoly

.

Definition at line 2703 of file qrcode.php.

References init_rs_char().

Referenced by init().

                                                                                   {
                foreach ($this->rsitems as $rs) {
                        if (($rs['pad'] != $pad) OR ($rs['nroots'] != $nroots) OR ($rs['mm'] != $symsize)
                                OR ($rs['gfpoly'] != $gfpoly) OR ($rs['fcr'] != $fcr) OR ($rs['prim'] != $prim)) {
                                continue;
                        }
                        return $rs;
                }
                $rs = $this->init_rs_char($symsize, $gfpoly, $fcr, $prim, $nroots, $pad);
                array_unshift($this->rsitems, $rs);
                return $rs;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

init_rs_char()

QRcode::init_rs_char (   $symsize,   $gfpoly,   $fcr,   $prim,   $nroots,   $pad  )

protected

Initialize a Reed-Solomon codec and returns an array of values.

Parameters

$symsize	(int) symbol size, bits
$gfpoly	(int) Field generator polynomial coefficients
$fcr	(int) first root of RS code generator polynomial, index form
$prim	(int) primitive element to generate polynomial roots
$nroots	(int) RS code generator polynomial degree (number of roots)
$pad	(int) padding bytes at front of shortened block

Returns

array Array of RS values:

• mm = Bits per symbol;
• nn = Symbols per block;
• alpha_to = log lookup table array;
• index_of = Antilog lookup table array;
• genpoly = Generator polynomial array;
• nroots = Number of generator;
• roots = number of parity symbols;
• fcr = First consecutive root, index form;
• prim = Primitive element, index form;
• iprim = prim-th root of 1, index form;
• pad = Padding bytes in shortened block;
• gfpoly

.

Definition at line 2744 of file qrcode.php.

References modnn().

Referenced by init_rs().

                                                                                       {
                // Based on Reed solomon encoder by Phil Karn, KA9Q (GNU-LGPLv2)
                $rs = null;
                // Check parameter ranges
                if (($symsize < 0) OR ($symsize > 8)) {
                        return $rs;
                }
                if (($fcr < 0) OR ($fcr >= (1<<$symsize))) {
                        return $rs;
                }
                if (($prim <= 0) OR ($prim >= (1<<$symsize))) {
                        return $rs;
                }
                if (($nroots < 0) OR ($nroots >= (1<<$symsize))) {
                        return $rs;
                }
                if (($pad < 0) OR ($pad >= ((1<<$symsize) -1 - $nroots))) {
                        return $rs;
                }
                $rs = array();
                $rs['mm'] = $symsize;
                $rs['nn'] = (1 << $symsize) - 1;
                $rs['pad'] = $pad;
                $rs['alpha_to'] = array_fill(0, ($rs['nn'] + 1), 0);
                $rs['index_of'] = array_fill(0, ($rs['nn'] + 1), 0);
                // PHP style macro replacement ;)
                $NN =& $rs['nn'];
                $A0 =& $NN;
                // Generate Galois field lookup tables
                $rs['index_of'][0] = $A0; // log(zero) = -inf
                $rs['alpha_to'][$A0] = 0; // alpha**-inf = 0
                $sr = 1;
                for ($i=0; $i<$rs['nn']; ++$i) {
                        $rs['index_of'][$sr] = $i;
                        $rs['alpha_to'][$i] = $sr;
                        $sr <<= 1;
                        if ($sr & (1 << $symsize)) {
                                $sr ^= $gfpoly;
                        }
                        $sr &= $rs['nn'];
                }
                if ($sr != 1) {
                        // field generator polynomial is not primitive!
                        return NULL;
                }
                // Form RS code generator polynomial from its roots
                $rs['genpoly'] = array_fill(0, ($nroots + 1), 0);
                $rs['fcr'] = $fcr;
                $rs['prim'] = $prim;
                $rs['nroots'] = $nroots;
                $rs['gfpoly'] = $gfpoly;
                // Find prim-th root of 1, used in decoding
                for ($iprim=1; ($iprim % $prim) != 0; $iprim += $rs['nn']) {
                        ; // intentional empty-body loop!
                }
                $rs['iprim'] = (int)($iprim / $prim);
                $rs['genpoly'][0] = 1;
                for ($i = 0,$root=$fcr*$prim; $i < $nroots; $i++, $root += $prim) {
                        $rs['genpoly'][$i+1] = 1;
                        // Multiply rs->genpoly[] by  @**(root + x)
                        for ($j = $i; $j > 0; --$j) {
                                if ($rs['genpoly'][$j] != 0) {
                                        $rs['genpoly'][$j] = $rs['genpoly'][$j-1] ^ $rs['alpha_to'][$this->modnn($rs, $rs['index_of'][$rs['genpoly'][$j]] + $root)];
                                } else {
                                        $rs['genpoly'][$j] = $rs['genpoly'][$j-1];
                                }
                        }
                        // rs->genpoly[0] can never be zero
                        $rs['genpoly'][0] = $rs['alpha_to'][$this->modnn($rs, $rs['index_of'][$rs['genpoly'][0]] + $root)];
                }
                // convert rs->genpoly[] to index form for quicker encoding
                for ($i = 0; $i <= $nroots; ++$i) {
                        $rs['genpoly'][$i] = $rs['index_of'][$rs['genpoly'][$i]];
                }
                return $rs;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

insertStructuredAppendHeader()

QRcode::insertStructuredAppendHeader (   $items,   $size,   $index,   $parity  )

protected

insertStructuredAppendHeader

Parameters

$items	(array)
$size	(int)
$index	(int)
$parity	(int)

Returns

array items

Definition at line 1712 of file qrcode.php.

References $items, $size, and newInputItem().

                                                                                         {
                if ($size > MAX_STRUCTURED_SYMBOLS) {
                        return -1;
                }
                if (($index <= 0) OR ($index > MAX_STRUCTURED_SYMBOLS)) {
                        return -1;
                }
                $buf = array($size, $index, $parity);
                $entry = $this->newInputItem(QR_MODE_ST, 3, buf);
                array_unshift($items, $entry);
                return $items;
        }

Here is the call graph for this function:

isalnumat()

QRcode::isalnumat (   $str,   $pos  )

protected

Return true if the character at specified position is an alphanumeric character.

Parameters

$str	(string) string
$pos	(int) characted position

Returns

boolean true of false

Definition at line 1275 of file qrcode.php.

References lookAnTable().

Referenced by eat8(), eatAn(), and identifyMode().

                                                  {
                if ($pos >= strlen($str)) {
                        return false;
                }
                return ($this->lookAnTable(ord($str[$pos])) >= 0);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

isdigitat()

QRcode::isdigitat (   $str,   $pos  )

protected

Return true if the character at specified position is a number.

Parameters

$str	(string) string
$pos	(int) characted position

Returns

boolean true of false

Definition at line 1262 of file qrcode.php.

Referenced by eat8(), eatAn(), eatNum(), and identifyMode().

                                                  {
                if ($pos >= strlen($str)) {
                        return false;
                }
                return ((ord($str[$pos]) >= ord('0'))&&(ord($str[$pos]) <= ord('9')));
        }

Here is the caller graph for this function:

lengthIndicator()

QRcode::lengthIndicator (   $mode,   $version  )

protected

Return the size of length indicator for the mode and version.

Parameters

$mode	(int) encoding mode
$version	(int) version

Returns

int the size of the appropriate length indicator (bits).

Definition at line 2339 of file qrcode.php.

References $l, and $version.

Referenced by eat8(), eatAn(), eatNum(), encodeMode8(), encodeModeAn(), encodeModeKanji(), encodeModeNum(), estimateBitStreamSize(), and lengthOfCode().

                                                            {
                if ($mode == QR_MODE_ST) {
                        return 0;
                }
                if ($version <= 9) {
                        $l = 0;
                } elseif ($version <= 26) {
                        $l = 1;
                } else {
                        $l = 2;
                }
                return $this->lengthTableBits[$mode][$l];
        }

Here is the caller graph for this function:

lengthOfCode()

QRcode::lengthOfCode (   $mode,   $version,   $bits  )

protected

lengthOfCode

Parameters

$mode	(int)
$version	(int)
$bits	(int)

Returns

int size

Definition at line 1956 of file qrcode.php.

References $size, $version, lengthIndicator(), and maximumWords().

                                                                 {
                $payload = $bits - 4 - $this->lengthIndicator($mode, $version);
                switch($mode) {
                        case QR_MODE_NM: {
                                $chunks = (int)($payload / 10);
                                $remain = $payload - $chunks * 10;
                                $size = $chunks * 3;
                                if ($remain >= 7) {
                                        $size += 2;
                                } elseif ($remain >= 4) {
                                        $size += 1;
                                }
                                break;
                        }
                        case QR_MODE_AN: {
                                $chunks = (int)($payload / 11);
                                $remain = $payload - $chunks * 11;
                                $size = $chunks * 2;
                                if ($remain >= 6) {
                                        ++$size;
                                }
                                break;
                        }
                        case QR_MODE_8B: {
                                $size = (int)($payload / 8);
                                break;
                        }
                        case QR_MODE_KJ: {
                                $size = (int)(($payload / 13) * 2);
                                break;
                        }
                        case QR_MODE_ST: {
                                $size = (int)($payload / 8);
                                break;
                        }
                        default: {
                                $size = 0;
                                break;
                        }
                }
                $maxsize = $this->maximumWords($mode, $version);
                if ($size < 0) {
                        $size = 0;
                }
                if ($size > $maxsize) {
                        $size = $maxsize;
                }
                return $size;
        }

Here is the call graph for this function:

lookAnTable()

QRcode::lookAnTable (   $c )

protected

Look up the alphabet-numeric convesion table (see JIS X0510:2004, pp.19).

Parameters

$c	(int) character value

Returns

value

Definition at line 1762 of file qrcode.php.

Referenced by checkModeAn(), encodeModeAn(), and isalnumat().

                                           {
                return (($c > 127)?-1:$this->anTable[$c]);
        }

Here is the caller graph for this function:

makeMask()

QRcode::makeMask (   $width,   $frame,   $maskNo,   $level  )

protected

makeMask

Parameters

$width	(int)
$frame	(array)
$maskNo	(int)
$level	(int)

Returns

array mask

Definition at line 1115 of file qrcode.php.

References $frame, $level, $width, makeMaskNo(), and writeFormatInformation().

Referenced by encodeMask().

                                                                      {
                $masked = array_fill(0, $width, str_repeat("\0", $width));
                $this->makeMaskNo($maskNo, $width, $frame, $masked);
                $this->writeFormatInformation($width, $masked, $maskNo, $level);
                return $masked;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

makeMaskNo()

QRcode::makeMaskNo (   $maskNo,   $width,   $s, &  $d,   $maskGenOnly = false  )

protected

makeMaskNo

Parameters

$maskNo	(int)
$width	(int)
$s	(int)
$d	(int)
$maskGenOnly	(boolean)

Returns

int b

Definition at line 1088 of file qrcode.php.

References $d, $width, $x, $y, and generateMaskNo().

Referenced by makeMask(), and mask().

                                                                                     {
                $b = 0;
                $bitMask = array();
                $bitMask = $this->generateMaskNo($maskNo, $width, $s, $d);
                if ($maskGenOnly) {
                        return;
                }
                $d = $s;
                for ($y=0; $y<$width; ++$y) {
                        for ($x=0; $x<$width; ++$x) {
                                if ($bitMask[$y][$x] == 1) {
                                        $d[$y][$x] = chr(ord($s[$y][$x]) ^ ((int)($bitMask[$y][$x])));
                                }
                                $b += (int)(ord($d[$y][$x]) & 1);
                        }
                }
                return $b;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

mask()

QRcode::mask (   $width,   $frame,   $level  )

protected

mask

Parameters

$width	(int)
$frame	(array)
$level	(int)

Returns

array best mask

Definition at line 1220 of file qrcode.php.

References $frame, $level, $mask, $width, evaluateSymbol(), makeMaskNo(), and writeFormatInformation().

Referenced by encodeMask().

                                                         {
                $minDemerit = PHP_INT_MAX;
                $bestMaskNum = 0;
                $bestMask = array();
                $checked_masks = array(0, 1, 2, 3, 4, 5, 6, 7);
                if (QR_FIND_FROM_RANDOM !== false) {
                        $howManuOut = 8 - (QR_FIND_FROM_RANDOM % 9);
                        for ($i = 0; $i <  $howManuOut; ++$i) {
                                $remPos = rand (0, count($checked_masks)-1);
                                unset($checked_masks[$remPos]);
                                $checked_masks = array_values($checked_masks);
                        }
                }
                $bestMask = $frame;
                foreach ($checked_masks as $i) {
                        $mask = array_fill(0, $width, str_repeat("\0", $width));
                        $demerit = 0;
                        $blacks = 0;
                        $blacks  = $this->makeMaskNo($i, $width, $frame, $mask);
                        $blacks += $this->writeFormatInformation($width, $mask, $i, $level);
                        $blacks  = (int)(100 * $blacks / ($width * $width));
                        $demerit = (int)((int)(abs($blacks - 50) / 5) * N4);
                        $demerit += $this->evaluateSymbol($width, $mask);
                        if ($demerit < $minDemerit) {
                                $minDemerit = $demerit;
                                $bestMask = $mask;
                                $bestMaskNum = $i;
                        }
                }
                return $bestMask;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

mask0()

QRcode::mask0 (   $x,   $y  )

protected

mask0

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 983 of file qrcode.php.

References $x, and $y.

                                          {
                return ($x + $y) & 1;
        }

mask1()

QRcode::mask1 (   $x,   $y  )

protected

mask1

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 993 of file qrcode.php.

References $y.

                                          {
                return ($y & 1);
        }

mask2()

QRcode::mask2 (   $x,   $y  )

protected

mask2

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1003 of file qrcode.php.

References $x.

                                          {
                return ($x % 3);
        }

mask3()

QRcode::mask3 (   $x,   $y  )

protected

mask3

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1013 of file qrcode.php.

References $x, and $y.

                                          {
                return ($x + $y) % 3;
        }

mask4()

QRcode::mask4 (   $x,   $y  )

protected

mask4

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1023 of file qrcode.php.

References $x, and $y.

                                          {
                return (((int)($y / 2)) + ((int)($x / 3))) & 1;
        }

mask5()

QRcode::mask5 (   $x,   $y  )

protected

mask5

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1033 of file qrcode.php.

References $x, and $y.

                                          {
                return (($x * $y) & 1) + ($x * $y) % 3;
        }

mask6()

QRcode::mask6 (   $x,   $y  )

protected

mask6

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1043 of file qrcode.php.

References $x, and $y.

                                          {
                return ((($x * $y) & 1) + ($x * $y) % 3) & 1;
        }

mask7()

QRcode::mask7 (   $x,   $y  )

protected

mask7

Parameters

$x	(int) X position
$y	(int) Y position

Returns

int mask

Definition at line 1053 of file qrcode.php.

References $x, and $y.

                                          {
                return ((($x * $y) % 3) + (($x + $y) & 1)) & 1;
        }

maximumWords()

QRcode::maximumWords (   $mode,   $version  )

protected

Return the maximum length for the mode and version.

Parameters

$mode	(int) encoding mode
$version	(int) version

Returns

int the maximum length (bytes)

Definition at line 2359 of file qrcode.php.

References $l, and $version.

Referenced by encodeBitStream(), and lengthOfCode().

                                                         {
                if ($mode == QR_MODE_ST) {
                        return 3;
                }
                if ($version <= 9) {
                        $l = 0;
                } else if ($version <= 26) {
                        $l = 1;
                } else {
                        $l = 2;
                }
                $bits = $this->lengthTableBits[$mode][$l];
                $words = (1 << $bits) - 1;
                if ($mode == QR_MODE_KJ) {
                        $words *= 2; // the number of bytes is required
                }
                return $words;
        }

Here is the caller graph for this function:

mergeBitStream()

QRcode::mergeBitStream (   $items )

protected

mergeBitStream

Parameters

$items

(array) items

Returns

array bitstream

Definition at line 2088 of file qrcode.php.

References $items, appendBitstream(), and convertData().

Referenced by getBitStream().

                                                   {
                $items = $this->convertData($items);
                if (!is_array($items)) {
                        return null;
                }
                $bstream = array();
                foreach ($items as $item) {
                        $bstream = $this->appendBitstream($bstream, $item['bstream']);
                }
                return $bstream;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

modnn()

QRcode::modnn (   $rs,   $x  )

protected

modnn

Parameters

$rs	(array) RS values
$x	(int) X position

Returns

int X osition

Definition at line 2726 of file qrcode.php.

References $x.

Referenced by encode_rs_char(), and init_rs_char().

                                           {
                while ($x >= $rs['nn']) {
                        $x -= $rs['nn'];
                        $x = ($x >> $rs['mm']) + ($x & $rs['nn']);
                }
                return $x;
        }

Here is the caller graph for this function:

newFrame()

QRcode::newFrame (   $version )

protected

Set new frame for the specified version.

Parameters

$version

(int) version

Returns

Array of unsigned char.

Definition at line 2595 of file qrcode.php.

References $version, and createFrame().

Referenced by encodeMask().

                                              {
                if (($version < 1) OR ($version > QRSPEC_VERSION_MAX)) {
                        return NULL;
                }
                if (!isset($this->frames[$version])) {
                        $this->frames[$version] = $this->createFrame($version);
                }
                if (is_null($this->frames[$version])) {
                        return NULL;
                }
                return $this->frames[$version];
        }

Here is the call graph for this function:

Here is the caller graph for this function:

newFromBytes()

QRcode::newFromBytes (   $size,   $data  )

protected

Return new bitstream from bytes.

Parameters

$size	(int) size
$data	(array) bytes

Returns

array bitstream

Definition at line 2159 of file qrcode.php.

References $data, $mask, $size, and allocate().

Referenced by appendBytes().

                                                       {
                $bstream = $this->allocate($size * 8);
                $p=0;
                for ($i=0; $i<$size; ++$i) {
                        $mask = 0x80;
                        for ($j=0; $j<8; ++$j) {
                                if ($data[$i] & $mask) {
                                        $bstream[$p] = 1;
                                } else {
                                        $bstream[$p] = 0;
                                }
                                $p++;
                                $mask = $mask >> 1;
                        }
                }
                return $bstream;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

newFromNum()

QRcode::newFromNum (   $bits,   $num  )

protected

Return new bitstream from number.

Parameters

$bits	(int) number of bits
$num	(int) number

Returns

array bitstream

Definition at line 2139 of file qrcode.php.

References $mask, and allocate().

Referenced by appendNum().

                                                    {
                $bstream = $this->allocate($bits);
                $mask = 1 << ($bits - 1);
                for ($i=0; $i<$bits; ++$i) {
                        if ($num & $mask) {
                                $bstream[$i] = 1;
                        } else {
                                $bstream[$i] = 0;
                        }
                        $mask = $mask >> 1;
                }
                return $bstream;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

newInputItem()

QRcode::newInputItem (   $mode,   $size,   $data,   $bstream = null  )

protected

newInputItem

Parameters

$mode	(int)
$size	(int)
$data	(array)
$bstream	(array)

Returns

array input item

Definition at line 1513 of file qrcode.php.

References $data, $size, and check().

Referenced by appendNewInputItem(), encodeBitStream(), and insertStructuredAppendHeader().

                                                                             {
                $setData = array_slice($data, 0, $size);
                if (count($setData) < $size) {
                        $setData = array_merge($setData, array_fill(0, ($size - count($setData)), 0));
                }
                if (!$this->check($mode, $size, $setData)) {
                        return NULL;
                }
                $inputitem = array();
                $inputitem['mode'] = $mode;
                $inputitem['size'] = $size;
                $inputitem['data'] = $setData;
                $inputitem['bstream'] = $bstream;
                return $inputitem;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

putAlignmentMarker()

QRcode::putAlignmentMarker (   $frame,   $ox,   $oy  )

protected

Put an alignment marker.

Parameters

$frame	(array) frame
$ox	(int) X center coordinate of the pattern
$oy	(int) Y center coordinate of the pattern

Returns

array frame

Definition at line 2416 of file qrcode.php.

References $frame, $y, and qrstrset().

Referenced by putAlignmentPattern().

                                                                {
                $finder = array(
                        "\xa1\xa1\xa1\xa1\xa1",
                        "\xa1\xa0\xa0\xa0\xa1",
                        "\xa1\xa0\xa1\xa0\xa1",
                        "\xa1\xa0\xa0\xa0\xa1",
                        "\xa1\xa1\xa1\xa1\xa1"
                        );
                $yStart = $oy - 2;
                $xStart = $ox - 2;
                for ($y=0; $y < 5; $y++) {
                        $frame = $this->qrstrset($frame, $xStart, $yStart+$y, $finder[$y]);
                }
                return $frame;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

putAlignmentPattern()

QRcode::putAlignmentPattern (   $version,   $frame,   $width  )

protected

Put an alignment pattern.

Parameters

$version	(int) version
$frame	(array) frame
$width	(int) width

Returns

array frame

Definition at line 2439 of file qrcode.php.

References $d, $frame, $version, $w, $width, $x, $y, and putAlignmentMarker().

Referenced by createFrame().

                                                                          {
                if ($version < 2) {
                        return $frame;
                }
                $d = $this->alignmentPattern[$version][1] - $this->alignmentPattern[$version][0];
                if ($d < 0) {
                        $w = 2;
                } else {
                        $w = (int)(($width - $this->alignmentPattern[$version][0]) / $d + 2);
                }
                if ($w * $w - 3 == 1) {
                        $x = $this->alignmentPattern[$version][0];
                        $y = $this->alignmentPattern[$version][0];
                        $frame = $this->putAlignmentMarker($frame, $x, $y);
                        return $frame;
                }
                $cx = $this->alignmentPattern[$version][0];
                $wo = $w - 1;
                for ($x=1; $x < $wo; ++$x) {
                        $frame = $this->putAlignmentMarker($frame, 6, $cx);
                        $frame = $this->putAlignmentMarker($frame, $cx,  6);
                        $cx += $d;
                }
                $cy = $this->alignmentPattern[$version][0];
                for ($y=0; $y < $wo; ++$y) {
                        $cx = $this->alignmentPattern[$version][0];
                        for ($x=0; $x < $wo; ++$x) {
                                $frame = $this->putAlignmentMarker($frame, $cx, $cy);
                                $cx += $d;
                        }
                        $cy += $d;
                }
                return $frame;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

putFinderPattern()

QRcode::putFinderPattern (   $frame,   $ox,   $oy  )

protected

Put a finder pattern.

Parameters

$frame	(array) frame
$ox	(int) X center coordinate of the pattern
$oy	(int) Y center coordinate of the pattern

Returns

array frame

Definition at line 2509 of file qrcode.php.

References $frame, $y, and qrstrset().

Referenced by createFrame().

                                                              {
                $finder = array(
                "\xc1\xc1\xc1\xc1\xc1\xc1\xc1",
                "\xc1\xc0\xc0\xc0\xc0\xc0\xc1",
                "\xc1\xc0\xc1\xc1\xc1\xc0\xc1",
                "\xc1\xc0\xc1\xc1\xc1\xc0\xc1",
                "\xc1\xc0\xc1\xc1\xc1\xc0\xc1",
                "\xc1\xc0\xc0\xc0\xc0\xc0\xc1",
                "\xc1\xc1\xc1\xc1\xc1\xc1\xc1"
                );
                for ($y=0; $y < 7; $y++) {
                        $frame = $this->qrstrset($frame, $ox, ($oy + $y), $finder[$y]);
                }
                return $frame;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

qrstrset()

QRcode::qrstrset (   $srctab,   $x,   $y,   $repl,   $replLen = false  )

protected

Replace a value on the array at the specified position.

Parameters

$srctab	(array)
$x	(int) X position
$y	(int) Y position
$repl	(string) value to replace
$replLen	(int) length of the repl string

Returns

array srctab

Definition at line 2273 of file qrcode.php.

References $x, and $y.

Referenced by createFrame(), putAlignmentMarker(), and putFinderPattern().

                                                                             {
                $srctab[$y] = substr_replace($srctab[$y], ($replLen !== false)?substr($repl,0,$replLen):$repl, $x, ($replLen !== false)?$replLen:strlen($repl));
                return $srctab;
        }

Here is the caller graph for this function:

rsBlockNum()

QRcode::rsBlockNum (   $spec )

protected

Return block number 0.

Parameters

$spec

(array)

Returns

int value

Definition at line 2613 of file qrcode.php.

Referenced by encodeMask().

                                              {
                return ($spec[0] + $spec[3]);
        }

Here is the caller graph for this function:

rsBlockNum1()

QRcode::rsBlockNum1 (   $spec )

protected

Return block number 1.

Parameters

$spec

(array)

Returns

int value

Definition at line 2622 of file qrcode.php.

Referenced by encodeMask(), and init().

                                               {
                return $spec[0];
        }

Here is the caller graph for this function:

rsBlockNum2()

QRcode::rsBlockNum2 (   $spec )

protected

Return block number 2.

Parameters

$spec

(array)

Returns

int value

Definition at line 2649 of file qrcode.php.

Referenced by init().

                                               {
                return $spec[3];
        }

Here is the caller graph for this function:

rsDataCodes1()

QRcode::rsDataCodes1 (   $spec )

protected

Return data codes 1.

Parameters

$spec

(array)

Returns

int value

Definition at line 2631 of file qrcode.php.

Referenced by init().

                                                {
                return $spec[1];
        }

Here is the caller graph for this function:

rsDataCodes2()

QRcode::rsDataCodes2 (   $spec )

protected

Return data codes 2.

Parameters

$spec

(array)

Returns

int value

Definition at line 2658 of file qrcode.php.

Referenced by init().

                                                {
                return $spec[4];
        }

Here is the caller graph for this function:

rsDataLength()

QRcode::rsDataLength (   $spec )

protected

Return data length.

Parameters

$spec

(array)

Returns

int value

Definition at line 2676 of file qrcode.php.

Referenced by encodeMask().

                                                {
                return ($spec[0] * $spec[1]) + ($spec[3] * $spec[4]);
        }

Here is the caller graph for this function:

rsEccCodes1()

QRcode::rsEccCodes1 (   $spec )

protected

Return ecc codes 1.

Parameters

$spec

(array)

Returns

int value

Definition at line 2640 of file qrcode.php.

Referenced by init().

                                               {
                return $spec[2];
        }

Here is the caller graph for this function:

rsEccCodes2()

QRcode::rsEccCodes2 (   $spec )

protected

Return ecc codes 2.

Parameters

$spec

(array)

Returns

int value

Definition at line 2667 of file qrcode.php.

Referenced by init().

                                               {
                return $spec[2];
        }

Here is the caller graph for this function:

rsEccLength()

QRcode::rsEccLength (   $spec )

protected

Return ecc length.

Parameters

$spec

(array)

Returns

int value

Definition at line 2685 of file qrcode.php.

Referenced by encodeMask().

                                               {
                return ($spec[0] + $spec[3]) * $spec[2];
        }

Here is the caller graph for this function:

setFrameAt()

QRcode::setFrameAt (   $at,   $val  )

protected

Set frame value at specified position.

Parameters

$at	(array) x,y position
$val	(int) value of the character to set

Definition at line 786 of file qrcode.php.

Referenced by encodeMask().

                                                 {
                $this->frame[$at['y']][$at['x']] = chr($val);
        }

Here is the caller graph for this function:

splitString()

QRcode::splitString ( )

protected

splitString

Returns

(int)

Definition at line 1445 of file qrcode.php.

References $hint, eat8(), eatAn(), eatKanji(), eatNum(), and identifyMode().

Referenced by encodeString().

                                          {
                while (strlen($this->dataStr) > 0) {
                        $mode = $this->identifyMode(0);
                        switch ($mode) {
                                case QR_MODE_NM: {
                                        $length = $this->eatNum();
                                        break;
                                }
                                case QR_MODE_AN: {
                                        $length = $this->eatAn();
                                        break;
                                }
                                case QR_MODE_KJ: {
                                        if ($hint == QR_MODE_KJ) {
                                                $length = $this->eatKanji();
                                        } else {
                                                $length = $this->eat8();
                                        }
                                        break;
                                }
                                default: {
                                        $length = $this->eat8();
                                        break;
                                }
                        }
                        if ($length == 0) {
                                return 0;
                        }
                        if ($length < 0) {
                                return -1;
                        }
                        $this->dataStr = substr($this->dataStr, $length);
                }
                return 0;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

toUpper()

QRcode::toUpper ( )

protected

toUpper

Definition at line 1484 of file qrcode.php.

References $dataStr, and identifyMode().

Referenced by encodeString().

                                      {
                $stringLen = strlen($this->dataStr);
                $p = 0;
                while ($p < $stringLen) {
                        $mode = $this->identifyMode(substr($this->dataStr, $p), $this->hint);
                        if ($mode == QR_MODE_KJ) {
                                $p += 2;
                        } else {
                                if ((ord($this->dataStr[$p]) >= ord('a')) AND (ord($this->dataStr[$p]) <= ord('z'))) {
                                        $this->dataStr[$p] = chr(ord($this->dataStr[$p]) - 32);
                                }
                                $p++;
                        }
                }
                return $this->dataStr;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

writeFormatInformation()

QRcode::writeFormatInformation (   $width, &  $frame,   $mask,   $level  )

protected

Write Format Information on frame and returns the number of black bits.

Parameters

$width	(int) frame width
$frame	(array) frame
$mask	(array) masking mode
$level	(int) error correction level

Returns

int blacks

Definition at line 941 of file qrcode.php.

References $frame, $level, $mask, $width, and getFormatInfo().

Referenced by makeMask(), and mask().

                                                                                   {
                $blacks = 0;
                $format =  $this->getFormatInfo($mask, $level);
                for ($i=0; $i<8; ++$i) {
                        if ($format & 1) {
                                $blacks += 2;
                                $v = 0x85;
                        } else {
                                $v = 0x84;
                        }
                        $frame[8][$width - 1 - $i] = chr($v);
                        if ($i < 6) {
                                $frame[$i][8] = chr($v);
                        } else {
                                $frame[$i + 1][8] = chr($v);
                        }
                        $format = $format >> 1;
                }
                for ($i=0; $i<7; ++$i) {
                if ($format & 1) {
                        $blacks += 2;
                        $v = 0x85;
                } else {
                        $v = 0x84;
                }
                $frame[$width - 7 + $i][8] = chr($v);
                if ($i == 0) {
                        $frame[8][7] = chr($v);
                } else {
                        $frame[8][6 - $i] = chr($v);
                }
                $format = $format >> 1;
                }
                return $blacks;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

$alignmentPattern

QRcode::$alignmentPattern

protected

Initial value:

= array(
                array( 0,  0),
                array( 0,  0), array(18,  0), array(22,  0), array(26,  0), array(30,  0),
                array(34,  0), array(22, 38), array(24, 42), array(26, 46), array(28, 50),
                array(30, 54), array(32, 58), array(34, 62), array(26, 46), array(26, 48),
                array(26, 50), array(30, 54), array(30, 56), array(30, 58), array(34, 62),
                array(28, 50), array(26, 50), array(30, 54), array(28, 54), array(32, 58),
                array(30, 58), array(34, 62), array(26, 50), array(30, 54), array(26, 52),
                array(30, 56), array(34, 60), array(30, 58), array(34, 62), array(30, 54),
                array(24, 50), array(28, 54), array(32, 58), array(26, 54), array(30, 58)
        )

Array Positions of alignment patterns.

This array includes only the second and the third position of the alignment patterns. Rest of them can be calculated from the distance between them. See Table 1 in Appendix E (pp.71) of JIS X0510:2004.

Definition at line 589 of file qrcode.php.

$anTable

QRcode::$anTable

protected

Initial value:

= array(
                -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1,
                -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1,
                36, -1, -1, -1, 37, 38, -1, -1, -1, -1, 39, 40, -1, 41, 42, 43,
                 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 44, -1, -1, -1, -1, -1,
                -1, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
                25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, -1, -1, -1, -1, -1,
                -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1,
                -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1
                )

Alphabet-numeric convesion table.

Definition at line 463 of file qrcode.php.

$b1

QRcode::$b1

protected

Value b1.

Definition at line 421 of file qrcode.php.

Referenced by getCode(), and getEccSpec().

$barcode_array

QRcode::$barcode_array = array()

protected

Barcode array to be returned which is readable by TCPDF.

Definition at line 297 of file qrcode.php.

Referenced by __construct(), and getBarcodeArray().

$bit

QRcode::$bit

protected

Single bit value.

Definition at line 371 of file qrcode.php.

Referenced by encodeMask().

$blocks

QRcode::$blocks

protected

Blocks.

Definition at line 391 of file qrcode.php.

Referenced by getCode().

$capacity

QRcode::$capacity

protected

Array Table of the capacity of symbols.

See Table 1 (pp.13) and Table 12-16 (pp.30-36), JIS X0510:2004.

Definition at line 479 of file qrcode.php.

$casesensitive

QRcode::$casesensitive = true

protected

Boolean flag, if true the input string will be converted to uppercase.

Definition at line 321 of file qrcode.php.

$count

QRcode::$count

protected

Counter.

Definition at line 403 of file qrcode.php.

$data

QRcode::$data

protected

Mask data.

Definition at line 333 of file qrcode.php.

Referenced by appendBytes(), appendNewInputItem(), bitstreamToByte(), check(), checkModeAn(), checkModeKanji(), checkModeNum(), encode_rs_char(), getEccSpec(), newFromBytes(), and newInputItem().

$datacode

QRcode::$datacode = array()

protected

Data code.

Definition at line 379 of file qrcode.php.

$dataLength

QRcode::$dataLength

protected

Data length.

Definition at line 409 of file qrcode.php.

Referenced by getCode().

$dataStr

QRcode::$dataStr = ''

protected

Input data string.

Definition at line 437 of file qrcode.php.

Referenced by toUpper().

$dir

QRcode::$dir

protected

Direction.

Definition at line 365 of file qrcode.php.

Referenced by getNextPosition().

$ecccode

QRcode::$ecccode = array()

protected

Error correction code.

Definition at line 385 of file qrcode.php.

$eccLength

QRcode::$eccLength

protected

Error correction length.

Definition at line 415 of file qrcode.php.

Referenced by encodeMask().

$eccTable

QRcode::$eccTable

protected

Array Table of the error correction code (Reed-Solomon block).

See Table 12-16 (pp.30-36), JIS X0510:2004.

Definition at line 539 of file qrcode.php.

$formatInfo

QRcode::$formatInfo

protected

Initial value:

= array(
                array(0x77c4, 0x72f3, 0x7daa, 0x789d, 0x662f, 0x6318, 0x6c41, 0x6976),
                array(0x5412, 0x5125, 0x5e7c, 0x5b4b, 0x45f9, 0x40ce, 0x4f97, 0x4aa0),
                array(0x355f, 0x3068, 0x3f31, 0x3a06, 0x24b4, 0x2183, 0x2eda, 0x2bed),
                array(0x1689, 0x13be, 0x1ce7, 0x19d0, 0x0762, 0x0255, 0x0d0c, 0x083b)
        )

Array Format information.

Definition at line 619 of file qrcode.php.

$frame

QRcode::$frame

protected

Frame.

Definition at line 347 of file qrcode.php.

Referenced by binarize(), createFrame(), evaluateSymbol(), generateMaskNo(), makeMask(), mask(), putAlignmentMarker(), putAlignmentPattern(), putFinderPattern(), and writeFormatInformation().

$frames

QRcode::$frames = array()

protected

Array of frames.

Definition at line 457 of file qrcode.php.

$hint

QRcode::$hint = QR_MODE_8B

protected

Encoding mode.

Definition at line 315 of file qrcode.php.

Referenced by splitString().

$items

QRcode::$items

protected

Input items.

Definition at line 443 of file qrcode.php.

Referenced by appendNewInputItem(), calcParity(), convertData(), createBitStream(), estimateBitStreamSize(), estimateVersion(), getBitStream(), getByteStream(), insertStructuredAppendHeader(), and mergeBitStream().

$lengthTableBits

QRcode::$lengthTableBits

protected

Initial value:

= array(
                array(10, 12, 14),
                array( 9, 11, 13),
                array( 8, 16, 16),
                array( 8, 10, 12)
        )

Array Length indicator.

Definition at line 527 of file qrcode.php.

$level

QRcode::$level = QR_ECLEVEL_L

protected

Levels of error correction.

See definitions for possible values.

Definition at line 309 of file qrcode.php.

Referenced by getDataLength(), getECCLength(), getEccSpec(), getFormatInfo(), getMinimumVersion(), makeMask(), mask(), and writeFormatInformation().

$rsblocks

QRcode::$rsblocks = array()

protected

Reed-Solomon blocks.

Definition at line 397 of file qrcode.php.

$rsitems

QRcode::$rsitems = array()

protected

Reed-Solomon items.

Definition at line 451 of file qrcode.php.

$runLength

QRcode::$runLength = array()

protected

Run length.

Definition at line 429 of file qrcode.php.

$structured

QRcode::$structured = 0

protected

Structured QR code (not supported yet).

Definition at line 327 of file qrcode.php.

$version

QRcode::$version = 0

protected

QR code version.

Size of QRcode is defined as version. Version is from 1 to 40. Version 1 is 21*21 matrix. And 4 modules increases whenever 1 version increases. So version 40 is 177*177 matrix.

Definition at line 303 of file qrcode.php.

Referenced by createFrame(), encodeBitStream(), encodeMode8(), encodeModeAn(), encodeModeKanji(), encodeModeNum(), estimateBitStreamSize(), estimateVersion(), getDataLength(), getECCLength(), getEccSpec(), getRemainder(), getVersionPattern(), getWidth(), lengthIndicator(), lengthOfCode(), maximumWords(), newFrame(), and putAlignmentPattern().

$versionPattern

QRcode::$versionPattern

protected

Initial value:

= array(
                0x07c94, 0x085bc, 0x09a99, 0x0a4d3, 0x0bbf6, 0x0c762, 0x0d847, 0x0e60d,
                0x0f928, 0x10b78, 0x1145d, 0x12a17, 0x13532, 0x149a6, 0x15683, 0x168c9,
                0x177ec, 0x18ec4, 0x191e1, 0x1afab, 0x1b08e, 0x1cc1a, 0x1d33f, 0x1ed75,
                0x1f250, 0x209d5, 0x216f0, 0x228ba, 0x2379f, 0x24b0b, 0x2542e, 0x26a64,
                0x27541, 0x28c69
        )

Array Version information pattern (BCH coded).

See Table 1 in Appendix D (pp.68) of JIS X0510:2004. size: [QRSPEC_VERSION_MAX - 6]

Definition at line 607 of file qrcode.php.

$width

QRcode::$width

protected

Width.

Definition at line 341 of file qrcode.php.

Referenced by createFrame(), evaluateSymbol(), generateMaskNo(), getNextPosition(), makeMask(), makeMaskNo(), mask(), putAlignmentPattern(), and writeFormatInformation().

$x

QRcode::$x

protected

X position of bit.

Definition at line 353 of file qrcode.php.

Referenced by createFrame(), evaluateSymbol(), generateMaskNo(), getNextPosition(), makeMaskNo(), mask0(), mask2(), mask3(), mask4(), mask5(), mask6(), mask7(), modnn(), putAlignmentPattern(), and qrstrset().

$y

QRcode::$y

protected

Y position of bit.

Definition at line 359 of file qrcode.php.

Referenced by createFrame(), evaluateSymbol(), generateMaskNo(), getNextPosition(), makeMaskNo(), mask0(), mask1(), mask3(), mask4(), mask5(), mask6(), mask7(), putAlignmentMarker(), putAlignmentPattern(), putFinderPattern(), and qrstrset().

---

The documentation for this class was generated from the following file:

• Services/PDFGeneration/classes/tcpdf/include/barcodes/qrcode.php
