ilBMFTransport_TCP Class Reference
+ Inheritance diagram for ilBMFTransport_TCP:

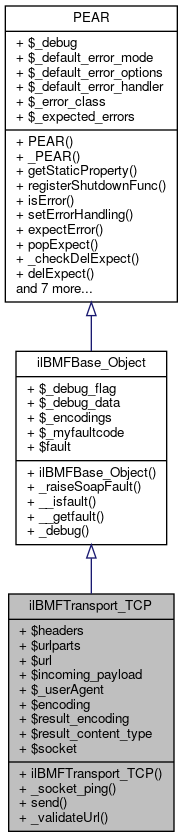

+ Collaboration diagram for ilBMFTransport_TCP:

Public Member Functions

 ilBMFTransport_TCP ($url, $encoding=SOAP_DEFAULT_ENCODING)
 Constructor. More...

 _socket_ping ()

 send ($msg, $options=NULL)
 Sends and receives SOAP data. More...

 _validateUrl ()
 Validates the url data passed to the constructor. More...

- Public Member Functions inherited from ilBMFBase_Object
 ilBMFBase_Object ($faultcode='Client')
 Constructor. More...

_raiseSoapFault ($str, $detail='', $actorURI='', $code=null, $mode=null, $options=null, $skipmsg=false)
 Raises a SOAP error. More...

 __isfault ()

__getfault ()

 _debug ($string)
 Adds a string to the debug data. More...

- Public Member Functions inherited from PEAR
 PEAR ($error_class=null)
 Constructor. More...

 _PEAR ()
 Destructor (the emulated type of...). More...

getStaticProperty ($class, $var)
 If you have a class that's mostly/entirely static, and you need static properties, you can use this method to simulate them. More...

 registerShutdownFunc ($func, $args=array())
 Use this function to register a shutdown method for static classes. More...

 isError ($data, $code=null)
 Tell whether a value is a PEAR error. More...

 setErrorHandling ($mode=null, $options=null)
 Sets how errors generated by this object should be handled. More...

 expectError ($code=' *')
 This method is used to tell which errors you expect to get. More...

 popExpect ()
 This method pops one element off the expected error codes stack. More...

 _checkDelExpect ($error_code)
 This method checks unsets an error code if available. More...

 delExpect ($error_code)
 This method deletes all occurences of the specified element from the expected error codes stack. More...

raiseError ($message=null, $code=null, $mode=null, $options=null, $userinfo=null, $error_class=null, $skipmsg=false)
 This method is a wrapper that returns an instance of the configured error class with this object's default error handling applied. More...

throwError ($message=null, $code=null, $userinfo=null)
 Simpler form of raiseError with fewer options. More...

 staticPushErrorHandling ($mode, $options=null)

 staticPopErrorHandling ()

 pushErrorHandling ($mode, $options=null)
 Push a new error handler on top of the error handler options stack. More...

 popErrorHandling ()
 Pop the last error handler used. More...

 loadExtension ($ext)
 OS independant PHP extension load. More...


Data Fields

 $headers = array()

 $urlparts = null

 $url = ''

 $incoming_payload = ''

 $_userAgent = SOAP_LIBRARY_NAME

 $encoding = SOAP_DEFAULT_ENCODING

 $result_encoding = 'UTF-8'

 $result_content_type

 $socket = null
 socket More...

- Data Fields inherited from ilBMFBase_Object
 $_debug_flag = false
 Store debugging information in $_debug_data? More...

 $_debug_data = ''
 String containing debugging information if $_debug_flag is true. More...

 $_encodings = array('ISO-8859-1', 'US-ASCII', 'UTF-8')
 Supported encodings, limited by XML extension. More...

 $_myfaultcode = ''
 Fault code. More...

 $fault = null
 Recent PEAR_Error object. More...

- Data Fields inherited from PEAR
 $_debug = false

 $_default_error_mode = null

 $_default_error_options = null

 $_default_error_handler = ''

 $_error_class = 'PEAR_Error'

 $_expected_errors = array()


Detailed Description

Definition at line 33 of file class.ilBMFTransport_TCP.php.

Member Function Documentation

◆ _socket_ping()

ilBMFTransport_TCP::_socket_ping ( )

Definition at line 65 of file class.ilBMFTransport_TCP.php.

66 {
67 // XXX how do we restart after socket_shutdown?
68 //if (!$this->socket) {
69 // Create socket resource.
70 $this->socket = @socket_create(AF_INET, SOCK_STREAM, SOL_TCP);
71 if ($this->socket < 0) {
72 return 0;
73 }
74
75 // Connect.
76 $result = socket_connect($this->socket, $this->urlparts['host'],
77 $this->urlparts['port']);
78 if ($result < 0) {
79 return 0;
80 }
81 //}
82 return 1;
83 }
$result

References $result.

Referenced by send().

+ Here is the caller graph for this function:

◆ _validateUrl()

ilBMFTransport_TCP::_validateUrl ( )

Validates the url data passed to the constructor.

Returns
boolean @access private

Definition at line 142 of file class.ilBMFTransport_TCP.php.

143 {
144 if (!is_array($this->urlparts) ) {
145 $this->_raiseSoapFault("Unable to parse URL $url");
146 return false;
147 }
148 if (!isset($this->urlparts['host'])) {
149 $this->_raiseSoapFault("No host in URL $url");
150 return false;
151 }
152 if (!isset($this->urlparts['path']) || !$this->urlparts['path']) {
153 $this->urlparts['path'] = '/';
154 }
155
156 return true;
157 }
& _raiseSoapFault($str, $detail='', $actorURI='', $code=null, $mode=null, $options=null, $skipmsg=false)
Raises a SOAP error.

References ilBMFBase_Object\_raiseSoapFault().

Referenced by send().

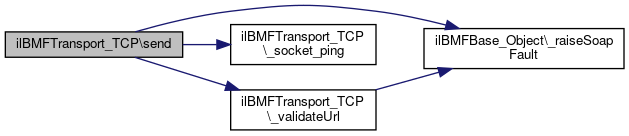

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ilBMFTransport_TCP()

ilBMFTransport_TCP::ilBMFTransport_TCP (   $url,
  $encoding = SOAP_DEFAULT_ENCODING
)

Constructor.

Parameters
string$urlHTTP url to SOAP endpoint.

@access public

Definition at line 57 of file class.ilBMFTransport_TCP.php.

58 {
59 parent::ilBMFBase_Object('TCP');
60 $this->urlparts = @parse_url($url);
61 $this->url = $url;
62 $this->encoding = $encoding;
63 }

References $encoding, and $url.

◆ send()

ilBMFTransport_TCP::send (   $msg,
  $options = NULL
)

Sends and receives SOAP data.

Parameters
string$msgOutgoing POST data.
string$actionSOAP Action header data.
Returns
string|ilBMFFault @access public

Definition at line 94 of file class.ilBMFTransport_TCP.php.

95 {
96 $this->incoming_payload = '';
97 $this->outgoing_payload = $msg;
98 if (!$this->_validateUrl()) {
99 return $this->fault;
100 }
101
102 // Check for TCP scheme.
103 if (strcasecmp($this->urlparts['scheme'], 'TCP') == 0) {
104 // Check connection.
105 if (!$this->_socket_ping()) {
106 return $this->_raiseSoapFault('Error connecting to ' . $this->url . '; reason: ' . socket_strerror(socket_last_error($this->socket)));
107 }
108
109 // Write to the socket.
110 if (!@socket_write($this->socket, $this->outgoing_payload,
111 strlen($this->outgoing_payload))) {
112 return $this->_raiseSoapFault('Error sending data to ' . $this->url . '; reason: ' . socket_strerror(socket_last_error($this->socket)));
113 }
114
115 // Shutdown writing.
116 if(!socket_shutdown($this->socket, 1)) {
117 return $this->_raiseSoapFault('Cannot change socket mode to read.');
118 }
119
120 // Read everything we can.
121 while ($buf = @socket_read($this->socket, 1024, PHP_BINARY_READ)) {
122 $this->incoming_payload .= $buf;
123 }
124
125 // Return payload or die.
126 if ($this->incoming_payload) {
128 }
129
130 return $this->_raiseSoapFault('Error reveiving data from ' . $this->url);
131 }
132
133 return $this->_raiseSoapFault('Invalid url scheme ' . $this->url);
134 }
$fault
Recent PEAR_Error object.
_validateUrl()
Validates the url data passed to the constructor.

References ilBMFBase_Object\$fault, $incoming_payload, ilBMFBase_Object\_raiseSoapFault(), _socket_ping(), and _validateUrl().

+ Here is the call graph for this function:

Field Documentation

◆ $_userAgent

ilBMFTransport_TCP::$_userAgent = SOAP_LIBRARY_NAME

Definition at line 40 of file class.ilBMFTransport_TCP.php.

◆ $encoding

ilBMFTransport_TCP::$encoding = SOAP_DEFAULT_ENCODING

Definition at line 41 of file class.ilBMFTransport_TCP.php.

Referenced by ilBMFTransport_TCP().

◆ $headers

ilBMFTransport_TCP::$headers = array()

Definition at line 36 of file class.ilBMFTransport_TCP.php.

◆ $incoming_payload

ilBMFTransport_TCP::$incoming_payload = ''

Definition at line 39 of file class.ilBMFTransport_TCP.php.

Referenced by send().

◆ $result_content_type

ilBMFTransport_TCP::$result_content_type

Definition at line 43 of file class.ilBMFTransport_TCP.php.

◆ $result_encoding

ilBMFTransport_TCP::$result_encoding = 'UTF-8'

Definition at line 42 of file class.ilBMFTransport_TCP.php.

◆ $socket

ilBMFTransport_TCP::$socket = null

socket

Definition at line 48 of file class.ilBMFTransport_TCP.php.

◆ $url

ilBMFTransport_TCP::$url = ''

Definition at line 38 of file class.ilBMFTransport_TCP.php.

Referenced by ilBMFTransport_TCP().

◆ $urlparts

ilBMFTransport_TCP::$urlparts = null

Definition at line 37 of file class.ilBMFTransport_TCP.php.


The documentation for this class was generated from the following file:
