Class ilStructreObject. More...

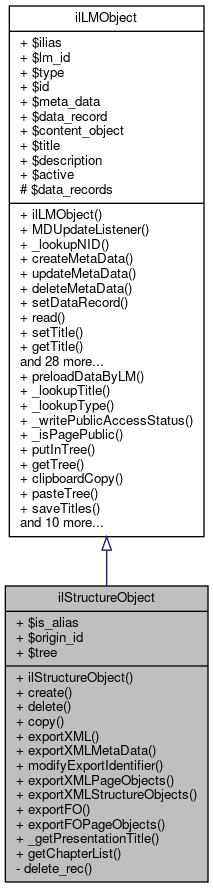

Inheritance diagram for ilStructureObject:

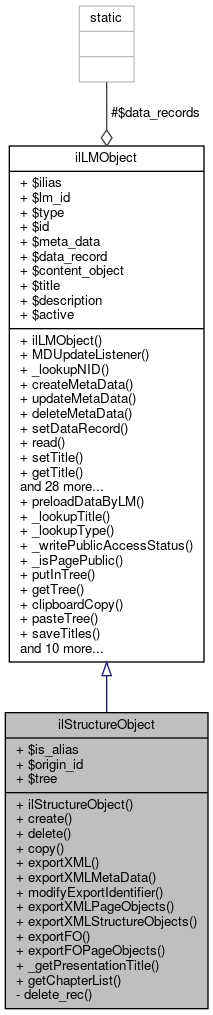

Collaboration diagram for ilStructureObject:

Public Member Functions
	ilStructureObject (&$a_content_obj, $a_id=0)
	Constructor public. More...

	create ($a_upload=false)

	delete ($a_delete_meta_data=true)
	Delete Chapter. More...

	copy ($a_target_lm)
	copy chapter More...

	exportXML (&$a_xml_writer, $a_inst, &$expLog)
	export object to xml (see ilias_co.dtd) More...

	exportXMLMetaData (&$a_xml_writer)
	export structure objects meta data to xml (see ilias_co.dtd) More...

	modifyExportIdentifier ($a_tag, $a_param, $a_value)

	exportXMLPageObjects (&$a_xml_writer, $a_inst=0)
	export page objects of structure object (see ilias_co.dtd) More...

	exportXMLStructureObjects (&$a_xml_writer, $a_inst, &$expLog)
	export (sub)structure objects of structure object (see ilias_co.dtd) More...

	exportFO (&$a_xml_writer)
	export object to fo More...

	exportFOPageObjects (&$a_xml_writer)
	export page objects of structure object (see ilias_co.dtd) More...

Public Member Functions inherited from ilLMObject
	ilLMObject ($a_content_obj, $a_id=0)

	MDUpdateListener ($a_element)
	Meta data update listener. More...

	_lookupNID ($a_lm_id, $a_lm_obj_id, $a_type)
	lookup named identifier (ILIAS_NID) More...

	createMetaData ()
	create meta data entry More...

	updateMetaData ()
	update meta data entry More...

	deleteMetaData ()
	delete meta data entry More...

	setDataRecord ($a_record)
	this method should only be called by class ilLMObjectFactory More...

	read ()

	setTitle ($a_title)
	set title of lm object More...

	getTitle ()
	get title of lm object More...

	_writeTitle ($a_obj_id, $a_title)

	setDescription ($a_description)

	getDescription ()

	setType ($a_type)

	getType ()

	setLMId ($a_lm_id)

	getLMId ()

	setContentObject (&$a_content_obj)

&	getContentObject ()

	setId ($a_id)

	getId ()

	getImportId ()

	setImportId ($a_id)

	setLayout ($a_val)
	Set layout. More...

	getLayout ()
	Get layout. More...

	_writeImportId ($a_id, $a_import_id)
	write import id to db (static) More...

	create ($a_upload=false)

	update ()
	update complete object More...

	delete ($a_delete_meta_data=true)
	delete lm object data More...

	_getIdForImportId ($a_import_id)
	get current object id for import id (static) More...

	_getAllObjectsForImportId ($a_import_id, $a_in_lm=0)
	Get all items for an import ID. More...

	_exists ($a_id)
	checks wether a lm content object with specified id exists or not More...

	getObjectList ($lm_id, $type="")
	static More...

	_deleteAllObjectData (&$a_cobj)
	delete all objects of content object (digi book / learning module) More...

	_lookupContObjID ($a_id)
	get learning module / digibook id for lm object More...

	clipboardCut ($a_cont_obj_id, $a_ids)
	Copy a set of chapters/pages into the clipboard. More...

	existsExportID ($a_lm_id, $a_exp_id, $a_type="pg")
	Does export ID exist in lm? More...

	getExportIDInfo ($a_lm_id, $a_exp_id, $a_type="pg")
	Does export ID exist in lm? More...

Static Public Member Functions
static	_getPresentationTitle ($a_st_id, $a_include_numbers=false, $a_time_scheduled_activation=false, $a_lm_id=0, $a_lang="-")
	get presentation title More...

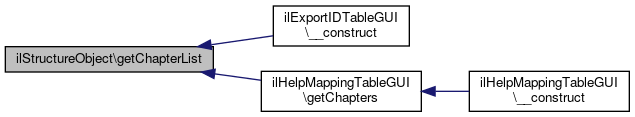

static	getChapterList ($a_lm_id)
	export (sub)structure objects of structure object (see ilias_co.dtd) More...

Static Public Member Functions inherited from ilLMObject
static	preloadDataByLM ($a_lm_id)
	Preload data records by lm. More...

static	_lookupTitle ($a_obj_id)
	Lookup title. More...

static	_lookupType ($a_obj_id, $a_lm_id=0)
	Lookup type. More...

	_writePublicAccessStatus ($a_pages, $a_cont_obj_id)
	update public access flags in lm_data for all pages of a content object More...

static	_isPagePublic ($a_node_id, $a_check_public_mode=false)

static	putInTree ($a_obj, $a_parent_id="", $a_target_node_id="")
	put this object into content object tree More...

static	getTree ($a_cont_obj_id)
	Get learningmodule tree. More...

static	clipboardCopy ($a_cont_obj_id, $a_ids)
	Copy a set of chapters/pages into the clipboard. More...

static	pasteTree ($a_target_lm, $a_item_id, $a_parent_id, $a_target, $a_insert_time, &$a_copied_nodes, $a_as_copy=false, $a_source_lm=null)
	Paste item (tree) from clipboard to current lm. More...

static	saveTitles ($a_lm, $a_titles, $a_lang="-")
	Save titles for lm objects. More...

static	updateInternalLinks ($a_copied_nodes, $a_parent_type="lm")
	Update internal links, after multiple pages have been copied. More...

static	uniqueTypesCheck ($a_items)
	Check for unique types (all pages or all chapters) More...

static	writeLayout ($a_obj_id, $a_layout, $a_lm=null)
	Write layout setting. More...

static	lookupLayout ($a_obj_id)
	Lookup type. More...

static	getPagesOfChapter ($a_lm_id, $a_chap_id)
	Get pages of chapter. More...

static	_getAllLMObjectsOfLM ($a_lm_id, $a_type="")
	Get all objects of learning module. More...

static	saveExportId ($a_lm_id, $a_lmobj_id, $a_exp_id, $a_type="pg")
	Save export id. More...

static	getExportId ($a_lm_id, $a_lmobj_id, $a_type="pg")
	Get export ID. More...

static	getDuplicateExportIDs ($a_lm_id, $a_type="pg")
	Get duplicate export IDs (count export ID usages) More...

static	_getPresentationTitle ($a_node, $a_mode=IL_PAGE_TITLE, $a_include_numbers=false, $a_time_scheduled_activation=false, $a_force_content=false, $a_lm_id=0, $a_lang="-")
	Get affective title. More...

Data Fields
	$is_alias

	$origin_id

	$tree

Data Fields inherited from ilLMObject
	$ilias

	$lm_id

	$type

	$id

	$meta_data

	$data_record

	$content_object

	$title

	$description

	$active = true

Private Member Functions
	delete_rec (&$a_tree, $a_delete_meta_data=true)
	Delete sub tree. More...

Additional Inherited Members
Static Protected Attributes inherited from ilLMObject
static	$data_records = array()

Detailed Description

Class ilStructreObject.

Handles StructureObjects of ILIAS Learning Modules (see ILIAS DTD)

Author: Alex Killing alex..nosp@m.kill.nosp@m.ing@g.nosp@m.mx.d.nosp@m.e

Version: $Id$

Definition at line 17 of file class.ilStructureObject.php.

Member Function Documentation

◆ _getPresentationTitle()

static ilStructureObject::_getPresentationTitle	(	$a_st_id,
		$a_include_numbers = `false`,
		$a_time_scheduled_activation = `false`,
		$a_lm_id = `0`,
		$a_lang = `"-"`
	)

static

get presentation title

Definition at line 173 of file class.ilStructureObject.php.

References $ilDB, $query, ilLMObject\$title, ilLMObject\_lookupContObjID(), ilLMObject\_lookupTitle(), DB_FETCHMODE_ASSOC, ilLMTree\getInstance(), and ilObjectTranslation\getInstance().

Referenced by ilLMPageObject\_getPresentationTitle(), ilLMObject\_getPresentationTitle(), ilLMTOCExplorerGUI\getNodeContent(), ilLMPresentationGUI\ilLocator(), ilLMPresentationGUI\showPrintView(), ilLMPresentationGUI\showPrintViewSelection(), and ilStructureObjectGUI\subchap().

         {
                 global $ilDB;

                 if ($a_lm_id == 0)
                 {
                         $a_lm_id = ilLMObject::_lookupContObjID($a_st_id);
                 }

                 if ($a_lm_id == 0)
                 {
                         return "";
                 }

                 // this is optimized when ilLMObject::preloadDataByLM is invoked (e.g. done in ilLMExplorerGUI)
                 $title = ilLMObject::_lookupTitle($a_st_id);

                 // this is also optimized since ilObjectTranslation re-uses instances for one lm
                 include_once("./Services/Object/classes/class.ilObjectTranslation.php");
                 $ot = ilObjectTranslation::getInstance($a_lm_id);
                 $languages = $ot->getLanguages();

                 if ($a_lang != "-" && $ot->getContentActivated() && isset($languages[$a_lang]))
                 {
                         include_once("./Modules/LearningModule/classes/class.ilLMObjTranslation.php");
                         $lmobjtrans = new ilLMObjTranslation($a_st_id, $a_lang);
                         if ($lmobjtrans->getTitle() != "")
                         {
                                 $title = $lmobjtrans->getTitle();
                         }
                 }

                 include_once("./Modules/LearningModule/classes/class.ilLMTree.php");
                 $tree = ilLMTree::getInstance($a_lm_id);

                 if ($a_include_numbers)
                 {
                         // this is optimized, since isInTree is cached
                         if ($tree->isInTree($a_st_id))
                         {
                                 // optimization needed from here

                                 // get chapter tree node
                                 $query = "SELECT * FROM lm_tree WHERE child = ".
                                         $ilDB->quote($a_st_id, "integer")." AND lm_id = ".
                                         $ilDB->quote($a_lm_id, "integer");
                                 $tree_set = $ilDB->query($query);
                                 $tree_node = $tree_set->fetchRow(DB_FETCHMODE_ASSOC);
                                 $depth = $tree_node["depth"];

                                 $nr = $tree->getChildSequenceNumber($tree_node, "st")." ";
                                 for ($i = $depth - 1; $i > 1; $i --)
                                 {
                                         // get next parent tree node
                                         $query = "SELECT * FROM lm_tree WHERE child = ".
                                                 $ilDB->quote($tree_node["parent"], "integer")." AND lm_id = ".
                                                 $ilDB->quote($a_lm_id, "integer");
                                         $tree_set = $ilDB->query($query);
                                         $tree_node = $tree_set->fetchRow(DB_FETCHMODE_ASSOC);
                                         $seq = $tree->getChildSequenceNumber($tree_node, "st");

                                         $nr = $seq.".".$nr;
                                 }
                         }
                 }

                 return $nr.$title;
         }

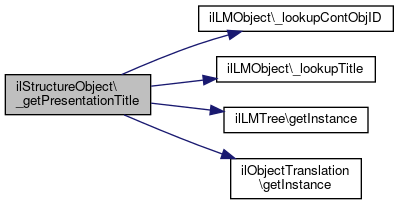

Here is the call graph for this function:

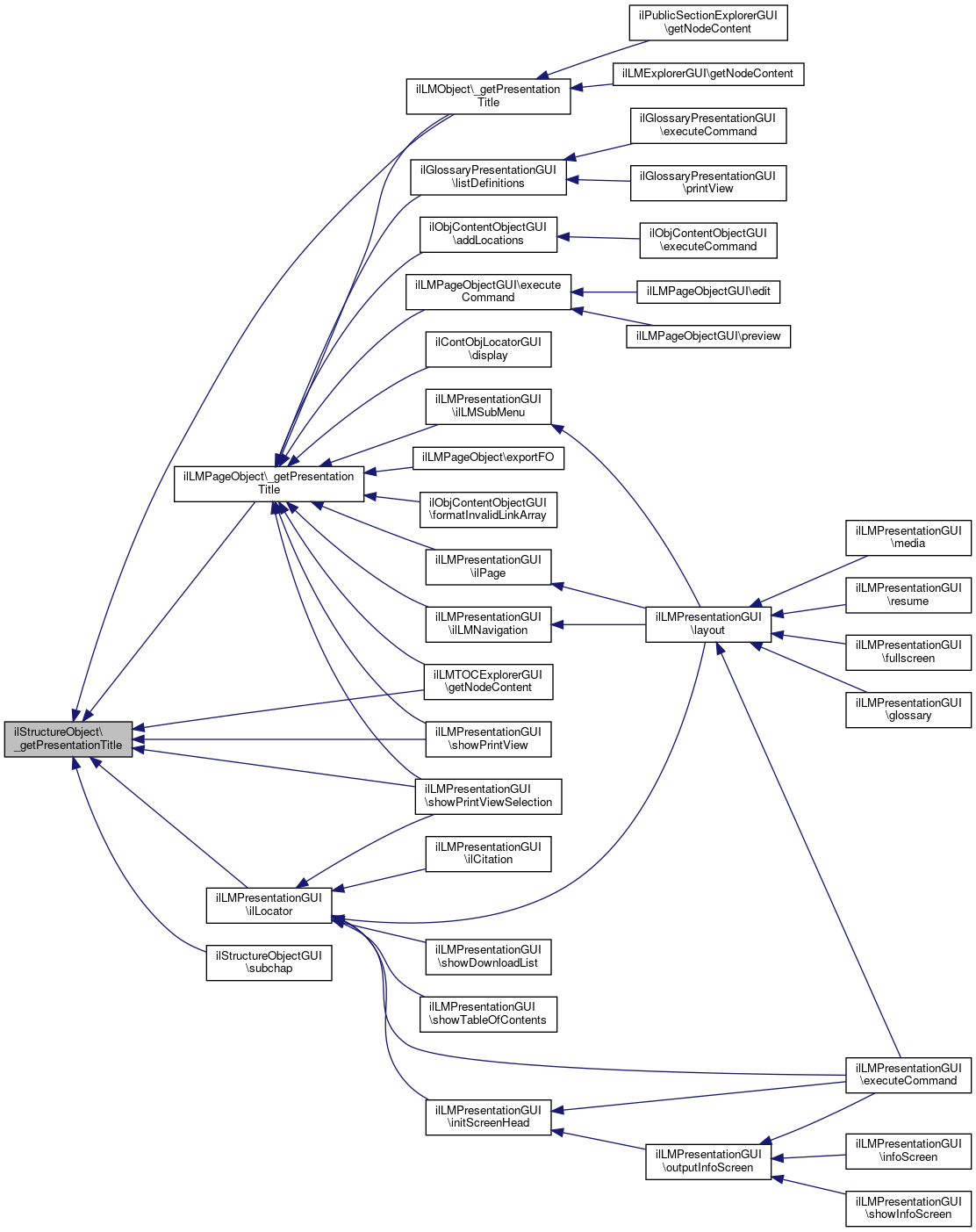

Here is the caller graph for this function:

◆ copy()

ilStructureObject::copy ( $a_target_lm )

copy chapter

Definition at line 83 of file class.ilStructureObject.php.

References ilLMObjTranslation\copy(), ilLMObject\getDescription(), ilLMObject\getId(), ilLMObject\getLMId(), ilLMObject\getTitle(), ilLMObject\getType(), and ilStructureObject().

         {
                 $chap = new ilStructureObject($a_target_lm);
                 $chap->setTitle($this->getTitle());
                 if ($this->getLMId() != $a_target_lm->getId())
                 {
                         $chap->setImportId("il__st_".$this->getId());
                 }
                 $chap->setLMId($a_target_lm->getId());
                 $chap->setType($this->getType());
                 $chap->setDescription($this->getDescription());
                 $chap->create(true);
                 $a_copied_nodes[$this->getId()] = $chap->getId();

                 // copy meta data
                 include_once("Services/MetaData/classes/class.ilMD.php");
                 $md = new ilMD($this->getLMId(), $this->getId(), $this->getType());
                 $new_md =& $md->cloneMD($a_target_lm->getId(), $chap->getId(), $this->getType());

                 // copy translations
                 include_once("./Modules/LearningModule/classes/class.ilLMObjTranslation.php");
                 ilLMObjTranslation::copy($this->getId(), $chap->getId());


                 return $chap;
         }

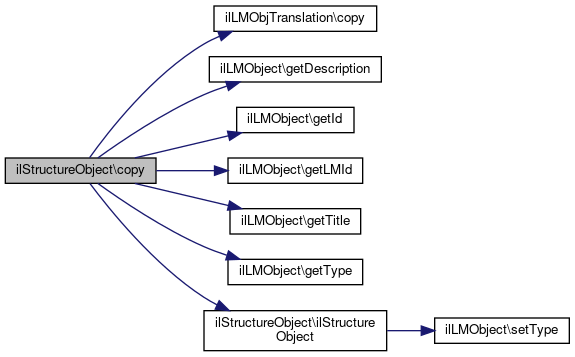

Here is the call graph for this function:

◆ create()

ilStructureObject::create ( $a_upload = false )

Definition at line 33 of file class.ilStructureObject.php.

         {
                 parent::create($a_upload);
         }

◆ delete()

ilStructureObject::delete ( $a_delete_meta_data = true )

Delete Chapter.

Definition at line 41 of file class.ilStructureObject.php.

References delete_rec(), ilLMObject\getId(), and ilHelpMapping\removeScreenIdsOfChapter().

         {
                 // only relevant for online help authoring
                 include_once("./Services/Help/classes/class.ilHelpMapping.php");
                 ilHelpMapping::removeScreenIdsOfChapter($this->getId());

                 $this->tree = new ilTree($this->getLmId());
                 $this->tree->setTableNames('lm_tree', 'lm_data');
                 $this->tree->setTreeTablePK("lm_id");
                 $node_data = $this->tree->getNodeData($this->getId());
                 $this->delete_rec($this->tree, $a_delete_meta_data);
                 $this->tree->deleteTree($node_data);
         }

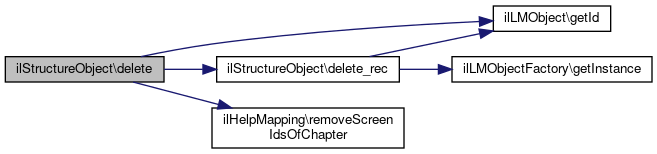

Here is the call graph for this function:

◆ delete_rec()

ilStructureObject::delete_rec	(	&	$a_tree,
			$a_delete_meta_data = `true`
	)

private

Delete sub tree.

Definition at line 58 of file class.ilStructureObject.php.

References ilLMObject\getId(), and ilLMObjectFactory\getInstance().

Referenced by delete().

         {
                 $childs = $a_tree->getChilds($this->getId());
                 foreach ($childs as $child)
                 {
                         $obj =& ilLMObjectFactory::getInstance($this->content_object, $child["obj_id"], false);
                         if (is_object($obj))
                         {
                                 if($obj->getType() == "st")
                                 {
                                         $obj->delete_rec($a_tree, $a_delete_meta_data);
                                 }
                                 if($obj->getType() == "pg")
                                 {
                                         $obj->delete($a_delete_meta_data);
                                 }
                         }
                         unset($obj);
                 }
                 parent::delete($a_delete_meta_data);
         }

Here is the call graph for this function:

Here is the caller graph for this function:

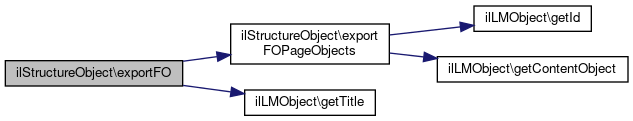

◆ exportFO()

ilStructureObject::exportFO ( & $a_xml_writer )

export object to fo

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 316 of file class.ilStructureObject.php.

References $ilBench, exportFOPageObjects(), and ilLMObject\getTitle().

         {
                 global $ilBench;

                 //$expLog->write(date("[y-m-d H:i:s] ")."Structure Object ".$this->getId());

                 // fo:block (complete)
                 $attrs = array();
                 $attrs["font-family"] = "Times";
                 $attrs["font-size"] = "14pt";
                 $a_xml_writer->xmlElement("fo:block", $attrs, $this->getTitle());

                 // page objects
                 //$ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjects");
                 $this->exportFOPageObjects($a_xml_writer);
                 //$ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjects");

                 // structure objects
                 //$this->exportFOStructureObjects($a_xml_writer);

         }

Here is the call graph for this function:

◆ exportFOPageObjects()

ilStructureObject::exportFOPageObjects ( & $a_xml_writer )

export page objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 344 of file class.ilStructureObject.php.

References $ilBench, ilLMObject\getContentObject(), and ilLMObject\getId().

Referenced by exportFO().

         {
                 global $ilBench;

                 $this->tree = new ilTree($this->getLmId());
                 $this->tree->setTableNames('lm_tree', 'lm_data');
                 $this->tree->setTreeTablePK("lm_id");

                 $childs = $this->tree->getChilds($this->getId());
                 foreach ($childs as $child)
                 {
                         if($child["type"] != "pg")
                         {
                                 continue;
                         }

                         // export xml to writer object
                         //$ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");

                         $page_obj = new ilLMPageObject($this->getContentObject(), $child["obj_id"]);
                         $page_obj->exportFO($a_xml_writer);

                         //$ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                 }
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportXML()

ilStructureObject::exportXML	(	&	$a_xml_writer,
			$a_inst,
		&	$expLog
	)

export object to xml (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 116 of file class.ilStructureObject.php.

References $ilBench, exportXMLMetaData(), exportXMLPageObjects(), exportXMLStructureObjects(), and ilLMObject\getId().

         {
                 global $ilBench;

                 $expLog->write(date("[y-m-d H:i:s] ")."Structure Object ".$this->getId());
                 $attrs = array();
                 $a_xml_writer->xmlStartTag("StructureObject", $attrs);

                 // MetaData
                 $ilBench->start("ContentObjectExport", "exportStructureObject_exportMeta");
                 $this->exportXMLMetaData($a_xml_writer);
                 $ilBench->stop("ContentObjectExport", "exportStructureObject_exportMeta");

                 // StructureObjects
                 $ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjects");
                 $this->exportXMLPageObjects($a_xml_writer, $a_inst);
                 $ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjects");

                 // PageObjects
                 $this->exportXMLStructureObjects($a_xml_writer, $a_inst, $expLog);

                 // Layout
                 // not implemented

                 $a_xml_writer->xmlEndTag("StructureObject");
         }

Here is the call graph for this function:

◆ exportXMLMetaData()

ilStructureObject::exportXMLMetaData ( & $a_xml_writer )

export structure objects meta data to xml (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 150 of file class.ilStructureObject.php.

References ilLMObject\getId(), ilLMObject\getLMId(), and ilLMObject\getType().

Referenced by exportXML().

         {
                 include_once("Services/MetaData/classes/class.ilMD2XML.php");
                 $md2xml = new ilMD2XML($this->getLMId(), $this->getId(), $this->getType());
                 $md2xml->setExportMode(true);
                 $md2xml->startExport();
                 $a_xml_writer->appendXML($md2xml->getXML());
         }

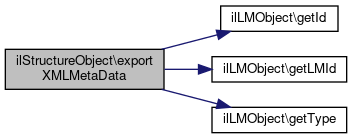

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportXMLPageObjects()

ilStructureObject::exportXMLPageObjects	(	&	$a_xml_writer,
			$a_inst = `0`
	)

export page objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 251 of file class.ilStructureObject.php.

References $ilBench, ilLMPageObject\_exportXMLAlias(), and ilLMObject\getId().

Referenced by exportXML().

         {
                 include_once './Modules/LearningModule/classes/class.ilLMPageObject.php';

                 global $ilBench;

                 $this->tree = new ilTree($this->getLmId());
                 $this->tree->setTableNames('lm_tree', 'lm_data');
                 $this->tree->setTreeTablePK("lm_id");

                 $childs = $this->tree->getChilds($this->getId());
                 foreach ($childs as $child)
                 {
                         if($child["type"] != "pg")
                         {
                                 continue;
                         }

                         // export xml to writer object
                         $ilBench->start("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                         //$ilBench->start("ContentObjectExport", "exportStructureObject_getLMPageObject");
                         //$page_obj = new ilLMPageObject($this->getContentObject(), $child["obj_id"]);
                         //$ilBench->stop("ContentObjectExport", "exportStructureObject_getLMPageObject");
                         ilLMPageObject::_exportXMLAlias($a_xml_writer, $child["obj_id"], $a_inst);
                         //$page_obj->exportXML($a_xml_writer, "alias", $a_inst);
                         //unset($page_obj);
                         $ilBench->stop("ContentObjectExport", "exportStructureObject_exportPageObjectAlias");
                 }
         }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportXMLStructureObjects()

ilStructureObject::exportXMLStructureObjects	(	&	$a_xml_writer,
			$a_inst,
		&	$expLog
	)

export (sub)structure objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 288 of file class.ilStructureObject.php.

References ilLMObject\getContentObject(), ilLMObject\getId(), and ilStructureObject().

Referenced by exportXML().

         {
                 $this->tree = new ilTree($this->getLmId());
                 $this->tree->setTableNames('lm_tree', 'lm_data');
                 $this->tree->setTreeTablePK("lm_id");

                 $childs = $this->tree->getChilds($this->getId());
                 foreach ($childs as $child)
                 {
                         if($child["type"] != "st")
                         {
                                 continue;
                         }

                         // export xml to writer object
                         $structure_obj = new ilStructureObject($this->getContentObject(),
                                 $child["obj_id"]);
                         $structure_obj->exportXML($a_xml_writer, $a_inst, $expLog);
                         unset($structure_obj);
                 }
         }

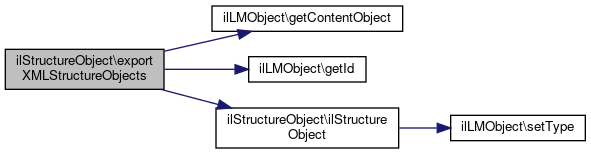

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChapterList()

static ilStructureObject::getChapterList ( $a_lm_id )

static

export (sub)structure objects of structure object (see ilias_co.dtd)

Parameters

object $a_xml_writer ilXmlWriter object that receives the xml data

Definition at line 376 of file class.ilStructureObject.php.

Referenced by ilExportIDTableGUI\__construct(), and ilHelpMappingTableGUI\getChapters().

         {
                 $tree = new ilTree($a_lm_id);
                 $tree->setTableNames('lm_tree', 'lm_data');
                 $tree->setTreeTablePK("lm_id");

                 $chapters = array();
                 $ndata = $tree->getNodeData($tree->readRootId());
                 $childs = $tree->getSubtree($ndata);
                 foreach ($childs as $child)
                 {
                         if($child["type"] == "st")
                         {
                                 $chapters[] = $child;
                         }

                 }
                 return $chapters;
         }

Here is the caller graph for this function:

◆ ilStructureObject()

ilStructureObject::ilStructureObject	(	&	$a_content_obj,
			$a_id = `0`
	)

Constructor public.

Definition at line 27 of file class.ilStructureObject.php.

References ilLMObject\setType().

Referenced by copy(), and exportXMLStructureObjects().

         {
                 $this->setType("st");
                 parent::ilLMObject($a_content_obj, $a_id);
         }

Here is the call graph for this function:

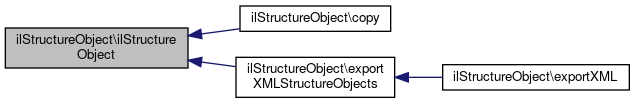

Here is the caller graph for this function:

◆ modifyExportIdentifier()

ilStructureObject::modifyExportIdentifier	(	$a_tag,
		$a_param,
		$a_value
	)

Definition at line 159 of file class.ilStructureObject.php.

References ilLMObject\getId().

         {
                 if ($a_tag == "Identifier" && $a_param == "Entry")
                 {
                         $a_value = "il_".IL_INST_ID."_st_".$this->getId();
                 }

                 return $a_value;
         }

Here is the call graph for this function:

Field Documentation

◆ $is_alias

ilStructureObject::$is_alias

Definition at line 19 of file class.ilStructureObject.php.

◆ $origin_id

ilStructureObject::$origin_id

Definition at line 20 of file class.ilStructureObject.php.

◆ $tree

ilStructureObject::$tree

Definition at line 21 of file class.ilStructureObject.php.

The documentation for this class was generated from the following file:

Modules/LearningModule/classes/class.ilStructureObject.php

Public Member Functions

Static Public Member Functions

Data Fields

Private Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ _getPresentationTitle()

◆ copy()

◆ create()

◆ delete()

◆ delete_rec()

◆ exportFO()

◆ exportFOPageObjects()

◆ exportXML()

◆ exportXMLMetaData()

◆ exportXMLPageObjects()

◆ exportXMLStructureObjects()

◆ getChapterList()

◆ ilStructureObject()

◆ modifyExportIdentifier()

Field Documentation

◆ $is_alias

◆ $origin_id

◆ $tree
