getid3_asf Class Reference
+ Inheritance diagram for getid3_asf:

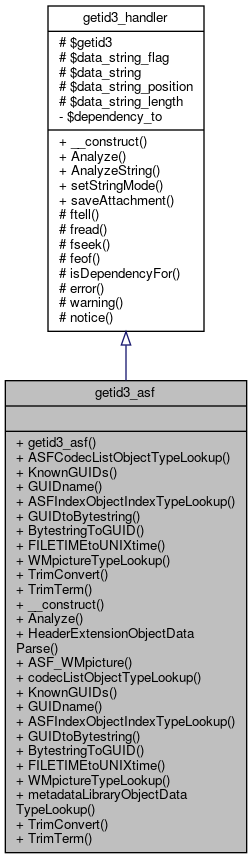

+ Collaboration diagram for getid3_asf:

Public Member Functions

 getid3_asf (&$fd, &$ThisFileInfo)

 ASFCodecListObjectTypeLookup ($CodecListType)

 KnownGUIDs ()

 GUIDname ($GUIDstring)

 ASFIndexObjectIndexTypeLookup ($id)

 GUIDtoBytestring ($GUIDstring)

 BytestringToGUID ($Bytestring)

 FILETIMEtoUNIXtime ($FILETIME, $round=true)

 WMpictureTypeLookup ($WMpictureType)

 TrimConvert ($string)

 TrimTerm ($string)

 __construct (getID3 $getid3)

 Analyze ()

 HeaderExtensionObjectDataParse (&$asf_header_extension_object_data, &$unhandled_sections)

 ASF_WMpicture (&$data)

- Public Member Functions inherited from getid3_handler
 __construct (getID3 $getid3, $call_module=null)

 Analyze ()

 AnalyzeString ($string)

 setStringMode ($string)

 saveAttachment ($name, $offset, $length, $image_mime=null)


Static Public Member Functions

static codecListObjectTypeLookup ($CodecListType)

static KnownGUIDs ()

static GUIDname ($GUIDstring)

static ASFIndexObjectIndexTypeLookup ($id)

static GUIDtoBytestring ($GUIDstring)

static BytestringToGUID ($Bytestring)

static FILETIMEtoUNIXtime ($FILETIME, $round=true)

static WMpictureTypeLookup ($WMpictureType)

static metadataLibraryObjectDataTypeLookup ($id)

static TrimConvert ($string)

static TrimTerm ($string)


Additional Inherited Members

- Protected Member Functions inherited from getid3_handler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

 notice ($text)

- Protected Attributes inherited from getid3_handler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

Definition at line 26 of file module.audio-video.asf.php.

Constructor & Destructor Documentation

◆ __construct()

getid3_asf::__construct ( getID3  $getid3)

Definition at line 21 of file module.audio-video.asf.php.

References $GUIDarray, GUIDtoBytestring(), and KnownGUIDs().

21  {
22  parent::__construct($getid3); // extends getid3_handler::__construct()
23
24  // initialize all GUID constants
25  $GUIDarray = $this->KnownGUIDs();
26  foreach ($GUIDarray as $GUIDname => $hexstringvalue) {
27  if (!defined($GUIDname)) {
28  define($GUIDname, $this->GUIDtoBytestring($hexstringvalue));
29  }
30  }
31  }
GUIDtoBytestring($GUIDstring)
+ Here is the call graph for this function:

Member Function Documentation

◆ Analyze()

getid3_asf::Analyze ( )

Definition at line 33 of file module.audio-video.asf.php.

References $info, getid3_lib\array_merge_noclobber(), ASF_WMpicture(), ASFIndexObjectIndexTypeLookup(), BytestringToGUID(), getid3_handler\error(), FILETIMEtoUNIXtime(), getid3_riff\fourccLookup(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GUIDname(), GUIDtoBytestring(), HeaderExtensionObjectDataParse(), getid3_lib\LittleEndian2Int(), getid3_riff\parseWAVEFORMATex(), TrimConvert(), and TrimTerm().

33  {
34  $info = &$this->getid3->info;
35
36  // Shortcuts
37  $thisfile_audio = &$info['audio'];
38  $thisfile_video = &$info['video'];
39  $info['asf'] = array();
40  $thisfile_asf = &$info['asf'];
41  $thisfile_asf['comments'] = array();
42  $thisfile_asf_comments = &$thisfile_asf['comments'];
43  $thisfile_asf['header_object'] = array();
44  $thisfile_asf_headerobject = &$thisfile_asf['header_object'];
45
46
47  // ASF structure:
48  // * Header Object [required]
49  // * File Properties Object [required] (global file attributes)
50  // * Stream Properties Object [required] (defines media stream & characteristics)
51  // * Header Extension Object [required] (additional functionality)
52  // * Content Description Object (bibliographic information)
53  // * Script Command Object (commands for during playback)
54  // * Marker Object (named jumped points within the file)
55  // * Data Object [required]
56  // * Data Packets
57  // * Index Object
58
59  // Header Object: (mandatory, one only)
60  // Field Name Field Type Size (bits)
61  // Object ID GUID 128 // GUID for header object - GETID3_ASF_Header_Object
62  // Object Size QWORD 64 // size of header object, including 30 bytes of Header Object header
63  // Number of Header Objects DWORD 32 // number of objects in header object
64  // Reserved1 BYTE 8 // hardcoded: 0x01
65  // Reserved2 BYTE 8 // hardcoded: 0x02
66
67  $info['fileformat'] = 'asf';
68
69  $this->fseek($info['avdataoffset']);
70  $HeaderObjectData = $this->fread(30);
71
72  $thisfile_asf_headerobject['objectid'] = substr($HeaderObjectData, 0, 16);
73  $thisfile_asf_headerobject['objectid_guid'] = $this->BytestringToGUID($thisfile_asf_headerobject['objectid']);
74  if ($thisfile_asf_headerobject['objectid'] != GETID3_ASF_Header_Object) {
75  unset($info['fileformat'], $info['asf']);
76  return $this->error('ASF header GUID {'.$this->BytestringToGUID($thisfile_asf_headerobject['objectid']).'} does not match expected "GETID3_ASF_Header_Object" GUID {'.$this->BytestringToGUID(GETID3_ASF_Header_Object).'}');
77  }
78  $thisfile_asf_headerobject['objectsize'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 16, 8));
79  $thisfile_asf_headerobject['headerobjects'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 24, 4));
80  $thisfile_asf_headerobject['reserved1'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 28, 1));
81  $thisfile_asf_headerobject['reserved2'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 29, 1));
82
83  $NextObjectOffset = $this->ftell();
84  $ASFHeaderData = $this->fread($thisfile_asf_headerobject['objectsize'] - 30);
85  $offset = 0;
86
87  for ($HeaderObjectsCounter = 0; $HeaderObjectsCounter < $thisfile_asf_headerobject['headerobjects']; $HeaderObjectsCounter++) {
88  $NextObjectGUID = substr($ASFHeaderData, $offset, 16);
89  $offset += 16;
90  $NextObjectGUIDtext = $this->BytestringToGUID($NextObjectGUID);
91  $NextObjectSize = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
92  $offset += 8;
93  switch ($NextObjectGUID) {
94
95  case GETID3_ASF_File_Properties_Object:
96  // File Properties Object: (mandatory, one only)
97  // Field Name Field Type Size (bits)
98  // Object ID GUID 128 // GUID for file properties object - GETID3_ASF_File_Properties_Object
99  // Object Size QWORD 64 // size of file properties object, including 104 bytes of File Properties Object header
100  // File ID GUID 128 // unique ID - identical to File ID in Data Object
101  // File Size QWORD 64 // entire file in bytes. Invalid if Broadcast Flag == 1
102  // Creation Date QWORD 64 // date & time of file creation. Maybe invalid if Broadcast Flag == 1
103  // Data Packets Count QWORD 64 // number of data packets in Data Object. Invalid if Broadcast Flag == 1
104  // Play Duration QWORD 64 // playtime, in 100-nanosecond units. Invalid if Broadcast Flag == 1
105  // Send Duration QWORD 64 // time needed to send file, in 100-nanosecond units. Players can ignore this value. Invalid if Broadcast Flag == 1
106  // Preroll QWORD 64 // time to buffer data before starting to play file, in 1-millisecond units. If <> 0, PlayDuration and PresentationTime have been offset by this amount
107  // Flags DWORD 32 //
108  // * Broadcast Flag bits 1 (0x01) // file is currently being written, some header values are invalid
109  // * Seekable Flag bits 1 (0x02) // is file seekable
110  // * Reserved bits 30 (0xFFFFFFFC) // reserved - set to zero
111  // Minimum Data Packet Size DWORD 32 // in bytes. should be same as Maximum Data Packet Size. Invalid if Broadcast Flag == 1
112  // Maximum Data Packet Size DWORD 32 // in bytes. should be same as Minimum Data Packet Size. Invalid if Broadcast Flag == 1
113  // Maximum Bitrate DWORD 32 // maximum instantaneous bitrate in bits per second for entire file, including all data streams and ASF overhead
114
115  // shortcut
116  $thisfile_asf['file_properties_object'] = array();
117  $thisfile_asf_filepropertiesobject = &$thisfile_asf['file_properties_object'];
118
119  $thisfile_asf_filepropertiesobject['offset'] = $NextObjectOffset + $offset;
120  $thisfile_asf_filepropertiesobject['objectid'] = $NextObjectGUID;
121  $thisfile_asf_filepropertiesobject['objectid_guid'] = $NextObjectGUIDtext;
122  $thisfile_asf_filepropertiesobject['objectsize'] = $NextObjectSize;
123  $thisfile_asf_filepropertiesobject['fileid'] = substr($ASFHeaderData, $offset, 16);
124  $offset += 16;
125  $thisfile_asf_filepropertiesobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_filepropertiesobject['fileid']);
126  $thisfile_asf_filepropertiesobject['filesize'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
127  $offset += 8;
128  $thisfile_asf_filepropertiesobject['creation_date'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
129  $thisfile_asf_filepropertiesobject['creation_date_unix'] = $this->FILETIMEtoUNIXtime($thisfile_asf_filepropertiesobject['creation_date']);
130  $offset += 8;
131  $thisfile_asf_filepropertiesobject['data_packets'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
132  $offset += 8;
133  $thisfile_asf_filepropertiesobject['play_duration'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
134  $offset += 8;
135  $thisfile_asf_filepropertiesobject['send_duration'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
136  $offset += 8;
137  $thisfile_asf_filepropertiesobject['preroll'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
138  $offset += 8;
139  $thisfile_asf_filepropertiesobject['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
140  $offset += 4;
141  $thisfile_asf_filepropertiesobject['flags']['broadcast'] = (bool) ($thisfile_asf_filepropertiesobject['flags_raw'] & 0x0001);
142  $thisfile_asf_filepropertiesobject['flags']['seekable'] = (bool) ($thisfile_asf_filepropertiesobject['flags_raw'] & 0x0002);
143
144  $thisfile_asf_filepropertiesobject['min_packet_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
145  $offset += 4;
146  $thisfile_asf_filepropertiesobject['max_packet_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
147  $offset += 4;
148  $thisfile_asf_filepropertiesobject['max_bitrate'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
149  $offset += 4;
150
151  if ($thisfile_asf_filepropertiesobject['flags']['broadcast']) {
152
153  // broadcast flag is set, some values invalid
154  unset($thisfile_asf_filepropertiesobject['filesize']);
155  unset($thisfile_asf_filepropertiesobject['data_packets']);
156  unset($thisfile_asf_filepropertiesobject['play_duration']);
157  unset($thisfile_asf_filepropertiesobject['send_duration']);
158  unset($thisfile_asf_filepropertiesobject['min_packet_size']);
159  unset($thisfile_asf_filepropertiesobject['max_packet_size']);
160
161  } else {
162
163  // broadcast flag NOT set, perform calculations
164  $info['playtime_seconds'] = ($thisfile_asf_filepropertiesobject['play_duration'] / 10000000) - ($thisfile_asf_filepropertiesobject['preroll'] / 1000);
165
166  //$info['bitrate'] = $thisfile_asf_filepropertiesobject['max_bitrate'];
167  $info['bitrate'] = ((isset($thisfile_asf_filepropertiesobject['filesize']) ? $thisfile_asf_filepropertiesobject['filesize'] : $info['filesize']) * 8) / $info['playtime_seconds'];
168  }
169  break;
170
171  case GETID3_ASF_Stream_Properties_Object:
172  // Stream Properties Object: (mandatory, one per media stream)
173  // Field Name Field Type Size (bits)
174  // Object ID GUID 128 // GUID for stream properties object - GETID3_ASF_Stream_Properties_Object
175  // Object Size QWORD 64 // size of stream properties object, including 78 bytes of Stream Properties Object header
176  // Stream Type GUID 128 // GETID3_ASF_Audio_Media, GETID3_ASF_Video_Media or GETID3_ASF_Command_Media
177  // Error Correction Type GUID 128 // GETID3_ASF_Audio_Spread for audio-only streams, GETID3_ASF_No_Error_Correction for other stream types
178  // Time Offset QWORD 64 // 100-nanosecond units. typically zero. added to all timestamps of samples in the stream
179  // Type-Specific Data Length DWORD 32 // number of bytes for Type-Specific Data field
180  // Error Correction Data Length DWORD 32 // number of bytes for Error Correction Data field
181  // Flags WORD 16 //
182  // * Stream Number bits 7 (0x007F) // number of this stream. 1 <= valid <= 127
183  // * Reserved bits 8 (0x7F80) // reserved - set to zero
184  // * Encrypted Content Flag bits 1 (0x8000) // stream contents encrypted if set
185  // Reserved DWORD 32 // reserved - set to zero
186  // Type-Specific Data BYTESTREAM variable // type-specific format data, depending on value of Stream Type
187  // Error Correction Data BYTESTREAM variable // error-correction-specific format data, depending on value of Error Correct Type
188
189  // There is one GETID3_ASF_Stream_Properties_Object for each stream (audio, video) but the
190  // stream number isn't known until halfway through decoding the structure, hence it
191  // it is decoded to a temporary variable and then stuck in the appropriate index later
192
193  $StreamPropertiesObjectData['offset'] = $NextObjectOffset + $offset;
194  $StreamPropertiesObjectData['objectid'] = $NextObjectGUID;
195  $StreamPropertiesObjectData['objectid_guid'] = $NextObjectGUIDtext;
196  $StreamPropertiesObjectData['objectsize'] = $NextObjectSize;
197  $StreamPropertiesObjectData['stream_type'] = substr($ASFHeaderData, $offset, 16);
198  $offset += 16;
199  $StreamPropertiesObjectData['stream_type_guid'] = $this->BytestringToGUID($StreamPropertiesObjectData['stream_type']);
200  $StreamPropertiesObjectData['error_correct_type'] = substr($ASFHeaderData, $offset, 16);
201  $offset += 16;
202  $StreamPropertiesObjectData['error_correct_guid'] = $this->BytestringToGUID($StreamPropertiesObjectData['error_correct_type']);
203  $StreamPropertiesObjectData['time_offset'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
204  $offset += 8;
205  $StreamPropertiesObjectData['type_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
206  $offset += 4;
207  $StreamPropertiesObjectData['error_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
208  $offset += 4;
209  $StreamPropertiesObjectData['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
210  $offset += 2;
211  $StreamPropertiesObjectStreamNumber = $StreamPropertiesObjectData['flags_raw'] & 0x007F;
212  $StreamPropertiesObjectData['flags']['encrypted'] = (bool) ($StreamPropertiesObjectData['flags_raw'] & 0x8000);
213
214  $offset += 4; // reserved - DWORD
215  $StreamPropertiesObjectData['type_specific_data'] = substr($ASFHeaderData, $offset, $StreamPropertiesObjectData['type_data_length']);
216  $offset += $StreamPropertiesObjectData['type_data_length'];
217  $StreamPropertiesObjectData['error_correct_data'] = substr($ASFHeaderData, $offset, $StreamPropertiesObjectData['error_data_length']);
218  $offset += $StreamPropertiesObjectData['error_data_length'];
219
220  switch ($StreamPropertiesObjectData['stream_type']) {
221
222  case GETID3_ASF_Audio_Media:
223  $thisfile_audio['dataformat'] = (!empty($thisfile_audio['dataformat']) ? $thisfile_audio['dataformat'] : 'asf');
224  $thisfile_audio['bitrate_mode'] = (!empty($thisfile_audio['bitrate_mode']) ? $thisfile_audio['bitrate_mode'] : 'cbr');
225
226  $audiodata = getid3_riff::parseWAVEFORMATex(substr($StreamPropertiesObjectData['type_specific_data'], 0, 16));
227  unset($audiodata['raw']);
228  $thisfile_audio = getid3_lib::array_merge_noclobber($audiodata, $thisfile_audio);
229  break;
230
231  case GETID3_ASF_Video_Media:
232  $thisfile_video['dataformat'] = (!empty($thisfile_video['dataformat']) ? $thisfile_video['dataformat'] : 'asf');
233  $thisfile_video['bitrate_mode'] = (!empty($thisfile_video['bitrate_mode']) ? $thisfile_video['bitrate_mode'] : 'cbr');
234  break;
235
236  case GETID3_ASF_Command_Media:
237  default:
238  // do nothing
239  break;
240
241  }
242
243  $thisfile_asf['stream_properties_object'][$StreamPropertiesObjectStreamNumber] = $StreamPropertiesObjectData;
244  unset($StreamPropertiesObjectData); // clear for next stream, if any
245  break;
246
247  case GETID3_ASF_Header_Extension_Object:
248  // Header Extension Object: (mandatory, one only)
249  // Field Name Field Type Size (bits)
250  // Object ID GUID 128 // GUID for Header Extension object - GETID3_ASF_Header_Extension_Object
251  // Object Size QWORD 64 // size of Header Extension object, including 46 bytes of Header Extension Object header
252  // Reserved Field 1 GUID 128 // hardcoded: GETID3_ASF_Reserved_1
253  // Reserved Field 2 WORD 16 // hardcoded: 0x00000006
254  // Header Extension Data Size DWORD 32 // in bytes. valid: 0, or > 24. equals object size minus 46
255  // Header Extension Data BYTESTREAM variable // array of zero or more extended header objects
256
257  // shortcut
258  $thisfile_asf['header_extension_object'] = array();
259  $thisfile_asf_headerextensionobject = &$thisfile_asf['header_extension_object'];
260
261  $thisfile_asf_headerextensionobject['offset'] = $NextObjectOffset + $offset;
262  $thisfile_asf_headerextensionobject['objectid'] = $NextObjectGUID;
263  $thisfile_asf_headerextensionobject['objectid_guid'] = $NextObjectGUIDtext;
264  $thisfile_asf_headerextensionobject['objectsize'] = $NextObjectSize;
265  $thisfile_asf_headerextensionobject['reserved_1'] = substr($ASFHeaderData, $offset, 16);
266  $offset += 16;
267  $thisfile_asf_headerextensionobject['reserved_1_guid'] = $this->BytestringToGUID($thisfile_asf_headerextensionobject['reserved_1']);
268  if ($thisfile_asf_headerextensionobject['reserved_1'] != GETID3_ASF_Reserved_1) {
269  $info['warning'][] = 'header_extension_object.reserved_1 GUID ('.$this->BytestringToGUID($thisfile_asf_headerextensionobject['reserved_1']).') does not match expected "GETID3_ASF_Reserved_1" GUID ('.$this->BytestringToGUID(GETID3_ASF_Reserved_1).')';
270  //return false;
271  break;
272  }
273  $thisfile_asf_headerextensionobject['reserved_2'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
274  $offset += 2;
275  if ($thisfile_asf_headerextensionobject['reserved_2'] != 6) {
276  $info['warning'][] = 'header_extension_object.reserved_2 ('.getid3_lib::PrintHexBytes($thisfile_asf_headerextensionobject['reserved_2']).') does not match expected value of "6"';
277  //return false;
278  break;
279  }
280  $thisfile_asf_headerextensionobject['extension_data_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
281  $offset += 4;
282  $thisfile_asf_headerextensionobject['extension_data'] = substr($ASFHeaderData, $offset, $thisfile_asf_headerextensionobject['extension_data_size']);
283  $unhandled_sections = 0;
284  $thisfile_asf_headerextensionobject['extension_data_parsed'] = $this->HeaderExtensionObjectDataParse($thisfile_asf_headerextensionobject['extension_data'], $unhandled_sections);
285  if ($unhandled_sections === 0) {
286  unset($thisfile_asf_headerextensionobject['extension_data']);
287  }
288  $offset += $thisfile_asf_headerextensionobject['extension_data_size'];
289  break;
290
291  case GETID3_ASF_Codec_List_Object:
292  // Codec List Object: (optional, one only)
293  // Field Name Field Type Size (bits)
294  // Object ID GUID 128 // GUID for Codec List object - GETID3_ASF_Codec_List_Object
295  // Object Size QWORD 64 // size of Codec List object, including 44 bytes of Codec List Object header
296  // Reserved GUID 128 // hardcoded: 86D15241-311D-11D0-A3A4-00A0C90348F6
297  // Codec Entries Count DWORD 32 // number of entries in Codec Entries array
298  // Codec Entries array of: variable //
299  // * Type WORD 16 // 0x0001 = Video Codec, 0x0002 = Audio Codec, 0xFFFF = Unknown Codec
300  // * Codec Name Length WORD 16 // number of Unicode characters stored in the Codec Name field
301  // * Codec Name WCHAR variable // array of Unicode characters - name of codec used to create the content
302  // * Codec Description Length WORD 16 // number of Unicode characters stored in the Codec Description field
303  // * Codec Description WCHAR variable // array of Unicode characters - description of format used to create the content
304  // * Codec Information Length WORD 16 // number of Unicode characters stored in the Codec Information field
305  // * Codec Information BYTESTREAM variable // opaque array of information bytes about the codec used to create the content
306
307  // shortcut
308  $thisfile_asf['codec_list_object'] = array();
309  $thisfile_asf_codeclistobject = &$thisfile_asf['codec_list_object'];
310
311  $thisfile_asf_codeclistobject['offset'] = $NextObjectOffset + $offset;
312  $thisfile_asf_codeclistobject['objectid'] = $NextObjectGUID;
313  $thisfile_asf_codeclistobject['objectid_guid'] = $NextObjectGUIDtext;
314  $thisfile_asf_codeclistobject['objectsize'] = $NextObjectSize;
315  $thisfile_asf_codeclistobject['reserved'] = substr($ASFHeaderData, $offset, 16);
316  $offset += 16;
317  $thisfile_asf_codeclistobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_codeclistobject['reserved']);
318  if ($thisfile_asf_codeclistobject['reserved'] != $this->GUIDtoBytestring('86D15241-311D-11D0-A3A4-00A0C90348F6')) {
319  $info['warning'][] = 'codec_list_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_codeclistobject['reserved']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {86D15241-311D-11D0-A3A4-00A0C90348F6}';
320  //return false;
321  break;
322  }
323  $thisfile_asf_codeclistobject['codec_entries_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
324  $offset += 4;
325  for ($CodecEntryCounter = 0; $CodecEntryCounter < $thisfile_asf_codeclistobject['codec_entries_count']; $CodecEntryCounter++) {
326  // shortcut
327  $thisfile_asf_codeclistobject['codec_entries'][$CodecEntryCounter] = array();
328  $thisfile_asf_codeclistobject_codecentries_current = &$thisfile_asf_codeclistobject['codec_entries'][$CodecEntryCounter];
329
330  $thisfile_asf_codeclistobject_codecentries_current['type_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
331  $offset += 2;
332  $thisfile_asf_codeclistobject_codecentries_current['type'] = self::codecListObjectTypeLookup($thisfile_asf_codeclistobject_codecentries_current['type_raw']);
333
334  $CodecNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
335  $offset += 2;
336  $thisfile_asf_codeclistobject_codecentries_current['name'] = substr($ASFHeaderData, $offset, $CodecNameLength);
337  $offset += $CodecNameLength;
338
339  $CodecDescriptionLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
340  $offset += 2;
341  $thisfile_asf_codeclistobject_codecentries_current['description'] = substr($ASFHeaderData, $offset, $CodecDescriptionLength);
342  $offset += $CodecDescriptionLength;
343
344  $CodecInformationLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
345  $offset += 2;
346  $thisfile_asf_codeclistobject_codecentries_current['information'] = substr($ASFHeaderData, $offset, $CodecInformationLength);
347  $offset += $CodecInformationLength;
348
349  if ($thisfile_asf_codeclistobject_codecentries_current['type_raw'] == 2) { // audio codec
350
351  if (strpos($thisfile_asf_codeclistobject_codecentries_current['description'], ',') === false) {
352  $info['warning'][] = '[asf][codec_list_object][codec_entries]['.$CodecEntryCounter.'][description] expected to contain comma-seperated list of parameters: "'.$thisfile_asf_codeclistobject_codecentries_current['description'].'"';
353  } else {
354
355  list($AudioCodecBitrate, $AudioCodecFrequency, $AudioCodecChannels) = explode(',', $this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['description']));
356  $thisfile_audio['codec'] = $this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['name']);
357
358  if (!isset($thisfile_audio['bitrate']) && strstr($AudioCodecBitrate, 'kbps')) {
359  $thisfile_audio['bitrate'] = (int) (trim(str_replace('kbps', '', $AudioCodecBitrate)) * 1000);
360  }
361  //if (!isset($thisfile_video['bitrate']) && isset($thisfile_audio['bitrate']) && isset($thisfile_asf['file_properties_object']['max_bitrate']) && ($thisfile_asf_codeclistobject['codec_entries_count'] > 1)) {
362  if (empty($thisfile_video['bitrate']) && !empty($thisfile_audio['bitrate']) && !empty($info['bitrate'])) {
363  //$thisfile_video['bitrate'] = $thisfile_asf['file_properties_object']['max_bitrate'] - $thisfile_audio['bitrate'];
364  $thisfile_video['bitrate'] = $info['bitrate'] - $thisfile_audio['bitrate'];
365  }
366
367  $AudioCodecFrequency = (int) trim(str_replace('kHz', '', $AudioCodecFrequency));
368  switch ($AudioCodecFrequency) {
369  case 8:
370  case 8000:
371  $thisfile_audio['sample_rate'] = 8000;
372  break;
373
374  case 11:
375  case 11025:
376  $thisfile_audio['sample_rate'] = 11025;
377  break;
378
379  case 12:
380  case 12000:
381  $thisfile_audio['sample_rate'] = 12000;
382  break;
383
384  case 16:
385  case 16000:
386  $thisfile_audio['sample_rate'] = 16000;
387  break;
388
389  case 22:
390  case 22050:
391  $thisfile_audio['sample_rate'] = 22050;
392  break;
393
394  case 24:
395  case 24000:
396  $thisfile_audio['sample_rate'] = 24000;
397  break;
398
399  case 32:
400  case 32000:
401  $thisfile_audio['sample_rate'] = 32000;
402  break;
403
404  case 44:
405  case 441000:
406  $thisfile_audio['sample_rate'] = 44100;
407  break;
408
409  case 48:
410  case 48000:
411  $thisfile_audio['sample_rate'] = 48000;
412  break;
413
414  default:
415  $info['warning'][] = 'unknown frequency: "'.$AudioCodecFrequency.'" ('.$this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['description']).')';
416  break;
417  }
418
419  if (!isset($thisfile_audio['channels'])) {
420  if (strstr($AudioCodecChannels, 'stereo')) {
421  $thisfile_audio['channels'] = 2;
422  } elseif (strstr($AudioCodecChannels, 'mono')) {
423  $thisfile_audio['channels'] = 1;
424  }
425  }
426
427  }
428  }
429  }
430  break;
431
432  case GETID3_ASF_Script_Command_Object:
433  // Script Command Object: (optional, one only)
434  // Field Name Field Type Size (bits)
435  // Object ID GUID 128 // GUID for Script Command object - GETID3_ASF_Script_Command_Object
436  // Object Size QWORD 64 // size of Script Command object, including 44 bytes of Script Command Object header
437  // Reserved GUID 128 // hardcoded: 4B1ACBE3-100B-11D0-A39B-00A0C90348F6
438  // Commands Count WORD 16 // number of Commands structures in the Script Commands Objects
439  // Command Types Count WORD 16 // number of Command Types structures in the Script Commands Objects
440  // Command Types array of: variable //
441  // * Command Type Name Length WORD 16 // number of Unicode characters for Command Type Name
442  // * Command Type Name WCHAR variable // array of Unicode characters - name of a type of command
443  // Commands array of: variable //
444  // * Presentation Time DWORD 32 // presentation time of that command, in milliseconds
445  // * Type Index WORD 16 // type of this command, as a zero-based index into the array of Command Types of this object
446  // * Command Name Length WORD 16 // number of Unicode characters for Command Name
447  // * Command Name WCHAR variable // array of Unicode characters - name of this command
448
449  // shortcut
450  $thisfile_asf['script_command_object'] = array();
451  $thisfile_asf_scriptcommandobject = &$thisfile_asf['script_command_object'];
452
453  $thisfile_asf_scriptcommandobject['offset'] = $NextObjectOffset + $offset;
454  $thisfile_asf_scriptcommandobject['objectid'] = $NextObjectGUID;
455  $thisfile_asf_scriptcommandobject['objectid_guid'] = $NextObjectGUIDtext;
456  $thisfile_asf_scriptcommandobject['objectsize'] = $NextObjectSize;
457  $thisfile_asf_scriptcommandobject['reserved'] = substr($ASFHeaderData, $offset, 16);
458  $offset += 16;
459  $thisfile_asf_scriptcommandobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_scriptcommandobject['reserved']);
460  if ($thisfile_asf_scriptcommandobject['reserved'] != $this->GUIDtoBytestring('4B1ACBE3-100B-11D0-A39B-00A0C90348F6')) {
461  $info['warning'][] = 'script_command_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_scriptcommandobject['reserved']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {4B1ACBE3-100B-11D0-A39B-00A0C90348F6}';
462  //return false;
463  break;
464  }
465  $thisfile_asf_scriptcommandobject['commands_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
466  $offset += 2;
467  $thisfile_asf_scriptcommandobject['command_types_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
468  $offset += 2;
469  for ($CommandTypesCounter = 0; $CommandTypesCounter < $thisfile_asf_scriptcommandobject['command_types_count']; $CommandTypesCounter++) {
470  $CommandTypeNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
471  $offset += 2;
472  $thisfile_asf_scriptcommandobject['command_types'][$CommandTypesCounter]['name'] = substr($ASFHeaderData, $offset, $CommandTypeNameLength);
473  $offset += $CommandTypeNameLength;
474  }
475  for ($CommandsCounter = 0; $CommandsCounter < $thisfile_asf_scriptcommandobject['commands_count']; $CommandsCounter++) {
476  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['presentation_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
477  $offset += 4;
478  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['type_index'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
479  $offset += 2;
480
481  $CommandTypeNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
482  $offset += 2;
483  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['name'] = substr($ASFHeaderData, $offset, $CommandTypeNameLength);
484  $offset += $CommandTypeNameLength;
485  }
486  break;
487
488  case GETID3_ASF_Marker_Object:
489  // Marker Object: (optional, one only)
490  // Field Name Field Type Size (bits)
491  // Object ID GUID 128 // GUID for Marker object - GETID3_ASF_Marker_Object
492  // Object Size QWORD 64 // size of Marker object, including 48 bytes of Marker Object header
493  // Reserved GUID 128 // hardcoded: 4CFEDB20-75F6-11CF-9C0F-00A0C90349CB
494  // Markers Count DWORD 32 // number of Marker structures in Marker Object
495  // Reserved WORD 16 // hardcoded: 0x0000
496  // Name Length WORD 16 // number of bytes in the Name field
497  // Name WCHAR variable // name of the Marker Object
498  // Markers array of: variable //
499  // * Offset QWORD 64 // byte offset into Data Object
500  // * Presentation Time QWORD 64 // in 100-nanosecond units
501  // * Entry Length WORD 16 // length in bytes of (Send Time + Flags + Marker Description Length + Marker Description + Padding)
502  // * Send Time DWORD 32 // in milliseconds
503  // * Flags DWORD 32 // hardcoded: 0x00000000
504  // * Marker Description Length DWORD 32 // number of bytes in Marker Description field
505  // * Marker Description WCHAR variable // array of Unicode characters - description of marker entry
506  // * Padding BYTESTREAM variable // optional padding bytes
507
508  // shortcut
509  $thisfile_asf['marker_object'] = array();
510  $thisfile_asf_markerobject = &$thisfile_asf['marker_object'];
511
512  $thisfile_asf_markerobject['offset'] = $NextObjectOffset + $offset;
513  $thisfile_asf_markerobject['objectid'] = $NextObjectGUID;
514  $thisfile_asf_markerobject['objectid_guid'] = $NextObjectGUIDtext;
515  $thisfile_asf_markerobject['objectsize'] = $NextObjectSize;
516  $thisfile_asf_markerobject['reserved'] = substr($ASFHeaderData, $offset, 16);
517  $offset += 16;
518  $thisfile_asf_markerobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_markerobject['reserved']);
519  if ($thisfile_asf_markerobject['reserved'] != $this->GUIDtoBytestring('4CFEDB20-75F6-11CF-9C0F-00A0C90349CB')) {
520  $info['warning'][] = 'marker_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_markerobject['reserved_1']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {4CFEDB20-75F6-11CF-9C0F-00A0C90349CB}';
521  break;
522  }
523  $thisfile_asf_markerobject['markers_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
524  $offset += 4;
525  $thisfile_asf_markerobject['reserved_2'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
526  $offset += 2;
527  if ($thisfile_asf_markerobject['reserved_2'] != 0) {
528  $info['warning'][] = 'marker_object.reserved_2 ('.getid3_lib::PrintHexBytes($thisfile_asf_markerobject['reserved_2']).') does not match expected value of "0"';
529  break;
530  }
531  $thisfile_asf_markerobject['name_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
532  $offset += 2;
533  $thisfile_asf_markerobject['name'] = substr($ASFHeaderData, $offset, $thisfile_asf_markerobject['name_length']);
534  $offset += $thisfile_asf_markerobject['name_length'];
535  for ($MarkersCounter = 0; $MarkersCounter < $thisfile_asf_markerobject['markers_count']; $MarkersCounter++) {
536  $thisfile_asf_markerobject['markers'][$MarkersCounter]['offset'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
537  $offset += 8;
538  $thisfile_asf_markerobject['markers'][$MarkersCounter]['presentation_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
539  $offset += 8;
540  $thisfile_asf_markerobject['markers'][$MarkersCounter]['entry_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
541  $offset += 2;
542  $thisfile_asf_markerobject['markers'][$MarkersCounter]['send_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
543  $offset += 4;
544  $thisfile_asf_markerobject['markers'][$MarkersCounter]['flags'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
545  $offset += 4;
546  $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
547  $offset += 4;
548  $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description'] = substr($ASFHeaderData, $offset, $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length']);
549  $offset += $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'];
550  $PaddingLength = $thisfile_asf_markerobject['markers'][$MarkersCounter]['entry_length'] - 4 - 4 - 4 - $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'];
551  if ($PaddingLength > 0) {
552  $thisfile_asf_markerobject['markers'][$MarkersCounter]['padding'] = substr($ASFHeaderData, $offset, $PaddingLength);
553  $offset += $PaddingLength;
554  }
555  }
556  break;
557
558  case GETID3_ASF_Bitrate_Mutual_Exclusion_Object:
559  // Bitrate Mutual Exclusion Object: (optional)
560  // Field Name Field Type Size (bits)
561  // Object ID GUID 128 // GUID for Bitrate Mutual Exclusion object - GETID3_ASF_Bitrate_Mutual_Exclusion_Object
562  // Object Size QWORD 64 // size of Bitrate Mutual Exclusion object, including 42 bytes of Bitrate Mutual Exclusion Object header
563  // Exlusion Type GUID 128 // nature of mutual exclusion relationship. one of: (GETID3_ASF_Mutex_Bitrate, GETID3_ASF_Mutex_Unknown)
564  // Stream Numbers Count WORD 16 // number of video streams
565  // Stream Numbers WORD variable // array of mutually exclusive video stream numbers. 1 <= valid <= 127
566
567  // shortcut
568  $thisfile_asf['bitrate_mutual_exclusion_object'] = array();
569  $thisfile_asf_bitratemutualexclusionobject = &$thisfile_asf['bitrate_mutual_exclusion_object'];
570
571  $thisfile_asf_bitratemutualexclusionobject['offset'] = $NextObjectOffset + $offset;
572  $thisfile_asf_bitratemutualexclusionobject['objectid'] = $NextObjectGUID;
573  $thisfile_asf_bitratemutualexclusionobject['objectid_guid'] = $NextObjectGUIDtext;
574  $thisfile_asf_bitratemutualexclusionobject['objectsize'] = $NextObjectSize;
575  $thisfile_asf_bitratemutualexclusionobject['reserved'] = substr($ASFHeaderData, $offset, 16);
576  $thisfile_asf_bitratemutualexclusionobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_bitratemutualexclusionobject['reserved']);
577  $offset += 16;
578  if (($thisfile_asf_bitratemutualexclusionobject['reserved'] != GETID3_ASF_Mutex_Bitrate) && ($thisfile_asf_bitratemutualexclusionobject['reserved'] != GETID3_ASF_Mutex_Unknown)) {
579  $info['warning'][] = 'bitrate_mutual_exclusion_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_bitratemutualexclusionobject['reserved']).'} does not match expected "GETID3_ASF_Mutex_Bitrate" GUID {'.$this->BytestringToGUID(GETID3_ASF_Mutex_Bitrate).'} or "GETID3_ASF_Mutex_Unknown" GUID {'.$this->BytestringToGUID(GETID3_ASF_Mutex_Unknown).'}';
580  //return false;
581  break;
582  }
583  $thisfile_asf_bitratemutualexclusionobject['stream_numbers_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
584  $offset += 2;
585  for ($StreamNumberCounter = 0; $StreamNumberCounter < $thisfile_asf_bitratemutualexclusionobject['stream_numbers_count']; $StreamNumberCounter++) {
586  $thisfile_asf_bitratemutualexclusionobject['stream_numbers'][$StreamNumberCounter] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
587  $offset += 2;
588  }
589  break;
590
591  case GETID3_ASF_Error_Correction_Object:
592  // Error Correction Object: (optional, one only)
593  // Field Name Field Type Size (bits)
594  // Object ID GUID 128 // GUID for Error Correction object - GETID3_ASF_Error_Correction_Object
595  // Object Size QWORD 64 // size of Error Correction object, including 44 bytes of Error Correction Object header
596  // Error Correction Type GUID 128 // type of error correction. one of: (GETID3_ASF_No_Error_Correction, GETID3_ASF_Audio_Spread)
597  // Error Correction Data Length DWORD 32 // number of bytes in Error Correction Data field
598  // Error Correction Data BYTESTREAM variable // structure depends on value of Error Correction Type field
599
600  // shortcut
601  $thisfile_asf['error_correction_object'] = array();
602  $thisfile_asf_errorcorrectionobject = &$thisfile_asf['error_correction_object'];
603
604  $thisfile_asf_errorcorrectionobject['offset'] = $NextObjectOffset + $offset;
605  $thisfile_asf_errorcorrectionobject['objectid'] = $NextObjectGUID;
606  $thisfile_asf_errorcorrectionobject['objectid_guid'] = $NextObjectGUIDtext;
607  $thisfile_asf_errorcorrectionobject['objectsize'] = $NextObjectSize;
608  $thisfile_asf_errorcorrectionobject['error_correction_type'] = substr($ASFHeaderData, $offset, 16);
609  $offset += 16;
610  $thisfile_asf_errorcorrectionobject['error_correction_guid'] = $this->BytestringToGUID($thisfile_asf_errorcorrectionobject['error_correction_type']);
611  $thisfile_asf_errorcorrectionobject['error_correction_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
612  $offset += 4;
613  switch ($thisfile_asf_errorcorrectionobject['error_correction_type']) {
614  case GETID3_ASF_No_Error_Correction:
615  // should be no data, but just in case there is, skip to the end of the field
616  $offset += $thisfile_asf_errorcorrectionobject['error_correction_data_length'];
617  break;
618
619  case GETID3_ASF_Audio_Spread:
620  // Field Name Field Type Size (bits)
621  // Span BYTE 8 // number of packets over which audio will be spread.
622  // Virtual Packet Length WORD 16 // size of largest audio payload found in audio stream
623  // Virtual Chunk Length WORD 16 // size of largest audio payload found in audio stream
624  // Silence Data Length WORD 16 // number of bytes in Silence Data field
625  // Silence Data BYTESTREAM variable // hardcoded: 0x00 * (Silence Data Length) bytes
626
627  $thisfile_asf_errorcorrectionobject['span'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 1));
628  $offset += 1;
629  $thisfile_asf_errorcorrectionobject['virtual_packet_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
630  $offset += 2;
631  $thisfile_asf_errorcorrectionobject['virtual_chunk_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
632  $offset += 2;
633  $thisfile_asf_errorcorrectionobject['silence_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
634  $offset += 2;
635  $thisfile_asf_errorcorrectionobject['silence_data'] = substr($ASFHeaderData, $offset, $thisfile_asf_errorcorrectionobject['silence_data_length']);
636  $offset += $thisfile_asf_errorcorrectionobject['silence_data_length'];
637  break;
638
639  default:
640  $info['warning'][] = 'error_correction_object.error_correction_type GUID {'.$this->BytestringToGUID($thisfile_asf_errorcorrectionobject['reserved']).'} does not match expected "GETID3_ASF_No_Error_Correction" GUID {'.$this->BytestringToGUID(GETID3_ASF_No_Error_Correction).'} or "GETID3_ASF_Audio_Spread" GUID {'.$this->BytestringToGUID(GETID3_ASF_Audio_Spread).'}';
641  //return false;
642  break;
643  }
644
645  break;
646
647  case GETID3_ASF_Content_Description_Object:
648  // Content Description Object: (optional, one only)
649  // Field Name Field Type Size (bits)
650  // Object ID GUID 128 // GUID for Content Description object - GETID3_ASF_Content_Description_Object
651  // Object Size QWORD 64 // size of Content Description object, including 34 bytes of Content Description Object header
652  // Title Length WORD 16 // number of bytes in Title field
653  // Author Length WORD 16 // number of bytes in Author field
654  // Copyright Length WORD 16 // number of bytes in Copyright field
655  // Description Length WORD 16 // number of bytes in Description field
656  // Rating Length WORD 16 // number of bytes in Rating field
657  // Title WCHAR 16 // array of Unicode characters - Title
658  // Author WCHAR 16 // array of Unicode characters - Author
659  // Copyright WCHAR 16 // array of Unicode characters - Copyright
660  // Description WCHAR 16 // array of Unicode characters - Description
661  // Rating WCHAR 16 // array of Unicode characters - Rating
662
663  // shortcut
664  $thisfile_asf['content_description_object'] = array();
665  $thisfile_asf_contentdescriptionobject = &$thisfile_asf['content_description_object'];
666
667  $thisfile_asf_contentdescriptionobject['offset'] = $NextObjectOffset + $offset;
668  $thisfile_asf_contentdescriptionobject['objectid'] = $NextObjectGUID;
669  $thisfile_asf_contentdescriptionobject['objectid_guid'] = $NextObjectGUIDtext;
670  $thisfile_asf_contentdescriptionobject['objectsize'] = $NextObjectSize;
671  $thisfile_asf_contentdescriptionobject['title_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
672  $offset += 2;
673  $thisfile_asf_contentdescriptionobject['author_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
674  $offset += 2;
675  $thisfile_asf_contentdescriptionobject['copyright_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
676  $offset += 2;
677  $thisfile_asf_contentdescriptionobject['description_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
678  $offset += 2;
679  $thisfile_asf_contentdescriptionobject['rating_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
680  $offset += 2;
681  $thisfile_asf_contentdescriptionobject['title'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['title_length']);
682  $offset += $thisfile_asf_contentdescriptionobject['title_length'];
683  $thisfile_asf_contentdescriptionobject['author'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['author_length']);
684  $offset += $thisfile_asf_contentdescriptionobject['author_length'];
685  $thisfile_asf_contentdescriptionobject['copyright'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['copyright_length']);
686  $offset += $thisfile_asf_contentdescriptionobject['copyright_length'];
687  $thisfile_asf_contentdescriptionobject['description'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['description_length']);
688  $offset += $thisfile_asf_contentdescriptionobject['description_length'];
689  $thisfile_asf_contentdescriptionobject['rating'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['rating_length']);
690  $offset += $thisfile_asf_contentdescriptionobject['rating_length'];
691
692  $ASFcommentKeysToCopy = array('title'=>'title', 'author'=>'artist', 'copyright'=>'copyright', 'description'=>'comment', 'rating'=>'rating');
693  foreach ($ASFcommentKeysToCopy as $keytocopyfrom => $keytocopyto) {
694  if (!empty($thisfile_asf_contentdescriptionobject[$keytocopyfrom])) {
695  $thisfile_asf_comments[$keytocopyto][] = $this->TrimTerm($thisfile_asf_contentdescriptionobject[$keytocopyfrom]);
696  }
697  }
698  break;
699
700  case GETID3_ASF_Extended_Content_Description_Object:
701  // Extended Content Description Object: (optional, one only)
702  // Field Name Field Type Size (bits)
703  // Object ID GUID 128 // GUID for Extended Content Description object - GETID3_ASF_Extended_Content_Description_Object
704  // Object Size QWORD 64 // size of ExtendedContent Description object, including 26 bytes of Extended Content Description Object header
705  // Content Descriptors Count WORD 16 // number of entries in Content Descriptors list
706  // Content Descriptors array of: variable //
707  // * Descriptor Name Length WORD 16 // size in bytes of Descriptor Name field
708  // * Descriptor Name WCHAR variable // array of Unicode characters - Descriptor Name
709  // * Descriptor Value Data Type WORD 16 // Lookup array:
710  // 0x0000 = Unicode String (variable length)
711  // 0x0001 = BYTE array (variable length)
712  // 0x0002 = BOOL (DWORD, 32 bits)
713  // 0x0003 = DWORD (DWORD, 32 bits)
714  // 0x0004 = QWORD (QWORD, 64 bits)
715  // 0x0005 = WORD (WORD, 16 bits)
716  // * Descriptor Value Length WORD 16 // number of bytes stored in Descriptor Value field
717  // * Descriptor Value variable variable // value for Content Descriptor
718
719  // shortcut
720  $thisfile_asf['extended_content_description_object'] = array();
721  $thisfile_asf_extendedcontentdescriptionobject = &$thisfile_asf['extended_content_description_object'];
722
723  $thisfile_asf_extendedcontentdescriptionobject['offset'] = $NextObjectOffset + $offset;
724  $thisfile_asf_extendedcontentdescriptionobject['objectid'] = $NextObjectGUID;
725  $thisfile_asf_extendedcontentdescriptionobject['objectid_guid'] = $NextObjectGUIDtext;
726  $thisfile_asf_extendedcontentdescriptionobject['objectsize'] = $NextObjectSize;
727  $thisfile_asf_extendedcontentdescriptionobject['content_descriptors_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
728  $offset += 2;
729  for ($ExtendedContentDescriptorsCounter = 0; $ExtendedContentDescriptorsCounter < $thisfile_asf_extendedcontentdescriptionobject['content_descriptors_count']; $ExtendedContentDescriptorsCounter++) {
730  // shortcut
731  $thisfile_asf_extendedcontentdescriptionobject['content_descriptors'][$ExtendedContentDescriptorsCounter] = array();
732  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current = &$thisfile_asf_extendedcontentdescriptionobject['content_descriptors'][$ExtendedContentDescriptorsCounter];
733
734  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['base_offset'] = $offset + 30;
735  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
736  $offset += 2;
737  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name'] = substr($ASFHeaderData, $offset, $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length']);
738  $offset += $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length'];
739  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
740  $offset += 2;
741  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
742  $offset += 2;
743  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = substr($ASFHeaderData, $offset, $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length']);
744  $offset += $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length'];
745  switch ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type']) {
746  case 0x0000: // Unicode string
747  break;
748
749  case 0x0001: // BYTE array
750  // do nothing
751  break;
752
753  case 0x0002: // BOOL
754  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = (bool) getid3_lib::LittleEndian2Int($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
755  break;
756
757  case 0x0003: // DWORD
758  case 0x0004: // QWORD
759  case 0x0005: // WORD
760  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = getid3_lib::LittleEndian2Int($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
761  break;
762
763  default:
764  $info['warning'][] = 'extended_content_description.content_descriptors.'.$ExtendedContentDescriptorsCounter.'.value_type is invalid ('.$thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type'].')';
765  //return false;
766  break;
767  }
768  switch ($this->TrimConvert(strtolower($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name']))) {
769
770  case 'wm/albumartist':
771  case 'artist':
772  // Note: not 'artist', that comes from 'author' tag
773  $thisfile_asf_comments['albumartist'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
774  break;
775
776  case 'wm/albumtitle':
777  case 'album':
778  $thisfile_asf_comments['album'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
779  break;
780
781  case 'wm/genre':
782  case 'genre':
783  $thisfile_asf_comments['genre'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
784  break;
785
786  case 'wm/partofset':
787  $thisfile_asf_comments['partofset'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
788  break;
789
790  case 'wm/tracknumber':
791  case 'tracknumber':
792  // be careful casting to int: casting unicode strings to int gives unexpected results (stops parsing at first non-numeric character)
793  $thisfile_asf_comments['track'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
794  foreach ($thisfile_asf_comments['track'] as $key => $value) {
795  if (preg_match('/^[0-9\x00]+$/', $value)) {
796  $thisfile_asf_comments['track'][$key] = intval(str_replace("\x00", '', $value));
797  }
798  }
799  break;
800
801  case 'wm/track':
802  if (empty($thisfile_asf_comments['track'])) {
803  $thisfile_asf_comments['track'] = array(1 + $this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
804  }
805  break;
806
807  case 'wm/year':
808  case 'year':
809  case 'date':
810  $thisfile_asf_comments['year'] = array( $this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
811  break;
812
813  case 'wm/lyrics':
814  case 'lyrics':
815  $thisfile_asf_comments['lyrics'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
816  break;
817
818  case 'isvbr':
819  if ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']) {
820  $thisfile_audio['bitrate_mode'] = 'vbr';
821  $thisfile_video['bitrate_mode'] = 'vbr';
822  }
823  break;
824
825  case 'id3':
826  $this->getid3->include_module('tag.id3v2');
827
828  $getid3_id3v2 = new getid3_id3v2($this->getid3);
829  $getid3_id3v2->AnalyzeString($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
830  unset($getid3_id3v2);
831
832  if ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length'] > 1024) {
833  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = '<value too large to display>';
834  }
835  break;
836
837  case 'wm/encodingtime':
838  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['encoding_time_unix'] = $this->FILETIMEtoUNIXtime($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
839  $thisfile_asf_comments['encoding_time_unix'] = array($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['encoding_time_unix']);
840  break;
841
842  case 'wm/picture':
843  $WMpicture = $this->ASF_WMpicture($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
844  foreach ($WMpicture as $key => $value) {
845  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current[$key] = $value;
846  }
847  unset($WMpicture);
848 /*
849  $wm_picture_offset = 0;
850  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type_id'] = getid3_lib::LittleEndian2Int(substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 1));
851  $wm_picture_offset += 1;
852  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type'] = self::WMpictureTypeLookup($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type_id']);
853  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_size'] = getid3_lib::LittleEndian2Int(substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 4));
854  $wm_picture_offset += 4;
855
856  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] = '';
857  do {
858  $next_byte_pair = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 2);
859  $wm_picture_offset += 2;
860  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] .= $next_byte_pair;
861  } while ($next_byte_pair !== "\x00\x00");
862
863  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_description'] = '';
864  do {
865  $next_byte_pair = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 2);
866  $wm_picture_offset += 2;
867  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_description'] .= $next_byte_pair;
868  } while ($next_byte_pair !== "\x00\x00");
869
870  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['dataoffset'] = $wm_picture_offset;
871  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['data'] = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset);
872  unset($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
873
874  $imageinfo = array();
875  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] = '';
876  $imagechunkcheck = getid3_lib::GetDataImageSize($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['data'], $imageinfo);
877  unset($imageinfo);
878  if (!empty($imagechunkcheck)) {
879  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] = image_type_to_mime_type($imagechunkcheck[2]);
880  }
881  if (!isset($thisfile_asf_comments['picture'])) {
882  $thisfile_asf_comments['picture'] = array();
883  }
884  $thisfile_asf_comments['picture'][] = array('data'=>$thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['data'], 'image_mime'=>$thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime']);
885 */
886  break;
887
888  default:
889  switch ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type']) {
890  case 0: // Unicode string
891  if (substr($this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name']), 0, 3) == 'WM/') {
892  $thisfile_asf_comments[str_replace('wm/', '', strtolower($this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name'])))] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
893  }
894  break;
895
896  case 1:
897  break;
898  }
899  break;
900  }
901
902  }
903  break;
904
905  case GETID3_ASF_Stream_Bitrate_Properties_Object:
906  // Stream Bitrate Properties Object: (optional, one only)
907  // Field Name Field Type Size (bits)
908  // Object ID GUID 128 // GUID for Stream Bitrate Properties object - GETID3_ASF_Stream_Bitrate_Properties_Object
909  // Object Size QWORD 64 // size of Extended Content Description object, including 26 bytes of Stream Bitrate Properties Object header
910  // Bitrate Records Count WORD 16 // number of records in Bitrate Records
911  // Bitrate Records array of: variable //
912  // * Flags WORD 16 //
913  // * * Stream Number bits 7 (0x007F) // number of this stream
914  // * * Reserved bits 9 (0xFF80) // hardcoded: 0
915  // * Average Bitrate DWORD 32 // in bits per second
916
917  // shortcut
918  $thisfile_asf['stream_bitrate_properties_object'] = array();
919  $thisfile_asf_streambitratepropertiesobject = &$thisfile_asf['stream_bitrate_properties_object'];
920
921  $thisfile_asf_streambitratepropertiesobject['offset'] = $NextObjectOffset + $offset;
922  $thisfile_asf_streambitratepropertiesobject['objectid'] = $NextObjectGUID;
923  $thisfile_asf_streambitratepropertiesobject['objectid_guid'] = $NextObjectGUIDtext;
924  $thisfile_asf_streambitratepropertiesobject['objectsize'] = $NextObjectSize;
925  $thisfile_asf_streambitratepropertiesobject['bitrate_records_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
926  $offset += 2;
927  for ($BitrateRecordsCounter = 0; $BitrateRecordsCounter < $thisfile_asf_streambitratepropertiesobject['bitrate_records_count']; $BitrateRecordsCounter++) {
928  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
929  $offset += 2;
930  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags']['stream_number'] = $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags_raw'] & 0x007F;
931  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['bitrate'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
932  $offset += 4;
933  }
934  break;
935
936  case GETID3_ASF_Padding_Object:
937  // Padding Object: (optional)
938  // Field Name Field Type Size (bits)
939  // Object ID GUID 128 // GUID for Padding object - GETID3_ASF_Padding_Object
940  // Object Size QWORD 64 // size of Padding object, including 24 bytes of ASF Padding Object header
941  // Padding Data BYTESTREAM variable // ignore
942
943  // shortcut
944  $thisfile_asf['padding_object'] = array();
945  $thisfile_asf_paddingobject = &$thisfile_asf['padding_object'];
946
947  $thisfile_asf_paddingobject['offset'] = $NextObjectOffset + $offset;
948  $thisfile_asf_paddingobject['objectid'] = $NextObjectGUID;
949  $thisfile_asf_paddingobject['objectid_guid'] = $NextObjectGUIDtext;
950  $thisfile_asf_paddingobject['objectsize'] = $NextObjectSize;
951  $thisfile_asf_paddingobject['padding_length'] = $thisfile_asf_paddingobject['objectsize'] - 16 - 8;
952  $thisfile_asf_paddingobject['padding'] = substr($ASFHeaderData, $offset, $thisfile_asf_paddingobject['padding_length']);
953  $offset += ($NextObjectSize - 16 - 8);
954  break;
955
956  case GETID3_ASF_Extended_Content_Encryption_Object:
957  case GETID3_ASF_Content_Encryption_Object:
958  // WMA DRM - just ignore
959  $offset += ($NextObjectSize - 16 - 8);
960  break;
961
962  default:
963  // Implementations shall ignore any standard or non-standard object that they do not know how to handle.
964  if ($this->GUIDname($NextObjectGUIDtext)) {
965  $info['warning'][] = 'unhandled GUID "'.$this->GUIDname($NextObjectGUIDtext).'" {'.$NextObjectGUIDtext.'} in ASF header at offset '.($offset - 16 - 8);
966  } else {
967  $info['warning'][] = 'unknown GUID {'.$NextObjectGUIDtext.'} in ASF header at offset '.($offset - 16 - 8);
968  }
969  $offset += ($NextObjectSize - 16 - 8);
970  break;
971  }
972  }
973  if (isset($thisfile_asf_streambitrateproperties['bitrate_records_count'])) {
974  $ASFbitrateAudio = 0;
975  $ASFbitrateVideo = 0;
976  for ($BitrateRecordsCounter = 0; $BitrateRecordsCounter < $thisfile_asf_streambitrateproperties['bitrate_records_count']; $BitrateRecordsCounter++) {
977  if (isset($thisfile_asf_codeclistobject['codec_entries'][$BitrateRecordsCounter])) {
978  switch ($thisfile_asf_codeclistobject['codec_entries'][$BitrateRecordsCounter]['type_raw']) {
979  case 1:
980  $ASFbitrateVideo += $thisfile_asf_streambitrateproperties['bitrate_records'][$BitrateRecordsCounter]['bitrate'];
981  break;
982
983  case 2:
984  $ASFbitrateAudio += $thisfile_asf_streambitrateproperties['bitrate_records'][$BitrateRecordsCounter]['bitrate'];
985  break;
986
987  default:
988  // do nothing
989  break;
990  }
991  }
992  }
993  if ($ASFbitrateAudio > 0) {
994  $thisfile_audio['bitrate'] = $ASFbitrateAudio;
995  }
996  if ($ASFbitrateVideo > 0) {
997  $thisfile_video['bitrate'] = $ASFbitrateVideo;
998  }
999  }
1000  if (isset($thisfile_asf['stream_properties_object']) && is_array($thisfile_asf['stream_properties_object'])) {
1001
1002  $thisfile_audio['bitrate'] = 0;
1003  $thisfile_video['bitrate'] = 0;
1004
1005  foreach ($thisfile_asf['stream_properties_object'] as $streamnumber => $streamdata) {
1006
1007  switch ($streamdata['stream_type']) {
1008  case GETID3_ASF_Audio_Media:
1009  // Field Name Field Type Size (bits)
1010  // Codec ID / Format Tag WORD 16 // unique ID of audio codec - defined as wFormatTag field of WAVEFORMATEX structure
1011  // Number of Channels WORD 16 // number of channels of audio - defined as nChannels field of WAVEFORMATEX structure
1012  // Samples Per Second DWORD 32 // in Hertz - defined as nSamplesPerSec field of WAVEFORMATEX structure
1013  // Average number of Bytes/sec DWORD 32 // bytes/sec of audio stream - defined as nAvgBytesPerSec field of WAVEFORMATEX structure
1014  // Block Alignment WORD 16 // block size in bytes of audio codec - defined as nBlockAlign field of WAVEFORMATEX structure
1015  // Bits per sample WORD 16 // bits per sample of mono data. set to zero for variable bitrate codecs. defined as wBitsPerSample field of WAVEFORMATEX structure
1016  // Codec Specific Data Size WORD 16 // size in bytes of Codec Specific Data buffer - defined as cbSize field of WAVEFORMATEX structure
1017  // Codec Specific Data BYTESTREAM variable // array of codec-specific data bytes
1018
1019  // shortcut
1020  $thisfile_asf['audio_media'][$streamnumber] = array();
1021  $thisfile_asf_audiomedia_currentstream = &$thisfile_asf['audio_media'][$streamnumber];
1022
1023  $audiomediaoffset = 0;
1024
1025  $thisfile_asf_audiomedia_currentstream = getid3_riff::parseWAVEFORMATex(substr($streamdata['type_specific_data'], $audiomediaoffset, 16));
1026  $audiomediaoffset += 16;
1027
1028  $thisfile_audio['lossless'] = false;
1029  switch ($thisfile_asf_audiomedia_currentstream['raw']['wFormatTag']) {
1030  case 0x0001: // PCM
1031  case 0x0163: // WMA9 Lossless
1032  $thisfile_audio['lossless'] = true;
1033  break;
1034  }
1035
1036  if (!empty($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'])) {
1037  foreach ($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'] as $dummy => $dataarray) {
1038  if (isset($dataarray['flags']['stream_number']) && ($dataarray['flags']['stream_number'] == $streamnumber)) {
1039  $thisfile_asf_audiomedia_currentstream['bitrate'] = $dataarray['bitrate'];
1040  $thisfile_audio['bitrate'] += $dataarray['bitrate'];
1041  break;
1042  }
1043  }
1044  } else {
1045  if (!empty($thisfile_asf_audiomedia_currentstream['bytes_sec'])) {
1046  $thisfile_audio['bitrate'] += $thisfile_asf_audiomedia_currentstream['bytes_sec'] * 8;
1047  } elseif (!empty($thisfile_asf_audiomedia_currentstream['bitrate'])) {
1048  $thisfile_audio['bitrate'] += $thisfile_asf_audiomedia_currentstream['bitrate'];
1049  }
1050  }
1051  $thisfile_audio['streams'][$streamnumber] = $thisfile_asf_audiomedia_currentstream;
1052  $thisfile_audio['streams'][$streamnumber]['wformattag'] = $thisfile_asf_audiomedia_currentstream['raw']['wFormatTag'];
1053  $thisfile_audio['streams'][$streamnumber]['lossless'] = $thisfile_audio['lossless'];
1054  $thisfile_audio['streams'][$streamnumber]['bitrate'] = $thisfile_audio['bitrate'];
1055  $thisfile_audio['streams'][$streamnumber]['dataformat'] = 'wma';
1056  unset($thisfile_audio['streams'][$streamnumber]['raw']);
1057
1058  $thisfile_asf_audiomedia_currentstream['codec_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $audiomediaoffset, 2));
1059  $audiomediaoffset += 2;
1060  $thisfile_asf_audiomedia_currentstream['codec_data'] = substr($streamdata['type_specific_data'], $audiomediaoffset, $thisfile_asf_audiomedia_currentstream['codec_data_size']);
1061  $audiomediaoffset += $thisfile_asf_audiomedia_currentstream['codec_data_size'];
1062
1063  break;
1064
1065  case GETID3_ASF_Video_Media:
1066  // Field Name Field Type Size (bits)
1067  // Encoded Image Width DWORD 32 // width of image in pixels
1068  // Encoded Image Height DWORD 32 // height of image in pixels
1069  // Reserved Flags BYTE 8 // hardcoded: 0x02
1070  // Format Data Size WORD 16 // size of Format Data field in bytes
1071  // Format Data array of: variable //
1072  // * Format Data Size DWORD 32 // number of bytes in Format Data field, in bytes - defined as biSize field of BITMAPINFOHEADER structure
1073  // * Image Width LONG 32 // width of encoded image in pixels - defined as biWidth field of BITMAPINFOHEADER structure
1074  // * Image Height LONG 32 // height of encoded image in pixels - defined as biHeight field of BITMAPINFOHEADER structure
1075  // * Reserved WORD 16 // hardcoded: 0x0001 - defined as biPlanes field of BITMAPINFOHEADER structure
1076  // * Bits Per Pixel Count WORD 16 // bits per pixel - defined as biBitCount field of BITMAPINFOHEADER structure
1077  // * Compression ID FOURCC 32 // fourcc of video codec - defined as biCompression field of BITMAPINFOHEADER structure
1078  // * Image Size DWORD 32 // image size in bytes - defined as biSizeImage field of BITMAPINFOHEADER structure
1079  // * Horizontal Pixels / Meter DWORD 32 // horizontal resolution of target device in pixels per meter - defined as biXPelsPerMeter field of BITMAPINFOHEADER structure
1080  // * Vertical Pixels / Meter DWORD 32 // vertical resolution of target device in pixels per meter - defined as biYPelsPerMeter field of BITMAPINFOHEADER structure
1081  // * Colors Used Count DWORD 32 // number of color indexes in the color table that are actually used - defined as biClrUsed field of BITMAPINFOHEADER structure
1082  // * Important Colors Count DWORD 32 // number of color index required for displaying bitmap. if zero, all colors are required. defined as biClrImportant field of BITMAPINFOHEADER structure
1083  // * Codec Specific Data BYTESTREAM variable // array of codec-specific data bytes
1084
1085  // shortcut
1086  $thisfile_asf['video_media'][$streamnumber] = array();
1087  $thisfile_asf_videomedia_currentstream = &$thisfile_asf['video_media'][$streamnumber];
1088
1089  $videomediaoffset = 0;
1090  $thisfile_asf_videomedia_currentstream['image_width'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1091  $videomediaoffset += 4;
1092  $thisfile_asf_videomedia_currentstream['image_height'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1093  $videomediaoffset += 4;
1094  $thisfile_asf_videomedia_currentstream['flags'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 1));
1095  $videomediaoffset += 1;
1096  $thisfile_asf_videomedia_currentstream['format_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1097  $videomediaoffset += 2;
1098  $thisfile_asf_videomedia_currentstream['format_data']['format_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1099  $videomediaoffset += 4;
1100  $thisfile_asf_videomedia_currentstream['format_data']['image_width'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1101  $videomediaoffset += 4;
1102  $thisfile_asf_videomedia_currentstream['format_data']['image_height'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1103  $videomediaoffset += 4;
1104  $thisfile_asf_videomedia_currentstream['format_data']['reserved'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1105  $videomediaoffset += 2;
1106  $thisfile_asf_videomedia_currentstream['format_data']['bits_per_pixel'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1107  $videomediaoffset += 2;
1108  $thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc'] = substr($streamdata['type_specific_data'], $videomediaoffset, 4);
1109  $videomediaoffset += 4;
1110  $thisfile_asf_videomedia_currentstream['format_data']['image_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1111  $videomediaoffset += 4;
1112  $thisfile_asf_videomedia_currentstream['format_data']['horizontal_pels'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1113  $videomediaoffset += 4;
1114  $thisfile_asf_videomedia_currentstream['format_data']['vertical_pels'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1115  $videomediaoffset += 4;
1116  $thisfile_asf_videomedia_currentstream['format_data']['colors_used'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1117  $videomediaoffset += 4;
1118  $thisfile_asf_videomedia_currentstream['format_data']['colors_important'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1119  $videomediaoffset += 4;
1120  $thisfile_asf_videomedia_currentstream['format_data']['codec_data'] = substr($streamdata['type_specific_data'], $videomediaoffset);
1121
1122  if (!empty($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'])) {
1123  foreach ($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'] as $dummy => $dataarray) {
1124  if (isset($dataarray['flags']['stream_number']) && ($dataarray['flags']['stream_number'] == $streamnumber)) {
1125  $thisfile_asf_videomedia_currentstream['bitrate'] = $dataarray['bitrate'];
1126  $thisfile_video['streams'][$streamnumber]['bitrate'] = $dataarray['bitrate'];
1127  $thisfile_video['bitrate'] += $dataarray['bitrate'];
1128  break;
1129  }
1130  }
1131  }
1132
1133  $thisfile_asf_videomedia_currentstream['format_data']['codec'] = getid3_riff::fourccLookup($thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc']);
1134
1135  $thisfile_video['streams'][$streamnumber]['fourcc'] = $thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc'];
1136  $thisfile_video['streams'][$streamnumber]['codec'] = $thisfile_asf_videomedia_currentstream['format_data']['codec'];
1137  $thisfile_video['streams'][$streamnumber]['resolution_x'] = $thisfile_asf_videomedia_currentstream['image_width'];
1138  $thisfile_video['streams'][$streamnumber]['resolution_y'] = $thisfile_asf_videomedia_currentstream['image_height'];
1139  $thisfile_video['streams'][$streamnumber]['bits_per_sample'] = $thisfile_asf_videomedia_currentstream['format_data']['bits_per_pixel'];
1140  break;
1141
1142  default:
1143  break;
1144  }
1145  }
1146  }
1147
1148  while ($this->ftell() < $info['avdataend']) {
1149  $NextObjectDataHeader = $this->fread(24);
1150  $offset = 0;
1151  $NextObjectGUID = substr($NextObjectDataHeader, 0, 16);
1152  $offset += 16;
1153  $NextObjectGUIDtext = $this->BytestringToGUID($NextObjectGUID);
1154  $NextObjectSize = getid3_lib::LittleEndian2Int(substr($NextObjectDataHeader, $offset, 8));
1155  $offset += 8;
1156
1157  switch ($NextObjectGUID) {
1158  case GETID3_ASF_Data_Object:
1159  // Data Object: (mandatory, one only)
1160  // Field Name Field Type Size (bits)
1161  // Object ID GUID 128 // GUID for Data object - GETID3_ASF_Data_Object
1162  // Object Size QWORD 64 // size of Data object, including 50 bytes of Data Object header. may be 0 if FilePropertiesObject.BroadcastFlag == 1
1163  // File ID GUID 128 // unique identifier. identical to File ID field in Header Object
1164  // Total Data Packets QWORD 64 // number of Data Packet entries in Data Object. invalid if FilePropertiesObject.BroadcastFlag == 1
1165  // Reserved WORD 16 // hardcoded: 0x0101
1166
1167  // shortcut
1168  $thisfile_asf['data_object'] = array();
1169  $thisfile_asf_dataobject = &$thisfile_asf['data_object'];
1170
1171  $DataObjectData = $NextObjectDataHeader.$this->fread(50 - 24);
1172  $offset = 24;
1173
1174  $thisfile_asf_dataobject['objectid'] = $NextObjectGUID;
1175  $thisfile_asf_dataobject['objectid_guid'] = $NextObjectGUIDtext;
1176  $thisfile_asf_dataobject['objectsize'] = $NextObjectSize;
1177
1178  $thisfile_asf_dataobject['fileid'] = substr($DataObjectData, $offset, 16);
1179  $offset += 16;
1180  $thisfile_asf_dataobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_dataobject['fileid']);
1181  $thisfile_asf_dataobject['total_data_packets'] = getid3_lib::LittleEndian2Int(substr($DataObjectData, $offset, 8));
1182  $offset += 8;
1183  $thisfile_asf_dataobject['reserved'] = getid3_lib::LittleEndian2Int(substr($DataObjectData, $offset, 2));
1184  $offset += 2;
1185  if ($thisfile_asf_dataobject['reserved'] != 0x0101) {
1186  $info['warning'][] = 'data_object.reserved ('.getid3_lib::PrintHexBytes($thisfile_asf_dataobject['reserved']).') does not match expected value of "0x0101"';
1187  //return false;
1188  break;
1189  }
1190
1191  // Data Packets array of: variable //
1192  // * Error Correction Flags BYTE 8 //
1193  // * * Error Correction Data Length bits 4 // if Error Correction Length Type == 00, size of Error Correction Data in bytes, else hardcoded: 0000
1194  // * * Opaque Data Present bits 1 //
1195  // * * Error Correction Length Type bits 2 // number of bits for size of the error correction data. hardcoded: 00
1196  // * * Error Correction Present bits 1 // If set, use Opaque Data Packet structure, else use Payload structure
1197  // * Error Correction Data
1198
1199  $info['avdataoffset'] = $this->ftell();
1200  $this->fseek(($thisfile_asf_dataobject['objectsize'] - 50), SEEK_CUR); // skip actual audio/video data
1201  $info['avdataend'] = $this->ftell();
1202  break;
1203
1204  case GETID3_ASF_Simple_Index_Object:
1205  // Simple Index Object: (optional, recommended, one per video stream)
1206  // Field Name Field Type Size (bits)
1207  // Object ID GUID 128 // GUID for Simple Index object - GETID3_ASF_Data_Object
1208  // Object Size QWORD 64 // size of Simple Index object, including 56 bytes of Simple Index Object header
1209  // File ID GUID 128 // unique identifier. may be zero or identical to File ID field in Data Object and Header Object
1210  // Index Entry Time Interval QWORD 64 // interval between index entries in 100-nanosecond units
1211  // Maximum Packet Count DWORD 32 // maximum packet count for all index entries
1212  // Index Entries Count DWORD 32 // number of Index Entries structures
1213  // Index Entries array of: variable //
1214  // * Packet Number DWORD 32 // number of the Data Packet associated with this index entry
1215  // * Packet Count WORD 16 // number of Data Packets to sent at this index entry
1216
1217  // shortcut
1218  $thisfile_asf['simple_index_object'] = array();
1219  $thisfile_asf_simpleindexobject = &$thisfile_asf['simple_index_object'];
1220
1221  $SimpleIndexObjectData = $NextObjectDataHeader.$this->fread(56 - 24);
1222  $offset = 24;
1223
1224  $thisfile_asf_simpleindexobject['objectid'] = $NextObjectGUID;
1225  $thisfile_asf_simpleindexobject['objectid_guid'] = $NextObjectGUIDtext;
1226  $thisfile_asf_simpleindexobject['objectsize'] = $NextObjectSize;
1227
1228  $thisfile_asf_simpleindexobject['fileid'] = substr($SimpleIndexObjectData, $offset, 16);
1229  $offset += 16;
1230  $thisfile_asf_simpleindexobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_simpleindexobject['fileid']);
1231  $thisfile_asf_simpleindexobject['index_entry_time_interval'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 8));
1232  $offset += 8;
1233  $thisfile_asf_simpleindexobject['maximum_packet_count'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 4));
1234  $offset += 4;
1235  $thisfile_asf_simpleindexobject['index_entries_count'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 4));
1236  $offset += 4;
1237
1238  $IndexEntriesData = $SimpleIndexObjectData.$this->fread(6 * $thisfile_asf_simpleindexobject['index_entries_count']);
1239  for ($IndexEntriesCounter = 0; $IndexEntriesCounter < $thisfile_asf_simpleindexobject['index_entries_count']; $IndexEntriesCounter++) {
1240  $thisfile_asf_simpleindexobject['index_entries'][$IndexEntriesCounter]['packet_number'] = getid3_lib::LittleEndian2Int(substr($IndexEntriesData, $offset, 4));
1241  $offset += 4;
1242  $thisfile_asf_simpleindexobject['index_entries'][$IndexEntriesCounter]['packet_count'] = getid3_lib::LittleEndian2Int(substr($IndexEntriesData, $offset, 4));
1243  $offset += 2;
1244  }
1245
1246  break;
1247
1248  case GETID3_ASF_Index_Object:
1249  // 6.2 ASF top-level Index Object (optional but recommended when appropriate, 0 or 1)
1250  // Field Name Field Type Size (bits)
1251  // Object ID GUID 128 // GUID for the Index Object - GETID3_ASF_Index_Object
1252  // Object Size QWORD 64 // Specifies the size, in bytes, of the Index Object, including at least 34 bytes of Index Object header
1253  // Index Entry Time Interval DWORD 32 // Specifies the time interval between each index entry in ms.
1254  // Index Specifiers Count WORD 16 // Specifies the number of Index Specifiers structures in this Index Object.
1255  // Index Blocks Count DWORD 32 // Specifies the number of Index Blocks structures in this Index Object.
1256
1257  // Index Entry Time Interval DWORD 32 // Specifies the time interval between index entries in milliseconds. This value cannot be 0.
1258  // Index Specifiers Count WORD 16 // Specifies the number of entries in the Index Specifiers list. Valid values are 1 and greater.
1259  // Index Specifiers array of: varies //
1260  // * Stream Number WORD 16 // Specifies the stream number that the Index Specifiers refer to. Valid values are between 1 and 127.
1261  // * Index Type WORD 16 // Specifies Index Type values as follows:
1262  // 1 = Nearest Past Data Packet - indexes point to the data packet whose presentation time is closest to the index entry time.
1263  // 2 = Nearest Past Media Object - indexes point to the closest data packet containing an entire object or first fragment of an object.
1264  // 3 = Nearest Past Cleanpoint. - indexes point to the closest data packet containing an entire object (or first fragment of an object) that has the Cleanpoint Flag set.
1265  // Nearest Past Cleanpoint is the most common type of index.
1266  // Index Entry Count DWORD 32 // Specifies the number of Index Entries in the block.
1267  // * Block Positions QWORD varies // Specifies a list of byte offsets of the beginnings of the blocks relative to the beginning of the first Data Packet (i.e., the beginning of the Data Object + 50 bytes). The number of entries in this list is specified by the value of the Index Specifiers Count field. The order of those byte offsets is tied to the order in which Index Specifiers are listed.
1268  // * Index Entries array of: varies //
1269  // * * Offsets DWORD varies // An offset value of 0xffffffff indicates an invalid offset value
1270
1271  // shortcut
1272  $thisfile_asf['asf_index_object'] = array();
1273  $thisfile_asf_asfindexobject = &$thisfile_asf['asf_index_object'];
1274
1275  $ASFIndexObjectData = $NextObjectDataHeader.$this->fread(34 - 24);
1276  $offset = 24;
1277
1278  $thisfile_asf_asfindexobject['objectid'] = $NextObjectGUID;
1279  $thisfile_asf_asfindexobject['objectid_guid'] = $NextObjectGUIDtext;
1280  $thisfile_asf_asfindexobject['objectsize'] = $NextObjectSize;
1281
1282  $thisfile_asf_asfindexobject['entry_time_interval'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1283  $offset += 4;
1284  $thisfile_asf_asfindexobject['index_specifiers_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1285  $offset += 2;
1286  $thisfile_asf_asfindexobject['index_blocks_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1287  $offset += 4;
1288
1289  $ASFIndexObjectData .= $this->fread(4 * $thisfile_asf_asfindexobject['index_specifiers_count']);
1290  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1291  $IndexSpecifierStreamNumber = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1292  $offset += 2;
1293  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['stream_number'] = $IndexSpecifierStreamNumber;
1294  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1295  $offset += 2;
1296  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type_text'] = $this->ASFIndexObjectIndexTypeLookup($thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type']);
1297  }
1298
1299  $ASFIndexObjectData .= $this->fread(4);
1300  $thisfile_asf_asfindexobject['index_entry_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1301  $offset += 4;
1302
1303  $ASFIndexObjectData .= $this->fread(8 * $thisfile_asf_asfindexobject['index_specifiers_count']);
1304  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1305  $thisfile_asf_asfindexobject['block_positions'][$IndexSpecifiersCounter] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 8));
1306  $offset += 8;
1307  }
1308
1309  $ASFIndexObjectData .= $this->fread(4 * $thisfile_asf_asfindexobject['index_specifiers_count'] * $thisfile_asf_asfindexobject['index_entry_count']);
1310  for ($IndexEntryCounter = 0; $IndexEntryCounter < $thisfile_asf_asfindexobject['index_entry_count']; $IndexEntryCounter++) {
1311  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1312  $thisfile_asf_asfindexobject['offsets'][$IndexSpecifiersCounter][$IndexEntryCounter] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1313  $offset += 4;
1314  }
1315  }
1316  break;
1317
1318
1319  default:
1320  // Implementations shall ignore any standard or non-standard object that they do not know how to handle.
1321  if ($this->GUIDname($NextObjectGUIDtext)) {
1322  $info['warning'][] = 'unhandled GUID "'.$this->GUIDname($NextObjectGUIDtext).'" {'.$NextObjectGUIDtext.'} in ASF body at offset '.($offset - 16 - 8);
1323  } else {
1324  $info['warning'][] = 'unknown GUID {'.$NextObjectGUIDtext.'} in ASF body at offset '.($this->ftell() - 16 - 8);
1325  }
1326  $this->fseek(($NextObjectSize - 16 - 8), SEEK_CUR);
1327  break;
1328  }
1329  }
1330
1331  if (isset($thisfile_asf_codeclistobject['codec_entries']) && is_array($thisfile_asf_codeclistobject['codec_entries'])) {
1332  foreach ($thisfile_asf_codeclistobject['codec_entries'] as $streamnumber => $streamdata) {
1333  switch ($streamdata['information']) {
1334  case 'WMV1':
1335  case 'WMV2':
1336  case 'WMV3':
1337  case 'MSS1':
1338  case 'MSS2':
1339  case 'WMVA':
1340  case 'WVC1':
1341  case 'WMVP':
1342  case 'WVP2':
1343  $thisfile_video['dataformat'] = 'wmv';
1344  $info['mime_type'] = 'video/x-ms-wmv';
1345  break;
1346
1347  case 'MP42':
1348  case 'MP43':
1349  case 'MP4S':
1350  case 'mp4s':
1351  $thisfile_video['dataformat'] = 'asf';
1352  $info['mime_type'] = 'video/x-ms-asf';
1353  break;
1354
1355  default:
1356  switch ($streamdata['type_raw']) {
1357  case 1:
1358  if (strstr($this->TrimConvert($streamdata['name']), 'Windows Media')) {
1359  $thisfile_video['dataformat'] = 'wmv';
1360  if ($info['mime_type'] == 'video/x-ms-asf') {
1361  $info['mime_type'] = 'video/x-ms-wmv';
1362  }
1363  }
1364  break;
1365
1366  case 2:
1367  if (strstr($this->TrimConvert($streamdata['name']), 'Windows Media')) {
1368  $thisfile_audio['dataformat'] = 'wma';
1369  if ($info['mime_type'] == 'video/x-ms-asf') {
1370  $info['mime_type'] = 'audio/x-ms-wma';
1371  }
1372  }
1373  break;
1374
1375  }
1376  break;
1377  }
1378  }
1379  }
1380
1381  switch (isset($thisfile_audio['codec']) ? $thisfile_audio['codec'] : '') {
1382  case 'MPEG Layer-3':
1383  $thisfile_audio['dataformat'] = 'mp3';
1384  break;
1385
1386  default:
1387  break;
1388  }
1389
1390  if (isset($thisfile_asf_codeclistobject['codec_entries'])) {
1391  foreach ($thisfile_asf_codeclistobject['codec_entries'] as $streamnumber => $streamdata) {
1392  switch ($streamdata['type_raw']) {
1393
1394  case 1: // video
1395  $thisfile_video['encoder'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][$streamnumber]['name']);
1396  break;
1397
1398  case 2: // audio
1399  $thisfile_audio['encoder'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][$streamnumber]['name']);
1400
1401  // AH 2003-10-01
1402  $thisfile_audio['encoder_options'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][0]['description']);
1403
1404  $thisfile_audio['codec'] = $thisfile_audio['encoder'];
1405  break;
1406
1407  default:
1408  $info['warning'][] = 'Unknown streamtype: [codec_list_object][codec_entries]['.$streamnumber.'][type_raw] == '.$streamdata['type_raw'];
1409  break;
1410
1411  }
1412  }
1413  }
1414
1415  if (isset($info['audio'])) {
1416  $thisfile_audio['lossless'] = (isset($thisfile_audio['lossless']) ? $thisfile_audio['lossless'] : false);
1417  $thisfile_audio['dataformat'] = (!empty($thisfile_audio['dataformat']) ? $thisfile_audio['dataformat'] : 'asf');
1418  }
1419  if (!empty($thisfile_video['dataformat'])) {
1420  $thisfile_video['lossless'] = (isset($thisfile_audio['lossless']) ? $thisfile_audio['lossless'] : false);
1421  $thisfile_video['pixel_aspect_ratio'] = (isset($thisfile_audio['pixel_aspect_ratio']) ? $thisfile_audio['pixel_aspect_ratio'] : (float) 1);
1422  $thisfile_video['dataformat'] = (!empty($thisfile_video['dataformat']) ? $thisfile_video['dataformat'] : 'asf');
1423  }
1424  if (!empty($thisfile_video['streams'])) {
1425  $thisfile_video['resolution_x'] = 0;
1426  $thisfile_video['resolution_y'] = 0;
1427  foreach ($thisfile_video['streams'] as $key => $valuearray) {
1428  if (($valuearray['resolution_x'] > $thisfile_video['resolution_x']) || ($valuearray['resolution_y'] > $thisfile_video['resolution_y'])) {
1429  $thisfile_video['resolution_x'] = $valuearray['resolution_x'];
1430  $thisfile_video['resolution_y'] = $valuearray['resolution_y'];
1431  }
1432  }
1433  }
1434  $info['bitrate'] = (isset($thisfile_audio['bitrate']) ? $thisfile_audio['bitrate'] : 0) + (isset($thisfile_video['bitrate']) ? $thisfile_video['bitrate'] : 0);
1435
1436  if ((!isset($info['playtime_seconds']) || ($info['playtime_seconds'] <= 0)) && ($info['bitrate'] > 0)) {
1437  $info['playtime_seconds'] = ($info['filesize'] - $info['avdataoffset']) / ($info['bitrate'] / 8);
1438  }
1439
1440  return true;
1441  }
error($text)
Definition: getid3.php:1738
HeaderExtensionObjectDataParse(&$asf_header_extension_object_data, &$unhandled_sections)
static parseWAVEFORMATex($WaveFormatExData)
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
static fourccLookup($fourcc)
GUIDtoBytestring($GUIDstring)
array_merge_noclobber($array1, $array2)
Definition: getid3.lib.php:376
$info
Definition: example_052.php:80
fread($bytes)
Definition: getid3.php:1685
FILETIMEtoUNIXtime($FILETIME, $round=true)
BytestringToGUID($Bytestring)
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
+ Here is the call graph for this function:

◆ ASF_WMpicture()

getid3_asf::ASF_WMpicture ( $data)

Definition at line 1947 of file module.audio-video.asf.php.

References $data, getid3_lib\GetDataImageSize(), and getid3_lib\LittleEndian2Int().

Referenced by Analyze(), and HeaderExtensionObjectDataParse().

1947  {
1948  //typedef struct _WMPicture{
1949  // LPWSTR pwszMIMEType;
1950  // BYTE bPictureType;
1951  // LPWSTR pwszDescription;
1952  // DWORD dwDataLen;
1953  // BYTE* pbData;
1954  //} WM_PICTURE;
1955
1956  $WMpicture = array();
1957
1958  $offset = 0;
1959  $WMpicture['image_type_id'] = getid3_lib::LittleEndian2Int(substr($data, $offset, 1));
1960  $offset += 1;
1961  $WMpicture['image_type'] = self::WMpictureTypeLookup($WMpicture['image_type_id']);
1962  $WMpicture['image_size'] = getid3_lib::LittleEndian2Int(substr($data, $offset, 4));
1963  $offset += 4;
1964
1965  $WMpicture['image_mime'] = '';
1966  do {
1967  $next_byte_pair = substr($data, $offset, 2);
1968  $offset += 2;
1969  $WMpicture['image_mime'] .= $next_byte_pair;
1970  } while ($next_byte_pair !== "\x00\x00");
1971
1972  $WMpicture['image_description'] = '';
1973  do {
1974  $next_byte_pair = substr($data, $offset, 2);
1975  $offset += 2;
1976  $WMpicture['image_description'] .= $next_byte_pair;
1977  } while ($next_byte_pair !== "\x00\x00");
1978
1979  $WMpicture['dataoffset'] = $offset;
1980  $WMpicture['data'] = substr($data, $offset);
1981
1982  $imageinfo = array();
1983  $WMpicture['image_mime'] = '';
1984  $imagechunkcheck = getid3_lib::GetDataImageSize($WMpicture['data'], $imageinfo);
1985  unset($imageinfo);
1986  if (!empty($imagechunkcheck)) {
1987  $WMpicture['image_mime'] = image_type_to_mime_type($imagechunkcheck[2]);
1988  }
1989  if (!isset($this->getid3->info['asf']['comments']['picture'])) {
1990  $this->getid3->info['asf']['comments']['picture'] = array();
1991  }
1992  $this->getid3->info['asf']['comments']['picture'][] = array('data'=>$WMpicture['data'], 'image_mime'=>$WMpicture['image_mime']);
1993
1994  return $WMpicture;
1995  }
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
GetDataImageSize($imgData)
$data
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ASFCodecListObjectTypeLookup()

getid3_asf::ASFCodecListObjectTypeLookup (   $CodecListType)

Definition at line 1370 of file module.audio-video.asf.php.

Referenced by getid3_asf().

1370  {
1371  static $ASFCodecListObjectTypeLookup = array();
1372  if (empty($ASFCodecListObjectTypeLookup)) {
1373  $ASFCodecListObjectTypeLookup[0x0001] = 'Video Codec';
1374  $ASFCodecListObjectTypeLookup[0x0002] = 'Audio Codec';
1375  $ASFCodecListObjectTypeLookup[0xFFFF] = 'Unknown Codec';
1376  }
1377
1378  return (isset($ASFCodecListObjectTypeLookup[$CodecListType]) ? $ASFCodecListObjectTypeLookup[$CodecListType] : 'Invalid Codec Type');
1379  }
+ Here is the caller graph for this function:

◆ ASFIndexObjectIndexTypeLookup() [1/2]

getid3_asf::ASFIndexObjectIndexTypeLookup (   $id)

Definition at line 1502 of file module.audio-video.asf.php.

Referenced by Analyze(), and getid3_asf().

1502  {
1503  static $ASFIndexObjectIndexTypeLookup = array();
1504  if (empty($ASFIndexObjectIndexTypeLookup)) {
1505  $ASFIndexObjectIndexTypeLookup[1] = 'Nearest Past Data Packet';
1506  $ASFIndexObjectIndexTypeLookup[2] = 'Nearest Past Media Object';
1507  $ASFIndexObjectIndexTypeLookup[3] = 'Nearest Past Cleanpoint';
1508  }
1509  return (isset($ASFIndexObjectIndexTypeLookup[$id]) ? $ASFIndexObjectIndexTypeLookup[$id] : 'invalid');
1510  }
+ Here is the caller graph for this function:

◆ ASFIndexObjectIndexTypeLookup() [2/2]

static getid3_asf::ASFIndexObjectIndexTypeLookup (   $id)
static

Definition at line 1575 of file module.audio-video.asf.php.

1575  {
1576  static $ASFIndexObjectIndexTypeLookup = array();
1577  if (empty($ASFIndexObjectIndexTypeLookup)) {
1578  $ASFIndexObjectIndexTypeLookup[1] = 'Nearest Past Data Packet';
1579  $ASFIndexObjectIndexTypeLookup[2] = 'Nearest Past Media Object';
1580  $ASFIndexObjectIndexTypeLookup[3] = 'Nearest Past Cleanpoint';
1581  }
1582  return (isset($ASFIndexObjectIndexTypeLookup[$id]) ? $ASFIndexObjectIndexTypeLookup[$id] : 'invalid');
1583  }

◆ BytestringToGUID() [1/2]

getid3_asf::BytestringToGUID (   $Bytestring)

Definition at line 1547 of file module.audio-video.asf.php.

Referenced by Analyze(), getid3_asf(), and HeaderExtensionObjectDataParse().

1547  {
1548  $GUIDstring = str_pad(dechex(ord($Bytestring{3})), 2, '0', STR_PAD_LEFT);
1549  $GUIDstring .= str_pad(dechex(ord($Bytestring{2})), 2, '0', STR_PAD_LEFT);
1550  $GUIDstring .= str_pad(dechex(ord($Bytestring{1})), 2, '0', STR_PAD_LEFT);
1551  $GUIDstring .= str_pad(dechex(ord($Bytestring{0})), 2, '0', STR_PAD_LEFT);
1552  $GUIDstring .= '-';
1553  $GUIDstring .= str_pad(dechex(ord($Bytestring{5})), 2, '0', STR_PAD_LEFT);
1554  $GUIDstring .= str_pad(dechex(ord($Bytestring{4})), 2, '0', STR_PAD_LEFT);
1555  $GUIDstring .= '-';
1556  $GUIDstring .= str_pad(dechex(ord($Bytestring{7})), 2, '0', STR_PAD_LEFT);
1557  $GUIDstring .= str_pad(dechex(ord($Bytestring{6})), 2, '0', STR_PAD_LEFT);
1558  $GUIDstring .= '-';
1559  $GUIDstring .= str_pad(dechex(ord($Bytestring{8})), 2, '0', STR_PAD_LEFT);
1560  $GUIDstring .= str_pad(dechex(ord($Bytestring{9})), 2, '0', STR_PAD_LEFT);
1561  $GUIDstring .= '-';
1562  $GUIDstring .= str_pad(dechex(ord($Bytestring{10})), 2, '0', STR_PAD_LEFT);
1563  $GUIDstring .= str_pad(dechex(ord($Bytestring{11})), 2, '0', STR_PAD_LEFT);
1564  $GUIDstring .= str_pad(dechex(ord($Bytestring{12})), 2, '0', STR_PAD_LEFT);
1565  $GUIDstring .= str_pad(dechex(ord($Bytestring{13})), 2, '0', STR_PAD_LEFT);
1566  $GUIDstring .= str_pad(dechex(ord($Bytestring{14})), 2, '0', STR_PAD_LEFT);
1567  $GUIDstring .= str_pad(dechex(ord($Bytestring{15})), 2, '0', STR_PAD_LEFT);
1568
1569  return strtoupper($GUIDstring);
1570  }
+ Here is the caller graph for this function:

◆ BytestringToGUID() [2/2]

static getid3_asf::BytestringToGUID (   $Bytestring)
static

Definition at line 1620 of file module.audio-video.asf.php.

1620  {
1621  $GUIDstring = str_pad(dechex(ord($Bytestring{3})), 2, '0', STR_PAD_LEFT);
1622  $GUIDstring .= str_pad(dechex(ord($Bytestring{2})), 2, '0', STR_PAD_LEFT);
1623  $GUIDstring .= str_pad(dechex(ord($Bytestring{1})), 2, '0', STR_PAD_LEFT);
1624  $GUIDstring .= str_pad(dechex(ord($Bytestring{0})), 2, '0', STR_PAD_LEFT);
1625  $GUIDstring .= '-';
1626  $GUIDstring .= str_pad(dechex(ord($Bytestring{5})), 2, '0', STR_PAD_LEFT);
1627  $GUIDstring .= str_pad(dechex(ord($Bytestring{4})), 2, '0', STR_PAD_LEFT);
1628  $GUIDstring .= '-';
1629  $GUIDstring .= str_pad(dechex(ord($Bytestring{7})), 2, '0', STR_PAD_LEFT);
1630  $GUIDstring .= str_pad(dechex(ord($Bytestring{6})), 2, '0', STR_PAD_LEFT);
1631  $GUIDstring .= '-';
1632  $GUIDstring .= str_pad(dechex(ord($Bytestring{8})), 2, '0', STR_PAD_LEFT);
1633  $GUIDstring .= str_pad(dechex(ord($Bytestring{9})), 2, '0', STR_PAD_LEFT);
1634  $GUIDstring .= '-';
1635  $GUIDstring .= str_pad(dechex(ord($Bytestring{10})), 2, '0', STR_PAD_LEFT);
1636  $GUIDstring .= str_pad(dechex(ord($Bytestring{11})), 2, '0', STR_PAD_LEFT);
1637  $GUIDstring .= str_pad(dechex(ord($Bytestring{12})), 2, '0', STR_PAD_LEFT);
1638  $GUIDstring .= str_pad(dechex(ord($Bytestring{13})), 2, '0', STR_PAD_LEFT);
1639  $GUIDstring .= str_pad(dechex(ord($Bytestring{14})), 2, '0', STR_PAD_LEFT);
1640  $GUIDstring .= str_pad(dechex(ord($Bytestring{15})), 2, '0', STR_PAD_LEFT);
1641
1642  return strtoupper($GUIDstring);
1643  }

◆ codecListObjectTypeLookup()

static getid3_asf::codecListObjectTypeLookup (   $CodecListType)
static

Definition at line 1443 of file module.audio-video.asf.php.

1443  {
1444  static $lookup = array(
1445  0x0001 => 'Video Codec',
1446  0x0002 => 'Audio Codec',
1447  0xFFFF => 'Unknown Codec'
1448  );
1449
1450  return (isset($lookup[$CodecListType]) ? $lookup[$CodecListType] : 'Invalid Codec Type');
1451  }

◆ FILETIMEtoUNIXtime() [1/2]

getid3_asf::FILETIMEtoUNIXtime (   $FILETIME,
  $round = true
)

Definition at line 1572 of file module.audio-video.asf.php.

Referenced by Analyze(), getid3_asf(), and HeaderExtensionObjectDataParse().

1572  {
1573  // FILETIME is a 64-bit unsigned integer representing
1574  // the number of 100-nanosecond intervals since January 1, 1601
1575  // UNIX timestamp is number of seconds since January 1, 1970
1576  // 116444736000000000 = 10000000 * 60 * 60 * 24 * 365 * 369 + 89 leap days
1577  if ($round) {
1578  return intval(round(($FILETIME - 116444736000000000) / 10000000));
1579  }
1580  return ($FILETIME - 116444736000000000) / 10000000;
1581  }
+ Here is the caller graph for this function:

◆ FILETIMEtoUNIXtime() [2/2]

static getid3_asf::FILETIMEtoUNIXtime (   $FILETIME,
  $round = true
)
static

Definition at line 1645 of file module.audio-video.asf.php.

1645  {
1646  // FILETIME is a 64-bit unsigned integer representing
1647  // the number of 100-nanosecond intervals since January 1, 1601
1648  // UNIX timestamp is number of seconds since January 1, 1970
1649  // 116444736000000000 = 10000000 * 60 * 60 * 24 * 365 * 369 + 89 leap days
1650  if ($round) {
1651  return intval(round(($FILETIME - 116444736000000000) / 10000000));
1652  }
1653  return ($FILETIME - 116444736000000000) / 10000000;
1654  }

◆ getid3_asf()

getid3_asf::getid3_asf ( $fd,
$ThisFileInfo
)

Definition at line 29 of file module.audio-video.asf.php.

References getid3_lib\array_merge_noclobber(), ASFCodecListObjectTypeLookup(), ASFIndexObjectIndexTypeLookup(), BytestringToGUID(), FILETIMEtoUNIXtime(), getid3_handler\fread(), getid3_handler\fseek(), getid3_handler\ftell(), GUIDname(), GUIDtoBytestring(), getid3_lib\LittleEndian2Int(), getid3_riff\RIFFfourccLookup(), getid3_riff\RIFFparseWAVEFORMATex(), TrimConvert(), TrimTerm(), and WMpictureTypeLookup().

29  {
30
31  // Shortcuts
32  $thisfile_audio = &$ThisFileInfo['audio'];
33  $thisfile_video = &$ThisFileInfo['video'];
34  $ThisFileInfo['asf'] = array();
35  $thisfile_asf = &$ThisFileInfo['asf'];
36  $thisfile_asf['comments'] = array();
37  $thisfile_asf_comments = &$thisfile_asf['comments'];
38  $thisfile_asf['header_object'] = array();
39  $thisfile_asf_headerobject = &$thisfile_asf['header_object'];
40
41
42  // ASF structure:
43  // * Header Object [required]
44  // * File Properties Object [required] (global file attributes)
45  // * Stream Properties Object [required] (defines media stream & characteristics)
46  // * Header Extension Object [required] (additional functionality)
47  // * Content Description Object (bibliographic information)
48  // * Script Command Object (commands for during playback)
49  // * Marker Object (named jumped points within the file)
50  // * Data Object [required]
51  // * Data Packets
52  // * Index Object
53
54  // Header Object: (mandatory, one only)
55  // Field Name Field Type Size (bits)
56  // Object ID GUID 128 // GUID for header object - GETID3_ASF_Header_Object
57  // Object Size QWORD 64 // size of header object, including 30 bytes of Header Object header
58  // Number of Header Objects DWORD 32 // number of objects in header object
59  // Reserved1 BYTE 8 // hardcoded: 0x01
60  // Reserved2 BYTE 8 // hardcoded: 0x02
61
62  $ThisFileInfo['fileformat'] = 'asf';
63
64  fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
65  $HeaderObjectData = fread($fd, 30);
66
67  $thisfile_asf_headerobject['objectid'] = substr($HeaderObjectData, 0, 16);
68  $thisfile_asf_headerobject['objectid_guid'] = $this->BytestringToGUID($thisfile_asf_headerobject['objectid']);
69  if ($thisfile_asf_headerobject['objectid'] != GETID3_ASF_Header_Object) {
70  $ThisFileInfo['warning'][] = 'ASF header GUID {'.$this->BytestringToGUID($thisfile_asf_headerobject['objectid']).'} does not match expected "GETID3_ASF_Header_Object" GUID {'.$this->BytestringToGUID(GETID3_ASF_Header_Object).'}';
71  unset($ThisFileInfo['fileformat']);
72  unset($ThisFileInfo['asf']);
73  return false;
74  break;
75  }
76  $thisfile_asf_headerobject['objectsize'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 16, 8));
77  $thisfile_asf_headerobject['headerobjects'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 24, 4));
78  $thisfile_asf_headerobject['reserved1'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 28, 1));
79  $thisfile_asf_headerobject['reserved2'] = getid3_lib::LittleEndian2Int(substr($HeaderObjectData, 29, 1));
80
81  //$ASFHeaderData = $HeaderObjectData;
82  $ASFHeaderData = fread($fd, $thisfile_asf_headerobject['objectsize'] - 30);
83  //$offset = 30;
84  $offset = 0;
85
86  for ($HeaderObjectsCounter = 0; $HeaderObjectsCounter < $thisfile_asf_headerobject['headerobjects']; $HeaderObjectsCounter++) {
87  $NextObjectGUID = substr($ASFHeaderData, $offset, 16);
88  $offset += 16;
89  $NextObjectGUIDtext = $this->BytestringToGUID($NextObjectGUID);
90  $NextObjectSize = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
91  $offset += 8;
92  switch ($NextObjectGUID) {
93
94  case GETID3_ASF_File_Properties_Object:
95  // File Properties Object: (mandatory, one only)
96  // Field Name Field Type Size (bits)
97  // Object ID GUID 128 // GUID for file properties object - GETID3_ASF_File_Properties_Object
98  // Object Size QWORD 64 // size of file properties object, including 104 bytes of File Properties Object header
99  // File ID GUID 128 // unique ID - identical to File ID in Data Object
100  // File Size QWORD 64 // entire file in bytes. Invalid if Broadcast Flag == 1
101  // Creation Date QWORD 64 // date & time of file creation. Maybe invalid if Broadcast Flag == 1
102  // Data Packets Count QWORD 64 // number of data packets in Data Object. Invalid if Broadcast Flag == 1
103  // Play Duration QWORD 64 // playtime, in 100-nanosecond units. Invalid if Broadcast Flag == 1
104  // Send Duration QWORD 64 // time needed to send file, in 100-nanosecond units. Players can ignore this value. Invalid if Broadcast Flag == 1
105  // Preroll QWORD 64 // time to buffer data before starting to play file, in 1-millisecond units. If <> 0, PlayDuration and PresentationTime have been offset by this amount
106  // Flags DWORD 32 //
107  // * Broadcast Flag bits 1 (0x01) // file is currently being written, some header values are invalid
108  // * Seekable Flag bits 1 (0x02) // is file seekable
109  // * Reserved bits 30 (0xFFFFFFFC) // reserved - set to zero
110  // Minimum Data Packet Size DWORD 32 // in bytes. should be same as Maximum Data Packet Size. Invalid if Broadcast Flag == 1
111  // Maximum Data Packet Size DWORD 32 // in bytes. should be same as Minimum Data Packet Size. Invalid if Broadcast Flag == 1
112  // Maximum Bitrate DWORD 32 // maximum instantaneous bitrate in bits per second for entire file, including all data streams and ASF overhead
113
114  // shortcut
115  $thisfile_asf['file_properties_object'] = array();
116  $thisfile_asf_filepropertiesobject = &$thisfile_asf['file_properties_object'];
117
118  $thisfile_asf_filepropertiesobject['objectid'] = $NextObjectGUID;
119  $thisfile_asf_filepropertiesobject['objectid_guid'] = $NextObjectGUIDtext;
120  $thisfile_asf_filepropertiesobject['objectsize'] = $NextObjectSize;
121  $thisfile_asf_filepropertiesobject['fileid'] = substr($ASFHeaderData, $offset, 16);
122  $offset += 16;
123  $thisfile_asf_filepropertiesobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_filepropertiesobject['fileid']);
124  $thisfile_asf_filepropertiesobject['filesize'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
125  $offset += 8;
126  $thisfile_asf_filepropertiesobject['creation_date'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
127  $thisfile_asf_filepropertiesobject['creation_date_unix'] = $this->FILETIMEtoUNIXtime($thisfile_asf_filepropertiesobject['creation_date']);
128  $offset += 8;
129  $thisfile_asf_filepropertiesobject['data_packets'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
130  $offset += 8;
131  $thisfile_asf_filepropertiesobject['play_duration'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
132  $offset += 8;
133  $thisfile_asf_filepropertiesobject['send_duration'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
134  $offset += 8;
135  $thisfile_asf_filepropertiesobject['preroll'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
136  $offset += 8;
137  $ThisFileInfo['playtime_seconds'] = ($thisfile_asf_filepropertiesobject['play_duration'] / 10000000) - ($thisfile_asf_filepropertiesobject['preroll'] / 1000);
138  $thisfile_asf_filepropertiesobject['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
139  $offset += 4;
140  $thisfile_asf_filepropertiesobject['flags']['broadcast'] = (bool) ($thisfile_asf_filepropertiesobject['flags_raw'] & 0x0001);
141  $thisfile_asf_filepropertiesobject['flags']['seekable'] = (bool) ($thisfile_asf_filepropertiesobject['flags_raw'] & 0x0002);
142
143  $thisfile_asf_filepropertiesobject['min_packet_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
144  $offset += 4;
145  $thisfile_asf_filepropertiesobject['max_packet_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
146  $offset += 4;
147  $thisfile_asf_filepropertiesobject['max_bitrate'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
148  $offset += 4;
149  //$ThisFileInfo['bitrate'] = $thisfile_asf_filepropertiesobject['max_bitrate'];
150  $ThisFileInfo['bitrate'] = ($thisfile_asf_filepropertiesobject['filesize'] * 8) / $ThisFileInfo['playtime_seconds'];
151  break;
152
153  case GETID3_ASF_Stream_Properties_Object:
154  // Stream Properties Object: (mandatory, one per media stream)
155  // Field Name Field Type Size (bits)
156  // Object ID GUID 128 // GUID for stream properties object - GETID3_ASF_Stream_Properties_Object
157  // Object Size QWORD 64 // size of stream properties object, including 78 bytes of Stream Properties Object header
158  // Stream Type GUID 128 // GETID3_ASF_Audio_Media, GETID3_ASF_Video_Media or GETID3_ASF_Command_Media
159  // Error Correction Type GUID 128 // GETID3_ASF_Audio_Spread for audio-only streams, GETID3_ASF_No_Error_Correction for other stream types
160  // Time Offset QWORD 64 // 100-nanosecond units. typically zero. added to all timestamps of samples in the stream
161  // Type-Specific Data Length DWORD 32 // number of bytes for Type-Specific Data field
162  // Error Correction Data Length DWORD 32 // number of bytes for Error Correction Data field
163  // Flags WORD 16 //
164  // * Stream Number bits 7 (0x007F) // number of this stream. 1 <= valid <= 127
165  // * Reserved bits 8 (0x7F80) // reserved - set to zero
166  // * Encrypted Content Flag bits 1 (0x8000) // stream contents encrypted if set
167  // Reserved DWORD 32 // reserved - set to zero
168  // Type-Specific Data BYTESTREAM variable // type-specific format data, depending on value of Stream Type
169  // Error Correction Data BYTESTREAM variable // error-correction-specific format data, depending on value of Error Correct Type
170
171  // There is one GETID3_ASF_Stream_Properties_Object for each stream (audio, video) but the
172  // stream number isn't known until halfway through decoding the structure, hence it
173  // it is decoded to a temporary variable and then stuck in the appropriate index later
174
175  $StreamPropertiesObjectData['objectid'] = $NextObjectGUID;
176  $StreamPropertiesObjectData['objectid_guid'] = $NextObjectGUIDtext;
177  $StreamPropertiesObjectData['objectsize'] = $NextObjectSize;
178  $StreamPropertiesObjectData['stream_type'] = substr($ASFHeaderData, $offset, 16);
179  $offset += 16;
180  $StreamPropertiesObjectData['stream_type_guid'] = $this->BytestringToGUID($StreamPropertiesObjectData['stream_type']);
181  $StreamPropertiesObjectData['error_correct_type'] = substr($ASFHeaderData, $offset, 16);
182  $offset += 16;
183  $StreamPropertiesObjectData['error_correct_guid'] = $this->BytestringToGUID($StreamPropertiesObjectData['error_correct_type']);
184  $StreamPropertiesObjectData['time_offset'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
185  $offset += 8;
186  $StreamPropertiesObjectData['type_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
187  $offset += 4;
188  $StreamPropertiesObjectData['error_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
189  $offset += 4;
190  $StreamPropertiesObjectData['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
191  $offset += 2;
192  $StreamPropertiesObjectStreamNumber = $StreamPropertiesObjectData['flags_raw'] & 0x007F;
193  $StreamPropertiesObjectData['flags']['encrypted'] = (bool) ($StreamPropertiesObjectData['flags_raw'] & 0x8000);
194
195  $offset += 4; // reserved - DWORD
196  $StreamPropertiesObjectData['type_specific_data'] = substr($ASFHeaderData, $offset, $StreamPropertiesObjectData['type_data_length']);
197  $offset += $StreamPropertiesObjectData['type_data_length'];
198  $StreamPropertiesObjectData['error_correct_data'] = substr($ASFHeaderData, $offset, $StreamPropertiesObjectData['error_data_length']);
199  $offset += $StreamPropertiesObjectData['error_data_length'];
200
201  switch ($StreamPropertiesObjectData['stream_type']) {
202
203  case GETID3_ASF_Audio_Media:
204  $thisfile_audio['dataformat'] = (!empty($thisfile_audio['dataformat']) ? $thisfile_audio['dataformat'] : 'asf');
205  $thisfile_audio['bitrate_mode'] = (!empty($thisfile_audio['bitrate_mode']) ? $thisfile_audio['bitrate_mode'] : 'cbr');
206
207  $audiodata = getid3_riff::RIFFparseWAVEFORMATex(substr($StreamPropertiesObjectData['type_specific_data'], 0, 16));
208  unset($audiodata['raw']);
209  $thisfile_audio = getid3_lib::array_merge_noclobber($audiodata, $thisfile_audio);
210  break;
211
212  case GETID3_ASF_Video_Media:
213  $thisfile_video['dataformat'] = (!empty($thisfile_video['dataformat']) ? $thisfile_video['dataformat'] : 'asf');
214  $thisfile_video['bitrate_mode'] = (!empty($thisfile_video['bitrate_mode']) ? $thisfile_video['bitrate_mode'] : 'cbr');
215  break;
216
217  case GETID3_ASF_Command_Media:
218  default:
219  // do nothing
220  break;
221
222  }
223
224  $thisfile_asf['stream_properties_object'][$StreamPropertiesObjectStreamNumber] = $StreamPropertiesObjectData;
225  unset($StreamPropertiesObjectData); // clear for next stream, if any
226  break;
227
228  case GETID3_ASF_Header_Extension_Object:
229  // Header Extension Object: (mandatory, one only)
230  // Field Name Field Type Size (bits)
231  // Object ID GUID 128 // GUID for Header Extension object - GETID3_ASF_Header_Extension_Object
232  // Object Size QWORD 64 // size of Header Extension object, including 46 bytes of Header Extension Object header
233  // Reserved Field 1 GUID 128 // hardcoded: GETID3_ASF_Reserved_1
234  // Reserved Field 2 WORD 16 // hardcoded: 0x00000006
235  // Header Extension Data Size DWORD 32 // in bytes. valid: 0, or > 24. equals object size minus 46
236  // Header Extension Data BYTESTREAM variable // array of zero or more extended header objects
237
238  // shortcut
239  $thisfile_asf['header_extension_object'] = array();
240  $thisfile_asf_headerextensionobject = &$thisfile_asf['header_extension_object'];
241
242  $thisfile_asf_headerextensionobject['objectid'] = $NextObjectGUID;
243  $thisfile_asf_headerextensionobject['objectid_guid'] = $NextObjectGUIDtext;
244  $thisfile_asf_headerextensionobject['objectsize'] = $NextObjectSize;
245  $thisfile_asf_headerextensionobject['reserved_1'] = substr($ASFHeaderData, $offset, 16);
246  $offset += 16;
247  $thisfile_asf_headerextensionobject['reserved_1_guid'] = $this->BytestringToGUID($thisfile_asf_headerextensionobject['reserved_1']);
248  if ($thisfile_asf_headerextensionobject['reserved_1'] != GETID3_ASF_Reserved_1) {
249  $ThisFileInfo['warning'][] = 'header_extension_object.reserved_1 GUID ('.$this->BytestringToGUID($thisfile_asf_headerextensionobject['reserved_1']).') does not match expected "GETID3_ASF_Reserved_1" GUID ('.$this->BytestringToGUID(GETID3_ASF_Reserved_1).')';
250  //return false;
251  break;
252  }
253  $thisfile_asf_headerextensionobject['reserved_2'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
254  $offset += 2;
255  if ($thisfile_asf_headerextensionobject['reserved_2'] != 6) {
256  $ThisFileInfo['warning'][] = 'header_extension_object.reserved_2 ('.getid3_lib::PrintHexBytes($thisfile_asf_headerextensionobject['reserved_2']).') does not match expected value of "6"';
257  //return false;
258  break;
259  }
260  $thisfile_asf_headerextensionobject['extension_data_size'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
261  $offset += 4;
262  $thisfile_asf_headerextensionobject['extension_data'] = substr($ASFHeaderData, $offset, $thisfile_asf_headerextensionobject['extension_data_size']);
263  $offset += $thisfile_asf_headerextensionobject['extension_data_size'];
264  break;
265
266  case GETID3_ASF_Codec_List_Object:
267  // Codec List Object: (optional, one only)
268  // Field Name Field Type Size (bits)
269  // Object ID GUID 128 // GUID for Codec List object - GETID3_ASF_Codec_List_Object
270  // Object Size QWORD 64 // size of Codec List object, including 44 bytes of Codec List Object header
271  // Reserved GUID 128 // hardcoded: 86D15241-311D-11D0-A3A4-00A0C90348F6
272  // Codec Entries Count DWORD 32 // number of entries in Codec Entries array
273  // Codec Entries array of: variable //
274  // * Type WORD 16 // 0x0001 = Video Codec, 0x0002 = Audio Codec, 0xFFFF = Unknown Codec
275  // * Codec Name Length WORD 16 // number of Unicode characters stored in the Codec Name field
276  // * Codec Name WCHAR variable // array of Unicode characters - name of codec used to create the content
277  // * Codec Description Length WORD 16 // number of Unicode characters stored in the Codec Description field
278  // * Codec Description WCHAR variable // array of Unicode characters - description of format used to create the content
279  // * Codec Information Length WORD 16 // number of Unicode characters stored in the Codec Information field
280  // * Codec Information BYTESTREAM variable // opaque array of information bytes about the codec used to create the content
281
282  // shortcut
283  $thisfile_asf['codec_list_object'] = array();
284  $thisfile_asf_codeclistobject = &$thisfile_asf['codec_list_object'];
285
286  $thisfile_asf_codeclistobject['objectid'] = $NextObjectGUID;
287  $thisfile_asf_codeclistobject['objectid_guid'] = $NextObjectGUIDtext;
288  $thisfile_asf_codeclistobject['objectsize'] = $NextObjectSize;
289  $thisfile_asf_codeclistobject['reserved'] = substr($ASFHeaderData, $offset, 16);
290  $offset += 16;
291  $thisfile_asf_codeclistobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_codeclistobject['reserved']);
292  if ($thisfile_asf_codeclistobject['reserved'] != $this->GUIDtoBytestring('86D15241-311D-11D0-A3A4-00A0C90348F6')) {
293  $ThisFileInfo['warning'][] = 'codec_list_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_codeclistobject['reserved']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {86D15241-311D-11D0-A3A4-00A0C90348F6}';
294  //return false;
295  break;
296  }
297  $thisfile_asf_codeclistobject['codec_entries_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
298  $offset += 4;
299  for ($CodecEntryCounter = 0; $CodecEntryCounter < $thisfile_asf_codeclistobject['codec_entries_count']; $CodecEntryCounter++) {
300  // shortcut
301  $thisfile_asf_codeclistobject['codec_entries'][$CodecEntryCounter] = array();
302  $thisfile_asf_codeclistobject_codecentries_current = &$thisfile_asf_codeclistobject['codec_entries'][$CodecEntryCounter];
303
304  $thisfile_asf_codeclistobject_codecentries_current['type_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
305  $offset += 2;
306  $thisfile_asf_codeclistobject_codecentries_current['type'] = $this->ASFCodecListObjectTypeLookup($thisfile_asf_codeclistobject_codecentries_current['type_raw']);
307
308  $CodecNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
309  $offset += 2;
310  $thisfile_asf_codeclistobject_codecentries_current['name'] = substr($ASFHeaderData, $offset, $CodecNameLength);
311  $offset += $CodecNameLength;
312
313  $CodecDescriptionLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
314  $offset += 2;
315  $thisfile_asf_codeclistobject_codecentries_current['description'] = substr($ASFHeaderData, $offset, $CodecDescriptionLength);
316  $offset += $CodecDescriptionLength;
317
318  $CodecInformationLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
319  $offset += 2;
320  $thisfile_asf_codeclistobject_codecentries_current['information'] = substr($ASFHeaderData, $offset, $CodecInformationLength);
321  $offset += $CodecInformationLength;
322
323  if ($thisfile_asf_codeclistobject_codecentries_current['type_raw'] == 2) {
324  // audio codec
325  if (strpos($thisfile_asf_codeclistobject_codecentries_current['description'], ',') === false) {
326  $ThisFileInfo['error'][] = '[asf][codec_list_object][codec_entries]['.$CodecEntryCounter.'][description] expected to contain comma-seperated list of parameters: "'.$thisfile_asf_codeclistobject_codecentries_current['description'].'"';
327  return false;
328  }
329  list($AudioCodecBitrate, $AudioCodecFrequency, $AudioCodecChannels) = explode(',', $this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['description']));
330  $thisfile_audio['codec'] = $this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['name']);
331
332  if (!isset($thisfile_audio['bitrate']) && strstr($AudioCodecBitrate, 'kbps')) {
333  $thisfile_audio['bitrate'] = (int) (trim(str_replace('kbps', '', $AudioCodecBitrate)) * 1000);
334  }
335  //if (!isset($thisfile_video['bitrate']) && isset($thisfile_audio['bitrate']) && isset($thisfile_asf['file_properties_object']['max_bitrate']) && ($thisfile_asf_codeclistobject['codec_entries_count'] > 1)) {
336  if (!@$thisfile_video['bitrate'] && @$thisfile_audio['bitrate'] && @$ThisFileInfo['bitrate']) {
337  //$thisfile_video['bitrate'] = $thisfile_asf['file_properties_object']['max_bitrate'] - $thisfile_audio['bitrate'];
338  $thisfile_video['bitrate'] = $ThisFileInfo['bitrate'] - $thisfile_audio['bitrate'];
339  }
340
341  $AudioCodecFrequency = (int) trim(str_replace('kHz', '', $AudioCodecFrequency));
342  switch ($AudioCodecFrequency) {
343  case 8:
344  case 8000:
345  $thisfile_audio['sample_rate'] = 8000;
346  break;
347
348  case 11:
349  case 11025:
350  $thisfile_audio['sample_rate'] = 11025;
351  break;
352
353  case 12:
354  case 12000:
355  $thisfile_audio['sample_rate'] = 12000;
356  break;
357
358  case 16:
359  case 16000:
360  $thisfile_audio['sample_rate'] = 16000;
361  break;
362
363  case 22:
364  case 22050:
365  $thisfile_audio['sample_rate'] = 22050;
366  break;
367
368  case 24:
369  case 24000:
370  $thisfile_audio['sample_rate'] = 24000;
371  break;
372
373  case 32:
374  case 32000:
375  $thisfile_audio['sample_rate'] = 32000;
376  break;
377
378  case 44:
379  case 441000:
380  $thisfile_audio['sample_rate'] = 44100;
381  break;
382
383  case 48:
384  case 48000:
385  $thisfile_audio['sample_rate'] = 48000;
386  break;
387
388  default:
389  $ThisFileInfo['warning'][] = 'unknown frequency: "'.$AudioCodecFrequency.'" ('.$this->TrimConvert($thisfile_asf_codeclistobject_codecentries_current['description']).')';
390  // return false;
391  break;
392  }
393
394  if (!isset($thisfile_audio['channels'])) {
395  if (strstr($AudioCodecChannels, 'stereo')) {
396  $thisfile_audio['channels'] = 2;
397  } elseif (strstr($AudioCodecChannels, 'mono')) {
398  $thisfile_audio['channels'] = 1;
399  }
400  }
401  }
402  }
403  break;
404
405  case GETID3_ASF_Script_Command_Object:
406  // Script Command Object: (optional, one only)
407  // Field Name Field Type Size (bits)
408  // Object ID GUID 128 // GUID for Script Command object - GETID3_ASF_Script_Command_Object
409  // Object Size QWORD 64 // size of Script Command object, including 44 bytes of Script Command Object header
410  // Reserved GUID 128 // hardcoded: 4B1ACBE3-100B-11D0-A39B-00A0C90348F6
411  // Commands Count WORD 16 // number of Commands structures in the Script Commands Objects
412  // Command Types Count WORD 16 // number of Command Types structures in the Script Commands Objects
413  // Command Types array of: variable //
414  // * Command Type Name Length WORD 16 // number of Unicode characters for Command Type Name
415  // * Command Type Name WCHAR variable // array of Unicode characters - name of a type of command
416  // Commands array of: variable //
417  // * Presentation Time DWORD 32 // presentation time of that command, in milliseconds
418  // * Type Index WORD 16 // type of this command, as a zero-based index into the array of Command Types of this object
419  // * Command Name Length WORD 16 // number of Unicode characters for Command Name
420  // * Command Name WCHAR variable // array of Unicode characters - name of this command
421
422  // shortcut
423  $thisfile_asf['script_command_object'] = array();
424  $thisfile_asf_scriptcommandobject = &$thisfile_asf['script_command_object'];
425
426  $thisfile_asf_scriptcommandobject['objectid'] = $NextObjectGUID;
427  $thisfile_asf_scriptcommandobject['objectid_guid'] = $NextObjectGUIDtext;
428  $thisfile_asf_scriptcommandobject['objectsize'] = $NextObjectSize;
429  $thisfile_asf_scriptcommandobject['reserved'] = substr($ASFHeaderData, $offset, 16);
430  $offset += 16;
431  $thisfile_asf_scriptcommandobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_scriptcommandobject['reserved']);
432  if ($thisfile_asf_scriptcommandobject['reserved'] != $this->GUIDtoBytestring('4B1ACBE3-100B-11D0-A39B-00A0C90348F6')) {
433  $ThisFileInfo['warning'][] = 'script_command_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_scriptcommandobject['reserved']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {4B1ACBE3-100B-11D0-A39B-00A0C90348F6}';
434  //return false;
435  break;
436  }
437  $thisfile_asf_scriptcommandobject['commands_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
438  $offset += 2;
439  $thisfile_asf_scriptcommandobject['command_types_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
440  $offset += 2;
441  for ($CommandTypesCounter = 0; $CommandTypesCounter < $thisfile_asf_scriptcommandobject['command_types_count']; $CommandTypesCounter++) {
442  $CommandTypeNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
443  $offset += 2;
444  $thisfile_asf_scriptcommandobject['command_types'][$CommandTypesCounter]['name'] = substr($ASFHeaderData, $offset, $CommandTypeNameLength);
445  $offset += $CommandTypeNameLength;
446  }
447  for ($CommandsCounter = 0; $CommandsCounter < $thisfile_asf_scriptcommandobject['commands_count']; $CommandsCounter++) {
448  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['presentation_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
449  $offset += 4;
450  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['type_index'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
451  $offset += 2;
452
453  $CommandTypeNameLength = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2)) * 2; // 2 bytes per character
454  $offset += 2;
455  $thisfile_asf_scriptcommandobject['commands'][$CommandsCounter]['name'] = substr($ASFHeaderData, $offset, $CommandTypeNameLength);
456  $offset += $CommandTypeNameLength;
457  }
458  break;
459
460  case GETID3_ASF_Marker_Object:
461  // Marker Object: (optional, one only)
462  // Field Name Field Type Size (bits)
463  // Object ID GUID 128 // GUID for Marker object - GETID3_ASF_Marker_Object
464  // Object Size QWORD 64 // size of Marker object, including 48 bytes of Marker Object header
465  // Reserved GUID 128 // hardcoded: 4CFEDB20-75F6-11CF-9C0F-00A0C90349CB
466  // Markers Count DWORD 32 // number of Marker structures in Marker Object
467  // Reserved WORD 16 // hardcoded: 0x0000
468  // Name Length WORD 16 // number of bytes in the Name field
469  // Name WCHAR variable // name of the Marker Object
470  // Markers array of: variable //
471  // * Offset QWORD 64 // byte offset into Data Object
472  // * Presentation Time QWORD 64 // in 100-nanosecond units
473  // * Entry Length WORD 16 // length in bytes of (Send Time + Flags + Marker Description Length + Marker Description + Padding)
474  // * Send Time DWORD 32 // in milliseconds
475  // * Flags DWORD 32 // hardcoded: 0x00000000
476  // * Marker Description Length DWORD 32 // number of bytes in Marker Description field
477  // * Marker Description WCHAR variable // array of Unicode characters - description of marker entry
478  // * Padding BYTESTREAM variable // optional padding bytes
479
480  // shortcut
481  $thisfile_asf['marker_object'] = array();
482  $thisfile_asf_markerobject = &$thisfile_asf['marker_object'];
483
484  $thisfile_asf_markerobject['objectid'] = $NextObjectGUID;
485  $thisfile_asf_markerobject['objectid_guid'] = $NextObjectGUIDtext;
486  $thisfile_asf_markerobject['objectsize'] = $NextObjectSize;
487  $thisfile_asf_markerobject['reserved'] = substr($ASFHeaderData, $offset, 16);
488  $offset += 16;
489  $thisfile_asf_markerobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_markerobject['reserved']);
490  if ($thisfile_asf_markerobject['reserved'] != $this->GUIDtoBytestring('4CFEDB20-75F6-11CF-9C0F-00A0C90349CB')) {
491  $ThisFileInfo['warning'][] = 'marker_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_markerobject['reserved_1']).'} does not match expected "GETID3_ASF_Reserved_1" GUID {4CFEDB20-75F6-11CF-9C0F-00A0C90349CB}';
492  break;
493  }
494  $thisfile_asf_markerobject['markers_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
495  $offset += 4;
496  $thisfile_asf_markerobject['reserved_2'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
497  $offset += 2;
498  if ($thisfile_asf_markerobject['reserved_2'] != 0) {
499  $ThisFileInfo['warning'][] = 'marker_object.reserved_2 ('.getid3_lib::PrintHexBytes($thisfile_asf_markerobject['reserved_2']).') does not match expected value of "0"';
500  break;
501  }
502  $thisfile_asf_markerobject['name_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
503  $offset += 2;
504  $thisfile_asf_markerobject['name'] = substr($ASFHeaderData, $offset, $thisfile_asf_markerobject['name_length']);
505  $offset += $thisfile_asf_markerobject['name_length'];
506  for ($MarkersCounter = 0; $MarkersCounter < $thisfile_asf_markerobject['markers_count']; $MarkersCounter++) {
507  $thisfile_asf_markerobject['markers'][$MarkersCounter]['offset'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
508  $offset += 8;
509  $thisfile_asf_markerobject['markers'][$MarkersCounter]['presentation_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 8));
510  $offset += 8;
511  $thisfile_asf_markerobject['markers'][$MarkersCounter]['entry_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
512  $offset += 2;
513  $thisfile_asf_markerobject['markers'][$MarkersCounter]['send_time'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
514  $offset += 4;
515  $thisfile_asf_markerobject['markers'][$MarkersCounter]['flags'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
516  $offset += 4;
517  $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
518  $offset += 4;
519  $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description'] = substr($ASFHeaderData, $offset, $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length']);
520  $offset += $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'];
521  $PaddingLength = $thisfile_asf_markerobject['markers'][$MarkersCounter]['entry_length'] - 4 - 4 - 4 - $thisfile_asf_markerobject['markers'][$MarkersCounter]['marker_description_length'];
522  if ($PaddingLength > 0) {
523  $thisfile_asf_markerobject['markers'][$MarkersCounter]['padding'] = substr($ASFHeaderData, $offset, $PaddingLength);
524  $offset += $PaddingLength;
525  }
526  }
527  break;
528
529  case GETID3_ASF_Bitrate_Mutual_Exclusion_Object:
530  // Bitrate Mutual Exclusion Object: (optional)
531  // Field Name Field Type Size (bits)
532  // Object ID GUID 128 // GUID for Bitrate Mutual Exclusion object - GETID3_ASF_Bitrate_Mutual_Exclusion_Object
533  // Object Size QWORD 64 // size of Bitrate Mutual Exclusion object, including 42 bytes of Bitrate Mutual Exclusion Object header
534  // Exlusion Type GUID 128 // nature of mutual exclusion relationship. one of: (GETID3_ASF_Mutex_Bitrate, GETID3_ASF_Mutex_Unknown)
535  // Stream Numbers Count WORD 16 // number of video streams
536  // Stream Numbers WORD variable // array of mutually exclusive video stream numbers. 1 <= valid <= 127
537
538  // shortcut
539  $thisfile_asf['bitrate_mutual_exclusion_object'] = array();
540  $thisfile_asf_bitratemutualexclusionobject = &$thisfile_asf['bitrate_mutual_exclusion_object'];
541
542  $thisfile_asf_bitratemutualexclusionobject['objectid'] = $NextObjectGUID;
543  $thisfile_asf_bitratemutualexclusionobject['objectid_guid'] = $NextObjectGUIDtext;
544  $thisfile_asf_bitratemutualexclusionobject['objectsize'] = $NextObjectSize;
545  $thisfile_asf_bitratemutualexclusionobject['reserved'] = substr($ASFHeaderData, $offset, 16);
546  $thisfile_asf_bitratemutualexclusionobject['reserved_guid'] = $this->BytestringToGUID($thisfile_asf_bitratemutualexclusionobject['reserved']);
547  $offset += 16;
548  if (($thisfile_asf_bitratemutualexclusionobject['reserved'] != GETID3_ASF_Mutex_Bitrate) && ($thisfile_asf_bitratemutualexclusionobject['reserved'] != GETID3_ASF_Mutex_Unknown)) {
549  $ThisFileInfo['warning'][] = 'bitrate_mutual_exclusion_object.reserved GUID {'.$this->BytestringToGUID($thisfile_asf_bitratemutualexclusionobject['reserved']).'} does not match expected "GETID3_ASF_Mutex_Bitrate" GUID {'.$this->BytestringToGUID(GETID3_ASF_Mutex_Bitrate).'} or "GETID3_ASF_Mutex_Unknown" GUID {'.$this->BytestringToGUID(GETID3_ASF_Mutex_Unknown).'}';
550  //return false;
551  break;
552  }
553  $thisfile_asf_bitratemutualexclusionobject['stream_numbers_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
554  $offset += 2;
555  for ($StreamNumberCounter = 0; $StreamNumberCounter < $thisfile_asf_bitratemutualexclusionobject['stream_numbers_count']; $StreamNumberCounter++) {
556  $thisfile_asf_bitratemutualexclusionobject['stream_numbers'][$StreamNumberCounter] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
557  $offset += 2;
558  }
559  break;
560
561  case GETID3_ASF_Error_Correction_Object:
562  // Error Correction Object: (optional, one only)
563  // Field Name Field Type Size (bits)
564  // Object ID GUID 128 // GUID for Error Correction object - GETID3_ASF_Error_Correction_Object
565  // Object Size QWORD 64 // size of Error Correction object, including 44 bytes of Error Correction Object header
566  // Error Correction Type GUID 128 // type of error correction. one of: (GETID3_ASF_No_Error_Correction, GETID3_ASF_Audio_Spread)
567  // Error Correction Data Length DWORD 32 // number of bytes in Error Correction Data field
568  // Error Correction Data BYTESTREAM variable // structure depends on value of Error Correction Type field
569
570  // shortcut
571  $thisfile_asf['error_correction_object'] = array();
572  $thisfile_asf_errorcorrectionobject = &$thisfile_asf['error_correction_object'];
573
574  $thisfile_asf_errorcorrectionobject['objectid'] = $NextObjectGUID;
575  $thisfile_asf_errorcorrectionobject['objectid_guid'] = $NextObjectGUIDtext;
576  $thisfile_asf_errorcorrectionobject['objectsize'] = $NextObjectSize;
577  $thisfile_asf_errorcorrectionobject['error_correction_type'] = substr($ASFHeaderData, $offset, 16);
578  $offset += 16;
579  $thisfile_asf_errorcorrectionobject['error_correction_guid'] = $this->BytestringToGUID($thisfile_asf_errorcorrectionobject['error_correction_type']);
580  $thisfile_asf_errorcorrectionobject['error_correction_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
581  $offset += 4;
582  switch ($thisfile_asf_errorcorrectionobject['error_correction_type']) {
583  case GETID3_ASF_No_Error_Correction:
584  // should be no data, but just in case there is, skip to the end of the field
585  $offset += $thisfile_asf_errorcorrectionobject['error_correction_data_length'];
586  break;
587
588  case GETID3_ASF_Audio_Spread:
589  // Field Name Field Type Size (bits)
590  // Span BYTE 8 // number of packets over which audio will be spread.
591  // Virtual Packet Length WORD 16 // size of largest audio payload found in audio stream
592  // Virtual Chunk Length WORD 16 // size of largest audio payload found in audio stream
593  // Silence Data Length WORD 16 // number of bytes in Silence Data field
594  // Silence Data BYTESTREAM variable // hardcoded: 0x00 * (Silence Data Length) bytes
595
596  $thisfile_asf_errorcorrectionobject['span'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 1));
597  $offset += 1;
598  $thisfile_asf_errorcorrectionobject['virtual_packet_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
599  $offset += 2;
600  $thisfile_asf_errorcorrectionobject['virtual_chunk_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
601  $offset += 2;
602  $thisfile_asf_errorcorrectionobject['silence_data_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
603  $offset += 2;
604  $thisfile_asf_errorcorrectionobject['silence_data'] = substr($ASFHeaderData, $offset, $thisfile_asf_errorcorrectionobject['silence_data_length']);
605  $offset += $thisfile_asf_errorcorrectionobject['silence_data_length'];
606  break;
607
608  default:
609  $ThisFileInfo['warning'][] = 'error_correction_object.error_correction_type GUID {'.$this->BytestringToGUID($thisfile_asf_errorcorrectionobject['reserved']).'} does not match expected "GETID3_ASF_No_Error_Correction" GUID {'.$this->BytestringToGUID(GETID3_ASF_No_Error_Correction).'} or "GETID3_ASF_Audio_Spread" GUID {'.$this->BytestringToGUID(GETID3_ASF_Audio_Spread).'}';
610  //return false;
611  break;
612  }
613
614  break;
615
616  case GETID3_ASF_Content_Description_Object:
617  // Content Description Object: (optional, one only)
618  // Field Name Field Type Size (bits)
619  // Object ID GUID 128 // GUID for Content Description object - GETID3_ASF_Content_Description_Object
620  // Object Size QWORD 64 // size of Content Description object, including 34 bytes of Content Description Object header
621  // Title Length WORD 16 // number of bytes in Title field
622  // Author Length WORD 16 // number of bytes in Author field
623  // Copyright Length WORD 16 // number of bytes in Copyright field
624  // Description Length WORD 16 // number of bytes in Description field
625  // Rating Length WORD 16 // number of bytes in Rating field
626  // Title WCHAR 16 // array of Unicode characters - Title
627  // Author WCHAR 16 // array of Unicode characters - Author
628  // Copyright WCHAR 16 // array of Unicode characters - Copyright
629  // Description WCHAR 16 // array of Unicode characters - Description
630  // Rating WCHAR 16 // array of Unicode characters - Rating
631
632  // shortcut
633  $thisfile_asf['content_description_object'] = array();
634  $thisfile_asf_contentdescriptionobject = &$thisfile_asf['content_description_object'];
635
636  $thisfile_asf_contentdescriptionobject['objectid'] = $NextObjectGUID;
637  $thisfile_asf_contentdescriptionobject['objectid_guid'] = $NextObjectGUIDtext;
638  $thisfile_asf_contentdescriptionobject['objectsize'] = $NextObjectSize;
639  $thisfile_asf_contentdescriptionobject['title_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
640  $offset += 2;
641  $thisfile_asf_contentdescriptionobject['author_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
642  $offset += 2;
643  $thisfile_asf_contentdescriptionobject['copyright_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
644  $offset += 2;
645  $thisfile_asf_contentdescriptionobject['description_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
646  $offset += 2;
647  $thisfile_asf_contentdescriptionobject['rating_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
648  $offset += 2;
649  $thisfile_asf_contentdescriptionobject['title'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['title_length']);
650  $offset += $thisfile_asf_contentdescriptionobject['title_length'];
651  $thisfile_asf_contentdescriptionobject['author'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['author_length']);
652  $offset += $thisfile_asf_contentdescriptionobject['author_length'];
653  $thisfile_asf_contentdescriptionobject['copyright'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['copyright_length']);
654  $offset += $thisfile_asf_contentdescriptionobject['copyright_length'];
655  $thisfile_asf_contentdescriptionobject['description'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['description_length']);
656  $offset += $thisfile_asf_contentdescriptionobject['description_length'];
657  $thisfile_asf_contentdescriptionobject['rating'] = substr($ASFHeaderData, $offset, $thisfile_asf_contentdescriptionobject['rating_length']);
658  $offset += $thisfile_asf_contentdescriptionobject['rating_length'];
659
660  $ASFcommentKeysToCopy = array('title'=>'title', 'author'=>'artist', 'copyright'=>'copyright', 'description'=>'comment', 'rating'=>'rating');
661  foreach ($ASFcommentKeysToCopy as $keytocopyfrom => $keytocopyto) {
662  if (!empty($thisfile_asf_contentdescriptionobject[$keytocopyfrom])) {
663  $thisfile_asf_comments[$keytocopyto][] = $this->TrimTerm($thisfile_asf_contentdescriptionobject[$keytocopyfrom]);
664  }
665  }
666  break;
667
668  case GETID3_ASF_Extended_Content_Description_Object:
669  // Extended Content Description Object: (optional, one only)
670  // Field Name Field Type Size (bits)
671  // Object ID GUID 128 // GUID for Extended Content Description object - GETID3_ASF_Extended_Content_Description_Object
672  // Object Size QWORD 64 // size of ExtendedContent Description object, including 26 bytes of Extended Content Description Object header
673  // Content Descriptors Count WORD 16 // number of entries in Content Descriptors list
674  // Content Descriptors array of: variable //
675  // * Descriptor Name Length WORD 16 // size in bytes of Descriptor Name field
676  // * Descriptor Name WCHAR variable // array of Unicode characters - Descriptor Name
677  // * Descriptor Value Data Type WORD 16 // Lookup array:
678  // 0x0000 = Unicode String (variable length)
679  // 0x0001 = BYTE array (variable length)
680  // 0x0002 = BOOL (DWORD, 32 bits)
681  // 0x0003 = DWORD (DWORD, 32 bits)
682  // 0x0004 = QWORD (QWORD, 64 bits)
683  // 0x0005 = WORD (WORD, 16 bits)
684  // * Descriptor Value Length WORD 16 // number of bytes stored in Descriptor Value field
685  // * Descriptor Value variable variable // value for Content Descriptor
686
687  // shortcut
688  $thisfile_asf['extended_content_description_object'] = array();
689  $thisfile_asf_extendedcontentdescriptionobject = &$thisfile_asf['extended_content_description_object'];
690
691  $thisfile_asf_extendedcontentdescriptionobject['objectid'] = $NextObjectGUID;
692  $thisfile_asf_extendedcontentdescriptionobject['objectid_guid'] = $NextObjectGUIDtext;
693  $thisfile_asf_extendedcontentdescriptionobject['objectsize'] = $NextObjectSize;
694  $thisfile_asf_extendedcontentdescriptionobject['content_descriptors_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
695  $offset += 2;
696  for ($ExtendedContentDescriptorsCounter = 0; $ExtendedContentDescriptorsCounter < $thisfile_asf_extendedcontentdescriptionobject['content_descriptors_count']; $ExtendedContentDescriptorsCounter++) {
697  // shortcut
698  $thisfile_asf_extendedcontentdescriptionobject['content_descriptors'][$ExtendedContentDescriptorsCounter] = array();
699  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current = &$thisfile_asf_extendedcontentdescriptionobject['content_descriptors'][$ExtendedContentDescriptorsCounter];
700
701  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['base_offset'] = $offset + 30;
702  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
703  $offset += 2;
704  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name'] = substr($ASFHeaderData, $offset, $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length']);
705  $offset += $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name_length'];
706  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
707  $offset += 2;
708  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
709  $offset += 2;
710  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = substr($ASFHeaderData, $offset, $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length']);
711  $offset += $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_length'];
712  switch ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type']) {
713  case 0x0000: // Unicode string
714  break;
715
716  case 0x0001: // BYTE array
717  // do nothing
718  break;
719
720  case 0x0002: // BOOL
721  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = (bool) getid3_lib::LittleEndian2Int($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
722  break;
723
724  case 0x0003: // DWORD
725  case 0x0004: // QWORD
726  case 0x0005: // WORD
727  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'] = getid3_lib::LittleEndian2Int($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
728  break;
729
730  default:
731  $ThisFileInfo['warning'][] = 'extended_content_description.content_descriptors.'.$ExtendedContentDescriptorsCounter.'.value_type is invalid ('.$thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type'].')';
732  //return false;
733  break;
734  }
735  switch ($this->TrimConvert(strtolower($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name']))) {
736
737  case 'wm/albumartist':
738  case 'artist':
739  $thisfile_asf_comments['artist'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
740  break;
741
742  case 'wm/albumtitle':
743  case 'album':
744  $thisfile_asf_comments['album'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
745  break;
746
747  case 'wm/genre':
748  case 'genre':
749  $thisfile_asf_comments['genre'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
750  break;
751
752  case 'wm/tracknumber':
753  case 'tracknumber':
754  $thisfile_asf_comments['track'] = array(intval($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'])));
755  break;
756
757  case 'wm/track':
758  if (empty($thisfile_asf_comments['track'])) {
759  $thisfile_asf_comments['track'] = array(1 + $this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
760  }
761  break;
762
763  case 'wm/year':
764  case 'year':
765  case 'date':
766  $thisfile_asf_comments['year'] = array( $this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
767  break;
768
769  case 'wm/lyrics':
770  case 'lyrics':
771  $thisfile_asf_comments['lyrics'] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
772  break;
773
774  case 'isvbr':
775  if ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']) {
776  $thisfile_audio['bitrate_mode'] = 'vbr';
777  $thisfile_video['bitrate_mode'] = 'vbr';
778  }
779  break;
780
781  case 'id3':
782  // id3v2 module might not be loaded
783  if (class_exists('getid3_id3v2')) {
784  $tempfile = tempnam('*', 'getID3');
785  $tempfilehandle = fopen($tempfile, "wb");
786  $tempThisfileInfo = array('encoding'=>$ThisFileInfo['encoding']);
787  fwrite($tempfilehandle, $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
788  fclose($tempfilehandle);
789
790  $tempfilehandle = fopen($tempfile, "rb");
791  $id3 = new getid3_id3v2($tempfilehandle, $tempThisfileInfo);
792  fclose($tempfilehandle);
793  unlink($tempfile);
794
795  $ThisFileInfo['id3v2'] = $tempThisfileInfo['id3v2'];
796  }
797  break;
798
799  case 'wm/encodingtime':
800  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['encoding_time_unix'] = $this->FILETIMEtoUNIXtime($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
801  $thisfile_asf_comments['encoding_time_unix'] = array($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['encoding_time_unix']);
802  break;
803
804  case 'wm/picture':
805  //typedef struct _WMPicture{
806  // LPWSTR pwszMIMEType;
807  // BYTE bPictureType;
808  // LPWSTR pwszDescription;
809  // DWORD dwDataLen;
810  // BYTE* pbData;
811  //} WM_PICTURE;
812
813  $wm_picture_offset = 0;
814  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type_id'] = getid3_lib::LittleEndian2Int(substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 1));
815  $wm_picture_offset += 1;
816  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type'] = $this->WMpictureTypeLookup($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_type_id']);
817  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_size'] = getid3_lib::LittleEndian2Int(substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 4));
818  $wm_picture_offset += 4;
819
820  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] = '';
821  do {
822  $next_byte_pair = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 2);
823  $wm_picture_offset += 2;
824  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_mime'] .= $next_byte_pair;
825  } while ($next_byte_pair !== "\x00\x00");
826
827  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_description'] = '';
828  do {
829  $next_byte_pair = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset, 2);
830  $wm_picture_offset += 2;
831  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['image_description'] .= $next_byte_pair;
832  } while ($next_byte_pair !== "\x00\x00");
833
834  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['dataoffset'] = $wm_picture_offset;
835  $thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['data'] = substr($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value'], $wm_picture_offset);
836  unset($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']);
837
838  break;
839
840  default:
841  switch ($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value_type']) {
842  case 0: // Unicode string
843  if (substr($this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name']), 0, 3) == 'WM/') {
844  $thisfile_asf_comments[str_replace('wm/', '', strtolower($this->TrimConvert($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['name'])))] = array($this->TrimTerm($thisfile_asf_extendedcontentdescriptionobject_contentdescriptor_current['value']));
845  }
846  break;
847
848  case 1:
849  break;
850  }
851  break;
852  }
853
854  }
855  break;
856
857  case GETID3_ASF_Stream_Bitrate_Properties_Object:
858  // Stream Bitrate Properties Object: (optional, one only)
859  // Field Name Field Type Size (bits)
860  // Object ID GUID 128 // GUID for Stream Bitrate Properties object - GETID3_ASF_Stream_Bitrate_Properties_Object
861  // Object Size QWORD 64 // size of Extended Content Description object, including 26 bytes of Stream Bitrate Properties Object header
862  // Bitrate Records Count WORD 16 // number of records in Bitrate Records
863  // Bitrate Records array of: variable //
864  // * Flags WORD 16 //
865  // * * Stream Number bits 7 (0x007F) // number of this stream
866  // * * Reserved bits 9 (0xFF80) // hardcoded: 0
867  // * Average Bitrate DWORD 32 // in bits per second
868
869  // shortcut
870  $thisfile_asf['stream_bitrate_properties_object'] = array();
871  $thisfile_asf_streambitratepropertiesobject = &$thisfile_asf['stream_bitrate_properties_object'];
872
873  $thisfile_asf_streambitratepropertiesobject['objectid'] = $NextObjectGUID;
874  $thisfile_asf_streambitratepropertiesobject['objectid_guid'] = $NextObjectGUIDtext;
875  $thisfile_asf_streambitratepropertiesobject['objectsize'] = $NextObjectSize;
876  $thisfile_asf_streambitratepropertiesobject['bitrate_records_count'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
877  $offset += 2;
878  for ($BitrateRecordsCounter = 0; $BitrateRecordsCounter < $thisfile_asf_streambitratepropertiesobject['bitrate_records_count']; $BitrateRecordsCounter++) {
879  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags_raw'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 2));
880  $offset += 2;
881  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags']['stream_number'] = $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['flags_raw'] & 0x007F;
882  $thisfile_asf_streambitratepropertiesobject['bitrate_records'][$BitrateRecordsCounter]['bitrate'] = getid3_lib::LittleEndian2Int(substr($ASFHeaderData, $offset, 4));
883  $offset += 4;
884  }
885  break;
886
887  case GETID3_ASF_Padding_Object:
888  // Padding Object: (optional)
889  // Field Name Field Type Size (bits)
890  // Object ID GUID 128 // GUID for Padding object - GETID3_ASF_Padding_Object
891  // Object Size QWORD 64 // size of Padding object, including 24 bytes of ASF Padding Object header
892  // Padding Data BYTESTREAM variable // ignore
893
894  // shortcut
895  $thisfile_asf['padding_object'] = array();
896  $thisfile_asf_paddingobject = &$thisfile_asf['padding_object'];
897
898  $thisfile_asf_paddingobject['objectid'] = $NextObjectGUID;
899  $thisfile_asf_paddingobject['objectid_guid'] = $NextObjectGUIDtext;
900  $thisfile_asf_paddingobject['objectsize'] = $NextObjectSize;
901  $thisfile_asf_paddingobject['padding_length'] = $thisfile_asf_paddingobject['objectsize'] - 16 - 8;
902  $thisfile_asf_paddingobject['padding'] = substr($ASFHeaderData, $offset, $thisfile_asf_paddingobject['padding_length']);
903  break;
904
905  case GETID3_ASF_Extended_Content_Encryption_Object:
906  case GETID3_ASF_Content_Encryption_Object:
907  // WMA DRM - just ignore
908  $offset += ($NextObjectSize - 16 - 8);
909  break;
910
911  default:
912  // Implementations shall ignore any standard or non-standard object that they do not know how to handle.
913  if ($this->GUIDname($NextObjectGUIDtext)) {
914  $ThisFileInfo['warning'][] = 'unhandled GUID "'.$this->GUIDname($NextObjectGUIDtext).'" {'.$NextObjectGUIDtext.'} in ASF header at offset '.($offset - 16 - 8);
915  } else {
916  $ThisFileInfo['warning'][] = 'unknown GUID {'.$NextObjectGUIDtext.'} in ASF header at offset '.($offset - 16 - 8);
917  }
918  $offset += ($NextObjectSize - 16 - 8);
919  break;
920  }
921  }
922  if (isset($thisfile_asf_streambitrateproperties['bitrate_records_count'])) {
923  $ASFbitrateAudio = 0;
924  $ASFbitrateVideo = 0;
925  for ($BitrateRecordsCounter = 0; $BitrateRecordsCounter < $thisfile_asf_streambitrateproperties['bitrate_records_count']; $BitrateRecordsCounter++) {
926  if (isset($thisfile_asf_codeclistobject['codec_entries'][$BitrateRecordsCounter])) {
927  switch ($thisfile_asf_codeclistobject['codec_entries'][$BitrateRecordsCounter]['type_raw']) {
928  case 1:
929  $ASFbitrateVideo += $thisfile_asf_streambitrateproperties['bitrate_records'][$BitrateRecordsCounter]['bitrate'];
930  break;
931
932  case 2:
933  $ASFbitrateAudio += $thisfile_asf_streambitrateproperties['bitrate_records'][$BitrateRecordsCounter]['bitrate'];
934  break;
935
936  default:
937  // do nothing
938  break;
939  }
940  }
941  }
942  if ($ASFbitrateAudio > 0) {
943  $thisfile_audio['bitrate'] = $ASFbitrateAudio;
944  }
945  if ($ASFbitrateVideo > 0) {
946  $thisfile_video['bitrate'] = $ASFbitrateVideo;
947  }
948  }
949  if (isset($thisfile_asf['stream_properties_object']) && is_array($thisfile_asf['stream_properties_object'])) {
950
951  $thisfile_audio['bitrate'] = 0;
952  $thisfile_video['bitrate'] = 0;
953
954  foreach ($thisfile_asf['stream_properties_object'] as $streamnumber => $streamdata) {
955
956  switch ($streamdata['stream_type']) {
957  case GETID3_ASF_Audio_Media:
958  // Field Name Field Type Size (bits)
959  // Codec ID / Format Tag WORD 16 // unique ID of audio codec - defined as wFormatTag field of WAVEFORMATEX structure
960  // Number of Channels WORD 16 // number of channels of audio - defined as nChannels field of WAVEFORMATEX structure
961  // Samples Per Second DWORD 32 // in Hertz - defined as nSamplesPerSec field of WAVEFORMATEX structure
962  // Average number of Bytes/sec DWORD 32 // bytes/sec of audio stream - defined as nAvgBytesPerSec field of WAVEFORMATEX structure
963  // Block Alignment WORD 16 // block size in bytes of audio codec - defined as nBlockAlign field of WAVEFORMATEX structure
964  // Bits per sample WORD 16 // bits per sample of mono data. set to zero for variable bitrate codecs. defined as wBitsPerSample field of WAVEFORMATEX structure
965  // Codec Specific Data Size WORD 16 // size in bytes of Codec Specific Data buffer - defined as cbSize field of WAVEFORMATEX structure
966  // Codec Specific Data BYTESTREAM variable // array of codec-specific data bytes
967
968  // shortcut
969  $thisfile_asf['audio_media'][$streamnumber] = array();
970  $thisfile_asf_audiomedia_currentstream = &$thisfile_asf['audio_media'][$streamnumber];
971
972  $audiomediaoffset = 0;
973
974  $thisfile_asf_audiomedia_currentstream = getid3_riff::RIFFparseWAVEFORMATex(substr($streamdata['type_specific_data'], $audiomediaoffset, 16));
975  $audiomediaoffset += 16;
976
977  $thisfile_audio['lossless'] = false;
978  switch ($thisfile_asf_audiomedia_currentstream['raw']['wFormatTag']) {
979  case 0x0001: // PCM
980  case 0x0163: // WMA9 Lossless
981  $thisfile_audio['lossless'] = true;
982  break;
983  }
984
985  if (!empty($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'])) {
986  foreach ($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'] as $dummy => $dataarray) {
987  if (@$dataarray['flags']['stream_number'] == $streamnumber) {
988  $thisfile_asf_audiomedia_currentstream['bitrate'] = $dataarray['bitrate'];
989  $thisfile_audio['bitrate'] += $dataarray['bitrate'];
990  break;
991  }
992  }
993  } else {
994  if (@$thisfile_asf_audiomedia_currentstream['bytes_sec']) {
995  $thisfile_audio['bitrate'] += $thisfile_asf_audiomedia_currentstream['bytes_sec'] * 8;
996  } elseif (@$thisfile_asf_audiomedia_currentstream['bitrate']) {
997  $thisfile_audio['bitrate'] += $thisfile_asf_audiomedia_currentstream['bitrate'];
998  }
999  }
1000  $thisfile_audio['streams'][$streamnumber] = $thisfile_asf_audiomedia_currentstream;
1001  $thisfile_audio['streams'][$streamnumber]['wformattag'] = $thisfile_asf_audiomedia_currentstream['raw']['wFormatTag'];
1002  $thisfile_audio['streams'][$streamnumber]['lossless'] = $thisfile_audio['lossless'];
1003  $thisfile_audio['streams'][$streamnumber]['bitrate'] = $thisfile_audio['bitrate'];
1004  unset($thisfile_audio['streams'][$streamnumber]['raw']);
1005
1006  $thisfile_asf_audiomedia_currentstream['codec_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $audiomediaoffset, 2));
1007  $audiomediaoffset += 2;
1008  $thisfile_asf_audiomedia_currentstream['codec_data'] = substr($streamdata['type_specific_data'], $audiomediaoffset, $thisfile_asf_audiomedia_currentstream['codec_data_size']);
1009  $audiomediaoffset += $thisfile_asf_audiomedia_currentstream['codec_data_size'];
1010
1011  break;
1012
1013  case GETID3_ASF_Video_Media:
1014  // Field Name Field Type Size (bits)
1015  // Encoded Image Width DWORD 32 // width of image in pixels
1016  // Encoded Image Height DWORD 32 // height of image in pixels
1017  // Reserved Flags BYTE 8 // hardcoded: 0x02
1018  // Format Data Size WORD 16 // size of Format Data field in bytes
1019  // Format Data array of: variable //
1020  // * Format Data Size DWORD 32 // number of bytes in Format Data field, in bytes - defined as biSize field of BITMAPINFOHEADER structure
1021  // * Image Width LONG 32 // width of encoded image in pixels - defined as biWidth field of BITMAPINFOHEADER structure
1022  // * Image Height LONG 32 // height of encoded image in pixels - defined as biHeight field of BITMAPINFOHEADER structure
1023  // * Reserved WORD 16 // hardcoded: 0x0001 - defined as biPlanes field of BITMAPINFOHEADER structure
1024  // * Bits Per Pixel Count WORD 16 // bits per pixel - defined as biBitCount field of BITMAPINFOHEADER structure
1025  // * Compression ID FOURCC 32 // fourcc of video codec - defined as biCompression field of BITMAPINFOHEADER structure
1026  // * Image Size DWORD 32 // image size in bytes - defined as biSizeImage field of BITMAPINFOHEADER structure
1027  // * Horizontal Pixels / Meter DWORD 32 // horizontal resolution of target device in pixels per meter - defined as biXPelsPerMeter field of BITMAPINFOHEADER structure
1028  // * Vertical Pixels / Meter DWORD 32 // vertical resolution of target device in pixels per meter - defined as biYPelsPerMeter field of BITMAPINFOHEADER structure
1029  // * Colors Used Count DWORD 32 // number of color indexes in the color table that are actually used - defined as biClrUsed field of BITMAPINFOHEADER structure
1030  // * Important Colors Count DWORD 32 // number of color index required for displaying bitmap. if zero, all colors are required. defined as biClrImportant field of BITMAPINFOHEADER structure
1031  // * Codec Specific Data BYTESTREAM variable // array of codec-specific data bytes
1032
1033  // shortcut
1034  $thisfile_asf['video_media'][$streamnumber] = array();
1035  $thisfile_asf_videomedia_currentstream = &$thisfile_asf['video_media'][$streamnumber];
1036
1037  $videomediaoffset = 0;
1038  $thisfile_asf_videomedia_currentstream['image_width'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1039  $videomediaoffset += 4;
1040  $thisfile_asf_videomedia_currentstream['image_height'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1041  $videomediaoffset += 4;
1042  $thisfile_asf_videomedia_currentstream['flags'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 1));
1043  $videomediaoffset += 1;
1044  $thisfile_asf_videomedia_currentstream['format_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1045  $videomediaoffset += 2;
1046  $thisfile_asf_videomedia_currentstream['format_data']['format_data_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1047  $videomediaoffset += 4;
1048  $thisfile_asf_videomedia_currentstream['format_data']['image_width'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1049  $videomediaoffset += 4;
1050  $thisfile_asf_videomedia_currentstream['format_data']['image_height'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1051  $videomediaoffset += 4;
1052  $thisfile_asf_videomedia_currentstream['format_data']['reserved'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1053  $videomediaoffset += 2;
1054  $thisfile_asf_videomedia_currentstream['format_data']['bits_per_pixel'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 2));
1055  $videomediaoffset += 2;
1056  $thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc'] = substr($streamdata['type_specific_data'], $videomediaoffset, 4);
1057  $videomediaoffset += 4;
1058  $thisfile_asf_videomedia_currentstream['format_data']['image_size'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1059  $videomediaoffset += 4;
1060  $thisfile_asf_videomedia_currentstream['format_data']['horizontal_pels'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1061  $videomediaoffset += 4;
1062  $thisfile_asf_videomedia_currentstream['format_data']['vertical_pels'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1063  $videomediaoffset += 4;
1064  $thisfile_asf_videomedia_currentstream['format_data']['colors_used'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1065  $videomediaoffset += 4;
1066  $thisfile_asf_videomedia_currentstream['format_data']['colors_important'] = getid3_lib::LittleEndian2Int(substr($streamdata['type_specific_data'], $videomediaoffset, 4));
1067  $videomediaoffset += 4;
1068  $thisfile_asf_videomedia_currentstream['format_data']['codec_data'] = substr($streamdata['type_specific_data'], $videomediaoffset);
1069
1070  if (!empty($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'])) {
1071  foreach ($thisfile_asf['stream_bitrate_properties_object']['bitrate_records'] as $dummy => $dataarray) {
1072  if (@$dataarray['flags']['stream_number'] == $streamnumber) {
1073  $thisfile_asf_videomedia_currentstream['bitrate'] = $dataarray['bitrate'];
1074  $thisfile_video['streams'][$streamnumber]['bitrate'] = $dataarray['bitrate'];
1075  $thisfile_video['bitrate'] += $dataarray['bitrate'];
1076  break;
1077  }
1078  }
1079  }
1080
1081  $thisfile_asf_videomedia_currentstream['format_data']['codec'] = getid3_riff::RIFFfourccLookup($thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc']);
1082
1083  $thisfile_video['streams'][$streamnumber]['fourcc'] = $thisfile_asf_videomedia_currentstream['format_data']['codec_fourcc'];
1084  $thisfile_video['streams'][$streamnumber]['codec'] = $thisfile_asf_videomedia_currentstream['format_data']['codec'];
1085  $thisfile_video['streams'][$streamnumber]['resolution_x'] = $thisfile_asf_videomedia_currentstream['image_width'];
1086  $thisfile_video['streams'][$streamnumber]['resolution_y'] = $thisfile_asf_videomedia_currentstream['image_height'];
1087  $thisfile_video['streams'][$streamnumber]['bits_per_sample'] = $thisfile_asf_videomedia_currentstream['format_data']['bits_per_pixel'];
1088  break;
1089
1090  default:
1091  break;
1092  }
1093  }
1094  }
1095
1096  while (ftell($fd) < $ThisFileInfo['avdataend']) {
1097  $NextObjectDataHeader = fread($fd, 24);
1098  $offset = 0;
1099  $NextObjectGUID = substr($NextObjectDataHeader, 0, 16);
1100  $offset += 16;
1101  $NextObjectGUIDtext = $this->BytestringToGUID($NextObjectGUID);
1102  $NextObjectSize = getid3_lib::LittleEndian2Int(substr($NextObjectDataHeader, $offset, 8));
1103  $offset += 8;
1104
1105  switch ($NextObjectGUID) {
1106  case GETID3_ASF_Data_Object:
1107  // Data Object: (mandatory, one only)
1108  // Field Name Field Type Size (bits)
1109  // Object ID GUID 128 // GUID for Data object - GETID3_ASF_Data_Object
1110  // Object Size QWORD 64 // size of Data object, including 50 bytes of Data Object header. may be 0 if FilePropertiesObject.BroadcastFlag == 1
1111  // File ID GUID 128 // unique identifier. identical to File ID field in Header Object
1112  // Total Data Packets QWORD 64 // number of Data Packet entries in Data Object. invalid if FilePropertiesObject.BroadcastFlag == 1
1113  // Reserved WORD 16 // hardcoded: 0x0101
1114
1115  // shortcut
1116  $thisfile_asf['data_object'] = array();
1117  $thisfile_asf_dataobject = &$thisfile_asf['data_object'];
1118
1119  $DataObjectData = $NextObjectDataHeader.fread($fd, 50 - 24);
1120  $offset = 24;
1121
1122  $thisfile_asf_dataobject['objectid'] = $NextObjectGUID;
1123  $thisfile_asf_dataobject['objectid_guid'] = $NextObjectGUIDtext;
1124  $thisfile_asf_dataobject['objectsize'] = $NextObjectSize;
1125
1126  $thisfile_asf_dataobject['fileid'] = substr($DataObjectData, $offset, 16);
1127  $offset += 16;
1128  $thisfile_asf_dataobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_dataobject['fileid']);
1129  $thisfile_asf_dataobject['total_data_packets'] = getid3_lib::LittleEndian2Int(substr($DataObjectData, $offset, 8));
1130  $offset += 8;
1131  $thisfile_asf_dataobject['reserved'] = getid3_lib::LittleEndian2Int(substr($DataObjectData, $offset, 2));
1132  $offset += 2;
1133  if ($thisfile_asf_dataobject['reserved'] != 0x0101) {
1134  $ThisFileInfo['warning'][] = 'data_object.reserved ('.getid3_lib::PrintHexBytes($thisfile_asf_dataobject['reserved']).') does not match expected value of "0x0101"';
1135  //return false;
1136  break;
1137  }
1138
1139  // Data Packets array of: variable //
1140  // * Error Correction Flags BYTE 8 //
1141  // * * Error Correction Data Length bits 4 // if Error Correction Length Type == 00, size of Error Correction Data in bytes, else hardcoded: 0000
1142  // * * Opaque Data Present bits 1 //
1143  // * * Error Correction Length Type bits 2 // number of bits for size of the error correction data. hardcoded: 00
1144  // * * Error Correction Present bits 1 // If set, use Opaque Data Packet structure, else use Payload structure
1145  // * Error Correction Data
1146
1147  $ThisFileInfo['avdataoffset'] = ftell($fd);
1148  fseek($fd, ($thisfile_asf_dataobject['objectsize'] - 50), SEEK_CUR); // skip actual audio/video data
1149  $ThisFileInfo['avdataend'] = ftell($fd);
1150  break;
1151
1152  case GETID3_ASF_Simple_Index_Object:
1153  // Simple Index Object: (optional, recommended, one per video stream)
1154  // Field Name Field Type Size (bits)
1155  // Object ID GUID 128 // GUID for Simple Index object - GETID3_ASF_Data_Object
1156  // Object Size QWORD 64 // size of Simple Index object, including 56 bytes of Simple Index Object header
1157  // File ID GUID 128 // unique identifier. may be zero or identical to File ID field in Data Object and Header Object
1158  // Index Entry Time Interval QWORD 64 // interval between index entries in 100-nanosecond units
1159  // Maximum Packet Count DWORD 32 // maximum packet count for all index entries
1160  // Index Entries Count DWORD 32 // number of Index Entries structures
1161  // Index Entries array of: variable //
1162  // * Packet Number DWORD 32 // number of the Data Packet associated with this index entry
1163  // * Packet Count WORD 16 // number of Data Packets to sent at this index entry
1164
1165  // shortcut
1166  $thisfile_asf['simple_index_object'] = array();
1167  $thisfile_asf_simpleindexobject = &$thisfile_asf['simple_index_object'];
1168
1169  $SimpleIndexObjectData = $NextObjectDataHeader.fread($fd, 56 - 24);
1170  $offset = 24;
1171
1172  $thisfile_asf_simpleindexobject['objectid'] = $NextObjectGUID;
1173  $thisfile_asf_simpleindexobject['objectid_guid'] = $NextObjectGUIDtext;
1174  $thisfile_asf_simpleindexobject['objectsize'] = $NextObjectSize;
1175
1176  $thisfile_asf_simpleindexobject['fileid'] = substr($SimpleIndexObjectData, $offset, 16);
1177  $offset += 16;
1178  $thisfile_asf_simpleindexobject['fileid_guid'] = $this->BytestringToGUID($thisfile_asf_simpleindexobject['fileid']);
1179  $thisfile_asf_simpleindexobject['index_entry_time_interval'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 8));
1180  $offset += 8;
1181  $thisfile_asf_simpleindexobject['maximum_packet_count'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 4));
1182  $offset += 4;
1183  $thisfile_asf_simpleindexobject['index_entries_count'] = getid3_lib::LittleEndian2Int(substr($SimpleIndexObjectData, $offset, 4));
1184  $offset += 4;
1185
1186  $IndexEntriesData = $SimpleIndexObjectData.fread($fd, 6 * $thisfile_asf_simpleindexobject['index_entries_count']);
1187  for ($IndexEntriesCounter = 0; $IndexEntriesCounter < $thisfile_asf_simpleindexobject['index_entries_count']; $IndexEntriesCounter++) {
1188  $thisfile_asf_simpleindexobject['index_entries'][$IndexEntriesCounter]['packet_number'] = getid3_lib::LittleEndian2Int(substr($IndexEntriesData, $offset, 4));
1189  $offset += 4;
1190  $thisfile_asf_simpleindexobject['index_entries'][$IndexEntriesCounter]['packet_count'] = getid3_lib::LittleEndian2Int(substr($IndexEntriesData, $offset, 4));
1191  $offset += 2;
1192  }
1193
1194  break;
1195
1196  case GETID3_ASF_Index_Object:
1197  // 6.2 ASF top-level Index Object (optional but recommended when appropriate, 0 or 1)
1198  // Field Name Field Type Size (bits)
1199  // Object ID GUID 128 // GUID for the Index Object - GETID3_ASF_Index_Object
1200  // Object Size QWORD 64 // Specifies the size, in bytes, of the Index Object, including at least 34 bytes of Index Object header
1201  // Index Entry Time Interval DWORD 32 // Specifies the time interval between each index entry in ms.
1202  // Index Specifiers Count WORD 16 // Specifies the number of Index Specifiers structures in this Index Object.
1203  // Index Blocks Count DWORD 32 // Specifies the number of Index Blocks structures in this Index Object.
1204
1205  // Index Entry Time Interval DWORD 32 // Specifies the time interval between index entries in milliseconds. This value cannot be 0.
1206  // Index Specifiers Count WORD 16 // Specifies the number of entries in the Index Specifiers list. Valid values are 1 and greater.
1207  // Index Specifiers array of: varies //
1208  // * Stream Number WORD 16 // Specifies the stream number that the Index Specifiers refer to. Valid values are between 1 and 127.
1209  // * Index Type WORD 16 // Specifies Index Type values as follows:
1210  // 1 = Nearest Past Data Packet - indexes point to the data packet whose presentation time is closest to the index entry time.
1211  // 2 = Nearest Past Media Object - indexes point to the closest data packet containing an entire object or first fragment of an object.
1212  // 3 = Nearest Past Cleanpoint. - indexes point to the closest data packet containing an entire object (or first fragment of an object) that has the Cleanpoint Flag set.
1213  // Nearest Past Cleanpoint is the most common type of index.
1214  // Index Entry Count DWORD 32 // Specifies the number of Index Entries in the block.
1215  // * Block Positions QWORD varies // Specifies a list of byte offsets of the beginnings of the blocks relative to the beginning of the first Data Packet (i.e., the beginning of the Data Object + 50 bytes). The number of entries in this list is specified by the value of the Index Specifiers Count field. The order of those byte offsets is tied to the order in which Index Specifiers are listed.
1216  // * Index Entries array of: varies //
1217  // * * Offsets DWORD varies // An offset value of 0xffffffff indicates an invalid offset value
1218
1219  // shortcut
1220  $thisfile_asf['asf_index_object'] = array();
1221  $thisfile_asf_asfindexobject = &$thisfile_asf['asf_index_object'];
1222
1223  $ASFIndexObjectData = $NextObjectDataHeader.fread($fd, 34 - 24);
1224  $offset = 24;
1225
1226  $thisfile_asf_asfindexobject['objectid'] = $NextObjectGUID;
1227  $thisfile_asf_asfindexobject['objectid_guid'] = $NextObjectGUIDtext;
1228  $thisfile_asf_asfindexobject['objectsize'] = $NextObjectSize;
1229
1230  $thisfile_asf_asfindexobject['entry_time_interval'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1231  $offset += 4;
1232  $thisfile_asf_asfindexobject['index_specifiers_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1233  $offset += 2;
1234  $thisfile_asf_asfindexobject['index_blocks_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1235  $offset += 4;
1236
1237  $ASFIndexObjectData .= fread($fd, 4 * $thisfile_asf_asfindexobject['index_specifiers_count']);
1238  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1239  $IndexSpecifierStreamNumber = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1240  $offset += 2;
1241  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['stream_number'] = $IndexSpecifierStreamNumber;
1242  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 2));
1243  $offset += 2;
1244  $thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type_text'] = $this->ASFIndexObjectIndexTypeLookup($thisfile_asf_asfindexobject['index_specifiers'][$IndexSpecifiersCounter]['index_type']);
1245  }
1246
1247  $ASFIndexObjectData .= fread($fd, 4);
1248  $thisfile_asf_asfindexobject['index_entry_count'] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1249  $offset += 4;
1250
1251  $ASFIndexObjectData .= fread($fd, 8 * $thisfile_asf_asfindexobject['index_specifiers_count']);
1252  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1253  $thisfile_asf_asfindexobject['block_positions'][$IndexSpecifiersCounter] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 8));
1254  $offset += 8;
1255  }
1256
1257  $ASFIndexObjectData .= fread($fd, 4 * $thisfile_asf_asfindexobject['index_specifiers_count'] * $thisfile_asf_asfindexobject['index_entry_count']);
1258  for ($IndexEntryCounter = 0; $IndexEntryCounter < $thisfile_asf_asfindexobject['index_entry_count']; $IndexEntryCounter++) {
1259  for ($IndexSpecifiersCounter = 0; $IndexSpecifiersCounter < $thisfile_asf_asfindexobject['index_specifiers_count']; $IndexSpecifiersCounter++) {
1260  $thisfile_asf_asfindexobject['offsets'][$IndexSpecifiersCounter][$IndexEntryCounter] = getid3_lib::LittleEndian2Int(substr($ASFIndexObjectData, $offset, 4));
1261  $offset += 4;
1262  }
1263  }
1264  break;
1265
1266
1267  default:
1268  // Implementations shall ignore any standard or non-standard object that they do not know how to handle.
1269  if ($this->GUIDname($NextObjectGUIDtext)) {
1270  $ThisFileInfo['warning'][] = 'unhandled GUID "'.$this->GUIDname($NextObjectGUIDtext).'" {'.$NextObjectGUIDtext.'} in ASF body at offset '.($offset - 16 - 8);
1271  } else {
1272  $ThisFileInfo['warning'][] = 'unknown GUID {'.$NextObjectGUIDtext.'} in ASF body at offset '.(ftell($fd) - 16 - 8);
1273  }
1274  fseek($fd, ($NextObjectSize - 16 - 8), SEEK_CUR);
1275  break;
1276  }
1277  }
1278
1279  if (isset($thisfile_asf_codeclistobject['codec_entries']) && is_array($thisfile_asf_codeclistobject['codec_entries'])) {
1280  foreach ($thisfile_asf_codeclistobject['codec_entries'] as $streamnumber => $streamdata) {
1281  switch ($streamdata['information']) {
1282  case 'WMV1':
1283  case 'WMV2':
1284  case 'WMV3':
1285  $thisfile_video['dataformat'] = 'wmv';
1286  $ThisFileInfo['mime_type'] = 'video/x-ms-wmv';
1287  break;
1288
1289  case 'MP42':
1290  case 'MP43':
1291  case 'MP4S':
1292  case 'mp4s':
1293  $thisfile_video['dataformat'] = 'asf';
1294  $ThisFileInfo['mime_type'] = 'video/x-ms-asf';
1295  break;
1296
1297  default:
1298  switch ($streamdata['type_raw']) {
1299  case 1:
1300  if (strstr($this->TrimConvert($streamdata['name']), 'Windows Media')) {
1301  $thisfile_video['dataformat'] = 'wmv';
1302  if ($ThisFileInfo['mime_type'] == 'video/x-ms-asf') {
1303  $ThisFileInfo['mime_type'] = 'video/x-ms-wmv';
1304  }
1305  }
1306  break;
1307
1308  case 2:
1309  if (strstr($this->TrimConvert($streamdata['name']), 'Windows Media')) {
1310  $thisfile_audio['dataformat'] = 'wma';
1311  if ($ThisFileInfo['mime_type'] == 'video/x-ms-asf') {
1312  $ThisFileInfo['mime_type'] = 'audio/x-ms-wma';
1313  }
1314  }
1315  break;
1316
1317  }
1318  break;
1319  }
1320  }
1321  }
1322
1323  switch (@$thisfile_audio['codec']) {
1324  case 'MPEG Layer-3':
1325  $thisfile_audio['dataformat'] = 'mp3';
1326  break;
1327
1328  default:
1329  break;
1330  }
1331
1332  if (isset($thisfile_asf_codeclistobject['codec_entries'])) {
1333  foreach ($thisfile_asf_codeclistobject['codec_entries'] as $streamnumber => $streamdata) {
1334  switch ($streamdata['type_raw']) {
1335
1336  case 1: // video
1337  $thisfile_video['encoder'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][$streamnumber]['name']);
1338  break;
1339
1340  case 2: // audio
1341  $thisfile_audio['encoder'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][$streamnumber]['name']);
1342
1343  // AH 2003-10-01
1344  $thisfile_audio['encoder_options'] = $this->TrimConvert($thisfile_asf_codeclistobject['codec_entries'][0]['description']);
1345
1346  $thisfile_audio['codec'] = $thisfile_audio['encoder'];
1347  break;
1348
1349  default:
1350  $ThisFileInfo['warning'][] = 'Unknown streamtype: [codec_list_object][codec_entries]['.$streamnumber.'][type_raw] == '.$streamdata['type_raw'];
1351  break;
1352
1353  }
1354  }
1355  }
1356
1357  if (isset($ThisFileInfo['audio'])) {
1358  $thisfile_audio['lossless'] = (isset($thisfile_audio['lossless']) ? $thisfile_audio['lossless'] : false);
1359  $thisfile_audio['dataformat'] = (!empty($thisfile_audio['dataformat']) ? $thisfile_audio['dataformat'] : 'asf');
1360  }
1361  if (!empty($thisfile_video['dataformat'])) {
1362  $thisfile_video['lossless'] = (isset($thisfile_audio['lossless']) ? $thisfile_audio['lossless'] : false);
1363  $thisfile_video['pixel_aspect_ratio'] = (isset($thisfile_audio['pixel_aspect_ratio']) ? $thisfile_audio['pixel_aspect_ratio'] : (float) 1);
1364  $thisfile_video['dataformat'] = (!empty($thisfile_video['dataformat']) ? $thisfile_video['dataformat'] : 'asf');
1365  }
1366  $ThisFileInfo['bitrate'] = @$thisfile_audio['bitrate'] + @$thisfile_video['bitrate'];
1367  return true;
1368  }
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
GUIDtoBytestring($GUIDstring)
array_merge_noclobber($array1, $array2)
Definition: getid3.lib.php:376
ASFCodecListObjectTypeLookup($CodecListType)
fread($bytes)
Definition: getid3.php:1685
FILETIMEtoUNIXtime($FILETIME, $round=true)
WMpictureTypeLookup($WMpictureType)
BytestringToGUID($Bytestring)
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
RIFFparseWAVEFORMATex($WaveFormatExData)
+ Here is the call graph for this function:

◆ GUIDname() [1/2]

getid3_asf::GUIDname (   $GUIDstring)

Definition at line 1494 of file module.audio-video.asf.php.

References $GUIDarray, and KnownGUIDs().

Referenced by Analyze(), getid3_asf(), and HeaderExtensionObjectDataParse().

1494  {
1495  static $GUIDarray = array();
1496  if (empty($GUIDarray)) {
1497  $GUIDarray = $this->KnownGUIDs();
1498  }
1499  return array_search($GUIDstring, $GUIDarray);
1500  }
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GUIDname() [2/2]

static getid3_asf::GUIDname (   $GUIDstring)
static

Definition at line 1567 of file module.audio-video.asf.php.

References $GUIDarray.

1567  {
1568  static $GUIDarray = array();
1569  if (empty($GUIDarray)) {
1570  $GUIDarray = self::KnownGUIDs();
1571  }
1572  return array_search($GUIDstring, $GUIDarray);
1573  }

◆ GUIDtoBytestring() [1/2]

getid3_asf::GUIDtoBytestring (   $GUIDstring)

Definition at line 1512 of file module.audio-video.asf.php.

Referenced by __construct(), Analyze(), and getid3_asf().

1512  {
1513  // Microsoft defines these 16-byte (128-bit) GUIDs in the strangest way:
1514  // first 4 bytes are in little-endian order
1515  // next 2 bytes are appended in little-endian order
1516  // next 2 bytes are appended in little-endian order
1517  // next 2 bytes are appended in big-endian order
1518  // next 6 bytes are appended in big-endian order
1519
1520  // AaBbCcDd-EeFf-GgHh-IiJj-KkLlMmNnOoPp is stored as this 16-byte string:
1521  // $Dd $Cc $Bb $Aa $Ff $Ee $Hh $Gg $Ii $Jj $Kk $Ll $Mm $Nn $Oo $Pp
1522
1523  $hexbytecharstring = chr(hexdec(substr($GUIDstring, 6, 2)));
1524  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 4, 2)));
1525  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 2, 2)));
1526  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 0, 2)));
1527
1528  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 11, 2)));
1529  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 9, 2)));
1530
1531  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 16, 2)));
1532  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 14, 2)));
1533
1534  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 19, 2)));
1535  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 21, 2)));
1536
1537  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 24, 2)));
1538  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 26, 2)));
1539  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 28, 2)));
1540  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 30, 2)));
1541  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 32, 2)));
1542  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 34, 2)));
1543
1544  return $hexbytecharstring;
1545  }
+ Here is the caller graph for this function:

◆ GUIDtoBytestring() [2/2]

static getid3_asf::GUIDtoBytestring (   $GUIDstring)
static

Definition at line 1585 of file module.audio-video.asf.php.

1585  {
1586  // Microsoft defines these 16-byte (128-bit) GUIDs in the strangest way:
1587  // first 4 bytes are in little-endian order
1588  // next 2 bytes are appended in little-endian order
1589  // next 2 bytes are appended in little-endian order
1590  // next 2 bytes are appended in big-endian order
1591  // next 6 bytes are appended in big-endian order
1592
1593  // AaBbCcDd-EeFf-GgHh-IiJj-KkLlMmNnOoPp is stored as this 16-byte string:
1594  // $Dd $Cc $Bb $Aa $Ff $Ee $Hh $Gg $Ii $Jj $Kk $Ll $Mm $Nn $Oo $Pp
1595
1596  $hexbytecharstring = chr(hexdec(substr($GUIDstring, 6, 2)));
1597  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 4, 2)));
1598  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 2, 2)));
1599  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 0, 2)));
1600
1601  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 11, 2)));
1602  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 9, 2)));
1603
1604  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 16, 2)));
1605  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 14, 2)));
1606
1607  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 19, 2)));
1608  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 21, 2)));
1609
1610  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 24, 2)));
1611  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 26, 2)));
1612  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 28, 2)));
1613  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 30, 2)));
1614  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 32, 2)));
1615  $hexbytecharstring .= chr(hexdec(substr($GUIDstring, 34, 2)));
1616
1617  return $hexbytecharstring;
1618  }

◆ HeaderExtensionObjectDataParse()

getid3_asf::HeaderExtensionObjectDataParse ( $asf_header_extension_object_data,
$unhandled_sections
)

Definition at line 1687 of file module.audio-video.asf.php.

References ASF_WMpicture(), BytestringToGUID(), FILETIMEtoUNIXtime(), GUIDname(), and getid3_lib\LittleEndian2Int().

Referenced by Analyze().

1687  {
1688  // http://msdn.microsoft.com/en-us/library/bb643323.aspx
1689
1690  $offset = 0;
1691  $objectOffset = 0;
1692  $HeaderExtensionObjectParsed = array();
1693  while ($objectOffset < strlen($asf_header_extension_object_data)) {
1694  $offset = $objectOffset;
1695  $thisObject = array();
1696
1697  $thisObject['guid'] = substr($asf_header_extension_object_data, $offset, 16);
1698  $offset += 16;
1699  $thisObject['guid_text'] = $this->BytestringToGUID($thisObject['guid']);
1700  $thisObject['guid_name'] = $this->GUIDname($thisObject['guid_text']);
1701
1702  $thisObject['size'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 8));
1703  $offset += 8;
1704  if ($thisObject['size'] <= 0) {
1705  break;
1706  }
1707
1708  switch ($thisObject['guid']) {
1709  case GETID3_ASF_Extended_Stream_Properties_Object:
1710  $thisObject['start_time'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 8));
1711  $offset += 8;
1712  $thisObject['start_time_unix'] = $this->FILETIMEtoUNIXtime($thisObject['start_time']);
1713
1714  $thisObject['end_time'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 8));
1715  $offset += 8;
1716  $thisObject['end_time_unix'] = $this->FILETIMEtoUNIXtime($thisObject['end_time']);
1717
1718  $thisObject['data_bitrate'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1719  $offset += 4;
1720
1721  $thisObject['buffer_size'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1722  $offset += 4;
1723
1724  $thisObject['initial_buffer_fullness'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1725  $offset += 4;
1726
1727  $thisObject['alternate_data_bitrate'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1728  $offset += 4;
1729
1730  $thisObject['alternate_buffer_size'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1731  $offset += 4;
1732
1733  $thisObject['alternate_initial_buffer_fullness'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1734  $offset += 4;
1735
1736  $thisObject['maximum_object_size'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1737  $offset += 4;
1738
1739  $thisObject['flags_raw'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1740  $offset += 4;
1741  $thisObject['flags']['reliable'] = (bool) $thisObject['flags_raw'] & 0x00000001;
1742  $thisObject['flags']['seekable'] = (bool) $thisObject['flags_raw'] & 0x00000002;
1743  $thisObject['flags']['no_cleanpoints'] = (bool) $thisObject['flags_raw'] & 0x00000004;
1744  $thisObject['flags']['resend_live_cleanpoints'] = (bool) $thisObject['flags_raw'] & 0x00000008;
1745
1746  $thisObject['stream_number'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1747  $offset += 2;
1748
1749  $thisObject['stream_language_id_index'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1750  $offset += 2;
1751
1752  $thisObject['average_time_per_frame'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1753  $offset += 4;
1754
1755  $thisObject['stream_name_count'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1756  $offset += 2;
1757
1758  $thisObject['payload_extension_system_count'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1759  $offset += 2;
1760
1761  for ($i = 0; $i < $thisObject['stream_name_count']; $i++) {
1762  $streamName = array();
1763
1764  $streamName['language_id_index'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1765  $offset += 2;
1766
1767  $streamName['stream_name_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1768  $offset += 2;
1769
1770  $streamName['stream_name'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, $streamName['stream_name_length']));
1771  $offset += $streamName['stream_name_length'];
1772
1773  $thisObject['stream_names'][$i] = $streamName;
1774  }
1775
1776  for ($i = 0; $i < $thisObject['payload_extension_system_count']; $i++) {
1777  $payloadExtensionSystem = array();
1778
1779  $payloadExtensionSystem['extension_system_id'] = substr($asf_header_extension_object_data, $offset, 16);
1780  $offset += 16;
1781  $payloadExtensionSystem['extension_system_id_text'] = $this->BytestringToGUID($payloadExtensionSystem['extension_system_id']);
1782
1783  $payloadExtensionSystem['extension_system_size'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1784  $offset += 2;
1785  if ($payloadExtensionSystem['extension_system_size'] <= 0) {
1786  break 2;
1787  }
1788
1789  $payloadExtensionSystem['extension_system_info_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1790  $offset += 4;
1791
1792  $payloadExtensionSystem['extension_system_info_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, $payloadExtensionSystem['extension_system_info_length']));
1793  $offset += $payloadExtensionSystem['extension_system_info_length'];
1794
1795  $thisObject['payload_extension_systems'][$i] = $payloadExtensionSystem;
1796  }
1797
1798  break;
1799
1800  case GETID3_ASF_Padding_Object:
1801  // padding, skip it
1802  break;
1803
1804  case GETID3_ASF_Metadata_Object:
1805  $thisObject['description_record_counts'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1806  $offset += 2;
1807
1808  for ($i = 0; $i < $thisObject['description_record_counts']; $i++) {
1809  $descriptionRecord = array();
1810
1811  $descriptionRecord['reserved_1'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2)); // must be zero
1812  $offset += 2;
1813
1814  $descriptionRecord['stream_number'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1815  $offset += 2;
1816
1817  $descriptionRecord['name_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1818  $offset += 2;
1819
1820  $descriptionRecord['data_type'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1821  $offset += 2;
1822  $descriptionRecord['data_type_text'] = self::metadataLibraryObjectDataTypeLookup($descriptionRecord['data_type']);
1823
1824  $descriptionRecord['data_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1825  $offset += 4;
1826
1827  $descriptionRecord['name'] = substr($asf_header_extension_object_data, $offset, $descriptionRecord['name_length']);
1828  $offset += $descriptionRecord['name_length'];
1829
1830  $descriptionRecord['data'] = substr($asf_header_extension_object_data, $offset, $descriptionRecord['data_length']);
1831  $offset += $descriptionRecord['data_length'];
1832  switch ($descriptionRecord['data_type']) {
1833  case 0x0000: // Unicode string
1834  break;
1835
1836  case 0x0001: // BYTE array
1837  // do nothing
1838  break;
1839
1840  case 0x0002: // BOOL
1841  $descriptionRecord['data'] = (bool) getid3_lib::LittleEndian2Int($descriptionRecord['data']);
1842  break;
1843
1844  case 0x0003: // DWORD
1845  case 0x0004: // QWORD
1846  case 0x0005: // WORD
1847  $descriptionRecord['data'] = getid3_lib::LittleEndian2Int($descriptionRecord['data']);
1848  break;
1849
1850  case 0x0006: // GUID
1851  $descriptionRecord['data_text'] = $this->BytestringToGUID($descriptionRecord['data']);
1852  break;
1853  }
1854
1855  $thisObject['description_record'][$i] = $descriptionRecord;
1856  }
1857  break;
1858
1859  case GETID3_ASF_Language_List_Object:
1860  $thisObject['language_id_record_counts'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1861  $offset += 2;
1862
1863  for ($i = 0; $i < $thisObject['language_id_record_counts']; $i++) {
1864  $languageIDrecord = array();
1865
1866  $languageIDrecord['language_id_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 1));
1867  $offset += 1;
1868
1869  $languageIDrecord['language_id'] = substr($asf_header_extension_object_data, $offset, $languageIDrecord['language_id_length']);
1870  $offset += $languageIDrecord['language_id_length'];
1871
1872  $thisObject['language_id_record'][$i] = $languageIDrecord;
1873  }
1874  break;
1875
1876  case GETID3_ASF_Metadata_Library_Object:
1877  $thisObject['description_records_count'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1878  $offset += 2;
1879
1880  for ($i = 0; $i < $thisObject['description_records_count']; $i++) {
1881  $descriptionRecord = array();
1882
1883  $descriptionRecord['language_list_index'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1884  $offset += 2;
1885
1886  $descriptionRecord['stream_number'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1887  $offset += 2;
1888
1889  $descriptionRecord['name_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1890  $offset += 2;
1891
1892  $descriptionRecord['data_type'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 2));
1893  $offset += 2;
1894  $descriptionRecord['data_type_text'] = self::metadataLibraryObjectDataTypeLookup($descriptionRecord['data_type']);
1895
1896  $descriptionRecord['data_length'] = getid3_lib::LittleEndian2Int(substr($asf_header_extension_object_data, $offset, 4));
1897  $offset += 4;
1898
1899  $descriptionRecord['name'] = substr($asf_header_extension_object_data, $offset, $descriptionRecord['name_length']);
1900  $offset += $descriptionRecord['name_length'];
1901
1902  $descriptionRecord['data'] = substr($asf_header_extension_object_data, $offset, $descriptionRecord['data_length']);
1903  $offset += $descriptionRecord['data_length'];
1904
1905  if (preg_match('#^WM/Picture$#', str_replace("\x00", '', trim($descriptionRecord['name'])))) {
1906  $WMpicture = $this->ASF_WMpicture($descriptionRecord['data']);
1907  foreach ($WMpicture as $key => $value) {
1908  $descriptionRecord['data'] = $WMpicture;
1909  }
1910  unset($WMpicture);
1911  }
1912
1913  $thisObject['description_record'][$i] = $descriptionRecord;
1914  }
1915  break;
1916
1917  default:
1918  $unhandled_sections++;
1919  if ($this->GUIDname($thisObject['guid_text'])) {
1920  $this->getid3->info['warning'][] = 'unhandled Header Extension Object GUID "'.$this->GUIDname($thisObject['guid_text']).'" {'.$thisObject['guid_text'].'} at offset '.($offset - 16 - 8);
1921  } else {
1922  $this->getid3->info['warning'][] = 'unknown Header Extension Object GUID {'.$thisObject['guid_text'].'} in at offset '.($offset - 16 - 8);
1923  }
1924  break;
1925  }
1926  $HeaderExtensionObjectParsed[] = $thisObject;
1927
1928  $objectOffset += $thisObject['size'];
1929  }
1930  return $HeaderExtensionObjectParsed;
1931  }
LittleEndian2Int($byteword, $signed=false)
Definition: getid3.lib.php:266
FILETIMEtoUNIXtime($FILETIME, $round=true)
BytestringToGUID($Bytestring)
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ KnownGUIDs() [1/2]

getid3_asf::KnownGUIDs ( )

Definition at line 1381 of file module.audio-video.asf.php.

References $GUIDarray.

Referenced by __construct(), and GUIDname().

1381  {
1382  static $GUIDarray = array();
1383  if (empty($GUIDarray)) {
1384  $GUIDarray['GETID3_ASF_Extended_Stream_Properties_Object'] = '14E6A5CB-C672-4332-8399-A96952065B5A';
1385  $GUIDarray['GETID3_ASF_Padding_Object'] = '1806D474-CADF-4509-A4BA-9AABCB96AAE8';
1386  $GUIDarray['GETID3_ASF_Payload_Ext_Syst_Pixel_Aspect_Ratio'] = '1B1EE554-F9EA-4BC8-821A-376B74E4C4B8';
1387  $GUIDarray['GETID3_ASF_Script_Command_Object'] = '1EFB1A30-0B62-11D0-A39B-00A0C90348F6';
1388  $GUIDarray['GETID3_ASF_No_Error_Correction'] = '20FB5700-5B55-11CF-A8FD-00805F5C442B';
1389  $GUIDarray['GETID3_ASF_Content_Branding_Object'] = '2211B3FA-BD23-11D2-B4B7-00A0C955FC6E';
1390  $GUIDarray['GETID3_ASF_Content_Encryption_Object'] = '2211B3FB-BD23-11D2-B4B7-00A0C955FC6E';
1391  $GUIDarray['GETID3_ASF_Digital_Signature_Object'] = '2211B3FC-BD23-11D2-B4B7-00A0C955FC6E';
1392  $GUIDarray['GETID3_ASF_Extended_Content_Encryption_Object'] = '298AE614-2622-4C17-B935-DAE07EE9289C';
1393  $GUIDarray['GETID3_ASF_Simple_Index_Object'] = '33000890-E5B1-11CF-89F4-00A0C90349CB';
1394  $GUIDarray['GETID3_ASF_Degradable_JPEG_Media'] = '35907DE0-E415-11CF-A917-00805F5C442B';
1395  $GUIDarray['GETID3_ASF_Payload_Extension_System_Timecode'] = '399595EC-8667-4E2D-8FDB-98814CE76C1E';
1396  $GUIDarray['GETID3_ASF_Binary_Media'] = '3AFB65E2-47EF-40F2-AC2C-70A90D71D343';
1397  $GUIDarray['GETID3_ASF_Timecode_Index_Object'] = '3CB73FD0-0C4A-4803-953D-EDF7B6228F0C';
1398  $GUIDarray['GETID3_ASF_Metadata_Library_Object'] = '44231C94-9498-49D1-A141-1D134E457054';
1399  $GUIDarray['GETID3_ASF_Reserved_3'] = '4B1ACBE3-100B-11D0-A39B-00A0C90348F6';
1400  $GUIDarray['GETID3_ASF_Reserved_4'] = '4CFEDB20-75F6-11CF-9C0F-00A0C90349CB';
1401  $GUIDarray['GETID3_ASF_Command_Media'] = '59DACFC0-59E6-11D0-A3AC-00A0C90348F6';
1402  $GUIDarray['GETID3_ASF_Header_Extension_Object'] = '5FBF03B5-A92E-11CF-8EE3-00C00C205365';
1403  $GUIDarray['GETID3_ASF_Media_Object_Index_Parameters_Obj'] = '6B203BAD-3F11-4E84-ACA8-D7613DE2CFA7';
1404  $GUIDarray['GETID3_ASF_Header_Object'] = '75B22630-668E-11CF-A6D9-00AA0062CE6C';
1405  $GUIDarray['GETID3_ASF_Content_Description_Object'] = '75B22633-668E-11CF-A6D9-00AA0062CE6C';
1406  $GUIDarray['GETID3_ASF_Error_Correction_Object'] = '75B22635-668E-11CF-A6D9-00AA0062CE6C';
1407  $GUIDarray['GETID3_ASF_Data_Object'] = '75B22636-668E-11CF-A6D9-00AA0062CE6C';
1408  $GUIDarray['GETID3_ASF_Web_Stream_Media_Subtype'] = '776257D4-C627-41CB-8F81-7AC7FF1C40CC';
1409  $GUIDarray['GETID3_ASF_Stream_Bitrate_Properties_Object'] = '7BF875CE-468D-11D1-8D82-006097C9A2B2';
1410  $GUIDarray['GETID3_ASF_Language_List_Object'] = '7C4346A9-EFE0-4BFC-B229-393EDE415C85';
1411  $GUIDarray['GETID3_ASF_Codec_List_Object'] = '86D15240-311D-11D0-A3A4-00A0C90348F6';
1412  $GUIDarray['GETID3_ASF_Reserved_2'] = '86D15241-311D-11D0-A3A4-00A0C90348F6';
1413  $GUIDarray['GETID3_ASF_File_Properties_Object'] = '8CABDCA1-A947-11CF-8EE4-00C00C205365';
1414  $GUIDarray['GETID3_ASF_File_Transfer_Media'] = '91BD222C-F21C-497A-8B6D-5AA86BFC0185';
1415  $GUIDarray['GETID3_ASF_Old_RTP_Extension_Data'] = '96800C63-4C94-11D1-837B-0080C7A37F95';
1416  $GUIDarray['GETID3_ASF_Advanced_Mutual_Exclusion_Object'] = 'A08649CF-4775-4670-8A16-6E35357566CD';
1417  $GUIDarray['GETID3_ASF_Bandwidth_Sharing_Object'] = 'A69609E6-517B-11D2-B6AF-00C04FD908E9';
1418  $GUIDarray['GETID3_ASF_Reserved_1'] = 'ABD3D211-A9BA-11cf-8EE6-00C00C205365';
1419  $GUIDarray['GETID3_ASF_Bandwidth_Sharing_Exclusive'] = 'AF6060AA-5197-11D2-B6AF-00C04FD908E9';
1420  $GUIDarray['GETID3_ASF_Bandwidth_Sharing_Partial'] = 'AF6060AB-5197-11D2-B6AF-00C04FD908E9';
1421  $GUIDarray['GETID3_ASF_JFIF_Media'] = 'B61BE100-5B4E-11CF-A8FD-00805F5C442B';
1422  $GUIDarray['GETID3_ASF_Stream_Properties_Object'] = 'B7DC0791-A9B7-11CF-8EE6-00C00C205365';
1423  $GUIDarray['GETID3_ASF_Video_Media'] = 'BC19EFC0-5B4D-11CF-A8FD-00805F5C442B';
1424  $GUIDarray['GETID3_ASF_Audio_Spread'] = 'BFC3CD50-618F-11CF-8BB2-00AA00B4E220';
1425  $GUIDarray['GETID3_ASF_Metadata_Object'] = 'C5F8CBEA-5BAF-4877-8467-AA8C44FA4CCA';
1426  $GUIDarray['GETID3_ASF_Payload_Ext_Syst_Sample_Duration'] = 'C6BD9450-867F-4907-83A3-C77921B733AD';
1427  $GUIDarray['GETID3_ASF_Group_Mutual_Exclusion_Object'] = 'D1465A40-5A79-4338-B71B-E36B8FD6C249';
1428  $GUIDarray['GETID3_ASF_Extended_Content_Description_Object'] = 'D2D0A440-E307-11D2-97F0-00A0C95EA850';
1429  $GUIDarray['GETID3_ASF_Stream_Prioritization_Object'] = 'D4FED15B-88D3-454F-81F0-ED5C45999E24';
1430  $GUIDarray['GETID3_ASF_Payload_Ext_System_Content_Type'] = 'D590DC20-07BC-436C-9CF7-F3BBFBF1A4DC';
1431  $GUIDarray['GETID3_ASF_Old_File_Properties_Object'] = 'D6E229D0-35DA-11D1-9034-00A0C90349BE';
1432  $GUIDarray['GETID3_ASF_Old_ASF_Header_Object'] = 'D6E229D1-35DA-11D1-9034-00A0C90349BE';
1433  $GUIDarray['GETID3_ASF_Old_ASF_Data_Object'] = 'D6E229D2-35DA-11D1-9034-00A0C90349BE';
1434  $GUIDarray['GETID3_ASF_Index_Object'] = 'D6E229D3-35DA-11D1-9034-00A0C90349BE';
1435  $GUIDarray['GETID3_ASF_Old_Stream_Properties_Object'] = 'D6E229D4-35DA-11D1-9034-00A0C90349BE';
1436  $GUIDarray['GETID3_ASF_Old_Content_Description_Object'] = 'D6E229D5-35DA-11D1-9034-00A0C90349BE';
1437  $GUIDarray['GETID3_ASF_Old_Script_Command_Object'] = 'D6E229D6-35DA-11D1-9034-00A0C90349BE';
1438  $GUIDarray['GETID3_ASF_Old_Marker_Object'] = 'D6E229D7-35DA-11D1-9034-00A0C90349BE';
1439  $GUIDarray['GETID3_ASF_Old_Component_Download_Object'] = 'D6E229D8-35DA-11D1-9034-00A0C90349BE';
1440  $GUIDarray['GETID3_ASF_Old_Stream_Group_Object'] = 'D6E229D9-35DA-11D1-9034-00A0C90349BE';
1441  $GUIDarray['GETID3_ASF_Old_Scalable_Object'] = 'D6E229DA-35DA-11D1-9034-00A0C90349BE';
1442  $GUIDarray['GETID3_ASF_Old_Prioritization_Object'] = 'D6E229DB-35DA-11D1-9034-00A0C90349BE';
1443  $GUIDarray['GETID3_ASF_Bitrate_Mutual_Exclusion_Object'] = 'D6E229DC-35DA-11D1-9034-00A0C90349BE';
1444  $GUIDarray['GETID3_ASF_Old_Inter_Media_Dependency_Object'] = 'D6E229DD-35DA-11D1-9034-00A0C90349BE';
1445  $GUIDarray['GETID3_ASF_Old_Rating_Object'] = 'D6E229DE-35DA-11D1-9034-00A0C90349BE';
1446  $GUIDarray['GETID3_ASF_Index_Parameters_Object'] = 'D6E229DF-35DA-11D1-9034-00A0C90349BE';
1447  $GUIDarray['GETID3_ASF_Old_Color_Table_Object'] = 'D6E229E0-35DA-11D1-9034-00A0C90349BE';
1448  $GUIDarray['GETID3_ASF_Old_Language_List_Object'] = 'D6E229E1-35DA-11D1-9034-00A0C90349BE';
1449  $GUIDarray['GETID3_ASF_Old_Audio_Media'] = 'D6E229E2-35DA-11D1-9034-00A0C90349BE';
1450  $GUIDarray['GETID3_ASF_Old_Video_Media'] = 'D6E229E3-35DA-11D1-9034-00A0C90349BE';
1451  $GUIDarray['GETID3_ASF_Old_Image_Media'] = 'D6E229E4-35DA-11D1-9034-00A0C90349BE';
1452  $GUIDarray['GETID3_ASF_Old_Timecode_Media'] = 'D6E229E5-35DA-11D1-9034-00A0C90349BE';
1453  $GUIDarray['GETID3_ASF_Old_Text_Media'] = 'D6E229E6-35DA-11D1-9034-00A0C90349BE';
1454  $GUIDarray['GETID3_ASF_Old_MIDI_Media'] = 'D6E229E7-35DA-11D1-9034-00A0C90349BE';
1455  $GUIDarray['GETID3_ASF_Old_Command_Media'] = 'D6E229E8-35DA-11D1-9034-00A0C90349BE';
1456  $GUIDarray['GETID3_ASF_Old_No_Error_Concealment'] = 'D6E229EA-35DA-11D1-9034-00A0C90349BE';
1457  $GUIDarray['GETID3_ASF_Old_Scrambled_Audio'] = 'D6E229EB-35DA-11D1-9034-00A0C90349BE';
1458  $GUIDarray['GETID3_ASF_Old_No_Color_Table'] = 'D6E229EC-35DA-11D1-9034-00A0C90349BE';
1459  $GUIDarray['GETID3_ASF_Old_SMPTE_Time'] = 'D6E229ED-35DA-11D1-9034-00A0C90349BE';
1460  $GUIDarray['GETID3_ASF_Old_ASCII_Text'] = 'D6E229EE-35DA-11D1-9034-00A0C90349BE';
1461  $GUIDarray['GETID3_ASF_Old_Unicode_Text'] = 'D6E229EF-35DA-11D1-9034-00A0C90349BE';
1462  $GUIDarray['GETID3_ASF_Old_HTML_Text'] = 'D6E229F0-35DA-11D1-9034-00A0C90349BE';
1463  $GUIDarray['GETID3_ASF_Old_URL_Command'] = 'D6E229F1-35DA-11D1-9034-00A0C90349BE';
1464  $GUIDarray['GETID3_ASF_Old_Filename_Command'] = 'D6E229F2-35DA-11D1-9034-00A0C90349BE';
1465  $GUIDarray['GETID3_ASF_Old_ACM_Codec'] = 'D6E229F3-35DA-11D1-9034-00A0C90349BE';
1466  $GUIDarray['GETID3_ASF_Old_VCM_Codec'] = 'D6E229F4-35DA-11D1-9034-00A0C90349BE';
1467  $GUIDarray['GETID3_ASF_Old_QuickTime_Codec'] = 'D6E229F5-35DA-11D1-9034-00A0C90349BE';
1468  $GUIDarray['GETID3_ASF_Old_DirectShow_Transform_Filter'] = 'D6E229F6-35DA-11D1-9034-00A0C90349BE';
1469  $GUIDarray['GETID3_ASF_Old_DirectShow_Rendering_Filter'] = 'D6E229F7-35DA-11D1-9034-00A0C90349BE';
1470  $GUIDarray['GETID3_ASF_Old_No_Enhancement'] = 'D6E229F8-35DA-11D1-9034-00A0C90349BE';
1471  $GUIDarray['GETID3_ASF_Old_Unknown_Enhancement_Type'] = 'D6E229F9-35DA-11D1-9034-00A0C90349BE';
1472  $GUIDarray['GETID3_ASF_Old_Temporal_Enhancement'] = 'D6E229FA-35DA-11D1-9034-00A0C90349BE';
1473  $GUIDarray['GETID3_ASF_Old_Spatial_Enhancement'] = 'D6E229FB-35DA-11D1-9034-00A0C90349BE';
1474  $GUIDarray['GETID3_ASF_Old_Quality_Enhancement'] = 'D6E229FC-35DA-11D1-9034-00A0C90349BE';
1475  $GUIDarray['GETID3_ASF_Old_Number_of_Channels_Enhancement'] = 'D6E229FD-35DA-11D1-9034-00A0C90349BE';
1476  $GUIDarray['GETID3_ASF_Old_Frequency_Response_Enhancement'] = 'D6E229FE-35DA-11D1-9034-00A0C90349BE';
1477  $GUIDarray['GETID3_ASF_Old_Media_Object'] = 'D6E229FF-35DA-11D1-9034-00A0C90349BE';
1478  $GUIDarray['GETID3_ASF_Mutex_Language'] = 'D6E22A00-35DA-11D1-9034-00A0C90349BE';
1479  $GUIDarray['GETID3_ASF_Mutex_Bitrate'] = 'D6E22A01-35DA-11D1-9034-00A0C90349BE';
1480  $GUIDarray['GETID3_ASF_Mutex_Unknown'] = 'D6E22A02-35DA-11D1-9034-00A0C90349BE';
1481  $GUIDarray['GETID3_ASF_Old_ASF_Placeholder_Object'] = 'D6E22A0E-35DA-11D1-9034-00A0C90349BE';
1482  $GUIDarray['GETID3_ASF_Old_Data_Unit_Extension_Object'] = 'D6E22A0F-35DA-11D1-9034-00A0C90349BE';
1483  $GUIDarray['GETID3_ASF_Web_Stream_Format'] = 'DA1E6B13-8359-4050-B398-388E965BF00C';
1484  $GUIDarray['GETID3_ASF_Payload_Ext_System_File_Name'] = 'E165EC0E-19ED-45D7-B4A7-25CBD1E28E9B';
1485  $GUIDarray['GETID3_ASF_Marker_Object'] = 'F487CD01-A951-11CF-8EE6-00C00C205365';
1486  $GUIDarray['GETID3_ASF_Timecode_Index_Parameters_Object'] = 'F55E496D-9797-4B5D-8C8B-604DFE9BFB24';
1487  $GUIDarray['GETID3_ASF_Audio_Media'] = 'F8699E40-5B4D-11CF-A8FD-00805F5C442B';
1488  $GUIDarray['GETID3_ASF_Media_Object_Index_Object'] = 'FEB103F8-12AD-4C64-840F-2A1D2F7AD48C';
1489  $GUIDarray['GETID3_ASF_Alt_Extended_Content_Encryption_Obj'] = 'FF889EF1-ADEE-40DA-9E71-98704BB928CE';
1490  }
1491  return $GUIDarray;
1492  }
+ Here is the caller graph for this function:

◆ KnownGUIDs() [2/2]

static getid3_asf::KnownGUIDs ( )
static

Definition at line 1453 of file module.audio-video.asf.php.

References $GUIDarray.

1453  {
1454  static $GUIDarray = array(
1455  'GETID3_ASF_Extended_Stream_Properties_Object' => '14E6A5CB-C672-4332-8399-A96952065B5A',
1456  'GETID3_ASF_Padding_Object' => '1806D474-CADF-4509-A4BA-9AABCB96AAE8',
1457  'GETID3_ASF_Payload_Ext_Syst_Pixel_Aspect_Ratio' => '1B1EE554-F9EA-4BC8-821A-376B74E4C4B8',
1458  'GETID3_ASF_Script_Command_Object' => '1EFB1A30-0B62-11D0-A39B-00A0C90348F6',
1459  'GETID3_ASF_No_Error_Correction' => '20FB5700-5B55-11CF-A8FD-00805F5C442B',
1460  'GETID3_ASF_Content_Branding_Object' => '2211B3FA-BD23-11D2-B4B7-00A0C955FC6E',
1461  'GETID3_ASF_Content_Encryption_Object' => '2211B3FB-BD23-11D2-B4B7-00A0C955FC6E',
1462  'GETID3_ASF_Digital_Signature_Object' => '2211B3FC-BD23-11D2-B4B7-00A0C955FC6E',
1463  'GETID3_ASF_Extended_Content_Encryption_Object' => '298AE614-2622-4C17-B935-DAE07EE9289C',
1464  'GETID3_ASF_Simple_Index_Object' => '33000890-E5B1-11CF-89F4-00A0C90349CB',
1465  'GETID3_ASF_Degradable_JPEG_Media' => '35907DE0-E415-11CF-A917-00805F5C442B',
1466  'GETID3_ASF_Payload_Extension_System_Timecode' => '399595EC-8667-4E2D-8FDB-98814CE76C1E',
1467  'GETID3_ASF_Binary_Media' => '3AFB65E2-47EF-40F2-AC2C-70A90D71D343',
1468  'GETID3_ASF_Timecode_Index_Object' => '3CB73FD0-0C4A-4803-953D-EDF7B6228F0C',
1469  'GETID3_ASF_Metadata_Library_Object' => '44231C94-9498-49D1-A141-1D134E457054',
1470  'GETID3_ASF_Reserved_3' => '4B1ACBE3-100B-11D0-A39B-00A0C90348F6',
1471  'GETID3_ASF_Reserved_4' => '4CFEDB20-75F6-11CF-9C0F-00A0C90349CB',
1472  'GETID3_ASF_Command_Media' => '59DACFC0-59E6-11D0-A3AC-00A0C90348F6',
1473  'GETID3_ASF_Header_Extension_Object' => '5FBF03B5-A92E-11CF-8EE3-00C00C205365',
1474  'GETID3_ASF_Media_Object_Index_Parameters_Obj' => '6B203BAD-3F11-4E84-ACA8-D7613DE2CFA7',
1475  'GETID3_ASF_Header_Object' => '75B22630-668E-11CF-A6D9-00AA0062CE6C',
1476  'GETID3_ASF_Content_Description_Object' => '75B22633-668E-11CF-A6D9-00AA0062CE6C',
1477  'GETID3_ASF_Error_Correction_Object' => '75B22635-668E-11CF-A6D9-00AA0062CE6C',
1478  'GETID3_ASF_Data_Object' => '75B22636-668E-11CF-A6D9-00AA0062CE6C',
1479  'GETID3_ASF_Web_Stream_Media_Subtype' => '776257D4-C627-41CB-8F81-7AC7FF1C40CC',
1480  'GETID3_ASF_Stream_Bitrate_Properties_Object' => '7BF875CE-468D-11D1-8D82-006097C9A2B2',
1481  'GETID3_ASF_Language_List_Object' => '7C4346A9-EFE0-4BFC-B229-393EDE415C85',
1482  'GETID3_ASF_Codec_List_Object' => '86D15240-311D-11D0-A3A4-00A0C90348F6',
1483  'GETID3_ASF_Reserved_2' => '86D15241-311D-11D0-A3A4-00A0C90348F6',
1484  'GETID3_ASF_File_Properties_Object' => '8CABDCA1-A947-11CF-8EE4-00C00C205365',
1485  'GETID3_ASF_File_Transfer_Media' => '91BD222C-F21C-497A-8B6D-5AA86BFC0185',
1486  'GETID3_ASF_Old_RTP_Extension_Data' => '96800C63-4C94-11D1-837B-0080C7A37F95',
1487  'GETID3_ASF_Advanced_Mutual_Exclusion_Object' => 'A08649CF-4775-4670-8A16-6E35357566CD',
1488  'GETID3_ASF_Bandwidth_Sharing_Object' => 'A69609E6-517B-11D2-B6AF-00C04FD908E9',
1489  'GETID3_ASF_Reserved_1' => 'ABD3D211-A9BA-11cf-8EE6-00C00C205365',
1490  'GETID3_ASF_Bandwidth_Sharing_Exclusive' => 'AF6060AA-5197-11D2-B6AF-00C04FD908E9',
1491  'GETID3_ASF_Bandwidth_Sharing_Partial' => 'AF6060AB-5197-11D2-B6AF-00C04FD908E9',
1492  'GETID3_ASF_JFIF_Media' => 'B61BE100-5B4E-11CF-A8FD-00805F5C442B',
1493  'GETID3_ASF_Stream_Properties_Object' => 'B7DC0791-A9B7-11CF-8EE6-00C00C205365',
1494  'GETID3_ASF_Video_Media' => 'BC19EFC0-5B4D-11CF-A8FD-00805F5C442B',
1495  'GETID3_ASF_Audio_Spread' => 'BFC3CD50-618F-11CF-8BB2-00AA00B4E220',
1496  'GETID3_ASF_Metadata_Object' => 'C5F8CBEA-5BAF-4877-8467-AA8C44FA4CCA',
1497  'GETID3_ASF_Payload_Ext_Syst_Sample_Duration' => 'C6BD9450-867F-4907-83A3-C77921B733AD',
1498  'GETID3_ASF_Group_Mutual_Exclusion_Object' => 'D1465A40-5A79-4338-B71B-E36B8FD6C249',
1499  'GETID3_ASF_Extended_Content_Description_Object' => 'D2D0A440-E307-11D2-97F0-00A0C95EA850',
1500  'GETID3_ASF_Stream_Prioritization_Object' => 'D4FED15B-88D3-454F-81F0-ED5C45999E24',
1501  'GETID3_ASF_Payload_Ext_System_Content_Type' => 'D590DC20-07BC-436C-9CF7-F3BBFBF1A4DC',
1502  'GETID3_ASF_Old_File_Properties_Object' => 'D6E229D0-35DA-11D1-9034-00A0C90349BE',
1503  'GETID3_ASF_Old_ASF_Header_Object' => 'D6E229D1-35DA-11D1-9034-00A0C90349BE',
1504  'GETID3_ASF_Old_ASF_Data_Object' => 'D6E229D2-35DA-11D1-9034-00A0C90349BE',
1505  'GETID3_ASF_Index_Object' => 'D6E229D3-35DA-11D1-9034-00A0C90349BE',
1506  'GETID3_ASF_Old_Stream_Properties_Object' => 'D6E229D4-35DA-11D1-9034-00A0C90349BE',
1507  'GETID3_ASF_Old_Content_Description_Object' => 'D6E229D5-35DA-11D1-9034-00A0C90349BE',
1508  'GETID3_ASF_Old_Script_Command_Object' => 'D6E229D6-35DA-11D1-9034-00A0C90349BE',
1509  'GETID3_ASF_Old_Marker_Object' => 'D6E229D7-35DA-11D1-9034-00A0C90349BE',
1510  'GETID3_ASF_Old_Component_Download_Object' => 'D6E229D8-35DA-11D1-9034-00A0C90349BE',
1511  'GETID3_ASF_Old_Stream_Group_Object' => 'D6E229D9-35DA-11D1-9034-00A0C90349BE',
1512  'GETID3_ASF_Old_Scalable_Object' => 'D6E229DA-35DA-11D1-9034-00A0C90349BE',
1513  'GETID3_ASF_Old_Prioritization_Object' => 'D6E229DB-35DA-11D1-9034-00A0C90349BE',
1514  'GETID3_ASF_Bitrate_Mutual_Exclusion_Object' => 'D6E229DC-35DA-11D1-9034-00A0C90349BE',
1515  'GETID3_ASF_Old_Inter_Media_Dependency_Object' => 'D6E229DD-35DA-11D1-9034-00A0C90349BE',
1516  'GETID3_ASF_Old_Rating_Object' => 'D6E229DE-35DA-11D1-9034-00A0C90349BE',
1517  'GETID3_ASF_Index_Parameters_Object' => 'D6E229DF-35DA-11D1-9034-00A0C90349BE',
1518  'GETID3_ASF_Old_Color_Table_Object' => 'D6E229E0-35DA-11D1-9034-00A0C90349BE',
1519  'GETID3_ASF_Old_Language_List_Object' => 'D6E229E1-35DA-11D1-9034-00A0C90349BE',
1520  'GETID3_ASF_Old_Audio_Media' => 'D6E229E2-35DA-11D1-9034-00A0C90349BE',
1521  'GETID3_ASF_Old_Video_Media' => 'D6E229E3-35DA-11D1-9034-00A0C90349BE',
1522  'GETID3_ASF_Old_Image_Media' => 'D6E229E4-35DA-11D1-9034-00A0C90349BE',
1523  'GETID3_ASF_Old_Timecode_Media' => 'D6E229E5-35DA-11D1-9034-00A0C90349BE',
1524  'GETID3_ASF_Old_Text_Media' => 'D6E229E6-35DA-11D1-9034-00A0C90349BE',
1525  'GETID3_ASF_Old_MIDI_Media' => 'D6E229E7-35DA-11D1-9034-00A0C90349BE',
1526  'GETID3_ASF_Old_Command_Media' => 'D6E229E8-35DA-11D1-9034-00A0C90349BE',
1527  'GETID3_ASF_Old_No_Error_Concealment' => 'D6E229EA-35DA-11D1-9034-00A0C90349BE',
1528  'GETID3_ASF_Old_Scrambled_Audio' => 'D6E229EB-35DA-11D1-9034-00A0C90349BE',
1529  'GETID3_ASF_Old_No_Color_Table' => 'D6E229EC-35DA-11D1-9034-00A0C90349BE',
1530  'GETID3_ASF_Old_SMPTE_Time' => 'D6E229ED-35DA-11D1-9034-00A0C90349BE',
1531  'GETID3_ASF_Old_ASCII_Text' => 'D6E229EE-35DA-11D1-9034-00A0C90349BE',
1532  'GETID3_ASF_Old_Unicode_Text' => 'D6E229EF-35DA-11D1-9034-00A0C90349BE',
1533  'GETID3_ASF_Old_HTML_Text' => 'D6E229F0-35DA-11D1-9034-00A0C90349BE',
1534  'GETID3_ASF_Old_URL_Command' => 'D6E229F1-35DA-11D1-9034-00A0C90349BE',
1535  'GETID3_ASF_Old_Filename_Command' => 'D6E229F2-35DA-11D1-9034-00A0C90349BE',
1536  'GETID3_ASF_Old_ACM_Codec' => 'D6E229F3-35DA-11D1-9034-00A0C90349BE',
1537  'GETID3_ASF_Old_VCM_Codec' => 'D6E229F4-35DA-11D1-9034-00A0C90349BE',
1538  'GETID3_ASF_Old_QuickTime_Codec' => 'D6E229F5-35DA-11D1-9034-00A0C90349BE',
1539  'GETID3_ASF_Old_DirectShow_Transform_Filter' => 'D6E229F6-35DA-11D1-9034-00A0C90349BE',
1540  'GETID3_ASF_Old_DirectShow_Rendering_Filter' => 'D6E229F7-35DA-11D1-9034-00A0C90349BE',
1541  'GETID3_ASF_Old_No_Enhancement' => 'D6E229F8-35DA-11D1-9034-00A0C90349BE',
1542  'GETID3_ASF_Old_Unknown_Enhancement_Type' => 'D6E229F9-35DA-11D1-9034-00A0C90349BE',
1543  'GETID3_ASF_Old_Temporal_Enhancement' => 'D6E229FA-35DA-11D1-9034-00A0C90349BE',
1544  'GETID3_ASF_Old_Spatial_Enhancement' => 'D6E229FB-35DA-11D1-9034-00A0C90349BE',
1545  'GETID3_ASF_Old_Quality_Enhancement' => 'D6E229FC-35DA-11D1-9034-00A0C90349BE',
1546  'GETID3_ASF_Old_Number_of_Channels_Enhancement' => 'D6E229FD-35DA-11D1-9034-00A0C90349BE',
1547  'GETID3_ASF_Old_Frequency_Response_Enhancement' => 'D6E229FE-35DA-11D1-9034-00A0C90349BE',
1548  'GETID3_ASF_Old_Media_Object' => 'D6E229FF-35DA-11D1-9034-00A0C90349BE',
1549  'GETID3_ASF_Mutex_Language' => 'D6E22A00-35DA-11D1-9034-00A0C90349BE',
1550  'GETID3_ASF_Mutex_Bitrate' => 'D6E22A01-35DA-11D1-9034-00A0C90349BE',
1551  'GETID3_ASF_Mutex_Unknown' => 'D6E22A02-35DA-11D1-9034-00A0C90349BE',
1552  'GETID3_ASF_Old_ASF_Placeholder_Object' => 'D6E22A0E-35DA-11D1-9034-00A0C90349BE',
1553  'GETID3_ASF_Old_Data_Unit_Extension_Object' => 'D6E22A0F-35DA-11D1-9034-00A0C90349BE',
1554  'GETID3_ASF_Web_Stream_Format' => 'DA1E6B13-8359-4050-B398-388E965BF00C',
1555  'GETID3_ASF_Payload_Ext_System_File_Name' => 'E165EC0E-19ED-45D7-B4A7-25CBD1E28E9B',
1556  'GETID3_ASF_Marker_Object' => 'F487CD01-A951-11CF-8EE6-00C00C205365',
1557  'GETID3_ASF_Timecode_Index_Parameters_Object' => 'F55E496D-9797-4B5D-8C8B-604DFE9BFB24',
1558  'GETID3_ASF_Audio_Media' => 'F8699E40-5B4D-11CF-A8FD-00805F5C442B',
1559  'GETID3_ASF_Media_Object_Index_Object' => 'FEB103F8-12AD-4C64-840F-2A1D2F7AD48C',
1560  'GETID3_ASF_Alt_Extended_Content_Encryption_Obj' => 'FF889EF1-ADEE-40DA-9E71-98704BB928CE',
1561  'GETID3_ASF_Index_Placeholder_Object' => 'D9AADE20-7C17-4F9C-BC28-8555DD98E2A2', // http://cpan.uwinnipeg.ca/htdocs/Audio-WMA/Audio/WMA.pm.html
1562  'GETID3_ASF_Compatibility_Object' => '26F18B5D-4584-47EC-9F5F-0E651F0452C9', // http://cpan.uwinnipeg.ca/htdocs/Audio-WMA/Audio/WMA.pm.html
1563  );
1564  return $GUIDarray;
1565  }

◆ metadataLibraryObjectDataTypeLookup()

static getid3_asf::metadataLibraryObjectDataTypeLookup (   $id)
static

Definition at line 1934 of file module.audio-video.asf.php.

1934  {
1935  static $lookup = array(
1936  0x0000 => 'Unicode string', // The data consists of a sequence of Unicode characters
1937  0x0001 => 'BYTE array', // The type of the data is implementation-specific
1938  0x0002 => 'BOOL', // The data is 2 bytes long and should be interpreted as a 16-bit unsigned integer. Only 0x0000 or 0x0001 are permitted values
1939  0x0003 => 'DWORD', // The data is 4 bytes long and should be interpreted as a 32-bit unsigned integer
1940  0x0004 => 'QWORD', // The data is 8 bytes long and should be interpreted as a 64-bit unsigned integer
1941  0x0005 => 'WORD', // The data is 2 bytes long and should be interpreted as a 16-bit unsigned integer
1942  0x0006 => 'GUID', // The data is 16 bytes long and should be interpreted as a 128-bit GUID
1943  );
1944  return (isset($lookup[$id]) ? $lookup[$id] : 'invalid');
1945  }

◆ TrimConvert() [1/2]

getid3_asf::TrimConvert (   $string)

Definition at line 1610 of file module.audio-video.asf.php.

References getid3_lib\iconv_fallback().

Referenced by Analyze(), and getid3_asf().

1610  {
1611
1612  // remove terminator, only if present (it should be, but...)
1613  if (substr($string, strlen($string) - 2, 2) == "\x00\x00") {
1614  $string = substr($string, 0, strlen($string) - 2);
1615  }
1616
1617  // convert
1618  return trim(getid3_lib::iconv_fallback('UTF-16LE', 'ISO-8859-1', $string), ' ');
1619  }
iconv_fallback($in_charset, $out_charset, $string)
Definition: getid3.lib.php:951
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ TrimConvert() [2/2]

static getid3_asf::TrimConvert (   $string)
static

Definition at line 1999 of file module.audio-video.asf.php.

References getid3_lib\iconv_fallback().

1999  {
2000  return trim(getid3_lib::iconv_fallback('UTF-16LE', 'ISO-8859-1', self::TrimTerm($string)), ' ');
2001  }
iconv_fallback($in_charset, $out_charset, $string)
Definition: getid3.lib.php:951
+ Here is the call graph for this function:

◆ TrimTerm() [1/2]

getid3_asf::TrimTerm (   $string)

Definition at line 1622 of file module.audio-video.asf.php.

Referenced by Analyze(), and getid3_asf().

1622  {
1623
1624  // remove terminator, only if present (it should be, but...)
1625  if (substr($string, -2) == "\x00\x00") {
1626  $string = substr($string, 0, -2);
1627  }
1628  return $string;
1629  }
+ Here is the caller graph for this function:

◆ TrimTerm() [2/2]

static getid3_asf::TrimTerm (   $string)
static

Definition at line 2005 of file module.audio-video.asf.php.

2005  {
2006  // remove terminator, only if present (it should be, but...)
2007  if (substr($string, -2) === "\x00\x00") {
2008  $string = substr($string, 0, -2);
2009  }
2010  return $string;
2011  }

◆ WMpictureTypeLookup() [1/2]

getid3_asf::WMpictureTypeLookup (   $WMpictureType)

Definition at line 1583 of file module.audio-video.asf.php.

References getid3_lib\iconv_fallback().

Referenced by getid3_asf().

1583  {
1584  static $WMpictureTypeLookup = array();
1585  if (empty($WMpictureTypeLookup)) {
1586  $WMpictureTypeLookup[0x03] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Front Cover');
1587  $WMpictureTypeLookup[0x04] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Back Cover');
1588  $WMpictureTypeLookup[0x00] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'User Defined');
1589  $WMpictureTypeLookup[0x05] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Leaflet Page');
1590  $WMpictureTypeLookup[0x06] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Media Label');
1591  $WMpictureTypeLookup[0x07] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Lead Artist');
1592  $WMpictureTypeLookup[0x08] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Artist');
1593  $WMpictureTypeLookup[0x09] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Conductor');
1594  $WMpictureTypeLookup[0x0A] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Band');
1595  $WMpictureTypeLookup[0x0B] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Composer');
1596  $WMpictureTypeLookup[0x0C] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Lyricist');
1597  $WMpictureTypeLookup[0x0D] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Recording Location');
1598  $WMpictureTypeLookup[0x0E] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'During Recording');
1599  $WMpictureTypeLookup[0x0F] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'During Performance');
1600  $WMpictureTypeLookup[0x10] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Video Screen Capture');
1601  $WMpictureTypeLookup[0x12] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Illustration');
1602  $WMpictureTypeLookup[0x13] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Band Logotype');
1603  $WMpictureTypeLookup[0x14] = getid3_lib::iconv_fallback('ISO-8859-1', 'UTF-16LE', 'Publisher Logotype');
1604  }
1605  return @$WMpictureTypeLookup[$WMpictureType];
1606  }
iconv_fallback($in_charset, $out_charset, $string)
Definition: getid3.lib.php:951
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ WMpictureTypeLookup() [2/2]

static getid3_asf::WMpictureTypeLookup (   $WMpictureType)
static

Definition at line 1656 of file module.audio-video.asf.php.

References getid3_lib\iconv_fallback().

1656  {
1657  static $lookup = null;
1658  if ($lookup === null) {
1659  $lookup = array(
1660  0x03 => 'Front Cover',
1661  0x04 => 'Back Cover',
1662  0x00 => 'User Defined',
1663  0x05 => 'Leaflet Page',
1664  0x06 => 'Media Label',
1665  0x07 => 'Lead Artist',
1666  0x08 => 'Artist',
1667  0x09 => 'Conductor',
1668  0x0A => 'Band',
1669  0x0B => 'Composer',
1670  0x0C => 'Lyricist',
1671  0x0D => 'Recording Location',
1672  0x0E => 'During Recording',
1673  0x0F => 'During Performance',
1674  0x10 => 'Video Screen Capture',
1675  0x12 => 'Illustration',
1676  0x13 => 'Band Logotype',
1677  0x14 => 'Publisher Logotype'
1678  );
1679  $lookup = array_map(function($str) {
1680  return getid3_lib::iconv_fallback('UTF-8', 'UTF-16LE', $str);
1681  }, $lookup);
1682  }
1683
1684  return (isset($lookup[$WMpictureType]) ? $lookup[$WMpictureType] : '');
1685  }
iconv_fallback($in_charset, $out_charset, $string)
Definition: getid3.lib.php:951
+ Here is the call graph for this function:

The documentation for this class was generated from the following file:
