getid3_aac Class Reference

getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g // More...

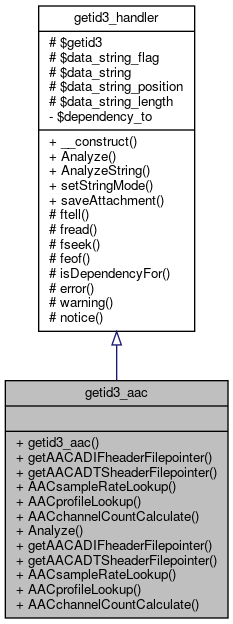

+ Inheritance diagram for getid3_aac:
+ Collaboration diagram for getid3_aac:

Public Member Functions

 getid3_aac (&$fd, &$ThisFileInfo, $option)

 getAACADIFheaderFilepointer (&$fd, &$ThisFileInfo)

 getAACADTSheaderFilepointer (&$fd, &$ThisFileInfo, $MaxFramesToScan=1000000, $ReturnExtendedInfo=false)

 AACsampleRateLookup ($samplerateid)

 AACprofileLookup ($profileid, $mpegversion)

 AACchannelCountCalculate ($program_configs)

 Analyze ()

 getAACADIFheaderFilepointer ()

 getAACADTSheaderFilepointer ($MaxFramesToScan=1000000, $ReturnExtendedInfo=false)

- Public Member Functions inherited from getid3_handler
 __construct (getID3 $getid3, $call_module=null)

 Analyze ()

 AnalyzeString ($string)

 setStringMode ($string)

 saveAttachment ($name, $offset, $length, $image_mime=null)


Static Public Member Functions

static AACsampleRateLookup ($samplerateid)

static AACprofileLookup ($profileid, $mpegversion)

static AACchannelCountCalculate ($program_configs)


Additional Inherited Members

- Protected Member Functions inherited from getid3_handler
 ftell ()

 fread ($bytes)

 fseek ($bytes, $whence=SEEK_SET)

 feof ()

 isDependencyFor ($module)

 error ($text)

 warning ($text)

 notice ($text)

- Protected Attributes inherited from getid3_handler
 $getid3

 $data_string_flag = false

 $data_string = ''

 $data_string_position = 0

 $data_string_length = 0


Detailed Description

getID3() by James Heinrich info@.nosp@m.geti.nosp@m.d3.or.nosp@m.g //

Definition at line 17 of file module.audio.aac.php.

Member Function Documentation

◆ AACchannelCountCalculate() [1/2]

static getid3_aac::AACchannelCountCalculate (   $program_configs)
static

Definition at line 484 of file module.audio.aac.php.

484  {
485  $channels = 0;
486  for ($i = 0; $i < $program_configs['num_front_channel_elements']; $i++) {
487  $channels++;
488  if ($program_configs['front_element_is_cpe'][$i]) {
489  // each front element is channel pair (CPE = Channel Pair Element)
490  $channels++;
491  }
492  }
493  for ($i = 0; $i < $program_configs['num_side_channel_elements']; $i++) {
494  $channels++;
495  if ($program_configs['side_element_is_cpe'][$i]) {
496  // each side element is channel pair (CPE = Channel Pair Element)
497  $channels++;
498  }
499  }
500  for ($i = 0; $i < $program_configs['num_back_channel_elements']; $i++) {
501  $channels++;
502  if ($program_configs['back_element_is_cpe'][$i]) {
503  // each back element is channel pair (CPE = Channel Pair Element)
504  $channels++;
505  }
506  }
507  for ($i = 0; $i < $program_configs['num_lfe_channel_elements']; $i++) {
508  $channels++;
509  }
510  return $channels;
511  }

◆ AACchannelCountCalculate() [2/2]

getid3_aac::AACchannelCountCalculate (   $program_configs)

Definition at line 506 of file module.audio.aac.php.

Referenced by getAACADIFheaderFilepointer().

506  {
507  $channels = 0;
508  for ($i = 0; $i < $program_configs['num_front_channel_elements']; $i++) {
509  $channels++;
510  if ($program_configs['front_element_is_cpe'][$i]) {
511  // each front element is channel pair (CPE = Channel Pair Element)
512  $channels++;
513  }
514  }
515  for ($i = 0; $i < $program_configs['num_side_channel_elements']; $i++) {
516  $channels++;
517  if ($program_configs['side_element_is_cpe'][$i]) {
518  // each side element is channel pair (CPE = Channel Pair Element)
519  $channels++;
520  }
521  }
522  for ($i = 0; $i < $program_configs['num_back_channel_elements']; $i++) {
523  $channels++;
524  if ($program_configs['back_element_is_cpe'][$i]) {
525  // each back element is channel pair (CPE = Channel Pair Element)
526  $channels++;
527  }
528  }
529  for ($i = 0; $i < $program_configs['num_lfe_channel_elements']; $i++) {
530  $channels++;
531  }
532  return $channels;
533  }
+ Here is the caller graph for this function:

◆ AACprofileLookup() [1/2]

static getid3_aac::AACprofileLookup (   $profileid,
  $mpegversion
)
static

Definition at line 469 of file module.audio.aac.php.

469  {
470  static $AACprofileLookup = array();
471  if (empty($AACprofileLookup)) {
472  $AACprofileLookup[2][0] = 'Main profile';
473  $AACprofileLookup[2][1] = 'Low Complexity profile (LC)';
474  $AACprofileLookup[2][2] = 'Scalable Sample Rate profile (SSR)';
475  $AACprofileLookup[2][3] = '(reserved)';
476  $AACprofileLookup[4][0] = 'AAC_MAIN';
477  $AACprofileLookup[4][1] = 'AAC_LC';
478  $AACprofileLookup[4][2] = 'AAC_SSR';
479  $AACprofileLookup[4][3] = 'AAC_LTP';
480  }
481  return (isset($AACprofileLookup[$mpegversion][$profileid]) ? $AACprofileLookup[$mpegversion][$profileid] : 'invalid');
482  }

◆ AACprofileLookup() [2/2]

getid3_aac::AACprofileLookup (   $profileid,
  $mpegversion
)

Definition at line 491 of file module.audio.aac.php.

Referenced by getAACADIFheaderFilepointer(), and getAACADTSheaderFilepointer().

491  {
492  static $AACprofileLookup = array();
493  if (empty($AACprofileLookup)) {
494  $AACprofileLookup[2][0] = 'Main profile';
495  $AACprofileLookup[2][1] = 'Low Complexity profile (LC)';
496  $AACprofileLookup[2][2] = 'Scalable Sample Rate profile (SSR)';
497  $AACprofileLookup[2][3] = '(reserved)';
498  $AACprofileLookup[4][0] = 'AAC_MAIN';
499  $AACprofileLookup[4][1] = 'AAC_LC';
500  $AACprofileLookup[4][2] = 'AAC_SSR';
501  $AACprofileLookup[4][3] = 'AAC_LTP';
502  }
503  return (isset($AACprofileLookup[$mpegversion][$profileid]) ? $AACprofileLookup[$mpegversion][$profileid] : 'invalid');
504  }
+ Here is the caller graph for this function:

◆ AACsampleRateLookup() [1/2]

static getid3_aac::AACsampleRateLookup (   $samplerateid)
static

Definition at line 446 of file module.audio.aac.php.

446  {
447  static $AACsampleRateLookup = array();
448  if (empty($AACsampleRateLookup)) {
449  $AACsampleRateLookup[0] = 96000;
450  $AACsampleRateLookup[1] = 88200;
451  $AACsampleRateLookup[2] = 64000;
452  $AACsampleRateLookup[3] = 48000;
453  $AACsampleRateLookup[4] = 44100;
454  $AACsampleRateLookup[5] = 32000;
455  $AACsampleRateLookup[6] = 24000;
456  $AACsampleRateLookup[7] = 22050;
457  $AACsampleRateLookup[8] = 16000;
458  $AACsampleRateLookup[9] = 12000;
459  $AACsampleRateLookup[10] = 11025;
460  $AACsampleRateLookup[11] = 8000;
461  $AACsampleRateLookup[12] = 0;
462  $AACsampleRateLookup[13] = 0;
463  $AACsampleRateLookup[14] = 0;
464  $AACsampleRateLookup[15] = 0;
465  }
466  return (isset($AACsampleRateLookup[$samplerateid]) ? $AACsampleRateLookup[$samplerateid] : 'invalid');
467  }

◆ AACsampleRateLookup() [2/2]

getid3_aac::AACsampleRateLookup (   $samplerateid)

Definition at line 468 of file module.audio.aac.php.

Referenced by getAACADIFheaderFilepointer(), and getAACADTSheaderFilepointer().

468  {
469  static $AACsampleRateLookup = array();
470  if (empty($AACsampleRateLookup)) {
471  $AACsampleRateLookup[0] = 96000;
472  $AACsampleRateLookup[1] = 88200;
473  $AACsampleRateLookup[2] = 64000;
474  $AACsampleRateLookup[3] = 48000;
475  $AACsampleRateLookup[4] = 44100;
476  $AACsampleRateLookup[5] = 32000;
477  $AACsampleRateLookup[6] = 24000;
478  $AACsampleRateLookup[7] = 22050;
479  $AACsampleRateLookup[8] = 16000;
480  $AACsampleRateLookup[9] = 12000;
481  $AACsampleRateLookup[10] = 11025;
482  $AACsampleRateLookup[11] = 8000;
483  $AACsampleRateLookup[12] = 0;
484  $AACsampleRateLookup[13] = 0;
485  $AACsampleRateLookup[14] = 0;
486  $AACsampleRateLookup[15] = 0;
487  }
488  return (isset($AACsampleRateLookup[$samplerateid]) ? $AACsampleRateLookup[$samplerateid] : 'invalid');
489  }

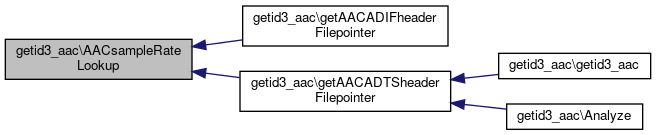

+ Here is the caller graph for this function:

◆ Analyze()

getid3_aac::Analyze ( )

Definition at line 20 of file module.audio.aac.php.

References $info, getid3_handler\fread(), getid3_handler\fseek(), getAACADIFheaderFilepointer(), and getAACADTSheaderFilepointer().

20  {
21  $info = &$this->getid3->info;
22  $this->fseek($info['avdataoffset']);
23  if ($this->fread(4) == 'ADIF') {
24  $this->getAACADIFheaderFilepointer();
25  } else {
26  $this->getAACADTSheaderFilepointer();
27  }
28  return true;
29  }
getid3_aac\getAACADIFheaderFilepointer
getAACADIFheaderFilepointer()
Definition: module.audio.aac.php:33
$info
$info
Definition: example_052.php:80
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
getid3_aac\getAACADTSheaderFilepointer
getAACADTSheaderFilepointer(&$fd, &$ThisFileInfo, $MaxFramesToScan=1000000, $ReturnExtendedInfo=false)
Definition: module.audio.aac.php:260

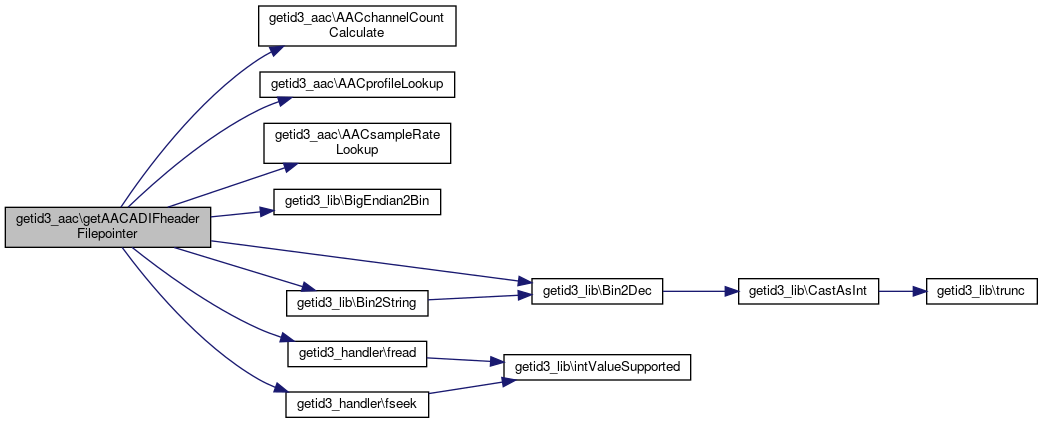

+ Here is the call graph for this function:

◆ getAACADIFheaderFilepointer() [1/2]

getid3_aac::getAACADIFheaderFilepointer ( )

Definition at line 33 of file module.audio.aac.php.

References $info, getid3_lib\BigEndian2Bin(), getid3_lib\Bin2Dec(), getid3_lib\Bin2String(), getid3_handler\fread(), and getid3_handler\fseek().

Referenced by Analyze(), and getid3_aac().

33  {
34  $info = &$this->getid3->info;
35  $info['fileformat'] = 'aac';
36  $info['audio']['dataformat'] = 'aac';
37  $info['audio']['lossless'] = false;
38
39  $this->fseek($info['avdataoffset']);
40  $AACheader = $this->fread(1024);
41  $offset = 0;
42
43  if (substr($AACheader, 0, 4) == 'ADIF') {
44
45  // http://faac.sourceforge.net/wiki/index.php?page=ADIF
46
47  // http://libmpeg.org/mpeg4/doc/w2203tfs.pdf
48  // adif_header() {
49  // adif_id 32
50  // copyright_id_present 1
51  // if( copyright_id_present )
52  // copyright_id 72
53  // original_copy 1
54  // home 1
55  // bitstream_type 1
56  // bitrate 23
57  // num_program_config_elements 4
58  // for (i = 0; i < num_program_config_elements + 1; i++ ) {
59  // if( bitstream_type == '0' )
60  // adif_buffer_fullness 20
61  // program_config_element()
62  // }
63  // }
64
65  $AACheaderBitstream = getid3_lib::BigEndian2Bin($AACheader);
66  $bitoffset = 0;
67
68  $info['aac']['header_type'] = 'ADIF';
69  $bitoffset += 32;
70  $info['aac']['header']['mpeg_version'] = 4;
71
72  $info['aac']['header']['copyright'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
73  $bitoffset += 1;
74  if ($info['aac']['header']['copyright']) {
75  $info['aac']['header']['copyright_id'] = getid3_lib::Bin2String(substr($AACheaderBitstream, $bitoffset, 72));
76  $bitoffset += 72;
77  }
78  $info['aac']['header']['original_copy'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
79  $bitoffset += 1;
80  $info['aac']['header']['home'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
81  $bitoffset += 1;
82  $info['aac']['header']['is_vbr'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
83  $bitoffset += 1;
84  if ($info['aac']['header']['is_vbr']) {
85  $info['audio']['bitrate_mode'] = 'vbr';
86  $info['aac']['header']['bitrate_max'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 23));
87  $bitoffset += 23;
88  } else {
89  $info['audio']['bitrate_mode'] = 'cbr';
90  $info['aac']['header']['bitrate'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 23));
91  $bitoffset += 23;
92  $info['audio']['bitrate'] = $info['aac']['header']['bitrate'];
93  }
94  if ($info['audio']['bitrate'] == 0) {
95  $info['error'][] = 'Corrupt AAC file: bitrate_audio == zero';
96  return false;
97  }
98  $info['aac']['header']['num_program_configs'] = 1 + getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
99  $bitoffset += 4;
100
101  for ($i = 0; $i < $info['aac']['header']['num_program_configs']; $i++) {
102  // http://www.audiocoding.com/wiki/index.php?page=program_config_element
103
104  // buffer_fullness 20
105
106  // element_instance_tag 4
107  // object_type 2
108  // sampling_frequency_index 4
109  // num_front_channel_elements 4
110  // num_side_channel_elements 4
111  // num_back_channel_elements 4
112  // num_lfe_channel_elements 2
113  // num_assoc_data_elements 3
114  // num_valid_cc_elements 4
115  // mono_mixdown_present 1
116  // mono_mixdown_element_number 4 if mono_mixdown_present == 1
117  // stereo_mixdown_present 1
118  // stereo_mixdown_element_number 4 if stereo_mixdown_present == 1
119  // matrix_mixdown_idx_present 1
120  // matrix_mixdown_idx 2 if matrix_mixdown_idx_present == 1
121  // pseudo_surround_enable 1 if matrix_mixdown_idx_present == 1
122  // for (i = 0; i < num_front_channel_elements; i++) {
123  // front_element_is_cpe[i] 1
124  // front_element_tag_select[i] 4
125  // }
126  // for (i = 0; i < num_side_channel_elements; i++) {
127  // side_element_is_cpe[i] 1
128  // side_element_tag_select[i] 4
129  // }
130  // for (i = 0; i < num_back_channel_elements; i++) {
131  // back_element_is_cpe[i] 1
132  // back_element_tag_select[i] 4
133  // }
134  // for (i = 0; i < num_lfe_channel_elements; i++) {
135  // lfe_element_tag_select[i] 4
136  // }
137  // for (i = 0; i < num_assoc_data_elements; i++) {
138  // assoc_data_element_tag_select[i] 4
139  // }
140  // for (i = 0; i < num_valid_cc_elements; i++) {
141  // cc_element_is_ind_sw[i] 1
142  // valid_cc_element_tag_select[i] 4
143  // }
144  // byte_alignment() VAR
145  // comment_field_bytes 8
146  // for (i = 0; i < comment_field_bytes; i++) {
147  // comment_field_data[i] 8
148  // }
149
150  if (!$info['aac']['header']['is_vbr']) {
151  $info['aac']['program_configs'][$i]['buffer_fullness'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 20));
152  $bitoffset += 20;
153  }
154  $info['aac']['program_configs'][$i]['element_instance_tag'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
155  $bitoffset += 4;
156  $info['aac']['program_configs'][$i]['object_type'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
157  $bitoffset += 2;
158  $info['aac']['program_configs'][$i]['sampling_frequency_index'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
159  $bitoffset += 4;
160  $info['aac']['program_configs'][$i]['num_front_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
161  $bitoffset += 4;
162  $info['aac']['program_configs'][$i]['num_side_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
163  $bitoffset += 4;
164  $info['aac']['program_configs'][$i]['num_back_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
165  $bitoffset += 4;
166  $info['aac']['program_configs'][$i]['num_lfe_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
167  $bitoffset += 2;
168  $info['aac']['program_configs'][$i]['num_assoc_data_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 3));
169  $bitoffset += 3;
170  $info['aac']['program_configs'][$i]['num_valid_cc_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
171  $bitoffset += 4;
172  $info['aac']['program_configs'][$i]['mono_mixdown_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
173  $bitoffset += 1;
174  if ($info['aac']['program_configs'][$i]['mono_mixdown_present']) {
175  $info['aac']['program_configs'][$i]['mono_mixdown_element_number'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
176  $bitoffset += 4;
177  }
178  $info['aac']['program_configs'][$i]['stereo_mixdown_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
179  $bitoffset += 1;
180  if ($info['aac']['program_configs'][$i]['stereo_mixdown_present']) {
181  $info['aac']['program_configs'][$i]['stereo_mixdown_element_number'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
182  $bitoffset += 4;
183  }
184  $info['aac']['program_configs'][$i]['matrix_mixdown_idx_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
185  $bitoffset += 1;
186  if ($info['aac']['program_configs'][$i]['matrix_mixdown_idx_present']) {
187  $info['aac']['program_configs'][$i]['matrix_mixdown_idx'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
188  $bitoffset += 2;
189  $info['aac']['program_configs'][$i]['pseudo_surround_enable'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
190  $bitoffset += 1;
191  }
192  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_front_channel_elements']; $j++) {
193  $info['aac']['program_configs'][$i]['front_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
194  $bitoffset += 1;
195  $info['aac']['program_configs'][$i]['front_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
196  $bitoffset += 4;
197  }
198  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_side_channel_elements']; $j++) {
199  $info['aac']['program_configs'][$i]['side_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
200  $bitoffset += 1;
201  $info['aac']['program_configs'][$i]['side_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
202  $bitoffset += 4;
203  }
204  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_back_channel_elements']; $j++) {
205  $info['aac']['program_configs'][$i]['back_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
206  $bitoffset += 1;
207  $info['aac']['program_configs'][$i]['back_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
208  $bitoffset += 4;
209  }
210  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_lfe_channel_elements']; $j++) {
211  $info['aac']['program_configs'][$i]['lfe_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
212  $bitoffset += 4;
213  }
214  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_assoc_data_elements']; $j++) {
215  $info['aac']['program_configs'][$i]['assoc_data_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
216  $bitoffset += 4;
217  }
218  for ($j = 0; $j < $info['aac']['program_configs'][$i]['num_valid_cc_elements']; $j++) {
219  $info['aac']['program_configs'][$i]['cc_element_is_ind_sw'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
220  $bitoffset += 1;
221  $info['aac']['program_configs'][$i]['valid_cc_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
222  $bitoffset += 4;
223  }
224
225  $bitoffset = ceil($bitoffset / 8) * 8;
226
227  $info['aac']['program_configs'][$i]['comment_field_bytes'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 8));
228  $bitoffset += 8;
229  $info['aac']['program_configs'][$i]['comment_field'] = getid3_lib::Bin2String(substr($AACheaderBitstream, $bitoffset, 8 * $info['aac']['program_configs'][$i]['comment_field_bytes']));
230  $bitoffset += 8 * $info['aac']['program_configs'][$i]['comment_field_bytes'];
231
232
233  $info['aac']['header']['profile'] = self::AACprofileLookup($info['aac']['program_configs'][$i]['object_type'], $info['aac']['header']['mpeg_version']);
234  $info['aac']['program_configs'][$i]['sampling_frequency'] = self::AACsampleRateLookup($info['aac']['program_configs'][$i]['sampling_frequency_index']);
235  $info['audio']['sample_rate'] = $info['aac']['program_configs'][$i]['sampling_frequency'];
236  $info['audio']['channels'] = self::AACchannelCountCalculate($info['aac']['program_configs'][$i]);
237  if ($info['aac']['program_configs'][$i]['comment_field']) {
238  $info['aac']['comments'][] = $info['aac']['program_configs'][$i]['comment_field'];
239  }
240  }
241  $info['playtime_seconds'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['audio']['bitrate'];
242
243  $info['audio']['encoder_options'] = $info['aac']['header_type'].' '.$info['aac']['header']['profile'];
244
245
246
247  return true;
248
249  } else {
250
251  unset($info['fileformat']);
252  unset($info['aac']);
253  $info['error'][] = 'AAC-ADIF synch not found at offset '.$info['avdataoffset'].' (expected "ADIF", found "'.substr($AACheader, 0, 4).'" instead)';
254  return false;
255
256  }
257
258  }
getid3_lib\Bin2Dec
Bin2Dec($binstring, $signed=false)
Definition: getid3.lib.php:316
$info
$info
Definition: example_052.php:80
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\Bin2String
Bin2String($binstring)
Definition: getid3.lib.php:332
getid3_lib\BigEndian2Bin
BigEndian2Bin($byteword)
Definition: getid3.lib.php:271
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697

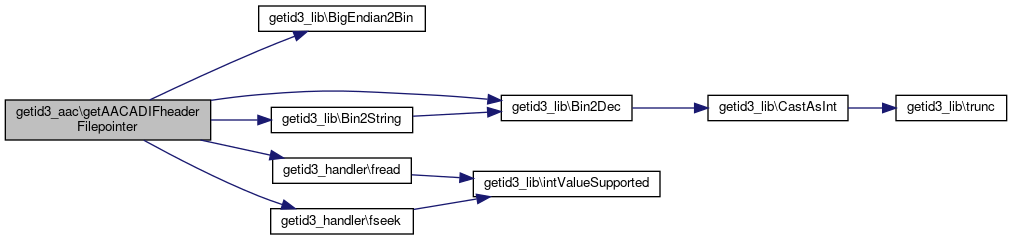

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getAACADIFheaderFilepointer() [2/2]

getid3_aac::getAACADIFheaderFilepointer ( &  $fd,
&  $ThisFileInfo
)

Definition at line 33 of file module.audio.aac.php.

References AACchannelCountCalculate(), AACprofileLookup(), AACsampleRateLookup(), getid3_lib\BigEndian2Bin(), getid3_lib\Bin2Dec(), getid3_lib\Bin2String(), getid3_handler\fread(), and getid3_handler\fseek().

33  {
34  $ThisFileInfo['fileformat'] = 'aac';
35  $ThisFileInfo['audio']['dataformat'] = 'aac';
36  $ThisFileInfo['audio']['lossless'] = false;
37
38  fseek($fd, $ThisFileInfo['avdataoffset'], SEEK_SET);
39  $AACheader = fread($fd, 1024);
40  $offset = 0;
41
42  if (substr($AACheader, 0, 4) == 'ADIF') {
43
44  // http://faac.sourceforge.net/wiki/index.php?page=ADIF
45
46  // http://libmpeg.org/mpeg4/doc/w2203tfs.pdf
47  // adif_header() {
48  // adif_id 32
49  // copyright_id_present 1
50  // if( copyright_id_present )
51  // copyright_id 72
52  // original_copy 1
53  // home 1
54  // bitstream_type 1
55  // bitrate 23
56  // num_program_config_elements 4
57  // for (i = 0; i < num_program_config_elements + 1; i++ ) {
58  // if( bitstream_type == '0' )
59  // adif_buffer_fullness 20
60  // program_config_element()
61  // }
62  // }
63
64  $AACheaderBitstream = getid3_lib::BigEndian2Bin($AACheader);
65  $bitoffset = 0;
66
67  $ThisFileInfo['aac']['header_type'] = 'ADIF';
68  $bitoffset += 32;
69  $ThisFileInfo['aac']['header']['mpeg_version'] = 4;
70
71  $ThisFileInfo['aac']['header']['copyright'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
72  $bitoffset += 1;
73  if ($ThisFileInfo['aac']['header']['copyright']) {
74  $ThisFileInfo['aac']['header']['copyright_id'] = getid3_lib::Bin2String(substr($AACheaderBitstream, $bitoffset, 72));
75  $bitoffset += 72;
76  }
77  $ThisFileInfo['aac']['header']['original_copy'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
78  $bitoffset += 1;
79  $ThisFileInfo['aac']['header']['home'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
80  $bitoffset += 1;
81  $ThisFileInfo['aac']['header']['is_vbr'] = (bool) (substr($AACheaderBitstream, $bitoffset, 1) == '1');
82  $bitoffset += 1;
83  if ($ThisFileInfo['aac']['header']['is_vbr']) {
84  $ThisFileInfo['audio']['bitrate_mode'] = 'vbr';
85  $ThisFileInfo['aac']['header']['bitrate_max'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 23));
86  $bitoffset += 23;
87  } else {
88  $ThisFileInfo['audio']['bitrate_mode'] = 'cbr';
89  $ThisFileInfo['aac']['header']['bitrate'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 23));
90  $bitoffset += 23;
91  $ThisFileInfo['audio']['bitrate'] = $ThisFileInfo['aac']['header']['bitrate'];
92  }
93  if ($ThisFileInfo['audio']['bitrate'] == 0) {
94  $ThisFileInfo['error'][] = 'Corrupt AAC file: bitrate_audio == zero';
95  return false;
96  }
97  $ThisFileInfo['aac']['header']['num_program_configs'] = 1 + getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
98  $bitoffset += 4;
99
100  for ($i = 0; $i < $ThisFileInfo['aac']['header']['num_program_configs']; $i++) {
101  // http://www.audiocoding.com/wiki/index.php?page=program_config_element
102
103  // buffer_fullness 20
104
105  // element_instance_tag 4
106  // object_type 2
107  // sampling_frequency_index 4
108  // num_front_channel_elements 4
109  // num_side_channel_elements 4
110  // num_back_channel_elements 4
111  // num_lfe_channel_elements 2
112  // num_assoc_data_elements 3
113  // num_valid_cc_elements 4
114  // mono_mixdown_present 1
115  // mono_mixdown_element_number 4 if mono_mixdown_present == 1
116  // stereo_mixdown_present 1
117  // stereo_mixdown_element_number 4 if stereo_mixdown_present == 1
118  // matrix_mixdown_idx_present 1
119  // matrix_mixdown_idx 2 if matrix_mixdown_idx_present == 1
120  // pseudo_surround_enable 1 if matrix_mixdown_idx_present == 1
121  // for (i = 0; i < num_front_channel_elements; i++) {
122  // front_element_is_cpe[i] 1
123  // front_element_tag_select[i] 4
124  // }
125  // for (i = 0; i < num_side_channel_elements; i++) {
126  // side_element_is_cpe[i] 1
127  // side_element_tag_select[i] 4
128  // }
129  // for (i = 0; i < num_back_channel_elements; i++) {
130  // back_element_is_cpe[i] 1
131  // back_element_tag_select[i] 4
132  // }
133  // for (i = 0; i < num_lfe_channel_elements; i++) {
134  // lfe_element_tag_select[i] 4
135  // }
136  // for (i = 0; i < num_assoc_data_elements; i++) {
137  // assoc_data_element_tag_select[i] 4
138  // }
139  // for (i = 0; i < num_valid_cc_elements; i++) {
140  // cc_element_is_ind_sw[i] 1
141  // valid_cc_element_tag_select[i] 4
142  // }
143  // byte_alignment() VAR
144  // comment_field_bytes 8
145  // for (i = 0; i < comment_field_bytes; i++) {
146  // comment_field_data[i] 8
147  // }
148
149  if (!$ThisFileInfo['aac']['header']['is_vbr']) {
150  $ThisFileInfo['aac']['program_configs'][$i]['buffer_fullness'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 20));
151  $bitoffset += 20;
152  }
153  $ThisFileInfo['aac']['program_configs'][$i]['element_instance_tag'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
154  $bitoffset += 4;
155  $ThisFileInfo['aac']['program_configs'][$i]['object_type'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
156  $bitoffset += 2;
157  $ThisFileInfo['aac']['program_configs'][$i]['sampling_frequency_index'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
158  $bitoffset += 4;
159  $ThisFileInfo['aac']['program_configs'][$i]['num_front_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
160  $bitoffset += 4;
161  $ThisFileInfo['aac']['program_configs'][$i]['num_side_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
162  $bitoffset += 4;
163  $ThisFileInfo['aac']['program_configs'][$i]['num_back_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
164  $bitoffset += 4;
165  $ThisFileInfo['aac']['program_configs'][$i]['num_lfe_channel_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
166  $bitoffset += 2;
167  $ThisFileInfo['aac']['program_configs'][$i]['num_assoc_data_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 3));
168  $bitoffset += 3;
169  $ThisFileInfo['aac']['program_configs'][$i]['num_valid_cc_elements'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
170  $bitoffset += 4;
171  $ThisFileInfo['aac']['program_configs'][$i]['mono_mixdown_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
172  $bitoffset += 1;
173  if ($ThisFileInfo['aac']['program_configs'][$i]['mono_mixdown_present']) {
174  $ThisFileInfo['aac']['program_configs'][$i]['mono_mixdown_element_number'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
175  $bitoffset += 4;
176  }
177  $ThisFileInfo['aac']['program_configs'][$i]['stereo_mixdown_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
178  $bitoffset += 1;
179  if ($ThisFileInfo['aac']['program_configs'][$i]['stereo_mixdown_present']) {
180  $ThisFileInfo['aac']['program_configs'][$i]['stereo_mixdown_element_number'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
181  $bitoffset += 4;
182  }
183  $ThisFileInfo['aac']['program_configs'][$i]['matrix_mixdown_idx_present'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
184  $bitoffset += 1;
185  if ($ThisFileInfo['aac']['program_configs'][$i]['matrix_mixdown_idx_present']) {
186  $ThisFileInfo['aac']['program_configs'][$i]['matrix_mixdown_idx'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
187  $bitoffset += 2;
188  $ThisFileInfo['aac']['program_configs'][$i]['pseudo_surround_enable'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
189  $bitoffset += 1;
190  }
191  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_front_channel_elements']; $j++) {
192  $ThisFileInfo['aac']['program_configs'][$i]['front_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
193  $bitoffset += 1;
194  $ThisFileInfo['aac']['program_configs'][$i]['front_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
195  $bitoffset += 4;
196  }
197  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_side_channel_elements']; $j++) {
198  $ThisFileInfo['aac']['program_configs'][$i]['side_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
199  $bitoffset += 1;
200  $ThisFileInfo['aac']['program_configs'][$i]['side_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
201  $bitoffset += 4;
202  }
203  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_back_channel_elements']; $j++) {
204  $ThisFileInfo['aac']['program_configs'][$i]['back_element_is_cpe'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
205  $bitoffset += 1;
206  $ThisFileInfo['aac']['program_configs'][$i]['back_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
207  $bitoffset += 4;
208  }
209  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_lfe_channel_elements']; $j++) {
210  $ThisFileInfo['aac']['program_configs'][$i]['lfe_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
211  $bitoffset += 4;
212  }
213  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_assoc_data_elements']; $j++) {
214  $ThisFileInfo['aac']['program_configs'][$i]['assoc_data_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
215  $bitoffset += 4;
216  }
217  for ($j = 0; $j < $ThisFileInfo['aac']['program_configs'][$i]['num_valid_cc_elements']; $j++) {
218  $ThisFileInfo['aac']['program_configs'][$i]['cc_element_is_ind_sw'][$j] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
219  $bitoffset += 1;
220  $ThisFileInfo['aac']['program_configs'][$i]['valid_cc_element_tag_select'][$j] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
221  $bitoffset += 4;
222  }
223
224  $bitoffset = ceil($bitoffset / 8) * 8;
225
226  $ThisFileInfo['aac']['program_configs'][$i]['comment_field_bytes'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 8));
227  $bitoffset += 8;
228  $ThisFileInfo['aac']['program_configs'][$i]['comment_field'] = getid3_lib::Bin2String(substr($AACheaderBitstream, $bitoffset, 8 * $ThisFileInfo['aac']['program_configs'][$i]['comment_field_bytes']));
229  $bitoffset += 8 * $ThisFileInfo['aac']['program_configs'][$i]['comment_field_bytes'];
230
231
232  $ThisFileInfo['aac']['header']['profile_text'] = $this->AACprofileLookup($ThisFileInfo['aac']['program_configs'][$i]['object_type'], $ThisFileInfo['aac']['header']['mpeg_version']);
233  $ThisFileInfo['aac']['program_configs'][$i]['sampling_frequency'] = $this->AACsampleRateLookup($ThisFileInfo['aac']['program_configs'][$i]['sampling_frequency_index']);
234  $ThisFileInfo['audio']['sample_rate'] = $ThisFileInfo['aac']['program_configs'][$i]['sampling_frequency'];
235  $ThisFileInfo['audio']['channels'] = $this->AACchannelCountCalculate($ThisFileInfo['aac']['program_configs'][$i]);
236  if ($ThisFileInfo['aac']['program_configs'][$i]['comment_field']) {
237  $ThisFileInfo['aac']['comments'][] = $ThisFileInfo['aac']['program_configs'][$i]['comment_field'];
238  }
239  }
240  $ThisFileInfo['playtime_seconds'] = (($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / $ThisFileInfo['audio']['bitrate'];
241
242  $ThisFileInfo['audio']['encoder_options'] = $ThisFileInfo['aac']['header_type'].' '.$ThisFileInfo['aac']['header']['profile_text'];
243
244
245
246  return true;
247
248  } else {
249
250  unset($ThisFileInfo['fileformat']);
251  unset($ThisFileInfo['aac']);
252  $ThisFileInfo['error'][] = 'AAC-ADIF synch not found at offset '.$ThisFileInfo['avdataoffset'].' (expected "ADIF", found "'.substr($AACheader, 0, 4).'" instead)';
253  return false;
254
255  }
256
257  }
getid3_aac\AACchannelCountCalculate
AACchannelCountCalculate($program_configs)
Definition: module.audio.aac.php:506
getid3_aac\AACsampleRateLookup
AACsampleRateLookup($samplerateid)
Definition: module.audio.aac.php:468
getid3_lib\Bin2Dec
Bin2Dec($binstring, $signed=false)
Definition: getid3.lib.php:316
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\Bin2String
Bin2String($binstring)
Definition: getid3.lib.php:332
getid3_lib\BigEndian2Bin
BigEndian2Bin($byteword)
Definition: getid3.lib.php:271
getid3_aac\AACprofileLookup
AACprofileLookup($profileid, $mpegversion)
Definition: module.audio.aac.php:491
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697

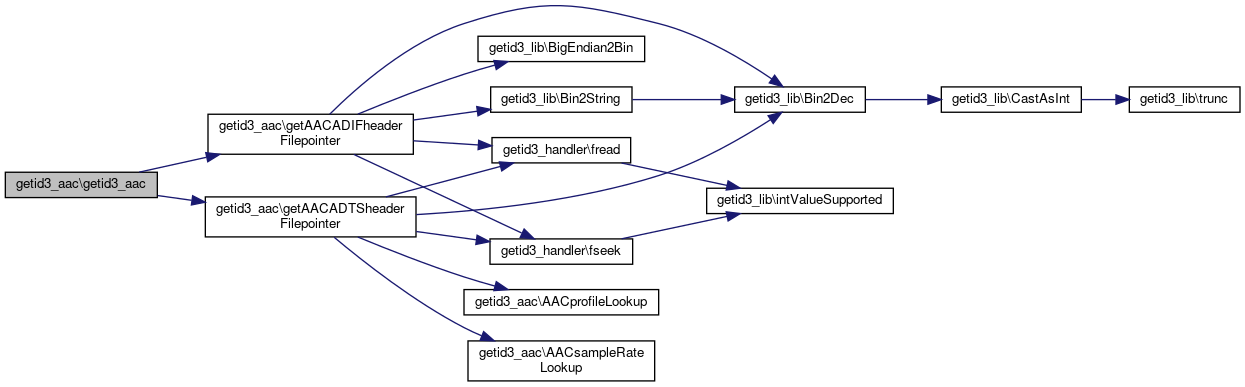

+ Here is the call graph for this function:

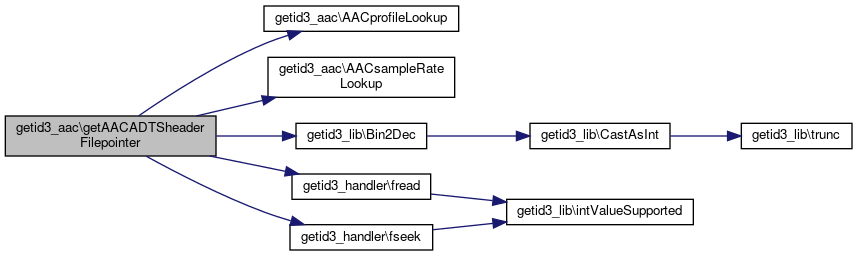

◆ getAACADTSheaderFilepointer() [1/2]

getid3_aac::getAACADTSheaderFilepointer ( &  $fd,
&  $ThisFileInfo,
  $MaxFramesToScan = 1000000,
  $ReturnExtendedInfo = false
)

Definition at line 260 of file module.audio.aac.php.

References AACprofileLookup(), AACsampleRateLookup(), getid3_lib\Bin2Dec(), getid3_handler\fread(), and getid3_handler\fseek().

Referenced by Analyze(), and getid3_aac().

260  {
261  // based loosely on code from AACfile by Jurgen Faul <jfaulØgmx.de>
262  // http://jfaul.de/atl or http://j-faul.virtualave.net/atl/atl.html
263
264
265  // http://faac.sourceforge.net/wiki/index.php?page=ADTS
266
267  // * ADTS Fixed Header: these don't change from frame to frame
268  // syncword 12 always: '111111111111'
269  // ID 1 0: MPEG-4, 1: MPEG-2
270  // layer 2 always: '00'
271  // protection_absent 1
272  // profile 2
273  // sampling_frequency_index 4
274  // private_bit 1
275  // channel_configuration 3
276  // original/copy 1
277  // home 1
278  // emphasis 2 only if ID == 0 (ie MPEG-4)
279
280  // * ADTS Variable Header: these can change from frame to frame
281  // copyright_identification_bit 1
282  // copyright_identification_start 1
283  // aac_frame_length 13 length of the frame including header (in bytes)
284  // adts_buffer_fullness 11 0x7FF indicates VBR
285  // no_raw_data_blocks_in_frame 2
286
287  // * ADTS Error check
288  // crc_check 16 only if protection_absent == 0
289
290  $byteoffset = 0;
291  $framenumber = 0;
292
293  // Init bit pattern array
294  static $decbin = array();
295
296  // Populate $bindec
297  for ($i = 0; $i < 256; $i++) {
298  $decbin[chr($i)] = str_pad(decbin($i), 8, '0', STR_PAD_LEFT);
299  }
300
301  // used to calculate bitrate below
302  $BitrateCache = array();
303
304
305  while (true) {
306  // breaks out when end-of-file encountered, or invalid data found,
307  // or MaxFramesToScan frames have been scanned
308
309  fseek($fd, $byteoffset, SEEK_SET);
310
311  // First get substring
312  $substring = fread($fd, 10);
313  $substringlength = strlen($substring);
314  if ($substringlength != 10) {
315  $ThisFileInfo['error'][] = 'Failed to read 10 bytes at offset '.(ftell($fd) - $substringlength).' (only read '.$substringlength.' bytes)';
316  return false;
317  }
318
319  // Initialise $AACheaderBitstream
320  $AACheaderBitstream = '';
321
322  // Loop thru substring chars
323  for ($i = 0; $i < 10; $i++) {
324  $AACheaderBitstream .= $decbin[$substring{$i}];
325  }
326
327  $bitoffset = 0;
328
329  $synctest = bindec(substr($AACheaderBitstream, $bitoffset, 12));
330
331  $bitoffset += 12;
332  if ($synctest != 0x0FFF) {
333  $ThisFileInfo['error'][] = 'Synch pattern (0x0FFF) not found at offset '.(ftell($fd) - 10).' (found 0x0'.strtoupper(dechex($synctest)).' instead)';
334  if ($ThisFileInfo['fileformat'] == 'aac') {
335  return true;
336  }
337  return false;
338  }
339
340  // Gather info for first frame only - this takes time to do 1000 times!
341  if ($framenumber > 0) {
342
343  if (!$AACheaderBitstream[$bitoffset]) {
344
345  // MPEG-4
346  $bitoffset += 20;
347
348  } else {
349
350  // MPEG-2
351  $bitoffset += 18;
352
353  }
354
355  } else {
356
357  $ThisFileInfo['aac']['header_type'] = 'ADTS';
358  $ThisFileInfo['aac']['header']['synch'] = $synctest;
359  $ThisFileInfo['fileformat'] = 'aac';
360  $ThisFileInfo['audio']['dataformat'] = 'aac';
361
362  $ThisFileInfo['aac']['header']['mpeg_version'] = ((substr($AACheaderBitstream, $bitoffset, 1) == '0') ? 4 : 2);
363  $bitoffset += 1;
364  $ThisFileInfo['aac']['header']['layer'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
365  $bitoffset += 2;
366  if ($ThisFileInfo['aac']['header']['layer'] != 0) {
367  $ThisFileInfo['error'][] = 'Layer error - expected 0x00, found 0x'.dechex($ThisFileInfo['aac']['header']['layer']).' instead';
368  return false;
369  }
370  $ThisFileInfo['aac']['header']['crc_present'] = ((substr($AACheaderBitstream, $bitoffset, 1) == '0') ? true : false);
371  $bitoffset += 1;
372  $ThisFileInfo['aac']['header']['profile_id'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
373  $bitoffset += 2;
374  $ThisFileInfo['aac']['header']['profile_text'] = $this->AACprofileLookup($ThisFileInfo['aac']['header']['profile_id'], $ThisFileInfo['aac']['header']['mpeg_version']);
375
376  $ThisFileInfo['aac']['header']['sample_frequency_index'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 4));
377  $bitoffset += 4;
378  $ThisFileInfo['aac']['header']['sample_frequency'] = $this->AACsampleRateLookup($ThisFileInfo['aac']['header']['sample_frequency_index']);
379  if ($ThisFileInfo['aac']['header']['sample_frequency'] == 0) {
380  $ThisFileInfo['error'][] = 'Corrupt AAC file: sample_frequency == zero';
381  return false;
382  }
383  $ThisFileInfo['audio']['sample_rate'] = $ThisFileInfo['aac']['header']['sample_frequency'];
384
385  $ThisFileInfo['aac']['header']['private'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
386  $bitoffset += 1;
387  $ThisFileInfo['aac']['header']['channel_configuration'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 3));
388  $bitoffset += 3;
389  $ThisFileInfo['audio']['channels'] = $ThisFileInfo['aac']['header']['channel_configuration'];
390  $ThisFileInfo['aac']['header']['original'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
391  $bitoffset += 1;
392  $ThisFileInfo['aac']['header']['home'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
393  $bitoffset += 1;
394
395  if ($ThisFileInfo['aac']['header']['mpeg_version'] == 4) {
396  $ThisFileInfo['aac']['header']['emphasis'] = getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 2));
397  $bitoffset += 2;
398  }
399
400  if ($ReturnExtendedInfo) {
401
402  $ThisFileInfo['aac'][$framenumber]['copyright_id_bit'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
403  $bitoffset += 1;
404  $ThisFileInfo['aac'][$framenumber]['copyright_id_start'] = (bool) getid3_lib::Bin2Dec(substr($AACheaderBitstream, $bitoffset, 1));
405  $bitoffset += 1;
406
407  } else {
408
409  $bitoffset += 2;
410
411  }
412
413  }
414
415  $FrameLength = bindec(substr($AACheaderBitstream, $bitoffset, 13));
416
417  if (!isset($BitrateCache[$FrameLength])) {
418  $BitrateCache[$FrameLength] = ($ThisFileInfo['aac']['header']['sample_frequency'] / 1024) * $FrameLength * 8;
419  }
420  @$ThisFileInfo['aac']['bitrate_distribution'][$BitrateCache[$FrameLength]]++;
421
422  $ThisFileInfo['aac'][$framenumber]['aac_frame_length'] = $FrameLength;
423  $bitoffset += 13;
424  $ThisFileInfo['aac'][$framenumber]['adts_buffer_fullness'] = bindec(substr($AACheaderBitstream, $bitoffset, 11));
425  $bitoffset += 11;
426  if ($ThisFileInfo['aac'][$framenumber]['adts_buffer_fullness'] == 0x07FF) {
427  $ThisFileInfo['audio']['bitrate_mode'] = 'vbr';
428  } else {
429  $ThisFileInfo['audio']['bitrate_mode'] = 'cbr';
430  }
431  $ThisFileInfo['aac'][$framenumber]['num_raw_data_blocks'] = bindec(substr($AACheaderBitstream, $bitoffset, 2));
432  $bitoffset += 2;
433
434  if ($ThisFileInfo['aac']['header']['crc_present']) {
435  //$ThisFileInfo['aac'][$framenumber]['crc'] = bindec(substr($AACheaderBitstream, $bitoffset, 16));
436  $bitoffset += 16;
437  }
438
439  if (!$ReturnExtendedInfo) {
440  unset($ThisFileInfo['aac'][$framenumber]);
441  }
442
443  $byteoffset += $FrameLength;
444  if ((++$framenumber < $MaxFramesToScan) && (($byteoffset + 10) < $ThisFileInfo['avdataend'])) {
445
446  // keep scanning
447
448  } else {
449
450  $ThisFileInfo['aac']['frames'] = $framenumber;
451  $ThisFileInfo['playtime_seconds'] = ($ThisFileInfo['avdataend'] / $byteoffset) * (($framenumber * 1024) / $ThisFileInfo['aac']['header']['sample_frequency']); // (1 / % of file scanned) * (samples / (samples/sec)) = seconds
452  if ($ThisFileInfo['playtime_seconds'] == 0) {
453  $ThisFileInfo['error'][] = 'Corrupt AAC file: playtime_seconds == zero';
454  return false;
455  }
456  $ThisFileInfo['audio']['bitrate'] = (($ThisFileInfo['avdataend'] - $ThisFileInfo['avdataoffset']) * 8) / $ThisFileInfo['playtime_seconds'];
457  ksort($ThisFileInfo['aac']['bitrate_distribution']);
458
459  $ThisFileInfo['audio']['encoder_options'] = $ThisFileInfo['aac']['header_type'].' '.$ThisFileInfo['aac']['header']['profile_text'];
460
461  return true;
462
463  }
464  }
465  // should never get here.
466  }
getid3_aac\AACsampleRateLookup
AACsampleRateLookup($samplerateid)
Definition: module.audio.aac.php:468
getid3_lib\Bin2Dec
Bin2Dec($binstring, $signed=false)
Definition: getid3.lib.php:316
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_aac\AACprofileLookup
AACprofileLookup($profileid, $mpegversion)
Definition: module.audio.aac.php:491
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697
+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getAACADTSheaderFilepointer() [2/2]

getid3_aac::getAACADTSheaderFilepointer (   $MaxFramesToScan = 1000000,
  $ReturnExtendedInfo = false
)

Definition at line 261 of file module.audio.aac.php.

References $info, getid3_lib\BigEndian2Int(), getid3_handler\fread(), getid3_handler\fseek(), getid3_lib\intValueSupported(), and getid3_lib\safe_inc().

261  {
262  $info = &$this->getid3->info;
263
264  // based loosely on code from AACfile by Jurgen Faul <jfaulØgmx.de>
265  // http://jfaul.de/atl or http://j-faul.virtualave.net/atl/atl.html
266
267
268  // http://faac.sourceforge.net/wiki/index.php?page=ADTS // dead link
269  // http://wiki.multimedia.cx/index.php?title=ADTS
270
271  // * ADTS Fixed Header: these don't change from frame to frame
272  // syncword 12 always: '111111111111'
273  // ID 1 0: MPEG-4, 1: MPEG-2
274  // MPEG layer 2 If you send AAC in MPEG-TS, set to 0
275  // protection_absent 1 0: CRC present; 1: no CRC
276  // profile 2 0: AAC Main; 1: AAC LC (Low Complexity); 2: AAC SSR (Scalable Sample Rate); 3: AAC LTP (Long Term Prediction)
277  // sampling_frequency_index 4 15 not allowed
278  // private_bit 1 usually 0
279  // channel_configuration 3
280  // original/copy 1 0: original; 1: copy
281  // home 1 usually 0
282  // emphasis 2 only if ID == 0 (ie MPEG-4) // not present in some documentation?
283
284  // * ADTS Variable Header: these can change from frame to frame
285  // copyright_identification_bit 1
286  // copyright_identification_start 1
287  // aac_frame_length 13 length of the frame including header (in bytes)
288  // adts_buffer_fullness 11 0x7FF indicates VBR
289  // no_raw_data_blocks_in_frame 2
290
291  // * ADTS Error check
292  // crc_check 16 only if protection_absent == 0
293
294  $byteoffset = $info['avdataoffset'];
295  $framenumber = 0;
296
297  // Init bit pattern array
298  static $decbin = array();
299
300  // Populate $bindec
301  for ($i = 0; $i < 256; $i++) {
302  $decbin[chr($i)] = str_pad(decbin($i), 8, '0', STR_PAD_LEFT);
303  }
304
305  // used to calculate bitrate below
306  $BitrateCache = array();
307
308
309  while (true) {
310  // breaks out when end-of-file encountered, or invalid data found,
311  // or MaxFramesToScan frames have been scanned
312
313  if (!getid3_lib::intValueSupported($byteoffset)) {
314  $info['warning'][] = 'Unable to parse AAC file beyond '.$this->ftell().' (PHP does not support file operations beyond '.round(PHP_INT_MAX / 1073741824).'GB)';
315  return false;
316  }
317  $this->fseek($byteoffset);
318
319  // First get substring
320  $substring = $this->fread(9); // header is 7 bytes (or 9 if CRC is present)
321  $substringlength = strlen($substring);
322  if ($substringlength != 9) {
323  $info['error'][] = 'Failed to read 7 bytes at offset '.($this->ftell() - $substringlength).' (only read '.$substringlength.' bytes)';
324  return false;
325  }
326  // this would be easier with 64-bit math, but split it up to allow for 32-bit:
327  $header1 = getid3_lib::BigEndian2Int(substr($substring, 0, 2));
328  $header2 = getid3_lib::BigEndian2Int(substr($substring, 2, 4));
329  $header3 = getid3_lib::BigEndian2Int(substr($substring, 6, 1));
330
331  $info['aac']['header']['raw']['syncword'] = ($header1 & 0xFFF0) >> 4;
332  if ($info['aac']['header']['raw']['syncword'] != 0x0FFF) {
333  $info['error'][] = 'Synch pattern (0x0FFF) not found at offset '.($this->ftell() - $substringlength).' (found 0x0'.strtoupper(dechex($info['aac']['header']['raw']['syncword'])).' instead)';
334  //if ($info['fileformat'] == 'aac') {
335  // return true;
336  //}
337  unset($info['aac']);
338  return false;
339  }
340
341  // Gather info for first frame only - this takes time to do 1000 times!
342  if ($framenumber == 0) {
343  $info['aac']['header_type'] = 'ADTS';
344  $info['fileformat'] = 'aac';
345  $info['audio']['dataformat'] = 'aac';
346
347  $info['aac']['header']['raw']['mpeg_version'] = ($header1 & 0x0008) >> 3;
348  $info['aac']['header']['raw']['mpeg_layer'] = ($header1 & 0x0006) >> 1;
349  $info['aac']['header']['raw']['protection_absent'] = ($header1 & 0x0001) >> 0;
350
351  $info['aac']['header']['raw']['profile_code'] = ($header2 & 0xC0000000) >> 30;
352  $info['aac']['header']['raw']['sample_rate_code'] = ($header2 & 0x3C000000) >> 26;
353  $info['aac']['header']['raw']['private_stream'] = ($header2 & 0x02000000) >> 25;
354  $info['aac']['header']['raw']['channels_code'] = ($header2 & 0x01C00000) >> 22;
355  $info['aac']['header']['raw']['original'] = ($header2 & 0x00200000) >> 21;
356  $info['aac']['header']['raw']['home'] = ($header2 & 0x00100000) >> 20;
357  $info['aac']['header']['raw']['copyright_stream'] = ($header2 & 0x00080000) >> 19;
358  $info['aac']['header']['raw']['copyright_start'] = ($header2 & 0x00040000) >> 18;
359  $info['aac']['header']['raw']['frame_length'] = ($header2 & 0x0003FFE0) >> 5;
360
361  $info['aac']['header']['mpeg_version'] = ($info['aac']['header']['raw']['mpeg_version'] ? 2 : 4);
362  $info['aac']['header']['crc_present'] = ($info['aac']['header']['raw']['protection_absent'] ? false: true);
363  $info['aac']['header']['profile'] = self::AACprofileLookup($info['aac']['header']['raw']['profile_code'], $info['aac']['header']['mpeg_version']);
364  $info['aac']['header']['sample_frequency'] = self::AACsampleRateLookup($info['aac']['header']['raw']['sample_rate_code']);
365  $info['aac']['header']['private'] = (bool) $info['aac']['header']['raw']['private_stream'];
366  $info['aac']['header']['original'] = (bool) $info['aac']['header']['raw']['original'];
367  $info['aac']['header']['home'] = (bool) $info['aac']['header']['raw']['home'];
368  $info['aac']['header']['channels'] = (($info['aac']['header']['raw']['channels_code'] == 7) ? 8 : $info['aac']['header']['raw']['channels_code']);
369  if ($ReturnExtendedInfo) {
370  $info['aac'][$framenumber]['copyright_id_bit'] = (bool) $info['aac']['header']['raw']['copyright_stream'];
371  $info['aac'][$framenumber]['copyright_id_start'] = (bool) $info['aac']['header']['raw']['copyright_start'];
372  }
373
374  if ($info['aac']['header']['raw']['mpeg_layer'] != 0) {
375  $info['warning'][] = 'Layer error - expected "0", found "'.$info['aac']['header']['raw']['mpeg_layer'].'" instead';
376  }
377  if ($info['aac']['header']['sample_frequency'] == 0) {
378  $info['error'][] = 'Corrupt AAC file: sample_frequency == zero';
379  return false;
380  }
381
382  $info['audio']['sample_rate'] = $info['aac']['header']['sample_frequency'];
383  $info['audio']['channels'] = $info['aac']['header']['channels'];
384  }
385
386  $FrameLength = ($header2 & 0x0003FFE0) >> 5;
387
388  if (!isset($BitrateCache[$FrameLength])) {
389  $BitrateCache[$FrameLength] = ($info['aac']['header']['sample_frequency'] / 1024) * $FrameLength * 8;
390  }
391  getid3_lib::safe_inc($info['aac']['bitrate_distribution'][$BitrateCache[$FrameLength]], 1);
392
393  $info['aac'][$framenumber]['aac_frame_length'] = $FrameLength;
394
395  $info['aac'][$framenumber]['adts_buffer_fullness'] = (($header2 & 0x0000001F) << 6) & (($header3 & 0xFC) >> 2);
396  if ($info['aac'][$framenumber]['adts_buffer_fullness'] == 0x07FF) {
397  $info['audio']['bitrate_mode'] = 'vbr';
398  } else {
399  $info['audio']['bitrate_mode'] = 'cbr';
400  }
401  $info['aac'][$framenumber]['num_raw_data_blocks'] = (($header3 & 0x03) >> 0);
402
403  if ($info['aac']['header']['crc_present']) {
404  //$info['aac'][$framenumber]['crc'] = getid3_lib::BigEndian2Int(substr($substring, 7, 2);
405  }
406
407  if (!$ReturnExtendedInfo) {
408  unset($info['aac'][$framenumber]);
409  }
410
411  /*
412  $rounded_precision = 5000;
413  $info['aac']['bitrate_distribution_rounded'] = array();
414  foreach ($info['aac']['bitrate_distribution'] as $bitrate => $count) {
415  $rounded_bitrate = round($bitrate / $rounded_precision) * $rounded_precision;
416  getid3_lib::safe_inc($info['aac']['bitrate_distribution_rounded'][$rounded_bitrate], $count);
417  }
418  ksort($info['aac']['bitrate_distribution_rounded']);
419  */
420
421  $byteoffset += $FrameLength;
422  if ((++$framenumber < $MaxFramesToScan) && (($byteoffset + 10) < $info['avdataend'])) {
423
424  // keep scanning
425
426  } else {
427
428  $info['aac']['frames'] = $framenumber;
429  $info['playtime_seconds'] = ($info['avdataend'] / $byteoffset) * (($framenumber * 1024) / $info['aac']['header']['sample_frequency']); // (1 / % of file scanned) * (samples / (samples/sec)) = seconds
430  if ($info['playtime_seconds'] == 0) {
431  $info['error'][] = 'Corrupt AAC file: playtime_seconds == zero';
432  return false;
433  }
434  $info['audio']['bitrate'] = (($info['avdataend'] - $info['avdataoffset']) * 8) / $info['playtime_seconds'];
435  ksort($info['aac']['bitrate_distribution']);
436
437  $info['audio']['encoder_options'] = $info['aac']['header_type'].' '.$info['aac']['header']['profile'];
438
439  return true;
440
441  }
442  }
443  // should never get here.
444  }
getid3_lib\safe_inc
static safe_inc(&$variable, $increment=1)
Definition: getid3.lib.php:56
getid3_lib\intValueSupported
static intValueSupported($num)
Definition: getid3.lib.php:80
$info
$info
Definition: example_052.php:80
getid3_handler\fread
fread($bytes)
Definition: getid3.php:1685
getid3_lib\BigEndian2Int
BigEndian2Int($byteword, $synchsafe=false, $signed=false)
Definition: getid3.lib.php:234
getid3_handler\fseek
fseek($bytes, $whence=SEEK_SET)
Definition: getid3.php:1697

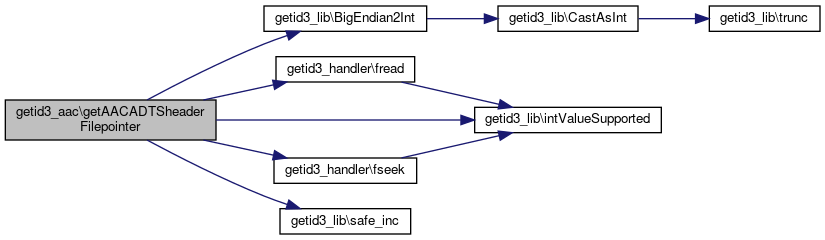

+ Here is the call graph for this function:

◆ getid3_aac()

getid3_aac::getid3_aac ( &  $fd,
&  $ThisFileInfo,
  $option
)

Definition at line 21 of file module.audio.aac.php.

References getAACADIFheaderFilepointer(), and getAACADTSheaderFilepointer().

21  {
22
23  if ($option === 'adif') {
24  $this->getAACADIFheaderFilepointer($fd, $ThisFileInfo);
25  }
26  elseif ($option === 'adts') {
27  $this->getAACADTSheaderFilepointer($fd, $ThisFileInfo);
28  }
29  }
getid3_aac\getAACADIFheaderFilepointer
getAACADIFheaderFilepointer()
Definition: module.audio.aac.php:33
getid3_aac\getAACADTSheaderFilepointer
getAACADTSheaderFilepointer(&$fd, &$ThisFileInfo, $MaxFramesToScan=1000000, $ReturnExtendedInfo=false)
Definition: module.audio.aac.php:260
+ Here is the call graph for this function:
The documentation for this class was generated from the following file:
