Public Member Functions
assMatchingQuestionExport Class Reference
Modules/TestQuestionPool

Class for matching question exports. More...

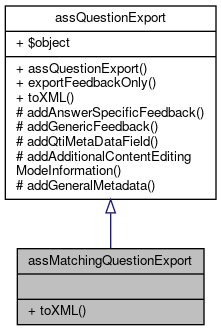

+ Inheritance diagram for assMatchingQuestionExport:
+ Collaboration diagram for assMatchingQuestionExport:

Public Member Functions

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question. More...

- Public Member Functions inherited from assQuestionExport
 assQuestionExport (&$a_object)
 assQuestionExport constructor More...

 exportFeedbackOnly ($a_xml_writer)

 toXML ($a_include_header=true, $a_include_binary=true, $a_shuffle=false, $test_output=false, $force_image_references=false)
 Returns a QTI xml representation of the question. More...


Additional Inherited Members

- Data Fields inherited from assQuestionExport
 $object

- Protected Member Functions inherited from assQuestionExport
 addAnswerSpecificFeedback (ilXmlWriter $a_xml_writer, $answers)

 addGenericFeedback (ilXmlWriter $a_xml_writer)

 addQtiMetaDataField (ilXmlWriter $a_xml_writer, $fieldLabel, $fieldValue)
 adds a qti meta data field with given name and value to the passed xml writer (xml writer must be in context of opened "qtimetadata" tag) More...

 addAdditionalContentEditingModeInformation (ilXmlWriter $a_xml_writer)
 adds a qti meta data field for ilias specific information of "additional content editing mode" (xml writer must be in context of opened "qtimetadata" tag) More...

 addGeneralMetadata (ilXmlWriter $xmlwriter)


Detailed Description

Class for matching question exports.

assMatchingQuestionExport is a class for matching question exports

Author
Helmut Schottmüller helmu.nosp@m.t.sc.nosp@m.hottm.nosp@m.uell.nosp@m.er@ma.nosp@m.c.co.nosp@m.m
Version
$Id$

Definition at line 15 of file class.assMatchingQuestionExport.php.

Member Function Documentation

◆ toXML()

assMatchingQuestionExport::toXML (   $a_include_header = true,
  $a_include_binary = true,
  $a_shuffle = false,
  $test_output = false,
  $force_image_references = false
)

Returns a QTI xml representation of the question.

Returns a QTI xml representation of the question and sets the internal domxml variable with the DOM XML representation of the QTI xml representation

Returns
string The QTI xml representation of the question public

Definition at line 26 of file class.assMatchingQuestionExport.php.

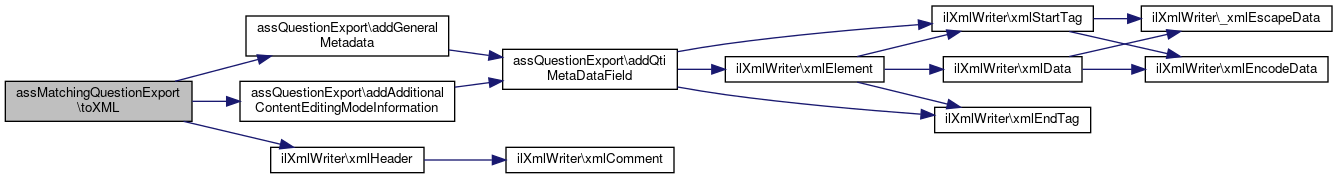

References assQuestionExport\addAdditionalContentEditingModeInformation(), assQuestionExport\addGeneralMetadata(), MATCHING_QUESTION_IDENTIFIER, and ilXmlWriter\xmlHeader().

27  {
28  global $ilias;
29
30  include_once("./Services/Xml/classes/class.ilXmlWriter.php");
31  $a_xml_writer = new ilXmlWriter;
32  // set xml header
33  $a_xml_writer->xmlHeader();
34  $a_xml_writer->xmlStartTag("questestinterop");
35  $attrs = array(
36  "ident" => "il_".IL_INST_ID."_qst_".$this->object->getId(),
37  "title" => $this->object->getTitle(),
38  "maxattempts" => $this->object->getNrOfTries()
39  );
40  $a_xml_writer->xmlStartTag("item", $attrs);
41  // add question description
42  $a_xml_writer->xmlElement("qticomment", NULL, $this->object->getComment());
43  // add estimated working time
44  $workingtime = $this->object->getEstimatedWorkingTime();
45  $duration = sprintf("P0Y0M0DT%dH%dM%dS", $workingtime["h"], $workingtime["m"], $workingtime["s"]);
46  $a_xml_writer->xmlElement("duration", NULL, $duration);
47  // add ILIAS specific metadata
48  $a_xml_writer->xmlStartTag("itemmetadata");
49  $a_xml_writer->xmlStartTag("qtimetadata");
50  $a_xml_writer->xmlStartTag("qtimetadatafield");
51  $a_xml_writer->xmlElement("fieldlabel", NULL, "ILIAS_VERSION");
52  $a_xml_writer->xmlElement("fieldentry", NULL, $ilias->getSetting("ilias_version"));
53  $a_xml_writer->xmlEndTag("qtimetadatafield");
54  $a_xml_writer->xmlStartTag("qtimetadatafield");
55  $a_xml_writer->xmlElement("fieldlabel", NULL, "QUESTIONTYPE");
56  $a_xml_writer->xmlElement("fieldentry", NULL, MATCHING_QUESTION_IDENTIFIER);
57  $a_xml_writer->xmlEndTag("qtimetadatafield");
58  $a_xml_writer->xmlStartTag("qtimetadatafield");
59  $a_xml_writer->xmlElement("fieldlabel", NULL, "AUTHOR");
60  $a_xml_writer->xmlElement("fieldentry", NULL, $this->object->getAuthor());
61  $a_xml_writer->xmlEndTag("qtimetadatafield");
62
63  // additional content editing information
64  $this->addAdditionalContentEditingModeInformation($a_xml_writer);
65  $this->addGeneralMetadata($a_xml_writer);
66
67  $a_xml_writer->xmlStartTag("qtimetadatafield");
68  $a_xml_writer->xmlElement("fieldlabel", NULL, "shuffle");
69  $a_xml_writer->xmlElement("fieldentry", NULL, $this->object->getShuffle());
70  $a_xml_writer->xmlEndTag("qtimetadatafield");
71  $a_xml_writer->xmlStartTag("qtimetadatafield");
72  $a_xml_writer->xmlElement("fieldlabel", NULL, "thumb_geometry");
73  $a_xml_writer->xmlElement("fieldentry", NULL, $this->object->getThumbGeometry());
74  $a_xml_writer->xmlEndTag("qtimetadatafield");
75  $a_xml_writer->xmlStartTag("qtimetadatafield");
76  $a_xml_writer->xmlElement("fieldlabel", NULL, 'matching_mode');
77  $a_xml_writer->xmlElement("fieldentry", NULL, $this->object->getMatchingMode());
78  $a_xml_writer->xmlEndTag("qtimetadatafield");
79  $a_xml_writer->xmlEndTag("qtimetadata");
80  $a_xml_writer->xmlEndTag("itemmetadata");
81
82  // PART I: qti presentation
83  $attrs = array(
84  "label" => $this->object->getTitle()
85  );
86  $a_xml_writer->xmlStartTag("presentation", $attrs);
87  // add flow to presentation
88  $a_xml_writer->xmlStartTag("flow");
89  // add material with question text to presentation
90  $this->object->addQTIMaterial($a_xml_writer, $this->object->getQuestion());
91  // add answers to presentation
92  $attrs = array(
93  "ident" => "MQ",
94  "rcardinality" => "Multiple"
95  );
96  $a_xml_writer->xmlStartTag("response_grp", $attrs);
97  $solution = $this->object->getSuggestedSolution(0);
98  if (count($solution))
99  {
100  if (preg_match("/il_(\d*?)_(\w+)_(\d+)/", $solution["internal_link"], $matches))
101  {
102  $a_xml_writer->xmlStartTag("material");
103  $intlink = "il_" . IL_INST_ID . "_" . $matches[2] . "_" . $matches[3];
104  if (strcmp($matches[1], "") != 0)
105  {
106  $intlink = $solution["internal_link"];
107  }
108  $attrs = array(
109  "label" => "suggested_solution"
110  );
111  $a_xml_writer->xmlElement("mattext", $attrs, $intlink);
112  $a_xml_writer->xmlEndTag("material");
113  }
114  }
115  // shuffle output
116  $attrs = array();
117  if ($this->object->getShuffle())
118  {
119  $attrs = array(
120  "shuffle" => "Yes"
121  );
122  }
123  else
124  {
125  $attrs = array(
126  "shuffle" => "No"
127  );
128  }
129  $a_xml_writer->xmlStartTag("render_choice", $attrs);
130  // add answertext
131  $matchingtext_orders = array();
132  foreach ($this->object->getMatchingPairs() as $index => $matchingpair)
133  {
134  array_push($matchingtext_orders, $matchingpair->term->identifier);
135  }
136
137  $termids = array();
138  foreach ($this->object->getTerms() as $term)
139  {
140  array_push($termids, $term->identifier);
141  }
142  // add answers
143  foreach ($this->object->getDefinitions() as $definition)
144  {
145  $attrs = array(
146  "ident" => $definition->identifier,
147  "match_max" => "1",
148  "match_group" => join($termids, ",")
149  );
150  $a_xml_writer->xmlStartTag("response_label", $attrs);
151  $a_xml_writer->xmlStartTag("material");
152  if (strlen($definition->picture))
153  {
154  if ($force_image_references)
155  {
156  $attrs = array(
157  "imagtype" => "image/jpeg",
158  "label" => $definition->picture,
159  "uri" => $this->object->getImagePathWeb() . $definition->picture
160  );
161  $a_xml_writer->xmlElement("matimage", $attrs);
162  }
163  else
164  {
165  $imagepath = $this->object->getImagePath() . $definition->picture;
166  $fh = @fopen($imagepath, "rb");
167  if ($fh != false)
168  {
169  $imagefile = fread($fh, filesize($imagepath));
170  fclose($fh);
171  $base64 = base64_encode($imagefile);
172  $attrs = array(
173  "imagtype" => "image/jpeg",
174  "label" => $definition->picture,
175  "embedded" => "base64"
176  );
177  $a_xml_writer->xmlElement("matimage", $attrs, $base64, FALSE, FALSE);
178  }
179  }
180  }
181  if (strlen($definition->text))
182  {
183  $attrs = array(
184  "texttype" => "text/plain"
185  );
186  if ($this->object->isHTML($definition->text))
187  {
188  $attrs["texttype"] = "text/xhtml";
189  }
190  $a_xml_writer->xmlElement("mattext", $attrs, $definition->text);
191  }
192  $a_xml_writer->xmlEndTag("material");
193  $a_xml_writer->xmlEndTag("response_label");
194  }
195  // add matchingtext
196  foreach ($this->object->getTerms() as $term)
197  {
198  $attrs = array(
199  "ident" => $term->identifier
200  );
201  $a_xml_writer->xmlStartTag("response_label", $attrs);
202  $a_xml_writer->xmlStartTag("material");
203  if (strlen($term->picture))
204  {
205  if ($force_image_references)
206  {
207  $attrs = array(
208  "imagtype" => "image/jpeg",
209  "label" => $term->picture,
210  "uri" => $this->object->getImagePathWeb() . $term->picture
211  );
212  $a_xml_writer->xmlElement("matimage", $attrs);
213  }
214  else
215  {
216  $imagepath = $this->object->getImagePath() . $term->picture;
217  $fh = @fopen($imagepath, "rb");
218  if ($fh != false)
219  {
220  $imagefile = fread($fh, filesize($imagepath));
221  fclose($fh);
222  $base64 = base64_encode($imagefile);
223  $attrs = array(
224  "imagtype" => "image/jpeg",
225  "label" => $term->picture,
226  "embedded" => "base64"
227  );
228  $a_xml_writer->xmlElement("matimage", $attrs, $base64, FALSE, FALSE);
229  }
230  }
231  }
232  if (strlen($term->text))
233  {
234  $attrs = array(
235  "texttype" => "text/plain"
236  );
237  if ($this->object->isHTML($term->text))
238  {
239  $attrs["texttype"] = "text/xhtml";
240  }
241  $a_xml_writer->xmlElement("mattext", $attrs, $term->text);
242  }
243  $a_xml_writer->xmlEndTag("material");
244  $a_xml_writer->xmlEndTag("response_label");
245  }
246  $a_xml_writer->xmlEndTag("render_choice");
247  $a_xml_writer->xmlEndTag("response_grp");
248  $a_xml_writer->xmlEndTag("flow");
249  $a_xml_writer->xmlEndTag("presentation");
250
251  // PART II: qti resprocessing
252  $a_xml_writer->xmlStartTag("resprocessing");
253  $a_xml_writer->xmlStartTag("outcomes");
254  $a_xml_writer->xmlStartTag("decvar");
255  $a_xml_writer->xmlEndTag("decvar");
256  $a_xml_writer->xmlEndTag("outcomes");
257  // add response conditions
258  foreach ($this->object->getMatchingPairs() as $matchingpair)
259  {
260  $attrs = array(
261  "continue" => "Yes"
262  );
263  $a_xml_writer->xmlStartTag("respcondition", $attrs);
264  // qti conditionvar
265  $a_xml_writer->xmlStartTag("conditionvar");
266  $attrs = array(
267  "respident" => "MQ"
268  );
269  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->term->identifier . "," . $matchingpair->definition->identifier);
270  $a_xml_writer->xmlEndTag("conditionvar");
271
272  // qti setvar
273  $attrs = array(
274  "action" => "Add"
275  );
276  $a_xml_writer->xmlElement("setvar", $attrs, $matchingpair->points);
277  // qti displayfeedback
278  $attrs = array(
279  "feedbacktype" => "Response",
280  "linkrefid" => "correct_" . $matchingpair->term->identifier . "_" . $matchingpair->definition_identifier
281  );
282  $a_xml_writer->xmlElement("displayfeedback", $attrs);
283  $a_xml_writer->xmlEndTag("respcondition");
284  }
285
286  $feedback_allcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
287  $this->object->getId(), true
288  );
289  if (strlen($feedback_allcorrect))
290  {
291  $attrs = array(
292  "continue" => "Yes"
293  );
294  $a_xml_writer->xmlStartTag("respcondition", $attrs);
295  // qti conditionvar
296  $a_xml_writer->xmlStartTag("conditionvar");
297
298  foreach ($this->object->getMatchingPairs() as $matchingpair)
299  {
300  $attrs = array(
301  "respident" => "MQ"
302  );
303  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->term->identifier . "," . $matchingpair->definition->identifier);
304  }
305  $a_xml_writer->xmlEndTag("conditionvar");
306  // qti displayfeedback
307  $attrs = array(
308  "feedbacktype" => "Response",
309  "linkrefid" => "response_allcorrect"
310  );
311  $a_xml_writer->xmlElement("displayfeedback", $attrs);
312  $a_xml_writer->xmlEndTag("respcondition");
313  }
314  $feedback_onenotcorrect = $this->object->feedbackOBJ->getGenericFeedbackExportPresentation(
315  $this->object->getId(), false
316  );
317  if (strlen($feedback_onenotcorrect))
318  {
319  $attrs = array(
320  "continue" => "Yes"
321  );
322  $a_xml_writer->xmlStartTag("respcondition", $attrs);
323  // qti conditionvar
324  $a_xml_writer->xmlStartTag("conditionvar");
325  $a_xml_writer->xmlStartTag("not");
326  foreach ($this->object->getMatchingPairs() as $matchingpair)
327  {
328  $attrs = array(
329  "respident" => "MQ"
330  );
331  $a_xml_writer->xmlElement("varsubset", $attrs, $matchingpair->term->identifier . "," . $matchingpair->definition->identifier);
332  }
333  $a_xml_writer->xmlEndTag("not");
334  $a_xml_writer->xmlEndTag("conditionvar");
335  // qti displayfeedback
336  $attrs = array(
337  "feedbacktype" => "Response",
338  "linkrefid" => "response_onenotcorrect"
339  );
340  $a_xml_writer->xmlElement("displayfeedback", $attrs);
341  $a_xml_writer->xmlEndTag("respcondition");
342  }
343
344  $a_xml_writer->xmlEndTag("resprocessing");
345
346  // PART III: qti itemfeedback
347  foreach ($this->object->getMatchingPairs() as $matchingpair)
348  {
349  $attrs = array(
350  "ident" => "correct_" . $matchingpair->term->identifier . "_" . $matchingpair->definition->identifier,
351  "view" => "All"
352  );
353  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
354  // qti flow_mat
355  $a_xml_writer->xmlStartTag("flow_mat");
356  $a_xml_writer->xmlStartTag("material");
357  $a_xml_writer->xmlElement("mattext");
358  $a_xml_writer->xmlEndTag("material");
359  $a_xml_writer->xmlEndTag("flow_mat");
360  $a_xml_writer->xmlEndTag("itemfeedback");
361  }
362
363  if (strlen($feedback_allcorrect))
364  {
365  $attrs = array(
366  "ident" => "response_allcorrect",
367  "view" => "All"
368  );
369  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
370  // qti flow_mat
371  $a_xml_writer->xmlStartTag("flow_mat");
372  $this->object->addQTIMaterial($a_xml_writer, $feedback_allcorrect);
373  $a_xml_writer->xmlEndTag("flow_mat");
374  $a_xml_writer->xmlEndTag("itemfeedback");
375  }
376  if (strlen($feedback_onenotcorrect))
377  {
378  $attrs = array(
379  "ident" => "response_onenotcorrect",
380  "view" => "All"
381  );
382  $a_xml_writer->xmlStartTag("itemfeedback", $attrs);
383  // qti flow_mat
384  $a_xml_writer->xmlStartTag("flow_mat");
385  $this->object->addQTIMaterial($a_xml_writer, $feedback_onenotcorrect);
386  $a_xml_writer->xmlEndTag("flow_mat");
387  $a_xml_writer->xmlEndTag("itemfeedback");
388  }
389
390  $a_xml_writer->xmlEndTag("item");
391  $a_xml_writer->xmlEndTag("questestinterop");
392
393  $xml = $a_xml_writer->xmlDumpMem(FALSE);
394  if (!$a_include_header)
395  {
396  $pos = strpos($xml, "?>");
397  $xml = substr($xml, $pos + 2);
398  }
399  return $xml;
400  }
MATCHING_QUESTION_IDENTIFIER
const MATCHING_QUESTION_IDENTIFIER
Definition: inc.AssessmentConstants.php:29
ilXmlWriter
XML writer class.
Definition: class.ilXmlWriter.php:17
assQuestionExport\addGeneralMetadata
addGeneralMetadata(ilXmlWriter $xmlwriter)
Definition: class.assQuestionExport.php:210
ilXmlWriter\xmlHeader
xmlHeader()
Writes xml header public.
Definition: class.ilXmlWriter.php:297
assQuestionExport\addAdditionalContentEditingModeInformation
addAdditionalContentEditingModeInformation(ilXmlWriter $a_xml_writer)
adds a qti meta data field for ilias specific information of "additional content editing mode" (xml w...
Definition: class.assQuestionExport.php:200
+ Here is the call graph for this function:
The documentation for this class was generated from the following file:
