ILIAS  release_5-2 Revision v5.2.25-18-g3f80b828510
Public Member Functions | Data Fields
_DiffEngine Class Reference
+ Collaboration diagram for _DiffEngine:

Public Member Functions

 diff ($from_lines, $to_lines)

 _line_hash ( $line)
 Returns the whole line if it's small enough, or the MD5 hash otherwise. More...

 _diag ($xoff, $xlim, $yoff, $ylim, $nchunks)

 _lcs_pos ($ypos)

 _compareseq ($xoff, $xlim, $yoff, $ylim)

 _shift_boundaries ($lines, &$changed, $other_changed)


Data Fields

const MAX_XREF_LENGTH = 10000


Detailed Description

Definition at line 767 of file class.WordLevelDiff.php.

Member Function Documentation

◆ _compareseq()

_DiffEngine::_compareseq (   $xoff,
  $xlim,
  $yoff,
  $ylim
)

Definition at line 1011 of file class.WordLevelDiff.php.

1025  {
1026  $fname = '_DiffEngine::_compareseq';
1027  //wfProfileIn( $fname );
1028
1029  // Slide down the bottom initial diagonal.
1030  while ($xoff < $xlim && $yoff < $ylim
1031  && $this->xv[$xoff] == $this->yv[$yoff]) {
1032  ++$xoff;
1033  ++$yoff;
1034  }
1035
1036  // Slide up the top initial diagonal.
1037  while ($xlim > $xoff && $ylim > $yoff
1038  && $this->xv[$xlim - 1] == $this->yv[$ylim - 1]) {
1039  --$xlim;
1040  --$ylim;
1041  }
1042
1043  if ($xoff == $xlim || $yoff == $ylim)
1044  $lcs = 0;
1045  else {
1046  // This is ad hoc but seems to work well.
1047  //$nchunks = sqrt(min($xlim - $xoff, $ylim - $yoff) / 2.5);
1048  //$nchunks = max(2,min(8,(int)$nchunks));
1049  $nchunks = min(7, $xlim - $xoff, $ylim - $yoff) + 1;
1050  list ($lcs, $seps)
1051  = $this->_diag($xoff,$xlim,$yoff, $ylim,$nchunks);
1052  }
1053
1054  if ($lcs == 0) {
1055  // X and Y sequences have no common subsequence:
1056  // mark all changed.
1057  while ($yoff < $ylim)
_DiffEngine\_diag
_diag($xoff, $xlim, $yoff, $ylim, $nchunks)
Definition: class.WordLevelDiff.php:892

◆ _diag()

_DiffEngine::_diag (   $xoff,
  $xlim,
  $yoff,
  $ylim,
  $nchunks
)

Definition at line 892 of file class.WordLevelDiff.php.

References $x, $y, array, and USE_ASSERTS.

906  {
907  $fname = '_DiffEngine::_diag';
908  //wfProfileIn( $fname );
909  $flip = false;
910
911  if ($xlim - $xoff > $ylim - $yoff) {
912  // Things seems faster (I'm not sure I understand why)
913  // when the shortest sequence in X.
914  $flip = true;
915  list ($xoff, $xlim, $yoff, $ylim)
916  = array( $yoff, $ylim, $xoff, $xlim);
917  }
918
919  if ($flip)
920  for ($i = $ylim - 1; $i >= $yoff; $i--)
921  $ymatches[$this->xv[$i]][] = $i;
922  else
923  for ($i = $ylim - 1; $i >= $yoff; $i--)
924  $ymatches[$this->yv[$i]][] = $i;
925
926  $this->lcs = 0;
927  $this->seq[0]= $yoff - 1;
928  $this->in_seq = array();
929  $ymids[0] = array();
930
931  $numer = $xlim - $xoff + $nchunks - 1;
932  $x = $xoff;
933  for ($chunk = 0; $chunk < $nchunks; $chunk++) {
934  //wfProfileIn( "$fname-chunk" );
935  if ($chunk > 0)
936  for ($i = 0; $i <= $this->lcs; $i++)
937  $ymids[$i][$chunk-1] = $this->seq[$i];
938
939  $x1 = $xoff + (int)(($numer + ($xlim-$xoff)*$chunk) / $nchunks);
940  for ( ; $x < $x1; $x++) {
941  $line = $flip ? $this->yv[$x] : $this->xv[$x];
942  if (empty($ymatches[$line]))
943  continue;
944  $matches = $ymatches[$line];
945  reset($matches);
946  while (list ($junk, $y) = each($matches))
947  if (empty($this->in_seq[$y])) {
948  $k = $this->_lcs_pos($y);
949  USE_ASSERTS && assert($k > 0);
950  $ymids[$k] = $ymids[$k-1];
951  break;
952  }
953  while (list ( /* $junk */, $y) = each($matches)) {
954  if ($y > $this->seq[$k-1]) {
955  USE_ASSERTS && assert($y < $this->seq[$k]);
956  // Optimization: this is a common case:
957  // next match is just replacing previous match.
958  $this->in_seq[$this->seq[$k]] = false;
959  $this->seq[$k] = $y;
960  $this->in_seq[$y] = 1;
961  } else if (empty($this->in_seq[$y])) {
962  $k = $this->_lcs_pos($y);
963  USE_ASSERTS && assert($k > 0);
964  $ymids[$k] = $ymids[$k-1];
965  }
966  }
967  }
968  //wfProfileOut( "$fname-chunk" );
$x
$x
Definition: example_009.php:98
USE_ASSERTS
const USE_ASSERTS
Definition: class.WordLevelDiff.php:644
_DiffEngine\_lcs_pos
_lcs_pos($ypos)
Definition: class.WordLevelDiff.php:970
$y
$y
Definition: example_007.php:83
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

◆ _lcs_pos()

_DiffEngine::_lcs_pos (   $ypos)

Definition at line 970 of file class.WordLevelDiff.php.

References $n, array, and USE_ASSERTS.

971  : array($xoff, $yoff);
972  $ymid = $ymids[$this->lcs];
973  for ($n = 0; $n < $nchunks - 1; $n++) {
974  $x1 = $xoff + (int)(($numer + ($xlim - $xoff) * $n) / $nchunks);
975  $y1 = $ymid[$n] + 1;
976  $seps[] = $flip ? array($y1, $x1) : array($x1, $y1);
977  }
978  $seps[] = $flip ? array($ylim, $xlim) : array($xlim, $ylim);
979
980  //wfProfileOut( $fname );
981  return array($this->lcs, $seps);
982  }
983
984  function _lcs_pos ($ypos) {
985  $fname = '_DiffEngine::_lcs_pos';
986  //wfProfileIn( $fname );
987
988  $end = $this->lcs;
989  if ($end == 0 || $ypos > $this->seq[$end]) {
990  $this->seq[++$this->lcs] = $ypos;
991  $this->in_seq[$ypos] = 1;
992  //wfProfileOut( $fname );
993  return $this->lcs;
994  }
995
996  $beg = 1;
997  while ($beg < $end) {
998  $mid = (int)(($beg + $end) / 2);
_DiffEngine\_lcs_pos
_lcs_pos($ypos)
Definition: class.WordLevelDiff.php:970
$n
$n
Definition: RandomTest.php:80
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

◆ _line_hash()

_DiffEngine::_line_hash (   $line)

Returns the whole line if it's small enough, or the MD5 hash otherwise.

Definition at line 867 of file class.WordLevelDiff.php.

881  {

◆ _shift_boundaries()

_DiffEngine::_shift_boundaries (   $lines,
&  $changed,
  $other_changed
)

Definition at line 1071 of file class.WordLevelDiff.php.

References $changed, $start, and USE_ASSERTS.

1085  {
1086  $fname = '_DiffEngine::_shift_boundaries';
1087  //wfProfileIn( $fname );
1088  $i = 0;
1089  $j = 0;
1090
1091  USE_ASSERTS && assert('sizeof($lines) == sizeof($changed)');
1092  $len = sizeof($lines);
1093  $other_len = sizeof($other_changed);
1094
1095  while (1) {
1096  /*
1097  * Scan forwards to find beginning of another run of changes.
1098  * Also keep track of the corresponding point in the other file.
1099  *
1100  * Throughout this code, $i and $j are adjusted together so that
1101  * the first $i elements of $changed and the first $j elements
1102  * of $other_changed both contain the same number of zeros
1103  * (unchanged lines).
1104  * Furthermore, $j is always kept so that $j == $other_len or
1105  * $other_changed[$j] == false.
1106  */
1107  while ($j < $other_len && $other_changed[$j])
1108  $j++;
1109
1110  while ($i < $len && ! $changed[$i]) {
1111  USE_ASSERTS && assert('$j < $other_len && ! $other_changed[$j]');
1112  $i++; $j++;
1113  while ($j < $other_len && $other_changed[$j])
1114  $j++;
1115  }
1116
1117  if ($i == $len)
1118  break;
1119
1120  $start = $i;
1121
1122  // Find the end of this run of changes.
1123  while (++$i < $len && $changed[$i])
1124  continue;
1125
1126  do {
1127  /*
1128  * Record the length of this run of changes, so that
1129  * we can later determine whether the run has grown.
1130  */
1131  $runlength = $i - $start;
1132
1133  /*
1134  * Move the changed region back, so long as the
1135  * previous unchanged line matches the last changed one.
1136  * This merges with previous changed regions.
1137  */
1138  while ($start > 0 && $lines[$start - 1] == $lines[$i - 1]) {
1139  $changed[--$start] = 1;
1140  $changed[--$i] = false;
1141  while ($start > 0 && $changed[$start - 1])
1142  $start--;
1143  USE_ASSERTS && assert('$j > 0');
1144  while ($other_changed[--$j])
1145  continue;
1146  USE_ASSERTS && assert('$j >= 0 && !$other_changed[$j]');
1147  }
1148
1149  /*
1150  * Set CORRESPONDING to the end of the changed run, at the last
1151  * point where it corresponds to a changed run in the other file.
1152  * CORRESPONDING == LEN means no such point has been found.
1153  */
1154  $corresponding = $j < $other_len ? $i : $len;
1155
1156  /*
1157  * Move the changed region forward, so long as the
1158  * first changed line matches the following unchanged one.
1159  * This merges with following changed regions.
1160  * Do this second, so that if there are no merges,
1161  * the changed region is moved forward as far as possible.
1162  */
1163  while ($i < $len && $lines[$start] == $lines[$i]) {
1164  $changed[$start++] = false;
1165  $changed[$i++] = 1;
1166  while ($i < $len && $changed[$i])
1167  $i++;
1168
1169  USE_ASSERTS && assert('$j < $other_len && ! $other_changed[$j]');
1170  $j++;
1171  if ($j < $other_len && $other_changed[$j]) {
1172  $corresponding = $i;
1173  while ($j < $other_len && $other_changed[$j])
1174  $j++;
1175  }
1176  }
1177  } while ($runlength != $i - $start);
1178
1179  /*
USE_ASSERTS
const USE_ASSERTS
Definition: class.WordLevelDiff.php:644

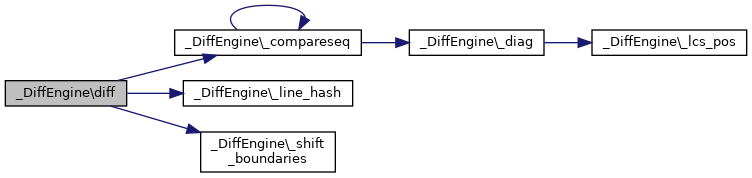

◆ diff()

_DiffEngine::diff (   $from_lines,
  $to_lines
)

Definition at line 771 of file class.WordLevelDiff.php.

782 {
783  const MAX_XREF_LENGTH = 10000;
784
785  function diff ($from_lines, $to_lines) {
786  $fname = '_DiffEngine::diff';
787  //wfProfileIn( $fname );
788
789  $n_from = sizeof($from_lines);
790  $n_to = sizeof($to_lines);
791
792  $this->xchanged = $this->ychanged = array();
793  $this->xv = $this->yv = array();
794  $this->xind = $this->yind = array();
795  unset($this->seq);
796  unset($this->in_seq);
797  unset($this->lcs);
798
799  // Skip leading common lines.
800  for ($skip = 0; $skip < $n_from && $skip < $n_to; $skip++) {
801  if ($from_lines[$skip] !== $to_lines[$skip])
802  break;
803  $this->xchanged[$skip] = $this->ychanged[$skip] = false;
804  }
805  // Skip trailing common lines.
806  $xi = $n_from; $yi = $n_to;
807  for ($endskip = 0; --$xi > $skip && --$yi > $skip; $endskip++) {
808  if ($from_lines[$xi] !== $to_lines[$yi])
809  break;
810  $this->xchanged[$xi] = $this->ychanged[$yi] = false;
811  }
812
813  // Ignore lines which do not exist in both files.
814  for ($xi = $skip; $xi < $n_from - $endskip; $xi++) {
815  $xhash[$this->_line_hash($from_lines[$xi])] = 1;
816  }
817
818  for ($yi = $skip; $yi < $n_to - $endskip; $yi++) {
819  $line = $to_lines[$yi];
820  if ( ($this->ychanged[$yi] = empty($xhash[$this->_line_hash($line)])) )
821  continue;
822  $yhash[$this->_line_hash($line)] = 1;
823  $this->yv[] = $line;
824  $this->yind[] = $yi;
825  }
826  for ($xi = $skip; $xi < $n_from - $endskip; $xi++) {
827  $line = $from_lines[$xi];
828  if ( ($this->xchanged[$xi] = empty($yhash[$this->_line_hash($line)])) )
829  continue;
830  $this->xv[] = $line;
831  $this->xind[] = $xi;
832  }
833
834  // Find the LCS.
835  $this->_compareseq(0, sizeof($this->xv), 0, sizeof($this->yv));
836
837  // Merge edits when possible
838  $this->_shift_boundaries($from_lines, $this->xchanged, $this->ychanged);
839  $this->_shift_boundaries($to_lines, $this->ychanged, $this->xchanged);
840
841  // Compute the edit operations.
842  $edits = array();
843  $xi = $yi = 0;
844  while ($xi < $n_from || $yi < $n_to) {
845  USE_ASSERTS && assert($yi < $n_to || $this->xchanged[$xi]);
846  USE_ASSERTS && assert($xi < $n_from || $this->ychanged[$yi]);
847
848  // Skip matching "snake".
849  $copy = array();
850  while ( $xi < $n_from && $yi < $n_to
851  && !$this->xchanged[$xi] && !$this->ychanged[$yi]) {
852  $copy[] = $from_lines[$xi++];
853  ++$yi;
854  }
855  if ($copy)
856  $edits[] = new _DiffOp_Copy($copy);
857
858  // Find deletes & adds.
859  $delete = array();
860  while ($xi < $n_from && $this->xchanged[$xi])
861  $delete[] = $from_lines[$xi++];
862
_DiffOp_Copy
Definition: class.WordLevelDiff.php:674
_DiffEngine\MAX_XREF_LENGTH
const MAX_XREF_LENGTH
Definition: class.WordLevelDiff.php:769
_DiffEngine\diff
diff($from_lines, $to_lines)
Definition: class.WordLevelDiff.php:771
_DiffEngine\_line_hash
_line_hash( $line)
Returns the whole line if it&#39;s small enough, or the MD5 hash otherwise.
Definition: class.WordLevelDiff.php:867
_DiffEngine\_compareseq
_compareseq($xoff, $xlim, $yoff, $ylim)
Definition: class.WordLevelDiff.php:1011
USE_ASSERTS
const USE_ASSERTS
Definition: class.WordLevelDiff.php:644
_DiffEngine\_shift_boundaries
_shift_boundaries($lines, &$changed, $other_changed)
Definition: class.WordLevelDiff.php:1071
array
Create styles array
The data for the language used.
Definition: 40duplicateStyle.php:19

Field Documentation

◆ MAX_XREF_LENGTH

const _DiffEngine::MAX_XREF_LENGTH = 10000

Definition at line 769 of file class.WordLevelDiff.php.

The documentation for this class was generated from the following file:
